Nuclear NAD+-biosynthetic enzyme NMNAT1 facilitates development and early survival of retinal neurons

  1. David Sokolov
  2. Emily R Sechrest
  3. Yekai Wang
  4. Connor Nevin
  5. Jianhai Du
  6. Saravanan Kolandaivelu  Is a corresponding author
  1. Department of Ophthalmology and Visual Sciences, Eye Institute, One Medical Center Drive, West Virginia University, United States
  2. Department of Biochemistry, One Medical Center Drive, West Virginia University, United States
Research Article
  • Cited 0
  • Views 458
  • Annotations
Cite this article as: eLife 2021;10:e71185 doi: 10.7554/eLife.71185


Despite mounting evidence that the mammalian retina is exceptionally reliant on proper NAD+ homeostasis for health and function, the specific roles of subcellular NAD+ pools in retinal development, maintenance, and disease remain obscure. Here, we show that deletion of the nuclear-localized NAD+ synthase nicotinamide mononucleotide adenylyltransferase-1 (NMNAT1) in the developing murine retina causes early and severe degeneration of photoreceptors and select inner retinal neurons via multiple distinct cell death pathways. This severe phenotype is associated with disruptions to retinal central carbon metabolism, purine nucleotide synthesis, and amino acid pathways. Furthermore, transcriptomic and immunostaining approaches reveal dysregulation of a collection of photoreceptor and synapse-specific genes in NMNAT1 knockout retinas prior to detectable morphological or metabolic alterations. Collectively, our study reveals previously unrecognized complexity in NMNAT1-associated retinal degeneration and suggests a yet-undescribed role for NMNAT1 in gene regulation during photoreceptor terminal differentiation.

Editor's evaluation

Mutations in the gene encoding the NMNAT1 enzyme cause Leber congenital amaurosis type 9 (LCA9), a blinding disease. Using conditional inactivation of the mouse gene in the retina, this study extends previous observations on the requirement of this enzyme for photoreceptors homeostasis. The study not only shows NMNAT1 is involved in photoreceptor terminal differentiation but also provides evidence that the survival of other cell types depends on this enzyme. It also shows that NMNAT1 deficiency leads to the activation of different cell death pathways and causes metabolic defects in retinal cells. The study thus provides a better picture of the retinal defects that may underlie LCA9 in humans.



Nicotinamide adenine dinucleotide (NAD+) is a ubiquitous cellular metabolite with a diverse palette of biological functions across all kingdoms of life. In addition to serving a central role in redox metabolism as an electron shuttle, NAD+ has well-defined roles as a substrate for a host of enzymes including sirtuins (SIRTs), mono- and poly-ADP-ribose polymerases (PARPs), and NAD+ glycohydrolases (CD38, CD157, and SARM1). Collectively, these roles implicate NAD+ metabolism in phenomena as diverse as aging, cell proliferation, immunity, neurodegeneration, differentiation, and development (Houtkooper et al., 2010; Cantó et al., 2015; Nikiforov et al., 2015; Cambronne and Kraus, 2020; Navas and Carnero, 2021). A relatively recent advance in the field is the notion of compartmentalized NAD+ metabolism—that regulation of NAD+ in distinct subcellular compartments dictates function in diverse manners (Cantó et al., 2015; Nikiforov et al., 2015; Cambronne and Kraus, 2020; Navas and Carnero, 2021). While many aspects of this compartmentalization remain to be explored, it is now known that spatiotemporal NAD+ regulation plays prominent roles in processes including axon degeneration, circadian regulation, and adipogenesis (Cambronne and Kraus, 2020).

Among mammalian tissues, the retina appears particularly reliant on proper NAD+ homeostasis for survival and function. This is suggested by associations between retinal NAD+ deficiency and pathology in diverse models of retinal dysfunction (Lin et al., 2016; Williams et al., 2017) as well as multiple mutations to NAD+- or NADP+-utilizing enzymes which cause blindness in humans (Bowne et al., 2006; Aleman et al., 2018; Bennett et al., 2020). Among these enzymes is nicotinamide mononucleotide adenylyltransferase-1 (NMNAT1), a highly conserved, nuclear-localized protein which catalyzes the adenylation of nicotinamide mononucleotide (NMN) or nicotinic acid mononucleotide (NaMN) to form NAD+, the convergent step of all mammalian NAD+ biosynthetic pathways (Nikiforov et al., 2015). To date, over 30 NMNAT1 mutations have been linked to the severe blinding diseases Leber congenital amaurosis type 9 (LCA9) and related cone-rod dystrophy (Perrault et al., 2012; Falk et al., 2012; Chiang et al., 2012; Koenekoop et al., 2012; Coppieters et al., 2015; Nash et al., 2018). Although NMNAT1 is ubiquitously expressed, and many of these mutations reduce NMNAT1 catalytic activity or stress-associated stability (Falk et al., 2012; Koenekoop et al., 2012; Sasaki et al., 2015), patients with these disorders rarely report extra-ocular phenotypes, a puzzling observation which is recapitulated by two LCA-NMNAT1 mutant mouse models (Greenwald et al., 2016). Further puzzling is the existence of two other NMNAT paralogs (Golgi-associated NMNAT2 and mitochondrial NMNAT3), which are detectable in the retina (Kuribayashi et al., 2018) but have not been linked to blindness. Importantly, while a crucial role for retinal NAD+ was recently described through characterization of mice conditionally lacking the NAD+ pathway enzyme NAMPT in photoreceptors (Lin et al., 2016), the significance of nuclear-synthesized NAD+ in vision—suggested by the fact that NMNAT1 is the only NAD+-pathway enzyme to date linked to blindness—remains poorly understood.

Current results point to multiple, potentially distinct roles for NMNAT1 in the retina—ex vivo studies suggest that NMNAT1 supports sirtuin function to facilitate the survival of retinal progenitor cells (Kuribayashi et al., 2018), while ablation of NMNAT1 in mature mice results in rapid death of photoreceptors mediated by the neurodegenerative NADase SARM1 (Sasaki et al., 2020b). Global deletion of NMNAT1 in mice is embryonically lethal (Conforti et al., 2011), suggesting non-redundant roles for nuclear NAD+ synthesis during development. Consistent with this notion, pan-retinal NMNAT1 deletion is shown to cause rapid and severe retinal degeneration in mice shortly after birth (Wang et al., 2017; Eblimit et al., 2018). While these studies suggest diverse functions of retinal NMNAT1 beyond its canonical role in redox metabolism, the degree to which these functions overlap—as well as the mechanistic basis for the severity of NMNAT1-associated retinal dystrophy in animal models and patients—have not been comprehensively explored.

In this study, we investigate the roles of NMNAT1-mediated NAD+ metabolism in the retina by generating and characterizing a retina-specific NMNAT1 knockout mouse model. Utilizing histological and transcriptomic approaches, we demonstrate that NMNAT1 deletion causes severe and progressive retinal degeneration affecting specific retinal cell types beyond photoreceptors, and that this severe degeneration likely results from activation of multiple distinct cell death pathways. Comprehensive metabolomics analysis reveals specific metabolic defects in NMNAT1 knockout retinas and suggests impaired central carbon, purine nucleotide, and amino acid metabolism as a cause for severe degeneration. Strikingly, RNA-sequencing reveals a collection of photoreceptor and synapse-specific genes which are downregulated in knockout retinas preceding degeneration. Immunostaining of several of these genes suggests severe impairment of photoreceptor terminal differentiation in the absence of NMNAT1. Overall, our results reveal a previously unappreciated complexity in NMNAT1-associated retinal degeneration, provide possible explanations for the retina-specific manifestations of NMNAT1 deficiency, and propose a yet-undescribed role for NMNAT1 in gene regulation during late-stage retinal development.


Generation and validation of NMNAT1 conditional knockout mouse model

To establish a retina-specific NMNAT1 knockout model, we crossed mice homozygous for a loxP-targeted Nmnat1 locus (Nmnat1flox/flox) with transgenic mice expressing Cre recombinase under a Six3 promoter (Nmnat1wt/wt;Six3-Cre), which is expressed throughout the retina at embryonic day 9.5 (E9.5) and shows robust activity by E12.5 (Furuta et al., 2000). After several crosses, mice inheriting Six3-Cre and a floxed Nmnat1 locus (Nmnat1flox/flox;Six3-Cre, hereafter referred to as ‘knockouts’) exhibit Cre-mediated excision of the first two exons of Nmnat1—which contain important substrate binding domains—in the embryonic retina (Figure 1A). We determined that retinal Nmnat1 expression in postnatal day 4 (P4) knockout mice was reduced by 75.6% (95% CI 56.1–95.0%) compared to littermate controls (Figure 1B), a reduction consistent with a previously reported NMNAT1 retinal knockout model (Sasaki et al., 2020b). We further verified that retinal NMNAT1 protein levels were drastically reduced in P0 knockout mice using a custom-made polyclonal antibody against NMNAT1 (Figure 1C and Figure 1—figure supplement 1). Finally, we confirmed that embryonic Six3-Cre expression alone does not cause gross retinal abnormalities by staining for several well-characterized cell type markers in mature Nmnat1wt/wt; Six3-Cre retinas and littermate controls (Figure 2—figure supplement 1; markers discussed below).

Figure 1 with 1 supplement see all

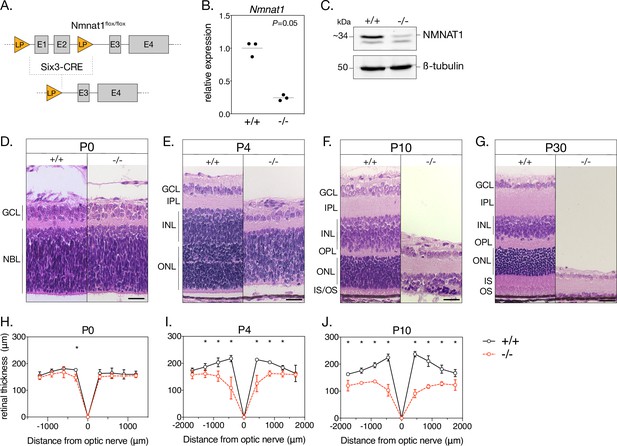

Loss of NMNAT1 leads to early and severe retinal degeneration.

(A) Schematic depicting retina-specific Six3-Cre mediated excision of a segment of the Nmnat1 gene. (B) Relative Nmnat1 expression in retina from P4 knockout (-/-) and littermate control (+/+) mice as assessed by RT-qPCR (grey bars represent mean, significance determined using Mann-Whitney U test, n = 3 biological replicates). (C) Representative western blot showing levels of NMNAT1 and β-tubulin loading control in retinal lysate from P0 knockout and control mice. (D–G) Representative H&E-stained retinal cross sections from knockout and control mice at indicated ages. (H–J) Spider plots depicting mean retinal thickness at P0, P4, and P10. Data are represented as mean ± SD. *p < 0.05 using Student’s t-test, n = 3 biological replicates per age. Scale bars, 30 μm. Abbreviations: LP, loxP site; E1-4, exon 1–4; P, postnatal day; GCL, ganglion cell layer; NBL, neuroblastic layer; IPL, inner plexiform layer; OPL, outer plexiform layer; INL, inner nuclear layer; ONL, outer nuclear layer; IS/OS, photoreceptor inner segment/outer segment layer.

Figure 1—source data 1

Quantification of Nmnat1 mRNA levels in P0 WT and KO retinas.

Numerical source data for retinal thickness quantification in P0, P4, and P10 WT and KO retinas.


Early-onset and severe morphological defects in the NMNAT1-null retina

As a first step toward characterizing the effects of NMNAT1 ablation on the retina, we performed retinal histology using hematoxylin and eosin (H&E) staining. H&E-stained retinal cross sections from P0 knockout and control mice reveal no obvious morphological differences (Figure 1D and H); however, by P4, knockout retina are markedly thinner than controls and exhibit disrupted lamination and evidence of large-scale cell death in the inner and outer nuclear layers (Figure 1E). Degeneration is most severe in the central retina, with a ~45% reduction in central retinal thickness (but unaffected peripheral retinal thickness) in P4 knockout mice (Figure 1I). By P10, knockouts show a ~62% reduction in central retinal thickness and ~27% reduction in peripheral retinal thickness compared to controls (Figure 1J). Degeneration of the entire inner and outer nuclear layers is nearly complete by P30 (Figure 1G), while remaining inner retinal structures persist until approximately P60 (data not shown). Proper segregation of inner and outer retinal neurons appears disrupted in P4 knockouts, but this segregation is established in P10 knockouts despite severe degeneration (Figure 1F). Interestingly, formation of the outer plexiform layer (containing photoreceptor and bipolar neuron synaptic structures) appears disrupted in P4 and P10 knockout retinas (Figure 1E and F).

NMNAT1 loss affects survival of major inner retinal neurons

Histological examination suggests severe photoreceptor degeneration in NMNAT1 knockout retinas but also indicates loss of specific inner retinal neuron populations. To further characterize these effects, we quantified populations of several major inner retinal cell types in our knockout by staining retinal sections with well-characterized antibody markers: retinal ganglion cells were identified by labelling for brain-specific homeobox/POU domain protein 3A (BRN3A), amacrine cells by labeling for calretinin (CALR), horizontal cells by labeling for calbindin (CALB), and bipolar cells by labeling for Ceh-10 homeodomain-containing homolog (CHX10) (Key Resources Table). With the exception of calbindin, we performed this analysis at P4 and P10—representing early and late stages of degeneration, respectively—revealing an interesting cell-type-dependent sensitivity to NMNAT1 loss (Figure 2). At both tested ages, relative numbers of retinal ganglion cells are not significantly different between knockout and control retinas (Figure 2A–D and M), while numbers of amacrine cells are unchanged at P4 but reduced by ~51% (95% CI 36–65%) in P10 knockout retinas (Figure 2E–H and O). Numbers of bipolar cells are similarly unchanged at P4 but reduced by ~75% (95% CI 62–85%) in P10 knockout retinas (Figure 2I–L and P). In P0 knockout retinas—an age at which ganglion, amacrine, and bipolar cell numbers are unchanged (data not shown)—horizontal cell counts are reduced by ~36% (95% CI 18–53%) (Figure 2N), and this trend persists in P4 knockout retinas (Figure 2A–B and N). These results identify retinal bipolar, horizontal, and amacrine neurons as targets of NMNAT1-associated pathology and suggest that horizontal and bipolar neurons are more sensitive to NMNAT1 loss than amacrine neurons. Interestingly, while retinal ganglion cells do eventually degenerate at timepoints past P30 (data not shown), they appear largely agnostic to NMNAT1 loss in the young postnatal retina.

Figure 2 with 1 supplement see all

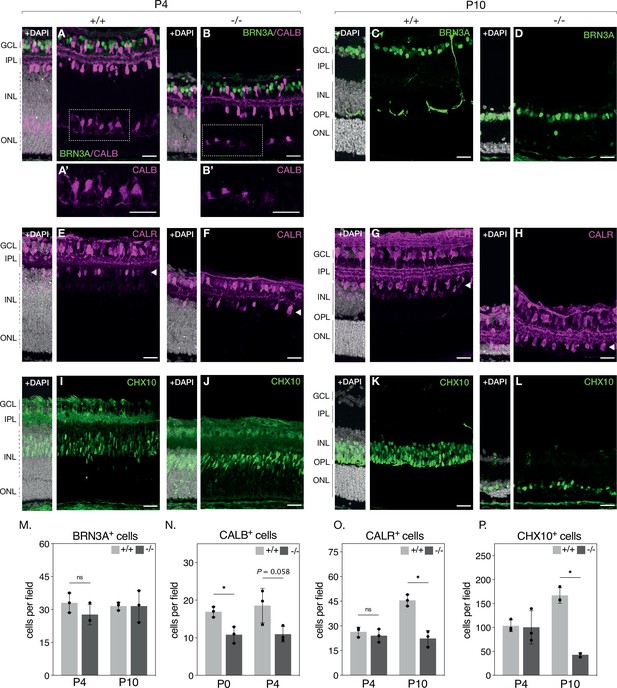

NMNAT1 loss affects retinal bipolar, horizontal and amacrine cells.

Representative retinal sections from knockout (-/-) and floxed littermate control (+/+) mice at the indicated ages labeled with antibodies against BRN3A (A-D, green), Calbindin (CALB) (A–B, magenta) Calretinin (CALR) (E–H), and CHX10 (I–L). Quantification of BRN3A (M), CALB, (N), CALR (O), and CHX10-positive cells (P) are shown. In (O), only CALR-positive cells on the outer side of the IPL (layer indicated by white arrowheads) were counted. Data is represented as mean ± SD. n = 3 biological replicates for all panels; significance determined using Student’s t-test. Scale bars, 30 μm.

Figure 2—source data 1

Numerical source data for retinal cell type quantification in P4 and P10 KO and WT retinas.


Loss of NMNAT1 impairs photoreceptor terminal differentiation

Turning our attention to photoreceptors, we repeated the above approach with antibodies against the photoreceptor markers recoverin (anti-RCVRN) and rhodopsin (anti-RHO). While anti-RCVRN cleanly labels developing photoreceptor somas in P4 and P10 control retinas (Figure 3H, Figure 3—figure supplement 1F), we observe a complete lack of recoverin expression in knockout retinas at both ages (Figure 3I, Figure 3—figure supplement 1G). Barring a small amount of non-specific staining likely originating from the secondary antibody (Figure 3—figure supplement 1D,E), rhodopsin expression at P4 and P10 showed an identical trend to that of recoverin (Figure 3J and K, Figure 3—figure supplement 1H,I).

Figure 3 with 5 supplements see all

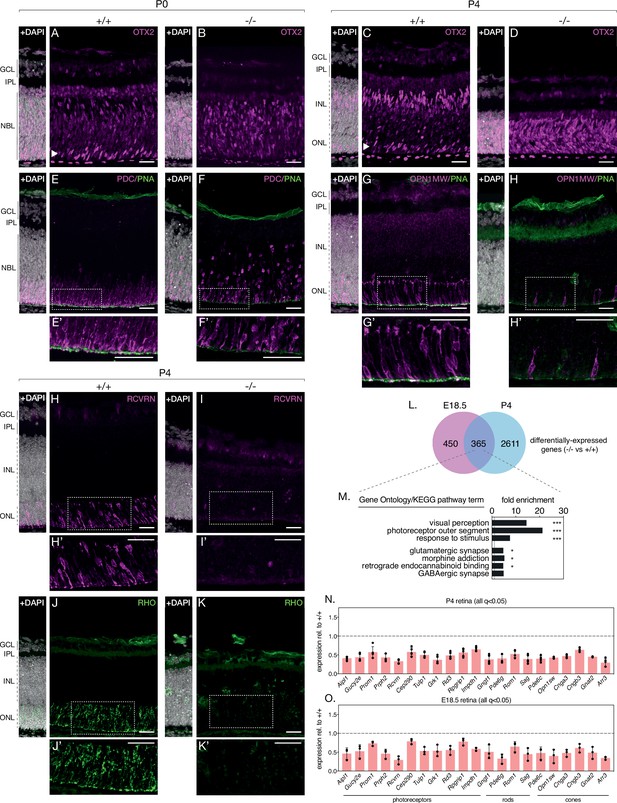

NMNAT1 loss impairs photoreceptor terminal differentiation.

Representative retinal sections from knockout (-/-) and floxed littermate control (+/+) mice at the indicated ages labelled with antibodies against OTX2 (A–D), Phosducin (PDC) and peanut agglutinin (PNA) (E, F), M-opsin (OPN1MW) and PNA (G, H), recoverin (RCVRN) (H,I) or rhodopsin (RHO) (J, K). (L) Comparison of differentially expressed genes in E18.5 and P4 knockout retinas as assessed by RNA-sequencing. (M) GSEA of differentially expressed genes identified in E18.5 and P4 knockout retinas. (N, O) Relative expression of indicated genes in P4 and E18.5 knockout retinas as assessed by RNA-sequencing. n = 3 biological replicates for all panels, except (N), where n = 5 biological replicates. Corresponding zoom panels are indicated with dotted rectangles. Scale bars, 30 μm.

Figure 3—source data 1

Gene ontology (GO) overrepresentation analysis of genes differentially expressed in KO retinas at E18.5 and P4 timepoints.

Numerical source data for expression (relative to WT levels) of select photoreceptor-specific genes in E18.5 and P4 KO retinas.


Intrigued by the magnitude of recoverin and rhodopsin loss and hypothesizing defects in the expression of other retinal proteins in our knockout, we comprehensively profiled the transcriptomes of knockout and control retinas at two timepoints— pre-degeneration (E18.5) and during degeneration (P4) and using RNA-sequencing. At P4, this analysis reveals 2976 differentially expressed genes in NMNAT1 knockout retinas (Figure 3—figure supplement 2B), several of which we validated using RT-qPCR (Figure 3—figure supplement 1J). Consistent with the lack of recoverin and rhodopsin staining at this age, gene set enrichment analysis (GSEA) of P4 differentially expressed genes (DEGs) reveals several large, highly-overrepresented clusters of downregulated photoreceptor-related genes including both recoverin and rhodopsin (Figure 3—figure supplement 2C). Strikingly, among 815 DEGs in E18.5 knockout retinas, a similar cluster of downregulated genes associated with visual perception and the photoreceptor outer segment was observed (Figure 3—figure supplement 3B,C). Combining both RNA-sequencing datasets reveals a group of 365 DEGs in knockout retinas common to both timepoints (Figure 3L). Importantly, GSEA on this gene set reveals highly overrepresented clusters of photoreceptor and synapse associated genes (Figure 3M), and further analysis identifies a core set of 21 photoreceptor-associated genes which are significantly downregulated in E18.5 and P4 NMNAT1 knockout retinas (Figure 3N and O). Notably, this set includes rod-specific (e.g. Gngt1), cone-specific (e.g. Opn1sw, Cnga3) and photoreceptor-specific (e.g. Prph2, Rcvrn, Aipl1) genes of diverse function, many of which have important roles in photoreceptor development and function. Consistent with a specific transcriptional effect on photoreceptors, we confirmed that expression of several well-known ganglion cell, amacrine/horizontal cell, and bipolar cell-specific genes was largely unchanged in NMNAT1 knockout retinas at either tested age (Figure 3—figure supplement 4).

To further confirm the relevance of our RNA-sequencing results, we immunostained knockout and control retinas with several markers of developing cone photoreceptors: anti-phosducin (PDC) (Rodgers et al., 2016), anti-M-opsin (OPN1MW), and peanut agglutinin (PNA), which labels developing cone outer segments (Blanks and Johnson, 1984). While these markers showed normal cone accumulation and rudimentary outer segment formation in the OPL of P0 and P4 control retinas (Figure 3E and G), P0 knockout retinas showed markedly reduced and widely dispersed phosducin-positive cones (Figure 3F), and P4 knockouts demonstrated a near complete absence of M-opsin expression, mirroring recoverin and rhodopsin at this age (Figure 3H). Accordingly, knockouts at both ages show significant attenuation of cone outer segment formation as determined by PNA staining (Figure 3F and H).

Due to the extent of photoreceptor-specific transcript and protein alterations in knockout retinas, we hypothesized that NMNAT1 is essential for photoreceptor terminal differentiation—the process by which partially committed retinal progenitors initiate photoreceptor-specific transcriptional and morphological programs (Swaroop et al., 2010; Brzezinski and Reh, 2015; Daum et al., 2017). To test this possibility, we probed knockout and control retinas with an antibody against OTX2, a well-characterized transcription factor necessary for photoreceptor terminal differentiation (Beby and Lamonerie, 2013). In P0 and P4 control retinas, OTX2 is enriched in developing photoreceptors in the ONL (Figure 3A and C, arrowheads) and in developing bipolar neurons in the INL (Figure 3C). Consistent with our hypothesis, OTX-positive photoreceptors are absent in P0 knockout retinas (Figure 3B), and P4 knockout retinas display a striking expression of OTX2 throughout the ONL/INL (Figure 3D). Finally, to determine whether impaired retinal progenitor proliferation may explain reduced photoreceptor numbers in knockouts, we assessed proliferation at P0 using the well-characterized marker phospho-histone H3 (PHH3), which labels M-phase cells (Prigent and Dimitrov, 2003). This analysis revealed a slight but not significant decrease in PHH3-positive cells in P0 knockout retinas (Figure 3—figure supplement 1A–C) Altogether, these results argue that NMNAT1 is crucial for terminal differentiation—but not early proliferation—of retinal photoreceptors and suggest photoreceptor-specific transcriptional dysregulation as a driver of the severe photoreceptor phenotype in NMNAT1-deficient retinas.

Beyond affecting photoreceptor-specific gene expression, we also note downregulation of 6 synapse-associated genes (Stx3, Syngr1, Cln3, Scamp5, and Sv2b) in both E18.5 and P4 knockout retinas (Figure 3—figure supplement 5C,D), consistent with disruptions to outer plexiform layer formation in P4 knockout retinas on histology and on staining with the synapse marker synaptophysin (anti-SYPH) (Figure 3—figure supplement 5).

Loss of NMNAT1 during retinal development triggers multiple cell death pathways

As NMNAT1 deficiency drastically impairs the postnatal survival of photoreceptor, bipolar, horizontal, and amacrine retinal neurons, we sought to determine the mechanisms by which these cells degenerate. To this aim, we began by staining retinal sections with an antibody against activated caspase-3 (AC3). While P0 knockout retinas show little AC3 staining compared to controls—consistent with grossly normal retinal morphology at this age—P4 knockout retinas show robust AC3 immunoreactivity in the inner and outer nuclear layers (Figure 4A–D). As expected, most AC3-immunoreactive (AC3+) cells display nuclear chromatin condensation (‘pyknosis’) characteristic of dying cells; however, staining also revealed a population of pyknotic nuclei not immunoreactive to AC3 (AC3-) (Figure 4A’–D’, arrows). Interestingly, these pyknotic, AC3- nuclei were sparsely present in P0 and P4 control retinas (Figure 4A and C) and to a larger extent in P0 and P4 knockout retinas (Figure 4B and D). Quantification (Figure 4E) reveals a general trend of cell death consistent with our histology and cell-marker investigations: nuclear pyknosis is slightly elevated in P0 knockout retinas compared to controls, peaks at P4 where we observe robust retinal degeneration, and is virtually absent by P10, by which time the majority of outer and inner nuclei in the knockout are lost (Figure 1F). Interestingly, we observe roughly equal amounts of AC3+ and AC3- pyknotic cells in P0 knockout retinas, whereas by P4 AC3- pyknotic cells constitute ~30% of pyknotic cells in knockout retinas (Figure 4E). In addition to being present at all tested ages and following the same general trend as AC3+ pyknotic cells, AC3- pyknotic cells often appear in distinct clusters (Figure 4D'), distinguishable from the more evenly dispersed AC3+ pyknotic cells. These results suggest the activation of at least two distinct cell death pathways in NMNAT1 knockout retinas between P0 and P4.

Figure 4 with 2 supplements see all

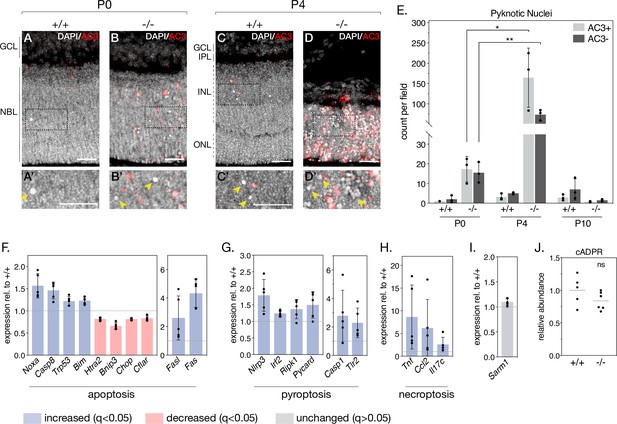

NMNAT1 loss causes activation of multiple cell death pathways in the retina.

(A–D) Representative retinal sections from knockout (-/-) and floxed littermate control (+/+) mice at the indicated ages labelled with an antibody against active Caspase-3 (AC3). Corresponding zoom panels are indicated with dotted rectangles. Arrows denote pyknotic, AC3-negative nuclei. (E) Quantification of pyknotic nuclei in sections from knockout and control mice at the indicated ages, grouped by presence (AC3+) or absence (AC3-) of active Caspase-3 labeling. Relative expression of several apoptotic (F), pyroptotic (G), and necroptotic (H) genes in P4 knockout retinas as assessed by RNA-sequencing. (I) Relative expression of Sarm1 in P4 knockout and control retinas as assessed by RNA-sequencing. (J) Relative abundance of cyclic-ADP-ribose (cADPR) in P4 knockout and control retinas as measured by mass spectrometry (grey bars represent means). Data are represented as mean ± SD. Significance determined using unpaired t-tests for (E) and (J) or DESeq2 for (F–I) (see Materials and methods). n = 3 biological replicates per condition for (A–E), n = 5 biological replicates for (F–I), n = 6 biological replicates (one outlier removed) for (J). Scale bars, 30 μm.

Figure 4—source data 1

Numerical source data for quantification of Caspase-3-positive (AC3+) and Caspase-3-negative (AC3-) pyknotic cells in WT and KO retinal sections.

Numerical source data for expression (relative to WT) of cell death-related genes in P4 KO retinas. Numerical source data for relative abundance of cyclic ADP-ribose (cADPR) in P4 WT and KO retinas.


To more comprehensively characterize NMNAT1-associated cell death and identify possible caspase 3-independent cell death pathways in our knockout, we leveraged the E18.5 and P4 RNA-sequencing datasets mentioned above. This allowed us to systematically assay the expression of a collection of genes associated with several major cell death pathways (Figure 4—figure supplement 2). Consistent with AC3 staining, we observe deregulation of a collection of apoptosis-related genes in P4 knockout retina, including significant increases in Noxa and Fas, two pro-apoptotic genes previously associated with cell death in NMNAT1-deficient retinas (Kuribayashi et al., 2018; Figure 4F). Notably, two of these genes—Noxa and Chop—are also significantly deregulated at E18.5, prior to significant retinal degeneration (Figure 4—figure supplement 1A).

In addition to transcriptional signatures of apoptosis, we identified upregulation of a collection of genes associated with pyroptosis in P4 NMNAT1 knockout retinas (Figure 4G). Pyroptosis is characterized by assembly of a multi-protein complex called the ‘inflammasome,’ which ultimately cleaves and activates the pore-forming members of the gasdermin family of proteins to elicit lytic cell death in response to a variety of perturbations (Swanson et al., 2019; McKenzie et al., 2020). Interestingly, we find upregulation of all three classical inflammasome components—Nlrp3, Casp1, and Pycard (ASC)—in P4 knockout retinas (Figure 4G), with Nlrp3 upregulation at E18.5 as well (Figure 4—figure supplement 1B). In addition, we observe significant increases in Irf2, a transcriptional activator of gasdermin D (Kayagaki et al., 2019), as well as pyroptosis-associated proteins Ripk1 and Tlr2 at P4 (Figure 4G). Notably, expression of Tlr2 and related protein Tlr4 is also significantly elevated in E18.5 knockout retinas (Figure 4—figure supplement 1B). Finally, we also observed dysregulation of several genes associated with necroptosis (Figure 4H) and ferroptosis (Figure 4—figure supplement 2D) in P4 knockout retinas; while none of these genes were significantly upregulated at E18.5, we do observe an early induction of necroptosis-associated protein Nox2 at this age (Figure 4—figure supplement 1C).

Recently, photoreceptor cell death in a postnatally induced global NMNAT1 knockout mouse was shown to depend heavily on the activity of the pro-degenerative axonal protein SARM1 (Sasaki et al., 2020b). Reasoning SARM1 as the culprit behind the caspase 3-independent cell death in our model, we checked Sarm1 expression in our RNA-seq data and assayed SARM1 activity by measuring levels of its catalytic product cyclic ADP-ribose (cADPR) using targeted mass spectrometry in P4 and E18.5 NMNAT1 knockout and control retinas. Surprisingly, we found no significant changes in SARM1 expression (Figure 4I, Figure 4—figure supplement 1D) or activity (Figure 4J, Figure 4—figure supplement 1E) at either tested age. Overall, these data reveal that activation of multiple cell death pathways underlies the early and severe degeneration observed in NMNAT1 knockout retinas, and suggest pyroptosis, necroptosis and apoptosis as potential drivers of this degeneration.

Global metabolic alterations in NMNAT1-deficient retinas

To identify possible mechanisms for the severe and cell-type-specific retinal degeneration in our model, we next sought to characterize global metabolic consequences of embryonic NMNAT1 deletion in the retina. To this end, we used targeted liquid chromatography-tandem mass spectrometry (LC-MS/MS) to quantify levels of ~112 cellular metabolites spanning many essential biochemical pathways in NMNAT1 knockout and control retinas at pre- and post-degenerative timepoints matching that of our RNA-sequencing analyses (E18.5 and P4). While LC-MS/MS analysis revealed no significant changes in E18.5 knockout retinas compared to controls, analysis at P4 revealed significantly altered levels of 39 metabolites in knockout retinas (Figure 5, Figure 5—figure supplement 1). Metabolite set enrichment analysis (MSEA) of altered metabolites identifies potential disruption of several diverse biochemical pathways including amino acid metabolism, glycolysis/gluconeogenesis, nicotinate and nicotinamide metabolism, and purine metabolism (Figure 5B).

Figure 5 with 2 supplements see all

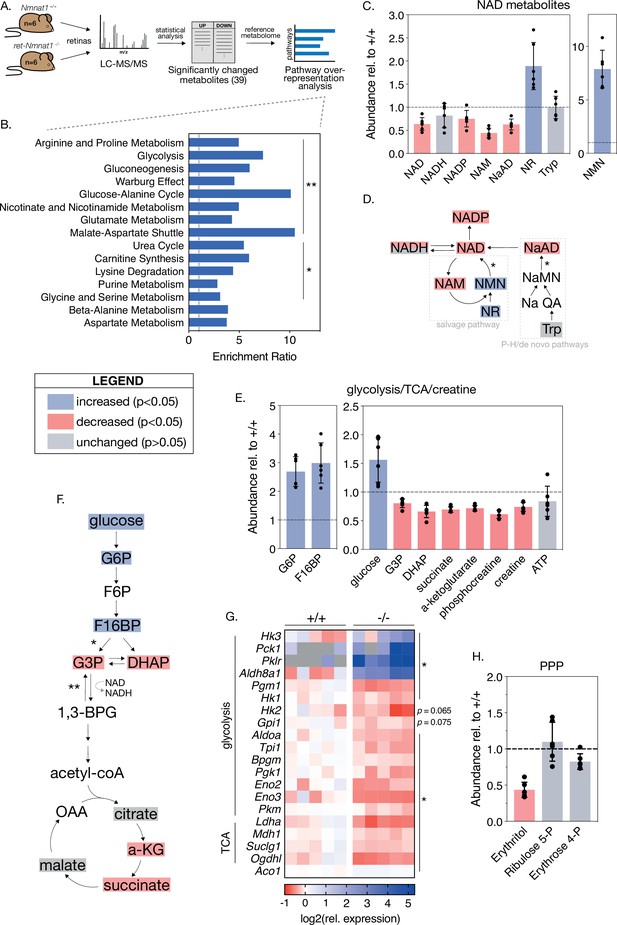

Loss of NMNAT1 impairs retinal central carbon metabolism.

(A) Schematic illustrating metabolomics experimental approach. (B) Results of metabolite set enrichment analysis (MSEA) on significantly changed metabolites in P4 knockout retinas. (C) Relative abundance of NAD+ pathway metabolites in P4 knockout retinas as assessed by mass spectrometry. (D) Schematic illustrating the major mammalian NAD+ synthesis pathways colored according to metabolite changes in (C); NMNAT1-catalyzed steps are indicated with asterisks. (E) Relative abundance of glycolysis, TCA cycle, and creatine metabolites in P4 knockout retinas as assessed by mass spectrometry. (F) Schematic depicting abbreviated glycolysis/TCA cycle pathway colored according to metabolite changes in (E); aldolase-catalyzed step is indicated by a single asterisk, while GAPDH-catalyzed step is marked with a double asterisk. (G) Heatmap of log-transformed relative expression of a set of glycolysis/TCA cycle genes in P4 knockout (-/-) and control retinas (+/+) as assessed by RNA-sequencing. (H) Relative abundance of pentose-phosphate pathway (PPP) metabolites in P4 knockout retinas as assessed by mass spectrometry. Data are represented as mean ± SD. n = 6 biological replicates for (B,C,E,H), n = 5 biological replicates for (G). Statistical significance in panels (C), (E), and (H) is denoted according to the boxed legend.

Figure 5—source data 1

Metabolic pathway overrepresentation analysis on significantly changed metabolites in P4 KO retinas.

Numerical source data for abundance (relative to WT) of various metabolites in P4 KO retinas. Numerical source data for expression of glycolysis/TCA pathway enzymes in P4 WT and KO retinas.

Figure 5—source data 2

Numerical source data for E18.5 and P4 LC-MS/MS experiments; peak intensity tables for all detected metabolites in E18.5 and P4 KO and WT retinas.


NMNAT1 knockout retinas show specific metabolic disruptions to NAD+ biosynthesis pathways. At P4, knockouts show a ~40% reduction of total retinal NAD+ levels and levels of nicotinic acid adenine dinucleotide (NaAD), the other catalytic product of NMNAT1 (Figure 5C and D). Levels of the downstream metabolites NADP and nicotinamide (NAM) were decreased by ~25% and ~55%, respectively, while levels of NADH were slightly decreased (p > 0.05) (Figure 5C). As expected, we observed significant accumulation of NAD+ precursors nicotinamide riboside (NR) and nicotinamide mononucleotide (NMN) in P4 knockout retinas (Figure 5C); however, we observed no significant changes in levels of tryptophan, the starting point for de novo NAD+ synthesis, at this age (Figure 5C and D).

Retinal NMNAT1 loss causes disruption of central carbon metabolism

Interestingly, the set of significantly altered metabolites in P4 knockout retinas is enriched for metabolites associated with glycolysis, gluconeogenesis, and the Warburg effect (Figure 5B). Closer examination of these pathways reveals large relative increases in levels of the upstream glycolytic metabolites glucose, glucose 6-phosphate (G6P) and fructose 1,6-bisphosphate (F16BP), as well as significant decreases in levels of dihydroxyacetone phosphate (DHAP) and glucose 3-phosphate (G3P) (Figure 5E and F), strongly suggesting a disruption to glucose utilization. Consistent with such an effect, levels of the TCA cycle intermediates alpha-ketoglutarate (a-KG) and succinate are decreased by ~30% in P4 knockout retinas (Figure 5E and F). Further in line with disruptions to downstream mitochondrial metabolism, we observe reduction of several acylcarnitine species at this age as well (Figure 5—figure supplement 1A). Although we observe decreased levels of the ATP-recycling metabolites phosphocreatine and creatine at P4, retinal ATP levels at this age are slightly but not significantly reduced (p = 0.5) (Figure 5E).

To further investigate possible glycolytic disruptions in P4 knockout retinas, we assayed the expression of a collection of glycolysis and TCA cycle enzymes in P4 knockout and control retinas using our RNA-sequencing dataset. Indeed, this analysis reveals broad transcriptional changes in 16 glycolytic and 4 TCA cycle enzymes in P4 knockout retinas (Figure 5G). Notably, two of these changes—upregulation of the aldehyde dehydrogenase Aldh8a1 and downregulation of the TCA cycle enzyme Ogdhl—are also present in RNA-sequencing results from the pre-degenerative (E18.5) timepoint (Figure 5—figure supplement 1B). Finally, consistent with disruption of glycolytic flux and reduced NADP levels in knockout retinas, mass spectrometry suggests possible disruption of the pentose phosphate pathway (PPP) evidenced by decreased levels of erythritol at this age (Figure 5H).

NMNAT1 loss disrupts retinal purine metabolism and a subset of amino acids

As MSEA also indicated possible disruptions of purine metabolism and several amino acid pathways in P4 NMNAT1 knockout retinas (Figure 5B), we closely examined levels of a collection of metabolites representing most major nucleotide and amino acid metabolites in P4 knockout and control retinas (Figure 5—figure supplement 2). Interestingly, while levels of the pyrimidine nucleotide derivatives uracil, UDP, and cytidine were unchanged at this age, levels of the purine nucleotide precursor xanthine, guanine, and GMP were increased by ~150%, ~147%, and ~58%, respectively (Figure 5—figure supplement 2A). The sole affected pyrimidine nucleotide was cytosine, which showed an impressive ~352% increase in P4 knockout retinas as compared to controls (Figure 5—figure supplement 2A). In addition to defects in purine metabolism, we observe significant changes in a subset of 10 amino acids and amino acid derivatives in P4 knockout retinas including acetyl-asparagine and acetyl-lysine (Figure 5—figure supplement 2B).

Overall, these metabolomics results suggest specific disruptions to central carbon, purine nucleotide, and amino acid metabolism as potential causes for severe retinal degeneration in the absence of NMNAT1.


NMNAT1-deficiency is associated with early and severe retinal degeneration involving multiple cell types

In this study, we demonstrate that retinal NMNAT1 deficiency in mice leads to severe degeneration of photoreceptor, bipolar, horizontal, and amacrine neurons soon after birth. In general, this phenotype is consistent with several recent studies reporting partial or complete ablation of retinal NMNAT1, which report gross retinal degeneration beginning within the first postnatal week and largely complete by one month of age (Wang et al., 2017; Eblimit et al., 2018). While the present study describes a relatively rapid timeline of NMNAT1-associated retinal degeneration, it furthers the characterization of this phenotype in two important ways: first, by assessing the survival of specific retinal neuron subtypes, and second, by systematically examining retinal cell death pathways triggered by NMNAT1 deletion.

Examination of specific cell types in NMNAT1 knockout retinas reveals that, while photoreceptors are likely the primary targets of NMNAT1-associated pathology, retinal bipolar, horizontal, and amacrine cells are also significantly affected by loss of NMNAT1 during retinal development, while ganglion cells appear unaffected until later stages. In particular, our results indicate an important distinction between the sensitivity of photoreceptor and non-photoreceptor neurons to NMNAT1 loss: while photoreceptors demonstrate an early and sustained transcriptional downregulation of cell-type-specific genes, near complete abrogation of recoverin and opsin expression, and rapid degeneration, non-photoreceptor cell types show largely unchanged transcriptional signatures, persistent cell-type marker expression, and a more gradual degeneration in NMNAT1 knockout retinas. These results stand partially in contrast to a recent study reporting ex vivo knockdown of Nmnat1 in retinal explant cultures, which reported thinner INLs but no changes in numbers of HuC/D-expressing amacrine cells or PKCa-expressing bipolar cells in NMNAT1-deficient explants (Kuribayashi et al., 2018). However, this study did report reduced numbers of PNR-positive photoreceptor cells in NMNAT1-deficient explants, and differences may be explained by the fact that Nmnat1 expression in explants was knocked down relatively late in development (E17.5)—by which time many non-photoreceptor cell types have already differentiated (Cepko, 2014). Alternatively, the relative persistence of non-photoreceptor cells in our model may indicate that degeneration of bipolar, horizontal, and amacrine neurons is a secondary effect of massive photoreceptor death, a possibility potentially supported by evidence of INL degeneration in a photoreceptor-specific NMNAT1 knockout mouse model (Wang et al., 2017). The generation and characterization of retinal cell-type-specific NMNAT1 knockout models is warranted to examine whether this differential sensitivity to NMNAT1 loss is cell-autonomous.

While we were unable to successfully determine retinal NMNAT1 distribution using our polyclonal NMNAT1 antibody, previously published results showing RT-qPCR of Nmnat levels in flow-sorted rod photoreceptors suggest that NMNAT1 is the predominantly expressed NMNAT enzyme in rod photoreceptors (Kuribayashi et al., 2018). Combined with our data confirming a lack of transcriptional upregulation of Nmnat2 or Nmnat3 in NMNAT1 knockout retinas (Figure 3—figure supplement 1), one possible explanation for the cell-type-specific degeneration we observe is that relatively higher levels of NMNAT2/3 in inner retinal neurons can partially compensate for the NAD+ deficit caused by loss of NMNAT1. Recent results in a mutant NMNAT1 mouse model indicating relative depletion of NAD+ in the retina but not other tissues (Greenwald et al., 2021) are perhaps consistent with such a hypothesis. Overall, our results demonstrate that NMNAT1 deficiency during retinal development affects multiple cell types beyond photoreceptors and suggest retinal cell-type-specific requirements of NAD+ metabolism to be further investigated.

NMNAT1-deficient retinas activate multiple cell death pathways

Previous reports of cell death in NMNAT1-deficient retinas center on two potentially contrasting mechanisms: the aforementioned ex vivo study outlined a role for Noxa and Fas-associated, caspase-3 dependent apoptosis in NMNAT1-deficient explants (Kuribayashi et al., 2018), while a recent study found the death of mature photoreceptors after global NMNAT1 deletion to be solely dependent on the presumed non-apoptotic NADase SARM1 (Sasaki et al., 2020b). Using histological and comprehensive transcriptomic approaches, we demonstrate involvement of caspase-3 associated apoptosis in NMNAT1 knockout retinas characterized by an early and sustained upregulation of Noxa and deregulation of several other apoptosis-pathway genes. We extend these results by showing histological evidence of a distinct, caspase-3-independent cell death pathway which constitutes a significant portion of observed cell death and closely follows caspase-3-dependent apoptosis throughout the timepoints tested in our model.

Interestingly, using a recently validated metabolic marker of SARM1 activity (cADPR) (Sasaki et al., 2020a), we do not detect SARM1 involvement at pre- or post-degenerative timepoints in our model. That we do not find evidence of SARM1 involvement, even in the presence of increased levels of its potent activator NMN (Zhao et al., 2019; Figley et al., 2021) is unexpected but not implausible, especially considering the fact that the report implicating SARM1 in NMNAT1-associated degeneration deleted NMNAT1 in mature mice (Sasaki et al., 2020b). Indeed, many apoptosis effectors (Casp3, Casp9, Apaf1, Bcl family members) active in the developing mammalian retina are subsequently downregulated in mature retinas, necessitating alternative death pathways for handling pathological insults at these ages (Donovan and Cotter, 2002; Doonan et al., 2003; Donovan et al., 2006). Considering these results, it is wholly possible that in mature retinas with insufficient expression of necessary apoptotic and/or pyroptotic machinery, NMNAT1-associated retinal degeneration proceeds through SARM1—in such a case, it is important to note that model systems with embryonic or germline deletion or mutation of NMNAT1 are typically more representative of patients with disease-linked mutations in NMNAT1. On the other hand, it cannot be conclusively ruled out that excess cADPR produced by an active SARM1 in our model is rapidly metabolized, and recently described links between SARM1 and both pyroptosis and apoptosis (Mukherjee et al., 2015; Carty et al., 2019) leave open the possibility of cooperation between these cell death pathways in NMNAT1 knockout retinas.

Our transcriptomics results indicate dysregulation of several pyroptosis and necroptosis-related genes, notably including the entire ‘canonical inflammasome’ (Casp1, Nlrp3, and Pycard), as well as the toll-like receptors Tlr2 and Tlr4, at both timepoints (Figure 4). The distinct presence of nuclear pyknosis in AC3 dying cells—which is generally incompatible with necroptosis but documented in pyroptotic cells (Vandenabeele et al., 2010; Murakami et al., 2012; Miao et al., 2011)—lends support to pyroptosis as a significant driver of cell death in NMNAT1-deficient retinas. Intriguingly, we do not detect proteolytic cleavage of gasdermin D—a common marker of pyroptosis—in P4 NMNAT1 knockout retinas (Figure 4—figure supplement 1). However, recent results indicate that NLRP3 is, under certain circumstances, capable of being activated independently of gasdermin D (Gutierrez et al., 2017). Considering a recent report suggesting involvement of the PARP1-associated ‘parthanatos’ cell death pathway in NMNAT1 mutant retinas (Greenwald et al., 2021), we did not detect accumulation of poly ADP-ribose (PAR) in AC3 pyknotic nuclei (data not shown), arguing against involvement of this pathway under these conditions.

In sum, we show that retinal NMNAT1 loss activates multiple cell death pathways, which contextualizes the degeneration of multiple cell types in our model and may explain the severity of NMNAT1-associated retinal degeneration in this study and others. Although the model presented here differs in important ways from NMNAT1-mutant LCA animal models, it does recapitulate some aspects of NMNAT1-linked LCA including particularly severe central retinal defects (Kumaran et al., 2017). As recent studies have discovered noncoding mutations, copy number variations, and exon duplications in NMNAT1 causing severe reduction of NMNAT1 expression in patients with ocular and extra-ocular pathologies (Coppieters et al., 2015; Bedoni et al., 2020), understanding the mechanisms of retinal degeneration in an NMNAT1 knockout model is of potential clinical significance.

Retinal NMNAT1 loss causes diverse metabolic disruptions

Several recent studies examine levels of select metabolites in mature NMNAT1-deficient retinas (Sasaki et al., 2020b), or more broadly examine tissue metabolomes after perturbation of the NMN-synthesizing enzyme NAMPT (Lin et al., 2016; Oakey et al., 2018; Lundt et al., 2021), but to date there have been no comprehensive metabolomic studies on NMNAT1-deficient tissues. Our metabolomics results approximate that NMNAT1 synthesizes ~40% of the total retinal NAD+ pool, which is generally consistent with a previous model (Sasaki et al., 2020b). In addition, our results strongly suggest that—via specific disruptions to central carbon, nucleotide, and amino acid metabolism—depletion of NAD+ synthesized in the nucleus disrupts multiple non-nuclear metabolic pathways in the retina. Whether these observations reflect a direct export of nuclear NAD+ to cytosolic and mitochondrial retinal compartments versus an indirect effect on cytosolic and mitochondrial cellular processes (by way of NAD+-dependent gene regulation, for instance) is a topic for further study.

Impaired glycolytic flux appears to be a more general feature of tissue NAD+ depletion, as studies reporting NAMPT inhibition or deletion in projection neurons and skeletal muscle myotubes report accumulation of glycolytic metabolites upstream of GAPDH (Oakey et al., 2018; Lundt et al., 2021). Interestingly, Lundt et al. present evidence of reversed glycolytic flux in NAMPT-inhibited myotubes, an effect which we believe may explain decreased levels of G3P and DHAP in our model. Notably, unbiased LC-MS/MS and GC-MS analyses of rod-photoreceptor-specific NAMPT knockout retinas showed signatures of mitochondrial metabolic defects—which we observe in our model as well—but detected limited evidence of glycolytic impairment (Lin et al., 2016). This suggests that retinal NMNAT1 and NAMPT depletion, despite both lowering total retinal NAD+ levels, produce distinct metabolic phenotypes.

Retinal neurons—and retinal photoreceptors in particular—are relatively unique in their dependence on aerobic glycolysis (the ‘Warburg Effect’) during both proliferative and differentiated states (Agathocleous et al., 2012; Ng et al., 2015; Chinchore et al., 2017). Our finding that retinal NMNAT1 loss is detrimental to glycolysis thus offers a potential explanation for the cell-type-specific degeneration which we observe: in particular, previous results indicating that differentiation induces an increased reliance on mitochondrial OXPHOS relative to glycolysis in the retina (Agathocleous et al., 2012) might explain why ganglion and amacrine cells—which differentiate relatively early—are less sensitive to NMNAT1 loss in our model than the later born bipolar and photoreceptor cells. Indeed, even in mature retinas, glycolytic perturbations specifically affect photoreceptor health and survival (Chinchore et al., 2017; Zhang et al., 2020; Sinha et al., 2021). Furthermore, recent results linking glycolytic impairment to NLRP3 activation (Sanman et al., 2016) provide a potential explanation of non-apoptotic cell death which we observe in NMNAT1 knockout retinas.

In addition to glycolytic impairment, we detect specific defects in purine nucleotide and amino acid metabolic pathways in NMNAT1 knockout retinas. As a particularly proliferative tissue, the retina is thought to be highly reliant on adequate nucleotide and amino acid pools to support transcription and translation of cell-specific machinery (Etingof, 2001; Ng et al., 2015). Some of the metabolic changes which we observe—for instance, accumulation of the purine precursor xanthine and the amino acid aspartate—appear to be more widely associated with NAD+ insufficiency or retinal degeneration (Du et al., 2014; Lin et al., 2016; Oakey et al., 2018). On the other hand, we also identify a collection of metabolic changes in these pathways which are not reported in NAMPT-deficient retinas (Lin et al., 2016), potentially explaining differences in retinal phenotypes between these two models.

A potential role for NMNAT1 in photoreceptor terminal differentiation

The tightly coordinated and stereotypical differentiation of retinal neuron subtypes from a common progenitor pool has been extensively studied—complementing classical birth-dating studies, recent investigations have begun to explore the massive epigenetic regulation necessary for the development of the mammalian retina (Swaroop et al., 2010; Aldiri et al., 2017; Raeisossadati et al., 2021). One of the most surprising findings of the present study is an early and sustained transcriptional downregulation of a subset of photoreceptor- and synapse-specific genes in NMNAT1 knockout retinas. Beyond these transcriptional disruptions, we show near complete absence of several crucial rod and cone-specific proteins in P4 knockout retinas, as well as early and sustained mis-expression of OTX2—a crucial differentiation factor—in the absence of NMNAT1. While NMNAT1 has previously been implicated in gene regulation through direct interaction with SIRT1 and PARP1 at gene promoters (Zhang et al., 2012; Song et al., 2013) and retinal NMNAT1 knockdown was shown to influence apoptotic gene expression by potentially modulating histone acetylation (Kuribayashi et al., 2018), no in vivo role for NMNAT1 in retinal developmental gene regulation has yet been described.

Photoreceptors are among the last retinal cell types to fully develop and are generated in two broad phases: an early cell-fate commitment mediated by several well-characterized transcription factors including NOTCH1, PAX6, and SIX3, and a later phase (‘terminal differentiation’) comprising expression of a host of specialized phototransduction genes and growth of light-sensing cellular structures, mediated in part by the transcription factors OTX2, NRL, and CRX (Swaroop et al., 2010; Brzezinski and Reh, 2015; Daum et al., 2017). Interestingly, we do not observe transcriptional changes in NOTCH1, PAX6, SIX3, or related genes in NMNAT1 knockout retinas at E18.5. This fact, combined with grossly normal retinal morphology and comparable numbers of PHH3-positive proliferating cells in P0 knockouts, suggests that NMNAT1 is required for terminal differentiation but not early specification or proliferation of retinal photoreceptor cells. Increased abundance of acetyl-lysine in knockout retinas on mass spectrometry (Figure 5—figure supplement 2B) and GO enrichment of several genes associated with DNA methylation, epigenetic regulation, and chromatin silencing in P4 knockout retinas (Figure 3—figure supplement 2) support a potential role for NMNAT1 in the epigenetic regulation of photoreceptor terminal differentiation, a phenomenon recently shown to feature genome-wide methylation, demethylation, and acetylation events (Aldiri et al., 2017; Seritrakul and Gross, 2017, Rhee et al., 2012). Importantly, although cell markers for bipolar, horizontal, and amacrine retinal neurons suggest proper specification and rapid degeneration of these cells in NMNAT1 knockouts (Figure 2), more extensive studies focusing on early specification markers are needed before a role for NMNAT1 in the differentiation of these cell types can be ruled out.

In conclusion, this study presents a comprehensive evaluation of NMNAT1-associated retinal dysfunction and suggests crucial roles for nuclear NAD+ in the proper development of the mammalian retina. Extending previous results, we demonstrate that retinal NMNAT1 loss during development affects retinal cell types beyond photoreceptors, and we propose a yet-undescribed role for NMNAT1 in photoreceptor terminal differentiation and subsequent survival. While we provide evidence that the early and severe retinal degeneration associated with NMNAT1 loss involves multiple cell types and death pathways, it appears that this severe phenotype stems from two major problems: (1.) metabolic defects likely caused by insufficient NAD+ for retinal proliferative metabolism, and (2.) gene regulation defects potentially caused by insufficient nuclear NAD+ in developing photoreceptors. Considering links between metabolic state and differentiation in the retina and recently discovered roles of compartmentalized NAD+ in non-retinal cell differentiation (Agathocleous et al., 2012; Agathocleous and Harris, 2013; Ryu et al., 2018), these two problems may not be mutually exclusive. Further study of NMNAT1-associated retinal dysfunction should focus on evaluating the relative contributions of metabolic and genetic deficits to the overall pathology and testing the hypothesis that NMNAT1 functions to integrate energy metabolism and gene regulation, both in the retina and in other cellular contexts.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Mus musculus)Nmnat1MGI:1913704
Genetic reagent (mouse, male and female)Nmnat1fl/flConforti et al., 2011Nmnat1 gene exons 1 and 2 floxed
Genetic reagent (mouse, male and female)Six3-CreChristiansen et al., 2011Expresses Cre in developing eye bud (~E12.5)
Cell line (Homo- sapiens)HEK293TATCCCat# CRL-3216
Transfected construct (M. musculus)FLAG-NMNAT1GenscriptCat# OMu17664DFLAG-tagged mouse NMNAT1 construct
Transfected construct (M. musculus)FLAG-NMNAT2GenscriptCat# OMu16562DFLAG-tagged mouse NMNAT2 construct
AntibodyAnti-NMNAT1 (rabbit polyclonal)this paperWB (1:1000)See Materials and methods
AntibodyAnti-beta tubulin (mouse monoclonal)SigmaCat# T5201,RRID: AB_609915WB (1:3000)
AntibodyAnti-FLAG (mouse monoclonal)SigmaCat# F1804,RRID: AB_262044WB (1:2000)
AntibodyAnti-BRN3A (mouse monoclonal)Santa CruzCat#: sc-8429,RRID: AB_626765IF (1:150)
AntibodyAnti-calretinin (rabbit polyclonal)Millipore SigmaCat# AB5054RRID: AB_2068506 (discontinued)IF (1:500)
AntibodyAnti-CHX10 (mouse monoclonal)Santa CruzCat# sc-365519,RRID: AB_10842442IF (1:50)
AntibodyAnti-recoverin (rabbit polyclonal)SigmaCat# AB5585, RRID: AB_2253622IF (1:500)
AntibodyAnti-rhodopsin (4D2) (mouse monoclonal)R.Molday, Univ. British ColumbiaIF (1:500)
AntibodyAnti-synaptophysin (rabbit monoclonal)Thermo FisherCat# MA5-14532, RRID: AB_10983675IF (1:1000)
AntibodyAnti-active caspase 3 (rabbit polyclonal)R&D SystemsCat# AF835, RRID: AB_2243952IF (1:500)
AntibodyAnti-OTX2 (rabbit polyclonal)ProteinTechCat# 13497–1-AP, RRID: AB_2157176IF (1:500)
AntibodyAnti-phospho histone H3 (rabbit polyclonal)Cell Signaling TechnologiesCat# 9701, RRID: AB_331535IF (1:1000)
AntibodyAnti-phosducin (sheep polyclonal)Sokolov et al., 2004IF (1:1000)
AntibodyAnti-M opsin (rabbit polyclonal)Millipore SigmaCat# AB5045, RRID: AB_177456IF (1:1000)
AntibodyAnti-calbindin (mouse monoclonal)SwantCat# 300, RRID: AB_10000347IF (1:500)
AntibodyAnti-rabbit Alexa Fluor- 568 (goat polyclonal)InvitrogenCat# A-11011, RRID: AB_143157IF (1:1000)
AntibodyAnti-mouse Alexa Fluor- 488 (goat polyclonal)InvitrogenCat# A-11001, RRID: AB_2534069IF (1:1000)
AntibodyAnti-rabbit Alexa Fluor 680 (goat polyclonal)InvitrogenCat# A-21076, RRID: AB_2535736WB (1:50,000)
AntibodyAnti-mouse DyLight 800InvitrogenCat# SA5-10176, RRID: AB_2556756WB (1:50,000)
AntibodyFluorescein Avidin DVector LaboratoriesCat# A-2001–5IF (1:500)For visualizing biotinylated PNA stain (below)
OtherBiotinylated peanut agglutinin (PNA)Vector LaboratoriesCat# B-1075–5IF (1:500)
Other4′,6-diamidino-2-phenylindole (DAPI)Thermo FisherCat# D1306, RRID: AB_2629482IF (1:2000)
Software, algorithmFijiSchindelin et al., 2012RRID:SCR_002285
Software, algorithmFastQCRRID:SCR_014583https://www.bioinformatics.babraham.ac.uk/projects/fastqc/
Software, algorithmBbdukRRID:SCR_016969http://sourceforge.net/projects/bbmap/
Software, algorithmHISAT2 2.1.0Kim et al., 2015RRID:SCR_015530
Software, algorithmStringTie 1.3.6Pertea et al., 2015; Pertea et al., 2016RRID:SCR_016323
Software, algorithmDeSeq2 R PackageLove et al., 2014RRID:SCR_015687

Animal model generation, husbandry, and genotyping

Nmnat1fl/fl mice described previously (Conforti et al., 2011) were thoroughly backcrossed with wild-type 129/SV-E mice (Charles River Laboratories, Wilmington, MA) prior to analyses. Conditional knockout mice were generated by crossing Nmnat1fl/fl mice with transgenic mice expressing Cre recombinase under a Six3 promoter (Six3-Cre) (Christiansen et al., 2011). Crosses yielded heterozygous Nmnatfl/wt and Nmnatfl/wt;Six3-Cre offspring, which were further crossed with Nmnat1fl/fl mice to yield conditional knockout (Nmnatfl/fl;Six3-Cre) and littermate control (Nmnat1fl/fl) mice at approximately Mendelian ratios. Experimental animals were periodically backcrossed with wild-type 129/SV-E mice to maintain genetic integrity. Animals were maintained under standard 12 hr light/dark cycles with food and water provided ad libitum. All experimental procedures involving animals were approved by the Institutional Animal Care and Use Committee (IACUC) of West Virginia University.

Animals were genotyped using polymerase chain reaction (PCR) of genomic DNA from ear punch biopsies. Primer sequences for detection of Six3-Cre transgene and Nmnat1 5’ and 3’ loxP sites are listed in the Key Resources Table, and primers were added to the PCR reaction at a final concentration of 0.75 µM. The thermocycling conditions were 95 °C for 2 min, 35 cycles of 95 °C for 30 s, 58 °C for 30 s, 72 °C for 45 s, and a final extension step of 72 °C for 5 min.

NMNAT1 antibody generation

A rabbit polyclonal antibody against amino acids 111–133 of mouse NMNAT1 (sequence CSYPQSSPALEKPGRKRKWADQK) was generated by Pacific Immunology Corp. (Pacific Immunology, Ramona, CA). The affinity-purified antibody was confirmed to recognize NMNAT1 in cell culture and retinal lysate (Figure 1—figure supplement 1), and did not recognize overexpressed FLAG-NMNAT2 (data not shown).

Mammalian cell culture and transfection

HEK293T cells were maintained in 1:1 DMEM/F-12 culture media (Thermo Fisher Scientific, Waltham, MA) in a sterile incubator at 37 °C and 5% CO2. Transient transfection of FLAG-NMNAT1 and FLAG-NMNAT2 constructs was performed at ~60% confluence using TransIT-LT1 transfection reagent (Mirus Bio, Madison, WI) according to manufacturer’s instructions. Cells were harvested 48 hr after transfection on ice with 1X Hank’s balanced salt solution (HBSS) (Thermo Fisher Scientific) and cell pellets were processed for western blotting as described below. As these cells were used only briefly for antibody validation purposes, we were unable to authenticate the identity of these cells.

Retinal histology and thickness quantification

To evaluate gross retinal histology, mice at the indicated ages were sacrificed and their eyes were gently removed into 1 ml Excalibur’s Alcoholic z-fix (Excalibur Pathology Inc, Norman, OK). Subsequent fixation, paraffin embedding, sectioning, and hematoxylin and eosin (H&E) staining were performed by Excalibur Pathology. H&E-stained sections were imaged on a Nikon Eclipse Ti microscope with DS-Ri2 camera (Nikon Instruments, Melville, NY). Retinal thickness was measured using Nikon NIS-Elements software at four equidistant points along the outer retinal edge to either side of the optic nerve, where retinal thickness is defined as the length of a line orthogonal to the outer retinal edge and terminating at the inner retinal edge. Thickness was quantified using six technical replicates per animal and three biological replicates per genotype.

Western blotting

For determination of protein levels by western blot, retinas were homogenized in cold lysis buffer (1 X phosphate-buffered saline pH 7.4 (Thermo Fisher Scientific), Pierce protease inhibitor, EDTA-free (Thermo), Calbiochem phosphatase inhibitor cocktail (EMD Biosciences, La Jolla, CA)) using a Microson ultrasonic cell disruptor. Protein concentration was determined using a Nanodrop ND-1000 spectrophotometer (Thermo Fisher Scientific), after which Laemmli sample buffer was added to a final concentration of 1X (2% SDS, 0.05 M Tris-HCl pH 6.8, 10% glycerol, 1%beta-mercaptoethanol, 2 mM dithiothreitol (DTT), 0.001% bromphenol blue) and samples were boiled for 5 min. Equal amounts of protein were separated on anykD mini-PROTEAN TGX polyacrylamide gels (Bio-Rad, Hercules, CA) and transferred to an Immobilon-FL PVDF membrane (Millipore, Burlington, MA). Membranes were blocked with Odyssey blocking buffer (LI-COR Biosciences, Lincoln, NE) for 1 hr at room temperature and incubated with primary antibodies diluted in 50/50 blocking buffer/1 X PBST (1 X PBS + 0.1% Tween-20) at 4 °C overnight on a bidirectional rotator. A list of primary antibodies, sources, and dilutions can be found in the Key Resources Table. Following primary antibody incubations, membranes were washed in 1 X PBST and incubated with goat anti-rabbit Alexa Fluor 680 and/or goat anti-mouse DyLight 800 secondary antibodies (Thermo Fisher Scientific) for 1 hr at room temperature. Membranes were subsequently washed in 1 X PBST and imaged using an Odyssey Infrared Imaging System (LI-COR Biosciences).

Quantitative reverse transcriptase-PCR (RT-qPCR)

To determine relative gene expression using RT-qPCR, retinas were collected and total RNA was isolated as described below. cDNA was synthesized with a RevertAid cDNA Synthesis Kit (Thermo Fisher Scientific) per manufacturer instructions, starting with 1 µg total RNA/sample and using random hexamer primers. Primers for targets of interest were designed using NCBI Primer-BLAST (https://www.ncbi.nlm.nih.gov/tools/primer-blast/) to straddle at least one intron of length >500 bp. qPCR reactions were performed using Brilliant II SYBR Green qPCR master mix with low ROX (Agilent Technologies, Cedar Creek, TX) and monitored on a Stratagene Mx3000P cycler (Agilent Technologies). Prior to use, primers were validated (by examining melt curves and agarose gel electrophoresis) to amplify single products of expected size. Three technical replicates per target per animal were performed, and averages from three animals per genotype are reported. All expression values were normalized to the geometric average of three housekeeping genes (Hmbs, Ppia, and Ywhaz). Primer sequences are included in Supplementary file 1.

Immunofluorescent staining

After euthanasia, eyes were gently removed, punctured, and immersed in 4% paraformaldehyde fixative (4% paraformaldehyde in 1 X PBS) (Electron Microscopy Sciences, Hatfield, PA) for 15 min, after which the cornea was removed and the eye was fixed for an additional 45 min at room temperature with gentle agitation. Subsequently, eyes were washed in 1 X PBS and incubated in a dehydration solution (20% sucrose in 1 X PBS) for at least 12 hr at 4 °C. After dehydration, samples were incubated in a 1:1 mixture of 20% sucrose and Tissue-Tek O.C.T. compound (Sakura Finetek, Torrance, CA) for at least 1 hr before being transferred to 100% O.C.T. and flash frozen. 16 µm sections were cut using a Leica CM1850 cryostat (Leica Biosystems, Nussloch, Germany) and mounted on Superfrost Plus slides (Fisher Scientific). For immunofluorescent staining, retinal sections were briefly rinsed with 1 X PBS and incubated in blocking buffer (10% normal goat serum, 0.5% Triton X-100, 0.05% sodium azide in 1 X PBS) for 1 hr at room temperature. Following blocking, sections were incubated with the indicated primary antibodies (diluted in buffer containing 5% normal goat serum, 0.5% Triton X-100, 0.05% sodium azide in 1 X PBS) overnight at 4 °C. The next day, sections were washed with 1 X PBST and incubated with DAPI nuclear stain (Thermo Fisher Scientific), goat anti-rabbit Alexa Fluor-568 and/or goat anti-mouse Alexa Fluor-488 (Thermo Fisher Scientific) secondary antibodies for 1 hr at room temperature. For antibody information and dilutions, see the Key Resources Table. Finally, sections were washed, cover-slipped with Prolong Gold antifade reagent (Thermo Fisher Scientific), and imaged on a Nikon Eclipse Ti laser scanning confocal microscope with C2 camera (Nikon Instruments). Experimental and control sections were imaged using identical laser intensity and exposure settings. All fluorescent images represent maximum intensity z-projections generated using ImageJ with the Bio-Formats plugin (https://imagej.net/Bio-Formats).

Retinal cell type and caspase-positive cell quantification

To estimate numbers of pyknotic and caspase-3 positive/negative cells in retinas of knockout and control mice, pyknotic nuclei were manually counted in 212.27 × 212.27 µm2 regions of maximum intensity projection fluorescent images from the central retina. Once these pyknotic nuclei were identified, the number also labeled with active-Caspase-3 were manually counted. Counts from two technical replicates per animal were averaged, and averages from three animals per genotype are reported. Counts of retinal cell subtypes were estimated by manually counting marker-positive cells in 318.2 × 318.2 µm2 regions of central retina, averaged between two technical replicates per animal and three animals per genotype. All counts were obtained using ImageJ. For antibody information, refer to the Key Resources Table.

Retinal RNA extraction, sequencing, and analysis

Following euthanasia and eye enucleation, retinae were quickly dissected and transferred into ultra-sterile microcentrifuge tubes containing a small amount of Trizol reagent (Thermo Fisher Scientific), and flash frozen on dry ice. Total RNA was extracted by homogenizing thawed samples with a handheld homogenizer and incubating for 5 min at room temperature. 20 µl chloroform was added to each sample, samples were briefly vortexed, incubated at room temperature for 4 min, and spun at 12,000 rpm for 10 min at 4 °C. The aqueous layers were removed to separate tubes containing 50 µl isopropanol and incubated at room temperature for 10 min with occasional agitation. Finally, samples were again spun at 12,000 rpm for 10 min at 4 °C, supernatants were removed, and pellets were washed three times with 75% ethanol, dried, and resuspended in DEPC-treated water. Whole-transcriptome sequencing was performed by Macrogen Corp. (Macrogen USA, Rockville, MD) using an Illumina TruSeq Stranded mRNA Library Prep Kit on a NovaSeq6000 S4 to a depth of 100 M total reads per sample. Read quality was verified using FastQC (https://www.bioinformatics.babraham.ac.uk/projects/fastqc/) and adapters were trimmed using the Bbduk utility of the BBTools package (http://sourceforge.net/projects/bbmap/). Read alignment was performed using HISAT2 2.1.0 (Kim et al., 2015) and transcripts were assembled and quantified using StringTie 1.3.6 (Pertea et al., 2015; Pertea et al., 2016). Differentially expressed genes were identified using the DESeq2 R package (Love et al., 2014).

Targeted steady-state metabolomics using LC-MS/MS

Following euthanasia and eye enucleation, retinae were quickly dissected into Hank’s Balanced Salt Solution (HBSS) and flash frozen on liquid nitrogen. Metabolites were extracted according to previously described protocols (Grenell et al., 2019; Yam et al., 2019). Metabolite extracts were analyzed by a Shimadzu LC Nexera X2 UHPLC coupled with a QTRAP 5500 LC-MS/MS (AB Sciex). An ACQUITY UPLC BEH Amide analytic column (2.1 × 50 mm, 1.7 μm) (Waters Corp., Milford, MA) was used for chromatographic separation. The mobile phase was (A) water with 10 mM ammonium acetate (pH 8.9) and (B) acetonitrile/water (95/5) with 10 mM ammonium acetate (pH 8.2) (All solvents were LC–MS Optima grade from Fisher Scientific). The total run time was 11 min with a flow rate of 0.5 ml/min and an injection volume of 5 μl. The gradient elution was 95–61% B in 6 min, 61–44% B at 8 min, 61–27% B at 8.2 min, and 27–95% B at 9 min. The column was equilibrated with 95% B at the end of each run. The source and collision gas was N2. The ion source conditions in positive and negative mode were: curtain gas (CUR) = 25 psi, collision gas (CAD) = high, ion spray voltage (IS) = 3800/–3800 volts, temperature (TEM) = 500 °C, ion source gas 1 (GS1) = 50 psi, and ion source gas 2 (GS2) = 40 psi. Each metabolite was tuned with standards for optimal transitions. D4-nicotinamide (Cambridge Isotope Laboratories, Tewksbury, MA) was used as an internal standard. The extracted MRM peaks were integrated using MultiQuant 3.0.3 software (AB Sciex, Concord, ON, CA). Additional metabolite parameters are available in Supplementary file 1.

Statistical analyses

Sample number (n) is defined as number of animals per genotype. Specific statistical tests and sample sizes are indicated in figure legends and/or in the Transparent Reporting Form. Where applicable, p-value adjustments for multiple comparisons were performed and indicated, and reported as ‘q’ values. Across all figures, statistical significance is defined as p < 0.05 (or q < 0.05, where applicable). Experimenters were not blinded to treatments.

Data availability

Sequencing data have been deposited in GEO under accession code GSE178312. All other data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for all figures.

The following data sets were generated
    1. Sokolov D
    2. Kolandaivelu S
    (2021) NCBI Gene Expression Omnibus
    ID GSE178312. Nuclear NAD+-biosynthetic enzyme NMNAT1 facilitates development and early survival of retinal neurons.


    1. Blanks JC
    2. Johnson LV
    Specific binding of peanut lectin to a class of retinal photoreceptor cells. A species comparison
    Investigative Ophthalmology & Visual Science 25:546–557.
    1. Du J
    2. Gu H
    3. Turner SJ
    4. Djukovic D
    5. Raftery D
    6. Hurley JB
    Metabolite Profiles of Rod Photoreceptor Cell Death in Mouse Retinal Degeneration Models
    Investigative Ophthalmology & Visual Science 55:4374.
    1. Rodgers HM
    2. Belcastro M
    3. Sokolov M
    4. Mathers PH
    Embryonic markers of cone differentiation
    Molecular Vision 22:1455–1467.

Decision letter

  1. Paola Bovolenta
    Reviewing Editor; CSIC-UAM, Spain
  2. Marianne E Bronner
    Senior Editor; California Institute of Technology, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Nuclear NAD+-biosynthetic enzyme NMNAT1 facilitates survival of developing retinal neurons" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Marianne Bronner as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) The authors need to experimentally address the potential role of NMNAT1 in retinal progenitor differentiation, with especial consideration of amacrine, photoreceptor and bipolar progenitors. The reviewers share the opinion that the data presented in the manuscript could be the result of defective specification/differentiation and not only linked to degeneration as the authors claim. Thus, staining for progenitor markers and proliferation antigens at embryonic and postnatal stages is required. Any other approach aimed at addressing this issue will be equally valid.

2) Analysis of cone, amacrine and Müller cell specification/differentiation should also be included as morphological and RNA-seq data suggests possible decrease of their specification/differentiation.

3) A better description of the knockout efficiency with the Cre-lox system used and its comparison with those used in the other studies to investigate NMNAT1 requirement in the retina is needed.

4) Statistical analysis of the data should be revised in Figure 1 and added in Figure 5.

5) A number of different studies have used similar approaches (retina-specific NMNAT1 KO or KD, transcriptomics, and metabolomics) to shed light on NMNAT1 function in the retina. The authors need to clarify what are the knowledge gaps they are trying to fill in and should discuss better their findings in relation to the existing data (i.e. in relation to those of Eblimit et al., 2018 and Kuribayashi et al., 2018).

6) The authors may also consider rescuing the phenotype of the CKO retina by the administration of NAD or NMN, if experimentally feasible.

Reviewer #1:

Mutations in the gene nicotinamide mononucleotide adenylyltransferase-1 (NMNAT1) causes a specific type of severe and early onset retinal degeneration known as Leber congenital amaurosis type 9. By conditional inactivating the NMNAT1 gene in the mouse eye bud, this study extends on previous reports showing that NMNAT1 is required for postnatal survival of photoreceptors and specific retinal interneurons. Using transcriptomic and metabolomic approaches, the authors provide novel evidence that retinal degeneration is linked to the disruption of carbon, purine and amino acid metabolism and to the activation of distinct cell death pathways, including apoptosis, pyroptosis and necroptosis.

Although well conducted the study does not consider the possible role of NMNAT1 in retinal progenitor differentiation. This is an important point because the phenotypic characterization of the retina at postnatal development suggest that possibility that amacrine, photoreceptor and bipolar cells might be generated in lower number besides undergoing later degeneration. This point needs to be addressed. Furthermore, the authors fell short of discussing in the details their data in comparison with those of Eblimit et al., 2018, who have use different Cre line to delete NMNAT1 at slightly later stages of development or only in photoreceptors.

Figure 2. When comparing the number of amacrine and bipolar cells in the control groups, it is clear that both populations undergo an increase in size between P4 and P10. The same comparison in the mutants indeed suggest that bipolar cells degenerate and are lost. However, the number of amacrine cells at P10 is similar to that at P4. The authors conclude that there is also degeneration of amacrine cells but an alternative possibility is that cells are no longer generated and thus the population does not expand as in controls.

The HandE staining in Figure 1F seems to indicate the presence of cells in the ONL, presumably photoreceptor nuclei that however are strongly decreases at P30. The data in Figure 3 and the related supplementary information indicate a strong decrease of photoreceptor specific-gene expression. Again, the author conclusion is that NMNAT1 is required for postnatal survival of photoreceptors. Although it is clear that part of the phenotype is linked to the activation of cell death pathways, the authors should also consider the possibility that NMNAT1 may be also required for the generation of a proper number of photoreceptors. This needs to be determined. Markers such as Otx2 or Crx could be used to determine if the same number of photoreceptors are generated and then die perhaps because they cannot terminally differentiate or they are simply not generated in the same amount, as it may also happen for amacrine and even bipolar cells. This is particularly important because the Six3-Cre is an early driver and thus NMNAT1 absence could affect progenitor cells. Furthremore, the authors state "In conclusion, this study presents the most comprehensive evaluation of NMNAT1-associated retinal dysfunction to date and suggests crucial roles for nuclear NAD+ in the proper development and early survival of the mammalian retina". This conclusion at the moment is an overstatement as the development function of NMNAT1 is not addressed.

The idea that there might be an impact on progenitors is possibly supported by comparing the present results with those obtained by Eblimit et al., 2018 as well as those by Kuribayashi et al., 2018. In both cases knock down of NMNAT1 occurred with a different timing that correlated with less severe phenotypes.

The authors should also consider discussing their results with those of Eblimit et al., 2018 in more details, given that in the latter the reported use of photoreceptor-specific drivers suggests that reduction of the INL might be secondary to the loss of photoreceptors.

Reviewer #2:

NMNAT1 is known to be causal to Laber congenital amaurosis (LCA) which is congenital retinal dystrophies that appears at an early age. In this paper, the authors aimed to reveal the roles of Nmnat1 in retinal development by using retina specific conditional knockout mice. Interestingly, the loss of Nmnat1 by Six3-cre resulted in severe perturbation of the retinal development. The authors claimed the degeneration of the photoreceptors, but the results suggested lack of rod differentiation rather than degeneration since no evidence showing rod differentiation in the mice was included. In contrast, interneurons were once differentiated, then disappeared in the postnatal period. Since the special expression pattern of Cre or NMNAT1 in the retina was not available, it made difficult to relate the complex and cell type specific phenotype and Nmnat1. There are several other papers examining the role of Nmnat1 in retinal development in in vitro and ex vivo, precise comparison of the methods and data among the works may give interesting insight.

This paper describes examination of retinal phenotype of Nmnat1 by using retina specific knockout mice of Nmnat1. The paper contains the results of variety of analyses i.e. histological analysis, transcriptome analysis, and metabolic pathway examination. However, the whole part of this manuscript is descriptive, and did not give mechanisms how NMNAT1 regulates retinal differentiation. The authors claim that the severe photoreceptor degeneration was observed in this mice; however, I think that the phenotype showed lack of rod photoreceptor differentiation but not degeneration.

1. The Six3-cre mouse was used in this work, but this mouse line is known to show chimeric expression pattern of cre in the retina. i.e. "More detailed analysis of the recombination pattern of Six3-cre in the mature retina suggested it may incompletely excise target genes of interest. JNS 2007, 27, 12707-.". The authors observed strong phenotype in the central retina but not in the peripheral. Does it correlate with the expression pattern of the Cre protein? They should examine spatial expression of Cre or Nmnat1 in the CKO in retinas of several different developmental stages.

2. They did not perform any detailed examination of the retinal progenitor cells. Staining of progenitor markers and proliferation antigens of embryonic as well as P0 to P4 retinas may give useful information to understand the phenotype.

3. The authors claims that they observed photoreceptor degeneration, and NMNAT1 is crucial for the early survival of photoreceptors. If the authors observe the transition of rod photoreceptor that is once differentiation and then disappearance of them, this statement is appropriate. However, since neither Rhodopsin nor Recoverin expressed in the P4 retina, I think that failure of rod differentiation is suitable description to account for this phenotype.

4. RNA-seq data showed decreased cone related genes. The authors should confirm differentiation of cone in embryonic as well as postnatal retina of the CKO mice.

5. The retina at P4 showed no OPL, and previous literature indicated that the OPL is established by the interaction of photoreceptor and horizontal cells. Is horizontal cell differentiate in the CKO retina? In addition, how about Mueller glia differentiation in the CKO retina?

6. The authors observed lack of Synaptophysin, and I wondered postsynaptic formation of horizontal and bipolar cells.

7. Figure 1D lacks the scale bar, and that made us difficult to examine the panels.

6. Is it possible to rescue the phenotype of the CKO retina by administration of NAD or NMN locally or systemically?

Reviewer #3:

The authors aimed to disentangle the peculiar and complex aspects of NMNAT1-dependent retinal degeneration, with a particular focus on the underlying metabolic and transcriptional changes, used to hypothesize a mechanistic scenario explaining the pathophysiological picture associated with mutations at this locus. Overall, the paper is very well written and logical and provides a very comprehensive analysis spanning from detailed phenotypic analysis to metabolomics and transcriptomics approaches. This is definitely the major strength of the paper: experimental comprehensiveness and multilevel analysis. Using this approach, in general, the authors managed to provide interesting insights on the putative mechanistic scenario on the basis of the retinal degeneration caused by NAD+ and NMNAT1 deficiencies. Moreover, the cell-specific analysis provided also brings value and specificity to the study. Although the aim was obviously ambitious, the results provided well support most of their conclusions. In spite of this, I do have a major concern about the paper submitted. In general, the authors cite several papers with overlapping data/approaches to those proposed in the submitted manuscript (i.e. Lin et al., 2016, Greenwald et al., 2021, Wang et al., 2017, Lundt et al., 2021; Kuribayashi et al., 2018, Sasaki et al., 2020b). I understand that this is a hot topic in the field, that converging data is understandable, and that independent studies providing similar results are an extraordinary opportunity to validate the strength of the findings. However, I would encourage the authors to better state/define what differentiates some of their findings from those reported in the mentioned papers which used both retina or photoreceptor-specific NMNAT1 ablation, as well as metabolomic and transcriptional profiling of such transgenic animals. Although the authors use a very logical and comprehensive approach (and did a great job in presenting their findings with clarity), in several parts I kind of struggled a bit in recognizing the novelty of what they are bringing, and which kind of knowledge gaps they aim to fill, beyond the rhetoric of scientific writing.

A second aspect I would like to point out concerns the conclusions drawn by the authors concerning the different sensitivity of the distinct cell populations to the altered NAD+ homeostasis/NMNAT1 knockdown. It is well possible that amacrine, photoreceptor, bipolar cells, and RGCs respond differently to the tested conditions. However, it is also possible that photoreceptor cell degeneration (which occurs relatively early) represents also a cause of the later impairments in the other cell populations, affecting in turn their survival. Definitely, photoreceptors are, among the mentioned cells, those where altered REDOX chemistry (where NAD+ plays a crucial role) can have a bigger impact. I think that in the model proposed, it is not very clear why, the other cell types are affected as well, although later (even at P30 for RGCs). In other words, can we be sure that the degeneration observed in the different cell populations is actually cell-autonomous and not the result of a malfunctioning of one of the cell types? Are the effects on later cell types specific or just a consequence of the earlier impairment in photoreceptors? Maybe the authors could comment on this.

– Line 60: I found it interesting that retinas are particularly sensitive to NAD+ metabolism perturbations. Although the authors provide several examples in the literature, I would ask them to further comment (also in the paper) on why this tissue should be particularly reliant on NAD+ metabolism compared to the others (that to my knowledge should require a fine-tuned NAD+ homeostasis as well), also considering what they state in lines 71-75.

– Line 76: The authors define the other NMNAT as isoforms, but they are actually different genes, so I would define them as "other NMNAT genes", or, in case something is known about their phylogeny, use the more appropriate term paralogs (as I assume they are the results of vertebrate genome duplications).

– Line 123: what is the general range of knockout efficiency with the Cre-lox system, and what was the efficiency in the other papers that used a similar strategy to investigate NMNAT1 (see above). Can this explain some inconsistencies with some of the other studies?

– In Figure 1 legend it is not clear how many animals have been used as biological replicates (Figure 1C-J).

– Figure 1B: t-test is often accepted with 3 biological replicates, yet, theoretically, to assume a normal distribution you need more than 3 datapoints, so I would suggest a Mann-Whitney test (same applies to Figure 2, Figure 4E, J and supplementary figures using t-test, like Figure S3C, Figure S4E).

– Figure 1H-J: It is not possible in this case to use a t-test, as you would need anyway to correct for multiple comparisons even if you are interested in the KO vs wt comparison at a single specific distance. In this case, the authors should use an ANOVA or, given the consideration above (t-test vs Mann-Whitney test), with a non-parametric equivalent, like Kruskal-Wallis (in both cases corrected for multiple comparisons, as the more comparisons you are interested in, the more likely is to find something significant).

– Line 156: In this section, some % are given, yet it is not clear how many animals have been used to calculate such numbers. Did the authors use only one animal per timepoint? Even without statistical constraints (this is not the goal here), I would suggest at least 2-3 specimens.

– Line 332: not necroptosis as well? (See lines 218-221)

– As far as I see, no statistical analysis has been performed for Figure 5C, E, H. Is there a valuable and specific reason? If not, I would include a statistical significance assessment.

– Lines 445-452: I am not fully convinced by the explanation concerning the contrasting evidence between the manuscript and Kuribayashi et al., 2018. The current study reports defects in amacrine and bipolar cells in relatively later stages, so I am not sure whether an earlier knockdown can explain these discrepancies.

– Line 606: although I recognize this study as very well done and comprehensive, I do not think that the authors themselves should define their manuscript as the most… I suggest they change "the most… to date" with "a". I also would like to remember the authors that yes, their study might be the most comprehensive, but they largely base their study on a plethora of studies using very similar approaches and providing similar advancements in the field.

– Especially for scientists from different fields, I would spend few words explaining the relationships between the different cell types mentioned (how they are contributing to retinal development and vision, for instance).


Author response

Essential revisions:

1) The authors need to experimentally address the potential role of NMNAT1 in retinal progenitor differentiation, with especial consideration of amacrine, photoreceptor and bipolar progenitors. The reviewers share the opinion that the data presented in the manuscript could be the result of defective specification/differentiation and not only linked to degeneration as the authors claim. Thus, staining for progenitor markers and proliferation antigens at embryonic and postnatal stages is required. Any other approach aimed at addressing this issue will be equally valid.

We thank the reviewers for raising this important distinction—in response, we have considerably expanded Figures 2 and 3 to include staining for several proliferation and progenitor markers in ages preceding and succeeding gross retinal degeneration in our model. Phosphorylated histone H3 (Figure 3—Supplement 1), a marker for M phase cells (Prigent and Dimitrov, 2003), Phosducin (Figure 3), a marker of developing cone photoreceptors (Rodgers et al., 2016), and OTX2, a regulator of photoreceptor and bipolar cell terminal differentiation (Beby and Lamonerie, 2013) (Figure 3) reveal severe defects in photoreceptor terminal differentiation but only modest reductions in progenitor proliferation in NMNAT1 knockout retinas. In addition to Phosducin, we examined cone specification in our model using anti-M-opsin and peanut agglutinin (PNA), a lectin which labels developing cone outer segments (Blanks and Johnson). At P4, this suggests cone specification defects equal in magnitude to rod specification defects (which we demonstrated by staining for rhodopsin and recoverin) in knockouts.

With regards to bipolar cell specification, several attempts at checking the expression of MASH1 a supposed bipolar differentiation marker (Hatakeyama and Kageyama, 2004) and PKC-α (a well-characterized marker of mature bipolar cells) were unsuccessful—the former due to antibody issues, and the latter since PKCa in our model is not detectable until later ages, at which point knockout retinas are nearly completely degenerated. While NMNAT1 may play a role in the terminal differentiation of retinal bipolar cells (supported perhaps by aforementioned OTX2 misexpression in knockouts), we note that CHX10 is involved in bipolar cell differentiation (Hatakeyama and Kageyama, 2004) The fact that we observe equal amounts of CHX10-positive cells in P4 knockout retinas—an age at which we report complete abrogation of M-opsin, rhodopsin, and recoverin expression—suggests that any potential effects of NMNAT1 loss on bipolar specification are at least less severe than those observed for photoreceptor terminal differentiation. We note also that levels of Mash1 and its partner Math3 are unchanged in our P4 RNA-sequencing dataset, and Mash1 is similarly unchanged in E18.5 knockouts.

While we were unable to specifically probe amacrine cell specification, we have added staining for calbindin, which labels both horizontal and amacrine neurons (Wassle et al., 1998). At P4, quantification of calbindin-positive amacrine cells (identified by their location proximal to the inner plexiform layer) shows no significant change in amacrine cell numbers in knockouts, mirroring our Calretinin analyses. Classical and contemporary birth-dating studies (Cepko, 2014; Cherry et al., 2009; Voinescue et al., 2009) indicate that the vast majority of retinal amacrine cells area born well before P4—an age at which we report no change in calbindin or calretinin-positive amacrine cells in NMNAT1 knockouts. Thus, while we detect an increase in calretinin-positive amacrine cells in wild-type controls between P4 and P10, this observation likely reflects calretinin expression and not amacrine cell specification. For these reasons, we consider it unlikely that NMNAT1 influences amacrine cell differentiation; however, since we have not conclusively ruled out this possibility, we have included a brief discussion of this matter in the main text. A more exhaustive examination of amacrine cell specification in NMNAT1 knockout retinas presents a potential future avenue of study.

2) Analysis of cone, amacrine and Müller cell specification/differentiation should also be included as morphological and RNA-seq data suggests possible decrease of their specification/differentiation.

We thank the reviewers for the motivation to examine cone terminal differentiation using the aforementioned Phosducin and M-opsin/PNA stains, which revealed severe defects in cone specification in NMNAT1 knockout retinas. Müller glia are among the latest-born retinal cell types (Cepko 2014), and in our wild-type controls are only detectable on staining after ~P8, by which time there is considerable degeneration in knockout retinas. Thus, we do not consider our pan-retinal knockout model to be particularly informative for identifying a role for NMNAT1 in Müller glia development—perhaps a glia-specific NMNAT1 knockout would be better suited for this question.

We would like to stress that we do not claim that NMNAT1 functions only in the terminal differentiation of photoreceptors. Rather, we attempt to draw a distinction between the phenotypes we observe in photoreceptor cells (early transcriptional reduction in a cluster of visual transduction genes, complete abrogation of opsin and recoverin expression, rapid degeneration) versus non-photoreceptor cells (largely unchanged transcriptional signatures, persistence of cell-type markers, delayed degeneration). We use this distinction to (1.) demonstrate that NMNAT1 loss during retinal development affects cell types beyond photoreceptors, and (2.) propose an especially salient role for NMNAT1 in photoreceptor terminal differentiation, a role which has not to this point been described. We have revised the main text to make this intent clearer.

3) A better description of the knockout efficiency with the Cre-lox system used and its comparison with those used in the other studies to investigate NMNAT1 requirement in the retina is needed.

We have included a comparison of our knockout efficiency with that of (Sasaki et al., 2020a) in the main text. Unfortunately, we were unable to accurately determine the knockout efficiencies of the models presented in Wang et al., or Eblimit et al., —the former because the publication does not include this information and the latter because only a non-quantitative immunofluorescent image was provided to demonstrate NMNAT1 knockout. We do note, however, that the Six3-Cre mice used in our study have previously been validated by crossing with a transgenic Cre reporter line, which showed uniform Six3-Cre expression throughout the retina (Christiansen et al.,). However, the reviewers raise an important point considering potentially lower Six3-Cre expression in the peripheral retina—for this reason, we focus our analyses on the central retina and do not believe this possibility to influence the validity of our findings.

4) Statistical analysis of the data should be revised in Figure 1 and added in Figure 5.

We appreciate these comments and apologize for any confusion regarding statistics in Figure 5—we had intended the color coding of the bars to denote significance, opting against including asterisks above the bars for fear that they would be misinterpreted as data points. To make this color coding clearer, we have emphasized the color legend and added a brief comment to the figure legend. We also added asterisks to denote significance in the heatmap in Figure 5G. With regards to using non-parametric significance tests in Figure 1, we have replaced the analysis in Figure 1B with a Mann-Whitney U test and updated the legend accordingly. However, we have opted to keep the multiple t-test analysis in panels H-J because we only intended to compare thicknesses between control and knockout retinas at each individual distance, and we feel that an assumption of normality among retinal thickness measurements is not unreasonable in this instance. While we are careful to correct for multiple comparisons in our large-scale transcriptomics dataset, any detrimental effects of making 8 comparisons versus 1 are minimal, and debate exists as to the overall appropriateness of multiple comparison correction in every case (Althouse 2016). We include all exact p-values in our source data file and have added 95% confidence intervals of these thickness measurements to the main text—importantly, we observe identical trends in retinal thickness throughout many independent immunostaining experiments later in the paper, so we believe that the specific statistical test used in these panels does not influence the conclusions to an appreciable degree.

5) A number of different studies have used similar approaches (retina-specific NMNAT1 KO or KD, transcriptomics, and metabolomics) to shed light on NMNAT1 function in the retina. The authors need to clarify what are the knowledge gaps they are trying to fill in and should discuss better their findings in relation to the existing data (i.e. in relation to those of Eblimit et al., 2018 and Kuribayashi et al., 2018).

To address this concern, we have added several paragraphs in the main text which (1.) better explain any potential inconsistencies between our study and that of Kuribayashi et al., (2.) discuss the possibility of cell-autonomous roles of NMNAT1 in relation to findings of Wang et al., and (3.) better clarify the novelty of our findings. With full respect to the authors of these previous studies, we would like to point out that the mere existence of these publications overestimates the extent to which NMNAT1 knockout retinas have been characterized—Wang et al., provide only a 7-page (omitting references) preprint with a single figure, and Eblimit et al., focus mostly on a disease-linked NMNAT1 mutation (which they demonstrate does not reduce NMNAT1 expression), providing only histological analyses of their various NMNAT1 conditional knockout models. We are grateful to extend some of the findings of Kuribayashi et al., to an in vivo setting, but our in vivo cell-type marker analyses, transcriptomics-guided investigation of cell death and photoreceptor differentiation, and comprehensive metabolomics analyses have not previously been reported in an NMNAT1-deficient animal model.

6) The authors may also consider rescuing the phenotype of the CKO retina by the administration of NAD or NMN, if experimentally feasible.

While we appreciate this suggestion and see the potential value of this experiment, uncertainties concerning the timing and proper delivery of NAD to newborn pup retinas argues against the current feasibility of this approach (NMN, meanwhile, is an NMNAT1 substrate and is considerably elevated in our knockout retinas (Figure 5C)).

In addition to the above changes, we note the following changes in response to individual reviewer comments:

– Scale bars have been added to figure 1

– We have changed references of NMNAT1 “isoforms” to “paralogs” or “enzymes” (thank you for catching this)

– We have added information to all figure legends indicating the number of biological replicates used for each experiment

– We have changed “the most comprehensive..” to “a comprehensive…” at the end of the Discussion section, and added more details to better contextualize our findings


Althouse, A. D. (2016). Adjust for Multiple Comparisons? It’s Not That Simple. The Annals of Thoracic Surgery, 101(5), 1644–1645. https://doi.org/10.1016/j.athoracsur.2015.11.024

Beby, F., and Lamonerie, T. (2013). The homeobox gene Otx2 in development and disease. Experimental Eye Research, 111, 9–16. https://doi.org/10.1016/j.exer.2013.03.007

Blanks, J. C., and Johnson, L. V. (n.d.). Specific Binding of Peanut Lectin to a Class of Retinal Photoreceptor Cells. 25, 12.

Cepko, C. (2014). Intrinsically different retinal progenitor cells produce specific types of progeny. Nature Reviews Neuroscience, 15(9), 615–627. https://doi.org/10.1038/nrn3767

Cherry, T. J., Trimarchi, J. M., Stadler, M. B., and Cepko, C. L. (2009). Development and diversification of retinal amacrine interneurons at single cell resolution. Proceedings of the National Academy of Sciences, 106(23), 9495–9500. https://doi.org/10.1073/pnas.0903264106

Christiansen, J. R., Kolandaivelu, S., Bergo, M. O., and Ramamurthy, V. (n.d.). RAS-converting enzyme 1-mediated endoproteolysis is required for trafficking of rod phosphodiesterase 6 to photoreceptor outer segments. 5.

Di Stefano, M., Nascimento-Ferreira, I., Orsomando, G., Mori, V., Gilley, J., Brown, R., Janeckova, L., Vargas, M. E., Worrell, L. A., Loreto, A., Tickle, J., Patrick, J., Webster, J. R. M., Marangoni, M., Carpi, F. M., Pucciarelli, S., Rossi, F., Meng, W., Sagasti, A., … Conforti, L. (2015). A rise in NAD precursor nicotinamide mononucleotide (NMN) after injury promotes axon degeneration. Cell Death and Differentiation, 22(5), 731–742. https://doi.org/10.1038/cdd.2014.164

Hatakeyama, J., and Kageyama, R. (2004). Retinal cell fate determination and bHLH factors. Seminars in Cell and Developmental Biology, 15(1), 83–89. https://doi.org/10.1016/j.semcdb.2003.09.005

Prigent, C., and Dimitrov, S. (2003). Phosphorylation of serine 10 in histone H3, what for? Journal of Cell Science, 116(18), 3677–3685. https://doi.org/10.1242/jcs.00735

Rodgers, H. M., Belcastro, M., Sokolov, M., and Mathers, P. H. (2016). Embryonic markers of cone differentiation. Molecular Vision, 22, 1455–1467.

Voinescu, P. E., Kay, J. N., and Sanes, J. R. (2009). Birthdays of retinal amacrine cell subtypes are systematically related to their molecular identity and soma position. The Journal of Comparative Neurology, 517(5), 737–750. https://doi.org/10.1002/cne.22200

Wässle, H., Peichl, L., Airaksinen, M. S., and Meyer, M. (1998). Calcium-binding proteins in the retina of a calbindin-null mutant mouse. Cell and Tissue Research, 292(2), 211–218. https://doi.org/10.1007/s004410051052


Article and author information

Author details

  1. David Sokolov

    Department of Ophthalmology and Visual Sciences, Eye Institute, One Medical Center Drive, West Virginia University, Morgantown, United States
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Software, Validation, Visualization, Writing - original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6774-4133
  2. Emily R Sechrest

    Department of Ophthalmology and Visual Sciences, Eye Institute, One Medical Center Drive, West Virginia University, Morgantown, United States
    Investigation, Validation, Writing – review and editing
    Competing interests
    No competing interests declared
  3. Yekai Wang

    1. Department of Ophthalmology and Visual Sciences, Eye Institute, One Medical Center Drive, West Virginia University, Morgantown, United States
    2. Department of Biochemistry, One Medical Center Drive, West Virginia University, Morgantown, United States
    Data curation, Formal analysis, Investigation, Software
    Competing interests
    No competing interests declared
  4. Connor Nevin

    Department of Ophthalmology and Visual Sciences, Eye Institute, One Medical Center Drive, West Virginia University, Morgantown, United States
    Competing interests
    No competing interests declared
  5. Jianhai Du

    1. Department of Ophthalmology and Visual Sciences, Eye Institute, One Medical Center Drive, West Virginia University, Morgantown, United States
    2. Department of Biochemistry, One Medical Center Drive, West Virginia University, Morgantown, United States
    Methodology, Resources, Supervision
    Competing interests
    No competing interests declared
  6. Saravanan Kolandaivelu

    1. Department of Ophthalmology and Visual Sciences, Eye Institute, One Medical Center Drive, West Virginia University, Morgantown, United States
    2. Department of Biochemistry, One Medical Center Drive, West Virginia University, Morgantown, United States
    Conceptualization, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Writing – review and editing
    For correspondence
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8552-7850


West Virginia University (Bridge Funding)

  • Saravanan Kolandaivelu

National Institutes of Health (RO1EY028959)

  • Saravanan Kolandaivelu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.


We thank Dr. Laura Conforti for the Nmnat1flox/flox animals, and current and past members of the Kolandaivelu lab for constant support. This work was supported by bridge funding to SK and the National Institutes of Health (RO1EY028959 to SK).


This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols of West Virginia University. The protocol was approved by the Institutional Animal Care and Use Committee of West Virginia University (Protocol #1603001820).

Senior Editor

  1. Marianne E Bronner, California Institute of Technology, United States

Reviewing Editor

  1. Paola Bovolenta, CSIC-UAM, Spain

Publication history

  1. Preprint posted: May 5, 2021 (view preprint)
  2. Received: June 11, 2021
  3. Accepted: December 7, 2021
  4. Accepted Manuscript published: December 8, 2021 (version 1)
  5. Version of Record published: January 12, 2022 (version 2)


© 2021, Sokolov et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.


  • 458
    Page views
  • 88
  • 0

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Stem Cells and Regenerative Medicine
    Dongsheng Guo et al.
    Tools and Resources

    Skeletal muscle myoblasts (iMyoblasts) were generated from human induced pluripotent stem cells (iPSCs) using an efficient and reliable transgene-free induction and stem cell selection protocol. Immunofluorescence, flow cytometry, qPCR, digital RNA expression profiling, and scRNA-Seq studies identify iMyoblasts as a PAX3+/MYOD1+ skeletal myogenic lineage with a fetal-like transcriptome signature, distinct from adult muscle biopsy myoblasts (bMyoblasts) and iPSC-induced muscle progenitors. iMyoblasts can be stably propagated for >12 passages or 30 population doublings while retaining their dual commitment for myotube differentiation and regeneration of reserve cells. iMyoblasts also efficiently xenoengrafted into irradiated and injured mouse muscle where they undergo differentiation and fetal-adult MYH isoform switching, demonstrating their regulatory plasticity for adult muscle maturation in response to signals in the host muscle. Xenograft muscle retains PAX3+ muscle progenitors and can regenerate human muscle in response to secondary injury. As models of disease, iMyoblasts from individuals with Facioscapulohumeral Muscular Dystrophy revealed a previously unknown epigenetic regulatory mechanism controlling developmental expression of the pathological DUX4 gene. iMyoblasts from Limb-Girdle Muscular Dystrophy R7 and R9 and Walker Warburg Syndrome patients modeled their molecular disease pathologies and were responsive to small molecule and gene editing therapeutics. These findings establish the utility of iMyoblasts for ex vivo and in vivo investigations of human myogenesis and disease pathogenesis and for the development of muscle stem cell therapeutics.

    1. Cell Biology
    2. Developmental Biology
    Karl F Lechtreck et al.
    Research Article Updated

    Intraflagellar transport (IFT) carries proteins into flagella but how IFT trains interact with the large number of diverse proteins required to assemble flagella remains largely unknown. Here, we show that IFT of radial spokes in Chlamydomonas requires ARMC2/PF27, a conserved armadillo repeat protein associated with male infertility and reduced lung function. Chlamydomonas ARMC2 was highly enriched in growing flagella and tagged ARMC2 and the spoke protein RSP3 co-migrated on anterograde trains. In contrast, a cargo and an adapter of inner and outer dynein arms moved independently of ARMC2, indicating that unrelated cargoes distribute stochastically onto the IFT trains. After concomitant unloading at the flagellar tip, RSP3 attached to the axoneme whereas ARMC2 diffused back to the cell body. In armc2/pf27 mutants, IFT of radial spokes was abolished and the presence of radial spokes was limited to the proximal region of flagella. We conclude that ARMC2 is a cargo adapter required for IFT of radial spokes to ensure their assembly along flagella. ARMC2 belongs to a growing class of cargo-specific adapters that enable flagellar transport of preassembled axonemal substructures by IFT.
