A nascent polypeptide sequence modulates DnaA translation elongation in response to nutrient availability

  1. Michele Felletti
  2. Cédric Romilly
  3. E Gerhart H Wagner
  4. Kristina Jonas  Is a corresponding author
  1. Science for Life Laboratory and Department of Molecular Biosciences, The Wenner-Gren Institute, Stockholm University, Sweden
  2. Department of Cell and Molecular Biology, Uppsala University, Sweden
Research Article
  • Cited 0
  • Views 486
  • Annotations
Cite this article as: eLife 2021;10:e71611 doi: 10.7554/eLife.71611

Abstract

The ability to regulate DNA replication initiation in response to changing nutrient conditions is an important feature of most cell types. In bacteria, DNA replication is triggered by the initiator protein DnaA, which has long been suggested to respond to nutritional changes; nevertheless, the underlying mechanisms remain poorly understood. Here, we report a novel mechanism that adjusts DnaA synthesis in response to nutrient availability in Caulobacter crescentus. By performing a detailed biochemical and genetic analysis of the dnaA mRNA, we identified a sequence downstream of the dnaA start codon that inhibits DnaA translation elongation upon carbon exhaustion. Our data show that the corresponding peptide sequence, but not the mRNA secondary structure or the codon choice, is critical for this response, suggesting that specific amino acids in the growing DnaA nascent chain tune translational efficiency. Our study provides new insights into DnaA regulation and highlights the importance of translation elongation as a regulatory target. We propose that translation regulation by nascent chain sequences, like the one described, might constitute a general strategy for modulating the synthesis rate of specific proteins under changing conditions.

Introduction

Most cells must be able to integrate external information with proliferative functions such as DNA replication, cell division, and protein synthesis. In particular, unicellular bacteria that frequently face drastic environmental changes in their natural habitat are able to precisely adjust their growth and division rate in response to environmental cues. While most bacteria proliferate rapidly under optimal conditions, they slow down growth and often enter a non-growing state under adverse conditions, for example, nutrient limitation (Heinrich et al., 2015). This dynamic switching between proliferative and non-growing modes contributes to stress and antibiotic tolerance, as well as the virulence of pathogenic bacteria (De Bolle et al., 2015; Hobbs and Boraston, 2019; Wood et al., 2013). Previous research has focused on the mechanisms that allow bacteria to globally reprogram gene transcription in response to nutrient availability (Schellhorn, 2020; Steinchen et al., 2020). More recently, the advance of ribosome profiling technologies has also revealed a central role of translational regulation in the adaptation to changing nutrient conditions (Li et al., 2018; Parker et al., 2020; Subramaniam et al., 2014; Tollerson, 2020). Despite significant progress, the precise molecular mechanisms regulating the translation of specific proteins during nutrient limitation are incompletely understood.

When entering growth arrest, most bacteria inhibit DNA replication initiation and halt their cell division cycle with a reduced number of fully replicated chromosomes (Jonas, 2014). Shutting down DNA replication initiation prior to the cessation of key metabolic functions and cell division likely preserves genome and cellular integrity. In nearly all bacteria, replication initiation depends on DnaA, an ATP-binding protein consisting of four distinct structural and functional domains: (1) a helicase loading domain, (2) a linker domain, (3) an AAA+ (ATPase Associated with diverse cellular Activities) domain, and (4) a DNA-binding domain (Hansen and Atlung, 2018). DnaA is only active in the ATP-bound state and, upon binding to specific DnaA-boxes in the bacterial origin of replication, it unwinds double-stranded DNA and recruits the replisome. ATP hydrolysis following replication initiation subsequently inactivates DnaA (Camara et al., 2005; Katayama et al., 2010). Due to its critical function in replication initiation, DnaA has been proposed to be a crucial player in the nutritional control of DNA replication for more than 50 years (Donachie, 1968). Yet, the precise molecular mechanisms that regulate this important protein in response to changing nutrient conditions remain poorly understood.

In the freshwater bacterium Caulobacter crescentus (Caulobacter hereafter), DnaA levels decrease at the onset of carbon starvation when growth rate declines, which entails a block of DNA replication initiation (Gorbatyuk and Marczynski, 2005; Lesley and Shapiro, 2008; Leslie et al., 2015). Caulobacter is an important model for bacterial cell cycle studies due to its asymmetric cell cycle and its genetical tractability (Govers and Jacobs-Wagner, 2020). Furthermore, as a member of the Alphaproteobacteria, it is representative of a diverse group of bacteria, including important pathogens and agriculturally relevant species (Govers and Jacobs-Wagner, 2020). In its natural habitat, Caulobacter frequently experiences fluctuations in nutrient availability, for example, as an indirect consequence of seasonality or changes in the microbial composition of its niche (Heinrich et al., 2019).

Caulobacter DnaA is a relatively unstable protein that is degraded by the AAA+ protease Lon (Felletti et al., 2019; Jonas et al., 2013; Liu et al., 2016). Although Lon-dependent proteolysis is required for rapid clearance of DnaA at the onset of starvation, the rate of proteolysis is not significantly affected by changing nutrient conditions (Leslie et al., 2015). Instead, a starvation-induced decrease in DnaA translation rate was shown to be responsible for nutritional regulation of DnaA levels (Leslie et al., 2015). However, the underlying molecular mechanism remains elusive.

Here, we reveal the mechanistic basis underlying the starvation-induced downregulation of DnaA translation in Caulobacter. An in-depth biochemical and genetic characterisation of the dnaA mRNA showed that its 5' untranslated leader region (5'UTR) is dispensable for this regulation. Instead, inhibition of DnaA translation occurs during polypeptide chain elongation in a starvation-dependent manner, within a coding sequence downstream of the start codon. Our data are consistent with a model in which specific amino acids in the N-terminus of DnaA mediate a translation arrest in response to nutrient limitation while, or after, being added to the growing nascent polypeptide chain. In addition to providing new molecular insights into the nutritional regulation of DnaA, our findings illustrate how specific sequence motifs in nascent polypeptides can tune the first stages of translation elongation under changing nutrient conditions.

Results

The 5'UTR of the Caulobacter dnaA mRNA adopts a complex secondary structure

In Caulobacter, DnaA levels decrease when cells are shifted from a glucose-supplemented minimal medium to the glucose-limiting medium M2G1/10 (Figure 1A; Gorbatyuk and Marczynski, 2005; Leslie et al., 2015). Previous work established that this carbon starvation-induced downregulation of DnaA abundance is caused by decreased dnaA translation in combination with constitutive DnaA degradation by Lon (Leslie et al., 2015). To elucidate the mechanistic basis for starvation-dependent downregulation of DnaA, we structurally and functionally characterised the mRNA region comprising the 155 nucleotides (nt) long 5'UTR and the first 118 nt of the dnaA coding region (total RNA length 273 nt) (Schrader et al., 2014; Zhou et al., 2015; Zweiger and Shapiro, 1994). Native polyacrylamide gel electrophoretic analysis of this in vitro transcribed 32P-5'-end-labelled RNA indicated a dominant conformation of the dnaA mRNA leader (Figure 1—figure supplement 1A). To determine its secondary structure, we combined mFold and ViennaRNA computational predictions with structural probing (Figure 1—figure supplement 1B–D). The latter was performed with Pb2+ to induce RNA cleavages in single-stranded regions, RNase T1 to cleave after single-stranded G residues, and RNase V1 for mapping double-stranded stretches. The experimental and in silico analyses suggested seven base-paired segments: one helical element (P1) and six stem-loop motifs (P2–P7, Figure 1B). The 5'-most 8 nt are part of helix P1, which is connected via a three-way junction to stem-loops P2 and P3. The stable GC-rich stem P4 carries a G-rich loop which is highly susceptible to T1 RNase cleavage. A fifth stem-loop structure (P5) is located upstream of the AUG start codon. Two mismatches in this stem confer some instability (ΔGfolding of –7 kcal/mol). The region around the start codon appears mostly unstructured, suggested by T1 cleavages at nucleotides G154, G158, and G164 (Figure 1C). The mRNA region encompassing the first 118 nt of the dnaA coding region folds into two stable stem-loops, P6 and P7. The additional RNase V1 cleavages in this portion of the RNA might indicate base-pairing of the 3' terminal nucleotides with the mRNA region around the start codon.

Figure 1 with 2 supplements see all

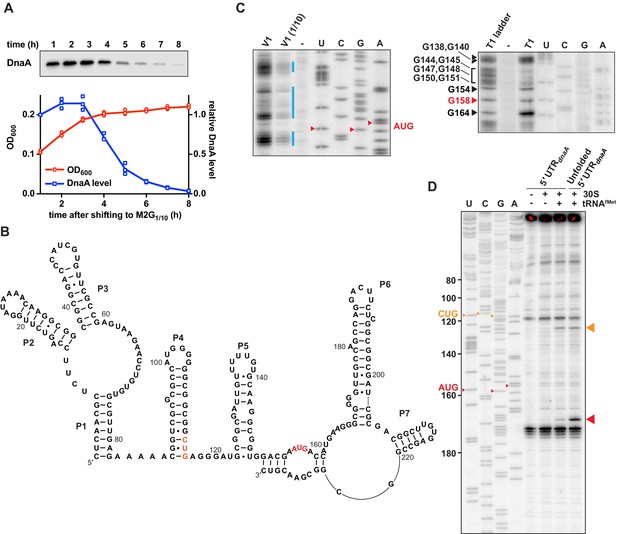

Caulobacter dnaA mRNA assumes a complex secondary structure that inhibits pre-initiation complex formation.

(A) Growth curve (red) and DnaA abundance (blue) measured during a carbon exhaustion experiment. Wild-type Caulobacter was grown in a defined minimal medium (M2G1/10) containing 0.02% glucose as the sole carbon source. DnaA levels were determined by western blot and band intensities quantified relative to the first time point (t = 1 hr). Averages of three independent replicates are shown with error bars representing standard errors. (B) Secondary structure of the mRNA region encompassing the 5'UTR and the first 26 codons of the dnaA open reading frame. The reported AUG start codon and the alternative CUG codon are highlighted in red and orange, respectively. See Figure 1—figure supplement 2A for an alternative secondary structure differing in the way the 3'-terminal RNA portion folds back on the start codon region. (C) RNA probing gels showing the dnaA mRNA region containing the translation start site and the RBS. Upon partially digesting a synthetic in vitro transcribed RNA with V1 (left gel) or T1 (right gel) RNases, primer extension (32P-5'-end-labelled primer B; Figure 1—figure supplement 2A) was used to detect cleavage positions. V1 and V1 (1/10) lanes: samples treated with different concentrations of RNase V1; T1 lane: sample treated with T1 RNase; T1 ladder lane: RNase T1 treatment under denaturing conditions; -: mock-treated RNA; U, C, G, A lanes: sequencing reactions using the 32P-5'-end-labelled primer B. The bands corresponding to the start codon nucleotides are indicated in red. The blue lines indicate the dsRNA regions. Complete gels are shown in Figure 1—figure supplement 1C and D. (D) Toeprinting assay showing the sites of pre-initiation complex formation in the dnaA 5'UTR. The reverse transcription step was performed using 32P-5'-end-labelled primer A (Figure 1—figure supplement 2A). Inclusion of Escherichia coli 30S ribosomes and tRNAfMet are indicated on the top of the gel. Unfolded 5'UTR lane, assay performed using a heat-unfolded in vitro transcribed RNA. U, C, G, A lanes: sequencing reactions using the 32P-5'-end-labelled primer A. The large red and orange triangles indicate the reverse transcriptase stops induced by the 30S initiation complexes formed at the AUG and CUG codons, respectively. The AUG and CUG codons are indicated on the sequencing lanes with small red and orange triangles, respectively.

We also assessed the level of sequence conservation by BLAST using the 5'-most 233 nt of the dnaA mRNA of C. crescentus NA1000 as a query. Closely related sequences were found in several species of the Caulobacter and Phenylobacter genera (family Caulobacteraceae). Alignment of these 66 sequences revealed three conserved sequence domains. Further analysis, using the co-variance-based software CMfinder, identified three conserved independent structural domains corresponding to helices P1–3, P4, and P6 (Figure 1—figure supplement 2B), thus additionally supporting the probing results.

The structure of the dnaA 5'UTR inhibits pre-initiation complex formation in vitro

One of the most striking features of the proposed dnaA mRNA structure is stem-loop P5. Its close proximity to the translation start site might suggest reduced access of initiating ribosomes. Since the Caulobacter dnaA 5'UTR had been reported to lack an obvious Shine–Dalgarno (SD) sequence (Schrader et al., 2014), we first predicted plausible sites of interaction with the 30S ribosomal subunit. The base-pairing energy was calculated for an 8 nt sliding window of the 5'UTR and the anti-SD sequence of Caulobacter’s 16S rRNA (Figure 1—figure supplement 2C), which suggested possible SD-like interactions between A143 and G150.

Experimentally, we assayed translation pre-initiation complex formation in vitro by toeprint analysis on the corresponding dnaA mRNA using purified Escherichia coli 30S subunit and tRNAfMet (Figure 1D). We obtained a weak reverse transcription signal consistent with 30S-tRNAfMet binding at the reported AUG start codon, confirming that a pre-initiation complex is formed at the predicted SD (between position 143 and 150) that is buried in stem P5. Conducting the toeprint after heat-induced denaturation of the RNA gave a significantly enhanced signal. This shows that destabilisation of the proximal elements (i.e., P5, P6) overcomes the partial inhibition seen in Figure 1D and suggests that the mRNA adopts a conformation that limits pre-initiation complex formation.

It is noteworthy that our toeprint assay indicated a second band, consistent with complex formation at a non-canonical CUG start codon (nt 114–116), with an upstream SD which was also predicted in silico (Figure 1D and Figure 1—figure supplement 2C). However, our genetic experiments, as described in detail below, showed that this site is not used for translation initiation in vivo.

A fluorescent reporter system to monitor post-transcriptional regulation of dnaA during carbon starvation

To study the cis-regulatory elements in dnaA mRNA that are involved in the post-transcriptional regulation of DnaA under carbon starvation, we developed an in vivo fluorescent reporter system. We translationally fused the dnaA promoter and 233 bp of dnaA (comprising the 5'UTR and the first 26 codons encoding the DnaA N-terminus, 5'UTR-Nt hereafter) to the enhanced green fluorescent protein (eGFP) gene on a low-copy plasmid and transformed the construct into wild-type Caulobacter (Figure 2A). When shifting the resulting reporter strain from glucose-supplemented to glucose-limiting medium (Figure 2B, left panel) a transient increase of normalised fluorescence of the culture reached a maximum level, followed by a subtle decline until the end of the experiment. The maximum fluorescence occurred approximately 2 hr after the culture had entered a starvation-induced growth arrest. Importantly, upon substitution of the dnaA 5'UTR-Nt with the artificial non-nutritionally controlled 5'UTR6/13 (Osterman et al., 2013), eGFP continued to accumulate throughout the starvation phase, while showing similar normalised culture fluorescence during exponential growth as the 5'UTR6/13 strain (OD600 = 0.05; Figure 2C, left panel). This result demonstrates that the observed block of eGFP accumulation from 2 hr after entering growth arrest strongly depends on the presence of the dnaA 5'UTR-Nt.

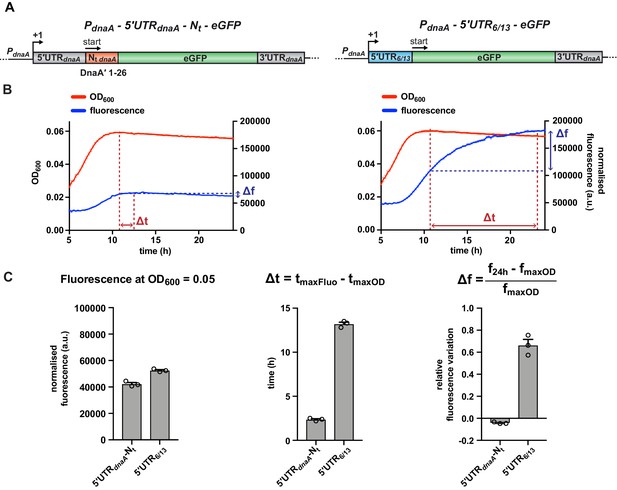

A fluorescent reporter system monitors the post-transcriptional regulation of dnaA during carbon starvation.

(A) Schematic illustration of the plasmid-borne reporter constructs. In the 5'UTR-Nt construct (left-hand side), the dnaA promoter (PdnaA), the dnaA 5'UTR (5'UTRdnaA; grey), and the first 26 codons of dnaA open reading frame (Nt dnaA; orange) were translationally fused to the eGFP gene (green), followed by dnaA intrinsic terminator (3'UTRdnaA; grey). In the 5'UTR6/13 construct (right-hand side), the 5'UTRdnaA-Nt dnaA module was substituted with the non-nutritionally regulated 5'UTR6/13 (light blue). (B) Culture fluorescence was measured to monitor eGFP synthesis during growth in M2G1/10 for 24 hr using a microplate reader. Background correction was performed at each time point by subtracting the fluorescence of a strain carrying a pMR10 empty plasmid (pMR10-BG, Supplementary file 1A). The normalised fluorescence (blue curve) was obtained by dividing with the OD600 (red curve) at each time point. (C) Values of fluorescence intensity at OD600 = 0.05, Δt and Δf calculated using the kinetic profiles in (B). The parameters Δt and Δf are defined by the equations reported on top of the bar graphs and are graphically represented in (B). Averages of three independent replicates are shown with error bars representing standard errors.

To quantitatively describe the different kinetics of eGFP accumulation, we defined two parameters, Δt and Δf. The first expresses the time difference (in hours) between the maxima of the growth and the fluorescence curves (Figure 2B), providing a measure of the time required to arrest eGFP accumulation in response to carbon exhaustion. The 5'UTR-Nt strain gave a much smaller Δt value than the 5'UTR6/13 strain (Figure 2C, middle panel), suggesting efficient downregulation of eGFP expression in response to carbon starvation only when the reporter gene is under the control of the dnaA leader. The second parameter, Δf, denotes the relative accumulation of eGFP in the time interval between the culture reaching its maximum OD600 and the termination of the measurement (24 hr). In this time frame, the 5'UTR6/13 strain exhibited a clear increase in fluorescence, resulting in a significantly higher Δf value compared to the 5'UTR-Nt strain, which is characterised by a slightly negative Δf value (Figure 2C, right panel).

Stem P5 has an inhibitory effect on DnaA translation, but does not mediate DnaA downregulation at the onset of carbon starvation

Having established an in vivo reporter system that monitors post-transcriptional regulation of dnaA at the onset of carbon starvation, we performed a mutational analysis to identify sequence and structural elements required for the starvation-induced downregulation of DnaA. We first focused on stem P5 and its effect on translation rates in response to nutrient availability. A set of six mutant strains was constructed, with point mutation in the 5'UTR predicted to modify the stability of stem P5 (Figure 3A). As expected, the stabilising mutation G125C (ΔGfoldingP5 = –11.3 kcal/mol) completely abolished eGFP expression, whereas mutations that weaken stem P5 increased eGFP expression during exponential growth (Figure 3B). In particular, the C127A mutation, predicted to both break one base-pair and entail fraying at the bottom of the stem, caused a strong increase in basal eGFP expression. Most strikingly, none of the five stem P5 mutations affected the pattern of eGFP accumulation during the carbon starvation phase, as reflected by largely unchanged Δt and Δf values compared to the strain with the 5'UTR-Nt wild-type sequence (Figure 3C and D and Figure 3—figure supplement 1A). Therefore, even though stem P5 stability affects in vivo translation efficiency per se, it is not involved in mediating the nutritional downregulation of DnaA. Additionally, these data suggest that the AGG sequence (nt 143–145), located 10 nt upstream of the AUG start codon, serves as a short and weak SD-like sequence.

Figure 3 with 3 supplements see all

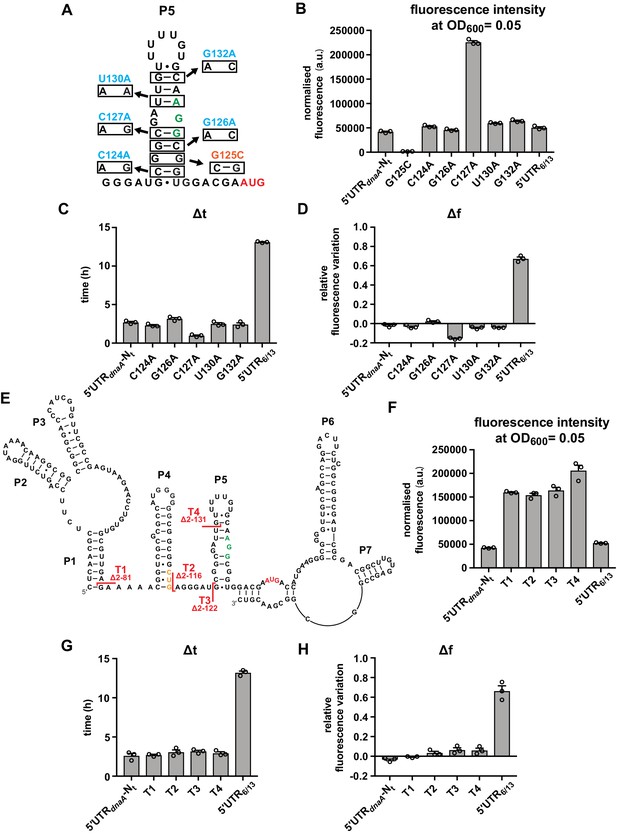

Most of the dnaA 5'UTR sequence is not required for the response to carbon starvation.

(A) Stabilising (orange) and destabilising (light blue) mutations introduced in stem P5 by site-directed mutagenesis of the 5'UTR-Nt reporter construct. The start codon and the putative RBS are indicated in red and green, respectively. (B–D) Values of fluorescence intensity at OD600 = 0.05, Δt and Δf calculated for the mutants in (A). (E) 5'UTR truncation mutants. Sites of truncation (T1–T4) are depicted on the mRNA secondary structure. The start codon and the putative Shine–Dalgarno (SD)-like sequence are indicated in red and green, respectively. The non-canonical CUG codon is coloured in orange. (F–H) Values of fluorescence intensity at OD600 = 0.05, Δt and Δf calculated for the truncation mutants in (E). See Figure 3—figure supplement 1A and B for growth curves and fluorescence kinetic profiles. All data are shown as averages of three independent replicates with error bars representing standard errors.

To search for other regulatory sequences or structural determinants in the dnaA 5'UTR, we engineered a series of truncation mutants in which, starting from the 5'-end of the dnaA transcript, increasing portions of the 5'UTR were removed (Figure 3E). Although truncations T1–T4 increased eGFP expression levels, none of them notably changed Δt or Δf values (Figure 3F–H and Figure 3—figure supplement 1B). This result demonstrates that most of the leader is dispensable for the nutritional downregulation of DnaA and strengthens the conclusion that the putative CUG start codon (see toeprint in Figure 1D) does not impact DnaA translation in vivo. Adding more support, mutation of the canonical AUG start codon or deletion of the entire stem P5 completely abolished DnaA translation, even when the upstream in-frame CUG codon was converted to AUG (Figure 3—figure supplement 2). Hence, the putative upstream translation start site is not functional in vivo.

Two additional deletions (T5, T6) were created to assess whether the loop region of P5 plays a role in regulation of DnaA translation (Figure 3—figure supplement 3). Truncation T5 showed an eGFP accumulation pattern comparable to truncations T1–T4 and the wild-type construct. The T6 mutation removes nearly the entire 5'UTR and corresponds to the ΔUTRdnaA mutation which, in our earlier study, suggested the dnaA 5'UTR to be required for starvation-induced downregulation of DnaA (Leslie et al., 2015). This mutant gave higher Δt and Δf values compared to the 5'UTR-Nt control. However, it also exhibited much lower eGFP levels, indicative of inefficient translation initiation, presumably due to the absence of an extended single-stranded RNA stretch upstream of the AGG SD-like sequence (de Smit and van Duin, 2003). Even drastic changes in P5 loop nucleotides (mutants L1–L3) failed to cause substantial changes in Δt and Δf compared to 5'UTR-Nt (Figure 3—figure supplement 3). Thus, the loop region of P5 does not affect regulation of DnaA translation.

In summary, stem P5 limits translation efficiency but does not mediate the starvation-induced downregulation of DnaA. Furthermore, most of the dnaA 5'UTR sequence is not required for the response to carbon starvation.

A sequence element downstream of the dnaA start codon mediates nutritional control of translation

Since most putative regulatory elements in the 5'UTR were ruled out as causative for starvation-induced regulation, we considered the mRNA region downstream of the translation start site, which codes for the N-terminal 26 amino acid residues of DnaA (Nt hereafter). Strikingly, upon deletion of the Nt region (Figure 4A, 5'UTR-ΔNt), eGFP fluorescence continued to accumulate during the carbon starvation phase (Figure 4B, upper panel). This resulted in significantly increased Δt and Δf values, indicating that this mRNA segment modulates dnaA translation at the onset of starvation. The repressing effect of Nt was independent of the upstream 5'UTR (Figure 4B and C); strains with unrelated 5'UTRs (5'UTR6/13 or 5'UTRlac) showed similar Nt-dependent changes in the fluorescence kinetic profiles. While deletion of the Nt region abolished the nutritional control of DnaA translation, duplication of this region in tandem (2 × Nt) resulted in an earlier response to starvation, as reflected in lower Δt and Δf values compared to the 5'UTR-Nt control strain (Figure 4D and E and Figure 4—figure supplement 1). These results demonstrate that the mRNA region downstream of the AUG start codon is required and sufficient for arresting eGFP accumulation during the carbon starvation phase.

Figure 4 with 3 supplements see all

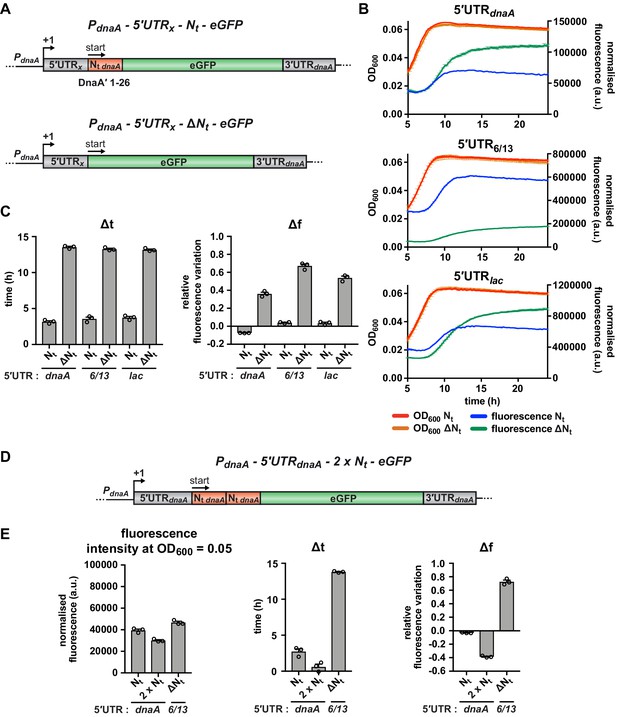

The mRNA region encoding the N-terminus of DnaA mediates the nutritional control of translation independently of the choice of the 5'UTR.

(A) Schematic illustration of the reporter constructs utilised to study the role of the mRNA region encoding DnaA Nt in the translational response to carbon starvation. In the 5'UTRx-Nt constructs (top), the dnaA promoter (PdnaA) was fused to one of three possible 5'UTRs (5’UTRx = 5'UTRdnaA, 5'UTR6/13, and 5'UTRlac; grey) followed by the first 26 codons of dnaA open reading frame (Nt dnaA; orange) and the eGFP gene (green). In the 5'UTRx-ΔNt constructs (bottom), the Nt module is absent. (B) Growth curves and fluorescence kinetic profiles of the 5'UTRx-Nt (red and blue) and 5'UTRx-ΔNt (orange and green) constructs. (C) Δt and Δf values of the 5'UTRx-Nt and 5'UTRx-ΔNt reporter constructs. (D) The 5'UTRdnaA-2 x Nt reporter construct was obtained by duplicating the Nt module (orange). (E) Values of fluorescence intensity at OD600 = 0.05, Δt and Δf calculated for the 2 x Nt strain. The relative growth curves and fluorescence kinetic profiles are shown in Figure 4—figure supplement 1. All data are shown as averages of three independent replicates with error bars representing standard errors.

Because the Nt region is translationally fused to eGFP, the stability of the reporter protein might be affected. Therefore, we compared eGFP protein stability between the 5'UTR-Nt and 5'UTR-ΔNt strains at the onset of starvation, after chloramphenicol-induced translation shutdown followed by western blotting and plate reader-based measurements of fluorescence. Both assays showed that the eGFP reporter was stable in both strains (Figure 4—figure supplement 2), excluding that the presence of DnaA Nt at the N-terminus of eGFP significantly affects protein stability. This result is also congruent with a previous study which showed that the N-terminus of DnaA is required but not sufficient for DnaA proteolysis (Liu et al., 2019). Additionally, the plate reader experiment showed that the increase in fluorescence in the 5'UTR-ΔNt strain during the carbon starvation phase was completely abolished in the presence of chloramphenicol (Figure 4—figure supplement 2B and C), confirming that the fluorescence increase in this strain depends on ongoing translation during starvation. Consistent with our previous results (Figure 4B and C), this effect was independent of the choice of 5'UTR.

Interestingly, a regulatory role of Nt on DnaA translation in response to nutrient availability is also reflected in previously published ribosome profiling data, in which genome-wide translation profiles were analysed in the nutrient-rich medium PYE and the minimal medium M2G (Aretakis et al., 2019; Schrader et al., 2014). Our previous work showed that in these two media the nutrient-dependent regulation of DnaA translation is recapitulated, resulting in 4–5 times higher DnaA levels in PYE compared to M2G in exponentially growing cultures (Leslie et al., 2015). Consistently, according to calculations by Aretakis et al., the absolute number of translated DnaA molecules as well as the percentage of translation dedicated to DnaA synthesis is higher in PYE than in M2G (Figure 4—figure supplement 3A and B ), demonstrating that DnaA is more efficiently translated during growth in rich medium. This is in contrast to the translational output of other cell cycle master regulators that is largely unaffected by the growth medium (Figure 4—figure supplement 3A and B). Most interestingly, when visualising the ribosome footprint density along the dnaA mRNA, we observed, in M2G, a strong enrichment of ribosomes footprints in the region encoding Nt but only very low occupancy in the remaining part of the mRNA. By contrast, in PYE, ribosome footprints were more evenly distributed along the length of the dnaA mRNA (Figure 4—figure supplement 3C and D). Together this suggests that ribosomes pause in the region encoding the N-terminal amino acids of DnaA in a growth medium-dependent manner, thus supporting a direct involvement of the Nt mRNA region in the regulation of DnaA translation in response to reduced nutrient availability.

Downregulation of DnaA translation occurs during the early elongation phase and requires Nt’s native reading frame

We considered two alternatives by which Nt might influence DnaA translation. Either the secondary structure of the mRNA segment encoding Nt (i.e., P6 and P7) inhibits translation (Bentele et al., 2013; Kudla et al., 2009) or the nature of the codons or amino acids encoded by this sequence affects translation elongation. To discriminate between these possibilities, we constructed an Nt double frameshift mutant (dfsNt) by deleting one guanosine located at the beginning of the sequence encoding Nt (position G164) and at the same time inserting a guanosine at the end of this sequence (after residue C233; Supplementary file 1). These two point mutations entirely change Nt codon and peptide sequence between amino acid residues 3 and 26 while preserving the mRNA secondary structure and the eGFP reading frame (Figure 5A).

Figure 5 with 3 supplements see all

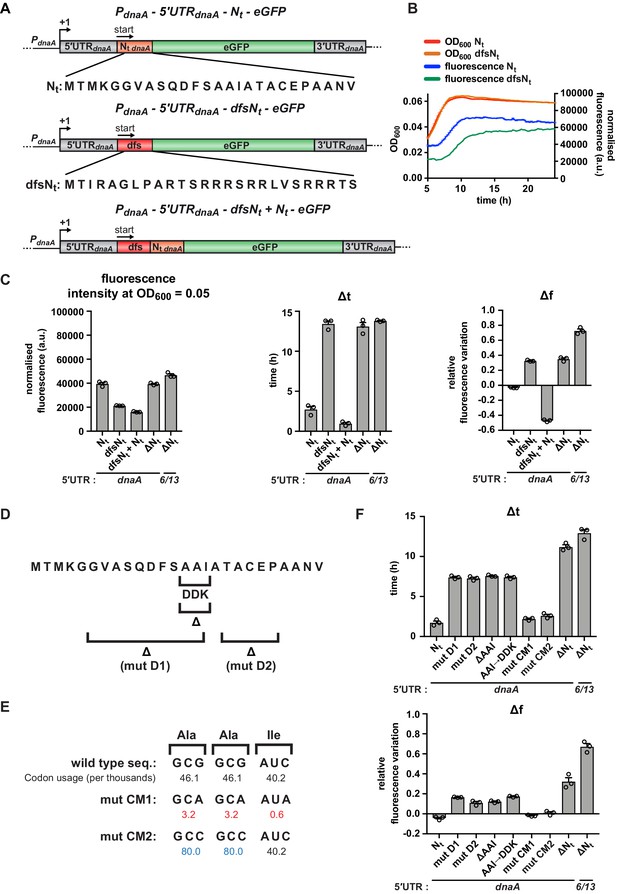

A specific amino acid sequence motif in the N-terminus of DnaA inhibits translation elongation under carbon starvation.

(A) Schematic illustration of the double frameshift mutant reporter constructs. Top: wild-type amino acid sequence of DnaA Nt in the context of the 5'UTRdnaA-Nt reporter construct. Middle: the double frameshift mutation alters the reading frame of Nt (dfsNt module, in red), without affecting the eGFP frame. Bottom: the 5'UTRdnaA-dfsNt+ Nt construct was generated by introducing the aforementioned double frameshift mutation in the first Nt module of the 2 x Nt construct (Figure 4D). (B) Comparison of fluorescence kinetic profiles between the 5'UTR-Nt (blue) and the dfsNt (green) reporter strains. (C) Values of fluorescence intensity at OD600 = 0.05, Δt and Δf calculated for the reporter strains in (A). (D) Illustration of deletions D1, D2, and ΔAAI, and the amino acid substitution AAI→DDK. (E) Illustration of the AAI motif codon mutations CM1 and CM2. Top: the wild-type codon sequence encoding the AAI motif, along with the values of codon usage. In mutant CM1 and CM2, the AAI motif is encoded by codons that present either lower (values in red) or higher (values in blue) usage. (F) Values of Δt and Δf calculated for the mutant reporter strains illustrated in (D) and (E). Data are reported as averages of three independent replicates with error bars representing standard errors.

Strikingly, similar to the 5'UTR-ΔNt strain, this mutant continued to synthesise eGFP also during the carbon starvation phase, reflected in high Δt and Δf values compared to the 5'UTR-Nt strain (Figure 5B and C). This result argues against a role of secondary structure elements present in Nt mRNA and instead suggests that the maintenance of the native reading frame is essential for nutritional control of translation.

We next tested whether the inhibitory effect of Nt was maintained when this region was moved further downstream within the dnaA coding region or depended on its close proximity to the translation start site. For this, we made use of the tandem 2 x Nt strain and disrupted the first Nt region by introducing the two frameshift mutations to generate a dfsNt-Nt sequence (Figure 5A). Despite a reduction in basal eGFP expression, this strain showed clearly reduced Δt and Δf values (Figure 5C and Figure 5—figure supplement 1). This indicates starvation-dependent downregulation of dnaA and suggests that the Nt sequence inhibits translation elongation even when it is located further downstream within the open reading frame.

In conclusion, our data are compatible with a model in which DnaA translation is downregulated under carbon starvation during the early stages of polypeptide chain elongation due to the specific amino acid or codon composition of Nt.

A specific nascent chain amino acid sequence inhibits translation elongation under starvation

Having established that the Nt-mediated downregulation of DnaA translation depends on the native reading frame, we next wanted to identify sequence features in Nt that are critical for regulation. A BLAST search revealed high conservation of the DnaA Nt amino acid sequence in several members of the Caulobacteraceae family (Figure 5—figure supplement 2A). A general feature of the identified sequences is a high degree of hydrophobicity, with alanine being the most abundant amino acid. Using our fluorescent reporter, we designed two mutants in which regions of DnaA Nt were deleted; mutant D1 lacks a hydrophobic region spanning residues 6–15, and mutant D2 lacks residues 18–22 (Figure 5D). Both D1 and D2 resulted in moderately higher Δt and Δf values (Figure 5F and Figure 5—figure supplement 2B) compared to the 5'UTR-Nt strain, indicating a delay in starvation-dependent inhibition of DnaA translation. However, none of these mutations recapitulated the phenotype observed in the ΔNt or dfsNt strains. In order to identify shorter motifs responsible for the phenotype observed in the D1 mutant, we generated additional amino acid deletions and substitutions in this segment of DnaA Nt. Most of these did not affect eGFP accumulation during carbon starvation (Figure 5—figure supplement 3). However, the deletion or substitution of one group of three residues (A14-A15-I16; AAI motif hereafter) in the conserved hydrophobic region significantly increased both Δt and Δf values compared to the 5'UTR-Nt control, similar to the 5'UTR-ΔNt and 5'UTR-dfsNt strains (Figure 5F and Figure 5—figure supplement 2B). These results indicate that the amino acids of the AAI motif contribute to the inhibition of DnaA translation.

Previous work established that synonymous codons, decoded by distinct isoacceptor aminoacyl (aa)-tRNAs (i.e., charged with the same amino acid), can display differences in their sensitivity to starvation (Elf et al., 2003; Subramaniam et al., 2014). For instance, the charged levels of major aa-tRNAs, which read the most abundant codons, rapidly decrease upon amino acid starvation (Elf et al., 2003). However, when the AAI motif codons were mutated to either less or more abundant synonymous codons (Figure 5E), no significant effects on the starvation-dependent inhibition of DnaA translation were observed (Figure 5F and Figure 5—figure supplement 2B). This suggests that the amino acid sequence of the N-terminus of DnaA mediates the starvation-induced translation arrest irrespective of the synonymous codon choice. It is of note that the introduction of less abundant codons, containing A or T in the third position, resulted in higher eGFP expression levels (Figure 5—figure supplement 2B), probably due to a decreased propensity for a stable mRNA structure near the translation start site (Bentele et al., 2013; Goodman et al., 2013; Kudla et al., 2009).

Thus, our data suggest that, under carbon-limiting conditions, translation elongation efficiency decreases in a sequence-dependent manner during the synthesis of the DnaA N-terminus. Importantly, this effect depends on the amino acid composition of the DnaA Nt, but not the codons encoding it.

The sequence-specific translation downregulation mechanism operates in a heterologous host

We wondered whether the identified starvation-responsive sequence element also can function in a different cellular context and chose to analyse the effect of the Nt region of the Caulobacter dnaA mRNA in E. coli. For this, we transcriptionally fused the 5'UTR-Nt-eGFP or 5'UTR-ΔNt-eGFP modules, respectively, from the Caulobacter reporter to an IPTG-inducible Lambda O1 promoter on a low-copy plasmid and transformed the resulting construct into E. coli (Figure 6A). Indeed, shifting to carbon-limiting conditions, eGFP accumulation ceased completely in the strain with the Caulobacter Nt sequence, while it continuously increased fluorescence in the strain lacking this region, resulting in higher Δt and Δf values (Figure 6A and B). Like in Caulobacter, the presence of Nt did not cause destabilisation of the eGFP reporter in E. coli (Figure 6—figure supplement 1A). A repressing effect was also observed when the 5'UTR of Caulobacter dnaA was replaced by the artificial 5'UTR6/13, demonstrating that Nt is sufficient for regulating translation in response to carbon starvation also in E. coli (Figure 6B and Figure 6—figure supplement 1B). Finally, we introduced some of the relevant Nt mutations in the E. coli reporter plasmid and verified that, similarly to what we observed in Caulobacter, they led to increased Δt and Δf values (Figure 6B and Figure 6—figure supplement 1B), strongly suggesting that Nt acts through a conserved mechanism on translation elongation.

Figure 6 with 1 supplement see all

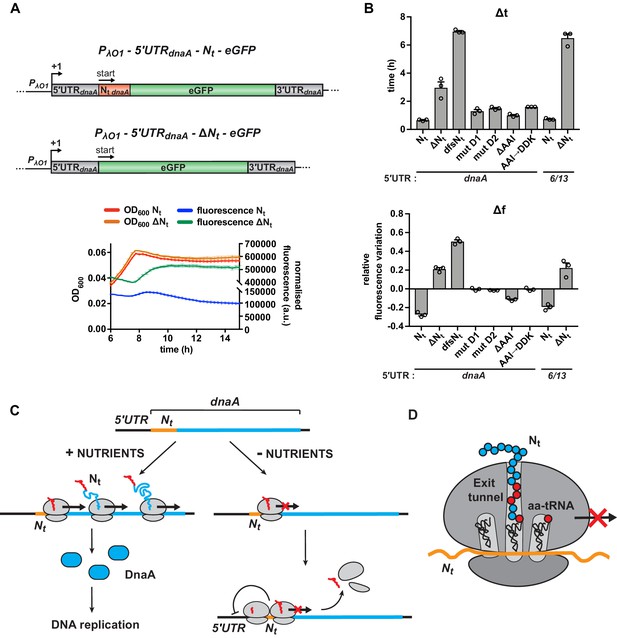

Starvation-induced inhibition of DnaA translation elongation by an autonomously operating nascent chain sequence element.

(A) Schematic illustration of the reporter constructs utilised to study DnaA Nt functionality in the heterologous host E. coli. In the 5'UTRdnaA-Nt constructs (top), the IPTG-inducible Lambda promoter O1 (PλO1) was fused to the 5'UTRdnaA (grey) followed by Caulobacter’s Nt (Nt dnaA - orange) and eGFP (green). The 5'UTRdnaA-ΔNt constructs (below) lack the Nt module. The constructs were cloned into the low-copy plasmid pZE12 and transformed into E. coli MG1655. The E. coli reporter strains were grown for 15 hr in M9 medium supplemented with 0.02% glucose in a microplate reader. Normalised culture fluorescence was measured to monitor eGFP synthesis in the reporter strains (5'UTRdnaA-Nt versus 5'UTRdnaA-ΔNt, lower panel). (B) Values of Δt and Δf calculated for the strains in (A), the Nt mutants and the 5'UTR6/13 reporter strains. The relative growth curves and fluorescence kinetic profiles are shown in Figure 6—figure supplement 1. Background subtraction, fluorescence normalisation, and Δt and Δf quantifications were performed as described for the Caulobacter reporter strains. Data are reported as averages of three independent replicates with error bars representing standard errors. (C) The proposed model for the regulation dnaA translation under carbon starvation. In the presence of nutrients (left-hand side), dnaA mRNA is efficiently translated, leading to accumulation of active DnaA (light blue) that, in turn, triggers DNA replication initiation. Under carbon starvation (right-hand side), translation rate decreases during the first stages of the elongation phase at a specific sequence located downstream of the translation start site (Nt ; orange). The resulting ribosome traffic jams possibly stimulate disassembly of the leading ribosome from the mRNA and/or inhibit new cycles of translation initiation. The regulatory nascent polypeptide (Nt) is shown in red. (D) The downregulation of dnaA translation requires specific amino acid residues (in red) encoded in the region downstream of the start codon (Nt; orange). These specific amino acids arrest translation after or while being added to the growing DnaA nascent polypeptide (Nt).

Together, these data show that the identified starvation-responsive sequence encoded within the N-terminus of DnaA constitutes an autonomous regulatory element that can operate in a heterologous host.

Discussion

The integration of nutritional information with essential cellular processes such as protein synthesis and DNA replication is critical for cellular life, but poorly understood on a molecular level. This study reveals a new mechanism, by which some bacteria can regulate the synthesis of the replication initiator DnaA in response to nutrient availability by modulating the rate of translation elongation. In the model organism C. crescentus, we identified a specific N-terminal sequence in the nascent DnaA polypeptide chain that acts as a novel regulatory element which tunes DnaA translation elongation in response to the cellular nutrient and growth status. With its crucial function in bacterial replication initiation, the abundance and activity of DnaA must be precisely regulated in response to environmental and cellular changes to ensure cellular survival.

A model for DnaA regulation under carbon starvation

Based on our results, we propose a model of nutritionally controlled DnaA translation. Under optimal conditions, efficient transcription of dnaA and a high rate of DnaA translation ensure the accumulation of active DnaA that triggers DNA replication initiation (Figure 6C). At the onset of carbon starvation, translation ceases during the early stage of the elongation phase at a specific sequence located downstream of the dnaA start codon (as discussed below). Ribosome pausing at this sequence, as supported by our analysis of ribosome profiling data (Figure 4—figure supplement 3), is expected to result in ribosome traffic jams that, as previously proposed, stimulate premature translation termination either directly, by inducing disassembly of the leading ribosome from the mRNA, or indirectly, by recruiting the tmRNA or ArfB ribosome rescue systems that are present in Caulobacter (Feaga et al., 2014; Ferrin and Subramaniam, 2017; Keiler et al., 2000; Subramaniam et al., 2014). Due to the proximity of the stalling site and the start codon, persistent queues of 2–3 ribosomes might also decrease translation rates by physically preventing access of initiating ribosomes to the translation start site (MacDonald et al., 1968; Mitarai et al., 2008; Tuller et al., 2010). Additionally, ribosome pausing may result in increased mRNA decay or Rho-dependent termination of transcription (Samatova et al., 2020). The postulated starvation-dependent elongation pause significantly reduces the rate of DnaA synthesis. The concomitant degradation of full-length DnaA by Lon then aids the rapid clearance of DnaA from the cell (Leslie et al., 2015), preventing DNA replication initiation.

The molecular mechanism of starvation-induced translation inhibition

The nutritional downregulation of DnaA translation depends on a specific sequence downstream of the dnaA start codon. Since neither the RNA secondary structure of this sequence nor the codon choice impacted the nutritional regulation of DnaA (Figure 5), we rule out that the RNA structure spatially hinders ribosome movement. Furthermore, we have shown that synonymous mutations of the AAI motif did not perturb the capacity of Nt to mediate the regulatory response. Based on this result and the previously made findings that under starvation the charged levels of the different isoacceptor tRNAs depend on their codon usage during translation (Dittmar et al., 2005; Elf et al., 2003; Subramaniam et al., 2014), we consider it also unlikely that reduced charging levels of a specific set of isoacceptor tRNAs (e.g., Ala-tRNAs) is the major cause of the downregulation of translation during starvation. Instead, we suggest that the amino acids encoded by this sequence arrest translation after, or while, being added to the growing DnaA polypeptide (Figure 6D). This model is in line with the recent observation that the identity of the amino acids encoded by early codons of a gene can impact protein synthesis yield (Verma et al., 2019). Previous work has also demonstrated that certain nascent peptide sequences specifically arrest translation through interactions with the ribosome exit tunnel surface, thereby regulating the expression of downstream genes through translational coupling, or affecting transcription termination and mRNA decay (Ito and Chiba, 2013; Wilson et al., 2016). A well-characterised example is the force-sensing arrest peptide SecM, which contributes to the translational control of the downstream gene secA that encodes a translocase subunit (Murakami et al., 2004; Nakatogawa and Ito, 2002). Another class of arrest peptides modulates gene expression by interacting with small effector molecules in the ribosome exit tunnel (Gong et al., 2001; Herrero Del Valle et al., 2020). The AAI motif identified in this study, possibly along with neighbouring amino acids in the N-terminus of DnaA, might interact with the ribosome in a similar way as arrest peptides. However, while arrest peptides commonly serve as cis-acting elements that regulate the expression of downstream genes, the sequence element that we describe represents, to our knowledge, the first example of a regulatory nascent polypeptide sequence in the N-terminus of a protein that directly modulates translation efficiency of the same protein in response to nutrient availability.

Possible ways of sensing nutrients

The identified nascent sequence element specifically decreases overall DnaA translation rates at the onset of carbon starvation, demonstrating that it is responsive to the nutrient status of the cell. Since this is recapitulated in a heterologous host (Figure 6B), it argues for a sensing mechanism that is triggered by a global starvation-induced change in translation strategy (Li et al., 2018), rather than by Caulobacter-specific accessory factors. For example, reduction in the supply of one or more components of the translation machinery (e.g., ribosomes, aa-tRNAs, elongation factors, GTP) could in principle slow down overall translation rates (Li et al., 2018; Samatova et al., 2020; Zhang et al., 2010). Consequently, translating ribosomes could become more susceptible to starvation-specific inhibitory sequences akin to the sequence identified here. Alternatively, a highly conserved trans-acting factor, a metabolite, or a signalling molecule could be involved in the nutrient-sensing mechanism. Such a putative factor or small molecule might either release the translational arrest during nutrient-rich conditions or enhance it during starvation.

The dnaA 5'UTR as a regulatory element

This work presents the first detailed structural and functional characterisation of the dnaA 5'UTR. Although the 5'UTR is not required for modulating translation rates under starvation, it might play other regulatory roles. Consistent with a previous study (Cheng and Keiler, 2009), our results show the inhibitory effect of the dnaA leader on translation per se and demonstrate that the efficiency of translation initiation can be significantly increased by reducing the stability of the secondary structure around the translation start site. Interestingly, although the dnaA 5'UTR, like the majority of mRNAs in Caulobacter, lacks an obvious SD sequence (Schrader et al., 2014), our results suggest that a short AGG motif buried in stem P5 could function as an SD-like sequence. The modulation of SD-like sequence accessibility by a trans-acting factor (e.g., a regulatory RNA or protein) interfering with stem P5 structure could conceivably be a strategy to directly regulate the initiation of dnaA translation in response to specific external or internal cues. Consistent with this idea, a previous computational study proposed the dnaA 5'UTR of Caulobacter to be a possible regulatory target of multiple small non-coding RNAs (Beroual et al., 2018).

Conclusions

In conclusion, we have identified a new sequence-dependent mechanism that modulates translation elongation of a specific protein in response to nutrient availability, highlighting the importance of the first stages of translation elongation as a regulatory target. It is particularly striking that the mechanism described functions to control the concentration of the highly conserved replication initiator DnaA. This protein is critical for DNA replication in nearly all bacteria, and nutritional control mechanisms that modulate DnaA synthesis contribute to the correct timing of DNA replication initiation in response to changes in nutrient availability and growth rate. The finding that DnaA in Caulobacter and related bacteria is regulated at the level of translation elongation reveals important new layers of control acting on this important protein.

The conclusions reported here may suggest a more general pattern. We consider it possible that the proposed mechanism of translational downregulation via nascent peptide sequence-dependent effects potentially tunes the expression of other genes during starvation. Principally, this mechanism could help to globally remodel the proteome under starvation conditions when cells need to reallocate their resources from growth-promoting to maintenance functions.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Caulobacter crescentus)dnaA
CCNA_00008
GenBankYP_002515383.1
Strain, strain background (Caulobacter crescentus)NA1000Michael Laub, Massachusetts Institute of TechnologyElectrocompetent cells
Strain, strain background (Escherichia coli)DH5αMichael Laub, Massachusetts Institute of TechnologyChemical competent cells.
Strain, strain background (Escherichia coli)MG1655Michael Laub, Massachusetts Institute of Technology
AntibodyAnti-DnaA (rabbit polyclonal)Jonas et al., 2011(1:5,000)
AntibodyAnti-GFP (rabbit polyclonal)Thermo Fisher ScientificCat# A11122
RRID: AB_221569
(1:20,000)
AntibodyAnti-rabbit IgG (H + L) secondary antibody, HRP (goat polyclonal)Thermo Fisher ScientificCat# 31460
RRID: AB_228341
(1:5,000)
Recombinant DNA reagentpMR10 (plasmid)Michael Laub, Massachusetts Institute of Technology (Roberts et al., 1996)
Recombinant DNA reagentpMCS (plasmid)Martin Thanbichler, MPI Marburg (Thanbichler et al., 2007)
Recombinant DNA reagentpZE12-luc (plasmid)Victor Sourjik, MPI Marburg (Lutz and Bujard, 1997)
Sequence-based reagentfw 1
(DNA oligonucleotide)
This paper
(synthesised by Sigma-Aldrich-Merck)
Amplification of the DNA
template for in vitro transcription.
GAAATTAATACGACTCACTATAGCTCAACGCTCTTCCAGTCTTGG
Sequence-based reagentfw 2
(DNA oligonucleotide)
This paper
(synthesised by Sigma-Aldrich-Merck)
Amplification of the DNA template for sequencing reaction.
CAAATATTTACAAAGGCCGATCAGGG
Sequence-based reagentprimer A
(DNA oligonucleotide)
This paper
(synthesised by Sigma-Aldrich-Merck)
Probing, toeprinting, and amplification of the
DNA template for in vitro transcription
and sequencing reaction.
CACCCAGCTCACGCTTCAAAG
Sequence-based reagentprimer B
(DNA oligonucleotide)
This paper
(synthesised by Sigma-Aldrich-Merck)
Probing.
GAGAAGTCCTGGCTGGCAAC
Chemical compound, drugKanamycinCarl RothCat# T832.5
CAS: 25389-94-0
1 μg/mL (PYE and M2G liquid)
30 μg/mL (LB liquid)
25 μg/mL (LB plates)
Chemical compound, drugAmpicillinCarl RothCat# K029.4
CAS: 69-52-3
50 μg/mL (LB liquid)
100 μg/mL (LB plates)
Chemical compound, drugChloramphenicolCarl RothCat# 3886.1
CAS: 56-75-7
100 µg/mL
(translation shut-off in Caulobacter)
200 µg/mL
(translation shut-off in E. coli)
Chemical compound, drugIPTGSigma-AldrichCat# PHG0010
CAS 367-93-1
1 mM
Chemical compound, drug[γ-P32]-ATP (10 mCi/mL, 3000 Ci/mmol)Perkin ElmerCat# BLU002A
CAS: 2964-07-0
Chemical compound, drugPb2+ acetateSigma-Aldrich-MerckCat# 215902
CAS: 6080-56-4
Chemical probe
Commercial assay or kitSuperSignal Femto West reagentThermo Fisher ScientificCat# 34094
Commercial assay or kitCalf Intestinal Alkaline Phosphatase (CIAP)InvitrogenCat# 18009-019
Commercial assay or kitT4 Polynucleotide Kinase (PNK)Thermo Fisher ScientificCat# EK0031
Commercial assay or kitRNase T1InvitrogenCat# AM2283
Commercial assay or kitRNase V1InvitrogenCat# AM2275
Commercial assay or kitMegascript KitLife TechnologiesCat# AM1330
Commercial assay or kitSuperScript IV reverse transcriptaseInvitrogenCat# 18090010
Commercial assay or kitSequenase Cycle Sequencing KitAffymetrixCat# 78500
Software, algorithmmFoldZuker, 2003
http://www.unafold.org/
RRID: SCR_008543
Software, algorithmViennaRNA (RNAfold, RNAcofold)Gruber et al., 2008
http://rna.tbi.univie.ac.at/
RRID:SCR_008550
Software, algorithmCMfinderZasha Weinberg, Leipzig University (Yao et al., 2006)Version 0.4.1.4
Software, algorithmFiji (ImageJ)Rueden et al., 2017
https://fiji.sc/
RRID:SCR_002285
Software, algorithmImage LabBio-Rad https://www.bio-rad.com/en-ca/product/image-lab-softwareRRID:SCR_014210Version 6.0
Software, algorithmNCBI BLAST (BLASTn, BLASTp, tBLASTn)Altschul et al., 1990
https://blast.ncbi.nlm.nih.gov/
RRID:SCR_004870
Software, algorithmmafftKatoh and Standley, 2013
https://mafft.cbrc.jp/alignment/software/
RRID:SCR_011811Version 7.427
Software, algorithmIQTREENguyen et al., 2015
http://www.iqtree.org/release/v1.6.10
Version 1.6.10
Software, algorithmSeaViewGouy et al., 2010
http://doua.prabi.fr/software/seaview
RRID:SCR_015059Version 5.0.4
Software, algorithmR (including splines package)R Project https://www.R-project.org/RRID:SCR_001905
Software, algorithmGraphPad Prismhttps://www.graphpad.comRRID:SCR_002798Version 7.0
Software, algorithmBowtieLangmead et al., 2009
http://bowtie-bio.sourceforge.net/index.shtml
RRID:SCR_005476Version 1.2.2
Software, algorithmSAMtoolsLi et al., 2009
http://htslib.org/
RRID:SCR_002105
Software, algorithmIntegrative Genomics Viewer
(IGV)
Robinson et al., 2011
http://www.broadinstitute.org/igv/
RRID:SCR_011793Version 2.10.2
OtherYeast tRNAInvitrogenCat# AM7119
OtherE. coli30S subunitRomilly et al., 2019
OtherE. coli initiator tRNAfMetRomilly et al., 2019
Other12% Mini-PROTEAN TGX Stain-Free gelsBio-RadCat# 4568046
OtherTrans-Blot Turbo SystemBio-RadCat# 1704150EDU
OtherLI-COR Odyssey Fc imaging systemLI-CORhttps://www.licor.com/bio/odyssey-fc/
OtherG-50 Microspin columnsGE HealthcareCat# 27-5330-01
OtherPersonal Molecular Imager (PMI) systemBio-RadCat# 170-9400
Other96-well transparent plates with flat-bottom and lidGreiner Bio-OneCat# 655182
OtherSpark multimode microplate readerTECANhttps://lifesciences.tecan.com/multimode-plate-reader

Growth conditions

Request a detailed protocol

All Caulobacter reporter strains were derived from the wild-type strain NA1000 and were grown routinely in PYE or M2G (minimal medium with 0.2% glucose) at 30°C while shaking at 200 rpm. For the carbon exhaustion experiments, exponentially growing cells were washed and inoculated in M2G1/10 (0.02% glucose). E. coli DH5α was used as a host for plasmid construction and was routinely grown in LB medium at 37°C while shaking at 200 rpm. The E. coli reporter strains were derived from wild-type strain MG1655. Pre-cultures were grown at 30°C while shaking at 200 rpm in LB or M9 minimal medium supplemented with 0.2% glucose. Carbon exhaustion experiments in the plate reader were performed in M9 medium supplemented with 0.02% glucose and 1 mM IPTG. When appropriate, the following antibiotic concentrations were used: 1 μg/mL kanamycin (PYE and M2G liquid media), 25 μg/mL kanamycin (PYE plates), 30 μg/mL kanamycin (LB liquid medium), 50 μg/mL kanamycin (LB plates), 50 μg/mL ampicillin (LB liquid medium), and 100 μg/mL ampicillin (LB plates).

Bacterial strains and plasmid construction

Request a detailed protocol

All the plasmids in this study were constructed by Gibson assembly (Gibson and Young, 2009). pMR10-BG (Supplementary file 1A) was derived from pMR10 (Roberts et al., 1996) by exchanging lacZα and oriT with a multicloning site. The vector backbone for the pMR10-5'UTR-Nt-GFP (Supplementary file 1B) construct was obtained upon digestion of pMR10-BG with HindIII and BamHI, while the insert was first assembled in a smaller vector, pMCS (Thanbichler et al., 2007), and then amplified by PCR with appropriate primers. The insert comprised the following sequences, in order, (1) the rrnB1-T1T2 terminator, (2) 245 bp upstream of the dnaA transcription start site (PdnaA), (3) the 5'UTRdnaA, (4) the first 78 bp of the dnaA open reading frame, (5) the eGFP gene (fused in-frame), and (6) 63 bp downstream of the dnaA stop codon (3'UTRdnaA). The other pMR10 reporter constructs (Supplementary file 1E) were generated by site-directed mutagenesis using pMR10-5'UTR-Nt-GFP as template. All constructs were finally transformed into C. crescentus NA1000 by electroporation.

Plasmid pZE12-BG (Supplementary file 1C) was generated from pZE12-luc plasmid (Lutz and Bujard, 1997) by deleting the luciferase gene and part of the PλO1 promoter. The pZE12 reporter plasmids were obtained by replacing the luciferase gene in the pZE12-luc plasmid, with the appropriate 5'UTR-Nt-eGFP module amplified from the related pMR10 construct (Supplementary file 1D). The pZE12 reporter plasmids were transformed into E. coli MG1655 as previously described (Chung et al., 1989). All constructs were confirmed by DNA sequencing. See Supplementary file 1E for the sequence of the mutants and Supplementary file 2 for the complete list of plasmids and strains.

Immunoblotting

Request a detailed protocol

Pelleted cells were resuspended in 1× SDS sample buffer (1/10 volume of β-mercaptoethanol added before use), normalised to the optical density of the culture (40 μL per uni ts of 0.1 OD600), and heated to 95°C for 10 min. Protein extracts were subjected to SDS-PAGE for 90 min at 130 V at room temperature on 12% Mini-PROTEAN TGX Stain-Free gels (Bio-Rad #4568046). Samples were transferred to nitrocellulose membranes using a Bio-Rad Trans-Blot Turbo system (‘standard sd’ protocol). To verify equal loading, total protein was visualised using a Bio-Rad Gel Doc imager after PAGE separation and prior to blotting. DnaA and eGFP were detected with anti-DnaA (Jonas et al., 2011; 1:5,000 dilution) and anti-GFP (Thermo Fisher Scientific #A11122, 1:20,000 dilution) primary antibodies, respectively, followed by a 1:5,000 dilution of goat anti-rabbit secondary horseradish peroxidase-conjugated antibody (Thermo Fisher Scientific #31460). After treating the membranes with the SuperSignal Femto West reagent (Thermo Fisher Scientific #34094), blots were scanned with a LI-COR Odyssey Fc imaging system. Fiji (ImageJ) was used for image processing and band intensity quantification (Rueden et al., 2017).

In vitro transcription of RNA

Request a detailed protocol

A DNA template containing a T7 promoter was generated by PCR using C. crescentus NA1000 genomic DNA as template and the following primers: 5'-GAAATTAATACGACTCACTATAGCTCAACGCTCTTCCAGTCTTGG-3' (fw1, forward — T7 promoter underlined) and 5'-CACCCAGCTCACGCTTCAAAG-3' (primer A, reverse). The Megascript Kit (Life Technologies, #AM1330) was used for in vitro transcription. The RNA was purified on a 6% denaturing polyacrylamide gel. The band corresponding to the transcribed RNA was detected by UV-shadowing and cut from the gel. The RNA was then eluted into 300 mM Na-acetate, 0.1% SDS, and 1 mM EDTA. After phenol-chloroform-isoamyl alcohol (25:24:1) extraction and ethanol precipitation, the RNA pellet was dissolved in water. RNA concentration was measured by NanoDrop and the quality was assessed by denaturing PAGE. 5'-end-labeling of CIAP-treated RNA (Invitrogen, #18009-019) with T4 PNK (Thermo Fisher Scientific, #EK0031) in buffer A and [γ-P32]-ATP (10 mCi/mL, 3000 Ci/mmol; Perkin Elmer # BLU002A). The labelled RNA was gel-purified as described above.

Native gel electrophoresis

Request a detailed protocol

The in vitro transcribed RNA was refolded for 1 min at 95°C, followed by 1 min on ice and 10 min at 30°C in 1× TMK buffer (100 mM K+-acetate, 5 mM Mg2+-acetate, 50 mM Tris-HCl pH 7.5). The sample (about 10,000 cpm) was directly loaded on a 6% non-denaturing polyacrylamide gel. The gel was run at 4°C for 2 hr (200 V) in 0.5× TEB, then covered with plastic film, and exposed to a storage phosphor screen for 1 hr. Signals were detected using a PMI system (Bio-Rad) and analysed by Image Lab 6.1 (Bio-Rad).

Structural probing

Request a detailed protocol

Two probing approaches were used to determine the secondary structure of the in vitro transcribed RNA. In the first, 0.1 pmol of 32P-5'-end-labelled RNA were subjected to RNase T1 or Pb2+ probing at 30°C in the presence of 2 μg carrier yeast tRNA (Invitrogen #AM7119) (Figure 1—figure supplement 1B). The labelled RNA was first denatured for 1 min at 95°C, followed by 1 min on ice. Before adding the carrier tRNA and the probes, the labelled RNA was allowed to refold for 10 min in a buffer containing 10 mM Tris-acetate pH 7.5, 100 mM K+-acetate, 5 mM, DTT, and 10 mM Mg2+-acetate (10 μL total reaction volume). RNase T1 probing was done using one unit of enzyme (Invitrogen, #AM2283) for 5 min, and stopped by adding 40 μL cold 0.3 M Na+-acetate. Chemical probing was done with Pb2+-acetate (Sigma-Aldrich-Merck) at a final concentration of 10 mM and 25 mM for 5 min. Reactions were stopped with addition of cold EDTA (50 mM final concentration) followed by 35 μL of cold 0.3 M Na+-acetate. After phenol-chloroform-isoamyl alcohol extraction, RNA was ethanol-precipitated. RNA pellets were dried and dissolved in loading dye. About 10,000 cpm of each sample were loaded on a 12% denaturing polyacrylamide gel, fixed for 5 min (10% ethanol, 6% acetic acid), and transferred to 3 mm Whatman paper. Signals were detected using a storage phosphor screen and a PMI system (Bio-Rad), and analysed using Image Lab 6.1 (Bio-Rad). Cleavage pattern induced by the probes was assigned using RNase T1 hydrolysis under denaturing conditions (i.e., T1 ladder) and an alkaline ladder. The ladders were prepared following the manufacturer’s instructions (RNase T1 manual, Invitrogen). We used 0.2 pmol of 5'-end-labelled RNA/2 μg of carrier yeast tRNA for the T1 ladder, and 0.1 pmol of 5'-end-labelled RNA/1 μg of carrier yeast tRNA were used for the alkaline ladder.

The second probing approach used primer extension to detect cleavage positions after treatment with RNases T1 and V1 (Figure 1—figure supplement 1C and D). Here, reactions were performed as described above, but using 1 pmol of unlabelled RNA and 1 μg carrier yeast tRNA. RNase V1 probing was done using 0.1, 0.02, or 0.01 enzyme units (Invitrogen, #AM2275) for 5 min, stopped by adding 40 μL of cold 0.3 M Na+-acetate. T1 ladders were done in the presence of 1 pmol of unlabelled, denatured RNA and 2 μg of carrier yeast tRNA. The probed RNA and the ladders were phenol-chloroform-isoamyl alcohol extracted and precipitated. Dried pellets were then resuspended in water, and primer extension was performed at 37°C for 20 min using 100 U of SuperScript IV reverse transcriptase (Invitrogen, #18090010) and two different 32P-5'-end-labelled primers: 5'-CACCCAGCTCACGCTTCAAAG-3' (primer A) or 5'-GAGAAGTCCTGGCTGGCAAC-3' (primer B). Primers were labelled using T4 PNK in buffer A and [γ-P32]-ATP (10 mCi/mL, 3000 Ci/mmol) and purified using G-50 Microspin columns (GE Healthcare, #27-5330-01). Reverse transcription reactions were stopped by adding 40 μL of cold 0.3 M Na+-acetate. After phenol-chloroform extraction, the RNA template was removed by addition of 3 M KOH for 3 min at 90°C, followed by 1 hr incubation at 37°C. After base neutralisation with HCl, the cDNAs were ethanol-precipitated, centrifuged, dissolved in loading buffer, and resolved on 12% polyacrylamide gels. Gels were fixed and treated as above. The sequencing reactions were done using the USB Thermo Sequenase Cycle Sequencing Kit (Affymetrix #78500) and 32P-5'-end-labelled primers A and B. The template for the sequencing reaction was obtained by PCR using C. crescentus NA1000 genomic DNA and the following primers: 5'-CAAATATTTACAAAGGCCGATCAGGG-3' (fw2, forward) and primer A (reverse).

Toeprinting assay

Request a detailed protocol

The toeprinting assay (Huttenhofer and Noller, 1994) was performed in a 10 μL reaction volume using 0.2 μM of unlabelled RNA and, when present, 100 nM of E. coli 30S subunits and 300 nM of E. coli initiator tRNAfMet (Romilly et al., 2019). The reaction buffer contained 10 mM Tris-acetate pH 7.6, 100 mM K+-acetate, 1 mM DTT, and 10 mM Mg2+-acetate. The RNA was denatured for 1 min at 90°C in the presence of 5'-end-labelled primer A (3 μL, about 50,000 cpm/μL) and 0.5 mM dNTPs. After 1 min on ice, Mg2+-acetate was added. RNAs were refolded for 5 min, followed by addition of activated 30S (10 min at 30°C). Next, initiator tRNAfMet was added, and 30S-initiation complexes were allowed to form for 20 min. In the unfolded RNA sample, the 30S subunits and the initiator tRNAfMet were added immediately after the 1 min incubation at 90°C. Reverse transcription was started by addition of 50 U of SuperScript IV for 20 min and stopped by adding 40 μL of cold 0.3 M Na+-acetate. The reverse transcription reactions were treated as above and resolved on a 12% denaturing polyacrylamide gel.

Homologous sequence search and alignments

Request a detailed protocol

Three complementary approaches were used to identify homologous sequences of Caulobacter’s 5′UTRdnaA and Nt dnaA. In the first one, an input nucleotide sequence including both the 5'UTR and the first 25 codons of DnaA was used in a BLASTn search against the NCBI nucleotide collection (Altschul et al., 1990) and the genome database (March 2020), using an E-value threshold of 10–6. In the second approach, aiming to identify more distant homologs, the Caulobacter DnaA protein sequence (CCNA_00008) was used in a BLASTp search against the annotated proteins in NCBI’s representative bacterial genome database (E-value cut-off 10–6). The resulting hits were aligned with mafft 7.427 (Katoh and Standley, 2013), and a maximum likelihood phylogenetic tree built with IQTREE 1.6.10 (Nguyen et al., 2015) in order to select the cluster of the most closely related sequences for further analysis. Finally, a tBLASTn search was performed against the NCBI database of representative bacterial genomes to identify additional unannotated homologs. As previously, a tree was inferred on the hits and only sequences forming a cluster of highly related sequences were analysed further. For each hit resulting from the BLASTp and the tBLASTn searches, the upstream region containing the 5'UTR was extracted from the corresponding genome using the coordinates of the BLAST results. The results of the three homology searches were manually screened, pooled, and aligned using the MUSCLE alignment tool (Edgar, 2004) as implemented in SeaView 5.0.4 (Gouy et al., 2010).

Computational analysis

Request a detailed protocol

mFold (Zuker, 2003) and the RNAfold server of ViennaRNA (Gruber et al., 2008) were used for RNA secondary structure predictions at 30°C. For a search of putative SD sequences in the 5'UTR of dnaA mRNA, we used the RNAcofold tool of the ViennaRNA package to calculate the ΔG of interaction at 30°C between an 8 nt sliding window of the 5'UTR and the anti-SD sequence of Caulobacter’s 16S rRNA. Three different anti-SD sequences were considered: 5'-CCUCC-3', 5'-CCUCCU-3', and 5'-CACCUCCU-3'. The structural analysis based on co-variance was performed using CMfinder 0.4.1.4 (Yao et al., 2006) according to the developer’s indications.

Reporter assays

Request a detailed protocol

A Tecan Spark multimode microplate reader was used for culture incubations as well as OD600 and eGFP fluorescence measurements. Reporter strains were grown in 150 μL of medium at 30°C in sterile 96-well transparent plates with flat-bottom and lid (Greiner Bio-One # 655182). Initial culture OD600 was 0.02 (1 cm optical path length). The plates were orbitally shaken at 180 rpm with a 3 mm amplitude using a humidity cassette to protect from evaporation. OD600 and fluorescence were measured every 15 min. The following instrument settings were used to measure eGFP fluorescence: bottom read, excitation wavelength = 485 nm (20 nm bandwidth), emission wavelength = 535 nm (25 nm bandwidth), detector gain = 100 (manual), and automatic z-position optimisation.

Raw data were processed similarly to Zaslaver et al., 2006 using R and the splines package. The OD600 measurements of the cultures were background-subtracted using the average value of the blank wells at each time point. To estimate the value of the background fluorescence, we grew a strain carrying the empty pMR10-BG plasmid in each plate. By plotting fluorescence against OD600, we noticed that background changed non-linearly over the growth curve. To account for this variation, we fitted the pMR10-BG fluorescence and OD600 data with a smoothing spline (‘smooth.spline’), generating a mathematical function that allows calculation of the expected background fluorescence at any given OD600. Background correction was performed by subtracting the expected background fluorescence to the reporter strain’s fluorescence at each time point. Finally, the resulting value was normalised by dividing it with the OD600.

Δt and Δf were calculated as indicated in Figure 2. The times of maximum fluorescence (tmaxFluo) and maximum OD600 (tmaxOD), as well as the fluorescence values at 24 hr (f24h) and at maximum OD600 (fmaxOD) were calculated after fitting growth and fluorescence curves with smoothing splines (‘smooth.spline’). To determine the fluorescence intensity at OD600 = 0.05, we first determined the time at which OD600 equals 0.05 using ‘interSpline’ and ‘backSpline’ functions. Then, the obtained value was used to calculate the corresponding fluorescence with the R function ‘predict’. All statistical analyses and graph preparations were performed in GraphPad Prism (version 7).

Translation shut-off assays

Request a detailed protocol

For the western blot-based translation shut-off assay, cells were cultured in 25 mL of M2G1/10 medium for 7 hr until growth arrested. Translation was shut off by addition of chloramphenicol (100 µg/mL final concentration). 1 mL aliquots were withdrawn at 15 min intervals and snap-frozen in liquid nitrogen before being analysed by western blotting.

For the eGFP translation shut-off assay in the plate reader, reporter strains were grown on M2G1/10 for 8.5 hr or in M9G1/10 for 8 hr as above. When appropriate, translation was shut off by adding 100 µg/mL (Caulobacter) or 200 µg/mL (E. coli) of chloramphenicol to the culture. Fluorescence and OD600 were measured at 10 min intervals for 10 hr. Plate reader data processing was performed as described above.

Analysis of ribosome profiling and RNA-seq datasets

Request a detailed protocol

The ribosome profiling dataset in PYE (SRR1167751) and the two RNA-seq datasets (SRR1167748 and SRR1167749, M2G and PYE, respectively) were published by Schrader et al., 2014. The ribosome profiling datasets in M2G (SRR8570150, SRR8570151, SRR8570152) were obtained from Aretakis et al., 2019. Raw reads were mapped against the C. crescentus NA1000 NC_011916.1 reference genome using bowtie 1.2.2 (Langmead et al., 2009). In order to visualise mapped reads on IGV (Robinson et al., 2011), the sam files were converted into sorted bam files using SAMtools (Li et al., 2009). Coverage plots for RNA-seq and ribosome profiling were generated using the autoscale function of IGV.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. When appropriate, the raw uncropped gels and blots, the band intensity quantifications as well as the raw outputs of the computational analysis have been uploaded as "Source data" along with the figures.

The following previously published data sets were used
    1. Schrader JM
    (2019) NCBI Gene Expression Omnibus
    ID GSE126485. Absolute measurements of mRNA translation in C. crescentus reveal important fitness costs of Vitamin B12 scavenging.
    1. Schrader JM
    2. Li G
    3. Weissman JS
    4. Shapiro L
    (2014) NCBI Gene Expression Omnibus
    ID GSE54883. The coding and noncoding architecture of the Caulobacter crescentus genome.

References

Decision letter

  1. Joseph T Wade
    Reviewing Editor; Wadsworth Center, New York State Department of Health, United States
  2. Gisela Storz
    Senior Editor; National Institute of Child Health and Human Development, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

[Editors' note: this paper was reviewed by Review Commons.]

Acceptance summary:

The authors show that translation of the bacterial replication initiation protein, DnaA, is regulated in response to nutrient availability in Caulobacter crescentus. Regulation requires a short amino acid sequence near the N-terminus of DnaA, suggesting that the nascent protein chain can stall ribosomes in a condition-specific manner. This novel regulatory mechanism also occurs in Escherichia coli, and is likely to be a widespread strategy for modulating protein production in response to changes in growth conditions.

https://doi.org/10.7554/eLife.71611.sa1

Author response

We thank the two reviewers for the positive assessment of our work and for the constructive comments that helped us to improve the quality of our manuscript. We have carefully considered each point and have addressed most by modifying the manuscript text to increase clarity of our work. Based on a suggestion by Reviewer 2 we have also included the results of a new experiment.

In addition to addressing all comments of the reviewers, we have expanded the part of the study analysing the functionality of Caulobacter’s DnaA Nt in the heterologous host E. coli. Furthermore, we have replaced our original set of fluorescence data by a new data set that has been acquired using optimized measurement parameters (bottom read and 100 for the detector gain – see Material and Methods for details), which have improved the signal-to-noise ratio and the overall quality of the fluorescence profiles. Importantly, these new data do not change, but rather strengthen, our conclusions.

Reviewer #1 (Evidence, reproducibility and clarity (Required)):

Felletti et al. provide compelling new evidence that a CDS element in the dnaA mRNA is required for nutrient dependent translationol control. This provides a mechanisms by which dnaA translation is shut off during carbon starvation, and is supported by a rather rigorous analysis of the mRNA performed both in vitro and in vivo. Overall it was a pleasure to read and the data are generally very compelling. My specific comments are below:

Major Comments:

While the authors rule out differences in charging of different ala-tRNAs as controlling the nutrient dependent repression in translation, the authors assume that this must be due to the nascent sequence. However, could it also be possible that all ala-tRNA isoacceptors have lower charging after C-starvation?

We thank the reviewer for raising this important point. As Reviewer 1 pointed out, we cannot conclusively exclude that carbon starvation could lead to reduced charging levels of all isoacceptor Ala-tRNAs. However, based on the available literature, we consider it unlikely. In a first work by Elf et al. 2003 (confirmed later by Dittmar et al. 2005 and Subramaniam et al. 2014) the authors argued that under amino acid-limiting conditions the charging levels of the different isoacceptor tRNAs depend directly on their codon usage during translation. Importantly, in our work we could show that Nt mediates the inhibition of translation independent of the synonymous codon choice, suggesting that aa-tRNA levels are not limiting in our experimental conditions. To address this comment of Reviewer 1, we discussed this matter in a greater detail in the revised version of the manuscript (line 374-379).

Minor comments:

It was observed many years ago that tmRNA is required for the proper timing of DNA replication initiation in Caulobacter (Cheng and Keiler J Bact 2009). Since the AAI motif is appearing to alter translation elongation, it might be interesting to discuss the AAI motif may be linked to ribosome arrest and rescue.

We appreciate this suggestion. Cheng and Keiler 2009 proposed an indirect involvement of the tmRNA in the transcriptional regulation of DnaA over Caulobacter’s cell cycle. In the revised version of the manuscript, we mention the tmRNA and ArfB protein as possible factors involved in ribosome rescue following Nt-induced ribosome stalling and we refer to Keiler et al. 2000 and Feaga et al. 2014.

Line 49 – add "initiation"

The word “initiation” was added to the text.

Line 61 – is "cleared" meant to be proteolyzed or simply meaning to have a lower protein level?

We apologize if we were not clear. We rephrased the text as follows: “[…] DnaA levels decrease at the onset of carbon starvation […]”.

Line 92-93 – is this 5' UTR based on a previously defined TSS determined in their previous study?

dnaA TSS has been first determined by primer extension (Zweiger and Shapiro 1994) and later by global 5’RACE (Schrader et al. 2014 and Zhou et al. 2015). In the new version of the manuscript, we include references to these previous studies (line 94).

Line 115-118 – this is interesting, might this conserved 5' UTR be added to rfam?

We thank the reviewer for this suggestion. We will submit our alignment to rfam after publication of the manuscript in a journal.

Line 126-127, 131,189 – Is the 3nt sequence the authors found here considered a Shine-Dalgarno site? I would imagine that this would be too small to consider this. Perhaps calling it SD-like sequence might be more appropriate.

We agree with this comment. In the new version of the manuscript, we refer to the identified 3-nucleotide sequence as a “SD-like sequence”.

Lines 136-140, 208-210 – Would the authors consider this upstream site with a potential CUG start codon a standby site? It appears to fit many of the criteria which could be used to define one.

According to our probing data, the mRNA region in proximity of the CUG start codon forms a very stable stem-loop structure. Based on our previous experience (especially the extensive work by the Wagner lab), typical ribosome standby sites only occur in largely unstructured regions. Furthermore, in Supplementary Figure 4 we show that the deletion of stem P4 does not affect eGFP expression levels. For these reasons, we consider it unlikely that the putative CUG start codon is part of a ribosome standby site.

Lines 253-255 – this is a beautiful experiment, but very hard to understand from the text. Perhaps add a sentence or two to explain it in more detail.

We thank the reviewer for this comment. In the revised version of the manuscript, we provide a more detailed description of the dfsNt reporter mutant. We hope this will address the reviewer’s concerns.

Line 307 – add "synonomous"

The word “synonymous” was added in the revised version of the manuscript

When dnaA is depleted, it was observed that the chromsome can be erroneously segregated by the ParA/B/S system (mera et al. PNAS). Does this occur in C-starvation when DnaA levels drop?

In a separate study we have also observed that in a fraction of DnaA depleted cells the origin of replication is erroneously translocated from the stalked to the swarmer cell pole. We have not studied this phenomenon under carbon starvation, as it lies outside the scope of this paper. However, if the ParA/B/S remains functional under carbon starvation, this might also happen in G1-arrested starved cells.

Reviewer #1 (Significance (Required)):

Appears to be quite significant to researchers studying regulation of bacterial cell cycle and translation. Since DnaA is conserved across bacteria, and this mechanism works in E. coli, it appears that the findings will likely be important in many bacterial systems.

Referee Cross-commenting

All the reviewer comments I read seem reasonable. Specifically, I found the point about E. coli 30S ribosomes is very important that the authors address. This could be done in writing, but should be better listed as a caveat to those experiments.

As suggested by the reviewers, we have partially rephrased some parts of the text describing the toeprint results. Moreover, we have inserted in the main text and in Figure 1 legend explicit references to the use of purified E. coli 30S subunits and tRNA-fMet. We believe these changes will address the reviewers’ concerns.

Reviewer #2 (Evidence, reproducibility and clarity (Required)):

Summary:

The Jonas lab provide good evidence that they have found a new mechanism to regulate the amount of the DnaA protein by a starvation signal. The DnaA protein is the key chromosome replication initiator probably for most bacteria and as such DnaA is the target of many regulatory inputs. The authors created an accurate reporter system that allows them to dissect the 5' mRNA translated and untranslated sequences of dnaA and they have convincingly demonstrated that the N-terminal DnaA peptide sequence and not the RNA mediate the response to starvation by glucose exhaustion. This is potentially a model example for global translational responses in bacteria.

Major comments:

The main conclusion, i.e. that the DnaA leader peptide "Nt" mediates this response is convincing. However, there were 2 major problems that should be easily addressed. These do not subtract from the main conclusion.

1) E. coli 30S subunits were used in the "Toeprint" assay of Figure 1. Obviously Caulobacter 30S Ribosome subunits should have been used, or a justification should be given. One remedy would be to make this supplementary information.

We thank Reviewer 2 for this comment. We agree that it would be better to use Caulobacter 30S ribosome subunits in our toeprint experiments. However, because toeprint assays with E. coli 30S ribosome were already established in our lab (i.e. the Wagner lab, where the assays were performed) and because works by other groups have shown that E. coli 30S subunits can be used to study the translation of mRNAs from other bacteria, we decided to use this experimental set up. Based on our results, we also had no reason to doubt the suitability of the E. coli 30S subunits. The toeprint showed that translation starts at the in silico predicted translation start site, which was further confirmed by our in vivo mutagenesis experiments. For these reasons, we are confident that the toeprint assays indicate the true translational start site. However, we acknowledge that we could have been more explicit about the use of the purified E. coli 30S subunits and tRNA-fMet in toeprinting assay. To increase clarity and transparency, in this revised version of the manuscript, some parts of the main text were rephrased and references to the use of E. coli 30S and tRNA-fMet were introduced (including Figure 1 legend). We hope that these changes will address the reviewer’s concerns.

2) The results in Figure 6B could be due to the Nt simply making the hybrid protein more unstable in E. coli. This is the main impression given by the drop in signal. In this case, the conclusion would be wrong, and Nt is not transferring a starvation translation block from C. crescentus to E. coli. Nt is just making the protein unstable. These results should be treated as preliminary pending protein stability measurements. However, this defect does not subtract from the other main points and without the Figure 6 E. coli experiments they still make a complete and interesting story. One remedy would be to make this also supplementary information.

It is indeed striking that a drop of normalised fluorescence is observed for the 5’UTRdnaA-Nt construct in E. coli but not in Caulobacter. In order to address if this behavior can be explained by reduced protein stability, we have performed a translation shut-off assay using the 5’UTRdnaA-Nt E. coli reporter construct. The results of this experiment (shown in Supplementary Figure 9A and described in line 327-329) show that the normalised fluorescence remains stable over 10 hours after chloramphenicol addition to the culture, ruling out that the presence of Nt significantly affects eGFP protein stability in E. coli. Importantly, this experiment also showed that in contrast to the chloramphenicol treated culture, in which the OD600 decreased after reaching stationary phase, the OD600 of the non-treated cultures slightly increased between 2 and 10 hours (Supplementary Figure 9A). Because this increase was not observed in carbon starved Caulobacter cultures, we consider the different growth dynamics between E. coli and Caulobacter to be the most likely explanation for differences in eGFP accumulation at later time points during the experiment.

To further strengthen our E. coli data, we have analysed additional relevant Nt mutants that we identified as most critical mutants in our Caulobacter experiments presented in Figure 5, namely dfsNt, mutD1, mutD2, ΔAAI and AAI→DDK. Determination of Δt and Δf values for the E. coli strains carrying these different Nt constructs showed similar results as for the corresponding constructs in Caulobacter. Collectively, these new data further support the notion that Nt operates in E. coli through a conserved inhibitory mechanism of translation. These data are now included in a reorganized new version of Figure 6 (panels A, B) as well as in Supplementary Figure 9.

Minor comments:

There are also 6 minor issues that are easily addressed, most by small changes to the text, and these should improve this otherwise fine manuscript.

1) Line 88 Figure 1A shows DnaA degradation upon entering stationary phase from a low glucose media and not a simple starvation response to one component like glucose. Did the authors consider trying simple washout experiments, i.e. resuspend the cells in glucose-free media? This would have the advantage of suddenly exposing the cells to starvation and thereby studying the sudden response rather than the slower lingering response which would be due to many factors and not just glucose removal.

In a previous work from our lab (Leslie et al. 2015), we have conclusively shown that the downregulation of DnaA synthesis depends primarily on the nutrient content of the growth medium.

Besides being in continuity with our previous work, we think that the starvation protocol that we used in the present study, and that was also used by the Sean Crosson lab (Boutte et al. 2012), might better reproduce what happens in the natural environment when nutrient levels gradually decrease until becoming limiting for bacterial growth.

2) Reference 16 should be cited are the first publication to show that glucose and other starvations induce DnaA degradation in Caulobacter.

We have added Reference 16 to the first sentence of the Results section, in which we state that DnaA levels decrease when cells are shifted from a glucose-supplemented minimal medium to a glucose-limiting medium.

3) Figure 1D shows that the TOEprint is not changed by adding the ribosome, very surprising considering its size and SD docking and alignment. 2 Minor bands then appear when the tRNA-Met is further added. These are presumably the "toeprints". A control with just the added tRNA-Met would make this result much more significant.

In the existing literature, there is a common consensus to consider real toeprints (i.e., indicative of the presence of an assembled translation pre-initiation complex) as only those bands that appear faintly in the presence of the 30S ribosome subunit but that become clearly enhanced upon addition of the initiator tRNA-fMet. Some examples can be found in Hoekzema et al. 2019, Romilly 2014, Romilly 2020. In cases when the translation start site is buried in a structural element, the intensity of the toeprint signal is further increased when the mRNA is rendered unfolded, as seen in our data.

tRNA-30S-independent bands always show up in toeprint experiments, but their intensities differ with the sequence of the mRNA and sometimes the choice of RT used for primer extension. Addition of initiator tRNA-fMet alone is commonly not done in toeprint experiments (see references mentioned above). Finally, we want to point out again (see also our answer on “Problem 1”) that the toeprint data are very much consistent with our in silico predictions and our in vivo mutagenesis data. Therefore, we are confident that the observed toeprint upstream of the AUG corresponds to the true ribosome binding site.

4) Why does the cell OD drop, e.g. in Figure 2, is it cell death from starvation?

We don’t think that the slight reduction of OD600 observed in our experiments is due to cell death. Based on our knowledge, carbon starved cells remain viable up to 24 hours after the starvation onset. Instead, we have observed a cell volume reduction, which may at least partially explain the observed OD600 decrease.

5) Line 327 Discussion "This study reveals a new mechanism, by which some bacteria can regulate the synthesis of the replication initiator DnaA in response to nutrient availability by modulating the rate of translation." Rate of translation or rate of translation abortions (as implied in Figure 6)?

The rate of translation is the result of multiple contributions such as initiation, elongation, abortion and termination. Our data indicate that Nt is a regulator of DnaA translation elongation responding specifically to the nutritional state of the cell. Translation abortion could be one of the possible outcomes (but not the only one) of ribosome stalling. For these reasons, in the new version of the manuscript, we added the word “elongation” at the end of the sentence mentioned by Reviewer 2 (line 354).

6) It seems that for most experiments with the eGFP the translation and protein decay components of the signal could have been easily uncoupled by running a parallel +chloramphenicol control. For example, this would simplify the interpretation of Figure 6 where Nt eGFP stabilities are an issue and it is important to establish that comparable protein stability with and without the Nt peptide.

To address the reviewer’s comment, we have now included a chloramphenicol control experiment (stability assay) performed with E. coli carrying the 5’UTRdnaA-Nt reporter construct (Supplementary Figure 9A). Please, see the response above for more details. For the experiments with the Caulobacter 5’UTRdnaA-Nt reporter we show in Supplementary Figure 7 that the Nt peptide has no destabilising effect on eGFP.

Reviewer #2 (Significance (Required)):

Caulobacter crescentus is a model bacterium that has provided many insights into bacterial physiology that are now exploited to understand many organisms. These present results may provide one such example. It is known that the first amino acids of translated peptides can influence increase or impede exit from the ribosome, so this is a potential translation-level regulatory point that might be used by many organisms. This manuscript gives a concrete and important example of such usage suggesting that it many be widespread. Therefore, this work should find a wide audience and it should stimulate research in many other systems.

My lab also studies Caulobacter crescentus and we studied the same dnaA gene and protein including starvation responses. We at present do not have projects on dnaA but we do study other regulators and regulatory mechanisms of chromosome replication in Caulobacter crescentus.

https://doi.org/10.7554/eLife.71611.sa2

Article and author information

Author details

  1. Michele Felletti

    Science for Life Laboratory and Department of Molecular Biosciences, The Wenner-Gren Institute, Stockholm University, Stockholm, Sweden
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Resources, Validation, Visualization, Writing - original draft, Writing – review and editing
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2494-1345
  2. Cédric Romilly

    Department of Cell and Molecular Biology, Uppsala University, Uppsala, Sweden
    Contribution
    Formal analysis, Investigation, Methodology, Resources, Writing – review and editing
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2129-6667
  3. E Gerhart H Wagner

    Department of Cell and Molecular Biology, Uppsala University, Uppsala, Sweden
    Contribution
    Formal analysis, Funding acquisition, Investigation, Methodology, Resources, Writing – review and editing
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2771-0486
  4. Kristina Jonas

    Science for Life Laboratory and Department of Molecular Biosciences, The Wenner-Gren Institute, Stockholm University, Stockholm, Sweden
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Writing - original draft, Writing – review and editing
    For correspondence
    kristina.jonas@su.se
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1469-4424

Funding

H2020 Marie Skłodowska-Curie Actions (797801)

  • Michele Felletti

Vetenskapsrådet (2016-03300)

  • Kristina Jonas

Vetenskapsrådet (2017-03765)

  • E Gerhart H Wagner

Swedish Foundation for Strategic Research (FFL15-0005)

  • Kristina Jonas

Stockholm University, Strategic Research Area

  • Kristina Jonas

Vetenskapsrådet (2020-03545)

  • Kristina Jonas

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of the Jonas lab for helpful discussions and comments on the manuscript and Dr. Iker Irisarri for bioinformatic advice. The study was financially supported by the European Union’s Horizon 2020 research and innovation programme under the Marie Skłodowska-Curie grant agreement no. 797801, the Swedish Foundation for Strategic Research (FFL15-0005), the Swedish Research Council (KJ: 2016-03300, 2020-03545, EGHW: 2017-03765), and funding from the Strategic Research Area (SFO) programme distributed through Stockholm University.

Senior Editor

  1. Gisela Storz, National Institute of Child Health and Human Development, United States

Reviewing Editor

  1. Joseph T Wade, Wadsworth Center, New York State Department of Health, United States

Publication history

  1. Preprint posted: March 31, 2021 (view preprint)
  2. Received: June 29, 2021
  3. Accepted: August 15, 2021
  4. Version of Record published: September 15, 2021 (version 1)

Copyright

© 2021, Felletti et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 486
    Page views
  • 39
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    2. Genetics and Genomics
    Natalia Petrenko, Kevin Struhl
    Research Article Updated

    The preinitiation complex (PIC) for transcriptional initiation by RNA polymerase (Pol) II is composed of general transcription factors that are highly conserved. However, analysis of ChIP-seq datasets reveals kinetic and compositional differences in the transcriptional initiation process among eukaryotic species. In yeast, Mediator associates strongly with activator proteins bound to enhancers, but it transiently associates with promoters in a form that lacks the kinase module. In contrast, in human, mouse, and fly cells, Mediator with its kinase module stably associates with promoters, but not with activator-binding sites. This suggests that yeast and metazoans differ in the nature of the dynamic bridge of Mediator between activators and Pol II and the composition of a stable inactive PIC-like entity. As in yeast, occupancies of TATA-binding protein (TBP) and TBP-associated factors (Tafs) at mammalian promoters are not strictly correlated. This suggests that within PICs, TFIID is not a monolithic entity, and multiple forms of TBP affect initiation at different classes of genes. TFIID in flies, but not yeast and mammals, interacts strongly at regions downstream of the initiation site, consistent with the importance of downstream promoter elements in that species. Lastly, Taf7 and the mammalian-specific Med26 subunit of Mediator also interact near the Pol II pause region downstream of the PIC, but only in subsets of genes and often not together. Species-specific differences in PIC structure and function are likely to affect how activators and repressors affect transcriptional activity.

    1. Chromosomes and Gene Expression
    2. Structural Biology and Molecular Biophysics
    Luka Bacic et al.
    Research Article Updated

    The chromatin remodeler ALC1 is recruited to and activated by DNA damage-induced poly(ADP-ribose) (PAR) chains deposited by PARP1/PARP2/HPF1 upon detection of DNA lesions. ALC1 has emerged as a candidate drug target for cancer therapy as its loss confers synthetic lethality in homologous recombination-deficient cells. However, structure-based drug design and molecular analysis of ALC1 have been hindered by the requirement for PARylation and the highly heterogeneous nature of this post-translational modification. Here, we reconstituted an ALC1 and PARylated nucleosome complex modified in vitro using PARP2 and HPF1. This complex was amenable to cryo-EM structure determination without cross-linking, which enabled visualization of several intermediate states of ALC1 from the recognition of the PARylated nucleosome to the tight binding and activation of the remodeler. Functional biochemical assays with PARylated nucleosomes highlight the importance of nucleosomal epitopes for productive remodeling and suggest that ALC1 preferentially slides nucleosomes away from DNA breaks.
