Colicin E1 opens its hinge to plug TolC

  1. S Jimmy Budiardjo
  2. Jacqueline J Stevens
  3. Anna L Calkins
  4. Ayotunde P Ikujuni
  5. Virangika K Wimalasena
  6. Emre Firlar
  7. David A Case
  8. Julie S Biteen
  9. Jason T Kaelber
  10. Joanna SG Slusky  Is a corresponding author
  1. Center for Computational Biology, The University of Kansas, United States
  2. Department of Molecular Biosciences, The University of Kansas, United States
  3. Department of Chemistry, University of Michigan, United States
  4. Rutgers CryoEM & Nanoimaging Facility and Institute for Quantitative Biomedicine, Rutgers University, United States
  5. Department of Chemistry and Chemical Biology, Rutgers University, United States

Abstract

The double membrane architecture of Gram-negative bacteria forms a barrier that is impermeable to most extracellular threats. Bacteriocin proteins evolved to exploit the accessible, surface-exposed proteins embedded in the outer membrane to deliver cytotoxic cargo. Colicin E1 is a bacteriocin produced by, and lethal to, Escherichia coli that hijacks the outer membrane proteins (OMPs) TolC and BtuB to enter the cell. Here, we capture the colicin E1 translocation domain inside its membrane receptor, TolC, by high-resolution cryo-electron microscopy to obtain the first reported structure of a bacteriocin bound to TolC. Colicin E1 binds stably to TolC as an open hinge through the TolC pore—an architectural rearrangement from colicin E1’s unbound conformation. This binding is stable in live E. coli cells as indicated by single-molecule fluorescence microscopy. Finally, colicin E1 fragments binding to TolC plug the channel, inhibiting its native efflux function as an antibiotic efflux pump, and heightening susceptibility to three antibiotic classes. In addition to demonstrating that these protein fragments are useful starting points for developing novel antibiotic potentiators, this method could be expanded to other colicins to inhibit other OMP functions.

Editor's evaluation

Colicins are plasmid-encoded toxins produced by bacteria to kill closely related bacteria that compete for scarce resources. While the individual proteins used for binding and taking up colicins in target bacteria are well-known, the precise pathway that those toxins ultimately take to make it into the cell is unclear. Here the authors reveal the cryo EM structure of the outermembrane protein TolC in complex with colicin E1 toxin to shed new mechanistic insights into this toxin import mechanism.

https://doi.org/10.7554/eLife.73297.sa0

eLife digest

Bacteria are constantly warring with each other for space and resources. As a result, they have developed a range of molecular weapons to poison, damage or disable other cells. For instance, bacteriocins are proteins that can latch onto structures at the surface of enemy bacteria and push toxins through their outer membrane.

Bacteria are increasingly resistant to antibiotics, representing a growing concern for modern healthcare. One way that they are able to survive is by using ‘efflux pumps’ studded through their external membranes to expel harmful drugs before these can cause damage. Budiardjo et al. wanted to test whether bacteriocins could interfere with this defence mechanism by blocking efflux pumps.

Bacteriocins are usually formed of binding elements (which recognise specific target proteins) and of a ‘killer tail’ that can stab the cell. Experiments showed that the binding parts of a bacteriocin could effectively ‘plug’ efflux pumps in Escherichia coli bacteria: high-resolution molecular microscopy revealed how the bacteriocin fragment binds to the pump, while fluorescent markers showed that it attached to the surface of E. coli and stopped the efflux pumps from working. As a result, lower amounts of antibiotics were necessary to kill the bacteria when bacteriocins were present.

The work by Budiardjo et al. could lead to new ways to combat bacteria that will reduce the need for current antibiotics. In the future, bacteriocins could also be harnessed to target other proteins than efflux pumps, allowing scientists to manipulate a range of bacterial processes.

Introduction

In Gram-negative bacteria, the outer membrane, cell wall, and cytoplasmic membrane form concentric barriers that protect the cell from extracellular threats. Of these protective structures, the outer membrane forms a particularly formidable obstacle (Alexander and Rietschel, 2001), owing to the impermeability of the lipopolysaccharide (LPS) layer that constitutes the outer membrane (Kamio and Nikaido, 1976). The primary means by which external molecules can gain access to the cell is through the ~100 variations of barrel-shaped proteins that are embedded in each bacterium outer membrane (Freeman and Wimley, 2012) and whose diverse functions include the transport of molecules across the membrane—specifically, the import of nutrients and metabolites and the export of toxins and waste.

Because outer membrane proteins (OMPs) are accessible from outside the cell, bacteriophage and bacterial toxins have evolved to exploit OMPs to initiate delivering cargo across the outer membrane. Bacteriocins hijack the OMPs of a target bacterium to cross its impermeable outer membrane and kill the bacterium. Colicins are Escherichia coli-specific bacteriocins, protein toxin systems through which bacteria engage in bacterial warfare with other, similar bacteria. Colicins can be divided into groups A and B based on the requirement for which periplasmic protein systems they rely on to enter cells. The cytotoxicity of group A colicins requires the Tol system (Nagel de Zwaig and Luria, 1967) which is coupled to the proton motive force for its role in maintaining membrane integrity (Lazzaroni et al., 1989). Colicins differ in their receptor targets and killing mechanisms. Most colicins share a common tri-domain architecture, comprising the following components: (i) an N-terminal translocation (T) domain, (ii) a receptor-binding (R) domain, and (iii) a C-terminal cytotoxic (C) domain (Figure 1A). Much of what is known of group A colicin import has been determined through studies of the colicins E3 and E9 as reviewed by Cramer et al., 2018. For colicins E3 and E9, import is initialized by high-affinity R domain binding to the vitamin B12 transporter, BtuB (Kurisu et al., 2003; Housden et al., 2005; Francis et al., 2021); this binding localizes the colicin onto the outer membrane. Once the colicin is tethered to the outer membrane surface, the T domain of ColE3 and ColE9 initiates translocation using the secondary OMP receptor/translocator OmpF to access the Tol-Pal system in the periplasm. For most colicins, the T domain requires an OMP distinct from the R domain target for colicin translocation (Cascales et al., 2007). A handful of colicins have been structurally characterized with their OMP counterparts (Kurisu et al., 2003; Sharma et al., 2007; Buchanan et al., 2007). Colicin E9 bound to both BtuB and OmpF was structurally resolved as a complete translocon complex (Francis et al., 2021). The structure of the full ColE9 translocon showed that the T domain can fully penetrate deeply into lumen of the outer membrane receptors while the R domain interacts with the extracellular loop regions of its receptors. Studies of the bacteriocin pyocin S5 from Pseudomonas aeruginosa suggest that bacteriocin architectures and mechanisms may be conserved across all Gram-negative species (Behrens et al., 2020).

Figure 1 with 2 supplements see all

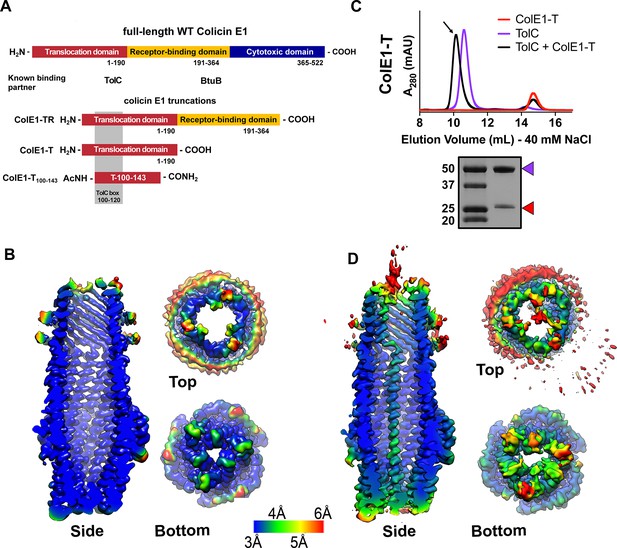

Colicin E1-T binds within the lumen of TolC.

(A) Architecture of full-length colicin E1 showing domains and their known binding partners. Three truncation constructs used in this study. (B) CryoEM structure of TolC embedded in nanodiscs. Side, top, and bottom views are colored by local resolution, as computed in cryoSPARC from the final half-maps. The side view is cropped to display the particle interior. (C) SEC chromatogram of ColE1-T (red line) and TolC (purple line). The arrow indicates the co-elution (black line) fractions (eluted in buffer containing 40 mM NaCl) that were analyzed by SDS-PAGE. On the SDS-PAGE gel (bottom), red arrows indicate the presence of the colicin E1 construct that has co-eluted with TolC. SEC chromatogram of TolC purification (Figure 1—figure supplement 1) and co-elution with 200 mM NaCl (Figure 1—figure supplement 2). (D) The CryoEM structure of ColE1-T bound to TolC and colored by local resolution as in (B). CryoEM data collection, refinement, and validation statistics in Figure 1—source data 1. cryoEM, cryo-electron microscopy; SEC, size exclusion chromatography.

Figure 1—source data 1

CryoEM data collection, refinement, and validation statistics.

https://cdn.elifesciences.org/articles/73297/elife-73297-fig1-data1-v2.xlsx

Colicin E1 is a bacteriocin produced by E. coli that enters the periplasm of neighboring cells and forms a pore on the cytoplasmic membrane leading to membrane depolarization and cell death. Unlike any of the other E colicins, the T domain of Colicin E1 binds to TolC (Benedetti et al., 1991), the outer membrane component of the acridine efflux pump, and the R domain binds BtuB (Benedetti et al., 1989), the primary receptor shared by all E colicins. A high-resolution X-ray structure exists of only the cytotoxic domain of colicin E1 (Elkins et al., 1997) but not the T or R domains, thus no mechanistic insights can be gained about initial steps of import. Domain swapping experiments (Benedetti et al., 1991) between colicin A and E1 identified regions of the protein that interact with specific OMPs. Early studies of pore-forming colicins, including E1, showed that cytotoxic-domain-induced K+ efflux on the inner membrane can be reversed after it has begun by subsequent addition of trypsin to cells. This, in addition to trypsin’s inability to cross the outer membrane, led to the belief that portions of colicin remain tethered to their OMP partners as the cytotoxic domain depolarizes the cytoplasmic membrane.(Plate and Luria, 1972; Dankert et al., 1980; Dankert et al., 1982; Bénédetti et al., 1992).

In order to understand the early stages of colicin E1 import, functional studies of truncations of colicin E1 which lack the cytotoxic domain have been characterized in vitro. Residues 100–120 of colicin E1 (termed the ‘TolC box,’ Figure 1A) have been shown to be necessary but not sufficient for binding TolC. Peptides that include the TolC box co-elute with TolC (Zakharov et al., 2016) and disrupt channel conductance in planar lipid bilayer membranes (Zakharov et al., 2004; Zakharov et al., 2016). Moreover, E. coli exposure to TolC-box-containing peptides can prevent subsequent binding and cytotoxicity of full-length colicin E1 (Jakes, 2017). CD of the T domain indicates that it exists as a helical hairpin (closed hinge) in solution similar to other colicin T domains (Wiener et al., 1997; Housden et al., 2021) and that the proline at the center of the TolC box forms its apex (Zakharov et al., 2016; Housden et al., 2021). This measurement led to the proposal, known as the ‘pillar model,’ (Zakharov et al., 2016) that the T domain inserts into the TolC barrel as a helical hairpin where the N and C-termini are pointing to the cell exterior. According to this model, the hairpin stuck in TolC acts as a buttress to facilitate the C terminal-first cytotoxic domain entry directly through the membrane where it is possibly cleaved from the TR domain to reach its inner membrane target similar to ColE7 (Shi et al., 2005) and ColD (de Zamaroczy et al., 2001).

A competing model for colicin E1 import, known as the ‘total thread’ model (Cramer et al., 2018; Zakharov et al., 2016; Housden et al., 2013; Francis et al., 2021) posits that the protein unfolds and passes through TolC N-terminus-first as an unstructured peptide and binds to TolA (Pilsl and Braun, 1995) in the periplasm. In this model, the binding between the intrinsically unstructured colicin N-termini and periplasmic proteins (Jakes, 2017; Housden et al., 2013) creates a pulling force that results in the translocation of the whole colicin.

Here, we use cryo-electron microscopy (cryoEM) to solve the high-resolution structure of a bacteriocin, colicin E1, bound to TolC. We find that colicin E1 binds stably to TolC, not as a helical hairpin but as a single-pass folded helix with the N-terminus inside the periplasm. Additionally, we find that the ColE1 TR domain binds TolC in vivo as well. Using single-molecule fluorescence microscopy, we find that ColE1-TR, lacking the cytotoxic domain, remains stalled on the outer membrane and does not fully translocate into cells. Lastly, we leverage this stalling of ColE1 to block the native TolC function as an antibiotic efflux pump. Because they are accessible from outside the cell, OMPs are attractive targets for the development of novel antibiotics, and research has begun to reveal the therapeutic potential of interfering with OMP structure and function. (Storek et al., 2018; Kaur et al., 2021).

Here by determining the structure and mechanism of ColE1 insertion, we establish an alternative approach for targeting OMPs—the development of molecular plugs that block OMP pores. Such plugs would allow for the manipulation of bacterial transport, providing a means of either starving the bacterium by preventing the import of valuable nutrients or poisoning the bacterium by preventing the export of toxins. Through real-time efflux assays and minimum inhibitory concentration (MIC) experiments, we find that ColE1-TR and ColE1-T are able to inhibit TolC-mediated efflux. We find that this plugging of TolC reduces the amount of antibiotics required to inhibit the bacterial growth—indicating that this colicin E1 fragment reduces the antibiotic resistance conferred by TolC.

Results

CryoEM structure of TolC embedded in nanodiscs

To determine the structural details of colicin E1 binding to TolC, we solved the cryoEM structure of TolC embedded in nanodiscs with and without added ColE1-T (PDB 6WXH and 6WXI, respectively). We recently reported a high-yield TolC preparation by refolding from inclusion bodies (Budiardjo et al., 2021) and inserted refolded TolC into nanodiscs. The cryoEM structure of refolded TolC alone (Figure 1B) is similar to the previously published crystal structures of natively derived TolC alone (Koronakis et al., 2000) or in complex with hexamminecobalt (Higgins et al., 2004) but with more splayed loops at the periplasmic opening (residues 165–175). There was local variation in resolution within the model with lower resolution associated with the extracellular/periplasmic ends and the nanodisc scaffold protein (Figure 1B). The lower residue resolution at these apertures may indicate dynamics not captured in the X-ray crystal structures.

We next determined the binding of colicin E1-T domain to capture the complex for structure determination. Residues 1–190 (ColE1-T) which span the translocation domain are known to bind to TolC (Figure 1A). We identified ColE1-T:TolC binding in vitro via co-elution by size exclusion chromatography (SEC) as previously described (Zakharov et al., 2016). When ColE1-T and TolC were mixed, we observed a leftward shift in the TolC peak and a decrease in intensity associated with the ColE1-T peak indicating that a subset of the population had migrated with TolC (Figure 1C). We analyzed the peak (Figure 1C arrow) using SDS-PAGE and found the presence of both ColE1-T and TolC. The unimodal shifted peak observed with ColE1-T:TolC indicates that there is a single species of fully bound TolC. When resolved by cryoEM, addition of ColE1-T to TolC breaks the threefold channel symmetry and the additional protein is observed running all the way through the TolC barrel as a single-pass, all-α-helical chain spanning more than 130 Å (Figure 1D). The maps refined to nominal global resolutions of 2.84 Å and 3.09 Å for the TolC and ColE1-T:TolC, respectively (Figure 1—source data 1).

The ColE1 T domain inserts into TolC with its amino terminus pointing inwards through the periplasmic iris, and 2D class averages show that the carboxy terminus of the helix continues and projects out into the extracellular space (Figure 2A). About 85 of the 190 ColE1-T residues could be modeled to this density (residues 46–131) (Figure 2B). No such regular protrusion was seen for the glycine-rich ColE1 amino-terminus, which we expect to be disordered in the periplasmic space (Housden et al., 2013; Housden et al., 2018; Zakharov et al., 2016). The ColE1 chain binds TolC asymmetrically, primarily contacting only one of the three TolC chains.

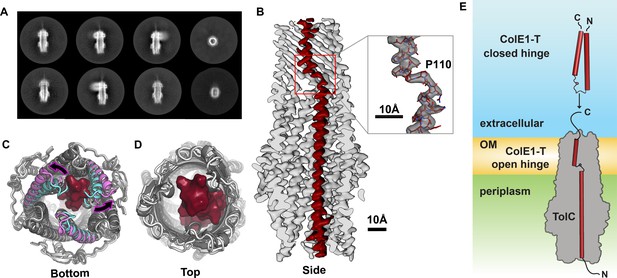

Colicin E1 binds to TolC as a single-pass kinked helix.

(A) 2D class averages of ColE1-T bound to TolC embedded in nanodiscs. (B) Cutaway side view of the TolC (light gray) interior. ColE1-T (red) binds asymmetrically in an open-hinge conformation. The hinge region of ColE1-T including residue P110 shown in stick representation (inset). (C, D) The apo cryoEM structure of TolC (light gray) compared to holo cryoEM structure (dark gray). (C) Periplasmic aperture. Two of the TolC helices in the bound structure (magenta) dilate outwards compared to those two helices in the unbound state (cyan). (D) The extracellular aperture remains more similar between the bound and unbound structures. (E) In the unbound state, ColE1-T (red cylinders) exists as a closed hinge. When bound, ColE1-T is in an open-hinge conformation through TolC with the N-terminus into the pore of TolC (gray). The side chain of the hinge proline is shown making a small pentagon in both the closed and open hinge states. The model of ColE1-T in its solution state was built using AlphaFold (Jumper et al., 2021) and is consistent with previous experiments (Zakharov et al., 2016). cryoEM, cryo-electron microscopy.

Compared to the unbound state, asymmetric ColE1 binding dilates the periplasmic TolC aperture (Figure 2C) and, makes only minor adjustments to the loops on the extracellular aperture (Figure 2D) so that they can accommodate ColE1 in the absence of any other proteins or motive force.

In solution, unbound colicin E1 is a two-helix hairpin as indicated by far UV circular dichroism (CD) (Zakharov et al., 2016). A structural model built using AlphaFold (Jumper et al., 2021) also predicts the closed hinge conformation with proline 110 at the apex (Figure 2E, top). However, our cryoEM reconstruction of colicin E1 in complex with TolC shows that ColE1-T hinges open at the TolC box to an extended conformation upon binding to TolC (Figure 2B and E, bottom). The ColE1-T helices have a short kink in the middle around proline 110, precisely at the proposed turn location in the hairpin model (Figure 2B, inset). This area is also the center of the TolC box (Figure 1A) that has been known to be critical for the ColE1:TolC interaction (Jakes, 2017; Zakharov et al., 2016).

Colicin E1 makes residue – specific interactions with TolC

TolC forms a large rigid conduit in the outer membrane and periplasm (Figure 3A) with a water-filled lumen. The hydrophilic nature of the channel (Dhar et al., 2021) coupled with the inflexibility of the outer-membrane-embedded barrel largely precludes the formation of any hydrophobic interfaces that are typically the basis of protein-protein interfaces involving helical peptides (Eisenberg et al., 1982). Yet, we did observe specific polar contacts between colicin E1’s TolC box and the TolC barrel.

Figure 3 with 3 supplements see all

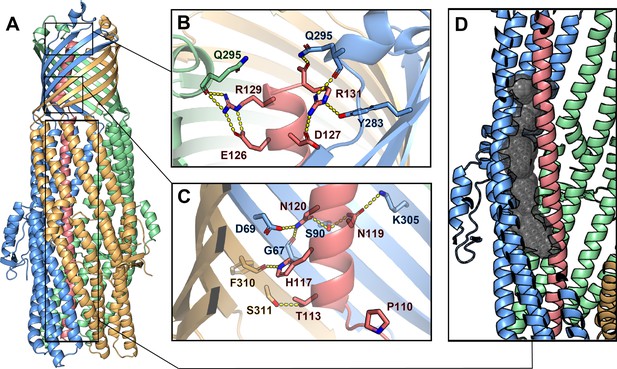

Inter-chain contacts between ColE1 T and TolC.

(A) Molecular dynamics simulation refined structure of the ColE1-T:TolC complex colored by chain (ColE1-T: light red, TolC: light blue, light green, light gold). (B, C) Polar interaction network of ColE1-T and TolC on the C-terminal side of the proline kink in the β-barrel region. Locations of previous mutagenesis data near the TolC box (Figure 3—figure supplement 1 and Figure 3—video 1). (B) Near the extracellular opening of TolC and (C) in the TolC barrel near the transition to the TolC periplasmic helical region. Residues involved in forming polar interactions and proline 110 are shown in sticks. These interactions support binding such that even when the hinge proline is mutated to alanine (P110A) binding is maintained (Figure 3—figure supplement 2). (D) ColE1-T spanning the TolC helical barrel does not make full contact with the side of the TolC barrel. The cavity (black spheres) between colicin (light red) and one chain of TolC (light blue) was detected using GHECOM (Kawabata, 2010; Kawabata, 2019; Kawabata and Go, 2007).

To obtain the most accurate atomic model for interpretation of atomic interactions between peptides, we utilized map-restrained molecular dynamics in model refinement (Wu et al., 2013). The refined model had improved chemical plausibility (for instance, the MolProbity [Williams et al., 2018] score improved from 1.25 to 0.50) and polar contacts were more easily identified. Because this refinement improved the concordance between the map and model, we conclude that the use of cryoEM density as a restraint was successful in preventing overfitting. Specifically, the EMRinger (Barad et al., 2015) score improved from 2.77 to 3.81 and the map-model FSC=0.5 improved from 3.44 Å to 3.37 Å.

The atomic model showed significant polar interactions form between colicin E1 and TolC at the apertures and around the TolC box. The acidic patch of colicin E1 near the extracellular aperture contains two arginine residues (R129 and R131) that form hydrogen bond networks with one TolC chain each (Figure 3B). In addition, colicin E1 residues T113, A116, N119, and N120 (all part of the TolC box) establish polar interactions with TolC residues G67, D69, S90, and K305 on one TolC chain (Figure 3C, light red and light blue) while colicin H117 interacts with TolC F310 on a neighboring TolC chain (Figure 3C, light red and light gold). These contacts are strong enough that even when the proline hinge of the TolC-box is mutated (P110A) ColE1-T still binds TolC (Figure 3—figure supplement 2).

By contrast with the β-barrel of TolC, in the interior of the periplasmic helical barrel of TolC, colicin E1 does not make full contact with the α-helical barrel interior and there is a gap between the two proteins (Figure 3D, Figure 3—video 1). This is in agreement with previous studies that showed a colicin truncation (residues 1–100), that ends just before the beginning of the TolC box, does not bind to TolC (Zakharov et al., 2016) or prevent cytotoxicity of full-length colicin in cells (Jakes, 2017) as this region of the colicin does not make strong interactions with TolC (Figure 3D).

Moreover, this structure is consistent with reports that mutations at TolC site G65 or S279 abrogate ColE1 activity (Masi et al., 2007) as these residues are contact sites between TolC and ColE1 (Figure 3—figure supplement 1, and Figure 3—video 1). Conversely, the absence of any effect of mutating colicin R103 and R108 (Jakes, 2017), is consistent with interaction those residues have with the solvent in the barrel rather than with TolC. The newly solved structure, in combination with previous work (Jakes, 2017; Zakharov et al., 2016), indicates the specificity of colicin E1 binding to TolC is encoded in the portion that binds to TolC β-barrel.

Membrane localization of ColE1 truncations

Since we find the ColE1 T and TR domains bind to TolC in vitro, we investigated if colicin E1 fragments bind to the native TolC in E. coli cells. Though ColE1 C domain activity—depolarizing the inner membrane—requires the C domain to pass through the outer membrane (Brunden et al., 1984), it remains unclear if the ColE1-TR domains translocate as well. We first determined that TolC binds to the TR domain in vitro similarly to TolC binding to the T domain. ColE1-TR includes residues 1–364 (ColE1-TR) contains the N-terminal portion that binds to TolC and the C-terminal portion that binds to BtuB. ColE1-TR aggregates at the salt concentration (40 mM) used for the co-elution experiment used for ColE1-T so we increased the NaCl concentration to 200 mM. ColE1-T still binds to TolC at 200 mM NaCl although to a much lesser degree (Figure 1—figure supplement 1). Unlike ColE1-T (Figure 1C), ColE1-TR shows a bimodal distribution indicative of a mixed population of bound and unbound TolC (Figure 4A).

Figure 4 with 4 supplements see all

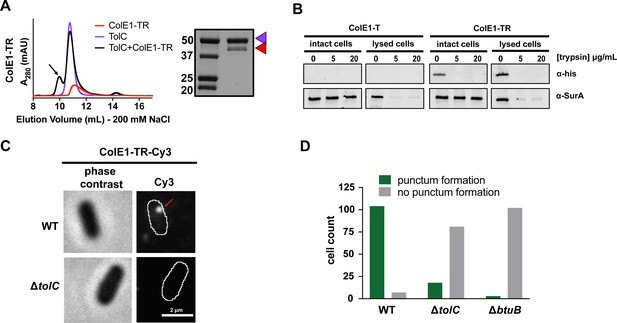

Colicin E1-TR localizes on the outside of the cell.

(A) SEC chromatogram of ColE1-TR (red line) and TolC (purple line). The arrow indicates the co-elution (black line) fractions that were analyzed by SDS-PAGE. On the SDS-PAGE gels (right), red arrow indicates the presence of colicin E1 construct that has co-eluted with TolC (purple arrow). (B) Extracellular protease digestion assay with two colicin E1 truncation constructs incubated with Escherichia coli, each construct is labeled with a C-terminal His-Tag. Periplasmic SurA was used as a membrane integrity control. After incubation with colicin fragments, cells were left intact or lysed with lysozyme. Proteins degraded by trypsin in intact cells are not protected by the outer membrane. (C) Fluorescence image (right) of ColE1-TR-Cy3 overlaid on outlines of living E. coli cells from phase-contrast microscopy (left) for WT and ΔtolC. Red arrow points to a punctum. A larger variety of images is also available (Figure 4—figure supplement 1). Similar localization was seen for ColE1-TR-GFP (Figure 4—figure supplement 2) demonstrating that the effect was not caused by the fluorophore, and ColE1-TRΔ1–40-Cy3 (Figure 4—source data 1, Figure 4—figure supplement 3) demonstrating that the effect is not TolA dependent. The puncta were stable and were found to remain intact for more than 5 min. The punctum shown here remained intact for at least 30 s (Figure 4—video 1). (D) Cell counts where ColE1-TR-Cy3 punctum formation was observed for WT, ΔtolC, and ΔbtuB. Number of cells observed, n=111, 91, 105, respectively. SEC, size exclusion chromatography.

Figure 4—source data 1

Comparison of percent cells with puncta and average number of puncta per cell between ColE1-TR-Cy3 and ColE1-TRΔ1–40-Cy3 with WT ΔtolC and ΔbtuB.

https://cdn.elifesciences.org/articles/73297/elife-73297-fig4-data1-v2.xlsx

We assessed whether ColE1-T and ColE1-TR translocate into the cell or localize on the cell surface using an extracellular protease digestion assay (Besingi and Clark, 2015). Colicin fragment stalling on the outer membrane surface would render the colicin fragments susceptible to digestion when trypsin is in the extracellular environment. Conversely, if the colicin fragment translocates into the intracellular environment, the outer membrane will shield the protein from digestion by trypsin.

Colicin fragment localization was probed through western blot analysis of specific colicin fragments with C-terminal polyhistidine-tags. Cells were incubated with these colicin fragments and subsequently exposed to two different concentrations of trypsin. If the protein enters the cell, the outer membrane shields it from trypsin digestion, and a corresponding band is present on the western blot. Periplasmic protein SurA was used as a membrane integrity control. SurA digestion indicates that the periplasm was accessible to trypsin and a SurA band indicates that the periplasm was shielded from trypsin. As a trypsin activity control, half of the cell sample was lysed (lysed cell condition) exposing all cellular compartments to trypsin.

When probing for the C-terminal epitope by immunoblotting, there was no detectible ColE1-T binding (Figure 4B, left), though there was detectible binding of ColE1-TR (Figure 4B, right). Moreover, we found that if ColE1-TR is incubated with cells and subsequently treated with two different trypsin concentrations, the ColE1-TR band disappeared, indicating that the colicin E1 fragment was localized to the outer membrane surface (Figure 4B, right). The periplasmic control SurA was not degraded at any trypsin concentration unless the cells were lysed before trypsin digestion (Besingi and Clark, 2015).

We further probed the interaction between the cell membrane and surface-localized ColE1-TR with single-molecule fluorescence microscopy using the fluorescent dye Cy3 (Al-Husini et al., 2020; Tuson and Biteen, 2015). When ColE1-TR-Cy3 was added to the extracellular environment of WT BW25113 E. coli (containing TolC), distinct puncta (Figure 4C, right) formed on 94% of the cells (number of cells, n=111) (Figure 4D); cells with observed puncta most often featured a single punctum, though a small fraction had two puncta. On average, the WT cells had 1.2 puncta. In a ΔtolC strain, puncta were observed on only 18% of cells (n=99) (Figure 4C, right; Figure 4D); on average, the ΔtolC cells had 0.2 puncta. As a ΔbtuB control strain, we used BL21 (DE3) which is known to have a premature stop codon at BtuB residue 58 (Studier et al., 2009). Puncta were observed on only 3% of cells lacking BtuB (n=105) (Figure 4D, Figure 4—figure supplement 2A ); on average, the ΔbtuB cells had 0 puncta.

The bright ColE1-TR-Cy3 puncta photobleach over time as they are observed in the fluorescence microscope, ultimately leaving a single-molecule fluorescing before complete photobleaching. We therefore divided the brightness of each punctum by the brightness of that single molecule to estimate the number of molecules in each cluster (Bakshi et al., 2012). In WT and ΔtolC cells that featured puncta, ColE1-TR form puncta consistent with ~20 molecules; we never detect an isolated single ColE1-TR molecule on either WT or ΔtolC cells before photobleaching. The observed size and number of molecules agree with previous studies of BtuB clusters (Chavent et al., 2018; Rassam et al., 2015) and the punctum locations within the cell were variable. To rule out punctum formation as an artifact of Cy3 conjugation, we found ColE1-TR-GFP displayed the same cluster formation as ColE1-TR-Cy3 (Figure 4—figure supplement 2B).

Because we usually only see one punctum per cell, we anticipate that some BtuB and TolC may remain unbound because of the geometric constraints of punctum formation. ColE1 must engage both TolC and BtuB simultaneously. Therefore, both receptors must be in close proximity, similar to the ~50 Å proximity of BtuB to OmpF when both bound to another type A colicin, ColE9 (Francis et al., 2021). Given the two-dimensional surface of a membrane, there are restrictions to how many proteins can be within 50 Å of any other protein. For the clusters we see to occur, when BtuB clusters together in groups of approximately 20 (Figure 4) TolC must also cluster in groups of approximately 20, ultimately requiring approximately 40 proteins in a relatively small area. The competition between the clustering of BtuB and the requirement for proximity of BtuB and TolC for binding could lower the number of BtuB/TolC sites available for the T and R domains of colicin E1 due to the relative TolC and BtuB geometries needed for ColE1 binding.

Fluorescently labeled pyocins, the colicin analog in Pseudomonas, have previously been used to detect translocation across the outer membrane of P. aeruginosa (White et al., 2017). Here, we use an analogous experiment with fluorescently labeled ColE1 to determine cellular localization in E. coli. In time courses, bound ColE1-TR puncta remained immobile for >5 min (Figure 4—video 1 corresponds to 30 s of data used to attain the WT image in Figure 4C). This is consistent with the continued association of ColE1-TR with membrane-embedded BtuB, which has limited mobility (Kleanthous et al., 2015). This result indicates that ColE1-TR does not fully translocate (White et al., 2017), because if ColE1-TR entered the periplasmic space it would freely diffuse on these timescales.

Colicin constructs lacking the R domain (ColE1-T-Cy3) showed no detectable binding either to WT or ΔtolC cells (Figure 4—figure supplement 2C), indicating that the TolC-ColE1-T interaction is weaker than the BtuB-ColE1-TR interaction, likely due to the absence of the R domain-BtuB interaction.

TolA is known to be required for ColE1 cytotoxicity (Nagel de Zwaig and Luria, 1967; Pilsl and Braun, 1995). ColE1 lacking the TolA box at the N-terminal T-domain would likely be translocation incompetent due to uncoupling from TolA. Similarly, there is a loss of biological activity due to mutations in ColE9 N-terminal region that indirectly interacts with TolA (Loftus et al., 2006; Garinot-Schneider et al., 1997). Biological inactivation has also been caused by mutation to the Tol-Pal interacting regions of ColE3 (Escuyer and Mock, 1987) and ColA (Pilsl and Braun, 1995). We found that ColE1-TRΔ1–40 binds to the cell surface of WT, ΔtolC, and ΔbtuB in a similar manner as ColE1-TR (Figure 4—source data 1, Figure 4—figure supplement 3). Cell surface localization of ColE1-TR matching that of translocation deficient ColE1-TRΔ1–40 suggests that ColE1-TR puncta are not within the cell and likely stalled on the outer membrane receptor. The requirement for TolA may serve an alternate role in translocation as we consider in the Discussion section.

ColE1-TR inhibits efflux and makes E. coli more susceptible to antibiotics

Since the colicin truncations are stalled on their respective OMP receptors, we investigated if this stalling could disrupt native TolC efflux. Real-time efflux inhibition by colicin E1 fragments was assessed using a live-cell assay with N-(2-naphthyl)-1-naphthylamine (NNN)-dye, which passively diffuses into cells and is effluxed by the AcrAB-TolC efflux pump. NNN fluoresces when it is localized in the hydrophobic interior of one of the membranes (Bohnert et al., 2011) thereby acting as a reporter for the relative rates of diffusion and efflux. NNN efflux can be turned off by the protonophore CCCP, which neutralizes the proton motive force and allows NNN to accumulate within the cell. Active efflux can then be monitored by the fluorescence decay once the proton motive force is reenergized by glucose addition (Bohnert et al., 2010; Seeger et al., 2008; Bohnert et al., 2011; Iyer et al., 2015; Misra et al., 2015).

We assessed the ability of colicin E1 truncations to plug TolC by monitoring real-time NNN efflux. Cells exposed to ColE1-T100-143 did not show lower real-time efflux than untreated cells (Figure 5A). This observation is notable in light of the fact that, in previous conductance studies, similar peptides were shown to bind TolC (Jakes, 2017; Zakharov et al., 2016) and to occlude the channel ( Zakharov et al., 2004; Zakharov et al., 2016).

Figure 5 with 1 supplement see all

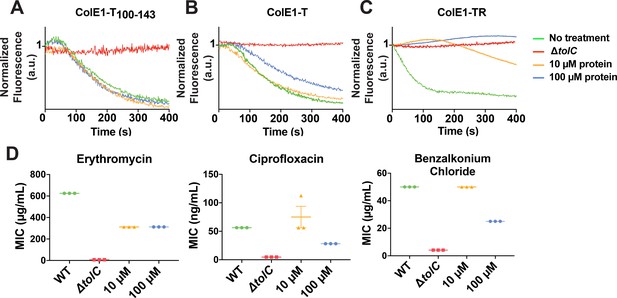

Colicin E1 fragments inhibit efflux and potentiate antibiotics.

(A–C) Effect of colicin E1 fragments on efflux: WT with no protein (green), ΔtolC (red), WT + 10 μM (orange), and WT + 100 μM protein (blue). (A) ColE1-T100–143, (B) ColE1-T, and (C) ColE1-TR. All efflux experiments used 10 μM of fluorescent reporter dye NNN. (D) Antibiotic susceptibilities in the absence (green) and presence of ColE1-TR added to WT at 10 μM (orange) and 100 μM (blue). MICs for ΔtolC (red) are included as a reference. Data shown from three biological replicates reported as the mean and individual data points. Bars indicate standard error of the mean. Data values shown in Figure 5—source data 1. MIC, minimum inhibitory concentration.

Figure 5—source data 1

Mean minimum inhibitory concentrations (MICs) of antimicrobials in the presence of ColE1-TR.

https://cdn.elifesciences.org/articles/73297/elife-73297-fig5-data1-v2.xlsx

Cells exposed to high concentrations of ColE1-T showed less decay in final fluorescence than untreated cells, indicating that ColE1-T partially inhibits efflux (Figure 5B). Finally, exposure to high concentrations of ColE1-TR produced no decrease in fluorescence, showing full inhibition of efflux (Figure 5C).

Because ColE1-TR completely inhibits NNN efflux, we evaluated the capacity of ColE1-TR to potentiate antibiotics representing three different classes that are known TolC substrates: ciprofloxacin, erythromycin, and benzalkonium chloride (from fluoroquinolones, macrolides, and quaternary ammonium compounds, respectively). An effective TolC plug will reduce the concentration required to inhibit growth as antibiotics remain trapped within the cell. WT E. coli cells that were exposed to 100 μM ColE1-TR with each of these antibiotics showed significantly lower MICs, the lowest concentration of antibiotic that inhibits visible growth, than cells exposed to the antibiotics alone (Figure 5D): exposure to 100 μM ColE1-TR made WT E. coli ~2–7-fold more susceptible to these antibiotics (Figure 5—source data 1). Exposure of WT cells to 10 μM ColE1-TR was sufficient to potentiate erythromycin.

TolA is normally involved in outer membrane invagination during cell division (Gerding et al., 2007). Like Colicin E1, Colicin E9 contains an intrinsically unstructured N-terminus that engages the Tol-Pal system once it penetrates into the periplasm (Loftus et al., 2006). Engagement of the Tol-Pal system by the N-terminal region of colicin E9 disrupts native Tol-Pal system function leading to outer membrane defects (Rassam et al., 2018). Outer membrane defects may lead to enhanced antibiotic susceptibility. To rule out outer membrane-mediated defects as the main contributor to the reduction in MICs seen in Figure 5, we tested the effect of using a truncation of ColE1-TR (ColE1-TRΔ1–40) lacking the N-terminal 40 residues including the TolA box. The MIC of ColE1-TR and ColE1-TRΔ1–40 is identical (Figure 5—figure supplement 1) indicating that ColE1-TR engagement of TolA does not contribute to the observed antibiotic susceptibility.

Discussion

There are two conflicting models of ColE1 translocation: (1) the total thread model in which the entire colicin unfolds and threads through TolC (Cramer et al., 2018; Jakes, 2017; Francis et al., 2021) and (2) the pillar model, in which colicin E1 inserts into TolC as a helical hairpin, facilitating LPS-mediated, self-translocation of the colicin cytotoxic domain (Zakharov et al., 2016). Our data support aspects of both models. The belief in a closed hinge conformation of bound ColE1 prompted two arguments against the total thread mechanism: (1) the ColE1-T closed hinge conformation is too wide to fit through TolC and (2) both ends would face the extracellular milieu (Zakharov et al., 2016; Cramer et al., 2018). The ColE1-T hinge opening in the bound state—which was unanticipated by the pillar model—resolves these objections: colicin threads into the TolC barrel with the amino terminus pointing into the periplasm, as the total thread model hypothesized. Our trypsin digests show ColE1-TR stalls at the outer membrane of E. coli cells and the single-molecule fluorescence images confirm that ColE1-TR remains clustered and does not diffuse as would be expected if entering the periplasm or cytoplasm. These puncta form regardless of the presence or absence of the TolA binding region on ColE1-TR.

Though we cannot exclude the possibility that ColE1 T and R domain translocation depends on the C domain, we observe—as hypothesized by the pillar model—that colicin sits inside TolC but does not translocate. These results are in agreement with early studies of pore-forming colicins in which trypsin added to the extracellular environment can reverse colicin activity (Plate and Luria, 1972; Dankert et al., 1980; Dankert et al., 1982; Bénédetti et al., 1992; Duché, 2007). We anticipate that the stable ColE-TR:TolC complex forms regardless of the presence of the C domain.

If the C domain does translocate while the T and R domains remain bound, we anticipate that the requirement for TolA is due to its role in membrane maintenance. Recruitment of the Tol-Pal system by a different group A colicin (ColE9) causes membrane defects similar to those in a ΔtolA strain (Rassam et al., 2018). Therefore, in the pillar model, colicin binding of TolA may facilitate C domain insertion through the defective membrane, whereas in the total thread model binding TolA transduces the proton motive force to unfold ColE1and pull it into the periplasm (Figure 6—figure supplement 1). Because we did not use the toxic C domain, our data cannot clarify what occurs after the T and R domain of full-length colicin bind the OMPs. Although our studies find that ColE1-TR remains on the surface of the bacteria, it is certain that the C domain, when present, translocates across the membrane into the target bacteria to kill the cell. Our data do not exclude the possibility that the translocation of the T and R domains occurs along with the C domain in full-length colicin, nor does it support T or R domain translocation. Thus, though our studies give a more complete view of the early stages of ColE1 binding the surface of its target, we cannot determine if insertion of the C domain occurs via the total thread model or via a modified pillar model.

Shortly after this work was made available, a similar structure demonstrated that KlebC, a rRNAse bacteriocin from Klebsiella pneumoniae, binds TolC from Klebsiella quasipneumoniae with a binding mode similar to that of ColE1 binding TolC (Housden et al., 2021). KlebC is closed in the unbound state as confirmed by the high-resolution X-ray crystal structure, which supports our proposed conformation (Figure 2E), and opens into a single-pass, kinked-helix to bind to TolC. Taken together, these findings suggest a conserved mechanism for bacteriocins that hijack trimeric efflux pump proteins.

In addition to demonstrating a colicin insertion mechanism, our observations form the basis of a means to manipulate bacterial import and efflux (Figure 6). Though colicin E1 confers some level of antibiotic potentiation, the relatively high concentration of ColE1-TR needed to inhibit efflux may be explained by a combination of the geometric constraints of creating large clusters of BtuB and TolC, and residually unblocked pore, even in the bound state as the large internal volume of TolC is not fully occupied by ColE1. Because of their limited potency, our ColE1-T and ColE1-TR fragments are not likely to be practical in direct applications of antibiotic potentiation. However, our proof-of-concept findings offer a potential roadmap for further development. A more potent TolC binder would not need the R domain anchor for affinity. Such a binder could be designed using the atomic details of the ColE1-T:TolC structure as a basis. Moreover, this scaffold can be used for efflux pump inhibitors for at least five other bacterial organisms. Each of these organisms has a structurally characterized outer membrane efflux pump that is homologous and structurally similar to TolC (Franklin et al., 2018).

Figure 6 with 1 supplement see all

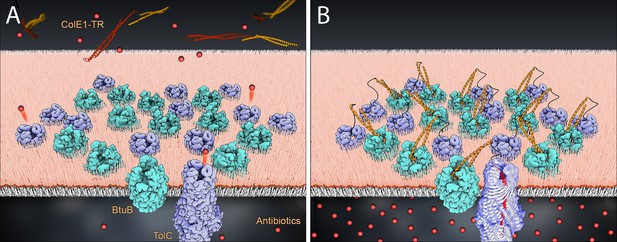

Model of colE1-TR inhibition of efflux.

The R domain of ColE1-TR (orange) binds to BtuB (cyan) with high affinity and anchors colE1-TR to the surface of the cell. The T domain (red) then inserts into TolC (lavender), plugging the channel and blocking exit of antibiotics (spheres). We only see this interaction when ~20 colE1-TR bind in the same cluster though for simplicity only 12 BtuB and 12 TolC proteins are pictured here. (A) Before binding, antibiotics are effluxed. (B) After binding the colicin E1 fragments prevent some antibiotic efflux.

More broadly, there are at least nine known OMP receptors for bacteriocins. These OMPs have a variety of functions including adhesion, iron transport, and general import (Cascales et al., 2007; Kleanthous, 2010). Using this same strategy with fragments derived from other bacteriocins may additionally allow for controlled inhibition of other bacterial functions.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyTHE HisTag mAb Mouse (mouse monoclonal)GenScriptCat#A00186-100;
RRID:19J001957
(1:2000)
AntibodyAnti-SurA Rabbit polyclonal (rabbit polyclonal)CusabioCat#CSB-PA359693HA01ENV;
RRID:E0109A
(1:2500)
AntibodyIRDye 800CW goat anti-mouse IgG secondary (goat polyclonal)LI-CORCat#925-32210;
RRID:C81106-01
(1:10,000)
AntibodyIRDye 800CW Donkey anti-Rabbit (donkey monoclonal)LI-CORCat#925-32213;
RRID:C80829-10
(1:10,000)
Cell line (Escherichia coli)BW25113Coli Genetic Stock CenterCat#7636
Cell line (E. coli)JW5503-1Coli Genetic Stock CenterCat#11430
Cell line (E. coli)BL21(DE3)Coli Genetic Stock CenterCat#12504
Recombinant DNA reagentpTrc99a-NoSS-TolCThis paperAddgene: 155179Addgene: 155179
Recombinant DNA reagentpET303-colE1-TThis paperAddgene: 155180Addgene: 155180
Recombinant DNA reagentpET303-colE1-TRThis paperAddgene: 155181Addgene: 155181
Recombinant DNA reagentpET303-colE1-T-E192CThis paperAddgene: 180233Addgene: 180233
Recombinant DNA reagentpET303-colE1-TR-E366CThis paperAddgene: 180234Addgene: 180234
Recombinant DNA reagentpET303-colE1-TR-E366C-∆1–40This paperAddgene: 180235Addgene: 180235
Recombinant DNA reagentpET303-colE1-TR-∆1–40This paperAddgene: 180236Addgene: 180236
Recombinant DNA reagentpET303-colE1-T-P110AThis paperAddgene: 180237Addgene: 180237
Recombinant DNA reagentMSP1D1AddgeneAddgene: 20061
Software, algorithmcryoSPARC 2v2.12Punjani et al., 2017https://cryosparc.com/
Software, algorithmphenix v1.14-3260Afonine et al., 2018https://www.phenix-online.org/
Software, algorithmserialEM v3.7Mastronarde, 2018https://bio3d.colorado.edu/SerialEM/
Software, algorithmcoot v0.8.9.2-re 7766Emsley et al., 2010https://www2.mrc-lmb.cam.ac.uk/personal/pemsley/coot/
Software, algorithmISOLDE v1.0b4.dev1Croll, 2018https://isolde.cimr.cam.ac.uk/static/isolde/doc/tools/ISOLDE.html
Software, algorithmUCSF ChimeraXGoddard et al., 2018https://www.cgl.ucsf.edu/chimerax/
Software, algorithmPyMOLSchrödinger, LLChttps://pymol.org/2/

E. coli strains

Request a detailed protocol

E. coli strains BW25113 and JW5503-1 were purchased from the Coli Genetic Stock Center (CGSC). JW5503-1 is a tolC732(del)::kan from the parent strain BW25113. BL21(DE3) was used for the production of the colicin constructs and TolC. BL21(DE3) has a premature stop codon at residue 58 of the btuB gene and therefore we used it as a ΔbtuB strain for microscopy.

Expression and purification

Request a detailed protocol

The gene for ColE1-TR was synthesized as a gBlock (Integrated DNA Technologies) and cloned into pET303. Inverse PCR was used to delete the R domain and produce colicin E1-T. Colicin E1-TR-GFP was produced by inserting GFP at the C terminus of ColE1-TR. A gBlock (Integrated DNA Technologies) was synthesized for GFP containing complementary flanking sequences to the plasmid with ColE1-TR and inserted with the omega-PCR technique. ColE1-TRΔ1–40 was produced by inverse PCR to delete residues corresponding to 1 through 40. All point mutants (ColE1-T-E192C, ColE1-TR-E366C, ColE1-TR-E366CΔ1–40, and ColE1-T-P110A) were generated by inverse PCR with mutagenic primers.

Plasmids were transformed into E. coli BL21(DE3) cells and plated on LB+ agar + 100 μg/ml carbenicillin. Single colonies were inoculated into 50 ml LB broth with 100 μg/ml carbenicillin and grown overnight at 37°C with shaking at 250 r.p.m. Proteins were produced by inoculating 1 L of TB supplemented with 0.4% glycerol, 10 mM MgCl2, and 100 μg/ml carbenicillin with 20 ml of the overnight culture. The culture was grown at 37°C to an OD600 of 2.0 and induced with 1 mM IPTG. Expression cultures were then grown at 15°C for 24 hr and harvested at 4000g for 30 min at 4°C. Cell pellets were resuspended at 3 ml/g of cell pellet in lysis buffer (TBS, 5 mM MgCl2, 10 mM imidazole, 1 mM PMSF, 10 μg/ml DNase, and 0.25 mg/ml lysozyme) and lysed via sonication (2 min, 2 s on, 8 s off, 40% amplitude, QSonica Q500 with 12.7 mm probe) in an ice bath. Lysates were centrifuged at 4000g for 10 min to remove un-lysed cells and debris. The supernatant was centrifuged again at 50,400g in a Beckman Coulter J2-21 for 1 hr at 4°C. Clarified lysates were applied to a 5-ml HisTrap FF column and purified using an ÄKTA FPLC system with a 20-column volume wash step with binding buffer (TBS, 25 mM imidazole) and eluted using a linear gradient from 0% to 50% elution buffer (TBS, 500 mM imidazole) in 10 column volumes. Concentrated proteins were loaded onto a HiLoad Superdex 16/60 200 pg gel filtration column and eluted into phosphate-buffered saline (PBS) pH 7.4.

TolC production and purification were conducted in the same manner for preparation for cryoEM and for SEC. The gene for full-length TolC (a generous gift from R. Misra) was cloned into pTrc99a with the signal sequence deleted for expression into inclusion bodies. Plasmids were transformed into BL21(DE3) and plated on LB+ agar + 100 μg/ml carbenicillin. A single colony was picked and grown in LB at 37°C with shaking at 250 r.p.m. overnight. In the morning, 1 L of LB was inoculated with 20 ml of the overnight culture and grown at 37°C with shaking at 250 r.p.m. until the culture reached an OD600 of 0.6, at which point protein expression was induced with 1 mM IPTG for an additional 4 hr. Cells were then harvested at 4000g for 30 min at 4°C. Cell pellets were resuspended in ml of lysis buffer (TBS, 5 mM MgCl2, 0.2 mg/ml lysozyme, 5 μg/ml DNase, and 1 mM PMSF) at 3 ml/1 g of cell pellet and lysed via sonication (4 min, 2 s on, 8 s off, 40% amplitude, QSonica Q500 with 12.7 mm probe) in an ice bath. Cell lysates were centrifuged at 4000g for 30 min at 4°C to harvest inclusion bodies. Inclusion body pellets were resuspended in inclusion body wash buffer (20 mM Tris pH 8.0, 0.5 mM EDTA, and 1% Triton X-100) and centrifuged at 4000g for 30 min at 4°C. The inclusion body wash was repeated two more times. A final wash was done in 20 mM Tris pH 8.0 and inclusion bodies were stored at –20 °C. Inclusion bodies were solubilized in 20 mM Tris pH 8.0, 8 M urea at 500 μM. N-octylpolyoxyethylene was added to 5 ml of solubilized TolC to a final concentration of 10% detergent and pipetted into a Slide-A-Lyzer G2 dialysis cassette with a 10,000 molecular weight cutoff. Refolding was initiated by dialysis in 5 L of 20 mM Tris pH 8.0, 100 mM NaCl at 4 °C with stirring overnight. TolC was centrifuged at 15,200g for 10 min at 4°C to remove aggregates. The supernatant was filtered through a 0.22-μm filter, concentrated to 2 ml, applied onto a HiLoad 16/60 Superdex 200 pg column on an ÄKTA Pure FPLC system, and eluted with 1.5 column volumes in 20 mM Tris pH 8.0, 100 mM NaCl, 0.05% n-dodecyl-β-D-maltoside. TolC containing fractions were pooled and concentrated to 300 μM in Amicon centrifugal filters with molecular weight cutoff of 30 kDa.

MSP1D1 in pET28a was purchased from Addgene and was expressed and purified as previously described (Hagn et al., 2018).

Peptide Synthesis

Request a detailed protocol

ColE1-T100-143 was synthesized using standard Fmoc chemistry with a CEM liberty blue microwave peptide synthesizer. The peptides were cleaved using a solution of 92.5:2.5:2.5:2.5 TFA:TIPS:H2O:DoDt and the crude peptides were purified using HPLC. Analytical HPLC traces were acquired using an Agilent 1100 quaternary pump and a Hamilton PRP-1 (polystyrene-divinylbenzene) reverse phase analytical column (7 μm particle size, 4 mm×25 cm) with UV detection at 215 nm. The eluents were heated to 45°C to reduce separation of rotational isomers, and elution was achieved with gradients of water/acetonitrile (90:10 to 0:100 containing 0.1% TFA) over 20 min. Low-resolution mass spectra were obtained using a Waters Micromass ZQ 4000 instrument with ESI+ ionization.

Extracellular protease digestion

Growth, incubation with protein, and washing

Request a detailed protocol

5 ml overnight cultures of E. coli (BW25113) were grown in LB media at 37°C with shaking (250 r.p.m.) overnight. A 50 ml culture of LB was inoculated with 1 ml of the overnight culture and grown at 37°C with shaking (250 r.p.m.) until an OD600 of 0.6 was reached. The cultures were centrifuged at 4000g at 4°C for 10 min. For the exogenous addition of protein, cell pellets were resuspended in cold PBS (Bio-Rad) containing 10 μM of either ColE1-T or ColE1-TR protein. Cells were incubated with protein with gentle rocking for 1 hr at 37°C. After incubation with protein, the cells were collected at 4000g at 4°C for 10 min and resuspended in cold PBS without protein. The centrifugation and wash were then repeated a second time. The PBS washes are designed to remove unbound protein.

Protease digestion of intact cells and lysed cells

Request a detailed protocol

Each sample is split into two 1-ml aliquots. The first aliquot is the intact cell condition which is placed on ice. The second aliquot is the lysed cells that control for protease activity. This aliquot was lysed by adding 0.25 mg/ml lysozyme (10 μl of a 25 mg/ml in 10 mM Tris pH 8.0, and 50% [v/v] glycerol) and incubated at room temperature for 15 min followed by five freeze-thaw cycles in liquid nitrogen. The intact cells condition and lysed condition were both split into three 270-μl aliquots. For each triplet, trypsin was added at 5 and 20 μg/ml to digest any extracellularly exposed protein. 30 μl of PBS was added to the third aliquot of each triplet for a no trypsin sample. The three aliquots were incubated at room temperature to allow for trypsin digestion. After 30 min, 20 μl of 100 mM PMSF was added to terminate the trypsin digestion reaction. Then the samples associated with the intact cells condition were lysed. Lysozyme was added to a final concentration of 0.25 mg/ml and incubated at room temperature for 15 min followed by five freeze-thaw cycles in liquid nitrogen. All samples were stored at –20°C until ready for western blot analysis.

Western blot

Request a detailed protocol

Samples were separated by SDS-PAG E. coli cin proteins were probed with THE HisTag mAb mouse (GenScript). SurA was probed with anti-SurA Rabbit polyclonal (Cusabio). Western blots were imaged by fluorescence using an LI-COR Odyssey imager with secondary antibodies IRDye 800CW goat anti-mouse IgG and IRDye 800CW Donkey anti-Rabbit for Colicins and SurA, respectively.

Single-molecule microscopy

Request a detailed protocol

Cysteine mutations were introduced at the C-terminus before the histidine tag for fluorophore conjugation. These constructs were purified as described in the Expression and purification section with the addition of 1 mM TCEP in all buffers. All subsequent steps were performed with limited exposure to light and in amber tubes. Cyanine3 (Cy3) maleimide (Lumiprobe) was reconstituted in DMSO. Fluorophore labeling was achieved by mixing a 20-fold molar excess of Cy3 maleimide to protein and incubating overnight at 4°C. Free dye was removed by gel filtration on a Sephadex NAP-10 G-25 column. Simultaneously to the dye removal, the sample was buffer exchanged into storage buffer (PBS pH 7.4, 1 mM DTT, and 1 mM EDTA). The degree of labeling was determined spectrophotometrically from the concentrations of the dye and protein solutions using their respective extinction coefficients, ε, as described by their manufacturers or for the proteins as estimated by Expasy ProtParam (Cy3 ε548 nm=162,000 L mol–1 cm–1; ColE1-T-E192C ε280 nm=9970 L mol–1 cm–1; ColE1-TR-E366C ε280 nm=14,440 L mol–1 cm–1). Labeling efficiencies were ~75% and ~85% for ColE1-T-E192C and ColE1-TR-E366C, respectively. Protein concentrations were adjusted according to the percentage of labeled protein.

Cultures of E. coli (WT, ΔtolC, or BL21(DE3)) were grown in LB medium at 37°C with shaking (180 r.p.m.) overnight, then transferred to MOPS minimal medium (Teknova) with 0.2% glycerol and 1.32 mM K2HPO4 and grown at 37°C for 13 hr. The sample was transferred to MOPS medium and grown to turbidity at 37°C overnight. A 1-ml aliquot of culture was centrifuged for 2 min at 4850g to pellet the cells. The pellet was washed in 1 ml MOPS and centrifuged a second time. The supernatant was then removed, and the cell pellet was resuspended in 500 μl MOPS. A 1.0-μl droplet of concentrated cells was placed onto a glass slide. Then, a 1.0-μl droplet of 1 µg/ml colicin E1 protein construct stock was added to the cells. The droplet was covered by an agarose pad (1% agarose in MOPS media) and a second coverslip.

Samples were imaged at room temperature using wide-field epifluorescence microscopy with sensitivity to detect single dye molecules as described previously (Tuson and Biteen, 2015). Briefly, fluorescence was excited by a 561-nm laser (Coherent Sapphire 560-50) for Cy3 or a 488-nm laser (Coherent Sapphire 488-50) for GFP. The lasers were operated at low power densities (1–2 W/cm2), and fluorescence was imaged with an Olympus IX71 inverted microscope with a 100×, 1.40-NA phase-contrast oil-immersion objective and appropriate excitation, emission, and dichroic filters. A Photometrics Evolve electron multiplying charge-coupled device (EMCCD) camera with >90% quantum efficiency captured the images at a rate of 20 frames per second. Each detector pixel corresponds to a 49 nm×49 nm area of the sample. E. coli cells were identified and fluorescent signals were detected using the Single-Molecule Localization by Local Background Subtraction (SMALL-LABS) algorithm (Isaacoff et al., 2019).

Co-elution

Request a detailed protocol

The interaction of TolC and colicin E1-T or -TR was determined by co-elution on an SEC column. Purified TolC and colicin E1-T or -TR were mixed at a 1:2 molar ratio to ensure an excess of colicin to saturate TolC binding sites and incubated at room temperature for 1 hr before loading onto a Superdex 200 Increase 10/300 GL column (GE Healthcare). The protein was eluted with 1.5 column volumes into 20 mM Tris pH 8.0, 40 mM NaCl, and 0.05% n-dodecyl-β-D-maltoside for ColE1-T. For ColE1-TR, the NaCl concentration was increased to 200 mM to prevent precipitation. Elution fractions were collected every 0.5 ml. Peak fractions were concentrated to 20 μl and analyzed by 4%–20% SDS-PAGE.

Real-time efflux

Request a detailed protocol

Real-time efflux activity in the presence of ColE1-TR was determined as previously described with some modifications (Bohnert et al., 2010; Bohnert et al., 2011). Cells were resuspended to OD600 1.5 in cold PBS with and without 10–100 μM colicin proteins and incubated for 15 min on ice. To turn off efflux, 100 μM carbonyl cyanide m-chlorophenyl hydrazone (CCCP) was added. After an additional 15 min, the efflux dye NNN was added to the cells to 10 μM. To determine cell viability after treatment with CCCP and NNN, we counted the colony-forming units of treated and untreated cells. Treated cells had 93% viability compared to untreated cells as determined by colony-forming units (treated cells had 4.4×109 CFU/ml, untreated cells had 4.7×109 CFU/ml). The cells were incubated at 25°C with shaking at 140 r.p.m. for 2 hr. Cells were harvested at 3500g for 5 min and washed once in 20 mM potassium phosphate buffer pH 7 with 1 mM MgCl2. Cell concentrations were adjusted to OD600 1.0 and placed on ice. Then, 2 ml of the cell suspension was loaded into a quartz cuvette (Agilent Technologies). Fluorescence was measured with an Agilent Cary Eclipse fluorescence spectrophotometer with slit widths at 5 and 10 nm for excitation wavelength of 370 nm and emission wavelength of 415 nm. Fluorescence measurements were taken every 1 s. After 100 s, 50 mM glucose was added to re-energize the cells and initiate efflux, and fluorescence data were collected for an additional 600 s. Figure 5A–C reflects time after glucose addition.

Minimum inhibitory concentrations

Request a detailed protocol

MICs were determined using the broth dilution method (Wiegand et al., 2008) with some modifications in 96-well plates format using LB media in 100 μl well volumes. Cultures were grown at 37°C with shaking at 250 r.p.m. and OD600 was read on a Biotek plate reader after 20 hr. MICs are defined by the lowest concentration that prevents visible growth. We chose an OD600 of >0.1 as the cutoff for growth. We report MICs as the mean of 3 biological replicates with each replicate plotted (Figure 5D, Figure 5—source data 1). Due to the twofold discretized nature of concentration ranges used to determine MICs we do not report statistical significance values as is typical of MIC reporting.

Reconstitution of TolC into amphipol

Request a detailed protocol

1 ml of TolC at 0.5 mg/ml was mixed with 0.75 ml of A8-35 (Anatrace) amphipol at 33 mg/ml for a 50-fold weight excess and incubated at room temperature for 30 min. Bio-Beads SM-2 resin that was washed in methanol and equilibrated with 20 mM Tris, 40 mM NaCl was added to the reaction mixture at 0.5 g/ml to initiate detergent exchange for A8-35 and incubated with rotation at 4°C overnight. The mixture was transferred to a tube with fresh Bio-Beads and incubated at 4°C for an additional 4 hr. The reaction mixture was loaded onto a HiLoad 16/60 Superdex 200 pg column on an ÄKTA Pure FPLC system and eluted with 1.5 column volumes in 20 mM Tris pH 8.0, 40 mM NaCl to remove free A8-35 and detergent. For colicin-bound TolC in A8-35, colicin E1-T was added to the reaction mixture at a >2 molar excess prior to gel filtration. TolC or colicin-bound TolC in A8-35 was concentrated to 2–4 mg/ml for cryoEM.

Reconstitution of TolC into lipid nanodiscs

Request a detailed protocol

POPC (Avanti Polar Lipids) in chloroform was dried under a stream of nitrogen and freeze dried to remove residual chloroform. Lipids were reconstituted to 50 mM in cholate buffer (20 mM Tris pH 8.0, 100 mM NaCl, 0.5 mM EDTA, and 100 mM cholate) in an amber glass vial. The vial was submerged under a stream of warm water until the solution became clear. Lipids, membrane scaffold protein, and TolC were mixed in a 36:1:0.4 ratio as previously described (Daury et al., 2016). Final concentrations were 4.5 mM POPC, 125 μM MSP1D1, 50 μM TolC in a 2-mL reaction with cholate brought up to 20 mM and dodecyl-maltoside up to 0.1%. The reaction mixture was incubated on ice for 1 hr. Bio-Beads SM-2 resin that was washed in methanol and equilibrated with 20 mM Tris, 40 mM NaCl was added to the reaction mixture at 0.5 g/ml to initiate nanodisc formation and incubated with rotation at 4°C overnight. The mixture was transferred to a tube with fresh Bio-Beads and incubated at 4°C for an additional 4 hr. The reaction mixture was loaded onto a HiLoad 16/60 Superdex 200 pg column on an ÄKTA Pure FPLC system and eluted with 1.5 column volumes in 20 mM Tris pH 8.0, 40 mM NaCl to separate TolC inserted into nanodiscs from empty nanodiscs. For colicin-bound TolC in nanodiscs, colicin E1-T was added to the reaction mixture at a >2 molar excess prior to gel filtration. TolC or colicin-bound TolC in nanodiscs was concentrated to 2–4 mg/ml for cryoEM.

Cryo-electron microscopy

Request a detailed protocol

3 μl of protein solution (TolC/ColE1-T in amphipol or TolC/ColE1-T in nanodiscs) was diluted to approximately 1.05 mg/ml concentration, applied to a glow-discharged TEM grid, and plunge-frozen in ethane using a Vitrobot Mark IV (FEI Company) with grade 595 filter paper (Ted Pella). Glow discharge was performed in ambient atmosphere at 0.39 mBar pressure. Imaging was performed using a Talos Arctica (FEI Company) operated at 200 kV with energy filter and K2 Summit (Gatan, Inc) for detection. To collect multiple images per hole while maintaining parallel illumination conditions, a nonstandard 20 μm condenser aperture was used to image TolC-ColE1-T in nanodiscs. At nominal magnification of 205,000×, images were acquired in counting mode with a calibrated pixel size of 0.6578 Å. Fresnel fringes attributable to the beam interaction with the aperture were often seen in images. Some investigators have moved the microscope stage and altered the nominal objective lens true focus point to generate a fringe-free condition (Weis and Hagen, 2020). In this study, imaging at 205,000× with a 20-μm aperture yielded better results than imaging at 130,000× with a 50-μm aperture; at 130,000× with a 20-μm aperture, the fringes were extremely severe due to the larger field of view, so a full dataset was not collected with those conditions. TolC in nanodiscs (without ColE1-T) was imaged at 130,000× with a 50-μm condenser aperture (Figure 1—source data 1).

Micrographs were collected with SerialEM (Mastronarde, 2018) using in-house modifications of the scripts of Chen Xu (sphinx-emdocs.readthedocs.io). Briefly, multishot imaging was configured with 4 images per hole for each of 16 holes; intermediate-magnification montages of grid squares were acquired; points were selected manually for collection of 64 images per point; images were acquired using coma-compensated image shift as gain- and dark-corrected LZW-compressed TIFs. Side, top, and oblique views were seen in areas of thin ice. During screening, ice thickness was estimated at 17–30 nm by the method of I0/IZLP (Rice et al., 2018).

The collection of micrographs of TolC without colicin at 130,000× magnification has been previously described (Budiardjo et al., 2021).

3D reconstruction and modeling

Request a detailed protocol

Final reconstructions were obtained using cryoSPARC 2 (Punjani et al., 2017). 1018 micrographs were collected of amphipol-embedded TolC/ColE1-T. Micrographs were motion-corrected using RELION 3 (Zivanov et al., 2018). CTF parameters were determined by means of ctffind (Rohou and Grigorieff, 2015). 115,362 particles were selected with crYOLO (Wagner et al., 2019). 2D classification revealed that many particles had aberrant morphology and only 24,624 (21%) were selected for 3D reconstruction. Ab initio reconstruction in cryoSPARC 2 (Punjani et al., 2017) was effective at recovering a map whose shape was similar to that of previously described TolC trimers. However, the data could only be refined to a nominal global resolution of 6.0 Å, and lumenal density was insufficiently resolved. 4,492 micrographs were then collected of nanodisc-embedded TolC/ColE1-T and processed similarly. Of the 339,779 particles detected by cryoSPARC Live, 179,834 (53%) were in good classes. Although there were slightly fewer particles per micrograph in the nanodisc data set, more particles per micrograph were usable. Beginning with the ab initio model and mask derived from the amphipol data, this particle set was refined by cryoSPARC two non-uniform refinement with or without imposed C3 symmetry. The maps refined to nominal global resolutions of 2.81 Å and 3.09 Å for the symmetrized and asymmetric maps, respectively. There was local variation in resolution within the map, with consistent, high resolution in the middle of TolC and lower resolution at the lids and for ColE1-T. Local resolution was computed in cryoSPARC by the locally-windowed FSC method (Cardone et al., 2013) and rendered with UCSF Chimera. To reduce the voxel-based values to averages for four regions of the complex, the local resolution map was masked to include only voxels within 3 Å of a modeled atom and then the median value was calculated for those voxels closest to ColE1, closest to TolC residues 168–172 and 386–390, closest to TolC residues 285–301 and 76–82, or closest to other TolC residues. Furthermore, it is notable that while the nanodisc appears as a double-belt in the symmetrized map, in the asymmetric map the nanodisc protein mostly appears on the side of TolC that is bound to ColE1-T. One possible explanation is that, despite masking, nanodisc asymmetry is a confounder of the asymmetric refinement and is one source of heterogeneity in the data. Another possibility is that the C-terminus of ColE1-T forms an interaction with the nanodisc, causing preferential alignment of the nanodisc with respect to the TolC/ColE1-T complex.

196,158 particles of TolC without colicin were obtained as previously described (Budiardjo et al., 2021). Homogeneous refinement yielded a structure at 2.89 Å; local motion correction and global CTF refinement yielded a final map at 2.84 Å.

Modeling was initiated by rigidly docking a crystal structure of TolC in complex with hexamminecobalt (1TQQ) (Higgins et al., 2004) into the symmetrized map density. Automated, semi-automated, and manual real-space refinement was performed using phenix (Afonine et al., 2018), ISOLDE (Croll, 2018), and coot (Emsley et al., 2010). For TolC with ColE1-T, additional refinement was performed in AMBER using the cryoEM density map as a restraint.

Although additional residues are present at the TolC C-terminus, these were not modeled because the density becomes unsharp after residue 428. Blurred density in the map suggests that the C-terminus follows helix three toward the periplasmic end of the molecule. ColE1-T was modeled ab initio. The threefold-symmetrized map contains density at ~1/3rd occupancy for ColE1-T and this density contains some high-resolution information not present in the asymmetric map, except near the TolC lid regions where symmetrization overlays ColE1-T density with TolC density at a threefold-related position. First, polyalanine helices were placed in the helical density in coot. Cross-correlation coefficients for both helices are higher with the N-terminus oriented toward the periplasm. Moreover, the side chains angle slightly toward the N-terminus like the fronds of an evergreen angle toward the ground in typical ‘Christmas tree’ conformation, indicating that this is the correct chain orientation. An estimate of the register was made by visual inspection of potential anchor residues. Finally, the hinge region was filled in using phenix and coot. This completed chain was refined against the asymmetric map in ISOLDE. Iteration between phenix, coot, and ISOLDE was continued until acceptable fit to density was achieved. In the case of TolC with ColE1-T, the map was further improved by combining map information with molecular dynamics force fields (Wu et al., 2013). Briefly, starting with the phenix/coot/ISOLDE-refined model, we performed restrained simulated annealing in AMBER, heating from 0K to 300K for 0.2 ns, holding constant temperature for 1 ns, and then cooling to 0K over 0.2 ns. The cryoEM density map is utilized as a restraint potential in the annealing so that both map information and AMBER force field information are simultaneously utilized to obtain an optimum model consistent with the data (Wu et al., 2013). The protein force field used the ff14SB force field (Maier et al., 2015) and a generalized Born implicit solvent model with igb=8 (Nguyen et al., 2013), and a nonbonded cutoff of 20 Å. The relative weight of real-space map-based restraints and the force field was fixed using fcons=0.02. For ColE1-T, information from the symmetrized map was integrated into the modeling procedure during manual remodeling in coot, but map-based refinement in phenix, ISOLDE, and AMBER was against the asymmetric map. TolC without ColE1-T was modeled similarly but using the TolC-ColE1-T structure as a starting point instead of 1TQQ, and without final AMBER refinement.

Molecular representations were generated with Chimera, ChimeraX (Goddard et al., 2018), or PyMOL (Schrödinger, LLC).

AlphaFold model of ColE1

Request a detailed protocol

AlphaFold (Jumper et al., 2021) was used to generate a predicted structural model for full-length ColE1. The amino acid sequence for residues 1–522 of ColE1 was submitted to the AlphaFold Colab (https://colab.research.google.com/github/deepmind/alphafold/blob/main/notebooks/AlphaFold.ipynb) with the ‘prokaryotic’ parameter set as ‘True’.

Data availability

CryoEM maps and models have been deposited with accession codes EMD-21960, EMD-21959, PDB ID 6WXI, and PDB ID 6WXH. The following data are publically available for the two structures: 6WXH TolC + colE1 Structure: https://files.rcsb.org/download/6WXH.cif EM map: https://files.rcsb.org/download/6WXI.cif Validation report: https://ftp.wwpdb.org/pub/emdb/structures/EMD-21959/map/emd_21959.map.gz; 6WXI TolC alone Structure: https://files.rcsb.org/download/6WXI.cif EM map: https://files.rcsb.org/pub/pdb/validation_reports/wx/6wxh/6wxh_full_validation.pdf Validation report: https://files.rcsb.org/pub/pdb/validation_reports/wx/6wxi/6wxi_full_validation.pdf.

The following data sets were generated
    1. Kaelber JT
    2. Budiardjo SJ
    3. Firlar E
    4. Ikujuni AP
    5. Slusky JSG
    (2021) EBI
    ID EMD-21960. Colicin E1 fragment in nanodisc-embedded TolC.
    1. Kaelber JT
    2. Budiardjo SJ
    3. Firlar E
    4. Ikujuni AP
    5. Slusky JSG
    (2021) EMDB
    ID EMD-21959. Colicin E1 fragment in nanodisc-embedded TolC.

References

    1. Bénédetti H
    2. Lloubès R
    3. Lazdunski C
    4. Letellier L
    (1992)
    Colicin A unfolds during its translocation in Escherichia coli cells and spans the whole cell envelope when its pore has formed
    The EMBO Journal 11:441–447.
    1. Dankert JR
    2. Uratani Y
    3. Grabau C
    4. Cramer WA
    5. Hermodson M
    (1982)
    On A domain structure of colicin E1. A COOH-terminal peptide fragment active in membrane depolarization
    The Journal of Biological Chemistry 257:3857–3863.
    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of Coot
    Acta Crystallographica. Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493

Decision letter

  1. David Drew
    Reviewing Editor; Stockholm University, Sweden
  2. José D Faraldo-Gómez
    Senior Editor; National Heart, Lung and Blood Institute, National Institutes of Health, United States
  3. David Drew
    Reviewer; Stockholm University, Sweden
  4. Bert van den Berg
    Reviewer; University of Newcastle, United Kingdom
  5. Karen Jakes
    Reviewer; Albert Einstein College of Medicine, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Colicin E1 opens its hinge to plug TolC" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including David Drew as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen José Faraldo-Gómez as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Bert van den Berg (Reviewer #2); Karen Jakes (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. Membrane localization experiments with ColE1-T and ColE1-TR are described in Figure 4. However, more experimental details need to be included in the figure legends and Methods, especially regarding protein concentrations in the experiments shown in Figure 4. For example, what is analysed in intact cells? Is bound toxin washed off into the supernatant? If the toxin has very high affinity will it come off the OMP receptor(s)? The relative concentrations of the colicin constructs used is not given, so there's no way to easily interpret some of the data. Furthermore, Figure 4C shows one cell each, and one could argue that only the best data is shown involved. Could the authors (perhaps as source data) show panels with many cells to show any differences between strains more objectively?

2. The Discussion section needs to better describe the differences between the "pillar" and "total-thread" models, perhaps by also including a schematic of both. Furthermore, the experimental evidence in this paper supports the total-thread model, whereas the more ambiguous experiments (trypsin digestion) are only suggestive of the pillar model. Please make the final proposed model clearer in the discussion and include how the downstream pore-forming cytotoxic domain is translocated.

3. Experiments with GFP attached to colE1-TR suggest efficient uptake in a tolC-dependent process. What would be a very informative further would be to delete the TolA box from the N terminus of the T domain of the T-R construct and determine whether uptake still occurs. If so, that would argue further against a translocation model whereby the C-terminal channel-forming domain of colicin E1 slithers down the outside of TolC, with its C terminus first, as proposed by Cramer et al. (2018). Additional control would be to mutate the hinge-proline.

4. The Housden klebicin paper was published very recently describing detailed studies of the interaction of TolC with another bacteriocin, including cryo-EM structures (Housden et al., Nature Commun 12(1):4625). While the work described here has been carried out independently, some acknowledgement of this work in the discussion is warranted.

Reviewer #1:

Colicin E1 is an E. coli bacteriocin that hijacks the outer membrane proteins TolC and BtuB to enter the cell. Here the authors reveal the cryo EM structure of TolC in complex with colicin E1. They show how Colicin E1 structure rearranges from a helical hairpin into an single, long extended helix that plugs the TolC pore. They further show that E. coli cells that have TolC proteins plugged with a Colicin E1 fragments are more susceptible to antibiotics. Taken together, they have outlined the structural basis for Colicin E1 recognition and shown the applicability of this approach for bacterial pathogenicity.

Overall, I can find little technical issues with the paper and I think the conclusions drawn from the experiments are sound. The paper is well-written and the figures are easy to follow. From a mechanistic viewpoint the major findings was that it was unexpected for colicin E1 to open up from a helical hairpin into a single helix inside TolC. While the author have succeeded to understanding how the toxin engages with its receptor its still unclear how the downstream pore-forming cytotoxic domain is translocated across TolC.

Reviewer #2:

The paper by Slusky and colleagues presents cryo-EM structures of E. coli TolC in the absence and presence of the N-terminal translocation domain of Colicin-E1 (ColE1-T). Via SEC they demonstrate that the toxin domain binds tightly to TolC. Interestingly, the structure shows that the colicin is bound inside the long TolC barrel, with most of the colicin-OMP contacts provided by the β-barrel part of TolC. The cryo-EM data are nice and the map of the complex is of very good quality and supports the ColE1-T model built by the authors. While the involvement of TolC (and another OMP named BtuB) in ColE1 cell entry was known, the structure provides in my opinion clear support for a model in which the entire ColE1 is transported into the cell via the TolC conduit, utilising the proton motive force to power translocation via TolA. This latter part is not well described by the authors and I find the discussion of the two models not very clear and too much in favor of the "pillar" model (see detailed comments; I think also a schematic figure is warranted showing the two models). Another major issue that needs addressing is the fact that the authors have missed (or ignored) a very similar paper that was published very recently and which describes detailed studies of the interaction of TolC with another bacteriocin (Klebicin), including cryo-EM structures (Housden et al., Nature Commun 12(1):4625). Thus, in contrast to what is claimed by the authors, theirs is not the first structure of a bacteriocin bound to TolC. The authors should compare their structure with that of Housden et al. (which is very similar) and rewrite their discussion based on both papers.

To support their structural data the authors also carried out membrane localization experiments with ColE1-T and ColE1-TR (includes the receptor binding domain that interacts with the primary receptor BtuB), described in Figure 4. I didn't find this very clear. In particular I'm not sure what is analysed in Figure 4B? What do you analyse in intact cells? Bound toxin that is washed off and ends up in the sup? If so, what if the toxin has very high affinity and won't come off the OMP receptor(s)? The methods section is not complete and, rather than refer to a previous paper, the procedures should be fully described here. Figure 4C shows one cell each, and one could argue that cherry picking might be involved. Could the authors (perhaps as source data) show panels with many cells to show any differences between strains more objectively?

The final data provided by the authors utilises the fact that TolC is part of the AcrAB-TolC RND efflux pump that moves noxious substances including antibiotics out of the cell. They hypothesise that, when ColE1-T or ColE1-TR is bound to TolC (plugging the efflux channel), the pump should not work or work less efficiently. Indeed, MIC values for several antibiotics are lower in the presence of certain toxin fragments, showing that cells are sensitised due to reduced drug efflux. The required concentration of the colicins are high, however, suggesting that the pump is still partly functional while the colicin is bound, a notion supported by the structure. Together, these data lead to the interesting hypothesis that modified bacteriocins that hijack functionally important OMPs might be used to potentiate antibiotics. Together, this paper provides a nice advance in our thinking on how bacteriocins gain entry into cells (but the discussion should be improved substantially). It is also consistent with the more detailed study by Housden et al., which is satisfying. The potential application towards potentiating antibiotics via colicin-based targeting of OMPs like TolC could be an important future area of research.

Reviewer #3:

Colicins are plasmid-encoded toxins produced by bacteria to kill closely related bacteria that compete for scarce resources. While the individual proteins in the target bacteria used for binding and uptake of colicins are well-known, there remains some controversy about the precise pathway that those toxins ultimately take to reach the target of their ultimate lethal act. In this work by Budiardjo et al., the path for colicin E1, which ultimately kills target E. coli by making an ion-permeable channel in their inner membrane, is clarified.

All of the E colicins use the vitamin B12 receptor, BtuB, as their primary outer membrane receptor to concentrate the colicin at the cell surface via an interaction with the central receptor-binding (R) domain. The enzymatic E colicins, E2-E9, then use the trimeric porin, OmpF, and its interactions with the N-terminal translocation (T) domain of the colicin to thread through one of the three pores of OmpF to ultimately bring the catalytic, carboxy-terminal end of the colicin into the periplasm from which it ultimately reaches and crosses the inner membrane. That process has been very thoroughly examined and documented, principally by the work of Kleanthous, Housden and their co-workers, as cited in references in this manuscript and others cited in this review. Colicin E1, which kills target bacteria by making a channel in their inner membrane and thereby depolarizing the cell, also uses BtuB as its primary outer membrane receptor. But then it differs from the other E colicins in hijacking the TolC channel, whose normal role in the cell is in drug and toxin export, and uses that channel as a means to enter the target cell. The isolated colicin E1 T domain has been found to exist in solution as a helical hairpin (Zakharov et al., 2016), but whether in vivo binding to TolC occurs as that same hairpin, with both ends pointing outside the target bacterium, or whether the hairpin unfolds, possibly around a TolC box previously shown to be essential for cytotoxicity, as proposed (Jakes, 2017), was not known. In this work, it is now clearly shown by cryoEM that the T domain hairpin unfolds completely and is captured inserted inside TolC. The previously identified TolC box acts as a hinge with a kink at a central proline in the 21-residue box sequence (residues 100-120). Residues in the TolC box are involved in specific interactions with residues of TolC within the channel. The interaction with the T domain peptide alone was sufficient to dilate both the periplasmic and extracellular apertures of TolC, without involvement of any other proteins or motive force, a very signficant finding. The structure and the specific residue interactions elucidated in this work help explain earlier results with mutations in TolC that block killing by colicin E1 (ref. #37). The structure reported here negates earlier arguments against models in which colicin E1 threads through TolC to enter the periplasm. The direction of insertion is with the N terminus facing the periplasmic end of TolC. This arrangement would logically be expected, since the known TolA box sequence lies very near the N terminus of the colicin E1 T domain and needs to interact in the periplasm with TolA, a bacterial protein anchored in the inner membrane which extends into the periplasm, is thought to provide the energy necessary to mobilize translocation of the colicin and has been demonstrated genetically to be absolutely required for colicin lethality.

Budiardjo et al. have failed to acknowledge the recent publication of nearly identical results with the closely-related Klebsiella pneumoniae klebicinC uptake via TolC (Housden et al., 2021, Nat. Commun. 12(1): 4625), in which the klebicinC T domain was also captured inside the channel of the K. pneumoniae TolC channel. In those experiments, the stretch of T domain bound inside of TolC was protected from digestion by trypsin, with residues at both ends protruding from TolC subject to protease digestion. Thus, these two different bacteriocins, targeting different bacteria, both insert their N-terminal translocation domains into the TolC protein of their respective targets.

A second very significant result from this manuscript is that binding of colicin E1 T domain inhibits drug efflux and thereby reduces the minimum concentration of some drugs to effectively kill bacteria. A significant effect was only seen in constructs that also included the R domain of the colicin, which may simply be serving to increase the concentration of T domain at the cell surface and thereby making its interaction with TolC more efficient. A shortcoming of these experiments is that the relative concentrations of the colicin constructs used is not given, so there's no way to interpret the lack of much effect from T domain alone. But the basic result suggests that there may be a route to using the E1 T domain as a means to reduce resistance of pathogenic bacteria to standard antibiotics, as has been suggested previously (Jakes, 2017).

In vivo experiments to determine whether the T domain or T-R domain were protected from trypsin digestion by virtue of having been internalized by E. coli are difficult to interpret. The protocol cited in the manuscript is a general protocol, and the relative amounts of protein used are not given. It is perhaps unsurprising that no T domain is seen bound to either intact or lysed cells, while T-R is detected, since the binding of isolated T domain, via TolC, has been shown to be orders of magnitude less efficient than that of R domain to BtuB (Jakes, 2017). The authors point out that the proteolysis results may just be a reflection of a small number of molecules entering the cells. Similarly, the failure to see much transport of the fluorescently-labeled colE1-TR-Cy3 may also be a reflection of a combination of inefficient binding and the bulky Cy3 label impeding passage through TolC. In fact, recent work on transport of colicin E9 through OmpF suggests that relatively small differences in the size of fluorescent labels attached to colicin domains can have a measurable effect on uptake of the labeled proteins (Francis et al. EMBO J. e108610/2021), and the labels used in that work had lower molecular weights than the Cy3 used in the experiments described here. Experiments with GFP attached to colE1-TR suggest more efficient uptake in a tolC-dependent process. What would be a very informative further experiment would be to delete the TolA box from the N terminus of the T domain of the T-R construct and determine whether uptake still occurs. If so, that would argue further against a translocation model whereby the C-terminal channel-forming domain of colicin E1 slithers down the outside of TolC, with its C terminus first, as proposed by Cramer et al. (2018).

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Colicin E1 opens its hinge to plug TolC" for further consideration by eLife. Your revised article has been evaluated by José Faraldo-Gómez (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

1. While we realise the PDBs were released earlier than those of Housden et al. it would be better to remove the instances of "first" in the text as, after all, they are not really needed.

2. The modified text for points 23 and 24 in the previous submission was still unclear to Referee 2. We would ask you to try to re-address these points (re-pasted below for clarity).

23. line 253: "need to be in close proximity for colE1 binding to occur" needs a reference.

24. line 254: "when BtuB clusters together in groups of 12 or more, it may exclude TolC" needs a reference. Also, please explain "These cluster geometries would therefore lower the number of full binding sites available for the T and R domains of colicin E1."

3. Throughout the manuscript, reference is made to the TolA box of colicins E3 and E9. However, neither of those colicins actually has a TolA box. Beginning with the early work of Bouveret et al. (Mol. Micro 1998 27, 143-157) and subsequently by others, it has been shown that what had been called the TolA box in earlier work is actually a TolB box. Colicins E2-E9 and A all interact with TolA indirectly, by binding to TolB in the periplasm, and TolB then engages TolA. The fullest picture of those interactions is in the recent work of Francis et al. (2021), which is cited in this manuscript. The only E colicin known to have a TolA box is E1. A reference (probably Pilsl and Braun, 1995) is needed when referring to the E1 TolA box. All references to a TolA box in colicins E3 or E9 need to be fixed.

4. While the experimental details and source data have been expanded and clarified, the implications of both the trypsin digestion experiments and fluorescence labeling are less clear than the cryo-EM and drug efflux experiments, and some caveats should be added to the discussions of those experiments.

5. The argument between the two competing models may require some further clarification. Referee 3 has made some suggestions below. Please look at these and amend appropriately as you see fit.

Specific comments and corrections:

Line 62: …targets and killing mechanisms. Most colicins…

Lines 69-71 should read: …of ColE3 or ColE9 initiates translocation using the secondary OMP receptor/translocator, OmpF, to access the Tol-Pal system in the periplasm. For most colicins, the T domain requires an OMP distinct from the R domain target for colicin translocation.

Line 72-73: …structurally characterized bound to their OMP primary receptors. (Kurisu…, Sharma…, Buchanan et al., 2010). Those structures all reveal that the plugged β-barrels remain plugged upon colicin binding, so another route through the outer membrane is required.

Line 75-76 ff: …that T domain can pass fully through one pore of its membrane translocator, OmpF, and loops around to insertv in a second pore of the trimer from the periplasmic side, while the R domain initially interacts with…its receptor, BtuB. Those same studies and earlier ones clearly demonstrated that full engagement of the E9 T domain with its TolB translocation partner in the periplasm results in disengagement of the R domain from BtuB (Francis et al. 2021 and references therein). Experiments such as these and those that preceded this most recent work are the basis for the "total thread" model for colicin translocation, in which the colicin is pulled through the same pore of OmpF through which its T domain initially entered. The process is energized by the TolABQR system.

Line 82: death. Unlike any of the other E colicins, the T domain of colicin E1…

Line 83: …and the R domain binds BtuB, the primary receptor shared by all E colicins.

Line 98: …and disrupt TolC channel conductance in vitro, in planar lipid bilayer membranes…

Line 101: …in solution similar to another colicin T domain from colicin Ia, one that does not interact with TolC (Wiener et al., 1997).

Line 223: …these residues are contact sites…

Line 290: Should read: Given the two-dimensional surface…

Line 370: Add Francis et al., 2021 reference here.

Line 376: Why was the hinge opening unanticipated?

Line 378: …as the total thread model hypothesized and consistent with experimental data that support this model for colicin E9 (Housden et al., 2005; Housden et al., 2013, Francis et al., 2021).

Line 380: …clustered and does not diffuse…

Reviewer #1:

I am satisfied with the revised submission and have no further concerns.

Reviewer #2:

The revised manuscript by Slusky has substantially improved based on the reviewer comments and in particular it is now much clearer. I have just a few remaining minor issues for consideration:

point 2: I understand the reasoning of the authors. However, I'm not sure if it is entirely appropriate to allow priority claims based on non peer-reviewed preprints. While I do realise the PDBs were released earlier than those of Housden et al., in my opinion it would be better to remove the instances of "first" (as indeed is the norm in some other journals) in the text as, after all, they are not really needed. I don't know what the policy is of eLife in this regard, and leave it up to the editor to decide.

points 23 and 24: unfortunately the modified text is still unclear to me.

Reviewer #3:

The authors have very thoroughly addressed all of the reviewers' comments, provided additional experiments and methodological descriptions, and fixed the reference list to remove duplications and make it a more user-friendly format.

From that perspective, I should say that the paper is acceptable now. But in the process of expanding parts of the Introduction and Discussion, I feel they have done their work and the field a disservice by giving "first billing" to a model for which there is scant experimental support and giving short shrift to the model for which there is now extensive experimental support and which common sense should support.

In their expanded Introduction, the authors once again lead with a lengthy elaboration of the "pillar model" for the translocation of the colicin E1 pore-forming domain across the outer membrane of target E. coli. That model was introduced simply because of the assumption by Zakharov et al. (2016) that the helical hairpin structure of the E1 T domain observed in solution from CD spectra is maintained when the T domain binds in vitro to TolC, as it was shown to do by SEC, occlusion of TolC channels in planar lipid bilayer membranes (Zakharov et al., 2016), and in vivo by protecting sensitive E. coli from killing by active colicin E1 (Jakes, 2017). On the contrary, the current work has clearly demonstrated that the hairpin unfolds and inserts, amino-terminus first, into TolC., so the whole basis for a model with both N- and C-termini pointing to the outside of the target cell is gone. (In addition, recent work on the Klebicin C bacteriocin has shown that locking that protein's T domain helix in its closed state, with an inserted disulfide bond, kills its activity in the oxidized state, but not when it's reduced (Housden et al., 2021)). Another argument made by Zakharov et al. against insertion of the T domain into TolC was that the periplasmic aperture of the TolC channel is too narrow for a polypeptide to exit, so therefore the colicin couldn't possibly thread into the periplasm via that route. The structure shown in Figure 1B demonstrates that the binding of T domain within the channel opens that aperture; the colicin domain is easily accommodated within TolC. Thus, the colicin polypeptide or a part of it could transit through TolC.

The sections on potentiation of antibiotics by the E1 T domain are additional evidence that the colicin domain is occupying TolC and inhibiting its normal role in drug efflux. It's likely that the failure to see much of an effect with T domain, as compared to R-T, is simply the result of the much tighter binding of R to BtuB, which then concentrates T domain at the cell surface and makes it more likely to find and enter a TolC channel.

While the experimental details and source data have been expanded and clarified, the implications of both the trypsin digestion experiments and fluorescence labeling are less clear than the cryo-EM and drug efflux experiments, and some caveats should be added to the discussions of those experiments. It's not clear what not finding protected T domain tells us. Recently published experiments with the related KlebC and the K. quasipneumoniae TolC (Housden et al. 2021) clearly show that a significant segment of the KlebC T domain is protected from trypsin digestion when bound and digested in vitro. Mass spec analysis of the protease digestion products showed that the KlebC T domain extends out of the TolC channel at both the periplasmic and extracellular ends, and those parts of the peptide were degraded by trypsin, but there remained a protected band of >40 residues that coincides with residues shown inside the TolC channel in the cryoEM structure.

The observation in most cases of just a single punctum from fluorescently-labeled colicin peptides is puzzling, although the presence of a fluorescent signal is clearly BtuB and TolC-dependent. Frankly, I'm not sure what we learn from these experiments. Somehow the videos referred to did not come through with the copy of the manuscript I received.

The new experiments with P110A and T∆1-40 are interesting and somewhat surprising. There is nothing in the Methods about how either of those mutants was generated.

Throughout the manuscript, reference is made to the TolA box of colicins E3 and E9. However, neither of those colicins actually has a TolA box! Beginning with the early work of Bouveret et al. (Mol. Micro 1998 27, 143-157) and subsequently by others, it has been shown that what had been called the TolA box in earlier work is actually a TolB box. Colicins E2-E9 and A all interact with TolA indirectly, by binding to TolB in the periplasm, and TolB then engages TolA. The fullest picture of those interactions is in the recent work of Francis et al. (2021), which is cited in this manuscript. The only E colicin known to have a TolA box is E1. A reference (probably Pilsl and Braun, 1995) is needed when referring to the E1 TolA box. All references to a TolA box in colicins E3 or E9 need to be fixed.

I have taken the liberty of making a number of additions and corrections, in italics, to add some balance to the descriptions of the two models. Obviously, these changes are just suggestions, but I hope the authors feel they improve the paper, which is a very important addition to this field. (Note: unfortunately I see that in copying my Word document, formatting was lost so the italics cannot be distinguished from the original text.)

https://doi.org/10.7554/eLife.73297.sa1

Author response

Essential revisions:

1. Membrane localization experiments with ColE1-T and ColE1-TR are described in Figure 4. However, more experimental details need to be included in the figure legends and Methods, especially regarding protein concentrations in the experiments shown in Figure 4. For example, what is analysed in intact cells? Is bound toxin washed off into the supernatant? If the toxin has very high affinity will it come off the OMP receptor(s)? The relative concentrations of the colicin constructs used is not given, so there's no way to easily interpret some of the data.

We apologize for the lack of clarity for this method. We have updated the figure 4B figure caption to read:

“(B) Extracellular protease digestion assay with two colicin E1 truncation constructs incubated with E. coli, each construct is labeled with a C-terminal His-Tag. Periplasmic SurA was used as a membrane integrity control. After incubation with colicin fragments, cells were left intact or lysed with lysozyme. Proteins degraded by trypsin in intact cells are not protected by the outer membrane.”

The following has been added to the results:

“We assessed whether ColE1-T and ColE1-TR translocate into the cell or localize on the cell surface using an extracellular protease digestion assay (Besingi and Clark, 2015). Colicin fragment stalling on the outer membrane surface would render the colicin fragments susceptible to digestion when trypsin is in the extracellular environment. Conversely, if the colicin fragment translocates into the intracellular environment, the outer membrane will shield the protein from digestion by trypsin.

Colicin fragment localization was probed through western blot analysis of specific colicin fragments with C-terminal polyhistidine-tags. Cells were incubated with these colicin fragments and subsequently exposed to two different concentrations of trypsin. If the protein enters the cell, the outer membrane shields it from trypsin digestion, and a corresponding band is present on the western blot. Periplasmic protein SurA was used as a membrane integrity control. SurA digestion indicates that the periplasm was accessible to trypsin and a SurA band indicates that the periplasm was shielded from trypsin. As a trypsin activity control, half of the cell sample was lysed (lysed cell condition) exposing all cellular compartments to trypsin.”

And the following was added to the methods:

“Extracellular Protease Digestion.

Growth, incubation with protein, and washing: 5 mL overnight cultures of E. coli (BW25113) were grown in LB meda at 37 °C with shaking (250 r.p.m.) overnight. A 50 mL culture of LB was inoculated with 1 mL of the overnight culture and grown at 37 °C with shaking (250 r.p.m.) until an OD600 of 0.6 was reached. The cultures were centrifuged at 4,000 g at 4°C for 10 minutes. For the exogenous addition of protein, cell pellets were resuspended in cold PBS (Bio-Rad) containing 10 μM of either ColE1-T or ColE1-TR protein. Cells were incubated with protein with gentle rocking for 1 hour at 37 °C. After incubation with protein, the cells were collected at 4,000 g at 4 °C for 10 minutes and resuspended in cold PBS without protein. The centrifugation and wash were then repeated a second time. The PBS washes are designed to remove unbound protein.

Protease digestion of intact cells and lysed cells: Each sample is split into two-1 mL aliquots. The first aliquot is the intact cell condition which is placed on ice. The second aliquot is the lysed cells control for protease activity. This aliquot was lysed by adding 0.25 mg/mL lysozyme (10 μL of a 25 mg/mL in 10 mM Tris pH 8.0, 50% (v/v) glycerol) and incubated at room temperature for 15 minutes followed by five freeze-thaw cycles in liquid nitrogen. The intact cells condition and lysed condition were both split into three 270 μL aliquots. For each triplet, trypsin was added at 5 and 20 5 and 20 μg/mL s to digest any extracellularly exposed protein. 30 μL of PBS was added to the third aliquot of each triplet for a no trypsin sample. The three aliquot were incubated at room temperature to allow for trypsin digestion. After 30 minutes, 20 μL 100 mM PMSF was added to terminate the trypsin digestion reaction. Then the samples associated with the intact cells condition were lysed. Lysozyme was added to a final concentration of 0.25 mg/mL and incubated at room temperature for 15 minutes followed by five freeze-thaw cycles in liquid nitrogen. All samples were stored at -20 °C until ready for western-blot analysis.

Western blot: Samples were separated by SDS-PAG E. coli cin proteins were probed with THE HisTag mAb mouse (GenScript). SurA was probed with anti-SurA Rabbit polyclonal (Cusabio). Western blots were imaged by fluorescence using a LI-COR Odyssey imager with secondary antibodies IRDye 800CW goat anti-mouse IgG and IRDye 800CW Donkey anti-Rabbit for Colicins and SurA, respectively. “

Furthermore, Figure 4C shows one cell each, and one could argue that only the best data is shown involved. Could the authors (perhaps as source data) show panels with many cells to show any differences between strains more objectively?

To address this question, we have added figure 4, supplemental figure 1 which contains images that show the variety of the original 315 images that give rise to the data summarized in Figure 4C-D. 18 Phase contrast and fluorescence images of cells are shown (ColE1-TR-Cy3 with 6 WT, 6 ΔtolC, and 6 ΔbtuB cells).

2. The Discussion section needs to better describe the differences between the "pillar" and "total-thread" models, perhaps by also including a schematic of both. Furthermore, the experimental evidence in this paper supports the total-thread model, whereas the more ambiguous experiments (trypsin digestion) are only suggestive of the pillar model. Please make the final proposed model clearer in the discussion and include how the downstream pore-forming cytotoxic domain is translocated.

We have updated our discussion of the pillar vs. total thread model as follows and have added the following schematic to show the difference:

“There are two conflicting models of ColE1 translocation: (1) the total thread model in which the entire colicin unfolds and threads through TolC (Cramer et al., 2018, Jakes, 2017) and (2) the pillar model, in which colicin E1 inserts into TolC as a helical hairpin, facilitating LPS-mediated, self-translocation of the colicin cytotoxic domain (Zakharov et al., 2016). Our data support aspects of both models. The belief in a closed hinge conformation of bound ColE1 prompted two arguments against the total thread mechanism: (1) the ColE1-T closed hinge conformation is too wide to fit through TolC and (2) both ends would face the extracellular milieu (Zakharov et al., 2016, Cramer et al., 2018). The unanticipated ColE1-T hinge opening in the bound state resolves these objections: colicin threads into the TolC barrel with the amino terminus pointing into the periplasm, as the total thread model hypothesized. Our trypsin digests show ColE1-TR stalls at the outer membrane of E. coli cells and the single-molecule fluorescence images confirm that ColE1-TR remains clustered and do not diffuse as would be expected if entering the periplasm or cytoplasm. These puncta form regardless of the presence or absence of the TolA binding region on ColE1-TR.

Though we cannot exclude the possibility that ColE1 T and R domain translocation depends on the C domain, we observe—as hypothesized by the pillar model—that colicin sits inside TolC but does not translocate. These results are in agreement with early studies of pore-forming colicins in which trypsin added to the extracellular environment can reverse colicin activity (Plate and Luria, 1972, Dankert et al., 1980, Dankert et al., 1982, Benedetti et al., 1992, Duche, 2007). We anticipate that the stable ColE-TR:TolC complex forms regardless of the presence of the C domain.

If the C domain does translocate while the T and R domains remain bound, we anticipate that the requirement for TolA is due to its role in membrane maintenance. Binding of TolA by a different group A colicin (ColE9) causes membrane defects similar to those in a ΔtolA strain (Rassam et al., 2018). Therefore, in the pillar model, colicin binding of TolA may facilitate C domain insertion through the defective membrane, whereas in the total thread model binding TolA transduces the proton motive force to unfold ColE1and pull it into the periplasm (Figure 6, supplemental figure 1). Because we did not use the toxic C domain, our data cannot clarify what occurs after the T and R domain of full length colicin bind the outer membrane proteins. Although our studies find that ColE1-TR remains on the surface of the bacteria, it is certain that the C domain, when present, translocates across the membrane into the target bacteria to kill the cell. Our data does not exclude the possibility that the translocation of the T and R domains occurs along with the C domain in full length colicin, nor does it support T or R domain translocation. Thus, though our studies give a more complete view of the early stages of ColE1 binding the surface of its target, we cannot determine if insertion of the C domain occurs via the total thread model or via a modified pillar model.

3. Experiments with GFP attached to colE1-TR suggest efficient uptake in a tolC-dependent process. What would be a very informative further would be to delete the TolA box from the N terminus of the T domain of the T-R construct and determine whether uptake still occurs. If so, that would argue further against a translocation model whereby the C-terminal channel-forming domain of colicin E1 slithers down the outside of TolC, with its C terminus first, as proposed by Cramer et al. (2018). Additional control would be to mutate the hinge-proline.

At the reviewers’ request we have deleted residues 1-40, which bind to TolA, and we have quantified single-molecule fluorescence images of ColE1-TRΔ1-40-Cy3 on WT, ∆tolC, and ∆btuB cells. We find that, like ColE1-TR, ColE1-TRΔ1-40 does remains fixed on the cell in puncta.

The new data can now be found in the manuscript as Figure 4—source data 1.

And as a gallery of the pictures as Figure 4 supplemental figure 3.

We now describe this data in the manuscript as follows:

“In binding to the cell surface, ColE1-TRΔ1-40 binds to WT, ΔtolC, and ΔbtuB in a similar manner as ColE1-TR (Figure 4 supplementary figure 3, Figure 4 supplementary table 1). Cell localization of ColE1-TR matching that of translocation deficient ColE1-TRΔ1-40 suggests that ColE1-TR puncta are not within the cell and likely stalled on the outer membrane receptor.”

We also mutated the hinge proline (P110A) and found that ColE1-T still binds to TolC. This data has been added as Figure 3, supplemental figure 2.

We added the following text to the manuscript:

“These contacts are strong enough that even when the proline hinge of the TolC-box is mutated (P110A) ColE1-T still binds TolC (Figure 3, supplementary figure 2).”

4. The Housden klebicin paper was published very recently describing detailed studies of the interaction of TolC with another bacteriocin, including cryo-EM structures (Housden et al., Nature Commun 12(1):4625). While the work described here has been carried out independently, some acknowledgement of this work in the discussion is warranted.

We have added the following text to the discussion:

“Shortly after this work was made available, a similar structure demonstrated that KlebC, an rRNAse bacteriocin from Klebsiella pneumoniae, binds TolC from Klebsiella quasipneumoniae with a binding mode similar to that of ColE1 binding TolC. (Housden et al., 2021) KlebC is closed in the unbound state as confirmed by the high-resolution xray crystal structure which supports our proposed conformation (Figure 2E) and opens into a single-pass, kinked-helix to bind to TolC. This suggests a conserved mechanism for bacteriocins that hijack these trimeric efflux pump proteins.”

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

1. While we realise the PDBs were released earlier than those of Housden et al. it would be better to remove the instances of "first" in the text as, after all, they are not really needed.

Though we agree it is clear that our PDB was deposited and released before that of Housden et al., our concern is that the wording “first” is unfortunately needed. Housden et al. claims specifically that, “We next set out to delineate the TolC-binding region of KlebC and determine its structure; no structure has yet been reported for any TolC-binding domain.”

We are concerned Housden’s wording will perpetuate a misunderstanding in the literature as our structure had already been reported, in a preprint and a PDB. Such a misunderstanding might reduce the number of citations attributed to this work in this journal as other scientists would erroneously believe that priority should be attributed to Housden.

2. The modified text for points 23 and 24 in the previous submission was still unclear to Referee 2. We would ask you to try to re-address these points (re-pasted below for clarity).

23. line 253: "need to be in close proximity for colE1 binding to occur" needs a reference.

24. line 254: "when BtuB clusters together in groups of 12 or more, it may exclude TolC" needs a reference. Also, please explain "These cluster geometries would therefore lower the number of full binding sites available for the T and R domains of colicin E1."

We have rewritten this passage to make it clear that we are referring to the simple need for physical proximity during binding: if a substrate is binding two proteins simultaneously, then those two proteins must therefore be near to each other. Moreover, clustering multiple proteins in a small two-dimensional area leads to physical (geometric) exclusions:

“Because we usually only see one punctum per cell, we anticipate that some BtuB and TolC may remain unbound because of the geometric constraints of punctum formation. ColE1 must engage both TolC and BtuB simultaneously. Therefore, both receptors must be in close proximity, similar to the ~50 Å proximity of BtuB to OmpF when both bound to a another type A colicin, ColE9 (Francis et al., 2021). Given the two-dimensional surface of a membrane there are restrictions to how many proteins can be within 50 Å of any other protein. For the clusters we see to occur, when BtuB clusters together in groups of approximately 20 (Figure 4) TolC must also cluster in groups of approximately 20, ultimately requiring approximately 40 proteins in a relatively small area. The competition between the clustering of BtuB and the requirement for proximity of BtuB and TolC for binding could lower the number of BtuB/TolC sites available for the T and R domains of colicin E1 due to the relative TolC and BtuB geometries needed for ColE1 binding.”

3. Throughout the manuscript, reference is made to the TolA box of colicins E3 and E9. However, neither of those colicins actually has a TolA box. Beginning with the early work of Bouveret et al. (Mol. Micro 1998 27, 143-157) and subsequently by others, it has been shown that what had been called the TolA box in earlier work is actually a TolB box. Colicins E2-E9 and A all interact with TolA indirectly, by binding to TolB in the periplasm, and TolB then engages TolA. The fullest picture of those interactions is in the recent work of Francis et al. (2021), which is cited in this manuscript. The only E colicin known to have a TolA box is E1. A reference (probably Pilsl and Braun, 1995) is needed when referring to the E1 TolA box. All references to a TolA box in colicins E3 or E9 need to be fixed.

We thank the reviewer for this insight and have made the distinction between colicin E1 binding to TolA and colicins E3 and E9 binding to TolB. References to TolA box for colicins E3 and E9 have been corrected through the manuscript with the appropriate citations. In addition, all references to ColE1 requiring TolA now include the citation to Pilsl and Braun 1995.

The text has been updated:

“TolA is known to be required for ColE1 cytotoxicity (Nagel de Zwaig and Luria, 1967, Pilsl and Braun, 1995). ColE1 lacking the TolA box at the N-terminal T-domain would likely be translocation incompetent due to uncoupling from TolA. Similarly, there is a loss of biological activity due to mutations in the ColE9 N-terminal region that indirectly interacts with TolA (Loftus et al., 2006).(Schneider et al., 1997) Biological inactivation has also been caused by mutation to the Tol-Pal interacting regions of ColE3 (Escuyer and Mock, 1987) and ColA (Pilsl and Braun, 1995).”

“TolA is normally involved in outer membrane invagination during cell division (Gerding et al., 2007). Like Colicin E1, Colicin E9 contains an intrinsically unstructured N-terminus that engages the Tol-Pal system once it penetrates into the periplasm (Loftus et al., 2006). Engagement of the Tol-Pal system by the N-terminal region of colicin E9 disrupts native Tol-Pal system function leading to outer membrane defects (Rassam et al., 2018).”

“Recruitment of the Tol-Pal system by a different group A colicin (ColE9) causes membrane defects similar to those in a ΔtolA strain (Rassam et al., 2018).”

4. While the experimental details and source data have been expanded and clarified, the implications of both the trypsin digestion experiments and fluorescence labeling are less clear than the cryo-EM and drug efflux experiments, and some caveats should be added to the discussions of those experiments.

We thank the reviewer for the helpful discussions of recent findings. We agree that the single puncta were a surprising finding and worth pointing out in our manuscript. Though the molecular mechanism that gives rise to these puncta remains to be explored in future projects, the error bars and detection limits of the microscopy observations indicate that this clustering is true.

We also appreciate that the results of our in vivo trypsin digest were (and were expected to be) different from the recent Housden work in which trypsin digests were conducted in vitro absent any mechanism for translocation. Finally, we appreciate the reviewer for pointing out that we neglected to update our methods on the P110A mutant and the del1-40 mutant.

We have added the following to the methods:

“A gBlock (Integrated DNA Technologies) was synthesized for GFP containing complimentary flanking sequences to the plasmid with ColE1-TR and inserted with the omega-PCR technique.

ColE1-TRΔ1-40 was produced by inverse PCR to delete residues corresponding to 1 through 40.

All point mutants (ColE1-T-E192C, ColE1-TR-E366C, ColE1-TR-E366CΔ1-40, and ColE1-T-P110A) were generated by inverse PCR with mutagenic primers.”

5. The argument between the two competing models may require some further clarification. Referee 3 has made some suggestions below. Please look at these and amend appropriately as you see fit.

Specific comments and corrections:

Line 62: …targets and killing mechanisms. Most colicins…

Done.

Lines 69-71 should read: …of ColE3 or ColE9 initiates translocation using the secondary OMP receptor/translocator, OmpF, to access the Tol-Pal system in the periplasm. For most colicins, the T domain requires an OMP distinct from the R domain target for colicin translocation.

Done.

Line 72-73: …structurally characterized bound to their OMP primary receptors. (Kurisu…, Sharma…, Buchanan et al., 2010). Those structures all reveal that the plugged β-barrels remain plugged upon colicin binding, so another route through the outer membrane is required.

We appreciate this suggestion and we have added the Buchanan reference.

Line 75-76 ff: …that T domain can pass fully through one pore of its membrane translocator, OmpF, and loops around to insertv in a second pore of the trimer from the periplasmic side, while the R domain initially interacts with…its receptor, BtuB. Those same studies and earlier ones clearly demonstrated that full engagement of the E9 T domain with its TolB translocation partner in the periplasm results in disengagement of the R domain from BtuB (Francis et al. 2021 and references therein). Experiments such as these and those that preceded this most recent work are the basis for the "total thread" model for colicin translocation, in which the colicin is pulled through the same pore of OmpF through which its T domain initially entered. The process is energized by the TolABQR system.

We appreciate this level of detail for the insertion mechanisms of all colicins but think that such descriptions might be better suited for future review articles.

Line 82: death. Unlike any of the other E colicins, the T domain of colicin E1…

Done.

Line 83: …and the R domain binds BtuB, the primary receptor shared by all E colicins.

Done.

Line 98: …and disrupt TolC channel conductance in vitro, in planar lipid bilayer membranes…

Done.

Line 101: …in solution similar to another colicin T domain from colicin Ia, one that does not interact with TolC (Wiener et al., 1997).

Done.

Line 223: …these residues are contact sites…

Done.

Line 290: Should read: Given the two-dimensional surface…

Done.

Line 370: Add Francis et al., 2021 reference here.

Done.

Line 376: Why was the hinge opening unanticipated?

We have updated the text to explain more clearly:

“The ColE1-T hinge opening in the bound state—which was unanticipated by the pillar model— resolves these objections”

Line 378: …as the total thread model hypothesized and consistent with experimental data that support this model for colicin E9 (Housden et al., 2005; Housden et al., 2013, Francis et al., 2021).

Because of the following discussion in the manuscript:

“the “total thread” model (Cramer et al., 2018, Zakharov et al., 2016, Housden et al., 2013, Francis et al., 2021) posits that the protein unfolds and passes through TolC N-terminus-first as an unstructured peptide and binds to TolA (Pilsl and Braun, 1995) in the periplasm. In this model the binding between the intrinsically unstructured colicin N-termini and periplasmic proteins (Jakes, 2017, Housden et al., 2013) creates a pulling force that results in the translocation of the whole colicin.”

We have not added the requested text out of concern that adding it would be overly repetitive and may frustrate the reader.

Line 380: …clustered and does not diffuse…

Done.

https://doi.org/10.7554/eLife.73297.sa2

Article and author information

Author details

  1. S Jimmy Budiardjo

    Center for Computational Biology, The University of Kansas, Lawrence, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2094-9179
  2. Jacqueline J Stevens

    Department of Molecular Biosciences, The University of Kansas, Lawrence, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2235-0522
  3. Anna L Calkins

    Department of Chemistry, University of Michigan, Ann Arbor, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  4. Ayotunde P Ikujuni

    Department of Molecular Biosciences, The University of Kansas, Lawrence, United States
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8951-3440
  5. Virangika K Wimalasena

    Department of Molecular Biosciences, The University of Kansas, Lawrence, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1061-3439
  6. Emre Firlar

    Rutgers CryoEM & Nanoimaging Facility and Institute for Quantitative Biomedicine, Rutgers University, Piscataway, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0190-6528
  7. David A Case

    Department of Chemistry and Chemical Biology, Rutgers University, Piscataway, United States
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  8. Julie S Biteen

    Department of Chemistry, University of Michigan, Ann Arbor, United States
    Contribution
    Formal analysis, Funding acquisition, Methodology, Supervision, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2038-6484
  9. Jason T Kaelber

    Rutgers CryoEM & Nanoimaging Facility and Institute for Quantitative Biomedicine, Rutgers University, Piscataway, United States
    Contribution
    Formal analysis, Investigation, Methodology, Supervision, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9426-1030
  10. Joanna SG Slusky

    1. Center for Computational Biology, The University of Kansas, Lawrence, United States
    2. Department of Molecular Biosciences, The University of Kansas, Lawrence, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Project administration, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    slusky@ku.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0842-6340

Funding

National Institute of General Medical Sciences (DP2GM128201)

  • Joanna SG Slusky

National Institute of General Medical Sciences (P20GM113117)

  • Joanna SG Slusky

National Institute of General Medical Sciences (P20GM103638)

  • Joanna SG Slusky

Gordon and Betty Moore Foundation (Moore Inventor Fellowship)

  • Joanna SG Slusky

National Institute of General Medical Sciences (P20 GM103418)

  • S Jimmy Budiardjo

National Institute of General Medical Sciences (2K12GM063651)

  • S Jimmy Budiardjo

National Institute of General Medical Sciences (R21-GM128022)

  • Julie S Biteen

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors gratefully acknowledge Daniel Montezano, Pinakin Sukthankar, Rik Dhar, Dwight Deay, Scott Lovell, Matthias Wolf, Alexander Little, Heather Shinogle, and Sarah Noga for discussions and feedback, Mark Richter for the use of his fluorometer, Rajeev Misra for the pTrc vector containing the TolC gene, Vasileios Petrou for guidance on nanodiscs, Chamani Perera for peptide synthesis, Karen Marom for editorial guidance, Batika Saxena for artistic contributions, Joseph Lubin and William Hansen for introductions, and the Office of Advanced Research Computing (OARC) at Rutgers for high-performance computing resources. Funding: NIH award R21-GM128022 to JSB, NIGMS awards DP2GM128201, P20GM113117, P20GM103638, and the Gordon and Betty Moore Inventor Fellowship to JSGS, NIGMS awards P20 GM103418 and 2K12GM063651 to SJB.

Senior Editor

  1. José D Faraldo-Gómez, National Heart, Lung and Blood Institute, National Institutes of Health, United States

Reviewing Editor

  1. David Drew, Stockholm University, Sweden

Reviewers

  1. David Drew, Stockholm University, Sweden
  2. Bert van den Berg, University of Newcastle, United Kingdom
  3. Karen Jakes, Albert Einstein College of Medicine, United States

Publication history

  1. Preprint posted: July 4, 2019 (view preprint)
  2. Received: August 24, 2021
  3. Accepted: February 21, 2022
  4. Accepted Manuscript published: February 24, 2022 (version 1)
  5. Version of Record published: April 20, 2022 (version 2)

Copyright

© 2022, Budiardjo et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,690
    Page views
  • 318
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. S Jimmy Budiardjo
  2. Jacqueline J Stevens
  3. Anna L Calkins
  4. Ayotunde P Ikujuni
  5. Virangika K Wimalasena
  6. Emre Firlar
  7. David A Case
  8. Julie S Biteen
  9. Jason T Kaelber
  10. Joanna SG Slusky
(2022)
Colicin E1 opens its hinge to plug TolC
eLife 11:e73297.
https://doi.org/10.7554/eLife.73297
  1. Further reading

Further reading

    1. Immunology and Inflammation
    2. Microbiology and Infectious Disease
    Hadar Cohen, Noam Baram ... Motti Gerlic
    Research Article

    The type VI secretion system (T6SS) is used by bacteria to deliver toxic effectors directly into target cells. Most T6SSs mediate antibacterial activities, whereas the potential anti-eukaryotic role of T6SS remains understudied. Here, we found a Vibrio T6SS that delivers two novel effectors into mammalian host immune cells. We showed that these effectors induce a pyroptotic cell death in a phagocytosis-dependent manner; we identified the NLRP3 inflammasome as being the underlying mechanism leading to the T6SS-induced pyroptosis. Moreover, we identified a compensatory T6SS-induced pathway that is activated upon inhibition of the canonical pyroptosis pathway. Genetic analyses revealed possible horizontal spread of this T6SS and its anti-eukaryotic effectors into emerging pathogens in the marine environment. Our findings reveal novel T6SS effectors that activate the host inflammasome and possibly contribute to virulence and to the emergence of bacterial pathogens.

    1. Microbiology and Infectious Disease
    Sophie R Sichel, Benjamin P Bratton, Nina R Salama
    Research Article Updated

    The helical shape of Helicobacter pylori cells promotes robust stomach colonization; however, how the helical shape of H. pylori cells is determined is unresolved. Previous work identified helical-cell-shape-promoting protein complexes containing a peptidoglycan-hydrolase (Csd1), a peptidoglycan precursor synthesis enzyme (MurF), a non-enzymatic homolog of Csd1 (Csd2), non-enzymatic transmembrane proteins (Csd5 and Csd7), and a bactofilin (CcmA). Bactofilins are highly conserved, spontaneously polymerizing cytoskeletal bacterial proteins. We sought to understand CcmA’s function in generating the helical shape of H. pylori cells. Using CcmA deletion analysis, in vitro polymerization, and in vivo co-immunoprecipitation experiments, we identified that the bactofilin domain and N-terminal region of CcmA are required for helical cell shape and the bactofilin domain of CcmA is sufficient for polymerization and interactions with Csd5 and Csd7. We also found that CcmA’s N-terminal region inhibits interaction with Csd7. Deleting the N-terminal region of CcmA increases CcmA-Csd7 interactions and destabilizes the peptidoglycan-hydrolase Csd1. Using super-resolution microscopy, we found that Csd5 recruits CcmA to the cell envelope and promotes CcmA enrichment at the major helical axis. Thus, CcmA helps organize cell-shape-determining proteins and peptidoglycan synthesis machinery to coordinate cell wall modification and synthesis, promoting the curvature required to build a helical cell.
