The role of photorespiration during the evolution of C4 photosynthesis in the genus Flaveria

Research Article
Cited
43
Views
4,565
Comments
0
Cite as: eLife 2014;3:e02478 doi: 10.7554/eLife.02478

Abstract

C4 photosynthesis represents a most remarkable case of convergent evolution of a complex trait, which includes the reprogramming of the expression patterns of thousands of genes. Anatomical, physiological, and phylogenetic and analyses as well as computational modeling indicate that the establishment of a photorespiratory carbon pump (termed C2 photosynthesis) is a prerequisite for the evolution of C4. However, a mechanistic model explaining the tight connection between the evolution of C4 and C2 photosynthesis is currently lacking. Here we address this question through comparative transcriptomic and biochemical analyses of closely related C3, C3–C4, and C4 species, combined with Flux Balance Analysis constrained through a mechanistic model of carbon fixation. We show that C2 photosynthesis creates a misbalance in nitrogen metabolism between bundle sheath and mesophyll cells. Rebalancing nitrogen metabolism requires anaplerotic reactions that resemble at least parts of a basic C4 cycle. Our findings thus show how C2 photosynthesis represents a pre-adaptation for the C4 system, where the evolution of the C2 system establishes important C4 components as a side effect.

https://doi.org/10.7554/eLife.02478.001

eLife digest

Environmental pressures sometimes cause different organisms to independently evolve the same traits. A dramatic example of this phenomenon, which is called convergent evolution, can be seen in the modes used by plants to convert carbon dioxide from the air into starch during photosynthesis.

Early plants existed in an environment with high levels of carbon dioxide in the air. Over time, carbon dioxide levels decreased, so plants evolved more efficient types of photosynthesis to cope. A very efficient type of photosynthesis, called C4 photosynthesis essentially represents a carbon dioxide concentration mechanism. It has evolved at least 62 times independently in 19 different families of flowering plants.

Scientists have shown that a less advanced, low-efficiency version of photosynthetic carbon dioxide concentration, called C2 photosynthesis, is a stepping-stone to C4 photosynthesis. It is also known that the evolution of C4 photosynthesis required changes to the expression patterns of thousands of genes, but the exact mechanism that leads from C2 photosynthesis to C4 photosynthesis is not clear.

To explore this in greater detail, Mallmann, Heckmann et al. studied plants from the genus Flaveria, which belongs to the same family as sunflowers and asters. Under identical greenhouse conditions, plants that use three different photosynthetic pathways—C3 photosynthesis, C4 photosynthesis, or an intermediate between the two—were grown and their gene expression patterns were compared. Computer simulations were used to model the metabolism of plants that relied on C2 photosynthesis.

Based on the modeling, it appears that C2 photosynthesis shifts the balance of nitrogen metabolism between two types of cell that are critical to photosynthesis. To rebalance the nitrogen, several genes are expressed to trigger an ammonia recycling mechanism. The same genes are turned on during C4 photosynthesis, and this recycling mechanism include parts of the C4 process.

The findings of Mallmann, Heckmann et al. suggest that the initial steps in C4 photosynthesis evolved to prevent nitrogen imbalance. Over time, this mechanism was co-opted to become part of a more efficient form of photosynthesis, which may explain why so many different plants evolved from C2 to C4 photosynthesis.

https://doi.org/10.7554/eLife.02478.002

Introduction

The dual-specific enzyme ribulose 1,5-bisphosphate carboxylase/oxygenase (Rubisco) catalyzes two opposing reactions—the carboxylation and the oxygenation of ribulose 1,5-bisphosphate. The former reaction yields 3-phosphoglycerate (3-PGA), whereas the latter produces 2-phosphoglycolate (2-PG). 3-PGA is reduced to carbohydrates in the Calvin–Benson cycle and incorporated into biomass. However, 2-PG is toxic, which requires its removal by a metabolic repair pathway called photorespiration (Anderson, 1971; Bowes et al., 1971; Ogren, 1984; Leegood et al., 1995). In the photorespiratory cycle, 2-PG is regenerated to 3-PGA, but it involves the release of formerly assimilated CO2 and NH3, entails energy costs for the plants and reduces the efficiency of photosynthesis by up to 30% (Ehleringer et al., 1991; Bauwe et al., 2010; Raines, 2011; Fernie et al., 2013). Eight core enzymes are required for photorespiration, which in higher plants are located in the chloroplast, the peroxisome, and the mitochondrion (Bauwe et al., 2010; Figure 1A). The pathway rescues ¾ of the carbon, which would otherwise be lost through the oxygenase activity of Rubisco (Peterhansel et al., 2010; Fernie et al., 2013). Ammonia refixation in the chloroplast by the combined activities of glutamine synthase (GS) and glutamine oxoglutarate aminotransferase (GOGAT) is an integral part of photorespiration.

The genus Flaveria as a model organism to study C4 evolution.

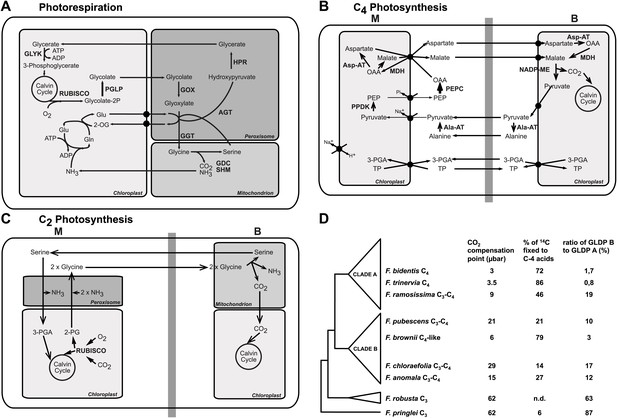

Schematic view of the photorespiratory pathway (A), the NADP-ME type C4 pathway as it can be found in C4 Flaveria species (B) and the C2 photosynthesis pathway (C). (D) Phylogeny and physiological properties of selected Flaveria species. The phylogeny was redrawn according to McKown et al. (2005), CO2 compensation points are taken from Ku et al. (1991), incorporation of 14CO2 is from Moore et al. (1987) and the ratios of GLDP B (expressed in all chlorenchyma cells) and GLDP A (expressed in bundle sheath cells only) are from Schulze et al. (2013). (Abbreviations: AGT: serine glyoxylate aminotransferase; AlaAT: alanine aminotransferase; AspAT: aspartate aminotransferase; GDC: glycine decarboxylase complex; GGT: glutamate, glyoxylate-aminotransferase; GLYK: D-glycerate 3-kinase; GOX: glycolate oxidase; HPR: hydroxypyruvate reductase; MDH: malate dehydrogenase; NADP-ME: NADP dependent malic enzyme; PEPC: phosphoenolpyruvate carboxylase; PGLP: 2-phosphoglycerate phosphatase; PPDK pyruvate, phosphate-dikinase; RUBISCO: Ribulose-1,5-bisphosphat-carboxylase/-oxygenase; SHM: serine hydroxymethyltransferase; 2-OG: oxoglutarate; 2-PG 2-phosphoglycolate; 3-PGA: 3-phosphoglycerate; Gln: glutamine; Glu: glutamate; OAA: oxaloacetate; PEP: phosphoenolpyruvate; TP: triosephosphate).

https://doi.org/10.7554/eLife.02478.003

In hot and dry environments and under low atmospheric CO2 conditions, when the oxygenation activity of Rubisco is increased, the high rate of photorespiration becomes unfavorable for the plants (Sage, 2001, 2013). C4 plants possess a mechanism that minimizes the oxygenase function of Rubisco and thereby reduces photorespiration and decreases the loss of carbon. C4 photosynthesis is based on a division of labor between two different cell types, mesophyll and bundle sheath cells, which are organized in a wreath-like structure called ‘Kranz Anatomy’ (Haberlandt, 1904; Dengler and Nelson, 1999). Atmospheric CO2 is initially fixed in the mesophyll by phosphoenolpyruvate carboxylase (PEPC), and the resulting four-carbon compound is transported to the bundle sheath cells and decarboxylated by NADP/NAD malic enzyme or phosphoenolpyruvate carboxykinase (Hatch et al., 1975). Thereby CO2 is concentrated at the site of the Rubisco in the bundle sheath cells (Hatch, 1987), outcompeting the molecular oxygen. As a consequence, photorespiration is drastically reduced as compared to C3 plants, and C4 plants are characterized by a high photosynthetic efficiency (Figure 1B).

C4 plants have evolved multiple times independently from C3 ancestors. The evolution of C4 photosynthesis occurred at least 62 times in 19 different families of the angiosperms (Sage et al., 2011), implying a low evolutionary barrier towards expression of this trait. The analysis of recent intermediate species (Bauwe and Kolukisaoglu, 2003; Sage, 2004; Bauwe, 2011; Sage et al., 2012, 2013; Schulze et al., 2013) indicates that establishing a photorespiratory CO2 pump was an early and important step in the evolution towards C4 photosynthesis (Figure 1C). Since the two-carbon compound glycine serves as a transport metabolite, this photorespiratory CO2 concentrating mechanism is also termed C2 photosynthesis. Computational modeling of the evolutionary trajectory from C3 to C4 photosynthesis indicated C2 photosynthesis represented an evolutionary intermediate state (Heckmann et al., 2013; Williams et al., 2013) as well suggesting that C2 photosynthesis is a prerequisite for the evolution of C4. However, it remained unclear if the evolution of C2 photosynthesis fosters the evolution of C4 photosynthesis beyond providing a selection pressure to reallocate Rubisco to the bundle sheath.

In the present study, we have used the genus Flaveria as a model system for investigating the transition from C2 to C4 photosynthesis. To this end, we study a phylogenetic framework consisting of C3, C3–C4 intermediate, and C4 species (Powell, 1978; Edwards and Ku, 1987; Ku et al., 1991) of this genus which rather recently evolved C4 (Christin et al., 2011), focusing on genes encoding photorespiratory enzymes and other components of C2 photosynthesis. The genus Flaveria contains three main phylogenetic groups, of which the first diverging group includes all C3 Flaveria. Clade B contains seven C3–C4 intermediate species and the C4-like species F. brownii. All C4 Flaveria species belong to clade A, which also contains several C4-like species and the C3–C4 intermediate F. ramosissima (McKown et al., 2005; Figure 1D). We hypothesized that the analysis of species in the genus Flaveria combined with in silico modeling elucidates the evolutionary changes accompanying and following the establishment of the C2 pathway. To this end we simulated the metabolism of C2 plants by coupling a mechanistic model of C3–C4 intermediate photosynthesis (von Caemmerer, 2000; Heckmann et al., 2013) with a detailed modified stoichiometric model of C4 photosynthesis (Dal'Molin et al., 2010), and investigated the evolution of C4 photosynthesis and photorespiration by following the changes in mRNA and protein abundance along the evolutionary path.

RNA and protein amounts of the majority of the photorespiratory enzymes were reduced in C4 as compared to C3 species. In contrast, photorespiratory mRNA and protein amounts did not decrease in the C3–C4 intermediate species but were mostly equal or even higher than in the C3 species, demonstrating that the establishment of the photorespiratory CO2 pump in the genus Flaveria relies on coordinated changes in the expression of all core photorespiratory enzymes. Metabolic modeling in combination with comparisons of transcript abundances in the different Flaveria species strongly indicates that introduction of C2 photosynthesis has a direct impact on the nitrogen metabolism of the leaf. Its implementation necessitates the parallel establishment of components of the C4 cycle to cope with these changes in refixation of photorespiratory nitrogen. Based on these results, we predict a mechanistic interaction between C4 and C2 photosynthesis.

Results

Selection of Flaveria species, cultivation of plant material and experimental design

To study the evolution of the expression of photorespiratory and C4 cycle genes during the transition from C3 to C4 photosynthesis in the genus Flaveria, nine species reflecting the evolutionary trajectory taken were selected, including two C3 (F. robusta and F. pringlei), two C4 (F. bidentis and F. trinervia), and five C3–C4 intermediate species (Figure 1D). According to their CO2 compensation points and the percentage of carbon initially fixed into malate and aspartate, F. chloraefolia and F. pubescens were earlier classified as type I C3–C4 intermediates. F. anomala and F. ramosissima belong to the type II C3–C4 intermediates and F. brownii is classified as a C4-like species (Edwards and Ku, 1987; Moore et al., 1987; Cheng et al., 1988; Ku et al., 1991). Type I C3–C4 intermediates are defined as solely relying on the photorespiratory CO2 concentration cycle whereas a basal C4 cycle activity is present in type II C3–C4 intermediates species. C4-like species exhibit much higher C4 cycle activities but lack complete bundle sheath compartmentation of Rubisco activity (Edwards and Ku, 1987).

Four independent experiments with plants grown during different seasons were performed to identify differences between the species that are dependent on their different modes of photosynthesis and independent of environmental influences. For each experiment the plants were seeded concurrently and grown side-by-side under greenhouse conditions. The second and fourth visible leaves from the top of all nine species were harvested at noon on the same day for transcript and protein analysis. Plants for experiment one were harvested in September 2009, for experiment two in June 2010, for experiment three in October 2010 and for experiment four in April 2011. The amounts of the core photorespiratory and C4 enzymes were assessed by immunoblotting using specific antibodies raised against synthetic peptides or recombinant proteins. The abundances of the corresponding RNAs as well of C4 cycle associated transcripts were quantified by total transcriptome sequencing.

The transcript profiles of the individual Flaveria species were comparable throughout all four experiments

The transcriptomes of the different Flaveria species were sequenced by Illumina technology following standard procedures. In total, close to 200 Gb of raw sequence data were produced. After filtering of low quality reads 30 to 58 million reads per species and experiment were quantified (Figure 2—source data 1). In a cross species approach, we mapped the sequences onto the minimal set of Arabidopsis thaliana coding sequences using the BLAST-like alignment tool BLAT (Kent, 2002) as described previously (Gowik et al., 2011) (Figure 2—source data 2, data available from the Dryad Digital Repository: http://dx.doi.org/10.5061/dryad.q827h). We were able to align approx. 50% of our reads to the Arabidopsis transcripts. This is lower as compared to a similar approach using 454 sequencing (Gowik et al., 2011) and likely due to the shorter read length of the Illumina compared to the 454 reads. To overcome the low mapping efficiency, the leaf transcriptomes of Flaveria species were assembled de novo based on 454 (Gowik et al., 2011) and Illumina reads (this study). Among the contigs from F. robusta, we identified full-length transcripts for all photorespiratory and C4 genes in the focus of the present study and used these for further read mapping and detailed analysis.

To evaluate the variation between the four independent experiments, we performed hierarchical sample clustering and a principal component analysis of the transcript profiles derived from read mapping on the minimal set of Arabidopsis coding sequences. Hierarchical sample clustering using Pearson correlation and average linkage clustering shows that the transcript profiles of all Flaveria species were quite similar in all four experiments since the samples cluster strictly species-wise (Figure 2A). The transcriptome patterns are influenced by the photosynthesis type and the phylogenetic relationships of the different species. The two C4 species, both belonging to clade A, cluster together as do the two C3 species that belong to the basal Flaveria species. Within the C3–C4 intermediates the two more advanced intermediates F. ramosissima and F. anomala cluster together, the only pattern which contradicts phylogenetic proximity since F. ramosissima belongs to clade A and F. anomala belongs to clade B. The last cluster consists out of the C3–C4 intermediates F. chloraefolia and F. pubescens, and the C4-like species F. brownii.

Variation of transcript profiles of the individual Flaveria species between the four experiments.

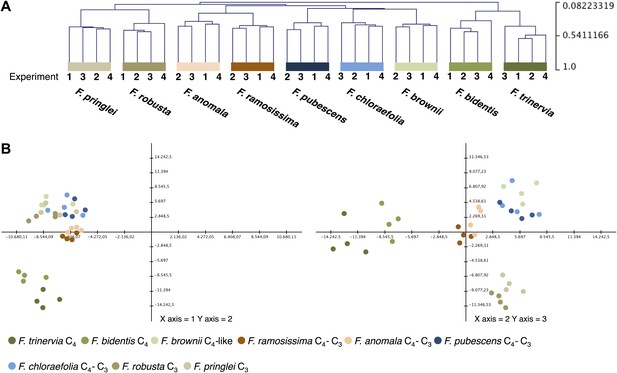

(A) Hierarchical sample clustering of all expressed transcripts. The tree was calculated with the MEV program using the HCL module with Pearson correlation and the average linkage method. (B) Principal component analysis of transcript levels. The first three components explain 27% of the total variance.

https://doi.org/10.7554/eLife.02478.004

Principle component analysis supports the results of the hierarchical clustering. The samples are mainly separated by photosynthesis type and phylogenetic relationships with the two intermediate species from different phylogenetic trajectories again forming a tight cluster (Figure 2B). The first three components, shown in Figure 2B, explain only 27% of the total variance. This is in good accordance with earlier results where it was shown that about 16% of all analyzed genes showed photosynthesis type related expression changes when the transcriptomes of the C4 species F. trinervia and F. bidentis, the C3 species F. robusta and F. pringlei and the C3–C4 intermediate species F. ramosissima were compared (Gowik et al., 2011).

Amounts of photorespiratory transcripts and proteins indicate that the C2 pathway was established early during C4 evolution in Flaveria and is present also in the C4-like species F. brownii

Photorespiratory genes are expressed in all species and photorespiratory proteins are detected in all species. To visualize the differences in transcript and protein abundance heat maps were plotted (Figure 3). The transcription of all photorespiratory genes except the transport proteins DIT1 and DIT2 and one isoform of GLDH was downregulated in the C4 species F. bidentis and F. trinervia compared to the C3 species F. pringlei und F. robusta (Figure 3A, Figure 3—source data 1). Both dicarboxylate transporters play an important role in generating the transfer acids in the C4 pathway of NADP-ME plants such as F. trinervia and F. bidentis (Renne et al., 2003; Gowik et al., 2011; Kinoshita et al., 2011). This may explain why their expression pattern is more similar to the C4 genes than to the other photorespiratory genes.

Figure 3 with 2 supplements see all

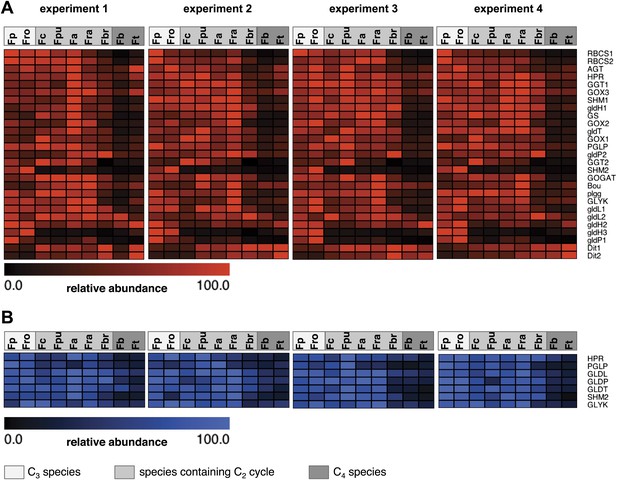

Abundance of photorespiratory transcripts and proteins in leaves of individual Flaveria species.

Normalized transcript (A) and protein (B) amounts are plotted as heat maps. Transcript amounts were determined by Illumina sequencing of the leaf transcriptomes and read mapping on selected F. robusta full length transcript sequences. Protein amounts were determined by protein gel blots. See Figure 3—source data 1 for absolute transcript levels, Figure 3—source data 2 for protein quantification and Figure 3—figure supplements 1 and 2 for immunoblots. Fp: F. pringlei (C3); Fro: F. robusta (C3); Fc: F. chloraefolia (C3–C4); Fpu: F. pubescens (C3–C4); Fa: F. anomala (C3–C4); Fra: F. ramosissima (C3–C4); Fbr: F. brownii (C4-like); Fb: F. bidentis (C4); Ft: F. trinervia (C4).

https://doi.org/10.7554/eLife.02478.007

The amounts of photorespiratory transcripts did not decrease gradually from C3 to C4 but the expression levels in the C3–C4 intermediate species F. chloraefolia, F. pubescens, F. anomala and F. ramosissima were mostly equal or higher than in the C3 species. An exception are the transcripts of one GLDP, one GLDH and one SHM isoform which are drastically down-regulated also in the C3–C4 intermediate species. It was shown earlier that the down-regulation of this GLDP isoform is tightly associated with the establishment of the C2 pathway in Flaveria (Schulze et al., 2013). The down-regulation of the GLDH and SHM isogenes might have similar reasons since both enzymes are also involved in glycine decarboxylation. Only the C4-like species F. brownii is intermediate with respect to photorespiratory transcripts. 19 of 27 transcripts are reduced compared to the C3–C4 intermediate and C3 species but have higher levels than the true C4 species F. bidentis and F. trinervia. Exceptions are the components of the glycine decarboxylase complex as the respective transcripts levels are equal to these in the C3 and C3–C4 intermediate species (Figure 3A).

The expression patterns described above were not only found for the genes encoding the core enzymes of photorespiration but also for the genes responsible for recycling of ammonia set free during photorespiration, GS/GOGAT. Also the genes of recently discovered transporters associated with photorespiration, PLGG1 and BOU (Eisenhut et al., 2013; Pick et al., 2013), behave accordingly.

To test whether transcript abundance reflects protein abundance, amounts of core photorespiratory proteins in the leaves of all nine species were quantified by protein gel blots. To this end we generated antibodies against conserved peptides from Flaveria GLDP, GLDT, GLDL, SHM, HPR, PGLP and GLYK proteins. Total leaf proteins were extracted from plant material harvested together with the material used for RNA isolation and equal amounts of protein were separated via SDS gel-electrophoresis prior to blotting (Figure 3—figure supplement 1). The changes of protein amounts essentially reflected the changes of the amounts of the corresponding transcripts (Figure 3B, Figure 3—figure supplement 2, Figure 3—source data 2). The amounts of core photorespiratory proteins in the C3–C4 intermediates were equal to the amounts in the C3 species. A clear reduction of these proteins can be observed only for the true C4 species and the C4–like species. F. brownii exhibits intermediate amounts of most photorespiratory proteins. This indicates that the regulation of photorespiratory genes mainly occurs on the transcriptional level and that our approach to analyze the photorespiratory activity by comparative transcriptomics is reasonable.

While the overall patterns remain similar between all independent experiments, individual proteins and transcripts vary between the four experiments. This likely reflects adjustments of photorespiratory gene expression to the different light and temperature conditions in our green house in the different seasons of the year.

We conclude that the four experiments support the establishment of a photorespiratory C2 cycle early during C4 evolution in Flaveria and that this C2 cycle was maintained until Rubisco activity was constricted to the bundle sheath cells in the true C4 Flaveria species.

An integrated model of C2 photosynthesis

While the principal physiological differences between C3 and C4 leaves are widely understood, knowledge about the metabolic reconfiguration required to implement a functional C2 pathway into a C3 leaf is incomplete. In particular, moving glycine from mesophyll to bundle sheath cells (Hylton et al., 1988; Morgan et al., 1993) does not only translocate carbon, it also transports one nitrogen atom per two carbon atoms. Evidently, implementing the C2 carbon pump requires balancing of metabolic routes to maintain homeostasis of both carbon and nitrogen metabolism (Monson and Rawsthorne, 2000). How this can be achieved is non-intuitive and it thus requires a systematic analysis by metabolic modeling. To this end, we simulated the leaf metabolism of a C2 plant using an integrated model. We coupled a mechanistic model of C3–C4 intermediate photosynthesis (von Caemmerer, 2000; Heckmann et al., 2013) with a modified genome-scale stoichiometric model of C4 photosynthesis that was designed to describe the entire metabolic interactions of mesophyll and bundle sheath cells in C4 leaves (Dal'Molin et al., 2010).

We used the mechanistic model to predict constraints for the stoichiometric model. It provided values for net CO2 uptake, Rubisco carboxylation as well as oxygenation in mesophyll and bundle sheath, CO2 leakage from the bundle sheath, PEPC activity in the mesophyll, activity of NADP-ME in the bundle sheath, plasmodesmatal flux of glycine and serine, and decarboxylation by the GDC. Given specific activities of the C2 and C4 cycles in the mechanistic model, we used flux balance analysis (FBA) to predict detailed flux distributions that follow biologically realistic optimality criteria (Varma and Palsson, 1994). We employed a maximization of leaf biomass production, followed by a minimization of the sum of absolute fluxes including transport processes. In the minimization of total flux, we allocated higher weights to plasmodesmatal fluxes in order to account for the trade-off between CO2 leakage and diffusion of metabolites between the cells. This framework allows us to investigate the most parsimonious implementation of C2 and C4 cycles, given a hypothesis about which metabolites are suitable for plasmodesmatal transport.

The first outcome of simulating the photorespiratory CO2 pump was that the establishment of the C2 pathway has indeed a direct impact on the nitrogen metabolism of the leaf. It transports two molecules of glycine from the mesophyll to the bundle sheath, where one molecule each of serine, CO2, and ammonium are produced. CO2 is fixed by bundle sheath Rubisco and serine is transferred back to the mesophyll, where it is used for the regeneration of phosphoglycerate and photorespiratory glycine. This results in a net transport of CO2 but also ammonia from the mesophyll to the bundle sheath. To create a noticeable CO2 enrichment in the bundle sheath, the C2 cycle must run with an appreciable capacity; indeed, the mechanistic model of C3–C4 intermediate photosynthesis predicted an oxygenation rate of Rubisco of about one third of its carboxylation rate. Running at such rates, the C2 cycle will create a massive nitrogen imbalance between mesophyll and bundle sheath cells, as was also predicted earlier by Monson and Rawsthorne (2000). Within the stoichiometric model, the free diffusion of ammonia between the two cell types was not allowed, since ammonia is toxic and known to effectively uncouple electrochemical gradients (Krogmann et al., 1959). Thus, ammonia must be refixed in the bundle sheath cells and transferred back to the mesophyll in the form of amino acids. According to the intergrated model, ammonia is fixed by glutamine synthetase and glutamine oxoglutarate aminotransferase (GS/GOGAT) in the bundle sheath cells (Figure 4). Consistent with this prediction, we found that GS/GOGAT transcripts were upregulated in the C3–C4 intermediate species (Figure 3).

Flux Balance Analysis of the C2 photosynthetic pathway.

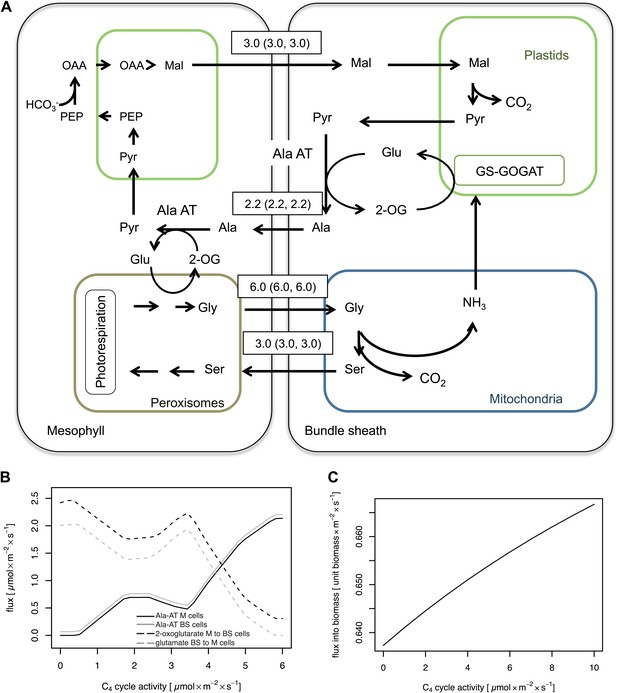

Predicted fluxes if (A) major amino acids and the corresponding oxoacids and dicarbonic acids are allowed to freely diffuse between cells, (B) the α-ketoglutarate and glutamate transfer between mesophyll and bundle sheath was constrained (C) additionally the transfer of alanine and pyruvate between mesophyll and bundle sheath was constrained (D) transfer of all nitrogen containing compounds except for glycine and serine, which are used by the C2 cycle were constrained. Fluxes are given in µmol s−1 m−2. Values in brackets show minimum and maximum of flux resulting from flux variability analysis. Flux of dissolved gasses, sucrose, inorganic compounds and processes that carry flux below 1 µmol s−1 m−2 are not shown. The sums of absolute fluxes over the plasmodesmata for the different variants were (A): 17.8 µmol s−1 m−2; (B): 18.4 µmol s−1 m−2; (C): 19.0 µmol s−1 m−2; (D): 22.1 µmol s−1 m−2. See Figure 4—source data 1 for plasmodesmatal fluxes.

https://doi.org/10.7554/eLife.02478.012

Estimating whether a certain metabolite is suitable for maintaining a diffusional gradient between mesophyll and bundle sheath is an unsolved problem. The impact on regulatory mechanisms and homeostasis of the C3 leaf may render some metabolites unsuitable to serve as transport metabolites. We address this problem by modeling multiple scenarios that assume different transport metabolites.

If major amino acids and the corresponding oxoacids and dicarbonic acids are allowed to freely diffuse between cells in an integrated model representing a C2 cycle, glutamate is predicted to be transferred to the mesophyll, where it is deaminated by GGT, regenerating the photorespiratory glycine. The resulting 2-oxoglutarate is transferred back to the bundle sheath cells (Figure 4A). The model preference for glutamate/2-oxoglutarate reflects the minimization of total flux in the FBA model, as this effectively minimizes the number of active enzymatic reactions and holds the plasmodesmatal flux for ammonia balance at one acceptor and one transport metabolite.

To elucidate if alternative solutions exist that contain more steps but retain the same biomass output, the 2-oxoglutarate transfer between mesophyll and bundle sheath was constrained to prevent the glutamate/2-oxoglutarate exchange. The integrated model then predicts an alanine/pyruvate shuttle (Figure 4B). The glutamate produced by GS/GOGAT activity in the bundle sheath cells is used by alanine aminotransferase (Ala-AT) to aminate pyruvate. The resulting alanine is transferred to the mesophyll and trans-aminated by Ala-AT resulting in pyruvate and glutamate. The glutamate is used to regenerate photorespiratory glycine and pyruvate is transferred back to the bundle sheath.

If alanine and pyruvate transfer are also constrained, the model predicts an aspartate/malate shuttle (Figure 4C). This includes the oxidation of malate in the bundle sheath. The resulting oxaloacetate (OAA) is aminated by aspartate aminotransferase (Asp-AT) and aspartate moves to the mesophyll. Here aspartate is trans-aminated by Asp-AT and malate is regenerated by reduction of the resulting OAA and transferred to the bundle sheath.

In all these scenarios, further increasing the weights on plasmodesmatal flux leads to transporter metabolites with increased N carrying capacity such as asparagine (Figure 4—source data 1).

In a restrictive scenario, all nitrogen containing compounds were excluded from plasmodesmatal transport, except for glycine and serine, which are used by the C2 cycle itself. In this case, the model predicts that bundle sheath derived ammonia is transferred from glutamate to phosphohydroxy-pyruvate by phosphoserine aminotransferase to yield phosphoserine; phosphoserine is then converted to serine by phosphoserine phosphatase. Finally, the serine moves to the mesophyll. This variant includes the transfer of 3-phosphoglycerate from the mesophyll to the bundle sheath, where it is converted to phosphohydroxy pyruvate by 3-phosphoglycerate dehydrogenase (Figure 4D).

The model predicts a mechanistic interaction between C2 and C4 cycle

In C3 plants, basal activities of the typical C4 cycle enzymes are present (Aubry et al., 2011). When our integrated model is parameterized to include an active C4 cycle, it predicts that a contingent of the bundle sheath ammonia will be transferred to the mesophyll cells by the C4 cycle as a biomass neutral alternative to the 2-OG/Glu shuttle or as the unique solution when additional weight on plasmodesmatal fluxes is applied (Figure 5—source data 1). In this solution malate is decarboxylated in the bundle sheath cells. CO2 is refixed by Rubisco, and the resulting pyruvate is aminated by Ala-AT. Alanine moves to the mesophyll cells, where ammonia is fed into the photorespiratory cycle by Ala-AT and GGT. The resulting pyruvate is converted back to malate by PPDK, PEPC, and NADPH-dependent MDH (Figure 5A). Flux variability analysis shows that only marginal variability in the fluxes of the shuttle is possible (Figure 5—source data 1). According to our model predictions, the cycle is active even at low PEPC activities, such as those measured in C3 Flaveria species (Gowik et al., 2011; Heckmann et al., 2013). When the C4 cycle runs with low capacity, according the model, the surplus of bundle sheath ammonia is transferred back to the mesophyll by the glutamate/2-oxoglutarate shuttle. Once the capacity of the C4 cycle gradually increases, the recirculation of nitrogen is shifted from the glutamate/2-oxoglutarate shuttle towards the C4 cycle (Figure 5B). The predicted biomass production increases linearly with C4 cycle activity (Figure 5C). Thus, our model predicts a strong interaction between C2 and C4 photosynthesis.

Mechanistic interaction between C2 and C4 cycle.

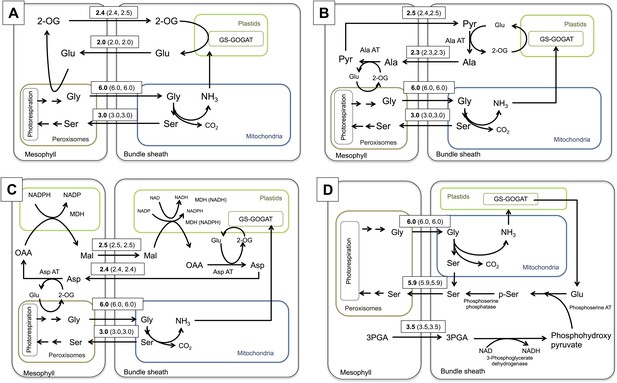

(A) Predicted fluxes when the model is parameterized to include activity of the C4 cycle enzymes. Fluxes are given in µmol s−1 m−2. Values in brackets show minimum and maximum of flux resulting from flux variability analysis. The sum of absolute flux over plasmodesmata was 21.9 µmol s−1 m−2. Flux of dissolved gasses, sucrose, inorganic compounds and processes that carry flux below 1 µmol s−1 m−2 are not shown. See Figure 5—source data 1 for plasmodesmatal fluxes. (B) Predicted activities of Ala-AT in mesophyll (black line) and bundle sheath (gray line) cells and predicted transfer of α-ketoglutarate from mesophyll to bundle sheath cells (black dashed line) and glutamate from bundle sheath to mesophyll cells (gray dashed line) at low C4 cycle activities. (C) Changes in biomass production with varying (low) activity of the C4 cycle in a C2 plant.

https://doi.org/10.7554/eLife.02478.014

Analysis of C4 cycle gene expression in C3–C4 intermediate Flaveria species

When the C2 cycle is running with high capacity, our integrated modeling approach predicts the necessity of auxiliary metabolite fluxes between mesophyll and bundle sheath cells to prevent a massive nitrogen imbalance. Among those auxiliary fluxes were the pyruvate/alanine and the malate/aspartate exchanges. The metabolites used in these shuttles also serve as transport metabolites in C4 photosynthesis. Furthermore, the model highlights the possibility that a low capacity C4 cycle balances part of the C2 cycle ammonia production. Therefore we analyzed in detail the expression of C4 cycle related genes in our dataset. True C4 Flaverias, such as F. bidentis or F. trinervia, are believed to use a NADP-ME type C4 cycle (Moore et al., 1984; Ku et al., 1991; Meister et al., 1996; Gowik et al., 2011). All genes associated with this type of C4 photosynthesis are gradually upregulated in the analyzed C3–C4 intermediate species in line with their degree of ‘C4-ness’. This is true for the typical C4 enzymes like PEPC, PPDK, MDH, NADP-ME, Ala-AT and a plastidic aspartate aminotransferase (Asp-AT), as well as for several C4 associated transporters, such as the pyruvate transporter BASS2, the H+/Na+ exchanger NHD, the PEP translocator CUE1 and the putative malate and aspartate transporters DIT1 and DIT2 (Weber and von Caemmerer, 2010; Brautigam et al., 2011; Furumoto et al., 2011; Gowik et al., 2011). The regulators of the C4 enzymes (like PEPC kinase or the PPDK regulatory protein) and enzymes with auxiliary functions of C4 enzymes (like pyrophosphatases or adenosinmonophosphatases) show a similar pattern (Figure 6, Figure 6—source data 1). To corroborate the results of the transcript abundance measurements, selected C4 cycle enzymes (PEPC, PPDK, and NADP-ME) were measured by immunoblotting. The protein abundance correlates well with the transcript abundance (Figure 6, Figure 6—source data 2).

Figure 6 with 1 supplement see all

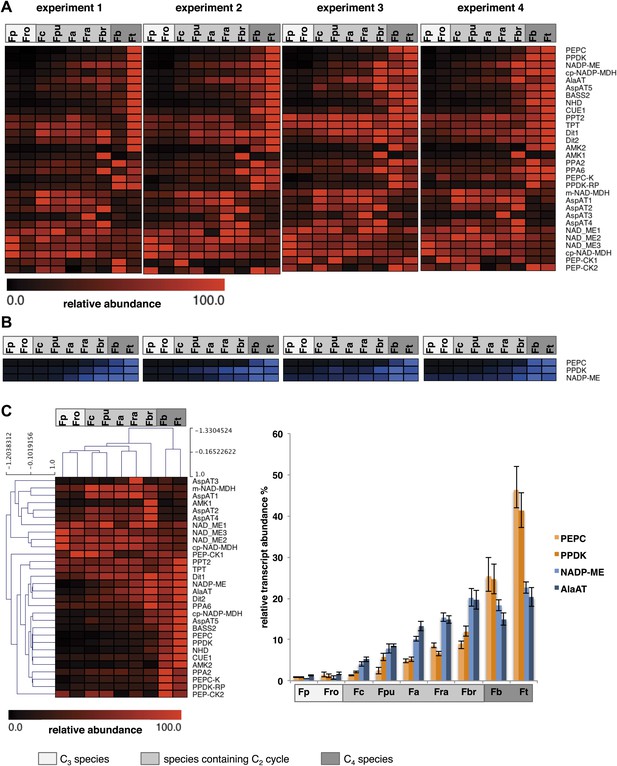

Abundance of C4 related transcripts and proteins in leaves of individual Flaveria species.

Normalized transcript (A) and protein (B) levels are plotted as heat maps. Transcript amounts were determined by Illumina sequencing of the leaf transcriptomes and read mapping on selected F. robusta full length transcript sequences. Protein amounts were determined by protein gel blots. See Figure 6—source data 2 for absolute transcript level, Figure 6—source data 2 for protein quantification and Figure 3—figure supplement 1 for immunoblots. (C) Mean values of transcript levels from all four experiments were clustered by hierarchical using the HCL module of MEV program with Pearson correlation and the average linkage method. The relative transcript abundance for PEPC, PPDK, NADP-ME and Ala-AT (mean values from all four experiments) are plotted for all nine species. Fp: F. pringlei (C3); Fro: F. robusta (C3); Fc: F. chloraefolia (C3–C4); Fpu: F. pubescens (C3–C4); Fa: F. anomala (C3–C4); Fra: F. ramosissima (C3–C4); Fbr: F. brownii (C4–like); Fb: F. bidentis (C4); Ft: F. trinervia (C4).

https://doi.org/10.7554/eLife.02478.016

The expression changes of C4 cycle genes do not all follow the same quantitative pattern (Figure 6C). Although all of these genes gradually increase in expression when plants gain C4 properties, as judged, for example, by the percentage of 14CO2 directly fixed into C4 acids (Vogan and Sage, 2011), the quantitative changes in gene expression are quite different. PEPC and PPDK transcript amounts increase slowly in the C3–C4 intermediates F. chloraefolia, F. pubescens, and F. anomala, more steeply in the advanced C3–C4 intermediate F. ramosissima and the C4-like species F. brownii before reaching the highest transcript abundances in the true C4 species (Figure 6C). In contrast, NADP-ME and Ala-AT gene expression already increase in expression in the more C3-like intermediate species. Their expression rises more linearly in the further advanced intermediates and plateaus in the C4-like and C4 species. If one uses the different Flaveria species as evolutionary proxies as suggested by the results of Heckmann et al. (2013), these results suggest that NADP-ME and Ala-AT are strongly upregulated earlier in evolution than other C4 core enzymes like PEPC or PPDK.

F. chloraefolia is classified as a type I C3–C4 intermediate species, and no enhanced C4 cycle activity should be present in this species based on the classification. We detected upregulation of all NADP-ME type associated C4 genes, with some of the genes showing comparable small increases in expression (Figure 6). This is in line with the results of 14CO2 uptake studies that indicate about 14% of CO2 is directly incorporated into C4 acids in F. chloraefolia, whereas only 6% goes into C4 acids directly in the C3 species F. pringlei (Moore et al., 1987). We think therefore that a basal C4 cycle activity is present in F. chloraefolia and its classification as type I C3–C4 intermediate is questionable.

A gene encoding a mitochondrial NAD dependent malate dehydrogenase as well as several cytosolic and especially one mitochondrial Asp-AT were upregulated exclusively in the C3–C4 intermediate species and the C4-like F. brownii (Figure 6). Often, high activities of these genes are associated with the NAD-ME or PEP-CK type of C4 photosynthesis. NAD dependent malic enzyme and PEP carboxykinase genes were only very lowly expressed in all analyzed Flaverias, and no obvious differences between the C3–C4 intermediates and the other species could be found (Figure 2—source data 2, data available from the Dryad Digital Repository: http://dx.doi.org/10.5061/dryad.q827h).

We found no transcriptomic evidence that ammonia is recirculated by the phosphoserine pathway predicted by the model that restricts the free diffusion of all amino acids except serine and glycine. The amounts of transcripts for all three enzymes of this pathway, i.e., phosphoserine aminotransferase, phosphoserine phosphatase, and 3-phosphoglycerate dehydrogenase, were found to be very low in all analyzed Flaveria species (Figure 2—source data 2, data available from the Dryad Digital Repository: http://dx.doi.org/10.5061/dryad.q827h) (Mallmann et al., 2014).

Taken together, these data imply that the anaplerotic ammonia shuttle, required to maintain the nitrogen homeostasis in mesophyll and bundles sheath cells of plants performing C2 photosynthesis, is active in all analyzed C3–C4 Flaveria species, as predicted by the computer simulations. Furthermore, it appears that even the most C3-like C3–C4 intermediate species analyzed within the present study, F. chloraefolia, exhibits low level C4 cycle activity. This activity is again in accordance with the in silico model, which predicts the C4 cycle to be a highly efficient ammonia recirculation pathway.

Discussion

Photorespiration is mainly seen as a wasteful process, which arises from a malfunction of Rubisco and reduces photosynthetic efficiency (Ogren, 1984). In a high CO2 atmosphere, Rubisco can operate efficiently. But the current atmospheric CO2 concentration, combined with heat and drought, leads to an enhanced oxygenase activity and thereby the photosynthetic efficiency decreases (Raines, 2011). Up to 30% of the initially fixed CO2 may be lost by photorespiration (Bauwe et al., 2010). C4 plants avoid this problem by enriching CO2 at the site of Rubisco. CO2 is prefixed in the mesophyll and released in the bundle sheath cells, where Rubisco is operating (Hatch, 1987). The establishment of the photorespiratory CO2 pump, which relocates the release of photorespiratory CO2 to the bundle sheath cells, appears to be an important intermediate step towards the C4 cycle and our detailed study of Flaveria intermediate species suggests that genes associated with C4 photosynthesis also played a role in the C2 cycle.

Implementation of the C2 pathway leads to high expression of photorespiratory genes in C3-C4 intermediate Flaveria species

The expression of photorespiratory genes, including all genes encoding the core enzymes of the pathway, most of the transporters, and the enzymes involved in ammonia refixation, is not downregulated in the analyzed intermediate species; the transcript and protein amounts remain constant or in some cases are even higher compared to C3 species. A significant drop in photorespiratory gene expression is only observed in the C4-like species F. brownii and is decreased further in the C4 species. Together with earlier results (Schulze et al., 2013), this indicates that indeed a C2 photosynthetic cycle is active in all these C3-C4 intermediate Flaveria species and that a reduction in photorespiratory transcripts and proteins only occurs once the amounts of Rubisco have been reduced in the mesophyll as was described for the C4-like species F. brownii (Bauwe, 1984; Holaday et al., 1988). Rubisco reduction in the mesophyll is thus a late step of C4 evolution, which in the Flaveria series appears to not occur gradually but rather abruptly towards the end of the evolutionary trajectory. It is followed by a strong increase of C4 cycle activity, as can be deduced from the upregulation of PEPC and PPDK genes in the real C4 species (Figure 6C), when the primary CO2 fixation is completely taken over by PEPC. In the intermediate species C2 and C4 cycles operate in parallel leading to similar or higher photorespiratory gene expression compared with the C3 species.

Analysis of C4 cycle gene expression supports the predictions of the C2 model for C3–C4 intermediate Flaveria species and implies the early establishment of a complete C4 pathway

The model of the C2 cycle and the underlying metabolism proposes GS/GOGAT, Ala-AT, and Asp-AT to be involved in balancing the amino groups during C2 cycle operation (Figure 4). The transcriptome data from the C3-C4 intermediate Flaveria species largely support the results of our integrated model for the C2 pathway (Figure 6). In these species we found an upregulation of genes involved in the three most likely mechanisms for the recovery of ammonia predicted by the model. GS/GOGAT, which catalyzes the primary refixation of ammonia in the bundle sheath cells, is important for all three versions of ammonia shuttles (Figure 4) and is upregulated in the intermediate species. Transcripts for the glutamate/2-oxoglutarate shuttle, the alanine/pyruvate shuttle, and the aspartate/malate shuttle are enriched in all C3–C4 intermediates compared to the C3 and C4 Flaverias. For the alanine/pyruvate shuttle, Ala-AT is needed in the bundle sheath and the mesophyll cells. Ala-AT is upregulated already in the least advanced C3–C4 intermediates F. chloraefolia and F. pubescens, but also in all the other C3–C4 intermediates. Ala-AT transcripts are also highly abundant in the true C4 Flaverias since Ala-AT is directly involved in the C4 cycle when alanine is used as transport metabolite.

We found several Asp-AT and two MDH genes upregulated in the C3–C4 intermediate species (Figure 6). The chloroplast-located MDH and Asp-AT genes are involved in the C4 cycle of C4 Flaverias, in which malate and aspartate are used concurrently as C4 transport metabolites (Meister et al., 1996). Two further Asp-AT genes and another MDH gene were found to be upregulated exclusively in the C3–C4 intermediates, including the C4-like species F. brownii. The most likely reason for upregulation of these genes is their involvement in the recirculation of photorespiratory ammonia by a malate/aspartate shuttle.

The pathways of ammonia recirculation between mesophyll and bundle sheath foreshadow the establishment of a true C4 cycle (Figure 4). All variants described above need the establishment of inter- and intra-cellular transport capacities for amino acids and small organic acids, which are also needed for a functional C4 cycle (Weber and von Caemmerer, 2010). The existence of an aspartate/malate and an alanine/pyruvate shuttle anticipates important components of a functional C4 pathway. Our transcript data imply that both of these shuttles are active in C3–C4 intermediate Flaverias. Only a few additions would be required to convert these pathways of ammonia recirculation into a C4-like CO2 concentration mechanism, that is, malate would have to be decarboxylated in the bundle sheath cells and pyruvate would have to be converted to malate in the mesophyll. Our transcript data implies that this conversion of the photorespiratory ammonia recirculation pathway into a C4-like CO2 concentrating pump must have been an early event in C4 evolution of Flaveria since already in the least advanced intermediates such as F. chloraefolia and F. pubescens, NADP-ME transcripts are elevated and their amounts increase in parallel with Ala-AT and Asp-AT transcript levels.

To extend the pathways of ammonia recirculation into a rudimentary C4 cycle, a capacity to regenerate malate from pyruvate in the mesophyll is required. As deduced from the transcriptome data, the enzymatic functions required are also already enhanced in the least advanced C3–C4 intermediates, since we observe a low but consistent upregulation of PEPC and PPDK genes in these species compared to the C3 Flaverias. Measurements of radiolabeled CO2 incorporation support the view that a rudimentary C4 cycle is already operating in intermediate Flaveria species (Rumpho et al., 1984; Monson et al., 1986; Moore et al., 1987; Chastain and Chollet, 1989). F. chloraefolia as well as F. pubescens incorporate a higher percentage of 14CO2 into the C4 compounds malate and aspartate (11.3% and 24.9%) than the C3 species F. pringlei and F. cronquistii (4.1% and 7.7%) (Vogan and Sage, 2011). Thus even the least advanced intermediates analyzed in this study run already a low-level C4 cycle, which assists in recycling the ammonia liberated by GDC in the bundle sheath cells.

The question arises whether amino group transfer initially exclusively happened via amino acid/oxoacid pairs or whether the enzymatic content of C3 plants immediately supported a shuttle that also involved decarboxylation and carboxylation reactions. C3 plants have considerable capacity for the decarboxylation of four-carbon organic acids in their bundle sheath cell (Hibberd and Quick, 2002; Brown et al., 2010) and measurements of total leaf NAD-ME and NADP-ME activity in C3 plants repeatedly demonstrated basal activities for various C3 species (Wheeler et al., 2005; Aubry et al., 2011; Maier et al., 2011). C3 plants also accumulate high amounts of organic C4 acids like malate or fumarate during the day (Zell et al., 2010), which are produced by PEPC, the only enzyme capable of producing C4 acids de novo. It is tempting to hypothesize that plants use a malate/alanine shuttle to recycle parts of the ammonia liberated by glycine decarboxylation from the very beginning of the C2 cycle.

Elevating the C4 cycle activity in a C2 plant enhances the CO2 fixation capacity

If the C4 cycle is superimposed onto a C2 cycle operating in a C3–C4 intermediate plant, the C2 photosynthesis model predicts a mechanistic interaction between the C2 and C4 cycles (Figure 5). When the C4 cycle is running, the photorespiratory ammonia is recirculated from the bundle sheath to the mesophyll cells by moving malate from the mesophyll to the bundle sheath and transferring alanine back to the mesophyll. This malate/alanine cycling leads to a net transport of ammonia from the bundle sheath into the mesophyll cells. In contrast to the other mechanisms of ammonia recirculation described above, the C4 cycle does not only lead to a net transport of ammonia from the bundle sheath to the mesophyll but additionally also to a net transport of CO2 in the opposite direction. Thus CO2 is transferred from the mesophyll to the bundle sheath without increasing the number of transport processes between the cells. By elevating the CO2 concentration in the bundle sheath cells the C4 cycle acts cooperatively with the C2 cycle. The bundle sheath Rubisco would work under a more elevated CO2 concentration and thus operate more effectively compared to a pure C2 plant, leading to an increased biomass production. The C4 cycle thus has a dual beneficial effect: an efficient nitrogen shuttle is combined with a CO2 concentrating pump.

To investigate the possible interaction with regard to biomass, a C4 cycle at the enzyme capacities of C3 plants was allowed and tested for biomass changes (Figure 5 C). When the C4 cycle is running with PEPC activities comparable to those found in C3 Flaveria species, the model already predicts a gain in biomass production compared to the C2 cycle on its own. Under these conditions, the bulk of photorespiratory ammonia is recycled through a rudimentary C4 cycle limited by the C4 cycle flux capacity. The model predicts that biomass production will be further enhanced with higher activity of the C4 cycle. Consequently, there is permanent positive selection on enhancing the activity of the currently rate limiting enzyme once a C4 cycle is running.

The evolutionary scenario described above is in good agreement with the Flaveria transcriptome data. We observe gradual increases in the amounts of C4 transcript with increasing ‘C4-ness’ of the C3–C4 intermediates until the most advanced species F. brownii. The abundance of NADP-ME and Ala-AT transcripts increases faster than the transcript abundance of the other core C4 genes like PEPC, PPDK, MDH or Asp-AT. This implies that these evolutionary changes were driven by selection on high bundle sheath decarboxylation capacity, consistent with the idea that the C4 cycle began as an auxiliary pathway to the C2 cycle to recirculate photorespiratory ammonia. Hence, in this early phase, the main purpose of the C4 cycle was to provide the ammonia acceptor pyruvate. The C2 model and its evolutionary implications are consistent with the properties of the C3–C4 intermediate Flaveria species including F. brownii, which possess mesophyll Rubisco activity and consequently the C2 photosynthetic pathway. The next iteration during C4 evolution in Flaveria must have been the restriction of Rubisco activity to the bundle sheath, making the C2 cycle obsolete, as observed for the true C4 Flaveria species.

A scenario for C4 evolution in the genus Flaveria—a general blueprint for the evolution of C4 photosynthesis?

The establishment of a photorespiratory CO2 pump, termed C2 photosynthesis, is thought to be an important step in C4 evolution. Recent work has shown how C3 Flaverias were preconditioned for the evolution of the C2 pathway and how the C2 cycle was implemented on the molecular level (Sage et al., 2013; Schulze et al., 2013). Together with the present work, this gives us a detailed picture of what happened in the early and intermediate stages during C4 evolution in Flaveria.

We have argued that the establishment of the C2 cycle requires the implementation of at least components of the C4 pathway, if not the whole pathway. This fact might be a partial explanation for the polyphyletic evolution of C4 photosynthesis. Only the C2 cycle has to evolve to set a system on a slippery slope towards C4 photosynthesis. Nature seems to confirm this idea. So far, 66 independent origins of C4 photosynthesis could be identified. In contrast, there are only seven known groups with independent origins of C2 plants and no direct ancestry to C4 species (Sage et al., 2012). If one assumes that all recent C4 lineages evolved via C2 intermediates, which appears likely (Sage et al., 2012; Heckmann et al., 2013; Williams et al., 2013), this would mean that the C2 pathway evolved 73 times independently and that over 90% of these C2 plant containing lineages proceeded to C4 photosynthesis. This indicates that the C2 photosynthetic pathway must indeed be a strong enabler of C4 photosynthesis. It will be highly enlightening to analyze these C2 groups without ancestry to C4 species, like Moricandia, Steinchisma or Mollugo, to find out in how far they differ from groups that evolved the C4 pathway and why C4 evolution may have been hampered in these groups.

The close evolutionary interconnection of the C2 and the C4 pathway could be seen as an example of metabolic exaptation (Barve and Wagner, 2013). Exaptation or pre-adaptation was defined as an adaptation involving the co-option of traits that originally evolved for a different purpose (Gould and Vrba, 1982). While both C2 and C4 act as carbon shuttles to the bundle sheath cells, the two systems achieve this goal through different biochemical processes. In particular, the amino acid shuttle in the C2 system evolved to transport nitrogen, and its later use in C4 photosynthesis to shuttle carbon thus represents a molecular exaptation. Our findings therefore corroborate the general idea that the evolution of complex traits may be accelerated through exaptations (Darwin, 1872; Gould and Vrba, 1982; Barve and Wagner, 2013).

We do not know if the scenario on the early and intermediate stages of evolution described above is limited to the genus Flaveria or if it is valid for C4 evolution in general. Our prediction of the C2 pathway being a strong facilitator of C4 evolution should apply to all C4 origins, as the integrated model is not specific to Flaveria.

Materials and methods

Plant material

F. pringlei, F. robusta, F. chloraefolia, F. pubescens, F. anomala, F. ramosissima, F. brownii, F. bidentis and F. trinervia plants were grown in the green house at University of Duesseldorf side-by-side and harvested at four different points of time over the year. The plants were grown in 17-cm pots on soil (C-400 with Cocopor [Stender Erden, Schermbeck Germany] fertilized with 3 g/l Osmocote exact standard 3 to 4 M [Marysville, USA]) with additional light for 16 hr per day until 50 to 60 cm height and before the onset of flowering.

Plants for experiment one were harvested in September, for experiment two in June, for experiment three in October and for experiment four in April. The plant material was immediately frozen in liquid nitrogen, stored at −80°C and used for the following analyses.

RNA isolation, transcriptome sequencing and analysis

Total RNA was isolated from the second and fourth leaves according to (Westhoff et al., 1991) followed by a DNAse treatment. After phenol/chloroform extraction and precipitation with NaAc and isopropyl alcohol the RNA was dissolved in H2O. The RNA quality was tested with the Agilent 2100 bioanalyzer. 1 µg of total RNA was used for cDNA library generation, which was accomplished with the TruSeq RNA Sample Preparation Kit (Illumina Inc., San Diego, USA) via the Low-Throughput Protocol (TruSeq RNA Sample Preparation Guide, Illumina Proprietary Catalog # RS-930-2001, Part # 15008136 Rev. A, November 2010). Clusters were generated with the TruSeq SR Cluster Kit v2 according to the Reagent Preparation Guide with the Illumina cBot device. The single read sequencing was performed with the Illumina HiSeq2000.

Sequences of transcripts from genes involved in photorespiraton, C4 photosynthesis and refixation and recirculation of photorespiratory ammonia were identified among de novo assembled transcripts of F. robusta. De novo assembly was performed with either CLC Genomics Workbench (CLC-Bio, Aaarhus, Denmark) or the Velvet/Oases software package (Schulz et al., 2012) using F. robusta 454 (Gowik et al., 2011) and Illumina reads (this study).

After quality control and processing, Illumina reads were aligned to the F. robusta transcript sequences with the CLC Genomics Workbench using standard parameters. Read mapping against a minimal set of coding sequences (Brautigam et al., 2011) of the TAIR 9 release of the Arabidopsis thaliana genome (http://www.Arabidopsis.org/) was performed using BLAT (Kent, 2002) as described in (Gowik et al., 2011).

The MEV software package (http://www.tm4.org/mev.html) was used for plotting heat maps, hierarchical clustering and principal component analysis.

Protein isolation and quantification

Total proteins were isolated from plant material harvested together with the material for RNA isolation according to Shen et al. (2007) and quantified using the RC-DC protocol (Bio-Rad Laboratories, Hercules, USA). 30 µg of total protein was electrophoresed on polyacrylamide-SDS gels (Schägger and von Jagow, 1987) and electrophoretically transferred to nitrocellulose membranes (Protran BA85, 0.45 μm; Schleicher & Schuell, Dassel, Germany) for 1 hr with 0.8 mA per cm2. Specific primary antibodies were raised against conserved Flaveria peptides (Agrisera Vännäs, Sweden). For the detection of specific proteins the nitrocellulose membranes were incubated with the primary antibodies and a Horseradish peroxidase-conjugated secondary antibody (Sigma-Aldrich, St. Louis, USA). An enhanced chemiluminescent Horseradish peroxide substrate was added and signals were recorded using a Fuji LAS-4000 mini CCD camera system. The signals were quantified with the Multi Gage analysis software (Fujifilm, Tokyo, Japan). As loading control a gel was stained for 45 min with 0.25% Coomassie blue, 50% methanol, 7% acetic acid, and destained in 50% methanol, 7% acetic acid.

Coupling a mechanistic model with a genome-scale metabolic reconstruction

In order to model the metabolic integration of C2 and C4 cycle in the context of leaf metabolism, we conducted Flux Balance Analysis (FBA) based on a genome-scale metabolic reconstruction of C4 metabolism, C4GEM (Dal'Molin et al., 2010). This reconstruction contains a complex biomass reaction including carbohydrates, cell wall components, amino acids and nucleotides (Dal'Molin et al., 2010).

FBA is a powerful tool to understand the adaptation of metabolism on a genomic scale. Since metabolite concentrations are not modeled explicitly, fluxes related to carbon concentration mechanisms (CCMs) cannot be captured by this constraint-based approach alone. To account for this issue, we coupled the FBA model with a mechanistic model of C3–C4 photosynthesis (von Caemmerer, 2000; Heckmann et al., 2013).

C4GEM representing NADP-ME types was provided by the authors and FBA was conducted using this model:

Maximize cTv

subject to Sv=0.

vmin,ivivmax,i

where c is the vector of coefficients in the objective function, here the leaf biomass production. v is the vector of fluxes through the network reactions, S is the stoichiometric matrix of the metabolic network, and vmin and vmax represent constraints on the respective fluxes.

In order to test hypotheses concerning nitrogen metabolism in C3–C4 intermediate plants, S had to be modified. The plasmosdesmatal transport reactions in the original C4GEM model include malate, pyruvate, 3-phosphoglycerate, trioses, phosphates, sucrose, aspartate, alanine, phosphoenolpyruvate, CO2, and O2. Reactions were added to S in order to include transport of serine, glycine, glutamate, glutamine, asparagine, threonine, 2-oxoglutarate and water over the mesophyll/bundle sheath interface. Furthermore, the lack of photosystem II in the bundle sheath of certain C4 plants does not hold in our scenario (Nakamura et al., 2013) and we added a reaction for linear electron transport to the bundle sheath. C4GEM does not contain a reaction for a plastidal NADP-dependent malate dehydrogenase in the bundle sheath; we added this reaction to S.

In addition to the stoichiometric matrix S, the constraints used in C4GEM were modified:

The original constraint on leaf sucrose production was changed to result in an output ratio of sucrose to amino acids of about 5 (Riens et al., 1991). Fixed constraints on production of starch and fatty acids are not appropriate in the coupled framework. Since we are not aware of data that explains how these fluxes scale with net CO2 assimilation rate, the constraints were removed from the model. Reactions belonging to the GS/GOGAT system were assumed to be irreversible. Nitrogen is available in the form of nitrate as opposed to NH3 in the original model. Since there is no evidence suggesting mesophyll specificity of PEPC in intermediate Flaveria species, we unconstrained PEPC flux in the bundle sheath.

To couple the genome-scale FBA model with the mechanistic model of carbon fixation, the following reactions were constrained using the values predicted by the mechanistic model: net CO2 uptake, Rubisco carboxylation and oxygenation in mesophyll and bundle sheath, CO2 leakage from the bundle sheath, PEPC activity in the mesophyll, activity of NADP-ME in the bundle sheath, plasmodesmatal flux of glycine and serine and decarboxylation by the GDC complex. The lower bound on glycine diffusion (Vmin,Gly), serine diffusion (Vmin,Ser), and GDC reaction (Vmin,GDC) can be obtained from the rate of Rubisco oxygenation in the mesophyll (Vom) and the fraction of photorespiratory CO2 in the bundle sheath derived from mesophyll oxygenations (ξ):

vmin,Gly=ξVom,vmin,Ser=0.5ξVom,vmin,GDC=0.5ξVom

The mechanistic model was parameterized to the C3 state as given in Heckmann et al. (2013), with the exception of the parameter ξ, which was set to a value of 0.98 (i.e., the majority of GDC activity was restricted to the bundle sheath. Derivation from transcriptome data is given in Heckmann et al. (2013)). These constraints on the reactions of the photorespiratory pump are necessary to adequately predict C2 photosynthesis because of the inability of FBA alone to model CCMs (see discussion above).

In the FBA part of the model, a minimization of total flux (MTF) analysis was conducted in order to narrow down the space of optimal solutions:

Minimize i=1nwi|vi|

subject to: Sv=0.

vmin,ivivmax,i
cTv=cTvFBA

where vFBA is the flux distribution of the FBA optimization described above. w denotes a vector of weights, where plasmodesmatal flux received a higher weighting factor (1.1 for plasmodesmatal exchange, 1 for the remaining reactions). This method implements a simple minimization of protein costs for a given optimal biomass production. The higher weights on plasmodesmatal fluxes account for the trade-off between CO2 containment in the bundle sheath and metabolite diffusion between the cells. Since this trade-off is difficult to quantify, we conducted a sensitivity analysis by varying the weight on plasmodesmatal transport reactions.

In order to investigate the possible range that fluxes can take while yielding an optimal solution, flux variability analysis was conducted:

For each vi:

Maximize or Minimizevi.

Subject to: Sv=0.

vmin,ivivmax,i
cTv=cTvFBA
i=1nwi|vi|=sopt

Where sopt is the minimum for the weighted sum of absolute flux found in the MTF optimization.

All simulations were conducted in the R environment for statistical computing (R Core Team, 2013) using the sybil library (Gelius-Dietrich et al., 2013).

Accession numbers

The read data have been submitted to the National Center for Biotechnology Information Short Read Archive under accession numbers SRP036880 (F. bidentis), SRP036881 (F. anomala), SRP036883 (F. brownii), SRP036884 (F. chloraefolia), SRP036885 (F. pringlei), SRP037526 (F. pubescens), SRP037527 (F. ramosissima), SRP037528 (F. robusta) and SRP037529 (F. trinervia).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
    Photorespiration: the bridge to C4 photosynthesis
    1. H Bauwe
    (2011)
    In: AS Raghavendra, RF Sage, editors. C4 Photosynthesis and related CO2 concentrating mechanisms. Dordrecht, Netherlands: Springer. pp. 81–108.
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    On the origin of species by means of natural selection, or the preservation of favoured races in the struggle for life (6th Edn)
    1. C Darwin
    (1872)
    London: John Murray.
  16. 16
    Leaf structure and development in C4 plants
    1. NG Dengler
    2. T Nelson
    (1999)
    In: FS Rowan, KM Russell, editors. C4 plant biology. San Diego: Academic Press. pp. 133–172.
  17. 17
    Biochemistry of C3-C4 intermediates
    1. GE Edwards
    2. MS Ku
    (1987)
    In: MD Hatch, NK Boardman, editors. The biochemistry of plants. New York: Academic Press. pp. 275–325.
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
    Exaptation-a missing term in the science of form
    1. SJ Gould
    2. ES Vrba
    (1982)
    Paleobiology 8:4–15.
  24. 24
  25. 25
    Physiologische Pflanzenanatomie (3rd edn)
    1. G Haberlandt
    (1904)
    Leipzig, Germany: Verlag von Wilhelm Engelmann.
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
    Data from: the role of photorespiration during the evolution of C4 photosynthesis in the genus Flaveria
    1. J Mallmann
    2. D Heckmann
    3. A Bräutigam
    4. MJ Lercher
    5. APM Weber
    6. P Westhoff
    7. U Gowik
    (2014)
    Dryad Digital Repository, 10.5061/dryad.q827h.
  39. 39
  40. 40
  41. 41
    CO2 assimilation in C3-C4 intermediate plants
    1. R Monson
    2. S Rawsthorne
    (2000)
    In: R Leegood, T Sharkey, S Caemmerer, editors. Photosynthesis, Vol 9. Netherlands: Springer. pp. 533–550.
  42. 42
  43. 43
    C4 photosynthesis and light-dependent accumulation of inorganic carbon in leaves of C3−C4 and C4 Flaveria species
    1. B Moore
    2. M Ku
    3. G Edwards
    (1987)
    Australian Journal of Plant Physiology 14:657–668.
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
    R foundation for statistical computing
    1. R Core Team
    (2013)
    R foundation for statistical computing, Vienna, Austria, URL http://www.R-project.org/.
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
    Stoichiometric flux balance models quantitatively predict growth and metabolic by-product secretion in wild-type Escherichia coli W3110
    1. A Varma
    2. BO Palsson
    (1994)
    Applied and Environmental Microbiology 60:3724–3731.
  67. 67
  68. 68
    Biochemical models of leaf photosynthesis
    1. S von Caemmerer
    (2000)
    Collingwood, Australia: Csiro Publishing.
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73

Decision letter

  1. Detlef Weigel
    Reviewing Editor; Max Planck Institute for Developmental Biology, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “The role of photorespiration during the evolution of C4photosynthesis in the genus Flaveria” for consideration at eLife. Your article has been favorably evaluated by a Senior editor (Detlef Weigel) and 3 reviewers, one of whom, Chris Pires, has agreed to reveal his identity.

The Senior editor and the reviewers discussed their comments before we reached this decision, and the Senior editor has assembled the following comments to help you prepare a revised submission.

This is a genuinely exciting and provocative study; if the results hold up, they are extremely important for the field, and represent a major advance in our understanding of C4 evolution.

The hypothesis tested is that the C2 photosynthesis pump is an evolutionary precursor in the shift from C3 to C4 photosynthesis (which has happened multiple times). Across nine Flaveria species that includes C3, C4 and intermediate species taxa with intermediate C3 and C4 photosynthesis, transcriptome and protein data were collected and analyzed in a phylogenetic context. A global genome-wide metabolic model and flux balance analysis (FBA) was used to integrate models with transcript abundance. The coordinated changes in expression of all main photorespiratory enzymes strongly suggest an evolutionary scenario for the origin of C4 photosynthesis. Very little attention has been paid in the past to nitrogen effects of C2, yet the problem is obvious, and if the C4 cycle is the most direct way to rebalance N within the leaf tissue, then this route provides an immediate solution to a very important and poorly understood transition in the trajectory. It implies that C2 crosses a new threshold of C4 accessibility, and that C4 is all but an inevitable outcome. This also can partially explain the relative rarity of known C2 phenotypes – this may be a part of phenotypic space with a low 'persistence time' – an area that lineages rarely evolve into and very quickly evolve out of.

Key to your argument is whether or not the 're-tooling' of the C4GEM model to accommodate a C2 system was done properly. I'd suggest getting an additional reviewer with expertise in metabolic modeling for that. The analysis done is fairly standard, but relies on several assumptions and choices that do not seem to be justified in the present version of the manuscript. In addition, robustness checks, particularly with respect to the uniqueness of the solutions, need to be obtained, analyzed, and subsequently interpreted.

Details:

1) How could the selected 11 fluxes be fixed from the mechanistic model? The cited mechanistic models (von Caemmerer, 2000; Heckmann et al., 2013) aim at predicting CO2 assimilation rate given a set of parameter values (e.g., Michaelis-Menten constants) as well as input values for partial pressure of CO2 and O2. The cited mechanistic model does not include the plasmodesmatal flux of glycine and serine or the decarboxylation of the GDC. Moreover, the CO2 uptake rate is assumed (not predicted by the model). These points need to be further elaborated on.

2) You state that you maximized biomass production rate. However, you do not comment on why fixed constraints on production of starch and fatty acids were removed; this should be supported by literature or clear reasons should be provided. The remaining model modifications seem plausible.

3) The second objective applied is the minimization of the sum of absolute fluxes including transport processes (at fixed optimal biomass production rate). In doing so, higher weight was assigned to plasmodesmatal fluxes (expecting that they receive lower flux). However, as shown in the Methods section, the weight for the plasmodesmatal fluxes is seemingly arbitrarily chosen to be 1.1. What effect would the increase of this value to, say, 2 or 5 have on the drawn conclusions from this study? Either clear reasoning for selection of the value 1.1 should be provided (the mentioned trade-off does justify the selection of the value) or additional tests should be carried out to explore the consequences of other (biologically reasonable) weights for these reactions.

4) You state that this framework allows the prediction of detailed flux distributions that are biologically realistic. In the Methods section, you also indicate that the combination of several objectives was used to reduce the size of the space of optimal solutions. However, you do not provide a statement on whether or not the resulting distributions are indeed unique (e.g., the one provided in Figure 4A). If the distribution for a fixed biomass production and a fixed sum of absolute flux values is not unique, the provided findings and interpretation are just one of many available alternatives! This point should be carefully examined (e.g., by Flux variability analysis); this analysis must be coupled with the issues raised in point 3, above.

5) The alternative solutions with a larger number of reactions are presented without providing how much they differ in terms of the total absolute values of flux from that of the preferred glutamate/2-oxoglutarate solution. The increase in the total absolute plasmodesmatal flux, evident in Figure 4 A–D, should be discussed with respect to biological implications.

6) The statement “In terms of biomass production rate, this shuttle represents another alternative optimal solution” in the Results section, is confusing and may be misleading. Is this an alternative solution for the same total absolute values of flux as the glutamate/2-oxoglutarate solution? If not, this sentence can be dropped since it was already indicated that alternatives were selected to “retain the same biomass output”.

7) In the Results section, what do you mean by “In a restrictive scenario, all nitrogen containing compounds were excluded, except for glycine and serene”? What does that do to the reactions that use these metabolites? Are they also removed?

8) The prediction of the model discussed in the Results section should be investigated with respect to the issues raised in points 3 – 5, above.

[Editors' note: further clarifications were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled “The role of photorespiration during the evolution of C4 photosynthesis in the genus Flaveria” for further consideration at eLife. Your revised article has been favorably evaluated by Detlef Weigel (Senior editor) and a member of the Board of Reviewing Editors. The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The authors have carefully considered the suggestions provided about the earlier version of the manuscript and have: (1) offered detailed explanations of how the results of the mechanistic model were used to constrain the larger stoichiometric model as well as (2) conducted flux variability analysis for the different alternative scenarios to support the robustness of the predictions.

The only remaining concern deals with the details on lower/upper boundary selection for the diffusion fluxes and their effects on the predictions. Additional clarifications (and/or analyses) may further strengthen the predictions: The lower bounds on the diffusion of gylcine, serine, and NADPME reaction are fixed based on oxygenation rate and the fraction of photorespiratory CO2 in the bundle sheath derived from mesophyll oxygenations.

1) Please, indicate the value for the latter parameter (i.e., the fraction of photorespiratory CO2 in the bundle sheath derived from mesophyll oxygenations).

2) To thoroughly examine the viability of the modeling strategy, it is also necessary to determine the variability of model predictions without specifying tight lower (and upper) boundaries (as several fluxes are specified together with two optimization criteria), which may a priori fix the solution. What is the variability of the solutions with default lower/upper boundaries (say, of 0/1000 (irreversible case)) for the diffusion fluxes?

This additional analysis can be readily conducted and included in the manuscript.

https://doi.org/10.7554/eLife.02478.020

Author response

1) How could the selected 11 fluxes be fixed from the mechanistic model? The cited mechanistic models (von Caemmerer, 2000; Heckmann et al., 2013) aim at predicting CO2 assimilation rate given a set of parameter values (e.g., Michaelis-Menten constants) as well as input values for partial pressure of CO2 and O2. The cited mechanistic model does not include the plasmodesmatal flux of glycine and serine or the decarboxylation of the GDC. Moreover, the CO2 uptake rate is assumed (not predicted by the model). These points need to be further elaborated on.

We apologize for not explaining these points in more detail. The mentioned fluxes are indeed not described explicitly, but are described by the model implicitly. We expanded the Method section to show how these were included. The net CO2 uptake rate is predicted by the mechanistic model and can be readily used as a constraint in the flux-balance analysis.

2) You state that you maximized biomass production rate. However, you do not comment on why fixed constraints on production of starch and fatty acids were removed; this should be supported by literature or clear reasons should be provided. The remaining model modifications seem plausible.

The original C4GEM model does not contain starch and fatty acid production as part of the biomass function. Instead, the fluxes are fixed by constraints. Since we are not aware of data that explains how these fluxes scale with CO2 assimilation rate, we removed the respective constraints from the model. This rationale is now described in more detail in the Methods section.

3) The second objective applied is the minimization of the sum of absolute fluxes including transport processes (at fixed optimal biomass production rate). In doing so, higher weight was assigned to plasmodesmatal fluxes (expecting that they receive lower flux). However, as shown in the Methods section, the weight for the plasmodesmatal fluxes is seemingly arbitrarily chosen to be 1.1. What effect would the increase of this value to, say, 2 or 5 have on the drawn conclusions from this study? Either clear reasoning for selection of the value 1.1 should be provided (the mentioned trade-off does justify the selection of the value) or additional tests should be carried out to explore the consequences of other (biologically reasonable) weights for these reactions.

Although the trade-off between metabolite transport and CO2 containment suggests additional weight on plasmodesmatal fluxes, we have to admit that an exact value cannot be inferred from available data. To account for this issue, we conducted a sensitivity analysis against the weight on plasmodesmatal flux. The results presented in Figure 4 are generally stable against variation in weights. Interestingly, the shuttles αKG/Glu and the Mal/Asp shuttle are extended to use nitrogen rich compounds (Gln and Asn respectively) when very high weights are applied. We included these findings in the Results section. The resulting flux over plasmodesmata including flux variability (see point 4) can be found as part of the Supplementary Material.

4) You state that this framework allows the prediction of detailed flux distributions that are biologically realistic. In the Methods section, you also indicate that the combination of several objectives was used to reduce the size of the space of optimal solutions. However, you do not provide a statement on whether or not the resulting distributions are indeed unique (e.g., the one provided in Figure 4A). If the distribution for a fixed biomass production and a fixed sum of absolute flux values is not unique, the provided findings and interpretation are just one of many available alternatives! This point should be carefully examined (e.g., by Flux variability analysis); this analysis must be coupled with the issues raised in point 3, above.

Our rationale behind assuming a small solution space was the application of the two optimality criteria; but we agree with you entirely that this should be shown more rigorously. We thus implemented a flux variability analysis and added the results to the fluxes shown in Figure 4 and 5. The analysis shows that the space of optimal solutions is small and only minuscule variability in the fluxes of the shuttles is possible. The algorithm is described in the Methods and the Results section of the main text.

5) The alternative solutions with a larger number of reactions are presented without providing how much they differ in terms of the total absolute values of flux from that of the preferred glutamate/2-oxoglutarate solution. The increase in the total absolute plasmodesmatal flux, evident in Figure 4 A–D, should be discussed with respect to biological implications.

The sum of absolute flux over plasmodesmata was added to the legend of Figure 4 and 5.

6) The statement “In terms of biomass production rate, this shuttle represents another alternative optimal solution” in the Results section, is confusing and may be misleading. Is this an alternative solution for the same total absolute values of flux as the glutamate/2-oxoglutarate solution? If not, this sentence can be dropped since it was already indicated that alternatives were selected to “retain the same biomass output”.

We agree with you that this point does not need further emphasis and removed the sentence.

7) In the Results section, what do you mean by “In a restrictive scenario, all nitrogen containing compounds were excluded, except for glycine and serene”? What does that do to the reactions that use these metabolites? Are they also removed?

We apologize for not stating that we exclusively excluded plasmodesmatal nitrogen compounds and changed the sentence to make this point clear to the reader.

8) The prediction of the model discussed in the Results section should be investigated with respect to the issues raised in points 3 – 5, above.

We now mention the alternative solution of the flux distribution shown in Figure 5 and the trade-off between metabolite diffusion and gas containment in the Results section.

[Editors' note: further clarifications were requested prior to acceptance, as described below.]

1) Please, indicate the value for the latter parameter (i.e., the fraction of photorespiratory CO2 in the bundle sheath derived from mesophyll oxygenations).

We indicate the fraction of photorespiratory CO2 in the bundle sheath derived from mesophyll oxygenation (0.98 – the derivation from transcriptome data is given in Heckmann et al., 2013) now in the Methods section of the manuscript.

2) To thoroughly examine the viability of the modeling strategy, it is also necessary to determine the variability of model predictions without specifying tight lower (and upper) boundaries (as several fluxes are specified together with two optimization criteria), which may a priori fix the solution. What is the variability of the solutions with default lower/upper boundaries (say, of 0/1000 (irreversible case)) for the diffusion fluxes?

The rationale behind our modeling approach was to incorporate current mechanistic knowledge about C2 photosynthesis in Flaveria in such a way that we can answer the question: Given our current understanding of C2 photosynthesis, what is the implementation of this pathway in the plant leaf that optimizes fitness-relevant criteria?

In our opinion, the most reasonable approach to answering this question was the description of the current conceptual model of C2 photosynthesis (that includes diffusion of glycine and serine) through mechanistic equations and to yield lower bounds for the respective reactions in the stoichiometric model. We understand the reviewers’ question as an equivalent of asking:

Why is it necessary to yield lower bounds for the fluxes of the photorespiratory pump from the mechanistic model? If C2 photosynthesis increases biomass yield, shouldn’t FBA be able to predict such a cycle without the need for further constraints?

As stated in the Methods section of the manuscript Flux Balance Analysis is a powerful tool but it cannot model metabolite concentrations explicitly. Therefore fluxes related to concentration-dependent processes, like carbon concentration mechanisms, cannot be captured by this constraint-based approach. To account for this issue we used values, predicted by the mechanistic model of C3-C4 photosynthesis, for constraining certain fluxes within the FBA model to integrate C2 photosynthesis by creating flux through this pathway. The mechanistic model explicitly accounts for concentrations of CO2 and O2 in the two cell types and predicts the rates of rubisco carboxylation and oxygenation that result from these concentrations. The fluxes mentioned by the reviewer: diffusion of glycine, serine and the GDC reaction belong to these fluxes that have to be constrained to ensure flux through the C2 cycle. When we remove these constraints the model will not predict C2 photosynthetic activity anymore.

We checked this and indeed fluxes through the C2 photosynthetic cycle, but also the predicted fluxes to recirculate ammonia from bundle sheath to mesophyll cells, disappear when we remove constraints on the plasmodesmatal diffusion of glycine, serine, and CO2 and the GDC reaction. We added a sentence to the Methods section to clarify this point.

https://doi.org/10.7554/eLife.02478.021
