Sustainable biofuel production from renewable biomass will require the efficient and complete use of all abundant sugars in the plant cell wall. Using the cellulolytic fungus Neurospora crassa as a model, we identified a xylodextrin transport and consumption pathway required for its growth on hemicellulose. Reconstitution of this xylodextrin utilization pathway in Saccharomyces cerevisiae revealed that fungal xylose reductases act as xylodextrin reductases, producing xylosyl-xylitol oligomers as metabolic intermediates. These xylosyl-xylitol intermediates are generated by diverse fungi and bacteria, indicating that xylodextrin reduction is widespread in nature. Xylodextrins and xylosyl-xylitol oligomers are then hydrolyzed by two hydrolases to generate intracellular xylose and xylitol. Xylodextrin consumption using a xylodextrin transporter, xylodextrin reductases and tandem intracellular hydrolases in cofermentations with sucrose and glucose greatly expands the capacity of yeast to use plant cell wall-derived sugars and has the potential to increase the efficiency of both first-generation and next-generation biofuel production.https://doi.org/10.7554/eLife.05896.001
Plants can be used to make ‘biofuels’, which are more sustainable alternatives to traditional fuels made from petroleum. Unfortunately, most biofuels are currently made from simple sugars or starch extracted from parts of plants that we also use for food, such as the grains of cereal crops.
Making biofuels from the parts of the plant that are not used for food—for example, the stems or leaves—would enable us to avoid a trade-off between food and fuel production. However, most of the sugars in these parts of the plant are locked away in the form of large, complex carbohydrates called cellulose and hemicellulose, which form the rigid cell wall surrounding each plant cell.
Currently, the industrial processes that can be used to make biofuels from plant cell walls are expensive and use a lot of energy. They involve heating or chemically treating the plant material to release the cellulose and hemicellulose. Then, large quantities of enzymes are added to break these carbohydrates down into simple sugars that can then be converted into alcohol (a biofuel) by yeast.
Fungi may be able to provide us with a better solution. Many species are able to grow on plants because they can break down cellulose and hemicellulose into simple sugars they can use for energy. If the genes involved in this process could be identified and inserted into yeast it may provide a new, cheaper method to make biofuels from plant cell walls.
To address this challenge, Li et al. studied how the fungus Neurospora crassa breaks down hemicellulose. This study identified a protein that can transport molecules of xylodextrin—which is found in hemicellulose—into the cells of the fungus, and two enzymes that break down the xylodextrin to make simple sugars, using a previously unknown chemical intermediate. When Li et al. inserted the genes that make the transport protein and the enzymes into yeast, the yeast were able to use plant cell wall material to make simple sugars and convert these to alcohol.
The yeast used more of the xylodextrin when they were grown with an additional source of energy, such as the sugars glucose or sucrose. Li et al.'s findings suggest that giving yeast the ability to break down hemicellulose has the potential to improve the efficiency of biofuel production. The next challenge will be to improve the process so that the yeast can convert the xylodextrin and simple sugars more rapidly.https://doi.org/10.7554/eLife.05896.002
The biological production of biofuels and renewable chemicals from plant biomass requires an economic way to convert complex carbohydrate polymers from the plant cell wall into simple sugars that can be fermented by microbes (Carroll and Somerville, 2009; Chundawat et al., 2011). In current industrial methods, cellulose and hemicellulose, the two major polysaccharides found in the plant cell wall (Somerville et al., 2004), are generally processed into monomers of glucose and xylose, respectively (Chundawat et al., 2011). In addition to harsh pretreatment of biomass, large quantities of cellulase and hemicellulase enzyme cocktails are required to release monosaccharides from plant cell wall polymers, posing unsolved economic and logistical challenges (Lynd et al., 2002; Himmel et al., 2007; Jarboe et al., 2010; Chundawat et al., 2011). The bioethanol industry currently uses the yeast Saccharomyces cerevisiae to ferment sugars derived from cornstarch or sugarcane into ethanol (Hong and Nielsen, 2012), but S. cerevisiae requires substantial engineering to ferment sugars derived from plant cell walls such as cellobiose and xylose (Kuyper et al., 2005; Jeffries, 2006; van Maris et al., 2007; Ha et al., 2011; Hong and Nielsen, 2012; Young et al., 2014).
In contrast to S. cerevisiae, many cellulolytic fungi including Neurospora crassa (Tian et al., 2009) naturally grow well on the cellulose and hemicellulose components of the plant cell wall. By using transcription profiling data (Tian et al., 2009) and by analyzing growth phenotypes of N. crassa knockout strains, we identified separate pathways used by N. crassa to consume cellodextrins (Galazka et al., 2010) and xylodextrins released by its secreted enzymes (Figure 1A and Figure 1—figure supplement 1). A strain carrying a deletion of a previously identified cellodextrin transporter (CDT-2, NCU08114) (Galazka et al., 2010) was unable to grow on xylan (Figure 1—figure supplement 2), and xylodextrins remained in the culture supernatant (Figure 1—figure supplement 3). As a direct test of transport function of CDT-2, S. cerevisiae strains expressing cdt-2 were able to import xylobiose, xylotriose, and xylotetraose (Figure 1—figure supplement 4). Notably, N. crassa expresses a putative intracellular β-xylosidase, GH43-2 (NCU01900), when grown on xylan (Sun et al., 2012). Purified GH43-2 displayed robust hydrolase activity towards xylodextrins with a degree of polymerization (DP) spanning from 2 to 8, and with a pH optimum near 7 (Figure 1—figure supplement 5). The results with CDT-2 and GH43-2 confirm those obtained independently in Cai et al. (2014). As with cdt-1, orthologues of cdt-2 are widely distributed in the fungal kingdom (Galazka et al., 2010), suggesting that many fungi consume xylodextrins derived from plant cell walls. Furthermore, as with intracellular β-glucosidases (Galazka et al., 2010), intracellular β-xylosidases are also widespread in fungi (Sun et al., 2012) (Figure 1—figure supplement 6).

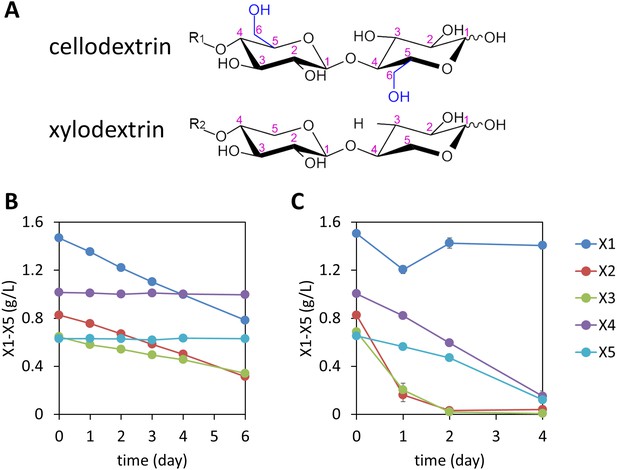

Cellodextrins and xylodextrins derived from plant cell walls are not catabolized by wild-type S. cerevisiae (Matsushika et al., 2009; Galazka et al., 2010; Young et al., 2010). Reconstitution of a cellodextrin transport and consumption pathway from N. crassa in S. cerevisiae enabled this yeast to ferment cellobiose (Galazka et al., 2010). We therefore reasoned that expression of a functional xylodextrin transport and consumption system from N. crassa might further expand the capabilities of S. cerevisiae to utilize plant-derived xylodextrins. Previously, S. cerevisiae was engineered to consume xylose by introducing xylose isomerase (XI), or by introducing xylose reductase (XR) and xylitol dehydrogenase (XDH) (Jeffries, 2006; van Maris et al., 2007; Matsushika et al., 2009). To test whether S. cerevisiae could utilize xylodextrins, a S. cerevisiae strain was engineered with the XR/XDH pathway derived from Scheffersomyces stipitis—similar to that in N. crassa (Sun et al., 2012)—and a xylodextrin transport (CDT-2) and consumption (GH43-2) pathway from N. crassa. The xylose utilizing yeast expressing CDT-2 along with the intracellular β-xylosidase GH43-2 was able to directly utilize xylodextrins with DPs of 2 or 3 (Figure 1B and Figure 1—figure supplement 7).
Notably, although high cell density cultures of the engineered yeast were capable of consuming xylodextrins with DPs up to 5, xylose levels remained high (Figure 1C), suggesting the existence of severe bottlenecks in the engineered yeast. These results mirror those of a previous attempt to engineer S. cerevisiae for xylodextrin consumption, in which xylose was reported to accumulate in the culture medium (Fujii et al., 2011). Analyses of the supernatants from cultures of the yeast strains expressing CDT-2, GH43-2 and the S. stipitis XR/XDH pathway surprisingly revealed that the xylodextrins were converted into xylosyl-xylitol oligomers, a set of previously unknown compounds rather than hydrolyzed to xylose and consumed (Figure 2A and Figure 2—figure supplement 1). The resulting xylosyl-xylitol oligomers were effectively dead-end products that could not be metabolized further.

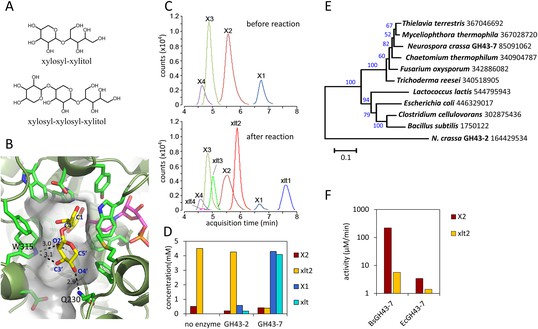

Since the production of xylosyl-xylitol oligomers as intermediate metabolites has not been reported, the molecular components involved in their generation were examined. To test whether the xylosyl-xylitol oligomers resulted from side reactions of xylodextrins with endogenous S. cerevisiae enzymes, we used two separate yeast strains in a combined culture, one containing the xylodextrin hydrolysis pathway composed of CDT-2 and GH43-2, and the second with the XR/XDH xylose consumption pathway. The strain expressing CDT-2 and GH43-2 would cleave xylodextrins to xylose, which could then be secreted via endogenous transporters (Hamacher et al., 2002) and serve as a carbon source for the strain expressing the xylose consumption pathway (XR and XDH). The engineered yeast expressing XR and XDH is only capable of consuming xylose (Figure 1B). When co-cultured, these strains consumed xylodextrins without producing the xylosyl-xylitol byproduct (Figure 2—figure supplement 2). These results indicate that endogenous yeast enzymes and GH43-2 transglycolysis activity are not responsible for generating the xylosyl-xylitol byproducts, that is, that they must be generated by the XR from S. stipitis (SsXR).
Fungal xylose reductases such as SsXR have been widely used in industry for xylose fermentation. However, the structural details of substrate binding to the XR active site have not been established. To explore the molecular basis for XR reduction of oligomeric xylodextrins, the structure of Candida tenuis xylose reductase (CtXR) (Kavanagh et al., 2002), a close homologue of SsXR, was analyzed. CtXR contains an open active site cavity where xylose could bind, located near the binding site for the NADH co-factor (Kavanagh et al., 2002; Kratzer et al., 2006). Notably, the open shape of the active site can readily accommodate the binding of longer xylodextrin substrates (Figure 2B). Using computational docking algorithms (Trott and Olson, 2010), xylobiose was found to fit well in the pocket. Furthermore, there are no obstructions in the protein that would prevent longer xylodextrin oligomers from binding (Figure 2B).

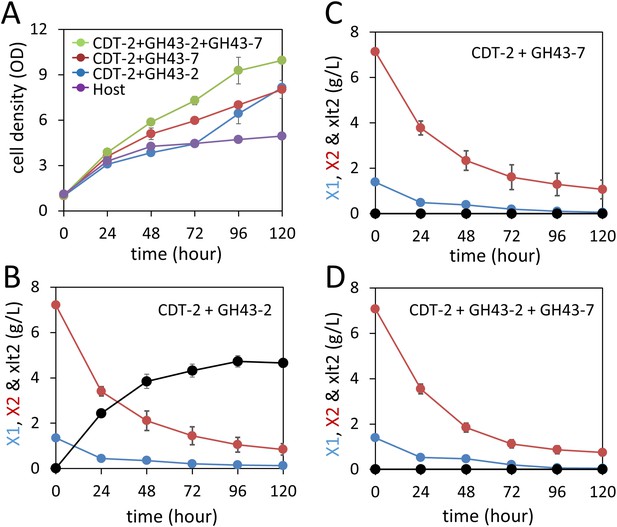

We reasoned that if the xylosyl-xylitol byproducts are generated by fungal XRs like that from S. stipitis, similar side products should be generated in N. crassa, thereby requiring an additional pathway for their consumption. Consistent with this hypothesis, xylose reductase XYR-1 (NCU08384) from N. crassa also generated xylosyl-xylitol products from xylodextrins (Figure 2C). However, when N. crassa was grown on xylan, no xylosyl-xylitol byproduct accumulated in the culture medium (Figure 1—figure supplement 3). Thus, N. crassa presumably expresses an additional enzymatic activity to consume xylosyl-xylitol oligomers. Consistent with this hypothesis, a second putative intracellular β-xylosidase upregulated when N. crassa was grown on xylan, GH43-7 (NCU09625) (Sun et al., 2012), had weak β-xylosidase activity but rapidly hydrolyzed xylosyl-xylitol into xylose and xylitol (Figure 2D and Figure 2—figure supplement 3). The newly identified xylosyl-xylitol-specific β-xylosidase GH43-7 is widely distributed in fungi and bacteria (Figure 2E), suggesting that it is used by a variety of microbes in the consumption of xylodextrins. Indeed, GH43-7 enzymes from the bacteria Bacillus subtilis and Escherichia coli cleave both xylodextrin and xylosyl-xylitol (Figure 2F).

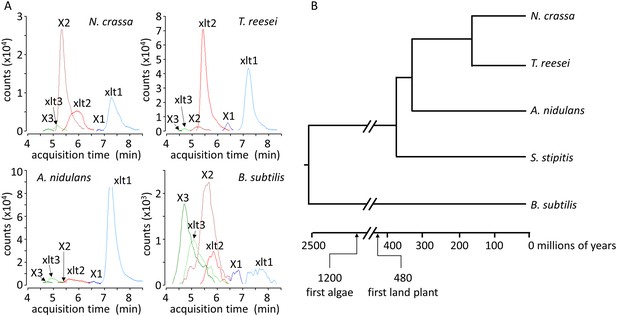

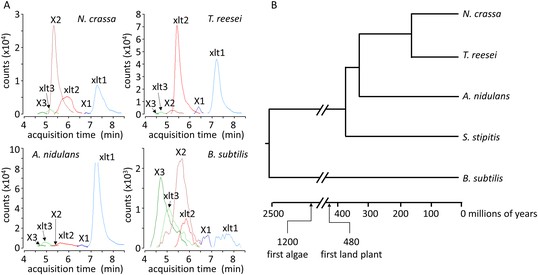

To test whether xylosyl-xylitol is produced generally by microbes as an intermediary metabolite during their growth on hemicellulose, we extracted and analyzed the metabolites from a number of ascomycetes species and B. subtilis grown on xylodextrins. Notably, these widely divergent fungi and B. subtilis all produce xylosyl-xylitols when grown on xylodextrins (Figure 3A and Figure 3—figure supplement 1). These organisms span over 1 billion years of evolution (Figure 3B), indicating that the use of xylodextrin reductases to consume plant hemicellulose is widespread.
We next tested whether integration of the complete xylodextrin consumption pathway would overcome the poor xylodextrin utilization by S. cerevisiae (Figure 1) (Fujii et al., 2011). When combined with the original xylodextrin pathway (CDT-2 plus GH43-2), GH43-7 enabled S. cerevisiae to grow more rapidly on xylodextrin (Figure 4A) and eliminated accumulation of xylosyl-xylitol intermediates (Figure 4B–D and Figure 4—figure supplement 1). The presence of xylose and glucose greatly improved anaerobic fermentation of xylodextrins (Figure 5 and Figure 5—figure supplement 1 and Figure 5—figure supplement 2), indicating that metabolic sensing in S. cerevisiae with the complete xylodextrin pathway may require additional tuning (Youk and van Oudenaarden, 2009) for optimal xylodextrin fermentation. Notably, we observed that the XR/XDH pathway produced much less xylitol when xylodextrins were used in fermentations than from xylose (Figure 5 and Figure 5—figure supplement 2B). Taken together, these results reveal that the XR/XDH pathway widely used in engineered S. cerevisiae naturally has broad substrate specificity for xylodextrins, and complete reconstitution of the naturally occurring xylodextrin pathway is necessary to enable S. cerevisiae to efficiently consume xylodextrins.

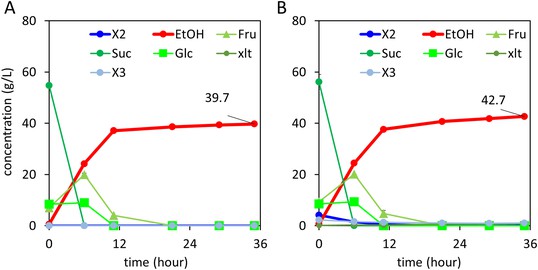

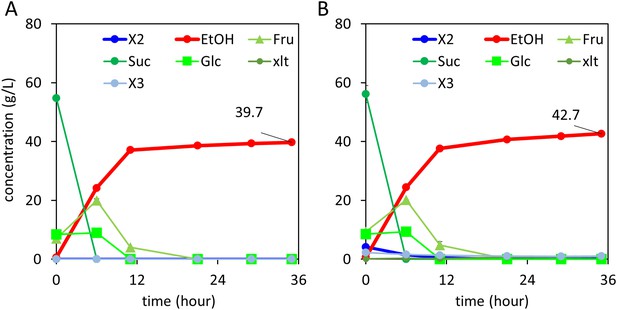

The observation that xylodextrin fermentation was stimulated by glucose (Figure 5B) suggested that the xylodextrin pathway could serve more generally for cofermentations to enhance biofuel production. We therefore tested whether xylodextrin fermentation could be carried out simultaneously with sucrose fermentation, as a means to augment ethanol yield from sugarcane. In this scenario, xylodextrins released by hot water treatment (Hendriks and Zeeman, 2009; Agbor et al., 2011; Vallejos et al., 2012) could be added to sucrose fermentations using yeast engineered with the xylodextrin consumption pathway. To test this idea, we used strain SR8U engineered with the xylodextrin pathway (CDT-2, GH43-2, and GH43-7) in fermentations combining sucrose and xylodextrins. We observe simultaneous fermentation of sucrose and xylodextrins, with increased ethanol yields (Figure 6). Notably, the levels of xylitol production were found to be low (Figure 6), as observed in cofermentations with glucose (Figure 5B).

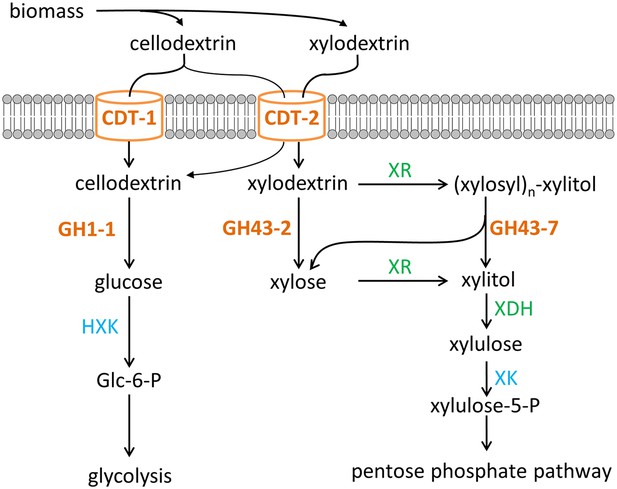

Using yeast as a test platform, we identified a xylodextrin consumption pathway in N. crassa (Figure 7) that surprisingly involves a new metabolic intermediate widely produced in nature by many fungi and bacteria. In bacteria such as B. subtilis, xylosyl-xylitol may be generated by aldo-keto reductases known to possess broad substrate specificity (Barski et al., 2008). The discovery of the xylodextrin consumption pathway along with cellodextrin consumption (Galazka et al., 2010) in cellulolytic fungi for the two major sugar components of the plant cell wall now provides many modes of engineering yeast to ferment plant biomass-derived sugars (Figure 7). An alternative xylose consumption pathway using xylose isomerase could also be used with the xylodextrin transporter and xylodextrin hydrolase GH43-2 (van Maris et al., 2007). However, the XR/XDH pathway may provide significant advantages in realistic fermentation conditions with sugars derived from hemicellulose. The breakdown of hemicellulose, which is acetylated (Sun et al., 2012), releases highly toxic acetate, degrading the performance of S. cerevisiae fermentations (Bellissimi et al., 2009; Sun et al., 2012). The cofactor imbalance problem of the XR/XDH pathway, which can lead to accumulation of reduced byproducts (xylitol and glycerol) and therefore was deemed a problem, can be exploited to drive acetate reduction, thereby detoxifying the fermentation medium and increasing ethanol production (Wei et al., 2013).

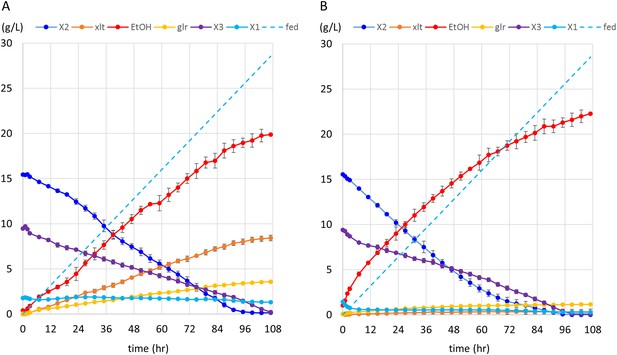

With optimization, that is, through improvements to xylodextrin transporter performance and chromosomal integration (Ryan et al., 2014), the newly identified xylodextrin consumption pathway provides new opportunities to expand first-generation bioethanol production from cornstarch or sugarcane to include hemicellulose from the plant cell wall. For example, we propose that xylodextrins released from the hemicellulose in sugarcane bagasse by using compressed hot water treatment (Hendriks and Zeeman, 2009; Agbor et al., 2011; Vallejos et al., 2012) could be directly fermented by yeast engineered to consume xylodextrins, as we have shown in proof-of-principle experiments (Figure 6). Xylodextrin consumption combined with glucose or cellodextrin consumption (Figure 7) could also improve next-generation biofuel production from lignocellulosic feedstocks under a number of pretreatment scenarios (Hendriks and Zeeman, 2009; Vallejos et al., 2012). These pathways could find widespread use to overcome remaining bottlenecks to fermentation of lignocellulosic feedstocks as a sustainable and economical source of biofuels and renewable chemicals.
Conidia were inoculated at a concentration equal to 106 conidia per ml in 3 ml Vogel's media (Vogel, 1956) with 2% wt/vol powdered Miscanthus giganteus (Energy Bioscience Institute, UC-Berkeley), Avicel PH 101 (Sigma-Aldrich, St. Louis, MO), beechwood xylan (Sigma-Aldrich), or pectin (Sigma-Aldrich) in a 24-well deep-well plate. The plate was sealed with Corning breathable sealing tape and incubated at 25°C in constant light and with shaking (200 rpm). Images were taken at 48 hr. Culture supernatants were diluted 200 times with 0.1 M NaOH before Dionex high-performance anion exchange chromatographic (HPAEC) analysis, as described below. N. crassa growth on xylan was also determined by measuring N. crassa biomass accumulation. N. crassa grown on xylan for 3 days was harvested by filtration over a Whatman glass microfiber filter (GF/F) on a Büchner funnel and washed with 50 ml water. Biomass was then collected from the filter, dried in a 70°C oven, and weighed.
Template gDNA from the N. crassa WT strain (FGSC 2489) and from the S. cerevisiae S288C strain was extracted as described in http://www.fgsc.net/fgn35/lee35.pdf (McCluskey et al., 2010). Open reading frames (ORFs) of the β-xylosidase genes NCU01900 and NCU09652 (GH43-2 and GH43-7) were amplified from the N. crassa gDNA template. For biochemical assays, each ORF was fused with a C-terminal His6-tag and flanked with the S. cerevisiae PTEF1 promoter and CYC1 transcriptional terminator in the 2µ yeast plasmid pRS423 backbone. Plasmid pRS426_NCU08114 was described previously (Galazka et al., 2010). Plasmid pLNL78 containing the xylose utilization pathway (xylose reductase, xylitol dehydrogenase, and xylulose kinase) from S. stipitis was obtained from the lab of John Dueber (Latimer et al., 2014). Plasmid pXD2, a single-plasmid form of the xylodextrin pathway, was constructed by integrating NCU08114 (CDT-2) and NCU01900 (GH43-2) expression cassettes into pLNL78, using the In-Fusion Cloning Kit (Clontech). Plasmid pXD8.4 derived from plasmid pRS316 (Sikorski and Hieter, 1989) was used to express CDT-2 and GH43-2, each from the PCCW12 promoter. Plasmid pXD8.6 was derived from pXD8.4 by replacing the GH43-2 ORF with the ORF for GH43-7. pXD8.7 contained all three expression cassettes (CDT-2, GH43-2, and GH43-7) using the PCCW12 promoter for each. S. cerevisiae strain D452-2 (MATa leu2 his3 ura3 can1) (Kurtzman, 1994) and SR8U (the uracil autotrophic version of the evolved xylose fast utilization strain SR8) (Kim et al., 2013) were used as recipient strains for the yeast experiments. The ORF for N. crassa xylose reductase (xyr-1, NcXR) was amplified from N. crassa gDNA and the introns were removed by overlapping PCR. XR ORF was fused to a C-terminal His6-tag and flanked with the S. cerevisiae PCCW12 promoter and CYC1 transcriptional terminator and inserted into plasmid pRS313.
A list of the plasmids used in this study can be found in Table 1.
S. cerevisiae was grown in an optimized minimum medium (oMM) lacking uracil into late log phase. The oMM contained 1.7 g/l YNB (Sigma-Aldrich, Y1251), twofold appropriate CSM dropout mixture, 10 g/l (NH4)2SO4, 1 g/l MgSO4.7H2O, 6 g/l KH2PO4, 100 mg/l adenine hemisulfate, 10 mg/l inositol, 100 mg/l glutamic acid, 20 mg/l lysine, 375 mg/l serine, and 100 mM 4-morpholineethanesulfonic acid (MES), pH 6.0 (Lin et al., 2014). Cells were then harvested and washed three times with assay buffer (5 mM MES, 100 mM NaCl, pH 6.0) and resuspended to a final OD600 of 40. Substrate stocks were prepared in the same assay buffer at a concentration of 200 μM. Transport assays were initiated by mixing equal volumes of the cell suspension and the substrate stock. Reactions were incubated at 30°C with continuous shaking for 30 min. Samples were centrifuged at 14,000 rpm at 4°C for 5 min to remove yeast cells. 400 μl of each sample supernatant was transferred to an HPLC vial containing 100 μl 0.5 M NaOH, and the concentration of the remaining substrate was measured by HPAEC as described below.
S. cerevisiae strains transformed with pRS423_GH43-2, pRS423_GH43-7, or pRS313_NcXR were grown in oMM lacking histidine with 2% glucose until late log phase before harvesting by centrifugation. E. coli strains BL21DE3 transformed with pET302_BsGH43-7 or pET302_EcGH43-7 were grown in TB medium, induced with 0.2 mM IPTG at OD600 of 0.8, and harvested by centrifugation 12 hr after induction. Yeast or E. coli cell pellets were resuspended in a buffer containing 50 mM Tris–HCl, 100 mM NaCl, 0.5 mM DTT, pH 7.4 and protease inhibitor cocktail (Pierce Biotechnology, Rockford, IL). Cells were lysed with an Avestin homogenizer, and the clarified supernatant was loaded onto a HisTrap column (GE Healthcare, Sweden). His-tagged enzymes were purified with an imidazole gradient, buffer-exchanged into 20 mM Tris–HCl, 100 mM NaCl, pH 7.4, and concentrated to 5 mg/ml.
For the β-xylosidase assay of GH43-2 with xylodextrins, 0.5 μM of purified enzyme was incubated with 0.1% in-house prepared xylodextrin or 1 mM xylobiose (Megazyme, Ireland) in 1× PBS at 30°C. Reactions were sampled at 30 min and quenched by adding 5 vol of 0.1 M NaOH. The products were analyzed by HPAEC as described below. For pH profiling, acetate buffer at pH 4.0, 4.5, 5.0, 5.5, 6.0, and phosphate buffer at 6.5, 7.0, 7.5, 8 were added at a concentration of 0.1 M. For the β-xylosidase assay of GH43-2 and GH43-7 with xylosyl-xylitol, 10 µM of purified enzyme was incubated with 4.5 mM xylosyl-xylitol and 0.5 mM xylobiose in 20 mM MES buffer, pH = 7.0, and 1 mM CaCl2 at 30°C. Reactions were sampled at 3 hr and quenched by heating at 99°C for 10 min. The products were analyzed by ion-exclusion HPLC as described below.
For the xylose reductase assays of NcXR, 1 μM of purified enzyme was incubated with 0.06% xylodextrin and 2 mM NADPH in 1× PBS at 30°C. Reactions were sampled at 30 min and quenched by heating at 99°C for 10 min. The products were analyzed by LC-QToF as described below.
Xylodextrin was purchased from Cascade Analytical Reagents and Biochemicals or prepared according to published procedures (Akpinar et al., 2009) with slight modifications. In brief, 20 g beechwood xylan (Sigma–Aldrich) was fully suspended in 1000 ml water, to which 13.6 ml 18.4 M H2SO4 was added. The mixture was incubated in a 150°C oil bath with continuous stirring. After 30 min, the reaction was poured into a 2-L plastic container on ice, with stirring to allow it to cool. Then 0.25 mol CaCO3 was slowly added to neutralize the pH and precipitate sulfate. The supernatant was filtered and concentrated on a rotary evaporator at 50°C to dryness. The in-house prepared xylodextrin contained about 30% xylose monomers and 70% oligomers. To obtain a larger fraction of short chain xylodextrin, the commercial xylodextrin was dissolved to 20% wt/vol and incubated with 2 mg/ml xylanase at 37°C for 48 hr. Heat deactivation and filtration were performed before use.
Xylosyl-xylitol was purified from the culture broth of strain SR8-containing plasmids pXD8.4 in xylodextrin medium. 50 ml of culture supernatant was concentrated on a rotary evaporator at 50°C to about 5 ml. The filtered sample was loaded on an XK 16/70 column (GE Healthcare) packed with Supelclean ENVI-Carb (Sigma–Aldrich) mounted on an ÄKTA Purifier (GE Healthcare). The column was eluted with a gradient of acetonitrile at a flow rate of 3.0 ml/min at room temperature. Purified fractions, verified by LC-MS, were pooled and concentrated. The final product, containing 90% of xylosyl-xylitol and 10% xylobiose, was used as the substrate for enzyme assays and as an HPLC calibration standard.
N. crassa strain (FGSC 2489) and Aspergillus nidulans were stored and conidiated on agar slants of Volgel's medium (Vogel, 1956) with 2% glucose. Trichoderma reesei (strain QM6a) was conidiated on potato dextrose agar (PDA) plates. Condia from each fungi were collected by resuspending in water and used for inoculation at a concentration of 106 cells per ml. N. crassa and A. nidulans were inoculated into Volgel's medium with 2% xylodextrin. T. reesei was inoculated into Trichoderma minimal medium (Penttilä et al., 1987) with 2% xylodextrin. N. crassa, A. nidulans, and T. reesei were grown in shaking flasks at 25°C, 37°C, and 30°C respectively. After 40 hr, mycelia from 2 ml of culture were harvested and washed with water on a glass fiber filter and transferred to a pre-chilled screw-capped 2 ml tube containing 0.5 ml Zirconia beads (0.5 mm) and 1.2 ml acidic acetonitrile extraction solution (80% Acetonitrile, 20% H2O, and 0.1 M formic acid, [Rabinowitz and Kimball, 2007]). The tubes were then plunged into liquid nitrogen. The harvest process was controlled within 30 s. Samples were kept at −80°C until extraction, as described below.
B. sublitis was stored on 0.5× LB (1% tryptone, 0.5% yeast extract, and 0.5% NaCl) agar plates. A single colony was inoculated into 0.5× LB liquid medium with 1% glucose and allowed to grow in a 37°C shaker overnight. An inoculum from the overnight culture was transferred to fresh 0.5× LB liquid medium with 1% xylodextrin at an initial OD600 of 0.2. After 40 hr, 2 ml of the culture was spun down and washed with cold PBS solution. Zirconia beads and acidic acetonitrile extraction solution were added to the cell pellet. The tubes were then flash frozen immediately and kept at −80°C until extraction.
For extraction, all samples were allowed to thaw at 4°C for 10 min, bead beat for 2 min, and vortexed at 4°C for 20 min. 50 µl of the supernatant from each sample was analyzed by LC-MS/MS (see ‘Mass spectrometric analyses’ section).
Yeast strains were pre-grown aerobically overnight in oMM medium containing 2% glucose, washed three times with water, and resuspended in oMM medium. For aerobic growth, strains were inoculated at a starting OD600 of 1.0 or 20 in 50 ml oMM medium with 3% wt/vol xylodextrins and cultivated in 250 ml Erlenmeyer flasks covered with four layers of miracle cloth, shaking at 220 rpm. At the indicated time points, 0.8 ml samples were removed and pelleted. 20 μl supernatants were analyzed by ion-exclusion HPLC to determine xylose, xylitol, glycerol, and ethanol concentrations. 25 μl of 1:200 diluted or 2 μl of 1:100 diluted supernatant was analyzed by HPAEC or LC-QToF, respectively, to determine xylodextrin concentrations.
Anaerobic fermentation experiments were performed in a 1-L stirred tank bioreactor (DASGIP Bioreactor system, Type DGCS4, Eppendorf AG, Germany), containing oMM medium with 3% wt/vol xylodextrins inoculated with an initial cell concentration of OD600 = 20. The runs were performed at 30°C for 107 hr. The culture was agitated at 200 rpm and purged constantly with 6 l/hr of nitrogen. For xylose plus xylodextrin co-fermentations, xylose was fed continuously at 0.8 ml/hr from a 25% stock. During the fermentation, 3 ml cell-free samples were taken each 4 hr with an autosampler through a ceramic sampling probe (Seg-Flow Sampling System, Flownamics, Madison, WI). 20 μl of the supernatant fraction were analyzed by ion-exclusion HPLC to determine xylose, xylitol, glycerol, acetate, and ethanol concentrations. 2 μl of 1:100 diluted supernatant was analyzed by LC-QToF to determine xylodextrin concentrations. For glucose plus xylodextrin co-fermentations, glucose was fed continuously at 2 ml/hr from a 10% stock. Analytes were detected as described for xylose plus xylodextrin co-fermentations, with the addition of the measurement of glucose concentrations in the culture broth.
Yeast strain SR8U with plasmid pXD8.7 was pre-grown aerobically to late-log phase in oMM medium lacking uracil and containing 2% glucose, washed with water, and resuspended in oMM medium. Media containing 75 g/l sucrose plus or minus 15 g/l xylodextrins were inoculated with 20 OD of the washed yeast seed culture and purged with N2. Fermentations were carried out in 50 ml of oMM medium in 125 ml serum bottles shaking at 220 rpm in a 30°C shaker. At the indicated time points, 1 ml samples were removed and pelleted. 5 μl supernatants were analyzed by ion-exclusion HPLC to determine sucrose, glucose, fructose, xylose, xylitol, glycerol, and ethanol concentrations. 2 μl of 1:100 diluted supernatant was analyzed by LC-QToF, as described below, to determine xylodextrin concentrations.
Ion-exclusion HPLC was performed on a Prominence HPLC (Shimadzu, Japan) equipped with a refractive index detector. Xylose fermentation samples were resolved on a Rezex RFQ-Fast Fruit H+ 8% column (100 × 7.8 mm, Phenomenex, Torrance, CA) using a flow rate of 1 ml/min at 50°C. Xylodextrin fermentation samples were resolved on Aminex HPX-87H Column (300 × 7.8 mm, Bio-Rad, Hercules, CA) at a flow rate of 0.6 ml/min at 40°C. Both columns used a mobile phase of 0.01 N H2SO4.
HPAEC analysis was performed on a ICS-3000 HPLC (Thermo Fisher, Sunnyvale, CA) using a CarboPac PA200 analytical column (150 × 3 mm) and a CarboPac PA200 guard column (3 × 30 mm) at 30°C. Following injection of 25 μl of diluted samples, elution was performed at 0.4 ml/min using 0.1 M NaOH in the mobile phase with sodium acetate gradients. For xylodextrin and xylosyl-xylitol separation, the acetate gradients were 0 mM for 1 min, increasing to 80 mM in 8 min, increasing to 300 mM in 1 min, keeping at 30 mM for 2 min, followed by re-equilibration at 0 mM for 3 min. Carbohydrates were detected using pulsed amperometric detection (PAD) and peaks were analyzed and quantified using the Chromeleon software package.
All mass spectrometric analyses were performed on an Agilent 6520 Accurate-Mass Q-TOF coupled with an Agilent 1200 LC (Agilent Technologies, Santa Clara, CA). Samples were resolved on a 100 × 7.8 mm Rezex RFQ-Fast Fruit H+ 8% column (Phenomenex) using a mobile phase of 0.5% formic acid at a flow rate of 0.3 ml/min at 55°C.
To determine the accurate masses of the unknown metabolites, 2 µl of 1:100 diluted yeast culture supernatant was analyzed by LC-QToF. Nitrogen was used as the instrument gas. The source voltage (Vcap) was 3000 V in negative ion mode, and the fragmentor was set to 100 V. The drying gas temperature was 300°C; drying gas flow was 7 l/min; and nebulizer pressure was 45 psi. The ESI source used a separate nebulizer for the continuous, low-level introduction of reference mass compounds (112.985587, 1033.988109) to maintain mass axis calibration. Data were collected at an acquisition rate of 1 Hz from m/z 50 to 1100 and stored in centroid mode.
LC-MS/MS was performed to confirm the identity of xylosyl-xylitol and xylosyl-xylosyl-xylitol. The compound with a retention time (RT) of 5.8 min and m/z ratio of 283.103 and the compound with an RT of 4.7 min and m/z ratio of 415.15 were fragmented with collision energies of 10, 20, and 40 eV. MS/MS spectra were acquired, and the product ions were compared and matched to the calculated fragment ions generated by the Fragmentation Tools in ChemBioDraw Ultra v13.
To quantify the carbohydrates and carbohydrate derivatives in the culture, culture supernatants were diluted 100-fold in water and 2 µl was analyzed by LC-QToF. Spectra were imported to Qualtitative Analysis module of Agilent MassHunter Workstation software using m/z and retention time values obtained from the calibration samples to search for the targeted ions in the data. These searches generated extracted ion chromatograms (EICs) based on the list of target compounds. Peaks were integrated and compared to the calibration curves to calculate the concentration. Calibration curves were calculated from the calibration samples, prepared in the same oMM medium as all the samples, and curve fitting for each compound resulted in fits with R2 values of 0.999. 4-morpholineethanesulfonic acid (MES), the buffer compound in the oMM medium with constant concentration and not utilized by yeast, was used as an internal standard (IS) for concentration normalization.
Biomass pretreatment: fundamentals toward applicationBiotechnology Advances 29:675–685.https://doi.org/10.1016/j.biotechadv.2011.05.005
Gapped BLAST and PSI-BLAST: a new generation of protein database search programsNucleic Acids Research 25:3389–3402.https://doi.org/10.1093/nar/25.17.3389
The aldo-keto reductase superfamily and its role in drug metabolism and detoxificationDrug Metabolism Reviews 40:553–624.https://doi.org/10.1080/03602530802431439
Cellulosic biofuelsAnnual Review of Plant Biology 60:165–182.https://doi.org/10.1146/annurev.arplant.043008.092125
Deconstruction of lignocellulosic biomass to fuels and chemicalsAnnual Review of Chemical and Biomolecular Engineering 2:121–145.https://doi.org/10.1146/annurev-chembioeng-061010-114205
A high-throughput gene knockout procedure for Neurospora reveals functions for multiple transcription factorsProceedings of the National Academy of Sciences of USA 103:10352–10357.https://doi.org/10.1073/pnas.0601456103
Conserved and essential transcription factors for cellulase gene expression in ascomycete fungiProceedings of the National Academy of Sciences of USA 109:7397–7402.https://doi.org/10.1073/pnas.1200785109
MUSCLE: multiple sequence alignment with high accuracy and high throughputNucleic Acids Research 32:1792–1797.https://doi.org/10.1093/nar/gkh340
Ethanol production from xylo-oligosaccharides by xylose-fermenting Saccharomyces cerevisiae expressing beta-xylosidaseBioscience, Biotechnology, and Biochemistry 75:1140–1146.https://doi.org/10.1271/bbb.110043
Genomics of the fungal kingdom: insights into eukaryotic biologyGenome Research 15:1620–1631.https://doi.org/10.1101/gr.3767105
Engineered Saccharomyces cerevisiae capable of simultaneous cellobiose and xylose fermentationProceedings of the National Academy of Sciences of USA 108:504–509.https://doi.org/10.1073/pnas.1010456108
Characterization of the xylose-transporting properties of yeast hexose transporters and their influence on xylose utilizationMicrobiology 148:2783–2788.
Pretreatments to enhance the digestibility of lignocellulosic biomassBioresource Technology 100:10–18.https://doi.org/10.1016/j.biortech.2008.05.027
Metabolic engineering of Saccharomyces cerevisiae: a key cell factory platform for future biorefineriesCellular and Molecular Life Sciences 69:2671–2690.https://doi.org/10.1007/s00018-012-0945-1
Metabolic engineering for production of biorenewable fuels and chemicals: contributions of synthetic biologyJournal of Biomedicine & Biotechnology 2010:761042–761118.https://doi.org/10.1155/2010/761042
Microbial cellulose utilization: fundamentals and biotechnologyMicrobiology and Molecular Biology Reviews 66:506–577.https://doi.org/10.1128/MMBR.66.3.506-577.2002
Ethanol production from xylose in engineered Saccharomyces cerevisiae strains: current state and perspectivesApplied Microbiology and Biotechnology 84:37–53.https://doi.org/10.1007/s00253-009-2101-x
The Fungal Genetics Stock Center: a repository for 50 years of fungal genetics researchJournal of Biosciences 35:119–126.https://doi.org/10.1007/s12038-010-0014-6
Acidic acetonitrile for cellular metabolome extraction from Escherichia coliAnalytical Chemistry 79:6167–6173.https://doi.org/10.1021/ac070470c
Selection of Chromosomal DNA Libraries using a Multiplex CRISPR SystemeLife, 3, 10.7554/eLife.03703.
A system of shuttle vectors and yeast host strains designed for efficient manipulation of dna in Saccharomyces cerevisiaeGenetics 122:19–27.
MEGA6: Molecular evolutionary genetics analysis version 6.0Molecular Biology and evolution 30:2725–2729.https://doi.org/10.1093/molbev/mst197
Systems analysis of plant cell wall degradation by the model filamentous fungus Neurospora crassaProceedings of the National Academy of Sciences of USA 106:22157–22162.https://doi.org/10.1073/pnas.0906810106
AutoDock Vina: improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreadingJournal of Computational Chemistry 31:455–461.https://doi.org/10.1002/jcc.21334
Low liquid-solid ratio (LSR) hot water pretreatment of sugarcane bagasseGreen Chemistry 14:1982–1989.https://doi.org/10.1039/c2gc35397k
Development of efficient xylose fermentation in Saccharomyces cerevisiae: xylose isomerase as a key componentAdvances in Biochemical Engineering/Biotechnology 108:179–204.https://doi.org/10.1007/10_2007_057
A convenient growth medium for neurospora (Medium N)Microbial Genetics Bulletin 13:42–43.
Optimizing pentose utilization in yeast: the need for novel tools and approachesBiotechnology for Biofuels 3:24.https://doi.org/10.1186/1754-6834-3-24
Rewiring yeast sugar transporter preference through modifying a conserved protein motifProceedings of the National Academy of Sciences of USA 111:131–136.https://doi.org/10.1073/pnas.1311970111
Axel BrakhageReviewing Editor; Leibniz Institute for Natural Product Research and Infection Biology - Hans Knöll Institute, Germany
eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.
Thank you for sending your work entitled “Expanding xylose metabolism in yeast for plant cell wall conversion to biofuels” for consideration at eLife. Your article has been favorably evaluated by Detlef Weigel (Senior editor) and two reviewers, one of whom is a member of our Board of Reviewing Editors.
The Reviewing editor and the other reviewer discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.
We think your manuscript was significantly improved and has now given some fundamental insights into novel metabolic intermediates. However, there are several points that we ask you to consider for further improvement. Specifically, we would like to see that either the Thevelein strain is used (e.g. Biotechnol Biofuels, 2013, Jun 21; 6(1):89) and the experiments regarding the XI-based pathway is repeated, or that the entire paragraph about XI (paragraph ten of the Introduction, with figure 5) is removed. In addition, please discuss the potential advantages of an XI-based pathway in connection with xylodextrin fermentation.
There are a couple of points, which I still recommend to reconsider:
a) In the Abstract, the finding of the xylosyl-xylitol intermediates in other organisms should be mentioned, underlining the broader finding of the manuscript.
b) The manuscript of Ryan et al. should be cited.
c) Figure 1–figure supplement 2: Growth of N. crassa. The figure is rather poor, the reduced growth of N. crassa Δcdt-2 on xylan is hardly visible. I suggest you provide a proper biomass measurement.
d) Figure 1–figure supplement 6: It is difficult to believe that the N. crassa GH43-3 is so different from the other enzymes that it appears more closely related to enzymes of basidiomycetes (Schizophyllum) than to other ascomycetes.
e) Figure 5–figure supplement 1: SDs of data are missing.
When you state that “The excess reducing power generated by the XR/XDH pathway, initially deemed a problem…”, the XR/XDH pathway does not generate excess reducing power. The problem of the pathway is rather the cofactor imbalances between NADH and NADPH. This sentence should be omitted.
[Editors’ note: a previous version of this study was rejected after discussions between the reviewers, but the authors submitted for reconsideration. The previous decision letter is shown below.]
Thank you for choosing to send your work entitled “Expanding xylose metabolism in yeast for plant cell wall conversion to biofuels” for consideration at eLife. Your full submission has been evaluated by Detlef Weigel (Senior editor) and two peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the decision was reached after discussions between the reviewers. We regret to inform you that your work will not be considered further for publication.
The reviewers had several concerns about your manuscript. Reviewer #1 indicated that some parts of the findings have already been published and the manuscript is not conceptually new. Also, the reviewer questioned the relevance of the novel oligosaccharides identified. Reviewer #2 was more positive. However, at the end also this reviewer questioned the break-through provided in your manuscript. In summary, we do not feel that the manuscript in its present version has sufficient novelty and quality for eLife. However, we could imagine being interested in a manuscript describing the combination of both pathways for xylose catabolism in a genetically engineered yeast, which should show a superior capacity to degrade xylose and to produce ethanol.
In the current manuscript the authors describe the continuation of their work on the generation genetically engineered Saccharomyces cerevisiae (yeast) strains which are able to concert xylose to ethanol. The authors transferred a xylodextrin transporter, an intracellular β-xylosidase and an intracellular xylosyl-xylitol-specific ecxylosidase from the model fungus Neurospra crassa, which can grow on xylose, to S. cerevisiae. Production of the encoded proteins in an S. cerevisiae strain transformed with an XR/XDH/XK-pathway from S. stipitis resulted in the utilization of xylodextrins as the sole carbon source.
1) Although I think in general genetic engineering of yeast to obtain strains with properties to degrade xylose is interesting, unfortunately, a very similar approach was published in 2010, by the same group, for the utilization of cellodextrin by recombinant S. cerevisiae by expressing a cellodextrin transporter and an intracellular β-glucosidase. Now, the authors applied the very same principle to the degradation of xylodextrin.
2) Furthermore, the here analyzed xylodextrin transporter CDT-2 was recently characterized in detail by Cai et al., 2014 (PLOS One 9:e89330).
3) Also, the expression of 93xylosidase in yeast was reported before (Biosci Biotechnol Biochem, 2011, 75,1140-6). Thus, the only novelty of this manuscript is the production of xylosyl-xylitol oligomers as a side-activity of S. stipitis and N. crassa xylose reductases (XR). These oligomers appear to be inhibitory in engineered S. cerevisiae to utilize xylodextrins. The authors solved this problem by the identification and expression of a new hydrolyase, GH43-7, which can cleave the xylosyl-xylitol oligomers. Although the authors claim that these oligomers appear to be widely distributed in nature, evidence for this statement is lacking. By contrast, the production of these oligomers might just result from the strategy applied. In general, S. cerevisiae can be engineered to consume xylose either by expressing a xylose isomerase (XI) or by applying the XR/XDH pathway. Surprisingly, the authors used the XR/XDH pathway, although it is generally accepted that the XI pathway is more favorable for yeast (Biotechnol Biofuels, 2013, 6, 89; Metab Eng., 2012, 14: 611-22). As far as I know, the available xylose fermenting yeast strains from industry (DSM, Lesaffre, Terranol) are all based on the XI strategy. When the authors had used the XI strategy, they never would have encountered the problem of generating the xylosyl-xylitol oligomers by the heterologous XR.
This paper describes expression of a novel pathway for metabolism of xylobiose and other short chain xylans in yeast. The pathway was identified in N. crassa and then transferred to yeast. The pathway involves two transporters and three intracellular hydrolysases, which were all identified in N. crassa based on RNAseq analysis. The xylose consumption pathway relies on the less efficient xylose reductase and xylitol dehydrogenase pathway, but it still seems to work due to the partly reduction of xylodextrins intracellularly. This activity is, however, only conferred by the P. stipidis XR, so the pathway for uptake of xylodextrins could work equally well (and probably better) with the xylose isomerase pathway, which is to be preferred as it does not result in accumulation of xylitol (also here observed by the authors, but not commented).
I think this paper is a fantastic new contribution to the field and it definitely serves consideration. Even though it could be interesting to combine the new pathway with the XI route for xylose catabolism, I do not think it is fair to ask the reviewers to demonstrate this. However, I suggest that they clearly state that the main benefit of their work is actually that they have found a way to overcome one of the most fundamental problems in xylose catabolism, namely an alternative transport of xylose into the cell. Xylose is transported through the HXT transporters and has competitive inhibition by glucose. This pathway may work in concert with glucose consumption, and this may be the real benefit. The data presented by the authors even indicate this. I suggest that this is clearly stated in the paper.
Besides this I do not have any major comments.https://doi.org/10.7554/eLife.05896.025
