IFN-λ prevents influenza virus spread from the upper airways to the lungs and limits virus transmission

  1. Jonas Klinkhammer
  2. Daniel Schnepf
  3. Liang Ye
  4. Marilena Schwaderlapp
  5. Hans Henrik Gad
  6. Rune Hartmann
  7. Dominique Garcin
  8. Tanel Mahlakõiv
  9. Peter Staeheli  Is a corresponding author
  1. Medical Center, University of Freiburg, Germany
  2. Albert Ludwigs University Freiburg, Germany
  3. Aarhus University, Denmark
  4. University of Geneva, Switzerland
  5. University of Freiburg, Germany
Research Article
  • Cited 8
  • Views 1,895
  • Annotations
Cite this article as: eLife 2018;7:e33354 doi: 10.7554/eLife.33354

Abstract

Host factors restricting the transmission of respiratory viruses are poorly characterized. We analyzed the contribution of type I and type III interferon (IFN) using a mouse model in which the virus is selectively administered to the upper airways, mimicking a natural respiratory virus infection. Mice lacking functional IFN-λ receptors (Ifnlr1−/−) no longer restricted virus dissemination from the upper airways to the lungs. Ifnlr1−/− mice shed significantly more infectious virus particles via the nostrils and transmitted the virus much more efficiently to naïve contacts compared with wild-type mice or mice lacking functional type I IFN receptors. Prophylactic treatment with IFN-α or IFN-λ inhibited initial virus replication in all parts of the respiratory tract, but only IFN-λ conferred long-lasting antiviral protection in the upper airways and blocked virus transmission. Thus, IFN-λ has a decisive and non-redundant function in the upper airways that greatly limits transmission of respiratory viruses to naïve contacts.

https://doi.org/10.7554/eLife.33354.001

eLife digest

Influenza (‘the flu’) and other respiratory viruses make millions of people ill every year, placing a large burden on the healthcare system and the economy. Unfortunately, few options for preventing or treating these infections currently exist.

The flu virus spreads from infected individuals, enters a new host through the nose and establishes an infection in the upper airways. If the infection stays restricted to this region of the respiratory tract – which consists of the nasal cavity, sinuses, throat and larynx – it causes a rather mild disease. However, if it spreads to the lungs it can cause potentially life-threatening viral pneumonia.

Epithelial cells line the upper respiratory tract, forming a physical border between the outside world and the human body. These cells are therefore the first to face the incoming virus. In response, the epithelial cells release messenger molecules termed interferons that warn nearby cells to increase their antiviral defenses.

There are several subtypes of interferons, such as IFN-α, IFN-β and IFN-λ, but it was not known how each subtype helps to combat respiratory viruses. To investigate, Klinkhammer, Schnepf et al. exposed mice to flu viruses in a way that mimicked how an infection would naturally start in the upper airways in humans. Some of the mice were genetically engineered so that they could not respond to either IFN-α/β or IFN-λ.

The virus spread most effectively from the nasal cavity to the lungs in mice whose IFN-λ system was defective. Infections in mice that lacked IFN-λ were also more likely to spread to other individuals. Furthermore, treating mice with IFN-λ, but not IFN-α, gave their upper respiratory tract long-lasting protection against flu infections and prevented the spread of the virus.

IFN-λ therefore has a specific and significant role in protecting the upper airways against viruses, and could potentially be used as a drug to block the spread of infections between humans. Currently, IFN-λ is in clinical trials as a potential treatment for hepatitis D. To repurpose it for upper respiratory tract infections, its effectiveness against specific respiratory viruses will first have to be evaluated.

https://doi.org/10.7554/eLife.33354.002

Introduction

Influenza and other respiratory viruses are readily transmitted in community settings. The resulting infection chains and concomitant diseases represent an enormous economic and public health burden (Osterhaus et al., 2015). At present, it is largely unknown if and how the innate immune response influences virus transmission efficacy. However, a better understanding of this issue is likely to lead to new therapeutic strategies that reduce viral transmission from infected individuals to naïve contacts.

Type I and type III interferon (IFN) are virus-induced cytokines that potently restrict viral replication during the first days of infection before activation of the adaptive immune system occurs (Lazear et al., 2015; Wack et al., 2015). The type I IFN family consists of several IFN-α subtypes, a single IFN-β and several minor family members that all bind to and act via the IFN-α/β receptor complex (IFNAR), which is expressed on most nucleated cells (Lazear et al., 2015; Wack et al., 2015) with the possible exception of intestinal epithelial cells (Lin et al., 2016; Mahlakõiv et al., 2015). The members of the type III IFN family (IFN-λ) bind to a different receptor complex (IFN-λ receptor; IFNLR), which is highly expressed on epithelial cells (Kotenko et al., 2003; Lazear et al., 2015; Sheppard et al., 2003; Sommereyns et al., 2008; Wack et al., 2015) and neutrophils (Blazek et al., 2015; Broggi et al., 2017; Espinosa et al., 2017; Galani et al., 2017).

Transmission of influenza and other respiratory viruses is traditionally studied in ferrets and occasionally in guinea pigs (Bouvier, 2015). In contrast to mice, these animals are not readily accessible to genetic manipulation, and the role of IFN and IFN-regulated host restriction factors is not easily dissected. A recent report provided evidence that the mouse represents a good alternative animal model for studying influenza virus transmission, as long as suitable virus strains are employed (Edenborough et al., 2012; Ivinson et al., 2017).

Influenza virus replication is strongly restricted by IFN-regulated Mx genes (Haller et al., 2015). Since most standard inbred mouse strains carry defective Mx alleles (Haller et al., 2015), the full magnitude of influenza virus restriction by the IFN system only becomes apparent when mouse strains carrying functional Mx1 alleles derived from wild mice are employed (Haller et al., 2015). We previously introduced defective alleles of the type I IFN receptor α chain (Ifnar1−/−) or the IFN-λ receptor one chain (Ifnlr1−/−) into Mx1-competent C57BL/6 mice and thereby generated a set of mouse lines that carry functional Mx1 alleles but differ in their ability to respond to type I IFN and IFN-λ (Mordstein et al., 2008). Using these knockout mouse strains we demonstrated that type I IFN plays a prominent role in the defense against respiratory viruses, including influenza viruses, respiratory syncytial virus or human metapneumovirus, whereas protection mediated by IFN-λ was surprisingly small (Mordstein et al., 2010b). In contrast, the protective role of IFN-λ during viral infections of the small intestine was found to be far more pronounced than that of type I IFN (Baldridge et al., 2017; Baldridge et al., 2015; Mahlakõiv et al., 2015; Nice et al., 2015; Pott et al., 2011). This suggested either that (i) the gut and the respiratory tract use fundamentally different antiviral defense strategies or (ii) IFN-λ is important in both organ systems but its beneficial role in the respiratory tract cannot be demonstrated easily due to experimental limitations.

Recent work with influenza virus-infected mice (Galani et al., 2017) indicated that IFN-λ is produced more quickly than type I IFN, suggesting that IFN-λ plays a non-redundant role in suppressing early virus growth in the respiratory tract. Nevertheless, protective effects of IFN-λ were observed only if very low infection doses were used, presumably because mice with defective Mx1 alleles were employed for these studies. Furthermore, the important question whether IFN-λ might play a role in restricting transmission of respiratory viruses from infected animals to naïve contacts was not addressed.

According to standard protocols for experimental influenza virus infections, the virus is delivered intranasally to anesthetized mice in a 40–50 µl volume, allowing immediate infection of the entire respiratory tract. This experimental setup might override the natural barrier function of the nasal mucosa by allowing the infection to artificially initiate in the lower respiratory tract (Ivinson et al., 2017). In this study, we applied an infection protocol that guarantees a selective delivery of the virus inoculum to the upper respiratory tract, thus more closely mimicking the natural course of infection. Under such experimental conditions, virus transmission to naïve contacts as well as virus spread from the upper airways to the lower respiratory tract was inhibited far more efficiently by IFN-λ than by type I IFN. Interestingly, the antiviral effect induced by type I IFN in the upper airways was more transient than that of IFN-λ, while no such difference was observed in the lungs. Furthermore, a small number of epithelial cells in the proximal upper respiratory tract failed to respond sufficiently to type I IFN but did respond to IFN-λ. These observations provide a mechanistic explanation for the superior role of IFN-λ in the upper airways.

Results

IFN-λ prevents influenza virus spread from the upper respiratory tract to the lungs

Most previous studies failed to assign a prominent role to IFN-λ in the resistance of mice against influenza and other respiratory viruses (Galani et al., 2017; Mordstein et al., 2008). Similarly, when we applied 104 PFU of the H7N7 influenza A virus strain SC35M intranasally in a standard 40 µl volume, we noted that Mx1-competent animals carrying a defective IFN-λ receptor (Ifnlr1−/−) supported similar virus replication in the lungs on day three post infection, compared with Mx1-competent wild-type (WT) animals. In contrast, Mx1-competent mice lacking functional type I IFN receptors (Ifnar1−/−) showed significantly elevated viral titers under such experimental conditions (Figure 1A). Respiratory viruses enter the human body via the upper respiratory tract, and the majority of acute respiratory viral infections in humans are confined to the upper airways (Cotton et al., 2008). To mimic a natural infection in which virus replication initiates in the upper airways, we established an upper respiratory tract infection model in mice. Using poliovirus that is unable to infect mouse cells as an indicator we found that virus delivery can be targeted specifically to the upper respiratory tract of mice if the inoculum is applied in a volume of 10 µl (Figure 1—figure supplement 1). In contrast, a large proportion of the inoculum reached the lungs if the inoculum was applied in a volume of 40 µl. When a 10 µl volume was used to deliver influenza virus strain SC35M specifically to the upper respiratory tract of WT mice, the virus grew well in the upper airways, but was absent or present at only very low titers in the tracheae (3 of 22 animals) and the lungs (1 of 22 animals) on day five post-infection (Figure 1B). In Ifnlr1−/− mice, viral titers in the upper airways were significantly higher than in WT mice and, most interestingly, many infected Ifnlr1−/− mice contained high virus levels in the tracheae (11/23) and lungs (13/23) (Figure 1B). As expected, Ifnar1−/− mice also had significantly higher virus titers in the upper airways than WT mice, and more animals contained virus in the tracheae (5/23) and lungs (9/23) (Figure 1B). In comparison, Ifnar1−/− mice seemed to control the virus spread from the upper airways to the lungs slightly better than Ifnlr1−/− mice (Figure 1B), indicating that IFN-λ is more potent in containing viral infections within the upper respiratory tract than type I IFN.

Figure 1 with 1 supplement see all

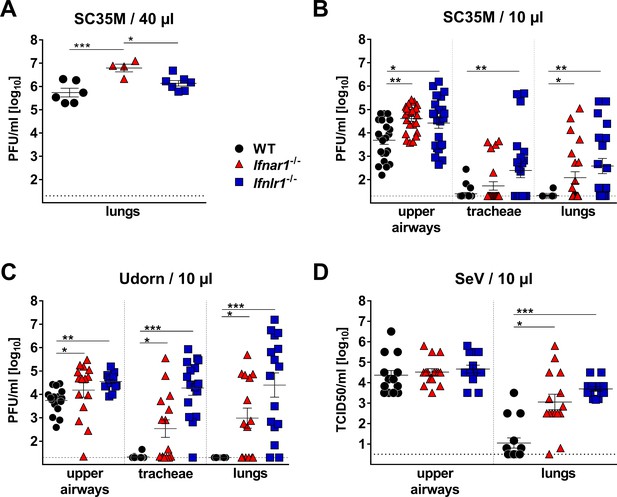

IFN-λ prevents virus spread from the upper airways to the lungs of mice.

(A) Standard intranasal delivery of virus inoculum: WT (n = 6), Ifnar1−/− (n = 4) and Ifnlr1−/− (n = 7) mice were intranasally infected with 104 PFU of SC35M in a volume of 40 µl, and viral titers in the lungs were determined on day three post infection by plaque assay. (B–D) Selective virus delivery to the upper respiratory tract: (B) WT (n = 22), Ifnar1−/− (n = 23) and Ifnlr1−/− (n = 23) mice were intranasally infected with 104 PFU of SC35M in a volume of 10 µl. Mice were sacrificed on day five post infection, and viral titers in the upper airways, tracheae and lungs were determined by plaque assay. Pooled results from three independent experiments are shown. (C) WT (n = 16), Ifnar1−/− (n = 15) and Ifnlr1−/− (n = 16) mice were intranasally infected with 5 × 103 PFU of Udorn in a volume of 10 µl. Mice were sacrificed on day five post infection, and viral titers in the upper airways, tracheae and lungs were determined by plaque assay. Pooled results from two independent experiments are shown. (D) WT (n = 15), Ifnar1−/− (n = 15) and Ifnlr1−/− (n = 15) mice were intranasally infected with 103 TCID50 of SeV in a volume of 10 µl. Mice were sacrificed on day five post infection, and viral titers in the upper airways and lungs were determined by the TCID50 method. Pooled results from two independent experiments are shown. Symbols represent individual mice, and bars represent means ± SEM. Statistical analysis: One-way ANOVA with Tukey’s multiple comparisons was used to compare viral titers in the upper airways: asterisks indicate p-values: ***p<0.001, **p<0.01, *p<0.05. Fisher's exact test was used to compare events of virus spread: circles indicate p-values: °°°p<0.001, °°p<0.01, °p<0.05.

https://doi.org/10.7554/eLife.33354.003

To determine whether this unexpected phenotype of Ifnlr1−/− mice is restricted to the SC35M virus, we performed similar infection experiments with the H3N2 influenza A virus strain Udorn. After selective delivery to the upper respiratory tract, Udorn virus was rarely found in the tracheae (1/16) or lungs (0/16) of WT mice, but was frequently present in the tracheae (15/16) and lungs (14/16) of Ifnlr1−/− mice (Figure 1C). Ifnar1−/− mice showed an intermediate phenotype under these experimental conditions, and infectious virus was found at lower frequency in the tracheae (8/15) and lungs (9/15) of Ifnar1−/− mice compared with Ifnlr1−/− mice. A similar picture emerged when a murine respiratory virus (Sendai virus; SeV) was employed in infection experiments. SeV reached the lungs of all (15/15) Ifnlr1−/− mice when selectively applied to the upper respiratory tract (Figure 1D). In contrast, SeV reached the lungs of WT mice at significantly reduced frequency (6/15) under these experimental conditions, and virus titers at day five post-infection in the lungs of WT mice were generally lower compared with Ifnlr1−/− mice. Taken together, these data clearly indicated that IFN-λ is an indispensable antiviral cytokine that restricts respiratory viral infections to the upper airways and limits virus spread to the lungs.

To better characterize the early events of the antiviral defense in the upper airways, we measured the baseline expression levels of various IFN genes. Expression of the IFN-λ2 and IFN-λ3 genes was significantly reduced in snout tissue of Ifnar1−/− mice compared with WT and Ifnlr1−/− mice, whereas baseline expression of IFN-α and IFN-β genes was comparable (Figure 2A). Consequently, baseline expression of the Mx1 gene was also lower in snout tissue of Ifnar1−/− mice than in WT and Ifnlr1−/− mice (Figure 2A). Upon infection with Udorn virus, expression of the IFN-λ genes in Ifnar1−/− mice returned to comparable levels of WT and Ifnlr1−/− mice within two days (Figure 2B). Interestingly, expression of the IFN-λ genes in snout homogenates of WT and Ifnlr1−/− mice was only slightly induced after virus infection, whereas expression of the IFN-β gene was induced about tenfold in all mouse strains (Figure 2B). These data indicate that functional type I IFN signaling is needed for proper baseline expression of the IFN-λ genes, which contributes to early virus defense in the upper airways.

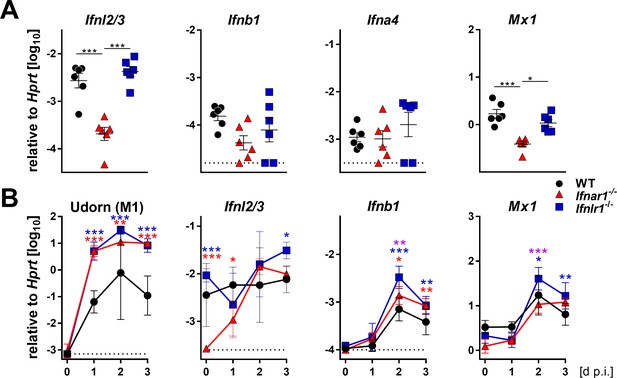

Basal expression of IFN-λ genes is reduced in Ifnar1−/− mice.

(A) Basal expression of type I (Ifnb1 and Ifna4), type III IFNs (Ifnl2/3) and Mx1 was measured by RT-qPCR in snout homogenates of WT (n = 6), Ifnar1−/− (n = 6) and Ifnlr1−/− (n = 6). Gene expression levels are shown relative to the housekeeping gene Hprt. Symbols represent individual mice, and bars represent means ± SEM. Statistical analysis: One-way ANOVA with Tukey’s multiple comparisons; asterisks indicate p-values: ***p<0.001, *p<0.05. (B) WT (n = 21), Ifnar1−/− (n = 22) and Ifnlr1−/− (n = 23) mice were intranasally infected with 104 PFU of Udorn in a volume of 10 µl. Mice were sacrificed at the indicated time points (n = 5–7) and snout homogenates were processed for RT-qPCR. Expression levels of mRNAs encoding viral M1 protein or cellular gene products IFN-λ2/3, IFN-β and Mx1 are shown relative to transcription of the Hprt housekeeping gene. Symbols represent means ± SD. Red or blue asterisks indicate statistically significant differences between WT and Ifnar1−/− or Ifnlr1−/−, respectively; purple asterisks indicate differences between Ifnar1−/− and Ifnlr1−/−. Statistical analysis: Two-way ANOVA; asterisks indicate p-values: ***p<0.001, **p<0.01, *p<0.05.

https://doi.org/10.7554/eLife.33354.005

When the infection was initiated by applying the inoculum selectively to the upper airways, none of the influenza viruses used in this study caused morbidity or mortality, although virus titers in lungs of Ifnlr1−/− mice reached levels above 106 PFU in some animals on day five post-infection (Figure 1B). These observations are in good agreement with recent work indicating that upper airway infections with influenza viruses are usually benign in mice presumably because saliva components delay the spread of influenza viruses to the lungs (Ivinson et al., 2017). Delayed virus arrival in the lungs may permit timely adaptive immune responses to eliminate the virus before it causes irreversible tissue damage. We concluded from these observations that the upper airway infection model is not suitable for studying influenza virus-induced pathology in mice, but it allows addressing the question which factors might control virus growth at the entry site.

High virus loads in nasal excretions of infected mice lacking functional IFN-λ receptors

The efficacy of respiratory virus transmission depends, among other parameters, on the production of mucosal secretions or aerosols containing a sufficiently high number of infectious particles (Herfst et al., 2017). To determine whether nasal excretions of Ifnlr1−/− mice contain more infectious virus than excretions of WT mice, we sampled the nostrils of Udorn-infected mice with wet cotton swabs. This analysis revealed that Ifnlr1−/− mice shed significantly more infectious virus than WT or Ifnar1−/− mice (Figure 3A). Already at 12 hr post infection, Ifnlr1−/− mice secreted remarkable amounts of infectious virus. Interestingly, virus shedding was only transient and peaked between 24 and 36 hr post infection (Figure 3A). When the nostrils of SeV-infected mice were swabbed (Figure 3B), we found at least 10-fold more infectious SeV in mucosal secretions of Ifnlr1−/− mice compared with WT controls between days 2 and 4 post infection. Levels of infectious SeV in mucosal secretions of Ifnar1−/− mice were only slightly increased compared with WT mice. Importantly, Ifnar1−/− mice shed significantly less virus than Ifnlr1−/− mice at all time points between days 2 and 4 post infection (Figure 3B), indicating that IFN-λ is the dominant limiting factor for virus shedding.

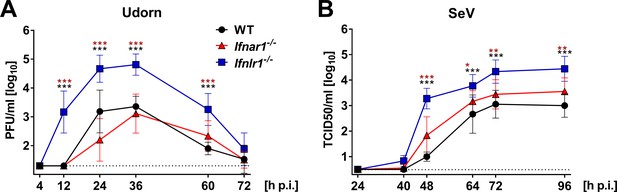

Ifnlr1−/− mice secrete high amounts of infectious virus.

(A) WT (n = 7), Ifnar1−/− (n = 9) and Ifnlr1−/− (n = 9) mice were intranasally infected with 105 PFU of Udorn in a volume of 10 µl. (B) WT (n = 6), Ifnar1−/− (n = 6) and Ifnlr1−/− (n = 6) mice were intranasally infected with 103 TCID50 of SeV in a 10 µl volume. Nasal swabs were taken at the indicated time points post infection. Infectious virus recovered from the swabs was quantified by plaque assay (Udorn) or the TCID50 method (SeV). Symbols represent means ±SD. Statistical analysis: Two-way ANOVA; black asterisks indicate significant differences between WT and Ifnlr1−/−, red asterisks indicate significant differences between Ifnar1−/− and Ifnlr1−/−. P-values: ***p<0.001, **p<0.01, *p<0.05.

https://doi.org/10.7554/eLife.33354.006

IFN-λ receptor-deficient mice readily transmit respiratory viruses to contact animals

Next we evaluated whether increased virus shedding by Ifnlr1−/− mice would translate into enhanced spread of respiratory viruses among mice. We set up transmission experiments in which infected mice were cohoused with highly susceptible sentinel mice that lack functional receptors for type I IFN and IFN-λ (Ifnar1−/− Ifnlr1−/−). In a first series of experiments, we infected WT, Ifnar1−/− or Ifnlr1−/− mice with 105 PFU of Udorn. To mimic natural virus transmission in a family setting, groups of three infected mice were cohoused with four sentinels in a single cage for a period of four days. Viral titers were then determined in the upper airways of the sentinels. Under such experimental conditions, 79% of the sentinels that were in contact with infected Ifnlr1−/− mice became infected (Figure 4A). As expected from the virus excretion data (Figure 3A), transmission of Udorn to sentinel mice was observed much less frequently (17% and 42%, respectively) when infected WT or Ifnar1−/− mice were employed as virus spreaders (Figure 4A).

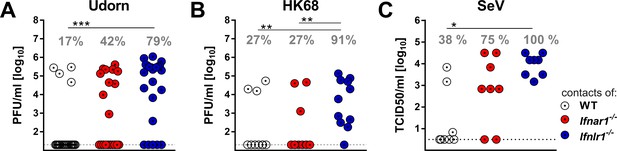

IFN-λ limits contact transmission of respiratory viruses among mice.

WT, Ifnar1−/− and Ifnlr1−/− mice were intranasally infected with (A) 105 PFU of Udorn, (B) 105 PFU of HK68 or (C) 103 TCID50 of SeV in a volume of 10 µl. At 24 hr post infection, the infected mice were cohoused with naive Ifnar1−/−Ifnlr1−/− contact mice for 4 days (Udorn and HK68) or 6 days (SeV). Viral titers in the upper airways of individual contact mice are plotted, and calculated rates of successful virus transmission are indicated. Statistical analysis: Fisher's exact test; asterisks indicate p-values: ***p<0.001, **p<0.01, *p<0.05.

https://doi.org/10.7554/eLife.33354.007

In a second experiment we infected WT, Ifnar1−/− or Ifnlr1−/− mice with 105 PFU of a different H3N2 influenza A virus strain (HK68) before cohousing with Ifnar1−/− Ifnlr1−/− double-deficient sentinels. Under these experimental conditions, 10 of 11 (91%) sentinels in contact with infected Ifnlr1−/− mice contracted the virus, whereas only 27% of the sentinels cohoused either with infected WT or Ifnar1−/− mice became infected (Figure 4B). To determine whether transmission of other respiratory viruses might also be restricted by IFN-λ, we studied mouse-to-mouse transmission of SeV using similar experimental conditions, except that we cohoused each infected mouse individually with one Ifnar1−/− Ifnlr1−/− sentinel animal. All sentinels co-housed with SeV-infected Ifnlr1−/− mice contracted the virus, whereas only 38% of the sentinels cohoused with WT mice and 75% of the sentinels cohoused with Ifnar1−/− became infected with SeV (Figure 4C). Together, these data show that IFN-λ effectively limits the spread of respiratory viruses in a contact transmission setting.

IFN-λ is the main mediator of antiviral defense in the upper respiratory tract

Transmission of respiratory viruses between humans presumably occurs at low doses. A recent study in mice suggests that endogenous IFN-λ confers better protection against influenza virus infection compared with type I IFN if very low viral doses are used (Galani et al., 2017). In our experiments, viral titer differences in the upper airways of WT and Ifnlr1−/− mice were relatively small (Figure 1). This suggested that the high infection dose used in those experiments had largely masked the protective effect of IFN-λ. Indeed, when the challenge dose of Udorn was reduced to 100 PFU per animal, the differences in the upper airways of WT and Ifnlr1−/− mice became more obvious (Figure 5—figure supplement 1). In agreement with the virus excretion data (Figure 3), which had indicated a minor role for type I IFN in this process, replication of Udorn in the upper airways was not increased in Ifnar1−/− animals when compared with WT mice (Figure 5—figure supplement 1), supporting the view that IFN-λ plays a more prominent role in antiviral protection of the upper respiratory tract than type I IFN.

To confirm that IFN-λ is more potent than type I IFN in the upper respiratory tract, we used a reciprocal experimental approach. We compared the antiviral potency of a broadly cross-reactive hybrid IFN-αB/D and mouse IFN-λ2 prophylactically applied into the airways. Pilot experiments with differentiated primary mouse airway epithelial cell cultures, known to express functional receptors for both type I and type III IFN (Crotta et al., 2013), demonstrated that hybrid IFN-αB/D and mouse IFN-λ2 can induce the IFN-responsive genes Isg15, Stat1 and Mx1 to similar levels if used at identical concentrations (Figure 5—figure supplement 2). To exclude unwanted interference from virus-induced endogenous IFN, we used Ifnlr1−/− and Ifnar1−/− mice and treated them intranasally with IFN-α or IFN-λ, respectively, one day before infection with the Udorn virus. The infection was performed with a 40 µl volume to ensure virus delivery to all parts of the respiratory tract. IFN-λ pretreatment potently inhibited virus replication in the upper airways, whereas IFN-α pretreatment had no such effect (Figure 5A). Of note, the differences between IFN-α and IFN-λ were far less pronounced in the lungs (Figure 5A).

Figure 5 with 2 supplements see all

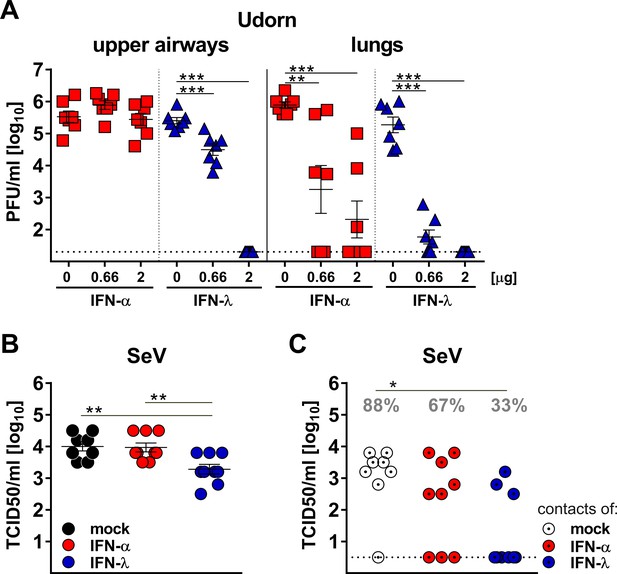

Virus defense in the upper respiratory tract strongly relies on IFN-λ.

(A) Groups (n = 7) of Ifnar1−/− (blue triangles) and Ifnlr1−/− mice (red squares) were intranasally treated with 40 µl of saline solution (mock) or with two different doses of IFN-α or IFN-λ as indicated. After 18 hr, the mice were infected with 105 PFU of Udorn in a 40 µl volume. On day three post infection, viral loads in the upper airways and lungs were determined by plaque assay. (B–C) Groups of WT mice (n = 8–9) were treated intranasally with 20 µl containing saline (mock), 3 µg of IFN-α or 3 µg of IFN-λ. After 18 hr, the mice were infected intranasally with 104 TCID50 of SeV in a volume of 10 µl. At 24 hr post infection, infected mice were cohoused with naive Ifnar1−/−Ifnlr1−/− contact mice. On day five post cohousing, all animals were sacrificed and virus titers in the upper airways of directly infected mice (panel B) and contact mice (panel C) were determined by the TCID50 method. Grey numbers indicate the calculated frequency of successful virus transmission. Statistical analysis: (A–B) One-way ANOVA with Tukey’s multiple comparisons; (C) Fisher's exact test. Asterisks indicate p-values: ***p<0.001, **p<0.01, *p<0.05. Symbols represent values of individual mice, and bars represent means ± SEM.

https://doi.org/10.7554/eLife.33354.008

Next, we determined whether the replication of SeV in the upper respiratory tract of mice is affected by IFN-λ and type I IFN in a similar manner as observed for influenza virus. WT mice were treated intranasally with identical doses of IFN-α or IFN-λ one day before infection with SeV and co-housed with Ifnar1−/− Ifnlr1−/− double-deficient sentinel mice. On day six post infection with SeV, viral titers in the upper airway of IFN-λ-treated mice were on average about 5-fold lower than in mock- or IFN-α-treated mice (Figure 5B). Only 33% (3/9) of the IFN-λ-treated mice transmitted SeV to sentinel animals, whereas 67% (6/9) of the IFN-α-treated mice infected the sentinels upon co-housing (Figure 5C). Mock-treated WT mice transmitted SeV at a frequency of 88% (7/8) under the same conditions (Figure 5C). Taken together, these experiments demonstrated that IFN-λ is able to inhibit virus replication in the upper respiratory tract to a much greater extent than IFN-α. Furthermore, only IFN-λ strongly decreased the rate of successful virus transmission to cage mates.

IFN-λ confers long-lasting virus protection in the upper airways, whereas IFN-α-mediated protection is short-lived

To investigate the possibility that IFN-α might not efficiently reach the epithelial cells of the upper airways, we applied the various IFN preparations via the subcutaneous route before the mice were infected with SeV in a 40 µl volume to ensure infection of the entire respiratory tract. IFN-λ applied subcutaneously provided strong and long-lasting protection against SeV in the upper airways and lungs of mice (Figure 6A). This result is consistent with experiments in which IFN-λ was applied intranasally (Figure 5B). In contrast, IFN-α-treated animals sacrificed on either day 4 or six post infection had similar levels of SeV in nasal swabs and upper airways as mock-treated mice, but the IFN-α-treated animals contained reduced viral titers in the lungs (Figure 6A). Interestingly, IFN-α-treated animals sacrificed on day two post-infection showed significantly reduced viral titers in swabs and upper airways compared with mock-treated controls (Figure 6A). Thus, although this latter observation demonstrated that IFN-α is anti-virally active in the upper airways irrespective of the application route, our data clearly indicated that the antiviral effect of IFN-α, specifically in the upper airways, is surprisingly short-lived.

Figure 6 with 1 supplement see all

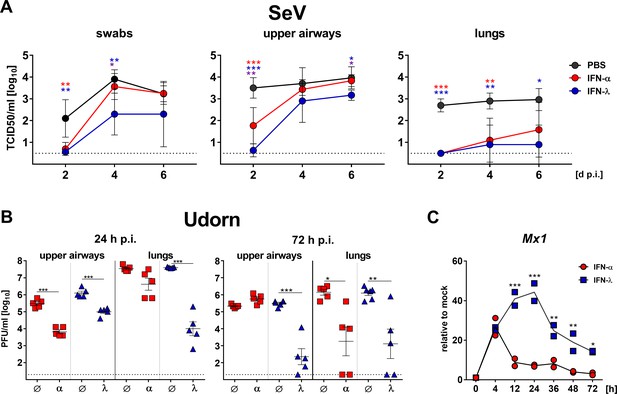

IFN-λ but not IFN-α confers long-lasting antiviral protection in the upper airways.

(A) WT mice (n = 4–5) were treated by the subcutaneous route with 3 µg IFN-α, 3 µg IFN-λ or saline solution 18 hr before intranasal challenge with 103 TCID50 of SeV in a 40 µl volume. Groups of mice were sacrificed on days 2, 4 or 6 post infection (dp.i.), and viral titers in nasal swabs (left panel), upper airways (middle panel) and lungs (right panel) were determined by the TCID50 method. Symbols represent means ±SD. Red or blue asterisks indicate statistically significant differences between mock and IFN-α- or IFN-λ-treated groups, respectively; purple asterisks indicate differences between IFN-α- or IFN-λ-treated groups. Statistical analysis: One-way ANOVA with Tukey’s multiple comparisons; p-values: ***p<0.001, **p<0.01, *p<0.05. (B) Ifnar1−/− (blue triangles, n = 5–6) or Ifnlr1−/− mice (red squares, n = 5) were treated by the intranasal route with 2 µg IFN-λ or 2 µg IFN-α, respectively, before intranasal challenge with 4 × 105 PFU of Udorn in a 40 µl volume. Mice treated with saline (Ø) served as controls. Mice were sacrificed at 24 hr (left panel) or 72 hr (right panel) post infection (p.i.), and viral titers in the upper airways and lungs were determined by plaque assay. Symbols represent individual mice, and bars represent means ± SEM. Statistical analysis: One-way ANOVA with Tukey’s multiple comparisons; p-values: ***p<0.001, **p<0.01, *p<0.05. (C) IFN-mediated induction of Mx1 was determined by stimulating differentiated primary airway epithelial cells derived from mouse tracheae for the indicated time points with 1 ng/ml of either IFN-α or IFN-λ. Mx1 induction was assessed by RT-qPCR; values are represented as gene expression levels relative to unstimulated controls (mock). Symbols represent single wells; line indicates mean. Representative data of two independent experiments is shown. Statistical analysis: Two-way ANOVA; asterisks indicate significant differences between IFN-α- and IFN-λ-treated cells. P-values: ***p<0.001, **p<0.01, *p<0.05.

https://doi.org/10.7554/eLife.33354.011

In a second experiment we strove to extend these findings and asked whether IFN-α might similarly inhibit the replication of influenza virus in the upper airways only transiently. In this experiment, the IFN preparations were applied by the intranasal route. Indeed, IFN-α and IFN-λ both exhibited pronounced inhibitory effects on Udorn virus replication in the upper airways at 24 hr post infection (Figure 6B, left panel). However, the antiviral effect of IFN-α in the upper airways could no longer be detected at 72 hr post infection, while virus inhibition by IFN-λ remained prominent (Figure 6B, right panel). Interestingly, there were no differences between the antiviral effects of IFN-α and IFN-λ in the lungs at 72 hr post infection (Figure 6B), indicating that the short-lived nature of the type I IFN response represents a unique feature of the upper respiratory tract. In concordance with these data, we found that IFN-α applied subcutaneously at doses ranging from 0.1 to 1.0 µg failed to provide long-lasting antiviral protection in the upper airways, but provided substantial antiviral protection in the lungs (Figure 6—figure supplement 1). The short-lived nature of the IFN-α response was also evident from experiments in which Mx1 gene expression was analyzed in IFN-treated differentiated primary airway epithelial cells derived from mouse tracheae (Figure 6C). Mx1 mRNA levels in IFN-α-treated cells already peaked at 4 hr post onset of treatment and showed a sharp decrease afterwards, nearly reaching baseline levels after 48 hr. In contrast, IFN-λ-mediated induction of Mx1 gene expression increased until 24 hr post onset of treatment, and even after 72 hr Mx1 mRNA levels were still close to peak values in IFN-α-treated cells (Figure 6C). In summary, these data demonstrated that the antiviral effect of IFN-αB/D especially in the upper airways is surprisingly short-lived, irrespective of the application route.

A small fraction of epithelial cells in the upper airways of IFN-α-treated mice remains virus-susceptible

Next, we set out to visualize virus-infected cells in the upper airways of mice. At 24 hr post infection with the Udorn virus, many epithelial cells lining the nasal cavity (rostral naso- and maxilloturbinates) of IFN receptor-deficient mice were strongly positive for viral antigen (Figure 7A and B, top panels; Figure 7—figure supplement 1). Epithelial cells in other parts of the upper airways showed no sign of viral infection. In Ifnar1−/− mice that were treated intranasally with 2 µg IFN-λ before infection, no virus-infected cells could be detected by this method (Figure 7A). In contrast, in Ifnlr1−/− mice pretreated with 2 µg IFN-α, a small number of virus antigen-positive cells were present in most sections of the nasal cavity which included parts of the rostral naso- and maxilloturbinates (Figure 7B). These rare virus antigen-positive cells in IFN-α-treated Ifnlr1−/− mice are most likely epithelial cells, due to their location and expression of the epithelial marker EpCAM. These cells did not contain detectable levels of IFN-inducible nuclear MX1 protein, whereas uninfected neighboring cells did (Figure 7C). We concluded from these observations that the upper airways of mice contain some influenza virus-susceptible epithelial cells which appear to rely entirely on IFN-λ for long-lasting antiviral defense.

Figure 7 with 1 supplement see all

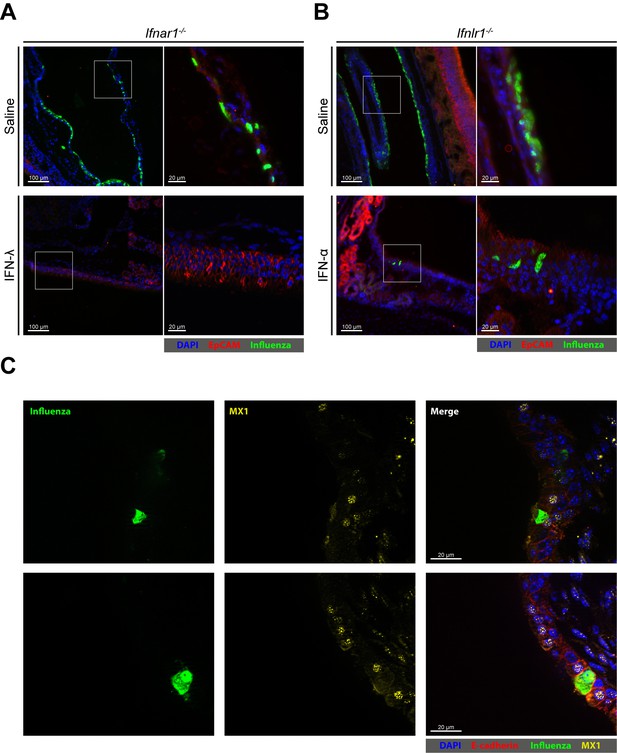

Few epithelial cells in upper airways of IFN-α-treated mice remain susceptible to viral infection.

(A) Ifnar1−/− and (B) Ifnlr1−/− mice were treated intranasally with either saline, 2 µg IFN-λ or 2 µg IFN-α before infection with 105 PFU of Udorn. The animals were sacrificed at 24 hr post infection, and heads were processed for cryosections. Thin-sections were stained for EpCAM (red), influenza virus antigens (green) and DAPI (blue). Merged pictures are presented at low magnification (left panels), and boxed areas are shown at higher magnification (right panels). (C) WT mice were treated intranasally with 2 μg IFN-α before infection with 105 PFU of Udorn. The animals were sacrificed at 24 hr post infection, and heads were processed for cryosections. Thin-sections were stained for E-cadherin (red), influenza virus antigens (green), MX1 (yellow) and DAPI (blue). Single staining for virus antigen (left panels) and MX1 (middle panels) as well as merged pictures of the same fields (right panels) are shown.

https://doi.org/10.7554/eLife.33354.013

Discussion

IFN-λ has previously been recognized as an important component of the innate immune system that limits the replication of viruses infecting epithelial cells of the intestinal tract (Lazear et al., 2015; Wack et al., 2015). Since Ifnlr1−/− mice showed only minimally enhanced susceptibility towards influenza viruses compared with wild-type mice in previous studies (Crotta et al., 2013; Galani et al., 2017; Mordstein et al., 2008), it was assumed that the contribution of IFN-λ to protection against respiratory viruses is minor and becomes detectable only when the type I IFN system is defective (Crotta et al., 2013; Mordstein et al., 2008; Mordstein et al., 2010a; Mordstein et al., 2010b) or when infections are performed with very low doses of virus (Galani et al., 2017). Prior studies neglected the upper respiratory tract, where the decisive battle between invading viruses and the host defense system usually takes place. In most previous studies the inoculum was applied to the airways of the animals in a relatively large volume, which delivers the virus directly to the lungs. In this study we used an experimental setup which ensures that the virus is delivered specifically to the upper airways, thus mimicking the natural infection scenario of respiratory viruses. Our work indicates that previous studies have grossly underestimated the non-redundant antiviral potential of IFN-λ in the respiratory tract, and we demonstrate that IFN-λ is of central importance for antiviral defense of the upper airway mucosa during respiratory virus challenge. Galani et al. similarly concluded from a recent study that IFN-λ mediates non-redundant frontline protection against influenza virus infections (Galani et al., 2017). Their work focused exclusively on the IFN-λ-mediated control of viral replication in the lungs. Although our data is compatible with the published findings, it further demonstrates that the non-redundant role of IFN-λ against respiratory viruses is far more prominent in the upper airways than in the lungs. Our results also show that IFN-λ plays a more important role than type I IFN in limiting the transmission of respiratory viruses to naïve contacts and that IFN-λ confers effective and long-lasting protection.

Our new data reveals a compartmentalization of the IFN-based antiviral defense system in the upper respiratory tract that is reminiscent to what was previously described for the intestinal tract (Mahlakõiv et al., 2015). Thus, a picture emerges which indicates that IFN-λ is essential for barrier integrity in tissues where viruses most frequently attack the host, and that the type I IFN system ramps up at these sites only after the epithelial barrier has failed to contain the virus. A likely explanation for the evolution of such functional compartmentalization is that this strategy allows shielding the body against minor viral attacks without causing a strong activation of immune cells (Davidson et al., 2015; Davidson et al., 2016; Trinchieri, 2010; Wack et al., 2015). Since IFN-λ predominantly acts on epithelial cells rather than immune cells (Sommereyns et al., 2008), it is well suited to limit viral replication at epithelial surfaces without inducing a strong inflammatory response commonly associated with type I IFN (Davidson et al., 2014; Davidson et al., 2016; Galani et al., 2017; Lee-Kirsch, 2017).

Different mechanisms seem to favor IFN-λ over type I IFN in the antiviral defense of the gut and the respiratory tract. Epithelial cells of the intestinal tract of adult mice express no or only very low levels of functional type I IFN receptors (Lin et al., 2016; Mahlakõiv et al., 2015) and, consequently, these cells are largely blind to the protective activity of IFN-α and IFN-β. In contrast, replication of influenza and Sendai viruses was clearly inhibited in the upper airways of IFN-α-treated mice during the first days of infection (Figure 6), excluding the possibility that airway epithelial cells in general are devoid of functional type I IFN receptors. However, the IFN-α-mediated antiviral protection of the upper airways, but not the lungs, was surprisingly short-lived and IFN-α-treated and untreated animals contained comparable viral titers in the upper airways at later times post infection. Furthermore, treatment of primary AECs with IFN-α resulted in a very short-lived upregulation of ISG expression. The situation was strikingly different when IFN-λ was applied. IFN-λ treatment resulted in long-lasting ISG induction in primary AECs and sustained antiviral protection of both the lower and the upper respiratory tract in vivo. Analysis at the single cell level revealed that a small number of epithelial cells in the nasal cavity of mice remained virus-susceptible even if the animals were treated with IFN-α. Interestingly, these cells contained no detectable levels of the IFN-inducible MX1 protein, although the animals were treated with a high dose of IFN-α before virus infection (Figure 7). Since the antiviral effect of IFN-α in the upper airways was poor irrespective of whether it was applied intranasally or systemically, it is unlikely that IFN-α simply failed to penetrate the mucosa of the upper airways. It remains possible that the influenza virus-susceptible cells in the upper airways of IFN-α-treated mice represent a rare specialized epithelial cell type which possesses no functional type I IFN receptors (Lin et al., 2016; Mahlakõiv et al., 2015). More likely, however, these cells contain high levels of factors that inhibit type I but not type III IFN receptor signaling such as USP18, SOCS1 and SOCS3 (François-Newton et al., 2011; Makowska et al., 2011; Porritt and Hertzog, 2015). IFNAR1 can be rapidly internalized and degraded upon activation (Fuchs, 2013), while no such effects were reported for the IFN-λ receptor complex. Thus, it remains possible that negative feed-back regulation of IFNAR1 expression is exceptionally strong in epithelial cells of the upper airways. It is important to note that unhindered virus replication in these rare IFN-α-unresponsive cells might initiate a second wave of virus infection in the upper airways shortly after the antiviral state induced by the IFN-α treatment has waned, which could provide an explanation for the transient antiviral effect of IFN-α in the upper airways.

Since IFN-λ exhibits selective, sustained and highly powerful antiviral activity in the upper airways that efficiently reduces morbidity and mortality (Davidson et al., 2014) as well as transmission of respiratory viruses in mice (our current work), we suggest to consider IFN-λ not only for treating diseased patients (Davidson et al., 2014; Davidson et al., 2015; Davidson et al., 2016; Wack et al., 2015) but also for the management of respiratory virus outbreaks in community settings. According to our results, such clinical use of IFN-λ may not only improve the health status of patients with respiratory symptoms, but is also expected to strongly inhibit virus transmission from infected individuals to healthy contacts. Clinical studies indicate that the side effects of IFN-λ are minimal (Muir et al., 2014). Thus, the use of IFN-λ as prophylactic drug seems justified in health care units during epidemics with respiratory viruses as an effort to protect people who are not fully protected by vaccines.

Materials and methods

Viruses

The following influenza A virus strains were used: A/Seal/Massachusetts/1/1980 (H7N7) designated SC35M, A/Hong Kong/8/68 (H3N2) designated HK68, and A/Udorn/72 (H3N2) designated Udorn. SC35M represents a mouse-adapted variant of an avian-like H7N7 virus that was originally isolated from a diseased seal. HK68 and Udorn are human virus isolates and have no passage history in mice. MDCK cells were used for the preparation of influenza virus stocks and for virus titration by plaque assay. Recombinant Sendai virus (SeV) expressing green fluorescent protein (GFP) was grown in the allantoic cavity of 9-day-old embryonated chicken eggs for 3 days at 33°C (Strähle et al., 2007). SeV titers of mouse organ extracts were determined by counting GFP-positive foci after infection of Vero cells at different dilutions. Polio virus type I Mahoney, a strain derived from the infectious cDNA clone pOM, was used in this study (Shiroki et al., 1995). Polio virus titration by plaque assay was performed on Vero cells.

Mice and viral infections

B6.A2G-Mx1 mice (designated WT) are C57BL/6 mice carrying functional Mx1 alleles (Mordstein et al., 2008). B6.A2G-Mx1-Ifnar1−/− mice (designated Ifnar1−/−) lack functional type I IFN receptors, B6.A2G-Mx1-Ifnlr1−/− mice (designated Ifnlr1−/−) lack functional IFN-λ receptors. Ifnar1−/−Ifnlr1−/− lack both IFN receptor systems (Mordstein et al., 2008). All mice used in this study were bred locally in our facility or purchased from Janvier (Strasbourg). Animals were handled in accordance with guidelines of the Federation for Laboratory Animal Science Associations and the national animal welfare body. Animal experiments were performed in compliance with the German animal protection laws and were approved by the university’s animal welfare committee (Regierungspräsidium Freiburg; permit G-15/59). Mice used for the experiments were 6 to 13 weeks old.

To achieve infection of the entire respiratory tract, virus in OptiMEM medium containing 0.3% BSA was administered intranasally to ketamine/xylazine-anesthetized animals in a volume of 40 µl. For selective infection of the upper respiratory tract, the virus was administered intranasally under light anesthesia (3% isoflurane in oxygen) in a volume of 10 µl. For transmission experiments, infected mice of different genetic backgrounds were cohoused with naïve Ifnar1−/− Ifnlr1−/− contact mice in a fresh cage for 3–5 days starting at 24 hr post infection. Transmission experiments with Udorn and HK68 were performed by cohousing three index mice with four naïve contact mice, whereas transmission experiments with SeV were performed by cohousing individual index mice with one contact mouse each.

To determine viral titers in various organs, mice were sacrificed by cervical dislocation at the indicated time points. The upper airways, tracheae and lungs were harvested and stored at −80°C until further proceedings. For immune staining, complete heads without skin and fur were collected and fixed by incubation in 4% formaldehyde at 4°C for 16 hr. To determine viral titers, organs were homogenized in 800 µl ice-cold PBS using FastPrep tubes, spheres, and homogenizer (MP Biomedicals, USA). Two cycles of homogenization at 6.5 m/s for 16 s were performed, with samples resting on ice in between. Homogenates were centrifuged at 2300 x g for 5 min at 4°C, supernatants were collected and 10-fold serial dilutions in Opti-MEM with 0.3% BSA were applied to MDCK or Vero cells for plaque assay or determination of TCID50, respectively.

IFN treatment of mice

Mice were treated with the indicated doses of either human IFN-αB/D which is active in mice (Horisberger and de Staritzky, 1987) or recombinant mouse IFN-λ2 (Dellgren et al., 2009) by either the intranasal (20 or 40 µl) or the subcutaneous (100 µl) route.

Immunohistochemistry

Formaldehyde-fixed heads were decalcified in Osteosoft at room temperature on a roller shaker for 96 hr. Samples were then incubated in 15% sucrose at 4°C for 4 hr, followed by incubation in 30% sucrose overnight. Samples were embedded with Tissue-Tek O.C.T. compound and stored at −80°C until use. 4 µm sections were prepared using a cryotome, dried overnight at 37°C and permeabilized for 5 min with 0.5% Triton-X in PBS. Blocking was performed with 10% donkey normal serum in PBS for 45 min. Primary antibodies were goat anti-influenza A (Purified, AbD Serotec (OBT1551)), rabbit anti-MX1 (anti-AP5 peptide [Meier et al., 1988]), rat anti-EpCAM (Purified, BD Biosciences (552370)) and mouse anti-E-Cadherin A647 (Purified, BD Biosciences (560062)). Secondary antibodies were donkey anti-goat A488 (Purified, Jackson Immuno Research (705-545-147)), donkey anti-rat A647 (Purified, Abcam (ab150155)) and donkey anti-rabbit A555 (Purified, Invitrogen (A-31572)). Nuclei were stained with DAPI and slides were mounted with FluorSave reagent.

Primary mouse tracheal epithelial cell culture

Isolation and culturing of primary mouse airway epithelial cells were performed as previously described (Crotta et al., 2013). Briefly, cells were isolated from the tracheae of WT mice by enzymatic treatment and seeded onto a 0.4 µm pore size clear polyester membrane (Corning) coated with a collagen solution. At confluence, the medium was removed from the upper chamber to establish an air-liquid interface (ALI). Fully differentiated, 7–10 day-old post-ALI cultures were routinely used for experiments. For analysis of the biological activity of IFN-αB/D and IFN-λ2, cells were stimulated for 4 hr by basolateral supplementation of the indicated IFN concentrations. For continuous treatment, cells were stimulated by basolateral supplementation of 1 ng/ml IFN-α B/D or IFN-λ2. Media containing IFN were refreshed every 24 hr.

RNA-isolation and RT-qPCR

AEC cultures were lysed directly in the transwells using the RNeasy Plus Mini kit (Qiagen) according to the manufacturer’s instructions. Snouts were homogenized in 800 µl peqGOLF TriFastTM FL using FastPrep tubes, spheres, and homogenizer (MP Biomedicals, USA). Four cycles of homogenization at 6.5 m/s for 16 s were performed and samples subsequently centrifuged at 12,000 x g for 10 min at 4°C. Supernatants were diluted (1:2.5) in peqGOLF TriFast FL, combined with 200 µl BCP (1-Bromo-3-chlorpropane, Sigma) per ml TriFastTM FL and phase separation performed with 12,000 x g for 15 min at 4°C. Supernatants were combined with one volume ethanol (Sigma) and RNA was isolated using the RNeasy Plus Mini kit according to the manufacturer’s instructions starting with the RNeasy spin column. DNA was removed by using DNAse I, Amplification Grade (Invitrogen). cDNA was generated using the Thermoscript RT-PCR system, following the manufacturer’s instructions (Invitrogen). The cDNA served as a template for the amplification of genes of interest (IAV-M1: forward: 5’-AAGACCAATCCTGTCACCTCTGA-3’; reverse: 5’-CAAAGCGTCTACGCTGCAGTCC-3’, Ifnl2/3 (mm0420156_gH, Applied Biosystems), Ifnb1: forward: 5’-CCTGGAGCAGCTGAATGGAA-3’; reverse: 5’-CACTGTCTGCTGGTGGAGTTCATC-3’; probe: 5’-[6FAM]CCTACAGGGCGGACTTCAAG[BHQ1]−3’, Ifna4 (QT01774353, QuantiTect Primer Assay, Qiagen), Isg15: forward: 5’-GAGCTAGAGCCTGCAGCAAT-3’; reverse: 5’-TTCTGGGCAATCTGCTTCTT-3’, Stat1: forward: 5’-TCACAGTGGTTCGAGCTTCAG-3’; reverse: 5’-CGAGACATCATAGGCAGCGTG-3’, Mx1: forward: 5’-TCTGAGGAGAGCCAGACGAT-3’; reverse: 5’-ACTCTGGTCCCCAATGACAG-3’ and Hprt (mm00446968_m1, Applied Biosystems)) by real-time PCR, using TaqMan Gene Expression Assays (Applied Biosystems), Universal PCR Master Mix (Applied Biosystems) and the ABI-Prism 7900 sequence detection system (Applied Biosystems). The increase in mRNA expression was determined by the 2-ΔCt method relative to the expression of Hprt or by the 2-ΔΔCt method relative to mock.

Study design and statistical analyses

Mice were randomly assigned to the various experimental groups, but the study was not blinded. Group sizes and endpoints were predefined based on results from suitable pilot experiments. Comparison between more than two groups was evaluated using one-way analysis of variance (ANOVA) with Tukey’s multiple comparisons. Two-way ANOVA with Tukey’s multiple comparison was used to evaluate more than two groups at different time points. All tests were performed using log10 transformed values for viral titers or relative gene expression. Transmission and viral spread frequencies were analyzed by Fisher's exact test. P-values considered to indicate a significant difference are indicated in the figures as follows: *p<0.05; **p<0.01; ***p<0.001. GraphPad Prism six software (GraphPad Software, USA) was used for statistical analysis.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
    A family of interferon-induced Mx-related mRNAs encodes cytoplasmic and nuclear proteins in rat cells
    1. E Meier
    2. J Fäh
    3. MS Grob
    4. R End
    5. P Staeheli
    6. O Haller
    (1988)
    Journal of Virology 62:2386–2393.
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
    A new cis-acting element for RNA replication within the 5' noncoding region of poliovirus type 1 RNA
    1. K Shiroki
    2. T Ishii
    3. T Aoki
    4. M Kobashi
    5. S Ohka
    6. A Nomoto
    (1995)
    Journal of Virology 69:6825–6832.
  38. 38
  39. 39
  40. 40
  41. 41

Decision letter

  1. Viviana Simon
    Reviewing Editor; Icahn School of Medicine at Mount Sinai, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "IFN-λ prevents influenza virus spread from the upper airways to the lungs and limits virus transmission" for consideration by eLife. Your article has been favorably reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Wenhui Li as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This study shows that IFN-λ has non-redundant antiviral effects in the upper respiratory tract, leading to a unique role in controlling virus transmission. The work presented has great merit as virus transmission is a fundamental, yet understudied, parameter in epidemic spread of influenza virus. The importance of IFN-λ in the upper airways for the control of influenza is convincingly shown using different influenza strains. The existence of cells in the URT that are refractory to type I IFN but presumably responsive to IFN-λ is of great relevance.

The use of gene-targeted mice combined with a meaningful model of virus transmission to identify IFN-λ as a crucial protective factor; the use of small-volume inoculum to mimic better infection in humans; the reconciliation of previous, apparently contradictory data obtained by higher volume infection; and a conclusive demonstration of a clear-cut non-redundant role for IFN-λ in the lung are the strengths of this study.

Moreover, the information about the timing of the different IFN responses in vivo and the effect of dosage and anatomy on the balance between virus and host response will be of great interest to experimentalists and modelers alike.

The manuscript is well organized, clearly written and the overall experimental design and data analysis are appropriate. The conclusions are mostly supported by the presented data. A limitation is that only measurements of virus titers are performed in the context of infection while information on IFN production or ISG induction is missing.

Essential revisions:

1) Provide some measurements on how much type I or type III IFN is being produced in the airways. There are no measurements shown on how much type I or type III IFN is being produced in the airways. This data is critical to understand the differences between IFN-α/β and IFN-λ systems during infection.

2) Quantify ISG induction in the mouse airway. The authors have not quantified ISG induction in the mouse airway. It would be informative to measure Mx mRNA in the mouse lung samples.

There do seem to be individual cells in the airway (Figure 6C) that are responding to infection by expressing the Mx protein. Do these cells express only IFN-λ receptors? Some further combinations of infection, IFN treatment and staining for receptors and response genes as shown in Figure 6 would be extremely informative. For example, are the cells stained for virus in Figure 6C also seen in IFN-λ R-/- mice?

3) Provide some data on disease outcome. One of the main differences between the IFN type I and type III systems is the cellular/tissue distribution of the receptor, which limits the range of response for type III IFN and the systemic inflammation that usually comes with type I IFN. Did the authors observe any differences in immunopathology between infected ifnlr-/- and ifnar-/- infected mice? Did the author measure levels of pro-inflammatory cytokines in those mice? Some information on morbidity or mortality would help the interpretation.

4) Expand the introduction to clearly highlight the advances of the current study relative to the article by Galini and colleagues.

5) Discuss the potential mechanistic differences between IFN-α and IFN-λ.

– The comparisons with IFN-α are sometime overlooked. For example, Figure 2A shows no difference in virus shedding from WTR or IFNAR-/- animals and yet the transmission data showed only 17% transmission from WT but 42% from IFNAR-/-. Please comment.

– In subsection “IFN-λ confers long-lasting virus protection in the upper airways, whereas IFN-α-mediated protection is short-lived”, the short-lived response to IFN-α is mentioned. Might this be explained by a dosage difference? The peak virus titer in SeV infected lungs is less than that in URT and swabs. IFN-α could just be better at control the lower dose of virus at the lung.

– The authors take care to control the amount of IFNs applied by titrating them on primary mouse epithelial cells. At 4 hours post infection, the two IFNs types look equivalent but at later time points they do differ (Figure 5C). What does that mean for the in vivo results?

6) Expand the discussion to include the mechanisms responsible for different responses especially short lived IFN-α response.

https://doi.org/10.7554/eLife.33354.017

Author response

Essential revisions:

1) Provide some measurements on how much type I or type III IFN is being produced in the airways. There are no measurements shown on how much type I or type III IFN is being produced in the airways. This data is critical to understand the differences between IFN-α/β and IFN-λ systems during infection.

We agree with the reviewers that more information on the synthesis of type I and type III IFN in the upper airways of virus-infected mice might help to explain our findings. Accordingly, we employed commercial ELISA kits to measure IFN-λ in lysates prepared from the snout tissue. It turned out that these ELISA kits are not suitable for a proper analysis of IFN levels in tissue homogenates due to strong non-specific background signals. It should be noted that these assays worked well for serum samples and bronchoalveolar lavage fluids. Unfortunately, however, measuring IFN levels in the latter samples does not solve the open questions of our project.

The only method that worked for us was RT-qPCR. Data presented in a new Figure 2A shows that baseline expression of IFN-λ genes is significantly lower in the upper airways of Ifnar1-/- mice compared with wild-type and Ifnlr1-/- mice. As a result of reduced baseline expression of the IFN-λ gene, Ifnar1-/- mice also exhibit low baseline expression of the IFN-stimulated Mx1 gene which may explain why Ifnar1-/- mice show enhanced susceptibility to influenza viruses even though they possess a fully functional IFN-λ system. These new findings are described in subsection “IFN-λ prevents influenza virus spread from the upper respiratory tract to the lungs” of our revised manuscript.

2) Quantify ISG induction in the mouse airway. The authors have not quantified ISG induction in the mouse airway. It would be informative to measure Mx mRNA in the mouse lung samples.

In the new Figure 2B we show induction of IFN genes and a representative ISG (Mx1) in the upper airways of infected mice. Baseline expression of IFN-λ mRNA was remarkably high in WT mice, and expression was only moderately induced after virus infection. Ifnar1-/- mice had significantly lower levels of IFN-λ mRNA before infection. Due to technical issues (as explained above) high baseline expression of IFN-λ in snouts of WT mice could not be confirmed on the protein level. Interestingly, expression of the IFN-λ genes in Ifnar1-/- mice reached comparable levels as in WT or Ifnlr1-/- mice within two days post virus infection. These data indicate that functional type I IFN signaling is needed to prime cells for proper baseline expression of the IFN-λ genes which contributes to early virus defense in the upper airways. These important findings are described in subsection “IFN-λ prevents influenza virus spread from the upper respiratory tract to the lungs” of the revised manuscript.

As requested by the reviewer, we also measured Mx1 expression in lung samples of our mice. We found no significant induction of Mx1 expression in lung tissue of WT mice within the first three days after selective upper airway infection. These results indicate that IFN-λ is acting locally and stops virus spread from the upper airways to the lungs without triggering a systemic IFN response. We decided against including these negative data in our revised manuscript, mainly because the focus of our work is on the upper airways.

There do seem to be individual cells in the airway (Figure 6C) that are responding to infection by expressing the Mx protein. Do these cells express only IFN-λ receptors? Some further combinations of infection, IFN treatment and staining for receptors and response genes as shown in Figure 6 would be extremely informative. For example, are the cells stained for virus in Figure 6C also seen in IFN-λ R-/- mice?

Figure 6C (Figure 7C of the revised manuscript) shows snout tissue of a wild-type mouse that was treated with IFN-α before infection with Udorn virus. We concluded from this figure that a small number of epithelial cells in the upper airways do not respond to IFN-α and that these cells seem to remain susceptible to virus infection in spite of an IFN-α pretreatment. We would like to emphasize that similar experiments with Ifnar1-/- and Ifnlr1-/- mice that were treated before virus infection with IFN-λ and IFN-α, respectively, are shown in Figure 7A and 7B (formerly 6A and 6B). They clearly illustrate that IFN-λ blocked replication of Udorn virus very efficiently, whereas IFN-α did not suppress virus replication in all epithelial cells of the upper airways neither in WT nor in Ifnlr1-/-.

3) Provide some data on disease outcome. One of the main differences between the IFN type I and type III systems is the cellular/tissue distribution of the receptor, which limits the range of response for type III IFN and the systemic inflammation that usually comes with type I IFN. Did the authors observe any differences in immunopathology between infected ifnlr-/- and ifnar-/- infected mice? Did the author measure levels of pro-inflammatory cytokines in those mice? Some information on morbidity or mortality would help the interpretation.

Apparently, we did not stress sufficiently well that our mouse-based virus transmission model is based on H3N2 influenza virus strains that do not cause overt disease in mice. Further, most of our infection experiments were designed to deliver the virus inoculum selectively to the upper airways rather than to the lungs. It is well known (Ivinson et al., 2017) that such targeted virus infections are not causing disease in mice even if virus strains are used which are highly pathogenic when delivered directly to the lungs. Most likely for these technical reasons we did not observe any differences in immunopathology between Ifnar1-/- and Ifnlr1-/- mice. We modified the text in subsection “IFN-λ prevents influenza virus spread from the upper respiratory tract to the lungs” of the revised manuscript to better explain our model.

4) Expand the introduction to clearly highlight the advances of the current study relative to the article by Galini and colleagues.

We agree that, at first glance, our work shows similarity to a recently published paper by Galani and coworkers. However, there are important differences between the design and the conclusions of the two studies.

First, we used a protocol in which virus infection selectively starts in the upper airways, mimicking natural virus contraction. Galani et al., in contrast, used a low virus dose to inoculate the whole respiratory tract, as it is conventionally done in respiratory virus studies.

Second, we show that the IFN-λ response stops the virus spread already in the respiratory epithelia of the upper airways, preventing infection of the lungs altogether. We demonstrate that the non-redundant role of IFN-λ is most pronounced in the upper airways where the decisive battle between invading respiratory viruses and the host immune defense takes place under natural conditions. We demonstrate that increased amounts of infectious particles are secreted if the IFN-λ system is defective. This enhances the likelihood that the virus will successfully spread to the lungs of the infected individual. In contrast, Galani et al., exclusively focused on the control of viral replication after it has reached the lungs, and on the immune pathology in the infected lungs.

Third, we demonstrate that IFN-λ-mediated control of viral replication in the upper airways is critical for limiting virus transmission. High amounts of infectious particles are secreted from the upper airways which enhance the probability that the virus is successfully transmitted to a new host. Galani et al., did not assess the role of IFN-λ for virus shedding and contact transmission.

Forth, we used mice with functional Mx1 alleles for our studies. In such mice, IFN-mediated antiviral effects against influenza viruses are much more pronounced than in mice lacking functional Mx1 alleles, providing a broader experimental window which permits detecting small differences in antiviral activity of different IFN subtypes with higher sensitivity. Galani et al., used mice with defective Mx1 alleles. As a consequence, the protective effects of IFN-λ were more pronounced and more sustained in our study compared with the study published by Galani and coworkers.

As requested by the reviewers, we extended the Introduction and the Discussion section of our manuscript to more clearly highlight the advances of our new work relative to the earlier study published by Galani and coworkers.

5) Discuss the potential mechanistic differences between IFN-α and IFN-λ.

– The comparisons with IFN-α are sometime overlooked. For example, Figure 2A shows no difference in virus shedding from WTR or IFNAR-/- animals and yet the transmission data showed only 17% transmission from WT but 42% from IFNAR-/-. Please comment.

The main reason why we do not put emphasis on the type I IFN data shown in Figure 3A (formerly 2A) is that the protective effect of IFN-α was only very mild. As correctly noted by the reviewer, virus shedding was not enhanced in Ifnar1-/- mice. Furthermore, although the rate of Udorn virus transmission was slightly enhanced in the experiment shown in figure 4A, this difference did not reach statistical significance and was not observed in transmission experiments with the HK68 virus strain (Figure 4B). The same holds true for SeV: neither virus shedding (Figure 3B) nor transmission (Figure 4C) was significantly enhanced in Ifnar1-/- mice compared with wild-type animals.

– In subsection “IFN-λ confers long-lasting virus protection in the upper airways, whereas IFN-α-mediated protection is short-lived”, the short-lived response to IFN α is mentioned. Might this be explained by a dosage difference? The peak virus titer in SeV infected lungs is less than that in URT and swabs. IFN-α could just be better at control the lower dose of virus at the lung.

The short-lived nature of the IFN-α effect cannot be explained by a dosage difference. We used identical amounts of IFN-α and IFN-λ for the treatments, and we showed in Figure 5—figure supplement 2 that both IFN preparations have similar biological activities. It is correct that SeV grew to lower titers in the lungs as compared with the upper airways. However, this observation is not relevant for our argument. In the experiment shown in Figure 6, we infected the whole respiratory tract by applying the virus in a volume of 40 µl. Thus, at the earliest times post infection, virus levels were equally low in all parts of the respiratory tract. Since the IFN treatment of the animals was performed before virus infection, our data shown in Figure 6 demonstrates that IFN-α is less effective in preventing virus growth in the upper airways than in the lungs. The short-lived nature of the IFN-α response is shown in Figure 6B and 6C.

– The authors take care to control the amount of IFNs applied by titrating them on primary mouse epithelial cells. At 4 hours post infection, the two IFNs types look equivalent but at later time points they do differ (Figure 5C). What does that mean for the in vivo results?

The discovery that the biological effect of IFN-α is short-lived in airway epithelial cells is important. It provides a good explanation for why IFN-α is less potent than IFN-λ in controlling virus growth in the upper airways. Figure 6B formally excludes a second alternative explanation of our findings, namely the possibility that upper airway epithelial cells might lack functional receptors for type I IFN. We extended the Discussion section to highlight this important finding.

6) Expand the discussion to include the mechanisms responsible for different responses especially short lived IFN-α response.

We discussed possible mechanisms explaining the short-lived nature of the IFN-α response (see Discussion section).

https://doi.org/10.7554/eLife.33354.018

Article and author information

Author details

  1. Jonas Klinkhammer

    1. Institute of Virology, Medical Center, University of Freiburg, Freiburg, Germany
    2. MOTI-VATE Graduate School, Medical Center, University of Freiburg, Freiburg, Germany
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology
    Contributed equally with
    Daniel Schnepf
    Competing interests
    No competing interests declared
  2. Daniel Schnepf

    1. Institute of Virology, Medical Center, University of Freiburg, Freiburg, Germany
    2. Spemann Graduate School of Biology and Medicine (SGBM), Albert Ludwigs University Freiburg, Freiburg, Germany
    Contribution
    Data curation, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing—review and editing
    Contributed equally with
    Jonas Klinkhammer
    Competing interests
    No competing interests declared
  3. Liang Ye

    Institute of Virology, Medical Center, University of Freiburg, Freiburg, Germany
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Marilena Schwaderlapp

    Institute of Virology, Medical Center, University of Freiburg, Freiburg, Germany
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  5. Hans Henrik Gad

    Department of Molecular Biology and Genetics, Aarhus University, Aarhus, Denmark
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8449-1115
  6. Rune Hartmann

    Department of Molecular Biology and Genetics, Aarhus University, Aarhus, Denmark
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  7. Dominique Garcin

    Department of Microbiology and Molecular Medicine, University of Geneva, Geneva, Switzerland
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1556-897X
  8. Tanel Mahlakõiv

    Institute of Virology, Medical Center, University of Freiburg, Freiburg, Germany
    Present address
    Department of Microbiology and Immunology, Weill Cornell Medicine, New York, United States
    Contribution
    Data curation, Formal analysis, Supervision
    Competing interests
    No competing interests declared
  9. Peter Staeheli

    1. Institute of Virology, Medical Center, University of Freiburg, Freiburg, Germany
    2. Faculty of Medicine, University of Freiburg, Freiburg, Germany
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    peter.staeheli@uniklinik-freiburg.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7057-6177

Funding

Novo Nordisk (NNF15OC0017902)

  • Rune Hartmann

Danish Council for Independent Research-Medical Research (11‐107588)

  • Rune Hartmann

Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung (31003A_163129)

  • Dominique Garcin

Deutsche Forschungsgemeinschaft (STA 338/15–1)

  • Peter Staeheli

European Commission (UniVacFlu)

  • Peter Staeheli

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Annette Ohnemus for technical assistance, Otto Haller and Andreas Wack for excellent comments on the manuscript, and Kerry Mills for proof reading. Funding This work was supported by the Deutsche Forschungsgemeinschaft (Grant STA 338/15–1 to PS), the European commission (UniVacFlu to PS), the Danish Council for Independent Research, Medical Research (Grant 11‐107588 to RH), the Novo Nordisk Foundation (Grant NNF15OC0017902 to RH), and the Swiss National Fund (31003A_163129 to DG).

Ethics

Animal experimentation: Animals were handled in accordance with guidelines of the Federation for Laboratory Animal Science Associations and the national animal welfare body. Animal experiments were performed in compliance with the German animal protection laws and were approved by the university's animal welfare committee (Regierungspräsidium Freiburg; permit G-15/59).

Reviewing Editor

  1. Viviana Simon, Icahn School of Medicine at Mount Sinai, United States

Publication history

  1. Received: November 5, 2017
  2. Accepted: April 11, 2018
  3. Accepted Manuscript published: April 13, 2018 (version 1)
  4. Version of Record published: May 15, 2018 (version 2)

Copyright

© 2018, Klinkhammer et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,895
    Page views
  • 422
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Immunology and Inflammation
    2. Microbiology and Infectious Disease
    Annah S Rolig et al.
    Research Article
    1. Immunology and Inflammation
    2. Microbiology and Infectious Disease
    Renata C Matos, François Leulier
    Insight
