Systematic perturbation of retroviral LTRs reveals widespread long-range effects on human gene regulation

  1. Daniel R Fuentes
  2. Tomek Swigut
  3. Joanna Wysocka  Is a corresponding author
  1. Stanford University School of Medicine, United States
Research Article
  • Cited 1
  • Views 2,860
  • Annotations
Cite this article as: eLife 2018;7:e35989 doi: 10.7554/eLife.35989

Abstract

Recent work suggests extensive adaptation of transposable elements (TEs) for host gene regulation. However, high numbers of integrations typical of TEs, coupled with sequence divergence within families, have made systematic interrogation of the regulatory contributions of TEs challenging. Here, we employ CARGO, our recent method for CRISPR gRNA multiplexing, to facilitate targeting of LTR5HS, an ape-specific class of HERVK (HML-2) LTRs that is active during early development and present in ~700 copies throughout the human genome. We combine CARGO with CRISPR activation or interference to, respectively, induce or silence LTR5HS en masse, and demonstrate that this system robustly targets the vast majority of LTR5HS insertions. Remarkably, activation/silencing of LTR5HS is associated with reciprocal up- and down-regulation of hundreds of human genes. These effects require the presence of retroviral sequences, but occur over long genomic distances, consistent with a pervasive function of LTR5HS elements as early embryonic enhancers in apes.

https://doi.org/10.7554/eLife.35989.001

Introduction

Nearly half of the human genome is composed of transposable elements (TEs), which are increasingly being recognized not just as parasitic DNA, but as an important source of regulatory innovation for the host (Chuong et al., 2017; Feschotte, 2008; Rayan et al., 2016; Thompson et al., 2016). In particular, endogenous retroviruses (ERVs), which comprise about 8% of the human genome, are sequences derived from ancient retroviruses whose germ-line infections have persisted through millions of years of evolution (Feschotte and Gilbert, 2012; Johnson, 2015; International Human Genome Sequencing Consortium et al., 2001). At the time of endogenization, ERVs, like all retroviruses, contain 5ʹ and 3ʹ long terminal repeats (LTRs) that flank open reading frames encoding retroviral proteins; over time, these LTRs accumulate mutations and often undergo homologous recombination, which reduces them to so-called ‘solo’ LTRs (Greenwood et al., 2018; Kassiotis and Stoye, 2016; Stoye, 2012; Young et al., 2013). In their capacity as retroviral promoters, LTRs are enriched for transcription factor motifs and thus are a particularly fertile substrate for evolving new regulatory elements that can be exapted for host gene regulation. Many examples of such exaptations now exist, for example: in the mouse two-cell (2C) stage embryo, MERVL elements serve as alternative promoters for a subset of mouse 2C genes (Macfarlan et al., 2012), while LTRs of a human ERV, MER41, can function as interferon-inducible enhancers (Chuong et al., 2016). Epigenomic mapping studies detected cell type-selective active enhancer signatures at thousands of LTRs, suggesting that acquisition of tissue-specific or inducible regulatory functions by these elements is a widespread phenomenon that may have profound effects on host gene regulatory networks (Bourque et al., 2008; Chuong et al., 2013; Huda et al., 2010; Kunarso et al., 2010; Martens et al., 2005; Sundaram et al., 2014; Thurman et al., 2012; Trizzino et al., 2017; Jiang et al., 2014; Wang et al., 2012). Furthermore, emerging evidence suggests that a large proportion of primate-specific enhancer/promoter sequences, as well as those that changed their activity most recently, since the separation of humans from chimpanzees, originate from TEs (Jacques et al., 2013; Prescott et al., 2015; Rayan et al., 2016; Trizzino et al., 2017). Thus, understanding the functional impact of TEs on gene regulation is essential for comprehending the emergence of primate- and human-specific traits.

Despite evidence suggesting the importance of LTRs and other TEs in rewiring gene regulatory networks, most current studies are either correlative or focus on the analysis of individual insertions, rather than on systematically perturbing specific TE classes, with one notable exception of a report utilizing transcription activator-like effector (TALE) fused to effector domains for functional perturbations of mouse LINE1 elements (Jachowicz et al., 2017). This knowledge gap is associated with technical challenges, as LTR subfamilies are often present in hundreds or thousands of copies, which are highly repetitive, but, due to accumulated mutations, sufficiently sequence-divergent to prevent their recognition by a single short-sequence-dependent factor, such as a zinc finger protein or CRISPR guide RNA (gRNA). To overcome these limitations and develop a strategy for systematic interrogation of TE function, we leveraged our recently developed method for gRNA multiplexing called CARGO (Chimeric Array of gRNA Oligos), which allows for the introduction of tens of gRNAs into single cells (Gu et al., 2018).

Here, we couple CARGO with nuclease dead Cas9 (dCas9) fused to an activation or repression domain (CRISPRa and CRISPRi, respectively) (Chavez et al., 2015; Gilbert et al., 2013) to facilitate transcriptional induction or silencing of HERVK LTR5HS elements en masse. Among human ERVs, HERVK (HML-2) is of particular interest, as it is the most recently endogenized retrovirus, which infected the primate lineage both before and after the human-chimpanzee divergence and retained many intact proviruses with coding potential (Barbulescu et al., 1999; Belshaw et al., 2004; Medstrand and Mager, 1998). This ERV class contains integrations so recent that polymorphic insertions across the human population exist (Belshaw et al., 2005; Shin et al., 2013; Wildschutte et al., 2016). All human-specific and human-polymorphic HERVK insertions are associated with a specific LTR5 family subclass, LTR5HS, present in 697 copies in the human genome (hg38 assembly) (Hanke et al., 2016; Subramanian et al., 2011). We recently showed that HERVK is transcriptionally activated in human preimplantation embryos and in naïve, but not primed, human embryonic stem cells (hESCs) (Grow et al., 2015). Naïve hESCs model an early, preimplantation stage of the human blastocyst, characterized by global DNA hypomethylation similar to that observed in the inner cell mass, with transcriptional profiles and epigenetic landscapes different from those of primed hESCs, which are most similar to a later, postimplantation stage of the blastocyst (Bates and Silva, 2017; Zimmerlin et al., 2017). Embryonic activation of HERVK can also be modeled in human embryonal carcinoma NCCIT cells, which exhibit both pluripotent and tumorigenic characteristics, but, unlike naïve hESCs, are easy to maintain and manipulate. Similarly to naïve hESCs and preimplantation embryos, NCCIT cells express pluripotency transcription factors and are characterized by DNA hypomethylation and high expression of HERVK-derived transcripts and proteins (Boller et al., 1993; Grow et al., 2015; Herbst et al., 1996). Transcriptional reactivation of HERVK in NCCIT is associated with the acquisition of enhancer-like chromatin signatures at LTR5HS elements, raising the possibility that these elements may influence host gene expression programs (Grow et al., 2015).

We now demonstrate that a CARGO-based CRISPRa/CRISPRi strategy facilitates robust and specific targeting of dCas9 to ~90% of LTR5HS elements throughout the human genome for efficient activation or repression of HERVK transcripts and proteins. Moreover, perturbation of LTR5HS function by recruitment of an activator or a repressor leads to the reciprocal up- and down-regulation of nearly 300 human genes, along with widespread effects on the chromatin landscape surrounding the promoters of these genes and LTR5HS insertions. Remarkably, these effects on host gene expression occur over long genomic ranges, indicating that LTR5HS elements function as distal enhancers for a substantial number of genes. In agreement, deletion of select LTR5HS elements confirms their strong contribution to host gene transcription. These LTR5HS-regulated genes are preferentially expressed in naïve relative to primed hESCs and their transcripts are also elevated in developing human blastocysts as compared to those of rhesus macaque, a primate species that does not contain LTR5HS insertions. These observations suggest that recent HERVK endogenization has contributed to the establishment of unique gene expression patterns in preimplantation embryos of humans and other apes. Altogether, our work provides a novel and broadly applicable strategy for functional manipulation of specific TE classes across the genome and supports a pervasive role of LTRs as embryonic gene enhancers.

Results

CARGO-CRISPRa/CRISPRi system for manipulating function of transposable elements across the genome

To investigate the role of HERVK LTR5HS insertions in the regulation of embryonic gene expression and, more broadly, to establish a proof of principle for using CARGO to simultaneously target hundreds of repetitive elements interspersed across the genome, we designed a CARGO array with 12 distinct gRNA transcriptional units, altogether predicted to recognize ~91% (635/697) of LTR5HS integrations in the human genome (hg38 assembly) when allowing zero mismatches between gRNA sequences and LTR5HS sequences (Figure 1—figure supplement 1). We computationally predict that many insertions are recognized by multiple gRNAs, with a maximum of nine gRNAs expected to target any single insertion. For example, at zero mismatches, ~87% of LTR5HS insertions are targeted by at least two gRNAs, and ~57% by at least four gRNAs (Figure 1—figure supplement 1), an important consideration given that a single gRNA is often insufficient for robust gene activation/silencing by CRISPRa/CRISPRi (Cheng et al., 2013; Perez-Pinera et al., 2013).

Although our custom scoring algorithm penalized potential gRNAs that target genomic regions other than LTR5HS, we ‘masked’ the highly related (~88% sequence similarity) HERVK LTR5A and LTR5B sequences to exclude them from negatively affecting candidate gRNA scores. Consequently, our CARGO array is computationally predicted to exhibit some binding to LTR5A and LTR5B, but should not target other classes of LTRs or other TEs (Figure 1—figure supplement 1), including the SVA elements, which are in part derived from the LTR5 sequence (Hancks and Kazazian, 2010; Ono et al., 1987). With this strategy, we expect 58% (178/306) of LTR5A and 50% (235/472) of LTR5B insertions to be bound when no mismatches are allowed.

We assembled CARGO LTR5HS-targeting arrays using either the Streptococcus pyogenes gRNA scaffold (hereafter called LTR5HS Sp) or the Staphylococcus aureus gRNA scaffold (LTR5HS Sa). As a non-targeting control, we also assembled a CARGO array with gRNAs that should not pair anywhere in the human genome, with the S. pyogenes gRNA scaffold (nontarget Sp). To couple CARGO with CRISPRa/CRISPRi approaches for systematic perturbation of function, we used the human embryonal carcinoma NCCIT model to generate six transgenic cell lines, each expressing one of the three aforementioned CARGO arrays and a doxycycline-inducible S. pyogenes dCas9 fused to either the strong transactivation domain VPR (dCas9-VPR; CRISPRa) or to a repressive KRAB domain (dCas9-KRAB; CRISPRi) (Chavez et al., 2015; Gilbert et al., 2013) (Figure 1A). Only cells expressing the LTR5HS Sp array will recruit dCas9 fusion proteins to the target regions, for either activation (dCas9-VPR) or repression (dCas9-KRAB) of HERVK/LTR5HS transcription (Figure 1B). By contrast, LTR5HS Sa gRNAs will not complex with the S. pyogenes dCas9, and thus cells with the LTR5HS Sa array serve as a control for overexpression of LTR5HS-derived short RNAs. Finally, in nontarget Sp cell lines, the gRNAs will form a complex with dCas9, but will not bind the genome (at least not in a sequence-dependent manner), thereby serving as a control for the presence of RNA-loaded dCas9 complexes (Figure 1B).

Figure 1 with 1 supplement see all

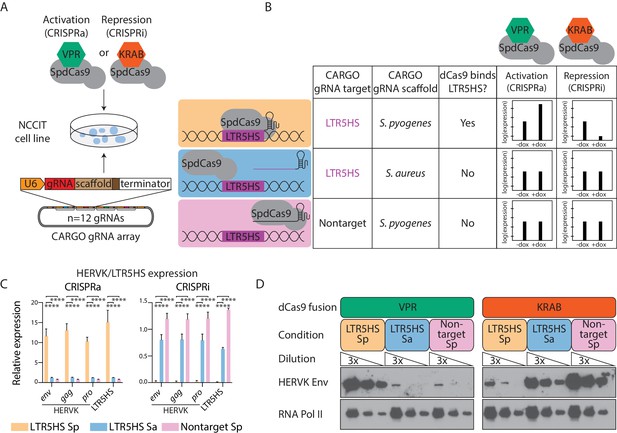

Control of HERVK/LTR5HS expression by CARGO-CRISPRa/CRISPRi.

(A) Schematic of experimental strategy for generation of NCCIT human embryonal carcinoma cell lines expressing CARGO arrays and indicated S. pyogenes dCas9 fusion proteins (SpdCas9). CARGO array schematic adapted from (Gu et al., 2018). (B) Design of three CARGO arrays used in this study. CARGO arrays contain 12 distinct transcriptional units expressing gRNAs targeting LTR5HS or nontargeting gRNAs, with a scaffold sequence from the indicated bacterial species. Predicted effect of each CARGO-SpdCas9 combination on HERVK expression is shown. (C–D) RT-qPCR (C) or western blot (D) analysis of LTR5HS or HERVK proviral genes in NCCIT cells induced with dCas9-VPR (CRISPRa) or dCas9-KRAB (CRISPRi) and one of three CARGO arrays. In (C), error bars show standard deviation, and expression is shown relative to RPL13A, and normalized such that the average of LTR5HS Sa and nontarget Sp conditions is set to 1. ****p value < 0.0001, one-sided t-test. In (D), different exposure times have been used in left and right WB panels to allow for visualization of protein level changes upon CRISPRa and CRISPRi, respectively.

https://doi.org/10.7554/eLife.35989.002

We next induced expression of the respective dCas9 fusion proteins with doxycycline in all six NCCIT cell lines, and assayed expression of LTR5HS-driven transcripts using RT-qPCR (Figure 1C). While most of the LTR5HS elements in the genome exist as solo LTRs, a subset remains associated with protein-encoding proviral sequences. We therefore also examined expression of HERVK transcripts encoding env, gag, and pro, as well as protein levels of Env. We found that although HERVK is already highly expressed in NCCIT cells, levels of both HERVK proviral transcripts and LTR5HS-derived transcripts further increase between 10- and 15-fold in the dCas9-VPR activating lines in the recruitment condition LTR5HS Sp, as compared to the control conditions LTR5HS Sa and nontarget Sp (Figure 1C). Conversely, in the dCas9-KRAB expressing lines, HERVK transcript expression decreases by over 98-fold in the binding condition LTR5HS Sp, compared to the control conditions LTR5HS Sa and nontarget Sp (Figure 1C). Interestingly, observed repression levels are generally as strong as or stronger than those previously reported in CRISPRi experiments with silencing of active single copy loci, attesting to the efficacy of our system. In agreement with effects on transcript expression, we also observed global increases and decreases in HERVK Env protein levels with, respectively, dCas9-VPR and dCas9-KRAB recruitment to LTR5HS (Figure 1D). Altogether, CARGO-CRISPRa/CRISPRi provides a robust system for manipulating the function of highly repetitive TEs such as HERVK.

dCas9 selectively binds the majority of LTR5HS insertions

We next employed chromatin immunoprecipitation followed by high-throughput sequencing (ChIP-seq) to characterize the prevalence and specificity of dCas9 targeting to individual LTR5HS instances across the genome. We derived NCCIT lines stably expressing doxycycline-inducible dCas9 fused to EGFP (dCas9-GFP), and one of the three CARGO arrays: the recruitment (LTR5HS Sp) array or the two control (LTR5HS Sa or nontarget Sp) arrays. For each CARGO array condition, we performed ChIP-seq using three antibodies: one against Cas9, and two against GFP (example UCSC genome browser tracks are shown in Figure 2A). In order to avoid artifacts associated with antibody cross-reactivity, we focused our analysis on peaks called with all three antibodies. Using paired-end 150 bp sequencing allowed us to map obtained signals to individual instances of HERVK in the genome (Figure 2—figure supplement 1). We identified 1178 high-confidence peaks for the recruitment (LTR5HS Sp) condition, while for the control conditions we called 72 peaks (LTR5HS Sa) and 0 peaks (nontarget Sp) (Figure 2B), suggesting that most peaks in the LTR5HS Sp condition are due to site-specific targeting by CARGO. In agreement, the majority of dCas9 binding occurs at LTR5HS sites (591 peaks, corresponding to 85% of LTR5HS elements) or the computationally predicted and highly sequence related LTR5A/5B/5 sites (343 peaks, corresponding to 53%, 41%, and 19% of, respectively, LTR5A, LTR5B, and LTR5 instances), and is selective for the LTR5HS Sp array condition (Figure 2B,C). These HERVK LTR5 peaks lie almost entirely in intergenic (~68.6%) and intragenic (~30.6%) regions, with very few (~0.8%) overlapping with promoters (Figure 2—figure supplement 2). The remaining 244 non-LTR peaks we classify as off-targets, and these are distributed evenly between intergenic and intragenic sites. Some of these peaks (33/244, ~14%) are legitimate Watson-Crick base-pairing off-targets of the CRISPR gRNAs in the CARGO array to the human genome sequence, when allowing for up to three mismatches between gRNA and genome sequence. The rest, we believe, are simply non-specific binding sites, though some may be legitimate off-targets when permitting more than three mismatches; indeed, it is known that gRNA-to-target mismatches are tolerated beyond this threshold, especially when these mismatches are outside of the 5 bp ‘seed’ sequence immediately adjacent to the PAM site (Kuscu et al., 2014; Wu et al., 2014).

Figure 2 with 3 supplements see all

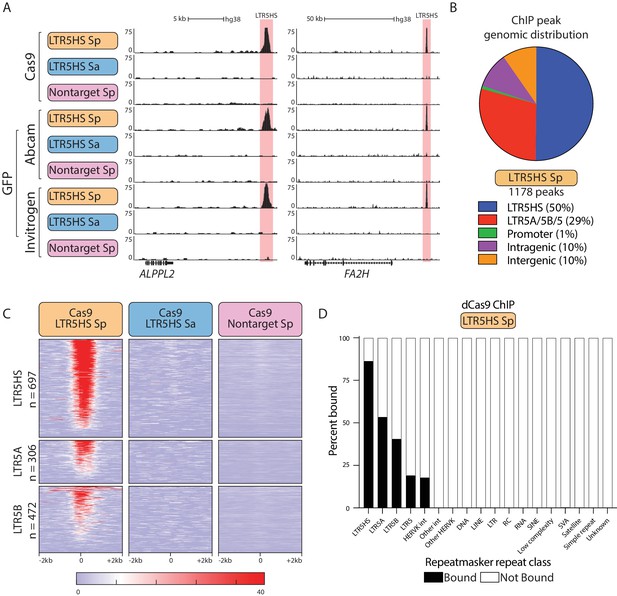

Robust and selective dCas9 targeting to LTR5HS via CARGO.

(A) Representative UCSC hg38 genome browser tracks showing ChIP-seq profiles for dCas9 performed with three different antibodies (Cas9, GFP Abcam, GFP Invitrogen) from NCCIT cells expressing one of the three CARGO arrays (LTR5HS Sp, LTR5HS Sa, nontarget Sp; colored as in Figure 1). Regions around LTR5HS insertions are highlighted in pink. (B) Distribution of dCas9 LTR5HS ChIP-seq peaks called with all three antibodies over HERVK LTRs and known genomic features. (C) Heat maps of normalized ChIP-seq signal with three different CARGO arrays using Cas9 antibody. Each row represents a 4 kb window (2 kb in each direction) centered at the middle of the indicated HERVK LTR, with number of insertions of each class shown. Heat map of each LTR is sorted by Cas9 LTR5HS Sp ChIP average signal. (D) Percent of each Repeatmasker hg38 repeat class bound by dCas9 ChIP-seq peaks called with all three antibodies. Int, internal proviral sequences; RC, rolling circle; SVA, SINE/VNTR/Alu.

https://doi.org/10.7554/eLife.35989.004

As would be expected, LTR5HS instances computationally predicted to align with multiple gRNAs had stronger dCas9 ChIP-seq enrichments (Figure 2—figure supplement 3). However, the overall correlation was only moderate (Spearman correlation coefficient ρ = 0.57 at zero mismatches allowed), indicating that the number of pairing gRNAs is not the sole determinant of dCas9 binding strength. Importantly, we did not observe significant binding of dCas9 to other TEs or repetitive sequences, including the SVAs (Figure 2D). We found only 25 individual SVA insertions (0.43% of 5750 in Repeatmasker hg38) to be bound in this experiment. Together, these data demonstrate that our CARGO-dCas9 strategy enables highly selective targeting of a specific TE class.

Manipulation of chromatin landscape by CRISPRa/CRISPRi

We next sought to assess the effect of CRISPRa and CRISPRi on the chromatin landscape of NCCIT cells, specifically around HERVK LTR5HS sequences. To this end, we performed ChIP-seq for the histone modifications H3K27ac, H3K4me3, and H3K9me3 in wild type, parental NCCIT cells, as well as in cells expressing dCas9-VPR or dCas9-KRAB along with the LTR5HS S. pyogenes CARGO array (i.e. LTR5HS Sp; targeting condition). We also performed ChIP-seq for dCas9 using the Cas9 antibody described above, in the same three cell populations. As expected, in WT NCCIT cells, which do not express a dCas9 fusion, we did not detect any enrichment of dCas9 signal. We also found that in these cells, a large subset of LTR5HS elements is marked by H3K27ac and H3K4me3, with H3K4me3 showing the expected asymmetric distribution consistent with the direction of LTR-driven transcription (Figure 3A). Furthermore, LTR5HS insertions generally lack H3K9me3 in WT NCCIT, regardless of the presence or absence of H3K27ac and H3K4me3, suggesting that LTR5HS insertions in these cells escape KRAB-mediated repression, a major mechanism of endogenous retrovirus silencing (Friedli and Trono, 2015; Rowe et al., 2010).

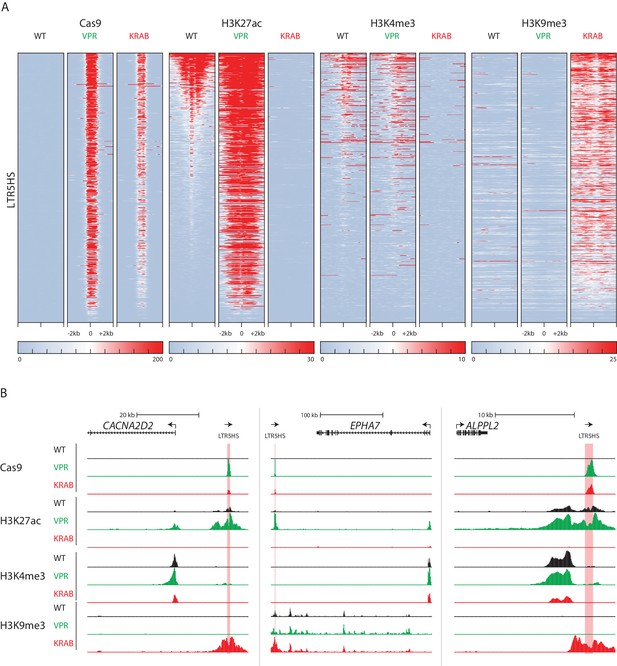

Changes in LTR5HS chromatin landscape upon CARGO-CRISPRa/CRISPRi.

(A) Heat maps of normalized ChIP-seq signal using antibodies against Cas9, H3K27ac, H3K4me3, or H3K9me3. Heat maps for each antibody show wild type NCCIT or NCCIT cells expressing dCas9-VPR or dCas9-KRAB fusion along with LTR5HS Sp CARGO array. Each row represents a 4 kb window (2 kb in each direction) centered at the middle of HERVK LTR5HS. All heat maps are sorted by H3K27ac signal in WT NCCIT. (B) UCSC hg38 genome browser tracks showing ChIP-seq profiles for Cas9, H3K27ac, H3K4me3, and H3K9me3, in WT NCCIT, CRISPRa targeting condition (dCas9-VPR), and CRISPRi targeting condition (dCas9-KRAB). LTR5HS insertions are highlighted in pink. Arrows show direction of transcription of coding genes and LTR5HS elements.

https://doi.org/10.7554/eLife.35989.008

Under CRISPRa and CRISPRi conditions, we detected substantial changes in all three histone marks examined (Figure 3A, individual LTR5HS examples are shown in Figure 3B). With CRISPRa, over 90% of LTR5HS elements gain a high level of H3K27 acetylation, with no appreciable change in H3K4me3. In fact, strong gains in H3K27ac occur even at those LTR5HS insertions that have low endogenous acetylation, which may suggest that ectopic enhancer activation is relatively common and efficient with this system. Conversely, with CRISPRi, we observed a reduction in both active marks, H3K27ac and H3K4me3, and a strong concomitant increase in H3K9me3, as expected, given that KRAB repression is mediated by H3K9me3 deposition (Figure 3A, individual LTR5HS examples are shown in Figure 3B). Under both CRISPRa and CRISPRi conditions, we found strong signals of dCas9 binding, though enrichments at the corresponding elements were higher with dCas9-VPR than dCas9-KRAB (Figure 3A). This is likely attributable to the fact that VPR, a strong activation domain, recruits coactivators that promote nucleosomal depletion (Calo and Wysocka, 2013), whereas KRAB-mediated H3K9me3 facilitates chromatin compaction (Becker et al., 2016), which may in turn provide, respectively, positive or negative feedback for dCas9 fusion binding, especially given that nucleosomes can impede access of Cas9 to DNA (Horlbeck et al., 2016). Nonetheless, dCas9-KRAB still occupies and mediates H3K9me3 deposition at over 90% of LTR5HS elements (Figure 3A). Taken together, these data show that a large subset of LTR5HS elements is enriched in active chromatin marks in WT cells, but that targeted recruitment of dCas9 fusions results in widespread effects on the LTR5HS chromatin landscape that are consistent with the predicted activity of the fusion protein.

Reciprocal effects of LTR5HS CRISPRa/CRISPRi on host gene expression

CARGO-CRISPRa/CRISPRi allows us to systematically test the impact of LTR5HS activation or repression on the host transcriptome. To do so, we performed RNA-seq on the six cell lines described in Figure 1 after doxycycline induction of dCas9-VPR or dCas9-KRAB. First, we examined transcriptional changes of repetitive elements and found that, as expected, LTR5HS and HERVK transcripts are upregulated by dCas9-VPR recruitment to LTR5HS (Figure 4—figure supplement 1A), and downregulated by dCas9-KRAB recruitment to LTR5HS (Figure 4—figure supplement 1B). We next analyzed expression of non-repetitive genes, and identified 390 transcripts that significantly change in expression (false discovery rate [FDR] < 0.05) with both dCas9-VPR (CRISPRa) and dCas9-KRAB (CRISPRi) (Figure 4A). Of those, the majority (275 genes, 71%, Figure 4A, blue points in lower right quadrant) are reciprocally upregulated by CRISPRa and downregulated by CRISPRi, which is consistent both with LTR5HS-dependent regulation, and with the possibility that LTR5HS elements function as enhancers, since activation or repression of an enhancer would be expected to induce or decrease, respectively, expression of a target gene. Some genes were only affected by one of the treatments (i.e. dCas9-VPR only, 3980 genes, 1886 upregulated and 2094 downregulated, in green, or dCas9-KRAB only, 288 genes, 145 upregulated and 143 downregulated, in red, Figure 4A), and these effects could reflect a genuine contribution of LTR5HS to their regulation. Nonetheless, when we analyzed transcripts with respect to distance from the nearest LTR5HS, grouped by deciles from closest to furthest, we found that the majority of reciprocally affected genes (218/275, 79%) fell within the closest decile, consistent with regulation by LTR5HS (Figure 4B). Furthermore, the magnitude of expression changes of genes affected by CRISPRa-only or CRISPRi-only is relatively modest: only 40% and 18%, respectively, have a greater than two-fold change in expression in either direction. Most (78% and 60%, respectively) of these CRISPRa-only or CRISPRi-only affected genes fall outside of the first or second decile in distance with respect to the nearest LTR5HS (i.e. within 436 kb of the LTR5HS; compare Figure 4A and B), suggesting many indirect effects. In contrast, of the 275 genes reciprocally upregulated by CRISPRa and downregulated by CRISPRi, 225 (82%) show greater than two-fold change in expression in at least one condition, and 250 (91%) fall within the first or second decile of distance from the nearest LTR5HS. Therefore, we further focus on the 275 genes that show reciprocal transcriptional effects in CRISPRa/CRISPRi, and we refer to them as LTR5HS-regulated transcripts.

Figure 4 with 1 supplement see all

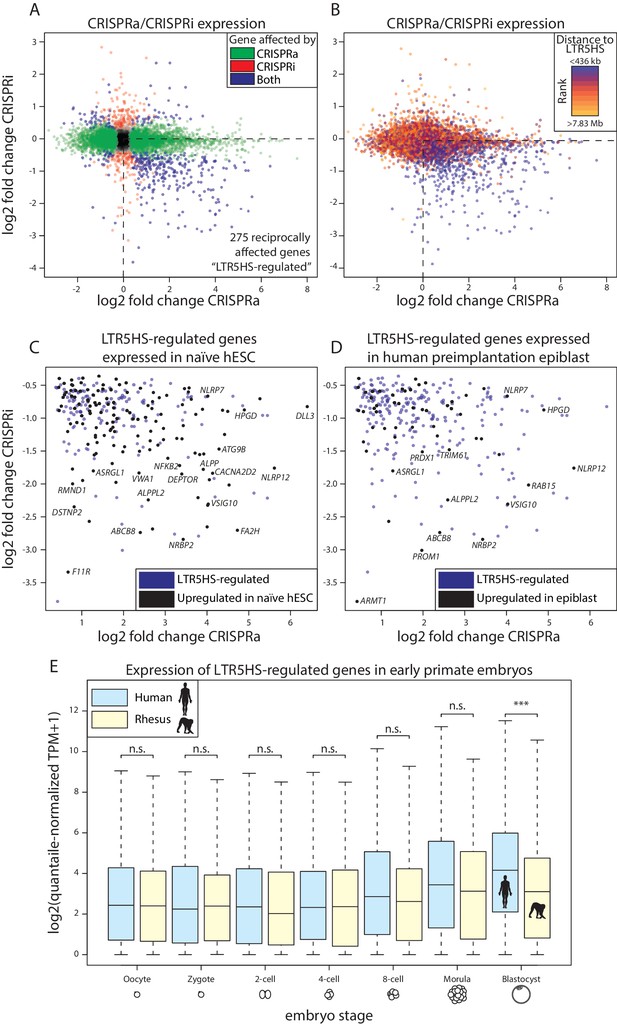

Reciprocal effects of LTR5HS CARGO-CRISPRa/CRISPRi on host gene expression.

(A) Gene expression log2 fold change of CRISPRi (recruitment vs. control) vs. log2 fold change of CRISPRa (recruitment vs. control). Green, genes affected by CRISPRa alone; red, genes affected by CRISPRi alone; blue, genes affected by both CRISPRa and CRISPRi. Dotted line at lower right quadrant delineates LTR5HS-regulated transcripts reciprocally upregulated by CRISPRa and downregulated by CRISPRi. (B) Plot as in (A), with genes separated into deciles by distance from nearest LTR5HS insertion. Blue, nearest decile; orange, farthest decile. Distance bins for nearest and farthest decile are shown above and below legend, respectively. (C–D) Lower right quadrant of LTR5HS-regulated transcripts in (A), with genes significantly upregulated in (C) naïve versus primed hESC or (D) human preimplantation epiblast shown in black. Data from (Takashima et al., 2014; Theunissen et al., 2016; Yan et al., 2013). (E) Log2-transformed expression of LTR5HS-regulated transcripts in single cells of early human and rhesus macaque embryos at indicated stages of embryogenesis. Plots show median (center line), with interquartile range (box) and whiskers show points within 1.5x the interquartile range. ***p value < 0.001; n.s. not significant, Wilcoxon-Mann-Whitney test. Of the 275 LTR5HS-regulated transcripts, 193 are one-to-one orthologous genes between human and rhesus. Only expression of these genes was considered in this analysis.

https://doi.org/10.7554/eLife.35989.009

For these 275 LTR5HS-regulated transcripts, we found that the nearest LTR5HS insertion is upstream of the promoter in 150 cases, and downstream in 125 cases. This finding suggests that even downstream LTR5HS insertions can have a transcriptional effect on the gene, meaning that these insertions do not serve as alternative promoters. Furthermore, since LTR sequences do have a natural orientation, we also examined the relative orientation of the nearest LTR5HS for each of these genes. In the 150 cases in which the nearest LTR5HS insertion is upstream of the promoter, the LTR5HS has the same orientation as the gene (both on Watson strand or both on Crick strand) 83 times, compared to 67 in the opposite orientation. In the 125 cases in which the nearest LTR5HS insertion is downstream of the promoter, the LTR5HS has the same orientation as the gene 48 times, compared to 77 in the opposite orientation. Together, these findings suggest that neither the relative position of the LTR5HS insertion to the promoter, nor its orientation, determines its ability to effect a transcriptional change on the gene in question under CRISPRa or CRISPR, consistent with the putative enhancer function. Furthermore, when we analyzed the RNA-seq data for the presence of chimeric transcripts between LTR5HS and the LTR5HS-regulated genes, we detected an appreciable level (i.e. transcripts per million [TPM] > 1) of chimeric transcription at only four of the 275 genes (specifically, NBPF12, SLC4A8, FA2H, and TIMM50). Thus, the function of LTR5HS as alternative promoters cannot broadly explain the observed regulatory effects on host gene transcription.

Gene ontology analysis of the LTR5HS-regulated transcripts did not detect strong enrichments in specific biological processes and pathways (data not shown). Interestingly, however, even though our experiments were performed in NCCIT embryonal carcinoma cells, we analyzed previously published RNA-seq data and observed statistically significant relationships between LTR5HS-regulated transcripts and differentially expressed genes in these public datasets. Specifically, we found that 138 of the 275 LTR5HS-regulated transcripts (50%, Fisher’s exact test p value = 2.63×10−26) are also upregulated in naïve as compared to primed hESCs (Figure 4C) (Takashima et al., 2014; Theunissen et al., 2016), and that 55 of these transcripts (20%, Fisher’s exact test p value = 3.85×10−21) are expressed in the human preimplantation epiblast (Figure 4D) (Yan et al., 2013). These observations are consistent with potential LTR5HS-dependent gene regulation in naïve hESC and preimplantation embryos, where these elements undergo transcriptional reactivation (Grow et al., 2015; Theunissen et al., 2016). We next analyzed published single cell RNA-seq data from both human and rhesus macaque early embryos, and found that LTR5HS-regulated transcripts are more highly expressed in human than rhesus preimplantation blastocysts (Figure 4E; Wilcoxon-Mann-Whitney p value < 0.001) (Wang et al., 2017; Yan et al., 2013). A trend towards human-specific upregulation of these transcripts can be observed starting at the 8-cell stage through the morula, although it only reaches statistical significance in the blastocyst (Figure 4E). Given that the rhesus genome does not contain any LTR5HS insertions, and that LTR5HS-driven expression in the developing human embryo begins at the 8-cell stage and peaks in the blastocyst (Grow et al., 2015), these observations suggest that the acquisition of LTR5HS after the split of apes from old world monkeys has contributed to increased expression of a subset of preimplantation genes specifically in apes. We then analyzed the evolutionary age of the LTR5HS insertions closest to the LTR5HS-regulated transcripts (ranging from over 20 million years for the oldest elements to a couple of hundred thousand years for the youngest). We observed no bias for older insertions to be associated with regulatory changes (Figure 4—figure supplement 1C and D) and consequently, a subset of LTR5HS-regulated transcripts was linked to human-specific LTR5HS instances (i.e. those 5 million years old or younger). These observations raise the intriguing possibility that LTR5HS may mediate not only ape-specific, but also human-specific features of early embryonic gene regulation.

LTR5HS activation and repression affect host gene transcription over long genomic distances

A hallmark of enhancer elements is their ability to activate host gene expression over long genomic distances and in an orientation-independent manner. We noted that although most LTR5HS-regulated transcripts fell within the closest decile category with respect to distance from the nearest LTR5HS, this category encompassed distances of up to ~436 kb (Figure 4B). We therefore took an LTR5HS-centric approach, and examined changes in host gene expression in relation to distance from each gene transcription start site (TSS) to the nearest LTR5HS at higher resolution within the ±200 kb domain. We found that expression of genes with promoters located not only in direct proximity of LTR5HS, but up to ~200 kb upstream or downstream of LTR5HS, was significantly upregulated by recruitment of dCas9-VPR (CRISPRa) to LTR5HS (LTR5HS Sp), compared to controls (LTR5HS Sa and nontarget Sp), but at further distances the changes became non-significant (Figure 5A, see Supplementary file 1 for statistical analysis). We observed the opposite effect with recruitment of dCas9-KRAB (CRISPRi) to LTR5HS, with genes within ~200 kb upstream or downstream of LTR5HS elements, but not those further away, showing significant downregulation (Figure 5B, see Supplementary file 1 for statistical analysis). Thus, activation or repression of LTR5HS can exert long-range effects on host gene transcription, in agreement with the function of these elements as long-range enhancers.

Figure 5 with 3 supplements see all

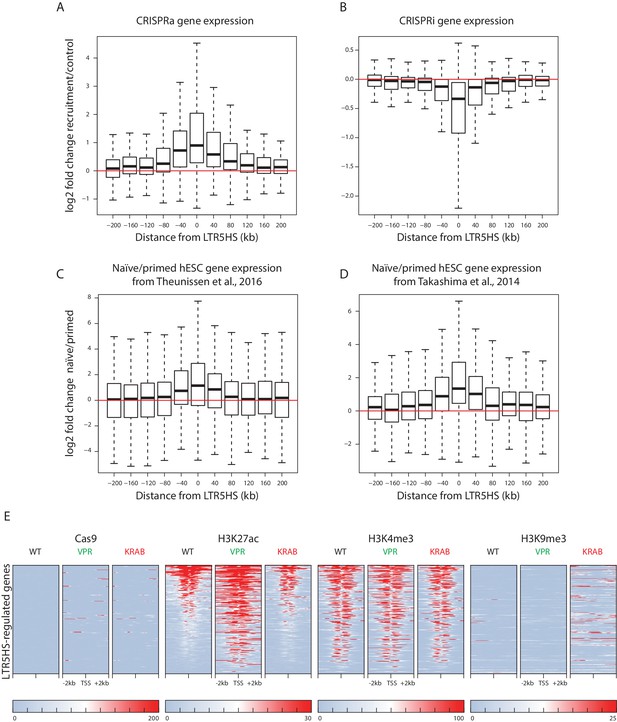

LTR5HS activation or repression affects host gene expression over long genomic distances.

(A–B) Box plots of log2 fold change in gene expression between recruitment (LTR5HS Sp) and control (LTR5HS Sa and nontarget Sp) arrays in NCCIT cells induced with CRISPRa (A) or CRISPRi (B). (C–D) Box plots of log2 fold change in gene expression between naïve and primed hESC, using data from (Theunissen et al., 2016) (C) and (Takashima et al., 2014) (D). For all box plots, genes are binned into 40 kb bins centered around the indicated integer by distance from the TSS to the center of the nearest LTR5HS insertion. Plots show median (center line), with interquartile range (box), and whiskers show points within 1.5x the interquartile range. Statistical significance analysis of observed changes for each bin and additional bins located at distances further away from LTR5HS is presented in Supplementary file 1. (E) Heat maps of normalized ChIP-seq signal using antibodies against Cas9, H3K27ac, H3K4me3, or H3K9me3. Heat maps for each antibody show wild type NCCIT or NCCIT cells expressing dCas9-VPR or dCas9-KRAB fusion along with LTR5HS Sp CARGO array. Each row represents a 4 kb window (2 kb in each direction) centered around the TSS of the 275 LTR5HS-regulated genes (i.e. blue points in lower right quadrant of Figure 4A). All heat maps are sorted by H3K27ac signal in WT NCCIT.

https://doi.org/10.7554/eLife.35989.011

Given that many LTR5HS-regulated transcripts are also differentially expressed between naïve and primed hESC (Figure 4C) and that LTR5HS appears to be selectively active in naïve as compared to primed hESC (Grow et al., 2015), we used publicly available data from (Theunissen et al., 2016) and (Takashima et al., 2014) to probe the relationship between the distance from the LTR5HS and changes in expression between naïve and primed hESC. We observed naïve state-biased expression of genes located up to 40–120 kb away from the LTR5HS, depending on the dataset used for the analysis (Figure 5C–D, see Supplementary file 1 for statistical analysis).

In contrast, we found more limited impact on transcription of genes near LTR5A and LTR5B, where only local effects can be detected (Figure 5—figure supplement 1A–D). Given that 53% of LTR5A regions and 41% of LTR5B regions are bound by dCas9 (Figure 2D), this suggests that LTR5A/B insertions likely do not have robust long-range enhancer activity in NCCIT cells, although we cannot exclude the possibility that the weaker transcriptional effects are associated with lower enrichments of dCas9 fusion proteins at these elements. Nonetheless, LTR5HS, which contains an OCT4 motif, is preferentially bound by OCT4 and p300 as compared to LTR5A and LTR5B, which do not contain the motif (Grow et al., 2015; You et al., 2013). We also analyzed publicly available ChIP-seq data and observed OCT4 and H3K27ac enrichments at LTR5HS in NCCIT and naïve hESC, but not primed hESC, while no enrichments were detected at LTR5A or LTR5B (Figure 5—figure supplement 2). These data suggest that genuine functional differences in regulatory capacity exist within distinct subclasses of HERVK LTR5 elements, and that their regulatory activity is cell type-specific. As a control, we analyzed gene expression changes under CRISPRa and CRISPRi conditions with respect to distance from HERVE LTR2, a class of LTR that is not targeted in these experiments. As expected, we found no effect on genes near this LTR class, confirming that the transcriptional changes observed are dependent on specific targeting of HERVK LTR5HS (Figure 5—figure supplement 1E–F).

We next sought to determine if transcriptional changes observed at the LTR5HS-regulated genes under CRISPRa and CRISPRi conditions are accompanied by differences in histone modifications at the promoters of these genes. We used the histone modification ChIP-seq data described above to examine patterns of H3K27ac, H3K9me3, and H3K4me3 surrounding the promoters of the 275 LTR5HS-regulated transcripts (i.e. blue points in lower right quadrant of Figure 4A). Most of these promoters are marked by at least some H3K27ac and H3K4me3 in WT NCCIT, and most gain or lose, respectively, H3K27 acetylation under CRISPRa or CRISPRi conditions (Figure 5E). Notably, these changes occur in the absence of direct dCas9 binding to the promoters, suggesting that they result from the long-range effects of LTR5HS (Figure 5E). Furthermore, although some gains of H3K9me3 can be observed in the vicinity of the promoters under CRISPRi conditions, most TSS remain unmethylated at H3K9, and, unlike at the LTRs, their H3K4me3 levels are relatively unaffected, suggesting that direct silencing of promoters via H3K9me3 spreading from a nearby LTR5HS is not likely to explain the transcriptional effects we examine in this study. As a control, we performed these same analyses on a set of 275 random promoters, and we detected no changes in any histone mark under CRISPRa or CRISPRi conditions (Figure 5—figure supplement 3).

Long-range effects on host gene expression are dependent on LTR5HS DNA sequence

We next sought to test whether the presence of LTR5HS DNA sequences is required for both the deposition of enhancer marks in the vicinity of the LTR5HS and for the observed long-range effects on host gene expression. To this end, we selected six genes, CACNAD2D, EPHA7, ALPPL2, NFKB2, SERPINB9, and GDPD1, that: (i) were among the 275 LTR5HS-regulated genes with reciprocal effects on expression upon CRISPRa/CRISPRi, (ii) contained no more than two LTR5HS within 1 Mb of the TSS, (iii) spanned a large range of promoter distances from LTR5HS (e.g. from ~2 kb for the closest to ~245 kb for the most distal), and (iv) represented all potential combinations of position relative to the promoter as well as orientation of LTR5HS-driven transcription with respect to the gene. We deleted the nearest LTR5HS element at each selected locus via CRISPR/Cas9 genome editing using WT NCCIT cells as a parental cell line.

We first performed ChIP-qPCR for the histone modifications H3K27ac and H3K4me1 on multiple clonal lines with or without the LTR5HS deletions at three of these loci: CACNA2D2, EPHA7, and ALPPL2. We found that upon deletion of the LTR5HS, both H3K27ac and H3K4me1 were significantly reduced in the regions directly flanking the LTR5HS insertion, consistent with the idea that the presence of the LTR5HS sequence is required for the deposition of these marks (Figure 6A). We also found that H3K27ac is significantly reduced at the promoter of two of these three genes (EPHA7 and ALPPL2) upon deletion of the LTR5HS (Figure 6—figure supplement 1), which indicates that the presence of the distal LTR5HS sequence has a direct effect on the chromatin state of the gene’s promoter.

Figure 6 with 1 supplement see all

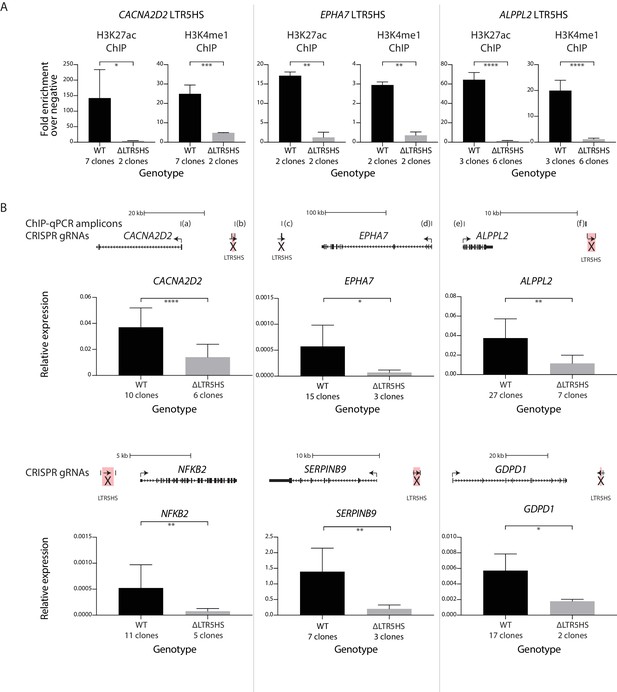

Contribution of LTR5HS sequences to chromatin marking and host gene expression.

(A) ChIP-qPCR analysis for H3K27ac and H3K4me1 on multiple clonal lines with or without the LTR5HS deletions at indicated gene loci. Regions directly flanking the LTR5HS were analyzed for ChIP signal enrichment over two negative regions. Average signals obtained across indicated number of clones are shown. (B) RT-qPCR analysis of LTR5HS-regulated transcripts in multiple clonal lines with or without the LTR5HS deletions at indicated gene loci. Average expression of each gene across indicated number of clones is shown, measured relative to two housekeeping genes, RPL13A and TBP. Above each plot in (B), diagram showing TSS and nearest LTR5HS is shown to scale. Arrows show direction of transcription of coding genes and LTR5HS elements. For both (A) and (B), clones are either WT (black) or deleted for the nearest LTR5HS (LTR5HS highlighted in pink and marked with an ‘X’ in top panels of [B]) by CRISPR/Cas9 genome editing (gray). Error bars show standard deviation. *p value < 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001, one-sided t-test.

https://doi.org/10.7554/eLife.35989.015

Next, we measured the expression of each of the six genes across multiple clonal NCCIT lines with or without the deletion of the nearest LTR5HS (Figure 6B). For all six genes, we observed a significant decrease in expression upon deletion of the nearest LTR5HS. For CACNA2D2, we observed an average of ~2.6-fold decrease in expression upon deletion of the nearest LTR5HS, which is human-specific, located ~16.7 kb upstream of the TSS, and transcribed in a divergent orientation with respect to the gene (n = 6 LTR5HS deleted clones; 10 LTR5HS WT clones; Figure 6B). We found an average of ~8.1-fold decrease in expression after deleting the LTR5HS element closest to EPHA7, which is also human-specific, located ~245 kb downstream of the TSS, and transcribed in a convergent orientation towards the gene (n = 3 LTR5HS deleted clones; 15 LTR5HS WT clones). For ALPPL2, we measured an average of ~3.3-fold decrease in expression with deletion of the nearest LTR5HS, which is also human specific, located ~16 kb downstream of the TSS, and transcribed in the same orientation as the gene (both are on the Watson strand) (n = 7 LTR5HS deleted clones, 27 LTR5HS WT clones). We similarly observed an average of ~6.9-fold decrease in expression after deleting the LTR5HS element nearest to NFKB2, ~2.1 kb upstream of the TSS and transcribed in the same orientation as the gene (both are on the Watson strand) (n = 5 LTR5HS deleted clones; 11 LTR5HS WT clones). We found an average of ~7.0-fold loss of expression of SERPINB9 upon deletion of the nearest LTR5HS element, ~5.8 kb upstream of the TSS and transcribed in a divergent orientation with respect to the gene (n = 3 LTR5HS deleted clones; 7 LTR5HS WT clones). Finally, upon deletion of the LTR5HS closest to GDPD1, ~69 kb downstream of the TSS and transcribed in a convergent orientation towards the gene, we found an average of ~3.2-fold loss of expression of the gene (n = 2 LTR5HS deleted clones, 17 LTR5HS WT clones; Figure 6B). These results demonstrate that long-range effects on gene regulation are directly dependent on LTR5HS DNA sequences and show that a single promoter-distal LTR can provide a very strong contribution to the overall gene activity.

Discussion

Our study demonstrates a proof of principle for combining CARGO with CRISPRa/CRISPRi to simultaneously target hundreds of repetitive elements across the genome and manipulate their function. While we focused on HERVK LTR5HS, the strategy described here could be easily adapted to study different classes of TEs. We exploited the sequence similarity of LTR5HS insertions to target hundreds of insertions with only twelve gRNAs, with most insertions being targeted by multiple gRNAs. Given that CARGO can easily deliver 36 or more gRNAs to single cells (Gu et al., 2018), our approach is applicable for targeting TEs that are more sequence-divergent and/or present in higher copy numbers than LTR5HS. Furthermore, different dCas9 fusions could replace the dCas9-VPR and dCas9-KRAB fusions used in this work. These could potentially enable imaging at these loci (Chen et al., 2013; Gu et al., 2018) or local manipulation of DNA or histone modifications (Hilton et al., 2015; Kearns et al., 2015; Lei et al., 2017; Liu et al., 2016; Vojta et al., 2016; Xu et al., 2016).

The findings that CRISPRa/CRISPRi reciprocally affects expression and promoter histone modification patterns of genes located tens or even several hundreds of kilobases away from LTR5HS elements, and that CRISPR/Cas9 deletion of individual LTR5HS insertions substantially decreases expression of nearby host genes spanning a wide range of distances and distinct orientations with respect to the LTR, altogether indicate that these insertions act as enhancer elements. While multiple recent studies demonstrated the presence of enhancer chromatin signatures at various classes of LTRs, correlated them with expression of nearby genes, or directly demonstrated the importance of select individual LTR instances for host gene activity (Chuong et al., 2013; Chuong et al., 2016; Grow et al., 2015; Theunissen et al., 2016; Thurman et al., 2012; Wang et al., 2014), to our knowledge this study is the first to systematically interrogate the function of a specific LTR class in long-range gene regulation. We uncovered a broad impact of LTR5HS on host gene transcription, with 275 genes being reciprocally up- or down-regulated in our CRISPRa/CRISPRi experiments. Given the widespread redundancies in mammalian regulatory landscapes where loss of a single enhancer often has only a minor influence on expression (Hay et al., 2016; Hnisz et al., 2015; Moorthy et al., 2017; Osterwalder et al., 2018), the transcriptional effects we observe upon deletion of single LTR5HS elements are surprisingly potent, suggesting that these elements indeed function as strong and/or relatively non-redundant enhancers of their target genes.

Considering that other classes of TEs beyond LTR5HS are likely contributing to gene regulation in the early human embryo, these observations are consistent with a pervasive, rather than occasional, role of TEs in transcriptional control. In the mouse, MERVL elements in 2C stage embryos function as alternative promoters (Macfarlan et al., 2012), and, so far, no evidence exists to suggest that they may act as transcriptional enhancers. Hundreds of chimeric transcripts spanning junctions between 5ʹ ERV LTRs and exons containing open reading frames were detected in these cells. However, we found no evidence of pervasive chimeric transcription between HERVK LTR5HS insertions and nearby host genes (Grow et al., 2015 and this study), illustrating diverse mechanisms that may underlie regulatory functions in the early embryo.

Although the fact that evolutionarily young LTRs such as LTR5HS have been so extensively adapted for enhancer function may seem counterintuitive, it is important to note that preimplantation embryo cells and germ cells may be a privileged environment for such early adaptation, not only due to global DNA hypomethylation in these cells, but because in order to persist through vertical transmission, these ancient retroviruses must have been able to replicate in the germline or early embryonic cells, before the germline has been set aside. Thus, LTRs of retroviruses that successfully endogenized might have been optimized to begin with for directing expression in early embryo/germ cells. Interestingly, LTR5HS elements (but not related LTR5A/B elements) contain a consensus motif and are bound by the pluripotent stem cell/primordial germ cell/reprogramming factor and master regulator OCT4, which may have contributed both to their endogenization and cooption for enhancer function (Grow et al., 2015 and Figure 5—figure supplement 2). Indeed, OCT4 plays a central role in activating pluripotency network enhancers (Boyer et al., 2005; De Los Angeles et al., 2015) and our previous work demonstrated that its binding motif is important for the ability of LTR5HS to drive transcription (Grow et al., 2015).

It is intriguing to consider whether regulatory repurposing of LTR5HS elements for enhancer function may have contributed to human-specific transcriptome divergence and endowed the early developmental stages of the human embryo with species-specific attributes. All LTR5HS insertions are unique to apes, and a subset is human-specific or even human-polymorphic (Belshaw et al., 2005; Shin et al., 2013; Subramanian et al., 2011; Wildschutte et al., 2016). We found that both human-specific and older, ape-specific LTR5HS elements contribute to long-range gene regulation, and that some of the genes dependent on them in embryonal carcinoma cells are also expressed in human preimplantation embryos. Interestingly, we found that transcript levels of genes that are orthologous between human and rhesus macaque and regulated by LTR5HS in human cells are significantly elevated in human blastocysts compared to rhesus blastocysts. Given that rhesus diverged from the human lineage approximately 25 million years ago (Rhesus Macaque Genome Sequencing and Analysis Consortium, et al., 2007), before the integration of LTR5HS, our findings suggest that a recent burst of HERVK endogenization supplied humans and other apes with new early embryonic enhancers, leading to a shift in preimplantation gene expression programs. Although there is no evidence thus far to suggest that the phenotypic consequences of the molecular adaptation of LTR5HS for enhancer function have been beneficial to the host, it is nonetheless tempting to speculate that some LTR5HS-driven changes in gene expression may have measurable phenotypic consequences on early development, endowing it with ape-specific attributes. Regardless, the CARGO-CRISPRa/CRISPRi strategy described here provides a novel tool to study the impact of LTRs and other TEs on primate-specific features of development and disease.

Materials and methods

Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Cell line (H. sapiens)NCCITATCCATCC:CRL-2073;
RRID:CVCL_1451
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-VPR
this paperProgenitors:
NCCIT, PiggyBac transposon
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-KRAB
this paperProgenitors:
NCCIT, PiggyBac transposon
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-GFP
this paperProgenitors:
NCCIT, PiggyBac transposon
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-VPR LTR5HS
S. pyogenes
this paperProgenitor:
NCCIT PiggyBac dCas9-VPR
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-VPR LTR5HS
S. aureus
this paperProgenitor:
NCCIT PiggyBac dCas9-VPR
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-VPR nontarget
S. pyogenes
this paperProgenitor:
NCCIT PiggyBac dCas9-VPR
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-KRAB LTR5HS
S. pyogenes
this paperProgenitor:
NCCIT PiggyBac dCas9-KRAB
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-KRAB LTR5HS
S. aureus
this paperProgenitor:
NCCIT PiggyBac dCas9-KRAB
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-KRAB nontarget
S. pyogenes
this paperProgenitor:
NCCIT PiggyBac dCas9-KRAB
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-GFP LTR5HS
S. pyogenes
this paperProgenitor:
NCCIT PiggyBac dCas9-GFP
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-GFP LTR5HS
S. aureus
this paperProgenitor:
NCCIT PiggyBac dCas9-GFP
Transfected construct
(H. sapiens)
NCCIT PiggyBac
dCas9-GFP nontarget
S. pyogenes
this paperProgenitor:
NCCIT PiggyBac dCas9-GFP
AntibodyHERVK envAustral BiologicalsAustral Biologicals:
HERM-1811–5
See Supplementary file 2
AntibodyRNA pol II
(clone 8WG16)
BiolegendBiolegend:920101;
RRID:AB_2565317
See Supplementary file 2
AntibodyCas9
(clone 8C1-F10)
Active MotifActive Motif:61757See Supplementary file 2
AntibodyGFPAbcamAbcam:ab290;
RRID:AB_303395
See Supplementary file 2
AntibodyGFPThermo Fisher
Scientific
(Invitrogen)
Thermo Fisher
Scientific (Invitrogen):
A-11122;
RRID:AB_221569
See Supplementary file 2
AntibodyH3K27acActive MotifActive Motif:39133;
RRID:AB_2561016
See Supplementary file 2
AntibodyH3K4me3Active MotifActive Motif:39159;
RRID:AB_2615077
See Supplementary file 2
AntibodyH3K9me3AbcamAbcam:ab8898;
RRID:AB_306848
See Supplementary file 2
Recombinant DNA
reagent
PiggyBac transposonSystem Biosciences
Recombinant DNA
reagent
px332PMID:
29371426
Recombinant DNA
reagent
LTR5HS S. pyogenes
scaffold CARGO array
this paperProgenitors: PiggyBac
transposon, px332; targeting
array (LTR5HS gRNAs)
Recombinant DNA
reagent
LTR5HS S. aureus
scaffold CARGO array
this paperProgenitors: PiggyBac
transposon, px332; control
array (LTR5HS gRNAs)
Recombinant DNA
reagent
nontarget S. pyogenes
scaffold CARGO array
this paperProgenitors: PiggyBac
transposon, px332; control
array (nontargeting gRNAs)
Recombinant DNA
reagent
px458 GFPPMID:
24157548
Addgene:48138
Recombinant DNA
reagent
px458 mCherrythis paperProgenitor: px458 GFP
Recombinant DNA
reagent
PiggyBac dCas9-VPRthis paperProgenitor:
PiggyBac transposon
Recombinant DNA
reagent
PiggyBac dCas9-KRABthis paperProgenitor:
PiggyBac transposon
Recombinant DNA
reagent
PiggyBac dCas9-GFPthis paperProgenitor:
PiggyBac transposon
Sequence-based
reagent
RT-qPCR primers
(Supplementary file 2)
this paper
Sequence-based
reagent
ChIP-qPCR primers
(Supplementary file 2)
this paper
Sequence-based
reagent
CARGO CRISPR
gRNAs
(Supplementary file 2)
this paper
Sequence-based
reagent
LTR5HS deletion CRISPR
gRNAs
(Supplementary file 2)
this paper
Commercial
assay or kit
Lonza MycoAlertLonzaLonza:LT07-418
Chemical compound,
drug
Doxycycline hyclateSigma-AldrichSigma-Aldrich:D9891
Chemical compound,
drug
PuromycinInvivoGenInvivoGen:ant-pr-1
Chemical compound,
drug
G418Thermo Fisher
Scientific
Thermo Fisher
Scientific:10131–035
Software, algorithmCRISPORPMID:
27380939
Software, algorithmBowtiePMID:
19261174
Software, algorithmBedtoolsPMID:
25199790
Software, algorithmFastQCOtherhttps://www.bioinformatics.babraham.ac.uk/projects/fastqc/
Software, algorithmBowtie2PMID:
22388286
Software, algorithmSamtoolsPMID:
19505943
Software, algorithmPicard toolsOtherhttps://broadinstitute.github.io/picard/
Software, algorithmmacs2PMID:
18798982
Software, algorithmDeeptoolsPMID:
27079975
Software, algorithmHOMERPMID:
20513432
Software, algorithmcutadaptOtherhttps://github.com/marcelm/cutadapt
Software, algorithmhisat2PMID:
25751142
Software, algorithmfeaturecountsPMID:
24227677
Software, algorithmDESeq2PMID:
25516281
Software, algorithmTophat2PMID:
23618408
Software, algorithmskewerPMID:
24925680
Software, algorithmStringTiePMID:
25690850

Cell culture

NCCIT cells were obtained from ATCC. NCCIT cells were grown in RPMI-1640 (Thermo Fisher Scientific, Waltham, MA, USA), supplemented with 10% FBS (Omega Scientific, Tarzana, CA, USA), 1x Glutamax (Thermo Fisher Scientific), 1x non-essential amino acids (Thermo Fisher Scientific), and 1x antibiotic/antimycotic (Thermo Fisher Scientific). Cell lines were tested for mycoplasma contamination using MycoAlert Detection Kit (Lonza, Basel, Switzerland). All cell lines tested negative for mycoplasma contamination.

LTR5HS-targeting CRISPR gRNA design

All unique SpCas9 16 nt seed sequences derived from known instances of LTR5HS were aligned against hg38 human genome with bowtie (Langmead et al., 2009) using ‘-v’ mode with up to three mismatches allowed. Alignments to LTR5HS, LTR5A and LTR5B were not counted as off-targets. The twelve guides with lowest off-target rate were selected for the targeting array. Non-targeting guides were taken from (Shalem et al., 2014).

LTR5HS gRNA analysis

For analysis shown in Figure 1—figure supplement 1, to identify potential binding sites for LTR5HS-targeting gRNAs in silico, Repeatmasker table was downloaded from UCSC table browser hg38, converted to BED format, and subsetted for specific analyses. Specifically, records for LTR5HS, LTR5A, and LTR5B were extracted into separate BED files, then FASTA files for these files were extracted using bedtools getfasta function (Quinlan, 2014). Bowtie indices were built for these FASTA files, and the set of LTR5HS-targeting gRNAs was aligned to each LTR5x index allowing 0, 1, 2, or 3 mismatches, with ‘bowtie -S -f -a -v {0, 1, 2, or 3} $index guides.fa > aligned.sam’ used as the exact command. SAM files were converted to BED using bedtools bamtobed function, then the PAM sequence for each alignment was extracted using bedtools getfasta function. Only guide alignments followed by the PAM sequence ‘NGG’ were counted.

CARGO assembly

CARGO arrays containing twelve guides were assembled as described previously (Gu et al., 2018). The 12 gRNA transcriptional units of the CARGO plasmid were inserted into a PiggyBac transposon plasmid (System Biosciences, Palo Alto, CA, USA) containing a neomycin-selectable cassette by traditional cloning.

Plasmids

For CRISPRa/CRISPRi, dCas9-VPR, dCas9-KRAB, and dCas9-GFP fusions were inserted into a PiggyBac transposon containing a puromycin-selectable cassette. For CRISPR/Cas9 deletion of LTR5HS, a guide upstream of a targeted LTR5HS insertion was cloned into px458 (pSpCas9(BB)−2A-GFP, a gift from Feng Zhang, Addgene plasmid #48138) (Ran et al., 2013), which expresses Cas9 and GFP, and a guide downstream of a targeted LTR5HS insertion was cloned into a modified px458 plasmid which expresses mCherry instead of GFP.

Generation of stable lines

NCCIT cells were transfected with PiggyBac plasmids containing a dox-inducible dCas9 fusion, along with PiggyBac transposase, and selected using puromycin (Invivogen, San Diego, CA, USA). These lines were then transfected with PiggyBac CARGO plasmids, along with PiggyBac transposase, and selected using G418 (Thermo Fisher Scientific). Cells were re-selected with puromycin (Invivogen) to ensure that dCas9-fusions were not lost during second transposition event. For all dCas9 fusion experiments, expression of fusion proteins was induced for four days with 2 ug/mL doxycycline (Sigma-Aldrich, St. Louis, MO, USA)

RNA extraction

Cells for RT-qPCR and RNA-seq were homogenized in Trizol (Thermo Fisher Scientific), then RNA was extracted using Direct-zol RNA columns (Zymo Research, Irvine, CA, USA), with DNase treatment on-column, and eluted in water.

Reverse transcription for RT-qPCR

Reverse transcription for RT-qPCR was performed using SensiFAST cDNA synthesis kit (Bioline, Taunton, MA, USA), according to the manufacturer’s instructions with input from the RNA extraction described above.

qPCR

qPCR was performed using SensiFAST SYBR No-Rox kit (Bioline) in a LightCycler 480II (Roche, Basel, Switzerland), using technical duplicates or triplicates for each sample. Each condition was also analyzed with at least two independent biological replicates. Figure legends indicate transcript normalization for RT-qPCR.

Protein extraction and western blotting

Whole cell nuclear extracts were prepared by lysing cells for 30 min at 4° C with overhead vertical rotation in protein extraction buffer (300 mM NaCl, 100 mM Tris pH 8, 0.2 mM EDTA, 0.1% Triton X-100, 10% glycerol, with 1x cOmplete EDTA-free protease-inhibitor cocktail [Roche]), then clearing by centrifugation and recovery of the supernatant. Total protein concentration was quantified by Bradford assay (Bio-Rad, Hercules, CA, USA). Equal amounts of protein were denatured in LDS buffer (Thermo Fisher Scientific) supplemented with 2-mercaptoethanol (Sigma-Aldrich), then loaded in 3-fold serial dilutions onto tris-glycine 4–20% SDS-PAGE denaturing gradient gels (Thermo Fisher Scientific), then transferred onto nitrocellulose membrane. Chemiluminescence was assayed using Lumi-light Plus (Roche) or Amersham (GE Life Sciences, Pittsburgh, PA, USA) and visualized on autoradiography film.

Chromatin immunoprecipitation

ChIP assays were performed as described previously (Rada-Iglesias et al., 2011). Briefly, approximately 107 NCCIT cells were fixed in 1% formaldehyde for 10 min at room temperature in PBS, then quenched with glycine to a final concentration of 0.125 M for 10 min. Chromatin was sonicated to 0.5–2.0 kb using Bioruptor (Diagenode, Liège, Belgium), cleared by centrifugation, divided into separate aliquots for each antibody, and incubated with 5 μg of antibody overnight at 4° C. Subsequently, 100 μL of Dynabeads protein G (Thermo Fisher Scientific) were added to the ChIP reactions and incubated for 4–6 hr at 4° C. Magnetic beads were washed and chromatin was eluted, followed by reversal of crosslinks overnight at 65° C, proteinase K and RNase A treatment, and DNA purification by phenol/chloroform/isoamyl alcohol extraction and ethanol precipitation. ChIP DNA was resuspended in water.

Library preparation and sequencing for ChIP-seq

For ChIP-seq data presented in Figure 2 and its supplements, ChIP DNA (10 ng) was end-repaired, A-tailed, and ligated to NEBNext adapter for Illumina (New England Biolabs, Ipswich, MA, USA), followed by cleavage with USER enzyme (New England Biolabs). Adapter-ligated DNA was size-selected using a left/right AMPure XP size selection (Beckman Coulter, Brea, CA, USA). Size-selected DNA was amplified by qPCR using one universal primer and one indexed primer (New England Biolabs), then cleaned up with two AMPure XP cleanups. For ChIP-seq data presented in Figure 3 and in Figure 5E and Figure 5—figure supplement 3, libraries were prepared using Ovation Ultralow System V2 UDI (NuGEN Technologies, San Carlos, CA, USA) according to manufacturer’s instructions, starting with 10 ng of ChIP DNA. Library DNA was analyzed on Bioanalyzer DNA HS (Agilent, Santa Clara, CA, USA), then pooled and sequenced on a HiSeq 4000 (Illumina, San Diego, CA, USA) at the Stanford Genome Sequencing Service Center, using 2 × 150 bp sequencing with index read or dual index read.

Library preparation and sequencing for RNA-seq

Total RNA (10 ug) from two independent biological replicates was subjected to oligo-dT purification using Dynabeads oligo(dT) (Thermo Fisher Scientific), then fragmented with 10x fragmentation buffer (Thermo Fisher Scientific). Fragmented RNA was used for first strand cDNA synthesis with Superscript II (Thermo Fisher Scientific) and random hexamer primers (Thermo Fisher Scientific). Second strand cDNA synthesis was performed using RNase H (Thermo Fisher scientific) and DNA polymerase I (New England Biolabs). The resulting double-stranded cDNA was used for Illumina library preparation as described for ChIP-seq experiments, but was size-selected on acrylamide gels, and pooled and sequenced on a NextSeq 500 (Illumina) at the Stanford Functional Genomics Facility, using 2 × 150 sequencing with index read.

CRISPR/Cas9 deletion of LTR5HS

gRNAs upstream and downstream of individual LTR5HS insertions with low potential off-targets were identified using CRISPOR (Haeussler et al., 2016). For each deletion, two guides were selected, one upstream and one downstream of the LTR5HS. To avoid deletion of multiple LTR5HS, guides were chosen that do not overlap the LTR5HS. NCCIT cells were transfected with Lipofectamine 2000 (Thermo Fisher Scientific) with px458-GFP and px458-mCherry plasmids containing upstream and downstream gRNAs for a single LTR5HS insertion. 48 hr later, 1500 GFP- and mCherry- dual-fluorescent cells were sorted on a FACSAria II (BD Biosciences, San Jose, CA, USA), then plated onto a single well of a 6-well plate, coated with 10 ug/mL human plasma fibronectin (MilliporeSigma, Burlington, MA, USA). After ~5–7 days, individual colonies derived from single cells were picked and plated onto a single well of a 96-well fibronectin-coated plate. Cells were grown to confluency, then passaged, genotyped with DirectPCR Lysis Reagent (Viagen Biotech, Los Angeles, CA, USA) by PCR, and analyzed for gene expression by RT-qPCR. Multiple deletion and wild type clones for each LTR5HS insertion were analyzed, as indicated in Figure 6B. Each clone was analyzed at two separate passages.

ChIP-seq analysis

Quality of FASTQ files was assessed using FASTQC software. Reads were aligned to hg38 genome using bowtie2 (Langmead and Salzberg, 2012), with ‘bowtie2 -p $threads --end-to-end --no-mixed --no-discordant --minins 100 --maxins 1000 -x hg38 −1 $read1 −2 $read2 > aligned.sam’ as the exact command for each sample. SAM files were converted to sorted, indexed, compressed BAM files using SAMtools (Li et al., 2009). Duplicate reads were removed using the MarkDuplicates function of Picard Tools. Macs2 (Zhang et al., 2008) callpeak function was used to call peaks for each ChIP (condition/antibody combination). For each ChIP with each antibody, peaks were called using that ChIP as the ‘treatment’ and the other two condition ChIPs as the ‘control’ for macs2, as previous studies have used other ChIP samples, Cas9 alone ChIPs, or ChIPs from cells not expressing Cas9 as controls (Kuscu et al., 2014; Polstein et al., 2015; Wu et al., 2014). Overlaps between ChIP peak calls were performed using bedtools intersect function. Deeptools command line tools (Ramírez et al., 2016) was used to generate Bigwig plots for visualization of UCSC genome browser and ChIP-seq heat maps. HOMER software (Heinz et al., 2010) was used to associate dCas9 ChIP-seq peaks to different genomic features.

ChIP-seq to gRNA alignments correlation analysis

For analysis shown in Figure 2—figure supplement 3, the BED file of all LTR5HS insertions was intersected with BED file containing three-antibody overlap ChIP-seq peak calls for LTR5HS Sp condition. Each LTR5HS insertion, along with the number of gRNAs expected to align to it (at 0, 1, 2, or 3 mismatches allowed), was therefore matched to the macs2 ChIP score at the same LTR5HS, and these are plotted as a violin point plot using the vpplot function of the vipor R package. Spearman correlation coefficient ρ is reported in the text.

RNA-seq analysis

Quality of FASTQ files was assessed using FASTQC software. Reads from were trimmed of Illumina adapter sequences using cutadapt. For analysis of human non-repeat transcripts, trimmed reads were aligned using hisat2 (Kim et al., 2015) to the hg38_tran index, with ‘hisat2 -q -p $threads -t --no-mixed --no-discordant -x hg38_tran −1 $read1 −2 $read2 -S aligned.sam’ as the exact command for each sample. Reads were assigned to gene models using featureCounts (Liao et al., 2014), and differential expression analysis was performed using DESeq2 (Love et al., 2014). For analysis of Repeatmasker transcripts, trimmed reads were aligned using TopHat2 (Kim et al., 2013) to an index built from a FASTA file containing all Repeatmasker sequences, which was itself built using bedtools getfasta command with the Repeatmasker BED file described above. Reads were assigned to repeat models using featureCounts, then RPKM was calculated from these tabulations. For comparison of early embryo single cell RNA-seq, rhesus reads from (Wang et al., 2017) were aligned to rheMac8, and human reads from (Yan et al., 2013) were aligned to hg38 using hisat2, then reads were assigned to gene models using featureCounts. Ensembl BioMart was used to identify only genes with one-to-one orthology between the two species, and only these were used for further analyses. Transcripts per million (TPM) was calculated for each gene at each stage in each species. For chimeric transcript identification, RNA-seq reads were trimmed with skewer (Jiang et al., 2014) and aligned to GRCh38_p7 assembly with hisat2 with the following settings: --dta --no-mixed --no-discordant. Transcript models were built based on this alignment with StringTie (Pertea et al., 2015) and annotated with gffcompare using gencode25 transcript models. Spliced transcripts originating in or within 100 bp of LTR5HS were treated as chimeric transcripts. TPM corresponding to expression level of the known and new transcripts were calculated with separate StringTie run for each library alignment (stringtie -e -B -A).

Unique mappability to LTR5HS

All possible 150 bp paired-end reads for fragments in size range 150–400 bp within −400 bp to +400 bp of known LTR5HS were generated from hg38 reference sequence with bedtools getfasta and aligned to hg38 assembly with bowtie2 (--end-to-end --no-mixed --no-discordant). MAPQ score for each pair was extracted and assigned to LTR5HS instance. Plot of fraction of uniquely mappable (MAPQ > 20) reads was generated in R.

Antibodies, primers, gRNAs

All antibodies, primers, and gRNAs used in this study are listed in Supplementary file 2.

Data availability

Sequencing data have been deposited in GEO under accession code GSE111337.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
    Expression of human endogenous retrovirus K elements in germ cell and trophoblastic tumors
    1. H Herbst
    2. M Sauter
    3. N Mueller-Lantzsch
    (1996)
    The American Journal of Pathology 149:1727–1735.
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Initial sequencing and analysis of the human genome
    1. International Human Genome Sequencing Consortium
    2. ES Lander
    3. LM Linton
    4. B Birren
    5. C Nusbaum
    6. MC Zody
    7. J Baldwin
    8. K Devon
    9. K Dewar
    10. M Doyle
    11. W FitzHugh
    12. R Funke
    13. D Gage
    14. K Harris
    15. A Heaford
    16. J Howland
    17. L Kann
    18. J Lehoczky
    19. R LeVine
    20. P McEwan
    21. K McKernan
    22. J Meldrim
    23. JP Mesirov
    24. C Miranda
    25. W Morris
    26. J Naylor
    27. C Raymond
    28. M Rosetti
    29. R Santos
    30. A Sheridan
    31. C Sougnez
    32. Y Stange-Thomann
    33. N Stojanovic
    34. A Subramanian
    35. D Wyman
    36. J Rogers
    37. J Sulston
    38. R Ainscough
    39. S Beck
    40. D Bentley
    41. J Burton
    42. C Clee
    43. N Carter
    44. A Coulson
    45. R Deadman
    46. P Deloukas
    47. A Dunham
    48. I Dunham
    49. R Durbin
    50. L French
    51. D Grafham
    52. S Gregory
    53. T Hubbard
    54. S Humphray
    55. A Hunt
    56. M Jones
    57. C Lloyd
    58. A McMurray
    59. L Matthews
    60. S Mercer
    61. S Milne
    62. JC Mullikin
    63. A Mungall
    64. R Plumb
    65. M Ross
    66. R Shownkeen
    67. S Sims
    68. RH Waterston
    69. RK Wilson
    70. LW Hillier
    71. JD McPherson
    72. MA Marra
    73. ER Mardis
    74. LA Fulton
    75. AT Chinwalla
    76. KH Pepin
    77. WR Gish
    78. SL Chissoe
    79. MC Wendl
    80. KD Delehaunty
    81. TL Miner
    82. A Delehaunty
    83. JB Kramer
    84. LL Cook
    85. RS Fulton
    86. DL Johnson
    87. PJ Minx
    88. SW Clifton
    89. T Hawkins
    90. E Branscomb
    91. P Predki
    92. P Richardson
    93. S Wenning
    94. T Slezak
    95. N Doggett
    96. JF Cheng
    97. A Olsen
    98. S Lucas
    99. C Elkin
    100. E Uberbacher
    101. M Frazier
    102. RA Gibbs
    103. DM Muzny
    104. SE Scherer
    105. JB Bouck
    106. EJ Sodergren
    107. KC Worley
    108. CM Rives
    109. JH Gorrell
    110. ML Metzker
    111. SL Naylor
    112. RS Kucherlapati
    113. DL Nelson
    114. GM Weinstock
    115. Y Sakaki
    116. A Fujiyama
    117. M Hattori
    118. T Yada
    119. A Toyoda
    120. T Itoh
    121. C Kawagoe
    122. H Watanabe
    123. Y Totoki
    124. T Taylor
    125. J Weissenbach
    126. R Heilig
    127. W Saurin
    128. F Artiguenave
    129. P Brottier
    130. T Bruls
    131. E Pelletier
    132. C Robert
    133. P Wincker
    134. DR Smith
    135. L Doucette-Stamm
    136. M Rubenfield
    137. K Weinstock
    138. HM Lee
    139. J Dubois
    140. A Rosenthal
    141. M Platzer
    142. G Nyakatura
    143. S Taudien
    144. A Rump
    145. H Yang
    146. J Yu
    147. J Wang
    148. G Huang
    149. J Gu
    150. L Hood
    151. L Rowen
    152. A Madan
    153. S Qin
    154. RW Davis
    155. NA Federspiel
    156. AP Abola
    157. MJ Proctor
    158. RM Myers
    159. J Schmutz
    160. M Dickson
    161. J Grimwood
    162. DR Cox
    163. MV Olson
    164. R Kaul
    165. C Raymond
    166. N Shimizu
    167. K Kawasaki
    168. S Minoshima
    169. GA Evans
    170. M Athanasiou
    171. R Schultz
    172. BA Roe
    173. F Chen
    174. H Pan
    175. J Ramser
    176. H Lehrach
    177. R Reinhardt
    178. WR McCombie
    179. M de la Bastide
    180. N Dedhia
    181. H Blöcker
    182. K Hornischer
    183. G Nordsiek
    184. R Agarwala
    185. L Aravind
    186. JA Bailey
    187. A Bateman
    188. S Batzoglou
    189. E Birney
    190. P Bork
    191. DG Brown
    192. CB Burge
    193. L Cerutti
    194. HC Chen
    195. D Church
    196. M Clamp
    197. RR Copley
    198. T Doerks
    199. SR Eddy
    200. EE Eichler
    201. TS Furey
    202. J Galagan
    203. JG Gilbert
    204. C Harmon
    205. Y Hayashizaki
    206. D Haussler
    207. H Hermjakob
    208. K Hokamp
    209. W Jang
    210. LS Johnson
    211. TA Jones
    212. S Kasif
    213. A Kaspryzk
    214. S Kennedy
    215. WJ Kent
    216. P Kitts
    217. EV Koonin
    218. I Korf
    219. D Kulp
    220. D Lancet
    221. TM Lowe
    222. A McLysaght
    223. T Mikkelsen
    224. JV Moran
    225. N Mulder
    226. VJ Pollara
    227. CP Ponting
    228. G Schuler
    229. J Schultz
    230. G Slater
    231. AF Smit
    232. E Stupka
    233. J Szustakowki
    234. D Thierry-Mieg
    235. J Thierry-Mieg
    236. L Wagner
    237. J Wallis
    238. R Wheeler
    239. A Williams
    240. YI Wolf
    241. KH Wolfe
    242. SP Yang
    243. RF Yeh
    244. F Collins
    245. MS Guyer
    246. J Peterson
    247. A Felsenfeld
    248. KA Wetterstrand
    249. A Patrinos
    250. MJ Morgan
    251. P de Jong
    252. JJ Catanese
    253. K Osoegawa
    254. H Shizuya
    255. S Choi
    256. YJ Chen
    257. J Szustakowki
    (2001)
    Nature 409:860–921.
    https://doi.org/10.1038/35057062
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
    Human-specific integrations of the HERV-K endogenous retrovirus family
    1. P Medstrand
    2. DL Mager
    (1998)
    Journal of Virology 72:9782–9787.
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    Evolutionary and biomedical insights from the rhesus macaque genome
    1. Rhesus Macaque Genome Sequencing and Analysis Consortium
    2. RA Gibbs
    3. J Rogers
    4. MG Katze
    5. R Bumgarner
    6. GM Weinstock
    7. ER Mardis
    8. KA Remington
    9. RL Strausberg
    10. JC Venter
    11. RK Wilson
    12. MA Batzer
    13. CD Bustamante
    14. EE Eichler
    15. MW Hahn
    16. RC Hardison
    17. KD Makova
    18. W Miller
    19. A Milosavljevic
    20. RE Palermo
    21. A Siepel
    22. JM Sikela
    23. T Attaway
    24. S Bell
    25. KE Bernard
    26. CJ Buhay
    27. MN Chandrabose
    28. M Dao
    29. C Davis
    30. KD Delehaunty
    31. Y Ding
    32. HH Dinh
    33. S Dugan-Rocha
    34. LA Fulton
    35. RA Gabisi
    36. TT Garner
    37. J Godfrey
    38. AC Hawes
    39. J Hernandez
    40. S Hines
    41. M Holder
    42. J Hume
    43. SN Jhangiani
    44. V Joshi
    45. ZM Khan
    46. EF Kirkness
    47. A Cree
    48. RG Fowler
    49. S Lee
    50. LR Lewis
    51. Z Li
    52. YS Liu
    53. SM Moore
    54. D Muzny
    55. LV Nazareth
    56. DN Ngo
    57. GO Okwuonu
    58. G Pai
    59. D Parker
    60. HA Paul
    61. C Pfannkoch
    62. CS Pohl
    63. YH Rogers
    64. SJ Ruiz
    65. A Sabo
    66. J Santibanez
    67. BW Schneider
    68. SM Smith
    69. E Sodergren
    70. AF Svatek
    71. TR Utterback
    72. S Vattathil
    73. W Warren
    74. CS White
    75. AT Chinwalla
    76. Y Feng
    77. AL Halpern
    78. LW Hillier
    79. X Huang
    80. P Minx
    81. JO Nelson
    82. KH Pepin
    83. X Qin
    84. GG Sutton
    85. E Venter
    86. BP Walenz
    87. JW Wallis
    88. KC Worley
    89. SP Yang
    90. SM Jones
    91. MA Marra
    92. M Rocchi
    93. JE Schein
    94. R Baertsch
    95. L Clarke
    96. M Csürös
    97. J Glasscock
    98. RA Harris
    99. P Havlak
    100. AR Jackson
    101. H Jiang
    102. Y Liu
    103. DN Messina
    104. Y Shen
    105. HX Song
    106. T Wylie
    107. L Zhang
    108. E Birney
    109. K Han
    110. MK Konkel
    111. J Lee
    112. AF Smit
    113. B Ullmer
    114. H Wang
    115. J Xing
    116. R Burhans
    117. Z Cheng
    118. JE Karro
    119. J Ma
    120. B Raney
    121. X She
    122. MJ Cox
    123. JP Demuth
    124. LJ Dumas
    125. SG Han
    126. J Hopkins
    127. A Karimpour-Fard
    128. YH Kim
    129. JR Pollack
    130. T Vinar
    131. C Addo-Quaye
    132. J Degenhardt
    133. A Denby
    134. MJ Hubisz
    135. A Indap
    136. C Kosiol
    137. BT Lahn
    138. HA Lawson
    139. A Marklein
    140. R Nielsen
    141. EJ Vallender
    142. AG Clark
    143. B Ferguson
    144. RD Hernandez
    145. K Hirani
    146. H Kehrer-Sawatzki
    147. J Kolb
    148. S Patil
    149. LL Pu
    150. Y Ren
    151. DG Smith
    152. DA Wheeler
    153. I Schenck
    154. EV Ball
    155. R Chen
    156. DN Cooper
    157. B Giardine
    158. F Hsu
    159. WJ Kent
    160. A Lesk
    161. DL Nelson
    162. WE O'brien
    163. K Prüfer
    164. PD Stenson
    165. JC Wallace
    166. H Ke
    167. XM Liu
    168. P Wang
    169. AP Xiang
    170. F Yang
    171. GP Barber
    172. D Haussler
    173. D Karolchik
    174. AD Kern
    175. RM Kuhn
    176. KE Smith
    177. AS Zwieg
    (2007)
    Science 316:222–234.
    https://doi.org/10.1126/science.1139247
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91

Decision letter

  1. Edith Heard
    Reviewing Editor; Institut Curie, France
  2. Detlef Weigel
    Senior Editor; Max Planck Institute for Developmental Biology, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Systematic perturbation of retroviral LTRs reveals widespread long-range effects on human gene regulation" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Detlef Weigel as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Deborah Bourchis (Reviewer #1); Cédric Feschotte (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this study, the question of the extent to which Transposable Elements and their relics in a genome have been adapted to influence "host" gene regulation is addressed. By adapting their recently published gRNA multiplexing CARGO method (Gu et al., 2018) the authors target dCAS9-fusion activator (VPR) or repressor (KRAB) proteins to the ~700 copies of the HERVK (HML-2), LTR5HS elements of the human genome (known to be expressed early on in human development). The authors examine the effects of this TE modulation on nearby gene expression in human embryonal carcinoma cells derived from a germ-line tumor (NCCIT). The authors report that activation/silencing of LTR5HS is associated with reciprocal up- and down-regulation of nearly 300 human genes, although the VPR activation shows more striking effects than KRAB repression. They go on to look at the range of impact that these LTR5HS elements have is up to 160kb, suggesting that they might be acting as potential enhancers. The authors also specifically delete three individual LTR5HS elements, and examine effects on nearby genes by qRT-PCR which points to their potential role in gene regulation.

This study is of a great interest for the field as it serves as an important demonstration that expression of hundreds of copies of a specific family of LTR retrotransposons can be efficiently modulated using dCas9 effectors and the recently developed CARGO system and it allows the impact of a whole LTR family on gene expression to be addressed in a systematic way. Although previous studies (Guallar et al.,; Ishiuchi et al.,; Jachowicz et al., 2017; Amabile et al., 2016 – which should have been cited) have targeted whole TE families, the present study is one of the first to describe an in depth, genome-wide analysis of what the functional contribution of LTR elements might be for gene expression control across the human genome. The manuscript is well written, easy to read and the experiments are of high quality. There are however some important issues that the authors will need to address.

Essential revisions:

1) The authors claim that the LTR5HS sequences they have affected are acting as enhancers. However, they need to prove this enhancer potential at the endogenous locations. As the study stands they cannot rule out that the elements are acting as alternative promoters, particularly as the three LTR5HS elements that they deleted were in close proximity (a few kb) to the associated genes. Several approaches can address this, as outlined in the reviewers' comments. These include demonstrating enhancer orientation independence for the LTRs; presenting their analyses in Figure 4 using stranded information, and directionality of the LTR as well as clarifying distances from TSS; demonstrating that chimeric transcripts are not produced between the LTR5HS elements and the up-regulated genes in the CRISPRa approach using 5'RACE or CAGE RNAseq; performing ChIP-PCR to examine enhancer marks such as H3K27ac, H3K122ac and H3K4me1 to see if their distributions change in wt versus LTR-deleted condition across at least two of the loci studied (enhancer, promoter, and LTR); performing deletion experiments for LTRs that are more distant to the misregulated genes identified; examining the effects both upstream and downstream of the genes.

2) The authors should provide more information about the transcription factor and chromatin landscape of the LTR sequences. This could thus assess whether there is a pre-existing regulatory activity of individual LTR5HS elements in NCCIT cells that could influence the efficiency and outcomes of the CRISPRi/a assays.

3) The repressive effects on neighbouring genes upon KRAB targeting is not clear (Figure 4B and supplementary figures). There are no statistics and the number of genes falling into different categories are not given; the effects on basal transciprition of CACNA2D2, NFKB2 and SERPINB9 upon deletion of the unique LTR is not shown.

4) Statistics need to be checked and included in several of the figures including Figure 4 above. The distance analyses lack statistics: how many genes per 'distance' block were analysed? Are the changes in transcription statistically significant? How would this look with a negative control (e.g. another repeat)?

https://doi.org/10.7554/eLife.35989.042

Author response

Essential revisions:

1) The authors claim that the LTR5HS sequences they have affected are acting as enhancers. However, they need to prove this enhancer potential at the endogenous locations. As the study stands they cannot rule out that the elements are acting as alternative promoters, particularly as the three LTR5HS elements that they deleted were in close proximity (a few kb) to the associated genes. Several approaches can address this, as outlined in the reviewers' comments. These include demonstrating enhancer orientation independence for the LTRs; presenting their analyses in Figure 4 using stranded information, and directionality of the LTR as well as clarifying distances from TSS; demonstrating that chimeric transcripts are not produced between the LTR5HS elements and the up-regulated genes in the CRISPRa approach using 5'RACE or CAGE RNAseq; performing ChIP-PCR to examine enhancer marks such as H3K27ac, H3K122ac and H3K4me1 to see if their distributions change in wt versus LTR-deleted condition across at least two of the loci studied (enhancer, promoter, and LTR); performing deletion experiments for LTRs that are more distant to the misregulated genes identified; examining the effects both upstream and downstream of the genes.

We thank the reviewers for this comment and agree that the claim that LTR5HS elements function as distal enhancers is central to the thesis of our manuscript, and thus should be further strengthened. We followed the reviewers’ suggestions and took a multi-pronged approach to addressing this comment, as outlined below:

Demonstrating orientation independence for the LTR5HS effect on gene expression: We reanalyzed the data concerning the LTR5HS-regulated genes (as defined in Figure 4A of the revised manuscript) and their nearest LTR5HS insertion (the putative enhancer). We found that for these 275 genes, the nearest LTR5HS is upstream of the promoter in 150 cases, and downstream in 125 cases. This finding suggests that even downstream LTR5HS insertions can have a transcriptional effect on the gene, a finding not compatible with their function as alternative promoters. Importantly, we deleted three of those downstream LTR5HS insertions and confirmed that they indeed significantly affect expression of the candidate target gene (see next section for details). As LTR sequences do have a natural orientation, we also examined the relative orientation of the nearest LTR5HS for each of these genes. In the 150 cases where the LTR5HS insertion is upstream of the promoter, the LTR5HS insertion has the same orientation (both on the Watson strand or both on the Crick strand) 83 times, compared to 67 in the opposite orientation. In the 125 cases where the LTR5HS insertion is downstream, the insertion has the same orientation as the gene 48 times, compared to 77 in the opposite orientation. These findings together suggest that neither the relative position of the LTR5HS to the promoter, nor its orientation, determines its ability to effect a transcriptional change on the gene in question under CRISPRa or CRISPRi, consistent with the proposed enhancer function. This information has now been incorporated in the text of the revised manuscript under the header “Reciprocal effects of LTR5HS CRISPRa/CRISPRi on host gene expression.”

Additional deletion experiments for LTRs that are more distant to the misregulated genes identified and located downstream from the TSS:

The reviewers suggested that the three LTR5HS elements deleted in our original manuscript were all “in close proximity” to the associated genes and thus may not be enhancers. First, we would like to clarify that since these LTRs were respectively ~17 kb, ~2 kb and ~6 kb upstream from the promoter, they all fall under the definition of distal regulatory elements, typically defined as those that do not overlap with promoter sequences (usually contained within 200-500 bp of the TSS). Furthermore, two of the genes (SERPINB9 and CACNA2D2) are transcribed in opposite orientation relative to the LTR5HS, making their LTR5HS-originating chimeric transcription unlikely. Nonetheless, we agree that since all deleted elements were upstream from the target genes, additional deletions were needed to further exclude a possibility that the LTR5HS elements function as alternative promoters. In the revised manuscript, we present analysis of clonal lines with homozygous deletions of three LTR5HS elements located downstream from the candidate target genes: (i) ~16 kb downstream of the ALPPL2 gene TSS, (ii) ~245 kb downstream of the EPHA7 gene TSS (as this gene is long, the deletion is 65 kb downstream of the annotated transcription termination site [TTS]) and (iii) ~69 kb downstream of the GDPD1 gene TSS. In all three cases, we observed downregulation of the candidate target gene (see Figure 6B in the revised manuscript). Together with our previous results, we now show examples of deletions of LTR5HS elements located within a wide distance range from the target gene promoter (e.g. from 2 kb for the closest to 245 kb for the most distal), positioned either upstream or downstream from the gene TSS and transcribed in either direction with respect to the gene. In all cases, we observed downregulation of the candidate target gene (Figure 6B), providing definitive evidence that LTR5HS elements indeed function as enhancers.

We also want to clarify (since there may have been some confusion, see essential revision point 3), that these deletion experiments were all performed in WT NCCIT cells that do not express any dCas9 fusions. We believe that the confusion might have been caused by our inclusion of the genome browser images with dCas9 binding at these selected LTRs in the figure, and thus we eliminated those browser images and reorganized the figure to incorporate new data.

ChIP-PCR analysis of enhancer marks in the LTR5HS deletion lines:

We performed ChIP-qPCR for the histone modifications H3K27ac and H3K4me1 in homozygous deletion and wild type clones for three separate LTR5HS insertions: those near CACNA2D2, ALPPL2, and EPHA7. In each case, we observe loss of both H3K27ac and H3K4me1 from the LTR5HS flanking regions in the deletion lines (shown in Figure 6A of the revised manuscript), demonstrating that deposition of these enhancer marks is dependent on the presence of the LTR sequence. Furthermore, analysis of the H3K27ac at the target gene promoters revealed downregulation of promoter acetylation levels in LTR5HS deletion lines, though we note that this downregulation did not reach statistical significance at one of the genes (Figure 6—figure supplement 1).

Analysis of chimeric transcripts between the LTR5HS elements and the upregulated genes: We analyzed deeply sequenced (~500 million 150 bp paired-end reads) RNA-seq data for the presence of the chimeric transcripts between LTR5HS and 275 LTR5HS-regulated genes identified in our study. We detected an appreciable level (e.g. > 1 TPM, transcript per million) of chimeric transcription at only four of the 275 genes (specifically, NBPF12, SLC4A8, FA2H and TIMM50). Notably, of the six LTR5HS elements that we deleted, all showed effect on candidate target gene expression, but none had detectable levels of chimeric transcription between the LTR5HS and the regulated gene. We therefore conclude that while such chimeric transcripts may indeed arise at some loci, they cannot explain the regulatory effects observed in our study. This information has been incorporated into the manuscript under the header, “Reciprocal effects of LTR5HS CRISPRa/CRISPRi on host gene expression.”

2) The authors should provide more information about the transcription factor and chromatin landscape of the LTR sequences. This could thus assess whether there is a pre-existing regulatory activity of individual LTR5HS elements in NCCIT cells that could influence the efficiency and outcomes of the CRISPRi/a assays.

To investigate the chromatin landscape of the LTR sequences, we performed ChIP-seq for H3K27ac, H3K4me3, and H3K9me3. In addition to doing these experiments in the parental WT NCCIT line, we also performed these ChIPs in lines expressing dCas9-VPR and dCas9-KRAB along with the LTR5HS S. pyogenes CARGO array (i.e. under targeting conditions). This experimental design allows us to not only examine the landscape in unperturbed NCCITs, but also to measure the effects of VPR activation and KRAB repression on the chromatin states. Results from these experiments are presented in a new figure (Figure 3 in the revised manuscript, subsequent figures have been renamed accordingly).

Briefly, our results can be summarized as follows:

H3K27ac, H3K4me3 and H3K9me3 patterns

A subset of LTR5HS elements is marked by H3K27ac and H3K4me3 in WT cells in the absence of perturbation, with H3K4me3 showing asymmetric distribution consistent with the direction of the LTR-driven transcription, as has previously been observed at promoters and highly transcribed enhancers. Under CRISPRa conditions, most (over 90%) LTR5HS elements gain high level of H3K27 acetylation, but interestingly, H3K4me3 levels remain relatively unaffected. Strong gains of H3K27ac occur even at those LTR5HS elements that have low/no endogenous acetylation, which may indicate that ectopic enhancer activation is relatively common and efficient with dCas9-VPR system. Conversely, under CRISPRi conditions, endogenous H3K27ac and H3K4me3 are suppressed, and most LTR5HS elements become decorated with high levels of H3K9me3, as would be expected, given that KRAB repression is mediated by the H3K9me3 deposition (Figure 3). Notably, in WT NCCIT cells, LTR5HS elements typically lack H3K9me3, regardless of the presence or absence of the active marks, suggesting that in these cells LTR5HS escapes KRAB-mediated repression, a major mechanism of endogenous retrovirus silencing.

In addition to examining histone modifications at LTR5HS insertions, we also assessed H3K27ac, H3K4me3, and H3K9me3 patterns surrounding the promoters of the 275 LTR5HSregulated transcripts (i.e. the genes activated by CRISPRa and repressed by CRISPRi, as defined in Figure 4A). We found that most of these promoters have at least some H3K27ac and H3K4me3 in WT cells, and most gain or lose, respectively, H3K27 acetylation under CRISPRa or CRISPRi conditions (new Figure 5E). Notably, these changes occur in the absence of direct dCas9 binding to the promoters, suggesting that they result from the long-range effects we describe. Furthermore, although some gains of H3K9me3 can be observed in the vicinity of the promoters under CRISPRi conditions, most of the TSS remain unmethylated at H3K9 and, unlike at the LTRs, their H3K4me3 levels are relatively unaffected, suggesting that direct silencing of promoters via H3K9me3 spreading from a nearby LTR5HS is not likely to explain the transcriptional effects we examine in this study. As a control, we performed these same analyses on a set of 275 randomly selected promoters, and we detected no changes in any histone mark under CRISPRa or CRISPRi conditions (Figure 5—figure supplement 3).

dCas9 binding patterns

We also performed ChIP-seq for dCas9-VPR and dCas9-KRAB fusions (in addition to the dCas9-GFP ChIP-seq reported in the original manuscript), as suggested in minor point 9. This experiment shows no dCas9 signal in WT (non-dCas9-expressing cells), but widespread binding to over 90% of LTR5HS in dCas9-VPR- and dCas9-KRAB-expressing cells (Figure 3A in the revised manuscript). We further observed that the dCas9-VPR levels at LTR5HS were higher than dCas9-KRAB levels. This is likely attributable to the fact that VPR, a strong activation domain, recruits coactivators that promote nucleosomal depletion, whereas KRAB-mediated H3K9me3 facilitates chromatin compaction, which may in turn provide, respectively, positive or negative feedback for dCas9 fusion binding. Nonetheless, dCas9-KRAB still occupies and mediates H3K9me3 deposition at the vast majority of LTR5HS elements (Figure 3A).

3) The repressive effects on neighbouring genes upon KRAB targeting is not clear (Figure 4B and supplementary figures). There are no statistics and the number of genes falling into different categories are not given; the effects on basal transciprition of CACNA2D2, NFKB2 and SERPINB9 upon deletion of the unique LTR is not shown.

A discussion of statistics in Figure 4B (now Figure 5B in revised manuscript) follows in point 4. As for the effects on basal transcription of CACNA2D2, NFKB2, and SERPINB9 upon deletion of the nearest LTR5HS, this result was shown in the initial manuscript in Figure 5C (now Figure 6B in revised manuscript). Again, perhaps due to our inclusion of the genome browser images with dCas9 binding at these selected LTRs, it was not clear to the reviewers that these deletion experiments were all performed in WT NCCIT cells that do not express any dCas9 fusions. In any case, as discussed above, we now extended the analysis to the additional three elements and show the effect of deletion of six different LTR5HS on the basal transcript levels of their candidate target genes (Figure 6B).

4) Statistics need to be checked and included in several of the figures including Figure 4 above. The distance analyses lack statistics: how many genes per 'distance' block were analysed? Are the changes in transcription statistically significant? How would this look with a negative control (e.g. another repeat)?

(Please note that Figure 4 from the initial submission is now Figure 5 in the revised manuscript.)

We analyzed a total of 26517 genes. These are broken down into 11 bins (-200, -160, -120, -80, 40, 0, 40, 80, 120, 160, 200). Each bin contains genes whose TSS is within +/- 20 kb of the bin description. Therefore, bin “0” contains genes whose TSS are between -20 and +20 kb from the nearest LTR5HS; bin “40” contains genes whose TSS are between +20 and +60 kb from the nearest LTR5HS; and so on. The number of genes per bin is as follows:

BinNumber of genesCRISPRa Wilcoxon signedrank test P-valueCRISPRi Wilcoxon signedrank test P-value
-2002279.29e-035.20e-02
-1602707.33e-082.06e-04
-1202575.37e-074.63e-06
-802991.78e-186.80e-11
-403215.63e-362.24e-23
04084.37e-521.31e-47
402687.30e-313.64e-22
803063.46e-239.15e-14
1202543.66e-114.11e-06
1602604.70e-062.01e-02
2002314.73e-066.12e-04

As for statistical significance, we have now performed one-sample Wilcoxon signed rank tests of the null hypothesis that the distribution of log2 fold change at each bin is symmetric around 0, which would describe no change in gene expression. Those values are indicated in the table above. We would like to point out that all bins we show reach statistical significance, including the +/-220-180 kb bins. However, if we perform significance testing on further bins, we show that log2FoldChange figures do fail to disprove the null hypothesis of the Wilcoxon signed rank test at bins further away. See below for results:

Bin (kb)Number of genesCRISPRa Wilcoxon signedrank test PvalueCRISPRi Wilcoxon signedrank test P-value
-420 to -3801780.2910.002
-380 to -3402030.0200.775
-340 to -3001710.7620.100
-300 to -2601970.0350.801
-260 to -2202190.0540.014
220 to 2602180.0360.028
260 to 3002410.0050.043
300 to 3401970.8510.132
340 to 3802000.2970.456
380 to 4202080.4990.669

These results have now been incorporated to the revised manuscript as Supplemental file 1. To further address the reviewer’s point, as a negative control we generated similar plots of fold change under CRISPRa and CRISPRi, using an unrelated LTR, in this case LTR2 of the HERVE family, which has a similar number (~900) of insertions as LTR5HS, but is not active in NCCIT cells. It is clear that there is no effect at any distance (see Figure 5—figure supplement 1E-F in the revised manuscript).

https://doi.org/10.7554/eLife.35989.043

Article and author information

Author details

  1. Daniel R Fuentes

    1. Cancer Biology Program, Stanford University School of Medicine, Stanford, United States
    2. Department of Chemical and Systems Biology, Stanford University School of Medicine, Stanford, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0412-6933
  2. Tomek Swigut

    Department of Chemical and Systems Biology, Stanford University School of Medicine, Stanford, United States
    Contribution
    Conceptualization, Software, Formal analysis, Validation, Visualization, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7649-6781
  3. Joanna Wysocka

    1. Department of Chemical and Systems Biology, Stanford University School of Medicine, Stanford, United States
    2. Department of Developmental Biology, Stanford University School of Medicine, Stanford, United States
    3. Howard Hughes Medical Institute, Stanford University School of Medicine, Stanford, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Validation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    wysocka@stanford.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6909-6544

Funding

National Science Foundation (Graduate Research Fellowship Program)

  • Daniel R Fuentes

Howard Hughes Medical Institute

  • Joanna Wysocka

National Institute of General Medical Sciences (R01GM112720)

  • Joanna Wysocka

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank B Gu for initial discussions on the design of the CARGO arrays, and R Srinivasan and M Bauer for assistance with cloning. We also thank E Grow and members of the Wysocka lab for helpful comments on this manuscript. Finally, we thank the Stanford Genome Sequencing Service Center by the Stanford Center for Genomics and Personalized Medicine (supported by the NIH grant S10OD020141) and John Coller and the staff of the Stanford Functional Genomics Facility for sequencing services.

Senior Editor

  1. Detlef Weigel, Max Planck Institute for Developmental Biology, Germany

Reviewing Editor

  1. Edith Heard, Institut Curie, France

Publication history

  1. Received: February 26, 2018
  2. Accepted: August 1, 2018
  3. Accepted Manuscript published: August 2, 2018 (version 1)
  4. Version of Record published: September 26, 2018 (version 2)

Copyright

© 2018, Fuentes et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,860
    Page views
  • 706
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Chromosomes and Gene Expression
    Margarita V Meer et al.
    Tools and Resources
    1. Cancer Biology
    2. Chromosomes and Gene Expression
    Lili Liao et al.
    Research Article Updated
