A SoxB gene acts as an anterior gap gene and regulates posterior segment addition in a spider

  1. Christian Louis Bonatto Paese
  2. Anna Schoenauer
  3. Daniel J Leite
  4. Steven Russell
  5. Alistair P McGregor  Is a corresponding author
  1. Department of Biological and Medical Sciences, Oxford Brookes University, United Kingdom
  2. University of Cambridge, United Kingdom
Research Article
  • Cited 1
  • Views 1,433
  • Annotations
Cite this article as: eLife 2018;7:e37567 doi: 10.7554/eLife.37567

Abstract

Sox genes encode a set of highly conserved transcription factors that regulate many developmental processes. In insects, the SoxB gene Dichaete is the only Sox gene known to be involved in segmentation. To determine if similar mechanisms are used in other arthropods, we investigated the role of Sox genes during segmentation in the spider Parasteatoda tepidariorum. While Dichaete does not appear to be involved in spider segmentation, we found that the closely related Sox21b-1 gene acts as a gap gene during formation of anterior segments and is also part of the segmentation clock for development of the segment addition zone and sequential addition of opisthosomal segments. Thus, we have found that two different mechanisms of segmentation in a non-mandibulate arthropod are regulated by a SoxB gene. Our work provides new insights into the function of an important and conserved gene family, and the evolution of the regulation of segmentation in arthropods.

https://doi.org/10.7554/eLife.37567.001

eLife digest

Insects, spiders, centipedes and lobsters all belong to a group of animals known as arthropods. A common feature of these animals is that their bodies are made up of repeated segments. However different arthropods build their segmented bodies in different ways. For example, the fruit fly makes all of its segments at the same time, while most other arthropods – including spiders – make a few segments at once and then add the rest, one or two at a time, to the rear end of their bodies.

Recent research in different insects has shown that these two processes – adding segments simultaneously or sequentially – are more similar than previously thought. This research also showed that these processes involve a gene called Dichaete, which belongs to the Sox gene family. However it was not known if Sox genes also control the production of segments in other arthropods like spiders.

Paese et al. have now found that, just like insects, the common house spider does indeed require a Sox gene to form its segments. Specifically, the experiments revealed that spiders need a Sox gene called Sox21b-1 to make both the segments that carry their legs (which are made all at once), and the segments that make up the rear of their bodies (which are added one at a time).

Since spiders and insects both use a Sox gene to control the formation of their body segments, it is likely that the ancestor of arthropods used one too. However, because spiders and insects use a different Sox gene for these processes, Paese et al. suggest that one gene may have replaced the role of the other during the evolution of insects and spiders.

Together these findings broaden the current understanding of how genes interact to organise cells to build organisms and how these processes evolve over time. Furthermore, since Sox genes direct many important events in all animals, including humans, the discovery of a new role for one of these genes may help scientists to better understand the development of other animals too.

https://doi.org/10.7554/eLife.37567.002

Introduction

Arthropods are the most speciose and widespread of the animal phyla, and it is thought that their diversification and success are at least in part explained by their segmented body plan (Tautz, 2004). In terms of development, insects utilise either derived long germ embryogenesis, where all body segments are made more or less simultaneously, or short/intermediate germ embryogenesis, where a few anterior segments are specified and posterior segments are added sequentially from a growth or segment addition zone (SAZ) (Peel et al., 2005; Davis and Patel, 2002). It is thought that segmentation in the ancestral arthropod resembled the short germ mode seen in most insects (Peel et al., 2005; McGregor et al., 2009). Understanding the regulation of segmentation more widely across the arthropods is important for understanding both the development and evolution of these highly successful animals.

We have a detailed and growing understanding of the regulation of segmentation in various insects, especially the long germ dipteran Drosophila melanogaster and the short germ beetle Tribolium castaneum. However, studies of other arthropods including the myriapods Strigamia maritima and Glomeris marginata, and chelicerates, such as the spiders Cupiennius salei and Parasteatoda tepidariorum, have provided important mechanistic and evolutionary insights into arthropod segmentation (Peel et al., 2005; Hilbrant et al., 2012; McGregor et al., 2008a; Leite and McGregor, 2016; Janssen et al., 2004; Brena and Akam, 2012). Previous studies have shown that different genetic mechanisms are used to generate segments along the anterior-posterior axis of spider embryos. In the anterior tagma, the prosoma or cephalothorax, the cheliceral and pedipalpal segments are generated by dynamic waves of hedgehog (hh) and orthodenticle (otd) expression (Kanayama et al., 2011; Pechmann et al., 2009). The leg-bearing segments are specified by gap gene like functions of hunchback (hb) and distal-less (dll) (Pechmann et al., 2011; Schwager et al., 2009). In contrast, the segments of the posterior tagma, the opisthosoma or abdomen, are generated sequentially from a SAZ. This process is regulated by dynamic interactions between Delta-Notch and Wnt8 signalling to regulate caudal (cad), which in turn is required for oscillatory expression of pair-rule gene orthologues including even-skipped (eve), and runt (run) (McGregor et al., 2009; McGregor et al., 2008b; Schönauer et al., 2016). Interestingly, these pair-rule gene orthologues are not involved in the production of the prosomal segments (Schönauer et al., 2016). Therefore, the genetic regulation of segmentation along the anterior-posterior axis in the spider exhibits similarities and differences to segmentation in both long germ and short germ insects.

The Group B Sox (Sry-Related High-Mobility Group box) family gene Dichaete is required for correct embryonic segmentation in the long germ insect D. melanogaster, where it regulates pair-rule gene expression (Nambu and Nambu, 1996; Russell et al., 1996). Interestingly, it was recently discovered that a Dichaete orthologue is also likely involved in segmentation in the short germ insect T. castaneum (Clark and Peel, 2018). This similarity is consistent with work inferring that these modes of segmentation are more similar than previously thought and provides insights into how the long germ mode evolved (Clark and Peel, 2018; Clark, 2017; Verd et al., 2018). However, it appears that despite these similarities, Dichaete can play different roles in D. melanogaster and T. castaneum consistent with the generation of segments simultaneously via a gap gene mechanism in the former and sequentially from a posterior SAZ in the latter (Clark and Peel, 2018).

We recently described the characterisation of 14 Sox genes in the genome of the spider P. tepidariorum (Paese et al., 2017) and that several of the spider Sox genes are represented by multiple copies likely produced during the whole genome duplication (WGD) in the lineage leading to this arachnid (Paese et al., 2017Schwager et al., 2017). Interestingly, while Dichaete is not expressed in a pattern consistent with a role in segmentation (Paese et al., 2017), we found that the closely related SoxB gene, Sox21b-1, is expressed in both the prosoma and opisthosoma before and during segmentation (Paese et al., 2017). Here, we report that in P. tepidariorum, Sox21b-1 regulates both prosomal and opisthosomal segmentation. In the prosoma, Sox21b-1 has a gap-like gene function and is required for the generation of the four leg-bearing segments. In addition, Sox21b-1 appears to act upstream of both Delta-Notch and Wnt8 signalling to regulate the formation of the SAZ, and knockdown of Sox21b-1 results in truncated embryos missing all opisthosomal segments. Therefore, while prosomal and opisthosomal segments are generated by different mechanisms in the spider, our analysis shows that Sox21b-1 is required for segmentation in both regions of the developing spider embryo.

Results

Sox21b-1 is maternally deposited and is subsequently expressed in the germ disc and germ band of spider embryos

We previously identified and assayed the expression of the complement of Sox genes in the genome of the spider P. tepidariorum (Paese et al., 2017) (and see Figure 1). Our phylogenetic analysis indicates that P. tepidariorum Sox21b-1 and its paralog Sox21b-2 are members of the Sox group B, closely related to the Drosophila Dichaete and Sox21b genes (Figure 1—figure supplement 1). In insects (McKimmie et al., 2005; Wilson and Dearden, 2008), Dichaete, Sox21a and Sox21b are clustered in the genome, however, both Sox21b paralogs are dispersed in the spider genome (Paese et al., 2017). This suggests that Sox21b-1 and Sox21b-2 possibly arose from the WGD event in the ancestor of arachnopulmonates (Schwager et al., 2017) rather than by a more recent tandem duplication (Figure 1—figure supplement 1).

Figure 1 with 1 supplement see all

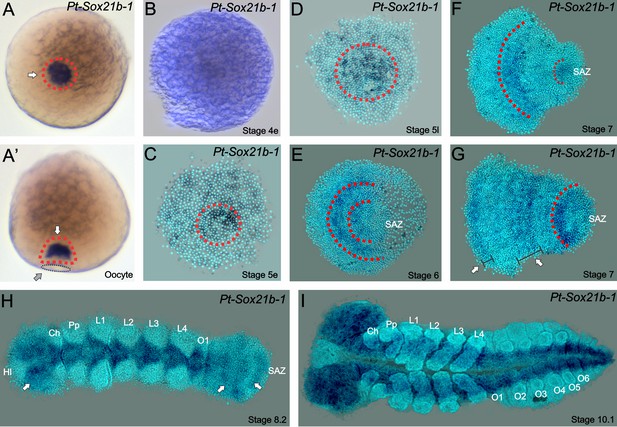

Expression of Sox21b-1 in P. tepidariorum oocytes and embryos.

(A) Dorsal (left) and lateral (right) views of pre-vitellogenic oocytes showing Sox21b-1 mRNA in the Balbiani’s body (red dashed circle and white arrows). The sperm implantation groove is indicated by a black dashed circle and grey arrow. (B) Overstained early stage 4 embryo evidencing the lack of expression of Sox21b-1 at this stage. (C) At early stage 5, the expression of Sox21b-1 appears in a salt and pepper pattern in the germ disc. (D) Expression in the cumulus becomes stronger at late stage 5, with less expression at the periphery of the germ disc (dashed red circle). (E) At stage 6 Sox21b-1 is expressed in a broad stripe in the anterior (between the red dashed lines). (F) At stage 7 there is expression in the region of the presumptive leg-bearing segments and in the SAZ (both indicated by red dashed lines). (G) At late stage 7 Sox21b-1 is still expressed in the SAZ (red dashed line) and the presumptive leg-bearing segments (indicated by a white arrow and wide black bracket), but nascent expression is observed at the anterior of the germ band (indicated by a white arrow and narrow black bracket). (H) At stage 8.2, when the limb buds are visible the expression of Sox21b-1 becomes restricted to the ventral nerve cord (anterior white arrow) and can be observed in the SAZ (posterior arrows). (I) At stage 10.1, Sox21b-1 expression is restricted to the ventral nerve cord and the head lobes. Ch: Chelicerae; Hl: Head lobes; L1 to L4: Prosomal leg- bearing segments 1 to 4; O1 to O6: Opisthosomal segments 1 to 6; SAZ: Segment Addition Zone. Ventral views are shown with anterior to the left, except as described for oocytes.

https://doi.org/10.7554/eLife.37567.003

In light of its interesting expression pattern, we elected to further analyse Sox21b-1. Pre-vitellogenic P. tepidariorum oocytes contain a Balbiani’s body (Jedrzejowska and Kubrakiewicz, 2007), where maternally deposited factors are enclosed, and we found that Sox21b-1 is abundant in this region, indicating that it is maternally contributed (Figure 1A). However, after fertilization we did not detect Sox21b-1 mRNA until early stage 5, when weak expression is detected throughout the germ disc, with stronger expression in more central cells (Figure 1B–C). At late stage 5, expression becomes more restricted to the centre of the germ disc (Figure 1D). During stages 5 and 6, the cumulus migrates to the rim of the germ disc, opening the dorsal field and giving rise to an axially symmetric germ band (Figure 1E) (see Mittmann and Wolff, 2012). In early stage 6 embryos, Sox21b-1 is observed in the middle of the presumptive prosoma in a broad stripe (Figure 1E), which develops further during stage 7 in the region where the leg-bearing segments will form (Figure 1F). This expression pattern resembles the previously described expression of the gap gene hb (Schwager et al., 2009).

During these and subsequent stages, dynamic expression of Sox21b-1 is observed in the SAZ and the most anterior region of the germ band that will give rise to the head segments (Figure 1H–I). Later in development, the expression of Sox21b-1 resembles that of SoxNeuro (SoxN), another Group B Sox gene (Paese et al., 2017). This expression is similar to that of both SoxN and Dichaete in the D. melanogaster neuroectoderm and segregating neuroblasts, however in spiders the neuroectoderm does not produce stem cell like neuroblasts, but instead clusters of delaminating cells that adopt the neural fate (Paese et al., 2017Stollewerk and Chipman, 2006McKimmie et al., 2005) (Figure 1H–I). Expression of the related group B Sox genes, Dichaete and Sox21b-2 are not detected in P. tepidariorum during embryonic development (Paese et al., 2017). The expression of Sox21b-1 in the embryo suggests that it is involved in both anterior and posterior segmentation in this spider, and then later during nervous system development.

Sox21b-1 regulates prosomal and opisthosomal segmentation

To assay the function of Sox21b-1 during embryogenesis we knocked down the expression of the gene using a parental RNAi approach (Akiyama-Oda and Oda, 2006). We observed three phenotypic classes, which were consistent between both non-overlapping Sox21b-1 fragments we used for RNAi (Figure 2, Figure 2—figure supplement 1, Supplementaryfile 1).

Figure 2 with 4 supplements see all
Embryo phenotypes after Sox21b-1 parental RNAi knockdown.

Whole mount (A) and flat mount (B) control embryos at stage 9 stained with DAPI. Stage 9, Class I (C), Class II (D) and Class III (E) phenotypes from Sox21b-1 knockdown. In the control embryos (A and B), the head, cheliceral, pedipalpal, prosomal walking limbs, opisthosomal segments and a posterior SAZ are all clearly visible as indicated. (C) Class I phenotype embryos show a morphologically normal head, and pairs of chelicerae, pedipalps and first walking limbs, but a disorganised cluster of cells in the posterior where L2-L4, opisthosomal segments and the SAZ should be. (D) Class II phenotype embryos consist of fewer cells, but still form a head, chelicerae, pedipalps and a structure resembling the SAZ in the posterior. (E) Class III embryos exhibit the most severe phenotype, where, after the germ disc stage, the embryo fails to form an organised germ band. Ch: Cheliceral segment; L1-L4: Prosomal segments 1 to 4; O1-O6: opisthosomal segments 1 to 6; Pp: Pedipalpal segment; SAZ: Segment Addition Zone. Anterior is to the top, scale bars: 150 µm.

https://doi.org/10.7554/eLife.37567.006

Class I embryos developed a presumptive head region (Figure 2A–C), as well as normal cheliceral, pedipalpal and first leg-bearing (L1) segments (Figure 2C). The identity of these segments was confirmed by expression of labial (lab) in the pedipalps and L1, and Deformed-A (Dfd-A) in L1 (Figure 2—figure supplement 2A–D). However, the other three leg-bearing segments, L2 - L4, as well as all of the opisthosomal segments were missing in Class I embryos. These embryos exhibited a truncated germ band, terminating in disorganised tissue in the region of the SAZ (Figure 2C). In the case of Class II phenotypes, embryos only differentiated the head region and the cheliceral and pedipalpal segments (Figure 2D, Figure 2—figure supplement 2A–B): all leg-bearing segments of the prosoma and opisthosomal segments produced from the SAZ were missing (Figure 2D). In Class III embryos, the germ band did not form properly from the germ disc (Figure 2E) and we therefore looked earlier in development to understand how this severe phenotype arose. We observed that the formation of the primary thickening occurs normally at stage 4 (Akiyama-Oda and Oda, 2003; Pechmann, 2016; Pechmann et al., 2017), but subsequently the cumulus, the group of mesenchymal cells that arise as the primary thickening at the centre of the germ disc, fails to migrate properly to the rim of the germ disc during stage 5 (Figure 2—figure supplement 3). Since migration of the cumulus is required for the transition from germ disc to germ band, this observation at least in part explains the subsequent Class III phenotype. Note that in this phenotypic class, the cells migrate towards the centre of the germ disc, creating a thick aggregation of blastomeres, whereas in embryos that we classified as ‘dead’, the cells are scattered and stop migrating after the germ disc stage (Figure 2—figure supplement 3B–C).

We next examined the effect of Sox21b-1 depletion on cell death and proliferation at stages 5 and 9 between knockdown and control embryos using antibodies against Caspase-3 and phosphorylated Histone 3 (PHH3) (Figure 2—figure supplement 4). At the germ disc stage, there is no detectable cell death in control embryos (n = 10), but we observed some small clusters of apoptotic cells in the Sox21b-1 knockdown embryos (n = 10) (Figure 2—figure supplement 4A–B). At stage 9, a few cells expressed Caspase-3 in the posterior-most part of the SAZ (Figure 2—figure supplement 4C), but we did not observe cell death in this region of Sox21b-1 knockdown embryos (Figure 2—figure supplement 4D). However, we did detect pronounced cell death in the anterior extraembryonic layer of the same embryos (n = 10) (Figure 2—figure supplement 4D).

Expression of PHH3 at stages 5 and 9 indicated that Sox21b-1 knockdown embryos show decreased cell proliferation compared to controls (n = 10 for each) (Figure 2—figure supplement 4E–H). Interestingly, the cells were also clearly larger in Sox21b-1 knockdown embryos compared to controls, which may reflect perturbed cell proliferation (Figure 2—figure supplement 4E–H). Thus, our functional analysis shows that Sox21b-1 is required for cell maintenance in several areas of the germ disc and is thus a key player in the transition from radial to axial symmetry. Moreover, Sox21b-1 is involved in two different segmentation mechanisms in spiders: it has a gap gene like function in the prosoma, as well as a requirement for the formation of the SAZ and subsequent production of opisthosomal segments.

Effects of Sox21b-1 knockdown on the germ disc and mesoderm

In P. tepidariorum, decapentaplegic (dpp) and Ets4 are required for cumulus formation (Pechmann et al., 2017; Akiyama-Oda and Oda, 2006). To investigate if Sox21b-1 is involved in the formation of this cell cluster, we assayed the expression of dpp and Ets4 in Sox21b-1 RNAi knockdown embryos. However, both genes were expressed normally and cumulus formation was unaffected (Figure 3E,F).

Gene expression in control and Sox21b-1 knockdowns at the germ disc stage.

Pt-dpp (A) and Pt-Ets4 (B) are expressed in the forming cumulus (CM) in the centre of the germ disc at stage 4 (grey arrow and dotted circle). This expression is unaffected by knockdown of Sox21b-1 (E and F) (n = 30 for each gene). (C) Pt-fkh is expressed at the rim and centre of the germ disc at late stage 5 (grey arrow and dotted circle in C), but expression is lost in Sox21b-1 knockdown embryos (n = 30) (G). Pt-hh expression at the rim of the germ disc (D) is normal in Sox21b-1 knockdown embryos (H) (grey arrows).

https://doi.org/10.7554/eLife.37567.011

The rim of the spider germ disc develops into the head structures and is regulated in part by hh, while the mesodermal and endodermal layers of the head are specified by the mesendodermal gene forkhead (fkh) (Kanayama et al., 2011; Akiyama-Oda and Oda, 2010). To investigate if anterior expression of Sox21b-1 (Figure 1) is involved in the formation of the head rudiment and differentiation of the mesodermal and endodermal layers in particular, we assayed the expression of hh and fkh in class I and II Sox21b-1 knockdown embryos. hh is expressed at the rim of the germ disc in the ectoderm (Figure 3D) (Kanayama et al., 2011) and remains unaffected by Sox21b-1 knockdown (Figure 3H). fkh is also expressed in cells around the rim, as well as in the centre of the germ disc in mesendodermal cells (Figure 3C). In Sox21b-1 knockdown embryos both of these fkh expression domains are lost (Figure 3G), and it therefore appears that Sox21b-1 is required for specification of mesendodermal cells in the germ disc of spider embryos. Indeed, in the germ disc at stage 5, when fkh expression commences, we observed invaginating cells forming a second layer (Figure 2—figure supplement 2G). However, in Sox21b-1 knockdown embryos we observed a lower number of invaginating cells, which exhibit larger nuclei compared to controls (Figure 2—figure supplement 2H).

In both spiders and flies, the twist (twi) gene is involved in mesoderm specification (Yamazaki et al., 2005) and we therefore examined the expression of this gene after Sox21b-1 knockdown to further evaluate if the loss of fkh affects the formation of the internal layers. In the wild type, twi is expressed in the visceral mesoderm of the limb buds from L1 to L4, in the opisthosomal segments O1 to O4 and in an anterior mesodermal patch in the central part of the developing head (Yamazaki et al., 2005) (Figure 2—figure supplement 2E). While the head expression persists in Sox21b-1 class I embryos, expression in all the limb and opisthosomal segments is lower or absent (Figure 2—figure supplement 2F). In orthogonal projections the anterior-most region of the embryo, three layers of cells can be identified in control embryos (Figure 2—figure supplement 2I). However, in Sox21b-1 knockdown embryos the formation of these layers is perturbed (Figure 2—figure supplement 2J). These data suggest that the ectodermal segmentation in the prosomal region occurs even when there is a reduction in the internal layers of the embryo.

Effects of Sox21b-1 knockdown on segmentation

In P. tepidariorum, formation of the SAZ and production of posterior segments requires the Wnt8 and Delta-Notch signalling pathways (McGregor et al., 2008b; Schönauer et al., 2016). Interactions between these pathways regulate hairy (h) and, via cad, the expression of pair-rule gene orthologues including eve (McGregor et al., 2008b; Schönauer et al., 2016). To better understand the loss of segments we observe in Sox21b-1 knockdown embryos we analysed the expression of Dl, Wnt8, h and cad in these embryos compared to controls.

Dl is expressed at stage 7 in the forming SAZ, in the region of the L4 primordia and in the presumptive head (Oda et al., 2007) (Figure 4A). Subsequently, at stage 9, Dl expression is visible in clusters of differentiating neuronal cells and oscillates in the SAZ, an expression pattern associated with the sequential addition of new segments (Figure 4B). In Sox21b-1 knockdown embryos, Dl expression is not detected at stage 5 (Figure 4C) and is absent in the posterior at stage 9 (Figure 4D). However, expression in the anterior neuroectoderm appears normal up to the pedipalpal segment, although neurogenesis is apparently perturbed in the presumptive L1 segment (Figure 4D). This suggests that the ectoderm up to the L1 segment differentiates normally, but the development of the SAZ and posterior segment addition controlled by Dl is lost upon Sox21b-1 knockdown.

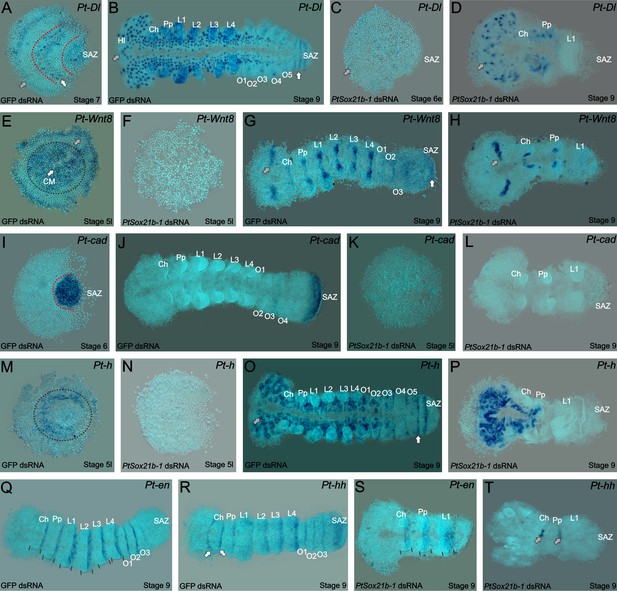

Expression of segmentation genes in Sox21b-1 pRNAi embryos.

(A) Pt-Dl expression at late stage 6/early stage 7 is dynamic in the SAZ and is also observed in the presumptive head region (grey arrow) and prosoma of the embryo (red dotted lines and white arrows). (B) At stage 9, Pt-Dl expression is seen in the SAZ (white arrow) but is restricted to the clusters of proneural differentiation in the anterior region of the embryo (anterior indicated by a grey arrow). (C) In Sox21b-1 knockdown embryos, Pt-Dl expression is not detectable in late stage 5/early stage 6 embryos (anterior indicated by a grey arrow) but can still be observed in the anterior ventral neuroectoderm at stage 9 (D) up to the pedipalpal segment (n = 17 and n = 14 for stage 5/6 and 9 respectively). Pt-Wnt8 expression is observed in the centre and at the rim of the germ disc in stage 5 control embryos (black dotted circle around the centre, grey arrow indicating the rim) but these expression domains are lost in Sox21b-1 knockdown embryos (n = 11) (E and F). Control embryos at stage 9 show the expression of Pt-Wnt8 in the medial region of the head (grey arrow in G), and in distal parts of each segment up to the SAZ (white arrow in G). In Sox21b-1 knockdown embryos at the same stage, the brain (grey arrow), cheliceral and pedipalpal expression is still present, but the posterior expression is lost (H) (n = 17). Pt-cad is expressed in the SAZ at late stage 5/early stage 6 (I), which persists to stage 9 in control embryos (J). However, Pt-cad expression is lost upon Sox21b-1 knockdown in embryos of both stages (n = 20 for each stage) (K and L). Pt-h expression at stage 5 in control embryos is seen at the rim and in the centre of the germ disc (black dotted circle in M), which is lost in Sox21b-1 knockdown embryos (N). At stage 9, Pt-h expression resembles Pt-Dl, both in the control (anterior is indicated by a grey arrow; the SAZ is indicated by a white arrow) and Sox21b-1 knockdown embryos (O and P) (n = 15 for both stages). Pt-en expression is present in the posterior of each segment (black lines in Q), and in cheliceral, pedipalpal and L1 segments in Sox21b-1 knockdown embryos at stage 9 (S) (n = 10). Pt-hh expression in control embryos at stage 9 is seen in the posterior of each segment, in the SAZ and also in a splitting wave between the cheliceral and pedipalpal segments (indicated by the white arrows in R). When Sox21b-1 is knocked-down, Pt-hh embryos show expression in the middle-posterior region of the cheliceral and pedipalpal segments (T) (n = 8). Ch: Chelicerae; Hl: Head Lobes; L1 to L4: Prosomal leg-bearing segments; O1 to O5: Opisthosomal segments; SAZ: Segment Addition Zone. Anterior is to the left in stage 9 embryos.

https://doi.org/10.7554/eLife.37567.012

Wnt8 is initially expressed at stage 5 in the centre and at the rim of the germ disc (Figure 4E). At stage 9, striped expression of Wnt8 is seen from the head to the posterior segments and in the posterior cells of the SAZ (Figure 4G). Knockdown of Sox21b-1 results in the loss of Wnt8 expression in late stage 5 embryos (Figure 4F). At stage 9, Wnt8 expression is observed in the cheliceral, pedipalpal and first walking limb segments of Sox21b-1 knockdown embryos, but no expression is detected in the remaining posterior cells (Figure 4H). Consistent with the loss of Dl and Wnt8, cad expression is also lost in stage 5 and stage 9 Sox21b-1 knockdown embryos (Figure 4I–L). These observations indicate that Sox21b-1 acts upstream of Wnt8 and Delta-Notch signalling to regulate the formation of the SAZ and the subsequent production of posterior segments. In support of this regulatory relationship, we find that Sox21b-1 expression is still detected in the posterior regions of the truncated embryos produced by RNAi knockdown of either Dl or Wnt8 (Figure 5).

Expression of Sox21b-1 in Dl and Wnt8 pRNAi embryos.

Ventral view of stage 7 and 9 knockdown embryos for Pt-Dl (A and B) and Pt-Wnt8 (C and D). In knockdown embryos for both Pt-Dl and Pt-Wnt8, Sox21b-1 is still expressed at stage 7 (A and C) in the remaining SAZ cells, and in the forming segments of the presumptive prosoma of the embryo (white arrows). In stage 9 Pt-Dl knockdown embryos, Sox21b-1 remains highly expressed in the ventral nerve cord (B). Pt-Dl knockdown embryos lack the posterior L4 segment (white arrow), but brain formation appears normal (grey arrow) (B). Pt-Wnt8 embryos show a fusion of the L4 limb buds (white arrow), and Sox21b-1 is still expressed in the remaining SAZ cells (D). Anterior is to the left in all panels.

https://doi.org/10.7554/eLife.37567.013

The spider orthologue of h is expressed in the presumptive L2-L4 segments and dynamically in the SAZ (McGregor et al., 2008b) (Figure 4M,O). In late stage 5 Sox21b-1 knockdown embryos, the expression of h is lost throughout the entire germ disc (Figure 4N). In addition, in Class I phenotype embryos at stage 9, the expression of h is completely absent in the tissue posterior to the pedipalpal segment (Figure 4P). Therefore, the loss of h expression is consistent with the loss of leg-bearing segments in the anterior gap-like phenotype that results from knockdown of Sox21b-1 as well as loss of segments produced by the SAZ.

To look at the effect of Sox21b-1 knockdown on segmentation in more detail we examined the expression of engrailed (en) and hh. At stage 9 en is expressed segmentally from the cheliceral to the O3 segment in control embryos (Figure 4Q). However, in Sox21b-1 knockdown embryos, expression of en was only observed in the cheliceral, pedipalpal and L1 segments, consistent with the loss of all the more posterior segments (Figure 4S). hh has a similar expression pattern to en at stage 9, except it exhibits an anterior splitting wave in the cheliceral segment and is also expressed earlier in opisthosomal segments and in the SAZ (Figure 4R). Upon Sox21b-1 knockdown, hh is only detected in shortened stripes in the cheliceral and pedipalpal segments (Figure 4T).

Taken together, our analysis of P. tepidariorum embryos where Sox21b-1 is depleted by parental RNAi reveals an important role for this Group B Sox gene in both gap-like segmentation of the prosoma, as well as posterior segment formation from the SAZ. These experiments further emphasise the critical role this class of transcription factors play in arthropod segmentation.

Discussion

A SoxB gene is required for two different mechanisms of spider segmentation

The Sox gene family encodes transcription factors that regulate many important processes underlying the embryonic development of metazoans (Overton et al., 2002; Wegner, 1999; Sinclair et al., 1990; Lefebvre, 2010). One such gene, Dichaete, is expressed in a gap gene pattern and is involved in regulating the canonical segmentation cascade in D. melanogaster (Nambu and Nambu, 1996; Russell et al., 1996). Recently, the analysis of the expression of Dichaete in the flour beetle T. castaneum strongly suggests a role in short germ segmentation (Clark and Peel, 2018), further supported by knockdown of the Dichaete orthologue in Bombyx mori, which resulted in the loss of posterior segmentation (Nakao, 2018).

Here we show that, while Dichaete is not involved in spider segmentation (Paese et al., 2017), the closely related SoxB gene, Sox21b-1, regulates formation of both prosomal and opisthosomal segments. In the prosoma Sox21b-1 has a gap gene like role and is required for the specification of L1-L4 segments (Figure 6), resembling the roles of hb and Dll in prosomal segmentation in this spider (Pechmann et al., 2011; Schwager et al., 2009) and, at least superficially, gap gene function in D. melanogaster.

Summary of the regulation of spider segmentation.

The interaction of Sox21b-1 is presented in relation to genes involved in spider embryogenesis. We found that fkh expression requires Sox21b-1 in the most anterior part of the head . In the prosoma Sox21b-1 also has a gap gene like function and is required for the expression of hairy, while Distal-less (Pechmann et al., 2011), hunchback and orthodenticle (Pechmann et al., 2009) also act in a gap gene like manner during prosomal segmentation. The molecular control of segmentation in the SAZ involves a feedback loop between Dl and Wnt8, which acts upstream of cad and also controls the dynamic expression of hairy (Schönauer et al., 2016; McGregor et al., 2008b). We can infer from our results that Sox21b-1 acts upstream of these genes in the SAZ. Sox21b-1 could directly regulate these genes or the observed loss of expression could be indirect through incorrect specification of germ disc cells. Oc: Ocular segment; Ch: Cheliceral segment; Pp: Pedipalpal segment; L1-L4: leg bearing segments 1 to 4; SAZ: Segment Addition Zone.

https://doi.org/10.7554/eLife.37567.014

In Dmelanogaster the gap genes regulate pair rule gene expression, and while our results indicate that Sox21b-1 is required for the expression of h and the generation of leg-bearing prosomal segments (Figure 4E, Figure 6), in contrast to insects, in spiders this does not involve the orthologues of eve and runt because they are not expressed in the developing prosomal segments (Schönauer et al., 2016; Damen et al., 2000).

In the posterior, Sox21b-1 knockdown perturbs SAZ formation and consequently results in truncated embryos missing all opisthosomal segments. Therefore, Sox21b-1 regulates development of the SAZ, and our observations indicate this is at least in part through roles in organising the germ layers and specification of mesendodermal cells during stages 5 and 6. This is supported by the loss of fkh expression upon Sox21b-1 knockdown, which is required for mesoderm and endoderm formation in both spiders and insects (Kanayama et al., 2011; Feitosa et al., 2017; Lan et al., 2018). Moreover, the subsequent dynamic expression of Sox21b-1 in the SAZ after stage 6 is suggestive of a role in segment addition.

Our work on Sox21b-1 provides an important new insight into the gene regulatory network (GRN) underlying the formation of the SAZ and the sequential addition of segments from this tissue. We show that Sox21b-1 acts upstream of Wnt8 and Delta-Notch signalling in this GRN and is necessary for the activation of these important signalling pathways during posterior development (Figure 6). Note that while it is possible that Sox21b-1 could regulate Delta and Wnt8 and other segmentation genes directly or via intermediate factors, it remains possible that the loss of expression of these genes upon Sox21b-1 RNAi could be an indirect consequence of the loss of cells or incorrect cell specification when Sox21b-1 expression is knocked down.

Further work is needed to determine if Group B Sox genes, such as Dichaete and Sox21b-1, play a similar role in posterior segmentation in other arthropods. This could provide important new insights into the evolution of the regulation of segmentation in arthropods since a Wnt-Delta-Notch-Cad regulatory cassette was probably used ancestrally in arthropods to regulate posterior development (McGregor et al., 2009; Janssen et al., 2004; Brena and Akam, 2012; McGregor et al., 2008b; Schönauer et al., 2016; Pueyo et al., 2008). Interestingly, SoxB genes also cooperate with Wnt and Delta-Notch signalling in various aspects of vertebrate development including the patterning of neural progenitors and maintenance of the stem state in the neuroepithelium (Wegner, 1999; Holmberg et al., 2008; Kormish et al., 2010; Koch et al., 2017).

Sox21b-1 exhibits highly pleiotropic effects during early spider embryogenesis

Our study shows that Sox21b-1 is not only involved in segmentation but is also maternally supplied and regulates cell division in the early germ disc, as well as the transition from radial to axial symmetry during germ band formation. Further experiments with Sox21b-1 are required to fully elucidate the mechanisms by which it affects these early functions. Furthermore, while spider head development is less affected than trunk segmentation by knockdown of Sox21b-1, it is clear from our experiments that Sox21b-1 regulates cell fate in this region. Interestingly, Sox2 is involved with the neuro-mesodermal fate choice in mice and Dichaete has a role in embryonic brain development in Dmelanogaster (Koch et al., 2017; Soriano and Russell, 1998): consequently, SoxB genes may play an ancestral role in the patterning of the head ectoderm and mesoderm in metazoans (Koch et al., 2017; Soriano and Russell, 1998).

The evolution of Sox21b-1

The evolution and diversification of Group B Sox genes in insects is not fully resolved due to difficulties in clearly assigning orthologues based on the highly conserved HMG domain sequence (Russell et al., 1996; Wegner, 1999; Zhong et al., 2011). However, despite these ambiguities it is clear that the Dichaete and Sox21b class genes in all arthropods examined to date are closely related and likely arose from a duplication in the common ancestor of this phylum (see Zhong et al., 2011 for discussion). Note that in all insects characterised to date Dichaete, Sox21a and Sox21b are clustered in the genome (McKimmie et al., 2005), however, while Dichaete and Sox21a are also clustered in P. tepidariorum, the Sox21b paralogs are dispersed in the genome of this spider (Paese et al., 2017). We believe it is highly significant that two very closely related SoxB genes are involved in segmentation in both the spider P. tepidariorum and in insects, pointing to an ancient role for this subfamily of Sox genes in invertebrates. Given the close similarity between the HMG domains of Sox21b and Dichaete, it is possible that in some lineages the Dichaete orthologue assumed the segmentation role, whereas in others it was Sox21b. In spiders, Wnt8 is involved in posterior development while in other arthropods this role is played by Wnt1/wg (McGregor et al., 2008b), and therefore the evolution of Sox21b-1 may have led to the co-option of different genes and subsequent developmental systems drift of the regulation of posterior development.

The spider contains an additional related SoxB gene, Sox21b-2, that possibly arose as part of the whole genome duplication event in the ancestor of arachnopulmonates over 400 million years ago (Schwager et al., 2017). It will be interesting to investigate if SoxB genes are involved in segmentation in other spiders and arachnids, including those that did not undergo a genome duplication. Finally, Blast searches of the Tardigrade Hypsibius dujardini genome reveal a single Dichaete/Sox21b class gene, and it will be of some interest to characterise the expression and/or function of this gene in this sister group to the arthropods.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional
information
Gene (Parasteatoda
tepidariorum)
caudalNAAB096075
Gene
(P. tepidariorum)
deformed-aNAAB433904
Gene
(P. tepidariorum)
decapentaplegicNAAB096072
Gene
(P. tepidariorum)
deltaNAAB287420
Gene
(P. tepidariorum)
engrailedNAAB125741
Gene
(P. tepidariorum)
ets4NAXP_015923392
Gene
(P. tepidariorum)
forkheadNAAB096073
Gene
(P. tepidariorum)
hairyNAAB125743
Gene
(P. tepidariorum)
hedgehogNAAB125742
Gene
(P. tepidariorum)
labialNAAB433903
Gene
(P. tepidariorum)
sox21b-1NAXP_015916301
Gene
(P. tepidariorum)
twistNAAB167807
Gene
(P. tepidariorum)
Wnt8NAACH88002
AntibodyDonkey anti-mouse
IgG Alexa Fluor 555
InvitrogenA-31570(1:200)
AntibodyGoat anti-rabbit
Alexa Fluor 647
InvitrogenA-21244(1:200)
AntibodyMouse anti-α-
Tubulin
SigmaDM1a(1:50)
AntibodyRabbit Anti-phospho
-Histone H3 (Ser10)
Merck
Millipore
06–570(1:200)
AntibodyRabbit α cleaved
caspase 3
Cell
Signaling
9661(1:200)
Chemical
compound,
drug
4′,6-Diamidino-2
-phenylindole
dihydrochloride
Sigma
-Aldrich
D8417
Chemical
compound,
drug
Halocarbon
Oil 700
Sigma
-Aldrich
H8898
Chemical
compound,
drug
Poly-L-lysineSigma
-Aldrich
P9155
Chemical
compound,
drug
TWEEN 20Sigma
-Aldrich
P9416
Commercial
assay or kit
TOPO-TA
Cloning Kit
InvitrogenK457502
Software,
algorithm
Corel Graphics
Suite
RRID:SCR_013674
Software,
algorithm
Code used for
genomics data
analysis - PROTGAMMALG
https://github.com/stamatak/standard-RAxML/blob/master/usefulScripts/ProteinModelSelection.pl
Software,
algorithm
ImageJRRID:SCR_003070http://imagej.nih.gov/ij/
Software,
algorithm
Helicon FocusRRID:SCR_014462

Spider culture

P. tepidariorum were cultured at 25°C at Oxford Brookes University. The spiders were fed with D. melanogaster with vestigial wings and subsequently small crickets (Gryllus bimaculatus). Cocoons from mated females were removed and a small number of embryos were immersed in halocarbon oil for staging (Mittmann and Wolff, 2012).

Phylogenetic analysis of P. tepidariorum Sox genes

To identify the phylogenetic relationship of P. tepidariorum Sox genes the HMG domains of Anopheles gambiae, Mus musculus, D. melanogaster, P. tepidariorum and S. mimosarum Sox genes were aligned with ClustalW (Figure 1—source data 1) (Paese et al., 2017; Larkin et al., 2007). Phylogenetic analysis was performed in RAxML, with support levels estimated implementing the rapid bootstrap algorithm (1000 replicates) (Stamatakis et al., 2008), under the PROTGAMMALG model of amino acid substitution, which was identified as best fitting model using the ProteinModelSelection.pl Perl script from the Exelixis Lab (https://github.com/stamatak/standard-RAxML/blob/master/usefulScripts/ProteinModelSelection.pl).

Fixation and gene expression analysis

Embryos from pRNAi injected females were immersed under halocarbon oil to assess their stage. In the case of stage 9 and 10 embryos that showed class II and III phenotypes, it was difficult to assess the stage by light microscopy, consequently these embryos were also staged according to their age and the presence of walking limbs as well as the stage of sibling embryos from the same cocoons that did not show any phenotype. Embryos with phenotypes showing a failure to develop after the L1 limb were considered dead after that stage. For the difference in development seen in embryos from the same cocoon, we were careful to select embryos at the same stage in both control and RNAi treated embryos for subsequent gene expression analysis although the development of RNAi embryos was occasionally slower so they appeared slightly younger. At least 10 embryos from each different phenotypical class were used for every in situ hybridization experiment (Supplementary file 2) and in situs were carried out on embryos from different cocoons and different mothers. Embryos ranging from the 1 cell stage to stage 13 were dechorionated and fixed as described previously (Akiyama-Oda and Oda, 2016), with a longer fixation time of 1 hr to facilitate yolk removal for flat-mounting. For immunohistochemistry, methanol steps were omitted. Ovaries from adult females were dissected in 1x PBS and fixed in 4% formaldehyde for 30 min. Probe synthesis and RNA in situ hybridisation were carried out as described previously with minor modifications (Akiyama-Oda and Oda, 2003), omitting the Proteinase K treatment and post-fixation steps. Poly-L-lysine (Sigma-Aldrich) coated coverslips were used for flat-mounting embryos. Nuclei were stained by incubating embryos in 1 μg/ml 4–6-diamidino-2-phenylindol (DAPI) in PBS with 0.1% Tween-20 for 15 min.

Imaging, live imaging and image analysis

For imaging of flat-mounted embryos after in situ hybridisation, an AxioZoom V16 stereomicroscope (Zeiss) equipped with an Axiocam 506-Mono and a colour digital camera were used. Immunostained embryos were imaged with Zeiss LSM 800 or 880 with Airyscan confocal microscopes. For live imaging, embryos were aligned on heptane glue coated coverslips and submersed in a thin layer of halocarbon oil. Bright-field live imaging was performed using an AxioZoom V16 stereomicroscope, while fluorescence live imaging was performed with confocal microscopes. Image stacks were processed in Fiji (Schindelin et al., 2012) and Helicon Focus (HeliconSoft). Image brightness and intensity was adjusted in Corel PhotoPaint X5 (CorelDraw) and Fiji.

Gene isolation from cDNA

Fragment of genes were amplified using PCR and cloned into pCR4-TOPO (Invitrogen, Life Technologies). Oligonucleotide sequences are listed in Supplementary file 3.

Immunohistochemistry

Immunostaining was carried out as described previously (Schwager et al., 2015) with minor modifications: antibodies were not pre-absorbed prior to incubation and the concentration of Triton was increased to 0.1%. The following primary antibodies were used: mouse anti-α-Tubulin DM1a (Sigma) (1:50), rabbit α cleaved caspase 3 (Cell Signaling - 9661) (1:200) and rabbit Anti-phospho-Histone H3 (Ser10) (Merck Millipore - 06–570). For detection the following secondary antibodies were used: donkey anti-mouse IgG Alexa Fluor 555 (Invitrogen) and goat anti-rabbit Alexa Fluor 647 (Invitrogen). The counterstaining was carried out by incubation in 1 μg/ml 4–6-diamidino-2-phenylindol (DAPI) in PBS + Triton 0,1% for 20 min.

dsRNA synthesis and parental RNA interference

Double stranded RNA (dsRNA) for parental RNA interference was synthesized according to (Schönauer et al., 2016), dissolved in deionized water and injected following the standard protocol (Akiyama-Oda and Oda, 2006). Two non-overlapping fragments of P. tepidariorum Sox21b-1 were isolated from the 1134 bp coding sequence of the gene: fragment 1 spanning 549 bp and fragment 2 covering 550 bp. Double stranded RNA for P. tepidariorum Dl (853 bp), Wnt8 (714 bp) and the coding sequence of GFP (720 bp) as used previously (Akiyama-Oda and Oda, 2006), were transcribed using the same method. Synthesis of double stranded RNA was performed using the MegaScript T7 transcription kit (Invitrogen). After purification the dsRNA transcripts were annealed in a water bath starting at 95°C and slowly cooled down to room temperature. dsRNA was injected at 2.0 μg/μl in to the opisthosoma of adult females every two days, with a total of five injections (n = 7 for each dsRNA; n = 2 for GFP controls). The injected spiders were mated after the second injection and embryos from injected spiders were fixed for gene expression and phenotypic analyses at three different time points: stage 4 (cumulus formation), stage 5 late (germ disc with migrating cumulus) and stage 9 (head and limbs bud formation).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
    Interactions between SOX factors and Wnt/β‐catenin-catenin signaling in development and disease
    1. JD Kormish
    2. D Sinner
    3. AM Zorn
    (2010)
    Developmental Dynamics : An Official Publication of the American Association of Anatomists 239:56–68.
    https://doi.org/10.1002/dvdy.22046
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    The Drosophila fish-hook gene encodes a HMG domain protein essential for segmentation and CNS development
    1. PA Nambu
    2. JR Nambu
    (1996)
    Development 122:3467–3475.
  29. 29
  30. 30
    Evidence for differential and redundant function of the Sox genes Dichaete and SoxN during CNS development in Drosophila
    1. PM Overton
    2. LA Meadows
    3. J Urban
    4. S Russell
    (2002)
    Development 129:4219–4228.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
    The Dichaete gene of Drosophila melanogaster encodes a SOX-domain protein required for embryonic segmentation
    1. SR Russell
    2. N Sanchez-Soriano
    3. CR Wright
    4. M Ashburner
    (1996)
    Development 122:3669–3676.
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
    The Drosophila SOX-domain protein Dichaete is required for the development of the central nervous system midline
    1. NS Soriano
    2. S Russell
    (1998)
    Development 125:3989–3996.
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53

Decision letter

  1. Patricia J Wittkopp
    Senior Editor; University of Michigan, United States
  2. Nikola-Michael Prpic
    Reviewing Editor; Georg-August-Universität, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A SoxB gene acts as an anterior gap gene and regulates posterior segment addition in a spider" for consideration by eLife. Your article has been reviewed by Patricia Wittkopp as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Nikola-Michael Prpic (Reviewer #1); Natascha Turetzek (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors have studied the role of a SoxB related gene, Sox21b-1, during the embryonic development of the spider Parasteatoda tepidariorum. In insects where the role of SoxB family genes in segmentation was examined, it was reported that a particular member of this gene family, called Dichaete, was involved. The present paper shows that although Dichaete is present and conserved in spiders, it is not involved in segmentation; instead, another SoxB paralog called Sox21b-1 is involved in spider segmentation. The authors show that the gene is maternally provided and is then expressed in an anterior and a posterior domain in the forming embryo. They have also tested the function of the gene by RNAi and find that the RNAi knockdown animals show a striking phenotype where the entire posterior portion of the germ band is missing. Interestingly, a milder phenotype shows a "gap-gene-like" phenotype. The authors therefore go on to investigate the influence of Sox21b-1 RNAi on known gap-like factors and posterior dynamic factors. They convincingly show that Sox21b-1 is required for the expression of the known gap-like factors but is also required for the expression of the posterior dynamic patterning system that operates in the segment addition zone. Thus, with this work the authors provide the first factor that integrates the central gap system with the posterior dynamic system of spider segmentation. In fact, Paese et al. have identified a gene that is required for the development of the entire opisthosoma, and acts upstream of the previously identified system of caudal, Delta-Notch, and Wnt8 signalling. Moreover, the authors provide data for a mechanism in which Sox21b-1 orchestrates posterior segment addition by organising the germ layers and the specification of mesendodermal cells. Finally, this study provides insight about how certain gene regulatory interactions can change during evolution following gene/genome duplication events.

Essential revisions:

1) The authors should interpret the missing expression of some likely target genes after Sox21b-1 RNAi more carefully. The expression might be reduced/lost because the input of Sox21b-1 is missing. However, the expression might also be lost simply because the cells/tissue/organ where the gene is usually expressed are reduced/lost (especially because some of the RNAi phenotypes are quite severe because of the loss of Sox21b-1 maternal contribution). By using whole-mount in situ hybridisation as the only indicator of target gene expression, it may be difficult in some cases to distinguish why the expression is reduced/lost in the RNAi animals and this may lead to erroneous statements about gene regulatory interactions between the studied genes. Remarkably, all of the studied (likely) target genes presumably respond "negatively" to Sox21b-1 RNAi (i.e. their expression is reduced or lost), which increases the likelihood that not all of these "negative responses" are due to true genetic interactions. To clarify this, a marker could be used that co-expresses with one (or all) of these presumed targets, but that is not regulated by Sox21b-1 to show that the cells are there and their identity properly specified. This would strengthen the authors’ claim that Sox21b-1 is upstream and solidify their model in Figure 6. Alternatively, clonal RNAi in embryos could be performed, that would provide "control" cells directly next to injected RNAi cells. As these experiments would, however, require extensive additional work, the authors are therefore asked to carefully rephrase those portions of the text that deal with this issue of gene regulation and expressly state that the reduction/loss of gene expression after RNAi may have other causes than gene interaction and therefore not all of the genes shown in the manuscript to respond negatively upon Sox21b-1 RNAi may be true regulatory targets.

2) The authors provide a very detailed staging of all the presented embryos, however the decision exactly which developmental stage is present is not always clear from the pictures especially in severely affected RNAi embryos. Please provide the criteria for staging of the RNAi embryos in the Materials and methods section. Was the staging based on certain landmarks or developmental processes of the normal developmental table? If yes, how was the decision made when these landmarks were lost after gene knockdown? Or were the RNAi embryos staged by developmental time?

https://doi.org/10.7554/eLife.37567.020

Author response

Essential revisions:

1) The authors should interpret the missing expression of some likely target genes after Sox21b-1 RNAi more carefully. The expression might be reduced/lost because the input of Sox21b-1 is missing. However, the expression might also be lost simply because the cells/tissue/organ where the gene is usually expressed are reduced/lost (especially because some of the RNAi phenotypes are quite severe because of the loss of Sox21b-1 maternal contribution). By using whole-mount in situ hybridisation as the only indicator of target gene expression, it may be difficult in some cases to distinguish why the expression is reduced/lost in the RNAi animals and this may lead to erroneous statements about gene regulatory interactions between the studied genes. Remarkably, all of the studied (likely) target genes presumably respond "negatively" to Sox21b-1 RNAi (i.e. their expression is reduced or lost), which increases the likelihood that not all of these "negative responses" are due to true genetic interactions. To clarify this, a marker could be used that co-expresses with one (or all) of these presumed targets, but that is not regulated by Sox21b-1 to show that the cells are there and their identity properly specified. This would strengthen the authors´ claim that Sox21b-1 is upstream and solidify their model in Figure 6. Alternatively, clonal RNAi in embryos could be performed, that would provide "control" cells directly next to injected RNAi cells. As these experiments would, however, require extensive additional work, the authors are therefore asked to carefully rephrase those portions of the text that deal with this issue of gene regulation and expressly state that the reduction/loss of gene expression after RNAi may have other causes than gene interaction and therefore not all of the genes shown in the manuscript to respond negatively upon Sox21b-1 RNAi may be true regulatory targets.

The reviewers raise an important point. While our data shows that Sox21b-1 acts upstream of the segmentation genes we have tested, we did not mean to suggest that these genes are directly regulated by this transcription factor. Indeed, this regulation could well be several steps upstream of these genes and Sox21b-1 regulation could even be indirect by specifying the cells that will express these genes. Unfortunately, we do not know of a suitable marker that is expressed in the specific germ disc cells at the relevant stages that would be able to help with this point as suggested by the reviewers. With regard to embryonic RNAi injections, we believe that clonal analysis of Sox21b-1 knockdown may be difficult to interpret and, as the reviewers recognise, would involve a significant amount of new experimental effort that, in the end, may not be conclusive. However, as mentioned above, we do accept the reviewers point that effects we see may not be direct and, therefore, as requested, we have rephrased the relevant text to clarify that not all of the genes that respond negatively to the Sox21b-1 RNAi may be regulatory targets and that indeed the observed effects could be indirect through Sox21b-1 regulation of other intermediate genes or through the incorrect specification of germ disc cells. For example, in the Discussion section, we have added: “Note that while it is possible that Sox21b-1 could regulate Delta and Wnt8 and other segmentation genes directly or via intermediate factors, it remains possible that the loss of expression of these genes upon Sox21b-1 RNAi could be an indirect consequence of the loss of cells or incorrect cell specification when Sox21b-1 expression is knocked-down.”

We have also tried to make this clearer in Figure 6 and the legend of this figure.

2) The authors provide a very detailed staging of all the presented embryos, however the decision exactly which developmental stage is present is not always clear from the pictures especially in severely affected RNAi embryos. Please provide the criteria for staging of the RNAi embryos in the Materials and methods section. Was the staging based on certain landmarks or developmental processes of the normal developmental table? If yes, how was the decision made when these landmarks were lost after gene knockdown? Or were the RNAi embryos staged by developmental time?

This is a very good point raised by the reviewers. Therefore, we have added a more detailed explanation of the criteria used for the fixation and staging of the RNAi embryos to the Materials and methods section. In summary, even though the embryos were immersed in oil for visualization, it was sometimes difficult to stage embryos due to their severe phenotypes (especially class III). Consequently, we relied on developmental staging by hours, and the morphology of sibling embryos from the same cocoon that did not show the phenotype (i.e. from cocoons where the effect was not fully penetrant) and at least in the case of older embryos, by the appearance of the limbs.

https://doi.org/10.7554/eLife.37567.021

Article and author information

Author details

  1. Christian Louis Bonatto Paese

    Laboratory of Evolutionary Developmental Biology, Department of Biological and Medical Sciences, Oxford Brookes University, Oxford, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5992-5209
  2. Anna Schoenauer

    Laboratory of Evolutionary Developmental Biology, Department of Biological and Medical Sciences, Oxford Brookes University, Oxford, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Daniel J Leite

    Laboratory of Evolutionary Developmental Biology, Department of Biological and Medical Sciences, Oxford Brookes University, Oxford, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Steven Russell

    Department of Genetics, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Conceptualization, Supervision, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0546-3031
  5. Alistair P McGregor

    Laboratory of Evolutionary Developmental Biology, Department of Biological and Medical Sciences, Oxford Brookes University, Oxford, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    amcgregor@brookes.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2908-2420

Funding

Conselho Nacional de Desenvolvimento Científico e Tecnológico (234586/2014-1)

  • Christian Louis Bonatto Paese

Leverhulme Trust (RPG-2016-234)

  • Alistair P McGregor
  • Anna Schoenauer

Biotechnology and Biological Sciences Research Council (BB/N007069/1)

  • Steven Russell

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This research was funded by a CNPq scholarship to CLBP (234586/2014-1), a grant from The Leverhulme Trust (RPG-2016-234) to APM and AS, and in part by a BBSRC grant (BB/N007069/1) to SR.

Senior Editor

  1. Patricia J Wittkopp, University of Michigan, United States

Reviewing Editor

  1. Nikola-Michael Prpic, Georg-August-Universität, Germany

Publication history

  1. Received: April 14, 2018
  2. Accepted: August 10, 2018
  3. Accepted Manuscript published: August 21, 2018 (version 1)
  4. Version of Record published: October 1, 2018 (version 2)

Copyright

© 2018, Paese et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,433
    Page views
  • 180
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Developmental Biology
    Lijuan Du et al.
    Research Article
    1. Chromosomes and Gene Expression
    2. Developmental Biology
    Alexander Munden et al.
    Research Article Updated
