Cryo-EM reveals distinct conformations of E. coli ATP synthase on exposure to ATP

  1. Meghna Sobti
  2. Robert Ishmukhametov
  3. James C Bouwer
  4. Anita Ayer
  5. Cacang Suarna
  6. Nicola J Smith
  7. Mary Christie
  8. Roland Stocker
  9. Thomas M Duncan
  10. Alastair G Stewart  Is a corresponding author
  1. The Victor Chang Cardiac Research Institute, Australia
  2. UNSW Sydney, Australia
  3. University of Oxford, United Kingdom
  4. The University of Wollongong, Australia
  5. Victor Chang Cardiac Research Institute, Australia
  6. SUNY Upstate Medical University, United States

Abstract

ATP synthase produces the majority of cellular energy in most cells. We have previously reported cryo-EM maps of autoinhibited E. coli ATP synthase imaged without addition of nucleotide (Sobti et al. 2016), indicating that the subunit ε engages the α, β and γ subunits to lock the enzyme and prevent functional rotation. Here we present multiple cryo-EM reconstructions of the enzyme frozen after the addition of MgATP to identify the changes that occur when this ε inhibition is removed. The maps generated show that, after exposure to MgATP, E. coli ATP synthase adopts a different conformation with a catalytic subunit changing conformation substantially and the ε C-terminal domain transitioning via an intermediate ‘half-up’ state to a condensed ‘down’ state. This work provides direct evidence for unique conformational states that occur in E. coli ATP synthase when ATP binding prevents the ε C-terminal domain from entering the inhibitory ‘up’ state.

https://doi.org/10.7554/eLife.43864.001

Introduction

The majority of metabolic energy in cells is generated by F1Fo ATP synthase, a biological rotary motor that converts the proton motive force (pmf) to adenosine tri-phosphate (ATP) in both oxidative phosphorylation and photophosphorylation (Stewart et al., 2014; Walker, 2013). The enzyme consists of two reversible rotary motors, termed F1 and Fo, coupled together by one central and one peripheral stalk, with the simplest subunit composition found in bacteria such as Escherichia coli (Figure 1—figure supplement 1). The Fo motor spans the membrane and converts the potential energy of the pmf into rotation of the central stalk that in turn drives conformational changes in the three catalytic sites of the α3β3 F1 motor subunits to generate ATP. Moreover, this process is reversible so that, if the pmf drops below the threshold needed to power ATP synthesis, the motor has the ability to reverse and, in some bacterial species, operates primarily as a proton pump driven by ATP hydrolysis. Regulation of these ATPase/synthase activities is particularly important in times of cellular stress, primarily to prevent wasteful ATP consumption. However, different regulatory mechanisms are used by different F1Fo subtypes (bacterial, chloroplastic, mitochondrial) and species (Sielaff et al., 2018; Morales-Rios et al., 2015; Stewart and Stock, 2012; Gledhill et al., 2007; Hahn et al., 2018; Stewart, 2014; Pullman and Monroy, 1963).

It has been postulated that bacterial ATP synthases are regulated by several mechanisms, with conformational changes of the ε subunit and catalytic nucleotide occupancies likely playing major roles (Sielaff et al., 2018; Hyndman et al., 1994; Feniouk et al., 2006). A long-standing question surrounds the role of the C-terminal domain of the ε subunit (εCTD). The εCTD is known to change conformation and block rotation of the central stalk in the F1 motor from several bacteria, but this role is absent in the enzyme of mitochondria (Sielaff et al., 2018; Laget and Smith, 1979; Cingolani and Duncan, 2011; Sobti et al., 2016; Yagi et al., 2007; Shirakihara et al., 2015). In the active bacterial enzyme, the εCTD is proposed to adopt a condensed or ‘down’ conformation (Krah et al., 2017), and this state has been observed for isolated ε subunit from E. coli (Uhlin et al., 1997; Wilkens and Capaldi, 1998a) and Geobacillus stearothermophilus (or Bacillus PS3, hereafter termed PS3) (Yagi et al., 2007) as well as in isolated F1 from Caldalkalibacillus thermarum (Ferguson et al., 2016). In autoinhibited states observed in crystal structures of F1 from E. coli and PS3, the εCTDs are extended in similar ‘up’ conformations, so that a helix inserts into the F1 central cavity and appears to block rotation of the complex by binding to both the central rotor subunit γ and several surrounding α and β subunits (Sielaff et al., 2018; Cingolani and Duncan, 2011; Mendoza-Hoffmann et al., 2018) (Figure 1—figure supplement 2). However, there is a key structural difference between these ‘up’ states: in E. coli, the εCTD consists of two helices (here termed εCTH1 and εCTH2; see Figure 1—figure supplement 2) separated by an extended loop, with each helix interacting with a different region of the γ subunit (Cingolani and Duncan, 2011; Rodgers and Wilce, 2000); whereas in PS3, εCTH1 and εCTH2 instead join to form one continuous helix (Shirakihara et al., 2015). In PS3 and a related Bacillus species, ATP is known to bind to the ε subunit and stabilise the ‘down’ conformation (Yagi et al., 2007; Krah et al., 2017; Kato-Yamada and Yoshida, 2003; Kato-Yamada, 2005; Imamura et al., 2009), and a clear mechanism of regulation by the εCTD and ATP levels has been proposed (Shirakihara et al., 2015). However, the physiological importance of the εCTD in ATP synthases of other bacteria, such as E. coli, has remained uncertain. Crosslinking studies have suggested that the εCTD of E. coli ATP synthase could act as a ratchet, preventing hydrolysis - but not synthesis - of ATP (Tsunoda et al., 2001). However, deletion studies performed in vivo, in which the E. coli εCTD was removed, showed minimal impact on cell growth or viability (Shah and Duncan, 2015), although deletion of just the five terminal residues results in decreased respiratory growth due to increased inhibition of ATP synthesis (Taniguchi et al., 2011). For the highly latent enzyme from C. thermarum, an early study indicated the εCTD is involved in inhibition (Keis et al., 2006), but thus far crystallographic studies of its F1 complex have shown the εCTD in the down conformation irrespective of ATP binding to ε (Ferguson et al., 2016). Despite confusion over the possible importance of the εCTD for the bacteria noted above, one recent study demonstrated that the εCTD can impact the virulence of Streptococcus pneumoniae. F1Fo is essential for viability of S. pneumoniae and functions in pH homeostasis and in its acid tolerance response (Ferrándiz and de la Campa, 2002; Cortes et al., 2015). In a mouse model of pneumococcal bacteraemia, a frameshift mutation that scrambled the sequence of the εCTD was found to increase pneumococcal survival in the spleen, most likely by reducing killing by splenic macrophages (Gerlini et al., 2014). Therefore, it is important to characterize more fully the bacterial εCTD and its different conformational states and interactions within bacterial ATP synthases.

In contrast to the crystallographic reports mentioned above with isolated ε subunits or soluble F1, our previous cryo-EM study (Sobti et al., 2016) provided maps of the intact E. coli ATP synthase. These data were obtained using purified protein without the addition of exogenous nucleotide, thus likely representing a state autoinhibited by ε, here termed ATP synthaseAI. Here we have used similar methodologies to investigate the effect of ATP on the conformation of E. coli F1Fo ATP synthase, by cryo-freezing and subsequently imaging the enzyme after a brief incubation with 10 mM MgATP. The maps obtained (termed ATP synthase+ATP hereafter) indicate that, in the presence of MgATP, the εCTD became detached from the body of the enzyme, coupled with a large change in one of the three catalytic β subunits. Further analysis identified an intermediate in which the εCTD was in a ‘half-up’ conformation, suggesting that the enzyme can still rotate, even when the ε subunit is not in its condensed down position, as well as an εCTD ‘down’ conformation likely showing an active intermediate. Further inspection of our maps demonstrated peaks present in all six nucleotide-binding sites in the ATP synthase+ATP enzyme (three catalytic β sites and three noncatalytic α sites), in contrast to the autoinhibited protein in which only four binding pockets (a single catalytic β site and three noncatalytic α sites) were occupied with nucleotide. Together with our previous work, these results reveal three distinct positions taken up by the εCTD in response to different catalytic nucleotide–bound states, providing further insight into the mechanism of ATP synthase regulation in E. coli and related species.

Results

Structure of E. coli F1Fo ATP synthase in the presence of ATP

To determine the structure of the E. coli F1Fo ATP synthase in the presence of ATP, the detergent-solubilized E. coli enzyme (Sobti et al., 2016) was incubated with 10 mM ATP (containing 50 μM ADP [n = 3; stdev = 2 μM]) and 10 mM MgCl2 for 30 s at 20°C prior to preparing grids for cryo-EM. Sample preparation took a further 15 s before cryogenic temperature was reached, with approximately 0.25 mM ATP hydrolysed to ADP in the total time for preparation (45 s) (Figure 1—figure supplement 3). The time used for these experiments was optimized to be within the linear range of ADP production, so that uninhibited ATP synthase could be observed, with an ADP concentration of ~0.3 mM at the time of freezing. 10 mM ATP and a 45 s preparation time were chosen to emulate the concentrations seen in E. coli growing under aerobic conditions, where 9.6 mM ATP and 0.6 mM ADP has been observed (Yaginuma et al., 2014; Bennett et al., 2009).

The grids produced after incubation with ATP were similar to those used in our previous study of the autoinhibited enzyme and micrographs showed clear ATP synthase particles. A dataset of 8509 movie micrographs was collected at 200 kV accelerating voltage, of which 7858 were selected based on image quality. 579,942 particles were picked and 319,315 of these appeared to be of the intact complex (Figure 1—figure supplement 4). Three different rotational conformations could be filtered from these data (each containing 97,095, 72,757 and 51,534 particles) that were related by a 120° rotation of the central stalk, displaying the hallmark dynamic movements predicted for ATPases/synthases (Stewart et al., 2012). The quality of the maps obtained for each conformation was comparable, with resolutions of 5.0 Å, 5.3 Å and 5.5 Å (Figure 1a and Figure 1—figure supplements 5 and 6). However, the proportion of particles corresponding to each reconstruction differed from our previous study (33% State 1, 44% State 2 and 23% State 3 in this study, compared with 46% State 1, 30% State 2 and 24% State 3 in Sobti et al., 2016), suggesting that a larger number of molecules were now observed in State 2 rather than State 1. Single molecule studies have also observed the enzyme populating the rotational dwell states in different proportions (Sielaff et al., 2019), suggesting that each dwell state may be at a different energy minimum. Inspection of the nucleotide-binding pockets in the α and β subunits revealed two further peaks, in addition to the four nucleotide peaks we reported previously for the autoinhibited enzyme (Sobti et al., 2016) (Figure 1—figure supplement 7). This indicated that all six nucleotide-binding sites were occupied, even though one β subunit (βE) remained in the open, low-affinity conformation (Figure 1—figure supplement 1b).

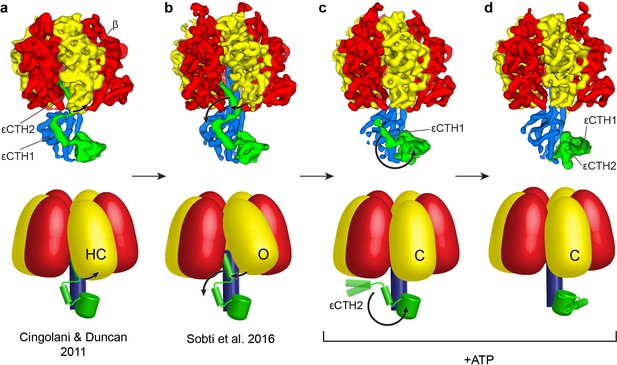

Figure 1 with 12 supplements see all

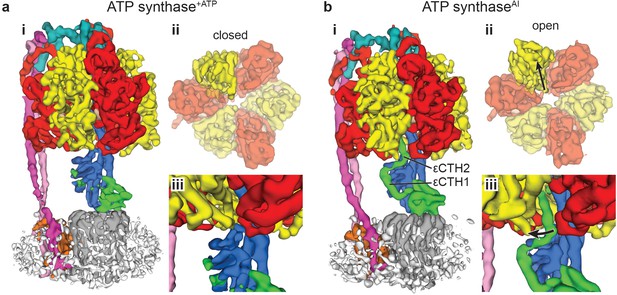

Comparison of the maps obtained (a) in the presence of ATP (ATP synthase+ATP) and (b) the autoinhibited state in the absence of ATP (ATP synthaseAI).

Comparison of the active and autoinhibited maps shows that: (i) the overall architecture is similar; (ii) a single β subunit (brighter yellow) is in a closed conformation in the active form and open conformation in the autoinhibited form (black arrows show the direction of movement – view is of the segmented α and β subunits, viewed from below); (iii) density corresponding to the εCTD (coloured green) is very weak in the ATP synthase+ATP map, suggesting it has multiple conformations, whereas in the ATP synthaseAI map, the εCTD is clearly identifiable in the ‘up’ position, with the εCTH1 and εCTH2 bound to the γ subunit (coloured blue).

https://doi.org/10.7554/eLife.43864.002

Re-refinement of the ATP synthaseAI maps presented in our previous study (Sobti et al., 2016) improved their nominal resolution to 5.7 Å, 6.6 Å and 7.2 Å (previously 6.9 Å, 7.8 Å and 8.5 Å, respectively), and enabled features to be seen more clearly (Figure 1b and Figure 1—figure supplement 8). The re-refined maps were used to compare ATP synthase before and after incubation with ATP. Compared with ATP synthaseAI, the ATP synthase+ATP reconstructions showed a large conformational change in one of the three β subunits (βDP) and that the εCTD was absent from the maps (Figure 1). The conformation of the catalytic subunits in the ATP synthase+ATP map closely resembles that of the isolated F1 enzyme from C. thermarum (Ferguson et al., 2016) (Figure 1—figure supplement 9), except that no density was detectable for the εCTD. Even inspecting the unmasked unfiltered half maps at low threshold, it was difficult to formulate a clear idea of the position of the εCTD, suggesting that under these conditions it may be sampling multiple conformations.

To identify the position of the εCTD, the data were processed more extensively and refined into sub-classifications (Figure 1—figure supplement 6). Although the resolution obtained in these subclasses was lower than in the general classification and they displayed the same rotational states, they showed additional weak density corresponding to the εCTD in either a condensed ‘down’ position (Figure 2a and Figure 2—figure supplement 1a), or intermediate ‘half-up’ position (Figure 2b and Figure 2—figure supplement 1b). In the ‘down’ position, weak density was present for both εCTH1 and εCTH2 with the helices arranged adjacent to one another, attached to the N-terminal region of the ε subunit. However, in the intermediate ‘half-up’ position weak density was only observed for the εCTH1 bound to the γ subunit, with no identifiable density for the εCTH2, suggesting that this helix was mobile.

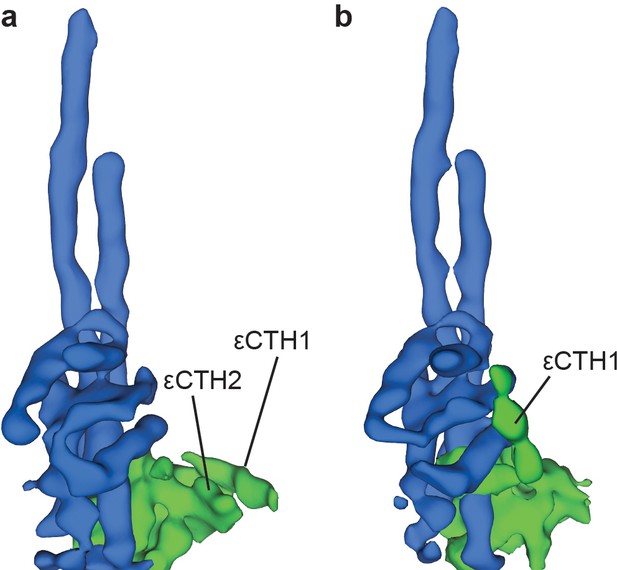

Figure 2 with 1 supplement see all
Two conformations of subunit ε are observed in sub-classification of ATP synthase+ATP maps.

Processing and refinement of the ATP synthase+ATP dataset using Relion (Scheres, 2012) identified two conformations for the εCTD. These show a ‘down’ conformation (a) where the εCTH1 and εCTH2 are bound to the N-terminal region of the ε subunit and a ‘half-up’ conformation (b) where the εCTH1 was still bound to the γ subunit but the εCTH2 was not visible even at low thresholds.

https://doi.org/10.7554/eLife.43864.015

Peripheral stalk structure

The peripheral stalk of ATP synthase is constructed from a right-handed coiled coil and holds the catalytic α and β subunits stationary relative to a rotating central stalk (Wilkens and Capaldi, 1998b; Lee et al., 2010; Walker and Dickson, 2006). Our previous maps (Sobti et al., 2016) described the overall peripheral stalk architecture in E. coli F1Fo ATP synthase, to which density was attributed as belonging to two b subunits and one δ subunit. In light of recent higher resolution cryo-EM maps of the eukaryotic F1Fo ATP synthase from Spinacia oleracea chloroplasts (Hahn et al., 2018), we attempted to assign the density of the peripheral stalk more precisely in the new maps. Of particular interest was a small density peak (Figure 3a–c, pink density) that cannot be identified in other structures of related ATP synthases (Morales-Rios et al., 2015; Hahn et al., 2018). However, this density can be identified in all cryo-EM maps produced of E. coli F1Fo ATP synthase thus far (EMD-8357, EMD-8358, EMD-8359 and the maps presented in this study). The length of the density relating to the b subunits was measured to investigate whether this additional density could be attributed to the b subunits, and found to be 233 Å and 227 Å (termed b1 and b2, respectively; Figure 3d). Together with the prediction that residues 66–122 of the b subunits form an unstaggered coiled coil in the isolated dimer (Del Rizzo et al., 2002), this suggests that the additional density peak represents the C-terminus of just the b2 subunit. The differing conformation between the b1 and b2 subunits seen here appears to be unique to some bacterial ATP synthases and is likely due to their being a homodimer in these systems. Other related F-ATP synthases, such as Paracoccus denitrificans, contain two different b subunits (termed b and b’) that differ in length and sequence (Morales-Rios et al., 2015) and therefore can adopt their own individual folds. In E. coli ATP synthase, each b subunit is required to adopt two different conformations using the same amino acid sequence. This may be due to the requirement of the homodimer binding to asymmetric α and δ surfaces, whereby the b1 subunit forms the majority of the contacts between the F1 motor while the b2 subunit folds back onto itself providing rigidity to the peripheral stalk. Most recently, a high-resolution structure of PS3 ATP synthase has been reported using cryo-EM (Guo and Rubinstein, 2018). Although the maps and models are not currently available, similar density can be seen suggesting that the break in symmetry of the b subunits observed at the top of the F1 motor is conserved across species which contain a homodimeric b subunit. Moreover, analysis of our improved maps of the E. coli ATP synthaseAI (particularly State 2, which shows the clearest density in the Fo region) corroborates the results from the far higher resolution structure of the PS3 enzyme, showing a similar overall fold in the membrane Fo region to spinach chloroplast ATP synthase (Hahn et al., 2018), although following slightly different trajectories (Figure 3—figure supplement 1). However, because the maps of the E. coli enzyme show only weak density in this region it is difficult to draw a firm conclusion on this point.

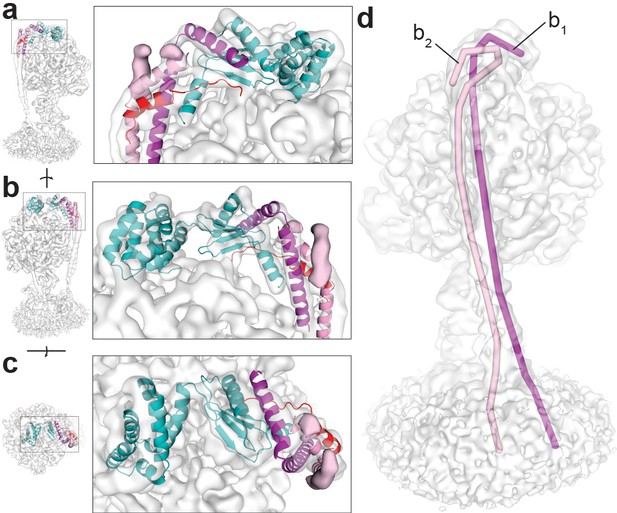

Figure 3 with 2 supplements see all
Density observed for the F1Fo ATP synthase peripheral stalk.

The cryo-EM map of ATP synthase+ATP docked with the atomic model of S. oleracea chloroplast ATP synthase peripheral stalk (Hahn et al., 2018), reveal a region of difference density (coloured pink density in a), (b and c) not seen in related F-ATP synthases. (a and b) side views and (c) top view. Coot (Emsley et al., 2010) and PyMol (Schrödinger) were used to create a line object that traced the density believed to be the b subunits. The magenta line (labelled b1) measured 233 Å and the pink line (labelled b2) measured 227 Å (d), suggesting that the difference density seen corresponds to the C-terminus of a single b2 subunit. The b1 and b2 subunits of the E. coli ATP synthase peripheral stalk follow different trajectories across the F1 motor surface.

https://doi.org/10.7554/eLife.43864.017

Discussion

The structural information obtained here using E. coli F1Fo ATP synthase incubated with MgATP likely reflects conformations uninhibited by the εCTD. Although the maps generated are of limited resolution, the position of the catalytic subunits and εCTD were clearly identifiable. Two different εCTD conformations were observed: a ‘down’ conformation, in which εCTH1 and εCTH2 are arranged next to one another and interacts with the N-terminal region of the ε subunit, and a ‘half-up’ conformation in which the εCTH1 lies against the γ subunit (Figure 2). Because the ATP and ADP concentrations present were comparable to those observed in intact cells (Bennett et al., 2009) it is likely that both these conformations are present in E. coli. Furthermore, analysis of the maps in light of the recent high-resolution structure of related S. oleracea enzyme has highlighted a unique C-terminal fold of the peripheral stalk b subunits in E. coli ATP synthase that derives from the homodimeric nature of this subunit in this system.

A considerable body of work has described the inhibition of F1-ATPases by ADP, Mg2+ and εCTD (Sielaff et al., 2018; Hyndman et al., 1994; Laget and Smith, 1979; Cingolani and Duncan, 2011; Sobti et al., 2016; Richter, 2004; Zhou et al., 1988; Avron, 1962; Drobinskaya et al., 1985; Guerrero et al., 1990). Because the sample in the present study was imaged under conditions in which ADP accumulated at a linear rate (Figure 1—figure supplement 3), we propose that the maps represent structures of E. coli F1Fo ATP synthase in which the autoinhibitory state of the εCTD is prevented. These results indicate that ATP induces the εCTD to exit from the central cavity of F1 and so facilitate rotation of the enzyme. The contribution of the εCTD to regulate E. coli F1Fo ATP synthase activity has previously been unclear. Our structural studies on E. coli F1Fo ATP synthase support a mechanism whereby the εCTD is primed to act as a ‘safety lock” (Feniouk and Junge, 2005) or ‘ratchet” (Tsunoda et al., 2001; Cipriano and Dunn, 2006) to prevent ATP synthase from entering the ADP/Mg2+ inhibited state (Shah et al., 2013) even when ADP and Mg2+ concentrations are high (Figure 4). The ‘half-up’ state that we identified in our cryo-EM maps has been previously hypothesised (Cingolani and Duncan, 2011) and studies on the enzyme in the absence of the εCTH2 support the hypothesis that the εCTD ‘half-up’ conformation can act as a weak inhibitor, partially inhibiting without insertion into the F1 motor (Nakanishi-Matsui et al., 2014). It is unlikely that the ‘half-up’ conformation we observe here is an artefact generated by the cysteine residue free construct used in this study, because in our previous work (Sobti et al., 2016) the same cysteine-free enzyme did not show the ‘half-up’ state. In addition, previous studies using γC87S mutant protein did not show any change in ε inhibition (Duncan et al., 1995), and in the structure of the native enzyme (Figure 1—figure supplement 10) loops in the γ subunit separate the cysteines in subunit γ and residues in the εCTH1, so that they are not in direct contact.

Proposed mechanism for the release of εCTD from the inhibitory ‘up’ conformation in E. coli F1-ATPase.

Structural models presented as maps (above; E. coli crystal structure in (a) presented as low smooth map for comparison) and simple schematics (below) to describe the possible structural movements of E. coli F1-ATPase during activation. In a nucleotide-free solution, the F1-ATPase adopts an inactive state (seen in the crystal structure of isolated E. coli F1-ATPase (Cingolani and Duncan, 2011) and the ATP synthaseAI cryo-EM map (Sobti et al., 2016; (a) and (b) respectively). The isolated F1-ATPase shows one of the β subunits in a ‘half-closed’ state (labelled as HC), interacting with the ‘up’ conformation of the εCTH2 (a). In the cryo-EM maps of the intact enzyme (b), the same β subunit adopts an open conformation (labelled as O) where it no longer interacts with the εCTH2, allowing the reversible release of the helix from its inserted position. In the presence of ATP, the εCTD is seen in two conformations (c and d) that no longer contact the α and β subunits, and the aforementioned β subunit then adopts a closed state (labelled as C) that prevents the εCTD from returning to the ‘up’ conformation. The εCTD can either be in a ‘half-up’ (c) conformation, with the εCTH2 mobile, or a ‘down’ conformation (d) with both εCTH1 and εCTH2 in a condensed form.

https://doi.org/10.7554/eLife.43864.020

Structural data from this and previous studies suggest that loading multiple catalytic sites with nucleotides disrupts access of the εCTD to the inhibitory ‘up’ state in E. coli (Figure 4). In a nucleotide-free solution, the F1-ATPase adopts an autoinhibited state (seen in the crystal structure of isolated E. coli F1-ATPase (Cingolani and Duncan, 2011) and the ATP synthaseAI cryo-EM map (Sobti et al., 2016); Figure 4a and b). The isolated F1-ATPase shows one β subunit (βDP) in a ‘half-closed’ state, with ADP bound, which interacts directly with the ‘up’ conformation of the εCTH2 (Figure 4a). In the ATP synthaseAI cryo-EM map, the same β subunit is unoccupied and has adopted an open conformation that no longer interacts with the εCTH2, which could facilitate a reversible mechanism whereby the helix is able to escape from its inserted position. When compared with isolated F1, the reduced interactions with the ‘up’ state of subunit ε seen in the complete F1Fo complex may explain why ε inhibition is significantly reduced upon rebinding of E. coli F1 to Fo. In the ATP synthase+ATP cryo-EM maps, all catalytic sites are at least partially occupied with nucleotide (Figure 1—figure supplement 7) and the εCTD is seen in two conformations that no longer contact the α and β subunits (Figure 4c and d). Because we only observed the εCTD in the ‘up’ conformation in the absence of ATP, these results indicate that nucleotide binding to the catalytic subunits, in either one or a combination of catalytic sites, is important for the release of the εCTD. Binding of ATP is unlikely to accelerate release of the εCTD from the ‘up’ state, as that would conflict with the known noncompetitive nature of ε inhibition with E. coli F1 and FoF1. Rather, as the εCTH2 escapes from the central cavity of the ATP synthaseAI conformation (Figure 4b), rapid binding of ATP would induce a transition from the open (Figure 4b, ‘O’) to the closed conformation (Figure 4c/d, ‘C’), preventing re-entry of εCTH2 until the next catalytic dwell position. Finally, the ‘half-up’ conformation seen for the εCTD supports the prediction that the εCTH2 can remain mobile, anchored to γ by the εCTH1, so that it can re-enter the central cavity at a later step in the cycle (Cingolani and Duncan, 2011). It is also possible that this εCTH1 interaction alone may be able to modulate enzyme activity, as seen in a previous deletion study (Nakanishi-Matsui et al., 2014).

The ‘down’ conformation of the ε subunit has been observed for the isolated ε subunit of PS3 with ATP bound (Yagi et al., 2007) and on F1 from C. thermarum (Ferguson et al., 2016). For ATP synthase+ATP cryo-EM maps containing the εCTD in the ‘down’ conformation, close inspection showed very weak density, consistent with a fraction of these complexes showing nucleotide bound to the ε subunit. Docking of the C. thermarum (Ferguson et al., 2016) ε subunit with ATP bound, showed good correlation between the position occupied by the nucleotide and additional density seen in the ATP synthase+ATP map (Figure 1—figure supplement 11). Partial occupancy would be consistent with the concentration of ATP employed in our study being slightly below the Kd of ~22 mM observed for ATP binding to isolated E. coli ε subunit (Yagi et al., 2007), and so because weak density attributable to nucleotide bound to the εCTD was only seen with the down conformation, it is possible that the ‘half-up’ conformation, with the associated probable disorder of εCTH2, might result when nucleotide is not bound to the ε subunit. Further work, for example, using a range of ATP concentrations, will be needed to resolve this point.

Although the movements of the εCTD are well defined by this study, the resolution of the reconstructions is limited compared to others (Guo and Rubinstein, 2018; Murphy et al., 2019). We believe this is likely due to inherent flexibility in the complex, possible varying subunit or lipid stoichiometry (Chorev et al., 2018), the detergent used, ice thickness, particle density and the lower accelerator voltage used during image acquisition (200 vs. 300 kV). Moreover, we only observed three rotational states whereas seven were seen in bovine mitochondrial ATP synthase (Zhou et al., 2015) and thirteen in Polytomella sp. mitochondrial ATP synthase (Murphy et al., 2019). We did employ methods similar to those used in these studies in an attempt to observe rotary sub-steps in the E. coli enzyme, but were unsuccessful. Although the complex should be undergoing rotation, due to the ATP hydrolysis that is occurring during freezing, single molecule studies have shown that in order for the complex to spend significant time in rotary sub-steps it had to be imaged under high drag, such as in 30% polyethylene glycol with a large object attached (Ishmukhametov et al., 2010). Indeed, the poor density seen at the membrane interface of the subunit b dimer, points towards these reconstructions containing multiple conformations, which may contribute to limiting the resolution obtained. It is possible that further work to obtain a much larger dataset, containing many more particles, may enable identification of more of the rotary sub-steps that are likely present in this sample.

Recent work on Polytomella sp. mitochondrial ATP synthase (Murphy et al., 2019) has described this ATP synthase in great detail, showing a flexible coupling between the F1 and Fo motors mediated by a hinge region in OSCP (analogous to the δ subunit in E. coli ATP synthase). Comparison of the peripheral stalks in this study, by superposition of either the Fo stator or the N-terminal region of subunit δ (Figure 3—figure supplement 2), shows that the peripheral stalk likely bends and twists as the enzyme undergoes rotary catalysis, as suggested in previous studies (Hahn et al., 2018; Stewart et al., 2012). We do not observe movement in the delta/OSCP hinge, most likely due to our inability to resolve rotary substates in our maps.

In previous studies on E. coli ATP synthase, the enzyme has been shown to become inactive four hours after purification, possibly due to aggregation (Ishmukhametov et al., 2010). In this study, the enzyme was purified rapidly (see Materials and methods) and EM grids were made shortly after purification to ensure active enzyme was being imaged. The images obtained showing free monodisperse protein with little evidence of aggregation. Furthermore, the enzyme was purified in digitonin rather than the mixture of phosphatidylcholine, octyl glucopyranoside, sodium deoxycholate and sodium cholate used previously (Ishmukhametov et al., 2010; Ishmukhametov et al., 2005). Digitonin was selected because enzyme purified in the original mixture of lipids and detergents was not stable on the size exclusion chromatography (SEC) employed as a final purification step prior to grid freezing. Because the enzyme had been purified in a different detergent and further purified using SEC, we assessed the activity of the digitonin solubilized enzyme using ATP regeneration assays after 0, 1, 2, 3, 4 and 8 hr to compare with data taken on enzyme purified in previous studies (Ishmukhametov et al., 2010) (Figure 1—figure supplement 12). Importantly the enzyme showed little change in activity over 8 hr, suggesting that E. coli ATP synthase purified with digitonin and SEC may be less prone to inactivation or aggregation.

The present study has exploited the ability to manipulate sample conditions immediately before freezing to obtain images of E. coli ATP synthase at a time when ADP formation from ATP proceeds linearly, and hence likely unhindered, to identify the possible conformational changes that occur to remove the εCTD from the autoinhibitory position. This outcome was achieved by optimizing experimental design, considering particle concentration, as well as mixing and blotting time. Interestingly, employing similar methods on the related bacterial A/V type ATPase from Thermus thermophilus, showed that no conformational changes occur in the catalytic or related F subunits upon addition of the ATP transition state mimic fluoroaluminate (Davies et al., 2017). This could be due to different nucleotide affinity, operating temperature or indeed function of the complexes (Nakano et al., 2008).

In summary, this study presents structural data of E. coli ATP synthase imaged in the presence of ~9.75 mM ATP and ~0.3 mM ADP, comparable to the concentrations present in the intact bacterium. Compared to our previous work on the autoinhibited enzyme in the absence of ATP, the cryo-EM reconstructions presented here show that a single β subunit and the C-terminal domain of subunit ε change conformation and position substantially upon addition of ATP. Together, our studies provide strong support for the hypothesis that the ε subunit acts as an emergency brake to minimize wasteful hydrolysis of cellular ATP in situations where the ATP-to-ADP ratio is low. As the εCTD has recently been shown to impact pathogenesis of at least one bacterial species (Gerlini et al., 2014), the different conformations of the εCTD observed in these studies may have potential to guide future development of drugs that could target this bacteria-specific inhibitory mechanism.

Materials and methods

ATP was purchased in the form of adenosine 5-triphosphate disodium salt hydrate (Sigma A7699).

Protein purification

Request a detailed protocol

The same preparation was used as in Sobti et al. (2016). However, the protein sample was concentrated to 11 μM (6 mg/ml) to improve particle density. An in-depth description of the methods used to isolate this protein is described below with approximate timings for each step.

Cysteine-free E. coli ATP synthase (with all cysteines residues substituted with alanine residues and a His-tag introduced on the β subunit) was expressed in E. coli DK8 strain (Ishmukhametov et al., 2005). Cells were grown at 37°C in LB medium supplemented with 100 μg/ml ampicillin for 5 hr. The cells were harvested by centrifugation at 5,000 g, obtaining ~1.25 g cells per litre of culture [~20 min for centrifugation step]. Cells were resuspended in lysis buffer containing 50 mM Tris/Cl pH 8.0, 100 mM NaCl, 5 mM MgCl2, 0.1 mM EDTA, 2.5% glycerol and 1 μg/ml DNase I, and processed with three freeze thaw cycles followed by one pass through a continuous flow cell disruptor at 20 kPSI [~1 hr for lysis]. Cellular debris was removed by centrifuging at 7,700 × g for 15 mins, and the membranes were collected by ultracentrifugation at 100,000 × g for 1 hr [~1 hr 45 min for centrifugation steps]. The ATP synthase complex was extracted from membranes at 4°C for 1 hr by resuspending the pellet in extraction buffer consisting of 20 mM Tris/Cl, pH 8.0, 300 mM NaCl, 2 mM MgCl2, 100 mM sucrose, 20 mM imidazole, 10% glycerol, 4 mM digitonin and EDTA-free protease inhibitor tablets (Roche) [~1.5 hr for resuspension]. Insoluble material was removed by ultracentrifugation at 100,000 g for 30 min. The complex was then purified by binding on Talon resin (Clontech) [~1 hr] and eluted in 150 mM imidazole [~1 hr for affinity step]. The protein was further purified with size exclusion chromatography on a 16/60 Superose six column equilibrated in a buffer containing 20 mM Tris/Cl pH 8.0, 100 mM NaCl, 1 mM digitonin and 2 mM MgCl2 [~1 hr for gel filtration step]. The purified protein was then concentrated to 11 μM (6 mg/ml) [~15 min for concentration step], and snap frozen and stored for grid preparation. The total time from membranes to freezing was ~6 hr.

ATPase enzymatic assay

Request a detailed protocol

The reaction mixture was started by vigorously mixing 27 μl of 11 μM (6 mg/ml) purified cysteine-free E. coli F1Fo ATP synthase and 3 μl of 100 mM ATP/100 mM MgCl2 (pH 8.0) and incubated at 22°C. 5 μl of the reaction mixture was removed at 15, 30, 45, 60, 120 and 240 s time points and stopped immediately by adding 25 μl of ice-cold 0.4 M perchloric acid and mixed vigorously with a pipette. Samples were subsequently spun at 1700 x g at 4°C for 5 min. 30 μl of 1 M KH2PO4 and 7.5 μl of 3 M KOH was added to neutralize the mixture before a further spin at 1700 x g for 5 min at 4°C. The samples were then stored at −80°C prior to analysis via HPLC-UV.

Analysis of ADP and ATP content by HPLC-UV

Request a detailed protocol

ADP and ATP in enzymatic reactions were detected as described previously in Micheli et al. (1993) with slight modifications. Briefly, 50 μl of sample was subjected to HPLC coupled with UV detection (Agilent 1200 series). ADP and ATP were separated on a Supelcosil C18 column (5 μM, 250 × 4.6 mm) by gradient elution using mobile phase A (0.1 M KH2PO4 pH 5.5 containing 6 mM tetrabutylammonium phosphate) and mobile phase B (100% methanol) at 1 mL/min. The gradient consisted of 7% mobile phase B (0–6 min) and 30% mobile phase B (6–11 min). The column was re-equilibrated with 7% mobile phase B for 9 min. To obtain the ADP concentration in commercially bought ATP, a 10 mM ATP sample was loaded, and ADP and ATP were detected as described previously in Huang et al. (2010) and subtracted from subsequent readings. Briefly, ADP and ATP were separated on a Supelcosil C18 column (5 μM, 250 × 4.6 mm) by isocratic elution using 39 mM KH2PO4 pH 6.5 at 1 mL/min. For both chromatographic methods, ADP and ATP were detected by UV254nm and quantified by area comparison with authentic commercial standards (Sigma Aldrich, USA) and data analysed using ChemStation software (Agilent Technologies, USA).

Cryo-EM grid preparation

Request a detailed protocol

1 μl of 100 mM ATP/100 mM MgCl2 (pH 8.0) was added to an aliquot of 9 μl of purified cysteine-free E. coli F1Fo ATP synthase (Sobti et al., 2016; Ishmukhametov et al., 2005) at 11 μM (6 mg/ml) and the sample was incubated at 22°C for 30 s, before 3.5 μl was placed on glow-discharged holey gold grid (Ultrafoils R1.2/1.3, 200 Mesh). Grids were blotted for 3 s at 22°C, 100% humidity and flash-frozen in liquid ethane using a FEI Vitrobot Mark IV (total time for sample application, blotting and freezing was 15 s).

Data collection

Request a detailed protocol

Grids were transferred to a Thermo Fisher Talos Arctica transmission electron microscope operating at 200 kV. Images were recorded automatically using EPU, yielding a pixel size of 0.98 Å. A total dose of 50 electrons per Å (Walker, 2013) was used, with the first 30 electrons spread over the initial 31 frames and the final 20 electrons captured as the final frame. The total exposure time was 62 s and the data were collected using a Falcon III in counting mode. 8509 movie micrographs were collected in two data collections (Figure 1—figure supplement 6).

Data processing

200 kV ATP synthase+ATP dataset

Request a detailed protocol

MotionCorr2 (Zheng et al., 2017) was used to correct local beam-induced motion and to align resulting frames, with 5 × 5 patches. Defocus and astigmatism values were estimated using Gctf (Zhang, 2016) and 7858 micrographs were selected after exclusion based on ice contamination, drift and astigmatism. ~1000 particles from each data set were manually picked and subjected to 2D classification to generate templates for autopicking in RELION-3.0-beta (Scheres, 2012). The automatically picked micrographs were manually inspected to remove false positives, yielding 579,942 particles. These particles were re-extracted from motion corrected images that were dose-weighted and did not contain the final frame. These particles were then subjected to four rounds of 2D classification generating a final dataset of 319,315 particles. To reduce model bias, an independent initial map was made with RELION-3.0-beta using a subset of particles (13,461 particles) from the first data collection. Each dataset was classified into 3D classes using this initial model in RELION-3.0-beta, and similar classes were pooled yielding maps for ATP synthase+ATP, related by a rotation of the central stalk (total: 221,386 particles; three states: 97,095, 72,757 and 51,534 particles). Subclassifictions were merged based on whether the εCTD could be observed in the ‘half-up’ or ‘down’ state (45,446 and 40,262 particles respectively). Final refinements were performed in cryoSPARC (Punjani et al., 2017). See Figure 1—figure supplement 6 for a flowchart of the data processing strategy.

300 kV ATP synthaseAI dataset

Request a detailed protocol

Particles from our previous study (Sobti et al., 2016), ATP synthaseAI, were refined using cryoSPARC (Punjani et al., 2017), resulting in superior maps and FSC.

Map deposition

Request a detailed protocol

Maps for the ATP synthase+ATP, εCTD ‘half-down’ and εCTD ‘down’ were deposited to the EMDB with accession codes EMD-9345, EMD-9346 and EMD-9348 respectively. Maps for the three ATP synthaseAI were updated in the EMDB.

Data availability

Cryo-EM maps have been deposited to the EMDB under accession numbers EMD-9345, EMD-9346, EMD-9348, EMD-20006, EMD-20007 and EMD-20008.

The following data sets were generated
    1. Meghna Sobti
    2. Alastair G Stewart
    (2019) Electron Microscopy Data Bank
    ID EMD-20006. Autoinhibited E. coli ATP synthase state 1.
    1. Meghna Sobti
    2. Alastair G Stewart
    (2019) Electron Microscopy Data Bank
    ID EMD-20007. Autoinhibited E. coli ATP synthase state 2.
    1. Meghna Sobti
    2. Alastair G Stewart
    (2019) Electron Microscopy Data Bank
    ID EMD-20008. Autoinhibited E. coli ATP synthase state 3.
    1. Sobti M
    2. Stewart AG
    3. Sobti M
    4. Alastair G Stewart
    (2019) Electron Microscopy Data Bank
    ID EMD-9348. E. coli ATP synthase after incubation with ATP - State C.
    1. Sobti M
    2. Stewart AG
    (2019) Electron Microscopy Data Bank
    ID EMD-9345. E. coli ATP synthase after incubation with ATP - State A.
    1. Sobti M
    2. Stewart AG
    (2019) Electron Microscopy Data Bank
    ID EMD-9346. E. coli ATP synthase after incubation with ATP - State B.

References

    1. Avron M
    (1962)
    Light-dependent adenosine triphosphatase in chloroplasts
    The Journal of Biological Chemistry 237:2011–2017.
    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of coot
    Acta Crystallographica. Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
    1. Guerrero KJ
    2. Xue ZX
    3. Boyer PD
    (1990)
    Active/inactive state transitions of the chloroplast F1 ATPase are induced by a slow binding and release of Mg2+. Relationship to catalysis and control of F1 ATPases
    The Journal of Biological Chemistry 265:16280–16287.
    1. Pullman ME
    2. Monroy GC
    (1963)
    A naturally occurring inhibitor of mitochondrial adenosine triphosphatase
    The Journal of Biological Chemistry 238:3762–3769.

Decision letter

  1. Werner Kühlbrandt
    Reviewing Editor; Max Planck Institute of Biophysics, Germany
  2. Richard Aldrich
    Senior Editor; The University of Texas at Austin, United States
  3. Werner Kühlbrandt
    Reviewer; Max Planck Institute of Biophysics, Germany
  4. Thomas Meier
    Reviewer; Imperial College London, United Kingdom
  5. Christoph Gerle
    Reviewer; University of Hyogo, Japan

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Cryo-EM reveals distinct conformations of E. coli ATP synthase on exposure to ATP" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Werner Kühlbrandt as the Reviewing Editor and Reviewer 1, and the evaluation has been overseen by Richard Aldrich as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Thomas Meier (Reviewer #2); Christoph Gerle (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Sobti et al. is a very useful follow up on the 2016 eLife paper mostly by the same authors, which reported the complete cryo-EM structure of the Escherichia coli ATP synthase (Sobti et al., 2016). The previous structure showed the epsilon subunit engaging with the α, β and γ subunits preventing rotation and locking the enzyme. In the present research advance, the authors show a new conformation that involves the epsilon C-terminal domain transitioning via an intermediate "half-up" to a condensed "down" state explaining different conformational states of the activated ATPase upon ATP addition. The data are put nicely into a mechanistic model of F1 activation (Figure 4). The new work complements previous work and provides insights into the structural alterations upon ATP binding. The method used to trap this structural alteration was particularly clever: the enzyme was incubated for a given time with an excess of ATP (10 mM), allowing ATP hydrolysis to proceed before plunge freezing. The exact ATP/ADP ratio was also determined by ATP and ADP quantification. Overall, the findings are important for understanding bacterial ATP synthase regulation and bacterial physiology in general.

Essential revisions:

1) It is unclear how we know that the "half-up" conformation is not just an artefact? The ATP synthase used was cysteine-free. Please check whether any cysteine(s) might play a role in the stabilising the "up" or "down" conformations.

2) Ishmukhametov et al., 2010, demonstrated that detergent-solubilised E. coli ATPase loses its hydrolysis activity within 4 hours. Can the authors exclude that some inactivation has already taken place when they froze their samples? A few more details e.g. on the timing of freezing/thawing the enzyme in the Results or Materials and methods would be interesting.

3) The Kd of ATP binding to epsilon was 22 mM (the authors mention and discuss this), but why did they freeze the sample in 9.75 mM ATP? Could this partly explain why only a fraction of the observed conformations was "half-up", and the "fully up" conformation was not observed? Maybe there was just not enough ATP available, or the ATP/ADP ratio was not ideal for binding? What happens in the presence of more ATP or a higher ATP/ADP ratio? Presumably 9.75 mM ATP was not the only concentration tested, so it would be interesting to know what happened at higher ATP levels.

4) The map resolution remains significantly below that of other cryo-EM structures of closely related bacterial and eukaryotic ATP synthases. The reasons for this are not clear and an explanation should be at least attempted.

5) Another point that merits more discussion is the partial presence of bound ATP at the epsilon subunit. What is the role of this nucleotide in ATP synthase inhibition? Is it part of a product inhibition mechanism?

6) To convince the sceptical reader that the structure is indeed in the catalytically active state and not in the ADP Mg2+-inhibited state, some additional information would help. Please state the source of the chemicals used, especially ATP and the ATPase concentration in mg/ml (as is usual in the cryo-EM field), rather than as a molar concentration. It is also important to know the ADP concentration for an estimate of how many particles were in the ADP Mg-inhibited state at the point when ATP was added. Please add a classification flow chart that clearly indicates the particle numbers at each stage of classification and refinement.

7) Three different rotational states were resolved, but why no substates? Please discuss with respect to single molecule studies. Are the unresolved substates the main limitation on resolution?

8) A key issue in the field is where torsional energy is transiently stored during rotary catalysis. Junge and colleagues have proposed the foot of the central stalk, but cryo-EM structures of inhibited complexes indicate that the peripheral stalk is more flexible. Is this also the case for the E. coli complex under working conditions?

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for submitting your revised research advance "Cryo-EM reveals distinct conformations of E. coli ATP synthase on exposure to ATP" to eLife. You have dealt with the reviewer's comments very well, and everything is fine except for one small (but important) point:

In your response to the reviewers' comments 7 and 8 about rotational states and stalk flexibility, you write that the peripheral stalk flexes between the three rotary states you resolve, as it does in chloroplasts. You show this in a new figure, which is a great addition to the manuscript.

In your response to point 8 you write that the peripheral stalk flexes as a whole (as expected, and as it does in our structure of the chloroplast ATP synthase), but you did not observe the delta/OSCP hinge that we recently discovered in Polytomella. This is not surprising, because the hinge movement is required only between rotary substates, which you do not resolve. In the three primary rotary states, which you do resolve, delta/OSCP is necessarily in the same conformation, and there is no hinge movement. This is also the case in the chloroplast ATP synthase, where rotary substates are likewise not observed, because it is autoinhibited.

It would be good if you could address and clarify this point in a lightly revised manuscript.

https://doi.org/10.7554/eLife.43864.036

Author response

Essential revisions:

1) It is unclear how we know that the "half-up" conformation is not just an artefact? The ATP synthase used was cysteine-free. Please check whether any cysteine(s) might play a role in the stabilising the "up" or "down" conformations.

We have modified the second paragraph of the Discussion to discuss this point in detail and a figure (Figure 1—figure supplement 10) has been added to the manuscript to describe the location and distance of the cysteine mutants to the εCTH1. Although we cannot rule out this possibility completely, it is unlikely that the “half-up” conformation we observe here is an artefact generated by cysteine free construct used in this study, because, in our previous study (Sobti et al., 2016), the same cysteine-free enzyme used in the present work did not show the “half-up” state. In addition, previous studies using γC87S mutant protein did not show and change in ε inhibition (Duncan et al., 1995). Moreover, in the structure of the native enzyme (Figure 1—figure supplement 10), loops in the γ subunit separate the mutated cysteines and residues in the εCTH1, so that they are not in direct contact with the εCTD.

2) Ishmukhametov et al., 2010, demonstrated that detergent-solubilised E. coli ATPase loses its hydrolysis activity within 4 hours. Can the authors exclude that some inactivation has already taken place when they froze their samples? A few more details e.g. on the timing of freezing/thawing the enzyme in the Results or Materials and methods would be interesting.

The text has been expanded, with an extra paragraph in the Discussion (seventh paragraph), to address this point. The enzyme that was used in this study was made as promptly as possible. The purification method contained two changes compared to Ishmukhametov et al., 2010: (i) digitonin was used as the detergent and (ii) a size exclusion step was included. To test whether the enzyme retained hydrolysis activity over 4 hours at room temperature, the same regeneration assays were performed at the same time points as in Ishmukhametov et al., 2010 (Figure 1—figure supplement 12). Although a small amount of activity is lost over 8 hours, the reduction in ATPase activity is far less than seen previously, suggesting that either digitonin is keeping the protein more stable, or the size exclusion chromatography is removing aggregation nucleates.

3) The Kd of ATP binding to epsilon was 22 mM (the authors mention and discuss this), but why did they freeze the sample in 9.75 mM ATP? Could this partly explain why only a fraction of the observed conformations was "half-up", and the "fully up" conformation was not observed? Maybe there was just not enough ATP available, or the ATP/ADP ratio was not ideal for binding? What happens in the presence of more ATP or a higher ATP/ADP ratio? Presumably 9.75 mM ATP was not the only concentration tested, so it would be interesting to know what happened at higher ATP levels.

The text has been expanded (subsection “Structure of E. coli F1Fo ATP synthase in the presence of ATP”, first paragraph and Discussion, fifth paragraph) to include our rationale for using 9.75 mM ATP and 0.3 mM ADP while freezing. In short, this was to simulate nucleotide concentrations found in E. coli and so identify conformations likely to be present in vivo. Importantly, autoinhibition appears to be removed at 1 mM ATP, well below the concentration we employed, and the balance of evidence indicates that nucleotide binding to the ε subunit is unlikely to make a major contribution to the physiological regulation of the ATP synthase in E. coli. Many biochemical studies of isolated E. coli F1 have shown that ε inhibition is non-competitive vs ATP3, and high ATP concentrations do not activate the ATPase of wild-type membranes compared to membranes lacking the entire εCTD (Nakanishi-Matsui et al., 2014). Because weak density attributable to ATP bound to εCTH1 was only seen with the down conformation, it is possible that the half-up conformation, with the associated probable disorder of εCTH2, might result when ATP is not bound to the ε subunit. We mention this possibility in the fourth paragraph of the Discussion and highlight that it would need additional work to evaluate. However, this possibility is peripheral to the main thrust of the present manuscript and would be a major investigation on its own. Imaging in higher or lower concentrations of ATP/ADP is something we are actively working on, but is well beyond the scope of this manuscript and using much higher ATP concentrations is not straight forward (e.g. due to large changes in ionic strength).

4) The map resolution remains significantly below that of other cryo-EM structures of closely related bacterial and eukaryotic ATP synthases. The reasons for this are not clear and an explanation should be at least attempted.

To improve the resolution of the maps, additional micrographs were taken and merged with the previous data presented. This increased the overall resolution to ~5 Å (from the ~6 Å previously achieved), with a small number of side chains now visible in the centre of the F1 motor. Although this resolution is still far below that of other structures published, the new maps do not change the conclusions drawn in the manuscript which are robust and do not require fine detail. The Discussion has been updated to include possible reasons for the moderate resolution observed (accelerator voltage, ice thickness, detergent, etc, together with multiple rotational states as discussed in point 7).

5) Another point that merits more discussion is the partial presence of bound ATP at the epsilon subunit. What is the role of this nucleotide in ATP synthase inhibition? Is it part of a product inhibition mechanism?

Although the literature is not completely clear about this question, the balance of evidence indicates that nucleotide binding to the ε subunit is unlikely to make a major contribution to the physiological regulation of the ATP synthase in E. coli. Many biochemical studies of isolated E. coli F1 have shown that ε inhibition is non-competitive vs ATP (Sielaff, Duncan and Borsch, 2018) and high ATP concentrations do not activate the ATPase of membranes containing wild-type protein compared to membranes lacking the entire εCTD (Nakanishi-Matsui et al., 2014). Also, no preference has been seen between ATP and ADP in the isolated E. coli epsilon subunit (Sielaff, Duncan and Borsch, 2018) and mutagenesis of this region in related organisms does not appear to interfere with the mechanism (Ferguson et al., 2016). We have discussed this point in greater detail in the Discussion.

6) To convince the sceptical reader that the structure is indeed in the catalytically active state and not in the ADP Mg2+-inhibited state, some additional information would help. Please state the source of the chemicals used, especially ATP and the ATPase concentration in mg/ml (as is usual in the cryo-EM field), rather than as a molar concentration. It is also important to know the ADP concentration for an estimate of how many particles were in the ADP Mg-inhibited state at the point when ATP was added. Please add a classification flow chart that clearly indicates the particle numbers at each stage of classification and refinement.

The source and product code of the ATP used has been added to the Materials and methods. Concentrations have been quoted in “mg/ml” as well as molar concentrations. The ADP concentration in 10 mM ATP was calculated to be 0.05 mM (n=3, stdev=0.002) as determined by HPLC and is now quoted in the text, in hindsight this should have been included. A flowchart has been added to the manuscript describing the particle numbers at each stage of classification and refinement (Figure 1—figure supplement 6). We have not commented on the proportion of particles in each state, because we felt that this would be over interpreting the data (i.e. how do we know that we have sorted all the particles correctly? Could we be preferentially imaging/picking a particular state?)

7) Three different rotational states were resolved, but why no substates? Please discuss with respect to single molecule studies. Are the unresolved substates the main limitation on resolution?

There are likely other rotational sub-states present in our data, and this may impact our resolution. We had tried similar methods employed by others to classify additional sub-states (e.g. classification after 3D refinement) and we attempted this again with the larger number of images/particles present in the updated data. However, we were unable to classify additional rotational states. This could be due to the very small proportion of the time spent in some of these states while undergoing rotation. For example, even with a large nanorod attached to the c-ring, rotational sub-states were only overserved in a viscous solution containing 30% PEG using single molecule methods (Ishmukhametov et al., 2010). This has been discussed further in the Discussion and compared and contrasted to the new cryo-EM study of Polytomella sp. which contains 13 rotational sub-states.

8) A key issue in the field is where torsional energy is transiently stored during rotary catalysis. Junge and colleagues have proposed the foot of the central stalk, but cryo-EM structures of inhibited complexes indicate that the peripheral stalk is more flexible. Is this also the case for the E. coli complex under working conditions?

We have expanded the Discussion to address this point. A recent study on Polytomella sp. mt. ATP synthase has shown a single hinge in the peripheral stalk to be essential for coupled rotation of ATP synthase. To investigate whether this same hinge is present in E. coli ATP synthase under working conditions, we subtracted the peripheral stalk and supposed the three rotational states on either the membrane domain or the N-terminal domain of subunit delta (to highlight the same possible hinge region seen in Polytomella sp.) (Figure 3—figure supplement 2:). Interestingly, the flexibility of the peripheral stalk appears to come from the entire stalk, rather than just a hinge in delta (OSCP in Polytomella sp. mt. ATP synthase). This is now discussed in the Discussion section.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for submitting your revised research advance "Cryo-EM reveals distinct conformations of E. coli ATP synthase on exposure to ATP" to eLife. You have dealt with the reviewer's comments very well, and everything is fine except for one small (but important) point:

In your response to the reviewers' comments 7 and 8 about rotational states and stalk flexibility, you write that the peripheral stalk flexes between the three rotary states you resolve, as it does in chloroplasts. You show this in a new figure, which is a great addition to the manuscript.

Figure 3—figure supplement 2 has now been updated with additional text:

“Black arrows show the relative movement between the C-terminal domain of subunit δ and stator of Fo, which is likely mediated by flection and twisting in the peripheral stalk.”

In your response to point 8 you write that the peripheral stalk flexes as a whole (as expected, and as it does in our structure of the chloroplast ATP synthase), but you did not observe the delta/OSCP hinge that we recently discovered in Polytomella. This is not surprising, because the hinge movement is required only between rotary substates, which you do not resolve. In the three primary rotary states, which you do resolve, delta/OSCP is necessarily in the same conformation, and there is no hinge movement. This is also the case in the chloroplast ATP synthase, where rotary substates are likewise not observed, because it is autoinhibited.

We have edited the Discussion to reflect this. It now reads:

“Recent work on Polytomella sp. mitochondrial ATP synthase (Murphy et al., 2019) has described this ATP synthase in great detail, showing a flexible coupling between the F1 and Fo motors mediated by a hinge region in OSCP (analogous to the δ subunit in E. coli ATP synthase). […] We do not observe movement in the delta/OSCP hinge, most likely due to our inability to resolve rotary substates in our maps.” With the chloroplast ATP synthase structure now cited here as well.

https://doi.org/10.7554/eLife.43864.037
