Light-at-night exposure affects brain development through pineal allopregnanolone-dependent mechanisms
Abstract
The molecular mechanisms by which environmental light conditions affect cerebellar development are incompletely understood. We showed that circadian disruption by light-at-night induced Purkinje cell death through pineal allopregnanolone (ALLO) activity during early life in chicks. Light-at-night caused the loss of diurnal variation of pineal ALLO synthesis during early life and led to cerebellar Purkinje cell death, which was suppressed by a daily injection of ALLO. The loss of diurnal variation of pineal ALLO synthesis induced not only reduction in pituitary adenylate cyclase-activating polypeptide (PACAP), a neuroprotective hormone, but also transcriptional repression of the cerebellar Adcyap1 gene that produces PACAP, with subsequent Purkinje cell death. Taken together, pineal ALLO mediated the effect of light on early cerebellar development in chicks.
https://doi.org/10.7554/eLife.45306.001Introduction
Environmental stimuli (e.g., light–dark cycle, temperature, or nutrition) influence the development of plants, animals, and humans. Especially, the light–dark cycle strongly affects development. Several studies have reported that circadian disruption by light-at-night affects weight gain in vertebrates during early neonatal or posthatch life (Brandon et al., 2002; Mann et al., 1986; Rozenboim et al., 2013; Takahashi et al., 2016; Yang et al., 2015). In addition, previous studies have demonstrated that a light–dark cycle promotes better brain development than does constant light or constant darkness (Bakkum et al., 1991; Brooks et al., 2011; Dulcis and Spitzer, 2008; Li et al., 2012; Ohta et al., 2006). However, little is known about the molecular mechanisms that control how environmental light conditions affect brain development.
The neuroendocrine system has a critical role in brain development in vertebrates, and its disruption induces abnormal development (Gore, 2008; León-Olea et al., 2014; Walker and Gore, 2017). In the cerebellum, neuroestrogen promotes Purkinje dendritic growth, spinogenesis, and synaptogenesis during neonatal life (Haraguchi et al., 2012a; Sakamoto et al., 2003; Sasahara et al., 2007). The pituitary adenylate cyclase-activating polypeptide (PACAP) protects cerebellar granule cells from apoptosis through the inhibition of caspase-3 activity during development (Falluel-Morel et al., 2005; Vaudry et al., 2003). Thyroid hormones regulate differentiation of neural cells, synaptogenesis, and myelination (Bernal, 2007; Koibuchi and Chin, 2000; Pasquini et al., 1967). Therefore, for normal cerebellar development, the developmental stage-specific action of various hormones is essential.
Multiple studies have suggested a link between light-at-night-induced circadian disruption and disruption of the neuroendocrine system (Fonken and Nelson, 2014; Fonken et al., 2010). In the brain, disruption of the neuroendocrine system is caused by exposure to light-at-night (Fonken et al., 2009; Navara and Nelson, 2007; Reppert and Weaver, 2002). Thus, previous studies have suggested that exposure to inappropriate lighting during early life disrupts hormone synthesis and causes abnormal development of the brain during early life. However, the molecular mechanisms that modulate the expression of hormones depending on light conditions during early life are still incompletely understood.
Recently, we have demonstrated that the pineal gland, a photosensitive organ, actively produces a variety of steroids in birds (Haraguchi et al., 2012a; Hatori et al., 2011). Importantly, pineal allopregnanolone (ALLO), a major pineal steroid, has been shown to prevent the death of cerebellar Purkinje cells by suppressing apoptosis in chicks during development (Haraguchi et al., 2012a). Thus, we hypothesized that pineal ALLO synthesis depends on environmental light conditions to mediate cerebellar development during early posthatch life.
To test our hypothesis, we investigated whether light stimuli are involved in the development of the cerebellum via pineal ALLO activity using chicks, an excellent model for studying the effects of light stimuli because chicks show a marked response to changing light conditions.
Results
Light-at-night-induced disruption of diurnal variation in pineal ALLO synthesis, followed by Purkinje cell death during early posthatch life
To investigate whether light conditions are involved in pineal ALLO synthesis in newly hatched male chicks, the chicks were incubated under either a 12 hr light–12 hr dark (LD) cycle, constant light (LL), or a 12 hr light–12 hr dark cycle followed by exposure to light for 1 hr from zeitgeber time (ZT) 14 (light-at-night) for 1 week. The mRNA expression of 5α-reductase (srd5a), a steroidogenic enzyme catalyzing the formation of ALLO, showed a marked diurnal change and was high during dark times (ZT16) in the pineal glands of LD chicks (Figure 1a). In contrast to the LD chicks, the LL chicks showed consistently low srd5a mRNA levels in the pineal glands (Figure 1b). The elevation of srd5a mRNA during ZT16 in LD chicks was suppressed by light during ZT16, 1 hr after the light was put out in light-at-night chicks (Figure 1c). In addition, the ALLO concentration and synthesis were higher during ZT16 in the pineal glands of LD chicks than during ZT16 in the pineal glands of LL and light-at-night chicks (Figure 1d,e).

Light-at-night-induced disruption of diurnal variation of pineal ALLO synthesis during early life.
Diurnal changes in srd5a mRNA expression in the pineal gland under LD (a), LL (b), or light-at-night (c) conditions at P7 chicks (n = 10). ALLO synthesis (d) and concentration (e) in the pineal gland of ZT16 at P7 chicks (n = 10). LAN, light-at-night.
-
Figure 1—source data 1
Source data for diurnal changes in srd5a mRNA expression, and ALLO synthesis and concentration in the pineal gland.
- https://doi.org/10.7554/eLife.45306.003
To investigate whether the disruption of ALLO synthesis by light-at-night is involved in Purkinje cell survival in chicks during early life, male chicks were incubated under either LD, LL, or light-at-night cycles for 1 week, and all groups were housed under the LD cycle for 2, or 9 weeks (Figure 2a). Cerebellar anterior lobe is the region that is the most vulnerable to the reduction of ALLO in the cerebellum (Haraguchi et al., 2012a). Compared with LD conditions, LL (lobule IV, p=0.0027; lobule V, p=0.0304) and light-at-night (lobule III, p=0.0129; lobule IV, p=0.0011; lobule V, p=0.0136) conditions increased the number of Purkinje cells that expressed active caspase-3 in lobules III-V of cerebellar vermis on posthatch day 7 (P7) male chicks (Figure 2c,d and Figure 2—figure supplement 3). Active caspase-3 positive cells were also increased in lobule IV of female chicks by light-at-night (Figure 2—figure supplement 1a). After 2 weeks of incubation of all groups under an LD cycle, the effects of light conditions during early life on Purkinje cell number were investigated. Compared with LD conditions, LL (lobule III, p=0.0001; lobule IV, p=0.0005) and light-at-night (lobule III, p<0.0001; lobule IV, p<0.0001; lobule V, p=0.0205) conditions decreased the number of Purkinje cells in lobules III-V of cerebellar vermis at P21 chicks (Figure 2e,f and Figure 2—figure supplement 3). Purkinje cell numbers were also decreased in lobule IV of female chicks by light-at-night (Figure 2—figure supplement 1b). In contrast to the number of Purkinje cells, there was no significant difference in the thickness of the molecular layer of Purkinje cells in lobule IV among LD, LL, or light-at-night chicks (Figure 2—figure supplement 2). In addition, we investigate whether the decrease in Purkinje cell numbers by light-at-night during the posthatch period persists into adulthood. In adulthood, Purkinje cell numbers were also decreased in lobules III-V of cerebellar vermis by light-at-night during the P1–P7 period (Figure 2g and Figure 2—figure supplement 3). These results suggest that light-at-night conditions induce disruption of diurnal variation in pineal ALLO and lead to Purkinje cell death in the cerebellum.

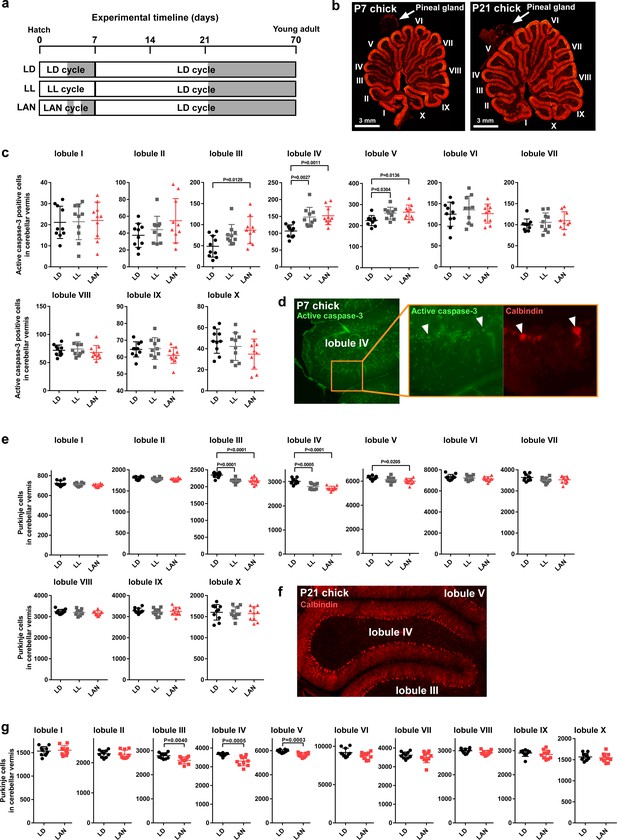

Light-at-night-induced Purkinje cell death during early life.
(a–g) Male chicks were incubated under LD, LL, or light-at-night cycle for 1 week, and then, all groups were housed under LD cycle for 2 or 9 weeks (a). (b) The lobular structure of the whole cerebellum of chick. Scale bar, 3 mm. (c) Number of Purkinje cells expressing active caspase-3 in each lobule at P7 (n = 10). (d) Purkinje cells expressing active caspase-3 in lobule IV at P7. (e) Number of Purkinje cells in each lobule at P21 (n = 10). (f) Purkinje cells in lobule IV at P21. (g) Number of Purkinje cells in each lobule at P70 (young adult; n = 10). LAN, light-at-night.
-
Figure 2—source data 1
Numbers of active caspase-3 positive cells, and Purkinje cells in male.
- https://doi.org/10.7554/eLife.45306.010
Pineal ALLO prevented Purkinje cell death induced by light-at-night during early life
To investigate whether pineal ALLO prevents Purkinje cell death induced by light-at-night during early life, male chicks were incubated under light-at-night cycle and injected with either ALLO or vehicle-only on a daily basis for 1 week. The chicks were then housed under an LD cycle for 2 weeks (Figure 3a). Compared with light-at-night chicks, daily injection of ALLO in light-at-night chicks from P1 to P7 decreased active caspase-3 expression in lobule IV at P7 and improved Purkinje cell survival in lobule IV at P21 (Figure 3b,c). These results suggest that pineal ALLO suppresses the apoptosis of Purkinje cells during early life.

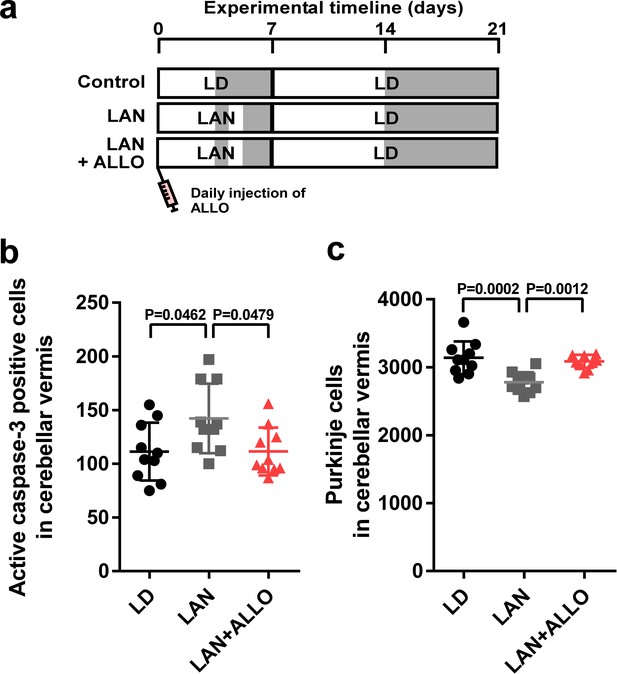

Light-at-night-induced Purkinje cell death was rescued by ALLO injection during early life.
(a) Male chicks were incubated under LD or light-at-night cycle for 1 week, and then, all groups were housed under LD cycle for 2 weeks. Half of the light-at-night chicks were treated with a daily injection of ALLO from P1 to P7. (b) Number of Purkinje cells expressing active caspase-3 in lobule IV at P7 (n = 10). (c) Number of Purkinje cells in lobule IV at P21 (n = 10). LAN, light-at-night.
-
Figure 3—source data 1
Numbers of active caspase-3 positive cells, and Purkinje cells in male.
- https://doi.org/10.7554/eLife.45306.012
Pineal ALLO prevents apoptosis of Purkinje cells through the mPRα mechanism
To elucidate the mechanism of pineal ALLO action on Purkinje cell survival, we investigated the receptor associated with ALLO action. ALLO acts as an agonist of the γ-aminobutyric acid type A (GABAA) receptor and may act as an agonist of the membrane progesterone receptors α (mPRα), mPRβ, and mPRγ, and the pregnane X receptor (PXR) (Belelli and Lambert, 2005; Frye et al., 2011; Langmade et al., 2006; Pang et al., 2013; Schumacher et al., 2014). To investigate the expression of the GABAA receptor, mPRs, and PXR in chick cerebella, RT-PCR analyses were performed. The RT-PCR analyses demonstrated the expression of the α1-subunit of the GABAA receptor, mPRα, mPRβ, and mPRγ but did not detect the expression of PXR in chick cerebella (Figure 4a). Furthermore, to investigate the identified putative receptors that mediate the neuroprotective action of pineal ALLO, we delivered either mPR siRNA or isoallopregnanolone (isoALLO), an antagonist of ALLO, into lobule IV of the cerebellum of newly hatched chicks. Silencing of mPRα increased the number of Purkinje cells that expressed active caspase-3 in lobule IV of P7 chicks relative to the number in the control siRNA (Figure 4b). A daily injection of ALLO did not prevent the activation of caspase-3 in Purkinje cells in mPRα siRNA-transfected chicks (Figure 4b). By contrast, transfection of siRNAs for mPRβ and mPRγ into the cerebellum of newly hatched male chicks did not change the expression of active caspase-3 in Purkinje cells from that of the control siRNA-transfected chicks (Figure 4c,d). A daily injection of isoALLO did not change the number of Purkinje cells that expressed active caspase-3 in lobule IV of P7 chicks relative to the number in the control chicks (Figure 4e). These results suggest that mPRα may function as a receptor for pineal ALLO in the developing cerebellum.

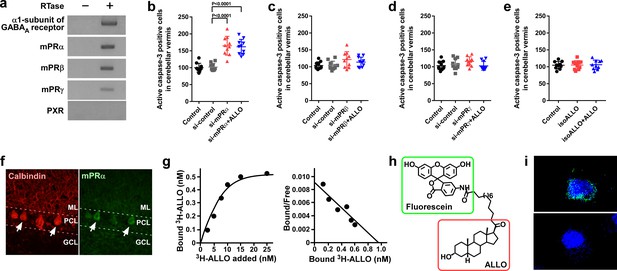

Pineal ALLO prevented Purkinje cell death through mPRα in cerebellar Purkinje cells.
(a) Shown are the expressions of the α1-subunit of the GABAA receptor, mPRα, mPRβ, mPRγ, and PXR in the cerebellum of P1 chicks (similar results were obtained in repeated experiments using three different samples). (b–e) Number of Purkinje cells expressing active caspase-3 in lobule IV at P7 by receptor gene silencing as a candidate of the ALLO receptor in the cerebellar cortex at P1 (n = 10). (f) Immunohistochemistry of mPRα in the cerebellum of P1 chicks (similar results were obtained in repeated experiments using three different samples). (g) Representative saturation curve and Scatchard plot of specific [3H]-ALLO binding to plasma membranes of mPRα transfected cells (n = 4). (h) Structure of fluorescein-labeled ALLO. (i) Confocal images of mPRα-expressing cells stained with fluorescein-labeled ALLO under permeabilized conditions in the absence (upper panel) or presence (lower panel) of excess competing ALLO (similar results were obtained in repeated experiments using three different samples). ML, molecular layer; PCL, Purkinje cell layer; GCL, granule cell layer.
-
Figure 4—source data 1
Numbers of active caspase-3 positive cells in male.
- https://doi.org/10.7554/eLife.45306.016
Immunohistochemical (IHC) analysis using anti-goldfish mPRα antiserum was performed to analyze the cellular localization of mPRα in the chick cerebellum. To confirm that this antibody recognizes the chicken mPRα protein, we first performed a western blot analysis on the extracts of COS-7 cells transfected with chicken mPRα cDNA. A single immunoreactive band (approximately 42 kDa) was detected (Figure 4—figure supplement 1). When the cerebellum extracts were analyzed, a single band (approximately 42 kDa) was detected at the same position (Figure 4—figure supplement 1). Distinct mPRα immunoreactivity was observed in the Purkinje cells (Figure 4f).
To investigate the binding of radiolabeled ALLO to chicken mPRα, radioreceptor assays were performed. Saturation analysis and Scatchard plots show the presence of a high-affinity (dissociation constant, 11.8 ± 3.1 nM), limited-capacity (maximal binding capacity, 0.91 ± 0.29 nM), saturable, single-binding site for [3H]-ALLO in the membrane fraction of the COS-7 cells transfected with chicken mPRα cDNA (Figure 4g). Furthermore, to test the binding of ALLO to chick mPRα, we developed fluorescein-labeled ALLO (Figure 4h). COS-7 cells expressing mPRα were stained with fluorescein-labeled ALLO. Confocal fluorescence microscopy revealed that fluorescein-labeled ALLO bound to COS-7 cells expressing mPRα and that an excess of ALLO competed with fluorescein-labeled ALLO for binding to COS-7 cells expressing mPRα (Figure 4i and Figure 4—figure supplement 2).
Pineal ALLO-induced expression of PACAP, an endogenous neuroprotective factor, in cerebellar Purkinje cells
ALLO acts as a neuroprotective factor; however, the molecular mechanisms behind this neuroprotection are currently unknown. To clarify the neuroprotective mechanisms of ALLO in Purkinje cells, we investigated the effect of ALLO on the expression of neuroprotective and neurotoxic factors (Bernal, 2007; Falluel-Morel et al., 2005; Haraguchi et al., 2012a; Koibuchi and Chin, 2000; Pasquini et al., 1967; Sakamoto et al., 2003; Sasahara et al., 2007; Vaudry et al., 2003) in the whole cerebellum. Pinealectomy (Px) at P1 decreased the expression of PACAP and brain-derived neurotrophic factor (BDNF) mRNAs at P7 (Figure 5a). On the other hand, Px did not influence the expression of neurotrophin-3 (NT-3), cytochrome P450 aromatase (P450arom), 3β-hydroxysteroid dehydrogenase (3β-HSD), type II deiodinase (Dio2), and insulin-like growth factor I (IGF-1) mRNAs (Figure 5a). In addition, a daily injection of ALLO in Px chicks increased the expression of PACAP relative to that in Px chicks (Figure 5a).

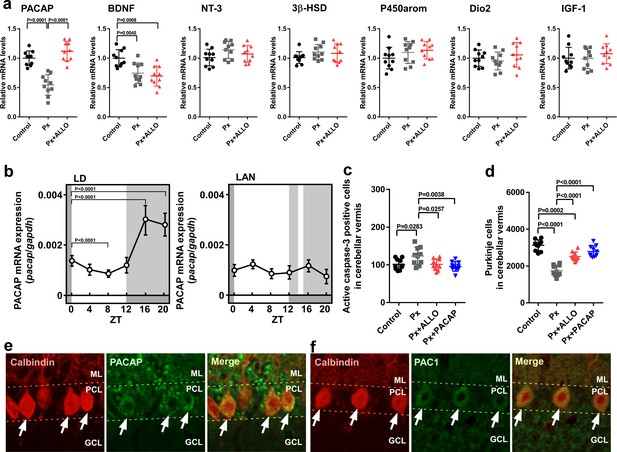

Pineal ALLO-induced expression of PACAP, an endogenous neuroprotective factor, in cerebellar Purkinje cells.
(a) Shown are the effects of Px or Px plus ALLO on the expression of neuroprotective and neurotoxic factors (n = 10). (b) Diurnal changes in PACAP mRNA expression in the cerebellum under LD or light-at-night conditions in P7 chicks (n = 10). (c) Number of Purkinje cells expressing active caspase-3 in lobule IV at P7 (n = 10). (d) Number of Purkinje cells in lobule IV at P21 (n = 10). Immunohistochemistry of PACAP (e) and PAC1 (f) in the cerebellum of P1 chicks (similar results were obtained in repeated experiments using three different samples). Calbindin is used as a marker for Purkinje cells. ML, molecular layer; PCL, Purkinje cell layer; GCL, granule cell layer; LAN, light-at-night.
-
Figure 5—source data 1
source data for mRNA expressions (a), diurnal changes in PACAP mRNA expression (b), and numbers of Purkinje cells (c and d) in male.
- https://doi.org/10.7554/eLife.45306.018
To investigate whether light conditions are also involved in the expression of PACAP during early life, male chicks were incubated under either LD or light-at-night conditions for 1 week. The expression of PACAP mRNA showed a marked diurnal change in the cerebellum and was high during dark times (ZT16 and ZT20) in LD chicks (Figure 5b). The elevation of PACAP mRNA at ZT16 in LD chicks was suppressed at ZT16 in light-at-night chicks (Figure 5b). These changes were in parallel with those in srd5a mRNA in the pineal gland (Figure 1a,c). Px increased the number of Purkinje cells that expressed active caspase-3 in lobule IV of P7 chicks relative to those in the control (Figure 5c). A daily injection of ALLO or PACAP in Px chicks decreased the number of Purkinje cells expressing active caspase-3 in lobule IV at P7 (Figure 5c). Px at P1 decreased the number of Purkinje cells in lobule IV at P21 (Figure 5d). A daily injection of ALLO or PACAP in Px chicks from P1 to P7 improved Purkinje cell survival in lobule IV at P21 (Figure 5d). Clear PACAP and PAC1 immunoreactivities were observed in Purkinje cells (Figure 5e,f). These results suggest that PACAP mediates the neuroprotective action of pineal ALLO during early life.
The neuroprotective actions of pineal ALLO on Purkinje cells are restricted during the first week posthatch
The postnatal development of the cerebellar cortex irreversibly leads to the maturation of the cerebellum, including the maturation of Purkinje cells. For normal cerebellar development, the developmental stage-specific actions of various hormones in the developing cerebellum are essential. Thus, to investigate whether the neuroprotective actions of pineal ALLO on Purkinje cells are a stage-specific role of ALLO during early life, male chicks were housed under LD cycle for 1 week during the first week posthatch and then incubated under the light-at-night cycle and injected with either ALLO or a solvent daily for 1 week during the second week posthatch. Thereafter, the chicks were housed under LD cycle for 1 week during the third week posthatch (Figure 6a). Light-at-night chicks showed a decreased Purkinje cell number at P21 relative to that in the control, but daily injections of ALLO in light-at-night chicks from P8 to P14 did not rescue Purkinje cells from death in lobule IV at P21 and, furthermore, did not suppress the expression of active caspase-3 in lobule IV at P14 (Figure 6b,c). In summary, the neuroprotective actions of pineal ALLO on Purkinje cells are restricted during the first week posthatch.

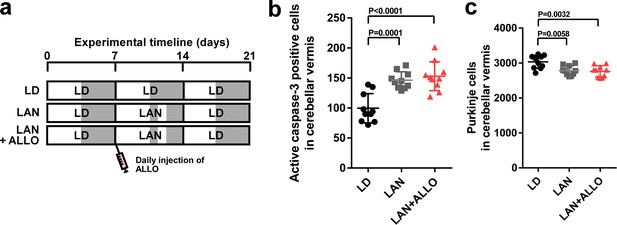

ALLO did not rescue Purkinje cells from death during the second week posthatch.
Male chicks were housed under LD cycle for 1 week during the first week posthatch. They were then incubated under light-at-night cycle and injected with ALLO or a solvent daily for 1 week during the second week posthatch. Finally, the chicks were housed under LD cycle for a week during the third week posthatch (a). (b) Number of Purkinje cells expressing active caspase-3 in lobule IV at P14 (n = 10). (c) Number of Purkinje cells in lobule IV at P21 (n = 10). LAN, light-at-night.
-
Figure 6—source data 1
Numbers of active caspase-3 positive cells, and Purkinje cells in male.
- https://doi.org/10.7554/eLife.45306.020
The neuroprotective actions of PACAP on Purkinje cells are not restricted during early life
To investigate whether the neuroprotective actions of PACAP on Purkinje cells are restricted, as were those of pineal ALLO, during early life, male chicks were incubated under light-at-night cycle and injected with either PACAP or solvent daily for 1 week. These chicks were then housed under LD cycle for 2 weeks (Figure 7a). Daily injection of PACAP in light-at-night chicks from P1 to P7 decreased active caspase-3 expression in lobule IV at P7 relative to that in light-at-night chicks and improved Purkinje cell survival in lobule IV at P21 (Figure 7b,c). Subsequently, male chicks were housed under LD cycle for 1 week during the first week posthatch and then incubated under light-at-night cycle and injected with either PACAP or solvent daily for 1 week during the second week posthatch. Subsequently, these chicks were housed under LD cycle for 1 week during the third week posthatch (Figure 7d). Compared with the control, light-at-night chicks were found to have a decreased Purkinje cell number at P21, and daily injection of PACAP in light-at-night chicks from P8 to P14 suppressed the expression of active caspase-3 expression in lobule IV at P14 and rescued Purkinje cells in lobule IV at P21 (Figure 7e,f). In summary, the neuroprotective actions of PACAP on Purkinje cells were not restricted during the first week posthatch.

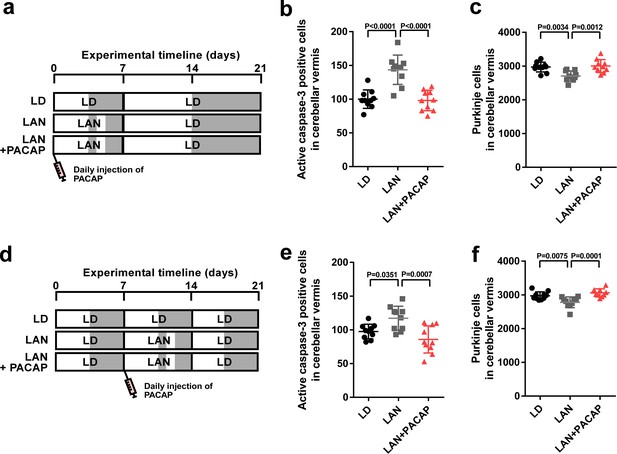

Neuroprotective effects of PACAP were not restricted during early life.
(a) Male chicks were incubated under LD or light-at-night cycle for 1 week during the first week posthatch and injected either with PACAP or solvent daily, and then, all groups were housed under LD cycle for 2 weeks during the second and third weeks posthatch. (b) Number of Purkinje cells expressing active caspase-3 in lobule IV at P7 (n = 10). (c) Number of Purkinje cells in lobule IV at P21 (n = 10). Male chicks were housed under LD cycle for 1 week during the first week posthatch and then incubated under light-at-night cycle and injected PACAP or solvent daily for 1 week during the second week posthatch. Finally, chicks were housed under LD cycle for 1 week during the third week posthatch (d). (e) Number of Purkinje cells expressing active caspase-3 in lobule IV at P14 (n = 10). (f) Number of Purkinje cells in lobule IV at P21 (n = 10). LAN, light-at-night.
-
Figure 7—source data 1
Numbers of active caspase-3 positive cells, and Purkinje cells in male.
- https://doi.org/10.7554/eLife.45306.022
Pineal ALLO did not induce the expression of PACAP in the cerebellum during the second week posthatch
In terms of the difference between the neuroprotective actions of pineal ALLO and PACAP (Figures 6 and 7), we hypothesized that pineal ALLO did not induce the expression of PACAP in the cerebellum during the second week posthatch. To test this hypothesis, ALLO was injected daily from P8 to P14 in Px at P8 chicks. Px at P8 decreased PACAP expression in the cerebellum at P14 relative to that in the control (Figure 8a). A daily injection of ALLO in Px at P8 chicks from P8 to P14 did not induce the expression of PACAP mRNA (Figure 8a). In addition, we demonstrated that PACAP expression decreased gradually according to the maturation of the cerebellum during early life (Figure 8b).

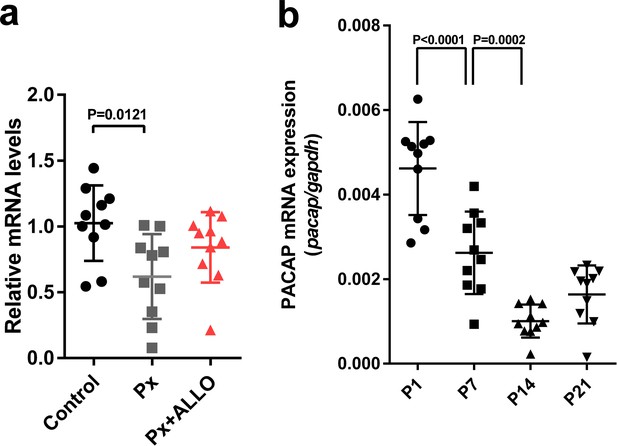

Pineal ALLO did not induce the expression of PACAP in the cerebellum during the second week posthatch.
(a) The effects of Px or Px plus ALLO on the expression of PACAP in the cerebellum during the second week posthatch (n = 10). (b) Changes in the expression of PACAP during early life.
-
Figure 8—source data 1
Source data for mRNA expressions.
- https://doi.org/10.7554/eLife.45306.024
H3K9me3 levels at the Adcyap1 gene promoter increased in Purkinje cells according to the maturation of the cerebellum
Histone modification is a major form of epigenetic gene regulation that is critical in many neuronal processes (Kundakovic and Champagne, 2015; Montgomery et al., 2009; Toyoda et al., 2014). Trimethylation of lysine 9 or 27 on histone H3 and lysine 20 on histone H4 (H3K9me3, H3K27me3, and H4K20me3) is associated with transcriptional repression.
Thus, to reveal the molecular mechanisms underlying the difference in actions of pineal ALLO on the expression of PACAP between the first and second weeks after hatch, we investigated histone modifications associated with the transcriptional repression of PACAP. Purkinje cell layer sections were microdissected, and the samples were analyzed by chromatin immunoprecipitation and quantitative PCR (ChIP-qPCR). The association levels of H3K9me3 at the Adcyap1 gene promoter were higher at P2 than those at P8 in the Purkinje cell layer of the cerebellum (Figure 9a), whereas H3K27me3 and H4K20me3 levels did not change between the first and second weeks posthatch (Figure 9a). These results suggested that H3K9me3 may have an important role in Adcyap1 gene expression, so we measured the levels of H3K9me3 in Purkinje cell nuclei. H3K9me3 immunoreactivity in the nuclei of Purkinje cells was measured using ImageJ. The intensity was found to be high at P2 relative to that at P8 in Purkinje cells (Figure 9b,c).

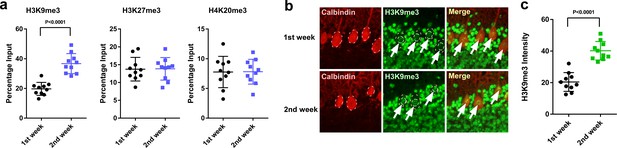

H3K9me3 levels at the Adcyap1 promoter increased in Purkinje cells during development.
(a) Changes in the levels of histone modification between the first and second weeks of posthatch. (b) Immunohistochemistry of H3K9me3 in the cerebellum of P1 chicks. Calbindin is used as a marker for Purkinje cells. (c) The relative intensity of H3K9me3 in the nucleus of Purkinje cells (n = 10).
-
Figure 9—source data 1
Source data for the levels of histone modification.
- https://doi.org/10.7554/eLife.45306.026
Light-at-night and Px increased H3K9me3 levels at the Adcyap1 gene promoter
It is known that environmental factors affect the developing brain through epigenetic mechanisms. Various environmental stimuli cause changes in the profile of histone modification (Roth and Sweatt, 2011).
Thus, we investigated the effects of light-at-night or ALLO on histone modification in the Adcyap1 gene promoter. Male chicks were incubated under LD or light-at-night cycle during the first week posthatch, and the resulting histone modifications on the Adcyap1 gene promoter were investigated. light-at-night was found to increase the levels of H3K9me3 in the Adcyap1 gene promoter in the Purkinje cell layer of the cerebellum (Figure 10a). In addition, a daily injection of ALLO in light-at-night chicks from P1 to P7 suppressed methylation of H3K9me3 in the Adcyap1 gene promoter in the Purkinje cell layer of lobule IV at P7 relative to that in light-at-night chicks (Figure 10a).

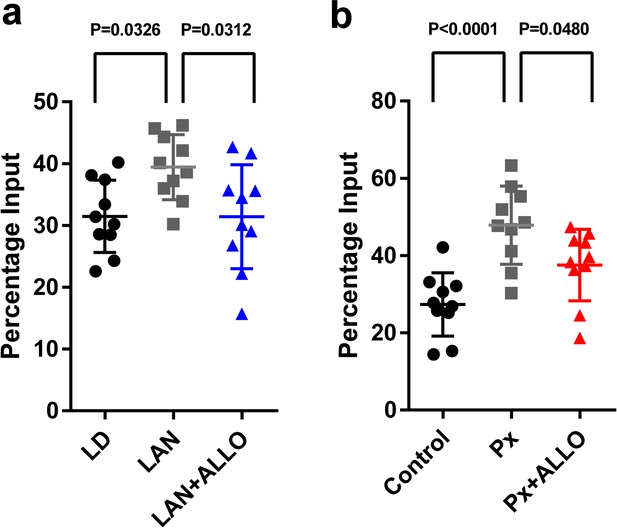

Light-at-night and Px increased in H3K9me3 levels at the Adcyap1 promoter.
(a) The effects of light-at-night and light-at-night plus ALLO on the level of H3K9me3 at the Adcyap1 gene promoter (n = 10). (b) The effects of Px and Px plus ALLO on the level of H3K9me3 at the Adcyap1 gene promoter (n = 10). LAN, light-at-night.
-
Figure 10—source data 1
source data for H3K9me3 levels at the Adcyap1 promoter.
Link to datasets: https://doi.org/10.5061/dryad.k6g8b53.
- https://doi.org/10.7554/eLife.45306.028
Px at P1 increased the levels of H3K9me3 at the Adcyap1 gene promoter in the Purkinje cell layer of lobule IV at P7 (Figure 10b). A daily injection of ALLO in Px chicks from P1 to P7 suppressed methylation of H3K9me3 at the Adcyap1 gene promoter in the Purkinje cell layer of lobule IV at P7 relative to that in Px chicks (Figure 10b).
Discussion
Circadian rhythms are present in almost all plants and animals. However, modern life induces chronic circadian disruption through artificial light and such disruption is associated with a decline in mental and physical health (Kantermann and Roenneberg, 2009; Wu et al., 2011; Smarr et al., 2017). The most potent cue in circadian rhythm disruption is inappropriately timed bright light (e.g., light-at-night). To understand the influences of light-at-night, as a model of modern life induced chronic circadian disruption, on mental and physical health in humans, many studies have been conducted using laboratory mice. However, it is important to bear in mind that laboratory mice are mainly nocturnal animals, while humans are diurnal. Thus, in this study we used birds to provide a diurnal animal model to understand the influence of light-at-night on the development of the cerebellum in mammals including humans.
Autism spectrum disorder is a complex neurodevelopmental disorder. Autism spectrum disorder is characterized by early-onset difficulties in social interaction, repetitive behavior, and verbal and non-verbal communication (Lai et al., 2014). A number of neurobiological hypotheses have been put forward to account for autism behaviors that implicate neural and network abnormalities in the cerebellum that include the cerebellar vermis area (Piochon et al., 2014). Therefore, chronic circadian disruption by artificial light may involve autism spectrum disorder by decreasing the number of Purkinje cells in the vermis area by light-at-night. Further studies are needed to investigate the connection between a decrease in Purkinje cells caused by light-at-night and autism spectrum disorder.
Light-at-night-induced circadian disruption alters the synthesis and secretion of various hormones, such as melatonin (a pineal hormone) and cortisol (an adrenal steroid hormone), particularly in vertebrates, including humans (Klein, 2006). These disruptions of the synthesis and release of hormones by inappropriate timed bright light increase the risk of breast cancer, prostate cancer, obesity, diabetes, and depression (Kantermann and Roenneberg, 2009; Shi et al., 2013; Smarr et al., 2017; Wu et al., 2011). Circadian disruptions by bright light have also been shown to affect the health of infants (Mann et al., 1986). Inappropriate light conditions reduce weight gain in preterm infants in a newborn nursery via circadian disruption of hormone synthesis (Brandon et al., 2002; Mann et al., 1986). Bright light can be a stress factor. It has been shown that stress in the early life of rats delays development and accounts for a number of abnormalities in the brain (Ellenbroek et al., 2005). As part of the organization process, natural apoptotic cell death occurs in rodents and birds just after birth and around the second postnatal week (Prakash and Wurst, 2006). In the human brain, the developmental processes of proliferation and migration are generally finalized after 24 weeks of gestation, but apoptotic cell death, synaptogenesis, and neuronal differentiation take place up until the three year of life (Huppertz-Kessler et al., 2012). Thus, previous and present studies have both suggested that inappropriate lighting disrupts hormone synthesis and causes abnormal development of the brain during early life (Figure 11).

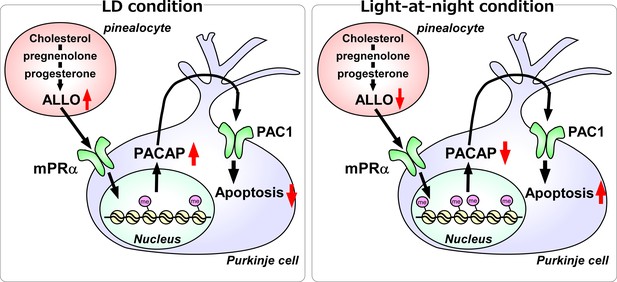

A schematic model of the effect of pineal ALLO on Purkinje cell survival during the first week posthatch under LD or light-at-night conditions.
(Left panel) A schematic model of normal development of the cerebellum under LD during the first week posthatch (that is early posthatch life-stage). Pineal ALLO-induced the expression of PACAP, a neuroprotective factor, through mPRα mechanism in Purkinje cells. Then, PACAP inhibited the expression of active caspase-3 that may facilitate the apoptosis of Purkinje cells in the cerebellum. (Right panel) A schematic model of the abnormal development of the cerebellum under light-at-night conditions during the first week posthatch (that is early posthatch life-stage). Light-at-night conditions disrupted the diurnal rhythm in pineal ALLO synthesis. Decreased pineal ALLO synthesis induced H3K9me3 histone tail modifications of the Adcyap1 gene promoter and then decreased the expression of PACAP in Purkinje cells. Following this, increased amounts of caspase-3 facilitated the apoptosis of Purkinje cells in the cerebellum.
We previously reported that the pineal gland is an important steroidogenic organ, and pineal ALLO may have an important role in the prevention of Purkinje cell death for the normal development of the cerebellum (Haraguchi et al., 2012a; Hatori et al., 2011). The pineal gland of vertebrates responds to light via direct and indirect mechanisms (Klein, 2006; Maronde and Stehle, 2007) and has important roles in the circadian organization of vertebrates. However, the influence of light-at-night on the production of pineal ALLO has yet to be elucidated. In this study, we demonstrated that light-at-night-induced circadian disruption abolished the diurnal rhythm of pineal ALLO synthesis. In addition, the disruption of diurnal variations of pineal ALLO-induced Purkinje cell death in the developing cerebellum of chicks. These results suggest that the disruption of diurnal variations of pineal ALLO causes a constant low level of pineal ALLO synthesis, which induces the death of Purkinje cells during development. A number of studies have found that stage-specific actions of various hormones are essential for normal cerebellar development. For instance, thyroid deficiency during the perinatal periods has been shown to cause significant impairments to the structural development and organization of the brain (Bernal, 2007; Koibuchi and Chin, 2000; Pasquini et al., 1967). PACAP has important roles in the regulation of the cell cycle by enhancing cellular survival and by enhancing or inhibiting cellular proliferation and differentiation in the developing cerebellum (Falluel-Morel et al., 2005; Vaudry et al., 2003). Cytochrome P450 aromatase knock-out (ArKO) mice exhibited decreased Purkinje dendritic growth, spinogenesis, and synaptogenesis, and these changes were rescued by injection of estradiol into the cerebellum (Haraguchi et al., 2012a; Sasahara et al., 2007). Thus, a delicate balance is necessary for the proper development of the brain. It seems reasonable that the diurnal rhythm of pineal ALLO synthesis and its release under LD conditions are essential for the normal development of the cerebellum during early life (Figure 11).
In the developing cerebellum, PACAP was expressed not only by Purkinje cells but also by the cells of the molecular layer. However, mPRα, a receptor for ALLO, was only expressed in Purkinje cells. This result suggested that pineal ALLO mainly affects the Purkinje cells through mPRα in the developing cerebellum (Figure 11). PACAP secreted from Purkinje cells affects the PAC1-expressing Purkinje and granule cells. In Purkinje cells, PACAP mediates the neuroprotective effects of ALLO in the developing cerebellum of chicks (Figure 11). However, the effect of PACAP on granule cells is unclear in the developing cerebellum of chicks, although the neuroprotective effects of PACAP on cerebellar granule cells have been reported in mammals (Vaudry et al., 2000; Vaudry et al., 2003).
Several lines of evidence indicate that ALLO has neuroprotective effects in the developing and mature brain and in neurodegenerative diseases, including Parkinson’s, Alzheimer’s, and Huntington’s disease (Griffin et al., 2004; Irwin and Brinton, 2014; Melcangi and Panzica, 2014). Numerous studies have found that ALLO exerts its various physiological functions through the GABAA receptors in the brain (Belelli and Lambert, 2005; Guennoun et al., 2015); however, the results of the present study show that GABAA receptors did not mediate the neuroprotective effects of ALLO in developing Purkinje cells in chicks during early life. Other studies have also suggested that GABAA receptors do not contribute to the neuroprotective effects of ALLO. Recent investigations have suggested that ALLO binds to mPRs (Pang et al., 2013; Schumacher et al., 2014). Thus, we investigated whether mPRs can function as a receptor for ALLO to mediate the neuroprotective action of ALLO in the cerebellum. The results showed that ALLO had an important role in developing Purkinje cells through the mPRα mechanism in chicks during early life.
The neuroprotective mechanisms of ALLO are poorly understood, although numerous studies have found that ALLO prevents apoptotic neuronal cell death in the brain of vertebrates. In contrast to ALLO, the neuroprotective mechanisms of PACAP are well documented. The neurotrophic effects of PACAP are mediated through the cAMP/PKA signaling pathway and involve the ERK MAP kinase (Vaudry et al., 2000). Caspase-3 is also a key enzyme involved in the neuroprotective action of PACAP (Vaudry et al., 2000). We previously reported that the neuroprotective action of pineal ALLO was associated with a reduction in caspase-3 activity during the early stage of cerebellar development (Haraguchi et al., 2012a). In this study, we showed that PACAP expression showed clear diurnal changes in the developing cerebellum. Previously, PACAP levels in the brain have been shown to undergo daily variations (Józsa et al., 2001). Here, we showed that Px decreased the expression of PACAP in the developing cerebellum. In addition, previous studies have also reported that the expression levels of PACAP in the brain were affected by Px (Somogyvári-Vigh et al., 2002). These previous findings are in agreement with the present findings indicating that PACAP, a neuroprotective hormone, mediated the neuroprotective action of ALLO during early life.
Histone modifications store epigenetic information that mainly controls heritable states of gene expression. Environmental factors affect the developing brain through epigenetic mechanisms (Bale, 2015). In this study, we demonstrated that light-at-night and pineal ALLO changed the repressive mark (H3K9me3) of the Adcyap1 gene promoter in the developing cerebellum. Our results indicated that inappropriate light conditions induced an abnormal epigenetic status in the developing cerebellum, which suggests that light conditions and pineal hormones have important roles in brain development via epigenetic regulation of hormone genes.
In conclusion, our results show that light-at-night-induced circadian disruption led to cerebellar Purkinje cell death through pineal ALLO-dependent mechanisms during early posthatch life (Figure 11). Thus, the results suggest that modern nighttime artificial light exposure also affects development of the human brain.
Materials and methods
Reagent type (species) or resource | Designation | Source or reference | Identifiers | Additional information |
---|---|---|---|---|
Cell line (Cercopithecus aethiops) | COS-7 | JCRB | Cat# JCRB9127 RRID:CVCL_0224 | |
Recombinant DNA reagent | membrane progesterone receptor α (mPRα)-Histag | This study | Materials and methods subsection ‘Conformation of the specificity of mPRα antisera’ | |
Antibody | Anti-Cleaved Caspase-3 (Asp175) , (Rabbit polyclonal) | Cell Signaling Technology | Cat# 9661, RRID:AB_2341188 | 1:300, IHC |
Antibody | Anti-Calbindin D-28k, (Mouse monoclonal) | Swant Swiss antibodies | Cat# 300, RRID:AB_10000347 | 1:1000, IHC |
Antibody | Anti-Pituitary adenylate cyclase-activating polypeptide (PACAP), (Chicken polyclonal) | Nakamachi et al., 2018 | doi: 10.1016/j.peptides.2018.03.006 | 1:100, IHC |
Antibody | Anti-membrane progesterone receptor α (mPRα),(Rabbit polyclonal) | This study | Materials and methods subsection ‘Conformation of the specificity of mPRα antisera’; Against Goldfish mPRα aa 19–34 and53–66; 1:100, IHC | |
Antibody | Anti-ADCYAP1R1 (PAC1), (Mouse monoclonal) | Santa Cruz Biotechnology | Cat# sc-100315, RRID:AB_1126992 | 1:100, IHC |
Antibody | Anti-trimethyl-Histone H3 (Lys9), (Rabbit polyclonal) | Merck Millipore | Cat# 07–442, RRID:AB_310620 | 1:50, ChIP |
Antibody | Anti-trimethyl-Histone H3 (Lys27), (Rabbit polyclonal) | Merck Millipore | Cat# 07–449, RRID:AB_310624 | 1:50, ChIP |
Antibody | Anti-trimethyl-Histone H4 (Lys20), (Rabbit polyclonal) | Merck Millipore | Cat# 07–463, RRID:AB_310636 | 1:50, ChIP |
Antibody | Anti-Mouse IgG (H+L), F(ab’)2 Fragment, Alexa Fluor 555 Conjugate | Cell Signaling Technology | Cat# 4409, RRID:AB_1904022 | 1:1000, IHC |
Antibody | Anti-rabbit IgG (H+L), F(ab')2 Fragment, Alexa Fluor 488 Conjugate | Cell Signaling Technology | Cat# 4412, RRID:AB_1904025 | 1:1000, IHC |
Peptide, recombinant protein | Chicken PACAP | This study | ||
Commercial assay kit | SimpleChIP plus sonication chromatin IP kit | Cell Signaling Technology | Cat# 56383 | |
Chemical compound | Allopregnanolone | Cayman Chemical | 16930, CAS RN: 516-54-1 | |
Chemical compound, drug | Fluorescein-labeled allopregnanolone | This study | CAS RN: 2294937-67-8 | Materials and methods subsection ‘Fluorescein-labeled ALLO synthesis’ |
Software, algorithm | GraphPad Prism6 | GraphPad Software | RRID:SCR_002798 |
Animals
Domestic chickens (Gallus gallus) of both sexes at various ages were used in this study. Chicks were incubated under either a 12 hr light–12 hr dark (LD) cycle, constant light (LL), or a 12 hr light–12 hr dark cycle followed by exposure to light for 1 hr from ZT14 to ZT15 (light-at-night) with the light provided by white fluorescent lamps. The experimental protocols (2011-A090, 2012-A003, 2013-A010, 2014-A063, 2015-A012, 29M050, 30M047) were in accordance with the Guide for the Care and Use of Laboratory Animals of Waseda University or Showa University, Japan.
Quantification of mRNAs
Request a detailed protocolTo measure the level of mRNA expressions, real-time PCR was performed using the StepOnePlus system (Applied Biosystems, Foster City, CA) as described previously (Haraguchi et al., 2010; Haraguchi et al., 2012b; Haraguchi et al., 2012b; Haraguchi et al., 2015; Nozaki et al., 2018). The sequence of each primer is shown in Table 1. Gapdh was used as the internal standard. The reaction mixture contained SYBR Green Real-Time PCR Mix (Toyobo, Osaka, Japan), 400 nM of forward and reverse primers, and 30 ng of cDNA in a final volume of 20 μL. PCR was run with a standard cycling program: 95°C for 3 min; 40 cycles of 95°C, 15 s; 60°C, 15 s; and 72°C, 15 s. An external standard curve was generated by a serial 10-fold dilution of cDNA obtained from the salmon brain, which had been purified, and its concentration was measured. To confirm the specificity of the amplification, the PCR products were subjected to melting curve analysis and gel electrophoresis. The results were normalized to the expression of gapdh using StepOnePlus 2.0 software (Applied Biosystems).
Oligonucleotide sequence of PCR.
https://doi.org/10.7554/eLife.45306.030Target genes | Forward primer 5’- > 3’ | Reverse primer 5’- > 3’ |
---|---|---|
Srd5a | AGAAAACCCGGGGAAGTCAC | AGCGATGGCAAAACCAAACC |
α1-subunit of GABAAR | TCGTGGCAGTCTCCTTTGTC | CTCATGCCCACAAGTGTCCT |
mPRα | TCTGCCCTGTGTGTCTTCAC | TTTGTCCCTCACCTTCCGTG |
mPRβ | AGGGCCTTGTGGGAAAGATG | TGCCAGATTCAAAGCCCCAT |
mPRγ | CGTGCGCTCGATGAGAAATG | TTTCATAACCCACCCCCAGC |
PXR | CCCATAACCAAAGCCAAGCG | ATCATGTCCTTCCGCATCCC |
PACAP | CACGCCGATGGGATCTTCA | GTGCAGGTATTTCCTTGCGG |
BDNF | ACATCACTGGCGGACACTTT | CAGCATGACTCGGGATGTGT |
NT-3 | ACCACCACCACTGTACCTCA | TCGGTGGCTCTTGTGTTCTG |
3β-HSD | CACTCTGCTGAACACCCCTT | GCTGGTGTACCTCTTTGCCT |
P450arom | CGGGGCTGTGTAGGAAAGTT | TGTCTGTACTCTGCACCGTC |
Dio2 | TGACCACCATTCACAAGCCA | CAACAGAAAGTCAGCCACGC |
IGF-1 | ATGGATCCAGCAGTAGACGC | GCCTCCTCAGGTCACAACTC |
Adcyap1 gene promoter | CAGTTTCATGGTAAGGACCCG | ACGACCCACCGAGCG |
Measurement of ALLO synthesis
Request a detailed protocolTo assess ALLO formation in the chick pineal gland, the conversion of progesterone, a substrate of ALLO, was measured biochemically using pineal gland homogenates. The biochemical analyses in this study were performed as described previously (Doi et al., 2010; Haraguchi et al., 2010; Haraguchi et al., 2012a; Haraguchi et al., 2012b; Haraguchi et al., 2015; Nozaki et al., 2018). In brief, 10 mg of pineal gland homogenates was incubated in phosphate-buffered saline (PBS) containing 106 cpm [3H] progesterone for 0 or 60 min at 37°C. After incubation, steroids were extracted by ethyl acetate and subjected to high-performance liquid chromatography analysis using a reversed-phase column, LiChrospher 100 RP-18 (Kanto Kagaku, Tokyo, Japan). Tritiated ALLO was used as the standard to detect the elution positions. All tritiated steroids were purchased from PerkinElmer (PerkinElmer Japan, Yokohama, Japan).
Measurement of ALLO concentration
Request a detailed protocolALLO concentration in the chick pineal gland was measured by liquid chromatography-electrospray ionization-tandem mass spectrometry (LC-ESI-MS/MS; QTRAP 4500 LC-MS/MS System; AB Sciex, Foster City, CA). In brief, 5 mg of pineal gland tissue was homogenized in 1 mL methanol/H2O (75:25; vol/vol) on ice. The homogenate was loaded on Isolute SLE+ cartridges (Biotage, Uppsala, Sweden) for supported liquid–liquid extraction, and the steroid fractions were eluted with dichloromethane and subjected to LC-ESI-MS/MS analysis.
Quantification of the number of Purkinje cells and the thickness of the molecular layer
To investigate whether ALLO and PACAP are involved in Purkinje cell survival in birds, light-at-night or Px chicks were injected daily with either ALLO or PACAP.
Light-at-night chicks
Request a detailed protocolDaily injection of ALLO (30 ng/5 μL sesame oil) into light-at-night chicks was performed into the pineal gland region of the brain from ZT11 to ZT12 once per day for 7 days during the P1–P7 period. Control treatment consisted of an equal volume of vehicle-only.
Px chicks
Request a detailed protocolPx and sham operations on P1 chicks were performed under isoflurane anesthesia as described previously (Haraguchi et al., 2012a). After surgery, either ALLO (30 ng/5 μL) dissolved in sesame oil or PACAP (10−8 M/5 μL) dissolved in physiological saline was injected into the pineal gland region of the brain in chicks from ZT11 to ZT12 once per day for 7 days during the P1–P7 period. Control animals were treated with an equal volume of vehicle-only.
The injection site was determined by visually inspecting the brain of a chick injected with 5 μL of 0.15% methylene blue dissolved in saline. After decapitation under deep anesthesia, the cerebella of the control, Px, or ALLO- or PACAP-treated chicks at P21 were dissected. Cerebellar sections from 4% paraformaldehyde-fixed cerebella were processed and stained with anti-calbindin D-28k (300; Swant Swiss antibodies, Bellinzona, Switzerland) as described previously (Haraguchi et al., 2012a). The number of calbindin-immunoreactive cell bodies of Purkinje cells was counted in each lobule at P21 or P70. All analyses were performed in the cerebellar vermis area. The number of Purkinje cells in the vermis area was calculated from 10 sections (20 μm thickness, every three sections in the vermis area) per animal. The length of the molecular layer in the parasagittal section was evaluated as the thickness of the molecular layer as described previously (Haraguchi et al., 2012a).
Assessment of neuronal cell death
Request a detailed protocolParasagittal cerebellar sections of chicks at P7 were examined by immunostaining with an antibody against cleaved caspase-3 (Asp175; #9661; Cell Signaling Technology, Danvers, MA) to detect apoptotic cells immunoreactive to the active form of caspase-3 as described previously (Haraguchi et al., 2012a). The number of cleaved caspase-3-positive Purkinje cells in the vermis area was calculated from 10 sections (20 μm thickness, every three sections in the vermis area) per animal.
RT-PCR analysis
Request a detailed protocolTotal RNA was extracted from the chick cerebellum using Sepazol-RNA I Super (Nacalai Tesque, Kyoto, Japan) and reverse transcribed as described previously (Haraguchi et al., 2010; Haraguchi et al., 2012a; Haraguchi et al., 2012b; Haraguchi et al., 2015; Nozaki et al., 2018). All PCR amplifications (for mPRα, mPRβ, mPRγ, PXR, and α1-subunit of the GABAA receptor) were performed in a reaction mixture containing Ex Taq polymerase (Takara, Shiga, Japan). Forward and reverse primers (Table 1) were designed according to the nucleotide sequence of chicken mRNAs. The following PCR conditions were used for the thermal cycler: 1 cycle of 1 min at 94°C, 30 cycles of 30 s at 94°C, 30 s at 60°C, 30 s at 72°C, and finally, 1 cycle of 10 min at 72°C. The identities of the PCR products were confirmed by sequencing.
In ovo transfection by electroporation
Request a detailed protocolFor the intracerebellar injection of siRNAs, in ovo transfections were performed using chick embryos. The sequence of each siRNA is shown in Table 2. In vivo transfection by electroporation for chick embryos was performed as described previously (Katahira and Nakamura, 2003). Each siRNA reagent was injected into the cerebellar cortex of lobule IV. Subsequently, a pair of stainless steel electrodes was inserted into the neural tube and then transfected with an electroporator (NEPA21 Electroporator; NEPA Gene, Chiba, Japan).
Oligonucleotide sequence of siRNA.
https://doi.org/10.7554/eLife.45306.031Target genes | Sequence-sense | Sequence-anti-sense |
---|---|---|
mPRα | CGGAGCUGGGCUGGUUUCUUCCCA | UGGGAAGAAACCAGCCCAGCUCCG |
mPRβ | GAGGAGGAUGCUGCUUGGUACCAU | AUGGUNCCAAGCAGCAUCCUCCUC |
mPRγ | CCGACAGAGUUUGGCUGCUGCGAU | AUCGCAGCAGCCAAACUCUGUCGG |
Conformation of the specificity of mPRα antisera
Request a detailed protocolTo confirm that the mPRα antiserum recognized the appropriate antigen, western blot analysis was performed on extracts of COS-7 cells transfected with chicken mPRα cDNA as described previously (Haraguchi et al., 2010; Haraguchi et al., 2012a; Haraguchi et al., 2012b; Haraguchi et al., 2015; Nozaki et al., 2018). COS-7 cells (Cat# JCRB9127, RRID:CVCL_0224) were grown in DMEM with 10% fetal bovine serum. Cell line authentication and mycoplasma-free certification was performed by JCRB. The extract of COS-7 cells transfected with chicken mPRα cDNA was separated on a 12.5% SDS-polyacrylamide gel under reducing conditions and transferred to PVDF membranes (GE Healthcare, Madison, WI). The membrane was incubated with anti-goldfish mPRα antiserum at 4°C overnight and then for 1 hr with goat-anti-rabbit IgG-horseradish-peroxidase conjugate diluted 1:1000. An intense immunoreaction band was detected using an ImmunoStar LD western blotting detection system (Wako Pure Chemicals, Osaka, Japan).
IHC staining
Request a detailed protocolIHC localizations of mPRα, PACAP, or PAC1 were performed as described previously (Haraguchi et al., 2010; Haraguchi et al., 2012a; Haraguchi et al., 2012b; Haraguchi et al., 2015; Nozaki et al., 2018). The cerebella were fixed in 4% (vol/vol) paraformaldehyde solution overnight and then soaked in a refrigerated 30% (vol/vol) sucrose solution in 0.1 M PB. Cerebella were frozen in OCT compound (Miles, Elkhart, IN) and then sectioned transversely at 10 μm thickness on a cryostat at −20°C. After blocking nonspecific binding with Protein Block, serum-free (Agilent Technologies, Palo Alto, CA), the sections were immersed overnight at 4°C in either a 1:100 dilution of rabbit anti-goldfish mPRα antiserum, a 1:1000 dilution of chicken anti-PACAP antibody (Nakamachi et al., 2018), or a 1:100 dilution of mouse anti-PAC1 antibody (sc-100315; Santa Cruz Biotechnology, Santa Cruz, CA). The sections were then incubated for 60 min with Alexa Fluor 555-labeled second antibody (Cell Signaling Technology) at a dilution of 1:1000. After washing, the sections were mounted with mounting medium and visualized using a fluorescence microscope.
Binding assay
Request a detailed protocolTo investigate the binding of ALLO to chicken mPRα, a radioreceptor assay was performed as described previously (Ito et al., 2011). The membrane fractions extracted from COS-7 cells transfected with chicken mPRα cDNA were incubated for 30 min at 4°C with 1–25 nM [3H] ALLO in the presence or absence of cold ALLO competitor. At the end of the incubation, the samples were centrifuged at 10,000 g for 10 min at 4°C. The supernatant was aspirated out, and the radioactivity of the pellets was counted using a liquid scintillation counter.
In addition, the cellular localization of fluorescein-labeled ALLO in COS-7 cells transfected with chicken mPRα cDNA was analyzed as described previously (Haraguchi et al., 2010; Haraguchi et al., 2012a; Haraguchi et al., 2012b; Haraguchi et al., 2015; Nozaki et al., 2018). The COS-7 cells were treated with fluorescein-labeled ALLO in the presence or absence of cold ALLO for 1 hr at 4°C. At the end of the incubation, the cells were fixed for 1 hr in 4% paraformaldehyde and then washed 3 times for 5 min in PBS. After washing, the cells were mounted with mounting medium and visualized using a confocal microscope.
Chromatin immunoprecipitation and quantitative PCR (ChIP-qPCR)
Request a detailed protocolChromatin immunoprecipitation (ChIP) was performed using the SimpleChIP plus sonication chromatin IP kit (Cell Signaling Technology) according to the manufacturer’s protocol. Briefly, the Purkinje cell layer, including Purkinje cells, was laser-microdissected (LS-AMD; Leica Microsystems, Bensheim, Germany). The crosslinked cells of the Purkinje cell layer were sonicated to shear the chromatin to 200–1,000 bp. Each IP was performed using rabbit polyclonal anti-trimethyl-histone H3 (Lys9) antibody (07–442; Merck Millipore, Schwalbach, Germany), rabbit polyclonal anti-trimethyl-histone H3 (Lys27) antibody (07–449; Merck Millipore), or rabbit polyclonal anti-trimethyl-histone H4 (Lys20) antibody (07–463; Merck Millipore). qPCR analyses were performed using the StepOnePlus 2.0 software (Applied Biosystems) as described above. The sequence of each primer is shown in Table 1.
Statistical analysis
Request a detailed protocolGraphPad Prism (GraphPad) and Estimation statistics (http://www.estimationstats.com) were used for statistical analysis. Student’s two-tailed t-test, or one-way ANOVA followed by post hoc analysis with Tukey’s test for multiple comparisons test were performed. P values of the relevant post hoc multiple comparisons are shown in the figures. The statistical significance cutoff was set at p<0.05.
Fluorescein-labeled ALLO synthesis
Request a detailed protocol1H NMR and 13C NMR spectra were recorded with CDCl3 as the solvent using tetramethylsilane as an internal standard on JEOL AL-400 spectrometers (JEOL, Akishima, Japan). Multiplicities are indicated as br (broadened), s (singlet), d (doublet), t (triplet), q (quartet), and m (multiplet). High-resolution mass spectrometry spectra were recorded on JMS-SX102A (JEOL). All of the isolated materials were shown to be pure by NMR (free of obvious impurities) and thin-layer chromatography (homogeneous material).
First, we prepared ALLO (2) as described previously (Comin et al., 2004). Then, we followed Schemes 1–6 to synthesize fluorescein-labeled ALLO (12).
3-p-Toluenesulfonyloxy-ALLO (3)
Request a detailed protocolTo the solution of ALLO 2 (1.00 g, 3.14 mmol) in pyridine (10 mL) was added p-toluenesulfonyl chloride (1.20 g, 6.28 mmol) at room temperature, and the mixture was stirred for 12 hr. The aqueous phase was extracted with ethyl acetate. The combined organic layers were dried (MgSO4), and the solvent was evaporated. The residue was purified by column chromatography (silica gel) using hexane–EtOAc (2:1) as eluent to afford 1.19 g (80% yield) of tosylate 3.
1H NMR (400 MHz, CDCl3) δ: 7.68–7.75 (d, J = 8.2 Hz, 2H, Ar-H), 7.21–7.29 (d, J = 8.6 Hz, 2H, Ar-H), 4.30–4.40 (m, 1H, 3 C-H), 2.39–2.47 (m, 1H, 17 C-H), 2.37 (s, 3H, Ts-Me), 2.03 (s, 3H, 19C-Me), 0.70 (s, 3H, 10C-Me), 0.51 (s, 3H, 13C-Me).
3β-acetoxy ALLO (4)
Request a detailed protocolTo the solution of tosylate 3 (47 mg, 0.0995 mmol) in 2-butanone (2 mL) was added tetra-n-butylammonium acetate (105 mg, 0.34 mmol), and the mixture was stirred at reflux for 20 hr. The reaction mixture was quenched with water and extracted with ether. The extracts were washed with brine, dried over MgSO4, filtered, and concentrated in vacuo. The residue was purified by flash column chromatography on silica gel (hexane:ethyl acetate, 2:1) to give acetate 4 (20 mg, 56%).
1H NMR (400 MHz, CDCl3) δ 5.00 (s, 1H, 3 C-H), 2.48–2.54 (t, J = 9.1 Hz, 1H, 17 C-H), 2.10 (s, 3H, Ac-Me), 2.05 (s, 3H, 19C-Me), 0.78 (s, 3H, 10C-Me), 0.60 (s, 3H, 13C-Me).
Alyl 3-((3R,5S,8S,10S,13S,14S,17S)−3-acetoxy-10,13-dimethylhexadecahydro-1H- cyclopenta[a]phenanthren-17-yl)−3-oxopropanoate (5)
Request a detailed protocolTo a solution of 4 (6.40 g, 11.82 mmol) in THF (14.6 mL) was added LHMDS (1.3 M in THF, 22.75 mL) at −78°C. After 1 hr, allyl chloroformate (1.38 mL, 13.0 mmol) was added, and the mixture was stirred at −78°C for 2 hr. To the reaction was added saturated aqueous NH4Cl, and the organic layer was partitioned. The aqueous phase was extracted with ether, and the combined organic extracts were dried with MgSO4, filtered, and concentrated in vacuo. The residue was purified by flash column chromatography on silica gel (hexane/ethyl acetate = 95:5) to give 5 (3.78 g, 6.054 mmol, 51%) as a white solid.
1H NMR (400 MHz, CDCl3) δ 8.02 (d, J = 6.3 Hz, 4H, Ar-H), 7.57 (dd, J = 6.3 Hz, 1H, Ar-H), 7.54 (dd, J = 6.3 Hz, 1H, Ar-H), 7.46 (dd, J = 6.3 Hz, 2H, Ar-H), 7.42 (dd, J = 6.3 Hz, 2H, Ar-H), 5.92 (m, 1H), 5.78 (d, J = 4.8 Hz, 1H, 6 C-H), 5.33 (dd, J = 17, 1.5 Hz, 1H), 5.28 (br, 1H, 7 C-H), 5.24 (dd, J = 10, 1.5 Hz, 1H), 4.90 (m, 1H, 3 C-H), 4.63 (dt, J = 5.8, 1.2 Hz, 2H), 3.47 (s, 1H, 21C-CH), 1.12 (s, 3H, 19C-CH3), 0.68 (s, 3H, 18C-CH3).
(3R,5S,8S,10S,13S,14S,17S)−10,13-Dimethyl-17-(pent-4-enoyl)hexadecahydro-1H-cyclopenta[a]phenanthren-3-yl acetate (6)
Request a detailed protocolTo a solution of 5 (3.78 g, 6.05 mmol) in dioxane (60 mL) were added Pd2(dba)3•CHCl3 (0.313 g, 0.303 mmol) and DPPE (241.2 mg, 0.605 mmol), and the mixture was stirred at room temperature for 4 hr. The reaction mixture was filtered through a pad of Celite, and the filtrates were concentrated in vacuo. The residue was purified by flash column chromatography on silica gel (hexane/ethyl acetate = 97:3) to give 6 (2.92 g, 5.03 mmol, 83%) as a white solid.
1H NMR (400 MHz, CDCl3) δ 8.02 (d, J = 6.3 Hz, 4H, Ar-H), 7.57 (dd, J = 6.3 Hz, 1H, Ar-H), 7.54 (dd, J = 6.3 Hz, 1H, Ar-H), 7.46 (dd, J = 6.3 Hz, 2H, Ar-H), 7.42 (dd, J = 6.3 Hz, 2H, Ar-H), 5.81 (m, 1H, 23 C-H), 5.77 (d, J = 3.6 Hz, 1H, 6 C-H), 5.27 (t, J = 4.1 Hz, 1H, 7 C-H), 5.02 (ddd, J = 17, 3.4, 1.7 Hz, 1H, 24 C-H), 4.96 (ddd, J = 10, 2.9, 1.2 Hz, 1H, 24 C-H), 4.90 (m, 1H, 3 C-H), 1.11 (s, 3H, 19C-CH3), 0.67 (s, 3H, 18C-CH3).
6-Amino-3-oxo-3H-spiro[isobenzofuran-1,9′-xanthene]−3′,6′-diyl bis(2,2-dimethylpropanoate) (8)
Request a detailed protocolTo a stirred solution of 5-aminofluorescein 7 (0.10 g, 0.288 mmol) in DMF (3.0 mL) were added Cs2CO3 (0.28 g, 0.864 mmol) and pivalic anhydride (0.13 mL, 1.90 mmol), and the mixture was stirred at room temperature for 1 hr. The reaction mixture was filtered through a pad of Celite, and the filtrates (DMF layer) were extracted with ether. The extracts were concentrated in vacuo, and the residue was purified by flash column chromatography on silica gel (CH2Cl2:water, 4:1) to give 8 (87.4 mg, 0.17 mmol, 59%) as a white solid.
1H NMR (400 MHz, CDCl3) δ 7.76 (d, J = 8.3 Hz, 1H, Ar-H), 7.01 (d, J = 2.2 Hz, 2H, Ar-H), 6.96 (s, 1H, Ar-H), 6.94 (s, 1H, Ar-H), 6.78 (dd, J = 8.5, 2.2 Hz, 2H, Ar-H), 6.76 (dd, J = 8.3, 1.9 Hz, 1H, Ar-H), 4.21 (brs, 2H, NH2), 1.36 (s, 18H, C(CH3)3).
3-Oxo-6-(undec-10-enamido)−3H-spiro[isobenzofuran-1,9′-xanthene]−3′,6′-diyl bis(2,2-dimethylpropanoate) (9)
Request a detailed protocolTo a stirred solution of 8 (0.10 g, 0.288 mmol) in CH2Cl2 (1.0 mL) were added DMAP (37 mg, 0.305 mmol), DIC (0.048 mL, 0.305 mmol), and undecenoic acid (0.0513 mL, 0.254 mmol), and the mixture was stirred at room temperature for 50 hr. To the reaction mixture was added saturated aqueous NaHCO3, and the organic layer was partitioned. The aqueous layer was extracted with CH2Cl2, and the combined organic extracts were dried with MgSO4, filtered, and concentrated in vacuo. The residue was purified by flash column chromatography on silica gel (hexane:ethyl acetate, 4:1) to give 9 (78.86 mg, 0.12 mmol, 68%) as a white solid.
1H NMR (400 MHz, CDCl3) δ 7.92 (d, J = 8.6 Hz, 1H, Ar-H), 7.85 (dd, J = 8.6, 1.6 Hz, 1H, Ar-H), 7.58 (br, 1H, NH), 7.21 (s, 1H, Ar-H), 7.00 (d, J = 2.2 Hz, 2H, Ar-H), 6.85 (d, J = 8.6 Hz, 2H, Ar-H), 6.76 (dd, J = 8.6, 2.2 Hz, 2H, Ar-H), 5.78 (m, 1H), 4.96 (dd, J = 17, 1.6 Hz, 1H), 4.91(dd, J = 12, 1.6 Hz, 1H), 2.27 (t, J = 7.5 Hz, 2H, COCH2), 2.00 (dd, J = 7.3, 6.7 Hz, 2H), 1.35 (s, 18H, C(CH3)3).
(3R,5S,8S,10S,13S,14S,17S)−10,13-Dimethyl-17-((E)−14-oxo-14-(3-oxo-3′,6′-bis(pivaloyloxy)−3H-spiro[isobenzofuran-1,9′-xanthene]−6-ylamino)tetradec-4-enoyl)- (pent-4-enoyl)hexadecahydro-1H-cyclopenta[a]phenanthren-3-yl acetate (10)
Request a detailed protocolTo a stirred solution of 7 (241.9 mg, 0.604 mmol) and 9 (412.02 mg, 0.604 mmol) in CH2Cl2 (3.5 mL) was added Hoveyda Grubbs’ 2nd catalyst (0.0031 g, 0.0036 mmol), and the resulting mixture was heated under reflux. After 26 hr, the mixture was filtered through a pad of Celite, and the organic solvent was evaporated. The crude product was purified by flash column chromatography (10% to 25% ethyl acetate/hexane) to afford 10 (30.0 mg, 0.028 mmol, 5%).
1H NMR (400 MHz, CDCl3) δ 7.90 (d, J = 8.2 Hz, 1H, Ar-H), 7.86 (dd, J = 8.7, 1.4 Hz, 1H, Ar-H), 7.23 (br, 1H, Ar-H), 7.00 (d, J = 1.8 Hz, 2H, Ar-H), 6.85 (d, J = 8.7 Hz, 2H, Ar-H), 6.76 (dd, J = 8.7, 2.3 Hz, 2H, Ar-H), 5.39–5.31 (m, 2H), 5.00 (br, 1H), 4.21 (t, J = 5.9 Hz, 1H), 2.48 (t, J = 8.7 Hz, 1H), 2.04 (s, 3H), 1.34 (s, 18H), 0.78 (s, 3H), 0.56 (s, 3H).
(3R,5S,8S,10S,13S,14S,17S)−10,13-Dimethyl-17–14-oxo-14-(3-oxo-3′,6′-bis(pivaloyloxy)−3H- spiro[isobenzofuran-1,9′-xanthene]−6-ylamino)tetradecanoyl)-(pent-4-enoyl)hexadecahydro-1H-cyclopenta[a]phenanthren-3-yl acetate (11)
Request a detailed protocolCompound 10 (30.0 mg, 0.028 mmol) in ethyl acetate (0.28 mL) was hydrogenated over 10 wt% Pd on activated carbon (3.0 mg). After 3 hr, the reaction mixture was diluted with ethyl acetate and filtered to remove the catalyst. The filtrate was concentrated, and the crude product 11 was used in the next step without further purification.
1H NMR (400 MHz, CDCl3) δ 7.92 (d, J = 9.1 Hz, 1H, Ar-H), 7.86 (dd, J = 8.6, 1.8 Hz, 1H, Ar-H), 7.69 (br, 1H, Ar-H), 7.01 (d, J = 2.2 Hz, 2H, Ar-H), 6.86 (s, Ar-H), 6.86 (s, Ar-H), 6.78 (d, J = 2.2 Hz, 1H, Ar-H), 6.76 (d, J = 2.2 Hz, 1H, Ar-H), 5.01 (br, 1H), 2.45 (t, J = 9.2 Hz, 1H), 2.37–2.24 (m, 4H), 2.18–2.11 (m, 1H), 2.05 (s, 3H), 1.99–1.92(m, 1H), 1.35 (s, 18H), 0.79 (s, 3H), 0.57 (s, 3H).
Fluorescein-labeled ALLO (12)
Request a detailed protocolTo a stirred solution of 11 in MeOH (1.8 mL) was added K2CO3 (18.5 mg, 0.018 mmol), and the resulting mixture was heated under reflux for 16 hr. The reaction was quenched by the addition of saturated aqueous NH4Cl, and the organic solvent was evaporated. The residue was extracted with ethyl acetate, and the combined organic extracts were dried with MgSO4 and concentrated in vacuo. The crude product was purified by flash column chromatography (ethyl acetate in hexane) to afford 12 (11.1 mg, 0.013 mmol, 73%).
1H NMR (400 MHz, CD3OD) δ 7.92 (d, J = 8.7 Hz, 1H, Ar-H), 7.76 (dd, J = 8.2, 1.4 Hz, 1H, Ar-H), 7.57 (d, J = 1.8, 1H, Ar-H), 6.68–6.63 (m, 4H, Ar-H), 6.56 (d, J = 2.8 Hz, 1H, Ar-H), 6.53 (d, J = 2.8 Hz, 1H, Ar-H), 4.54 (br, 2H), 3.92 (m, 1H), 3.34 (s, 3H), 2.60 (t, J = 8.7 Hz, 1H), 0.78 (s, 3H), 0.56 (s, 3H).
Data availability
All data generated or analysed during this study are included in the manuscript and supporting files. Source data files for Figures 1-10 have been deposited to Dryad (https://doi.org/10.5061/dryad.k6g8b53).
-
Dryad Digital RepositoryData from: Light-at-night exposure affects brain development through pineal allopregnanolone-dependent mechanisms.https://doi.org/10.5061/dryad.k6g8b53
References
-
Epigenetic and transgenerational reprogramming of brain developmentNature Reviews Neuroscience 16:332–344.https://doi.org/10.1038/nrn3818
-
Neurosteroids: endogenous regulators of the GABA(A) receptorNature Reviews Neuroscience 6:565–575.https://doi.org/10.1038/nrn1703
-
Thyroid hormone receptors in brain development and functionNature Clinical Practice Endocrinology & Metabolism 3:249–259.https://doi.org/10.1038/ncpendmet0424
-
Influence of light at night on murine anxiety- and depressive-like responsesBehavioural Brain Research 205:349–354.https://doi.org/10.1016/j.bbr.2009.07.001
-
The effects of light at night on circadian clocks and metabolismEndocrine Reviews 35:648–670.https://doi.org/10.1210/er.2013-1051
-
Developmental programming and endocrine disruptor effects on reproductive neuroendocrine systemsFrontiers in Neuroendocrinology 29:358–374.https://doi.org/10.1016/j.yfrne.2008.02.002
-
Progesterone and allopregnanolone in the central nervous system: response to injury and implication for neuroprotectionThe Journal of Steroid Biochemistry and Molecular Biology 146:48–61.https://doi.org/10.1016/j.jsbmb.2014.09.001
-
Is light-at-night a health risk factor or a health risk predictor?Chronobiology International 26:1069–1074.https://doi.org/10.3109/07420520903223984
-
Gene silencing in chick embryos with a vector-based small interfering RNA systemDevelopment, Growth and Differentiation 45:361–367.https://doi.org/10.1046/j.1440-169X.2003.00705.x
-
Evolution of the vertebrate pineal gland: the AANAT hypothesisChronobiology International 23:5–20.https://doi.org/10.1080/07420520500545839
-
Thyroid hormone action and brain developmentTrends in Endocrinology & Metabolism 11:123–128.https://doi.org/10.1016/S1043-2760(00)00238-1
-
Early-life experience, epigenetics, and the developing brainNeuropsychopharmacology 40:141–153.https://doi.org/10.1038/npp.2014.140
-
Current concepts in neuroendocrine disruptionGeneral and Comparative Endocrinology 203:158–173.https://doi.org/10.1016/j.ygcen.2014.02.005
-
The mammalian pineal gland: known facts, unknown facetsTrends in Endocrinology & Metabolism 18:142–149.https://doi.org/10.1016/j.tem.2007.03.001
-
Allopregnanolone: state of the artProgress in Neurobiology 113:1–5.https://doi.org/10.1016/j.pneurobio.2013.09.005
-
The dark side of light at night: physiological, epidemiological, and ecological consequencesJournal of Pineal Research 43:215–224.https://doi.org/10.1111/j.1600-079X.2007.00473.x
-
Constant light disrupts the developing mouse biological clockPediatric Research 60:304–308.https://doi.org/10.1203/01.pdr.0000233114.18403.66
-
Development of dopaminergic neurons in the mammalian brainCellular and Molecular Life Sciences 63:187–206.https://doi.org/10.1007/s00018-005-5387-6
-
Annual research review: epigenetic mechanisms and environmental shaping of the brain during sensitive periods of developmentJournal of Child Psychology and Psychiatry 52:398–408.https://doi.org/10.1111/j.1469-7610.2010.02282.x
-
The effect of monochromatic photostimulation on growth and development of broiler birdsGeneral and Comparative Endocrinology 190:214–219.https://doi.org/10.1016/j.ygcen.2013.06.027
-
Circadian disruption leads to insulin resistance and obesityCurrent Biology 23:372–381.https://doi.org/10.1016/j.cub.2013.01.048
-
Chronic effects of light irradiated from LED on the growth performance and endocrine properties of barfin flounder Verasper moseriGeneral and Comparative Endocrinology 232:101–108.https://doi.org/10.1016/j.ygcen.2016.01.008
-
Epigenetic impacts of endocrine disruptors in the brainFrontiers in Neuroendocrinology 44:1–26.https://doi.org/10.1016/j.yfrne.2016.09.002
-
Growth responses of broiler chickens to different periods of artificial lightJournal of Animal Science 93:767–775.https://doi.org/10.2527/jas.2014-8096
Decision letter
-
Vatsala ThirumalaiReviewing Editor; National Centre for Biological Sciences, India
-
K VijayRaghavanSenior Editor; National Centre for Biological Sciences, Tata Institute of Fundamental Research, India
-
Alanna J WattReviewer; McGill University, Canada
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
Thank you for submitting your article "Light affects cerebellar development through pineal allopregnanolone-dependent mechanisms during early posthatch life" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by K VijayRaghavan as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Alanna J Watt. The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
The study by Haraguchi et al. represents an important and interesting contribution to our understanding of the role of circadian rhythm in brain development. This work builds upon the authors' previous findings that pineal gland-derived ALLO hormone modulated Purkinje cell survival in the developing cerebellum of quail chicks (Haraguchi et al., 2012). Here, the authors use a light-at-night (LAN) paradigm combined with RT-PCR, competition assays, knock-downs with siRNA and IHC, to show that 1 hour of light at night reduces the expression of the pineal-derived hormone ALLO. They then go on to show downstream mechanisms for the neuroprotective action of ALLO: they identify the mPRalpha receptor through which ALLO appears to act, and show that this alters the expression of the neuroprotective hormone PACAP. Finally, they demonstrate that although PACAP can alter Purkinje cell survival during later development, its expression in the cerebellum decreases during development because of changes in histone modification levels at the adcyap1 gene promoter.
Though this study is interesting and thorough, the reviewers made several critical suggestions, which need to be satisfactorily addressed before the manuscript can be accepted for publication at eLife.
Essential revisions:
1) The extent of Purkinje neuron loss due to light-at-night in the current study seems to be small (Figure 1H). As it stands, it looks like there is a clear effect on pineal ALLO synthesis, but only a marginal effect on Purkinje cell survival. Small changes are not necessarily unimportant as even a decrease of 10% of cerebellar Purkinje cells could still have a big impact on cerebellar function. This raises two questions: one, if there are lobule-specific differences in Purkinje cell loss as seen in Haraguchi et al., 2012 with pinealectomy, and two if these small changes persist into adulthood and lead to cerebellar deficits. To delineate if there are lobule-specific differences, authors should provide lobule-specific counts of PNs after light-at-night. Such lobule-specific differences could potentially be quite interesting in terms of light regulation of Purkinje neuron survival. To see if these changes persist into adulthood, authors should look at counts at fully adult stages as well.
2) Data presentation: Throughout the manuscript data are presented as bar graphs showing mean+/- sem. It is now standard practice to show the scatter of the data with a suitable measure of central tendency depending on the shape of the distribution. Further, data in Figure 1G, H (and elsewhere in the paper, e.g. Figure 3B-E) are represented as relative to controls. It would be informative to have an indication of the actual number of cells. If necessary, this can be normalized to the total number of cells (or total fluorescence of a nuclear indicator) in each section.
3) The statistical analysis of the data is insufficient. It is not clear if the data are normal and normality tests were done, but a one-way ANOVA has been used. The authors should not take p<0.05 to indicate that their hypothesis is true. The statement by APA (Wasserstein, R. L. & Lazar, N. A. The ASA's Statement on p-Values: Context, Process, and Purpose. The American Statistician 70, 129-133 (2016)) should be consulted as to what the p-value can and cannot be used for. It is suggested that the authors use Gardner-Altman estimation plots (e.g. see estimationstats.com), and provide an indication of the size of the effect of the different treatments.
4) The authors should include example representative images for caspase-3 positive cells and Purkinje cells in Figure 2, so that the reader can evaluate these findings themselves.
5) Why were male chicks used exclusively? In previous studies by these authors, results were shown to be similar in both male and female chicks. These results will be stronger if they are confirmed in females. At minimum, a justification for the exclusive use of male animals should be provided.
6) Why has this particular light-at-night paradigm been used? It would be useful if the paradigm were described in the Materials and methods section (it is currently not mentioned there at all) and a brief discussion of the generalizability of this light-at-night paradigm could be included in the Discussion.
7) At what time was the ALLO injection given? The Materials and methods section mentions that vehicle only injections were done but it is not clear if the 'control' is vehicle-only or uninjected animals. Both conditions must be shown, with raw cell counts.
8) The authors go into some detail delineating the timeline of the action of light at night during development. However, it is hard to understand how this is believed to correspond to human (or mammalian) development, so it would be useful to discuss this more directly in the Discussion.
9) The second and third sentences of the Introductory paragraph could use some rewriting as they are only loosely connected to the rest of the text. "In particular, light conditions affect development during early life; therefore, it is not surprising that life evolved on this planet") is not logically sound.
[Editors' note: further revisions were requested prior to acceptance, as described below.]
Thank you for submitting your article "Light-at-night exposure affects brain development through pineal allopregnanolone-dependent mechanisms" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by K VijayRaghavan as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Alanna J Watt (Reviewer #1).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
The reviewers were in general happy with the revised manuscript and felt that the revisions made it much stronger. However, there are a few points which need to be rectified before the manuscript can be accepted. Please see these below in the comments section and address them at the earliest.
Reviewer #1:
The authors have submitted a revised manuscript of their work on light-at-night exposure affecting brain development via allopregnanolone-dependent mechanisms mediated by the pineal gland.
I think that the revised manuscript has been improved by the revisions, and am satisfied with it. I recommend publication.
In particular, I welcome the in-depth lobule-specific analyses that the authors have added, which shows the specificity of the effect to anterior lobules (which are closest to the pineal gland). Given recent interest in lobule-specific changes in the cerebellum, this adds to the richness of our understanding of region-specific Purkinje cell regulation.
I am also extremely pleased and impressed that the authors repeated their work in female chicks, and are thus able to report that the effects they report are observed in both sexes. I thank the authors for taking this concern seriously and for putting in the work to address it.
I think several of the changes made, including to analyses, representation of data, and to writing (e.g. removing difficult-to-understand abbreviations) have greatly strengthened the paper as well.
Reviewer #2:
The authors have addressed all comments regarding data presentation and analysis.
However, the Introduction of the revised manuscript is still illogical, with several statements that do not fit well. The meaning behind the third sentence ("It is not surprising that.…") is unclear. This sentence should be deleted. The reference to weight gain does not fit with the theme of development/maturation of the brain. Fagiolini et al., 2009, refer to the influence of stress, acting via the placenta, on the epigenome of the embryo. The notion of "environment" in this case is different from a stimulus that acts directly on a sensory system of the post-hatch/post-natal animal.
The Introduction would be clearer if the authors define what is meant by "development" in this manuscript. The experiments focus on post-hatch chicks, hence this should be emphasized. The statements in the Discussion on the effects of inappropriate lighting on post-natal brain (–Discussion, third paragraph) could be placed in the Introduction, to clarify the focus of the manuscript.
In several instances, the authors use the phrase "significantly increased" or "significantly decreased". It would be clearer to state "increased (p = x, or effect size = x)" or "decreased (effect size =).
Reviewer #3:
The authors have addressed the reviewers' suggestions satisfactorily. The data and statistics are now presented in a rigorous manner and the results of the study are compelling. That the decrease in Purkinje cell number persists in adulthood is significant. There are a few points which the authors must rectify before the manuscript can be accepted:
1) Figure 5C and D: Is Control versus Px+ALLO or Px+PACAP statistically significant? Do ALLO or PACAP treatments completely or partially rescue Caspase expression and Purkinje neuron survival?
2) The authors propose a model where PACAP expressed by Purkinje neurons binds to PAC1 receptors either in an autocrine or paracrine fashion. However, PACAP immunoreactivity is seen outside of Purkinje neurons too in the molecular layer (Figure 5E). Further PAC1 immunoreactivity is seen in the granule cell layer also (Figure 5F). Given these, one cannot be sure of either the origin of PACAP or its targets.
3) Subsection “Quantification of the number and dendritic length of Purkinje cells” and Figure 2—figure supplement 2: Molecular layer thickness cannot be equated to Purkinje neuron dendritic length.
https://doi.org/10.7554/eLife.45306.036Author response
Essential revisions:
1) The extent of Purkinje neuron loss due to light-at-night in the current study seems to be small (Figure 1H). As it stands, it looks like there is a clear effect on pineal ALLO synthesis, but only a marginal effect on Purkinje cell survival. Small changes are not necessarily unimportant as even a decrease of 10% of cerebellar Purkinje cells could still have a big impact on cerebellar function. This raises two questions: one, if there are lobule-specific differences in Purkinje cell loss as seen in Haraguchi et al., 2012 with pinealectomy, and two if these small changes persist into adulthood and lead to cerebellar deficits. To delineate if there are lobule-specific differences, authors should provide lobule-specific counts of PNs after light-at-night. Such lobule-specific differences could potentially be quite interesting in terms of light regulation of Purkinje neuron survival. To see if these changes persist into adulthood, authors should look at counts at fully adult stages as well.
Thank you for this insightful comment. We agree with the reviewer that the decrease in Purkinje cell numbers in our study is small to lead to a change in cerebellar functions related to movement coordination, motor learning, or timing, etc. We think that the decrease of Purkinje cell number by light-at-night affects cerebellar non-motor functions but not motor functions. The cerebellum is also involved in autism spectrum disorder. Thus, we added several sentences in the Discussion section as follows:
“Circadian rhythms are present in almost all plants and animals. […] Further studies are needed to investigate the connection between a decrease in Purkinje cells caused by light-at-night and autism spectrum disorder.”
In addition, according to the reviewers' comments, we have provided lobule-specific counts of Purkinje cell numbers after light-at-night (please see the new Figures 2, 3, 5-7). Furthermore, the following information is added in the Materials and methods section as follows: “The number of calbindin-immunoreactive cell bodies of Purkinje cells was counted in each lobule at P21 or P70. […] The number of Purkinje cells in the vermis area was calculated from 10 sections (20-μm thickness, every three sections in the vermis area) per animal.” and “Parasagittal cerebellar sections of chicks at P7 were examined by immunostaining with an antibody against cleaved caspase-3 (Asp175; #9661; Cell Signaling Technology, Danvers, MA) to detect apoptotic cells immunoreactive to the active form of caspase-3 as described previously (Haraguchi et al., 2012a). The number of cleaved caspase-3-positive Purkinje cells in the vermis area was calculated from 10 sections (20-μm thickness, every three sections in the vermis area) per animal.”
Furthermore, we have performed an additional experiment to investigate whether the decrease in Purkinje cell numbers by light-at-night during the posthatch period persists into adulthood. In adulthood, Purkinje cell numbers were also decreased in lobules III, IV, and V by light-at-night. (Please see the new Figure 2G).
2) Data presentation: Throughout the manuscript data are presented as bar graphs showing mean+/- sem. It is now standard practice to show the scatter of the data with a suitable measure of central tendency depending on the shape of the distribution. Further, data in Figure 1G, H (and elsewhere in the paper, e.g. Figure 3B-E) are represented as relative to controls. It would be informative to have an indication of the actual number of cells. If necessary, this can be normalized to the total number of cells (or total fluorescence of a nuclear indicator) in each section.
Based on this insightful comment, we have revised our graphs. In this revised version we show the scatter of the data with a suitable measure of central tendency, depending on the shape of the distribution throughout the manuscript (please see the new figures). In addition, we have provided lobule-specific counts of Purkinje cell numbers (please see the new Figures 2, 3, 5-7).
3) The statistical analysis of the data is insufficient. It is not clear if the data are normal and normality tests were done, but a one-way ANOVA has been used. The authors should not take p<0.05 to indicate that their hypothesis is true. The statement by APA (Wasserstein, R. L. & Lazar, N. A. The ASA's Statement on p-Values: Context, Process, and Purpose. The American Statistician 70, 129-133 (2016)) should be consulted as to what the p-value can and cannot be used for. It is suggested that the authors use Gardner-Altman estimation plots (eg see estimationstats.com), and provide an indication of the size of the effect of the different treatments.
Based on this insightful comment, we have conducted several experiments to determine the number of n. Subsequently, we have showed the scatter of the data with a suitable measure of central tendency depending on the shape of the distribution throughout the manuscript (please see the new Figures). In addition, we have analyzed the effect size of data by estimation statistics. To analyze two groups, we used a Gardner-Altman estimation plots. To analyze a single control and each of the intervention groups, we used a shared-control estimation plot, instead of Gardner-Altman estimation plots (please see the new Figure 2—figure supplement 3).
We have added the following sentences regarding statistics in the Materials and methods section as follows: “Statistical analysis. GraphPad Prism (GraphPad) and Estimation statistics (http://www.estimationstats.com) were used for statistical analysis. […] P values of the relevant post hoc multiple comparisons are shown in the figures. The statistical significance cutoff was set at P < 0.05.”
4) The authors should include example representative images for caspase-3 positive cells and Purkinje cells in Figure 2, so that the reader can evaluate these findings themselves.
Based on this insightful comment, we have added example representative images for caspase-3 positive cells and Purkinje cells (please see the new Figure 2D and F).
5) Why were male chicks used exclusively? In previous studies by these authors, results were shown to be similar in both male and female chicks. These results will be stronger if they are confirmed in females. At minimum, a justification for the exclusive use of male animals should be provided.
Thank you for this insightful comment. We agree with the importance of females, and have performed an additional experiment to investigate the effects of light-at-night on female chicks. Purkinje cell numbers were also decreased in female chicks by light-at-night (please see the new Figure 2—figure supplement 1).
In addition, we have added the following information in the Materials and methods section as follows: “Animals. Domestic chickens (Gallus gallus) of both sexes at various ages were used in this study. Chicks were incubated under either a 12 h light–12 h dark (LD) cycle, constant light (LL), or a 12 h light–12 h dark cycle followed by exposure to light for 1 h from ZT14 to ZT15 (light-at-night) with the light provided by white fluorescent lamps.”
6) Why has this particular light-at-night paradigm been used? It would be useful if the paradigm were described in the Materials and methods section (it is currently not mentioned there at all) and a brief discussion of the generalizability of this light-at-night paradigm could be included in the Discussion.
Thank you very much for this insightful comment. Based on this comment, we have revised and added several sentences in the Discussion section as follows:
“Circadian rhythms are present in almost all plants and animals. […] Further studies are needed to investigate the connection between a decrease in Purkinje cells caused by light-at-night and autism spectrum disorder.”
7) At what time was the ALLO injection given? The methods section mentions that vehicle only injections were done but it is not clear if the 'control' is vehicle-only or uninjected animals. Both conditions must be shown, with raw cell counts.
Thank you very much for this insightful comment. Based on this comment, we have added the following sentences in the Materials and methods section as follows:
“Quantification of the number and dendritic length of Purkinje cells. […] Control animals were treated with an equal volume of vehicle-only.”
In addition, according to important comments, we have provided lobule-specific counts of Purkinje cell numbers after light-at-night (please see the new Figures 2, 3, 5-7).
8) The authors go into some detail delineating the timeline of the action of light at night during development. However, it is hard to understand how this is believed to correspond to human (or mammalian) development, so it would be useful to discuss this more directly in the Discussion.
Thank you very much for this important comment to improve the manuscript. According to this comment, we have revised and added several sentences in the Discussion section as follows:
“Circadian rhythms are present in almost all plants and animals. […] Further studies are needed to investigate the connection between a decrease in Purkinje cells caused by light-at-night and autism spectrum disorder.”
9) The second and third sentences of the Introductory paragraph could use some rewriting as they are only loosely connected to the rest of the text. "In particular, light conditions affect development during early life; therefore, it is not surprising that life evolved on this planet") is not logically sound.
Thank you very much for this insightful comment. Based on your comment, we have revised several sentences in the Introduction section as follows: “Environmental stimuli (e.g., light–dark cycle, temperature, or nutrition) influence the development of plants, animals, and humans. […] Several studies have reported that circadian disruption by light-at-night affects weight gain in vertebrates during early neonatal or posthatch life”
[Editors' note: further revisions were requested prior to acceptance, as described below.]
The reviewers were in general happy with the revised manuscript and felt that the revisions made it much stronger. However, there are a few points which need to be rectified before the manuscript can be accepted. Please see these below in the comments section and address them at the earliest.
Reviewer #2:
The authors have addressed all comments regarding data presentation and analysis.
However, the Introduction of the revised manuscript is still illogical, with several statements that do not fit well. The meaning behind the third sentence ("It is not surprising that.…..") is unclear. This sentence should be deleted.
Thank you very much for your comment. Based on this comment, we have deleted the aforementioned sentence from the Introduction.
The reference to weight gain does not fit with the theme of development/maturation of the brain. Fagiolini et al., 2009, refer to the influence of stress, acting via the placenta, on the epigenome of the embryo. The notion of "environment" in this case is different from a stimulus that acts directly on a sensory system of the post-hatch/post-natal animal.
Thank you very much for this insightful comment. Based on this comment, we have deleted the relevant sentence from the Introduction.
According to this comment, we have revised the Introduction as follows:
“Environmental stimuli (e.g., light–dark cycle, temperature, or nutrition) influence the development of plants, animals, and humans. […] However, little is known about the molecular mechanisms that control how environmental light conditions affect brain development.”
The Introduction would be clearer if the authors define what is meant by "development" in this manuscript. The experiments focus on post-hatch chicks, hence this should be emphasized. The statements in the discussion on the effects of inappropriate lighting on post-natal brain (Discussion, third paragraph) could be placed in the Introduction, to clarify the focus of the manuscript.
Thank you very much for this insightful comment and kind suggestion. Based on this comment, we have changed several sentences regarding the effects of inappropriate lighting on the post-natal brain in the Introduction as follows:
“Multiple studies have suggested a link between light-at-night-induced circadian disruption and disruption of the neuroendocrine system (Fonken and Nelson, 2014; Fonken et al., 2010). […] However, the molecular mechanisms that modulate the expression of hormones depending on light conditions during early life are still incompletely understood.”
In several instances, the authors use the phrase "significantly increased" or "significantly decreased". It would be clearer to state "increased (p = x, or effect size = x)" or "decreased (effect size =).
Based on this comment, we have changed “significantly increased” to “increased (P=X)” or “significantly decreased” to “decreased (P=X)” in the re-revised manuscript.
Reviewer #3:
The authors have addressed the reviewers' suggestions satisfactorily. The data and statistics are now presented in a rigorous manner and the results of the study are compelling. That the decrease in Purkinje cell number persists in adulthood is significant. There are a few points which the authors must rectify before the manuscript can be accepted:
1) Figure 5C and D: Is Control versus Px+ALLO or Px+PACAP statistically significant? Do ALLO or PACAP treatments completely or partially rescue Caspase expression and Purkinje neuron survival?
In Figure 5C, we did not detect any statistically significant differences between Control and Px+ALLO (P>0.9999) or Px+PACAP (P=0.8672).
In Figure 5D, we detected a statistically significant difference between Control and Px+ALLO (P=0.0002), but not between Control and Px+PACAP (P=0.0533).
Thus, our results indicated that ALLO treatment partially rescued caspase-3 expression and Purkinje neuron survival. In addition, PACAP treatment completely rescued both caspase-3 expression and Purkinje neuron survival. To reflect these results in the manuscript, we have revised Figure 5D.
2) The authors propose a model where PACAP expressed by Purkinje neurons binds to PAC1 receptors either in an autocrine or paracrine fashion. However, PACAP immunoreactivity is seen outside of Purkinje neurons too in the molecular layer (Figure 5E). Further PAC1 immunoreactivity is seen in the granule cell layer also (Figure 5F). Given these, one cannot be sure of either the origin of PACAP or its targets.
Thank you very much for this insightful comment. Based on this comment, we have added several sentences in the Discussion as follows:
“In the developing cerebellum, PACAP was expressed not only by Purkinje cells but also by the cells of the molecular layer. […] However, the effect of PACAP on granule cells is unclear in the developing cerebellum of chicks, although the neuroprotective effects of PACAP on cerebellar granule cells have been reported in mammals (Vaudry et al., 2000; Vaudry et al., 2003)”.
3) Subsection “Quantification of the number and dendritic length of Purkinje cells” and Figure 2—figure supplement 2: Molecular layer thickness cannot be equated to Purkinje neuron dendritic length.
Thank you very much for this insightful comment. Based on this comment, we have changed “Quantification of the number and dendritic length of Purkinje cells.” to “Quantification of the number of Purkinje cells and the thickness of the molecular layer.”
We have also changed “Effect of pineal ALLO on the thickness of the molecular layer of Purkinje cells.” to “Effect of pineal ALLO on the thickness of the molecular layer.”
Moreover, we have changed “Dendritic length of Purkinje cells in lobule IV at P21” to “The thickness of the molecular layer in lobule IV at P21”
https://doi.org/10.7554/eLife.45306.037Article and author information
Author details
Funding
Japan Society for the Promotion of Science (15K18571)
- Shogo Haraguchi
Takeda Science Foundation
- Shogo Haraguchi
Ichiro Kanehara Foundation for the Promotion of Medical Sciences and Medical Care
- Shogo Haraguchi
Kao Corporation
- Shogo Haraguchi
Naito Foundation
- Shogo Haraguchi
Narishige Zoological Science Foundation
- Shogo Haraguchi
Yamaguchi Endocrine Research Foundation
- Shogo Haraguchi
Suntory Foundation
- Shogo Haraguchi
Japan Society for the Promotion of Science (22227002)
- Kazuyoshi Tsutsui
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
This work was supported in part by Japan Society for the Promotion of Science (JSPS) Grants-in-Aid for Scientific Research (15K18571 to SH and 22227002 to KT). This work was also supported by the Ichiro Kanehara Foundation, the Kao Research Council, the Naito Foundation, the Narishige Zoological Science Foundation, the Yamaguchi Endocrine Research Foundation, the Suntory Foundation for Life Sciences, and the Takeda Science Foundation (to SH). The authors would like to thank Enago (www.enago.jp) for the English language review.
Ethics
Animal experimentation: The experimental protocols (2011-A090, 2012-A003, 2013-A010, 2014-A063, 2015-A012, 29M050, 30M047) were in accordance with the Guide for the Care and Use of Laboratory Animals of Waseda University or Showa University, Japan.
Senior Editor
- K VijayRaghavan, National Centre for Biological Sciences, Tata Institute of Fundamental Research, India
Reviewing Editor
- Vatsala Thirumalai, National Centre for Biological Sciences, India
Reviewer
- Alanna J Watt, McGill University, Canada
Version history
- Received: January 18, 2019
- Accepted: September 29, 2019
- Accepted Manuscript published: September 30, 2019 (version 1)
- Version of Record published: November 12, 2019 (version 2)
Copyright
© 2019, Haraguchi et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 2,005
- Page views
-
- 291
- Downloads
-
- 17
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Genetics and Genomics
- Neuroscience
A hexanucleotide repeat expansion in C9ORF72 is the most common genetic cause of amyotrophic lateral sclerosis (ALS) and frontotemporal dementia (FTD). A hallmark of ALS/FTD pathology is the presence of dipeptide repeat (DPR) proteins, produced from both sense GGGGCC (poly-GA, poly-GP, poly-GR) and antisense CCCCGG (poly-PR, poly-PG, poly-PA) transcripts. Translation of sense DPRs, such as poly-GA and poly-GR, depends on non-canonical (non-AUG) initiation codons. Here, we provide evidence for canonical AUG-dependent translation of two antisense DPRs, poly-PR and poly-PG. A single AUG is required for synthesis of poly-PR, one of the most toxic DPRs. Unexpectedly, we found redundancy between three AUG codons necessary for poly-PG translation. Further, the eukaryotic translation initiation factor 2D (EIF2D), which was previously implicated in sense DPR synthesis, is not required for AUG-dependent poly-PR or poly-PG translation, suggesting that distinct translation initiation factors control DPR synthesis from sense and antisense transcripts. Our findings on DPR synthesis from the C9ORF72 locus may be broadly applicable to many other nucleotide repeat expansion disorders.
-
- Cell Biology
- Neuroscience
The amyloid beta (Aβ) plaques found in Alzheimer’s disease (AD) patients’ brains contain collagens and are embedded extracellularly. Several collagens have been proposed to influence Aβ aggregate formation, yet their role in clearance is unknown. To investigate the potential role of collagens in forming and clearance of extracellular aggregates in vivo, we created a transgenic Caenorhabditis elegans strain that expresses and secretes human Aβ1-42. This secreted Aβ forms aggregates in two distinct places within the extracellular matrix. In a screen for extracellular human Aβ aggregation regulators, we identified different collagens to ameliorate or potentiate Aβ aggregation. We show that a disintegrin and metalloprotease a disintegrin and metalloprotease 2 (ADM-2), an ortholog of ADAM9, reduces the load of extracellular Aβ aggregates. ADM-2 is required and sufficient to remove the extracellular Aβ aggregates. Thus, we provide in vivo evidence of collagens essential for aggregate formation and metalloprotease participating in extracellular Aβ aggregate removal.
