A two-lane mechanism for selective biological ammonium transport

  1. Gordon Williamson
  2. Giulia Tamburrino
  3. Adriana Bizior
  4. Mélanie Boeckstaens
  5. Gaëtan Dias Mirandela
  6. Marcus G Bage
  7. Andrei Pisliakov
  8. Callum M Ives
  9. Eilidh Terras
  10. Paul A Hoskisson
  11. Anna Maria Marini
  12. Ulrich Zachariae  Is a corresponding author
  13. Arnaud Javelle  Is a corresponding author
  1. Strathclyde Institute of Pharmacy and Biomedical Sciences, University of Strathclyde, United Kingdom
  2. Computational Biology, School of Life Sciences, University of Dundee, United Kingdom
  3. Physics, School of Science and Engineering, University of Dundee, United Kingdom
  4. Biology of Membrane Transport Laboratory, Department of Molecular Biology, Université Libre de Bruxelles, Belgium
Research Article
  • Cited 1
  • Views 1,084
  • Annotations
Cite this article as: eLife 2020;9:e57183 doi: 10.7554/eLife.57183

Abstract

The transport of charged molecules across biological membranes faces the dual problem of accommodating charges in a highly hydrophobic environment while maintaining selective substrate translocation. This has been the subject of a particular controversy for the exchange of ammonium across cellular membranes, an essential process in all domains of life. Ammonium transport is mediated by the ubiquitous Amt/Mep/Rh transporters that includes the human Rhesus factors. Here, using a combination of electrophysiology, yeast functional complementation and extended molecular dynamics simulations, we reveal a unique two-lane pathway for electrogenic NH4+ transport in two archetypal members of the family, the transporters AmtB from Escherichia coli and Rh50 from Nitrosomonas europaea. The pathway underpins a mechanism by which charged H+ and neutral NH3 are carried separately across the membrane after NH4+ deprotonation. This mechanism defines a new principle of achieving transport selectivity against competing ions in a biological transport process.

Introduction

The transport of ammonium across cell membranes is a fundamental biological process in all domains of life. Ammonium exchange is mediated by the ubiquitous ammonium transporter/methylammonium-ammonium permease/Rhesus (Amt/Mep/Rh) protein family. The major role of bacterial, fungal, and plant Amt/Mep proteins is to scavenge ammonium for biosynthetic assimilation, whereas mammals are thought to produce Rh proteins in erythrocytes, kidney, and liver cells for detoxification purposes and to maintain pH homeostasis (Biver et al., 2008; Huang and Ye, 2010). In humans, Rh mutations are linked to pathologies that include inherited hemolytic anemia, stomatocytosis, and early-onset depressive disorder (Huang and Ye, 2010). Despite this key general and biomedical importance, so far, no consensus on the pathway and mechanism of biological ammonium transport has been reached.

High-resolution structures available for several Amt, Mep and Rh proteins show a strongly hydrophobic pore leading towards the cytoplasm (Andrade et al., 2005; Gruswitz et al., 2010; Khademi et al., 2004; Lupo et al., 2007; van den Berg et al., 2016). This observation led to the conclusion that the species translocated through Amt/Mep/Rh proteins is neutral NH3. However, this view has been experimentally challenged, first for some plant Amt proteins (Ludewig et al., 2002; Mayer et al., 2006; McDonald and Ward, 2016; Neuhäuser et al., 2014), followed by further in-vitro studies revealing that the activity of bacterial Amt proteins is electrogenic (Mirandela et al., 2019; Wacker et al., 2014). Taken together, these findings renewed a long-standing debate on the mechanism by which a charged molecule is translocated through a hydrophobic pore and how selectivity for NH4+ over competing ions is achieved.

Here, we reveal the pathways, mechanism, and key determinants of selectivity of electrogenic ammonium transport in Amt and Rh proteins, unifying the diverse observations that led to these seemingly incompatible suggestions. The transport mechanism is underpinned by the separate transfer of H+ and NH3 on a unique two-lane pathway following NH4+ sequestration and deprotonation. This mechanism ensures that ammonium – which occurs mainly in protonated form in the aqueous phase – is efficiently translocated across the membrane, while maintaining strict selectivity against K+, a monovalent cation of similar size. This previously unobserved principle is likely to form a new paradigm for the electrogenic members of the Amt/Mep/Rh family. Similar mechanisms may be utilized by other membrane transporters to facilitate the selective translocation of pH-sensitive molecules.

Results and discussion

AmtB and NeRh50 activity is electrogenic

Motivated by our finding that the activity of Escherichia coli AmtB is electrogenic (Mirandela et al., 2019), we first investigated the transport mechanism of the Rh50 protein from Nitrosomonas europaea (NeRh50). Rh and Amt proteins are distant homologs, and thus a functional distinction between both subfamilies has been proposed (Huang and Ye, 2010). The architecture of NeRh50 is highly representative of Rh proteins (Gruswitz et al., 2010; Lupo et al., 2007) which have been repeatedly reported to serve as electroneutral NH3 or CO2 gas channels (Cherif-Zahar et al., 2007; Hub et al., 2010a; Li et al., 2007; Lupo et al., 2007; Weidinger et al., 2007). The activity of purified NeRh50 reconstituted into liposomes was quantified using Solid-Supported Membrane Electrophysiology (SSME) (Bazzone et al., 2017) experiments, where we recorded a NH4+-selective current (Figure 1) with a decay rate that is strongly dependent on the lipid-to-protein ratio (LPR; Table 1, Figure 1—figure supplement 1). Expressed in a Saccharomyces cerevisiae triple-mepΔ strain, deprived of its three endogenous Mep ammonium transporters, NeRh50 complemented the growth defect on minimal medium containing ammonium as sole nitrogen source (Figure 1). The electrogenic transport activity observed for NeRh50 and AmtB may suggest a common transport mechanism amongst the distant Amt and Rh proteins, but more experiments are needed to conclusively confirm this. Also, the NH4+ selectivity of both transporters further highlighted the question of how these proteins achieve selective charge translocation through their hydrophobic pore.

Figure 1 with 1 supplement see all

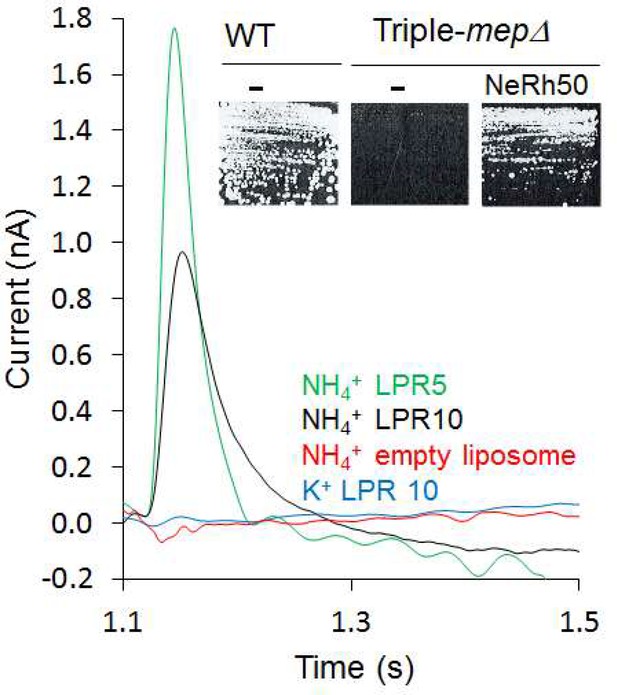

Characterization of the activity of NeRh50.

Transient current measured using SSME after a 200 mM pulse (ammonium or potassium). Insert: Yeast complementation by NeRh50 (strain 31019b, mep1Δ mep2Δ mep3Δ ura3) on minimal medium supplemented with 3 mM ammonium as sole nitrogen source.

Table 1
Decay time constants (s−1) of transient currents triggered after an ammonium or potassium pulse of 200 mM in proteoliposomes containing AmtB at various LPR*.
NH4+K+
VariantLPR 10LPR 5LPR 10LPR 5
AmtB-WT13.4 ± 1.518.7 ± 1.0NCNC
D160A21.6 ± 1.224.3 ± 1.5NCNC
D160E17.03 ± 2.8419.53 ± 1.8NCNC
H168A H318A29.5 ± 2.129.8 ± 2.6NCNC
S219A H168A H318ANCNCNCNC
H168A28.3 ± 1.538.0 ± 1.02.7 ± 0.55.2 ± 1.0
H318A22.56 ± 2.6328.25 ± 3.110.07 ± 1.715.64 ± 2.1
NeRh5024.0 ± 1.739.0 ± 3.6NCNC
  1. *NC: No transient current recorded.

Two interconnected water wires form an H+ translocation pathway in AmtB

We next made use of the most substantive body of structural information available for the archetypal ammonium transporter AmtB from E. coli and its variants to decipher the molecular mechanism of electrogenic NH4+ transport (Dias Mirandela et al., 2018). Computational (Wang et al., 2012) and experimental studies (Ariz et al., 2018) have suggested that deprotonation of NH4+ is likely to be a major step in ammonium transport. We therefore aimed to identify dynamic polar networks across AmtB that could form a transfer pathway through the protein for the translocation of H+, coming from NH4+ deprotonation. AmtB forms homotrimers in the cytoplasmic membrane, in which each monomer exhibits a potential periplasmic NH4+ binding region (S1) near residue D160, followed by a strongly hydrophobic pore leading towards the cytoplasm (Figure 2A; Khademi et al., 2004). Two highly conserved histidine residues, H168 and H318, protrude into the lumen, forming the family’s characteristic ‘twin-His’ motif (Javelle et al., 2006). The only variation in the twin-His motif in members of the Amt/Mep/Rh family is in numerous fungal Mep transporters where the first His, corresponding to H168, is replaced by a Glu (Javelle et al., 2006). The general conservation pattern in the AmtB pore, as analysed with ConSurf (Ashkenazy et al., 2016), is shown in Figure 2—figure supplement 1.

Figure 2 with 4 supplements see all

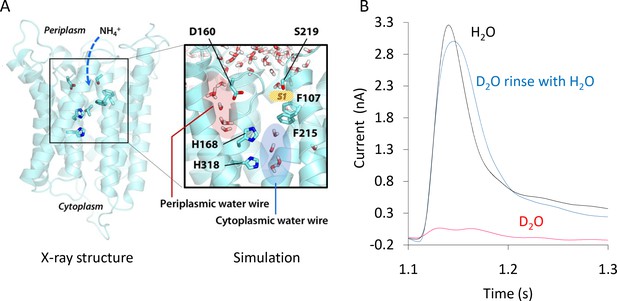

Formation and functionality of the periplasmic (PWW) and cytoplasmic (CWW) water wires in AmtB.

(A) Extended atomistic simulations show a hydration pattern across the protein, in which cytoplasmic and periplasmic water wires, connected via H168, form a continuous pathway for proton transfer from the S1 NH4+ sequestration region to the cytoplasm. (B) Transient currents measured following a 200 mM ammonium pulse on sensors prepared with solutions containing either H2O (black) or D2O (red). D2O sensors were rinsed with H2O solutions and subsequently exposed to another 200 mM ammonium pulse (blue).

To locate potential polar transfer routes, we performed atomistic molecular dynamics (MD) simulations of AmtB in mixed lipid bilayers. The simulations initially showed hydration of part of the putative hydrophobic NH3 pathway from the twin-His motif to the cytoplasm (cytoplasmic water wire – CWW; Figure 2A), confirming previous observations (Lamoureux et al., 2007). Notably, a new observation we made over longer simulation timescales is the presence of a previously unidentified second water-filled channel (periplasmic water wire - PWW). The PWW spans from residue D160 near the S1 region to the central twin-His motif (Figure 2A) and is formed both in simulations without and with applied membrane voltage Vm (Figure 2A - Figure 2—figure supplement 2; Vm in E. coli ~ −140 mV [Felle et al., 1980]).

As the protonation pattern of the twin-His motif has been found to play a role in the hydration of the protein (Ishikita and Knapp, 2007), two different tautomeric states of the twin-His motif were systematically probed in the simulations. The tautomeric state in which H168 is protonated on its Nδ and H318 is protonated on its Nε atom is referred to as ’DE’, while ’ED’ terms the twin-His configuration where H168 is protonated on Nε and H318 is protonated on Nδ (Figure 2A- Figure 2—figure supplement 2, 3, 4). Formation of the CWW is observed to occur within a few nanoseconds at the beginning of each simulation. In the DE tautomeric state, the cytoplasmic pocket of each subunit almost continuously remains occupied by 3–4 water molecules for the rest of the simulation (Figure 2A - Figure 2—figure supplement 2, 3, 4; data for 0 mV membrane voltage). In the ED state, greater fluctuations in the number of water molecules in the chain are seen, and the average occupancy is decreased. Using a cut-off value of three water molecules per subunit, a complete water chain is present during 79% of the simulations in the DE state, and only during 12% of the simulated time in the ED state. The PWW is generally more transiently occupied than the cytoplasmic channel; however, we record up to 23% occupancy with at least three water molecules when the histidine sidechains are in the ED tautomeric state (Figure 2A - Figure 2—figure supplement 2, 3, 4).

Both water wires are connected via the twin-His motif, which bridges the aqueous chains, while preventing the formation of a continuous water channel in the simulations. Although neither the CWW nor the PWW are sufficiently wide to allow the transfer of solvated NH4+, water molecules and histidine side chains could serve as efficient pathways to facilitate proton transfer in proteins (Acharya et al., 2010). As shown in Figure 2—figure supplement 1, the key residues that line both water wires in AmtB are highly conserved in the family.

The interconnected water wires are functionally essential to AmtB activity

To experimentally test if the water wires are essential for proton conduction during the AmtB transport cycle, we made use of the reduced deuteron mobility of heavy water D2O. Because deuterons have twice the mass of a proton and the bond strength is increased, the deuteron mobility is reduced by 30% for each D2O molecule compared to normal water (Wiechert and Beitz, 2017). Since the polar network of water we identified involves more than three water molecules (Figure 2A), AmtB should be nearly inactive if tested in the presence of D2O. Indeed, we found that in an SSME-based assay where all buffers used to prepare the proteoliposomes and SSM sensors were made using D2O, AmtB activity was completely abolished compared to buffer containing water (Figure 2B). After rinsing the sensor prepared in D2O with water, AmtB re-gained 100% of its activity measured by SSME, showing that the presence of D2O did not affect the protein itself or the integrity of the proteoliposomes (Figure 2B). Further calculations suggested that H+ transfer between the water molecules is possible both within the PWW and CWW and could occur with high rates (the highest energy barrier is ~18 kJ/mol in the cytoplasmic wire near the twin-His motif; Table 2). Taken together, the experimental and computational data suggest that proton transfer between water molecules, most likely the PWW and CWW detected in the simulations, may underpin the electrogenic activity of AmtB.

Table 2
Free energies for proton translocation through the cytoplasmic and periplasmic water wires and neighboring water molecules (bulk)*.
Z (Å)Free energy (kJ/mol)
(bulk)Peripl. water wirewat114.70.0
wat212.78.7
wat310.715.0
wat48.314.4
wat56.17.5
D160wat65.411.0
wat73.214.4
wat80.618.5
H168
cytopl. water wirewat9−0.417.3
wat10−0.814.4
wat11−3.212.1
H318wat12−5.113.8
  1. *The vertical coordinate z was calculated relative to the position of the sidechain of H168. Positions of the sidechains of D160, H168 and H318 with respect to the periplasmic and cytoplasmic water wires are indicated in the left column.

AmtB activity is not driven by the proton motive force

In the absence of ammonium, a proton pulse did not trigger a discernible current and additionally, in the presence of ammonium, an inward-orientated pH gradient did not increase AmtB activity (Figure 3). These findings suggest that there is no H+-dependent symport activity of AmtB, showing instead that AmtB is not able to translocate a proton in the absence of NH4+, and indicating that the current induced by AmtB activity is generated by specific deprotonation of the substrate and subsequent H+ translocation. Furthermore, they show that AmtB cannot act as an uncoupler, which raises the question of proton selectivity and the coupling between NH3 and H+ transfer (Boogerd et al., 2011; Maeda et al., 2019). Our current data suggest that the PWW is transiently occupied and that its occupancy is strongly dependent on the particular state and conformation of D160, since even a D to E conservative change abolished presence of the PWW (Figure 4A). Any disruption of the PWW will, in turn, impede the capability of AmtB to transfer H+. The functionally relevant conformation and protonation state of D160 that stabilize the PWW is likely to be coupled to the presence of a charged substrate binding near S1, thereby linking substrate binding and deprotonation to H+ transfer.

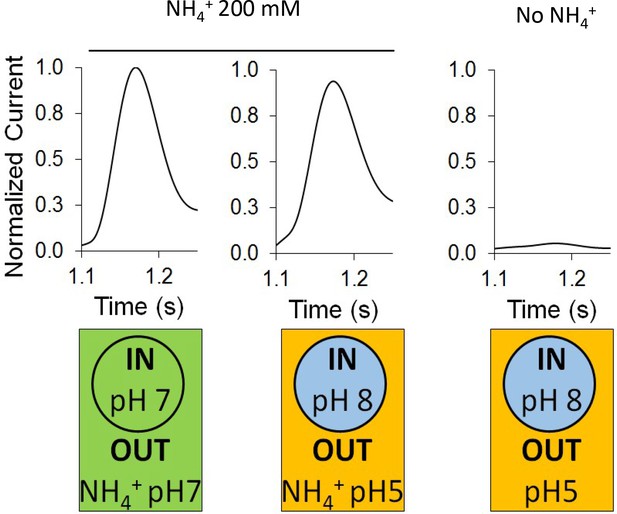

Effect of a proton gradient on AmtB activity.

The transient currents were measured using SSME following an ammonium pulse of 200 mM at pH 7 (left) or under an inwardly directed pH gradient in the presence (center) or absence (right) of ammonium. eight sensors from two independent protein purification batches were measured, with three measurements recorded for each sensor. Single representative traces were chosen to visualize the results. Each sensor was measured in the order pH (in/out) 7/7, 8/5, 8/5 (this time without NH4+), and finally 7/7 again to be sure that the signals do not significantly decrease with time. The data are normalized against the measurements done at pH7 in/out for each sensor.

Figure 4 with 2 supplements see all

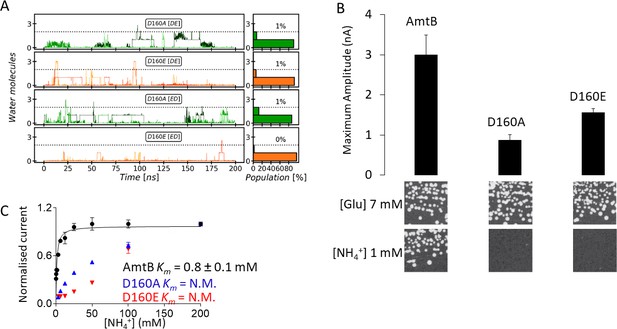

Effect of D160 substitutions.

(A) The Periplasmic Water Wire (PWW) in the D160A and D160E variants. We observe no significant occupancy of the PWW above the threshold of at least three water molecules in the D160A and D160E AmtB variants, irrespective of the tautomeric protonation states of H168 and H318 (DE or ED, see Materials and method section). (B) Upper panel: maximum amplitude of the transient current measured using SSME following a 200 mM ammonium pulse. Eight sensors from two independent protein purification batches were measured, with three measurements recorded for each sensor (means ± SD). Lower panel: yeast complementation test (strain 31019b, mep1Δ mep2Δ mep3Δ ura3) using 7 mM Glutamate (Glu) or 1 mM ammonium as a sole nitrogen source. The growth tests have been repeated twice. (C) Kinetics analysis of the transport of ammonium. The maximum amplitudes recorded after a 200 mM ammonium pulse have been normalized to 1.0 for comparison. N.M.: Non Measurable. eight sensors from two independent protein purification batches were measured, with three measurements recorded for each sensor (means ± SD).

The residue D160 is essential to stabilize the PWW

As the PWW is formed near the sidechain of D160, an invariant residue in the Amt/Mep/Rh superfamily (Marini et al., 2006; Thomas et al., 2000), we further investigated the role of this residue in ensuring PWW and CWW stability by simulating the AmtB D160A and D160E mutants. Both mutants were stable on the time scale of our simulations and we did not detect major rearrangements in the protein. Moreover, all the elution profiles of the purified WT and variants proteins obtained by analytical size exclusion chromatography, before and after solubilization of the proteoliposomes in 2% DDM, were identical, showing a single monodisperse peak eluting between 10.4–10.6 ml (Figure 4—figure supplement 1). Taken together, these results suggest that major structural re-arrangements in the mutants are unlikely to occur. The simulations revealed no difference in the formation of the CWW in the D160A and D160E variants compared to the WT, however the formation of the PWW is almost completely abolished in the presence of these mutations (Figure 4A).

We then expressed wild-type AmtB as well as the D160A and D160E mutants in S. cerevisiae triple-mepΔ. Using ammonium as the sole nitrogen source, we found that cells expressing the mutants failed to grow, showing that AmtBD160A or AmtBD160E are unable to replace the function of the endogenous Mep transporters (Figure 4B).

The activity of the purified variants reconstituted into liposomes was next quantified using SSME. Electrogenic transport activity, triggered by a 200 mM ammonium pulse, led to a transient current with a maximum amplitude of 3.38 nA in AmtB, while AmtBD160A and AmtBD160E displayed reduced maximum currents of 0.63 nA and 1.42 nA respectively (Figure 4B, Figure 4—figure supplement 2). Importantly, the lifetime of currents in both variants was unaffected by changes in liposomal LPR, and therefore the small transient current accounts for the binding of a NH4+ to the proteins and not a full translocation cycle (Table 1, Figure 4—figure supplement 2; Bazzone et al., 2017). Additionally, it was impossible to determine with confidence a catalytic constant (Km) for both variants since no clear saturation was reached, even after an ammonium pulse of 200 mM (Figure 4C). These results thus demonstrate that AmtBD160A and AmtBD160E are transport-deficient. Our data show that residue D160 plays a central role in the transport mechanism as opposed to having a strictly structural role as previously suggested (Khademi et al., 2004). Moreover, the fact that the conservative D to E variation at position 160 impairs ammonium transport via AmtB indicates that D160 does not only show electrostatic interaction with NH4+ at the S1 site but is also involved in the translocation mechanism by stabilizing the PWW.

AmtB switches from transporter to channel-like activity in the absence of the ‘twin-His’ motif

The CWW and PWW are connected via the twin-His motif, which bridges the aqueous chains, while preventing the formation of a continuous water channel in the simulations (Figure 2A). We therefore next probed if the twin-His motif enables proton transfer between the two water wires by recording the activities of twin-His variants. Expressed in S. cerevisiae triple-mepΔ, AmtBH168A/H318A did not support cell growth on low ammonium (Figure 5A). In-vitro SSME measurements with this variant displayed LPR-independent current decay rates (Figure 5A, Figure 5—figure supplement 1, Table 1), showing that the residual current is caused by the association of NH4+ to AmtB without further transport. No current was recorded for the triple mutant AmtBS219A/H168A/H318A, in which binding at the periplasmic face was further altered, confirming that the residual current reflects NH4+ interaction near S1 (Figure 5—figure supplement 1). The double-His mutant AmtBH168A/H318A is thus able to interact with NH4+ but cannot transport the substrate across the membrane. This supports our previous structural analysis showing that the CWW in the pore of the double-His mutant AmtBH168A/H318A is absent (Javelle et al., 2006).

Figure 5 with 2 supplements see all

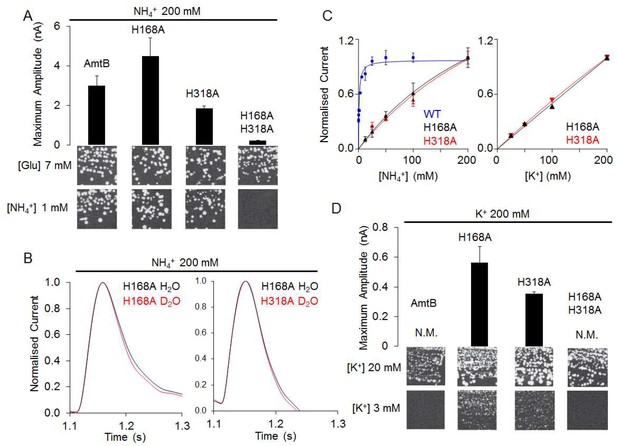

The AmtBH168A and AmtBH318A lose their specificity toward ammonium.

(A) Upper panels: maximum amplitude of the transient current measure using SSME after a 200 mM ammonium pulse. Eight sensors from two independent protein purification batches were measured, with three measurements recorded for each sensor (means ± SD). Lower panels: yeast complementation test (strain 31019b, mep1Δ mep2Δ mep3Δ ura3) using 7 mM Glutamate (Glu) or 1 mM ammonium as a sole nitrogen source. The growth tests have been repeated twice. (B) Transient currents measured using SSME following a 200 mM ammonium pulse on sensors prepared with solutions containing either H2O (black) or D2O (red). The maximum amplitudes recorded after a 200 mM ammonium pulse on sensor prepared in H2O have been normalized to 1.0 for comparison. eight sensors from two independent protein purification batches were measured, with three measurements recorded for each sensor (means ± SD). (C) Kinetics analysis of the transport of NH4+ (or K+ in AmtBH168A (black), AmtBH318A (red) and WT-AmtB (bleu, only for NH4+, as no signal was measurable with K+). The maximum amplitudes recorded after a 200 mM NH4+ or K+ pulse have been normalized to 1.0 for comparison. Eight sensors from two independent protein purification batches were measured, with three measurements recorded for each sensor (means ± SD). (D) Upper panels: maximum amplitude of the transient current measured using SSME after a 200 mM potassium pulse. N.M. Non Measurable. Eight sensors from two independent protein purification batches were measured, with three measurements recorded for each sensor (means ± SD). Lower panels: yeast complementation test (strain #228, mep1Δ mep2Δ mep3Δ trk1Δ trk2Δ leu2 ura3) using media supplemented with 20 mM or 3 mM KCl. The growth test has been repeated twice.

By contrast, the two single histidine-to-alanine substitutions in the twin-His motif unexpectedly produced an LPR-dependent current in our SSME recordings (Figure 5A, Figure 5—figure supplement 1, Table 1). Furthermore, triple-mepΔ yeast cells expressing these variants were able to grow in the presence of low ammonium concentrations (Figure 5A). Our previous crystal structure (Javelle et al., 2006) and our MD simulations (Figure 5—figure supplement 2) show increased hydration in the area around A168, which could potentially form a pathway for direct translocation of NH4+ without a deprotonation step. To test this hypothesis, we measured the activity of AmtBH168A and AmtBH318A in D2O conditions, as described above. Crucially, the activity of both variants measured in the presence or absence of D2O was similar (Figure 5B), in contrast to native AmtB where no activity was recorded in D2O (Figure 2B), showing that proton transfer between water molecules is not a key mechanistic feature in the activity of the mutants. Additionally, the translocation of NH4+ is not saturable in the tested concentration range [12.5–200 mM] for AmtBH168A and AmtBH318A (Figure 5C). Summarizing, these results suggest that AmtB switches from transporter- to channel-like activity in the absence of the twin-His motif, directly translocating hydrated NH4+ through the pore. In the wild-types of Amt/Mep/Rh protein family members, the twin-His motif is highly conserved, which shows that transporter, as opposed to channel activity, is mechanistically crucial for the function of these proteins. The only variation seen in naturally occurring sequences is a replacement of the first His by Glu in some fungal Mep proteins (Javelle et al., 2006; Thomas et al., 2000). Channel activity is so far only observed for the alanine mutants, not the wild-type. We hypothesized that transport activity might thus be key to ensure ion selectivity of AmtB, since NH4+ and K+ are cations of similar size and hydration energy (Aydin et al., 2020).

The twin-His motif interconnects the two water wires to ensure the selectivity of AmtB

Since NH4+ was directly translocated in the absence of the twin-his motif and earlier studies implicated a role of the motif in AmtB selectivity (Ganz et al., 2020; Hall and Yan, 2013), we repeated our SSME experiments on the AmtBH168A and AmtBH318A variants using the competing K+ ion as substrate. A 200 mM K+ pulse triggered currents in both variants, whose decay rates strongly depended on the LPR (Figure 5D, Table 1, Figure 5—figure supplement 1). Furthermore, the single His variants, but not native AmtB, complemented the growth defect of a yeast strain lacking its three endogenous ammonium (Mep) and potassium (Trk) transporters when a limited concentration of K+was present (Figure 5D). The K+ translocation activity is not saturable in the substrate range [12.5–200 mM] (Figure 5C). These results demonstrate that both variants, AmtBH168A and AmtBH318A, translocate K+ ions across the membrane. The substitutions within the twin-His motif thus abolished selectivity for NH4+.

The presence of both histidine residues is therefore critical in ammonium transport, since permeability of ammonium transporters for K+ would compromise ionic homeostasis and disrupt the membrane potential of E. coli cells, which crucially depends on maintaining K+ concentration gradients across the membrane. Moreover, since AmtB is expressed in E. coli under nitrogen starvation conditions (low NH4+/K+ ratio), loss of selectivity for NH4+ would impede ammonium uptake. Our results thus demonstrate that the twin-His motif, which is highly conserved amongst members of the family, is an essential functional element in the transport mechanism, preventing the transport of competing cations, whilst providing a pathway for proton transfer by bridging the periplasmic and the cytoplasmic water wires.

NH3 permeation through the hydrophobic pore

Umbrella sampling free-energy calculations were performed to establish the rate limiting step of NH4+ transport. Our calculations show that NH3 translocation experiences only a moderate energy barrier (~10 kJ/mol) at the periplasmic hydrophobic constriction region (F107 and F215) (Figure 6). The starting points of the sampling windows were determined from the centers of HOLE calculations (Smart et al., 1996), optimizing the pathway of NH3 translocation across the pore. A possible influence from this selection regarding the pathway was further reduced by allowing the molecule to move freely perpendicular to the pore axis within a radius of 5 Å in addition to extensive sampling; however, residual bias from window selection cannot be completely excluded. From the free energy profile of NH3 translocation, we identified a shallow binding site below the twin-His motif (~5 kJ/mol). This is followed by a second hydrophobic region (I28, V314, F31 and Y32) that forms a small energy barrier between this binding site and the cytoplasmic exit. The increased residence time of NH3 within this energy minimum suggests that reprotonation to NH4+, caused by the cytoplasmic pH, occurs in this region (Figure 6). Since both energy barriers for H+ transfer along the water chains and NH3 permeation are relatively small, we concluded that either initial deprotonation or proton transfer across the twin-His motif could be rate-limiting for overall NH4+ transport.

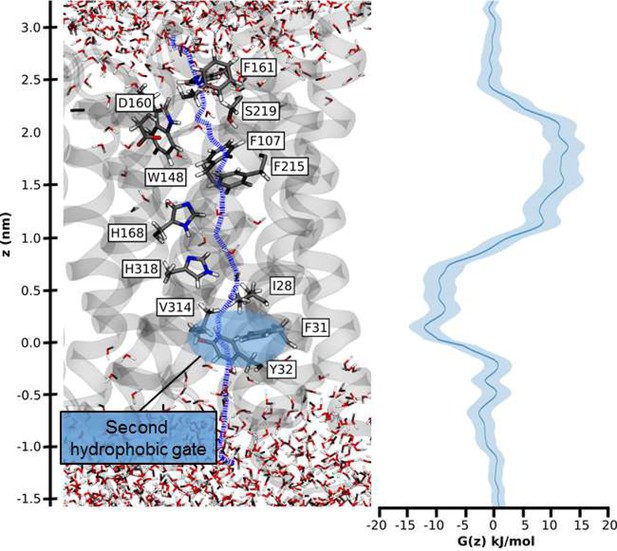

Hydrophobic pathway and energetics for NH3 translocation in AmtB.

We probed an optimal pathway for NH3 transfer during our PMF calculations (left, purple dash trajectory) in the presence of both the PWW and CWW. The software HOLE (49) was used to determine the most likely transfer route. The pathway from the periplasm to the cytoplasm traverses the hydrophobic gate region (F107 and F215), crosses the cavity next to the twin-His motif (H168 and H318) occupied by the CWW, and continues across a second hydrophobic region (I28, V314, F31, Y32) before entering the cytoplasm.

Conclusion

A new model for the mechanism of electrogenic ammonium transport therefore emerges from our findings (Figure 7). After deprotonation of NH4+ at the periplasmic side, a previously undiscovered polar conduction route enables H+ transfer into the cytoplasm. A parallel pathway, lined by hydrophobic groups within the protein core, facilitates the simultaneous transfer of uncharged NH3, driven by concentration differences. On the cytoplasmic face, the pH of the cell interior leads to recombination to NH4+, most likely near a second hydrophobic gate (Figure 6). The twin-His motif, which bridges the water chains constitutes the major selectivity gate for NH4+ transport preventing K+ flow. We propose that this mechanism is conserved amongst the electrogenic members of the Amt/Mep/Rh family. Importantly, two RhAG polymorphisms associated to the overhydrated stomatocytosis human syndrome have also acquired the ability to transport K+. Thus, deciphering the transport mechanism of two archetypal members of the family such as AmtB and NeRh50 could bring new insights to the understanding of substrate specificity determinants in Rh proteins in the context of human diseases (Bruce et al., 2009).

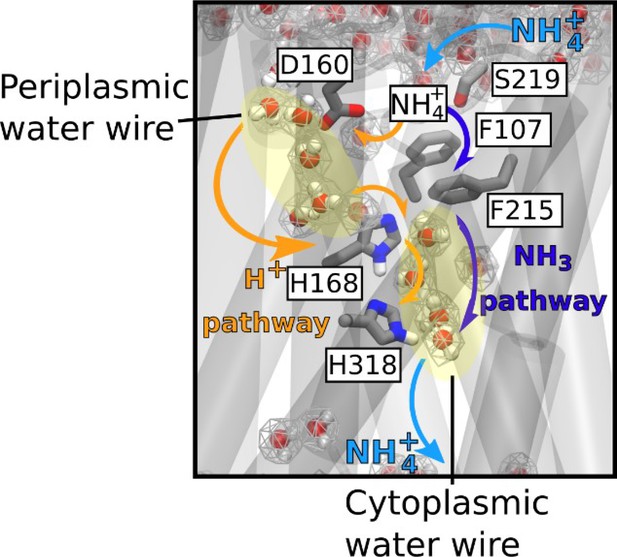

Mechanism of electrogenic NH4+ translocation in AmtB.

Following sequestration of NH4+ at the periplasmic face, NH4+ is deprotonated and H+ and NH3 follow two separated pathways to the cytoplasm (orange arrows depict the pathway for H+ transfer, dark blue arrows for NH3), facilitated by the presence of two internal water wires. NH3 reprotonation likely occurs near the cytoplasmic exit (Figure 6). The hydrated regions within the protein as observed in simulations are highlighted by wireframe representation, crucial residues involved in the transport mechanism are shown as sticks.

Our findings define a new mechanism, by which ionizable molecules that are usually charged in solution are selectively and efficiently transported across a highly hydrophobic environment like the AmtB/Rh pore. Alongside size-exclusion and ion desolvation (Kopec et al., 2018), it adds a new principle by which selectivity against competing ions can be achieved. Other biological transport systems, like the formate/nitrite transporters, may share similar mechanisms involving deprotonation-reprotonation cycles (Wiechert and Beitz, 2017).

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Gene (Escherichia coli)AmtBZheng et al., 2004Uniprot: C3TLL2
Gene
(Nitrosomonas europea)
Rh50Lupo et al., 2007Uniprot Q82 × 47
Strain, strain background (Escherichia coli)C43 (DE3)Miroux and Walker, 1996Chemically competent cells
Strain, strain background
(Escherichia coli)
GT1000Javelle et al., 2004Chemically competent cells
Recombinant DNA reagentpET22b (+)NovagenCat# - 69744
Recombinant DNA reagentpDR195Rentsch et al., 1995Addgene - 36028High copy yeast expression vector
Recombinant DNA reagentpAD7Cherif-Zahar et al., 2007pESV2-RH50(His)6
Recombinant DNA reagentp426MET25Mumberg et al., 1994
Recombinant DNA reagentPZhengZheng et al., 2004pET22b-AmtB(His)6
Recombinant DNA reagentpGDM2This studypET22b-AmtB(His)6H168AH318A
Recombinant DNA reagentpGDM4This studypET22b-AmtB(His)6D160A
Recombinant DNA reagentpGDM5This studypET22b-AmtB(His)6D160E
Recombinant DNA reagentpGDM6This studypET22b-AmtB(His)6S219AH168AH318A
Recombinant DNA reagentpGW2This studypET22b-AmtB(His)6H168A
Recombinant DNA reagentpGDM9This studypDR195-AmtB(His)6D160A
Recombinant DNA reagentpGDM10This studypDR195-AmtB(His)6D160E
Recombinant DNA reagentpGDM12This studypDR195-AmtB(His)6H168AH318A
Recombinant DNA reagentpGDM13This studypDR195-AmtB(His)6S219AH168AH318A
Recombinant DNA reagentpGW7This studypDR195-AmtB(His)6H168A
Sequence-based reagentAmtBS219A FIDTPCR Primer (Mutagenesis)GGTGGCACCGTGGTGGATATTAACGCCGCAATC
Sequence-based reagentAmtBD160A FIDTPCR Primer (Mutagenesis)CTCACGGTGCGCTGGCCTTCGCGGGTGGCACC
Sequence-based reagentAmtBD160E FIDTPCR Primer (Mutagenesis)CTCACGGTGCGCTGGAGTTCGCGGGTGGCACC
Sequence-based reagentAmtBH168A FIDTPCR Primer (Mutagenesis)GGTGGCACCGTGGTGGCCATTAACGCCGCAATC
Sequence-based reagentAmtBH318A FIDTPCR Primer (Mutagenesis)TGTCTTCGGTGTGGCCGGCGTTTGTGGCATT
Sequence-based reagentAmtB XhoIIDTPCR primer
AGTCCTCGAGATGAAGATAGCGACGATAAAA
Sequence-based reagentAmtB BamHIIDTPCR primerAGTCGGATCCTCACGCGTTATAGGCATTCTC
Sequence-based reagentP5’NeRhIDTPCR primerGCCACTAGTATGAGTAAACACCTATGTTTC
Sequence-based reagentP3’NeRhIDTPCR primerGCCGAATTCCTATCCTTCTGACTTGGCAC
Peptide, recombinant proteinAmtB(His)6This studypurified from E. coli C43 (DE3) cells
Peptide, recombinant proteinAmtB(His)6D160AThis studypurified from E. coli C43 (DE3) cells
Peptide, recombinant proteinAmtB(His)6 D160EThis studypurified from E. coli C43 (DE3) cells
Peptide, recombinant proteinAmtB(His)6 H168AH318AThis studypurified from E. coli C43 (DE3) cells
Peptide, recombinant proteinAmtB(His)6 S219AH168AH318AThis studypurified from E. coli C43 (DE3) cells
Peptide, recombinant proteinAmtB(His)6 H168AThis studypurified from E. coli C43 (DE3) cells
Peptide, recombinant proteinAmtB(His)6 H318AThis studypurified from E. coli C43 (DE3) cells
Peptide, recombinant proteinNeRh50(His)6This studypurified from E. coli C43 GT1000 cells
Peptide, recombinant proteinXhoIPromegaCat# - R6161
Peptide, recombinant proteinBamHIPromegaCat# - R6021
Commercial assay or kitQuikchange XL site-directed
mutagensis kit
Agilent TechnologiesCat# 200516
Chemical compound, drugn-dodecyl-β-D-maltopyranoside (DDM)AvantiCat#- 850520
Chemical compound, druglauryldecylamine oxide (LDAO)AvantiCat#- 850545
Chemical compound, drugE. coli Polar LipidsAvantiCat#−100600
Chemical compound, drugPhosphotidylcholine (POPC)AvantiCat#−850457
Software, algorithmGraphpad Prism softwareGraphPad Prism (https://www.graphpad.com)Version 6.01
Software, algorithmOrigin Pro SoftwareOrigin Labs (https://www.originlab.com)Origin 2017 Version 94E
Software, algorithmSURFE2R Control SoftwareNanion
(https://www.nanion.de/en/)
V1.5.3.2

Mutagenesis

AmtB mutants were generated using the Quikchange XL site-directed mutagenesis kit (Agilent Technologies), according to the manufacturer’s instructions. The primers used for mutagenesis are listed in Key resources table. The template was the amtB gene cloned into the plasmid pET22b(+), as previously described (Zheng et al., 2004; Key resources table).

AmtB and NeRh50 expression in yeast and complementation test

Request a detailed protocol

The different variants of amtB were amplified using amtB cloned into pET22b(+) (Key resources table) as a template with the primers AmtB XhoI and AmtB BamHI (Key resources table) and then sub-cloned into the plasmids pDR195 (Key resources table). The NeRh50 gene was amplified from N. europaea genomic DNA (kind gift from Daniel J. Arp and Norman G. Hommes, Department of Botany and Plant Pathology, Oregon State University, Corvallis, USA) using the primers P5’NeRh and P3’NeRh (Key resources table), and was then cloned into the SpeI and EcoRI restriction sites of the high-copy vector p426Met25 (Key resources table), allowing controlled-expression of NeRh50 by the yeast methionine repressible MET25 promoter.

Saccharomyces cerevisiae strains used in this study are the 31019b strain (mep1Δ mep2Δ mep3Δ ura3) and the #228 strain (mep1Δ mep2Δ mep3Δ trk1Δ trk2Δ leu2 ura3) (Hoopen et al., 2010; Marini et al., 1997). The plasmids used in this study are listed in Key resources table. Cell transformation was performed as described previously (Gietz et al., 1992). For growth tests on limiting ammonium concentrations, yeast cells were grown in minimal buffered (pH 6.1) medium and for growth tests on limiting potassium concentrations, a minimal buffered (pH 6.1) medium deprived of potassium salts was used (Jacobs et al., 1980). 3% glucose was used as the carbon source and, 0.1% glutamate, 0.1% glutamine or (NH4)2SO4 at the specified concentrations were used as the nitrogen sources.

All growth experiments were repeated at least twice.

Protein purification

Request a detailed protocol

AmtB(His6) cloned into the pET22b(+) vector (Key resources table) was overexpressed and purified as described previously (Zheng et al., 2004). The plasmid pAD7 (Key resources table) was used to overexpress NeRh50 in the E. coli strain GT1000 (Javelle et al., 2004). GT1000 was transformed with pAD7 and grown in M9 medium (Elbing and Brent, 2002), in which ammonium was replaced by 200 μg/ml glutamine as sole nitrogen source. NeRh50 was purified as described by Lupo et al., 2007 with minor modifications, namely: the membrane was solubilized using 2% lauryldecylamine oxide (LDAO) instead of 5% n-octyl-β-D-glucopyranoside (OG), and 0.09% LDAO was used in place of 0.5% β-OG in the final size exclusion chromatography buffer (50 mL Tris pH 7.8, 100 mL NaCl, 0.09% LDAO).

AmtB and NeRh50 insertion into proteoliposomes

Request a detailed protocol

AmtB and NeRh50 were inserted into liposomes containing E. coli polar lipids/phosphatidylcholine (POPC) 2/1(wt/wt) as previously described (Mirandela et al., 2019). For each AmtB variant, proteoliposomes were prepared at lipid-to-protein ratios (LPRs) of 5, 10, and 50 (wt/wt). The size distribution of proteoliposomes was measured by dynamic light scattering (DLS) using a Zetasizer Nano ZS (Malvern Instruments, Malvern, UK). This analysis showed that the proteoliposomes had an average diameter of 110 nm (Figure 8). Proteoliposomes were divided into 100 µL aliquots and stored at −80°C.

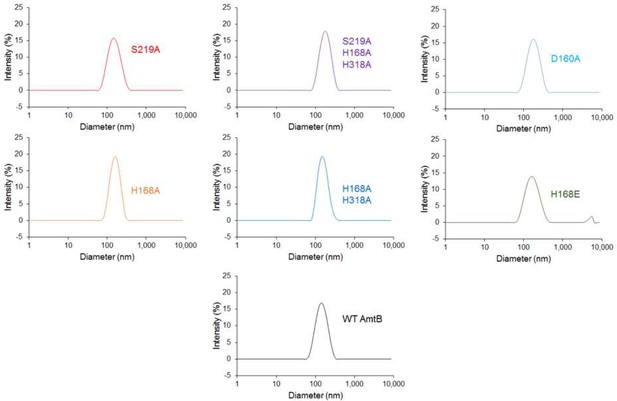

Size distribution of the proteoliposomes containing wild-type and variants of AmtB.

Dynamic light scattering was used to determine the number-weighted distribution of liposome sizes in the detection reagent. The distribution was monodisperse, with a mean diameter of 110 nm.

To ensure that all AmtB variants were correctly inserted into the proteoliposomes, the proteoliposomes were solubilized in 2% DDM and the proteins analyzed by size exclusion chromatography using a superdex 200 (10 × 300) enhanced column. The elution profile of all variants and the wild-type were identical, showing a single monodisperse peak eluting between 10.4–10.6 ml (Figure 4—figure supplement 1). This demonstrated that all proteins were correctly folded, as trimers, in the proteoliposomes.

Solid supported membrane electrophysiology

Request a detailed protocol

To form the solid-supported membrane, 3 mm gold-plated sensors were prepared according to the manufacturer’s instructions (Nanion Technologies, Munich, Germany), as described previously (Bazzone et al., 2017). Proteoliposomes/empty liposomes were defrosted and sonicated in a sonication bath at 35 W for 1 min, diluted 10 times in non-activating (NA) solution (Supplementary file 1), and then 10 µl were added at the surface of the SSM on the sensor. After centrifugation, the sensors were stored at 4°C for a maximum of 48 hr before electrophysiological measurements. For the D2O experiments, all the solutions were prepared using D2O instead of water.

All measurements were made at room temperature (21°C) using a SURFE2R N1 apparatus (Nanion Technologies, Munich, Germany) with default parameters (Bazzone et al., 2017). Prior to any measurements, the quality of the sensors was determined by measuring their capacitance (15–30 nF) and conductance (<5 nS).

For functional measurements at a fixed pH, a single solution exchange protocol was used with each phase lasting 1 s (Bazzone et al., 2017). First, non-active (NA) solution was injected onto the sensor, followed by activating (A) solution containing the substrate at the desired concentration and finally NA solution (Supplementary file 1).

For the measurements under inwardly orientated pH gradient, a double solution exchange protocol was used (Bazzone et al., 2017), in which an additional resting solution phase of 15 min in NA solution at pH 8 was added to the end. The incubation phase adjusts the inner pH of the proteoliposomes to pH 8 and establishes a pH gradient at the beginning of each measurement by pulsing the activation solution at pH 5.

Each sensor was measured in the order pH (in/out) 7/7, 8/5 (with NH4+), 8/5 (without NH4+), and finally again 7/7 to ensure that the signals do not significantly decrease with time. The data are normalized against the measurements conducted at pH7 in/out for each sensor. All measurements were recorded on 8 sensors from two independent protein purification batches, with 3 measurements recorded for each sensor.

The kinetic parameters were calculated using Graphpad Prism 6 (GraphPad Software, San Diego, California, USA) and fitted according to the Michaelis-Menten equation (Key resources table). Lifetime analysis of the current (decay time of the transient current) was performed to differentiate small pre-steady state currents, which arise due to the binding of a charged species to membrane proteins, from currents reflecting full transport cycles, which show faster decay rates under raised liposomal LPR (Bazzone et al., 2017). The decay time of the transient current (Table 1) was calculated by fitting the raw transient current data between the apex of the peak and the baseline (after transport) with a non-linear regression using OriginPro 2017 (OriginLab, Northampton, Massachusetts, USA). The regression was done using a one-phase exponential decay function with time constant parameter:

y=y0=A1ex/t1

The fit was obtained using the Levenberg-Marquardt iteration algorithm, where x and y represent coordinates on the respective axis, y0 represents the offset at a given point, A represents the amplitude, and t is the time constant.

Molecular Dynamics simulations

Request a detailed protocol

The AmtB trimer (PDB code: 1U7G) (Khademi et al., 2004) was processed using the CHARMM-GUI web server (Lee et al., 2016). Any mutations inserted during the crystallization process were reverted to the wild-type form. The N-termini and C-termini of the subunits were capped with acetyl and N-methyl amide moieties, respectively. The protein was then inserted into a membrane patch of xy-dimensions 13 × 13 nm. Unless otherwise specified, a membrane composition of palmitoyl oleoyl phosphatidyl ethanolamine and palmitoyl oleoyl phosphatidyl glycine (POPE/POPG) at a 3:1 ratio was used in order to approximate the composition of a bacterial cytoplasmic membrane. We employed the CHARMM36 forcefield for the protein and counter ions (Best et al., 2012). The water molecules were modeled with the TIP3P model (Jorgensen et al., 1983). Water bonds and distances were constrained by the Settle method (Miyamoto and Kollman, 1992), and all other bonds by the LINCS method (Hess et al., 1997). In simulations without ammonium, K+ and Cl- ions were added to neutralize the system and obtain a bulk ionic concentration of 250 mM. In simulations with ammonium, K+ was replaced by NH4+. The parameters for NH4+ and NH3 (umbrella sampling simulations) were adapted from Nygaard et al., 2006.

After a steepest descent energy minimization, the system was equilibrated by six consecutive equilibration steps using position restraints on heavy atoms of 1000 kJ/mol.nm2. The first three equilibration steps were conducted in an NVT ensemble, applying a Berendsen thermostat (Berendsen et al., 1984) to keep the temperature at 310K. The subsequent steps were conducted under an NPT ensemble, using a Berendsen barostat (Berendsen et al., 1984) to keep the pressure at 1 bar. Production molecular dynamics simulations were carried out using a v-rescale thermostat (Bussi et al., 2007) with a time constant of 0.2 ps, and a Berendsen barostat with semi-isotropic coupling. A timestep of 2 fs was used throughout the simulations.

In a subset of simulations, we aimed to test the effect of membrane voltage on the internal hydration of AmtB using CompEL. For the CompEL simulations (Kutzner et al., 2016), the system was duplicated along the z-axis, perpendicular to the membrane surface. To focus on the physiologically relevant voltage gradient in E. coli, that is a negative potential on the inside of the cell of magnitude −140 to −170 mV (Cohen and Venkatachalam, 2014), an antiparallel orientation of the two trimers in the double bilayers was used (Felle et al., 1980). The final double system consisted of a rectangular box of 13 × 13×20 nm. For the CompEL simulations, 1000 positively charged (either NH4+ or K+) and 1000 negatively charged ions (Cl-) were added to the system, then the system was neutralized, and the desired ion imbalance established.

The Umbrella Sampling (US) Potential-of-Mean-Force (PMF) calculations (Torrie and Valleau, 1977) were set up as described previously by Hub et al., 2010b. A snapshot was taken from the simulation of the single bilayer system with the twin-His motif in the DE protonation state and both the CWW and PWW occupied. The pore coordinates were obtained using the software HOLE (Smart et al., 1996), removing the solvent and mutating F215 to alanine during the HOLE run only. Starting coordinates for each umbrella window were generated by placing NH3 in the central x-y coordinate of the pore defined by HOLE at positions every 0.5 Å in the z coordinate. Solvent molecules within 2 Å of the ammonia's N atom were removed. Minimization and equilibration were then re-performed as described above. Unless otherwise stated, position restraints were used for all water oxygen atoms in the CWW with a 200 kJ/mol.nm2 force constant; while the TIP3 molecules within the lower water wire were not restrained. For the US the N atom of ammonia was position-restrained with a force constant of 1000 kJ/mol.nm2 on the z axis and a 400 kJ/mol.nm2 cylindrical flat-bottomed potential with a radius of 5 Å in the x-y plane, as described earlier by Hub et al., 2010a. For some US window simulations, the ammonia z-axis restraints were increased and the time step reduced in the equilibration to relax steric clashes between sidechains and ammonia. After equilibration, US simulations were run for 10ns, using the parameters described above (Lee et al., 2016) and removing the initial two ns for further equilibration. The PMF profiles were generated with the GROMACS implementation of the weighted histogram analysis method (WHAM) with the periodic implementation (Hub et al., 2010a). Further US simulations were performed to as needed to improve sampling in regions of the profile that were not sufficiently sampled. The Bayesian bootstrap method was performed with 200 runs to calculate the standard deviation of the PMF.

Free energy calculations for proton translocation

Request a detailed protocol

The free energies for proton translocation were evaluated by protonating the water molecules at different sites along the periplasmic and cytoplasmic water wires. Electrostatic effects in proteins are often treated more effectively using semi-macroscopic models which can overcome the convergence problems of more rigorous microscopic models. Here we used the semi-macroscopic protein dipole/Langevin dipole approach of Warshel and coworkers in the linear response approximation version (PDLD/S-LRA) (Kato et al., 2006; Sham et al., 2000). Positions of the water molecules in the PWW and CWW were obtained from the corresponding MD snapshots (Figure 1). All PDLD/S-LRA pKa calculations were performed using the automated procedure in the MOLARIS simulations package (Lee et al., 1993) in combination with the ENZYMIX force field. The simulation included the use of the surface‐constrained all atom solvent model (SCAAS) (Warshel and King, 1985) and the local reaction field (LRF) long-range treatment of electrostatics. At each site, 20 configurations for the charged and uncharged state were generated. The obtained pKa values were then converted to free energies for proton translocation.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64

Decision letter

  1. Nir Ben-Tal
    Reviewing Editor; Tel Aviv University, Israel
  2. Olga Boudker
    Senior Editor; Weill Cornell Medicine, United States
  3. Nir Ben-Tal
    Reviewer; Tel Aviv University, Israel
  4. Oded Lewinson
    Reviewer; Technion - Israel Institute of Technology - Israel Institute of Technology, Israel
  5. Ian Collinson
    Reviewer; University of Bristol, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

A radically new mechanism is suggested here for the transport of NH4+ across the cytoplasmic membrane. According to this suggestion, strongly supported by molecular simulations, as well as various biophysical, mutagenesis, and cellular assays, NH4+ transport involves deprotonation, translocation of NH3 via hydrophobic pathway and the proton via two water-wires connected to each other by two Histidines, and reprotonation in the other end.

Decision letter after peer review:

Thank you for submitting your article "A two-lane mechanism for selective biological ammonium transport" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Nir Ben-Tal as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Olga Boudker as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Oded Lewinson (Reviewer #2); Ian Collinson (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Summary:

Nature have 'invented' various mechanisms to meet the challenge of selective translocation of charged molecules across the membrane. A study of two homologous NH4+ transporters, Escherichia coli AmtB and Nitrosomonas europaea Rh50, presented in this manuscript, suggests a new and very unique mechanism. According to this suggestion, strongly supported by molecular simulations, as well as various biophysical, mutagenesis, and cellular assays, NH4+ transport involves deprotonation, translocation of NH3 via hydrophobic pathway and the proton via two water-wires connected to each other by two Histidines, and reprotonation in the other end. Key amino acids that facilitate both proton and NH3 transfer are highlighted.

This is a very well thought of and carefully conducted study, and the proposed mechanism is revolutionary. The manuscript can be published after the authors will address a few issues.

Essential revisions:

1) The suggested pathways emerged from umbrella sampling simulations, which require predetermination of the "reaction coordinate". How certain the authors are about the proper choice of these for the water wires and NH3 translocation pathways? Maybe consider using methods like metadynamics that may (or may not) detect the pathways without prejudice? Else, at the very least, this point, i.e., the arbitrarily chosen pathways, should be discussed.

2) The data in Figure 3 is normalized, but the authors do not explain how or why. It would be interesting to know whether there is any pH effect on transport. Presumably the initial deprotonation event would be strongly inhibited by lowering the external pH? So if there is no effect, could it mean that the deprotonation event is very fast? Or something else?

3) It is important to show decay at different lipid-to-protein ratios in all figures.

4) "The K+ translocation activity is not saturable in the substrate range [12.5-200 mM]".

Why were higher values not tested? This would help convey the specificity message. In addition, this suggested insatiable substrate-dependence should be compare to the proton affinity.

5) "On the cytoplasmic face, the pH of the cell interior leads to recombination to NH4+"

Why is that? The cell's interior should be slightly basic.

6) "Summarizing, these results suggest that AmtB switches from transporter- to channel-like activity in the absence of the twin-His motif, directly translocating hydrated NH4+ through the pore." If we understand correctly, this conclusion is drawn from the data of the mutants in which case it may be irrelevant for the WT.

7) "Additionally, it was impossible to determine with confidence a catalytic constant (Km) for both variants since no clear saturation was reached, even after an ammonium pulse of 200 mM (Figure 4B)." The D160A data in Figure 4B looks like a reasonable Michaelis Menten fit. We suggest using higher ammonium concentration (can go up to 800 mM in SSME) and report data and fits.

8) In Figure 4C, the activity of the WT should be shown to allow for comparisons.

9) For reproducibility the authors should make the simulations readily available to the public. All the relevant parameter files, trajectory, etc.

https://doi.org/10.7554/eLife.57183.sa1

Author response

Essential revisions:

1) The suggested pathways emerged from umbrella sampling simulations, which require predetermination of the "reaction coordinate". How certain the authors are about the proper choice of these for the water wires and NH3 translocation pathways? Maybe consider using methods like metadynamics that may (or may not) detect the pathways without prejudice? Else, at the very least, this point, i.e., the arbitrarily chosen pathways, should be discussed.

We thank the reviewers for this question and for giving us the opportunity to clarify this point.

The transport mechanism we propose rests on two key pathways – the proton transfer pathway and an independent pathway for neutral ammonia. Previously, before evidence for electrogenic transport was obtained by us and other groups, the consensus in the field had favoured transport of neutral NH3 only, along a hydrophobic route (shown, e.g. by simulations on Rh50 [Hub et al., 2010]) similar to the one we find for AmtB.

Importantly, our novel finding of a separate transfer pathway for proton transport, the missing link to explain electrogenic transport and the central new element of the proposed mechanism, was not obtained from umbrella sampling simulations along a predetermined pathway. Instead, we used classical simulations, in which two water wires formed spontaneously. The location of these water molecules as well as the conformations of residues lining the pathway, come from unbiased molecular dynamics simulations. These spontaneously formed configurations were then subsequently used to calculate energy barriers for proton transport.

The separate pathway for NH3 translocation was indeed probed using umbrella sampling, however, we restrained only the z-position along the pore axis of NH3. This way, the molecule was free to move in x and y and thus to find its optimal position within the pore, in particular as we used extended sampling times. The starting points were optimised following detection of the most likely translocation pathway through the protein by using the program HOLE. Moreover, the pathway and energy profiles we identify for AmtB and agree with the results for Rh50 by Hub et al., 2010. All of these points give us a great level of confidence over the validity of both pathways.

Metadynamics simulations are not completely devoid of an element of choice, as for example collective coordinates have to be defined. Comparing to metadynamics, we therefore trust that our approach provides a similar, or even higher level of freedom for the particle to find its optimal pathway.

Following a suggestion from the reviewers, we have now added a discussion on the choice of initial positions we used in umbrella sampling simulations.

2) The data in Figure 3 is normalized, but the authors do not explain how or why. It would be interesting to know whether there is any pH effect on transport. Presumably the initial deprotonation event would be strongly inhibited by lowering the external pH? So if there is no effect, could it mean that the deprotonation event is very fast? Or something else?

The data are normalised against the measurements done at pH7 in/out, and the figure legends and text in the Materials and methods section have now been amended to make this clearer.

We have done this because we always measured the sensor readouts in the order pH (in/out) 7/7, 8/5, 8/5 (this time without NH4+), and finally 7/7 again to be sure that the signals do not significantly decrease with time. We also mentioned this procedure in the Materials and methods section: “The activity of AmtB and NeRh50 was tested at pH 7 before and after each measurement to ensure that there was no activity loss during the measurements.” We therefore normalised all the measurements of the series against the measurement at pH 7/7 of the corresponding series.

We have measured the effect of various static pH values on transport (pH in/out, 5/5, 6/6, 7/7, 8/8), and indeed observed a reduction of the maximum amplitude by a factor of 2 between pH 7 and 5 (see Author response image 1), as was also observed for another Amt from A. fulgitus (see Wacker et al., 2014). However, we think that it is difficult to interpret this phenomenon with confidence and to directly link the pH effect on the deprotonation or any specific step in the translocation process. When changing the pH it is not clear if only the local pH at the deprotonation site is varied accordingly, or if the whole protein is affected. Therefore, to ensure that we do not observe a general effect of the pH on the protein activity, in the experiment presented in figure 3, we pulsed the substrate at pH 5 for 1 second and re-measured thereafter at pH 7.

Author response image 1

In the present manuscript, we believe that showing the data measured at various static pH values will not add important new information and may be confusing to readers. We think that a more in-depth analysis of the pH effect would be required to correctly analyse the data and we would prefer to reserve this for a future paper (see, e.g., Bazzone et al., PlosOne, 2016). However, if it is the opinion of the editor and reviewers that we should present these data, we are happy to do so. Please see Author response image 1, the data for the effect of static pH for AmtB and NeRh50 (maximum amplitude and decay time).

3) It is important to show decay at different lipid-to-protein ratios in all figures.

We currently show all the decay times at various LPR in Table 1. The values represent the means of measurements recorded on 8 sensors from two independent protein purification batches. The raw data are given in the source file. In our opinion, showing all the traces within the main text figures will make the figures too busy and confusing. We therefore decided to provide traces at different LPR in two new figures: Figure 1—figure supplement 1 and Figure 5—figure supplement 1.

4) "The K+ translocation activity is not saturable in the substrate range [12.5-200 mM]".

Why were higher values not tested? This would help convey the specificity message. In addition, this suggested insatiable substrate-dependence should be compare to the proton affinity.

In the experimental assays, the total ionic concentration is maintained at 300 mM (see Supplementary file 1). To measure the activity using K+ concentrations higher than 200 mM, we would have to significantly increase the total ionic concentration to maintain the electrostatic balance when applying the substrate pulse. However, it has been shown that increasing the salt concentration is likely to introduce artefacts when recording the signal, which are difficult to control (see Bazzone et al., 2017). We in fact tried to pulse with higher K+ or NH4+ concentrations, but an artefact appeared in the signal in the form of an overshoot after the main current, probably due to ion-lipid interactions. At the present time, we are therefore limited to a maximum concentration of about 200 mM by technical constraints.

5) "On the cytoplasmic face, the pH of the cell interior leads to recombination to NH4+"

Why is that? The cell's interior should be slightly basic.

Yes, this is correct. However, the cytoplasmic pH is around 7.2-7.6 (Martinez et al., Appl. Environ. Microbiol. 2012), which is around 2 pH units below the pKa of NH4+ deprotonation (9.25). Thus at pH 7.5, more than 99% of ammonium is expected to be in the NH4+ form.

6) "Summarizing, these results suggest that AmtB switches from transporter- to channel-like activity in the absence of the twin-His motif, directly translocating hydrated NH4+ through the pore." If we understand correctly, this conclusion is drawn from the data of the mutants in which case it may be irrelevant for the WT.

Yes, we agree that it is irrelevant for the WT of AmtB. However, we deem this information to be essential for understanding the mechanism, and especially the role of the twin-His motif in transport selectivity. It also explains why certain variations in the twin-His motif seen in a few species do not ‘apparently’ inactivate the transporter but alter the general mechanistic features. We have rewritten the statement to make these points clearer.

7) "Additionally, it was impossible to determine with confidence a catalytic constant (Km) for both variants since no clear saturation was reached, even after an ammonium pulse of 200 mM (Figure 4B)." The D160A data in Figure 4B looks like a reasonable Michaelis Menten fit. We suggest using higher ammonium concentration (can go up to 800 mM in SSME) and report data and fits.

Unfortunately, due to technical limitations, it is not possible to use a very high ionic concentration (see also our answer to point 4). Briefly, salt concentrations above 300 mM introduce difficult-to-control artefacts when recording the SSME signal (Bazzone et al., 2017), which leads to limitations in the salt range that we can investigate.

8) In Figure 4C, the activity of the WT should be shown to allow for comparisons.

We agree; the figure has been amended accordingly.

9) For reproducibility the authors should make the simulations readily available to the public. All the relevant parameter files, trajectory, etc.

We are more than happy to share all the relevant files with the public. The files of smaller size (parameters etc.) have been uploaded to a publicly accessible GitHub repository:

https://github.com/UZgroup/A-two-lane-mechanism-for-selective-biological-ammonium-transport/

GitHub however has a 300 MB limit, which means we cannot share, even trimmed-down, trajectory files via this route. To share the larger trajectory file, we have uploaded this to Figshare.
