Large domains of heterochromatin direct the formation of short mitotic chromosome loops

  1. Maximilian H Fitz-James
  2. Pin Tong
  3. Alison L Pidoux
  4. Hakan Ozadam
  5. Liyan Yang
  6. Sharon A White
  7. Job Dekker
  8. Robin C Allshire  Is a corresponding author
  1. Wellcome Centre for Cell Biology and Institute of Cell Biology, School of Biological Sciences, University of Edinburgh, United Kingdom
  2. Program in Systems Biology, Department of Biochemistry and Molecular Pharmacology, University of Massachusetts Medical School, United States
  3. Howard Hughes Medical Institute, United States
Research Article
  • Cited 0
  • Views 929
  • Annotations
Cite this article as: eLife 2020;9:e57212 doi: 10.7554/eLife.57212

Abstract

During mitosis chromosomes reorganise into highly compact, rod-shaped forms, thought to consist of consecutive chromatin loops around a central protein scaffold. Condensin complexes are involved in chromatin compaction, but the contribution of other chromatin proteins, DNA sequence and histone modifications is less understood. A large region of fission yeast DNA inserted into a mouse chromosome was previously observed to adopt a mitotic organisation distinct from that of surrounding mouse DNA. Here, we show that a similar distinct structure is common to a large subset of insertion events in both mouse and human cells and is coincident with the presence of high levels of heterochromatic H3 lysine nine trimethylation (H3K9me3). Hi-C and microscopy indicate that the heterochromatinised fission yeast DNA is organised into smaller chromatin loops than flanking euchromatic mouse chromatin. We conclude that heterochromatin alters chromatin loop size, thus contributing to the distinct appearance of heterochromatin on mitotic chromosomes.

Introduction

During mitosis, chromatin is dramatically reorganised and compacted to form individual rod-shaped mitotic chromosomes that allow for proper segregation of the genetic material (Belmont, 2006). Key to mitotic chromosome compaction are the action of the condensin complexes, condensin I and condensin II, and topoisomerase IIα, whose depletion or deletion can result in defective chromosome compaction and genome stability in a wide range of organisms (Hirano, 2012; Maeshima and Laemmli, 2003; Strunnikov et al., 1995, Saka et al., 1994, Wignall et al., 2003; Ono et al., 2003; Hirota et al., 2004; Martin et al., 2016; Woodward et al., 2016; DiNardo et al., 1984; Uemura et al., 1987; Holm et al., 1985). A leading model for mitotic chromosome compaction proposes that chromatin is organised into loops that radiate out from a core scaffold composed of these key organising complexes (Maeshima and Eltsov, 2008). This radial loop model is supported by early cytological and biochemical observations as well as by more recent Hi-C approaches, which in mitosis detect uniform interaction patterns along chromosomes that are consistent with sequence-independent chromatin loops of between 80 and 120 kb (Paulson and Laemmli, 1977; Marsden and Laemmli, 1979; Maeshima and Laemmli, 2003, Woodcock and Ghosh, 2010, Naumova et al., 2013; Gibcus et al., 2018).

The ‘loop extrusion model’ provides the likely mechanism underlying the formation of mitotic chromosome loops. In this model, condensin complexes extrude loops of chromatin through the centre of their ring-like structures (Cheng et al., 2015, Goloborodko et al., 2016; Ganji et al., 2018; Gibcus et al., 2018). Both complexes, condensin I and condensin II, are important for mitotic chromosome structure. However, they fulfil different roles. Condensin I drives the axial compaction of the chromosome, and an excess of it leads to longer thinner chromosomes. Conversely, Condensin II is responsible for the shortening and widening of the chromosome and leads to greater axial rigidity (Shintomi and Hirano, 2011; Green et al., 2012; Yamashita et al., 2011; Lai et al., 2011). Nevertheless, many aspects of mitotic chromosome formation, including mechanisms by which it might be modulated to generate distinct cytological structures, remain speculative. Within mitotic chromosomes centromeres, and to a lesser extent telomeres, appear as visually distinct regions of constriction (Belmont, 2006). Studies in both yeast and vertebrates have found that condensin is enriched over these regions (Wang et al., 2005; D'Ambrosio et al., 2008, Kim et al., 2013), potentially explaining these structures as a local alteration in the loop structure. However, the mechanism by which condensin might be recruited or regulated locally in this way is unknown.

One possible explanation is the presence of large domains of constitutive heterochromatin, characterised by the presence of high levels of trimethylation on lysine 9 of H3 (H3K9me3). This type of chromatin is most strongly associated with large domains of repetitive DNA, most notably in pericentromeric regions where it has a vital role in ensuring centromere identity and accurate chromosome segregation (Bernard et al., 2001, Kellum and Alberts, 1995, Shimura et al., 2011, Molina et al., 2016). Many of the roles of H3K9me3 are mediated through its recruitment of HP1 proteins (Kim and Kim, 2012; Lomberk et al., 2006) which act partly by recruiting chromatin modifiers, thus reinforcing and spreading the heterochromatin domain, as well as leading to the compaction of the chromatin fibre (Allshire and Madhani, 2018; Schotta et al., 2004; Fuks et al., 2003; Zhang et al., 2002; Canzio et al., 2011; Martens and Winston, 2003; Lomberk et al., 2006). The majority of HP1 proteins dissociate from chromatin early in mitosis (Fischle et al., 2005; Hirota et al., 2005), however a pool of HP1α remains at centromeres throughout mitosis and is thought to be important for chromosome stability and kinetochore function (Tanno et al., 2015; Abe et al., 2016). Whether the presence of H3K9me3 or HP1α at centromeres is related either directly or indirectly to its structural appearance as the primary constriction in mitosis is not known.

The F1.1 cell line was originally made by fusing fission yeast Schizosaccharomyces pombe spheroplasts, carrying an integrated mammalian selectable marker, with the mouse mammary tumour cell line C127 (Allshire et al., 1987 and McManus et al., 1994). F1.1 carries an insertion of several Mb of S. pombe DNA at a single location on one mouse chromosome. Cytological analysis revealed that the region of the mouse chromosome containing S. pombe DNA adopted a distinct structure in mitosis, manifesting as a region of low DNA staining and apparently narrower diameter (McManus et al., 1994). However, the nature and origin of the structural difference between the inserted S. pombe DNA and the surrounding endogenous mouse DNA was not fully explained. The F1.1 cell line thus represents a useful system for exploring features that locally alter mitotic chromosome structure.

Here, we further investigate the unusual chromatin formed over S. pombe DNA residing within a mouse chromosome in the F1.1 cell line and in several newly-generated cell lines. Through insertion of large regions of S. pombe DNA into mouse NIH3T3 and human HeLa cells by both cell fusion and DNA transfection we conclude that the distinctive chromosome structure previously observed in F1.1 is not unique to a single cell line or species. We show that in various cell lines the inserted S. pombe DNA is packaged into H3K9me3-heterochromatin and that the presence of a sizable block of heterochromatin at the inserted S. pombe DNA correlates with the unusual structure exhibited on metaphase chromosomes. Finally, imaging and Hi-C analyses indicate that the distinct structure is due to altered chromatin organisation and that condensin is enriched over this region. We propose a model whereby elevated condensin association with heterochromatin organises the underlying chromatin into arrays of loops that are smaller than those of surrounding non-heterochromatin regions, thus explaining the observed localised alteration of mitotic chromosome structure.

Results

S. pombe DNA incorporated into a mouse chromosome adopts a distinct structure with less DNA per unit length

The previously-described F1.1 cell line contains a large stable insertion of S. pombe DNA into a single chromosome in mouse C127 (ATCC CRL-1616) cells (Allshire et al., 1987). The region containing the integrated fission yeast DNA had a highly distinctive appearance in metaphase spreads (McManus et al., 1994). However, the nature of this unusual S. pombe DNA-associated chromosome structure and the mechanisms by which it was formed and differentiated from neighbouring mouse chromatin have not been investigated. Recent advances in both our understanding of mitotic chromosome structure and the methodologies used to analyse it now enhance our ability to examine such unusual structures and thereby provide new insight into the processes that govern mitotic chromosome structure.

To confirm and extend earlier analysis, fluorescence in situ hybridisation (FISH) was performed on F1.1 metaphase spreads using a total S. pombe genomic DNA probe to decorate the insert. As was previously reported, the region of the mouse chromosome containing S. pombe DNA appeared distinct and exhibited reduced DNA staining intensity and a narrower chromosome arm width (Figure 1A). Quantification of the DNA and FISH signal intensities along the chromosome length showed a clear decrease in average DNA intensity coinciding with the peak of S. pombe DNA FISH signal (Figure 1B). This confirmed that the previously reported distinct Sp-DNA-associated structure exhibits decreased DNA per unit length of the chromosome compared to the flanking mouse chromatin. The mouse and S. pombe genomes have differing GC contents, with 42% for mouse and 36% for S. pombe (Wood et al., 2002, Waterston et al., 2002). To avoid any bias that might result from difference in base composition propidium iodide (PI) staining was used for all DNA intensity measurements rather DAPI, which preferentially binds to AT-rich DNA.

Figure 1 with 1 supplement see all
S. pombe DNA inserted into a mouse chromosome adopts a distinct structure on mitotic chromosomes.

(A) Metaphase spreads of mouse F1.1 chromosomes showing the distinct structure of the S. pombe DNA insert. Propidium iodide stained DNA (PI, red), S. pombe DNA FISH using probes from total S. pombe DNA (green – yellow arrows), centromeres (regions of brighter DNA staining - blue arrows). Scale bars: 1 μm. (B) Schematic representation and average chromosome profile of the F1.1 insert-bearing chromosome across several images (n = 16, Figure 1—source data 1). Signal intensities of PI DNA stain (red) and FISH signal (green) were measured along the length of the chromosomes and binned according to their position, from the centromere (0–5%) to the telomere (95–100%). Error bars represent ± standard error from the mean (SEM). Average DNA stain intensity was compared between the regions of 25–40% (endogenous mouse DNA) and 65–80% (S. pombe DNA corresponding to the highest FISH signal) by the KS test (**p<0.001). (C and D) Metaphase spreads of F1.1 cells either stained by immunofluorescence for histone H4 (C) or expressing tagged histone H2B-GFP (D) (red), with S. pombe DNA FISH (green) and DAPI-stained DNA (blue). S. pombe DNA (yellow arrows) and centromere (blue arrows) locations are indicated. Scale bars: 1 μm. (E and F) Average signal intensity profile of the F1.1 insert-bearing chromosome showing FISH and either anti-H4 (E, Figure 1—source data 2) or H2B-GFP (F, Figure 1—source data 3) across several images (n = 28, 27). Error bars represent ± SEM. Average histone levels were compared between the regions of endogenous mouse DNA and S. pombe DNA highlighted by FISH by the KS test (**p<0.001).

To allow more detailed analysis of the S. pombe DNA insert, whole genome sequencing was performed on F1.1 genomic DNA. Initial sequencing by standard next generation sequencing methods revealed that the S. pombe DNA was highly rearranged with respect to the S. pombe reference genome (assembly ASM294v2). Approximately 64% of the S. pombe genome was found to be present within the F1.1 genome, however the high level of rearrangement meant that no assembly could be made to determine the actual sequence of the inserted DNA. Ultra-long sequence reads obtained using nanopore technology allowed assembly of several large contigs of S. pombe sequence, including eight contigs greater than 500 kb and one of approximately 1.5 Mb consisting of 1.1 Mb of S. pombe DNA extending into 400 kb of adjacent mouse DNA. These results confirmed that the F1.1 insert is composed of rearranged S. pombe DNA in which 10 to 100 kb stretches (median length 20 kb) are contiguous with the S. pombe reference genome. In addition to providing sequence information crucial to further analysis, our findings suggest that chromatin introduced from yeast by spheroplast fusion is not protected from high levels of rearrangement upon entry into host mammalian cells.

Chromatin density is lower at the region of mouse chromosome 10 containing S. pombe DNA

Both sequencing methods used detected hybrid reads containing both mouse and S. pombe DNA sequence and identified the same insertion site on mouse chromosome 10, approximately two-thirds down the length of the chromosome arm (GRCm38 Mm10:83,349,000), consistent with both the size of the insert-bearing mouse chromosome and the relative position of the Sp-DNA insert on that mouse chromosome arm (Figure 1A).

Two-colour FISH using a mouse chromosome 10 (Mm10) paint along with the total S. pombe DNA probe confirmed that in F1.1 cells the Sp-DNA insert is carried on one of the copies of chromosome 10 (Figure 1—figure supplement 1A). When only the Mm10 paint was employed the Sp-DNA insert was clearly visible as a gap in the FISH signal (Figure 1—figure supplement 1B,C). Intensity measurements detected the same drop in DNA signal intensity across the Sp-DNA insert, in contrast to the other copies of chromosome 10 present in the same cells that exhibit uniform DNA staining along their length (Figure 1—figure supplement 1C–F). These analyses exclude the possibility that the distinct Sp-DNA insert appearance is an artefact of hybridisation with the S. pombe DNA FISH probe.

Despite the shorter nucleosome repeat length of chromatin in fission yeast cells (160 bp) compared to that in mammalian cells (185 bp), previous analysis had shown that the S. pombe DNA in F1.1 adopts the nucleosome repeat length typical of mouse cells (McManus et al., 1994). To assess the density of nucleosomal chromatin across the Sp-DNA insert independently of DNA staining immunolocalisation of histone H4 was performed on F1.1 chromosomes. Signal intensity measurements showed a clear drop in H4 signal across the Sp-DNA insert. A similar decrease in signal was observed across the Sp-DNA insert for ectopically expressed GFP-tagged H2B (Figure 1C–F). These analyses indicate that the Sp-DNA insert on mouse chromosome 10 of F1.1 cells adopts a distinctive structure in mitosis that is characterised by a decrease in the amount of chromatin per unit length compared to surrounding endogenous mouse chromatin.

S. pombe DNA integrated in mouse chromosome 10 is assembled in H3K9me3-heterochromatin

The contribution of histone modifications to mitotic chromosome structure is a factor that has long been proposed but is not well defined. A number of histone modifications are enriched in mitotic chromatin and chromatin isolated from mitotic cells has been shown to undergo a certain level of compaction even in the absence of condensins and topoisomerases, suggesting that certain modifications may contribute to mitotic chromatin compaction (Zhiteneva et al., 2017; Goto et al., 2002; McManus et al., 2006, Park et al., 2011). However, the mechanism by which this compaction may be achieved is unknown.

To investigate the histone modifications present at the Sp-DNA insert in F1.1 cells we employed ChIP-qPCR with antibodies detecting H3K4me3, H3K9ac, H3K9me3, H3K27ac and H3K36me3. Expected enrichments of histone modifications associated with active chromatin, such as H3K4me3, H3K9ac, H3K27ac and H3K36me3 were detected on the mouse Actb gene and were low on the repressed Hoxc8 gene and mouse major satellite repeats. In contrast, levels of the heterochromatic H3K9me3 were high on mouse major satellite repeats but low on Actb. Active modifications were also enriched on the selected G418 resistance gene SV40-Neo, present within the Sp-DNA insert, consistent with its expression. Strikingly, all twelve S. pombe DNA sites examined within the Sp-DNA insert exhibited very high levels of H3K9me3 and low levels of H3K4me3, H3K9ac, H3K27ac and H3K36me3 relative to the mouse Actb. High levels of HP1α, which binds H3K9me3, were also detected at all locations tested within the F1.1 Sp-DNA insert (Figure 2A). The presence of both H3K9me3 and HP1α across the Sp-DNA insert suggests that a large domain of constitutive heterochromatin coats this foreign DNA.

Figure 2 with 1 supplement see all
S. pombe DNA in chromosome 10 of F1.1 is coated in H3K9me3-heterochromatin.

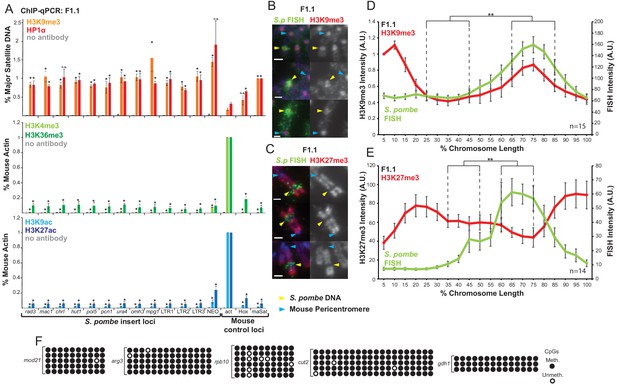

(A) ChIP-qPCR of F1.1 interphase cells for the repressive marks H3K9me3 and HP1α (top), activating histone methylation marks H3K4me3 and H3K36me3 (middle) and activating acetylation marks H3K9ac and H3K27ac (bottom) at 13 loci within the S. pombe insert and three mouse control loci. act - highly transcribed control gene Actb; HoxHoxc8 region of facultative heterochromatin; maSat - constitutively heterochromatic centromeric major satellite region. Data in Figure 2—source data 1. Error bars represent ± SEM of three independent repeats. Enrichments were normalised to positive control levels and compared to act by the t-test (*p<0.05, n.s. = not significant). (B,C) Immunofluorescence for H3K9me3 (B) or H3K27me3 (C) (red) on F1.1 metaphase spreads showing high H3K9me3 and low H3K27me3 over the S. pombe DNA insert as visualised by FISH (green), with DAPI-stained DNA (blue). S. pombe DNA (yellow arrows) and centromere (blue arrows) locations are indicated. Scale bars: 1 μm. (D,E) Average FISH and H3K9me3 (D Figure 2—source data 2) or H3K27me3 (E Figure 2—source data 3) signal intensity profiles of the insert-bearing chromosome of F1.1 across several images (n = 15, 14). Error bars represent ± SEM. H3K9me3 intensity levels were normalised to the 0–5% region of the chromosome, corresponding to the acrocentric mouse centromere. Average immunofluorescence intensity was compared between the regions of endogenous mouse DNA and S. pombe DNA highlighted by FISH by the KS test (**p<0.001). (F) CpG methylation levels at five S. pombe loci within the F1.1 insert as determined by bisulfite sequencing. Loci were sequenced in 3 to 6 replicates, with each replicate shown. Circles represent methylated (black) and unmethylated (white) CpGs, respectively.

This was supported by immunolocalisation, which showed a high intensity of H3K9me3 coinciding with the S. pombe DNA on metaphase spreads. In addition, H3K27me3 was low over the S. pombe DNA, demonstrating that the fission yeast DNA was assembled into constitutive H3K9me3-dependent heterochromatin rather than facultative H3K27me3-dependent heterochromatin (Figure 2B–E). Mammalian constitutive heterochromatin is also known to be highly methylated on CpG dinucleotides (Bannister and Kouzarides, 2011; Rose and Klose, 2014, Bogdanović and Veenstra, 2009). Consistent with methylation-sensitive restriction enzyme digestion (McManus et al., 1994), bisulphite sequencing demonstrated prevalent CpG DNA methylation within the Sp-DNA insert (Figure 2F). Additional H3K9me3 ChIP analysis demonstrated that this heterochromatin did not encroach on nearby mouse DNA flanking the site of Sp-DNA insertion, and is therefore confined to the foreign DNA (Figure 2—figure supplement 1). We conclude that constitutive heterochromatin coats the exogenous Sp-DNA insert on mouse chromosome 10.

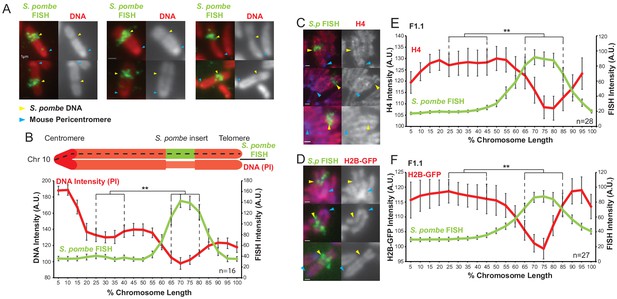

A distinct heterochromatic structure frequently forms on S. pombe DNA integrated into mouse or human chromosomes

The formation of a distinct structure assembled into heterochromatin on S. pombe DNA inserted in mouse chromosome 10 might result from unique events associated with the specific integration site in F1.1 cells, the configuration of the inserted S. pombe DNA or the mouse C127 cell line. To exclude these possibilities, we fused spheroplasts of the same S. pombe strain harbouring the SV40-Neo G418 selectable marker with either mouse NIH3T3 cells or human HeLa cells as previously described (Allshire et al., 1987). Subsequent screening of resulting G418-resistant clones by FISH identified one HeLa (HeP-F3) and two NIH3T3 (NP-F1 and NP-F2) clones with large blocks of S. pombe DNA integrated at single chromosomal locations. In these three new cell lines, PI staining of mitotic chromosomes again revealed a less intensely stained region coincident with the resulting inserted S. pombe DNA (Figure 3A–F). The presence of an unusual mitotic chromosome structure on S. pombe DNA inserted in four independent fusion clones indicates that the formation of such entities was not a unique event confined to the original F1.1 isolate, the specific cell line used or its species of origin. Moreover, since mitotic chromosomes were examined from the new clones within 25 divisions of their formation these structures are not the consequence of prolonged propagation in cell culture, but must be formed soon after integration of the incoming foreign DNA into a host chromosome. ChIP-qPCR and immunolocalisation demonstrated that, as in F1.1 cells, H3K9me3 was strongly enriched on the Sp-DNA inserts in the new NP-F1, NP-F2 and HeP-F3 cell lines (Figure 3G–I and Figure 3—figure supplement 1). Taken together, these results suggest that, in addition to having a distinct mitotic structure, the S. pombe DNA has been assembled into H3K9me3-dependent heterochromatin in all four mammalian-S. pombe fusion hybrids.

Figure 3 with 1 supplement see all
S. pombe DNA assembles heterochromatin and adopts a distinct mitotic chromatin structure when inserted into mammalian chromosomes.

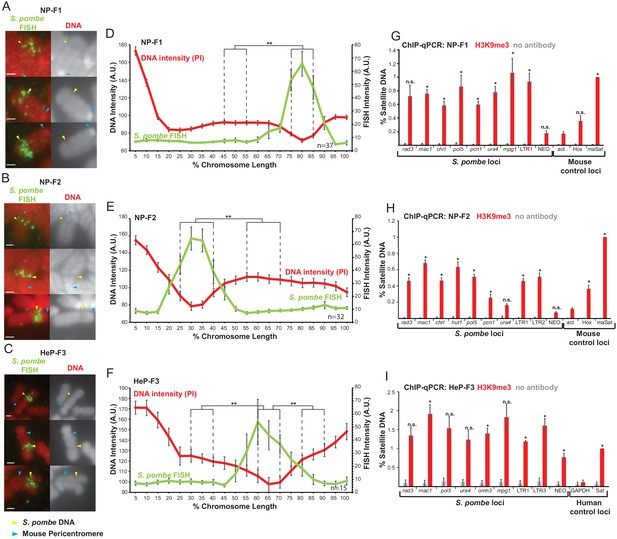

(A–C) Metaphase spreads of NP-F1, NP-F2 and HeP-F3 cells showing the distinct structure over the inserted S. pombe DNA. PI-stained DNA (red), S. pombe DNA FISH (green – yellow arrows). Blue arrows indicate centromeres. Scale bar: 1 μm. (D–F) Average FISH and PI signal intensity profiles of the insert-bearing chromosomes in each cell line across several images (n = 37, 32 and 15, Figure 3—source datas 13). Error bars represent ± standard error from the mean (SEM). Average DNA stain intensity was compared between the regions of endogenous mammalian DNA and S. pombe DNA highlighted by FISH by the KS test (**p<0.001). (G–I) ChIP-qPCR for H3K9me3 in NP-F1 (G, Figure 3—source data 4), NP-F2 (H, Figure 3—source data 5) and HeP-F3 (I, Figure 3—source data 6) in interphase. qPCR was performed with primers used for analysis of F1.1 (see Figure 2) that were present in the retained S. pombe DNA. Mouse control regions were: negative control Actb gene – act; facultative heterochromatin region – Hox; centromeric heterochromatin major satellite positive control – maSat. Human control regions were: the highly transcribed negative control gene – GAPDH; human alpha satellite DNA positive control – Sat. Error bars represent ± SEM of three independent repeats. Enrichments were normalised to positive control levels and compared to the negative control by the t-test (*p<0.05, n.s. = not significant).

Heterochromatin forms on incoming S. pombe chromatin that lacks pre-existing H3K9 methylation

The S. pombe genome contains blocks of H3K9 methylation at least every 4 Mbp: at the three centromeres, six telomeres and the mating type locus. The accumulation of high levels of H3K9me3 on S. pombe DNA inserted into mammalian chromosomes following spheroplast fusion in the F1.1, NP-F1, NP-F2 and HeP-F3 cell lines might result from these pre-existing blocks of H3K9 methylation in S. pombe acting as nucleation sites from which heterochromatin spreads over integrated S. pombe DNA. Alternatively, this heterochromatin may simply be a default state formed on large blocks of essentially inert foreign DNA. Clr4 is the only H3K9 methyltransferase encoded by the S. pombe genome. It is not essential for viability and yeast cells lacking Clr4 are devoid of H3K9me2/3 and heterochromatin (Nakayama et al., 2001). We therefore prepared spheroplasts from S. pombe cells lacking Clr4 (clr4Δ) and carrying the same SV40-Neo selectable marker, fused them with NIH3T3 cells and selected G418-resistant hybrids. The resulting cell line NP-clr4Δ-F4 was found to contain a single large S. pombe DNA insertion (Figure 4—figure supplement 1A) which exhibited reduced PI staining intensity on metaphase chromosomes (Figure 4A,B, Figure 4—figure supplement 1B). Surprisingly, ChIP and immunolocalisation showed that H3K9me3 heterochromatin had also been formed over the inserted S. pombe DNA even in this NP-clr4Δ-F4 cell line (Figure 4C–E).

Figure 4 with 1 supplement see all
S. pombe DNA from cells lacking H3K9 methylation forms heterochromatin and adopts a distinct structure when incorporated into mammalian chromosomes.

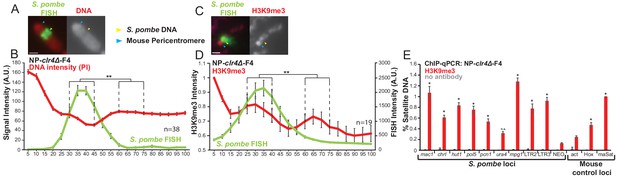

(A) Metaphase spread of NP-clr4Δ-F4 showing the distinct structure over the S. pombe DNA insert, with PI-stained DNA (red) and S. pombe DNA FISH (green – yellow arrows). Blue arrows indicate the centromere. Scale bar: 1 μm. (B) Average FISH and DNA stain (PI) signal intensity profile of the insert-bearing chromosomes of NP-clr4Δ-F4 (n = 38, Figure 4—source data 1). Error bars represent ± SEM. Average DNA stain intensity was compared between a region of endogenous mouse DNA and S. pombe DNA highlighted by FISH by the KS test (**p<0.001). (C) Immunofluorescence for H3K9me3 (red) on a NP-clr4Δ-F4 metaphase spread with DAPI-stained DNA (blue) and S. pombe DNA FISH (green - yellow arrow). Blue arrows indicate the centromere. Scale bars: 1 μm. (D) Average FISH and H3K9me3 signal intensity profile along the NP-clr4Δ-F4 insert-bearing chromosome from several images (n = 19, Figure 4—source data 2). Error bars represent ± SEM. H3K9me3 intensity levels were normalised to the 0–5% region of the chromosome, corresponding to the acrocentric mouse centromere. Average H3K9me3 intensity was compared between the regions of endogenous mouse DNA and S. pombe DNA highlighted by FISH by the KS test (*p<0.01). (E) ChIP-qPCR on NP-clr4Δ-F4 interphase cells for H3K9me3 at several loci within the S. pombe insert and three mouse control loci. Negative control gene Actb - act, facultative heterochromatin - Hox, centromeric heterochromatn major satellite positive control – maSat. Data in Figure 4—source data 3. Error bars represent ± SEM of three independent repeats. Enrichments were normalised to maSat levels and compared to act by the t-test (*p<0.05, n.s. = not significant).

We conclude that the establishment of heterochromatin on S. pombe DNA inserted into mammalian chromosomes following spheroplast fusion is not dependent on the pre-existing domain of H3K9 methylation on S. pombe chromosomes. Thus, unhalted spreading from such regions does not explain the formation of these extensive structures. It seems likely that heterochromatin formation is triggered de novo after delivery of S. pombe chromatin into mammalian cells.

Large S. pombe DNA insertions introduced as transfected naked DNA can form distinct heterochromatic structures in metaphase chromosomes

The above analyses exclude the possibility that the unusual mitotic chromosome structure formed on inserted S. pombe DNA is dependent on resident H3K9 methylation. However, it is possible that some other feature carried by incoming S. pombe chromatin, and retained on chromatin from clr4Δ cells, promotes heterochromatin formation. The calcium-phosphate precipitation DNA transfection method is known to allow the assembly of large ‘transgenomes’ which tend to integrate at single chromosomal locations in mammalian cells (Perucho et al., 1980; Scangos et al., 1981). Therefore, we used calcium-phosphate precipitation to transfect NIH3T3 cells with large amounts of S. pombe genomic DNA, free from all chromosomal proteins and prepared from cells carrying the SV2-Neo selectable marker. Resulting G418R transformants were screened by S. pombe DNA FISH. Six cell lines (NP-T1 to NP-T6) were isolated that contained large S. pombe insertions at a single chromosomal location (Figure 5A–F).

Figure 5 with 1 supplement see all
Distinct metaphase structure correlates with H3K9me3 levels over regions of S. pombe DNA inserted in mammalian chromosomes.

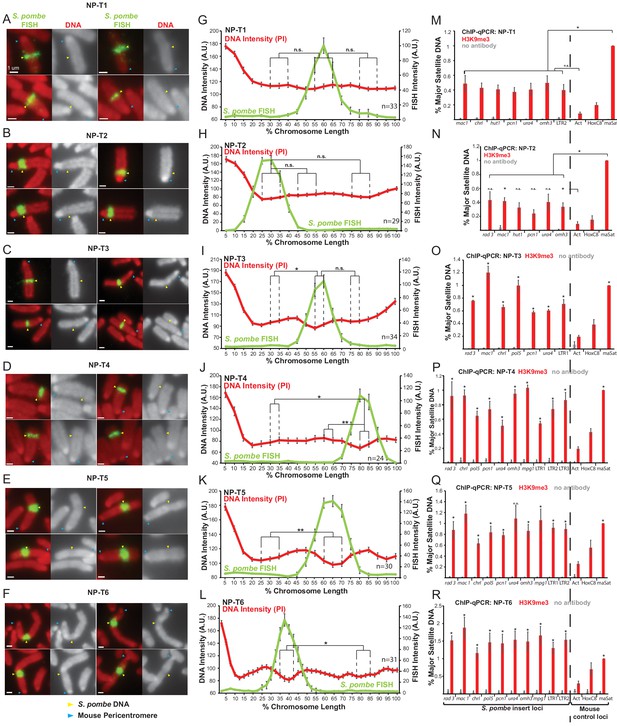

(A–F) Metaphase spreads of S. pombe DNA insert-bearing chromosomes from S. pombe DNA transfected cell lines NP-T1, T2, T3, T4, T5 and T6. PI-stained DNA (red), S. pombe DNA FISH (green - yellow arrows), centromeres (blue arrows). Scale bars: 1 μm. (G–L) Average FISH and DNA stain (PI) signal intensity profiles along S. pombe DNA insert-bearing chromosomes of NP-T1 to NP-T6 (n = 33, 29, 34, 24, 30, 31, Figure 5—source datas 16). Error bars represent ± SEM. Average DNA stain intensity was compared between regions of endogenous mouse DNA and S. pombe DNA highlighted by FISH by the KS test (*p<0.01, **p<0.001, n.s. = not significant). (M–R) ChIP-qPCR on NP-T1 to NP-T6 interphase cells for H3K9me3 at several loci within the S. pombe insert and three mouse control loci. Negative control gene Actb - act, facultative heterochromatin - Hox, centromeric heterochromatin major satellite positive control – maSat. Data in Figure 5—source datas 712. Error bars represent ± SEM of three independent repeats. Enrichments were normalised to maSat levels and compared to Act (and maSat for NP-T1 and NP-T2) by the t-test (*p<0.05, n.s. = not significant).

Analysis of metaphase chromosomes containing S. pombe DNA insertions in these transformants revealed that their appearance varied considerably. In NP-T1 and NP-T2 there was no significant detectable difference in chromosome structure or PI intensity over the region containing S. pombe DNA compared to the rest of the chromosome arm (Figure 5A–B,G–H). On a proportion of chromosomes from NP-T3 a slightly different structure and noticeably decreased PI intensity was observed to coincide with the S. pombe DNA (Figure 5C), although this difference was only statistically significant when compared with one of the two control regions (Figure 5I). In contrast, NP-T4, NP-T5 and NP-T6 all displayed visibly distinct structures on the majority of mitotic chromosomes carrying S. pombe DNA, with NP-T6 exhibiting the most obvious distinct appearance (Figure 5D–F). PI intensity was found to decrease significantly over the chromosomal site of S. pombe DNA insertion in these three DNA transformants (Figure 5J–L).

H3K9me3 levels at the inserted S. pombe DNA were similarly found to vary between these six cell lines and, strikingly, this variation correlated with the distinct appearance of the S. pombe DNA. NP-T1 and NP-T2 had relatively low H3K9me3 levels compared to the centromeric satellite positive control region (30–35% of the signal associated with the major satellite positive control) (Figure 5M,N), NP-T3 exhibited intermediate levels of H3K9me3 levels on its S. pombe DNA insert (67% of the major satellite signal) (Figure 5O) whereas considerably higher H3K9me3 levels were associated with the insertions in NP-T4, NP-T5 and NP-T6 (80–150% of the major satellite signal) (Figure 5P–R). Immunolocalisation confirmed the above variability: NP-T1 and NP-T2 showed no visible H3K9me3 signal over the inserted S. pombe DNA. A low but significant increase in H3K9me3 signal was detectable over the inserted DNA in NP-T3 and NP-T4, while obvious domains of H3K9me3 were observed over the S. pombe DNA in NP-T5 and NP-T6 (Figure 5—figure supplement 1). Thus, S. pombe DNA insertion events exhibiting the most evident and distinct structural appearance by PI staining are associated with the highest levels of H3K9 methylation. This association suggests that the assembly of heterochromatin on inserted S. pombe DNA is responsible for the distinct appearance.

Heterochromatinised S. pombe DNA forms smaller chromatin loops in mitosis

To determine how Sp-DNA insert-associated H3K9me3-heterochromatin might affect mitotic chromatin structure, we further examined the F1.1 cell line. While heterochromatin is generally thought to compact chromatin fibres in interphase, our analysis indicates the opposite: less chromatin per unit length is detected across the Sp-DNA insert on F1.1 mitotic chromosomes (Figure 1). A possible explanation is that chromatin fibre organisation, rather than fibre structure itself, is altered in these regions. Current models of mitotic chromosome organisation propose that the chromatin fibre is organised into consecutive loop arrays organised around a central scaffold as originally suggested by observations of extracted chromosomes (Paulson and Laemmli, 1977; Adolph et al., 1977; Earnshaw and Laemmli, 1983). These models are in part based upon Hi-C data which shows that in mitosis mammalian cells lose all Topologically Associating Domain (TAD) structures and chromosome compartments and show a uniform interaction pattern consisting of strong interactions along the diagonal that undergo a sharp drop-off over a longer range. This drop-off was most strikingly visualised by plotting contact probability over genomic distance in a P(s) curve (Naumova et al., 2013; Gibcus et al., 2018). Polymer simulations demonstrated these findings to be consistent with an organisation of chromatin into arrays of loops. Furthermore, the distance at which the drop-off in interaction frequency occurs, was shown to be indicative of the amount of chromatin per ‘layer’ of loop arrays. This is explained by the fact that within one layer contact between two loci is very likely as loops are tightly packed and in close proximity. Conversely, contact between two loci separated by a distance greater than one layer is highly restricted and thus unlikely to occur.

To further investigate the organisation of chromatin within the Sp-DNA insert we therefore performed Hi-C on mitotic F1.1 cells. Consistent with previous results, F1.1 mitotic cells lose long-range interactions and present a uniform pattern of strong short-range interactions (Figure 6—figure supplement 1). We then compared the longest Sp-DNA contig assembled from our sequencing of F1.1 with a region of mouse DNA of the same size on chromosome 10 (Figure 6A,B). Both regions showed the expected mitotic Hi-C pattern but with different characteristics. While both regions showed strong short-range interactions along the diagonal, the strength of the interactions over the mouse DNA region decreased more gradually with distance within the range observed. Conversely, the Sp-DNA region showed a sharper drop-off in interaction frequency. To visualise this more clearly, we made P(s) curves for these two datasets, plotting the probability of contact as a function of genomic distance for all mouse and S. pombe regions on mitotic chromosomes (Figure 6C). For S. pombe regions we used our de novo assembled contigs from F1.1 sequencing as a reference. However, as few of these contigs are greater than several hundred kb in length, the plot became erratic at large genomic distances due to the paucity of longer contigs. We thus truncated the S. pombe interaction plot at 500 kb, the N50 of our dataset. Nevertheless, within the observable range the plot suggests a more rapid decline in interaction frequencies within the S. pombe DNA component. Both mouse and S. pombe regions show extremely similar interaction patterns at short range, with a gradual decrease in interaction as distance increases, up to approximately 150 kb. However, at a distance of 150 kb interactions within the S. pombe region show an abrupt drop while interactions within mouse chromosomal regions decline much more gradually. As explained above, this sharp decrease in contact probability is a clear indication that the Sp-DNA insert has less chromatin per layer on mitotic chromosomes than mouse chromosomal regions in the F1.1 cell line. This is both consistent with our microscopy results (Figure 1) and suggests that chromatin organisation is indeed altered within the Sp-DNA region.

Figure 6 with 3 supplements see all
Chromatin assembled on S. pombe DNA in F1.1 cells is organised into smaller loops than flanking mouse chromatin in mitosis.

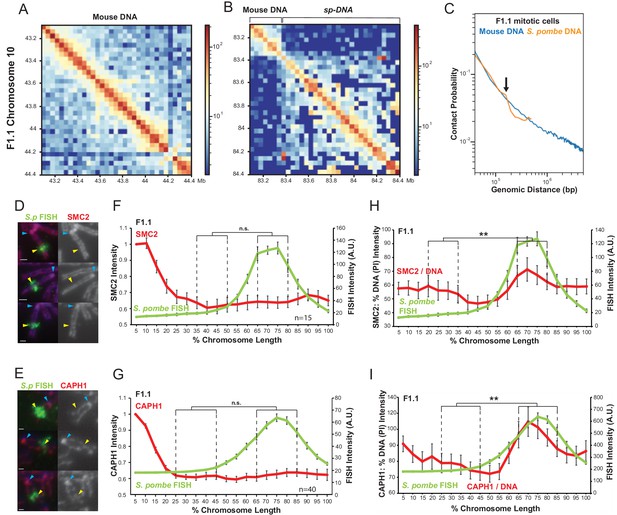

(A,B) Hi-C contact heatmaps for the longest contig containing S. pombe DNA and flanking mouse DNA from the F1.1 de novo genome assembly (B) and a contiguous region of mouse chromosome 10 of the same size (A). (C) Chromatin interactions as a function of genomic distance in F1.1 mitotic cells. Contact probability plotted for mouse sequences and S. pombe sequences mapped to the F1.1 de novo assembly. Arrow indicates drop in S. pombe interactions. (D,E) Immunofluorescence for SMC2 (D) or CAPH1 (E) on F1.1 metaphase spreads (red); S. pombe DNA FISH (green - yellow arrows), DAPI-stained DNA (blue), centromeres (blue arrows). Scale bars: 1 μm. (F,G) Average FISH and SMC2 (F, Figure 6—source data 1) or CAPH1 (G, Figure 6—source data 2) signal intensity profiles along the insert-bearing chromosome of F1.1 from several images (n = 15, 40). SMC2 and CAPH1 intensity levels were normalised to the 0–5% region of the chromosome, corresponding to the mouse centromere. (H,I) Normalisation of the SMC2 (H) and CAPH1 (I) profiles to DNA levels as measured by PI intensity. FISH intensities remain unaltered. Error bars represent ± SEM. Values were compared between a region of endogenous mouse DNA and the region of S. pombe DNA highlighted by FISH by the KS test (**p<0.001, n.s. = not significant).

To explore how chromatin might be altered over the Sp-DNA insert, and what form this alteration might take, we investigated the possible involvement of proteins known to influence chromatin architecture. First, because CTCF plays a key role in the formation of TADs in interphase in part through the regulation of the loop-extruding activity of cohesin (Dixon et al., 2012; Nora et al., 2017; Sanborn et al., 2015), we performed a search for CTCF consensus binding sites across the Sp-DNA insert and neighbouring mouse DNA (Figure 6—figure supplement 2). Our analysis demonstrates that the frequency of predicted CTCF binding sites is substantially less within the inserted S. pombe DNA, probably because CTCF-binding sites have a strong GC component. This lower frequency of predicted CTCF sites correlates with the decrease in the overall GC content of S. pombe DNA, thus the observed structure with smaller loops across inserted S. pombe DNA cannot be explained by a higher predicted frequency of CTCF sites within that DNA. Moreover, mounting evidence indicates that CTCF is not involved in the shaping of chromatin during mitosis (Oomen et al., 2019). We therefore conclude that CTCF binding density does not explain the altered chromatin organisation over the Sp-DNA insert on mitotic chromosomes.

The condensin complexes are major architects of mitotic chromosome structure and key components of the protein scaffold around which loop arrays are organised (Hirano, 2012; Gibcus et al., 2018). This is achieved in part through their role as the primary drivers of loop formation in mitosis by loop extrusion (Goloborodko et al., 2016; Ganji et al., 2018; Gibcus et al., 2018). Changes in the activity of condensin or in its association with chromatin can lead to dramatic changes in mitotic chromosome structure (Wignall et al., 2003; Ono et al., 2003; Woodward et al., 2016), although such changes have only been reported globally for all chromosomes, not locally within a specific chromosomal region.

We therefore investigated the association of SMC2 - a core component of both condensin I and condensin II - with F1.1 mitotic chromosomes (Hirano, 2012). Unlike histone H2B, H4 and H3K9me3, immunolocalisation showed that SMC2 was uniformly distributed along the length of the entire chromosome arm containing the Sp-DNA insert (Figure 6D,F). Condensin I and condensin II have different roles in shaping mitotic chromosomes and changes in their relative ratio may alter mitotic chromosome morphology (Antonin and Neumann, 2016; Kschonsak and Haering, 2015; Shintomi and Hirano, 2011; Lai et al., 2011; Yamashita et al., 2011; Green et al., 2012). However, CAPH1, a condensin I-specific component (Hirano, 2012), showed a similar even distribution along the entire length of the F1.1 mitotic chromosomes containing the Sp-DNA insert (Figure 6E,G). Measurement of a condensin II-specific subunit would be desirable to fully demonstrate any change, or lack thereof, in the condesin I/II ratio. However, attempts to image a condensin II-specific subunit on the F1.1 mitotic chromosome were unsuccessful. Nevertheless, the overall condensin levels, as measured by SMC2, and condensin I levels, as measured by CAPH1, are sufficient to infer a condensin I:condensin II ratio. Indeed, no change is observed in either the overall levels of condensin I and II combined, or the level of condensin I alone over the Sp-DNA insert. We therefore deduce that, within the limits of quantification, condensin II levels also remain relatively unchanged across the Sp-DNA insert compared to the host chromosome 10 in which it is embedded.

These observations therefore suggest that, while DNA and histone levels are lower over the F1.1 Sp-DNA insert than in surrounding mouse chromatin, neither the overall levels of condensin nor the ratio of condensin I to condensin II complexes differ dramatically. This indicates that overall there is a localised increase in condensin levels relative to the amount of chromatin across the Sp-DNA insert. This increase in the condensin:chromatin ratio is evident when SMC2 or CAPH1 levels are normalised to DNA (Figure 6H,I) or H2B (Figure 6—figure supplement 2). Based on these observations we propose that the Sp-DNA insert is organised into smaller loops of chromatin than the surrounding mouse DNA. As the main player in the formation of mitotic chromatin loops, an increased association of condensin with this region of the chromosome would be expected to result in arrays of smaller loops due to the localised increase in loop-extruding activity. A smaller loop organisation would also result in a decrease in chromatin per unit length of the chromosome (assuming a constant number of condensins per unit length of the chromosome, consistent with the even distribution of condensins along the chromosome carrying the Sp-DNA insert). A decrease in the frequency of long-range chromatin contacts for loci separated by more than 150 kb as observed for the Sp-DNA indicates a reduced amount of DNA per layer of loops, which would be expected when loops are smaller. Finally, such an organisation would explain the distinct narrow appearance of the Sp-DNA insert within mouse chromosome 10. We therefore propose that the heterochromatinised S. pombe region has an altered mitotic chromatin loop organisation with a decreased loop size, resulting in a localised narrowing of the chromosome width and reduction in the amount of chromatin per unit length of chromosome.

Discussion

Heterochromatin is established over foreign S. pombe DNA in mammalian cells

Since its initial description, the presence of a large region of distinct mitotic chromosome structure in the F1.1 cell line has remained an interesting but largely unexplained observation (Allshire et al., 1987; McManus et al., 1994). By expanding this observation to other cell lines and even another mammalian species, we have shown that this variation in structure is not unique to the F1.1 cell line. This is in agreement with other studies that have reported similar narrow appearances on mitotic chromosomes of DNA inserted into mammalian cells from another yeast species, S. cerevisiae (Featherstone and Huxley, 1993; Nonet and Wahl, 1993).

Our analyses suggest that the observed distinct appearance is related to the assembly of high levels of H3K9me3-heterochromatin over the incoming foreign DNA. This is consistent with the previous observation that the S. pombe chromatin in F1.1 is replicated late in S phase (McManus et al., 1994). The de novo establishment of a heterochromatin domain over DNA derived from S. pombe clr4Δ cells that lack H3K9 methylation led us to reject the hypothesis that heterochromatin was spreading from pre-existing heterochromatin carried on incoming S. pombe chromatin (Figure 4). Furthermore, heterochromatin was also established to varying degrees over S. pombe DNA introduced by transfection as naked DNA into mammalian cells (Figure 5), precluding any possible influence of S. pombe chromatin on the inserted domain.

However, it remains possible that the spreading of heterochromatin over the inserted S. pombe DNA in a mammalian cell could happen quite readily. Over endogenous chromatin, heterochromatin spreading is usually checked by barriers, such as regions of active transcription, active histone modifications and high nucleosome turnover (Allshire and Madhani, 2018). Given that it originates from a very distantly-related species, the S. pombe DNA may not contain any such signals that would be recognisable to the mammalian cellular machinery. As such, it could be considered as a large stretch of ‘inert’ DNA over which heterochromatin would easily spread. It then remains to be determined from what source the heterochromatin could spread to cover the inserted DNA.

The surrounding mouse DNA is one potential source for heterochromatin spreading into the S. pombe DNA. However, this does not seem to be the case for the F1.1 cell line at least, in which the S. pombe DNA is inserted in an intergenic region in close proximity to two actively transcribed genes. Another possibility is that the cell reacts to the introduction of foreign DNA and proceeds to silence it in a manner analogous to its silencing of parasitic genetic elements by H3K9me3 (Mikkelsen et al., 2007; Timms et al., 2016; Cuellar et al., 2017). In this scenario, heterochromatin would spread from one or several small nucleating regions of heterochromatin within the insert. However, this cannot occur in all cases as some cell lines transfected with S. pombe DNA do not form heterochromatin (Figure 5G,H). Perhaps this merely reflects the stochastic nature of foreign DNA silencing, so that a small number of inserts might escape the silenced fate of the majority of others. This raises the possibility that cell lines such as NP-T1 and NP-T2 in which we did not observe high H3K9me3 over the S. pombe DNA might acquire it upon continued growth in culture, and that ‘intermediate’ cell lines such as NP-T3 which show moderate H3K9me3 levels and occasional distinct structures may represent a transitional stage, or at least reflect this stochasticity in its cell-to-cell variability.

Heterochromatin alters mitotic chromatin structure

In all mammalian-S. pombe cell lines examined the presence of heterochromatin correlates with a distinct appearance of the S. pombe DNA region on metaphase chromosomes (Figure 5). Engineering the removal of H3K9me3 from those insertions on which it is present would be a more direct method of determining its influence on the chromosome structure in these cell lines. However, the challenge here lies in finding a method of doing so both selectively and without disrupting cellular function excessively. Several drugs exist which act to remove heterochromatic signals from chromatin, however their targets are frequently varied and they affect all heterochromatin, and sometimes even non-heterochromatic post-translational modifications, rendering conclusions as to their effect more difficult to ascribe to a single factor (Zheng et al., 2008; Tóth et al., 2004; Cherblanc et al., 2013). In addition such drugs, as well as most mutants which significantly affect heterochromatin, are also either lethal or hinder progress through the cell cycle, making analysis of mitotic features difficult. The establishment of a technique by which the H3K9me3 could be more selectively or unobtrusively removed from the Sp-DNA insert would therefore be a powerful tool to develop for future investigations.

Nevertheless, the strength of the correlation across the multiple and varied cell lines investigated points to a likely link between heterochromatin and the distinct mitotic structure observed. No other factor examined in this study fully correlates with the changes in appearance of the chromatin. Neither the host cell line nor the method of DNA insertion (fusion or transfection) correlated with the distinct structure observed. The source or sequence of the DNA is unlikely to be a determining factor given that all S. pombe DNA inserts were derived from the same S. pombe strain (with the exception of the clr4Δ strain which differed only in a single gene deletion). Nor did the size or relative chromosomal position of the insert seem to matter. Both NP-T1 and NP-T4 cells have S. pombe DNA insertions of a similar size, but only the S. pombe DNA insert in NP-T4 exhibits a distinct heterochromatin-associated distinct structure (Figure 5A,J). Conversely, both NP-T2 and NP-clr4Δ-F4 cells have comparatively large insertions close to centromere regions but only NP-clr4Δ-F4 cells exhibit a distinct structure on the inserted DNA (Figure 5B and Figure 4A). The presence of H3K9me3 not only correlated with the presence of a distinct mitotic chromatin structure, the magnitude of the two observations also showed correlation, as the inserts with the highest levels of H3K9me3 also displayed the most evident structure (Figure 5). This places H3K9me3-heterochromatin as the primary candidate for causing these distinct chromatin structures.

This raises the question of whether heterochromatin is involved in the regulation of chromosome structure at endogenous loci. Certainly, the most obvious example of a distinct chromatin structure, the centromere, is associated with large domains of pericentromeric H3K9me3 heterochromatin (Kim and Kim, 2012). Reports of condensin enrichment at centromeric regions also support a link between the structure of centromere regions and that seen over S. pombe DNA inserts, as this would match with our findings of the increased condensin:chromatin ratio (Wang et al., 2005; D'Ambrosio et al., 2008, Kim et al., 2013, Figure 6H,I, Figure 6—figure supplement 2). However, in the cell lines described here the centromere and S. pombe DNA insert appear to adopt different structures both from each other and the rest of the chromosome in mitosis. Centromeres appear as a region of increased DNA staining instead of the decrease observed over the S. pombe DNA insert, possibly indicating greater chromatin compaction (Figure 1). On the other hand, centromeres do appear as constrictions on mitotic chromosomes, which would be consistent with their organisation into smaller chromatin loops, consistent with our analyses. Furthermore, in the HeLa-S. pombe hybrid cell HeP-F3 the centromere and S. pombe insert did bear greater resemblance than in the mouse hybrid cells, in which the centromeres are acrocentric, potentially complicating the comparison (Figure 2C, Figure 2—figure supplement 1C).

Further analyses in these and other species could perhaps determine with more certainty if certain structural properties are shared between the regions of H3K9me3 heterochromatin over S. pombe DNA and centromeric regions. It is possible that centromeres combine aspects of the smaller loop sizes we observe and increased compaction of the chromatin fibre. The effect of H3K9me3 on chromosome structure may be combined or in competition with others at centromeres, where a number of complex processes related to kinetochore function are at work (Verdaasdonk and Bloom, 2012). The influence of H3K9me3 heterochromatin on mitotic chromosome structure is thus potentially one of many factors that contributes to the distinct structure of centromeres in mitosis.

Increased loading of condensin on heterochromatin and smaller chromatin loop arrays

While the role of H3K9me3-heterochromatin in compacting the 10 nm chromatin fibre in interphase is well known, its involvement in mitotic chromatin structure is less well explored. Histone modifications have been proposed to be a contributor to mitotic chromosome structure, potentially involved in the ‘compaction’ of chromatin by processes independent of the so-called ‘shaping’ action of organising proteins such as the condensin complexes (Zhiteneva et al., 2017). H3K9me3 in particular has been shown to increase during mitosis, and a role for it in chromosome compaction has been put forward (McManus et al., 2006, Park et al., 2011). However, the distinct structure presented here, characterised by a decreased rather than increased chromatin density, is at odds with the idea that heterochromatin is compacting the chromatin fibre and rather suggests a role for heterochromatin in the ‘shaping’ of chromatin by condensins. This is supported by our analysis of the structure, which points to an altered organisation of the S. pombe DNA into smaller loops of chromatin than the surrounding mouse chromatin (Figure 6). These results suggest a role for H3K9me3-heterochromatin in the regulation of condensin activity that leads to this altered organisation.

Shaping of mitotic chromosomes is thought to be achieved by the ATPase activity of the condensin complexes, which extrude loops of chromatin through their ring-like structures (Goloborodko et al., 2016; Hassler et al., 2019). This shaping is thus mediated by a small number of parameters, including the frequency of condensin loading onto and dissociation from the chromatin fibre, and the processivity of condensin-mediated extrusion. Given the different roles of condensin I and II in the shaping of mitotic chromosomes, the relative amount of these two complexes also has an impact on chromosome structure (Shintomi and Hirano, 2011; Green et al., 2012). The dynamic activity of the different condensin complexes thus reaches an equilibrium, and formation of loops-within-loops ensures the stability of the final structure (Goloborodko et al., 2016; Gibcus et al., 2018). Alteration in any of these parameters would result in an alteration of the equilibrium and thus a change in the final structure. Thus, a local alteration in the activity of the condensin complexes could explain the altered organisation around the S. pombe DNA that results in the observed distinct structure.

In order to account for all of our observations, we propose a model whereby condensin is enriched at heterochromatin by a localised increase in its initial loading (Figure 7). This increase in condensin loading results in an array of smaller loops than non-heterochromatic regions because the greater concentration of condensin complexes may block or slow each other’s loop extrusion activity. Thus, the loops are not free to extrude to the extent they would be otherwise and an alternative equilibrium with smaller loops is attained. While maintaining a similar self-organising scaffold of condensin, the resulting structure has on average less chromatin being tethered by each condensin complex, meaning that the condensin:chromatin ratio increases, the amount of chromatin per unit length decreases and the diameter of the resulting region of the chromosome is narrower, explaining all of our observations (Figure 7C).

Model: Increased loading of condensin on heterochromatin leads to smaller chromatin loops on the mitotic chromosome.

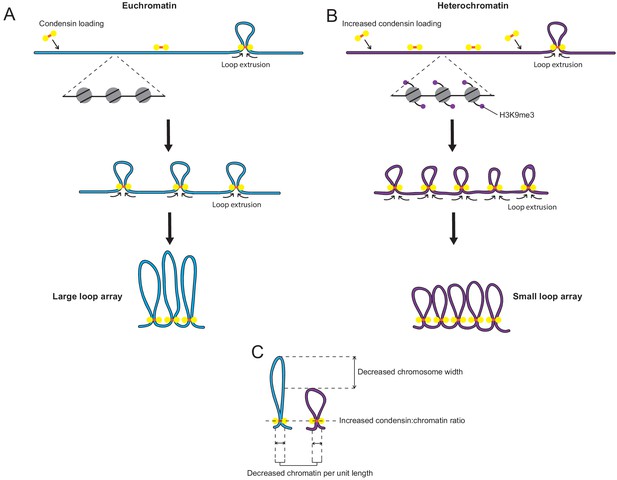

(A) Diagram of regular chromatin organisation by loop extrusion in mitosis. Condensin binds to the chromatin fibre and extrudes loops until blocked by other condensin complexes on either side. This results in an array of large side-by-side loops organised around a condensin scaffold. (Goloborodko et al., 2016; Gibcus et al., 2018). (B) When condensin loading is increased over heterochromatin loop extrusion is halted earlier by the greater concentration of condensin complexes present on the chromatin fibre. This results in an array of smaller loops. (C) This small-loop array results in a decrease in chromatin per unit length, an increase in the ratio of condensin to chromatin and a narrowing of the chromosome width.

While we put forward this model as that which best explains our results, there are many additional aspects of this experimental system that warrant further study. The mechanism by which heterochromatin might lead to increased condensin recruitment is intriguing, and one which bears relevance to the study of the role of condensin at centromeres (Wang et al., 2005; D'Ambrosio et al., 2008, Kim et al., 2013). The specific removal of heterochromatin from S. pombe DNA inserts would be a direct way to test the role of heterochromatin in altering mitotic chromosome architecture in these cell lines, and merits further investigation. The contribution of sequence features to the structure of the foreign DNA is another potential avenue of future research. While we place more importance on the epigenetic factors due to the source of the inserted DNA being the same in all our cell lines, it would be of interest to determine whether distinct structures also result from the insertion of DNA from other sources with widely differing GC content. The lower frequency of predicted binding sites suggests that CTCF is unlikely to be involved in shaping mitotic chromosome architecture across Sp-DNA inserts, however, the experimental manipulation of CTCF -binding site frequency would definitively test if CTCF and cohesin influence loop formation during mitosis (Costantino et al., 2020). In general, the cell lines generated in this study provide an excellent system for studying large domains of heterochromatin in the absence of confounding factors such as repetitive sequences and may provide further insight into the role of heterochromatin at naturally occurring regions such as centromeres.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Cell line (M. musculus)C127 (female, mammary tumour)ATCCCRL-1804;
Cell line (M. musculus)F1.1Allshire et al., 1987Kept as cryopreserved stocks in the Allshire lab
Cell line (M. musculus)NIH3T3ATCCCRL-1858
Cell line (H. sapiens)HeLaATCCCCL-2
Cell line (M. musculus)NP-F1This paperNIH3T3-S. pombe fusion cell line. Aka NPA4. Available from Allshire lab.
Cell line (M. musculus)NP-F2This paperNIH3T3-S. pombe fusion cell line. Aka NPF3-19. Available from Allshire lab.
Cell line (M. musculus)NP-T1This paperNIH3T3-S. pombe DNA transfection cell line. Aka NPD3. Available from Allshire lab.
Cell line (M. musculus)NP-T2This paperNIH3T3-S. pombe DNA transfection cell line. Aka NPD5. Available from Allshire lab.
Cell line (M. musculus)NP-T3This paperNIH3T3-S. pombe DNA transfection cell line. Aka NPT-C606. Available from Allshire lab.
Cell line (M. musculus)NP-T4This paperNIH3T3-S. pombe DNA transfection cell line. Aka CPT-C500. Available from Allshire lab.
Cell line (M. musculus)NP-T5This paperNIH3T3-S. pombe DNA transfection cell line. Aka NPT-C480. Available from Allshire lab.
Cell line (M. musculus)NP-T6This paperNIH3T3-S. pombe DNA transfection cell line. Aka NPT-C482. Available from Allshire lab.
Cell line (M. musculus)NP-clr4Δ-F4This paperNIH3T3-S. pombe fusion cell line. Aka NPF-Clr-I. Available from Allshire lab.
Cell line (H. sapiens)HeP-F3This paperHeLa-S. pombe fusion cell line. Aka HeP3. Available from Allshire lab.
Strain, strain background (S. pombe)FY43Allshire et al., 1987h-Int5(pUraSV2Neo) ade6-210 leu1-32 ura4-D18
AntibodyAnti-H3K9me3 (rabbit polyclonal)Active Motif39161;
RRID:AB_2532132
ChIP(4 µg/mL)
IF(1:1000)
AntibodyAnti-H3K4me3 (rabbit polyclonal)Active Motif39159;
RRID:AB_2615077
ChIP(4 µg/mL)
AntibodyAnti-H3K36me3 (rabbit polyclonal)Active Motif61101;
RRID:AB_2615073
ChIP(4 µg/mL)
AntibodyAnti-H3K9ac (rabbit polyclonal)Active Motif39137;
RRID:AB_2561017
ChIP(4 µg/mL)
AntibodyAnti-H3K27me3 (rabbit polyclonal)AbcamAb4729;
RRID:AB_2118291
ChIP(4 µg/mL)
AntibodyAnti-HP1alpha (goat polyclonal)AbcamAb77256;
RRID:AB_1523784
ChIP(4 µg/mL)
IF(1:500)
AntibodyAnti-SMC2 (rabbit polyclonal)Losada LabIF(1:1000);
Obtained from Ana Losada
AntibodyAnti-SMC3 (rabbit polyclonal)Losada LabIF(1:1000);
Obtained from Ana Losada
AntibodyAnti-H4 (rabbit polyclonal)Sigma-AldrichSAB4500312;
RRID:AB_10743081
IF(1:1000)
AntibodyAnti-CAPH1 (rabbit polyclonal)AbcamAb154105IF(1:1000)
AntibodyAnti-rabbit-A594 (donkey polyclonal)InvitrogenA21207;
RRID:AB_141637
IF(1:10000)
AntibodyAvidin-FITCVector LabsA-2001–5;
RRID:AB_2336455
FISH(1:500)
AntibodyBiotinylated anti-Avidin (goat polyclonal)Vector LabsBA-0300-.5;
RRID:AB_2336108
FISH(1:100)
AntibodyTexas Red anti-sheep (rabbit polyclonal)Vector LabsTI-6000;
RRID:AB_2336219
FISH(1:100)
AntibodyRhodamin anti-dig (sheep polyclonal)Roche11207750910;
RRID:AB_514501
FISH(1:20)
Recombinant DNA reagentH2B-GFPAddgene11680
Commercial assay or kitEpiTect Bisuflite kitQiagen59104
Chemical compound, drugLightCycler 480 SYBR Green Master MixRoche04707516001
Software, algorithmFIMOGrant et al., 2011
Software, algorithmHiCExplorerRamírez et al., 2018

Cell culture, fusion and transfection

Request a detailed protocol

C127, NIH3T3 and HeLa cells were from ATCC. All mouse and human cell lines were maintained in DMEM supplemented with 10% FBS and 100 U/mL Penicillin-Streptomycin and 400 µg/mL geneticin (Gibco, Carslbad, CA). Standard S. pombe culture methods were followed as described (Moreno et al., 1991). Cells were grown in YES at 32°C. For protoplasting of S. pombe a procedure modified from previously reported methods was used (Allshire et al., 1987; Flor-Parra et al., 2009). Briefly, S. pombe cells were harvested from log-phase cultures grown in YES. 1 × 109 cells were resuspended in 10 mL SP2 buffer (50 mM citrate-phosphate, 1.2 M Sorbitol, pH 5.6) containing 25 mg/mL Lallzyme (Lallemand, Rexdale, ON, Canada, supplied by Litmus Wines), then incubated at 36°C for approximately 45 min until 80–90% of cells were converted to spherical protoplasts (determined by phase contrast microscopy). Protoplasts were pelleted at 1600xg for 3 min, then gently resuspended in 5 mL wash buffer (1.2 M Sorbitol, 10 mM Tris-HCl pH 7.5) and re-pelleted a total of three times.

For fusion of protoplasts with mammalian cells, protoplasts were counted using a haemocytometer and 1 × 108 cells were aliquoted per fusion. Mammalian cells were trypsinised, collected, washed in serum-free DMEM (SF-DMEM), centrifuging at 300xg for 5 min, and similarly counted. 1 × 107 mammalian cells in 5 mL SF-DMEM were then added to the tube containing the S. pombe protoplast pellet without dislodging it and pelleted on top at 300xg for 5 min. Fusion was carried out by resuspending the mixed cell pellet slowly in 1 mL of 50% PEG 1500 (Roche, Basel, Switzerland) at 37°C over the course of 1 min and incubated for a further 1 min at 37°C. The total volume was brought to 5 mL with SF-DMEM gradually over 4 min, and then to 15 mL adding SF-DMEM drop by drop. Cells were then incubated for a further 5 min at 37°C before centrifugation and washing twice in SF-DMEM. Cells were finally resuspended in the appropriate cell culture media and plated.

A plasmid expressing H2B-GFP was obtained from Addgene (plasmid #11680) and transfected using the Neon transfection system (Invitrogen, Carlsbad, CA) as per the manufacturer’s instructions, electroporating for two pulses at 1400V for 20 ms each. For the transfection of S. pombe DNA into mammalian cells, DNA was prepared using a Qiagen Blood and Cell Culture DNA Kit (Qiagen, Venlo, Netherlands). 15–20 µg DNA was added to 124 µL of 2M CaCl2 and the total volume brought to 1 mL. 1 mL 2xHBS (50 mM HEPES pH 7.05, 10 mM KCl, 12 mM dextrose, 280 mM NaCl, 1.5 mM Na2PO4) was then added drop-wise while aerating constantly. 1 mL of the final mix was added drop-wise to a 10 cm diameter plate with cells at 30–40% confluence, or relatively equivalent volumes to other sized plates.

FISH

Request a detailed protocol

For FISH metaphase spreads were prepared from non-arrested cells collected by mitotic shake-off. Cells were centrifuged at 800xg for 8 min and resuspended drop by drop in 5 to 10 mL 100 mM KCl pre-warmed to 37°C, mixing continuously. Cells were then incubated at 37°C for 15 min, centrifuged again and resuspended in 5 to 10 mL fixing solution (3:1 mix of methanol: acetic acid) at −20°C. Cells were centrifuged and washed in fixing solution in the same way twice more and finally resuspended in an appropriate volume of fixing solution (depending on cell number). 10 µL of fixed cell suspension was dropped onto a glass slide from approximately 0.5 m and allowed to dry for 2 to 5 days before proceeding. Slides were then incubated in 2xSSC with 100 µg/mL RNase at 37°C for 1 hr then dehydrated through a series of 2 min washes in 70%, 90% and 100% ethanol and air dried. Slides were then denatured in 2xSSC, 70% formamide, pH 7.5 for 1.5–2 min at 70°C. Denaturation was rapidly stopped by dipping slides into 70% ethanol on ice, followed again by dehydration through 90% and 100% ethanol at room temperature and air drying. Biotin or digoxigenin labelled S. pombe gDNA probes made by nick translation were evaporated at 65°C in 70% ethanol and resuspended in hybridisation mix (2xSSC, 50% deionised formamide, 10% dextran sulfate, 1% Tween 20). 100–200 ng probe containing 5 µg sonicated salmon sperm DNA in 15 µL hybridisation mix was used per slide. Alternatively, mouse chromosome paint was used directly. Probes were denatured at 70°C for 5 min and snap-cooled on ice before being placed on the slide under a coverslip overnight at 37°C in a humidity chamber. The following day slides were washed four times for 3 min in 2xSSC at 45°C and four times for 3 min in 0.1xSSC at 60°C before a brief wash in 4xSSC, 0.1% Tween 20 at 37°C. Blocking was performed for 5 min in in 4xSSC, 5% milk powder. Slides were then incubated with the appropriate detection antibodies for 30 to 60 min in 4xSSC, 5% milk powder under a coverslip. After each antibody incubation slides were washed three times for 2 min in 4xSSC, 0.1% Tween 20 at 37°C. After all antibody incubations slides were mounted directly in mounting medium and sealed. Antibodies used for detection of biotinylated probes were Avidin-FITC (Vector Labs, Burlingame, CA, 1:500), biotinylated α-Avidin (Vector Labs, 1:100) and Avidin-FITC again; and for detection of DIG-labelled probes, rhodamine α-DIG Fab fragments (Roche 1:20) followed by Texas Red α-sheep antibody (Vector Labs, 1:100).

Immunolocalisation

Request a detailed protocol

Spreads that were used for immunolocalisation experiments were prepared using a Shandon Cytospin (Thermo Scientific, Waltham, MA). Cells collected by mitotic shake-off, centrifuged, washed in D-PBS (Gibco) and resuspended at 3 × 104 cells/mL in 100 mM KCl pre-warmed to 37°C. Cell suspensions were then incubated for 15 min at 37°C and 100 µL of cells were spun onto glass slides using a Cytospin centrifuge at 1,800 rpm for 10 min. The slides were then incubated in a coplin jar for 10 min at room temperature in KCM buffer (120 mM KCl, 20 mM NaCl, 10 mM Tris-HCl pH 8.0, 0.5 mM EDTA, 0.1% Triton X-100) before blocking in 1% BSA in KCM buffer for 30 min at 37°C. Slides were then incubated in primary and secondary antibodies in blocking solution for 30 min and 45 min respectively at 37°C. After each antibody incubation the slides were washed twice in KCM buffer for 5 min. The slides were then fixed in 4% PFA in KCM for 10 min at 37°C and washed briefly once in KCM and twice in water before mounting and sealing. Antibodies used were as follows: rabbit α-H3K9me3 (Active Motif, Carlsbad, CA #39161), rabbit α-SMC2 and α-SMC3 (from Ana Losada), rabbit α-H4 (Sigma-Aldrich, St Louis, MO, #SAB4500312), rabbit α-CAPH1 (Abcam, Cambridge, UK, #Ab154105), donkey α-rabbit Alexa594 (Invitrogen, #A21207). Slides were imaged and positions on the slide recorded before proceeding to FISH. FISH was carried out as indicated above, except that slides were denatured at 80°C for 20 min.

Microscopy

Request a detailed protocol

Most microscope images were acquired on a DeltaVision Core system (Applied Precision, Issaquah, WA) with an Olympus UPlanSApo × 100 oil immersion objective and an LED light source. Camera (Photometrics Cool Snap HQ), shutter and stage were controlled through Softworx (Applied Precision). Other images were acquired on an Eclipse Ti2 (Nikon, Tokyo, Japan) using the NIS-Elements software for instrument control and image acquisition. Z-series were collected and subsequently projected into a single image using either Softworx or ImageJ software (National Institutes of Health, Bethesda, MD). For intensity measurements DeltaVision images were also deconvolved in Softworx. Intensity and chromosome length measurements were taken using ImageJ. Intensity measurements were then binned as a function of their relative position along the chromosome and averaged. Regions of the average chromosome profile with equal numbers of measurements were compared using the Kolmogorov-Smirnoff test. The regions to test corresponding to the site of S. pombe DNA were defined as collections of two to five contiguous bins centred on the bin with the highest FISH intensity value, and containing only those bins whose FISH intensity was equal to or greater than 70% of this maximum value. Control regions were then defined as a separate collection of contiguous bins of the same size as the test region and whose IF or DNA intensity values fell within one standard deviation of the overall mean of the dataset, thus excluding extreme regions such as the centromere. Wherever possible, two distant and non-overlapping control regions were selected.

ChIP-qPCR

Request a detailed protocol

For ChIP, mammalian cells were grown to near confluence in tissue culture dishes before fixation in growth medium with 1% PFA for 10 min at room temperature. Fixation was stopped by addition of glycine to a final concentration of 125 mM for 5 min at room temperature before washing twice in ice cold PBS. Cells were then harvested in PBS by scraping and spun down at 800xg for 5 min at 4°C. The fixed cells were then washed once each in 5 mL Wash Buffer 1 (0.25% Triton X-100, 10 mM EDTA, 0.5 mM EGTA, 10 mM HEPES) and Wash Buffer 2 (200 mM NaCl, 10 mM EDTA, 0.5 mM EGTA, 10 mM HEPES), with a 10 min incubation step on ice after each resuspension.

Cells were then resuspended in between 0.3 and 0.6 mL of Lysis Buffer (1% SDS, 10 mM EDTA, 50 mM Tris pH 8.1, 0.1 mM PMSF, 1x Protease Inhibitor) and sonicated on a Diagenode Bioruptor for 15 min on a 30 s on/off cycle to obtain fragments between 400 and 600 bp. The sonicated chromatin samples were then centrifuged at 13,000 rpm for 10 min and 4°C, collecting the supernatant to clarify the lysate. 100 µL aliquots in lysis buffer were made containing 25 to 50 µg of chromatin for histone modification IPs and 100 µg for HP1α, as measured by Nanodrop (Thermo Scientific), before adding 900 µL of ChIP Dilution Buffer (167 mM NaCl, 16.7 mM Tris pH 8.1, 1.2 mM EDTA, 1.1% Triton X-100, 0.01% SDS). 10 µg inputs in 50 µL Lysis Buffer were also taken and stored at 4°C. 4 µg of the appropriate antibody was then added to the samples, including a no-antibody control for each ChIP, which were then shaken gently overnight at 4°C. Antibodies used were: α-H3K9me3 (Active Motif #39161), α-H3K4me3 (Active Motif #39159), α-H3K36me3 (Active Motif #61101), α-H3K9ac (Active Motif 39137), α-H3K27ac (Abcam #ab4729), α-HP1α (Abcam #Ab77256).

50 µL of pre-washed protein G Dynabeads were aliquoted for each sample, and the supernatant removed with the aid of a magnetic rack. The samples were then added to the beads and shaken again at 4°C for 4 to 5 hr. The samples were then washed sequentially for 10 min at 4°C once each in RIPA (150 mM NaCl, 50 mM Tris pH 8, 0.1% SDS, 0.5% Na deoxycholate, 1% NP40), High Salt Wash (0.5 M NaCl, 50 mM Tris pH 8, 0.1% SDS, 1% NP40) and LiCl Wash (250 mM LiCl, 50 mM Tris pH 8, 0.5% Na deoxycholate, 1% NP40) and twice in TE Buffer (10 mM Tris pH 8, 1 mM EDTA). DNA was then eluted from the Dynabeads by addition of 400 µL Elution Buffer (2% SDS, 0.1 M NaCO3, 10 mM DTT) and shaking strongly for 30 min at room temperature. For this step and all subsequent steps the input was included with the IP samples. The eluate was then collected on the magnetic rack and the beads discarded. The DNA-protein crosslinks were then reversed by addition of 20 µL 4 M NaCl and shaking overnight at 300 rpm and 65°C. Proteins were then digested in 0.05 mg/mL proteinase K for 1 hr at 55°C, with addition of 8 µL 0.5 M EDTA, 16 µL 1 M Tris pH6.5.

DNA was then Phenol-Chloroform extracted and ethanol precipitated before RNase treatment in 0.25 µg/mL DNase-free RNase for 30 min at room temperature. DNA amounts were then determined by qPCR on a Light Cycler 480 using SYBRGreen qPCR master mix (Roche). Inputs were diluted 1:20 before qPCR. Enrichments were calculated as % of DNA immunoprecipitated relative to input at the locus in question, and normalised to a positive control locus. Normalised IPs were compared between loci using the Student’s t-test.

Bisulfite sequencing

Request a detailed protocol

Bisulfite conversion of mammalian genomic DNA was performed using the EpiTect Bisulfite kit (Qiagen). Selected targets of 200–300 bp were then amplified by Hot Start PCR using primers designed for converted DNA. PCR products were then gel extracted and cloned into a vector using the Strataclone PCR Cloning kit (Agilent, Santa Clara, CA) and Sanger sequenced using the BigDye Terminator Cycle sequencing kit (Applied Biosystems, Foster City, CA).

DNA sequencing, assembly and analysis

Request a detailed protocol

High molecular weight F1.1 genomic DNA was sequenced on a PromethION flow cell (Oxford Nanopore) to generate ultra-long reads. Mean read length was approximately 7 kb with a N50 of 40 kb and the longest read reaching 300 kb in length. From this, the sequence of the S. pombe insert of F1.1 was assembled by minimap2 and miniasm (Li, 2016). The assembly was then polished using Illumina whole genome paired-end reads (Langmead and Salzberg, 2012; Li, 2011; Li et al., 2009). CTCF site prediction was performed using FIMO (Grant et al., 2011) with a value <0.0001. The CTCF motifs were based on position weight matrices downloaded from CTCFBSDB 2.0 (Bao et al., 2008; Ziebarth et al., 2013).

Hi-C

Request a detailed protocol

F1.1 cells were synchronised for mitotic Hi-C by a thymidine block. Cells were arrested for 18 hr by the addition of 2 mM thymidine and collected by mitotic shake-off 5 and then 8 hr after release. Cells were fixed in 1% PFA and collected as for ChIP. Chromatin was collected and Hi-C libraries prepared as previously described (Naumova et al., 2013). Hi-C data were mapped to the mouse reference genome (GRCm38) and the S. pombe insert assembly using HiCExplorer (Ramírez et al., 2018) and distance decay plots were made using Cooltools.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    Heterochromatin protein 1 is required for correct chromosome segregation in Drosophila embryos
    1. R Kellum
    2. BM Alberts
    (1995)
    Journal of Cell Science 108:1419–1431.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    Unusual chromosome structure of fission yeast DNA in mouse cells
    1. J McManus
    2. P Perry
    3. AT Sumner
    4. DM Wright
    5. EJ Thomson
    6. RC Allshire
    7. ND Hastie
    8. WA Bickmore
    (1994)
    Journal of Cell Science 107:469–486.
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
    Initial sequencing and comparative analysis of the mouse genome
    1. RH Waterston
    2. K Lindblad-Toh
    3. E Birney
    4. J Rogers
    5. JF Abril
    6. P Agarwal
    7. R Agarwala
    8. R Ainscough
    9. M Alexandersson
    10. P An
    11. SE Antonarakis
    12. J Attwood
    13. R Baertsch
    14. J Bailey
    15. K Barlow
    16. S Beck
    17. E Berry
    18. B Birren
    19. T Bloom
    20. P Bork
    21. M Botcherby
    22. N Bray
    23. MR Brent
    24. DG Brown
    25. SD Brown
    26. C Bult
    27. J Burton
    28. J Butler
    29. RD Campbell
    30. P Carninci
    31. S Cawley
    32. F Chiaromonte
    33. AT Chinwalla
    34. DM Church
    35. M Clamp
    36. C Clee
    37. FS Collins
    38. LL Cook
    39. RR Copley
    40. A Coulson
    41. O Couronne
    42. J Cuff
    43. V Curwen
    44. T Cutts
    45. M Daly
    46. R David
    47. J Davies
    48. KD Delehaunty
    49. J Deri
    50. ET Dermitzakis
    51. C Dewey
    52. NJ Dickens
    53. M Diekhans
    54. S Dodge
    55. I Dubchak
    56. DM Dunn
    57. SR Eddy
    58. L Elnitski
    59. RD Emes
    60. P Eswara
    61. E Eyras
    62. A Felsenfeld
    63. GA Fewell
    64. P Flicek
    65. K Foley
    66. WN Frankel
    67. LA Fulton
    68. RS Fulton
    69. TS Furey
    70. D Gage
    71. RA Gibbs
    72. G Glusman
    73. S Gnerre
    74. N Goldman
    75. L Goodstadt
    76. D Grafham
    77. TA Graves
    78. ED Green
    79. S Gregory
    80. R Guigó
    81. M Guyer
    82. RC Hardison
    83. D Haussler
    84. Y Hayashizaki
    85. LW Hillier
    86. A Hinrichs
    87. W Hlavina
    88. T Holzer
    89. F Hsu
    90. A Hua
    91. T Hubbard
    92. A Hunt
    93. I Jackson
    94. DB Jaffe
    95. LS Johnson
    96. M Jones
    97. TA Jones
    98. A Joy
    99. M Kamal
    100. EK Karlsson
    101. D Karolchik
    102. A Kasprzyk
    103. J Kawai
    104. E Keibler
    105. C Kells
    106. WJ Kent
    107. A Kirby
    108. DL Kolbe
    109. I Korf
    110. RS Kucherlapati
    111. EJ Kulbokas
    112. D Kulp
    113. T Landers
    114. JP Leger
    115. S Leonard
    116. I Letunic
    117. R Levine
    118. J Li
    119. M Li
    120. C Lloyd
    121. S Lucas
    122. B Ma
    123. DR Maglott
    124. ER Mardis
    125. L Matthews
    126. E Mauceli
    127. JH Mayer
    128. M McCarthy
    129. WR McCombie
    130. S McLaren
    131. K McLay
    132. JD McPherson
    133. J Meldrim
    134. B Meredith
    135. JP Mesirov
    136. W Miller
    137. TL Miner
    138. E Mongin
    139. KT Montgomery
    140. M Morgan
    141. R Mott
    142. JC Mullikin
    143. DM Muzny
    144. WE Nash
    145. JO Nelson
    146. MN Nhan
    147. R Nicol
    148. Z Ning
    149. C Nusbaum
    150. MJ O'Connor
    151. Y Okazaki
    152. K Oliver
    153. E Overton-Larty
    154. L Pachter
    155. G Parra
    156. KH Pepin
    157. J Peterson
    158. P Pevzner
    159. R Plumb
    160. CS Pohl
    161. A Poliakov
    162. TC Ponce
    163. CP Ponting
    164. S Potter
    165. M Quail
    166. A Reymond
    167. BA Roe
    168. KM Roskin
    169. EM Rubin
    170. AG Rust
    171. R Santos
    172. V Sapojnikov
    173. B Schultz
    174. J Schultz
    175. MS Schwartz
    176. S Schwartz
    177. C Scott
    178. S Seaman
    179. S Searle
    180. T Sharpe
    181. A Sheridan
    182. R Shownkeen
    183. S Sims
    184. JB Singer
    185. G Slater
    186. A Smit
    187. DR Smith
    188. B Spencer
    189. A Stabenau
    190. N Stange-Thomann
    191. C Sugnet
    192. M Suyama
    193. G Tesler
    194. J Thompson
    195. D Torrents
    196. E Trevaskis
    197. J Tromp
    198. C Ucla
    199. A Ureta-Vidal
    200. JP Vinson
    201. AC Von Niederhausern
    202. CM Wade
    203. M Wall
    204. RJ Weber
    205. RB Weiss
    206. MC Wendl
    207. AP West
    208. K Wetterstrand
    209. R Wheeler
    210. S Whelan
    211. J Wierzbowski
    212. D Willey
    213. S Williams
    214. RK Wilson
    215. E Winter
    216. KC Worley
    217. D Wyman
    218. S Yang
    219. SP Yang
    220. EM Zdobnov
    221. MC Zody
    222. ES Lander
    223. Mouse Genome Sequencing Consortium
    (2002)
    Nature 420:520–562.
    https://doi.org/10.1038/nature01262
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88

Decision letter

  1. Gary H Karpen
    Reviewing Editor; University of California, Berkeley, United States
  2. Jessica K Tyler
    Senior Editor; Weill Cornell Medicine, United States
  3. Gary H Karpen
    Reviewer; University of California, Berkeley, United States
  4. Eric F Joyce
    Reviewer; University of Pennsylvania, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript addresses an unusual and interesting observation initially made in 1987, showing that insertion of S. pombe yeast DNA into a mouse chromosome is associated with a visible 'thinning' of mitotic chromosome width. Here, the Allshire group use cutting-edge techniques to determine why the pombe chromatin assumes a centromere-like constriction that differs from the wider flanking mouse chromatin. They discover that enrichments for the heterochromatic histone modification H3K9me3, smaller loops and condensin complexes occur de novo upon introduction of either pombe DNA or chromatin into mammalian chromosomes. The authors propose that the characteristic constrictions associated with eukaryotic centromeres results from higher levels of condensin recruitment over heterochromatin, which produces smaller chromatin loops.

Decision letter after peer review:

Thank you for submitting your article "Large domains of heterochromatin direct the formation of short mitotic chromosome loops" for consideration by eLife. Your article has been reviewed by two peer reviewers, including Gary H Karpen as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Jessica Tyler as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Eric F Joyce (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

This manuscript addresses an interesting observation initially made in 1987 showing that insertion of S. pombe DNA into a mouse chromosome was associated with a visible 'thinning' of the mitotic chromosome width. Most biologists would posit that inserting even a large (Mb) size piece of DNA from one organism into a distantly-related organism would not impact chromosome structure. The authors generate a large number of independent cell lines that reproduce the constriction phenomenon, then use molecular genetic tools (e.g. ChIP, Hi-C) to conclude that H3K9me enrichments, smaller loops and condensin complex enrichment occur de novo upon introduction of pombe DNA or chromatin into mammalian chromosomes. One interesting result is the demonstration that the pombe DNA constriction does not depend on pre-existing chromatin state, since the phenotype is observed upon insertion of naked DNA.

Overall, reviewers agree that the manuscript contains interesting and important information that would be of significant interest to the field, warranting publication in eLife once the following issues are addressed.

Essential revisions for this paper:

The primary results are generally sound and rigorous. However, the manuscript would benefit from text revisions (not new experiments) that clarify approaches and rationales used to support some conclusions, and distinguish solid conclusions from speculation.

1) Make the rationale and evidence supporting differences in sizes of loops, vs. other forms of compaction, clear. An increase in interactions identified by Hi-C does not a priori indicate loop formation. Figure 6C seems to show a decrease in contact probability for S. pombe DNA at the smallest genomic distance near the y-axis. Is this consistent with the authors' conclusions? They highlight an extended increase followed by a large dip at the largest genomic distance to suggest that loop sizes are reduced and that this must be driven by condensin activity. However, loops defined by Hi-C are typically represented by corner peaks in contact matrices. Are corner peaks observed in this dataset? What is the evidence that these interactions are even loops?

2) It would be useful to know if there is a higher density of CTCF sites in the pombe DNA. Of course CTCF ChIP seq or Cut and Tag would be even better, but a motif search would be sufficient for now.

It would also be useful to know if there are other sequence features (e.g. AT richness) that distinguish naked pombe DNA from mammalian DNA. One other reason this should be examined is that DAPI is used here for DNA quantitation, and has known preferences for AT-rich DNA.

3) Using primary and secondary antibody labeling to measure fluorescence intensity is typically difficult to accurately quantify and compare across experiments. The authors normalize their numbers across samples by comparing intensities to neighboring chromatin regions, which is reasonable. However, it was not clear how these "control" regions were selected, and the size and location of control regions changed across different experiments and figures. It seems that in some cases the control regions are equally spaced from the insert across different conditions (as in Figure 1B, E, and F) but not in other cases (Figure 2D and E). Please clarify how control regions were selected.

4) With regard to the conclusion that condensin concentration is increased on the inserted DNA, it was not clear whether condensin I/II ratios would be expected to be changed. The authors state that "neither the overall levels of condensin nor the ratio of condensin I to condensin II complexes differ." It may be premature to make this conclusion without testing a condensin II-specific subunit as well. As the authors point out in the Introduction, different ratios can account for different chromosome structures. For instance, decreased lateral distances and increased axial distances, as observed at the inserted locus, could be explained by an increase in Condensin I:II ratio.

5) The model presented at the end is too complicated and should be simplified (and smaller) (PS condensin is mis-spelled (condensin) in the middle panel). Most importantly, the model is certainly valid, but the authors should consider and incorporate alternative models that could also account for the observed structural changes. The conclusions about K9me and condensin rely on seeing protein enrichments, but in the absence of direct perturbations a role for e.g. condensin is speculative. It may be worthwhile to consider and cite Costantino et al., 2020, where micro-C analysis of S. cerevisiae identified small loops in mitosis, in this case driven by cohesin. Other possibilities include differences in distributions of sequence features or binding sites (e.g. base composition or CTCF sites), and other possibilities mentioned above.

Revisions expected in follow-up work:

As with all interesting studies, these findings raise more questions and future experiments. Why is more condensin loaded onto these regions? What is the role of the RNAi or piRNA pathways in generating H3K9me on this 'foreign DNA'? Finally, perturbations are required to demonstrate that the constriction disappears upon H3K9 demethylation or blocking methylation, or depletion of condensin.

https://doi.org/10.7554/eLife.57212.sa1

Author response

Essential revisions for this paper:

The primary results are generally sound and rigorous. However, the manuscript would benefit from text revisions (not new experiments) that clarify approaches and rationales used to support some conclusions, and distinguish solid conclusions from speculation.

1) Make the rationale and evidence supporting differences in sizes of loops, vs. other forms of compaction, clear. An increase in interactions identified by Hi-C does not a priori indicate loop formation. Figure 6C seems to show a decrease in contact probability for S. pombe DNA at the smallest genomic distance near the y-axis. Is this consistent with the authors' conclusions? They highlight an extended increase followed by a large dip at the largest genomic distance to suggest that loop sizes are reduced and that this must be driven by condensin activity. However, loops defined by Hi-C are typically represented by corner peaks in contact matrices. Are corner peaks observed in this dataset? What is the evidence that these interactions are even loops?

The reviewers are correct in saying that the Hi-C data does not a priori show loops but rather the drop in interaction frequency of the P(s) curve shows a decrease in DNA per layer of the mitotic chromosome consistent with an organisation into smaller loops. This data coupled with the observation that condensin is enriched is what led us to propose our model of decreased loop size.

To improve our discussion of this we have reworked our final Results section “Heterochromatinised S. pombe DNA forms smaller chromatin loops in mitosis” in order to better convey how this model was arrived at.

In response to the point concerning corner peaks in contact matrices: corner peaks are typically thought to be an indication of isolated loops and are generally only observed in interphase contact maps, indicating the boundaries of TADs. As mitotic Hi-C results represent an averaged profile of loop arrays which do not have fixed boundaries or anchor points, such features should not be visible in mitotic matrices and we would thus not expect to find them in our data.

2) It would be useful to know if there is a higher density of CTCF sites in the pombe DNA. Of course CTCF ChIP seq or Cut and Tag would be even better, but a motif search would be sufficient for now.

It would also be useful to know if there are other sequence features (e.g. AT richness) that distinguish naked pombe DNA from mammalian DNA. One other reason this should be examined is that DAPI is used here for DNA quantitation, and has known preferences for AT-rich DNA.

We thank the reviewers for suggesting that we examine the predicted number of CTCF sites in the S. pombe genome vs. mouse DNA. These analyses have been added to Figure 6—figure supplement 2, with a brief discussion in the third paragraph of the subsection “Heterochromatinised S. pombe DNA forms smaller chromatin loops in mitosis”. We also included in this figure an examination the G+C content of the S. pombe DNA insert because it is also relevant to this comment.

These new analyses show that:

1) Predicted CTCF sites are actually reduced in frequency across the S. pombe DNA insert relative to the flanking mouse DNA. This suggests that less CTCF would associate with the S. pombe DNA inserts. If CTCF limits mitotic loop extrusion then larger rather than smaller loop arrays would be predicted to result from CTCF site reduced frequency across this DNA;

2) The G+C content of the S. pombe genome is 36% as opposed to 42% in the mouse genome. The reduced G+C content of the S. pombe genome must contribute to the reduced frequency of predicted CTCF binding, which is based on position weight matrices that heavily favour G and C.

Concerning the reviewers’ point about DAPI: It should be noted that in all experiments where DNA was quantified by microscopy propidium iodide not DAPI was used to stain DNA. This was done precisely to avoid the known AT-bias of DAPI and obtain an unbiased measurement of DNA density along chromosome lengths. A brief explanation of this rationale has also been added to the second paragraph of the subsection “S. pombe DNA incorporated into a mouse chromosome adopts a distinct structure with less DNA per unit length” to avoid confusion.

3) Using primary and secondary antibody labeling to measure fluorescence intensity is typically difficult to accurately quantify and compare across experiments. The authors normalize their numbers across samples by comparing intensities to neighboring chromatin regions, which is reasonable. However, it was not clear how these "control" regions were selected, and the size and location of control regions changed across different experiments and figures. It seems that in some cases the control regions are equally spaced from the insert across different conditions (as in Figure 1B, E, and F) but not in other cases (Figure 2D and E). Please clarify how control regions were selected.

The rationale behind the selection of test and control regions for statistical analysis of the chromosome profiles has been added to the subsection “Microscopy”. Briefly, the test S. pombe DNA regions were determined based solely on the FISH fluorescence intensity at the given points. Control regions were then selected to be regions on the same chromosome of equal size to the test region with IF or π values approaching the average for the whole chromosome. This choice was made to select control regions with an “average” signal and avoid artificially inflating the statistical significance. In cases where the distance between the regions being tested varies, as was pointed out, it is generally to avoid outlier regions that would in fact be even more statistically significant, but not necessarily representative (for instance the “bump” in Figure 2E in position 20-30).

However, upon re-inspection we have discovered that two of our graphs (Figure 5G and I) did not quite conform to this standard. The test and control regions have therefore been altered accordingly with no change to our conclusions, and we thank the reviewers for drawing our attention to this oversight.

4) With regard to the conclusion that condensin concentration is increased on the inserted DNA, it was not clear whether condensin I/II ratios would be expected to be changed. The authors state that "neither the overall levels of condensin nor the ratio of condensin I to condensin II complexes differ." It may be premature to make this conclusion without testing a condensin II-specific subunit as well. As the authors point out in the Introduction, different ratios can account for different chromosome structures. For instance, decreased lateral distances and increased axial distances, as observed at the inserted locus, could be explained by an increase in Condensin I:II ratio.

As the reviewers mention, measurement of a condensin II-specific subunit in addition to the condensin I-specific CAPH1 would be the ideal way of determining the ratio between the two complexes. Unfortunately, several attempts to do so with different antibodies against different condensin II subunits failed to yield any results on mitotic chromosome spreads in our hands. In the absence of this data however, we posit that it can be inferred that this ratio does not change if neither the overall levels of condensin, nor the levels of condensin I alone change. We have expanded our explanation of this with respect to our conclusion in the fifth paragraph of the subsection “Heterochromatinised S. pombe DNA forms smaller chromatin loops in mitosis”.

5) The model presented at the end is too complicated and should be simplified (and smaller) (PS condensin is mis-spelled (condensin) in the middle panel). Most importantly, the model is certainly valid, but the authors should consider and incorporate alternative models that could also account for the observed structural changes. The conclusions about K9me and condensin rely on seeing protein enrichments, but in the absence of direct perturbations a role for e.g. condensin is speculative. It may be worthwhile to consider and cite Costantino et al., 2020, where micro-C analysis of S. cerevisiae identified small loops in mitosis, in this case driven by cohesin. Other possibilities include differences in distributions of sequence features or binding sites (e.g. base composition or CTCF sites), and other possibilities mentioned above.

We have substituted the original model presented with a new simplified version. This new model now serves to compare the differences between the “natural” structure of chromatin and that expected due to the increased recruitment of condensin on inserted S. pombe DNA, as well as to illustrate how this model can account for our experimental observations. The discussion of this model (subsection “Increased loading of condensin on heterochromatin and smaller chromatin loop arrays”) has been changed accordingly and we now make reference to alternative possibilities and unexplored contributing factors. We agree that this simpler model makes our overall conclusions clearer and that our revised Discussion now suggests other possibilities and avenues for future research. We considered the possibility that CTCF site frequency might alter mitotic chromosome architecture but our finding that predicted CTCF site frequency is lower across the S. pombe DNA insert does not support this potential alternative model.
