Impact of COVID-19-related disruptions to measles, meningococcal A, and yellow fever vaccination in 10 countries

  1. Katy AM Gaythorpe
  2. Kaja Abbas
  3. John Huber
  4. Andromachi Karachaliou
  5. Niket Thakkar
  6. Kim Woodruff
  7. Xiang Li
  8. Susy Echeverria-Londono
  9. VIMC Working Group on COVID-19 Impact on Vaccine Preventable Disease
  10. Matthew Ferrari
  11. Michael L Jackson
  12. Kevin McCarthy
  13. T Alex Perkins
  14. Caroline Trotter
  15. Mark Jit  Is a corresponding author
  1. MRC Centre for Global Infectious Disease Analysis, Abdul Latif Jameel Institute for Disease and Emergency Analytics (J-IDEA), School of Public Health, Imperial College London, United Kingdom
  2. Centre for Mathematical Modelling of Infectious Diseases, London School of Hygiene & Tropical Medicine, United Kingdom
  3. Department of Biological Sciences, University of Notre Dame, United States
  4. Department of Veterinary Medicine, University of Cambridge, United Kingdom
  5. Institute for Disease Modeling, Bill & Melinda Gates Foundation, United States
  6. Pennsylvania State University, United States
  7. Kaiser Permanante Washington, United States
  8. School of Public Health, University of Hong Kong, China
Research Article
  • Cited 3
  • Views 776
  • Annotations
Cite this article as: eLife 2021;10:e67023 doi: 10.7554/eLife.67023

Abstract

Background:

Childhood immunisation services have been disrupted by the COVID-19 pandemic. WHO recommends considering outbreak risk using epidemiological criteria when deciding whether to conduct preventive vaccination campaigns during the pandemic.

Methods:

We used two to three models per infection to estimate the health impact of 50% reduced routine vaccination coverage in 2020 and delay of campaign vaccination from 2020 to 2021 for measles vaccination in Bangladesh, Chad, Ethiopia, Kenya, Nigeria, and South Sudan, for meningococcal A vaccination in Burkina Faso, Chad, Niger, and Nigeria, and for yellow fever vaccination in the Democratic Republic of Congo, Ghana, and Nigeria. Our counterfactual comparative scenario was sustaining immunisation services at coverage projections made prior to COVID-19 (i.e. without any disruption).

Results:

Reduced routine vaccination coverage in 2020 without catch-up vaccination may lead to an increase in measles and yellow fever disease burden in the modelled countries. Delaying planned campaigns in Ethiopia and Nigeria by a year may significantly increase the risk of measles outbreaks (both countries did complete their supplementary immunisation activities (SIAs) planned for 2020). For yellow fever vaccination, delay in campaigns leads to a potential disease burden rise of >1 death per 100,000 people per year until the campaigns are implemented. For meningococcal A vaccination, short-term disruptions in 2020 are unlikely to have a significant impact due to the persistence of direct and indirect benefits from past introductory campaigns of the 1- to 29-year-old population, bolstered by inclusion of the vaccine into the routine immunisation schedule accompanied by further catch-up campaigns.

Conclusions:

The impact of COVID-19-related disruption to vaccination programs varies between infections and countries. Planning and implementation of campaigns should consider country and infection-specific epidemiological factors and local immunity gaps worsened by the COVID-19 pandemic when prioritising vaccines and strategies for catch-up vaccination.

Funding:

Bill and Melinda Gates Foundation and Gavi, the Vaccine Alliance.

Introduction

Childhood immunisation services have been disrupted by the COVID-19 pandemic in at least 68 countries during 2020 with around 80 million under 1-year-old children being affected (Nelson, 2020; Science (AAAS), 2020; UNICEF, 2020; WHO, 2020a). This has occurred for several reasons – the diversion of health care staff, facilities, and finances to deal with COVID-19 treatment and response; reluctance of individuals to bring children to be vaccinated due to fear of infection; barriers to travel due to local physical distancing measures; disruptions in vaccine supply chains; lack of personal protective equipment; and decisions to stop or postpone vaccination campaigns to reduce the risk of transmission during such campaigns.

The World Health Organization (WHO) issued guidance in March 2020 on immunisation activities during the COVID-19 pandemic (WHO, 2020b). The guidance recommended a temporary suspension of mass vaccination campaigns, but continuation of routine immunisation services by the health systems while maintaining physical distancing and infection prevention and control measures for COVID-19. Routine immunisation was one of the most disrupted services relative to other essential health services based on a WHO pulse survey in May and June 2020 that was focused on continuity of essential health services during the COVID-19 pandemic (WHO, 2020c). WHO, UNICEF, Gavi, the Vaccine Alliance, and their partners also conducted two pulse polls in April and June 2020 to understand COVID-19-related disruptions to immunisation services (WHO, 2020d). Based on respondents from 82 countries, pulse polls indicated that there was widespread disruption to routine immunisation services in addition to the suspension of mass vaccination campaigns. The main reasons reported for this disruption were low availability of personal protective equipment for healthcare workers, low availability of health workers, and travel restrictions.

Disruptions to routine health care due to the COVID-19 pandemic are projected to increase child and maternal deaths in low-income and middle-income countries (Roberton et al., 2020). No country has made a policy decision to stop routine immunisation during a COVID-19 epidemic. Risk-benefit analysis of countries in Africa shows routine immunisation to have far greater benefits than risks even in the context of the COVID-19 pandemic (LSHTM CMMID COVID-19 Working Group et al., 2020). Nevertheless, routine immunisation coverage has dropped in most countries (WHO, 2020d).

Evidence on the health impact of suspending vaccination campaigns during the COVID-19 pandemic is limited. Modelling indicates that both fixed post and door-to-door campaigns targeting under 5-year-old children may cause temporary minor increases in total SARS-CoV-2 infections (Hagedorn et al., 2020). However, avoiding campaigns during the local peak of SARS-CoV-2 transmission is key to reducing the effect size, and SARS-CoV-2 transmission during campaigns can be minimised with good personal protective equipment and limiting movement of vaccinators (Hagedorn et al., 2020). The WHO recommends that countries consider the risk of outbreaks using epidemiological criteria when deciding whether to conduct preventive vaccination campaigns during the COVID-19 pandemic, but the guidance was not based on any quantitative assessment of transmission risk for either COVID-19 or existing vaccine-preventable diseases (WHO, 2020e).

Hence, countries need to assess the health impact of postponing vaccination campaigns, which can inform the epidemiological risk assessment for outbreaks due to campaign delays and prioritise which vaccines to use in campaigns (WHO, 2020f). The need for such assessments is greatest in low- and lower middle-income countries which generally have greater risks of vaccine-preventable disease outbreaks and limited health care resources to deal with COVID-19 epidemics. It is difficult to quantify the impact of different scenarios using only observational data, which does not give the counterfactual to what actually happened in 2020. To address this, we used transmission dynamic models to project alternative scenarios about postponing vaccination campaigns alongside disruption of routine immunisation, for three pathogens with high outbreak potential and for which mass vaccination campaigns are a key delivery mode alongside routine immunisation – measles, meningococcal A, and yellow fever.

Materials and methods

Deaths and disability-adjusted life years (DALYs) due to measles, meningococcal A, and yellow fever under different routine and campaign vaccination scenarios were projected in a subset of 10 low- and lower middle-income countries over the years 2020–2030. Projections were made using previously validated transmission dynamic models; we used three models for measles, two models for meningococcal A, and two models for yellow fever (summary model details are available in Table 1a-c with full model details in Appendix Section 3; a description of the key drivers of similarities and differences between models is given in Appendix Section 4). Guidance used by the different models for DALY calculations are publicly accessible (Vaccine Impact Modelling Consortium, 2019) and a glossary of terms can be found in Appendix 1—table 15.

Table 1
a Vaccine impact models – Summary characteristics of the transmission dynamic vaccine impact models for measles (three models).

For IDM, separate information is shown for the models used for Ethiopia and Nigeria.

InfectionMeaslesMeaslesMeaslesMeasles
Model nameDynaMICEIDM (Ethiopia)IDM (Nigeria)Penn State
ReferenceVerguet et al., 2015Thakkar et al., 2019Zimmermann et al., 2019Chen et al., 2012
StructureCompartmentalCompartmentalAgent-basedSemi-mechanistic
RandomnessDeterministicStochasticStochasticStochastic
Time stepWeeklySemi-monthlyDailyAnnual
Age stratificationYesNoYesYes
Model fittingNot fitted; uses country-specific Ro (basic reproduction number) for measles from fitted modelsFitted to observed monthly WHO case data
(2011–2019)
Fitted to time-series, age-distribution, and spatial correlation between districts in case-based surveillance data.Fitted to observed annual WHO case data (1980–2017)
ValidationValidated through comparisons to the Penn State and/or IDM models in two previous model comparison exercises (Li et al., 2021; WHO, 2019a). Has also been reviewed by WHO’s Immunization and Vaccines Implementation Research Advisory Committee (IVIR-AC)(WHO, 2019b)Validated primarily via forecasting tests in Pakistan and Nigeria. For example, see Figure S10 in Thakkar et al., 2019.Calibrated to reproduce regional time series and age distributions of historical measles incidence as presented in Zimmermann et al., 2019. Validated through comparison to the DynaMICE and Penn State models in a previous model comparison exercise (WHO, 2019a)Model and performance of parameter estimation was validated through simulation experiments as described in Eilertson et al., 2019. Validated through comparisons to the DynaMICE and/or IDM models in two previous model comparison exercises (Li et al., 2021; WHO, 2019a). Has also been reviewed by WHO’s Immunization and Vaccines Implementation Research Advisory Committee (IVIR-AC) in 2017 and 2019 (WHO, 2019b).
Case importationsNoneNoneRandomRandom
Dose dependency
(SIA: supplementary immunisation activities, MCV1: measles 1st dose, MCV2: measles 2nd dose)
SIA doses are weakly dependent of MCV1/2 based on Portnoy et al., 2018MCV2 given only to recipients of MCV1; SIA doses independent of MCV1/2MCV2 given only to recipients of MCV1; SIA doses independent of MCV1/2
Countries modelledBangladesh, Chad, Ethiopia, Kenya, Nigeria, South SudanEthiopiaNigeriaBangladesh, Chad, Ethiopia, Kenya, Nigeria, South Sudan
b. Vaccine impact models – Summary characteristics of the transmission dynamic vaccine impact models for meningococcal A (two models).
InfectionMenAMenA
Model nameCambridgeKP
ReferenceKarachaliou et al., 2015Jackson et al., 2018
StructureCompartmentalCompartmental
RandomnessStochasticStochastic
Time stepDailyWeekly
Age stratificationYesYes
Model fittingNot fitted; calibrated by comparing the predictions to evidence on carriage prevalence by age, disease incidence by age, total annual incidence, seasonality and periodicityFitted to carriage prevalence and disease incidence data for Burkina Faso; calibrated for other regions by comparing seasonality and incidence by age to disease surveillance data
ValidationPeer-review, including by IVIR-AC; two publications Karachaliou et al., 2015; Karachaliou Prasinou et al., 2021; calibration to observed data (although not formally fitted);Peer-review of two publications Jackson et al., 2018; Tartof et al., 2013; out-of-sample validation on incidence after vaccine introduction in Burkina Faso
Case importationsNoneInfectious people immigrate at a rate of 0.1–1 per million population per week
Dose dependencyNot applicable since 2020 campaigns are targeting population missed by the introductory campaign who are too old for routine immunisationCampaigns preferentially target unvaccinated persons
Countries modelledBurkina Faso, Chad, Niger, Nigeria
c. Vaccine impact models – Summary characteristics of the transmission dynamic vaccine impact models for yellow fever (two models).
InfectionYellow feverYellow fever
Model nameImperialNotre Dame
ReferenceGaythorpe et al., 2021bPerkins et al., 2021
StructureSemi-mechanisticSemi-mechanistic
RandomnessDeterministicDeterministic
Time stepAnnualAnnual
Age stratificationYesYes
Model fittingBayesian framework fitted to occurrence and serology dataBayesian framework fitted to incidence and serology data
ValidationPeer-review (two publications Garske et al.; Gaythorpe et al. and EYE strategy); calibration to serological survey data and outbreak occurrence data within Bayesian framework. Compared model structures.Calibration to serological and case data. Cross-validation of multiple alternative models used to inform the construction of a single ensemble prediction via stacked generalization.
Case importationsNoneNone
Dose dependencyRandomRandom
Countries modelledDemocratic Republic of the Congo, Ghana, Nigeria

The chosen countries were low- and lower-middle-income countries that had planned vaccination campaigns in 2020 and were selected following consultations with partners in WHO, UNICEF, CDC and other organisations. Thereby, the selected countries differ between infections – Bangladesh, Chad, Ethiopia, Kenya, Nigeria, and South Sudan for measles; Burkina Faso, Chad, Niger, and Nigeria for meningococcal A; Democratic Republic of the Congo, Ghana, and Nigeria for yellow fever.

Models used routine and campaign vaccination coverage from WUENIC (WHO and UNICEF Estimates of National Immunization Coverage) and post campaign surveys for 2000–2019 (Li et al., 2021), and future projections of routine coverage based on assumptions agreed with disease and immunisation programme experts at the global, regional, and national levels (see Appendix 1—table 16). Assumptions for our counterfactual ‘business as usual’ scenario were determined through consultation with disease and immunisation programme experts across partners at the global, regional, and national levels. All assumptions varied by pathogen. For routine immunisation, assumptions about future coverage levels were based on historical coverage from WUENIC for 2015–19. For vaccination campaigns or supplementary immunisation activities (SIA), assumptions about future campaigns were based either on patterns of past campaigns or campaigns recommended by WHO. We explored four scenarios that assumed different levels of disruption in the year 2020 to routine immunisation and postponement of campaigns projected in the scenarios, due to COVID-19 (see Table 2). The disruption scenarios are based on 50% reduction in routine immunisation and/or suspension of campaign vaccination in 2020 and postponement to 2021. These disruption scenarios aimed to approximate plausible drops in routine coverage levels and plausible delays to campaigns due to the COVID-19 pandemic.

Table 2
Immunisation scenarios.

Scenarios for disruption of routine immunisation and delay of mass vaccination campaigns due to the COVID-19 pandemic for measles vaccination in six countries, meningococcal A vaccination in four countries, and yellow fever vaccination in three countries. The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine or campaign immunisation.

Immunisation scenarioRoutine immunisation (RI)Campaign immunisation/
Supplementary
immunisation activities (SIAs)
BAUNo disruptionNo disruption
Postpone 2020 SIAs - > 2021No disruptionPostpone 2020 SIAs to 2021
50% RI50% reduction on RI for 2020No disruption
50% RI, postpone 2020 SIAs - > 202150% reduction on RI for 2020Postpone 2020 SIAs to 2021

We estimated the health impact of these disruption scenarios in comparison to the counterfactual scenario of no disruption (BAU – business-as-usual scenario) for measles, meningococcal A, and yellow fever during 2020–2030. We estimated the health impact of routine and campaign immunisation disruption through projections of total deaths (and DALYs) per 100,000 population, excess deaths (and DALYs) per 100,000 population, and excess deaths (and DALYs) during 2020–2030 which were scaled relative to the maximum number of excess deaths (or DALYs) across all scenarios. We did not assume any changes to case-fatality risks as a result of the COVID-19 pandemic.

The models generally produce a range of stochastic realisations based on distributions of input parameters and/or posterior distributions of fitted parameters. In the results, we present output from an average scenario, which is defined differently across models based on their characteristics: model projection from mean (measles/DynaMICE) or median (YF/Imperial) of input parameters, median projection from posterior of fitted force of infection (YF/Notre Dame), mean of stochastic output projections (measles/IDM, measles/PSU, MenA/Cambridge, MenA/KP).

Results

The health impact varies across the disruption scenarios for the three infections in the different countries. Figure 1 shows the model-predicted total deaths per 100,000 population per year during 2020–2030 (see Appendix 1—figure 1 for similar projections for DALYs impact, Table 3 and S1 for scenario averages over the entire time period, and Appendix 1—tables 357, and Appendix 1—table 11 for absolute numbers of deaths).

Table 3
Excess deaths per 100,000 between 2020 and 2030 per scenario, infection and modelling group.

Scenarios for disruption of routine immunisation and delay of mass vaccination campaigns due to the COVID-19 pandemic for measles vaccination in six countries, meningococcal A vaccination in four countries, and yellow fever vaccination in three countries. The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities). The total of pathogen averages is the sum of the average excess deaths per 100,000 between 2020 and 2030 for each pathogen.

ScenarioMeasles, DynaMICEMeasles, IDMMeasles, Penn StateMen A, CambridgeMen A, KPYellow fever, ImperialYellow fever, Notre DameTotal of pathogen averages
50% RI1.15691.18730.05010.00200.00010.14740.07550.9105
Postpone 2020 SIAs - > 20210.94280.1248−0.01040.0042−0.0001−0.0584−0.01030.3202
50% RI, postpone 2020 SIAs - > 20210.24011.31340.02220.00640.00000.08760.05360.5990

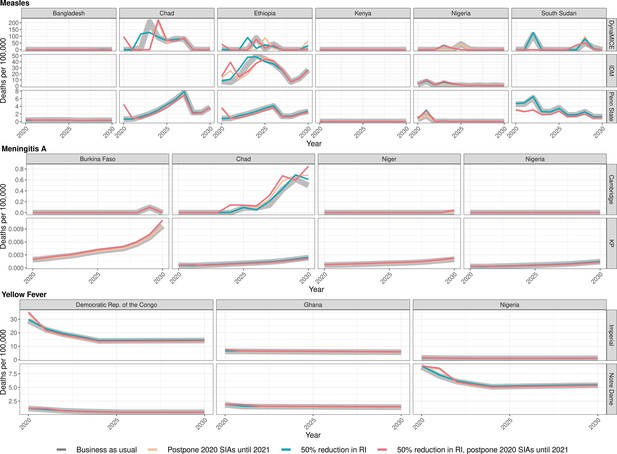

Health impact of predicted total deaths for immunisation disruption scenarios and no disruption scenario for measles, meningococcal A, and yellow fever.

Model-predicted total deaths per 100,000 population per year for routine immunisation (RI) and campaign immunisation (SIAs – supplementary immunisation activities) disruption scenarios and no disruption scenario (BAU – business-as-usual scenario) for measles, meningococcal A, and yellow fever during 2020–2030.

In the case of measles, Bangladesh initially postponed its campaign by a few months. The two measles models give slightly different predictions about the consequences of this. The Penn State model predicts that delaying the 2020 campaign increases deaths slightly (by 0.03 per 100,000 over 2020–2030) but this increase is not seen in DynaMICE. Conversely, DynaMICE predicts an increase in deaths of 0.35 per 100,000 over 2020–2030 if routine coverage drops by 50%, but this is not seen in the Penn State model; see Appendix 1—table 2 for further details. For Ethiopia, a reduction in routine coverage is predicted to lead to outbreaks sooner and increases in overall deaths in all three models (DynaMICE, Penn State models and IDM), while postponing the 2020 campaign only increases deaths in the DynaMICE model. The Ethiopian campaign was eventually reinstated only 3 months later than scheduled. For Kenya, the disruption to routine and campaign immunisation was not predicted to lead to increased risk of outbreaks, due to high coverage of the first dose of measles vaccine and better optimally-timed campaigns in preventing outbreaks during 2020–2030, although coverage of the second-dose of measles vaccine is suboptimal. For Nigeria, either postponement of the 2020 immunisation campaign or a reduction in routine coverage is predicted to lead to increases in measles mortality in Penn State and IDM models, but not in DynaMICE. Note that these increases were predicted to be highly localised in the subnational IDM model; see Discussion for details. For South Sudan, the postponement of immunisation campaigns from 2020 to 2021 is predicted to be beneficial in averting a potential outbreak in 2022 in both DynaMICE and Penn State models (although note caveats in the Discussion about such predictions), but decreases in routine coverage are predicted to lead to more deaths, with a larger predicted increase in DynaMICE. For Chad, both DynaMICE and Penn State models predict an overall increase in deaths with routine coverage drops, but only the Penn State model predicts an increase with a postponement of campaigns. Model-specific estimates of measles deaths per 100,000 over 2020–2030 per country are provided in Appendix 1—table 2 with absolute numbers for all countries per model given in Appendix 1—table 11. Model-specific estimates of measles deaths per 100,000 per year for all countries are provided in Appendix 1—table 8.

In the case of meningococcal A (MenA), the short-term disruption to routine immunisation in Burkina Faso, Niger, Nigeria, and Chad, as well as the short-term disruption of immunisation campaigns in Nigeria and Chad would not have a significant impact on the disease incidence (see Appendix 1—table 4 for model-specific estimates by country). These four countries conducted mass preventive campaigns targeting 1- to 29-year-old populations between 2010 and 2014, and introduced the vaccine into their routine immunization schedules between 2016 and 2019. Niger and Burkina Faso completed catch-up campaigns concomitantly with the introduction into routine, and Chad and Nigeria have started but not completed their catch-up campaigns. A maximum of a 4% increase in MenA deaths over the long term is projected in either of the models and with minimal change in the short term of within 5 years. This is because of the persistence of protection against MenA due to the vaccination strategy combining mass vaccination campaign and routine introduction, which led to a lasting interruption of transmission, in particular from the direct and indirect effects of the initial mass campaigns of the 1- to 29-year-old population in 2010–2014. Model-specific estimates of meningococcal A deaths per 100,000 per year for all countries are provided in Appendix 1—table 9.

In the case of yellow fever, for the Democratic Republic of Congo and Nigeria, the postponement of immunisation campaigns from 2020 to 2021 was predicted to cause a short-term increase in burden but when campaigns were implemented, the overall burden was reduced for the time period. A reduction in routine immunization during 2020 was predicted to increase burden over the same period 2020–2030. For Ghana, the postponement of immunisation campaigns from 2020 to 2021 did not lead to an increase in yellow fever burden in the short-term, whereas a reduction in routine immunization in 2020 was predicted to increase the yellow fever burden by 0.33 or 0.07 deaths per 100,000 between 2020 and 2030 in the Imperial and Notre Dame models respectively. Model-specific estimates of excess deaths by country from 2020 to 2030 are shown in Appendix 1—table 6. Neither model was designed to specifically capture yellow fever outbreak dynamics. Therefore, although the delay of immunisation campaigns was predicted to reduce the burden of yellow fever for 2020–2030 in select settings by a small (less than 1%) amount, the increased risk of an outbreak is not accounted for in the models and this could outweigh the predicted long-term benefits. Model-specific estimates of yellow fever deaths per 100,000 per year for all countries are provided in Appendix 1—table 10.

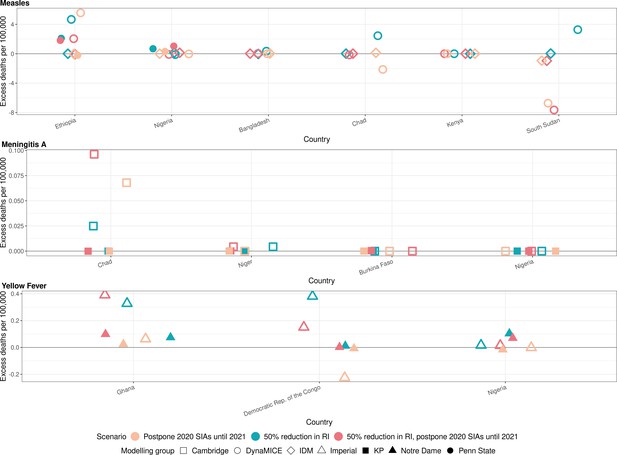

Figure 2 shows the model-predicted excess deaths per 100,000 population per year by model for routine and campaign immunisation disruption scenarios in comparison to no disruption scenario for measles, meningococcal A, and yellow fever. The excess deaths are summed over 2020–2030 (see Appendix 1—figure 2 for similar projections for DALYs impact). The scale of excess mortality due to the immunisation service disruptions are higher for measles vaccination in comparison to meningococcal A and yellow fever vaccination; indeed excess mortality is minimal for meningococcal A.

Health impact of excess deaths for immunisation disruption scenarios in comparison to no disruption scenario for measles, meningococcal A, and yellow fever.

Model-predicted excess deaths per 100,000 population per year for routine immunisation (RI) and campaign immunisation (SIAs – supplementary immunisation activities) disruption scenarios in comparison to no disruption scenario (BAU – business-as-usual scenario) for measles, meningococcal A, and yellow fever. Excess deaths are summed over 2020–2030.

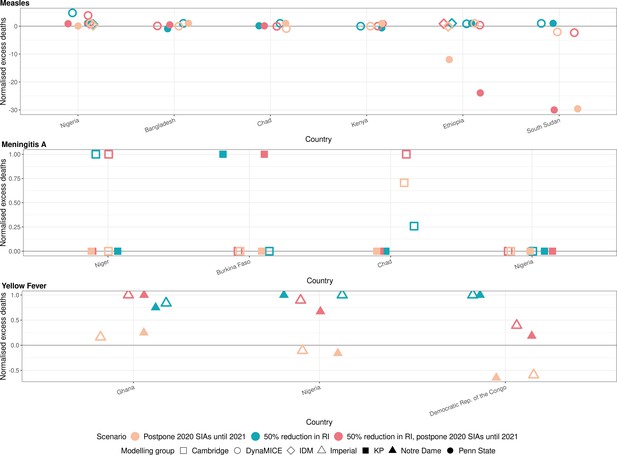

Appendix 1—figure 3 shows the normalised model-predicted excess deaths per year and country by model for routine and campaign immunisation disruption scenarios in comparison to the no disruption scenario for measles, meningococcal A, and yellow fever, with excess deaths summed and normalised over 2020–2030 (see Appendix 1—figure 4 for similar projections for DALYs impact). For measles, there are differences between models but usually a 50% reduction in routine immunisation was projected to increase the excess deaths the most in comparison to scenarios involving the postponement of immunisation campaigns from 2020 to 2021. For MenA, a 50% reduction in routine immunisation and the postponement of immunisation campaigns from 2020 to 2021 was projected to increase the excess deaths the most for Chad, although the scale of absolute impact is minimal (see Figure 2). For yellow fever, a reduction in routine immunisation was projected to increase the excess deaths the most (either in conjunction with campaign delay or not). Whilst the postponement of immunisation campaigns from 2020 to 2021 appears to have a beneficial impact of lower deaths in comparison to immunisation campaigns in 2020 for the Democratic Republic of the Congo in Appendix 1—figure 3, this does not capture the short-term increase in burden due to the missed campaign. The beneficial effect is due solely to the proportionally larger campaign implemented in 2021, that is a campaign with the same coverage leads to more fully vaccinated persons as the population grows.

Discussion

The health impact of routine immunisation service disruptions and mass vaccination campaign suspensions due to the COVID-19 pandemic differs widely between infections and countries, so decision-makers need to consider their local epidemiological situation. For meningococcal A and yellow fever, we predict that postponing campaigns has a minimal short-term effect because both pathogens have a low effective reproduction number and strong existing herd immunity from recent campaigns in the countries modelled (see Appendix 1—table 17 for list of campaigns). However, this is influenced by the model structures and their propensity to capture outbreak dynamics, which particularly affects the predictions for yellow fever. For measles, in some countries such as Ethiopia and Nigeria, even a 1-year postponement of immunisation campaigns could have led to large outbreaks, but both countries were able to implement planned SIAs in 2020 after a few months’ delay. In other countries with high routine immunisation coverage and/or recent campaigns, SIAs may be postponed by a year without causing large outbreaks. However, model projections about future outbreaks differ between models in terms of both timing and magnitude. These differences capture uncertainty around data and model structure that differ between models.

In some of our modelled scenarios, postponement of immunisation campaigns does not appear to increase overall cases, if the delay time-period is less than the interval to the next outbreak. Such a scenario is inferred in the immunisation disruption scenarios for postponement of measles campaigns for South Sudan. This does not imply that a postponement is preferred, as we do not take into account other contextual or programmatic factors; rather it reflects the effectiveness of campaigns in closing the immunity gaps and the demographic effect of including more children in delayed campaigns. In instances with very low routine immunisation coverage, there is a possibility that the vaccination campaign is the main opportunity for missed children to be vaccinated. Thus, for the same proportion of the same age group targeted by campaigns, more children will be vaccinated for the same coverage levels in countries with birth rates increasing over time. While these results may be useful in the COVID-19 context, there is also considerable uncertainty around both model findings and data inputs such as incidence and vaccine coverage that prohibits further general comment on the optimal timing of campaigns.

The measles immunisation campaigns for 2020 in Nigeria were specifically targeted at Kogi and Niger states, states that were originally scheduled for inclusion in the campaigns for 2019 across northern Nigeria which were delayed for other reasons. Given the localised build-up of susceptibility in these two states due to low routine immunisation coverage and the long window between campaigns, IDM’s subnational Nigeria model indicated that further campaign delays would result in a high risk of localised outbreaks in these states (one potential explanation for the IDM model predicting worse consequences of delays in these campaigns than the other models). Campaigns targeted specifically to these two states were implemented in October 2020. In general, for countries where routine immunisation coverage was low even before the COVID-19 pandemic, the build-up of the susceptible population from low routine immunisation coverage over 2–3 years between campaigns enhances the risk of outbreaks more than recent and temporary disruptions to routine immunisation. Further, our models did not include the possibility that COVID-19 restrictions may have temporarily reduced measles transmissibility and the risk of measles outbreaks due to reduced chance of introduction of infection into populations with immunity gaps. This risk rises again rapidly once travel restrictions and physical distancing are relaxed. This is an additional reason (which we do not model) for implementing postponed immunisation campaigns at the earliest opportunity to prevent measles outbreaks as COVID-19 restrictions are lifted (LSHTM CMMID COVID-19 Working Group et al., 2021).

While the degree of health impact of service disruptions varies, the models generally show that reductions in routine immunisation coverage have a far greater impact on predicted excess deaths over the next decade for all infections modeled than postponement of campaigns. This has significant implications for countries planning catch-up strategies and highlights the need for increased emphasis on the importance of implementing catch-up as an ongoing part of routine immunisation (WHO, 2020f).

The disease burden averted by measles and meningococcal A vaccination are primarily among under-5-year-old and under-10-year-old children respectively, and disease burden averted by yellow fever vaccination are among younger age-group individuals. Since children and younger age-group individuals are at relatively lower risk of morbidity and mortality from COVID-19 in comparison to elderly populations, the health benefits of sustaining measles, meningococcal A, and yellow fever immunisation programmes during the COVID-19 pandemic outweigh the excess SARS-CoV-2 infection risk to these age groups that are associated with vaccination service delivery points. Thereby, the delivery of measles, meningococcal A, and yellow fever immunisation services should continue, as logistically as possible, by adapting service delivery in a COVID-secure manner with implementation of SARS-CoV-2 infection prevention and control measures.

Our study has limitations and we have not considered logistical constraints posed by the COVID-19 prevention and control measures on vaccine supply, demand for vaccination, access, and health workforce. Future introduction of COVID-19 vaccination may also divert the workforce normally conducting campaigns for other vaccines. Our models do not reflect geographical heterogeneity sub-nationally, whereas in reality this is a key feature. Nor do we incorporate known seasonality of infections, which may affect the window of opportunity for catching up. The models used in this analysis, in particular for yellow fever, are best suited to capture long-term changes in disease burden due to vaccination and cannot capture outbreak dynamics that may arise in the short-term. A key strength of our analysis is that we used two to three models for each infection, which allowed investigation of whether projections were sensitive to model structure and assumptions. Each model had different strengths and limitations. For instance, some models measured epidemic properties like reproduction numbers directly, while other models used estimates from other studies. We did indeed find quantitative differences between models of the same infection, but most models agreed on the countries in which disruptions had the largest effect on disease burden.

A further limitation is the omission of changes to transmission in the three pathogens due to COVID-19 mitigation measures. This is a critical area that needs further investigation; however, all three included pathogens have substantially different dynamics to those of SARS-CoV-2. For yellow fever, the majority of transmission is sylvatic rather than person-to-person, so COVID-19 mitigation measures are unlikely to have a major effect on incidence, unless they decrease contact between humans and the sylvatic cycle. For meningococcal A, we find that even with a decrease in vaccine coverage there is limited potential for outbreaks, so decreased transmission due to COVID-19 non-pharmaceutical interventions will only reinforce this. For measles, there is the potential for non-pharmaceutical interventions to decrease transmission. However, measles is much more transmissible than COVID-19 (with R0 usually well above 10 rather than 2–5 Guerra et al., 2017), and transmission is generally concentrated among very young children rather than adults. Hence it is unclear whether interventions designed for COVID-19 (mask wearing, closure of schools, workplaces and retail, travel restrictions etc.) will be able to prevent measles outbreaks. Further, while COVID-19 mitigation measures may temporarily reduce measles transmissibility and outbreak risk from measles immunity gaps, the risk for measles outbreaks will rise rapidly once COVID-19-related contact restrictions are lifted (LSHTM CMMID COVID-19 Working Group et al., 2021), which happens at different rates in different parts of countries.

We conducted our health impact assessment to align with the WHO framework for decision making using an evidence-based approach to assist in prioritisation of vaccines and strategies for catch-up vaccination during the COVID-19 pandemic (WHO, 2020f). The framework highlights three main steps, with the primary step being an epidemiological risk assessment for each disease based on the burden of disease and population immunity, as well as the risk factors associated with the immunisation service disruptions. The second step focuses on the amenability of delivery strategies and operational factors for each vaccine, and the third step on the assessment of contextual factors and competing needs.

Our health impact assessment addresses in part the primary step of an epidemiological risk assessment by estimating the disease burden for different immunisation scenarios, but does not include the health impact assessment of excess COVID-19 disease burden attributable to these immunisation scenarios. While we have assessed the immunity gaps caused by immunisation service disruptions for measles, meningococcal A, and yellow fever vaccination in 10 low- and lower middle-income countries, sustaining routine immunisation and resuming immunisation campaigns during the COVID-19 pandemic requires adaptations to service delivery with additional safety measures to protect the health workers and the community from SARS-CoV-2 infection (Banks and Boonstoppel, 2020). Infection prevention and control measures include personal protective equipment for health workers, children to be vaccinated, and their parents or caregivers; additional prevention and control measures against SARS-CoV-2 infection at vaccination sites; physical distancing; and symptomatic screening and triaging (WHO, 2020e). COVID-19 transmission may be further mitigated by delivering several vaccines during a single campaign (such as measles and polio vaccines), or even combining vaccines with other age-relevant interventions such as nutritional supplements. Further, social mobilisation is needed to address the rumours, misinformation, and fear among the community to access vaccination safely during the COVID-19 pandemic (WHO, 2020g). Therefore, our health impact assessment needs to be followed up by planning and implementation of catch-up vaccination to close the immunity gaps using a mixture of locally appropriate strategies to strengthen immunisation (Cutts et al., 2021), alongside access to additional operating costs to conduct routine and campaign immunisation services safely in COVID-secure environments while considering contextual factors and competing needs.

Data availability

All code, data inputs and outputs used to generate the results in the manuscript (apart from projections about vaccine coverage beyond 2020 which are commercially confidential property of Gavi) are available at: https://github.com/vimc/vpd-covid-phase-I (Gaythorpe, 2021a; copy archived at swh:1:rev:ebff9a24b8b7c9a7c6c5c77f783f2435a57d1d2b).

Appendix 1

Section 1. Tables (appendix)

Appendix 1—table 1
Excess disability-adjusted life years (DALYs) per 100,000 between 2020 and 2030 per scenario, infection and modelling group.

Scenarios for disruption of routine immunisation (RI) and delay of mass vaccination campaigns (SIAs – supplementary immunisation activities) due to the COVID-19 pandemic for measles vaccination in six countries, meningococcal A vaccination in four countries, and yellow fever vaccination in three countries. The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine or campaign immunisation.

ScenarioMeasles, DynaMICEMeasles, IDMMeasles, Penn StateMen A, CambridgeMen A, KPYellow fever, ImperialYellow fever, Notre Dame
50% RI79.211068.55372.75030.11750.00379.32834.3831
Postpone 2020 SIAs - > 202169.97095.7308−0.09900.2650−0.0027−2.7355−0.5797
50% RI, postpone 2020 SIAs - > 202117.057074.06831.68980.40170.00046.52843.1370
Appendix 1—table 2
Excess measles deaths per 100,000 between 2020 and 2030 per scenario, country and modelling group.

The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities). Countries shown are Bangladesh (BGD), Ethiopia (ETH), Kenya (KEN), Nigeria (NGA), South Sudan (SSD), and Chad (TCD).

Country50% RI, DynaMICE50% RI, IDM50% RI, Penn StatePostpone 2020 SIAs - > 2021, DynaMICEPostpone 2020 SIAs - > 2021, IDMPostpone 2020 SIAs - > 2021, Penn State50% RI, postpone 2020 SIAs - > 2021, DynaMICE50% RI, postpone 2020 SIAs - > 2021, IDM50% RI, postpone 2020 SIAs - > 2021, Penn State
BGD0.35NA−0.030NA0.030.03NA0.01
ETH4.672.105.56−0.19−0.032.051.82−0.07
KEN0NA−0.010NA0.010NA0.01
NGA−0.120.680.15−0.020.30.01−0.091.030.13
SSD3.28NA0.03−6.73NA−0.95−7.65NA−0.96
TCD2.45NA0.02−2.13NA0.12−0.16NA0.01
Appendix 1—table 3
Excess measles deaths between 2020 and 2030 per scenario, country and modelling group.

The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities). Countries shown are Bangladesh (BGD), Ethiopia (ETH), Kenya (KEN), Nigeria (NGA), South Sudan (SSD), and Chad (TCD).

Country50% RI, DynaMICE50% RI, IDM50% RI, Penn StatePostpone 2020 SIAs - > 2021, DynaMICEPostpone 2020 SIAs - > 2021, IDMPostpone 2020 SIAs - > 2021, Penn State50% RI, postpone 2020 SIAs - > 2021, DynaMICE50% RI, postpone 2020 SIAs - > 2021, IDM50% RI, postpone 2020 SIAs - > 2021, Penn State
BGD6552NA−5390NA593578NA276
ETH66678299514079384−2783−4732924125981−946
KEN0NA−400NA640NA59
NGA−3016175453919−6347777137−2430265593427
SSD4493NA44−9229NA−1298−10485NA−1316
TCD5125NA35−4460NA260−333NA29
Appendix 1—table 4
Excess meningococcal A deaths per 100,000 between 2020 and 2030 per scenario, country and modelling group.

The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities). Countries shown are Burkina Faso (BFA), Niger (NER), Nigeria (NGA), and Chad (TCD).

Country50% RI, Cambridge50% RI, KPPostpone 2020 SIAs - > 2021, CambridgePostpone 2020 SIAs - > 2021, KP50% RI, postpone 2020 SIAs - > 2021, Cambridge50% RI, postpone 2020 SIAs - > 2021, KP
BFA000000
NER000000
NGA000000
TCD0.0200.0700.10
Appendix 1—table 5
Excess meningococcal A deaths between 2020 and 2030 per scenario, country and modelling group.

The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities). Countries shown are Burkina Faso (BFA), Niger (NER), Nigeria (NGA), and Chad (TCD).

Country50% RI, Cambridge50% RI, KPPostpone 2020 SIAs - > 2021, CambridgePostpone 2020 SIAs - > 2021, KP50% RI, postpone 2020 SIAs - > 2021, Cambridge50% RI, postpone 2020 SIAs - > 2021, KP
BFA010001
NER14000140
NGA000-20-1
TCD52014202010
Appendix 1—table 6
Excess yellow fever deaths per 100,000 between 2020 and 2030 per scenario, country and modelling group.

The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities). Countries shown are the Democratic Republic of Congo (COD), Ghana (GHA) and Nigeria (NGA).

Country50% RI, Imperial50% RI, Notre DamePostpone 2020 SIAs - > 2021, ImperialPostpone 2020 SIAs - > 2021, Notre Dame50% RI, postpone 2020 SIAs - > 2021, Imperial50% RI, postpone 2020 SIAs - > 2021, Notre Dame
COD0.380.01−0.23−0.010.150
GHA0.330.070.060.020.390.1
NGA0.020.10−0.020.010.07
Appendix 1—table 7
Excess yellow fever deaths between 2020 and 2030 per scenario, country and modelling group.

The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities). Countries shown are the Democratic Republic of Congo (COD), Ghana (GHA), and Nigeria (NGA).

Country50% RI, Imperial50% RI, Notre DamePostpone 2020 SIAs - > 2021, ImperialPostpone 2020 SIAs - > 2021, Notre Dame50% RI, postpone 2020 SIAs - > 2021, Imperial50% RI, postpone 2020 SIAs - > 2021, Notre Dame
COD4379137−2590−88173125
GHA1241281239941481375
NGA4212675−45−4263771798
Appendix 1—table 8
Excess measles deaths per 100,000 per year between 2020 and 2030 per scenario, year and modelling group.

The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities).

Year50% RI, DynaMICE50% RI, IDM50% RI, Penn StatePostpone 2020 SIAs - > 2021, DynaMICEPostpone 2020 SIAs - > 2021, IDMPostpone 2020 SIAs - > 2021, Penn State50% RI, postpone 2020 SIAs - > 2021, DynaMICE50% RI, postpone 2020 SIAs - > 2021, IDM50% RI, postpone 2020 SIAs - > 2021, Penn State
202000.340.0610.462.320.710.463.250.82
202102.70.550.198.320.020.213.550.44
20223.444.980−2.52−1.27−0.19−2.520.77−0.2
202328.566.570−6.31−5.48−0.14.96−0.96−0.12
2024−11.770.72−0.03−14.68−4.5−0.125.96−2.48−0.16
2025−9.82−1.520.0216.070.67−0.1−14.650.03−0.13
2026−5.38−0.260.01−7.571.83−0.1−3.381.51−0.11
20270.240.230.020.370.36−0.031.080.6−0.04
20280.790.0800.88−0.02−0.03−0.020.01−0.05
20290.550.09−0.02−0.3−0.03−0.050.15−0.16−0.06
20306.550.09012.95−0.26−0.041.45−0.1−0.05
Appendix 1—table 9
Excess meningococcal A deaths per 100,000 per year between 2020 and 2030 per scenario, year and modelling group.

The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities).

Year50% RI, Cambridge50% RI, KPPostpone 2020 SIAs - > 2021, CambridgePostpone 2020 SIAs - > 2021, KP50% RI, postpone 2020 SIAs - > 2021, Cambridge50% RI, postpone 2020 SIAs - > 2021, KP
202000000
2021000000
2022000000
2023000000
2024000.0100.010
2025000000
2026000000
2027000.0100.010
2028000.0100.020
2029000000
20300.0100.0100.030
Appendix 1—table 10
Excess yellow fever deaths per 100,000 per year between 2020 and 2030 per scenario, year and modelling group.

The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities).

Year50% RI, Imperial50% RI, Notre DamePostpone 2020 SIAs - > 2021, ImperialPostpone 2020 SIAs - > 2021, Notre Dame50% RI, postpone 2020 SIAs - > 2021, Imperial50% RI, postpone 2020 SIAs - > 2021, Notre Dame
20200.280.121.702.020.12
20210.220.12−0.360.86−0.150.98
20220.180.09−0.29−0.14−0.12−0.07
20230.160.08−0.25−0.12−0.10.05
20240.130.07−0.2−0.1−0.070.04
20250.130.07−0.19−0.09−0.07−0.04
20260.120.06−0.18−0.09−0.07−0.04
20270.120.06−0.18−0.09−0.06−0.04
20280.110.06−0.17−0.09−0.06−0.04
20290.110.06−0.16−0.08−0.06−0.04
20300.110.06−0.16−0.08−0.06−0.04
Appendix 1—table 11
Excess deaths between 2020 and 2030 per scenario, infection and modelling group.

Scenarios for disruption of routine immunisation and delay of mass vaccination campaigns due to the COVID-19 pandemic for measles vaccination in six countries, meningococcal A vaccination in four countries, and yellow fever vaccination in three countries. The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities).

ScenarioMeasles, DynaMICEMeasles, IDM*Measles, Penn StateMen A, CambridgeMen A, KPYellow fever, ImperialYellow fever, Notre DameTotal of pathogen averages#
50% RI79832.1347495.713459.278662.1743816042.153093.14768265.66
Postpone 2020 SIAs - > 202165061.764994.18−715.324142−1.78694−2395.67−420.91433689.78
50% RI, postpone 2020 SIAs - > 202116570.5852540.421529.7642150.065213589.542197.8537556.73
  1. * Measles IDM covers only two countries.

    # Total of pathogen averages exclude Measles IDM as this covers only two countries.

Appendix 1—table 12
Percentage differences in deaths from baseline between 2020 and 2030 per scenario.

Scenarios for disruption of routine immunisation and delay of mass vaccination campaigns due to the COVID-19 pandemic for measles vaccination in six countries, meningococcal A vaccination in four countries, and yellow fever vaccination in three countries. The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities).

ScenarioPercentage difference from baseline
50% RI9.885481
Postpone 2020 SIAs - > 20213.780423
50% RI, postpone 2020 SIAs - > 20214.802334
Appendix 1—table 13
Percentage differences in deaths from baseline between 2020 and 2030 per scenario, infection and modelling group.

Scenarios for disruption of routine immunisation and delay of mass vaccination campaigns due to the COVID-19 pandemic for measles vaccination in six countries, meningococcal A vaccination in four countries, and yellow fever vaccination in three countries. The counterfactual comparative scenario (BAU – business as usual) is no disruption to routine immunisation (RI) or campaign immunisation (SIAs – supplementary immunisation activities).

ScenarioMeasles, DynaMICEMeasles, IDMMeasles, Penn StateMen A, CambridgeMen A, KPYellow fever, ImperialYellow fever, Notre Dame
50% RI19.195711.97086.403015.98065.88752.50261.9177
Postpone 2020 SIAs - > 202115.64421.2587−1.324034.3826−4.8384−0.9923−0.2610
50% RI, postpone 2020 SIAs - > 20213.984413.24232.831552.05810.17661.48681.3626
Appendix 1—table 14
Coverage assumptions for the counterfactual comparative scenario (BAU – business as usual), determined through consultation with disease and immunisation programme experts across partners at the global, regional, and national levels.
AssumptionMeasles
MCV1: 1 st dose measles
vaccine, MCV2: 2nd dose measles vaccine
Yellow fever (YF)Meningococcal A (Men A)
(For countries that have introduced routine)
Routine coverage 2020–2030 (historical coverage from WUENIC – WHO and UNICEF Estimates of National Immunization Coverage)MCV1: Mean of 2015–2019 coverage
MCV2: Highest coverage in 2015–2019
If no MCV2 coverage in 2015–19, assume 50% of MCV1 mean coverage for 2015–19
YF: Mean of 2015–2019 coverage
If no YF coverage in 2015–19, use MCV1 mean coverage for 2015–19
MenA: Highest coverage in 2015–2019.
If no coverage available (for 1 + full years), use MCV1 mean coverage for 2015–19 Exception: where Men A intro age is ≥ 15 m, use MCV2 highest coverage in 2015–19
Vaccine introductionsAssume all countries introduce MCV2 in 2022 if they have not alreadyAssume all countries introduce YF in 2022 if they have not alreadyN/A
Campaign frequencyUse historic frequency: interval between last two prospectively planned national SIAs (supplementary immunisation activities)2019 and 2020 completed and planned campaigns (both planned and reactive)
2021–2030: Mass preventive campaigns as recommended by the WHO EYE strategy (2016), with updated sequencing; no reactive campaigns
2019 and 2020 completed and planned campaigns
2021–2030: Assume no campaigns
Campaign coverageUse coverage of last national SIAAssume 85% coverage of the subnational target population for all future campaigns in 2020–2030 (and for 2019 campaigns if actual coverage unavailable).2019 and 2020 actual/forecast campaign coverage level
Appendix 1—table 15
Glossary of terms.
TermDescription
CountryBFA: Burkina Faso
BGD: Bangladesh
COD: Democratic Republic of the Congo (DRC)
ETH: Ethiopia
GHA: Ghana
KEN: Kenya
NER: Niger
NGA: Nigeria
SSD: South Sudan
TCD: Chad
VaccineMCV1: 1 st dose measles vaccine, MCV2: 2nd dose measles vaccine, YF: yellow fever vaccine, MenA: meningococcal A vaccine
YearYear of vaccination
Age fromMinimum age (in years) of the target population
Age toMaximum age (in years) of the target population
Age range verbatimAge of the target population, as provided by WHO or other coverage source
Coverage (national level)Percentage of the target population vaccinated, specified at a national level.
Target (national level)Number of people in the target age range, in the entire country.
Subnational campaignCampaigns which took place sub-nationally, rather than across the whole country.
Number vaccinatedNumber of individuals vaccinated in a campaign. Where necessary, a demographic cap was applied to constrain the number vaccinated to be no higher than UNWPP records of the total number in the target age group. (UNWPP: United Nations World Population Prospects, 2019 Revision).
Affected by COVID-19Values are shown for 2020 campaigns only. FALSE: 2020 campaigns unaffected by COVID-19, for example campaigns which took place in early 2020. These campaigns are retained in all disruption scenarios.
Appendix 1—table 16
Routine coverage values used for the counterfactual comparative (business-as-usual) scenario, following the assumptions in Appendix 1—table 14.

Target population taken from United Nations World Population Prospects (UNWPP) 2019 revision. Countries: Burkina Faso (BFA), Bangladesh (BGD), Democratic Republic of the Congo (COD), Ethiopia (ETH), Ghana (GHA), Kenya (KEN), Niger (NER), Nigeria (NGA), South Sudan (SSD), Chad (TCD). Vaccines: 1st dose measles vaccine (MCV1), 2nd dose measles vaccine (MCV2), yellow fever vaccine (YF), meningococcal A vaccine (MenA).

CountryVaccineYearAge fromAge toCoverage (national level)
BFAMenA2020–20300085%
BGDMCV12020–20300097%
 MCV22020–20302293%
CODYF2020–20300074%
ETHMCV12020–20300064%
 MCV22020–20302231%
GHAYF2020–20300089%
KENMCV12020–20300092%
 MCV22020–20302245%
NERMenA2020–20300096%
NGAMCV12020–20300061%
 MCV22020–20302219%
 MenA2020–20300061%
 YF2020–20300060%
SSDMCV12020–20300051%
TCDMCV12020–20300039%
TCDMenA2020–20300070%
Appendix 1—table 17
Campaign coverage values used for the counterfactual comparative (business-as-usual) scenario, following the assumptions in Appendix 1—table 14.

Countries: Bangladesh (BGD), Democratic Republic of the Congo (COD), Ethiopia (ETH), Ghana (GHA), Kenya (KEN), Nigeria (NGA), South Sudan (SSD), Chad (TCD).

CountryVaccineYearAge_ fromAge_ toAge range verbatimCoverage (national level)Target (national level)Subnational campaignNumber vaccinatedAffected by covid-19
BGDMeasles2020196M-9Y1%26,123,496yes292,437FALSE
BGDMeasles2020199M-9Y100%26,123,496no26,123,496
BGDMeasles20261493%10,972,070no10,204,025
CODYF20201609M-60Y10%82,362,957yes8,468,874
CODYF20201609M-60Y8%82,362,957yes6,707,043
CODYF20211609M-60Y25%84,982,979yes21,179,612
CODYF20221609M-60Y17%87,641,611yes14,875,225
CODYF20231609M-60Y14%90,340,189yes12,357,393
CODYF20241609M-60Y18%93,082,143yes17,200,562
ETHMeasles20191146 M-59M; 6M-14Y3%41,766,446yes1,230,934
ETHMeasles2020146–59 M100%13,314,425no13,314,425
ETHMeasles20271493%14,462,250no13,449,892
GHAYF2020106010-60Y22%21,527,602yes4,758,966
KENMeasles2020149–59 M100%5,625,900no5,625,900
KENMeasles20241495%5,839,639no5,547,657
KENMeasles20281495%6,220,262no5,909,249
NGAMeasles2019196M-9Y1%55,695,418yes436,031
NGAMeasles2019156 M-71M2%32,616,304yes718,665
NGAMeasles2019149–59 M81%26,413,460yes21,352,326
NGAMenA20191755%44,499,793yes24,274,987
NGAYF20191449M-44Y0.30%167,255,829yes525,691
NGAYF20191449M-44Y1%167,255,829yes1,392,489
NGAYF20191449M-44Y1%167,255,829yes1,766,338
NGAYF20191449M-44Y4%167,255,829yes6,755,396
NGAMeasles2020146–59 M7%26,844,855yes1,988,885
NGAMenA20207107–8/9–10 years24%22,936,865yes5,618,292
NGAMenA2020171–7 Y15%45,289,678yes6,791,329
NGAYF20201449M-44Y5%171,465,804yes8,624,060FALSE
NGAYF20201449M-44Y3%171,465,804yes4,936,871
NGAYF20201449M-44Y16%171,465,804yes26,676,939
NGAYF20211449M-44Y20%175,731,488yes34,701,457
NGAMeasles20221488%27,691,758no24,230,288
NGAYF20221449M-44Y13%180,026,007yes23,699,548
NGAYF20231449M-44Y13%184,355,854yes23,699,548
NGAMeasles20241488%28,580,680no25,008,095
NGAMeasles20261488%29,575,232no25,878,328
NGAMeasles20281488%30,532,880no26,716,270
NGAMeasles20301488%31,488,385no27,552,337
SSDMeasles2020146–59 M100%1,350,759no1,350,759FALSE
SSDMeasles2020146–59 M49%1,350,759no659,330
SSDMeasles20231492%1,396,213no1,284,516
SSDMeasles20261492%1,465,629no1,348,379
SSDMeasles20291492%1,513,497no1,392,417
TCDMeasles2019196M-9Y14%4,729,086yes653,511
TCDMeasles2019196M-9Y4%4,729,086yes210,185
TCDMeasles2019196M-9Y6%4,729,086yes298,738
TCDMeasles2019146–59 M21%2,259,841yes467,456
TCDMeasles2020146–59 M15%2,306,276yes340,046FALSE
TCDMeasles2020146–59 M2%2,306,276yes43,233FALSE
TCDMeasles2020146–59 M31%2,306,276yes712,746
TCDMeasles2020149–59 M100%2,306,276no2,306,276
TCDMenA2020181-8Y15%4,352,395yes647,065
TCDMeasles20281482%2,681,750no2,199,035

Section 2. Figures (appendix)

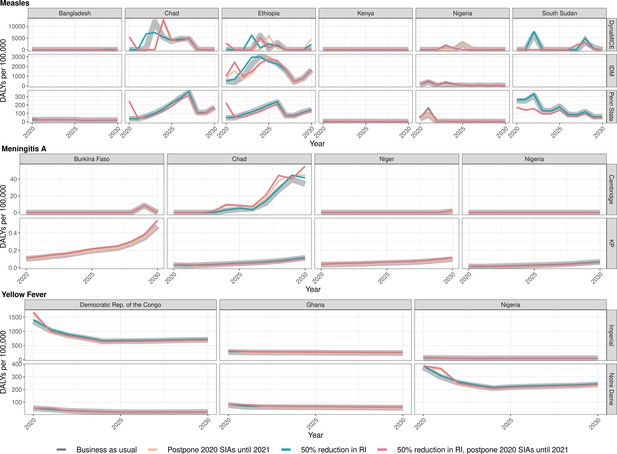

Appendix 1—figure 1
Health impact of predicted total disability-adjusted life years for immunisation disruption scenarios and no disruption scenario for measles, meningococcal A, and yellow fever.

Model-predicted total disability-adjusted life years (DALYs) per 100,000 population per year for routine immunisation (RI) and campaign immunisation (SIAs – supplementary immunisation activities) disruption scenarios and no disruption scenario (BAU – business-as-usual scenario) for measles, meningococcal A, and yellow fever during 2020–2030.

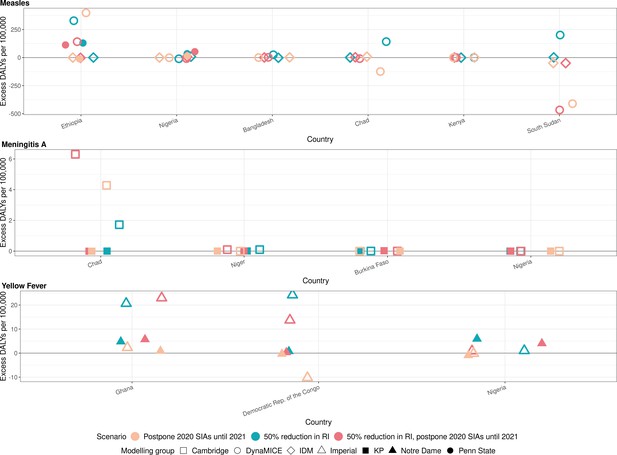

Appendix 1—figure 2
Health impact of excess disability-adjusted life years for immunisation disruption scenarios in comparison to no disruption scenario for measles, meningococcal A, and yellow fever.

Model-predicted excess disability-adjusted life years (DALYs) per 100,000 population per year for routine immunisation (RI) and campaign immunisation (SIAs – supplementary immunisation activities) disruption scenarios in comparison to no disruption scenario (BAU – business-as-usual scenario) for measles, meningococcal A, and yellow fever. Excess DALYs are summed over 2020–2030.

Appendix 1—figure 3
Health impact of normalised excess deaths for immunisation disruption scenarios in comparison to no disruption scenario for measles, meningococcal A, and yellow fever.

The normalised model-predicted excess deaths per year for routine immunisation (RI) and campaign immunisation (SIAs – supplementary immunisation activities) disruption scenarios in comparison to no disruption scenario (BAU – business-as-usual scenario) for measles, meningococcal A, and yellow fever. Excess deaths are summed over 2020–2030, and the excess deaths are normalised by setting the BAU to 0 and maximum to 1.

Appendix 1—figure 4
Health impact of normalised excess disability-adjusted life years for immunisation disruption scenarios in comparison to no disruption scenario for measles, meningococcal A, and yellow fever.

The normalised model-predicted excess disability-adjusted life years (DALYs) per year for routine immunisation (RI) and campaign immunisation (SIAs – supplementary immunisation activities) disruption scenarios in comparison to no disruption scenario (BAU – business-as-usual scenario) for measles, meningococcal A, and yellow fever. Excess DALYs are summed over 2020–2030, and the excess DALYs are normalised by setting the BAU to 0 and maximum to 1.

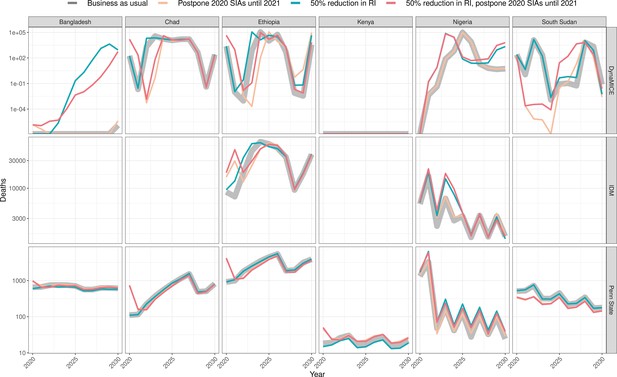

Appendix 1—figure 5
Health impact of predicted total deaths for immunisation disruption scenarios and no disruption scenario for measles.

Model-predicted total deaths per year for routine immunisation (RI) and campaign immunisation (SIAs – supplementary immunisation activities) disruption scenarios and no disruption scenario (BAU – business-as-usual scenario) for measles during 2020–2030 per modelling group.

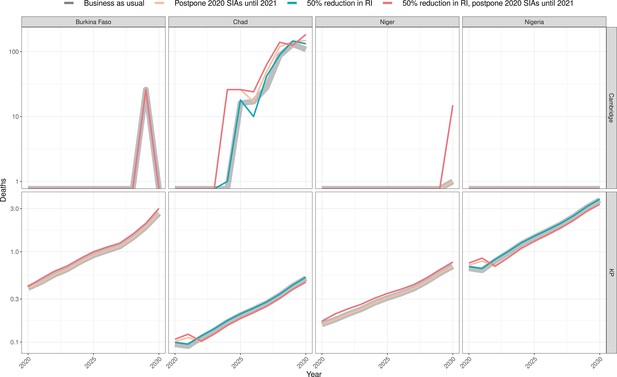

Appendix 1—figure 6
Health impact of predicted total deaths for immunisation disruption scenarios and no disruption scenario for meningococcal A.

Model-predicted total deaths per year for routine immunisation (RI) and campaign immunisation (SIAs – supplementary immunisation activities) disruption scenarios and no disruption scenario (BAU – business-as-usual scenario) for meningococcal A during 2020–2030 per modelling group.

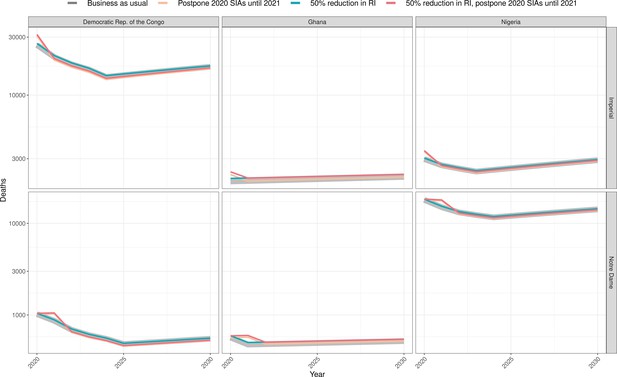

Appendix 1—figure 7
Health impact of predicted total deaths for immunisation disruption scenarios and no disruption scenario for yellow fever.

Model-predicted total deaths per year for routine immunisation (RI) and campaign immunisation (SIAs – supplementary immunisation activities) disruption scenarios and no disruption scenario (BAU – business-as-usual scenario) for yellow fever during 2020–2030 per modelling group.

Section 3. Model descriptions

Measles model - Penn State

The Penn State model is a measles transmission and vaccination model developed at Pennsylvania State University (PSU). It is an age-structured compartmental transmission dynamic model with compartments for susceptible, infected, recovered (due to infection or vaccination) subpopulations. A proportion of infected people will die depending on their age and country characteristics (Wolfson et al., 2009), as per the DynaMICE model. The model projects the total number of infections and deaths in 1 year age cohorts, up to age 100 years, in each year according to an annual attack rate that is modeled as a logistic function of the annualised proportion of the population that is susceptible. The slope and intercept of this logistic function, which governs the proportion of available susceptibles that are infected in each year, is fitted independently for each country to observed annual case reporting and vaccination coverage (routine and supplemental campaigns) for each country between 1980 and 2017; for details on the fitting methods see Eilertson et al., 2019. Vaccine efficacy for routine immunization is assumed to depend on the age at first dose (9 m or 12 m) as described in Simons et al., 2012. The second routine dose is assumed to be preferentially delivered to those children who received the first dose and SIA doses are assumed to be independent of receipt of the first routine dose.

Measles model - DynaMICE

DynaMICE (DYNAmic Measles Immunisation Calculation Engine) is a measles transmission and vaccination model developed by LSHTM with input from Harvard University and the University of Montreal. It is an age-structured compartmental transmission dynamic model with compartments for maternal immune, susceptible, infected, recovered, and vaccinated subpopulations. A proportion of infected people will die depending on their age and country characteristics (Wolfson et al., 2009). The population is also stratified by age with weekly age classes up to age 3 years, and annual age classes thereafter up to 100 years. The force of infection is calculated by combining an age-dependent social contact matrix from the POLYMOD study (Mossong et al., 2008), demographic distribution for each country, and an estimated probability of transmission per contact. The probability of transmission per contact is then estimated from the basic reproduction number of measles using the principal eigenvalue method. Vaccination is incorporated as a pulse function and can be delivered to any age or range of ages and in either routine or campaign delivery. Vaccine efficacy is dependent on age and the number of doses received (Hughes et al., 2020). The model has been previously described in detail (Li et al., 2021; Verguet et al., 2015), and has been validated through comparisons to the Penn State and/or IDM models in at least two previous model comparison exercises.

Measles models - IDM

The IDM model for Nigeria was built using EMOD – an agent-based stochastic disease transmission model (Institute for Disease Modeling et al., 2018). The EMOD software is open-source, and the model and documentation of the EMOD software are available at the IDM website (IDM, 2020). The model presented here is a discrete-time (daily time steps), an individual-based form of an MSEIR (maternally protected-susceptible-exposed-infectious-recovered) model. A specific prior application of the EMOD model to measles in Nigeria is described in Zimmermann et al., 2019; the model employed here is similar but is structured at a finer spatial scale. The transmission dynamics include seasonality, age-stratified heterogeneous transmission, and spatial metapopulations coupled by migration, the parameters of which have been calibrated to reproduce the seasonality, age-distribution, and spatial correlation of measles cases in Nigeria. Routine vaccination with a first dose is delivered to covered individuals at 9 months of age; the second dose at 12 months; and SIA vaccination is distributed to covered individuals in the target age range in a pulse over the course of 2 weeks; no correlation between the two routine doses or between the routine and SIA doses is assumed.

The IDM model for Ethiopia is a semi-monthly, stochastic, compartmental, measles transmission model. The key model assumption is that measles transmission is determined by a susceptible population and an infectious population, while all other (recovered, deceased, immunised, etc.) populations can be ignored. At a high level, children missed by routine immunization (estimated via coverage and birth rates under vaccine efficacy assumptions similar to those in the Nigeria model) enter the population susceptible to measles, where they can either be infected or be immunised in a vaccination campaign. Transmission is assumed to have annual seasonality with rates estimated for every semi-month of the year via a regression against observed cases accounting for under-reporting as an unknown constant over the model-time period. Both the volatility in the transmission process and the effects of past vaccination campaigns on overall susceptibility are also estimated from the surveillance data. For a detailed example of the model applied to immunizations questions in Pakistan, see Thakkar et al., 2019.

Men A model - Cambridge

The University of Cambridge MenA model is a compartmental transmission dynamic model of Neisseria meningitidis group A (NmA) carriage and disease to investigate the impact of immunisation with a group A meningococcal conjugate vaccine, known as MenAfriVac, as published by Karachaliou et al., 2015. The model is age-structured (1 year age groups up to age 100) with continuous ageing between groups. Model parameters were based on the available literature and African data wherever possible, with the model calibrated on an ad-hoc basis as described below.

The population is divided into four states, which represent their status with respect to the meningitis infection. Individuals may be susceptible, carriers, ill or recovered, and in each of these states be vaccinated or unvaccinated, with vaccinated individuals having lower risks of infection (carriage acquisition) and disease (rate of invasion). We assume that both carriers and ill individuals are infectious and can transmit the bacteria to susceptible individuals. The model captures the key features of meningococcal epidemiology, including seasonality, which is implemented by forcing the transmission rate, the extent of which varies stochastically every year.

Since only a small proportion of infected individuals develop the invasive disease, disease-induced deaths are not included in the model. From each compartment, there is a natural death rate from all causes. Carriage prevalence and disease incidence vary with age, and the model parameterised these distributions using a dataset from Niger Campagne et al., 1999; the case:carrier ratio consequently varies with age. The duration of 'natural immunity' is an important driver of disease dynamics in the absence of vaccination but good data on this parameter is lacking; instead, prior estimates are used (Irving et al., 2012).

The model assumes that mass vaccination campaigns occur as discrete events whereas routine immunisation takes place continuously. We allowed the duration of protection to vary uniformly between 5 years and 20 years for the 0–4 year-olds and 10–20 years for over 5-year-olds. For the 200 runs, we selected pairs of values for these two parameters so that duration of protection for the older age group is not shorter than the duration of protection for 0–4 year-olds (White et al., 2019; Yaro et al., 2019). Vaccine efficacy against carriage and disease is 90%.

Disease surveillance is not comprehensive across the meningitis belt, so the disease burden is uncertain in several countries. Therefore, the model classifies the countries into three categories, based on the incidence levels using historical data. This classification defines the transmission dynamic parameters. The model generates estimates of case incidence, to which a 10% case-fatality ratio is applied to estimate mortality (Lingani et al., 2015). To estimate DALYs it is assumed that 7·2% of survivors have major disabling sequelae with a disability weight of 0.26 (Edmond et al., 2010).

Countries were stratified into high and medium risk, and different infection risks applied based on this stratification. As there was insufficient information to define infection risk on a country-by-country basis, the approach/stratification was agreed upon with experts in the WHO meningitis team. For countries only partly within the meningitis belt, only the (subnational) area at risk was included.

To produce estimates on the impact of vaccination, 200 simulation runs were generated by stochastically varying the baseline transmission rate to reflect between-year climactic or other external variability. Although each individual simulation reflects the reality of irregular and periodic epidemics, as visually compared to time series from Chad and Burkina Faso and analysis of inter-epidemic periods, the resulting averaged estimates give a stable expected burden of disease over time. Uncertainty in other model parameters is currently not quantified.

Men A model - KP

The KP model for serogroup A Neisseria meningitidis (MenA) was developed at Kaiser Permanente Washington in partnership with the US Centers for Disease Control and Prevention and the Burkina Faso Ministry of Health (Jackson et al., 2018; Tartof et al., 2013). It is a dynamic, age-structured, stochastic compartmental transmission model, with compartments to represent MenA colonization, disease, and immunity. Natural infection with MenA is assumed to lead to resistance to future colonization and disease, and repeated infections further reduce risk, although protection wanes over time. The age-dependent force of infection (‘who acquires infection from whom’) matrix varies seasonally to account for differential MenA transmission between dry and rainy seasons. Model parameters, including the force of infection, were estimated using approximate Bayesian calculation, with prior distributions informed by the literature. Mass campaigns occur among persons aged 1–29 years (possibly with catch-up campaigns at the initiation of routine immunization), in which immunization is assumed to occur in the first week of the month during which a campaign is scheduled. Routine immunization is assumed to occur during the first week of the month in which a child reaches 9 months of age.

Yellow fever model - Imperial College London

The Imperial College London yellow fever model is a static transmission model assuming a constant force of infection (FOI) for each country at risk of YF. It is estimated from YF occurrence data as well as serological data where available. The model also uses environmental covariates, information on vaccination activities, and demographic projections to estimate relative risk and thus transmission intensity for YF. The original framework was developed by Yellow Fever Expert Committee et al., 2014 and was subsequently extended by Gaythorpe et al., 2019 and Gaythorpe et al., 2021b. The full model description is given in Gaythorpe et al., 2021b. The model was estimated within a Bayesian hierarchical framework from serological survey data and outbreak occurrence information up to the year 2019; it has also been assessed against new serological surveys as they became available, shown in Jean et al., 2016.

Yellow fever model - University of Notre Dame

The University of Notre Dame yellow fever (YFV) model is a static transmission model that assumes a constant force of infection (FOI) for each endemic country (Perkins et al., 2021). Yellow fever infections in the human population are thus modeled as spillover events from non-human primates, so human-to-human transmission observed in urban outbreaks is not considered. Accordingly, our model is intended to capture long-term changes in YFV burden on account of changes in vaccination coverage rather than to realistically capture interannual variability due to YFV epizootics in non-human primates and occasional outbreaks in humans.

We calibrated our YFV transmission model to multiple sources of epidemiological data collected in sub-Saharan Africa at the first administrative level subnationally. First, we quantified past exposure to YFV by estimating the force of infection in 23 administrative units using data collected in serological surveys. We then related the predicted number of YFV infections at each of the 23 administrative units to the corresponding reported outbreak data collated by Yellow Fever Expert Committee et al., 2014 to quantify the extent of underreporting. We then obtained estimates of the total number of infections at each administrative unit in sub-Saharan Africa by relating our estimates of underreporting to the total number of reported cases and deaths in each administrative unit. This allowed us to estimate a posterior distribution of a single FOI for each administrative unit in sub-Saharan Africa. Because the FOIs that we estimated are sensitive to the number of reported cases and deaths, we smoothed across our estimates by performing a regression analysis with spatial covariates. We considered multiple regression models and generated an ensemble prediction by weighting the predicted FOI from each regression model based on performance in ten-fold cross-validation at the country level. National-level FOI estimates were obtained by weighting the ensemble spatial prediction of FOI according to WorldPop 2015 population density estimates at the first administrative level and then summing to obtain national FOIs (WorldPop, 2016).

To project the number of yellow fever cases and deaths in each country under a given vaccination coverage scenario, we first scaled the national-level FOI by the proportion of the population that is unvaccinated. We then used the scaled FOI estimate to project the annual number of YFV infections and multiplied this quantity by the probabilities of disease and death reported by Johansson et al., 2014 to obtain estimates of the annual number of YFV cases and deaths. We assume a 0.975 probability of protection from infection among those who are vaccinated based on Jean et al., 2016, with this level of protection assumed to be lifelong based on a single dose. In the event of campaigns, we assume that individuals are vaccinated randomly and irrespective of prior vaccination through another campaign or routine vaccination.

Section 4: Drivers of model similarities and differences

Measles

All three measles models (Penn State, DynaMICE, and IDM) are MSRIV (maternally protected, susceptible, infected/infectious, recovered, vaccinated) transmission models. While Penn State and DynaMICE models are age-structured compartmental transmission dynamic models, IDM is an agent-based stochastic disease transmission model. The three models differ in terms of the magnitude of the increased burden they project due to coverage disruptions in 2020, with DynaMICE generally being the most pessimistic (greatest increase in burden) and Penn State generally the most optimistic (smallest increase in burden).

These differences stem particularly from the way vaccine coverage is translated into vaccine impact. DynaMICE directly translates national-level coverage into impact using vaccine efficacy assumptions within an age-dependent mass-action model framework, modified by age at vaccination and whether or not SIA or MCV2 doses go to those who have already received MCV1. Hence any susceptibility gaps that develop as a result of declines in coverage or postponement of SIAs are soon translated into increased numbers of cases.

The Penn State model fits a logistic relationship between annual attack rate and the proportion susceptible in the population independently to each country (methods described in Eilertson et al., 2019). The slope and intercept of this function govern how quickly measles cases respond to increases in the proportion susceptible; a steep slope indicates that the probability of infection increases quickly with a small increase in the proportion susceptible (i.e. a large outbreak is likely after a small disruption). The shape of this function is fit to the annual measles time series from 1980 to 2019. If the slope of this function is shallow based on the historical pattern, then a large reduction in coverage (large increase in susceptibles) would be necessary to generate a large and immediate outbreak.

The IDM model uses a similar SIR framework as DynaMICE but is an individual-based model that reflects subnational heterogeneities in dose and disease burden distribution.

Meningococcal A

The meningococcal disease models (Cambridge, KP) are both stochastic, age-structured, compartmental dynamic transmission models based on the SIR framework. The major structural differences between the models are around (a) how they handle immunity post-infection: where the Cambridge model has waning protection from one immune compartment (in which individuals are completely immune), the KP model assumes a gradient of susceptibility following infection with compartments for high and low immunity; and (b) the duration of vaccine-induced immunity: where the Cambridge model assumes a shorter duration of protection than the KP model. The differences in the results arise mainly because of the differing assumptions about the duration of vaccine protection.

Yellow fever

The YF models (Imperial, Notre Dame) are both static cohort models which provide annual numbers of infections, cases and deaths given existing vaccination coverage immunity. They follow a similar format in terms of how burden is calculated given force of infection estimates. One difference here is when vaccination is assumed to take effect with the Imperial model showing the influence of vaccination from the beginning of the year and Notre Dame, from the end.

The models differ in how they estimate the force of infection for each province. Both models use serological survey data and outbreak information but the Imperial model uses a larger number of serological studies and only focuses on outbreak occurrence whereas the Notre Dame model also takes into account outbreak size but includes fewer serological studies. Both models use environmental covariates to extrapolate to countries with fewer data but the specific covariates incorporated differ between groups. As a result, the Imperial model generally produces higher estimates of the force of infection except in Nigeria where the force is higher for the Notre Dame model.

Section 5: Coverage assumptions

These assumptions were determined through consultation with disease and immunisation programme experts across partners at the global, regional, and national levels.

To generate ‘business as usual’ assumptions for routine immunisations in 2020–2030, we considered historical coverage from WUENIC (WHO and UNICEF Estimates of National Immunization Coverage) for the previous five years. We assumed that MCV1 (measles first dose) coverage stayed at the mean level seen in 2015–19, and that MCV2 (measles second dose) stayed at the highest level seen in 2015–19. Where a country had no MCV2 coverage in the period 2015–19, we assumed that future MCV2 coverage would be 50% of the MCV1 mean coverage for 2015–19. We assumed that yellow fever coverage stayed at the mean level seen in 2015–19. Where a country had no yellow fever coverage in 2015–19, we assumed this stayed constant at the mean level of MCV1 coverage seen in 2015–19. We assumed that coverage of meningitis A stayed at the highest level seen in 2015–19. Where no meningitis A coverage was available for at least one full year, we assumed that future meningitis coverage stayed constant at the mean level of MCV1 coverage seen in 2015–19. However, for countries where meningitis A vaccine was targeted at infants over 15 months, we assumed this matched the highest level of MCV2 coverage seen in 2015–19.

In terms of future vaccine introductions, we assumed that countries would introduce MCV2 and YF in 2022 (where they had not done so already). For meningitis A, all countries considered had already introduced routine immunisation.

Our assumptions about the frequency and coverage level of vaccination campaigns or supplementary immunisation activities (SIA) in 2020–2030 also varied by pathogen. For measles we looked at the historic frequency, that is the interval between the last two prospectively planned national SIAs, and assumed the same frequency in future years. We assumed the same coverage level as in the country’s last national-level measles SIA. For yellow fever, we included all completed and planned campaigns (both planned and reactive) in 2019 and 2020, and campaigns recommended in WHO’s 2016 Eliminate Yellow Fever (EYE) strategy for the period 2021–2030, assuming 85% coverage of the subnational target population for 2020–2030 (and for 2019 if actual coverage was unavailable). For meningitis A, we included all completed and planned campaigns in 2019 and 2020 (at the actual or forecasted coverage level), but assumed no further campaigns took place from 2021 onwards.

Data availability

All code, data inputs and outputs used to generate the results in the manuscript (apart from projections about vaccine coverage beyond 2020 which are commercially confidential property of Gavi) are available at: https://github.com/vimc/vpd-covid-phase-I (copy archived at https://archive.softwareheritage.org/swh:1:rev:ebff9a24b8b7c9a7c6c5c77f783f2435a57d1d2b).

References

    1. Campagne G
    2. Schuchat A
    3. Djibo S
    4. Ousséini A
    5. Cissé L
    6. Chippaux JP
    (1999)
    Epidemiology of bacterial meningitis in Niamey, Niger, 1981-96
    Bulletin of the World Health Organization 77:499–508.
  1. Report
    1. Hagedorn B
    2. Frey K
    3. IDM COVID-19 Response Team
    (2020)
    The Effect of Regional Under-Age-5 Campaigns on the SARS-CoV-2 Outbreak in LMIC
    The Institute for Disease Modeling.
  2. Software
    1. IDM
    (2020) Epidemiological MODeling (EMOD) Software for General Disease. Institute for Disease Modeling
    Epidemiological MODeling (EMOD) Software for General Disease. Institute for Disease Modeling.
  3. Report
    1. UNICEF
    (2020)
    Tracking the Situation of Children During COVID-19 - UNICEF DATA
    unichef.
  4. Software
    1. Vaccine Impact Modelling Consortium
    (2019)
    General Guidance for DALYs Calculation
    General Guidance for DALYs Calculation.
  5. Software
    1. WHO
    (2019b) Measles–rubella eradication investment case | Weekly Epidemiological Record
    Measles–rubella eradication investment case | Weekly Epidemiological Record.
  6. Software
    1. WHO
    (2020b) Guiding principles for immunization activities during the COVID-19 pandemic: interim guidance
    Guiding principles for immunization activities during the COVID-19 pandemic: interim guidance.
  7. Software
    1. WHO
    (2020d) Immunization and COVID-19 - Second pulse poll offers a more detailed understanding of disruptions to vaccination caused by COVID-19 and how to respond
    Immunization and COVID-19 - Second pulse poll offers a more detailed understanding of disruptions to vaccination caused by COVID-19 and how to respond.
  8. Report
    1. WHO
    (2020g)
    Maintaining Essential Health Services
    Operational Guidance for the COVID-19 Context Interim Guidance.
  9. Software
    1. WorldPop
    (2016) Open Spatial Demographic Data and Research
    Open Spatial Demographic Data and Research.

Decision letter

  1. Talía Malagón
    Reviewing Editor; McGill University, Canada
  2. Eduardo Franco
    Senior Editor; McGill University, Canada
  3. Trish Campbell
    Reviewer; University of Melbourne, Australia

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This study will be of interest for those working in global health and public health officials responsible for immunization against measles, meningococcal A, and measles. An important methodological strength of the study is the use of multiple independently developed transmission models from different teams to estimate the potential disease impacts of vaccination program delays and reductions due to COVID-19 pandemic disruptions. This study highlights the importance of supplementary immunization campaigns in determining future outbreaks of these diseases.

Decision letter after peer review:

Thank you for submitting your article "Impact of COVID-19-related disruptions to measles, meningococcal A, and yellow fever vaccination in 10 countries" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Trish Campbell (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential Revisions:

1) It currently impossible to assess inter-model variability in characterization of uncertainty with only model averages and ranges. Please include some results and discussion of inter-model prediction variability in the main text.

2) Please include more details on the statistical methods used to derive the average and min/max ranges.

3) Please comment on validation methods for the models.

4) The impact of reduced transmission due to COVID-19 mitigation measures seem to be missing. For example, measles generally appeared to have the largest impact of a delay, but presumably transmission would also be reduced due to COVID-19 mitigation measures. Some data/modeling/discussion on this would provide important context.

5) Figure 1 does not seem to have the "Business as Usual" line (or BAU simulations?). It is hard to assess and compare these projections without that.

6) There are general labeling issues with the figures and tables that make the paper much harder to read and assess for validity that need to be fixed, see individual reviewer comments.

Reviewer #1:

This study models the predicted impact of the COVID-19 pandemic on vaccination programs against three pathogens in multiple countries and the long-term health consequences of disruption to these programs. The study question is timely and important given the potential long-term impacts that disruptions in vaccinations may have on infectious disease mortality, and highlights the importance of reinstating routine and campaign vaccination programs.

The approach used by the authors is to aggregate results from multiple independently developed prediction models, and to present the average and rage of predictions. Cross-model comparisons can be a useful method for making predictions; when models give similar answers, confidence in the results is generally bolstered, and when model results differ, it can point to uncertainties in the disease epidemiology or disease process that help to better understand the range of potential outcomes. In this study, different models made predictions that varied by several orders of magnitude. However, these differences are barely commented on nor explored by the authors. The average of model predictions may not be the most appropriate statistic to aggregate model predictions in this case, because the average is generally driven by whichever model predicted the highest incidence rate. There are some labeling issues on some figures that make the results hard to understand and interpret, as it is not entirely clear what mortality rates would have been without the pandemic. I therefore feel that more work needs to be done to present and contextualize model predictions in order to have confidence in the results.

• When model predictions are very different from each other, I don't think it is appropriate to present the average (ranges) of model predictions as the main result. Figure 1 should probably instead show individual model average predictions rather than the cross-model average prediction to better highlight differences across models. As it is, the average is generally highly influenced by whichever model made the highest predictions and do not give a good measure of the central tendency.

• Please discuss the differences in model predictions in the results and Discussion sections, and provide some explanation as to why this might have occurred. These results are not mentioned at all in the main text and are buried in the appendix.

• If the authors decide to keep the average, we need more information on the statistical methods used to derive this average. Were the results from each model weighted equally? How are different predictions from the same model (different runs/parameter sets) dealt with? What do the minimum and maximum predictions represent in the figures, the minimum and maximum of model averages, or the minimum and maximum across all model simulations?

• Please briefly comment on whether there were broad similarities or important differences across models in the methods section.

• It would be useful to briefly define the parameters of the Business As Usual scenario in the text in terms of vaccination coverage and assumptions.

• Figure 1: this figure is rather baffling and difficult to interpret for various reasons. Firstly, the labels (A,B,C) are not defined in the legend. Secondly, none of the acronyms are defined in the legend (see comment below). Thirdly, some scenarios appear to be missing; for example, the business as usual scenario is not in any of the panels. The orange scenario also appears to be missing for some countries for mysterious reasons. Because there is no business as usual scenario, it is difficult to know what would have been the mortality rate without program disruption, so it is not possible to see what has been the impact of different disruptions. It also seems strange that for some countries, the maximal disruption (red) scenarios appear to lead to lower mortality than less disruptive scenarios (orange and blue).

• Please consider removing most acronyms from the text, figures, and tables. Most acronyms do not substantially shorten the text at the cost of making the text much harder to understand. In most cases it is not necessary as there is plenty of space in figures and tables to fully spell out words. It should not be necessary to have to constantly refer to a table in the appendix to understand what is going on. In general, tables and figures should also be self-sufficient, so if it is absolutely necessary to use acronyms, these should always be defined in the legend (figures) or a footnote (tables).

• There is no reference to Table 1 in the manuscript.

• Table 3: Given the vastly different epidemiology between different countries, I think it would be more useful to present the results by country in this table than to average results across countries; this is because the average across countries does not apply to any individual country; it also does not appear to weight results according to different country population sizes, so is it is not applicable to any region either.

• Many references to tables/figures appear to be incorrect. For example, on P5 a reference is made to Table S11 when I think the table referenced should be Table S16. Please double check all table/figure references. This made the manuscript much harder to follow.

• The information in Table S14 would be more interpretable and useful if it were presented as free text supplementary methods rather than in a table. That way the assumptions and algorithms used to make decisions can be made more detailed and explicit. As it is this table is hard to follow.

• Table S17: it is not clear why vaccination campaigns from 2019 would be affected by the pandemic.

• Supplementary Figures: Please flip supplementary figures so they are in the same direction as the rest of the text to make reading easier. If the authors want to keep the same figure resolution it would be more useful to simply format the page in landscape rather than portrait format.

Reviewer #2:

The work is predicated on using multiple models for each pathogen. It states that the models have been validated, but there is no additional information on this. While thorough evidence on validation is almost certainly in the cited papers it would be very helpful to understand that in this context of this manuscript. For example, were all models validated on out-of-sample data from multiple locations and times? Table 1 indicates that some were fitted to data and some were calibrated. Those are fine approaches, but what was done to validate beyond fitting or calibrating to data? Additional comparison between models would be helpful to advance the science of employing multiple models for important use cases like this.

The model projections include multiple sources of uncertainty, yet these are only shown as generalized ranges in the two main figures. Those ranges make it impossible to assess inter-model variability in characterization of uncertainty and changes potential correlation structure that may arise due to seasonality, for example. Moreover, these outcomes are important for a range of decision makers and uncertainty should therefore be characterized throughout, including in the tables, text, and most critically the abstract and discussion.

The impact of reduced transmission due to COVID-19 mitigation measures seem to be missing. For example, measles generally appeared to have the largest impact of a delay, but presumably transmission would also be reduced due to COVID-19 mitigation measures. Some data/modeling/discussion on this would provide important context.

The finding that some delays or reductions were associated with decreased future risk seems to be a function of model structure, not reality. This is potentially confusing and misleading to public health officials and could likely be addressed with updated model structures, parameterization, or synthesis of results.

Figure 1 does not seem to have the "Business as Usual" line (or BAU simulations?). It is hard to assess and compare these projections without that.

Some of the results are not very clear. For example, there doesn't seem to be clear evidence of a predicted measles outbreak in 2025 in Nigeria. How much confidence to the models have in this? The uncertainty range certainly seems large and neither BAU nor 50% RI are shown.

The use of "X deaths per 100,000" is confusing in the context of 2020-2030. It would be helpful to say "yearly" (if I am understanding it correctly).

Line 95: should be pathogens, not antigens

Use country names instead of abbreviations in figures

Figure 1: It would be helpful to have all y-axes being at zero

Figure 1: the panels do not indicate which pathogen they represent

Line 169: Why does the outcome metric change here? Deaths per 100,000 to percent change?

Reviewer #3:

In this study, Gaythorpe et al. use a model-based approach to quantify the impact of disruptions to routine vaccination and catch-up campaigns caused by the COVID-19 pandemic. Interruptions to measles, meningococcal A and yellow fever vaccination programs were investigated for several low- and lower-middle income countries where catch-up campaigns had been planned for 2020. Previously-validated disease models were simulated and results averaged for selected diseases in selected countries, with models assuming that routine vaccination coverage and catch-up campaigns would return to normal levels in 2021. The authors found that decreases to routine vaccination coverage and delaying of catch-up campaigns have the potential to cause outbreaks of measles and yellow fever in some countries, while short-term disruption of meningococcal A vaccination is less important.

Strengths

Dynamic transmission models allow the authors to compare the interventions that did occur to the counterfactual scenario of no disruption. The authors evaluate the impacts on disease incidence over a ten-year time frame, sufficient to capture short- to medium-term effects due to the disruption of vaccination programs due to COVID-19. The models used for the study have been previously validated and published, and rather than relying on a single model for each disease, the authors have combined the results from 2-3 models for each disease. The authors' combination of results from multiple models is a useful technique to mitigate structural uncertainty in models arising from different assumptions about the disease transmission process.

The authors are transparent about the considerable heterogeneity found between the results of different models. While the numerical estimates may not be robust, the trends identified across the study were mostly consistent between models. Thus, despite model differences, the study enables the identification of diseases and countries that are likely to fare the worst due to COVID-19 related disruptions to vaccination, enabling action to be taken to prevent outbreaks where necessary.

Weaknesses

Model results were averaged using arithmetic means, placing equal weight on the results of each model. For most of the disease/country combinations examined, results were the arithmetic mean of the results of only two models. For many of these disease/country combinations, the models used produced very disparate results, sometimes in magnitude but also on several occasions the models disagreed as to whether the disruption was beneficial or detrimental. The large differences between some of the model results suggests that one or both models used may not be capturing an important aspect of the transmission process. The work could be extended by averaging over a larger number of models, although this is likely to be quite time consuming, or weighting results based on an assessment of how well the model fits available data.

For yellow fever, the models used were not designed to capture outbreak dynamics and so are not perhaps ideal for use in this study. This appears to be a major limitation of the yellow fever analysis, although it is clearly acknowledged as such by the authors.

As a general comment, I found some of the tense changes throughout the results to be awkward and distracting as they interrupted the flow of the text. Also, the order of the models changes between the tables – for faster comparison, it would be better to use the same order each time.

Measles doses in the IDM are not correlated. It would be worth outlining how you ensured that the correct percentage of the population received two doses. e.g. Ethiopia has 64% coverage for MCV1 and only 31% MCV2. Since doses are not correlated, won't this result in giving MCV2 to previously unvaccinated children, increasing the % with any vaccination? If doses are independent, only 20% will receive both doses, 55% 1 dose and 25% no doses, which differ quite a bit from the actual coverage. Did you adjust the coverage input into the model to ensure you achieved the correct distribution?

Additional comments

Line 112: Spell out WUENIC

Line 142: I'm not sure why the line 'would not lead to increased risk of outbreaks in 2020' is included. Why focus on 2020? Isn't there an outbreak in 2023 due to reduced routine immunisation?

Line 158: For clarity, define what you mean by 'overall' – are you still talking about Chad, or now talking about all settings?

Line 242: Do you have any evidence from your modelling that 'there is a high risk of localised outbreaks in these two states in 2021'? Is this even though the campaign occurred in October 2020?

Lines 248-251: I agree that the risk of importation increases again once COVID-19 restrictions are lifted, but since these restrictions weren't included in the models, I'm not sure of the relevance of pointing this out. The risk of an outbreak without restrictions in place should be that found by the models, shouldn't it?

Line 252: This would be better expressed as 'model averages' rather than 'average models'

Line 264: '…outweighs the excess SARS-CoV-2 infection risk to these age groups…'

Appendix PSU model: Model description mentions Palestine and Kosovo, which are not part of this study.

Figure 1: I can't see the BAU line in the plots even though it is listed in the legend. This makes following the discussion in lines 151 to 155 very difficult and the authors' description needs to be taken at face value. Is this an error?

Table 1: DynaMICE used the R0 from fitted models. R0 tends to be model specific. How can we be sure that the values used were transferable to this model?

https://doi.org/10.7554/eLife.67023.sa1

Author response

Essential Revisions:

1) It currently impossible to assess inter-model variability in characterization of uncertainty with only model averages and ranges. Please include some results and discussion of inter-model prediction variability in the main text.

We have now rewritten the Results and redesigned both figures in the main text so that they show results from all the models separately, rather than averages and ranges. We have also added a detailed discussion of the variability between the models to the text. Please see Reviewer 1 Comment 7 for details.

2) Please include more details on the statistical methods used to derive the average and min/max ranges.

We have now removed any mention of average/max/min across the models following comments from several reviewers. We now show results for each model separately, and now include a detailed discussion of drivers of differences between models. Please see Reviewer 1 Comment 6 for details.

3) Please comment on validation methods for the models.

The models were all independently developed and hence they use different methods of validation, usually including some or all of the following: (i) verification of model inputs and assumptions through expert review, (ii) verification of outputs against empirical data and (iii) corroboration of model conclusions against other models (Weinstein et al.)

We have now expanded the model descriptions in Table 1 and have split this into three parts (Tables 1a-c), to ensure that the validation methods used by each model are clearly stated. Please see Reviewer 2 Comment 1 for details.

Reference

Weinstein MC, Toy EL, Sandberg EA, Neumann PJ, Evans JS, Kuntz KM, Graham JD, Hammitt JK. Modeling for health care and other policy decisions: uses, roles, and validity. Value Health. 2001 Sep-Oct;4(5):348-61. https://doi.org/10.1046/j.1524-4733.2001.45061.x

4) The impact of reduced transmission due to COVID-19 mitigation measures seem to be missing. For example, measles generally appeared to have the largest impact of a delay, but presumably transmission would also be reduced due to COVID-19 mitigation measures. Some data/modeling/discussion on this would provide important context.

We agree that this is a critical area that needs further investigation. The difficulty is that each of the three diseases (measles, yellow fever and meningococcal A) has epidemiology and transmission features that are substantially different from those of COVID-19, so there is not much from the COVID-19 experience that can be transferred.

For yellow fever, the majority of transmission is sylvatic rather than person-to-person, so COVID-19 mitigation measures are unlikely to have a major effect on incidence, unless they decrease contact between humans and forest animals.

For meningococcal A, we find that even with a decrease in vaccine coverage there is limited potential for outbreaks, so decreased transmission due to COVID-19 non-pharmaceutical interventions will only reinforce this.

For measles, there is the potential for non-pharmaceutical interventions to decrease transmission. However, measles is much more transmissible than COVID-19 with R0 of around 10-20 rather than 2-5 (Guerra et al., 2017), and transmission is generally concentrated among very young children rather than adults. Hence it is unclear whether interventions designed for COVID-19 (mask wearing, closure of schools, workplaces and retail, travel restrictions etc.) will be able to prevent measles outbreaks. Further, while COVID-19 mitigation measures may temporarily reduce measles transmissibility and outbreak risk from measles immunity gaps, the risk for measles outbreaks will rise rapidly once COVID-19 related contact restrictions are lifted (Mburu et al., 2021), which happens at different rates in different parts of countries.

We have added a brief summary of the discussion above to the Discussion section of the manuscript.

References

Guerra FM, Bolotin S, Lim G, Heffernan J, Deeks SL, Li Y, Crowcroft NS. 2017. The basic reproduction number (R0) of measles: a systematic review. Lancet Infect Dis17:e420–e428. doi:10.1016/S1473-3099(17)30307-9

Mburu CN, Ojal J, Chebet R, Akech D, Karia B, Tuju J, Sigilai A, Abbas K, Jit M, Funk S, Smits G, van Gageldonk PGM, van der Klis FRM, Tabu C, Nokes DJ, LSHTM CMMID COVID-19 Working Group, Scott J, Flasche S, Adetifa I. 2021. The importance of supplementary immunisation activities to prevent measles outbreaks during the COVID-19 pandemic in Kenya. BMC Med 19:35. doi:10.1186/s12916-021-01906-9

5) Figure 1 does not seem to have the "Business as Usual" line (or BAU simulations?). It is hard to assess and compare these projections without that.

Thank you, this has now been addressed in the updated figures

6) There are general labeling issues with the figures and tables that make the paper much harder to read and assess for validity that need to be fixed, see individual reviewer comments.

Thank you, this has now been addressed with all figures updated.

Reviewer #1:

This study models the predicted impact of the COVID-19 pandemic on vaccination programs against three pathogens in multiple countries and the long-term health consequences of disruption to these programs. The study question is timely and important given the potential long-term impacts that disruptions in vaccinations may have on infectious disease mortality, and highlights the importance of reinstating routine and campaign vaccination programs.

The approach used by the authors is to aggregate results from multiple independently developed prediction models, and to present the average and rage of predictions. Cross-model comparisons can be a useful method for making predictions; when models give similar answers, confidence in the results is generally bolstered, and when model results differ, it can point to uncertainties in the disease epidemiology or disease process that help to better understand the range of potential outcomes. In this study, different models made predictions that varied by several orders of magnitude. However, these differences are barely commented on nor explored by the authors. The average of model predictions may not be the most appropriate statistic to aggregate model predictions in this case, because the average is generally driven by whichever model predicted the highest incidence rate.

We have now removed any mention of average/max/min across the models following comments from several reviewers. We now show results for each model separately in both the text and the figures, and include a discussion of drivers of differences between models (see our response below for details).

There are some labeling issues on some figures that make the results hard to understand and interpret, as it is not entirely clear what mortality rates would have been without the pandemic. I therefore feel that more work needs to be done to present and contextualize model predictions in order to have confidence in the results.

Thank you. We have edited all figures to account for labelling issues and better reflect the individual model estimates. This has been accompanied with further explanation in the text as to the model differences for each disease area. We have also made the Business As Usual (BAU) scenario burden more apparent in the figures so it is possible to see the mortality in the absence of pandemic disruption.

• When model predictions are very different from each other, I don't think it is appropriate to present the average (ranges) of model predictions as the main result. Figure 1 should probably instead show individual model average predictions rather than the cross-model average prediction to better highlight differences across models. As it is, the average is generally highly influenced by whichever model made the highest predictions and do not give a good measure of the central tendency.

See response to comment 2. We have indeed removed the average and range of model predictions, and now only report each model separately in both the text and the figures.

• Please discuss the differences in model predictions in the results and Discussion sections, and provide some explanation as to why this might have occurred. These results are not mentioned at all in the main text and are buried in the appendix.

See response to comment 2. We now include a discussion about the differences between model projections.

• If the authors decide to keep the average, we need more information on the statistical methods used to derive this average. Were the results from each model weighted equally? How are different predictions from the same model (different runs/parameter sets) dealt with? What do the minimum and maximum predictions represent in the figures, the minimum and maximum of model averages, or the minimum and maximum across all model simulations?

We have now removed any mention of average/max/min across the models following comments from several reviewers.

• Please briefly comment on whether there were broad similarities or important differences across models in the methods section.

There are important differences between the models that contribute to large variations in projections (sometimes of orders of magnitude). We believe that these variations are important, as they capture genuine structural and data uncertainties around these diseases at a time of change.

Measles. All three measles models (Penn State, DynaMICE, and IDM) are MSRIV (maternally protected, susceptible, infected/infectious, recovered, vaccinated) transmission models. While Penn State and DynaMICE models are age-structured compartmental transmission dynamic models, IDM used an unstructured compartmental model in Ethiopia and an agent-based stochastic disease transmission model in Nigeria. The three models differ in terms of the magnitude of the increased burden they project due to coverage disruptions in 2020, with DynaMICE generally being the most pessimistic (greatest increase in burden) and Penn State generally the most optimistic (smallest increase in burden).

These differences stem particularly from the way vaccine coverage is translated into vaccine impact. DynaMICE directly translates national-level coverage into impact using vaccine efficacy assumptions within an age-dependent mass-action model framework, modified by age at vaccination and whether or not SIA or MCV2 doses go to those who have already received MCV1. Hence any susceptibility gaps that develop as a result of declines in coverage or postponement of SIAs are soon translated into increased numbers of cases.

Both IDM models use a similar mechanistic framework as DynaMICE, but, particularly in the application to Nigeria, IDM used an individual-based model that reflects subnational heterogeneities in dose and disease burden distribution.

The Penn State model fits a logistic relationship between annual attack rate and the proportion susceptible in the population independently to each country (methods described in Eilertson et al. 2019 https://doi.org/10.1002/sim.8290). The slope and intercept of this function govern how quickly measles cases respond to increases in the proportion susceptible; a steep slope indicates that the probability of infection increases quickly with a small increase in the proportion susceptible (i.e. a large outbreak is likely after a small disruption). The shape of this function is fit to the annual measles time series from 1980-2019. If the slope of this function is shallow based on the historical pattern, then a large reduction in coverage (large increase in susceptibles) would be necessary to generate a large and immediate outbreak.

Meningococcal A. The meningococcal disease models (Cambridge, KP) are both stochastic, age-structured, compartmental dynamic transmission models based on the SIR framework. The major structural differences between the models are around (a) how they handle immunity post-infection: where the Cambridge model has waning protection from one immune compartment (in which individuals are completely immune), the KP model assumes a gradient of susceptibility following infection with compartments for high and low immunity; and (b) the duration of vaccine-induced immunity: where the Cambridge model assumes a shorter duration of protection than the KP model. The differences in the results arise mainly because of the differing assumptions about the duration of vaccine protection.

Yellow Fever. The YF models (Imperial, Notre Dame) are both static cohort models which provide annual numbers of infections, cases and deaths given existing vaccination coverage immunity. They follow a similar format in terms of how burden is calculated given force of infection estimates. One difference here is when vaccination is assumed to take effect with the Imperial model showing the influence of vaccination from the beginning of the year and Notre Dame, from the end.

The models differ in how they estimate the force of infection for each province. Both models use serological survey data and outbreak information but the Imperial model uses a larger number of serological studies and only focuses on outbreak occurrence whereas the Notre Dame model also takes into account outbreak size but includes fewer serological studies. Both models use environmental covariates to extrapolate to countries with fewer data but the specific covariates incorporated differ between groups. As a result, the Imperial model generally produces higher estimates of the force of infection except in Nigeria where the force is higher for the Notre Dame model.

As the explanation of the drivers of differences between model predictions is quite detailed and lengthy, we have added it to Appendix Section 4, with a reference to this in the Methods.

• It would be useful to briefly define the parameters of the Business As Usual scenario in the text in terms of vaccination coverage and assumptions.

Thank you for the comment. We do define the assumptions used for this scenario in Appendix Section 1 Table S14, and the actual parameters in Appendix Section 1 Table S16. We would be happy to provide more details. In the meantime, we have added the following text to the Methods to summarise how we developed the assumptions:

“Assumptions for our counterfactual “business as usual” scenario were determined through consultation with disease and immunisation programme experts across partners at the global, regional, and national levels. All assumptions varied by antigen. For routine immunisation, assumptions about future coverage levels were based on historical coverage from WUENIC for 2015-19. For vaccination campaigns or supplementary immunisation activities (SIA), assumptions about future campaigns were based either on patterns of past campaigns or campaigns recommended by WHO.”

More details are given in response below.

• Figure 1: this figure is rather baffling and difficult to interpret for various reasons. Firstly, the labels (A,B,C) are not defined in the legend. Secondly, none of the acronyms are defined in the legend (see comment below). Thirdly, some scenarios appear to be missing; for example, the business as usual scenario is not in any of the panels. The orange scenario also appears to be missing for some countries for mysterious reasons. Because there is no business as usual scenario, it is difficult to know what would have been the mortality rate without program disruption, so it is not possible to see what has been the impact of different disruptions. It also seems strange that for some countries, the maximal disruption (red) scenarios appear to lead to lower mortality than less disruptive scenarios (orange and blue).

Thank you for your feedback on Figure 1. We have relabelled the facets to read Measles, Yellow fever and Meningitis A rather than A,B,C. We have also expanded the acronyms and checked that all scenarios are present and visible. Particularly, we have made the Business As Usual scenario bolder so that the line is more clearly visible. Finally, we have included the individual model results separately so it is possible to see the differences and similarities.

• Please consider removing most acronyms from the text, figures, and tables. Most acronyms do not substantially shorten the text at the cost of making the text much harder to understand. In most cases it is not necessary as there is plenty of space in figures and tables to fully spell out words. It should not be necessary to have to constantly refer to a table in the appendix to understand what is going on. In general, tables and figures should also be self-sufficient, so if it is absolutely necessary to use acronyms, these should always be defined in the legend (figures) or a footnote (tables).

We have now removed all abbreviations/acronyms from the text except for those that are widely used (e.g. WHO, DALY, COVID-19).

• There is no reference to Table 1 in the manuscript.

Thank you, we have added a reference to this table at the beginning of the methods section. Table 1 is now split into three parts (Tables 1a-c)

• Table 3: Given the vastly different epidemiology between different countries, I think it would be more useful to present the results by country in this table than to average results across countries; this is because the average across countries does not apply to any individual country; it also does not appear to weight results according to different country population sizes, so is it is not applicable to any region either.

Thank you, this information is available in Tables S2, S4 and S6 for Measles, Men A and YF, respectively.

• Many references to tables/figures appear to be incorrect. For example, on P5 a reference is made to Table S11 when I think the table referenced should be Table S16. Please double check all table/figure references. This made the manuscript much harder to follow.

Thank you; we have corrected this and checked all table/figure references.

• The information in Table S14 would be more interpretable and useful if it were presented as free text supplementary methods rather than in a table. That way the assumptions and algorithms used to make decisions can be made more detailed and explicit. As it is this table is hard to follow.

We think it might still be useful to keep Table S14 to make it easier to compare across diseases, but we have also added more detailed descriptions as free text in Appendix 5.

“These assumptions were determined through consultation with disease and immunisation programme experts across partners at the global, regional, and national levels.

To generate “business as usual” assumptions for routine immunisations in 2020-2030, we considered historical coverage from WUENIC for the previous five years. We assumed that MCV1 (measles first dose) coverage stayed at the mean level seen in 2015-19, and that MCV2 (measles second dose) stayed at the highest level seen in 2015-19. Where a country had no MCV2 coverage in the period 2015-19, we assumed that future MCV2 coverage would be 50% of the MCV1 mean coverage for 2015-19. We assumed that yellow fever coverage stayed at the mean level seen in 2015-19. Where a country had no yellow fever coverage in 2015-19, we assumed this stayed constant at the mean level of MCV1 coverage seen in 2015-19. We assumed that coverage of meningitis A stayed at the highest level seen in 2015-19. Where no meningitis A coverage was available for at least one full year, we assumed that future meningitis coverage stayed constant at the mean level of MCV1 coverage seen in 2015-19. However, for countries where meningitis A vaccine was targeted at infants over 15 months, we assumed this matched the highest level of MCV2 coverage seen in 2015-19.

In terms of future vaccine introductions, we assumed that countries would introduce MCV2 and YF in 2022 (where they had not done so already). For meningitis A, all countries considered had already introduced routine immunisation.

Our assumptions about the frequency and coverage level of vaccination campaigns or supplementary immunisation activities (SIA) in 2020-2030 also varied by antigen. For measles we looked at the historic frequency, i.e. the interval between the last two prospectively planned national SIAs, and assumed the same frequency in future years. We assumed the same coverage level as in the country’s last national-level measles SIA. For yellow fever, we included all completed and planned campaigns (both planned and reactive) in 2019 and 2020, and campaigns recommended in WHO’s 2016 Eliminate Yellow Fever (EYE) strategy for the period 2021-2030, assuming 85% coverage of the subnational target population for 2020-2030 (and for 2019 if actual coverage was unavailable). For meningitis A, we included all completed and planned campaigns in 2019 and 2020 (at the actual or forecasted coverage level), but assumed no further campaigns took place from 2021 onwards.”

• Table S17: it is not clear why vaccination campaigns from 2019 would be affected by the pandemic.

We indeed do not expect 2019 coverage to be affected by the pandemic – we simply make a simplified assumption of 85% coverage if data are not yet available on 2019 campaigns.

• Supplementary Figures: Please flip supplementary figures so they are in the same direction as the rest of the text to make reading easier. If the authors want to keep the same figure resolution it would be more useful to simply format the page in landscape rather than portrait format.

Thank you, we have rotated the figures and will adhere to the journal formatting requirements for the final submission.

Reviewer #2:

The work is predicated on using multiple models for each pathogen. It states that the models have been validated, but there is no additional information on this. While thorough evidence on validation is almost certainly in the cited papers it would be very helpful to understand that in this context of this manuscript. For example, were all models validated on out-of-sample data from multiple locations and times? Table 1 indicates that some were fitted to data and some were calibrated. Those are fine approaches, but what was done to validate beyond fitting or calibrating to data? Additional comparison between models would be helpful to advance the science of employing multiple models for important use cases like this.

The models were all independently developed and hence they use different methods of validation, usually including some or all of the following: (i) verification of model inputs and assumptions through expert review, (ii) verification of outputs against empirical data and (iii) corroboration of model conclusions against other models (Weinstein et al. https://doi.org/10.1046/j.1524-4733.2001.45061.x).

We have now expanded Table 1 (split into Tables 1a-c) and the model descriptions in the Appendix Section 3 to ensure that the validation methods used by each model are clearly stated.

The model projections include multiple sources of uncertainty, yet these are only shown as generalized ranges in the two main figures. Those ranges make it impossible to assess inter-model variability in characterization of uncertainty and changes potential correlation structure that may arise due to seasonality, for example. Moreover, these outcomes are important for a range of decision makers and uncertainty should therefore be characterized throughout, including in the tables, text, and most critically the abstract and discussion.

Thank you; we have now revised both the Results text and the figures so that they show the model projections independently to enable comparisons. We agree that there are many sources of uncertainty that could affect the model results; we now include a detailed discussion of this in Appendix Section 4. Due to the annual nature of some of the models, such as for yellow fever, the influence of seasonality will not be apparent in these results.

The impact of reduced transmission due to COVID-19 mitigation measures seem to be missing. For example, measles generally appeared to have the largest impact of a delay, but presumably transmission would also be reduced due to COVID-19 mitigation measures. Some data/modeling/discussion on this would provide important context.

This is indeed an important issue. Please see Editors’ Comment 4 for our response. While we have not been able to model this directly, we have added discussion to the manuscript on this issue.

The finding that some delays or reductions were associated with decreased future risk seems to be a function of model structure, not reality. This is potentially confusing and misleading to public health officials and could likely be addressed with updated model structures, parameterization, or synthesis of results.

This is indeed an important point to highlight. We think it is not purely an issue of model structure or parameterisation, but also relates to how the results should be interpreted. In particular, decision makers may want to take into account other contextual or programmatic factors besides model results; they may also not wish to delay a campaign simply for the mathematical benefit of being able to vaccinate more children in the future.

We discuss this important issue in the Discussion section:

"In some of our modelled scenarios, postponement of immunisation campaigns does not appear to increase overall cases, if the delay time-period is less than the interval to the next outbreak. Such a scenario is inferred in the immunisation disruption scenarios for postponement of measles campaigns for South Sudan. This does not imply that a postponement is preferred, as we do not take into account other contextual or programmatic factors; rather it reflects the effectiveness of campaigns in closing the immunity gaps and the demographic effect of including more children in delayed campaigns. In instances with very low routine immunisation coverage, there is a possibility that the vaccination campaign is the main opportunity for missed children to be vaccinated. Thus for the same proportion of the same age group targeted by campaigns, more children will be vaccinated for the same coverage levels in countries with birth rates increasing over time. While these results may be useful in the COVID-19 context, there is also considerable uncertainty around both model findings and data inputs such as incidence and vaccine coverage that prohibits further general comment on the optimal timing of campaigns."

Figure 1 does not seem to have the "Business as Usual" line (or BAU simulations?). It is hard to assess and compare these projections without that.

Thank you, we have updated the figure to show this.

Some of the results are not very clear. For example, there doesn't seem to be clear evidence of a predicted measles outbreak in 2025 in Nigeria. How much confidence to the models have in this? The uncertainty range certainly seems large and neither BAU nor 50% RI are shown.

This is an important point about the limitations of future model projections given data and model structure uncertainties, as well as the importance of using multiple models. We do not think that the model results should be interpreted precisely e.g. to indicate that there will definitely be a measles outbreak in 2025 in Nigeria. Indeed, only one of the three measles models predicts an outbreak in 2025, even though all three predict that there will likely be an outbreak (whose size varies depending on the model) in the next few years. This points to the fact that there is a susceptibility gap in Nigeria across all three models, lending greater confidence in that finding.

We have added additional information in Appendix 4 to explain the differences between the models. We now also add the following text to the first paragraph of the Discussion to highlight this:

“However, model projections about future outbreaks differ between models in terms of both timing and magnitude. These differences capture uncertainty around data and model structure that differ between models.”

We have also updated the figures to show the Business As Usual scenario more clearly and to separate the results between models.

The use of "X deaths per 100,000" is confusing in the context of 2020-2030. It would be helpful to say "yearly" (if I am understanding it correctly).

We have changed all references to “X deaths per 100,000 per year” when annual incidence is meant and “X deaths per 100,000 over 2020-2030” when cumulative incidence over the time period is meant.

Line 95: should be pathogens, not antigens

We have updated the sentence:

“To address this, we used transmission dynamic models to project alternative scenarios about postponing vaccination campaigns alongside disruption of routine immunisation, for three pathogens with high outbreak potential and for which mass vaccination campaigns are a key delivery mode alongside routine immunisation – measles, meningococcal A, and yellow fever.”

Use country names instead of abbreviations in figures

This has been updated.

Figure 1: It would be helpful to have all y-axes being at zero

Thank you, we have incorporated this suggestion.

Figure 1: the panels do not indicate which pathogen they represent

Thank you, we have relabelled them.

Line 169: Why does the outcome metric change here? Deaths per 100,000 to percent change?

The outcome metric is generally reported as deaths per 100K; however, for Meningitis A the values for very small, therefore to show the change, the proportion in the form of percentages was used.

Reviewer #3:

[…]

Weaknesses

Model results were averaged using arithmetic means, placing equal weight on the results of each model. For most of the disease/country combinations examined, results were the arithmetic mean of the results of only two models. For many of these disease/country combinations, the models used produced very disparate results, sometimes in magnitude but also on several occasions the models disagreed as to whether the disruption was beneficial or detrimental. The large differences between some of the model results suggests that one or both models used may not be capturing an important aspect of the transmission process. The work could be extended by averaging over a larger number of models, although this is likely to be quite time consuming, or weighting results based on an assessment of how well the model fits available data.

We have now removed any mention of average/max/min across the models following comments from several reviewers. We now show results for each model separately in both the text and the figures, and have included a discussion of drivers of differences between models in Appendix Section 4.

For yellow fever, the models used were not designed to capture outbreak dynamics and so are not perhaps ideal for use in this study. This appears to be a major limitation of the yellow fever analysis, although it is clearly acknowledged as such by the authors.

The models used in this analysis and for the projection of vaccine impact as part of the VIMC focus on long-term estimations of disease burden. The burden of yellow fever is largely driven by sylvatic spillover events; although the urban transmission cycle can lead to explosive outbreaks, the work of the Eliminate Yellow Fever Epidemics (EYE) strategy, countries and Gavi aims to reduce the chance of urban outbreaks. As such, whilst the models will not account for stochastic outbreaks in these terms, they can describe average projected burden on the longer-term. We noted these limitations in the Discussion:

“The models used in this analysis, in particular for yellow fever, are best suited to capture long-term changes in disease burden due to vaccination and cannot capture outbreak dynamics that may arise in the short-term.”

As a general comment, I found some of the tense changes throughout the results to be awkward and distracting as they interrupted the flow of the text. Also, the order of the models changes between the tables – for faster comparison, it would be better to use the same order each time.

We have now standardised the order of the models in each table. We have also checked the tenses used and updated these where necessary.

Measles doses in the IDM are not correlated. It would be worth outlining how you ensured that the correct percentage of the population received two doses. e.g. Ethiopia has 64% coverage for MCV1 and only 31% MCV2. Since doses are not correlated, won't this result in giving MCV2 to previously unvaccinated children, increasing the % with any vaccination? If doses are independent, only 20% will receive both doses, 55% 1 dose and 25% no doses, which differ quite a bit from the actual coverage. Did you adjust the coverage input into the model to ensure you achieved the correct distribution?

Some clarifications about the model structure have been made in Table 1a. Thank you for pointing out this statement, the statement that the two doses are uncorrelated was a misstatement and does not reflect the behavior of the IDM models.

IDM’s models of Nigeria and Ethiopia are structurally different. The Nigeria model is agent-based and spatially resolved at subnational level, and MCV2 is explicitly only given to the recipients of MCV1. IDM’s Ethiopia model, in contrast, is a stochastic compartmental model, but again MCV2 is assumed to go only to recipients of MCV1. The compartmental structure of the Ethiopia model does not separately track 1- and 2-dose individuals explicitly; the impact of MCV1 and MCV2 on the influx of new susceptible persons is described in Equation 1 of the supplement to (Thakkar et al., 2019):

Bt=Bt(10.9V1,t(1V2,t)0.99V1,tV2,t)

where Bt is the influx of susceptibles, Bt is the total new births, V1,t is MCV1 coverage, and V2,t is MCV2 coverage.

Note that we now explicitly separate out IDM’s models for Nigeria and Ethiopia due to their differences.

Additional comments

Line 112: Spell out WUENIC

We have now spelt out WUENIC:

“Models used routine and campaign vaccination coverage from WUENIC (WHO and UNICEF Estimates of National Immunization Coverage) and post campaign surveys for 2000-2019 …”

Line 142: I'm not sure why the line 'would not lead to increased risk of outbreaks in 2020' is included. Why focus on 2020? Isn't there an outbreak in 2023 due to reduced routine immunisation?

We have now modified the wording as we now focus on results from each model rather than the average result across the models. We also remove the focus on 2020 specifically. The new text reads: “For Ethiopia, a reduction in routine coverage is predicted to lead to outbreaks sooner and increases in overall deaths in all three models (DynaMICE, Penn State models and IDM), while postponing the 2020 campaign only increases deaths in the DynaMICE model.”

Line 158: For clarity, define what you mean by 'overall' – are you still talking about Chad, or now talking about all settings?

We have now modified this to read: “For Chad, both DynaMICE and Penn State models predict an overall increase in deaths with routine coverage drops, but only the Penn State model predicts an increase with a postponement of campaigns.” We have taken out references to outbreaks in 2020 as per Comment 8.

Line 242: Do you have any evidence from your modelling that 'there is a high risk of localised outbreaks in these two states in 2021'? Is this even though the campaign occurred in October 2020?

The models do not indicate a high risk of localised outbreaks after the campaign was successfully run in October 2020. At the time that these model results were originally obtained, the October 2020 campaigns had not yet been executed and were at high risk of being delayed into 2021. Because these two states had not been included in the 2019 campaign as intended, subnational modeling indicated that the long buildup of local susceptibility placed them at high risk of localised outbreaks in the event that campaigns were further delayed past the 2021 high season (Dec 2020-Mar 2021). The text in the manuscript has been changed to clarify this point and is copied below:

“The measles immunisation campaigns for 2020 in Nigeria were specifically targeted at Kogi and Niger states, states that were originally scheduled for inclusion in the campaigns for 2019 across northern Nigeria which were delayed for other reasons. Given the localised build-up of susceptibility in these two states due to low routine immunisation coverage and the long window between campaigns, IDM’s subnational Nigeria model indicated that further campaign delays would result in a high risk of localised outbreaks in these states (one potential explanation for the IDM model predicting worse consequences of delays in these campaigns than the other models). Campaigns targeted specifically to these two states were implemented in October 2020.”

Lines 248-251: I agree that the risk of importation increases again once COVID-19 restrictions are lifted, but since these restrictions weren't included in the models, I'm not sure of the relevance of pointing this out. The risk of an outbreak without restrictions in place should be that found by the models, shouldn't it?

We included it as part of a paragraph on limitations, pointing it out as a further reason to implement postponed campaigns that we did not model. We have revised the section slightly to make it clear that we do not model it: “Further, our models did not include the possibility that COVID-19 restrictions may have temporarily reduced measles transmissibility and the risk of measles outbreaks due to reduced chance of introduction of infection into populations with immunity gaps. This risk rises again rapidly once travel restrictions and physical distancing are relaxed. This is an additional reason (which we do not model) for implementing postponed immunisation campaigns at the earliest opportunity to prevent measles outbreaks as COVID-19 restrictions are lifted (Mburu et al., 2021).”

Line 252: This would be better expressed as 'model averages' rather than 'average models'

We have now removed the use of model averages from the manuscript following comments from several reviewers.

Line 264: '…outweighs the excess SARS-CoV-2 infection risk to these age groups…'

We have updated the sentence:

“Since children and younger age-group individuals are at relatively lower risk of morbidity and mortality from COVID-19 in comparison to elderly populations, the health benefits of sustaining measles, meningococcal A, and yellow fever immunisation programmes during the COVID-19 pandemic outweigh the excess SARS-CoV-2 infection risk to these age groups that are associated with vaccination service delivery points. “

Appendix PSU model: Model description mentions Palestine and Kosovo, which are not part of this study.

Thank you for pointing it out – this was included inadvertently. We have now removed the sentence.

Figure 1: I can't see the BAU line in the plots even though it is listed in the legend. This makes following the discussion in lines 151 to 155 very difficult and the authors' description needs to be taken at face value. Is this an error?

Thank you for highlighting this, we have ensured it is now visible.

Table 1: DynaMICE used the R0 from fitted models. R0 tends to be model specific. How can we be sure that the values used were transferable to this model?

The basic reproduction number R0 should in theory be a property of the pathogen and the population rather than the model, since it is an inherent biological/behavioural parameter. While there are many ways of estimating it, in principle these are different ways of measuring the same underlying quality, even though in practice they may differ due to different levels of precision, use of data sources and underlying assumptions. See for instance Heffermann et al. (https://dx.doi.org/10.1098%2Frsif.2005.0042).

So while we agree that R0 estimated from one model used in another introduces additional imprecision, we believe that it is theoretically correct to use R0 in different situations.

To highlight the limitation, we have added the following sentence to the Discussion: “A key strength of our analysis is that we used 2-3 models for each infection, which allowed investigation of whether projections were sensitive to model structure and assumptions. Each model had different strengths and limitations. For instance, some models measured epidemic properties like reproduction numbers directly, while other models used estimates from other studies.”

https://doi.org/10.7554/eLife.67023.sa2

Article and author information

Author details

  1. Katy AM Gaythorpe

    MRC Centre for Global Infectious Disease Analysis, Abdul Latif Jameel Institute for Disease and Emergency Analytics (J-IDEA), School of Public Health, Imperial College London, London, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Kaja Abbas, John Huber, Andromachi Karachaliou and Niket Thakkar
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3734-9081
  2. Kaja Abbas

    Centre for Mathematical Modelling of Infectious Diseases, London School of Hygiene & Tropical Medicine, London, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Katy AM Gaythorpe, John Huber, Andromachi Karachaliou and Niket Thakkar
    Competing interests
    No competing interests declared
  3. John Huber

    Department of Biological Sciences, University of Notre Dame, South Bend, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Katy AM Gaythorpe, Kaja Abbas, Andromachi Karachaliou and Niket Thakkar
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5245-5187
  4. Andromachi Karachaliou

    Department of Veterinary Medicine, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Katy AM Gaythorpe, Kaja Abbas, John Huber and Niket Thakkar
    Competing interests
    No competing interests declared
  5. Niket Thakkar

    Institute for Disease Modeling, Bill & Melinda Gates Foundation, Seattle, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Katy AM Gaythorpe, Kaja Abbas, John Huber and Andromachi Karachaliou
    Competing interests
    NT and KM are employees of the Institute for Disease Modeling at the Bill and Melinda Gates Foundation. This publication is based on research funded in part by the Bill and Melinda Gates Foundation, including but not limited to models and data analysis performed by the Institute for Disease Modeling at the Bill and Melinda Gates Foundation.
  6. Kim Woodruff

    MRC Centre for Global Infectious Disease Analysis, Abdul Latif Jameel Institute for Disease and Emergency Analytics (J-IDEA), School of Public Health, Imperial College London, London, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4618-8267
  7. Xiang Li

    MRC Centre for Global Infectious Disease Analysis, Abdul Latif Jameel Institute for Disease and Emergency Analytics (J-IDEA), School of Public Health, Imperial College London, London, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Susy Echeverria-Londono

    MRC Centre for Global Infectious Disease Analysis, Abdul Latif Jameel Institute for Disease and Emergency Analytics (J-IDEA), School of Public Health, Imperial College London, London, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  9. VIMC Working Group on COVID-19 Impact on Vaccine Preventable Disease

    Contribution
    Conceptualization, Data curation, Visualization, Writing - review and editing
    Competing interests
    FC declares consultancy fees from the Bill and Melinda Gates Foundation. TM is an employee of Gavi, which funded the research. ED and LKK are employees of the Bill and Melinda Gates Foundation, which funded the research.
    1. Andre Arsene Bita Fouda, World Health Organization - Regional Office for Africa, Brazzaville, Democratic Republic of the Congo
    2. Felicity Cutts, London School of Hygiene & Tropical Medicine, London, United Kingdom
    3. Emily Dansereau, Bill & Melinda Gates Foundation, Seattle, United States
    4. Antoine Durupt, World Health Organization, Geneva, Switzerland
    5. Ulla Griffiths, United Nations Children’s Fund (UNICEF), New York, United States
    6. Jennifer Horton, World Health Organization, Geneva, Switzerland
    7. L Kendall Krause, Bill & Melinda Gates Foundation, Seattle, United States
    8. Katrina Kretsinger, World Health Organization, Geneva, Switzerland
    9. Tewodaj Mengistu, Gavi, the Vaccine Alliance, Geneva, Switzerland
    10. Imran Mirza, United Nations Children’s Fund (UNICEF), New York, United States
    11. Simon R Procter, London School of Hygiene & Tropical Medicine, London, United Kingdom
    12. Stephanie Shendale, World Health Organization, Geneva, Switzerland
  10. Matthew Ferrari

    Pennsylvania State University, University Park, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Michael L Jackson, Kevin McCarthy, T Alex Perkins, Caroline Trotter and Mark Jit
    Competing interests
    No competing interests declared
  11. Michael L Jackson

    Kaiser Permanante Washington, Seattle, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Matthew Ferrari, Kevin McCarthy, T Alex Perkins, Caroline Trotter and Mark Jit
    Competing interests
    No competing interests declared
  12. Kevin McCarthy

    Institute for Disease Modeling, Bill & Melinda Gates Foundation, Seattle, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Matthew Ferrari, Michael L Jackson, T Alex Perkins, Caroline Trotter and Mark Jit
    Competing interests
    NT and KM are employees of the Institute for Disease Modeling at the Bill and Melinda Gates Foundation. This publication is based on research funded in part by the Bill and Melinda Gates Foundation, including but not limited to models and data analysis performed by the Institute for Disease Modeling at the Bill and Melinda Gates Foundation.
  13. T Alex Perkins

    Department of Biological Sciences, University of Notre Dame, South Bend, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Matthew Ferrari, Michael L Jackson, Kevin McCarthy, Caroline Trotter and Mark Jit
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7518-4014
  14. Caroline Trotter

    Department of Veterinary Medicine, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Matthew Ferrari, Michael L Jackson, Kevin McCarthy, T Alex Perkins and Mark Jit
    Competing interests
    CT declares a consultancy fee from GSK in 2018 (unrelated to the submitted work).
  15. Mark Jit

    1. Centre for Mathematical Modelling of Infectious Diseases, London School of Hygiene & Tropical Medicine, London, United Kingdom
    2. School of Public Health, University of Hong Kong, Hong Kong SAR, China
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Matthew Ferrari, Michael L Jackson, Kevin McCarthy, T Alex Perkins and Caroline Trotter
    For correspondence
    Mark.Jit@lshtm.ac.uk
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6658-8255

Funding

Gavi, the Vaccine Alliance and the Bill & Melinda Gates Foundation (OPP115270 / INV-009125 and INV016832)

  • Katy A M Gaythorpe
  • Kaja Abbas
  • John Huber
  • Andromachi Karachaliou
  • Niket Thakkar
  • Kim Woodruff
  • Xiang Li
  • Susy Echeverria-Londono
  • Matthew Ferrari
  • Michael L Jackson
  • Kevin McCarthy
  • T Alex Perkins
  • Caroline Trotter
  • Mark Jit

The funders were involved in study design, data collection, analysis and interpretation, report writing, and the decision to submit for publication. All authors had full access to all the data in the study and had final responsibility for the decision to submit for publication. The views expressed are those of the authors and not necessarily those of the Consortium or its funders.

Acknowledgements

We would like to thank the following non-author collaborators: Jim Alexander, Laurence Alcyone Cibrelus Yamamoto, Natasha Crowcroft, Heather Ferguson, Neil Ferguson, James Goodson, Brittany Hagedorn, Lee Hampton, Lee Lee Ho, Dan Hogan, Raymond Hutubessy, Sudhir Khanal, Balcha Girma Masresha, Jonathan Mosser, Mark Papania, Bryan Patenaude, William Augusto Perea Caro, Robert Perry, Jeff Pituch, Allison Portnoy, Marie-Pierre Preziosi, Cassandra Quintanilla Angulo, Olivier Ronveaux, Sara Sa Silva, Yodit Sahlemariam, Alyssa Sbarra, Yoonie Sim, David Sniadack, Matthew Steele, Claudia Steulet, Peter Strebel, Aaron Wallace, Susan Wang, Xinhu Wang, Kirsten Ward, Libby Watts, and Karene Yeung. IDM authors would like to acknowledge our colleagues at the National Primary Health Development Agency and NCDC (Ministry of Health of Nigeria), World Health Organization Nigeria office and WHO Headquarters for collecting and providing surveillance data for model development. Funding: This study was carried out as part of the Vaccine Impact Modelling Consortium, and funded by Gavi, the Vaccine Alliance and the Bill and Melinda Gates Foundation (OPP115270 / INV-009125 and INV016832). This publication is based on research funded in part by the Bill and Melinda Gates Foundation, including but not limited to models and data analysis performed by the Institute for Disease Modeling at the Bill and Melinda Gates Foundation. The funders were involved in study design, data collection, analysis and interpretation, report writing, and the decision to submit for publication. All authors had full access to all the data in the study and had final responsibility for the decision to submit for publication. The views expressed are those of the authors and not necessarily those of the Consortium or its funders.

Senior Editor

  1. Eduardo Franco, McGill University, Canada

Reviewing Editor

  1. Talía Malagón, McGill University, Canada

Reviewer

  1. Trish Campbell, University of Melbourne, Australia

Publication history

  1. Received: January 29, 2021
  2. Accepted: June 23, 2021
  3. Accepted Manuscript published: June 24, 2021 (version 1)
  4. Accepted Manuscript updated: June 25, 2021 (version 2)
  5. Version of Record published: July 7, 2021 (version 3)
  6. Version of Record updated: July 20, 2021 (version 4)

Copyright

© 2021, Gaythorpe et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 776
    Page views
  • 88
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Computational and Systems Biology
    2. Epidemiology and Global Health
    Ewan Colman et al.
    Research Article

    Humans and other group-living animals tend to distribute their social effort disproportionately. Individuals predominantly interact with a small number of close companions while maintaining weaker social bonds with less familiar group members. By incorporating this behavior into a mathematical model, we find that a single parameter, which we refer to as social fluidity, controls the rate of social mixing within the group. Large values of social fluidity correspond to gregarious behavior, whereas small values signify the existence of persistent bonds between individuals. We compare the social fluidity of 13 species by applying the model to empirical human and animal social interaction data. To investigate how social behavior influences the likelihood of an epidemic outbreak, we derive an analytical expression of the relationship between social fluidity and the basic reproductive number of an infectious disease. For species that form more stable social bonds, the model describes frequency-dependent transmission that is sensitive to changes in social fluidity. As social fluidity increases, animal-disease systems become increasingly density-dependent. Finally, we demonstrate that social fluidity is a stronger predictor of disease outcomes than both group size and connectivity, and it provides an integrated framework for both density-dependent and frequency-dependent transmission.

    1. Epidemiology and Global Health
    Daniel J Laydon et al.
    Research Article Updated

    Background:

    Sanofi-Pasteur’s CYD-TDV is the only licensed dengue vaccine. Two phase three trials showed higher efficacy in seropositive than seronegative recipients. Hospital follow-up revealed increased hospitalisation in 2–5- year-old vaccinees, where serostatus and age effects were unresolved.

    Methods:

    We fit a survival model to individual-level data from both trials, including year 1 of hospital follow-up. We determine efficacy by age, serostatus, serotype and severity, and examine efficacy duration and vaccine action mechanism.

    Results:

    Our modelling indicates that vaccine-induced immunity is long-lived in seropositive recipients, and therefore that vaccinating seropositives gives higher protection than two natural infections. Long-term increased hospitalisation risk outweighs short-lived immunity in seronegatives. Independently of serostatus, transient immunity increases with age, and is highest against serotype 4. Benefit is higher in seropositives, and risk enhancement is greater in seronegatives, against hospitalised disease than against febrile disease.

    Conclusions:

    Our results support vaccinating seropositives only. Rapid diagnostic tests would enable viable ‘screen-then-vaccinate’ programs. Since CYD-TDV acts as a silent infection, long-term safety of other vaccine candidates must be closely monitored.

    Funding:

    Bill & Melinda Gates Foundation, National Institute for Health Research, UK Medical Research Council, Wellcome Trust, Royal Society.

    Clinical trial number:

    NCT01373281 and NCT01374516.
