1. Immunology and Inflammation

SARS-CoV-2 spike protein induces inflammation via TLR2-dependent activation of the NF-κB pathway

  1. Shahanshah Khan
  2. Mahnoush S Shafiei
  3. Christopher Longoria
  4. John W Schoggins
  5. Rashmin C Savani
  6. Hasan Zaki  Is a corresponding author
  1. Department of Pathology, The University of Texas Southwestern Medical Center, United States
  2. Department of Pediatrics, The University of Texas Southwestern Medical Center, United States
  3. Department of Microbiology, The University of Texas Southwestern Medical Center, United States
https://doi.org/10.7554/eLife.68563
Share this article
Cite this article
  1. Shahanshah Khan
  2. Mahnoush S Shafiei
  3. Christopher Longoria
  4. John W Schoggins
  5. Rashmin C Savani
  6. Hasan Zaki
(2021)
SARS-CoV-2 spike protein induces inflammation via TLR2-dependent activation of the NF-κB pathway
eLife 10:e68563.
https://doi.org/10.7554/eLife.68563
  2. Download BibTeX
  3. Download .RIS

Abstract

The pathogenesis of COVID-19 is associated with a hyperinflammatory response; however, the precise mechanism of SARS-CoV-2-induced inflammation is poorly understood. Here, we investigated direct inflammatory functions of major structural proteins of SARS-CoV-2. We observed that spike (S) protein potently induced inflammatory cytokines and chemokines, including IL-6, IL-1β, TNFα, CXCL1, CXCL2, and CCL2, but not IFNs in human and mouse macrophages. No such inflammatory response was observed in response to membrane (M), envelope (E), and nucleocapsid (N) proteins. When stimulated with extracellular S protein, human and mouse lung epithelial cells also produced inflammatory cytokines and chemokines. Interestingly, epithelial cells expressing S protein intracellularly were non-inflammatory, but elicited an inflammatory response in macrophages when co-cultured. Biochemical studies revealed that S protein triggers inflammation via activation of the NF-κB pathway in a MyD88-dependent manner. Further, such an activation of the NF-κB pathway was abrogated in Tlr2-deficient macrophages. Consistently, administration of S protein-induced IL-6, TNF-α, and IL-1β in wild-type, but not Tlr2-deficient mice. Notably, upon recognition of S protein, TLR2 dimerizes with TLR1 or TLR6 to activate the NF-κB pathway. Taken together, these data reveal a mechanism for the cytokine storm during SARS-CoV-2 infection and suggest that TLR2 could be a potential therapeutic target for COVID-19.

Editor's evaluation

Your paper provides an important advance regarding the role of SARS-CoV-2 spike protein as an inducer of the innate inflammatory cascade in both epithelial cells and macrophages. This is an important early event in development of the cytokine storm associated with COVID-19 and may be of therapeutic relevance.

https://doi.org/10.7554/eLife.68563.sa0

Introduction

Coronavirus induced disease (COVID)19, caused by severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), has emerged as a major public health crisis since December 2019 (Zhou et al., 2020b; Wu et al., 2020; Huang et al., 2020). SARS-CoV-2 is a positive sense single-stranded RNA virus. Like other coronaviruses, such as SARS (retrospectively named SARS-CoV-1) and Middle Eastern respiratory syndrome (MERS)-CoV, SARS-CoV-2 primarily causes infection in the respiratory tract, leading to either asymptomatic infection or a range of symptoms including cough, fever, pneumonia, respiratory failure, along with other complications like diarrhea and multi-organ failure (Vabret et al., 2020; Tay et al., 2020; Li et al., 2020; Gu et al., 2005). In the absence of effective therapies, COVID-19 has caused over 4 million deaths worldwide by the end of 2021. Although our knowledge is still evolving, immunopathology caused by the cytokine storm plays a decisive role in COVID-19 pathogenesis (Vabret et al., 2020; Tay et al., 2020; Blanco-Melo et al., 2020).

SARS-CoV-2 infects human cells through its Spike (S) protein, which binds to the receptor angiotensin-converting enzyme 2 (ACE2), expressed on alveolar epithelial cells, allowing endocytosis of the viral particle (Zhou et al., 2020b; Hoffmann et al., 2020). Following endocytosis, the viral genome is replicated using both viral and host machineries, leading to the death of virally infected cells (Walls et al., 2020). The pathology of SARS-CoV-2 infected lung is further worsened with inflammatory responses of innate immune cells such as macrophages, monocytes, and neutrophils, which are activated by viral components and products of apoptotic and necrotic cells (Huang et al., 2020). While the innate immune response is essential for antiviral host defense, excessive inflammatory cytokines and chemokines are cytotoxic for respiratory epithelial cells and vascular endothelial cells (Xu et al., 2020). Indeed, the clinical manifestation of COVID-19 is marked by higher concentrations of IL-2, IL-6, IL-8, TNFα, IFNγ, MCP1, MIP1α, IP-10, and GMCSF in patients’ blood (Huang et al., 2020; Wang et al., 2020; Mehta et al., 2020). Disease severity and death of COVID-19 patients have been correlated to the elevated expression of IL-6 and TNFα (Huang et al., 2020; Hadjadj et al., 2020). However, our understanding of the precise mechanism of the induction of proinflammatory cytokines and chemokines during SARS-CoV-2 infection is very limited.

The innate immune inflammatory response is initiated with the recognition of pathogen-associated molecular patterns (PAMPs) by pattern recognition receptors (PRRs), such as Toll-like receptors (TLRs), NOD-like receptors (NLRs), and RIG-I like receptors (RLRs). Activated PRRs involve multiple signaling adapters to activate transcription factors, such as NF-κB, AP1, and IRF3, which regulate the expression of genes involved in immunity and inflammation. RNA sensing receptors such as TLR7, RIG-I, and MDA5 play a central role in antiviral immunity by inducing type I interferons (IFNα and IFNβ) via IRF3 and NF-κB (Khan et al., 2019; Park and Iwasaki, 2020; Kawasaki and Kawai, 2014; Kawai and Akira, 2006; Jensen and Thomsen, 2012). Although the relative contribution of RNA sensing pathways in SARS-CoV-2-mediated immunopathology is yet to be explored, previous studies reported that macrophages and dendritic cells infected with SARS-CoV-1 produce proinflammatory cytokines and chemokines, but not type I interferons (Cheung et al., 2005; Law et al., 2005). Consistently, inflammatory responses in severe COVID-19 patients are characterized by high levels of proinflammatory cytokines, but poor type I interferon response (Blanco-Melo et al., 2020; Hadjadj et al., 2020). Beyond these phenotypic observations, the precise mechanism of the hyperinflammatory response during SARS-CoV-2 infection is poorly understood.

SARS-CoV-2 is an enveloped virus consisting of four major structural proteins—S, nucleocapsid (N), membrane (M), and envelop (E) (de Wit et al., 2016). S protein binds to the receptor-binding domain of ACE2 through its S1 subunit allowing proteasomal cleavage of S protein and fusion of the S2 subunit with the host cell membrane (Hoffmann et al., 2020; Walls et al., 2020; Li et al., 2003; Bertram et al., 2011; Shirato et al., 2011). Thus, SARS-CoV-2 structural proteins are likely to be exposed to PRRs located on the cell membrane, endosome, and cytosol of the infected cell. However, our knowledge of the role of SARS-CoV-2 structural proteins in the innate immune response is very limited. Here, we investigated the inflammatory properties of S, M, N, and E proteins and revealed that S protein, but not M, N, and E proteins, is a potent viral PAMP, which stimulates macrophages, monocytes, and lung epithelial cells. We demonstrated that S protein is sensed by TLR2, leading to the activation of the NF-κB pathway and induction of inflammatory cytokines and chemokines. This study provides critical insight into the molecular mechanism that may contribute to cytokine storm during SARS-CoV-2 infection.

Results

SARS-CoV-2 S protein induces inflammatory cytokines and chemokines in macrophages and monocytes

Macrophages play a central role in the hyperinflammatory response during SARS-CoV-2 infection (Grant et al., 2021). To understand whether SARS-CoV-2 structural proteins can activate macrophages and monocytes, we stimulated human monocytic cell THP1-derived macrophages with recombinant S1, S2, M, N, and E proteins. Interestingly, both S1 and S2 proteins induced proinflammatory cytokines IL6, TNFA, and IL1B, with S2 being more potent, as measured by real-time RT-PCR and ELISA (Figure 1A and Figure 1—figure supplement 1A). Chemokines produced by macrophages and monocytes recruit T lymphocytes and other immune cells in the inflamed tissue, aggravating inflammatory damage (Vabret et al., 2020; Grant et al., 2021). Both S1 and S2 subunits of S protein-induced chemokines including CXCL1, CXCL2, and CCL2 in THP1 cells (Figure 1A). Interestingly, three other structural proteins—M, N and E—did not induce any cytokines and chemokines (Figure 1A). S1 and S2 exerted a synergistic effect on cytokine production when cells were incubated with them together (Figure 1—figure supplement 1B). However, other structural proteins, including M, N, and E, had no effect on S-induced inflammatory responses (Figure 1—figure supplement 1B). Interferons are critical for adaptive immune response and antiviral immunity (Park and Iwasaki, 2020). However, THP1 cells did not express either type-I (IFNA and IFNB) and type-II (IFNG) interferons in response to any of the SARS-CoV-2 structural proteins (Figure 1A). Notably, THP1 cells are not defective in producing interferons when activated by PolyI:C, a ligand for TLR3 (Figure 1—figure supplement 1C).

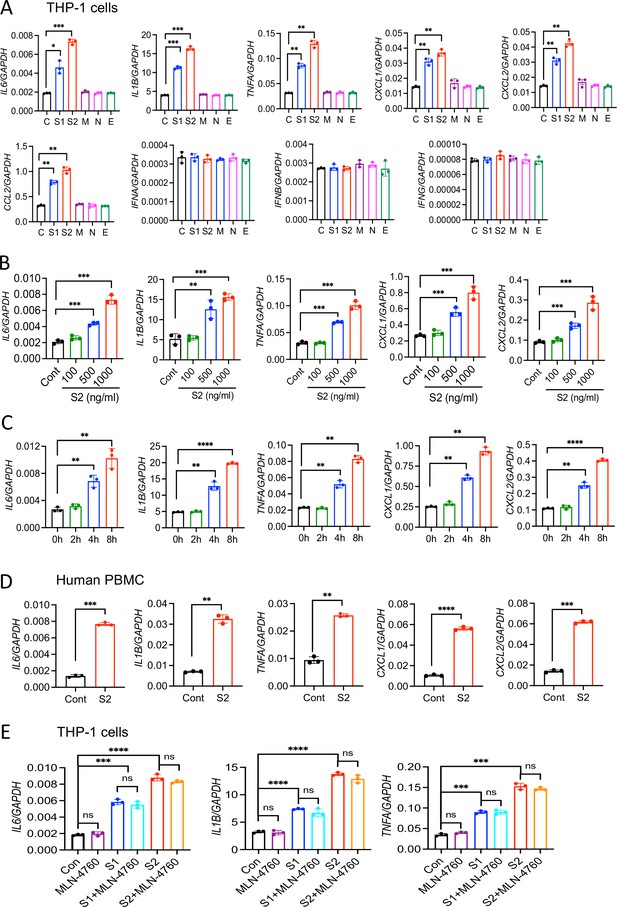

Figure 1 with 2 supplements see all
Download asset Open asset
SARS-CoV-2 S protein induces cytokines and chemokines in macrophages and monocytes.

(A) Human monocytic cells THP1-derived macrophages were stimulated with recombinant S1, S2, M, N, and E proteins of SARS-CoV-2 at a concentration of 500 ng/ml. Four hours post-stimulation, the expression of IL6, IL1B, TNFA, CXCL1, CXCL2, CCL2, IFNA, IFNB, and IFNG was measured by real-time RT-PCR. (B) THP1 cells were stimulated with S2 protein at various concentrations for 4 hr and measured the indicated cytokines by real-time RT-PCR. (C) THP1 cells were stimulated with S2 protein (500 ng/ml). RNA isolated at 2, 4, and 8 hr post-stimulation was measured for IL6, IL1B, TNFA, CXCL1, and CXCL2 by real-time RT-PCR. (D) Human peripheral blood mononuclear cells (PBMCs) were incubated with S2 (500 ng/ml) protein for 4 hr. The expression of IL6, IL1B, TNFA, CXCL1, and CXCL2 was measured by real-time RT-PCR. (E) THP1 cells were incubated with S1 (500 ng/ml) or S2 (500 ng/ml) in the presence or absence of ACE2 inhibitor MLN-4760 (10 mM). The expression of cytokines was measured at 4 hr by real-time RT-PCR. Data represent mean ± SD (n=3); *p<0.05, **p<0.001, ***p<0.0001, ****p<0.00001 by unpaired Student’s t-test. Experiments described in (A) were repeated three times, and (B–E) were repeated two times. Data of representative experiments are presented.

Figure 1—source data 1

Raw source data for A-E.

https://cdn.elifesciences.org/articles/68563/elife-68563-fig1-data1-v3.xlsx

The expression of cytokines and chemokines in response to S protein was dose dependent (Figure 1B). Similarly, S protein-induced inflammatory response was time dependent, with highest being at 8 hr post stimulation (Figure 1C). Notably, heat-denatured S2 protein failed to stimulate THP-1 cells, confirming the specificity of S protein and the requirement of its native structural configuration in inducing inflammatory response (Figure 1—figure supplement 1D). S1 and S2 proteins from a different source (R&D) were equally potent in inducing proinflammatory cytokines and chemokines (Figure 1—figure supplement 1E). Notably, trimeric S protein (S-tri) is also immunostimulatory, producing cytokines IL6 and IL1B, and chemokines CXCL1 and CXCL2 in THP1 cells (Figure 1—figure supplement 1E). To obtain direct evidence that S protein can induce inflammatory mediators in human immune cells, we stimulated human peripheral blood mononuclear cells (PBMCs) with S2. There was robust induction of IL1B, IL6, TNFA, CXCL1, and CXCL2 in hPBMC at 4 hr post-stimulation (Figure 1D).

SARS-CoV-2 does not infect mouse cells since S protein does not bind with mouse ACE2 receptor. To understand whether recognition of S protein by ACE2 is required for induction of inflammatory molecules, we stimulated mouse bone marrow-derived macrophages (mBMDMs) with S1 and S2. Surprisingly, both S1 and S2 proteins triggered expression of Il6, Il1b, Tnfa, Cxcl1 and Cxcl2 in mBMDMs (Figure 1—figure supplement 2A). Similar to THP1 cells, mBMDMs did not produce type-I and type-II interferons in response to S protein (Figure 1—figure supplement 2A). Murine macrophage cell line RAW264.7 cells also responded to S2 protein, producing Il6, Tnfa, and Il1b (Figure 1—figure supplement 2B). To further examine the role of ACE2 in S-induced inflammatory response, we stimulated THP1 cells with S1 or S2 in the presence or absence of ACE2 inhibitor (MLN-4760). Interestingly, inhibition of ACE2 did not affect cytokine production in response to S protein (Figure 1E). Taken together, SARS-CoV-2 S protein induces proinflammatory cytokines and chemokines in macrophages and monocytes in an ACE2-independent manner.

Epithelial cells produce inflammatory mediators in response to SARS-CoV-2 S protein

SARS-CoV-2 primarily infects epithelial cells of the lung, kidney, intestine, and vascular endothelial cells (Hoffmann et al., 2020; Xiao et al., 2020; Hamming et al., 2004; Varga et al., 2020). However, it is poorly understood whether SARS-CoV-2-infected epithelial cells produce proinflammatory cytokines and contribute to cytokine storm of COVID-19 patients. To address this concern, we stimulated human lung epithelial cells A549 with S1 or S2 proteins. However, there was no induction of IL6, IL1B, TNFA, CXCL1, and CXCL2 in A549 cells in response to S proteins at 4 hr post-stimulation (Figure 2—figure supplement 1). Given that epithelial cells are weaker than innate immune cells in expressing inflammatory mediators, we wondered whether the expression of inflammatory molecules in epithelial cells is delayed. We, therefore, measured cytokines and chemokines in A549 cells following stimulation with S1 and S2 at 12 and 24 hr. Interestingly, both S1 and S2 proteins induced proinflammatory cytokines IL6, IL1B, TNFA, and chemokines CXCL1 and CXCL2 with highest being at 24 hr post-stimulation (Figure 2A). Similarly, Calu3 cells, a commonly used human lung epithelial cell line, and mouse primary lung epithelial cells produced IL6, IL1B, TNFA, CXCL1, and CXCL2 in response to S protein (Figure 2B and C). We confirmed the expression of IL-1β, IL-6, and TNFα at protein levels in Calu3 and primary lung epithelial cells by ELISA (Figure 2D and E).

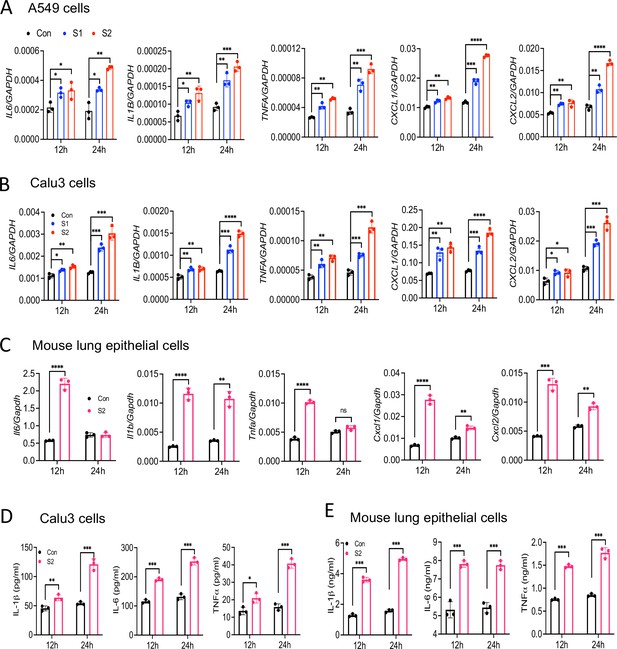

Figure 2 with 1 supplement see all
Download asset Open asset
Lung epithelial cells produce inflammatory molecules in response to SARS-CoV-2 S protein.

(A, B) A549 or Calu3 cells were incubated with SARS-CoV-2 S1 or S2 proteins (500 ng/ml) for 12 and 24 hr. The expression of inflammatory cytokines and chemokines was measured by real-time RT-PCR. (C) Primary mouse lung epithelial cells were stimulated with S2 (500 ng/ml) for 12 and 24 hr. The expression of inflammatory cytokines and chemokines was measured by real-time RT-PCR. (D, E) Calu3 cells or mouse lung primary epithelial cells were stimulated with S2 (500 ng/ml). Culture supernatant collected at 12 and 24 hr were analyzed for IL-6, IL-1β, and TNFα by ELISA. *p<0.05, **p<0.001, ***p<0.0001, ****p<0.00001 by unpaired Student’s t-test. Experiments in (A, B) were repeated three times. Other experiments were repeated two times and data of representative experiments are presented.

Figure 2—source data 1

Raw source data for A-E.

https://cdn.elifesciences.org/articles/68563/elife-68563-fig2-data1-v3.xlsx

Epithelial cells expressing S protein trigger inflammation in macrophages

We next verified whether cytosolic S protein can stimulate epithelial cells to produce inflammatory molecules. Therefore, we transfected A549, Calu3, and HEK293T cells with plasmids expressing S protein or green fluorescent protein (GFP). The expression of S protein in HEK293T, A549, and Calu3 cells was confirmed by Western blotting (Figure 3—figure supplement 1A). However, cytosolic S protein did not induce any cytokines and chemokines in A549, Calu3, and HEK293T cells (Figure 3—figure supplement 1B-D). These data suggest that cytosolic S protein does not trigger inflammation in epithelial cells.

Since airway and other epithelial cells are primary targets for SARS-CoV-2, we wondered whether virally infected epithelial cells trigger inflammatory response in macrophages and monocytes in a paracrine manner. To address this concern, we collected culture supernatant of A549-S, Calu3-S, or HEK293T-S cells and added (30% V/V) into THP1 cells in culture (Figure 3A). However, culture supernatants of epithelial cells expressing S protein failed to induce cytokines IL6, IL1B, and TNFA in THP1 cells (Figure 3B and C, and Figure 3—figure supplement 2A). In fact, S protein was not detectable in the culture supernatant of HEK293T and A549 cells expressing S protein (Figure 3—figure supplement 2B). Flow cytometric analysis suggested that S protein is primarily located in the cytoplasm, not on the cell surface (Figure 3—figure supplement 2C).

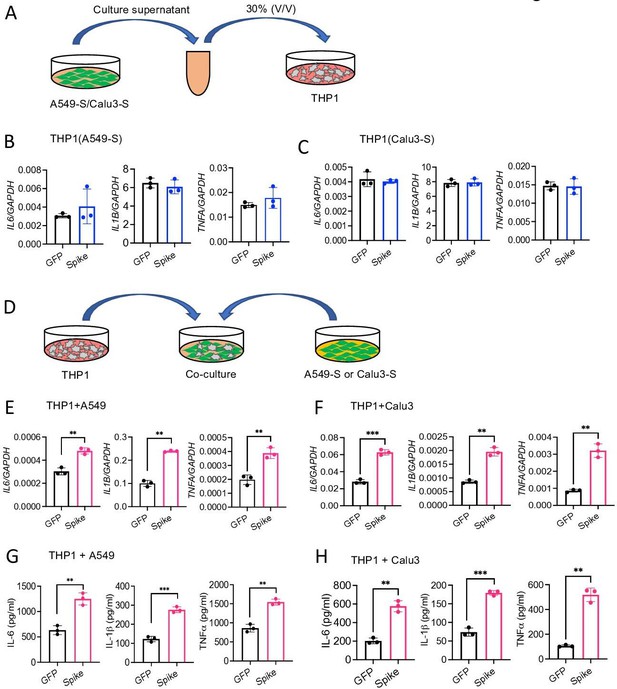

Figure 3 with 2 supplements see all
Download asset Open asset
Epithelial cells expressing S protein stimulate macrophages during co-culture.

(A–C) SARS-CoV-2 S protein was overexpressed in A549 or Calu3 cells. Forty-eight hours following transfection with S or GFP plasmids, cell culture supernatants were collected and added into THP1 cells in culture at 30% v/v. (B, C) The expression of IL6, IL1B, and TNFA in THP1 cells at 4 hr was measured by real-time RT-PCR. (D) A549 or Calu3 cells expressing S protein were co-cultured with THP1 cells at 1:2 ratio for 16 hr. (E, F) The expression of IL6, IL1B, and TNFA was measured by real-time RT-PCR. (G, H) Protein levels of IL-6, IL-1β, and TNFα in culture supernatant described in (D) were measured by ELISA. Data represent mean ± SD (n=3); **p<0.001, ***p<0.0001 by unpaired Student’s t-test. Experiments were repeated three times and data of representative experiments are presented.

Figure 3—source data 1

Raw source data for B, C, E, F, G, H.

https://cdn.elifesciences.org/articles/68563/elife-68563-fig3-data1-v3.xlsx

We then sought to examine whether innate immune cells become activated when they physically interact with S protein-expressed epithelial cells. Hence, we co-cultured S protein expressing A549, Calu3, or HEK293T cells with THP1 cells at 1:2 ratio (Figure 3D). Interestingly, inflammatory cytokines were induced in co-cultured cells (Figure 3E and F, and Figure 3—figure supplement 2D). We confirmed protein concentrations of IL-6, IL-1β, and TNFα in the culture supernatants of co-cultured cells by ELISA (Figure 3G and H, Figure 3—figure supplement 2E). Notably, similar to Figure 3—figure supplement 2B, S protein was not detected in the culture supernatant of co-cultured cells as measured by ELISA (data not shown), suggesting that THP1 cells are activated by S protein-transfected epithelial cells through an unknown mechanism.

To further confirm that cytosolic S protein expressed in epithelial cells can stimulate macrophages, we lysed HEK293T-S cells, and added the cell lysates into THP1 cells in culture (Figure 3—figure supplement 2F). Lysates of HEK293T-S cells efficiently induced inflammatory cytokines in THP1 cells while no such induction was observed in response to cell lysate of HEK293T-GFP cells (Figure 3—figure supplement 2G). Taken together, these data imply that SARS-CoV-2 infected epithelial cells may stimulate macrophages and monocytes in a paracrine manner to produce inflammatory mediators.

S protein activates the NF-κB pathway

Inflammatory genes are transcriptionally regulated by transcription factors that are activated by signaling pathways such as NF-κB, MAPK, STAT3, and AKT. To obtain further insight into how S protein induces the expression of inflammatory mediators, we stimulated THP1 cells with S2 protein. Cell lysates collected at various times following stimulation were analyzed for the activation of these inflammatory pathways by Western blotting. As shown in Figure 4A, P65 and IκB were phosphorylated in cells treated with S2. MAPK pathways, including ERK, P38, and JNK, are often activated concomitant to the NF-κB pathway. Surprisingly, there was no activation of ERK and JNK in S2 stimulated cells (Figure 4A). There was also no activation of the AKT pathway (Figure 4A), but STAT3 was phosphorylated at 2 hr following stimulation (Figure 4A). Inflammatory cytokines, such as IL-6, can activate STAT3; thus, the observed activation of STAT3 could be a secondary response of S protein-mediated activation of the NF-κB pathway. S2 protein also activated the NF-κB and STAT3 pathways in A549 cells (Figure 4B). To confirm that S protein-induced inflammation was NF-κB dependent, we inhibited the NF-κB pathway using Sc514, an inhibitor of IKKβ, during stimulation with S protein. As expected, inhibition of the NF-κB pathway abrogated inflammatory responses in S protein-stimulated macrophages (Figure 4C and D).

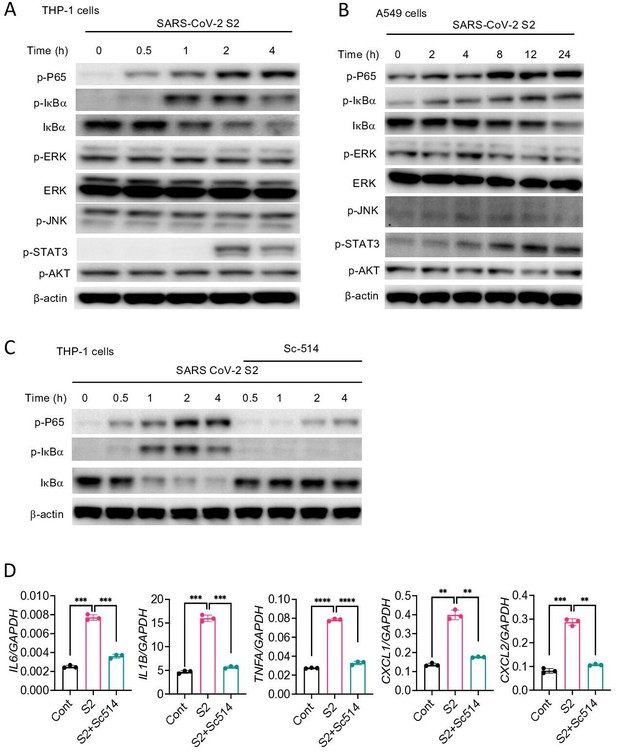

Figure 4
Download asset Open asset
SARS-CoV-2 S protein activates the NF-κB pathway.

(A, B) THP1 and A549 cells were stimulated with S2 (500 ng/ml) for indicated time points. Phosphorylation of P65, IκBα, ERK, JNK, STAT3, and AKT was measured by Western blotting. (C, D) THP1 cells were stimulated by SARS-CoV-2 S2 protein (500 ng/ml) in the presence or absence of IKKβ inhibitor sc514. Phosphorylation of P65 and IκBα was measured by Western blotting (C). The expression of IL6, IL1B, TNFA, CXCL1, and CXCL2 in stimulated THP1 cells was measured by real-time RT-PCR (D). Data represent mean ± SD (n=3); *p<0.05, **p<0.001, ***p<0.0001, ****p<0.00001 by unpaired Student’s t-test. Experiments in (A, B) were repeated three times and (C, D) were repeated two times. Data of representative experiments are presented.

Figure 4—source data 1

Raw source data for D.

https://cdn.elifesciences.org/articles/68563/elife-68563-fig4-data1-v3.xlsx

S protein-mediated activation of the NF-κB pathway is TLR2 dependent

Upon recognition of diverse PAMPs at the cell surface or in the endosome, TLRs activate the NF-κB and MAPK pathways through the adapter protein MyD88. To verify if TLR pathways are involved in S protein-mediated activation of the NF-κB pathway, we stimulated WT and Myd88−/− BMDM with S2. Interestingly, there was no activation of the NF-κB pathway in Myd88−/− BMDM (Figure 5A). Consistently, there was no cytokine expression in Myd88−/− macrophages upon stimulation with S2 protein (Figure 5B). This observation suggests that S protein-mediated activation of the transcription factor NF-κB involves TLR/MyD88 signaling axis. We then interrogated which TLR senses S protein. Since S is a glycoprotein, we anticipated that TLR2, a receptor for lipoprotein, or TLR4, which senses lipopolysaccharide and several other stimuli (Kawai and Akira, 2006), could be the immune sensor for S protein. Therefore, we stimulated Tlr2−/− and Tlr4−/− BMDMs with S2 protein and measured the activation of the NF-κB pathway. There was no activation of the NF-κB pathway in Tlr2−/− BMDM, while activation of this pathway was intact in Tlr4−/− macrophages (Figure 5C). We confirmed that Tlr2−/− macrophages were defective in sensing Pam3CSK4, a ligand for TLR2, while they were fully responsive to TLR4 ligand LPS (Figure 5—figure supplement 1). Similar to S2, S1 protein activated the NF-κB pathway in WT macrophages but not Tlr2−/− macrophages (Figure 5D). Consistent to the defective activation of the NF-κB pathway, there was no induction of proinflammatory cytokines in S-stimulated Tlr2−/− macrophages (Figure 5E). Notably, similar to S protein, S-tri is also sensed by TLR2, but not TLR4, as Tlr2−/− macrophages failed to induce cytokines in response to S-tri, while no such defect in inflammatory response was observed in Tlr4−/− macrophages (Figure 5F). Further, inhibition of TLR2 by C29 blocked S2-mediated induction of proinflammatory cytokines in THP1 cells (Figure 5G). C29 also inhibited S-mediated induction of cytokines and chemokines in Calu3 cells (Figure 5—figure supplement 2).

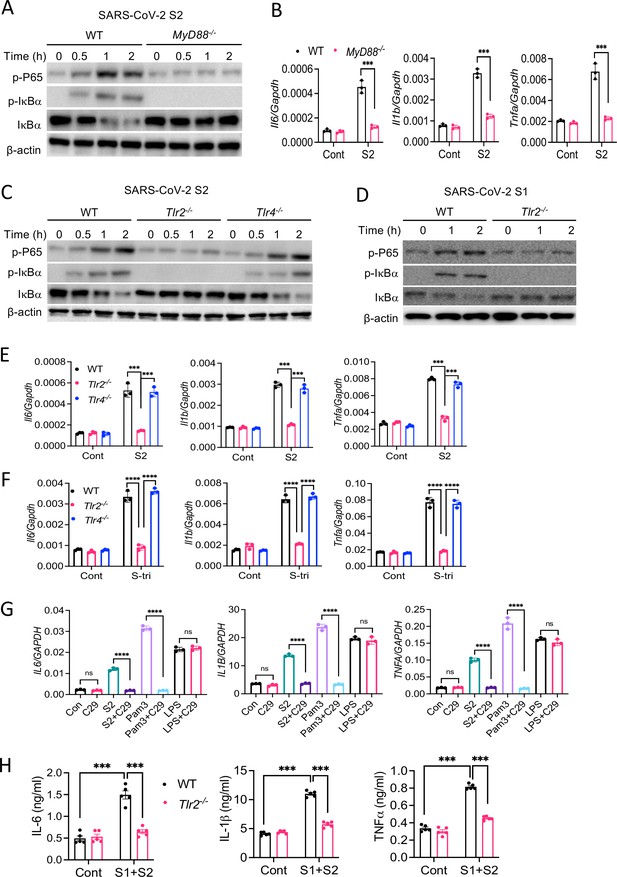

Figure 5 with 2 supplements see all
Download asset Open asset
TLR2 recognizes SARS-CoV-2 S protein and activate the NF-κB pathway.

(A, B) Bone marrow-derived macrophages (BMDMs) from WT and Myd88−/− mice were stimulated with S2 protein (500 ng/ml). (A) The activation of the NF-κB pathway was measured by Western blot analysis of P-P65 and P-IκBα. (B) The induction of Il6, Il1b, and Tnfa was measured by real-time RT-PCR. (C) BMDMs from WT, Tlr2−/−, and Tlr4−/− mice were treated with S2 protein (500 ng/ml). Cell lysates collected at different times were analyzed for the activation of the NF-κB pathway by Western blotting of P-P65 and P-IκBα. (D) BMDMs from WT and Tlr2−/− mice were treated with S1 protein (500 ng/ml), and the activation of P65 and IκBα was measured by Western blotting. (E, F) WT, Tlr2−/−, and Tlr4−/− macrophages were treated with S2 protein (500 ng/ml) or S-tri (500 ng/ml). The expression of cytokines was measured by real-time RT-PCR at 4 hr post-stimulation. Data represent mean ± SD (n=3); ***p<0.0001, ****p<0.00001 by unpaired Student’s t-test. Experiments were repeated two times and data of representative experiments are presented. (G) THP1 cells were stimulated with S2 protein (500 ng/ml), Pam3CSK4 (500 ng/ml), or LPS (100 ng/ml) in the presence or absence of Tlr2 inhibitor C29 (150 mM) for 4 hr. The expression of IL6, IL1B, and TNFA was measured by real-time RT-PCR. (H) WT and Tlr2−/− mice were administered with S1 and S2 protein (1 μg each/mouse). Blood collected before and 16 hr post S protein administration was measured for IL-6, IL-1β, and TNFα by ELISA. Data represent mean ± SEM (n=5); ***p<0.0001, ****p<0.00001 by unpaired Student’s t-test. Experiments were repeated two times and data of representative experiments are presented.

Figure 5—source data 1

Raw source data for B, E, F, G, H.

https://cdn.elifesciences.org/articles/68563/elife-68563-fig5-data1-v3.xlsx

Finally, to understand whether S protein induces inflammation in vivo and the role of TLR2 in this process, we administered S1 and S2 proteins into WT or Tlr2−/− mice intraperitoneally (i.p.). 16 hr following administration of S protein, we measured the cytokine IL-6, IL-1β, and TNFα in the serum by ELISA. The concentrations of IL-6, IL-1β, and TNFα were elevated following administration of S proteins in WT mice, whereas no such induction was observed in Tlr2−/− mice (Figure 5H). These data suggest that TLR2 is an innate immune sensor for SARS-CoV-2 S protein, and recognition of S protein by TLR2 leads to the activation of NF-κB and induction of inflammatory mediators.

TLR2 requires heterodimerization with TLR1 or TLR6 for sensing S protein

It is known that TLR2 forms a heterodimer with either TLR1 or TLR6 on the cell surface that promotes ligand binding and propagation of signaling to the downstream kinases (Buwitt-Beckmann et al., 2006; Chang et al., 2007; Farhat et al., 2008; Jin et al., 2007). We, therefore, asked whether TLR1 or TLR6 is involved in sensing S-mediated inflammatory response. To this end, we used engineered HEK293T cells which selectively express TLR2 (HEK-Blue-TLR2), TLR2 and TLR1 (HEK-Blue-TLR2/1), or TLR2 and TLR6 (HEK-Blue-TLR2/6) along with SEAP (secreted embryonic alkaline phosphatase), a reporter for NF-κB activation. When we stimulated reporter HEK-Blue cells with S1, S2, or S-tri, all three spike proteins activated NF-κB in HEK-Blue-TLR2, HEK-Blue-TLR1/2, and HEK-Blue-TLR2/6 cells, but not in HEK-Blue-Null and HEK-Blue-TLR4 cells (Figure 6A and B). We used Pam3CSK4, FSL1, and LPS as control ligands for HEK-Blue-TLR2/1, HEK-Blue-TLR2/6, and HEK-Blue-TLR4 cells, respectively (Figure 6A and B). Notably, HEK293T cells endogenously express TLR1 and TLR6 (Buwitt-Beckmann et al., 2006) therefore, HEK-Blue-TLR2 cells responded to both TLR2/1 ligand Pam3CSK4 and TRL2/6 ligand FSL1 (Figure 6A and B). We further examined S-induced activation of NF-κB in TLR2, TLR1/2, and TLR2/6 cells by Western blotting. As shown in Figure 6C, NF-κB was activated in S2 stimulated HEK-Blue-TLR2, HEK-Blue-TLR1/2, and HEK-Blue-TLR2/6 cells but not in HEK-Blue-Null and HEK-Blue-TLR4 cells. Consistently, the S-induced expression of IL6 and IL1B was similar in HEK-Blue-TLR2, HEK-Blue-TLR2/1, and HEK-Blue-TLR2/6 cells (Figure 6D).

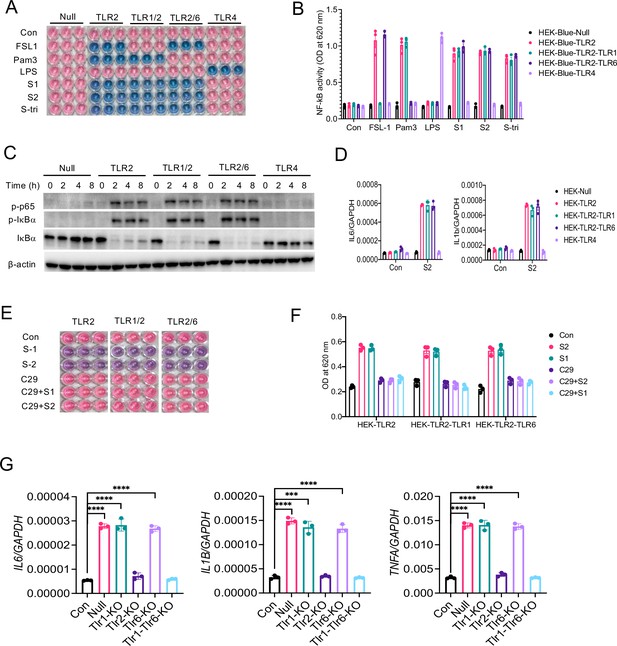

Figure 6 with 2 supplements see all
Download asset Open asset
TLR1 and TLR6 are dispensable in S-mediated activation of TLR2/NF-κB pathway.

(A, B) HEK-Blue-Null, HEK-Blue-TLR2, HEK-Blue-TLR1/2, HEK-Blue-TLR2/6, and HEK-Blue-TLR4 were stimulated with S1, S2, or S-tri for 6 hr. FSL1, Pam3CSK4, and LPS were used as ligands for TLR2/1, TLR2/6, and TLR4, respectively. The activation of NF-κB was monitored by the blue color development (A), which was measured at 620 nm (B). (C) HEK-Blue-Null, HEK-Blue-TLR2, HEK-Blue-TLR1/2, HEK-Blue-TLR2/6, and HEK-Blue-TLR4 cells were stimulated with S2 (500 ng/ml) at indicated times. The activation of P-P65 and P-IκBα was measured by Western blot analysis. (D) HEK-Blue-Null, HEK2-Blue-TLR2, HEK-Blue-TLR1/2, HEK-Blue-TLR2/6, and HEK-Blue-TLR4 cells were stimulated with S2 (500 ng/ml) for 6 hr. The induction of IL6 and IL1B was measured by real-time RT-PCR. (E, F) HEK-Blue-TLR2, HEK-Blue-TLR2/1, and HEK-Blue-TLR2/6 cells were stimulated with S1 or S2 in the presence or absence of TLR2 inhibitor C29 (150 mM) for 6 hr. The NF-κB activity was monitored colorimetrically at 620 nm. (G, H) TLR1, TLR2, TLR6, or TLR1/6 were knocked out in Raw264.7 cells with CRISPR/Cas9. Cells were then stimulated with S2 protein (500 ng/ml) for 4 hr. (G) The expression of cytokines was measured by real-time RT-PCR. Data represent mean ± SD (n=5); ***p<0.0001, ****p<0.00001 by unpaired Student’s t-test. All experiments were repeated three times and data of representative experiments are presented.

Figure 6—source data 1

Raw source data for B, D, F, G.

https://cdn.elifesciences.org/articles/68563/elife-68563-fig6-data1-v3.xlsx

Since we observed that both HEK-Blue-TLR1/2 and HEK-Blue-TLR2/6 cells responded to S protein, we wanted to clarify whether TLR1 or TLR6 can sense S protein independent of TLR2. To this end, we inhibited TLR2 in HEK-Blue-TLR cells with C29 during stimulation with S protein. C29 completely blocked S-mediated NF-κB activation in HEK-Blue-TLR2, HEK-Blue-TLR1/2, and HEK-Blue-TLR2/6 cells (Figure 6E and F), further confirming the essential role of TLR2 in S-mediated innate immune response. Notably, no activation of the reporter gene was observed in HEK-Blue-TLR2 or HEK-Blue-TLR4 cells stimulated with M, N, and E proteins (Figure 6—figure supplement 1A, B), further confirming that S, but not other structural proteins, is primarily responsible for the inflammatory response.

With the above observation, we interpreted that TLR1 and TLR6 plays a redundant role or these co-receptors are dispensable in S-induced inflammatory response. To examine these possibilities, we knocked out TLR1, TLR2, TLR6, or both TLR1 and TLR6 in Raw264.7 cells with CRISPR/Cas9 (Figure 6—figure supplement 2A, B). On stimulation of null or different TLR knockout cells with S2, TLR1-KO and TLR6-KO cells showed no defect in the S-induced inflammatory responses (Figure 6G). Interestingly, TLR1 and TLR6 double KO cells failed to induce any cytokine during stimulation with S protein (Figure 6G). Taken together, these data suggest that TLR2 requires dimerization with either TLR1 or TLR6 for sensing S protein and inducing subsequent inflammatory responses.

Discussion

Both SARS-CoV-2 infection and aberrant host immune responses are responsible for COVID-19 pathogenesis (Vabret et al., 2020; Tay et al., 2020; Blanco-Melo et al., 2020; Grant et al., 2021). The initial host immune response against SARS-CoV-2 infection involves innate immune cells, such as macrophages, monocytes, neutrophils, and dendritic cells (Liao et al., 2020; Zhou et al., 2020a). Cytokines, chemokines, and other inflammatory mediators produced by these cells inhibit virus replication, heal the damage, and activate the adaptive immune system. However, uncontrolled release of cytokines, chemokines, and reactive oxygen and nitrogen species often exert pathological consequences such as tissue injury, systemic inflammation, and organ failure (Vabret et al., 2020; Tay et al., 2020; Blanco-Melo et al., 2020). Non-surviving COVID-19 patients exhibited a massive influx of macrophages and neutrophils, but reduced T cells in their blood (Liao et al., 2020), pointing to the association of hyperactivation of innate immune cells with COVID-19 pathogenesis. Indeed, the innate immune response is heightened in the lung of COVID-19 patients (Zhou et al., 2020a; Xiong et al., 2020). A better understanding of the mechanism through which SARS-CoV-2 stimulates innate immune cells and activates inflammatory signaling pathways is key to finding better treatment regimens for COVID-19. Our finding that SARS-CoV-2 S protein is a potent viral PAMP involved in the induction of inflammatory cytokines and chemokines via TLR2-dependent activation of the NF-κB pathway, therefore, is a valuable addition to the tremendous scientific effort aiming at combating COVID-19.

Being an RNA virus, SARS-CoV-2 may activate RNA sensors TLR7, RIG-I, and MDA5, which are primarily responsible for production of type I interferons (Kawasaki and Kawai, 2014). Interestingly, the type I interferon response is attenuated in COVID-19 patients and SARS-CoV-2 infected cells (Blanco-Melo et al., 2020; Hadjadj et al., 2020). Transcriptomic analysis of bronchoalveolar lavage fluid and PBMCs of COVID-19 patients also demonstrated higher expression of proinflammatory cytokines and chemokines, but not type I interferons (Xiong et al., 2020). Our knowledge of the type I interferon response of SARS-CoV-2 infected macrophages is limited. However, previous studies on SARS-CoV-1, which share 80% similarity with SARS-CoV-2, showed that macrophages and dendritic cells infected by SARS-CoV-1 produce chemokines CXCL10 and CCL2, but not type I interferons (Cheung et al., 2005; Law et al., 2005). Lack of an interferon response can be explained by the fact that several structural and non-structural proteins including M, N, PLP, ORF3b, ORF6, and NSP1 inhibit type I interferon signaling (Siu et al., 2014; Frieman et al., 2009; Narayanan et al., 2008; Devaraj et al., 2007; Frieman et al., 2007; Kopecky-Bromberg et al., 2007). Despite this evidence, the precise mechanism of excessive production of inflammatory cytokines along with reduced expression of type I interferons in COVID-19 patients remains elusive. In this regard, our findings that SARS-CoV-2 S protein is a potential trigger for proinflammatory cytokines and chemokines help understand why the inflammatory response in COVID-19 is marked by elevated levels of proinflammatory cytokines and chemokines, but poor type I interferon response. Our findings suggest that S protein of SARS-CoV-1 and SARS-CoV-2 shares similar inflammatory function (Wang et al., 2007; Dosch et al., 2009). Further studies are required to clarify the relative contributions of S protein, viral RNA, and other non-structural proteins in COVID-19-associated cytokine storm.

Inflammatory responses of COVID-19 patients are mostly contributed by innate immune cells, but they weakly express ACE2 (Ropa et al., 2021). There is no strong evidence that SARS-CoV-2 infects and propagates infection in immune cells. Thus, it is intriguing how innate immune cells become activated to produce inflammatory mediators during SARS-CoV-2 infection. We propose three mechanisms involved in hyperinflammatory responses during SARS-CoV-2 infection. First, innate immune cells like macrophages and monocytes recognize S protein of SARS-CoV-2 at the cell surface through TLR2, leading to the activation of the NF-κB pathway. Immune sensing of S protein is independent of ACE2 since mouse macrophages, whose ACE2 receptor does not bind to S protein, express inflammatory cytokines and chemokines in response to S protein. Further, inhibition of ACE2 does not impair S-induced inflammatory response, indicating that immunostimulatory function of S protein is independent of ACE2. Second, innate immune cells get activated by virally infected epithelial cells. Our data suggest that epithelial cells expressing S protein in the cytosol can activate macrophages when they physically interact. Although the underlying mechanism is not clear, macrophages may engulf or recognize cell surface molecules expressed on SARS-CoV-2 infected epithelial cells. In a third mechanism, like myeloid cells, epithelial cells can be activated by S protein extracellularly, leading to the induction of proinflammatory cytokines and chemokines. Although inflammatory responses of epithelial cells are weaker than that of innate immune cells, epithelial cell-derived chemokines recruit neutrophils, monocytes, and lymphocytes in SARS-CoV-2-infected lungs and thereby contribute to immunopathology of COVID-19 patients.

Our data demonstrate that TLR2 is the innate immune sensor for the S protein. Being a sensor for lipopeptides and lipoproteins, TLR2 plays a critical role in host defense against many bacterial and viral infections (Oliveira-Nascimento et al., 2012). Unlike other TLRs, ligand recognition by TLR2 involves dimerization with TLR1 or TLR6 (Buwitt-Beckmann et al., 2006; Jin et al., 2007). Since an absence of either TLR1 or TLR6 does not impair S-induced inflammatory response, it seems that TLR2/1 and TLR2/6 heterodimers play redundant roles in sensing S protein. However, S protein failed to induce inflammatory response in macrophages defective in either TLR2 or both TLR1 and TLR6, suggesting that TLR2 alone cannot sense S protein, but requires dimerization with either TLR1 or TLR6. Although TLR2/1 and TLR2/6 heterodimers are considered receptors for tri-acylated and di-acylated lipopeptides, respectively, it is not uncommon that both TLR1 and TLR6 co-receptors can sense a particular PAMPs. For example, both TLR2/1 and TLR2/6 heterodimers are involved in the inflammatory response to core and NS3 proteins of hepatitis C virus (Chang et al., 2007).

Like other MyD88-dependent TLR pathways, ligation of TLR2 leads to the activation of transcription factors NF-κB and AP-1 (Kawasaki and Kawai, 2014). Interestingly, while there was activation of NF-κB, AP-1 upstream signaling kinases such as ERK and JNK were not seen activated by S proteins. SARS-CoV-1 S protein activates the NF-κB pathway in human monocyte-derived macrophages (Wang et al., 2007; Dosch et al., 2009). COVID-19 patients also exhibited increased activation of the NF-κB pathway (Hadjadj et al., 2020). Interestingly, in contrast to these findings, a separate study reported that SARS-CoV-1 S protein-expressing baculovirus activates AP-1 but not NF-κB in A549 cells (Chang et al., 2004). Future studies dissecting the signaling pathway regulated by S protein of SARS-CoV-1 and CoV-2 may reveal further insights into the mechanisms of S protein-induced inflammation.

Given the importance of understanding the mechanism of hyperinflammatory response during COVID19, other research groups are also focused in exploring SARS-CoV-2 ligands and pathways involved in inflammatory response (Shirato and Kizaki, 2021; Zhao et al., 2021; Zheng et al., 2021). The finding of two recent studies showing that S protein triggers inflammatory response is in agreement with our study (Shirato and Kizaki, 2021; Zhao et al., 2021). But, unlike our data, these studies showed that S protein is sensed by TLR4 instead of TLR2. However, a separate study demonstrated that SARS-CoV-2 induces inflammation via TLR2, but not TLR4, supporting our data (Zheng et al., 2021). Interestingly, it was shown that E protein, but not S protein, is immunostimulatory (Zheng et al., 2021). While these studies greatly contributed to our understanding of the mechanism of COVID19 pathogenesis, some of these findings are inconsistent and conflicting. It appears that the recombinant S and E proteins used in those studies were generated in Escherichia coli. Thus, it is possible those recombinant proteins were contaminated by bacterial PAMPs. We used recombinant proteins produced in mammalian cell HEK293T, ensuring that the proteins are not contaminated by bacterial PAMPs. Using the endotoxin assay, we further confirmed that the recombinant S proteins are endotoxin-free.

In summary, this study documents a potential mechanism for the inflammatory response induced by SARS-CoV-2. We demonstrate that SARS-CoV-2 S protein is a potent viral PAMP that upon sensing by TLR2 activates the NF-κB pathway, leading to the expression of inflammatory mediators in innate immune and epithelial cells. The effort so far in combating the COVID-19 pandemic is unprecedented, making it possible for the development of a number of vaccines within a year of outbreak. Since S protein is being targeted by most of the vaccine candidates, it is important to consider its inflammatory function in vaccine design. Moreover, it is critically important to investigate whether TLR2 polymorphisms are associated with COVID19 pathogenesis and the role of TLR2 in antibody production against SARS-CoV-2 vaccines. Considering the fact that new variants of SARS-CoV-2 with mutations in the S protein spread more easily and may confer more severe disease, the effectiveness of current vaccines remain uncertain (Plante et al., 2021). Thus, the importance of developing therapeutic drugs for COVID-19 remains high. This study suggests that TLR2 or its downstream signaling adapters could be therapeutically targeted to mitigate hyperinflammatory response in COVID-19 patients.

Materials and methods

Mice

C57BL6/J (WT), Myd88−/−, Tlr2−/−, and Tlr4−/− mice (all C57BL6/J strain), purchased from Jackson Laboratory were used in this study. All mice were bred and maintained in a specific pathogen-free (SPF) facility at the UT Southwestern Medical Center. All studies were approved by the Institutional Animal Care and Use Committee (IACUC) and were conducted in accordance with the IACUC guidelines and the National Institutes of Health Guide for the Care and Use of Laboratory Animals. All experimental groups were conducted with age and sex-matched male and female mice. No masking was used during data collection and analysis.

Cell culture and maintenance

Request a detailed protocol

The human embryonic kidney epithelial cell line HEK293T (ATCC, CRL-3216), and human lung epithelial cell line A549 (ATCC, CCL-185) were cultured in Dulbecco’s modified Eagle’s medium (DMEM; high glucose, Sigma-Aldrich) supplemented with 10% (v/v) fetal bovine serum (FBS) (Sigma-Aldrich) and 1% (v/v) PenStrep (Sigma-Aldrich) and maintained in a 5% CO2 incubator at 37°C. THP1 (ATCC, CRL-TIB-202) cells were cultured in Roswell Park Memorial Institute (RPMI)–1640 medium (R8758, Sigma-Aldrich) supplemented with 10% (v/v) FBS (Sigma-Aldrich) and 1% (v/v) PenStrep (Sigma-Aldrich) and maintained in a 5% CO2 incubator at 37°C. Calu3 cells (ATCC, HTB-55) were cultured in Eagle’s minimum essential medium (302003, ATCC) supplemented with 10% (v/v) FBS (Sigma-Aldrich) and 1% (v/v) PenStrep (Sigma-Aldrich) and maintained in a 5% CO2 incubator at 37°C. All cell lines were authenticated using STR profiling and confirmed to be free from mycoplasma contamination by testing with a mycoplasma detection kit (Sigma-Aldrich).

In vitro studies with THP-1 macrophage-like cells

Request a detailed protocol

Suspended THP-1 cells were cultured in medium containing 100 ng/ml phorbol-12-myristate 13-acetate (PMA; tlrl, Invivogen) to make them adherent macrophage-like cells. Following 24 hr post PMA treatment, THP-1 macrophage-like cells were washed with pre-warmed RPMI-1640 medium containing 10% FBS and 1% penicillin-streptomycin and allowed to grow in PMA-free culture medium for the next 12 hr. To examine the effect of SARS-CoV-2 structural proteins on inflammatory responses, THP-1 macrophage-like cells were stimulated with SARS-CoV-2 S1 (RayBiotech, 230-30161), SARS-CoV-2 S2 (RayBiotech, 230-30163), SARS-CoV-2 N (RayBiotech, 230-30164), SARS-CoV-2 M (MyBioSource, MBS8574735), and SARS-CoV-2 E (MyBioSource, MBS9141944) for 4 hr. To validate the immune response of S1 and S2 proteins of RayBiotech, we used recombinant S1 (10569-CV-100), S2 (10594-CV-100), and Spike-trimer (10549-CV-100) proteins purchased from R&D Biosystems.

Culture of mouse bone marrow-derived macrophage

Request a detailed protocol

Mouse bone marrow cells were collected as described previously (Udden et al., 2017). Bone marrow cells were cultured in L929 cell-conditioned IMDM medium supplemented with 10% FBS, 1% nonessential amino acids, and 1% penicillin-streptomycin for 6 days to differentiate into macrophages. BMDMs were seeded in 12-well cell culture plates at a concentration of 1.2×106 cells/well and incubated overnight before in vitro studies. BMDMs were stimulated as described above.

Culture and maintenance of HEK-Blue cells

Request a detailed protocol

HEK-Blue-Null2 cells (hkb-null2, InvivoGen), HEK-Blue hTLR2 cells (hkb-htlr2, InvivoGen), HEK-Blue-hTLR2-TLR1 cells (hkb-htlr21, InvivoGen), HEK-Blue hTLR2-TLR6 cells (hkb-htlr26, InvivoGen), and HEK-Blue hTLR4 cells (hkb-htlr4, InvivoGen) were cultured and maintained as per the manufacturer’s instruction.

Culture of mouse primary lung epithelial cells

Request a detailed protocol

Primary lung epithelial cells were cultured as described earlier (Kasinski and Slack, 2013). Briefly, the mouse was sacrificed under aseptic conditions and the lung was perfused with PBS. The lung was dissected out, washed two times with RPMI-1640, and minced with sterile scissors. RPMI-1640 supplemented with collagenase (1 mg/ml) was added to the minced lung and incubated for 1 hr at 37°C in a 5% CO2 incubator. The lung homogenate was mix properly and kept on ice to settle down large pieces of lung tissue. The top-half of the suspension was transferred and centrifuged at 1000×g for 5 min at 4°C. Following removal of supernatant, cell pellets containing lung epithelial cells were resuspend into the RPMI-1640 medium supplemented with 10% FBS and 1% penicillin-streptomycin and cultured on collagen-coated plates at 37°C in a 5% CO2 incubator.

cDNA constructs and transient transfection

Request a detailed protocol

At 50–60% confluency, HEK293T, A549, and Calu3 cells were transfected with GFP-Flag (VB200507-2985cmv) or SARS-CoV-2 S-Flag (VB200507-2984jyv) (1.5 μg/ml) constructs using Lipofectamine 3000 reagent (Invitrogen) according to the manufacturer’s instructions, and confirmed by observing GFP under fluorescence microscope and Western blot analysis of SARS-CoV-2 S and Flag proteins. Forty-eight hours post-transfection, cells were lysed with RIPA lysis buffer containing complete protease inhibitor cocktail and phosphatase inhibitor cocktail (Roche) for the detection of S protein by Western blot or ELISA, or resuspended in TRIzol reagent (Invitrogen) for the isolation of RNA and subsequent measurement of S mRNA by real-time RT-PCR.

CRISPR knockout of TLR in mouse macrophage

Request a detailed protocol

Mouse macrophage cells RAW 264.7 (TIB-71, ATCC) were transfected with GFP-Flag or TLR1 CRISPR/Cas9 (sc-423418, Santa Cruz) or TLR2 CRISPR/Cas9 (sc-423981, Santa Cruz), or TLR6 CRISPR/Cas9 (sc-423420, Santa Cruz) constructs (1.5 μg/ml) using Lipofectamine 3000 reagent (Invitrogen) according to the manufacturer’s instructions. Transfection was confirmed by observing GFP under fluorescence microscope, whereas, knockdown of respective TLRs was confirmed by real-time RT-PCR.

In-vitro stimulation of epithelial cells

View detailed protocol

To examine the effect of SARS-CoV-2 proteins on inflammatory responses in epithelial cells, HEK293T, A549, and Calu3 cells were stimulated with SARS-CoV-2 S1 (RayBiotech, 230-30161), SARS-CoV-2 S2 (Ray Biotech, 230-30163) for 4, 12 or 24 hr. RNA was isolated and measured for the expression of inflammatory genes by real-time PCR.

Co-culture of macrophages and epithelial cells

Request a detailed protocol

HEK293T-GFP and HEK293T-S or A549-GFP and A549-S or Calu3-FGP and Calu3-S cells were cultured with THP1 macrophage-like cells in a ratio of 1:2 (macrophages were twice in number to epithelial cells). Following 16 hr of co-culture, culture medium was collected, filtered with 0.2 μM filter, and used for ELISA. RNA was isolated and measured for the expression of inflammatory genes by real-time RT-PCR.

Stimulation of macrophages with conditioned medium of S protein expressed epithelial cells

Request a detailed protocol

At 50–60% confluency, HEK293T, A549, and Calu3 cells were transfected with GFP-Flag or SARS-CoV-2 S-Flag (1.5 μg/ml) constructs using Lipofectamine 3000 reagent (Invitrogen) according to the manufacturer’s instructions, and confirmed by observing GFP under fluorescence microscope and Western blot analysis of SARS-CoV-2 S and Flag. Forty-eight hours post-transfection, culture medium (conditioned medium) was collected, filtered with 0.2 μM filter, and stored at –80°C. At about 85% confluency, culture medium of THP1 cells was replaced with new media containing 30% (v/v) of epithelial cell-conditioned medium. After 4 hr incubation with conditioned medium, the expression of inflammatory cytokines and chemokines were measured.

Real-time reverse transcription (RT)-PCR

View detailed protocol

Epithelial cells, BMDMs, THP1 cells, and RAW264.7 cells were lysed in TRIzol reagent (Invitrogen). Total RNA was isolated using TRIzol reagent (Invitrogen) following the manufacturer’s instructions. Isolated RNA was reverse transcribed into cDNA using iScript (Bio-Rad). Real-time RT-PCR was performed using iTaq Universal SYBR Green Supermix (Bio-Rad). Individual expression data were normalized to GAPDH as described earlier (Hu et al., 2015).

In-vitro studies with human peripheral blood mononuclear cells

Request a detailed protocol

Human PBMCs were obtained from STEMCELL TECHNOLOGIES (70025), and were cultured in RPMI-1640 medium (R8758, Sigma-Aldrich) supplemented with 10% (v/v) FBS (Sigma-Aldrich) and 1% (v/v) penicillin-streptomycin (Sigma-Aldrich) and maintained in a 5% CO2 incubator at 37°C. After 48 hr, hPBMCs were centrifuged and resuspended in fresh medium for 3 hr, and then stimulated with SARS-CoV-2 S (500 ng/mL) for 4 hr.

Inflammatory response of SARS-CoV-2 S protein in mice

Request a detailed protocol

WT and Tlr2−/− mice were intraperitoneally injected with S1 and S2 subunits of SARS-CoV-2 S protein at equal concentration (1 µg each protein/mouse). Blood was collected before S protein administration by cheek puncturing. Sixteen hours following treatment, mice were sacrificed and blood was drawn from the heart. Serum was separated from the blood by centrifugation and used for the measurement of cytokines by ELISA.

ELISA

Request a detailed protocol

BMDMs and THP1 cells were lysed in ice-cold RIPA buffer supplemented with complete protease inhibitor and phosphatase inhibitor cocktails (Roche). Protein concentration was measured by the Pierce BCA Protein Assay Kit (Thermo Fisher Scientific-23227). Serum was isolated from mouse blood by centrifugation at 10,000 RPM for 10 min at 4°C. The concentration of IL-6, IL-1β, and TNF-α in cell culture medium and serum was measured using commercially available ELISA kits (R&D Systems). SARS-CoV-2 S protein in cell lysates was detected by SARS-CoV-2 S ELISA Kit and following the manufacturer’s instruction (RayBiotech, ELV-COVID19S2).

Western blotting

Request a detailed protocol

THP1 cells, BMDM, HEK293T, A549, and Calu3 cells were lysed in ice-cold RIPA lysis buffer containing complete protease inhibitor and phosphatase inhibitor cocktails (Roche), resolved by SDS-PAGE, and transferred onto a PVDF membrane. The membranes were immunoblotted with antibodies against Phospho-NF-κB p65 (3033, Cell Signaling), Phospho-IκBα (9246, Cell Signaling), IκBα (4812, Cell Signaling), Phospho-ERK (4370, Cell Signaling), ERK (4695, Cell Signaling), Phospho-JNK (4668, Cell Signaling), Phospho-AKT (4060, Cell Signaling), Phospho-STAT3 (9145, Cell Signaling), SARS-CoV-2 S (GTX632604, GeneTex), and β-actin (A2228, Sigma-Aldrich). Immunoreactive protein bands were detected using ECL super signal west femto substrate reagent (Thermo Fisher Scientific).

Flow cytometric analysis of SARS-CoV-2 overexpressed HEK293T cells

Request a detailed protocol

HEK293T cells were transfected with SARS-CoV-2 S plasmid. Forty-eight hours following transfection, cells were trypsinized and processed for cell surface staining. Briefly, 0.5×106 cells were resuspended in staining buffer (00-4222-26; eBioscience) and centrifuged at 1500 RPM for 3 min at 4°C. Cells were then incubated with Fc block CD16/32 monoclonal antibody (14-0161-82, eBioscience) and stained with primary antibody SARS-CoV-2 (GTX632604, GeneTex) for 30 min on ice. After washing with staining buffer once, cells were stained with secondary antibody DyLight 488 (35552, Thermo Fisher Scientific) on ice for 1 hr. Finally, cells were washed two times with staining buffer and acquired in flow cytometer (CytoFLEX-Beckman Coulter). Flow cytometric data were analyzed by FlowJo software.

Heat inactivation of S2 protein

Request a detailed protocol

S2 protein was heated at 95°C for 30 in. Native of heat-denatured S2 proteins (500 ng/ml) were used to stimulate THP1 cells and measurement of cytokines by real-time RT-PCR.

In vitro studies with TLR2 and ACE2 inhibitors

Request a detailed protocol

THP1 cells were pretreated with C29 (150 µM), a TLR2 inhibitor, for 1 hr. Control and C29-treated cells were then stimulated with SARS-CoV-2 S2 (500 ng/ml), Pam3CSK4 (500 ng/ml), or LPS (100 ng/ml) in the presence or absence of Tlr2 inhibitor C29 (150 μM) for 4 hr. Similarly, Calu3 cells were pretreated with C29 (150 μM) for 1 hr, and then control and C29-treated Calu3 cells were stimulated with SARS-CoV-2 S2 (500 ng/ml) for 24 hr. For, inhibition of ACE2, THP1 cells were treated with MLN-4760 at 10 μM concentration during stimulation with S protein. The expression of inflammatory cytokines was measured by real-time RT-PCR.

Statistical analysis

Request a detailed protocol

Data are represented as mean ± SD or SEM. Data were analyzed by Prism8 (GraphPad Software) and statistical significance was determined by two-tailed unpaired Student’s t-test. p<0.05 was considered statistically significant.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Genetic reagent
(Mus musculus)		C57BL/6JJackson
Laboratory		RRID:MGI:3028467
JAX:000664
Genetic reagent
(M. musculus)		Myd88−/− C57BL/6JJackson
Laboratory
Genetic reagent
(M. musculus)		Tlr2−/− C57BL/6JJackson
Laboratory		B6.129-Tlr2tm
1kir/J
Stock No:
004650
Genetic reagent
(M. musculus)		Tlr4−/− C57BL/6JJackson
Laboratory		B6.B10ScN-
Tlr4lps-del/JthJ
Stock No: 007227
Cell line
(Homo sapiens)		HEK-293TATCCCat# CRL-3216
Cell line
(H. sapiens)		A549ATCCCat# CCL-185
Cell line
(H. sapiens)		THP1ATCCCat# CRL-TIB-202Cat# CRL-TIB-202
Cell line
(H. sapiens)		Calu-3ATCCCat# HTB-55
Cell line
(H. sapiens)		HEK-Blue-Null2InvivoGenCat# hkb-null2
Cell line
(H. sapiens)		HEK-Blue-hTLR2InvivoGenCat# hkb-htlr2
Cell line
(H. sapiens)		HEK-Blue-hTLR2-TLR1InvivoGenCat# hkb-htlr21
Cell line
(H. sapiens)		HEK-Blue hTLR2-TLR6InvivoGenCat# hkb-htlr26
Cell line
(H. sapiens)		HEK-Blue-hTLR4InvivoGenCat# hkb-htlr4
Cell line
(H. sapiens)		Peripheral
blood
mononuclear
cells		StemCell TechnologiesCat# 70025
Cell line
(M. musculus)		Bone marrow-
derived
macrophage		This paperSee ‘Culture of
mouse bone-
marrow-derived
macrophages’ in
Materials and methods
Cell line
(M. musculus)		Primary lung
epithelial
cells		This paperSee ‘Culture of
mouse primary
lung epithelial
cells’ in Materials
and methods
Cell line
(M. musculus)		RAW264.7ATCCCat# TIB-71
Antibody(Rabbit
monoclonal)
Phospho-NF-
kB p65		Cell SignalingCat# 3033WB (1:1000)
Antibody(Mouse monoclonal)
Phospho-IκBα		Cell SignalingCat# 9246WB (1:1000)
Antibody(Rabbit
monoclonal)
IκBα		Cell SignalingCat# 4812WB (1:1000)
Antibody(Rabbit monoclonal)
anti-phospho
p44/42 (ERK1/2)		Cell SignalingCat# 4370WB (1:2000)
Antibody(Rabbit monoclonal)
anti-p44/42 (ERK1/2)		Cell SignalingCat# 4695WB (1:2000)
Antibody(Rabbit monoclonal)
anti-phospho SAPK/JNK		Cell SignalingCat# 4668WB (1:1000)
Antibody(Rabbit monoclonal)
anti-phospho AKT		Cell SignalingCat# 4060WB (1:1000)
Antibody(Rabbit monoclonal)
anti-phospho STAT3		Cell SignalingCat# 9145WB (1:1000)
Antibody(Mouse monoclonal)
anti-SARS-CoV-2 S		GeneTexCat# GTX632604WB (1:1000)
FACS (1 μl/
1×106 cells)
Antibody(Monoclonal)
anti-
CD16/CD32		eBioscienceCat# 14-0161-82FACS (1 μg/1×106 cells)
Antibody(Mouse
monoclonal)
anti-β-actin		Sigma-AldrichCat# A2228WB (1:10,000)
Recombinant
DNA reagent		GFP-Flag (plasmid)VectorBuilderCat# VB200507-
2985cmv
Recombinant
DNA reagent		SARS-CoV-2 S-FlagVectorBuilderCat# VB200507-
2984jyv
Recombinant
DNA reagent		TLR1 CRISPR/Cas9Santa CruzCat# sc-423418
Recombinant
DNA reagent		TLR2 CRISPR/Cas9Santa CruzCat# sc-423981
Recombinant
DNA reagent		TLR6 CRISPR/Cas9Santa CruzCat# sc-423420
Sequence-
based reagent		m_Il1b_FThis paperPCR primersGCCTCGTG
CTGTCGG
ACCCATA
Sequence-
based reagent		m_Il1b_RThis paperPCR primersTGCAGGGT
GGGTGTG
CCGTCTT
Sequence-
based reagent		m_Il6_FThis paperPCR primersCAA GAA AGA
CAA AGC
CAG AGT C
Sequence-
based reagent		m_Il6_RThis paperPCR primersGAA ATT GGG
GTA GGA
AGG AC
Sequence-
based reagent		m_Tnfa_FThis paperPCR primersTCCCAGGTTC
TCTTCAAGGGA
Sequence-
based reagent		m_Tnfa_RThis paperPCR primersGGTGAGGAG
CACGTAGTCGG
Sequence-
based reagent		m_Ifng_FThis paperPCR primersGAAAGACAA
TCAGGCCATCA
Sequence-
based reagent		m_Ifng_RThis paperPCR primersTTGCTGTTGC
TGAAGAAGGT
Sequence-
based reagent		m_Ifnb_FThis paperPCR primersGCCTGGATG
GTGGTC
CGAGCA
Sequence-
based reagent		m_Ifnb_RThis paperPCR primersTACCAGTCC
CAGAGTCC
GCCTCT
Sequence-
based reagent		m_Ifna_FThis paperPCR primersTCTGATGCA
GCAGGTGGG
Sequence-
based reagent		m_Ifna_RThis paperPCR primersAGGGCTCT
CCAGACTTC
TGCTCTG
Sequence-
based reagent		m_Cxcl1_FThis paperPCR primersTGAGCTGCG
CTGTCA
GTGCCT
Sequence-
based reagent		m_Cxcl1_RThis paperPCR primersAGAAGCCA
GCGTTCA
CCAGA
Sequence-
based reagent		m_Cxcl2_FThis paperPCR primersCAA GAA CAT
CCA GAG CTT
GAG TGT
Sequence-
based reagent		m_Cxcl2_RThis paperPCR primersGCC CTT GAG
AGT GGC TAT
GAC TT
Sequence-
based reagent		h_IL1B _FThis paperPCR primersAAATACCTG
TGGCCTTGGGC
Sequence-
based reagent		h_IL1B _FThis paperPCR primersTTTGGGATC
TACACTC
TCCAGCT
Sequence-
based reagent		h_IL6 _FThis paperPCR primersGTAGCCGC
CCCACACAGA
Sequence-
based reagent		h_IL6 _RThis paperPCR primersCATGTCTCCT
TTCTCAG
GGCTG
Sequence-
based reagent		h_TNFA_FThis paperPCR primersCCCAGGGA
CCTCTCT
CTAATCA
Sequence-
based reagent		h_TNFA_RThis paperPCR primersGCTTGAGGG
TTTGCTA
CAACATG
Sequence-
based reagent		h_IFNG_FThis paperPCR primersCCAACGCAAA
GCAATACATGA
Sequence-
based reagent		h_IFNG_RThis paperPCR primersCCTTTTTCG
CTTCCCT
GTTTTA
Sequence-
based reagent		h_IFNB_FThis paperPCR primersATTGCCTCAA
GGACAGGATG
Sequence-
based reagent		h_IFNB_RThis paperPCR primersGGCCTTCA
GGTAA
TGCAGAA
Sequence-
based reagent		h_IFNA_FThis paperPCR primersGTGAGGAAAT
ACTTCCAAA
GAATCAC
Sequence-
based
reagent		h_IFNA_RThis paperPCR primersTCTCATGAT
TTCTGCTCT
GACAA
Sequence-
based reagent		h_CXCL1_FThis paperPCR primersAACCGAAGT
CATAGCCACAC
Sequence-
based reagent		h_CXCL1_RThis paperPCR primersCCTCCCTTC
TGGTCAGTT
Sequence-
based reagent		h_CXCL2_FThis paperPCR primersCGCCCAAAC
CGAAGTCAT
Sequence-
based reagent		h_CXCL2_RThis paperPCR primersGATTTGCCATT
TTTCAG
CATCTTT
Sequence-
based reagent		h_CCL2_FThis paperPCR primersAGGTGACTGG
GGCATTGAT
Sequence-
based reagent		h_CCL2_RThis paperPCR primersGCCTCCAGCA
TGAAAGTCTC
Peptide,
recombinant
protein		SARS-CoV-2 S1RayBiotechCat# 230-30161
Peptide,
recombinant
protein		SARS-CoV-2 S1R&DCat# 10569-
CV-100
Peptide,
recombinant
protein		SARS-CoV-2 S2RayBiotechCat# 230-30163
Peptide,
recombinant
protein		SARS-CoV-2 S2R&DCat# 10594-
CV-100
Peptide,
recombinant
protein		SARS-CoV-2 S-trimerR&DCat# 10549-
CV-100
Peptide,
recombinant
protein		SARS-CoV-2 NRayBiotechCat# 230-30164
Peptide,
recombinant
protein		SARS-CoV-2 MMyBioSourceCat# MBS8574735
Peptide,
recombinant
protein		SARS-CoV-2 EMyBioSourceCat# MBS9141944
Commercial
assay or kit		Pierce BCA
Protein Assay
Kit		Thermo Fisher
Scientific		Cat# 23227
Commercial
assay or kit		Mouse IL-6 ELISA KitR&D SystemsCat# DY406-05
Commercial
assay or kit		Mouse IL-1β ELISA KitR&D SystemsCat# DY401-05
Commercial
assay or kit		Mouse TNF-α ELISA KitR&D SystemsCat# DY410-05
Commercial
assay or kit		Human IL-6 ELISA KitR&D SystemsCat# DY206-05
commercial
assay or kit		Human IL-1β ELISA KitR&D SystemsCat#
DY201-05
Commercial
assay or kit		Human TNF-α ELISA KitR&D SystemsCat# DY210-05
Commercial
assay or kit		SARS-CoV-2 S ELISA KitRayBiotechCat# ELV-COVID19S2
Chemical
compound,
drug		Phorbol-12-
myristate 13-
acetate (PMA)		InvivoGenCat# tlrl100 ng/ ml
Chemical
compound,
drug		TLR2-IN-C29SelleckchemS6597150 μM/ ml
Chemical
compound,
drug		Pam3CSK4InvivoGentlrl-pms
Chemical
compound,
drug		FSL-1InvivoGentlrl-fsl
Chemical
compound,
drug		ACE2 Inhibitor,
MLN-4760		Sigma-Aldrich530616000110 μM/ ml
Chemical
compound,
drug		Lipofectamine 3000Thermo Fisher ScientificCat# L3000015
Chemical
compound,
drug		Ultrapure
Escherichia coli-
derived LPS		InvivoGenCat# tlrl-smlps
Software,
algorithm		Flowjo v10Treestar, IncRRID:SCR_008520
Software,
algorithm		CytoFLEX-Beckman Coulter
Software,
algorithm		GraphPad PrismGraphpad.comRRID:SCR_00279

Data availability

There is no clinical data and large data set in this paper. The raw data for all graphs presented in this paper are included as source data.

References

Decision letter

  1. Joshua T Schiffer
    Reviewing Editor; Fred Hutchinson Cancer Research Center, United States
  2. Tadatsugu Taniguchi
    Senior Editor; Institute of Industrial Science, The University of Tokyo, Japan
  3. Coy Allen
    Reviewer

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "SARS-CoV-2 spike protein induces inflammation via TLR2-dependent activation of the NF-κB pathway" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Tadatsugu Taniguchi as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Coy Allen (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) The authors should discuss why their finding regarding TLR4 signaling appear to differ from those of other groups.

2) Repeat experiments with concurrent exposure to S1, S2, M, N, and E proteins would provide a more comprehensive picture of viral infection, and a nice comparison to S1 and S2 alone.

3) Experiments should be repeated in Calu-3 cells which are permissive to SARS-CoV-2.

4) The authors should probe the mechanisms of cytokine production in macrophage via TLR2.

Reviewer #2 (Recommendations for the authors):

As mentioned above, in general the studies are well done and the data supports the overall conclusions of the manuscript. However, the following comments should be considered in an effort to strengthen the work presented:

1) TLR2 signals as a heterodimer. Thus, it is not clear if the mechanism proposed is associated with the TLR1/2 or the TLR2/6 heterodimer. This is critical information necessary to confidently define the mechanism proposed.

2) A549 cells are refractory to SARS-CoV-2 infection (multiple sources, including The Lancet, 2020). Thus, their use here lacks significant physiological relevance. The epithelial cell studies should be conducted or at least confirmed in a more relevant cells line, such as the Calu-3 cells.

3) The direct connection between the TLR2/MyD88 mechanism in the mouse studies and the human cell line studies is lacking. The team states in the methods that they utilize C29 to attenuate TLR2 function in THP1s. However, the data provided is minimal. These studies should be repeated in all cell lines and include full panels of controls (such as polyI:C and PAM3) and evaluated across a time frame. A stronger study would be adding knockdown data in their cell lines to confirm the mouse studies.

Reviewer #3 (Recommendations for the authors):

The findings of this study are of potential importance. However, they are preliminary in nature and the biologic relevance of these findings remains unclear. A number of potential approaches could be taken to show biological relevance. Do macrophages infected with the SARS-CoV-2 virus induce cytokine production in a TLR2 dependent manner? Are human TLR2 polymorphisms associated with disease severity or response to vaccination? Is TLR2 required for effective vaccine responses for vaccines based on the spike protein?

https://doi.org/10.7554/eLife.68563.sa1

Author response

Essential revisions:

1) The authors should discuss why their finding regarding TLR4 signaling appear to differ from those of other groups.

Thank you for the suggestion. Two recent publications reported that spike protein is sensed by TLR4 (Shirato K, Heliyon, 2021; Zhao Y, Cell Res, 2021), while another paper showed that SARS-CoV-2 triggers inflammation via TLR2 (Zheng M, Nat Immunol, 2021). We believe that the discrepant results of those studies are possibly due to endotoxin contamination of the recombinant proteins used in those studies as they were generated in E. coli. To avoid this problem, we used recombinant proteins generated in mammalian HEK293T cells. We have now included a discussion on this issue in page 16.

2) Repeat experiments with concurrent exposure to S1, S2, M, N, and E proteins would provide a more comprehensive picture of viral infection, and a nice comparison to S1 and S2 alone.

As per recommendation, we have performed additional experiments in which we measured the effect of concurrent exposure of all structural proteins. The new data are now presented as Figure 1—figure supplement 1B. Our data suggest that other structural proteins do not have any positive or negative influence on S-induced inflammatory responses.

3) Experiments should be repeated in Calu-3 cells which are permissive to SARS-CoV-2.

We appreciate the reviewers’ and editor’s suggestion of repeating crucial experiments in Calu3 cells. We have now included a series of studies using Calu3 cells. The new studies are now presented as Figures 2B, 2D, 3C, 3F, 3H, Figure 3—figure supplement 1C and Figure 5—figure supplement 2.

4) The authors should probe the mechanisms of cytokine production in macrophage via TLR2.

We have demonstrated that S protein triggers inflammation via TLR2. Since TLR2 heterodimerizes with TLR1 or TLR6, it is a valid concern whether these coreceptors are involved in S-induced cytokine production. To address the reviewer’s concerns, we have used engineered HEK293T cells expressing TLR2, TLR2/TLR1or TLR2/TLR6 and showed that S protein can be sensed by both TLR2/1 and TLR2/6 heterodimers. Further, we knocked down TLR1, TLR2, TLR6 or TLR1 and TLR6 together in RAW264.7 macrophages. Following stimulation with S protein, we observed that cytokine production was abrogated when TLR2 and TLR1/6 were knocked out. These data suggest that upon ligation with S protein TLR2 in association with either TLR1 or TLR6 activates the downstream NF-κB pathway. Our new findings are shown in Figure 6, Figure 6—figure supplement 1 and Figure 6—figure supplement 2.

Reviewer #2 (Recommendations for the authors):

As mentioned above, in general the studies are well done and the data supports the overall conclusions of the manuscript. However, the following comments should be considered in an effort to strengthen the work presented:

We greatly appreciate the reviewer’s insightful comments on this manuscript. We found that the reviewer’s comments and concerns were very constructive and helped us improve the quality of our studies. We have performed a series of additional studies to thoroughly address all of the concerns.

1) TLR2 signals as a heterodimer. Thus, it is not clear if the mechanism proposed is associated with the TLR1/2 or the TLR2/6 heterodimer. This is critical information necessary to confidently define the mechanism proposed.

The reviewer has pointed out an important concern. To understand whether heterodimerization with TLR1 and TLR6 is required for TLR2 in sensing S protein, we used HEK293T reporter cells overexpressing TLR2, TLR2/TLR1 or TLR2/TLR6. Interestingly, all three cells were responsive to S1, S2, and S-tri (Figure 6A-D). The inflammatory response of these reporter cells was inhibited when TLR2 was blocked by C29 (Figure 6E and F), suggesting that TLR2 is essential for sensing S protein. Given that HEK293T cells express low level of TLR1 and TLR6, but not TLR2, our data suggest that TLR2 heterodimerizes with either TLR1 or TLR6 in sensing S protein. To further verify this interpretation, we knocked out TLR2, TLR1, TLR6 or both TLR1 and TLR6 in the macrophage cell line. Following stimulation with S protein, we observed that cytokine production was abrogated in TLR2-KO and TLR1/6-double KO cells (Figure 6G, Figure 6—figure supplement 2). These data suggest that upon ligation with S protein TLR2 in association with either TLR1 or TLR6 activates the downstream NF-κB pathway.

2) A549 cells are refractory to SARS-CoV-2 infection (multiple sources, including The Lancet, 2020). Thus, their use here lacks significant physiological relevance. The epithelial cell studies should be conducted or at least confirmed in a more relevant cells line, such as the Calu-3 cells.

We appreciate the reviewer’s valuable suggestion. We have now included a series of studies using Calu3 cells. The new studies are now presented as Figures 2B, 2C, 3F, 3H, and Figure 3—figure supplement 1A and 1C, and Figure 5—figure supplement 2. These experiments demonstrated that, like A549 cells, Calu3 cells are stimulated by S proteins to produce cytokines and chemokines.

3) The direct connection between the TLR2/MyD88 mechanism in the mouse studies and the human cell line studies is lacking. The team states in the methods that they utilize C29 to attenuate TLR2 function in THP1s. However, the data provided is minimal. These studies should be repeated in all cell lines and include full panels of controls (such as polyI:C and PAM3) and evaluated across a time frame. A stronger study would be adding knockdown data in their cell lines to confirm the mouse studies.

We agree with the reviewers that additional controls should be included in studies where TLR2 was blocked by C29. We repeated the study including controls such as LPS and Pam3CSK4. Our data shown in Figure 5G confirms that C29 only inhibits the TLR2 pathway.

As per reviewer’s recommendation, we also evaluated the effect of C29 in Calu3 cells. Our data showed that C29 inhibits S-mediated cytokine production in Calu3 cells (Figure 5—figure supplement 2).

Finally, we show that RAW264.7 cells do not respond to S protein when TLR2 was knocked out with CRISPR/Cas9 (Figure 6G). All these data consistently and rigorously support the conclusion that TLR2 is the innate immune receptor for S protein and is involved in inflammatory response.

Reviewer #3 (Recommendations for the authors):

The findings of this study are of potential importance. However, they are preliminary in nature and the biologic relevance of these findings remains unclear. A number of potential approaches could be taken to show biological relevance. Do macrophages infected with the SARS-CoV-2 virus induce cytokine production in a TLR2 dependent manner? Are human TLR2 polymorphisms associated with disease severity or response to vaccination? Is TLR2 required for effective vaccine responses for vaccines based on the spike protein?

We greatly appreciate the reviewers’ insightful comments and finding our study potentially important. We completely agree with the reviewer that showing inflammatory response of macrophage to live SARS-CoV2 is TLR2 dependent would make our finding more compelling. Due to the limitation of available resources for working with live SARS-CoV2, we were not able to perform such an experiment. However, a recent study has already addressed this concern showing that macrophages from Tlr2-/- mice are defective in cytokine production when infected with SARS-CoV-2 (Zheng M, Nat Immunol, 2021).

The reviewer’s comments on the role of TLR2 in vaccine response and an association of TLR2 polymorphism in severity of COVID19 are insightful and important. However, addressing these concerns is out of scope of this study, but we are working on these topics which will be reported in our future studies. We briefly discussed this issue in page 18.

https://doi.org/10.7554/eLife.68563.sa2

Article and author information

Author details

  1. Shahanshah Khan

    Department of Pathology, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation, Formal analysis, Investigation, wrote methods and figure legends
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3052-932X

  2. Mahnoush S Shafiei

    Department of Pathology, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  3. Christopher Longoria

    Department of Pediatrics, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  4. John W Schoggins

    Department of Microbiology, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Writing – review and editing
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7944-6800

  5. Rashmin C Savani

    Department of Pediatrics, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Resources, Writing – review and editing
    Competing interests
    No competing interests declared

  6. Hasan Zaki

    Department of Pathology, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Methodology, Project administration, Resources, Supervision, Writing - original draft, Writing – review and editing
    For correspondence
    hasan.zaki@utsouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9002-5399

Funding

Cancer Prevention and Research Institute of Texas (RP200284)

  • Hasan Zaki

National Institute of Diabetes and Digestive and Kidney Diseases (R01DK125352)

  • Hasan Zaki

National Institutes of Health (AI158124)

  • John W Schoggins

American Cancer Society (Research Scholar RSG-21-021-01-TBE)

  • Hasan Zaki

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to thank the UT Southwestern Animal Resource Center (ARC) for maintenance and care of our mouse colony. The authors thank Dr. Zhijian 'James' Chen for sharing Myd88-/- mice and Dr. Esra Akbay for sharing A549 cells. Hasan Zaki is supported by The National Institute of Diabetes and Digestive and Kidney Diseases (NIDDK) of the National Institute of Health (NIH) under Award Number R01DK125352, Cancer Prevention and Research Institute of Texas (CPRIT) Individual Investigator Award (RP200284), and American Cancer Society (ACS) Research Scholar Award (RSG-21-021-01-TBE). Rashmin C Savani holds the William Buchanan Chair in Pediatrics and is funded by a Sponsored Research Agreement with Mallinckrodt Pharmaceuticals, Inc for an unrelated project. John W Schoggins is supported by NIH grant AI158254.

Ethics

All studies were approved by the Institutional Animal Care and Use Committee (IACUC) and were conducted in accordance with the IACUC guidelines and the National Institutes of Health Guide for the Care and Use of Laboratory Animals. The IACUC permit number is 2016-101683.

Senior Editor

  1. Tadatsugu Taniguchi, Institute of Industrial Science, The University of Tokyo, Japan

Reviewing Editor

  1. Joshua T Schiffer, Fred Hutchinson Cancer Research Center, United States

Reviewer

  1. Coy Allen

Version history

  1. Received: March 19, 2021
  2. Accepted: December 1, 2021
  3. Accepted Manuscript published: December 6, 2021 (version 1)
  4. Version of Record published: December 24, 2021 (version 2)
  5. Version of Record updated: May 19, 2022 (version 3)

Copyright

© 2021, Khan et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 7,848
    Page views
  • 1,140
    Downloads
  • 140
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Scopus, Crossref.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Shahanshah Khan
  2. Mahnoush S Shafiei
  3. Christopher Longoria
  4. John W Schoggins
  5. Rashmin C Savani
  6. Hasan Zaki
(2021)
SARS-CoV-2 spike protein induces inflammation via TLR2-dependent activation of the NF-κB pathway
eLife 10:e68563.
https://doi.org/10.7554/eLife.68563

Categories and tags

Research organism

Further reading

    1. Immunology and Inflammation

    Viruses: What triggers inflammation in COVID-19?

    Tomohiro Sawa, Takaaki Akaike
    Insight

    The spike protein of SARS-CoV-2 triggers macrophages and epithelial cells to produce excess levels of pro-inflammatory molecules, which can do more harm than good.

    1. Epidemiology and Global Health
    2. Medicine
    3. Microbiology and Infectious Disease

    COVID-19: A Collection of Articles

    Edited by Diane M Harper et al.
    Collection

    eLife has published the following articles on SARS-CoV-2 and COVID-19.

    1. Immunology and Inflammation

    Selective loss of CD107a TIGIT+ memory HIV-1-specific CD8+ T cells in PLWH over a decade of ART

    Oscar Blanch-Lombarte, Dan Ouchi ... Julia G Prado
    Research Article

    The co-expression of inhibitory receptors (IRs) is a hallmark of CD8+ T-cell exhaustion (Tex) in people living with HIV-1 (PLWH). Understanding alterations of IRs expression in PLWH on long-term antiretroviral treatment (ART) remains elusive but is critical to overcoming CD8+ Tex and designing novel HIV-1 cure immunotherapies. To address this, we combine high-dimensional supervised and unsupervised analysis of IRs concomitant with functional markers across the CD8+ T-cell landscape on 24 PLWH over a decade on ART. We define irreversible alterations of IRs co-expression patterns in CD8+ T cells not mitigated by ART and identify negative associations between the frequency of TIGIT+ and TIGIT+ TIM-3+ and CD4+ T-cell levels. Moreover, changes in total, SEB-activated, and HIV-1-specific CD8+ T cells delineate a complex reshaping of memory and effector-like cellular clusters on ART. Indeed, we identify a selective reduction of HIV-1 specific-CD8+ T-cell memory-like clusters sharing TIGIT expression and low CD107a that can be recovered by mAb TIGIT blockade independently of IFNγ and IL-2. Collectively, these data characterize with unprecedented detail the patterns of IRs expression and functions across the CD8+ T-cell landscape and indicate the potential of TIGIT as a target for Tex precision immunotherapies in PLWH at all ART stages.
