Structural basis for cytoplasmic dynein-1 regulation by Lis1
Abstract
The lissencephaly 1 gene, LIS1, is mutated in patients with the neurodevelopmental disease lissencephaly. The Lis1 protein is conserved from fungi to mammals and is a key regulator of cytoplasmic dynein-1, the major minus-end-directed microtubule motor in many eukaryotes. Lis1 is the only dynein regulator known to bind directly to dynein’s motor domain, and by doing so alters dynein’s mechanochemistry. Lis1 is required for the formation of fully active dynein complexes, which also contain essential cofactors: dynactin and an activating adaptor. Here, we report the first high-resolution structure of the yeast dynein–Lis1 complex. Our 3.1 Å structure reveals, in molecular detail, the major contacts between dynein and Lis1 and between Lis1’s ß-propellers. Structure-guided mutations in Lis1 and dynein show that these contacts are required for Lis1’s ability to form fully active human dynein complexes and to regulate yeast dynein’s mechanochemistry and in vivo function.
Editor's evaluation
This manuscript reports the first high-resolution (3.1Å) structure of a dynein–Lis1 complex. Guided by their cryo-EM structure, the authors make mutations to show that the two Lis1 binding sites (ring and stalk) on the dynein motor are important for both dynein's in vivo function in S. cerevisiae and for the formation of human dynein/dynactin complexes.
https://doi.org/10.7554/eLife.71229.sa0Introduction
Cytoplasmic dynein-1 (dynein) is a minus-end-directed microtubule motor that is conserved in many eukaryotes. Mutations in dynein or its regulators cause a range of neurodevelopmental and neurodegenerative diseases in humans (Lipka et al., 2013). In metazoans and some fungi, dynein transports organelles, RNAs, and protein complexes (Reck-Peterson et al., 2018). Dynein also positions nuclei and centrosomes and has a role in organizing the mitotic spindle and in the spindle assembly checkpoint (Raaijmakers and Medema, 2014). Given the essential nature of dynein in many organisms, the yeast Saccharomyces cerevisiae has been an important model system for studying dynein’s mechanism and function as dynein and its regulators are conserved, but nonessential in this organism. In yeast, deletion of dynein or dynein’s regulators results in defects in positioning the mitotic spindle (Eshel et al., 1993; Kormanec et al., 1991; Lee et al., 2003; Li et al., 2005; Li et al., 1993; Muhua et al., 1994; Sheeman et al., 2003).
Both dynein and its regulation are complex. Cytoplasmic dynein is a dimer of two motor-containing AAA+ (ATPase associated with various cellular activities) subunits, with additional subunits all present in two copies. In the absence of regulatory factors, dynein exists largely in an autoinhibited ‘Phi’ conformation (Torisawa et al., 2014; Zhang et al., 2017). Active moving dynein complexes contain the dynactin complex and a coiled-coil-containing activating adaptor. We will refer to these complexes here as ‘active dynein’ or ‘dynein–dynactin–activating adaptor complexes’ (McKenney et al., 2014; Schlager et al., 2014; Trokter et al., 2012; Figure 1A). Some of these activated dynein complexes contain two dynein dimers, and they move at a faster velocity than complexes containing a single dynein dimer (Elshenawy et al., 2020; Grotjahn et al., 2018; Htet et al., 2020; Urnavicius et al., 2018). About a dozen activating adaptors have been described in mammals, including members of the Hook, Bicaudal D (BicD), and Ninein families (Canty and Yildiz, 2020; Olenick and Holzbaur, 2019; Reck-Peterson et al., 2018). In yeast, the coiled-coil-containing protein Num1 is required to activate dynein in vivo (Heil-Chapdelaine et al., 2000; Lammers and Markus, 2015; Lee et al., 2003; Sheeman et al., 2003) and is likely a dynein-activating adaptor.

A 3.1 Å structure of the yeast dyneinE2488Q–(Lis1)2 complex.
(A) Lis1 assists in the transition from autoinhibited dynein to activated dynein complexed with dynactin and an activating adaptor protein. (B) Schematic representation of the different modes of binding of Lis1 to dynein as a function of nucleotide state at AAA3. (C, D) Cryo-EM map (C) and model (D) of the AAA3-WalkerB mutant, dyneinE2488Q, with Lis1 bound at sitering and sitestalk. (E–G) Close-up views of the interfaces between (E) dyneinE2488Q and Lis1 at sitering, (F) dyneinE2488Q and Lis1 at sitestalk, and (G) of the Lis1ring-Lis1stalk interface.

Interfaces involved in Lis1–dynein and Lis1–Lis1 interactions.
(A, B) Two views of the Lis1 structure, represented as a molecular surface. The β-propeller is viewed either from its narrow face (A) or the side (B). Residues located at the different interfaces formed by Lis1 in the dyneinE2488Q–(Lis1)2 complex are listed next to and color-coded on the molecular surfaces. We have included all residues within 4 Å of residues in the interacting partner. (C–F) Close-ups of the different interfaces highlighted in (A, B). Panels (C), (D), and (E) are closer views of panels (E), (F), and (G) in Figure 1, in that order. The Lis1 residues listed in (A, B) are shown in the panels, along with dynein residues discussed in the text (and shown again in later figures). (F) This panel shows the same dynein–Lis1ring interface shown in (C) but viewed from ‘above’ (relative to C). In this panel, we show residues we had previously mutated in dynein (Huang et al., 2012) and Lis1 (Toropova et al., 2014) to disrupt this interaction.
In addition to dynactin and an activating adaptor, dynein function in vivo also requires Lis1. Genetically, Lis1 is a positive regulator of dynein function (Geiser et al., 1997; Liu et al., 1999; Xiang et al., 1995) and is required for most, if not all, dynein functions in many organisms (Markus et al., 2020). In humans, mutations in both Lis1 (PAFAH1B1; hereafter called Lis1) and the dynein heavy chain (DYNC1H1) cause the neurodevelopmental disease lissencephaly (Parrini et al., 2016; Reiner et al., 1993). Structurally, Lis1 is a dimer of two ß-propellers (Kim et al., 2004; Tarricone et al., 2004), and Lis1 dimerization is required for its function in vivo (Ahn and Morris, 2001; Huang et al., 2012). Lis1 is also the only known dynein regulator that binds directly to dynein’s motor domain (Huang et al., 2012; Toropova et al., 2014). Structures of yeast dynein–Lis1 complexes, while not of high enough resolution to build molecular models, show that Lis1 binds to dynein at two sites: dynein’s AAA+ ring at AAA3/AAA4 (sitering) and dynein’s stalk (sitestalk), which emerges from AAA4 and leads to dynein’s microtubule binding domain (Figure 1B; DeSantis et al., 2017; Htet et al., 2020; Huang et al., 2012; Toropova et al., 2014). Lis1 binding to dynein at these two sites is conserved in humans (Htet et al., 2020).
How does Lis1 act as a positive regulator of dynein motility at a mechanistic level? Recently, Lis1 was shown to play a role in forming active dynein complexes, most likely by disrupting dynein’s autoinhibited Phi conformation (Elshenawy et al., 2020; Htet et al., 2020; Marzo et al., 2020; Qiu et al., 2019). Human dynein–dynactin–activating adaptor complexes formed in the presence of Lis1 are more likely to contain two dynein dimers and move at a faster velocity in vitro (Elshenawy et al., 2020; Htet et al., 2020), consistent with a previous study showing that Lis1 increases both the frequency and velocity of motile dynein–dynactin–BICD2 complexes (Baumbach et al., 2017). Studies in S. cerevisiae and the filamentous fungus Aspergillus nidulans suggest that this role for Lis1 in forming active complexes is conserved and required for in vivo function (Marzo et al., 2020; Qiu et al., 2019).
Prior to this series of discoveries, we and others had described other effects that Lis1 has on dynein’s mechanochemistry in vitro. It is likely that these in vitro readouts provide mechanistic insights into different intermediates during dynein activation by Lis1. One common theme in these studies was that the presence of Lis1 causes dynein to bind microtubules more tightly under some nucleotide conditions (DeSantis et al., 2017; Htet et al., 2020; Huang et al., 2012; McKenney et al., 2010; Yamada et al., 2008), which in the context of a moving molecule correlates with decreased velocity (DeSantis et al., 2017; Huang et al., 2012; Yamada et al., 2008) or an increased ability of dynein to remain bound to microtubules under load (McKenney et al., 2010). In yeast, the nucleotide state of dynein’s AAA3 domain seems to regulate this as Lis1 (called Pac1 in yeast, referred to as ‘Lis1’ here) induces a weak microtubule binding state in dynein when the nucleotide bound at AAA3 is ATP or an ATP mimic (DeSantis et al., 2017). These different modes of dynein regulation by yeast Lis1 correlate with the number of Lis1 ß-propellers observed interacting with dynein by cryo-EM, with a single ß-propeller bound to dynein at sitering in the absence of nucleotide at AAA3, and two ß-propellers bound to dynein at sitering and sitestalk when the nucleotide at AAA3 is ATP or an ATP mimic (DeSantis et al., 2017). Genetically, mutations that link nucleotide hydrolysis at AAA3 to Lis1 have also been reported (Qiu et al., 2021; Willins et al., 1997; Zhuang et al., 2007). While it remains to be determined how the readouts described above or other in vitro readouts of Lis1 regulation of dynein (Baumbach et al., 2017; Gutierrez et al., 2017; Jha et al., 2017; Marzo et al., 2020; Wang et al., 2013) relate to Lis1’s in vivo function, they serve as powerful tools to test structure/ function predictions (DeSantis et al., 2017; Toropova et al., 2014).
Despite this progress, a full understanding of how Lis1 regulates dynein has been hampered by the lack of high-resolution structures of dynein–Lis1 complexes. Here, we report a 3.1 Å structure of yeast dynein bound to two Lis1 ß-propellers. This is the first high-resolution structure of the dynein–Lis1 complex and reveals in molecular detail the contacts between yeast dynein and Lis1 at both sitering and sitestalk and the interface between two Lis1 ß-propellers. We use this structure to interrogate the dynein–Lis1 interaction both in vitro and in vivo, showing that these contacts are important for yeast Lis1’s role in nuclear positioning in vivo. Finally, we show that mutating sitering and sitestalk in human dynein impacts Lis1’s ability to promote the formation of activated human dynein complexes, demonstrating that the Lis1 binding sites on dynein that are required for in vivo function in yeast are the same sites that are important for human dynein–dynactin–activating adaptor complex formation. Our results point to a conserved model for dynein regulation by Lis1.
Results
3.1 Å structure of a yeast dynein–Lis1 complex
Previously, we determined structures of a S. cerevisiae dynein motor domain bound to one or two yeast Lis1 ß-propellers by cryo-EM at 7.7 Å and 10.5 Å resolution, respectively (DeSantis et al., 2017). Although those structures allowed us to dock homology models of Lis1 into the map and determine their general orientation, their limited resolutions prevented us from building molecular models into the density or rotationally aligning Lis1’s ß-propellers. To address these limitations and to understand the molecular features of the interactions between dynein and Lis1, we aimed to improve the overall resolution of this complex. To enrich our sample for complexes containing two Lis1 ß-propellers bound to dynein, we used a construct (Supplementary file 1) of the yeast dynein motor domain containing a Walker B mutation in AAA3 (E2488Q; herein referred to as dyneinE2488Q) that prevents the hydrolysis of ATP as our previous work showed that this state results in Lis1 binding at both sitering and sitestalk (DeSantis et al., 2017). As with our previous structural studies (DeSantis et al., 2017; Toropova et al., 2014), we used monomers of the yeast dynein motor domain and yeast Lis1 dimers, referred to as dyneinE2488Q–(Lis1)2 here. We also added ATP and vanadate to our samples as this is converted to ADP-vanadate, referred to here as ADP-Vi, which mimics a post-hydrolysis state for dynein (Schmidt et al., 2015). Our initial attempts at obtaining a higher resolution structure were limited by dynein’s strong preferred orientation in open-hole cryo-EM grids. To overcome this, we randomly and sparsely biotinylated dynein and applied the sample to streptavidin affinity grids (Han et al., 2016; Han et al., 2012; Lahiri et al., 2019); this tethering results in randomly oriented complexes that are prevented from reaching and interacting with the air–water interface.
This approach allowed us to determine the structure of yeast dyneinE2448Q bound to wild-type yeast Lis1 in the presence of ATP vanadate to a nominal resolution of 3.1 Å (Figure 1C and D, Figure 1—figure supplement 1A–C, Figure 1—figure supplement 2, Video 1, Supplementary file 2). In our structure, dyneinE2488Q’s AAA ring is ‘closed,’ which is seen when dynein’s microtubule binding domain is in its low-affinity state, the linker is bent (Bhabha et al., 2014; Schmidt et al., 2015), and when two Lis1 ß-propellers interact with dynein (DeSantis et al., 2017). It is likely that the two ß-propellers come from the same homodimer as we did not detect density for additional ß-propellers during data processing. This new high-resolution map allowed us to build an atomic model of the entire yeast dyneinE2488Q–(Lis1)2 complex (Figure 1D, Video 1). Binding of Lis1 at sitering primarily involves the smaller face of the ß-propeller in Lis1 and an alpha helix in AAA4 of dyneinE2488Q (Figures 1E and 2A–C, Figure 1—figure supplement 2A, Video 2). Our high-resolution structure also allowed us to unambiguously map an additional interaction between dyneinE2488Q and Lis1 at sitering that involves a contact with a loop in AAA5 (Figures 1E and 2C, Figure 1—figure supplement 2B, Video 2). Lis1 binds to dynein at sitestalk using its side and makes interactions with coiled-coil 1 (CC1) of dynein’s stalk, as well as a previously unknown contact with a loop in AAA4 (residues 2935–2942) (Figures 1F and 2A, B and D, Figure 1—figure supplement 2C, Video 2). As suggested by the continuous density in our previous low-resolution structure (DeSantis et al., 2017), the Lis1s bound at sitering and sitestalk directly interact with each other (Figure 1G, Figure 1—figure supplement 2D, Figure 2A, B and E, Video 2). Our model of the dyneinE2488Q–(Lis1)2 complex confirmed that residues we had previously mutated, either on dynein (Huang et al., 2012) or on Lis1 (Toropova et al., 2014), to disrupt the sitering interaction based on much lower resolution information, are indeed located at the interface (Figure 2F). The ATP binding sites at AAA1, AAA2, AAA3, and AAA4 are all occupied by nucleotides (Figure 1—figure supplement 2E–H). While our map shows ADP bound at AAA4 (Figure 1—figure supplement 2H), we were unable to resolve whether ATP or ADP-vanadate was bound at AAA1-AAA3 and chose to model ATP into each binding pocket (Figure 1—figure supplement 2E–H).

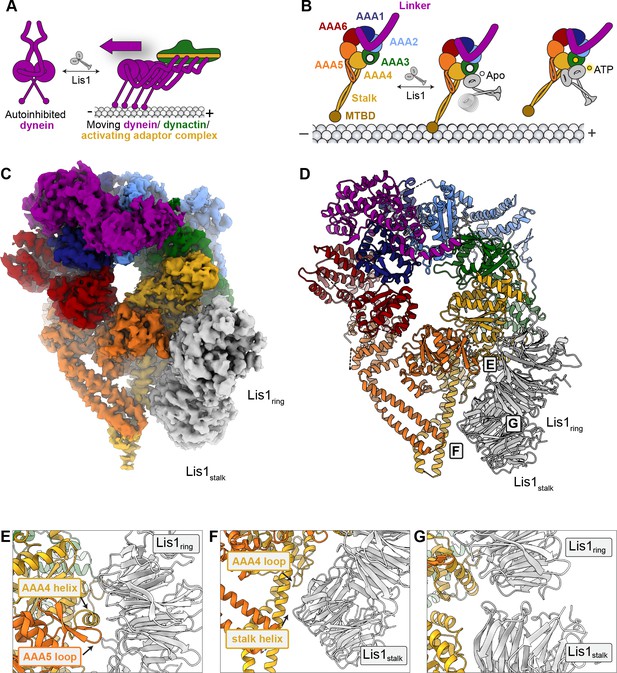

A 3.1 Å structure of the dynein–Lis1 complex.
Overview of the dynein–(Lis1)2 complex. The key interactions between dynein and Lis1 at sitering and sitestalk, as well as the Lis1–Lis1 interface, are highlighted.
Interfaces involved in Lis1–dynein and Lis1–Lis1 interactions.
Dynein is a dynamic protein and undergoes multiple conformational changes as part of its mechanochemical cycle. ATP binding and hydrolysis at AAA1 leads to a cascade of conformational changes including closing of the AAA ring, shifting of the buttress and stalk helices, and swinging of the linker domain during its power stroke cycle (Cianfrocco et al., 2015). While the AAA ring domain of dynein reached the highest resolution in our structure, the linker and stalk helices are at significantly lower resolutions, most likely due to conformational heterogeneity (Figure 1—figure supplement 1B). We used 3D variability analysis (Punjani and Fleet, 2021) in cryoSPARC to generate variability components that capture continuous movements within the complex; the first two components describe the major movements. The first variability component shows the linker pulling away from its docked site at AAA2 and starting to straighten towards AAA4 in what could be the beginning of the power stroke (Figure 1—figure supplement 3A, Video 3). The second variability component shows the AAA ring ‘breathing’ slightly between its open and closed conformations, with associated movements in the buttress and stalk helices (Figure 1—figure supplement 3B, Video 3). Importantly, all the interactions involving Lis1—with sitering and sitestalk and at the Lis1–Lis1 interface—are maintained in the different conformations.
3DVA analysis of dynein bound to Lis1.
3DVA analysis reveals conformational changes along the first two variability components. The first variability component describes motion attributed to the linker pulling away from AAA2. The second variability component describes changes in the overall motor domain as it undergoes subtle open and closing motions in the AAA ring.
Yeast Lis1’s interaction with dynein’s AAA5 contributes to regulation at sitering
Next, we sought to validate the new interactions we identified in our structure of the yeast dyneinE2448Q–(Lis1)2 complex. To do this, we chose well-established in vitro and in vivo assays with clear readouts for any defects in dynein regulation by Lis1 (DeSantis et al., 2017; Reck-Peterson et al., 2006). The first site we investigated was the interaction of Lis1 with dynein at sitering. The bulk of the yeast dyneinE2488Q–(Lis1)2 interface at sitering comprised a helix in AAA4 of dynein, mutations in which disrupt yeast Lis1 binding to dynein (Huang et al., 2012). Here, we set out to determine if the additional contact we observed at sitering involving AAA5 (Figure 3A) also contributes to dynein regulation by Lis1. To disrupt this electrostatic interaction (Figure 3A), we either mutated Lis1’s Glu253 and His254 to Ala or deleted dynein’s Asn3475 and Arg3476, which are both present in a short loop (Figure 3A). These mutations were engineered into the endogenous copies of either Lis1 (PAC1) or dynein (DYN1) in yeast and both were expressed at wild-type levels (Figure 3—figure supplement 1A–C). To determine if these mutations had a phenotype in vivo, we performed a nuclear segregation assay. In this assay, deletion of dynein or dynactin subunits or Lis1 causes an increase in binucleate mother cells, which arise from defects in mitotic spindle positioning (Eshel et al., 1993; Kormanec et al., 1991; Lee et al., 2003; Li et al., 1993; Muhua et al., 1994; Sheeman et al., 2003). We found that Lis1E253A, H254A and dyneinΔN3475, ΔR3476 both exhibit a binucleate phenotype that is equivalent to that seen with deletion of Lis1 or dynein (Figure 3B–D), suggesting that the interaction between Lis1 and dynein at AAA5 is required for yeast Lis1’s ability to regulate dynein in vivo.

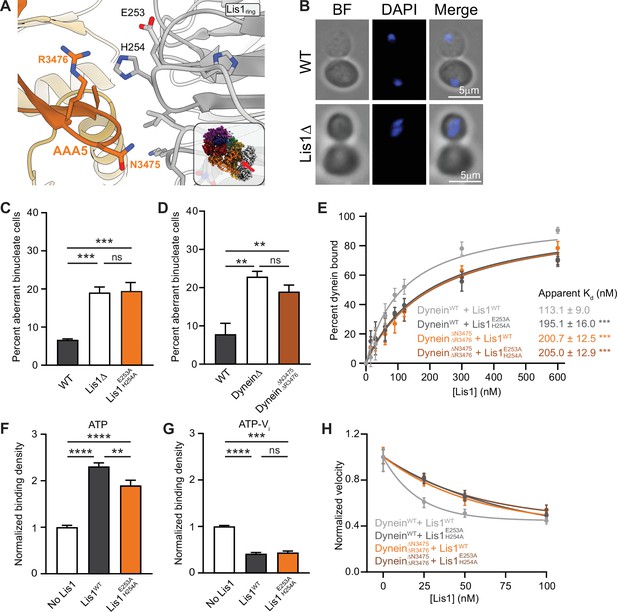

Lis1 regulation of dynein at sitering.
(A) Close-up of the interface between Lis1 and dynein AAA5 at sitering. The residues mutated in this study on Lis1 (gray type) and dynein (orange type) are indicated. The inset shows the location of the close-up in the full structure. (B) Example images of normal and binucleate cells. Scale bar, 3 μm. (C) Quantitation (mean ± s.e.m.) of the percentage of cells displaying an aberrant binucleate phenotype for WT (dark gray), Lis1 deletion (white), and Lis1 E253A, H254A (orange). n = 6 replicates with at least 200 cells per condition. Statistical analysis was performed with a one-way ANOVA with Tukey’s multiple comparison test; ***WT and ΔLis1, p=0.0009; ***WT and Lis1 E253A, H254A, p=0.0007; ns, p>0.9999. (D) Quantitation (mean ± s.e.m.) of the percentage of cells displaying an aberrant binucleate phenotype for WT (dark gray), Lis1 deletion (white), and dyneinΔN3475, R3476 (dark orange). n = 3 replicates with at least 200 cells per condition. Statistical analysis was performed with a one-way ANOVA with Tukey’s multiple comparison test; **p=0.0053; *p=0.0215; ns, p=0.4343. (E) Quantitation of the apparent binding affinity of dyneinWT for Lis1WT (dark gray; Kd = 113.1 ± 9.0) and Lis1 E253A, H254A (light gray; Kd = 195.1 ± 16.0) and dyneinΔN3475, R3476 for Lis1WT (orange; Kd = 200.7 ± 12.5) and Lis1E253A, H254A (brown; Kd = 205.0 ± 12.9). n = 3 replicates per condition. Statistical analysis was performed using an extra sum-of-squares F-test; ***p<0.0001. (F) Binding density (mean ± s.e.m.) of dynein on microtubules with ATP in the absence (dark gray) or presence of Lis1WT (white) or Lis1E253A, H254A (orange). Data was normalized to a density of 1.0 in the absence of Lis1. Statistical analysis was performed using an ANOVA; ****p<0.0001; **p=0.0029. n = 12 replicates per condition. (G) Binding density (mean ± s.e.m.) of wild-type dynein on microtubules with ATP-Vi in the absence (dark gray) or presence of Lis1WT (white) or Lis1E253A, H254A (orange). Data was normalized to a density of 1.0 in the absence of Lis1. Statistical analysis was performed using an ANOVA; ****p<0.0001; ***p=0.0001; ns = 0.9997. n = 12 replicates per condition. (H) Single-molecule velocity of dynein with increasing concentrations of Lis1. DyneinWT with Lis1WT (dark gray); dyneinWT with Lis1E253A, H254A (light gray); dyneinΔN3475, R3476 with Lis1WT (orange); dyneinΔN3475, R3476 and Lis1E253A, H254A (brown). The median and interquartile range are shown. Data was normalized to a velocity of 1.0 in the absence of Lis1. At least 400 single-molecule events were measured per condition.
We next characterized the biochemical properties of these mutations designed to disrupt yeast Lis1’s interaction with AAA5. We began by measuring the apparent binding affinity between a Lis1 dimer and a monomeric dynein motor domain. For these experiments, purified SNAP-tagged yeast Lis1 was covalently coupled to magnetic beads, mixed with purified yeast dynein motor domains in the presence of ADP, and the percentage of dynein bound to the beads was quantified. We found that mutations at the Lis1–AAA5 interface, either on Lis1 (Lis1E253A, H254A) or on dynein (dyneinΔN3475, ΔR3476), led to an ~1.75-fold decrease in the affinity of Lis1 for dynein (Figure 3E). Next, we looked at Lis1’s effect on dynein’s interaction with microtubules. Previously, we showed that tight microtubule binding by dynein in the presence of ATP is mediated by sitering, whereas Lis1-induced weak microtubule binding in the presence of ATP-Vi requires both sitering and sitestalk (DeSantis et al., 2017). For these experiments, we used purified yeast Lis1 dimers and truncated and GST-dimerized yeast dynein motors (Reck-Peterson et al., 2006). These GST-dynein dimers have been well characterized and behave similarly to full-length yeast dynein in vitro (Gennerich et al., 2007; Reck-Peterson et al., 2006). As expected for a mutation that would disrupt Lis1’s interaction at sitering, we found that Lis1E253A, H254A decreased Lis1’s ability to enhance the binding of dynein to microtubules in the presence of ATP (Figure 3F). In contrast, Lis1E253A, H254A did not affect Lis1’s ability to lower dynein’s affinity for microtubules in the presence of ATP-Vi (Figure 3G).
Finally, we measured the effect of disrupting the Lis1–AAA5 interaction on the velocity of dynein using a single-molecule motility assay. Unlike mammalian dynein, S. cerevisiae dynein moves processively in vitro in the absence of any other dynein subunits or cofactors (Reck-Peterson et al., 2006). We previously showed that addition of Lis1 to in vitro motility assays slows yeast dynein in a dose-dependent manner (Huang et al., 2012). Here, we found that in the absence of Lis1, dyneinΔN3475, ΔR3476 had a similar velocity to wild-type dynein, indicating that the mutation does not affect the motile properties of the motor (Figure 3H). In contrast, Lis1 was less effective at slowing the velocity of dyneinΔN3475, ΔR3476 compared to wild-type dynein. We observed a similar effect with Lis1E253A, H254A, which targets the same sitering interface, but from the Lis1 side (Figure 3H). Thus, the interaction of yeast Lis1 with dynein at AAA5 contributes to Lis1’s regulation of dynein at sitering.
Identification of yeast Lis1 mutations that specifically disrupt regulation at sitestalk
After interrogating the interaction between yeast Lis1 and dynein at sitering, we turned to sitestalk. Previously, we identified amino acids in yeast dynein’s stalk (E3012, Q3014, and N3018) that were required for the Lis1-mediated decrease in dynein’s affinity for microtubules in the presence of ATP-Vi (DeSantis et al., 2017). However, the resolution of our previous structure was not high enough to accurately dock in a homology model of the yeast Lis1 ß-propeller at this site. Our new structure revealed this interaction in molecular detail, showing a new contact between yeast Lis1 and dynein’s sitestalk involving a short loop in AAA4 of dynein (Figure 4A). To determine if this contact plays a role in yeast dynein regulation by Lis1, we mutated Ser248 in the endogenous copy of Lis1 to Gln to introduce a steric clash with the loop in dynein’s AAA4 (Figure 4A). In a nuclear segregation assay, yeast cells expressing Lis1S248Q at wild-type levels (Figure 3—figure supplement 1) showed a defect in nuclear segregation (Figure 4B). Thus, this new contact at sitestalk between AAA4 of dynein and Lis1 is also required for Lis1’s ability to regulate dynein in vivo.

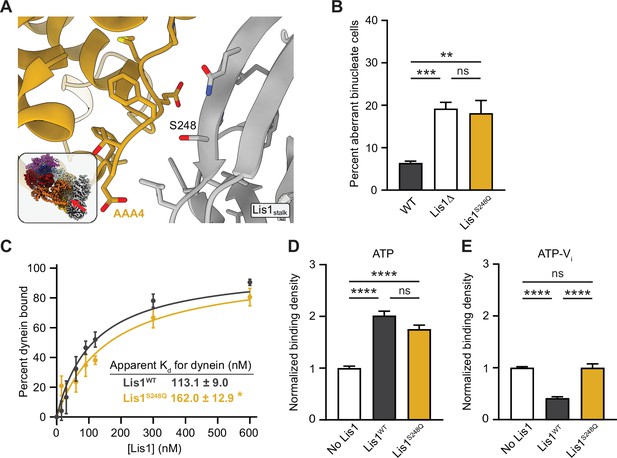

Lis1 regulation of dynein at sitestalk.
(A) Close-up view of the Lis1–dynein interface at sitestalk. The residues at the interface are shown, and the S248 mutated in this study is labeled. The inset shows the location of the close-up in the full structure. (B) Quantitation of the percentage of cells (mean ± s.e.m.) displaying an aberrant binucleate phenotype for WT (dark gray), Lis1 deletion (white), and Lis1S248Q (yellow). n = 6 replicates of at least 200 cells each per condition. Statistical analysis was performed with a one-way ANOVA with Tukey’s multiple comparison test; ***p=0.0009; **p=0.0028; ns, p=0.9908. WT and ΔLis1 data repeated from Figure 2. (C) Quantitation of the apparent binding affinity of dynein for Lis1WT (dark gray; Kd = 113.1 ± 9.0) and Lis1S248Q (yellow; Kd = 162.0 ± 12.9). n = 3 replicates per condition. Statistical analysis was performed using an extra sum-of-squares F-test; p=0.0022. (D) Binding density (mean ± s.e.m.) of wild-type dynein on microtubules with ATP in the absence (white) or presence of Lis1WT (dark gray) or Lis1S248Q (yellow). Data was normalized to a density of 1.0 in the absence of Lis1. Statistical analysis was performed using an ANOVA; ****p<0.0001; ns, p=0.0614. n = 12 replicates per condition. (E) Binding density (mean ± s.e.m.) of wild-type dynein on microtubules with ATP-Vi in the absence (white) or presence of Lis1WT (dark gray) or Lis1S248Q (yellow). Data was normalized to a density of 1.0 in the absence of Lis1. Statistical analysis was performed using an ANOVA; ****p<0.0001; ns, p>0.9999. n = 12 replicates per condition.
We next probed the role of this new contact in vitro. Since Ser248 is only involved in the interaction between Lis1 and sitestalk, Lis1S248Q should maintain its ability to bind to and regulate sitering. In agreement with this, we found that Lis1S248Q showed a moderate decrease in binding affinity for dynein monomers (Figure 4C). Similarly, Lis1S248Q remained capable of inducing tight microtubule binding in the presence of ATP (regulation at sitering) (Figure 4D), but failed to decrease microtubule binding in the presence of ATP-Vi (loss of regulation at sitestalk) (Figure 4E). This makes Lis1S248Q the first Lis1 mutant capable of specifically targeting regulation at sitestalk.
The interaction between the two yeast Lis1 ß-propellers is required for regulation at sitestalk
The resolution of our new structure allowed us to build models for yeast Lis1, revealing the interface between the two Lis1 ß-propellers when they are bound to dynein at both sitering and sitestalk (Figure 5A). The Lis1–Lis1 interface is moderately hydrophobic with a few electrostatic interactions. To test if this interface is required for dynein regulation in yeast, we aimed to disrupt it with the following mutations: F185D and I189D to introduce charge clashes, and R494A to remove a hydrogen bond. In a nuclear segregation assay, Lis1F185D, I189D, R494A, which is expressed at wild-type levels (Figure 3—figure supplement 1), resulted in a binucleate yeast cell phenotype that was comparable to that seen with deletion of Lis1 (Figure 5B). Thus, the interaction between Lis1 β-propellers is required for Lis1’s ability to regulate dynein in vivo.

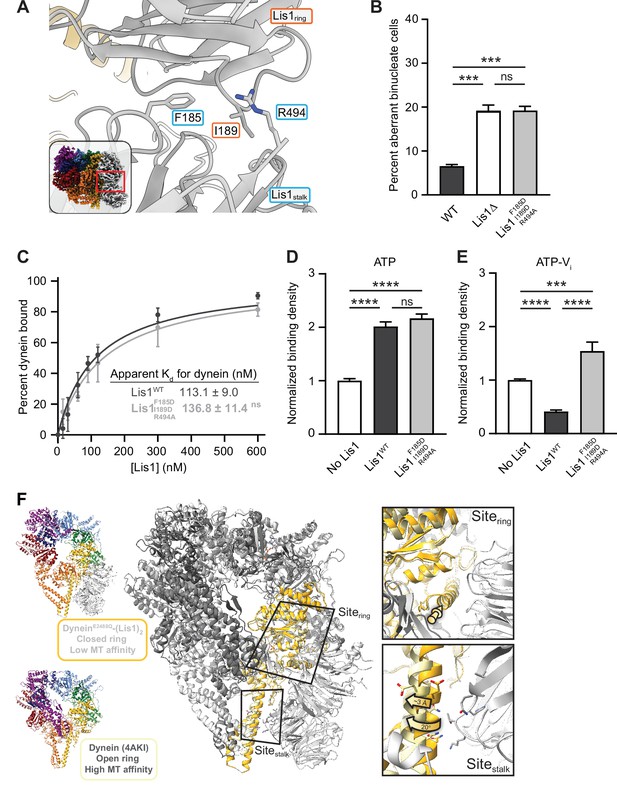

Role of the Lis1ring–Lis1stalk interaction in Lis1’s regulation of dynein.
(A) Close-up of the interface between the two Lis1 ß-propellers. The residues mutated in this study are indicated. The inset shows the location of the close-up in the full structure. (B) Quantitation (mean ± s.e.m.) of the percentage of cells displaying an aberrant binucleate phenotype for WT (dark gray), ΔLis1 (white), and Lis1F185D, I189D, R494A (light gray). n = 6 replicates of at least 200 cells each per condition. Statistical analysis was performed with a one-way ANOVA with Tukey’s multiple comparison test; *** WT and ΔLis1, p=0.0009; ***WT and Lis1 F185D, I189D, R494A, p=0.0008; ns, p>0.9999. WT and ΔLis1 data repeated from Figure 2. (C) Quantitation of the binding affinity of dynein for Lis1WT (dark gray; Kd = 113.1 ± 9.0) and Lis1F185D, I189D, R494A (light gray; Kd = 136.8 ± 11.4). n = 3 replicates per condition. Statistical analysis was performed using an extra sum-of-squares F-test; p=0.0974. Binding affinity of dynein for Lis1WT repeated from Figure 2. (D) Binding density (mean ± s.e.m.) of wild-type dynein on microtubules with ATP in the absence (white) or presence of Lis1WT (dark gray) or Lis1F185D, I189D, R494A (light gray). Data was normalized to a density of 1.0 in the absence of Lis1. Statistical analysis was performed using an ANOVA; ****p<0.0001; ns, p=0.4445. n = 12 replicates per condition. (E) Binding density (mean ± s.e.m.) of wild-type dynein on microtubules with ATP-Vi in the absence (dark gray) or presence of Lis1WT (white) or Lis1F185D, I189D, R494A (light gray). Data was normalized to a density of 1.0 in the absence of Lis1. Statistical analysis was performed using an ANOVA; ****p<0.0001; ***p=0.0002. n = 12 replicates per condition. (F) Comparison between the structures of the dynein–(Lis1)2 complex (this work; dynein colored light gray and dark yellow), where dynein’s ring is in its closed conformation (low affinity for the microtubule), and of dynein with its ring in the open conformation (high affinity for the microtubule; PDB: 4AKI; dynein colored dark gray and light yellow; Schmidt et al., 2012; left). The two structures were aligned using the globular portion of AAA4, where sitering is located, and the two Lis1 ß-propellers from the dynein–(Lis1)2 structure are shown. Close-ups of sitering and sitestalk (right) show that while the alpha helix to which Lis1 binds at sitering is in a very similar position in both structures (top, yellow arrow), sitestalk has shifted by ~3 Å and rotated by 20° away from where Lis1Stalk would be located (bottom).
In vitro, Lis1F185D, I189D, R494A has an affinity for dynein comparable to that of wild-type Lis1 (Figure 5C). In microtubule binding assays, this mutant showed no defects in its ability to stimulate tight microtubule binding by dynein in the presence of ATP (regulation at sitering) (Figure 5D). In contrast, not only did Lis1F185D, I189D, R494A lose its ability to decrease dynein’s affinity for microtubules in the presence of ATP-Vi (loss of regulation at sitestalk), it increased it (Figure 5E). This behavior was most similar to what we had previously observed when we mutated dynein’s sitestalk (E3012A, Q3014A, N3018A), a mutation that also led to a Lis1-dependent increase in microtubule binding in the presence of ATP-Vi (DeSantis et al., 2017). Thus, our data show that regulation of dynein at sitestalk requires both binding at sitestalk, which would not be disrupted in Lis1F185D, I189D, R494A, and the interaction between Lis1’s ß-propellers, which would.
Given the importance of the Lis1–Lis1 interaction for Lis1’s regulation of dynein at sitestalk, we wondered what prevents Lis1 from binding there when dynein’s ring is in its open conformation (high affinity for the microtubule) as our data showed that this interaction plays no role in Lis1’s regulation at sitering. A comparison of our structure of dyneinE2488Q –(Lis1)2 (with dynein’s ring in its closed conformation) with that of yeast dynein in an open-ring conformation (PDB: 4AKI; Schmidt et al., 2012) showed that while sitering is very similar in both structures, sitestalk has shifted ~3 Å and rotated 20° away from where Lis1stalk would be located (Figure 5F). This suggests that the interaction between the two Lis1 ß-propellers prevents Lis1 from binding to dynein at sitestalk when dynein is in its open-ring state (high affinity for the microtubule), as we had hypothesized previously (DeSantis et al., 2017).
Yeast dynein–Lis1 and Lis1–Lis1 contacts are required for dynein to reach the cortex
Next, we wanted to determine how Lis1 binding to dynein at sitering and sitestalk, as well as the Lis1–Lis1 interface, contributed to dynein’s localization in yeast cells (Figure 6A and B). Yeast dynein is active at the cell cortex (Figure 6A, right panel), where it pulls on spindle pole body (SPB)-anchored microtubules to position the mitotic spindle (Adames and Cooper, 2000). Dynein reaches the cortex by localizing to microtubule plus ends either via kinesin-dependent transport or recruitment from the cytosol (Carvalho et al., 2004; Caudron et al., 2008; Markus et al., 2009). In yeast, Lis1 is required for dynein’s localization to SPBs, microtubule plus ends, and the cell cortex (Lee et al., 2003; Li et al., 2005; Markus et al., 2009; Markus and Lee, 2011; Sheeman et al., 2003). To interrogate dynein’s localization in each of the Lis1 mutant backgrounds, the endogenous copy of dynein was labeled at its carboxy terminus with 3xGFP in cells with fluorescently labeled microtubules (CFP-TUB1) and SPBs (SPC110-tdTomato) (Markus et al., 2009; Figure 6C, Figure 6—figure supplement 1). We then determined the number of dynein foci per cell that were found at SPBs (Figure 6D), microtubule plus ends (Figure 6E), or the cell cortex (Figure 6F). As observed previously, deletion of Lis1 causes a significant decrease in dynein foci at all three sites (Figure 6D–F). Mutation of sitering (Lis1E253A, H254A) also showed a significant decrease in dynein foci at all three sites and was not significantly different than the Lis1 deletion strain (Figure 6D–F). Mutation of sitestalk (Lis1S248Q) or the Lis1–Lis1 interface (Lis1F185D, I189D, R494A) showed intermediate phenotypes for dynein localization to SPBs or the cortex (Figure 6D and F). In contrast, the sitestalk mutant is the only Lis1 mutant with no defect in dynein’s localization to microtubule plus ends (Figure 6E), making Lis1S248Q a separation-of-function mutant that could be a useful tool to further understand the mechanism of dynein regulation by Lis1. Overall, our analysis of these new Lis1 mutants supports a role for sitering, sitestalk and the Lis1–Lis1 interface in localizing dynein to the cell cortex, where active dynein is complexed with dynactin and Num1.

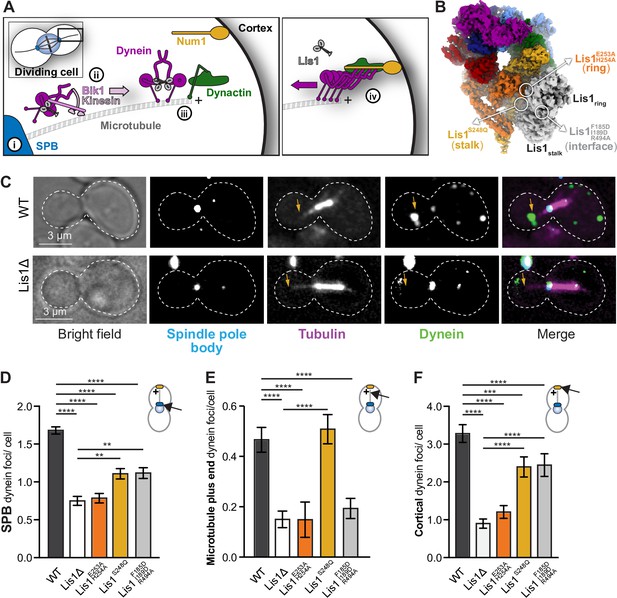

Lis1 binding sites on dynein have different roles in the localization of active dynein complexes.
(A) Schematic showing the sites of dynein localization in dividing yeast cells. At steady state, dynein is found at the spindle pole body (SPB [i]), the microtubule plus end (ii), and the cell cortex (iii). Cortex-associated dynein, which is associated with dynactin and the putative activating adaptors Num1, is active and pulls on SPB-attached microtubules to position the mitotic spindle (iv). (B) Our structure showing the location of the mutations that disrupt Lis1 binding at sitering, sitestalk, and the Lis1:Lis1 interface. (C) Example images of dynein localization in dividing yeast cells. Orange arrowheads point to microtubule plus ends. (D–F) Quantification of dynein localization. Bar graphs show the average number of dynein foci per cell localized to the SPB (D), microtubule plus end (E), and cortex (F) in wild type, Lis1Δ, Lis1E253A, H254A, Lis1S248Q, and Lis1F185D, I189D, R494A yeast strains. Statistical analysis was performed using a Kruskal–Wallis test; ****p<0.0001; ***p=0.0001; ns, p>0.9999. n = 120 cells per condition.
Yeast Lis1 regulates dynein beyond the relief of its autoinhibited state
Recent experiments revealed that dynein mutations that disrupt its ability to form the autoinhibited Phi conformation genetically rescue phenotypes seen when Lis1 is mutated or deleted (Marzo et al., 2020; Qiu et al., 2019), suggesting that a crucial in vivo role for Lis1 is to relieve dynein autoinhibition. To understand what other roles Lis1 may have in vivo, we made a Phi-disrupting dynein mutant (dyneinD2868K) (Marzo et al., 2020) in the endogenous copy of yeast dynein and compared its phenotype to wild-type cells, cells bearing a Lis1E253A, H254A mutation (which disrupts Lis1 binding at sitering), and cells with both the dyneinD2868K and Lis1E253A, H254A mutations. We chose to perform this analysis with the sitering Lis1 mutation because this site regulates tight microtubule binding in vitro. First, we examined the in vivo phenotype of these strains by performing nuclear segregation assays. As reported above, Lis1E253A, H254A increases the percentage of binucleate cells (Figures 3C and 7A). However, introducing the dynein Phi-disrupting mutation (dyneinD2868K) into this background rescues the phenotype (Figure 7A). Does Lis1 have any additional roles in regulating yeast dynein in vivo beyond relieving its autoinhibited state? To address this, we examined dynein’s localization in live yeast cells bearing the dyneinD2868K or Lis1E253A, H254A mutations, or both, and quantified the number of dynein cortical foci per cell (Figure 7B and C). As reported previously (Marzo et al., 2020), we found that the Phi-disrupting dynein mutation, dyneinD2868K, results in a significant increase in dynein foci at the cell cortex. In contrast, when dyneinD2868K was combined with Lis1E253A, H254A we found that the number of dynein cortical foci per cell was decreased relative to dyneinD2868K alone (Figure 7B and C). This suggests that binding of Lis1 to dynein at sitering has an additional role in regulating dynein that is downstream of relieving dynein autoinhibition. We note that in published work using more sensitive in vivo assays dynein mutants that relieve autoinhibition cannot fully suppress loss of Lis1 in A. nidulans or S. cerevisiae (Marzo et al., 2020; Qiu et al., 2019), further supporting the idea that Lis1 has additional roles beyond relieving dynein’s autoinhibition.

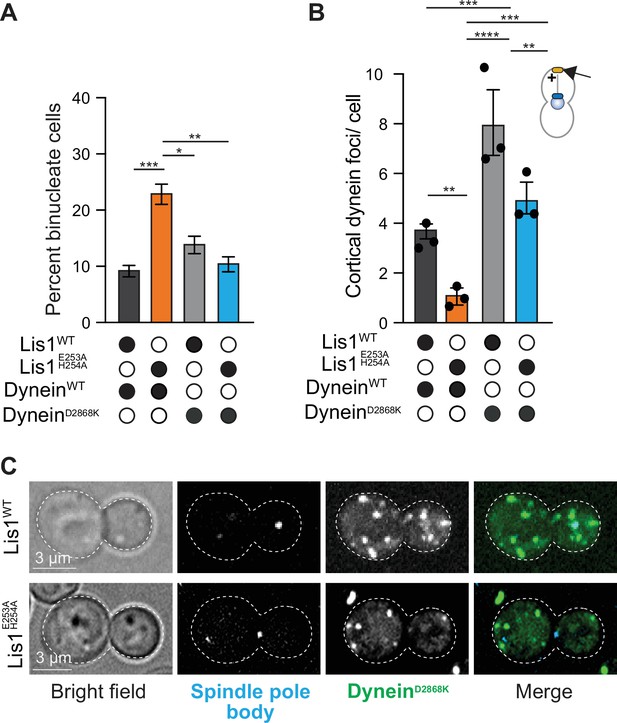

Yeast Lis1 regulates dynein beyond the relief of its autoinhibited state.
(A) Quantitation of the percentage of cells (mean ± s.e.m.) displaying an aberrant binucleate phenotype for WT dynein and Lis1 (dark gray), WT dynein and Lis1 E253A, H254A (orange), dynein mutated to relieve Phi autoinhibition (dyneinD2868K) and Lis1 (gray), and dyneinD2868K, Lis1 E253A, H254A (blue). n = 4 replicates of at least 200 cells per condition. Statistical analysis was performed with a one-way ANOVA with Tukey’s multiple comparison test; ***p=0.001; **p=0.0025; *p=0.036; all comparisons that are not labeled were not significant. (B) Quantification of dynein localization to the cortex. Bar graphs show the average number of dynein foci per cell localized to the cortex in WT dynein and Lis1 (dark gray), WT dynein and Lis1 E253A, H254A (orange), DyneinD2868K and Lis1 (gray), and DyneinD2868K and Lis1 E253A, H254A (blue). Statistical analysis was performed with a one-way ANOVA with Tukey’s multiple comparison test; ****p<0.0001; ***p=0.0002, and p=0.0003; **p=0.0028 and 0.0025; all comparisons that are not labeled were not significant. n = 120 cells per condition, three replicates. (C) Example images of dyneinD2868K-3xGFP localization in LisWT and Lis1E E253A, H254A dividing yeast cells.
sitering and sitestalk are important for Lis1’s role in assembling active human dynein complexes
Next, we wondered whether sitering and sitestalk were also important for dynein to form complexes with dynactin and an activating adaptor. To do this, we turned to an assay using human proteins, where Lis1 enhances the formation of dynein–dynactin–activating adaptor complexes that contain two dynein dimers, which move faster than complexes containing a single dynein dimer (Elshenawy et al., 2020; Grotjahn et al., 2018; Htet et al., 2020; Urnavicius et al., 2018; Figure 1A). To determine if human Lis1 binding to human dynein at sitering and sitestalk was important for forming these fast-moving complexes, we mutated human dynein at both sitering (K2898A, E2902G, E2903S, and E2904G) and sitestalk (E3196A, Q3198A, and N3202A) (Figure 8A); we will refer to this mutant as dyneinmut. We purified wild-type and mutant human dynein from baculovirus-infected insect cells expressing all of the dynein chains (Schlager et al., 2014) and measured the affinity of dyneinWT and dyneinmut for human Lis1. For these experiments, purified human Halo-tagged Lis1 was covalently coupled to magnetic beads, mixed with purified human dynein, and the percentage of dynein bound to the beads was quantified. Lis1 bound to dyneinmut with an apparent Kd that was nearly threefold weaker than that for dyneinWT (Figure 8B). The fact that these mutations do not completely abolish the dynein–Lis1 interaction raises that possibility that there are additional sites of dynein–Lis1 interaction and/or that there are other contacts between dynein and Lis1 at sitering and sitestalk in the human system that are not conserved in yeast.

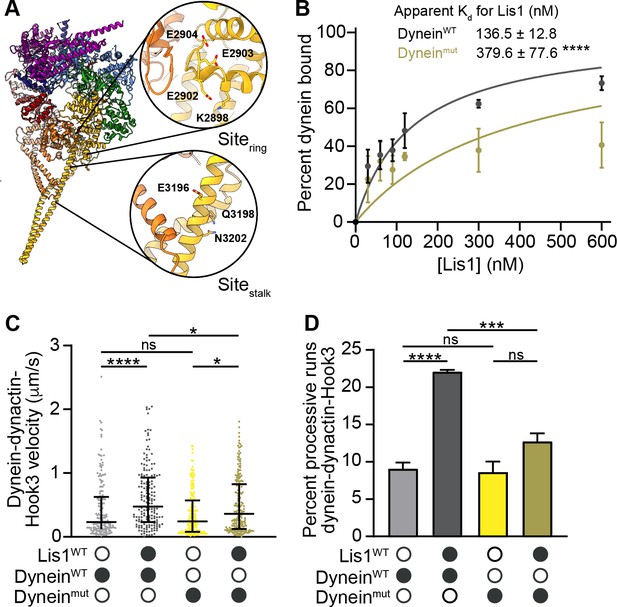

sitering and sitestalk are important for Lis1’s ability to increase dynein velocity.
(A) Structure of the human dynein motor domain (PDB: 5NUG) (Zhang et al., 2017) highlighting residues mutated at sitering and sitestalk. (B) Quantitation of the binding affinity of human Lis1 for dyneinWT (dark gray; Kd = 136.5 ± 12.8) and Dyneinmut (dark yellow; Kd = 379.6 ± 77.6). n = 3 replicates per condition. Statistical analysis was performed using an extra sum-of-squares F-test; p=0.0001. (C) Single-molecule velocity of human dynein–dynactin–Hook3 complexes formed with dyneinWT (shades of gray) or dyneinmut (shades of yellow) in the absence or presence of 300 nM Lis1. Black circles indicate presence of a component in the assay, while white circles indicate the absence of a component. The median and interquartile range are shown. Statistical analysis was performed with a Kruskal–Wallis test; ****p<0.0001; *dyneinmut in the presence and absence of Lis1 p=0.0190; *dyneinWT and dyneinmut in the presence of Lis1, p=0.0231; ns, p>0.9999. At least 150 single-molecule events were measured per condition. (D) Percentage (mean ± s.e.m.) of processive runs of dynein–dynactin–Hook3 complexes formed with dyneinWT (shades of gray) or dyneinmut (shades of yellow) in the absence or presence of 300 nM Lis1. n = 3 replicates per condition with each replicate including at least 200 individual single-molecule events. Black circles indicate presence of a component in the assay, while white circles indicate the absence of a component. Statistical analysis was performed with an ANOVA; ****p<0.0001; ***p=0.0008; ns, dyneinmut in the presence and absence of Lis1, p=0.0755; ns, dyneinWT and dyneinmut in the absence of Lis1, p=0.9883.
We next examined the single-molecule motility properties of dyneinWT and dyneinmut, complexed with human dynactin and the activating adaptor Hook3. Complexes containing dyneinmut moved at the same velocity and showed the same percentage of processive runs when compared to dyneinWT in the absence of Lis1 (Figure 8C and D). As was shown previously (Elshenawy et al., 2020; Htet et al., 2020), the velocity of dyneinWT was significantly increased by Lis1 (Figure 8C), as were the number of processive runs (Figure 8D). In contrast, dyneinmut’s velocity was only modestly increased by Lis1 (Figure 8C) and the percentage of processive runs did not significantly increase (Figure 8D). We observed a similar trend with dynein–dynactin complexes activated by BicD2 (Figure 8—figure supplement 1A). These results mirror our previous findings using a Lis1 mutant containing five point mutations (Lis15A: R212A, R238A, R316A, W340A, K360A) (Htet et al., 2020). Here, we repeated this experiment using the same proteins we used for the dyneinmut experiments and find that Lis15A and dyneinmut have similar defects in Lis1 regulation of dynein (Figure 8—figure supplement 1B and C). These data indicate that sitering and sitestalk are important for Lis1’s role in forming the activated human dynein–dynactin–activating adaptor complex.
Discussion
Previous structures of yeast dynein–Lis1 complexes (DeSantis et al., 2017; Toropova et al., 2014) were not of high enough resolution to reliably fit homology models based on the human Lis1 structure (Tarricone et al., 2004). Here, we report the first high-resolution structure of yeast cytoplasmic dynein-1E2488Q bound to Lis1, which allowed us to build an atomic model (Figure 1). The structure revealed the details of the interactions between the Lis1 ß-propellers and its two binding sites on dynein, as well as how the two ß-propellers interact with each other. Our earlier work had identified the main binding sites on yeast dynein (DeSantis et al., 2017), but not their molecular details or their counterparts on Lis1. Our previous work with wild-type human dynein and Lis1 showed that Lis1 binds to dynein at similar sites in both systems (Htet et al., 2020). The much higher resolution of our current structure also revealed additional contacts between Lis1 and dynein that were not apparent in previous cryo-EM maps; these involve interactions at sitering between Lis1 and a loop in dynein’s AAA5 domain (Figure 1E) and at sitestalk between Lis1 and a loop in dynein’s AAA4 domain (Figure 1F). Finally, being able to visualize the interface between the two Lis1 ß-propellers (Figure 1G) allowed us to test its role in the regulation of dynein by Lis1. Critical to achieving high resolution was the use of specialized streptavidin affinity grids (Han et al., 2016; Han et al., 2012; Lahiri et al., 2019), which helped overcome the preferred orientation of the sample, a major resolution-limiting factor in cryo-EM.
We used our new structure to guide mutagenesis of both yeast and human proteins to determine if the new contact sites we identified were important for dynein regulation by Lis1 in vitro and in vivo. Mutation of these sites at the endogenous alleles of yeast dynein and Lis1 revealed that they are all important for dynein and Lis1’s in vivo function in mitotic spindle positioning, which ultimately leads to nuclear segregation following mitosis. We also found that Lis1 binding to dynein at sitering and sitestalk, and the Lis1–Lis1 interface were required for dynein to reach the cell cortex, the site where active yeast dynein–dynactin complexes interact with the candidate activating adaptor, Num1 (Figure 9; Heil-Chapdelaine et al., 2000; Lammers and Markus, 2015; Lee et al., 2003; Sheeman et al., 2003).

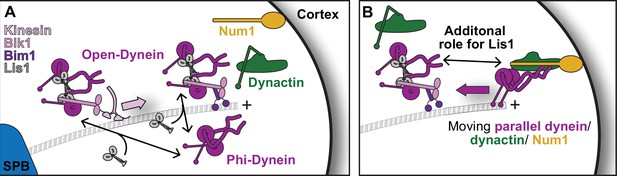

Model for Lis1 regulation of yeast dynein.
(A) Model of dynein regulation by Lis1 in S. cerevisiae. In S. cerevisiae, dynein arrives at microtubule plus ends either via transport by kinesin in a complex that contains Lis1 or by recruitment from the cytoplasm. Dynein that is recruited from the cytoplasm is most likely in a Phi conformation. Lis1 binding to dynein, either in the kinesin transport complex or at microtubule plus ends, would favor an open conformation of dynein. (B) Our mutant analysis suggests that Lis1 has an additional role in dynein regulation after it disrupts Phi autoinhibition by binding to dynein at sitering. Ultimately, dynein interacts with the candidate activating adaptor, Num1, on the cortex and Lis1 is released. We have opted to draw only a single dynein dimer in this complex as it is not known if these complexes contain one or two dynein dimers in yeast.
Our work also shows that the interaction of dynein and Lis1 at both sitering and sitestalk is important for the formation of active human dynein–dynactin–activating adaptor complexes containing either the Hook3 or BicD2-activating adaptors. Previously, we and others found that Lis1 was also important for the formation of activated dynein complexes containing the activating adaptors Ninl and BicDL1 (also called BicDR1) (Elshenawy et al., 2020; Htet et al., 2020). More recent work by us and others showed that the activating adaptors TRAK2 and Hook2 are almost completely reliant on Lis1 for complex formation (Christensen et al., 2021; Fenton et al., 2021). Thus, it is likely that this role for Lis1 in complex assembly, and Lis1 binding to dynein at sitering and sitestalk, will be required for dynein complex formation driven by other activating adaptors. The importance of sitering and sitestalk in both human and yeast dynein activation supports a conserved mode of Lis1 regulation of dynein.
How does Lis1 promote dynein–dynactin–activating adaptor complex assembly? Our structure of a dyneinE2488Q–(Lis1)2 complex shows that binding of Lis1 to dynein at sitering is sterically incompatible with formation of the autoinhibited Phi conformation of dynein (Zhang et al., 2017). Based on our lower resolution structures (DeSantis et al., 2017), we and others (Canty and Yildiz, 2020; Elshenawy et al., 2020; Htet et al., 2020; Markus et al., 2020; Marzo et al., 2020; Qiu et al., 2019; Xiang and Qiu, 2020) had proposed that Lis1 binding to dynein at sitering may shift the equilibrium from the Phi to an open conformation of dynein, ultimately allowing dynein complexes to assemble with dynactin and an activating adaptor (Figure 9). In yeast, dynein can be recruited to microtubule plus ends either via transport by a kinesin, Kip2 (Carvalho et al., 2004; Caudron et al., 2008; Markus et al., 2009), or by recruitment from the cytosol (Caudron et al., 2008; Markus et al., 2009). We propose that cytosolic dynein is in a Phi conformation, while dynein in the kinesin transport complex or at microtubule plus ends is no longer in its autoinhibited state (Figure 9A). The kinesin transport complex contains Lis1 (Roberts et al., 2014), and Lis1 is also required for dynein’s plus end localization (Lee et al., 2003; Sheeman et al., 2003).
Does Lis1 play additional roles in dynein complex assembly beyond disrupting dynein’s autoinhibited conformation? In our nuclear segregation assays, Phi disrupting mutants in yeast dynein completely rescued the nuclear segregation defects seen with a sitering Lis1 mutation (Figure 7). However, in more sensitive in vivo assays in both Aspergillus and yeast, Phi disrupting dynein mutants did not completely rescue Lis1 mutations or deletion (Marzo et al., 2020; Qiu et al., 2019). In addition, we showed previously that the presence of Lis1 increased the percentage of dynein–dynactin–activating adaptor complexes that contained two dynein dimers using human proteins in vitro (Htet et al., 2020). Using a Phi-disrupting dynein mutant in these assays with human proteins decreased, but did not completely abolish the requirement for Lis1 (Htet et al., 2020). Together, these experiments suggest that Lis1 may have additional roles in dynein complex assembly beyond disrupting dynein’s autoinhibited Phi conformation. In support of this, we showed here that a Phi-disrupting mutation in dynein was less efficient in reaching the cell cortex (where dynein is active) when Lis1 mutated at sitering was present in the same genetic background (Figure 7). This suggests that the contact between dynein and Lis1 at sitering has an additional role in regulating dynein downstream of autoinhibition relief (Figure 9B). This additional role of Lis1 could be promoting further conformational changes in dynein. Our data suggest that there could be a role for Lis1’s modulation of dynein’s microtubule binding affinity in this process as mutations at sitering (which normally promotes tight microtubule binding) lead to less Phi-disrupted dynein reaching the cortex. While dynein’s microtubule binding domain is not required to reach the cortex (Lammers and Markus, 2015), our data suggest some role for microtubule binding in this process. Assembling active dynein–dynactin–activating adaptor complexes likely involves multiple steps, and the many in vitro phenotypes described for Lis1’s regulation of dynein, such as the nucleotide-specific affects at AAA3 (DeSantis et al., 2017; Qiu et al., 2021), may be providing mechanistic hints about these steps. This will be an important area to investigate in the future.
Overall, this work and that of others suggests that the field is coalescing around a unified model for dynein regulation of Lis1 across species (Canty and Yildiz, 2020; Elshenawy et al., 2020; Htet et al., 2020; Markus et al., 2020; Marzo et al., 2020; Qiu et al., 2019; Xiang and Qiu, 2020).
Materials and methods
Yeast strain construction
Request a detailed protocolThe S. cerevisiae strains used in this study are listed in Supplementary file 1. The endogenous genomic copies of DYN1 and PAC1 (encoding the dynein heavy chain and Lis1, respectively) were modified or deleted using PCR-based methods as previously described (Longtine et al., 1998). Transformations were performed using the lithium acetate method and screened by colony PCR. Point mutants were generated using QuikChange site-directed mutagenesis (Agilent) and verified by DNA sequencing.
Nuclear segregation assay
Request a detailed protocolLog-phase S. cerevisiae cells growing at 30°C were transferred to 16°C for 16 hr. Cells were fixed with 75% ethanol and stained with DAPI. Imaging was performed using a ×100 Apo TIRF NA 1.49 objective on a Nikon Ti2 microscope with a Yokogawa-X1 spinning disk confocal system, MLC400B laser engine (Agilent), Prime 95B back-thinned sCMOS camera (Teledyne Photometrics), and a piezo Z-stage (Mad City Labs). The percentage of aberrant binucleate cells was calculated as the number of binucleate cells divided by the sum of wild-type and binucleate cells. Six (Figures 3C—5), four (Figure 7A), or three (Figure 3D) biological replicates were performed from independent cultures for each condition.
Live-cell imaging
Request a detailed protocolMid log-phase S. cerevisiae cells were mounted on an agarose pad made from SC media. For Figures 6 and 7, live cells endogenously modified to express fluorescently labeled DYN1-3XGFP, CFP-TUB1, and SPC110-tdTomato were imaged using a Yokogawa W1 confocal scanhead mounted to a Nikon Ti2 microscope with an Apo TIRF 100 × 1.49 NA objective. The microscope was run with NIS Elements using the 488 nm and 561 nm lines of a six-line (405 nm, 445 nm, 488 nm, 515 nm, 561 nm, and 640 nm) LUN-F-XL laser engine and Prime95B cameras (Photometrics). The localization of DYN1-3XGFP foci was assessed and the number of foci on each location (SPB, microtubule plus end, and cell cortex) was counted.
Cloning, plasmid construction, and mutagenesis
Request a detailed protocolThe pDyn1 plasmid (the pACEBac1 expression vector containing insect cell codon-optimized dynein heavy chain [DYNC1H1] fused to a His-ZZ-TEV tag on the amino-terminus and a carboxy-terminal SNAPf tag [New England Biolabs]) and the pDyn2 plasmid (the pIDC expression vector with codon optimized DYNC1I2, DYNC1LI2, DYNLT1, DYNLL1, and DYNLRB1) were recombined in vitro with a Cre recombinase (New England Biolabs) to generate the pDyn3 plasmid. The presence of all six dynein chains was verified by PCR. pDyn1, pDyn2, and the pFastBac plasmid with codon-optimized human full-length Lis1 (PAFAH1B1) fused to an amino-terminal His-ZZ-TEV tag was a gift from Andrew Carter (LMB-MRC, Cambridge, UK). The Hook3 construct contained amino acids 1–552 and was obtained as described previously (Redwine et al., 2017). Activating adaptors were fused to a ZZ-TEV-HaloTag (Promega) on the amino-terminus and inserted into a pET28a expression vector. All additional tags were added via Gibson assembly, and all mutations and truncations were made via site-directed mutagenesis (Agilent).
S. cerevisiae immunoprecipitations and western blots
Request a detailed protocolLog-phase S. cerevisiae cells grown at 30°C were pelleted at 4000 × g and frozen using liquid nitrogen. Liquid nitrogen-frozen yeast cell pellets were lysed by grinding in a chilled coffee grinder and resuspended in DLB (30 mM HEPES [pH 7.4], 50 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 10% glycerol, 1 mM DTT) supplemented with 1 mM Pefabloc, 0.2% Triton, cOmplete EDTA-free protease inhibitor cocktail tablet (Roche), and 1 mM Pepstatin A (Cayman Chemical Company). The lysate was clarified by centrifuging at 50,000 × g for 1 hr. The protein concentration of the clarified supernatants was quantified using a Bradford Protein Assay (Bio-Rad), and equal amounts of clarified lysates were incubated with either ANTI-FLAG M2 Affinity Gel (Sigma) or Anti-GFP nanobody beads (made in house) for 2 hr at 4°C. Beads were washed with DLB buffer, boiled in SDS sample buffer and loaded onto an NuPAGE Bis-Tris gel (Invitrogen). Gels were transferred to a PVDF membrane that was blocked with PBS-T (PBS1X and 0.1% Tween-20) containing 5% milk and 1% BSA for 1 hr at room temperature and blotted with either a rabbit anti-FLAG antibody (1:3000; Proteintech 20543-1-AP) or a mouse anti-GFP antibody (1:3000; Santa Cruz sc-9996) overnight at 4°C. Membranes were then incubated with goat-anti rabbit IRDye 800RD or goat anti-mouse IRDye 680RD secondary antibodies (LI-COR), respectively, and were scanned with a LI-COR Odyssey imaging system.
S. cerevisiae protein purification
Request a detailed protocolProtein purification steps were done at 4°C unless otherwise indicated. Dynein constructs were purified from S. cerevisiae using a ZZ tag as previously described (Reck-Peterson et al., 2006). Briefly, liquid nitrogen-frozen yeast cell pellets were lysed by grinding in a chilled coffee grinder and resuspended in dynein lysis buffer (DLB: 30 mM HEPES [pH 7.4], 50 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 10% glycerol, 1 mM DTT) supplemented with 0.1 mM Mg-ATP, 0.5 mM Pefabloc, 0.05% Triton, and cOmplete EDTA-free protease inhibitor cocktail tablet (Roche). The lysate was clarified by centrifuging at 264,900 × g for 1 hr or at 125,100 × g for 2 hr. The clarified supernatant was incubated with IgG Sepharose beads (GE Healthcare Life Sciences) for 1 hr. The beads were transferred to a gravity flow column, washed with DLB buffer supplemented with 250 mM potassium chloride, 0.1 mM Mg-ATP, 0.5 mM Pefabloc and 0.1% Triton, and with TEV buffer (10 mM Tris–HCl [pH 8.0], 150 mM potassium chloride, 10% glycerol, 1 mM DTT, and 0.1 mM Mg-ATP). GST-dimerized dynein constructs were labeled with 5 mM Halo-TMR (Promega) in the column for 10 min at room temperature, and the unbound dye was washed away with TEV buffer at 4°C. Dynein was cleaved from IgG beads via incubation with 0.15 mg/mL TEV protease (purified in the Reck-Peterson lab) for 1 hr at 16°C. For dynein monomer constructs, the TEV cleavage step was done overnight at 4°C and the cleaved proteins were concentrated using 100K MWCO concentrator (EMD Millipore). Cleaved proteins were filtered by centrifuging with Ultrafree-MC VV filter (EMD Millipore) in a tabletop centrifuge and flash frozen in liquid nitrogen.
Lis1 constructs were purified from S. cerevisiae using their His8 and ZZ tags as previously described (Huang et al., 2012). Lysis and clarification steps were similar to dynein purification except for the lysis buffer used was buffer A (50 mM potassium phosphate [pH 8.0], 150 mM potassium acetate, 150 mM sodium chloride, 2 mM magnesium acetate, 5 mM β-mercaptoethanol, 10% glycerol, 0.2% Triton, 0.5 mM Pefabloc) supplemented with 10 mM imidazole (pH 8.0) and cOmplete EDTA-free protease inhibitor cocktail tablet. The clarified supernatant was incubated with Ni-NTA agarose (QIAGEN) for 1 hr. The Ni beads were transferred to a gravity column, washed with buffer A + 20 mM imidazole (pH 8.0), and eluted with buffer A + 250 mM imidazole (pH 8.0). The eluted protein was incubated with IgG Sepharose beads for 1 hr. IgG beads were transferred to a gravity flow column, washed with buffer A + 20 mM imidazole (pH 8.0) and with modified TEV buffer (50 mM Tris–HCl [pH 8.0], 150 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 10% glycerol, 1 mM DTT). Lis1 was cleaved from the IgG beads via incubation with 0.15 mg/mL TEV protease (purified in the Reck-Peterson lab) for 1 hr at 16°C. Cleaved proteins were filtered by centrifuging with Ultrafree-MC VV filter (EMD Millipore) in a tabletop centrifuge and flash frozen in liquid nitrogen.
Human protein purification
Request a detailed protocolHuman full-length dynein, human dynein monomer, and human Lis1 constructs were expressed in Sf9 cells as described previously (Baumbach et al., 2017; Htet et al., 2020; Schlager et al., 2014). Briefly, the pDyn3 plasmid containing the human dynein genes or the pFastBac plasmid containing full-length Lis1 was transformed into DH10EmBacY chemically competent cells with heat shock at 42°C for 15 s followed by incubation at 37°C for 5 hr in S.O.C media (Thermo Fisher Scientific). The cells were then plated on LB-agar plates containing kanamycin (50 μg/mL), gentamicin (7 μg/mL), tetracycline (10 μg/mL), BluoGal (100 μg/mL), and IPTG (40 μg/mL), and positive clones were identified by a blue/white color screen after 48 hr. For full-length human dynein constructs, white colonies were additionally tested for the presence of all six dynein genes using PCR. These colonies were then grown overnight in LB medium containing kanamycin (50 μg/mL), gentamicin (7 μg/mL), and tetracycline (10 μg/mL) at 37°C. Bacmid DNA was extracted from overnight cultures using an isopropanol precipitation method as described previously (Zhang et al., 2017). 2 mL of Sf9 cells at 0.5 × 106 cells/mL were transfected with 2 µg of fresh bacmid DNA and FuGene HD transfection reagent (Promega) at a 3:1 transfection reagent to DNA ratio according to the manufacturer’s instructions. After 3 days, the supernatant containing the ‘V0’ virus was harvested by centrifugation at 200 × g for 5 min at 4°C. To generate ‘V1,’ 1 mL of the V0 virus was used to transfect 50 mL of Sf9 cells at 1 × 106 cells/mL. After 3 days, the supernatant containing the V1 virus was harvested by centrifugation at 200 × g for 5 min at 4°C and stored in the dark at 4°C until use. For protein expression, 4 mL of the V1 virus were used to transfect 400 mL of Sf9 cells at 1 × 106 cells/mL. After 3 days, the cells were harvested by centrifugation at 3000 × g for 10 min at 4°C. The pellet was resuspended in 10 mL of ice-cold PBS and pelleted again. The pellet was flash frozen in liquid nitrogen and stored at –80°C.
Protein purification steps were done at 4°C unless otherwise indicated. Full-length dynein and dynein monomer were purified from frozen Sf9 pellets transfected with the V1 virus as described previously (Schlager et al., 2014). Frozen cell pellets from a 400 mL culture were resuspended in 40 mL of Dynein-lysis buffer (50 mM HEPES [pH 7.4], 100 mM sodium chloride, 1 mM DTT, 0.1 mM Mg-ATP, 0.5 mM Pefabloc, 10% [v/v] glycerol) supplemented with 1 cOmplete EDTA-free protease inhibitor cocktail tablet (Roche) per 50 mL and lysed using a Dounce homogenizer (10 strokes with a loose plunger and 15 strokes with a tight plunger). The lysate was clarified by centrifuging at 183,960 × g for 88 min in Type 70 Ti rotor (Beckman). The clarified supernatant was incubated with 4 mL of IgG Sepharose 6 Fast Flow beads (GE Healthcare Life Sciences) for 3–4 hr on a roller. The beads were transferred to a gravity flow column, washed with 200 mL of Dynein-lysis buffer and 300 mL of TEV buffer (50 mM Tris–HCl [pH 8.0], 250 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 1 mM DTT, 0.1 mM Mg-ATP, 10% [v/v] glycerol). For fluorescent labeling of carboxy-terminal SNAPf tag, dynein-coated beads were labeled with 5 µM SNAP-Cell-TMR (New England Biolabs) in the column for 10 min at room temperature and unbound dye was removed with a 300 mL wash with TEV buffer at 4°C. The beads were then resuspended and incubated in 15 mL of TEV buffer supplemented with 0.5 mM Pefabloc and 0.2 mg/mL TEV protease (purified in the Reck-Peterson lab) overnight on a roller. The supernatant containing cleaved proteins was concentrated using a 100K MWCO concentrator (EMD Millipore) to 500 µL and purified via size-exclusion chromatography on a TSKgel G4000SWXL column (Tosoh Bioscience) with GF150 buffer (25 mM HEPES [pH7.4], 150 mM potassium chloride, 1 mM magnesium chloride, 5 mM DTT, 0.1 mM Mg-ATP) at 1 mL/min. The peak fractions were collected, buffer exchanged into a GF150 buffer supplemented with 10% glycerol, concentrated to 0.1–0.5 mg/mL using a 100K MWCO concentrator (EMD Millipore), and flash frozen in liquid nitrogen.
Lis1 constructs were purified from frozen cell pellets from 400 mL culture. Lysis and clarification steps were similar to full-length dynein purification except Lis1-lysis buffer (30 mM HEPES [pH 7.4], 50 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 300 mM potassium chloride, 1 mM DTT, 0.5 mM Pefabloc, 10% [v/v] glycerol) supplemented with 1 cOmplete EDTA-free protease inhibitor cocktail tablet (Roche) per 50 mL was used. The clarified supernatant was incubated with 0.5 mL of IgG Sepharose 6 Fast Flow beads (GE Healthcare Life Sciences) for 2–3 hr on a roller. The beads were transferred to a gravity flow column, washed with 20 mL of Lis1-lysis buffer, 100 mL of modified TEV buffer (10 mM Tris–HCl [pH 8.0], 2 mM magnesium acetate, 150 mM potassium acetate, 1 mM EGTA, 1 mM DTT, 10% [v/v] glycerol) supplemented with 100 mM potassium acetate, and 50 mL of modified TEV buffer. For fluorescent labeling of Lis1 constructs with amino-terminal HaloTags, Lis1-coated beads were labeled with 200 µM Halo-TMR (Promega) for 2.5 hr at 4°C on a roller and the unbound dye was removed with a 200 mL wash with modified TEV buffer supplemented with 250 mM potassium acetate. Lis1 was cleaved from IgG beads via incubation with 0.2 mg/mL TEV protease overnight on a roller. The cleaved Lis1 was filtered by centrifuging with an Ultrafree-MC VV filter (EMD Millipore) in a tabletop centrifuge and flash frozen in liquid nitrogen.
Dynactin was purified from stable HEK293T cell lines expressing p62-Halo-3xFlag as described previously (Redwine et al., 2017). Briefly, frozen pellets collected from 160 × 15 cm plates were resuspended in 80 mL of Dynactin-lysis buffer (30 mM HEPES [pH 7.4], 50 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 1 mM DTT, 10% [v/v] glycerol) supplemented with 0.5 mM Mg-ATP, 0.2% Triton X-100, and 1 cOmplete EDTA-free protease inhibitor cocktail tablet (Roche) per 50 mL and rotated slowly for 15 min. The lysate was clarified by centrifuging at 66,000 × g for 30 min in Type 70 Ti rotor (Beckman). The clarified supernatant was incubated with 1.5 mL of anti-Flag M2 affinity gel (Sigma-Aldrich) overnight on a roller. The beads were transferred to a gravity flow column, washed with 50 mL of wash buffer (Dynactin-lysis buffer supplemented with 0.1 mM Mg-ATP, 0.5 mM Pefabloc, and 0.02% Triton X-100), 100 mL of wash buffer supplemented with 250 mM potassium acetate, and again with 100 mL of wash buffer. For fluorescent labeling, the HaloTag, dynactin-coated beads were labeled with 5 µM Halo-JF646 (Janelia) in the column for 10 min at room temperature and the unbound dye was washed with 100 mL of wash buffer at 4°C. Dynactin was eluted from beads with 1 mL of elution buffer (wash buffer with 2 mg/mL of 3xFlag peptide). The eluate was collected, filtered by centrifuging with Ultrafree-MC VV filter (EMD Millipore) in a tabletop centrifuge, and diluted to 2 mL in buffer A (50 mM Tris-HCl [pH 8.0], 2 mM magnesium acetate, 1 mM EGTA, and 1 mM DTT) and injected onto a MonoQ 5/50 GL column (GE Healthcare and Life Sciences) at 1 mL/min. The column was pre-washed with 10 CV of buffer A, 10 CV of buffer B (50 mM Tris-HCl [pH 8.0], 2 mM magnesium acetate, 1 mM EGTA, 1 mM DTT, 1 M potassium acetate), and again with 10 CV of buffer A at 1 mL/min. To elute, a linear gradient was run over 26 CV from 35 to 100% buffer B. Pure dynactin complex eluted from ~75 to 80% buffer B. Peak fractions containing pure dynactin complex were pooled, buffer exchanged into a GF150 buffer supplemented with 10% glycerol, concentrated to 0.02–0.1 mg/mL using a 100K MWCO concentrator (EMD Millipore), and flash frozen in liquid nitrogen.
Activating adaptors containing amino-terminal HaloTags were expressed in BL-21[DE3] cells (New England Biolabs) at OD 0.4–0.6 with 0.1 mM IPTG for 16 hr at 18°C. Frozen cell pellets from 2 L culture were resuspended in 60 mL of activator-lysis buffer (30 mM HEPES [pH 7.4], 50 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 1 mM DTT, 0.5 mM Pefabloc, 10% [v/v] glycerol) supplemented with 1 cOmplete EDTA-free protease inhibitor cocktail tablet (Roche) per 50 mL and 1 mg/mL lysozyme. The resuspension was incubated on ice for 30 min and lysed by sonication. The lysate was clarified by centrifuging at 66,000 × g for 30 min in Type 70 Ti rotor (Beckman). The clarified supernatant was incubated with 2 mL of IgG Sepharose 6 Fast Flow beads (GE Healthcare Life Sciences) for 2 hr on a roller. The beads were transferred to a gravity flow column, washed with 100 mL of activator-lysis buffer supplemented with 150 mM potassium acetate and 50 mL of cleavage buffer (50 mM Tris–HCl [pH 8.0], 150 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 1 mM DTT, 0.5 mM Pefabloc, 10% [v/v] glycerol). The beads were then resuspended and incubated in 15 mL of cleavage buffer supplemented with 0.2 mg/mL TEV protease overnight on a roller. The supernatant containing cleaved proteins was concentrated using a 50K MWCO concentrator (EMD Millipore) to 1 mL, filtered by centrifuging with Ultrafree-MC VV filter (EMD Millipore) in a tabletop centrifuge, diluted to 2 mL in buffer A (30 mM HEPES [pH 7.4], 50 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 10% [v/v] glycerol, and 1 mM DTT) and injected onto a MonoQ 5/50 GL column (GE Healthcare and Life Sciences) at 1 mL/min. The column was pre-washed with 10 CV of buffer A, 10 CV of buffer B (30 mM HEPES [pH 7.4], 1 M potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 10% [v/v] glycerol, and 1 mM DTT) and again with 10 CV of buffer A at 1 mL/min. To elute, a linear gradient was run over 26 CV from 0 to 100% buffer B. The peak fractions containing Halo-tagged activating adaptors were collected and concentrated using a 50K MWCO concentrator (EMD Millipore) to 0.2 mL. For fluorescent labeling the HaloTag, the concentrated peak fractions were incubated with 5 µM Halo-Alexa488 (Promega) for 10 min at room temperature. Unbound dye was removed by PD-10 desalting column (GE Healthcare and Life Sciences) according to the manufacturer’s instructions. The labeled activating adaptor sample was concentrated using a 50K MWCO concentrator (EMD Millipore) to 0.2 mL, diluted to 0.5 mL in GF150 buffer, and further purified via size-exclusion chromatography on a Superose 6 Increase 10/300 GL column (GE Healthcare and Life Sciences) with GF150 buffer at 0.5 mL/min. The peak fractions were collected, buffer exchanged into a GF150 buffer supplemented with 10% glycerol, concentrated to 0.2–1 mg/mL using a 50K MWCO concentrator (EMD Millipore), and flash frozen in liquid nitrogen.
Electron microscopy sample preparation
Request a detailed protocolMonomeric yeast dyneinE2488Q was buffer exchanged into Modification Buffer (100 mM sodium phosphate, pH 8.0, 150 mM sodium chloride) and biotinylated using water-soluble Sulfo ChromaLink biotin (Sulfo ChromaLink Biotin, Cat# B-1007) in a 1:2 molar ratio for 2 hr at room temperature. Biotinylated protein was dialyzed into TEV buffer overnight at 4°C. Biotinylation of dyneinE2488Q was verified using a pull-down assay with streptavidin magnetic beads (Thermo Fisher).
Streptavidin affinity grids (SA grids) were prepared as previously described (Han et al., 2016). Just prior to use, the SA grids were washed by touching the SA side of the grid to three drops (2 × 50 μL, 1 × 100 μL) of rehydration buffer (150 mM potassium chloride, 50 mM HEPES pH 7.4, 5 mM EDTA) to remove the storage trehalose layer. For complete removal of the protective trehalose layer, rehydration buffer was manually pipetted up and down onto the SA side of the grid, and then the grid was placed onto a 100 μL drop of rehydration buffer for 10 min. This process was repeated once, and then the grid was buffered exchanged into sample buffer using five 50 μL drops of sample buffer (TEV buffer without glycerol and DTT, supplemented with 1.2 mM ATP and 1.2 mM Na3VO4). 4 μL of sample (150 nM dyneinE2488Q, 650 nM Lis1, 1.2 mM ATP, 1.2 mM Na3VO4) was applied to each grid and incubated for ~10 min inside a humidity chamber. Unbound protein was washed away by touching the sample side of the grid to three 100 μL drops of wash buffer supplemented with 150 nM dimeric yeast Lis1 (26 mM Tris pH 8, 75 mM potassium chloride, 64 mM potassium acetate, 0.85 mM magnesium acetate, 0.5 mM EGTA, 1.2 mM ATP, 1.2 mM Na3VO4). Grids were vitrified using a Vitrobot (FEI) set to 20°C and 100% humidity. Vitrobot tweezers were kept cold on ice between samples. The sample was first manually wicked inside the Vitrobot using a Whatman No. 1 filter paper, followed by the addition of 1.5 μL of sample buffer before standard blotting and vitrification proceeded (blot time: 4 s; blot force: 20).
Image collection and processing
Request a detailed protocolVitrified grids were imaged on a Titan Krios (FEI) operated at an accelerating voltage of 300 kV, and the images were recorded with a K2 Summit direct electron detector (Gatan Inc). We collected 2378 movies in super-resolution mode (0.655 Å/super-resolution pixel at the object level) dose-fractionated into 200 ms frames for a total exposure of 10 s with a dose rate of 10 electrons/pixel/s for a total fluence of 58.3 electrons/Å2. The defocus of the images varied within a range of –2.0 μm to –2.7 μm. Automated data collection was executed by SerialEM (Mastronarde, 2005).
Video frames were aligned using the dose-weighted frame alignment option in UCSF MotionCor2 (Zheng et al., 2017) as employed in Relion 3.0 (Zivanov et al., 2018). At this stage, the individual frames were corrected for the anisotropic magnification distortion inherent to the electron microscope (Grant and Grigorieff, 2015). The signal from the streptavidin lattice was removed from aligned micrographs using Fourier filtering as described previously (Han et al., 2012). Micrographs were manually inspected for defects including suboptimal ice thickness and incomplete removal of the SA lattice signal, and 46 micrographs were removed leaving 2332 micrographs for further processing. CTF estimation was carried out on the non-dose-weighted micrographs using GCTF (Zhang, 2016) using the local CTF estimation option as implemented in Appion (Lander et al., 2009). Images with CTF fits having 0.5 confidence resolution worse than 5 Å were excluded from further processing. Particles were picked using crYOLO (Wagner et al., 2019) using a training model generated from manually picked particles. The particles were extracted with a downsampled pixel size of 3.93 Å/pixel, and a single round of two-dimensional (2D) classification was carried out in Relion 3.0 to identify bad particles. Particles belonging to good 2D class averages were recentered and extracted (1.31 Å/pixel), and further processed in cryoSPARC. Ab initio models were generated with the majority of particles going into one good class displaying the characteristic features of the dynein motor domain and the WD40 rings of Lis1. Those particles were refined using the non-uniform refinement routine of cryoSPARC (Punjani et al., 2020), against the best ab initio model. This resulted in a 3.2 Å map containing 233,476 particles. We performed per-particle CTF refinement and beam tilt refinement in Relion 3.0 followed by a single round of three-dimensional (3D) classification without alignment. The particles contributing to one of the classes lead to a high-resolution reconstruction of the dynein–Lis1 complex, and those particles were further refined in Relion 3.0 to generate the final 3.1 Å map (based on the 0.143 cutoff of the gold-standard Fourier shell correlation [FSC] curve) of the dyneinE2488Q-Lis1 complex. For visualization purposes, the map was sharpened with an automatically estimated negative B-factor of 33 (as determined from the ‘PostProcess’ routine of Relion 3.0). The local resolution of the map was estimated using the ‘local resolution’ routine of Relion 3.0, and the map was low-pass filtered according to the local resolution prior to analysis. The 3-D FSC was calculated by 3dfsc version 2.5 (Tan et al., 2017) using the half-maps and the mask used for the PostProcess routine in Relion 3.0.
Model building
Request a detailed protocolThe yeast dyneinE2488Q-Lis1 map was segmented using Seggar (Pintilie et al., 2010) as implemented in UCSF chimera (Pettersen et al., 2004), and the atomic models of the different components were initially built to account for their respective segmented maps. A homology of the Lis1 WD40 domain was generated using I-TASSER (Roy et al., 2010), and this model was rigid body docked into the corresponding segmented map using the ‘fit in map’ routing in UCSF Chimera. Regions of the model that did not agree with the EM map were manually rebuilt using Coot (Emsley et al., 2010). The resulting model was used as a reference for Rosetta CM (Song et al., 2013) and 1200 models were generated. A hybrid model was made using the two lowest energy output models from Rosetta CM. This model was then manually placed using Coot into both Lis1 sites, and areas of disagreement between the map and the model were resolved manually.
A homology model of the yeast dynein motor domain was created in Swiss-Model (Waterhouse et al., 2018) by using the human dynein atomic model in the closed conformation (PDB: 5NUG) (Zhang et al., 2017) as a template. The resulting model was fit in the segmented map corresponding to the dynein motor domain using the ‘fit to map’ command in UCSF Chimera and manually rebuilt in Coot to improve the agreement between the atomic model and the map. The resulting model was used as a template for Rosetta CM and 700 models were generated. The lowest energy model was selected and manually placed into the map, followed by an additional round of manual rebuilding.
The resulting models of the yeast dyneinE2488Q motor domain and yeast Lis1 WD40 domains were combined and further refined against the unsegmented dyneinE2488Q-Lis1 map using an using an iterative process between Phenix Real Space Refine (Afonine et al., 2018) and manual rebuilding in Coot.
3D variable analysis (Punjani et al., 2020) was carried out in cryoSPARC using the particles and mask used in the non-uniform refinement job, resulting in the 3.2 Å map (Figure 1—figure supplement 1). Default parameters were used to solve three modes, and results were filtered to 5 Å. Results were visualized using the 3D variability display using the simple output mode with 20 frames/cluster, and then viewed using ChimeraX (Pettersen et al., 2021).
Binding curves
Request a detailed protocolTo assess dynein/Lis1 binding, Lis1 was first covalently coupled to 16 µL of SNAP-Capture Magnetic Beads (New England Biolabs) in 2 mL Protein Lo Bind Tubes (Eppendorf) using the following protocol. Beads were washed twice with 1 mL of modified TEV buffer. Lis1 (0–600 nM) was added to the beads and gently shaken for 1 hr. The supernatant was analyzed via SDS-PAGE to confirm complete depletion of Lis1. The Lis1-conjugated beads were washed once with 1 mL modified TEV buffer and once with 1 mL of binding buffer (10 mM Tris–HCl [pH 8.0], 150 mM potassium chloride, 2 mM magnesium chloride, 10% glycerol, 1 mM DTT, 0.1% NP40, 1 mM ADP). 20 nM wild-type dynein (monomeric motor domain) diluted in binding buffer was added to the Lis1-conjugated beads and gently agitated for 30 min. The supernatant was analyzed via SDS-PAGE, stained with SYPRO Red (Thermo Fisher), and dynein depletion was determined using densitometry in ImageJ. Binding curves were fit in Prism8 (GraphPad) with a nonlinear regression for one site binding with Bmax set to 1. Three technical replicates were collected per condition.
Single-molecule TIRF microscopy
Request a detailed protocolSingle-molecule imaging was performed with an inverted microscope (Nikon, Ti-E Eclipse) equipped with a 100 × 1.49 NA oil immersion objective (Nikon, Plano Apo), a ProScan linear motor stage controller (Prior), and a LU-NV laser launch (Nikon), with 405 nm, 488 nm, 532 nm, 561 nm, and 640 nm laser lines. The excitation and emission paths were filtered using appropriate single bandpass filter cubes (Chroma). The emitted signals were detected with an electron multiplying CCD camera (Andor Technology, iXon Ultra 897). Illumination and image acquisition wee controlled by NIS Elements Advanced Research software (Nikon).
Single-molecule motility and microtubule binding assays were performed in flow chambers assembled as described previously (Case 1997) using the TIRF microscopy set-up described above. Either biotin-PEG-functionalized coverslips (Microsurfaces) or No. 1-1/2 coverslips (Corning) sonicated in 100% ethanol for 10 min were used for the flow-chamber assembly. Taxol-stabilized microtubules with ~10% biotin-tubulin and ~10% fluorescent-tubulin (Alexa405- or 488-labeled) were prepared as described previously (Roberts et al., 2014). Flow chambers were assembled with taxol-stabilized microtubules by incubating sequentially with the following solutions, interspersed with two washes with assay buffer (30 mM HEPES [pH 7.4], 2 mM magnesium acetate, 1 mM EGTA, 10% glycerol, 1 mM DTT) supplemented with 20 µM taxol and 50 mM potassium acetate in between (1) 1 mg/mL biotin-BSA in assay buffer (3 min incubation, ethanol washed coverslips only), (2) 1 mg/mL streptavidin in assay buffer (3 min incubation), and (3) a fresh dilution of taxol-stabilized microtubules in assay buffer (3 min incubation). After flowing in microtubules, the flow chamber was washed twice with assay buffer supplemented with 1 mg/mL casein and 20 µM taxol. Three technical replicates were collected per condition.
For assays using S. cerevisiae proteins, dynein was incubated with Lis1 or modified TEV buffer (to buffer match for Lis1) in assay buffer supplemented with 50 mM potassium acetate for 10 min before flowing into the assembled flow chamber. The final assay buffer was supplemented with 1 mg/mL casein, 71.5 mM β-mercaptoethanol, an oxygen scavenger system (0.4% glucose, 45 mg/mL glucose catalase, and 1.15 mg/mL glucose oxidase), and 2.5 mM Mg-ATP. For experiments in the presence of vanadate, 2.5 mM sodium vanadate was included. The final concentration of dynein was 2–15 pM. For single-molecule microtubule binding assays, the final imaging mixture containing dynein was incubated for an additional 5 min in the flow chamber at room temperature before imaging. After 5 min incubation, microtubules were imaged first by taking a single-frame snapshot. Dynein was imaged by taking a single-frame snapshot. Each sample was imaged at four different fields of view, and there were between 5 and 10 microtubules in each field of view. In order to compare the effect of Lis1 on microtubule binding, the samples with and without Lis1 were imaged in two separate flow chambers made on the same coverslip on the same day with the same stock of polymerized tubulin as described previously (Roberts et al., 2014). For single-molecule motility assays, microtubules were imaged first by taking a single-frame snapshot. Dynein was imaged every 1 s for 5 min. At the end, microtubules were imaged again by taking a snapshot to assess stage drift. Videos showing significant drift were not analyzed. Each sample was imaged no longer than 15 min.
To assemble human dynein–dynactin–activating adaptor complexes, purified dynein (10–20 nM concentration), dynactin, and the activating adaptor were mixed at 1:2:10 molar ratio and incubated on ice for 10 min. These dynein–dynactin–activating adaptor complexes were then incubated with Lis1 or modified TEV buffer (to buffer match for experiments without Lis1) for 10 min on ice. The mixtures of dynein, dynactin, activating adaptor or dynein alone and Lis1 were then flowed into the flow chamber assembled with taxol-stabilized microtubules. The final imaging buffer contained the assay buffer with 20 µM taxol, 1 mg/mL casein, 7.5 mM potassium chloride, 71.5 mM β-mercaptoethanol, an oxygen scavenger system, and 2.5 mM Mg-ATP. The final imaging buffer also contained 60 mM potassium acetate for experiments using Hook3 as the activating adaptor and 30 mM potassium acetate for experiments with BicD2. The final concentration of dynein in the flow chamber was 0.5–1. The final concentration of Lis1 was between 12 nM and 300 nM (as indicated in the main text). Imaging was performed as above except with images taken every 300 ms for 3 min.
Single-molecule microtubule binding assay analysis
Request a detailed protocolIntensity profiles of yeast dynein spots from a single-frame snapshot were generated over a 5-pixel-wide line drawn perpendicular to the long axis of microtubules in ImageJ. Intensity peaks at least twofold higher than the neighboring background intensity were counted as dynein bound to microtubules. Bright aggregates that were fivefold brighter than the neighboring intensity peaks were not counted. The average binding density was calculated as the total number of dynein spots divided by the total microtubule length in each snapshot. Normalized binding density was calculated by dividing the average binding density of dynein without Lis1 collected on the same coverslip (see above). Data plotting and statistical analyses were performed in Prism8 (GraphPad).
Single-molecule motility assay analysis
Request a detailed protocolKymographs were generated from motility movies and dynein velocity was calculated from kymographs using ImageJ macros as described (Roberts et al., 2014). Only runs that were longer than four frames (4 s) were included in the analysis. Bright aggregates, which were less than 5% of the population, were excluded from the analysis. Data plotting and statistical analyses were performed in Prism8 (GraphPad).
Microtubule co-pelleting assay
Request a detailed protocolUnlabeled taxol-stabilized MTs were polymerized as above, and free tubulin was removed by centrifugation through a 60% glycerol gradient in BRB80 (80 mM PIPES-KOH pH 6.8, 1 mM magnesium chloride, 1 mM EGTA, 1 mM DTT, 20 µM taxol) for 15 min at 100,000 × g and 37°C. The MT pellet was resuspended in DLB supplemented with 20 µM taxol. MTs (0–600 nM tubulin) were incubated with 100 nM Lis1 for 10 min before being pelleted for 15 min at 100,000 × g and 25°C. The supernatant was analyzed via SDS-PAGE, and depletion was determined using densitometry in ImageJ. Binding curves were fit in Prism8 (GraphPad) with a nonlinear regression for one-site binding with Bmax set to 1. Three technical replicates were collected per condition.
Data availability
The Cryo-EM map and model of the dynein-Lis1 complex have been deposited in the EMDB (23829) and the PDB (7MGM).
-
RCSB Protein Data BankID 7MGM. Structure of yeast cytoplasmic dynein with AAA3 Walker B mutation bound to Lis1.
-
Electron Microscopy Data BankID EMD-23829. Structure of yeast cytoplasmic dynein with AAA3 Walker B mutation bound to Lis1.
References
-
Microtubule interactions with the cell cortex causing nuclear movements in Saccharomyces cerevisiaeThe Journal of Cell Biology 149:863–874.https://doi.org/10.1083/jcb.149.4.863
-
Real-space refinement in PHENIX for cryo-EM and crystallographyActa Crystallographica. Section D, Structural Biology 74:531–544.https://doi.org/10.1107/S2059798318006551
-
Nudf, a fungal homolog of the human LIS1 protein, functions as a dimer in vivoThe Journal of Biological Chemistry 276:9903–9909.https://doi.org/10.1074/jbc.M010233200
-
Activation and regulation of cytoplasmic dyneinTrends in Biochemical Sciences 45:440–453.https://doi.org/10.1016/j.tibs.2020.02.002
-
A new role for kinesin-directed transport of Bik1p (CLIP-170) in Saccharomyces cerevisiaeJournal of Cell Science 121:1506–1513.https://doi.org/10.1242/jcs.023374
-
Mechanism and regulation of cytoplasmic dyneinAnnual Review of Cell and Developmental Biology 31:83–108.https://doi.org/10.1146/annurev-cellbio-100814-125438
-
Lis1 activates dynein motility by modulating its pairing with dynactinNature Cell Biology 22:570–578.https://doi.org/10.1038/s41556-020-0501-4
-
Features and development of cootActa Crystallographica. Section D, Biological Crystallography 66:486–501.https://doi.org/10.1107/S0907444910007493
-
Cryo-electron tomography reveals that dynactin recruits a team of dyneins for processive motilityNature Structural & Molecular Biology 25:203–207.https://doi.org/10.1038/s41594-018-0027-7
-
Differential effects of the dynein-regulatory factor Lissencephaly-1 on processive dynein-dynactin motilityThe Journal of Biological Chemistry 292:12245–12255.https://doi.org/10.1074/jbc.M117.790048
-
Electron microscopy of biotinylated protein complexes bound to streptavidin monolayer crystalsJournal of Structural Biology 180:249–253.https://doi.org/10.1016/j.jsb.2012.04.025
-
Long shelf-life streptavidin support-films suitable for electron microscopy of biological macromoleculesJournal of Structural Biology 195:238–244.https://doi.org/10.1016/j.jsb.2016.06.009
-
The cortical protein Num1p is essential for dynein-dependent interactions of microtubules with the cortexThe Journal of Cell Biology 151:1337–1344.https://doi.org/10.1083/jcb.151.6.1337
-
LIS1 promotes the formation of activated cytoplasmic dynein-1 complexesNature Cell Biology 22:518–525.https://doi.org/10.1038/s41556-020-0506-z
-
Nuclear migration in Saccharomyces cerevisiae is controlled by the highly repetitive 313 kDa NUM1 proteinMolecular & General Genetics 230:277–287.https://doi.org/10.1007/BF00290678
-
The dynein cortical anchor Num1 activates dynein motility by relieving Pac1/LIS1-mediated inhibitionThe Journal of Cell Biology 211:309–322.https://doi.org/10.1083/jcb.201506119
-
Appion: an integrated, database-driven pipeline to facilitate EM image processingJournal of Structural Biology 166:95–102.https://doi.org/10.1016/j.jsb.2009.01.002
-
The role of the lissencephaly protein Pac1 during nuclear migration in budding yeastThe Journal of Cell Biology 160:355–364.https://doi.org/10.1083/jcb.200209022
-
NudEL targets dynein to microtubule ends through LIS1Nature Cell Biology 7:686–690.https://doi.org/10.1038/ncb1273
-
Mutations in cytoplasmic dynein and its regulators cause malformations of cortical development and neurodegenerative diseasesBiochemical Society Transactions 41:1605–1612.https://doi.org/10.1042/BST20130188
-
Automated electron microscope tomography using robust prediction of specimen movementsJournal of Structural Biology 152:36–51.https://doi.org/10.1016/j.jsb.2005.07.007
-
Dynein activators and adaptors at a glanceJournal of Cell Science 132:jcs227132.https://doi.org/10.1242/jcs.227132
-
Genetic basis of brain malformationsMolecular Syndromology 7:220–233.https://doi.org/10.1159/000448639
-
UCSF Chimera--a visualization system for exploratory research and analysisJournal of Computational Chemistry 25:1605–1612.https://doi.org/10.1002/jcc.20084
-
3D variability analysis: Resolving continuous flexibility and discrete heterogeneity from single particle cryo-EMJournal of Structural Biology 213:107702.https://doi.org/10.1016/j.jsb.2021.107702
-
LIS1 regulates cargo-adapter-mediated activation of dynein by overcoming its autoinhibition in vivoThe Journal of Cell Biology 218:3630–3646.https://doi.org/10.1083/jcb.201905178
-
The cytoplasmic dynein transport machinery and its many cargoesNature Reviews. Molecular Cell Biology 19:382–398.https://doi.org/10.1038/s41580-018-0004-3
-
Insights into dynein motor domain function from a 3.3-Å crystal structureNature Structural & Molecular Biology 19:492–497.https://doi.org/10.1038/nsmb.2272
-
Autoinhibition and cooperative activation mechanisms of cytoplasmic dyneinNature Cell Biology 16:1118–1124.https://doi.org/10.1038/ncb3048
-
Nudel/NudE and Lis1 promote dynein and dynactin interaction in the context of spindle morphogenesisMolecular Biology of the Cell 24:3522–3533.https://doi.org/10.1091/mbc.E13-05-0283
-
SWISS-MODEL: homology modelling of protein structures and complexesNucleic Acids Research 46:W296–W303.https://doi.org/10.1093/nar/gky427
-
Mutations in the heavy chain of cytoplasmic dynein suppress the nudF nuclear migration mutation of Aspergillus nidulansMolecular & General Genetics 255:194–200.https://doi.org/10.1007/s004380050489
-
Cargo-mediated activation of cytoplasmic dynein in vivoFrontiers in Cell and Developmental Biology 8:598952.https://doi.org/10.3389/fcell.2020.598952
-
Gctf: Real-time CTF determination and correctionJournal of Structural Biology 193:1–12.https://doi.org/10.1016/j.jsb.2015.11.003
Decision letter
-
Andrew P CarterReviewing Editor; MRC Laboratory of Molecular Biology, United Kingdom
-
Anna AkhmanovaSenior Editor; Utrecht University, Netherlands
-
Xin XiangReviewer
-
Deanna SmithReviewer; South Carolina, United States
-
Gira BhabhaReviewer; New York University School of Medicine, United States
Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.
Decision letter after peer review:
Thank you for submitting your article "Structural Basis for Cytoplasmic Dynein-1 Regulation by Lis1" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Xin Xiang (Reviewer #1); Deanna Smith (Reviewer #2); Gira Bhabha (Reviewer #3).
The reviewers have discussed their reviews with one another and agreed that this first high resolution structure of a Lis1 bound to dynein is an important piece of work. The Reviewing Editor has drafted this to help you prepare a revised submission.
Essential revisions:
1) The reviewers agreed that your model for the role of Lis1 in controlling affinity for microtubules and determining plus end localization needs more discussion of other papers in the field. Please see reviewer 1 for details.
2) If possible the reviewers ask you to conduct some experiments at high salt under conditions where Lis1 is reported to affect yeast dynein processivity. Please see reviewer 1 for details.
3) The reviewers had some difficulty following the species of LIS1 and dynein, the specific constructs, and the mutations used for each experiment (and also to some extent in the discussion) – can you try to standardize names of constructs and proteins. For example: Reviewer 2 main point, Reviewer 1 point 8, Reviewer 3 point 1, Reviewer 1 point 5.
More detailed questions and suggestions from the reviewers can be found in the full reviews below.
Reviewer #1 (Recommendations for the authors):
In this manuscript, the authors reported the first high-resolution (3.1Å) structure of the dynein-Lis1 complex using yeast proteins including the dynein motor domain and LIS1 dimer. This high-resolution structure allows the authors to reveal new details of interaction interfaces, specifically the LIS1-binding site on AAA5, the LIS1-binding site on the stalk as well as the contact site between the two LIS1 propellers (one binds the ring and the other binds stalk). The authors made specific mutations (in LIS1 or dynein) to investigate the significance of these interactions. The functional study was done by using both in vitro (binding curve and effect on in vitro velocity) and in vivo assays (nuclear positioning and dynein localization in yeast). Finally, they also made mutations in human dynein that affect LIS1 binding to the same sites (ring and stalk) and investigated the functional significance of the involved amino acids in cargo-adapter- and dynactin-mediated dynein activation/motility assay. Their results suggest that these sites are important for the formation of active human dynein complexes. Overall, the authors have done a very impressive and beautiful series of experiments. The potential impact of such a high-resolution structure is obvious and their functional analysis has also generated great insights. The data are in general of high quality and nicely presented, and the paper is very well written. However, their model is problematic. It is mainly based on the idea that LIS1 enhances the dynein-microtubule interaction to keep dynein at the microtubule plus end (they think that this tight microtubule binding at the plus end would in turn enhance the formation of the active complex containing dynein, dynactin and cargo adapters). This idea is not consistent with published data (see my point #1 below). Thus, the model figure as well as some discussion points will need to be revised or replaced accordingly. In addition, in vitro assays were done to test whether the mutations affect Pac1/LIS1's ability to induce a tight dynein-microtubule binding or an inhibition of dynein motility, while Marzo, et al., 2020 NCB showed co-migration of dynein and Pac1/LIS1 as well as Pac1/LIS1's ability in enhancing dynein processivity if salt concentration is increased for the in vitro motility assay. I wonder if the authors could try to use higher salt concentrations in the in vitro motility assay, which seems worthwhile because the enhancement of dynein processivity has been linked to the ability of LIS1 in promoting the open state of dynein (the current LIS1-mechanism model that the authors also emphasized in the Discussion). Below I provide more detailed comments for the authors to consider during the revision.
1. Currently, the model emphasized the idea that the LIS1-enhanced dynein-microtubule interaction enhances the microtubule-plus-end accumulation of dynein, which in turn promotes active complex formation. This is inconsistent with experimental findings: In the budding yeast, the microtubule-binding domain is not required for the plus-end accumulation of dynein (Lammers and Markus 2015). In mammalian cells (as well as filamentous fungi), dynactin is needed for the plus-end accumulation of dynein (Xiang et al., 2000; Zhang et al., 2003, 2008, Lenz et al., 2006; Egan et al., 2012, Splinter et al., 2012., Yao et al., 2012) and this is also true in vitro in reconstituted systems (Duellburg et al., 2014; Baumbach et al., 2017; Jha et al., 2017). Would it be better to have a model figure summarizing the current findings on the separation-of-function mutants?
2. It would be better to mention in the Introduction section that LIS1 has recently been implicated in preventing dynein from adopting the autoinhibited phi structure when you mentioned its role in complex formation.
3. Data were presented to argue for an inconsistency with a "tethering" model in which LIS1 tethers dynein to microtubules non-specifically. This was done to argue against the idea proposed by Marzo et al., 2020 that the Pac1/LIS1-caused speed reduction of dynein is due to the non-specific binding of Pac1/LIS1 to microtubules. However, Marzo et al. showed that Pac1/LIS1 does not need to bind dynein to cause a speed reduction, since dynein complexed with Pac1 or not complexed with Pac1 gets the same kind of speed reduction. This point will need to be considered. In addition, since the LIS15A mutant binds to neither dynein nor microtubules, do you have any previous data suggesting that the mutant protein is folded properly or at least expressed well in vivo? This would help strengthen the argument that these amino acids bind microtubules directly. Also, the dimeric LIS1 (LIS1 WT) does seem to lower the velocity more dramatically (Figure 3C), and this also needs to be considered because the argument that dynein-binding and microtubule-binding cannot possibly use the same site of LIS1 only works when a monomer is considered. Given these problems, and the fact that there is no good model explaining how LIS1 affects the mechanochemistry of dynein (aside from phi opening), it may be easier not to put too much effort into this argument but just focus on the new structural data.
4. The interaction between the two LIS1 propellers is important, which is a significant result. Since Htet et al., 2020 NCB showed that LIS1 monomer is effective in promoting active complex formation in vitro, it seems that monomers at a high concentration can still lead to propeller interaction, and you may want to mention this point in this context. Also, it would be nice to cite an early Aspergillus paper showing that LIS1 dimerization is important in vivo (Ahn and Morris 2001 JBC).
5. In Figure 2 G and other figures where you checked LIS1's ability to lower dynein's affinity for microtubules in the presence of ATP-Vi, did you use wild type or the wB-AAA3 mutant?
6. Figure 6, it is unclear where the cortical dynein dots are. It would be better to show a merge with the bright-field images to show cortical dynein or at least use arrows or circles to mark the positions of the signals in all images. Also, would it be better to show representative images of the new mutants rather than just lis1∆?
7. It would be better to at least briefly mention in the main text how you quantify dynein for the binding curves.
8. The dynein mutant defective in binding AAA5 does show a little lowered level, and the authors can state something like "a slightly reduced expression level was observed". Please include a simple sequence alignment figure to show the positions of the mutated amino acids or those in the contacting sites in human dynein and yeast dynein heavy chains.
9. Lis1S248Q and Lis1F185D, I189D, R494A are capable of inducing tight microtubule binding in the presence of ATP but mutants carrying these mutations show a clear nuclear-positioning phenotype in yeast. This at least argues against the tight MT-binding being the only key effect of LIS1 in vivo. What would be the other key effects? "The weakening of dynein's interactions with microtubules when AAA3 is bound to ATP" does not seem to agree with the genetic data from Aspergillus that the wB-AAA3 mutation allows the LIS1 function to be bypassed. It seems more likely that LIS1's effect on promoting the open dynein state is relevant in vivo as this was shown in both yeast and Aspergillus. For these two mutants, I wonder if the open dynein (phi mutant) would suppress their nuclear-positioning defect. If so, that would be very interesting. Although I don't think these experiments are absolutely needed for the publication of this work, it would indeed be better to at least discuss these individual mutants in light of this current model of LIS1 action (i.e. overcoming the phi state and promoting the open state).
10. LIS1 seems to be requited for both the plus-end accumulation and the cortical interaction of dynein, but the beauty of the Lis1S248Q mutation is that it seems to only affect the dynein-dynactin-Num1 complex formation. You should discuss this. Could the nuclear-positioning defect of this mutant be suppressed by the phi mutation or by the AAA3 Walker B mutation? Would this mutation prevent dynein from leaving the microtubule plus end when the Num1 CC domains are overexpressed (Lammers and Markus 2015)? These experiments were doable in Aspergillus only because LIS1 is not required for the plus-end dynein accumulation, but now you have gotten this wonderful function-separating mutant that can be used in yeast for various future assays!
11. "….reach the cell cortex, the site where active yeast dynein-dynactin complexes interact with the candidate activating adaptor, Num1 (Figure 8A, panel iii) (Heil-Chapdelaine et al., 2000; Lammers and Markus, 2015; Lee et al., 2003; Sheeman et al..)". It is better to add Tang et al. 2012 JCB after this statement because this paper dissected the dynein-cortex interaction in detail. Also, it's better not to call the dynein-dynactin complexes "active" because it is only active after Num1 binding (Lammers and Markus 2015).
12. The structure was solved using the yeast dynein motor domain containing a Walker B mutation in AAA3 (E2488Q). Given the recent genetic data from Aspergillus that the wB-AAA3 mutation bypasses the requirement of LIS1 (Qiu et al., 2021, bioRxiv), some people may think that the newly identified interactions are not important in other systems. Thus, it would be better to mention that the human dynein used for structural work (Htet et al., 2020 NCB) is a wild type with linkers bent, but LIS1 binding at the stalk was still revealed, suggesting that these interactions sites play roles in multiple dynein states.
Reviewer #2 (Recommendations for the authors):
It was difficult to keep track of dynein and LIS1 constructs used in the study. It might be better to use PAC1 for experiments with the yeast protein and LIS1 in experiments with human protein. Also, the simple term "dynein" should probably be reserved for the holoenzyme and descriptors used to indicate when other forms of dynein are used (monomeric, mutant etc).
Reviewer #3 (Recommendations for the authors):
We enjoyed reading this manuscript, which was very well written and presented. We have a few comments below that we ask the authors to address.
1) We had a hard time figuring out what dynein construct was used for the cryo EM structure. Could the authors make this clear in the methods/table please?
2) As the authors note, nucleotide density is somewhat ambiguous. We noted that this may be the case for AAA4 as well. If it was not attempted already, we suggest signal subtraction, re-centering and local refinement perhaps focused on AAA2-3-4, AAA5-6-1L, AAA6-1-2 and around the two Lis1 binding sites. The resolution of this structure is already very impressive and the field would benefit from the highest resolution dynein-Lis1 structure possible; signal subtraction / local refinement may provide additional resolution which could allow to unambiguously assign nucleotide density and some parts of the interface.
3) Line 262 – the authors mention that "Arg 494 was also mutated to Ala to remove the only hydrogen bond donor/acceptor in the interface". However, it seems that D183 and K178 may form a salt bridge between the two Lis1 b-propellers and contribute to the interface?
4) It seems that R3476 (dynein) and E253 (Lis1) could interact if the E253 rotamer was changed, and indeed these residues were chosen to mutate. Since there is not density defining this rotamer, do the authors think that switching the rotamer to facilitate salt bridging would make sense? Currently R3476 looks like it interacts with D3487, so it's possible it can switch between these two interactions.
5) In the structure statistics table (Supplementary file 2) please include: cc values, sphericity value from 3D FSC
6) Great use of the streptavidin affinity grids for a really tough sample!
7) Throughout the manuscript, it may be useful to name the Lis1 chains in some way so it is easy to follow which b-propeller if being referenced at each instance
8) Figure 6: We found the microscopy assay a bit hard to follow, and would appreciate if it were made a bit more clear. A few things we were unsure of:
– Are the measurements being made in the 20% of cells that are the aberrant binucleate cells?
– Was this all done by live cell imaging? Or were cells fixed and analysed?
– Because of the background, the images in Figure 6C are hard to follow. We were wondering if zooming in further may help. A cortical marker or + end marker would also be helpful but may not be necessary. Maybe the authors could draw an outline of the cells to help the readers to see better, which would be an easy fix.
9) Figure 1E-H is a bit hard to follow with the density and the models. We suggest to highlight interactions using just the models, and show the map quality in the supplement.
10) Figure 2E – do the authors find it surprising that the affinity is not changed more? We would have expected to see more of a change in binding affinities.
11) For the mutants that were made, is it clear that they all fold properly/are stable?
12) Could the authors include statistical analysis for Figure 2C,D, Figure 4B and 5B, to test significance as they have done for other assays?
https://doi.org/10.7554/eLife.71229.sa1Author response
Essential revisions:
1) The reviewers agreed that your model for the role of Lis1 in controlling affinity for microtubules and determining plus end localization needs more discussion of other papers in the field. Please see reviewer 1 for details.
Thank you for this comment, which prompted us to perform a new experiment, revise our model figure, and add to our discussion.
The new experiment we added (new Figure 7) suggests that there is an additional role for Lis1 downstream of disrupting autoinhibited Phi dynein. Our data indicates that this role precedes cortical localization of dynein. Our data does not allow us to determine whether this additional role involves the stabilization of tight microtubule binding by Lis1.
Specifically, we made mutations that disrupt dynein’s Phi conformation (Marzo et al. 2020) and compared the phenotype of this mutant with a mutant that is compromised for Lis1 binding to dynein at sitering (where Lis1 induces tight microtubule binding in vitro), and to a double mutant containing both the Phi disrupting mutation and the Lis1 sitering dynein binding site mutation. We then quantified dynein localization to the yeast cell cortex, where complex assembly of dynein and dynactin with the putative activating adaptor Num1 occurs. Our analysis shows that (1) the Phi disrupting dynein mutant causes more dynein to reach the cortex compared to WT dynein and (2) combining this mutant with the Lis1 sitering dynein binding mutant leads to a decrease in dynein reaching the cortex relative to the Phi disrupting mutant alone. This decrease in cortical dynein relative to the Phi disrupting dynein mutant suggests an additional role for Lis1 in localizing dynein to the cortex beyond disrupting dynein’s autoinhibited conformation. In our discussion we consider possible roles, including promoting additional conformation changes in dynein. This experiment, combined with other experiments in the field, have prompted us to revise and simplify our model figure (new Figure 9).
2) If possible the reviewers ask you to conduct some experiments at high salt under conditions where Lis1 is reported to affect yeast dynein processivity. Please see reviewer 1 for details.
Our main goal with the in vitro assays using yeast proteins was to test and validate the new interactions we identified in our structure of a dynein-Lis1 complex (Figure 1). We wanted well established assays with clear readouts for defects in the interaction between dynein and Lis1. Two of these readouts are the Lis1-dependent changes in dynein velocity and microtubule binding in vitro. Importantly, we were not using these assays to test how disrupting interactions based on our structure affected the physiological function of Lis1 (we used the in vivo assays for that); rather, we were using the assays as tools to test the structure. Given that, we felt that repeating the experiments using different salt conditions would not add to our structural insights and decided against expanding the experiments.
3) The reviewers had some difficulty following the species of LIS1 and dynein, the specific constructs, and the mutations used for each experiment (and also to some extent in the discussion) – can you try to standardize names of constructs and proteins. For example: Reviewer 2 main point, Reviewer 1 point 8, Reviewer 3 point 1, Reviewer 1 point 5.
We agree. In thinking about how to best keep the manuscript easy to read, we decided to clearly indicate in each section of the paper if we are using yeast or human proteins. For example, within each section of the results only one species is used, and we indicate this at the beginning of each section. In the introduction and discussion, we have added language referring to the specific organisms, where appropriate. We have made these changes throughout the manuscript. However, if the reviewers still find the manuscript unclear, we would be happy to consider the other possibilities suggested by them.
For the AAA3 Walker B mutant construct of dynein used for the structural work, we have changed the name to dyneinE2488Q.
More detailed questions and suggestions from the reviewers can be found in the full reviews below.
In addition to adding a new Figure 7 and revising our model figure (now new Figure 9), we have made several other major changes and additions to the manuscript, which include:
1) A new Figure 2 and movie 2, which highlight our structure of yeast Lis1 and the interaction sites for dynein and Lis1.
2) We removed what was originally Figure 3 as we have decided that our experiments on microtubule binding distracted from the main message of our paper and that additional experiments are warranted that would go beyond the scope of the current study.
Reviewer #1 (Recommendations for the authors):
In this manuscript, the authors reported the first high-resolution (3.1Å) structure of the dynein-Lis1 complex using yeast proteins including the dynein motor domain and LIS1 dimer. This high-resolution structure allows the authors to reveal new details of interaction interfaces, specifically the LIS1-binding site on AAA5, the LIS1-binding site on the stalk as well as the contact site between the two LIS1 propellers (one binds the ring and the other binds stalk). The authors made specific mutations (in LIS1 or dynein) to investigate the significance of these interactions. The functional study was done by using both in vitro (binding curve and effect on in vitro velocity) and in vivo assays (nuclear positioning and dynein localization in yeast). Finally, they also made mutations in human dynein that affect LIS1 binding to the same sites (ring and stalk) and investigated the functional significance of the involved amino acids in cargo-adapter- and dynactin-mediated dynein activation/motility assay. Their results suggest that these sites are important for the formation of active human dynein complexes. Overall, the authors have done a very impressive and beautiful series of experiments. The potential impact of such a high-resolution structure is obvious and their functional analysis has also generated great insights. The data are in general of high quality and nicely presented, and the paper is very well written. However, their model is problematic. It is mainly based on the idea that LIS1 enhances the dynein-microtubule interaction to keep dynein at the microtubule plus end (they think that this tight microtubule binding at the plus end would in turn enhance the formation of the active complex containing dynein, dynactin and cargo adapters). This idea is not consistent with published data (see my point #1 below). Thus, the model figure as well as some discussion points will need to be revised or replaced accordingly. In addition, in vitro assays were done to test whether the mutations affect Pac1/LIS1's ability to induce a tight dynein-microtubule binding or an inhibition of dynein motility, while Marzo, et al., 2020 NCB showed co-migration of dynein and Pac1/LIS1 as well as Pac1/LIS1's ability in enhancing dynein processivity if salt concentration is increased for the in vitro motility assay. I wonder if the authors could try to use higher salt concentrations in the in vitro motility assay, which seems worthwhile because the enhancement of dynein processivity has been linked to the ability of LIS1 in promoting the open state of dynein (the current LIS1-mechanism model that the authors also emphasized in the Discussion). Below I provide more detailed comments for the authors to consider during the revision.
1. Currently, the model emphasized the idea that the LIS1-enhanced dynein-microtubule interaction enhances the microtubule-plus-end accumulation of dynein, which in turn promotes active complex formation. This is inconsistent with experimental findings: In the budding yeast, the microtubule-binding domain is not required for the plus-end accumulation of dynein (Lammers and Markus 2015). In mammalian cells (as well as filamentous fungi), dynactin is needed for the plus-end accumulation of dynein (Xiang et al., 2000; Zhang et al., 2003, 2008, Lenz et al., 2006; Egan et al., 2012, Splinter et al., 2012., Yao et al., 2012) and this is also true in vitro in reconstituted systems (Duellburg et al., 2014; Baumbach et al., 2017; Jha et al., 2017). Would it be better to have a model figure summarizing the current findings on the separation-of-function mutants?
Please see our response to essential revision #1.
Would it be better to have a model figure summarizing the current findings on the separation-of-function mutants?
We now emphasize that this is a separation-of-function mutation in Lis1 in the results with the following sentence:
“We note that the sitestalk mutant is the only Lis1 mutant with no defect in dynein’s localization to microtubule plus ends, thus this separation-of-function mutant could be a useful tool to further understand the mechanism of dynein regulation by Lis1.”
2. It would be better to mention in the Introduction section that LIS1 has recently been implicated in preventing dynein from adopting the autoinhibited phi structure when you mentioned its role in complex formation.
We thank the reviewer for this suggestion. We have revised our introduction accordingly to say:
“Recently, Lis1 was shown to play a role in forming active dynein complexes, most likely by disrupting dynein’s autoinhibited Phi conformation (Elshenawy et al., 2020; Htet et al., 2020; Marzo et al., 2020; Qiu et al., 2019).”
3. Data were presented to argue for an inconsistency with a "tethering" model in which LIS1 tethers dynein to microtubules non-specifically. This was done to argue against the idea proposed by Marzo et al., 2020 that the Pac1/LIS1-caused speed reduction of dynein is due to the non-specific binding of Pac1/LIS1 to microtubules. However, Marzo et al. showed that Pac1/LIS1 does not need to bind dynein to cause a speed reduction, since dynein complexed with Pac1 or not complexed with Pac1 gets the same kind of speed reduction. This point will need to be considered. In addition, since the LIS15A mutant binds to neither dynein nor microtubules, do you have any previous data suggesting that the mutant protein is folded properly or at least expressed well in vivo? This would help strengthen the argument that these amino acids bind microtubules directly. Also, the dimeric LIS1 (LIS1 WT) does seem to lower the velocity more dramatically (Figure 3C), and this also needs to be considered because the argument that dynein-binding and microtubule-binding cannot possibly use the same site of LIS1 only works when a monomer is considered. Given these problems, and the fact that there is no good model explaining how LIS1 affects the mechanochemistry of dynein (aside from phi opening), it may be easier not to put too much effort into this argument but just focus on the new structural data.
We have decided to remove our experiments on microtubule binding from the manuscript as we feel that they distracted from the main message of our paper and that additional experiments are warranted that go beyond the scope of the current study. However, we still address each point brought up by the reviewer below.
The data you are referring to comes from Marzo et al. Figure 5D. In this experiment, the authors examine full length dynein velocity and run length at a single concentration of Pac1/Lis1 (25 nM) in 150 mM KCl.
From our work, the apparent Kd for the dynein/Pac1 interaction in 50 mM KAcetate is greater than 100 nM. Thus, at 25 nM Pac1 (1/4 x Kd) the occupancy of Pac1 on dynein should be less than 30%. This is likely to be even lower at the 150 mM KCl used in the Marzo et al. work. Given this, we would expect Pac1 to be coming on and off dynein, with a small fraction of complexes formed at any given time.
We have found that Pac1 decreases dynein velocity in a dose-dependent manner (Huang and Roberts et al., 2012). Our current hypothesis is that Pac1/Lis1’s major function is to relieve the inhibition of dynein when it is in a Phi conformation, something that may happen at low (catalytic) concentrations of Pac1 (at least in vitro, the Phi conformation tends not to reform once it has been disrupted). Once dynein has assumed a parallel active conformation, any binding of Pac1 to dynein at sitering would decrease dynein’s velocity by biasing dynein towards a tight microtubule binding conformation (the “open” ring state). This function, however, requires stoichiometric binding of Pac1 to dynein. Therefore, we suspect that Marzo and colleagues might have observed a reduction in dynein velocity if a range of Pac1 concentrations had been tried in their assay.
4. The interaction between the two LIS1 propellers is important, which is a significant result. Since Htet et al., 2020 NCB showed that LIS1 monomer is effective in promoting active complex formation in vitro, it seems that monomers at a high concentration can still lead to propeller interaction, and you may want to mention this point in this context.
Please see our response to point 3 above.
Also, it would be nice to cite an early Aspergillus paper showing that LIS1 dimerization is important in vivo (Ahn and Morris 2001 JBC).
Thank you for the suggestion. We have added the following to the introduction:
“Structurally, Lis1 is a dimer of two ß-propellers (Kim et al., 2004; Tarricone et al., 2004), and in vivo Lis1 dimerization is required for its function (Ahn and Morris, 2001; Huang et al., 2012).”
5. In Figure 2 G and other figures where you checked LIS1's ability to lower dynein's affinity for microtubules in the presence of ATP-Vi, did you use wild type or the wB-AAA3 mutant?
We used wild type dynein. We have revised the figure legends to clarify this.
6. Figure 6, it is unclear where the cortical dynein dots are. It would be better to show a merge with the bright-field images to show cortical dynein or at least use arrows or circles to mark the positions of the signals in all images. Also, would it be better to show representative images of the new mutants rather than just lis1∆?
We have added the cell outlines in Figure 6C and created a new Figure 6—figure supplement 1, which contains a gallery of the mutants. We added outlines to new Figure 7 as well.
7. It would be better to at least briefly mention in the main text how you quantify dynein for the binding curves.
We have done this.
8. The dynein mutant defective in binding AAA5 does show a little lowered level, and the authors can state something like "a slightly reduced expression level was observed". Please include a simple sequence alignment figure to show the positions of the mutated amino acids or those in the contacting sites in human dynein and yeast dynein heavy chains.
We have repeated the dynein GFP pull downs three times and the levels of our dyneinΔN3475, ΔR3476 are similar to those of WT dynein. The quantification below shows the band intensity (in arbitrary units) of dynein-3xGFP WT, dyneinΔN3475, ΔR3476-3xGFP and dyneinΔ +/- s.e.m from three independent GFP pull down experiments.
We previously published a sequence alignment around the putative sitestalk (DeSantis et al., 2017 Figure 5A).
9. Lis1S248Q and Lis1F185D, I189D, R494A are capable of inducing tight microtubule binding in the presence of ATP but mutants carrying these mutations show a clear nuclear-positioning phenotype in yeast. This at least argues against the tight MT-binding being the only key effect of LIS1 in vivo. What would be the other key effects? "The weakening of dynein's interactions with microtubules when AAA3 is bound to ATP" does not seem to agree with the genetic data from Aspergillus that the wB-AAA3 mutation allows the LIS1 function to be bypassed. It seems more likely that LIS1's effect on promoting the open dynein state is relevant in vivo as this was shown in both yeast and Aspergillus. For these two mutants, I wonder if the open dynein (phi mutant) would suppress their nuclear-positioning defect. If so, that would be very interesting. Although I don't think these experiments are absolutely needed for the publication of this work, it would indeed be better to at least discuss these individual mutants in light of this current model of LIS1 action (i.e. overcoming the phi state and promoting the open state).
Please see our response to essential revisions point #1.
10. LIS1 seems to be requited for both the plus-end accumulation and the cortical interaction of dynein, but the beauty of the Lis1S248Q mutation is that it seems to only affect the dynein-dynactin-Num1 complex formation. You should discuss this. Could the nuclear-positioning defect of this mutant be suppressed by the phi mutation or by the AAA3 Walker B mutation? Would this mutation prevent dynein from leaving the microtubule plus end when the Num1 CC domains are overexpressed (Lammers and Markus 2015)? These experiments were doable in Aspergillus only because LIS1 is not required for the plus-end dynein accumulation, but now you have gotten this wonderful function-separating mutant that can be used in yeast for various future assays!
We agree that these are interesting questions and exciting new directions that we would love to follow up on in the future. We have highlighted in the manuscript that this is a function separating mutation.
11. "….reach the cell cortex, the site where active yeast dynein-dynactin complexes interact with the candidate activating adaptor, Num1 (Figure 8A, panel iii) (Heil-Chapdelaine et al., 2000; Lammers and Markus, 2015; Lee et al., 2003; Sheeman et al..)". It is better to add Tang et al. 2012 JCB after this statement because this paper dissected the dynein-cortex interaction in detail. Also, it's better not to call the dynein-dynactin complexes "active" because it is only active after Num1 binding (Lammers and Markus 2015).
We have modified these parts of the paper extensively.
We intended to only call dynein-dynactin-activating adaptor complexes “active”. When we use the term “activated dynein-dynactin complexes” to us this is synonymous with saying dyneindynactin-activating adaptor complexes. We have explicitly stated this in the text now to prevent any confusion:
“Active moving dynein complexes contain the dynactin complex and a coiled-coil-containing activating adaptor, referred to here as “active dynein–dynactin” or “dynein–dynactin–activating adaptor complexes” (Mckenney et al., 2014; Schlager et al., 2014; Trokter et al., 2012) (Figure 1A).”
12. The structure was solved using the yeast dynein motor domain containing a Walker B mutation in AAA3 (E2488Q). Given the recent genetic data from Aspergillus that the wB-AAA3 mutation bypasses the requirement of LIS1 (Qiu et al., 2021, bioRxiv), some people may think that the newly identified interactions are not important in other systems. Thus, it would be better to mention that the human dynein used for structural work (Htet et al., 2020 NCB) is a wild type with linkers bent, but LIS1 binding at the stalk was still revealed, suggesting that these interactions sites play roles in multiple dynein states.
We have pointed out our 3D class averages of the human dynein plus Lis1 used wild type protein (Htet et al., 2020) in the Discussion:
“Our previous work with wild type human dynein and Lis1 showed that Lis1 binds to dynein at similar sites.”
Reviewer #2 (Recommendations for the authors):
It was difficult to keep track of dynein and LIS1 constructs used in the study. It might be better to use PAC1 for experiments with the yeast protein and LIS1 in experiments with human protein. Also, the simple term "dynein" should probably be reserved for the holoenzyme and descriptors used to indicate when other forms of dynein are used (monomeric, mutant etc).
We agree that we needed to improve our nomenclature throughout. We have made modifications throughout the text that we hope increase clarity. Please see our response to essential revisions #3.
Reviewer #3 (Recommendations for the authors):
We enjoyed reading this manuscript, which was very well written and presented. We have a few comments below that we ask the authors to address.
1) We had a hard time figuring out what dynein construct was used for the cryo EM structure. Could the authors make this clear in the methods/table please?
Our apologies for the confusion. We have made the following additions to the manuscript: (1) The column header in supplementary file 2 was changed from “Dynein AAA3 Walker B bound to Lis1” to “Dynein AAA3E2488Q bound to Lis1.” (2) We have updated the paper throughout to specify each dynein construct using amino acid changes.
2) As the authors note, nucleotide density is somewhat ambiguous. We noted that this may be the case for AAA4 as well. If it was not attempted already, we suggest signal subtraction, re-centering and local refinement perhaps focused on AAA2-3-4, AAA5-6-1L, AAA6-1-2 and around the two Lis1 binding sites. The resolution of this structure is already very impressive and the field would benefit from the highest resolution dynein-Lis1 structure possible; signal subtraction / local refinement may provide additional resolution which could allow to unambiguously assign nucleotide density and some parts of the interface.
Thank you for this suggestion. We generated signal-subtracted reconstructions for AAA5L-6-1-2S, AAA2-3-4-5S, AAA2-3-4-5S+Lis1ring+Lis1stalk, and Lis1ring + Lis1stalk alone. Author response images 2; 3 present our results. Author response image 2 shows local resolution maps for the signal-subtracted reconstructions along with that for the corresponding portion of the original structure. Author response image 3 shows close-ups from the only map where we saw an improvement in the resolution (AAA2-3-4-5S+Lis1ring+Lis1stalk).

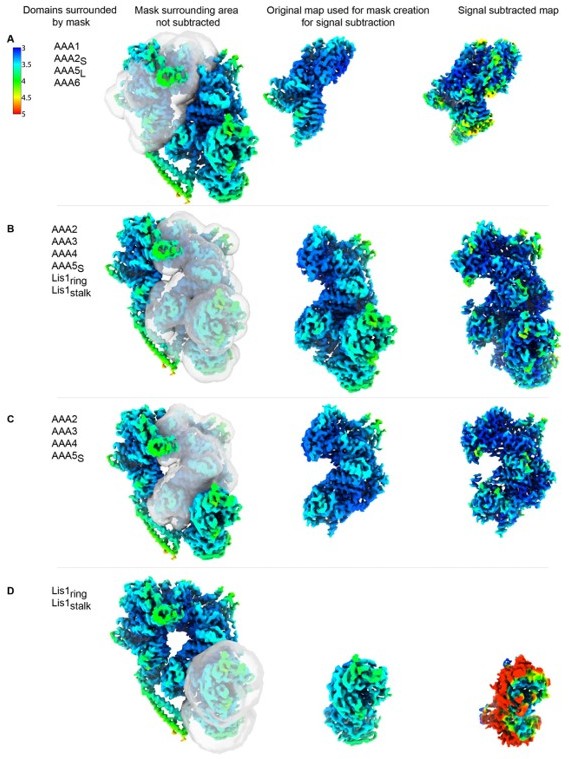

Signal-subtracted reconstructions for dyneinE2488Q-2x(Lis1).
Local resolution is shown for signal subtracted reconstructions of (A) AAA5L-6-1-2S, (B) AAA2-3-4-5S+Lis1ring+Lis1stalk, (C) AAA2-3-4-5S and (D) Lis1ring + Lis1stalk alone. The mask used for signal subtraction is shown on the original map. For comparison, the original portion of the map is displayed next to the resulting signal subtracted reconstruction.

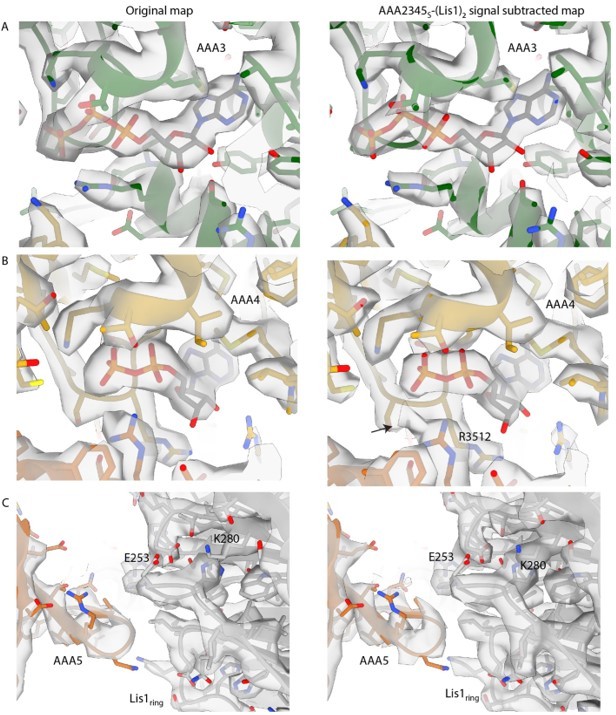

Examples of map density for signal-subtracted reconstruction of AAA2-3-4-5S+Lis1ring+Lis1stalk.
(A) The map quality for ATP at AAA3 is only nominally improved in the signal-subtracted reconstruction and remains unclear whether ATP or ADP-Vi is bound in the active site. (B) The signal-subtracted map shows additional density connected to R3512, which could correspond to a flexible phosphate group or vanadate ion. (C) Signal subtraction did not improve the resolution of the newly identified AAA5-Lis1ring interaction site. There was some resolution improvement for sidechains throughout the map (example, Lis1 K280).
These are the main observations from these reprocessed maps:
1) The signal-subtracted map for Lis1ring + Lis1stalk alone is significantly worse than the original one, likely due to the relatively low molecular weight of the two b-propellers.
2) The signal-subtracted map for AAA5L-6-1-2S has only a nominal increase in resolution.
3) Similarly, the signal-subtracted map for AAA2-3-4-5S shows a nominal increase in resolution.
4) The largest, albeit still relatively modest, improvement in resolution was for the signal subtracted map of AAA2-3-4-5S+Lis1ring+Lis1stalk.
5) Regardless of the improvement, or lack thereof, in the resolution of the signal-subtracted maps, we did not detect any major structural differences relative to the full map.
6) The nucleotide states, in terms of distinguishing between ATP and ADP.Vi, remain ambiguous.
7) AAA4 in AAA2-3-4-5S+Lis1ring+Lis1stalk does show an interesting new feature. If we lower the threshold of the map (see middle panel, right, in Author response image 3), we observe a density connected to R3512. It is possible that this density corresponds to a flexible phosphate or vanadate, which would be adjacent to the β phosphate of the ATP found at AAA4. Although intriguing, this is purely speculative at this point.
8) Despite the improved resolution of the AAA2-3-4-5S+Lis1ring+Lis1stalk map, the density for the AAA5 loop that is part of the binding site for Lis1ring did not improve (close-up in Author response image 3).
9) We will deposit the signal-subtracted map for AAA2-3-4-5S+Lis1ring+Lis1stalk. Even if this map did not change our model for the complex, its higher resolution and novel feature at AAA4 would make it interesting to the community.
3) Line 262 – the authors mention that "Arg 494 was also mutated to Ala to remove the only hydrogen bond donor/acceptor in the interface". However, it seems that D183 and K178 may form a salt bridge between the two Lis1 b-propellers and contribute to the interface?
We were mistaken to say that R494 forms the only hydrogen bond in the interface as D183 and K178 do have the potential to form a salt bridge. K178 was not selected for mutation because it is in close proximity to Sitestalk and we did not want to risk interfering with this site. We have changed the manuscript accordingly.
4) It seems that R3476 (dynein) and E253 (Lis1) could interact if the E253 rotamer was changed, and indeed these residues were chosen to mutate. Since there is not density defining this rotamer, do the authors think that switching the rotamer to facilitate salt bridging would make sense? Currently R3476 looks like it interacts with D3487, so it's possible it can switch between these two interactions.
The most probable rotamer positions for Lis1 E253 orient the sidechain so that it is either facing upwards or rotated towards dynein R3476, which is why it was selected for mutation. However, real space refinement of the model consistently places the E253 side chain so that it is facing towards Lis1. As there is no density to guide the placement the sidechain, we chose not to manually alter the refined model.
5) In the structure statistics table (Supplementary file 2) please include: cc values, sphericity value from 3D FSC
The structure statistics table has been updated to include these values.
6) Great use of the streptavidin affinity grids for a really tough sample!
Thank you!
7) Throughout the manuscript, it may be useful to name the Lis1 chains in some way so it is easy to follow which b-propeller if being referenced at each instance
We discuss the interaction between Lis1 and dynein in both broad and specific terms. When the specific location of Lis1 binding is important to the reader, we use the terms sitering and sitestalk to denote which Lis1 is being referred to. We feel that it would be redundant to label both sitering/sitestalk and Lis1ring/Lis1stalk.
8) Figure 6: We found the microscopy assay a bit hard to follow, and would appreciate if it were made a bit more clear. A few things we were unsure of:
– Are the measurements being made in the 20% of cells that are the aberrant binucleate cells?
The yeast strains used for Figure 6, Figures 2C, 4B and 5B are genetically modified at their endogenous loci to either delete yeast Lis1or insert the desired mutations. Because dynein is a non-essential gene in S. cerevisiae, in our multinucleated assays, only ~20% of the cells are multinucleate in the absence of dynein or Lis1. However, 100% of the cells contain the outlined mutation.
– Was this all done by live cell imaging? Or were cells fixed and analysed?
We apologize for not including this information before. We have added a new section in our Materials and methods clearly describing the methodology for Figure 6 and 7.
The cells for multinucleated assays (Figures 2C, 4B, 5B, and 7A) are fixed and stained with DAPI.
In the dynein localization experiments (Figure 6 and 7B-C), we use live-cell imaging. Each marker (3X-GFP-Dyn1, SPB-mcherry and TUB1-CFP) is tagged at their endogenous locus. We mount the cells on agarose pads and perform live-cell imaging using a spinning disk confocal microscope.
– Because of the background, the images in Figure 6C are hard to follow. We were wondering if zooming in further may help. A cortical marker or + end marker would also be helpful but may not be necessary. Maybe the authors could draw an outline of the cells to help the readers to see better, which would be an easy fix.
We have added an outline to the cells, thank you for the suggestion!
9) Figure 1E-H is a bit hard to follow with the density and the models. We suggest to highlight interactions using just the models, and show the map quality in the supplement.
Thank you for the suggestion. Figure 1 was redesigned to remove the maps and showcase the three major interaction sites using just the models. We have also added a new Figure 2 that focuses on Lis1 and highlights the surfaces involved in its different interactions. This new figure allowed us to shift some of the details about the dynein-Lis1 and Lis1-Lis1 interactions away from Figure 1, keeping that first figure cleaner and broader.
10) Figure 2E – do the authors find it surprising that the affinity is not changed more? We would have expected to see more of a change in binding affinities.
The sitering interface is comprised of two different interactions between Lis1 and dynein: Lis1 with the AAA4 helix and Lis1 with the AAA5 loop (Figure 1, D). We previously showed that the AAA4 helix – Lis1 interaction is important for Lis1 binding (Toropova et al., 2014). The mutations tested here aimed to disrupt the new Lis1 interaction with AAA5. This contact only accounts for ~20% of the buried surface area between the two proteins (as estimated using PDBePISA), with the rest of the contact being made between Lis1 and AAA4. Given the importance of the large Lis1-AAA4 interaction, we would expect Lis1 to still be capable of binding at AAA4, and thus mutations at the Lis1-AAA5 interaction would only cause a partial disruption in binding at sitering.
One of the panels in the new Figure 2 shows residues we had previously mutated in either dynein (Huang, Roberts et al., 2013) or Lis1 (Toropova et al., 2014) to disrupt binding of Lis1 at sitering. We hope this panel in the new figure would help clarify that the mutations tested in our current work only disrupt part of the sitering interaction.
11) For the mutants that were made, is it clear that they all fold properly/are stable?
We have not directly tested this, but we have determined that expression levels are unchanged in cells. We are also able to purify all mutant proteins and perform in vitro assays with them.
12) Could the authors include statistical analysis for Figure 2C,D, Figure 4B and 5B, to test significance as they have done for other assays?
We have revised our figures and figure legends for figures 2C,D (which is now Figure 3C, D), Figure 4B and 5B to include a statistical analysis of our assays.
https://doi.org/10.7554/eLife.71229.sa2Article and author information
Author details
Funding
Howard Hughes Medical Institute
- Samara L Reck-Peterson
National Institutes of Health (R35 GM141825)
- Samara L Reck-Peterson
National Institutes of Health (R01 GM107214)
- Andres E Leschziner
Damon Runyon Cancer Research Foundation (DRG-2370-19)
- Janice M Reimer
National Institutes of Health (T32 GM008326)
- John P Gillies
Jane Coffin Childs Memorial Fund for Medical Research
- Eva P Karasmanis
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
We thank the Nikon Imaging Center at UC San Diego and Dr. Eric Griffis for advice on imaging and analysis and the Cryo-EM Facility at UC San Diego. We also thank our funding sources: JMR is a Merck Fellow of the Damon Runyon Cancer Research Foundation, DRG-2370-19; JPG was funded by the Molecular Biophysics Training Grant, NIH Grant T32 GM008326; EPK was funded by a Jane Coffin Childs Postdoctoral Fellowship; AL’s lab by NIH R01 GM107214; and SRP’s lab by the Howard Hughes Medical Institute and NIH R35 GM141825. We also thank the reviewers of this work for making this a much better paper.
Senior Editor
- Anna Akhmanova, Utrecht University, Netherlands
Reviewing Editor
- Andrew P Carter, MRC Laboratory of Molecular Biology, United Kingdom
Reviewers
- Xin Xiang
- Deanna Smith, South Carolina, United States
- Gira Bhabha, New York University School of Medicine, United States
Version history
- Preprint posted: June 11, 2021 (view preprint)
- Received: June 12, 2021
- Accepted: January 6, 2022
- Accepted Manuscript published: January 7, 2022 (version 1)
- Version of Record published: February 8, 2022 (version 2)
Copyright
© 2022, Gillies et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 1,903
- Page views
-
- 328
- Downloads
-
- 12
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Cell Biology
- Microbiology and Infectious Disease
Communication is crucial for organismic interactions, from bacteria, to fungi, to humans. Humans may use the visual sense to monitor the environment before starting acoustic interactions. In comparison, fungi, lacking a visual system, rely on a cell-to-cell dialogue based on secreted signaling molecules to coordinate cell fusion and establish hyphal networks. Within this dialogue, hyphae alternate between sending and receiving signals. This pattern can be visualized via the putative signaling protein Soft (SofT), and the mitogen-activated protein kinase MAK-2 (MakB) which are recruited in an alternating oscillatory manner to the respective cytoplasmic membrane or nuclei of interacting hyphae. Here, we show that signal oscillations already occur in single hyphae of Arthrobotrys flagrans in the absence of potential fusion partners (cell monologue). They were in the same phase as growth oscillations. In contrast to the anti-phasic oscillations observed during the cell dialogue, SofT and MakB displayed synchronized oscillations in phase during the monologue. Once two fusion partners came into each other’s vicinity, their oscillation frequencies slowed down (entrainment phase) and transit into anti-phasic synchronization of the two cells’ oscillations with frequencies of 104±28 s and 117±19 s, respectively. Single-cell oscillations, transient entrainment, and anti-phasic oscillations were reproduced by a mathematical model where nearby hyphae can absorb and secrete a limited molecular signaling component into a shared extracellular space. We show that intracellular Ca2+ concentrations oscillate in two approaching hyphae, and depletion of Ca2+ from the medium affected vesicle-driven extension of the hyphal tip, abolished the cell monologue and the anti-phasic synchronization of two hyphae. Our results suggest that single hyphae engage in a ‘monologue’ that may be used for exploration of the environment and can dynamically shift their extracellular signaling systems into a ‘dialogue’ to initiate hyphal fusion.
-
- Cell Biology
- Microbiology and Infectious Disease
The relative positions of viral DNA genomes to the host intranuclear environment play critical roles in determining virus fate. Recent advances in the application of chromosome conformation capture-based sequencing analysis (3 C technologies) have revealed valuable aspects of the spatiotemporal interplay of viral genomes with host chromosomes. However, to elucidate the causal relationship between the subnuclear localization of viral genomes and the pathogenic outcome of an infection, manipulative tools are needed. Rapid repositioning of viral DNAs to specific subnuclear compartments amid infection is a powerful approach to synchronize and interrogate this dynamically changing process in space and time. Herein, we report an inducible CRISPR-based two-component platform that relocates extrachromosomal DNA pieces (5 kb to 170 kb) to the nuclear periphery in minutes (CRISPR-nuPin). Based on this strategy, investigations of herpes simplex virus 1 (HSV-1), a prototypical member of the human herpesvirus family, revealed unprecedently reported insights into the early intranuclear life of the pathogen: (I) Viral genomes tethered to the nuclear periphery upon entry, compared with those freely infecting the nucleus, were wrapped around histones with increased suppressive modifications and subjected to stronger transcriptional silencing and prominent growth inhibition. (II) Relocating HSV-1 genomes at 1 hr post infection significantly promoted the transcription of viral genes, termed an ‘Escaping’ effect. (III) Early accumulation of ICP0 was a sufficient but not necessary condition for ‘Escaping’. (IV) Subnuclear localization was only critical during early infection. Importantly, the CRISPR-nuPin tactic, in principle, is applicable to many other DNA viruses.
