MCPH1 inhibits Condensin II during interphase by regulating its SMC2-Kleisin interface

  1. Martin Houlard
  2. Erin E Cutts
  3. Muhammad S Shamim
  4. Jonathan Godwin
  5. David Weisz
  6. Aviva Presser Aiden
  7. Erez Lieberman Aiden
  8. Lothar Schermelleh
  9. Alessandro Vannini  Is a corresponding author
  10. Kim Nasmyth  Is a corresponding author
  1. Department of Biochemistry, University of Oxford, United Kingdom
  2. Division of Structural Biology, The Institute of Cancer Research, United Kingdom
  3. The Center for Genome Architecture, Department of Molecular and Human Genetics, Baylor College of Medicine, United States
  4. Medical Scientist Training Program, Baylor College of Medicine, Department of Bioengineering, Rice University, United States
  5. Center for Theoretical Biological Physics, Rice University, United States
  6. Human Technopole, Italy
Research Article
  • Cited 2
  • Views 843
  • Annotations
Cite this article as: eLife 2021;10:e73348 doi: 10.7554/eLife.73348

Abstract

Dramatic change in chromosomal DNA morphology between interphase and mitosis is a defining features of the eukaryotic cell cycle. Two types of enzymes, namely cohesin and condensin confer the topology of chromosomal DNA by extruding DNA loops. While condensin normally configures chromosomes exclusively during mitosis, cohesin does so during interphase. The processivity of cohesin’s loop extrusion during interphase is limited by a regulatory factor called WAPL, which induces cohesin to dissociate from chromosomes via a mechanism that requires dissociation of its kleisin from the neck of SMC3. We show here that a related mechanism may be responsible for blocking condensin II from acting during interphase. Cells derived from patients affected by microcephaly caused by mutations in the MCPH1 gene undergo premature chromosome condensation. We show that deletion of Mcph1 in mouse embryonic stem cells unleashes an activity of condensin II that triggers formation of compact chromosomes in G1 and G2 phases, accompanied by enhanced mixing of A and B chromatin compartments, and this occurs even in the absence of CDK1 activity. Crucially, inhibition of condensin II by MCPH1 depends on the binding of a short linear motif within MCPH1 to condensin II’s NCAPG2 subunit. MCPH1’s ability to block condensin II’s association with chromatin is abrogated by the fusion of SMC2 with NCAPH2, hence may work by a mechanism similar to cohesin. Remarkably, in the absence of both WAPL and MCPH1, cohesin and condensin II transform chromosomal DNAs of G2 cells into chromosomes with a solenoidal axis.

Editor's evaluation

This paper will be of broad interest to scientists in the field of chromosome biology and has high clinical relevance. It reveals how the MCPH1 protein, that is frequently mutated in disorders of brain growth, prevents premature chromosome condensation. Diverse and complementary approaches are used to provide a compelling argument that provides insight into the mechanism by which chromosome organisation is temporally controlled.

https://doi.org/10.7554/eLife.73348.sa0

Introduction

The segregation of sister DNAs during mitosis requires that they are first disentangled and organised into individual sister chromatids before being pulled in opposite directions by the mitotic spindle upon the dissolution of sister chromatid cohesion by separase. Chromatid formation during mitosis and sister chromatid cohesion necessary for bi-orientation are mediated by highly related structural maintenance of chromosomes (SMC)-kleisin complexes, namely condensin and cohesin respectively. In both cases, the activity of their ring-like SMC-kleisin trimers is regulated by large hook-shaped proteins composed of tandem HEAT repeats, known as HAWKs (HEAT repeat proteins associated with kleisins) (Yatskevich et al., 2019).

The conundrum that complexes with such similar geometries appear to perform such dissimilar functions has been resolved by the realisation that cohesin also organises DNAs into chromatid-like structures, albeit during interphase and only upon ablation of a regulatory protein called WAPL (Tedeschi et al., 2013) as well as naturally during meiotic prophase (Challa et al., 2018) or during V(D)J recombination when WAPL is downregulated in pro-B cells (Hill et al., 2020). There is now considerable evidence that cohesin and condensin organise chromosomal DNAs during interphase and mitosis, respectively, by extruding DNA loops in a processive manner. Indeed, both exhibit such loop extrusion (LE) activity in vitro (Davidson et al., 2019; Ganji et al., 2018). LE mediated by cohesin is halted or at least retarded at specific sequences bound by CTCF, and the processivity of the complex is reduced by WAPL which induces cohesin’s dissociation from chromatin, albeit only infrequently every 10–20 min (Gerlich et al., 2006; Hansen et al., 2017; Wutz et al., 2020). No such site-specific DNA binding proteins are known to regulate condensin. In both cases, chromatid formation is envisaged to arise from processive LE activity, which organises DNA into a series of loops, each emanating from a central core containing the SMC-kleisin loop extruders (Yatskevich et al., 2019).

Mammalian cells possess two types of condensin complexes: condensin I and II. Both complexes share the same SMC proteins, SMC2 and SMC4, which both contain 50 nm long anti-parallel coiled coils connecting a hinge domain at one end with an ATPase domain, formed from the N- and C-terminal extremities, at the other. Dimerisation via their hinges creates V-shaped SMC2/4 heterodimers whose ATPase heads are inter-connected by their kleisin subunits, NCAPH1 for condensin I and NCAPH2 for condensin II. These in turn recruit different HAWK regulatory subunits, NCAPD2 or D3 and NCAPG or G2 for condensin I and II, respectively (Cutts and Vannini, 2020). While condensin II remains in the nucleus during interphase and starts to organise chromosomal DNAs during prophase, condensin I only has access to the DNA after nuclear envelope break down (Hirota et al., 2004; Ono et al., 2004; Ono et al., 2003). Despite this difference, both accumulate along the longitudinal axes of metaphase chromosomes (Ono et al., 2004; Walther et al., 2018). HiC data suggest that condensin I extrudes shorter loops that are nested within longer ones previously created by condensin II. Interactions between distant loops suggest that the loops created by condensin II may be organised radially around a coiled or solenoidal axis (Gibcus et al., 2018). The ratio between condensin I and condensin II adjusts the coiling of chromosome axes, partly by altering the width of the central spiral and generating curled chromosomes (Baxter and Aragón, 2012).

An important factor in limiting the processivity of loop extrusion by cohesin is its release from chromatin. This process that depends on WAPL involves engagement of cohesin’s ATPase heads (Elbatsh et al., 2016) and dissociation of the N-terminal domain (NTD) of its SCC1 kleisin subunit from the coiled coil (neck) that emerges from SMC3’s ATPase head domain (Beckouët et al., 2016). Because a co-translational fusion of SCC1’s NTD to the C-terminal domain of SMC3’s ATPase blocks release, it has been proposed that it involves passage of DNAs previously entrapped inside its SMC-kleisin ring through an exit gate created by dissociation of SCC1 from SMC3 (Chan et al., 2012; Gligoris et al., 2014). Indeed, the kleisin NTDs appear to dissociate in vitro from engaged SMC2 and SMC4 heads (Hassler et al., 2019; Lee et al., 2020) as well as those of SMC1 and SMC3 (Buheitel and Stemmann, 2013; Chan et al., 2012; Herzog et al., 2014). This observation raises the possibility that release via a kleisin-SMC exit gate might be a feature of chromosomal condensin complexes as well as cohesin. However, whether release of this nature occurs in vivo and whether it has an important function is not known.

Condensin II’s activity and functions within the nuclei of interphase cells are poorly understood. While some studies have reported that it binds to chromatin during interphase (Ono et al., 2013), its depletion from post mitotic mouse liver cells has little or no effect on genome organisation or transcription (Schwarzer et al., 2017). Likewise, the notion that condensin II is activated as cells enter mitosis via kinase cascade involving CDK1 and PLK1 (Abe et al., 2011) also begs the question as to whether it has any significant role during interphase. However, an important clue that condensin II can in principle function during this stage of the cell cycle comes from the characterisation of patients carrying a mutation of the Mcph1 gene, which causes a reduction in the size of the cerebral cortex known as primary microcephaly (OMIM 608585) (Thornton and Woods, 2009; Woods et al., 2005). Cells from such patients have an increased number of prophase-like cells (Neitzel et al., 2002; Trimborn et al., 2004). The prophase-like organisation of chromosomal DNA has since been shown to be mediated by condensin II (Trimborn et al., 2006; Yamashita et al., 2011), whose abnormal activity triggers premature condensation in G2 and late de-condensation in G1 (Arroyo et al., 2019; Neitzel et al., 2002; Trimborn et al., 2004).

MCPH1 is only found in metazoa. It contains three BRCT domains, one N-terminal and two C-terminal, separated by a disordered region. The diverse phenotypes of mutant cells have led to many different and often conflicting suggestions for its roles. Binding of MCPH1’s C-terminal BRCT domains to phosphorylated histone H2AX (Venkatesh and Suresh, 2014) is thought to play a part in the DNA damage response, while the premature chromosome condensation caused by mutations within its N-terminal BRCT has been attributed to this domain’s defective association with the SWI/SNF nucleosome remodelling complex and SET1 (Leung et al., 2011). MCPH1 is also thought to bind DNA and has been proposed to function in telomere maintenance, centriole organisation and CHK1 activation (Alderton et al., 2006; Chang et al., 2020; Cicconi et al., 2020; Gruber et al., 2011; Lin and Elledge, 2003). In contradiction to the finding that MCPH1 binds directly to condensin II, it is widely believed that the N-terminal ~200 residues of MCPH1 compete with condensin II for chromosomal binding (Yamashita et al., 2011), in other words, MCPH1 has been proposed to occupy loci required for condensin II’s chromosomal activity.

Given the diversity and conflicting views of MCPH1’s function, we have re-addressed its role in regulating chromosome structure by analysing the consequences of deleting its gene in mouse ES cells. We show that loss of MCPH1 induces a prophase-like organisation of chromatin during G1 and G2 but not during S phase, and that this depends on condensin II. Crucially, this phenotype, which is accompanied by condensin II’s stable association with chromosomes, is unaffected by inhibiting CDK1, suggesting that MCPH1 does not inhibit chromosome condensation merely by delaying the CDK1 activation normally necessary for condensin II activity as previously suggested (Alderton et al., 2006; Gruber et al., 2011; Tibelius et al., 2009). We demonstrate that MCPH1 instead regulates the organisation of chromosomal DNA through the binding of condensin II’s NCAPG2 subunit by a conserved short linear motif (SLiM) situated within its central domain. Such binding does not per se explain how MCPH1 regulates condensin II and has little or no effect on its ATPase activity, at least in vitro. Presumably, other domains, for example its N-terminal BRCT, which is frequently mutated in human microcephaly patients, have an effector function, by interacting with other sites within the condensin II pentamer or recruit other cellular factors.

A clue to the role of MCPH1 is the resemblance between the stable association of condensin II with chromosomal DNA induced by MCPH1 ablation with the effect on cohesin of mutating Wapl, which binds to the cohesin HAWK equivalent to NCAPG2, namely STAG2, also using an FY SLiM. We therefore tested whether like WAPL, MCPH1 prevents condensin II from associating stably with DNA by opening the interface between NCAPH2’s NTD with the neck of SMC2’s ATPase domain. Remarkably, a translational fusion between SMC2’s C-terminus and NCAPH2’s N-terminus is not only functional in mouse oocytes but also resistant to the inhibition mediated by an excess of MCPH1 induced by mRNA micro-injection. This raises the possibility that like WAPL, MCPH1 acts by opening the interface between the kleisin’s NTD and the neck of the SMC ATPase domain. Finally, we investigated the consequences of inducing the stable association with G2 chromosomes of both cohesin and condensin and found that the chromosomal axes created by cohesin upon mutating Wapl are turned into solenoids in cells deleted for both Wapl and Mcph1.

Results

Mcph1 deletion induces chromosome condensation during interphase in embryonic stem cells

Premature chromosome condensation is a key feature of cells isolated from patients carrying MCPH1 mutations. To study this in greater detail, we used CRISPR/Cas9 to delete Mcph1 in mouse E14 embryonic stem cells in which we had previously introduced a Halo-tag at the C-terminal end of NCAPH2 (NCAPH2-Halo) at its endogenous locus. Western blot using an anti-NCAPH2 antibody confirmed that all the NCAPH2 protein present in the cell is shifted to a higher molecular weight that matches the size of the band detected by in-gel Halo-TMR fluorescence. The protein expression levels are identical to the untagged protein in control cells (Figure 1A). Deleting the second exon of Mcph1 induces a frameshift between exon 1 and 3 and thereby complete inactivation of the gene. Western blot analysis of the targeted cells confirmed the lack of any MCPH1 protein (Figure 1A).

Figure 1 with 2 supplements see all

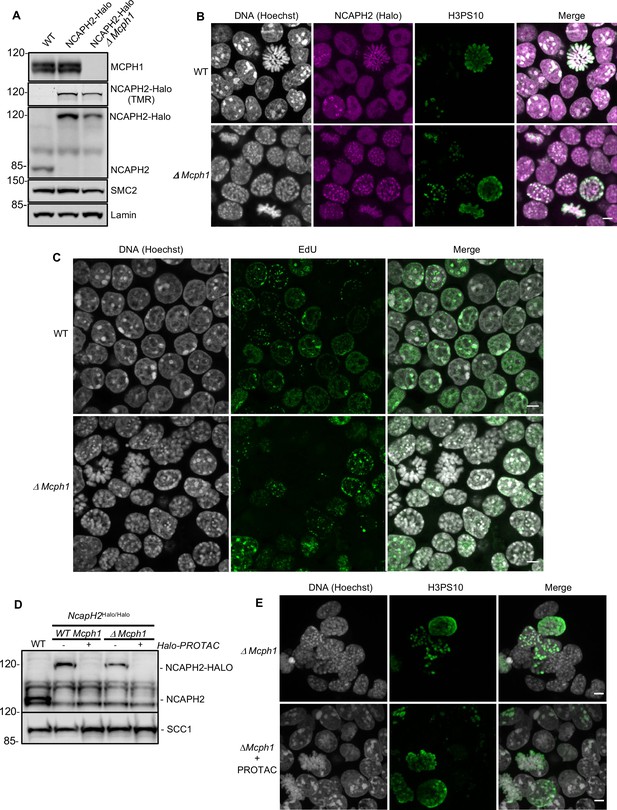

The deletion of Mcph1 in E14 cells induces condensin II-dependent chromosome condensation in both G1 and G2 phases of the cell cycle.

(A) In gel TMR-Halo detection and western blot analysis of E14 cells wild type, Ncaph2Halo/Halo and Ncaph2Halo/Halo Mcph1Δ/Δ. TMR signal detects NCAPH2-Halo tagged. The anti-NCAPH2 antibody shows that all the NCAPH2 protein expressed is fused to the Halo-tag and that the expression levels are similar to wild type but reduced after Mcph1 deletion. The anti-SMC2 detection shows similar levels of condensin in the three cell lines. (B) Immunofluorescence analysis of Histone H3 phosphorylated on serine 10 (green) combined with TMR detection of NCAPH2-Halo (Red) in Mcph1wt/wt and Mcph1Δ/Δ cells. The DNA organisation was analysed using Hoechst. (C) EdU incorporation in Mcph1wt/wt or Mcph1Δ/Δ cells.(D) Western blot analysis of Halo-PROTAC induced NCAPH2-Halo degradation in wild-type, Ncaph2Halo/Halo Mcph1wt/wt and Ncaph2Halo/Halo Mcph1Δ/Δ cells using an anti-NCAPH2 antibody. Anti-SCC1 was used as a loading control. (E) Immunofluorescence analysis of the chromosome decompaction induced by 16 hr treatment of Mcph1Δ/Δ cells with Halo-PROTAC. Immunofluorescence analysis of Histone H3 phosphorylated on serine 10 (green) was used to compare similar cell cycle stages. All the cells showed a diffuse chromatin organisation (150 cells counted). Scale bar, 5 μm.

Immunofluorescence microscopy revealed that Mcph1 deletion leads to a substantial increase in the fraction of cells with prophase like chromosomes: WT: 6.4%, 12/188 cells compared to ΔMcph1: 39.1%, 70/179 cells (Figure 1B). FACS analysis of cells stained with propidium iodide to measure DNA content, H3PS10 specific antibodies to detect G2/M cells, and pulse labelled with EdU to identify S phase cells showed no overall change in cell cycle progression (Figure 1—figure supplement 1). Thus, Mcph1 deletion caused little or no prophase arrest. Crucially, all EdU-negative cells, whether they were in G1 (H3PS10 negative, 200 cells counted) or G2 (H3PS10 positive, 200 cells counted), contained prophase-like chromosomes while no condensation was observed in EdU positive S phase cells (200 cells counted) (Figure 1C and 3D). In wild-type G1 and G2 cells, different centromeres and peri-centric regions cluster in chromocenters. This feature is abolished in the mutant cells, where every centromere occupies an individual location (Figure 1—figure supplement 2) and each chromosome is likewise individualised into prophase-like chromatids (Figure 1B). The localisation of NCAPH2 was analysed by labelling its Halo-tag with the fluorescent TMR ligand. In wild type, NCAPH2 has a diffuse nuclear distribution throughout most of the interphase, with no enrichment at any particular site. The protein starts to accumulate at centromeres during G2 and subsequently along the length of chromosomes from prophase until the end of telophase. Deletion of Mcph1 caused NCAPH2 to associate with the prophase-like chromosomes in all G1 and G2 cells and become enriched at their individualised centromeres (Figure 1B).

MCPH1 restricts Condensin II activity during G1 and G2

The change in chromosome organisation caused by deletion of Mcph1 is accompanied by a change in the localisation of condensin II. To address whether condensin II is causing the observed phenotype, we used a Halo-PROTAC ligand to specifically induce the degradation of NCAPH2-Halo (Figure 1D). Because this completely reversed the re-organisation of chromosomal DNA caused by Mcph1 deletion (no condensation observed in 150 cells counted, Figure 1E), we conclude that altered regulation of condensin II is largely if not completely responsible. Unlike the centromere dispersion, chromosome condensation, and chromosome unpairing induced by loss of Slimb ubiquitin ligase or casein kinase one in Drosophila cells, which is accompanied and caused by an increase in the level of NCAPH2 (Buster et al., 2013; Nguyen et al., 2015), deletion of Mcph1 in ES cells is accompanied by a modest but nevertheless readily detectable reduction in NCAPH2 levels (Figure 1A & D). The implication is that MCPH1 restricts the activity of individual condensin II complexes in G1 and G2 cells.

MCPH1 prevents Condensin II’s stable association with interphase chromatin

Photobleaching studies with GFP-tagged condensin II subunits has revealed that they are highly mobile during interphase, suggesting that they are rarely or only transiently associated with chromatin fibres (Gerlich et al., 2006). FRAP of TMR-labelled NCAPH2-Halo confirmed this as photobleached spots of Halo-TMR fluorescence recovered 95 % of their fluorescence within 1 min (Figure 2). However, deletion of Mcph1 caused a dramatic change in the dynamics, with fluorescence merely recovering to 28 % of its starting level within 1 min. After that, no further change occurred during the next 10 min (Figure 2), implying that Mcph1 deletion causes 72 % of condensin II complexes to associate stably with chromatin in G1 or G2 cells, thereby altering chromatin compaction during interphase.

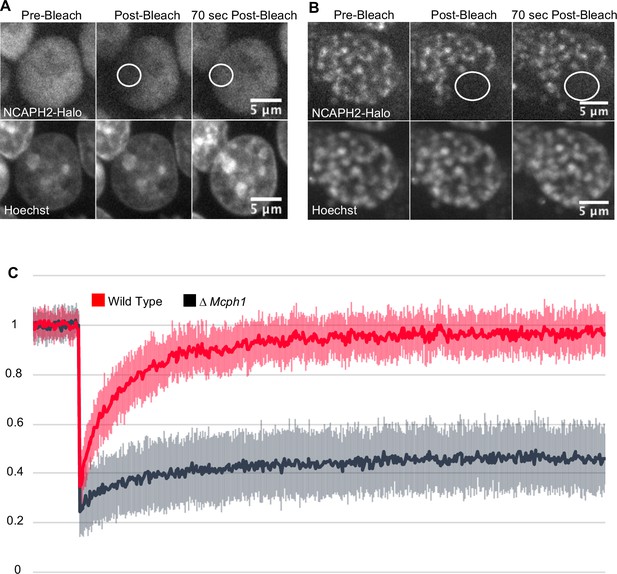

Mcph1 deletion induces the stable binding of condensin II to the condensed chromosomes in interphase.

FRAP analysis of NCAPH2-Halo turn-over on chromatin in Mcph1wt/wt (A) and Mcph1Δ/Δ cells (B). Top row: NCAPH2-Halo signal pre-bleach, post bleach and after 70 s recovery. The region bleached correspond to the white circle. Scale bar, 5 μm. (C) Quantification of the fluorescence recovery after photobleaching over a 10 min post-bleach period. (Average of three experiments, total number of cells analysed: WT 28 cells, Mcph1Δ/Δ 30 cells, standard deviation is represented for every time point).

The chromosome re-organisation induced by Mcph1 deletion does not depend on CDK1

To check whether the premature formation of prophase-like chromatids when Mcph1 deleted cells enter G2 might be caused by the precocious activation of CDK1, which activates condensin II as wild-type cells enter prophase, we compared inhibitory phosphorylation of CDK1’s Y15 residue and cyclin B1 localisation in wild type and mutant cells. Deletion of Mcph1 neither reduced Y15 phosphorylation nor caused cyclin B1 to enter nuclei prematurely (Figure 3A and B). To address this issue more directly, namely whether CDK1 activity is required for condensin II’s hyperactivity, we asked whether inhibition of the kinase would suppress the chromosomal re-organisation. Treatment of both wild type and Mcph1 deleted cultures with the CDK1 inhibitor RO-3306 for 7 hr caused most cells to accumulate in G2 with a 4 C DNA content (Figure 3C). The DNA organisation of wild-type cells resembled that of normal G2 cells, namely no chromatid-like structures were formed and centromeres were clustered in chromocenters (200 cells counted, Figure 3D). In contrast, the chromosomal DNAs of all mutant cells were organised into prophase-like chromatids with individualised centromeres (150 cells counted, Figure 3D). We conclude that the hyperactivity of condensin II in G2 Mcph1-deleted cells is independent of CDK1, suggesting that MCPH1 regulates condensin II directly.

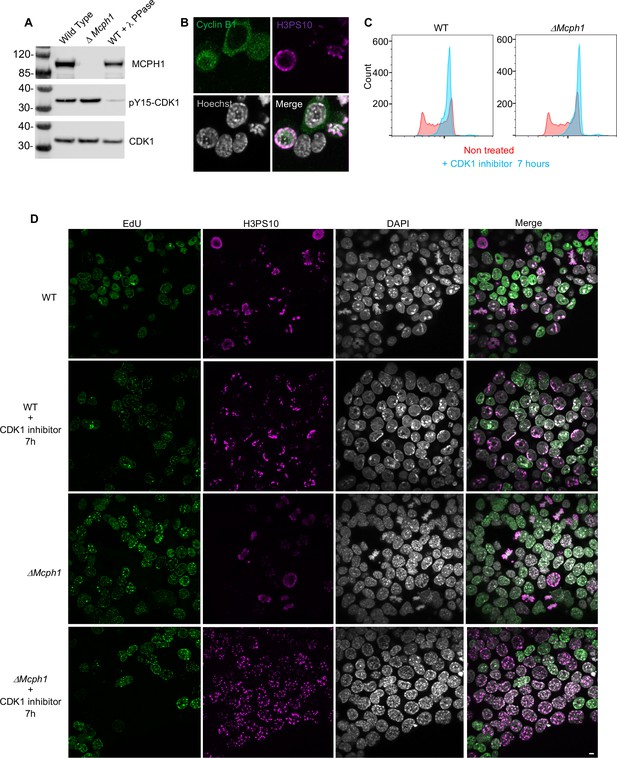

CDK1 activity is not required for the condensation phenotype induced by Mcph1 deletion.

(A) Western blot analysis of CDK1 phosphorylation on tyrosine 15 in wild-type cells compared to Mcph1-deleted cells. Wild-type protein extracts were treated by λ phosphatase as a control of antibody specificity. An anti-CDK1 protein was used as a loading control. (B) Immunolocalisation of Cyclin B in Mcph1-deleted cells. (C) CDK1 activity was inhibited by incubating wild-type or Mcph1 deleted cells to RO-3306 for 7 hr. The cell cycle profile was analysed by FACS for both wild-type and Mcph1-deleted cells without treatment or after 7 hr incubation with 9 μM R0-3306. (D) All the G2 cells in Mcph1-deleted cells present the condensed phenotype after CDK1 inhibition (150 cells counted). No condensation was observed in wild-type G2 cells (200 cells counted). Scale bar, 5 μm.

Mcph1 deletion induces chromosomal compaction and alters inter-chromosomal interactions

In situ Hi-C libraries were generated for wild-type mouse E14 and Mcph1 deleted cells. In wild-type cells, chromosomal p-termini have enhanced contact frequencies with one another, as do q-termini. In contrast, p-termini are less likely to contact q-termini (Figure 4A). This is consistent with the presence of chromocenters within which p- termini co-localise with each other and likewise q-termini with each other. Because mouse chromosomes are telocentric, with centromeres located at their p-termini, the HiC maps confirm that centromeres co-localise with one another as do telomeres.

Figure 4 with 1 supplement see all

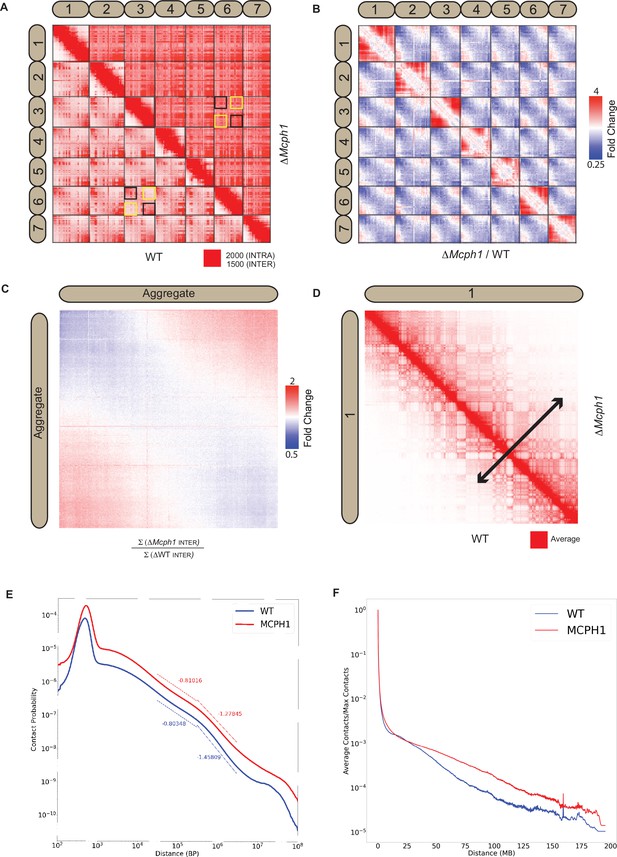

Mcph1 deletion causes chromosome compaction and loss of chromocenters.

(A) Representative subset of interactions between chromosomes 1–7 for wild-type and Mcph1 deletion maps (wild-type below diagonal) shows loss of chromocenters in the Mcph1 deletion maps. The intensity of color in the Hi-C maps show the frequency of contacts between pairs of loci (row and column), with the upper bound cutoff for interaction frequency in red and zero interaction frequency in white (different upper bound cutoffs for intrachromosomal vs interchromosomal interactions are indicated in the legend). In the wild-type map, the p-termini of different chromosomes show increased contact frequency with one another, as do the q-termini of different chromosomes with each other; examples of such interactions are highlighted by the black squares. The wild-type map also shows that the p-termini of one chromosome show less contact frequency with the q-termini of other chromosomes; examples of such interactions are highlighted by the yellow squares. Such differential interactions in the wild-type map are contrasted with the same regions highlighted by the black and yellow squares in the Mcph1 deletion maps, where no significant difference of interaction is seen. (B) Log fold change for Mcph1 deletion over wild-type for chromosomes 1–7. Red indicates genomic loci pairs that enriched contact in the Mcph1 deletion maps relative to wild-type, and blue indicates genomic loci pairs that have depleted contacts in the Mcph1 deletion maps relative to wild-type. (C) Log fold enrichment of the Mcph1 deletion map over wild-type map for the aggregated inter-chromosomal matrix. (D) Balanced KR-normalised Hi-C Maps for wild-type and Mcph1 deletion maps for the intrachromosomal region of chromosome 1 (wild-type below diagonal). Increased interactions between distant loci in the intrachromosomal Mcph1 deletion maps is seen. Color scale threshold is at the average value of each respective Hi-C map. Black arrows indicate the genomic distance at which loci show a greater than average level of contact frequency for the respective maps. (E) Intrachromosomal contact probability for all chromosomes shows increased long-range interactions and diminished contact drop-off for Mcph1 deletion. (F) Average intrachromosomal contact frequency for all chromosomes shows increased long-range interactions with Mcph1 deletion.

Strikingly, the enhanced spatial proximity between chromosomal p-termini (resp., q-termini) is lost in the absence of MCPH1 (Figure 4B and C), consistent with the disappearance of chromocenters as observed by microscopy. Deletion of Mcph1 also results in an enhancement in the frequency of long-range, intra-chromosomal contacts (Figure 4D, E and F) and enhances the frequency of inter-compartment (A to B) contacts as compared to intra-compartment contacts (A to A and B to B) (Figure 4—figure supplement 1A and B). This finding is consistent with the compaction of individual chromosomes upon loss of MCPH1.

The HiC maps did not reveal loci moving from one compartment to the other nor any major changes in loops or contact domains (Figure 4—figure supplement 1C).

Recombinant MCPH1 forms a stable complex with Condensin II

Our results suggest that MCPH1 directly represses condensin II activity, possibly via a direct interaction. Previous in vitro work suggested that MCPH1 binds condensin II via two interfaces. One interface between the N-terminal 195 residues of MCPH1 and NCAPD3 and a second binding site between a highly conserved central domain of MCPH1 (381–435) and NCAPG2 (Figure 5A and B Yamashita et al., 2011). To confirm a direct interaction between MCPH1 and condensin II, full-length human MCPH1 and condensin II were expressed in insect cells and separately purified. While full-length MCPH1 was largely insoluble, we purified sufficient strep-tagged full-length MCPH1 to confirm that it could pull-down pentameric condensin II complex (Figure 5C). To localise the binding site, we expressed and purified N-terminal His-MBP-tagged truncations of MCPH1 in E. coli: MBP-MCPH11-435, MBP-MCPH11-195, MBP-MCPH1196-435 and MBP-MCPH1348-469 (Figure 5A). We found that strep-tagged condensin II could only pull-down MCPH1 constructs that included the central domain (Figure 5D). MCPH1 binding was specific to condensin II, as condensin I-strep was unable to pull down any MCPH1 constructs (Figure 5—figure supplement 1A).

Figure 5 with 1 supplement see all

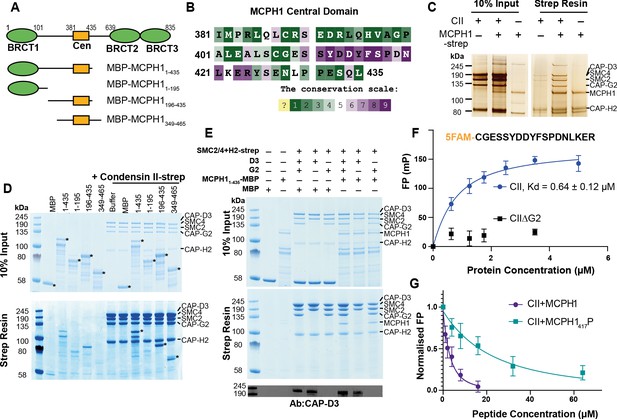

Human condensin II interaction with MCPH1.

(A) Domain structure of MCPH1 and MBP fusion constructs that were expressed in E. coli and used in binding assays. BRCT domains are indicated in green and the central domain in yellow. (B) Conservation analysis of the MCPH1 central domain with the ConSurf server. (C) Strep tag pull-down indicating full-length MCPH1 binds condensin II. Full-length MCPH1 and condensin II were expressed in insect cells and separately purified, before being mixed on strep-tactin sepharose. Samples of input and resin after run on SDS page and visualised with silver stain. (D) Strep-tag pull-down assay indicating strep tagged condensin II pulls down MBP-MCPH1 constructs that contain the central domain, but not MBP-MCPH11-195 or MBP alone. SDS page gel visualised with Coomassie stain, (*) indicates the running position of the MBP/MCPH1 construct used. (E) Strep pull-down assay showing strep-tagged pentameric condensin II or tetrameric condensin II lacking NCAPD3 can pull down MBP-MCPH11-435, while tetrameric condensin lacking NCAPG2 does not pull down MCPH1. The lower panel shows a western blot performed using strep-resin samples, blotted using an anti-NCAPD3 antibody. (F) Fluorescence polarisation binding assay using 5-FAM-labelled MCPH1407-424 peptide and increasing concentration of either pentameric condensin or tetrameric condensin II lacking MCPH1 binding subunit NCAPG2 (CIIΔG2). (G) Peptide competition assay using a fixed concentration of 5-FAM labelled MCPH1407-424 and condensin II with an increasing amount of MCPH1407-424 wild-type or phosphorylated at serine 417. All error bars indicate standard deviation from three replicates.

We then tested whether tetrameric condensin II, lacking either NCAPD3 or NCAPG2, could bind MCPH11-435 using pull-down assays. To exclude the MBP tag interfering with the interaction at the N-terminus of MCPH1, we moved the tag to the C-terminus. We found that removing NCAPG2 greatly reduced MCPH11-435 MBP pull-down, while removing NCAPD3 had no effect (Figure 5E), suggesting that the binding was mediated by the central domain of MCPH1 to NCAPG2. Further analysis with analytical size exclusion chromatography demonstrated that MBP-MCPH1196-435 and condensin II co-eluted in one peak, separated from the void volume, suggesting they form a stable, soluble complex (Figure 5—figure supplement 1B).

MCPH1 binds Condensin II via a short linear motif

To address which part of MCPH1’s central domain is necessary for binding condensin II, we analysed the sequence of MCPH1 using the ConSurf server (Ashkenazy et al., 2016; Berezin et al., 2004) to identify conserved sequences. Between residues 381–435 of human MCPH1, the 410–424 interval stands out as a highly conserved patch within a region that is otherwise poorly conserved (Figure 5B and Figure 5—figure supplement 1C). Despite its conservation, the sequences are predicted to be disordered, suggesting that it could be a short linear motif (SLiM) that binds to condensin II. To test this, we performed fluorescence polarisation binding assays with a 5-FAM-labelled MCPH1 peptide spanning residues 407–424 and found that it bound to condensin II, with a fit Kd of 0.64 ± 0.12 µM (mean ± SEM) (Figure 5F). As expected, no binding was detected to a tetrameric version of condensin II lacking NCAPG2.

SLiMs are frequently regulated by post-translation modification (Van Roey et al., 2014) and proteomic analysis of mitotic cells previously found that MCPH1 can be phosphorylated within the central motif at S417 (Oppermann et al., 2012), with S417/P418 forming a potential CDK consensus site (Errico et al., 2010). We therefore used a fluorescence polarisation competition assay to test the effect of phosphorylating S417. In these assays, the concentration of condensin II and 5-FAM-MCPH1407-424 is fixed and unlabelled peptides of either wild-type or S417 phosphorylated MCPH1407-424 are added at increasing concentrations. While the wild-type MCPH1407-424 readily competed with 5-FAM-MCPH1407-424, resulting in a fit competition KD of 5.3 ± 1.0 µM, phosphorylation at S417 reduced the affinity ~10 fold to 53 ± 8 µM (Figure 5G). This suggests that CDK1 phosphorylation of MCPH1 may reduce its interaction with condensin II, an effect that might have an important role in initiating chromosome condensation during prophase.

MCPH1 central domain is essential for its interaction with Condensin II and its regulation in vivo

To address whether this central motif is necessary for binding and regulating condensin II in vivo, we created an E14 cell line in which both copies of the Ncaph2 gene is tagged at its C-terminus with GFP. Western blotting revealed MCPH1 in immunoprecipitates generated using antibodies against GFP, and only in GFP-tagged cells expressing wild-type MCPH1 (Figure 6A). Because the MCPH1-specific antibody was raised against the central domain, we used a cell line in which both copies of Mcph1 and Ncaph2 were tagged with GFP and Halo respectively to test the role of the central domain motif and then created a variant (Mcph1ΔCenGFP/ΔCenGFP) lacking 15 residues containing the motif (S400SYEDYFSPDNLKER414). Western blotting confirmed that Mcph1GFP/GFP cells and Mcph1ΔCenGFP/ΔCenGFP were expressed at similar levels (Figure 6C). The slightly increased mobility of Mcph1ΔCenGFP/ΔCenGFP and its failure to be detected by the MCPH1-specific antibody confirmed deletion of the central domain motif (Figure 6B). Because TMR-labelled NCAPH2-Halo was detected in GFP immunoprecipitates from Mcph1GFP/GFP but not Mcph1ΔCenGFP/ΔCenGFP cells (Figure 6C), we conclude that MCPH1’s central domain is essential for its stable interaction with condensin II in vivo.

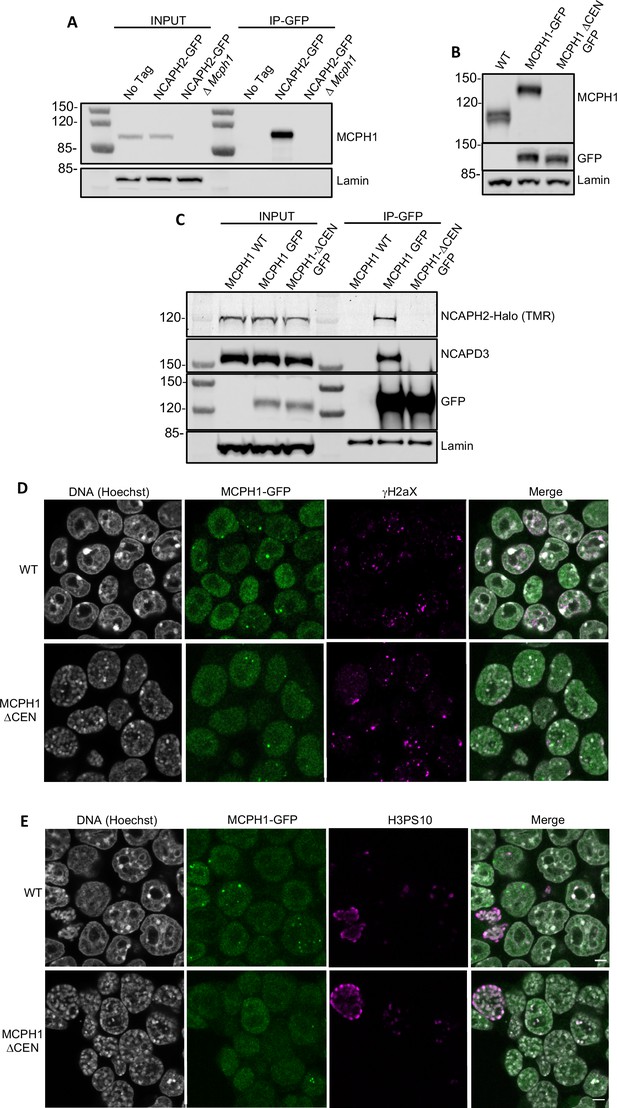

MCPH1 interaction with condensin II is essential to prevent interphasic chromosome condensation.

(A) Co-immunoprecipitation of MCPH1 with NCAPH2-GFP. Nuclear extracts were prepared from wild type, Ncaph2GFP/GFP and Ncaph2GFP/GFP Mcph1Δ/Δcells. Immunoprecipitation was performed using GFP-trap agarose beads and analysed by western blot using an anti-MCPH1 antibody (IP-GFP). 5 % of the lysate used for IP was loaded as INPUT control. Anti-Lamin B1 antibody was used as a loading control. (B) Deletion of the central domain of MCPH1. To address if the central domain of MCPH1 is necessary to mediate the interaction with condensin II, we first introduced a GFP-tag at the C-terminal end of MCPH1 in Ncaph2Halo/Halo cells as the antibody against the protein was raised against the central domain. Then a second targeting was done to delete the central domain. As a result, the western blot represented in panel B using anti-MCPH1 antibody detects the wild-type protein or the GFP-tagged protein, homozygous Mcph1GFP/GFP but does not detect anything after deletion of the central domain. Using anti-GFP antibody reveals that the protein deleted for the central domain is present in the cell at similar levels as the wild-type GFP-tagged protein. A slight decrease in size is observed due to the deletion of the central domain. Anti-Lamin B1 antibody was used as a loading control. (C) Co-immunoprecipitation of NCAPH2-Halo with MCPH1-GFP. Nuclear extracts were prepared from Ncaph2Halo/Halo, Ncaph2Halo/HaloMcph1GFP/GFP and Ncaph2Halo/HaloMcph1ΔcenGFP/ΔcenGFP cells. Immunoprecipitation was performed using GFP-trap agarose beads and analysed by in-gel detection of NCAPH2-Halo using the Halo-ligand TMR or by western blot using an anti-NCAPD3 antibody (IP-GFP). 5 % of the lysate used for IP was loaded as input control. Anti-Lamin B1 antibody was used as a loading control. (D,E) Immunofluorescence analysis of the chromatin organisation in Ncaph2Halo/HaloMcph1GFP/GFP and Ncaph2Halo/HaloMcph1ΔcenGFP/ΔcenGFP cells. MCPH1-GFP is only detected in the cell nucleus enriched in dots colocalising with some γH2AX foci (D). The deletion of its central domain induces a similar condensation of interphasic chromosomes as the one observed after the complete loss of function of Mcph1 (E).

Immunofluorescence revealed that MCPH1 and MCPH1ΔCen-GFP proteins show the same localisation within cells. They are both exclusively nuclear and enriched in small clusters that colocalise with sites of DNA damage marked by γH2aX DNA (Figure 6D), as previously reported (Rai et al., 2006). The significance of this association is unclear as Mcph1 deletion has no effect on the level of γH2aX (Figure 1—figure supplement 1D). Crucially, the chromosomes of Mcph1ΔCenGFP/ΔCenGFP but not Mcph1GFP/GFP G1 and G2 cells adopted the prophase-like appearance characteristic of Mcph1 deleted cells (Figure 6E). Therefore, we conclude that MCPH1’s central domain SLiM is essential for inhibiting condensin II during interphase and inhibiting premature condensin-mediated chromatin condensation.

MCPH1 does not alter Condensin II ATPase activity or DNA binding in vitro

To address whether MCPH1 affects condensin II’s activity in vitro, purified the condensin II- MCPH11-435 complex using size exclusion chromatography and measured its ATPase activity. The condensin II-MCPH11-435 complex possessed a similar activity to that of condensin II alone but its stimulation by DNA was modestly lower (Figure 7A). To ensure that the ATPase activity measured in these assays was genuinely due to condensin II, we also purified a condensin II-MCPH11-435 complex deficient in ATP binding (Q-loop mutation, SMC2 Q147L, SMC4 Q229L). As expected, this mutation effectively eliminated ATPase hydrolysis (Figure 7A).

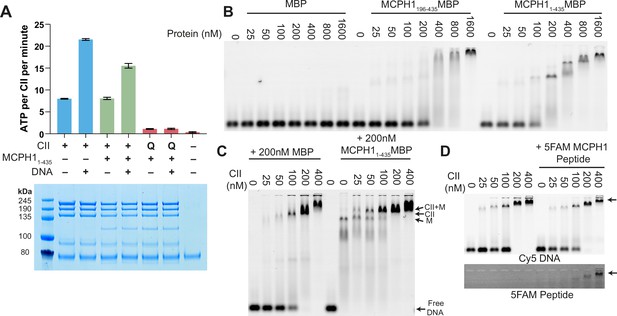

MCPH1 has little effect on condensin II ATP hydrolysis and DNA binding.

(A) ATPase rate of condensin II complex in the presence of MCPH1. Q refers to condensin II with an ATPase deficient mutation in the Q-loop. Below is an SDS page gel of the completed reaction. Error bars indicate standard deviation from three repeats. (B) EMSA assay of MBP, MCPH11-435-MBP and -MCPH1195-435-MBP using 50 bp of Cy5-labelled dsDNA. (C) EMSA assay of condensin II in the presence of MBP or MCPH11-435-MBP. (D) EMSA assay of condensin II in the presence or absence of 5FAM-MCPH1 peptide. Top image detecting Cy5 and bottom imaged detecting 5FAM.

Figure 7—source data 1

Microsoft excel data corresponding to the standard curve in Figure 7A.

https://cdn.elifesciences.org/articles/73348/elife-73348-fig7-data1-v2.xlsx
Figure 7—source data 2

Microsoft excel data corresponding to the ATPase curve in Figure 7A.

https://cdn.elifesciences.org/articles/73348/elife-73348-fig7-data2-v2.xlsx
Figure 7—source data 3

raw data uncropped gels corresponding to Figure 7.

https://cdn.elifesciences.org/articles/73348/elife-73348-fig7-data3-v2.zip

Previous work has suggested that full-length MCPH1 binds to DNA and chromatin (Chang et al., 2020; Yamashita et al., 2011) so we tested whether MBP-MCPH11-435 and MBP-MCPH1196-435 are able to bind to a 50 bp sequence of dsDNA using electrophoretic mobility shift assay (EMSA). Both MCPH11-435-MBP and MCPH1196-435-MBP were able to induce a shift, however higher concentrations of MCPH1196-435 MBP were required for a complete shift in the free DNA band, suggesting MCPH11-195 MBP could have a role in DNA binding (Figure 7B). We then examined if MCPH1 affected condensin II DNA binding, by performing condensin II EMSAs in the presence or absence of MCPH11-435-MBP. The distinct MCPH11-435-MBP shifted band disappeared with increasing concentrations of condensin II, and there was an upward shift in the condensin II bands in the presence of MCPH11-435-MBP relative to the MBP condensin II control, suggesting MCPH1 was binding with condensin II (Figure 7C). We then performed condensin II EMSAs in the presence or absence of 1 μM 5-FAM-MCPH1407-424 peptide. 5-FAM signal was present with condensin II shifted DNA band demonstrating that the MCPH1 peptide was sufficient to mediate comigration of MCPH1 with condensin II (Figure 7D). Additionally, the presence of the 5-FAM-MCPH1407-424 peptide did not affect condensin II DNA binding. Collectively, this indicates that in vitro, using purified proteins, condensin II can bind MCPH1 and DNA simultaneously. Finally, these results suggest that the inhibitory effect of MCPH1 on condensin II loading observed in vivo involves a feature absent from the in vitro DNA binding assay.

MCPH1 overexpression inhibits the loading of Condensin II on mouse meiotic chromosomes

Our results show that MCPH1 plays a crucial role in chromosome organisation during interphase by inhibiting condensin II’s activity in mitotic cells. We next extended our analysis of MCPH1 to meiotic cells by testing the effect of increased MCPH1 expression during the first meiotic division of mouse oocytes. To image the chromosomes, oocytes were injected with in vitro transcribed mRNA coding for H2B-mCherry to illuminate the chromosomes in magenta (Figure 8A). As previously described (Houlard et al., 2015), after the germinal vesicle breakdown (GVBD), bivalent chromosomes form a ball (3.3 hr) before congressing to a metaphase plate (7.4 hr). Cleavage of cohesin by separase along chromosome arms then converts each bivalent into a pair of dyads that segregate highly synchronously to opposite poles of the cells during anaphase I (10 hr), which is followed by extrusion of the first polar body (Figure 8B, control).

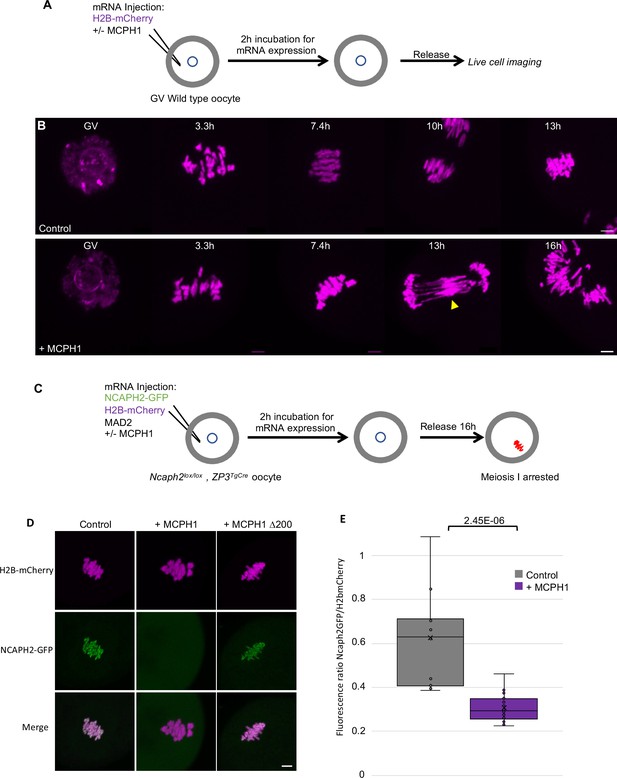

MCPH1 prevents the association of condensin II with chromosomes.

(A) Cartoon summarizing the experimental procedure corresponding to panel B. (B) Wild-type mouse oocytes were injected at the GV stage with in vitro transcribed mRNA coding for H2B-mCherry alone to mark the chromosomes in magenta (Control) or in combination with MCPH1 (+ MCPH1). Meiosis I progression was followed by live cell confocal imaging. The segregation defects observed in the presence of MCPH1 are indicated by a yellow arrowhead. Maximum intensity z projection images of the main time points are shown between 3.3 hr post GVBD onwards (number of oocytes analysed in three independent experiments and showing segregation defects: control:0/12;+ MCPH1: 18/19). (C) Cartoon summarizing the experimental procedure corresponding to panel D. (D) Oocytes from Ncaph2f/f Tg(Zp3Cre) females were injected at the GV stage with mRNA coding for H2B-mCherry, MAD2 and NCAPH2-GFP only (control) or in combination with MCPH1 (+ MCPH1) or MCPH1 deleted of the first N-terminal 200 amino acids (+ MCPH1 Δ200). Oocytes were arrested 16 hr after GVBD in metaphase I owing to MAD2 overexpression, and maximum-intensity z projection images of chromosomes were acquired by live cell confocal imaging (Total number of oocytes analysed in three experiments: control: 37,+ MCPH1: 58,+ MCPH1Δ200: 12). (E) Quantification of NCAPH2-GFP signal on the chromosomes. (Number of oocytes analysed in two independent experiments: control: 11;+ MCPH1: 14). In each graph the two tailed T-test p values are indicated is indicated. Scale bar, 5 μm.

Figure 8—source data 1

Microsoft excel file of fluorescence measurements in Figure 8E.

https://cdn.elifesciences.org/articles/73348/elife-73348-fig8-data1-v2.xlsx

Co-injection with M. musculus Mcph1 mRNAs (Figure 8B,+ MCPH1) had little effect on the chromosome congression until metaphase. However, it caused chromosomes to unravel soon after the onset of anaphase, presumably because chromosomes are not stiff enough to resist to the pulling forces of the spindle, and this was accompanied by a catastrophic failure to disjoin the chromosome arms of dyads to opposite poles (Figure 8B,+ Mcph1 mRNA, 16 h). The lack of chromosome rigidity and the unravelling of the chromatin in response to traction by the spindle are reminiscent of the phenotype caused by depletion of NCAPH2 (Houlard et al., 2015).

To address whether MCPH1 overexpression inhibits the association of condensin II with chromosomes, we rescued mouse oocytes deleted for Ncaph2 (Ncaph2Lox/Lox, Zp3TgCre) by injecting an mRNA coding for NCAPH2-GFP as previously described (Houlard et al., 2015). These oocytes were also injected with mRNA encoding MAD2 to arrest them in meiosis I and H2B-mCherry to image and quantify the amount of chromosomal NCAPH2-GFP (Figure 8C). This revealed that the injection of Mcph1 mRNAs greatly reduced association of condensin II with chromosomes during metaphase I (Figure 8D and E). To see if MCPH1 can also release condensin II previously associated with chromosomes, we injected Mcph1 mRNA into meiosis I arrested oocytes. However, this induced a much milder reduction within the first two hours (not shown), suggesting that Mcph1 prevents the initial loading of condensin II on chromosomes but has little effect on complexes already stably associated with them.

The N-terminal BRCT domain of MCPH1 was previously shown to have an essential role in regulating chromosome condensation both in vitro and in vivo (Yamashita et al., 2011). Consistent with this, deletion of the N-terminal 200 amino acids of MCPH1 abolishes its inhibitory effect in mouse oocytes (Figure 8D). It has also been claimed that the N-terminal domain of MCPH1 can on its own inhibit condensin II by competing for its binding sites on chromosomal DNA (Yamashita et al., 2011). However, we were unable to detect any impact of over-expressing only the NTD of MCPH1 (not shown).

Fusion of SMC2 to NCAPH2 is resistant to MCPH1 inhibitory effect

The effects of MCPH1 on condensin II resemble those of WAPL on cohesin, which is thought to act by dissociating the NTD of its kleisin from the neck of SMC3’s ATPase domain (Beckouët et al., 2016; Chan et al., 2012; Eichinger et al., 2013). A key finding in this regard is that the fusion of the C-terminus of SMC3 to the N-terminus of SCC1 causes cohesin to resist WAPL. To address whether fusion of this nature has similar effect on condensin II, we created a cDNA encoding a protein in which the C-terminus of SMC2 and the N-terminus of NCAPH2 are connected by a 57 amino acid linker containing three TEV protease cleavage sites. A GFP tag was introduced at the C-terminal end of NCAPH2 to image the protein (Figure 9A). Importantly, mRNAs encoding this fusion fully rescued the meiosis I chromosome segregation defects of oocytes deleted for Ncaph2: 17 out of 18 oocytes deleted for Ncaph2 and injected with the fusion segregated their chromosome without any defect, whereas all the Ncaph2 deleted oocytes showed chromosome stretching (n = 10). Furthermore, GFP fluorescence associated with the fusion protein was detected along the chromosome axes of bivalent chromosomes, a distribution that is similar if not identical to that of wild-type NCAPH2. Remarkably, co-injection of Mcph1 mRNAs had no adverse effect on this activity, unlike controls in which Mcph1 mRNAs were co-injected with Ncaph2-Gfp mRNAs (Figure 9B and C). Likewise, MCPH1 prevented association of NCAPH2-GFP with chromosomes but not that of the SMC2-NCAPH2-GFP fusion (Figure 9C).

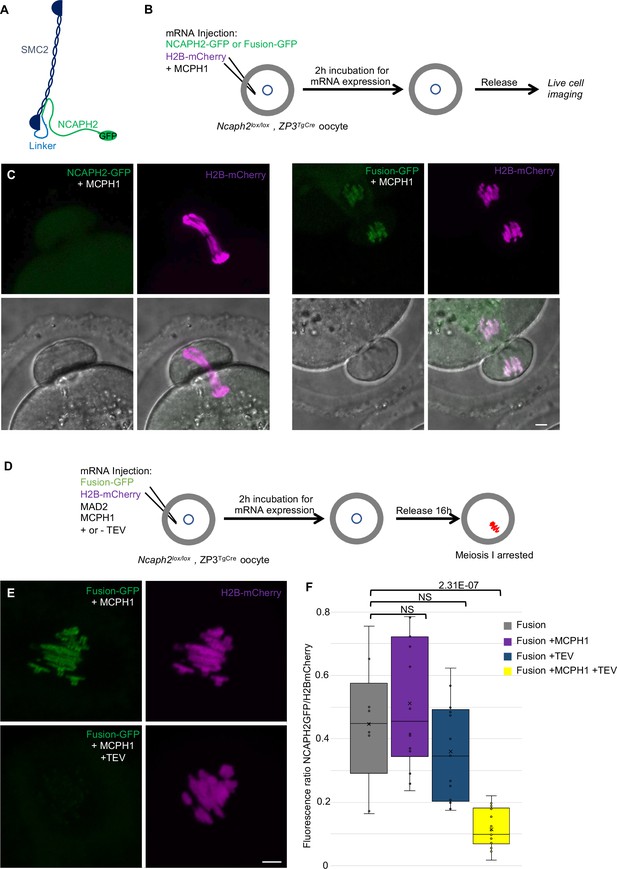

The closure of the SMC2-NCAPH2 interface prevents MCPH1 inhibitory effect.

(A) Schematic representation of the protein fusion between SMC2 C-terminus and the N-terminus of NCAPH2 using a linker comprising three TEV protease cleavage sites. (B) Cartoon summarizing the experimental procedure corresponding to panel C. (C) Oocytes from Ncaph2f/f Tg(Zp3Cre) females were injected at the GV stage with mRNA coding for H2B-mCherry and MCPH1 in combination with NCAPH2-GFP (NCAPH2-GFP+ MCPH1) or with the fusion (Fusion-GFP+ MCPH1). Meiosis I progression was followed by live cell confocal imaging. Maximum intensity z-projections images of the time points corresponding to anaphase I when segregation defects are observed (total number of oocytes showing chromosome segregation defects in three experiments: NCAPH2-GFP+ MCPH1: 17/19, Fusion-GFP+ MCPH1: 0/18). (D) Cartoon summarizing the experimental procedure corresponding to panel E. (E) Oocytes from Ncaph2f/f Tg(Zp3Cre) females were injected at the GV stage with mRNA coding for H2B-mCherry, MAD2 and Fusion-GFP only or in combination with TEV protease. Oocytes were arrested 16 hr after GVBD in metaphase I owing to MAD2 over-expression and maximum-intensity z-projection images of chromosomes were acquired by live cell confocal imaging. (F) Quantification of Fusion-GFP signal on the chromosomes (Total number of oocytes analysed in three experiments: Fusion: 9; Fusion+ MCPH1: 14, Fusion+ TEV: 13, Fusion+ TEV + MCPH1: 18). In each graph the two tailed T-test p values are indicated is indicated. Scale bar, 5 μm.

Figure 9—source data 1

Microsoft excel file of fluorescence measurements in Figure 9F.

https://cdn.elifesciences.org/articles/73348/elife-73348-fig9-data1-v2.xlsx

A caveat to this experiment is that the resistance to MCPH1 of the SMC2-NCAPH2-GFP fusion could be due to the linker sequences associated with the N- and C-termini of NCAPH2 and SMC2 respectively rather than their stable inter-connection per se. If the latter were the case, cleavage of the linker using TEV protease should restore sensitivity to MCPH1. We therefore repeated the rescue experiment but, in this case co-injected mRNA encoding TEV protease (Figure 9D). Quantification of the chromosomal GFP fluorescence showed that the fusion’s resistance to MCPH1 activity is abolished by the TEV (Figure 9E and F), which is consistent with the notion that resistance arises from connecting the interface between SMC2 and NCAPH2.

Mcph1 deletion induces the coiling of Cohesin vermicelli

Our results suggest that condensin II’s association with chromosomal DNA might be regulated by MCPH1 through a mechanism that resembles that of cohesin by WAPL. By inducing cohesin’s dissociation from chromatin, albeit only rarely approximately every 15 min., WAPL merely moderates the processivity of loop extrusion mediated by cohesin. MCPH1 has a more drastic effect, preventing most condensin II complexes from ever associating stably with chromatin. The entire architecture of interphase chromatin therefore depends on these two key regulatory factors. Although condensin II is presumed like cohesin to act as a DNA loop extruder, the deregulation of cohesin and condensin II induces different chromosomal morphologies. Wapl deletion enables cohesin to form thread-like structures and to accumulate along their longitudinal axes, creating so called vermicelli. In contrast, Mcph1 deletion enables condensin II to produce soft spherical or ‘gumball’ chromosomes and to associate stably throughout chromosomal DNA, albeit at high levels at centromeres. Strangely, condensin II does not form or accumulate along the sort of axes observed when wild type cells enter mitosis. Thus, the activities of condensin II and cohesin unleashed by Mcph1 and Wapl deletion produce DNA loops with very different arrangements, respectively. We therefore set out to address two questions. First, is this difference intrinsic to differences in the behaviour of cohesin and condensin II or merely due to differences in the type of cell used, namely mouse fibroblasts and ES cells? Assuming that it is in fact, the former, what happens when both factors are deregulated simultaneously? To this end, we altered the Mcph1 and Wapl genes in E14 cells in which SCC1 is tagged with Halo and NCAPH2 with GFP. Because Wapl deletion is lethal, we generated a tamoxifen-inducible deletion allele, which enabled us to compare chromosomal DNA morphology as well as localisation of SCC1-Halo and NCAPH2-GFP in four different conditions: Wild type, ΔWapl, ΔMcph1 and the double mutation ΔWapl, ΔMcph1 (Figure 10—figure supplement 1).

In wild-type cells, SCC1-Halo accumulates throughout nuclei and their genomes during interphase and apart from centromeres, is largely removed from chromosomes through the action of WAPL in M phase. Condensin II’s distribution resembles that of cohesin throughout most of interphase (Figure 2 and Gerlich et al., 2006). Condensin II accumulates around centromeres during G2 and along the chromatid axes created through its activity during prophase (Figure 10, WT).

Figure 10 with 2 supplements see all

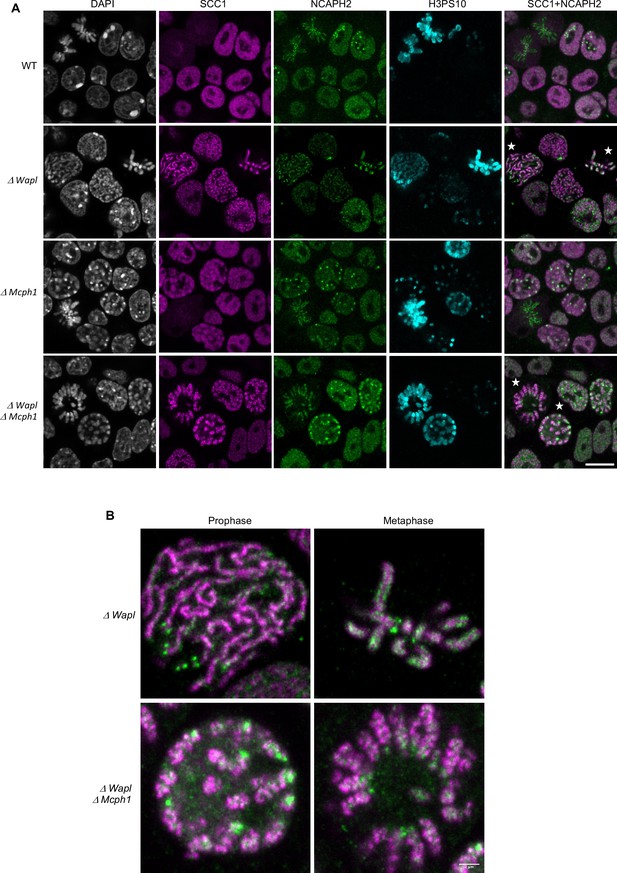

Mcph1 deletion induces the coiling of the vermicelli.

(A) Immunofluorescence analysis of the chromatin organisation in the four conditions: wild-type, ΔWapl, ΔMcph1, and ΔWapl ΔMcph1. In order to compare cells that are in G2, prophase or metaphase, Histone H3-serine 10 (cyan) was used as a cell cycle marker. The localisation of SCC1-Halo was analysed using Halo-JFX554, NCAPH2-GFP using nanobodies and DNA was detected using DAPI. (B) Magnified view of cells marked with a white star in panel A. Scale bar, 5 μm.

As previously reported for fibroblasts, Wapl deletion in E14 cells causes cohesin to create chromatid-like structures, especially during G2, and to accumulate along their longitudinal axes (Tedeschi et al., 2013). Because the majority of SCC1 remains on chromosomes during mitosis, most is cleaved by separase during anaphase and daughter cells inherit considerably less cohesin than normal. As a consequence, axial cohesin vermicelli are rarely if ever observed during G1, especially as this cell cycle phase is very short in ES cells. Pronounced vermicelli are only observed in G2. As expected, Wapl deletion neither alters condensin II’s distribution during interphase nor hinders its accumulation along chromatid axes during mitosis (Figure 10—figure supplement 2). Despite cohesin’s persistence on mitotic chromosomes and the participation of a large fraction in sister chromatid cohesion, condensin II still manages to localise to and help create the axes of individual chromatids, between which run inter-chromatid axes coated in cohesin (Figure 10A and B, ΔWapl). There are presumably two pools of chromosomal cohesin in post-replicative Wapl-deleted cells, one involved in cohesion and a second engaged in the loop extrusion responsible for the formation of vermicelli. The former clearly persists and accumulates along the inter-chromatid axis when loop extrusion mediated by condensin I and II individualise chromatids, but the fate of the latter is unclear.

Deletion of Mcph1 had little effect on cohesin’s distribution. Despite the formation of gumball chromosomes during G1 and G2, cohesin remains uniformly associated with chromatin and does not form vermicelli. As in wild-type cells, most dissociates from chromosome arms when cells enter mitosis and little can be detected along the inter-chromatid axes connecting the two condensin II axes of individualised chromatids (Figure 10, ΔMcph1).

Deletion of both Wapl and Mcph1 had a dramatic effect. The cohesin vermicelli caused by the lack of WAPL in G2 cells adopt a coiled configuration upon the simultaneous deletion of Mcph1. This coiling increases during prophase. By the time cells reach metaphase, the coiling leads to the formation of chromosomes that have the shape of a spring (or solenoid), a configuration that is visible with SCC1-Halo, NCAPH2-GFP and DNA staining (DAPI) (Figure 10, ΔWapl,ΔMcph1). Moreover, the two distinct axes of condensin II associated with each chromatid remain intermingled in the double mutant.

To analyse the axial organisation of these chromosomes in greater detail, we used super-resolution three-dimensional structured illumination microscopy (3D-SIM) to compare the distribution of SCC1-Halo in Wapl deleted and double mutant cells. Unfortunately, fluorescence due to NCAPH2-GFP was insufficient to reveal reliable images using this technique. Analysis of G2 cells revealed that a modest coiling of cohesin axes surrounded by DNA loops in Wapl single mutants is greatly accentuated in double-mutant cells, with a pronounced increase in the radii of coils (Figure 11 and Figure 11—video 1). In metaphase cells, the cohesin axes that seem to have a spring-like appearance in confocal microscopy are revealed to have a much more complicated organisation, being composed of twisted segments that regularly change handedness. It is noticeable that the formation of chromosomes with this morphology is not simply due to the combined activity/presence of cohesin and condensin II during mitosis, which also occurs in Wapl single mutants. It only arises when both cohesin and condensin were stably associated with chromatin during G2.

Figure 11 with 1 supplement see all

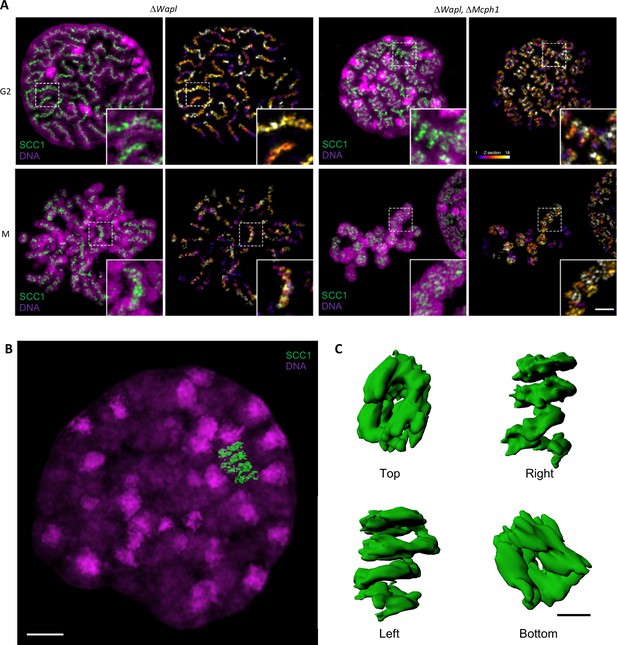

Super-resolution 3D-SIM analysis of G2 and metaphase cells deleted for Wapl or both Mcph1 and Wapl.

(A) Cells deleted for ΔWapl or ΔWapl+ΔMcph1 in G2 or metaphase (M) were analysed by 3D-SIM. Maximum intensity projections of 16 consecutive mid sections covering 2 µm in depth. The left panel shows DNA coloured in magenta and SCC1-Halo in green. The right panel shows the SCC1 signal with z-depth colour-coded. Scale bar, 5 μm (inset, 1 μm) (B) Representative SCC1-Halo solenoid structure corresponding to one chromosome from a ΔWapl+ΔMcph1 cell in G2 was segmented (green) and overlaid to the DNA (magenta). Scale bar, 2 μm. (C) 3D surface rendering of the segmented and isolated solenoid from panel B. View from the top, right, left, and bottom of one segmented solenoid. Scale bar, 1 μm.

We conclude that combining the abnormal activity of condensin II unmasked by deleting Mcph1 with that of cohesin unmasked by deleting Wapl leads to a major transformation of chromosome structure when cells enter G2, that is associated with coiling of the entire axis of the chromosome. Interestingly, this coiling does not have a handedness that persists throughout the chromosome in metaphase. Instead, the chromosome appears divided into segments whose axes are coiled with alternating handedness.

Discussion

Despite accumulation within interphase nuclei, condensin II associates with chromatin only fleetingly if at all and exerts little or no effect on chromosome topology during this phase of the cell cycle. It normally only associates stably with chromosomal DNA and organises it into a series of loops when cells enter M phase. The restriction of condensin II’s activity to M phase was previously attributed to its phosphorylation by CDK1 (Abe et al., 2011; Alderton et al., 2006; Gruber et al., 2011; Tibelius et al., 2009). Our finding that in the absence of MCPH1, condensin II is capable of transforming the topology of chromosomal DNA in cells arrested in G2 using a CDK1 inhibitor implies that condensin II is capable of substantial activity in the absence of CDK1-mediated phosphorylation normally associated with M phase. In other words, it is MCPH1 that prevents condensin II’s association with chromosomes during G2 not the lack of CDK1 phosphorylation.

Our observation that phosphorylation of a CDK1 consensus sequence abolishes association between a conserved and essential SLiM within MCPH1’s central domain and condensin II’s NCAPG2 subunit raises the possibility that CDK1 exerts at least part of its effect by preventing MCPH1’s association with condensin II. Our conclusion that the SLiM within MCPH1’s central domain is essential for its inhibitory activity contradicts the claim that it is not necessary, an inconsistency that we attribute to the fact that previous studies tested the function of over-expressed MCPH1 alleles (Wood et al., 2008; Yamashita et al., 2011). Accordingly, when a version of Mcph1 deleted for the SLiM domain was overexpressed in mouse oocyte, it was still inhibiting Condensin II association with chromosomes (data not shown). This result suggests that MCPH1 with a deletion of this short motif can still have an effect on condensin II when expressed at high levels and is consistent with previous studies. However, we have shown that the SLiM is essential for the inhibition of condensin II when the protein is expressed at endogenous levels, demonstrating the importance of performing experiments using endogenous protein levels to prevent the conclusion being biased by the protein expression levels.

Our findings as well as those of others (Arroyo et al., 2017; Neitzel et al., 2002; Trimborn et al., 2004) show that MCPH1 is responsible for inhibiting condensin II during G1 as well as G2 phase. Thus, in the absence of MCPH1, condensin II organises chromosomal DNAs into chromatid-like structures during G1 and G2 but strikingly not during S phase when some other (MCPH1-independent) mechanism prevents it from associating stably with chromatin.

MCPH1’s inhibition of condensin II depends on its N-terminal BRCT domain in addition to its central SLiM. Indeed, most of MCPH1 mutations identified in microcephaly patients affect the BRCT domain, which possibly interacts with some other part of condensin II once MCPH1 has been recruited via its SLiM. However, the function of this domain remains mysterious.

How does MCPH1 inhibit condensin II? An important clue stemmed from the numerous similarities between MCPH1 and WAPL, a protein that facilitates cohesin’s release from chromatin (Yatskevich et al., 2019). WAPL binds to STAG, the cohesin subunit equivalent to NCAPG2, using a SLiM and its inactivation leads to cohesin’s stable association with chromatin (Li et al., 2020; Tedeschi et al., 2013; Wutz et al., 2020). Cohesin release mediated by WAPL involves dissociation of the NTD of cohesin’s SCC1 kleisin subunit from the coiled coil that emerges from SMC3’s ATPase head, known as its neck (Beckouët et al., 2016; Chan et al., 2012; Eichinger et al., 2013). It is currently thought that kleisin-neck dissociation takes place, albeit rarely, upon engagement of cohesin’s SMC1 and SMC3 ATPase heads in the presence of ATP when SMC3 is unacetylated and in the absence of SCC2 (Beckouët et al., 2016; Chan et al., 2013; Chan et al., 2012; Srinivasan et al., 2019). Crucially, the fusion of SMC3’s C-terminus to SCC1’s N-terminus completely blocks WAPL from triggering cohesin’s release from chromatin (Chan et al., 2012; Eichinger et al., 2013). It could do so either by creating a barrier to the passage of DNA through an opened kleisin-neck interface, i.e. by blocking the exit of DNAs previously entrapped within cohesin rings, or merely by hindering kleisin-neck dissociation, which has some other poorly understood function necessary for release.

Our finding that an analogous fusion, between the C-terminus of SMC2 and the N-terminus of NCAPH2, prevents the release of condensin II from meiosis I chromosomes in oocytes upon over-expression of MCPH1 suggests that MCPH1 prevents condensin II’s association with chromatin by a mechanism that is similar to cohesin’s release by WAPL. It has been reported that engagement of SMC2 and SMC4 heads triggered by ATP binding induces the release of the NTD of the kleisin from SMC2’s neck (Hassler et al., 2019), raising the possibility that MCPH1 blocks condensin II’s stable association with chromatin by facilitating such a process. Irrespective of the actual mechanics, which remains poorly understood, our observations emphasise that MCPH1 blocks condensin II’s association with chromosomes using a mechanism similar to that that employed by WAPL to cause cohesin release.

Despite these striking similarities, the mode of action of these two proteins may differ in an important respect. Though WAPL alters cohesin’s residence time on chromatin exclusively by facilitating release, our experiments demonstrated that MCPH1 was unable to release condensin II from chromosomes arrested in meiosis I, suggesting that over-expression of MCPH1 in oocytes prevents de novo association of condensin II but does not remove complexes previously associated with chromosomes (data not shown).

Recent advances have shown that both human condensin and cohesin complexes extrude DNA loops (Davidson et al., 2019; Golfier et al., 2020; Kim et al., 2019; Kong et al., 2020), and cryo-electron microscopy structures of yeast condensin, and yeast and human cohesin are starting to provide insight into how these complexes engage with DNA (Collier et al., 2020; Higashi et al., 2020; Shi et al., 2020). In the case of cohesin, it has been suggested that an early step is the clamping of DNA on top of SMC1 and SMC3 ATPase domains that have engaged with each other in the presence of ATP. Clamping in this manner requires cohesin’s SCC2 HAWK protein, which is equivalent to condensin II’s NCAPD3. SCC2 is necessary to prevent cohesin’s release from chromatin and may perform this function by preventing dissociation of its kleisin subunit from SMC3’s neck (Collier et al., 2020; Srinivasan et al., 2019). If NCAPD3 had a similar role, then MCPH1 could conceivably block condensin II’s association with chromatin by interfering with NCAPD3’s ability to block the release of NCAPH2 from SMC2.

One of the earliest insights into the cell division cycle was that one of the main constituents of the nucleus undergoes a dramatic morphological transformation shortly before division, namely the transformation of an apparently amorphous mass of chromatin into thread-like structures now known as chromosomes, each composed of a pair of chromatids joined together. It is now recognised that this transformation is brought about by condensins I and II which act by extruding DNA loops. It is also recognised that interphase chromosomal DNA is not in fact amorphous but instead characterised by a complex and dynamic network of interactions known as topologically associated domains or TADs, which are created by cohesin that like condensin is a DNA loop extruder, albeit one that is active during interphase and blocked by the site specific DNA-binding protein CTCF (Li et al., 2020; Rao et al., 2017).

There are two reasons why DNAs are not organised into thread-like chromatids during interphase. By causing cohesin release, WAPL prevents loop extrusion by cohesin going to completion while MCPH1 prevents condensin II associating with DNA stably and thereby extruding loops. Crucially, inactivation of either protein leads to the formation of chromatid-like structures during interphase, albeit by different loop extruders and with different actual morphologies. Interestingly, depletion of both proteins simultaneously leads to a major transformation of chromosome structure as cells enter mitosis, which is associated with coiling of the entire axis of the chromosome. Understanding how and why this comes about through the unregulated activities of cohesin and condensin II may help reveal further insight into how loop extrusion creates chromosomes.

Materials and methods

Mouse strain, in vitro culture, and oocytes micro-injection

Request a detailed protocol

Ncaph2tm1a(EUCOMM)Wtsi (MBCH;EPD0070-2-G090) were obtained from the Wellcome Trust Sanger Institute. The corresponding flox allele was obtained as previously described (Houlard et al., 2015). The fusion was obtained by cloning in frame Smc2 cDNA, a linker containing three TEV protease cleavage sites (GGGGSGGGSGGGGTGSENLYFQGPRENLYFQGGSENLYFQGTRGGGGSGGGGSGGGG), Ncaph2 cDNA (Origene, MC200537) and the eGFP ORF in the pUC19 vector.

Fully grown prophase-arrested GV oocytes were isolated and injected with mRNAs (5–10 pl) diluted in RNase-free water at the following concentrations: H2b–mCherry: 150 ng μl−1, Mad2: 200 ng μl−1, NCAPH2–Gfp: 50 ng μl−1, Fusion-EGFP (50 ng μl−1), Mcph1 (200 ng μl−1), Tev protease: 250 ng μl−1. All experimental procedures were approved by the University of Oxford ethical review committee and licensed by the Home Office under the Animal (Scientific procedures) Act 1986. No statistical method was used to predetermine sample size. The experiments were not randomised and the investigators were not blinded to allocation during experiments and outcome assessment.

Live cell confocal imaging

Request a detailed protocol

Oocyte live cell imaging was done in four-well Labtek chambers (ref. 155383) in 4 μl drops of M16 medium covered with mineral oil (Sigma) in a 5 % CO2 environmental microscope incubator at 37 °C (Pecon). Images were acquired using an LSM-780 confocal microscope (Zeiss) using the ZEN 2011 software. Between 7 and 12 slices (between 1 and 4 μm) were acquired every 5–15 min for each stage position using the autofocus tracking macro developed in J. Ellenberg’s laboratory at EMBL. For detection of eGFP and mCherry, 488 nm and 561 nm excitation wavelengths and MBS 488/561 filters were used. Images were further analysed using Volocity software. For high-resolution videos, the lens used was a C-Apochromat ×63/1.20 W Corr UV–VIS–IR. The fluorescence was quantified using Fiji.

E14 mouse embryonic stem cells culture

Request a detailed protocol

ES-E14 mouse embryonic stem cells (RRID:CVCL_C320). These E14 cells grow as colonies in 3D and depends on the presence of Leukemia Inhibiting Factor in the media. They were authenticated by genome sequencing during HiC and ChIP seq experiments. The cells were regularly tested negative for mycoplasma. E14 mouse embryonic stem cells were grown in Dulbecco’s modified Eagle’s medium (DMEM; Life Technologies) supplemented with 10 % foetal calf serum (Seralab), 2  mM L-glutamine (Life Technologies), 1 x non-essential amino acids (Life Technologies), 50  µM β-mercaptoethanol (Life Technologies), 1 X penicillin-streptomycin solution (Life Technologies) and leukaemia inhibitory factor (LIF) made in-house. All E14 cells were grown in feeder-free conditions on gelatinised plates at 37  °C in a humid atmosphere with 5 % CO2.

For conditional deletion of Wapl, Cre recombinase was induced by treating the cells with 800 nM 4-hydroxytamoxifen (OHT) for the indicated time. The degradation of NCAPH2-HALO was triggered by adding HaloTag PROTAC Ligand (Promega) at 1 μM for 16 hours.

The Halo Ligands (Halo-TMR Ligand, Promega, Ref G8251) were added in the culture medium for 20 min at 100 nM. Cells were washed and left in the incubator with fresh medium for an extra 30 min to remove the unbound ligand before being analysed by immunofluorescence or western blot.

Genomic engineering using CRISPR homology-directed repair

Request a detailed protocol

The sgRNAs were designed using the CRISPOR online tool (http://crispor.tefor.net/crispor.py) and cloned in the pSptCas9(BB)–2A-Puro(PX459)-V2.0 vector (Addgene #62988). The sgRNA cloning was done according to the protocol from Ran et al., 2013.

To generate the targeting constructs, 1 kb homology arms were amplified by PCR (Q5-NEB) from E14 cells genomic DNA and cloned in pUC19 vector using Gibson Assembly Master Mix kit (New England Biolabs). The targeting construct was designed such that the guide RNA sequence used for the specific targeting was interrupted by the tag or contained silent mutations.

For each targeting, a 6 cm dish of E14 cells 50 % confluent was transfected using 2 μg of pX459-Cas9-sgRNA and 5 μg of targeting construct using Lipofectamine 2000 (ThermoFisher) according to manufacturer’s guidelines. The next day, cells were trypsinised and plated at three different densities in 20 cm dishes in medium supplemented with puromycin (1 μg/ml). The selection medium was removed 48 h later and cells were grown for approximately 10 days. Nienty-six Individual clones were then picked in 96 well plates, grown for 48 hr and split into two 96-well plates. The next day, genomic DNA was prepared using 50 μl of Lysis buffer (10 mM Tris HCl pH8, 1 mM EDTA, 25 mM NaCl, 200 μg/ml Proteinase K), incubated at 65 °C for 1 hr, 95 °C for 10 min to inactivate Proteinase K. The clones were then screened by PCR (Q5-NEB) and amplified to be further analysed by western blot. The deletion of MCPH1 central domain was confirmed by sequencing.

Conditional Wapl deletion

Request a detailed protocol

To generate the TEV protease conditional cells, a series of four tandem STOP cassette (Addgene, pBS.DAT-LoxStop, Jacks Lab) flanked by two LoxP sites was cloned between the pCAG promoter and the PK tagged Tev protease cDNA. The CRE-ERT2 cDNA was cloned upstream under the transcriptional control of the Rosa26 Splice acceptor. This construct was then flanked by 1 kb homology arms to target the construct at the Rosa26 locus using CRISPR-HDR. After selecting and amplifying of the targeted E14 clones, the TEV protease could be detected by western blot 8 hr post hydroxytamoxifen induction. Immunofluorescence analysis revealed a homogeneous expression of TEV protease in all the cells.

In the selected clones, three TEV protease cleavage sites were targeted in Wapl coding sequence after Proline 499 using CRISPR-HDR. After selecting of the targeted clones, it appeared that TEV cleavage of the Wapl protein led to a new steady-state in the cells in which a small amount of full-length protein was present preventing the formation of vermicelli. To avoid this compensation effect, we targeted loxP sites in the Wapl gene on both sides of exon four to induce the deletion of the gene simultaneously as the TEV cleavage of the protein already present in the cell. This combined strategy induced a complete loss of function of Wapl within 8 hr and the formation of vermicelli.

sgRNA used for CRISPR-HDR

Request a detailed protocol
Targeted GenesgRNA
Ncaph2-GfpGGTGGAAAGTAGTATATACC
Ncaph2-HaloGGTGGAAAGTAGTATATACC
Mcph1 deletion Sg5'GGTGTGCAATTCCTAGTGTG
Mcph1 deletion Sg3'AGCTGTTCCTTAGAACACGA
Mcph1-GfpACAGTGAGACATCTACAATG
Stop-TevCATGGATTTCTCCGGTGAAT
Wapl-Lox-Tev Sg5'AATGGGTGCTTATAATTAGC
Wapl-Lox-Tev Sg3'ACAATGTCACAATGGCTCAT
Scc1-HaloATAATATGGAACCGTGGTCC
DelCen-Mcph1cgttgaggcttcttcctatg
TEV sites in WaplTwo Guide RNA used in combinationAATGGGTGCTTATAATTAGCACAATGTCACAATGGCTCAT

Immunofluorescence detection

Request a detailed protocol

E14 cells were plated on glass coverslips (Marienfeld, High precision, 22 × 22, No1.5H, Ref 0107052) in six-well plates. Forty-eight hr later, cells were labelled with the Halo Ligand (Halo-JFX554, Janelia 100 nM 30 min) (Grimm et al., 2021) or EdU (5 min at 10 μM), washed PBS and then fixed in 3.8 % Formaldehyde (Sigma-F8775) in PBS for 15 min. After three PBS washes, cells were permeabilised in 0.5 % Triton X-100 in PBS for 10 min and then washed three times in PBS. After 20 min in blocking buffer: PBS 3 % BSA (Sigma, A4503). The coverslips were transferred in a wet chamber and covered with 100 μl of antibody solution in blocking buffer. After 1 hr at room temperature, the coverslips were washed three times in blocking solution and incubated with the secondary antibody for 1 hr (AlexaFluor 594 or 488, 1/500, Life Technology). After three washes in PBS, DNA was labelled using Hoechst (Sigma, 33342, 5 μg/ml) for 15 min. The coverslips were then washed in PBS, mounted in Vectashield (H1000) and sealed using nail varnish. Imaging was done using an LSM 780 confocal microscope (Zeiss) using the ZEN 2011 software. EdU was detected according to the manufacturer’s instruction (Click-iT EdU Imaging kit, Invitrogen). CDK1 inhibition was performed by incubating the cells in E14 medium supplemented with 9 μM RO-3306 (SIGMA SML0569) for 7 hr before fixation. All experiments based on immunofluorescence where repeated at least three times.

Immunoprecipitation and western blot

Request a detailed protocol

The cells were collected using Trypsin and washed in PBS twice. The cell pellet was resuspended in 10 vol. of buffer A (10 mM HEPES pH7.9, 1.5 mM MgCl2, 10 mM KCl, 1 mM DTT, 1 mM PMSF, 1 x complete protease inhibitor (Roche, 04693132001)) and incubated 15 min on ice. After centrifugation at 4°C at 2000 rpm for 5 min to remove the supernatant, the pellet was resuspended in 3 vol. of buffer A + NP40 (0.1%) and incubated for 15 min on ice followed by another centrifugation at 4 °C 4000 rpm for 5 min to remove the supernatant and resuspended in lysis buffer: (20 mM Tris pH7.5, 200 mM NaCl, 1 % Triton X-100, 0.1 % sodium deoxycholate, 1 mM DTT, 1 mM PMSF, 1 x complete protease inhibitor (Roche, 04693132001), 1 x super nuclease). The suspension was passed through a 26GA needle 10 times, left on ice for 1 hr and centrifuged at 20,000 g for 30 min. Proteins were quantified by Bradford (KitBiorad 5000006, spectrophotometer BIOCHROM). Each IP was performed using 1 mg of protein in 1 ml in lysis buffer. GFP-Trap agarose beads (GTA-10, Chromotek) were washed in lysis buffer and incubated according to the supplier’s instructions with the protein extract overnight at 4 °C. Washed five times in Lysis buffer and separated by SDS-PAGE, imaged using Fujifilm FLA-7000 imager if Halo ligand was used and then transferred overnight on Nitrocellulose membrane. After Ponceau red evaluation of the transfer quality, the membrane was blocked in PBS-0,1%Tween 20 + 5 % non-fatty milk for an hour and incubated with the antibody overnight in PBS-0,1%Tween 20 + 5 % non-fatty milk. Western blots were analysed using LI-COR Odyssey Fc imager.

Immunoprecipitations experiments where repeated three times or more in independent experiments.

Antibodies list

Request a detailed protocol
  • NCAPH2: Rabbit polyclonal produced on demand by Eurogentec (WB:1/1000).

  • SCC1: Millipore, 53A303, mouse monoclonal antibody (WB:1/1000).

  • SMC2: Cell Signaling Technology, D23C5, rabbit monoclonal Antibody (WB:1/500).

  • Lamin B1: Abcam Ab133741, rabbit monoclonal (WB:1/1000).

  • MCPH1: Cell Signaling Technology, D38G5, rabbit monoclonal Antibody (WB:1/1000).

  • CREST: Immunovision HCT0-100, human autoantibody (IF: 1/500)

  • H3PS10: Millipore, clone 3H10, mouse monoclonal (WB:,1/1000 IF:1/2000).

  • γH2aX: Millipore, clone JBW301, mouse monoclonal (WB:,1/1000 IF:1/500).

  • CDK1: Cell Signaling Technology, cdc2, 77055, rabbit polyclonal (WB:1/1000).

  • Phospho-CDK1: Cell Signaling Technology, phospho-cdc2 (Tyr15) antibody, 9111, rabbit polyclonal (WB:1/1000).

  • WAPL: provided by J.M. Peters’s Lab (WB:1/1000).

  • GFP: Abcam, ab290, rabbit polyclonal (WB: 1/1000, IF:1/500).

  • PK-Tag: Biorad, MCA 1360 G, mouse monoclonal (WB:1/1000).

  • Cyclin B1: Cell Signaling Technology, 4138T, rabbit monoclonal (IF:1/200).

  • NCAPD3: Bethyl Laboratory, A300-604A-M, rabbit polyclonal (WB:1/1000).

Halo in gel imaging

Request a detailed protocol

Cells were incubated with Halo-TMR ligand (100 nM) for 30 min then washed in ligand-free medium and analysed by immunofluorescence or for protein purification. After SDS-PAGE, the fluorescence was measured in the gel using an Imager Fujifilm FLA-7000.

FRAP

Request a detailed protocol

Live-cell imaging was performed in a spinning disk confocal system (PerkinElmer UltraVIEW) with an EMCCD (Hamamatsu) mounted on an Olympus IX8 microscope with Olympus 60 × 1.4 N.A. and 100 × 1.35 N.A. objectives. Image acquisition and quantitation were performed using Volocity software. During imaging, cells were maintained at 37 °C and 5 % CO2 in a humidified chamber. FRAP was carried out with a 488 nm laser beam, 100 % power, 15–30 ms. The fluorescence intensity measurement was performed by using ImageJ. All signals were subjected to background correction. The fluorescence intensity of unbleached and bleached areas was normalised to that of initial pre-bleaching images using the EasyFRAP website.

In-situ Hi-C

Request a detailed protocol

Hi-C libraries were generated as described in Rao et al., 2014, analysed using the Juicer pipeline (Durand et al., 2016b) and visualised with Juicebox (Durand et al., 2016a). We sequenced 785,454,085 Hi-C read pairs in wild-type mouse ES cells, yielding 509,278,039 Hi-C contacts; we also sequenced 1,814,815,287 Hi-C read pairs in Mcph1-deleted cells, yielding 1,284,169,272 Hi-C contacts. Loci were assigned to A and B compartments at 100 kB resolution. Loops were called with HiCCUPS at 25 kB, 10 kB, and 5 kB resolution. Contact domains were called at 10 kB resolution. Contact frequency analysis was performed as described in Sanborn et al., 2015. All code used for these analyses is publicly available at https://github.com/aidenlab/juicer (analysis software, building hic file)(Aiden Lab, 2020a), https://github.com/aidenlab/juicebox (visualization software)(Aiden Lab, 2021a), https://github.com/aidenlab/straw (stream hic file data into python for custom analysis)(Aiden Lab, 2021c), https://github.com/aidenlab/contact-probability (contact probability analysis) copy archived at swh:1:rev:d5485dbdf555df3fb540bb907e401b8f26252f2c (Aiden Lab, 2020b) and https://github.com/aidenlab/mcph1_notebook (AB enrichment analysis/plotting) copy archieved at swh:1:rev:1e46e50a2c9e1e1d141311a27c190ea27bd4ef9a (Aiden Lab, 2021b). With a help forum for questions at (aidenlab.org/forum.html).

Structured illumination microscopy

Request a detailed protocol

Super-resolution 3D-SIM was performed on a DeltaVision OMX SR system (GE Healthcare) equipped with sCMOS cameras (PCO) and 405, 488 and 568 nm lasers, using a 60 x NA 1.42 PlanApo oil immersion objective (Olympus). To minimise artefacts due to spherical aberration.

Raw data sets were acquired with a z-distance of 125 nm and 15 raw images per plane (five phases, 3 angles). Reconstructions were performed with SoftWoRx 6.2 (GE Healthcare) using channel-specifically measured optical transfer functions (OTFs) generated from 100 nm diameter green and red FluoSphere beads (ThermoFisher), respectively, and Wiener filter set to 0.0030. For DAPI acquisitions, the sample was excited with the 405 nm laser and the emission detected in the green channel and reconstructed with a green OTF. This is enabled by the broad emission spectrum of DAPI and empirically resulted in better reconstructions than reconstructing blue emission with a ‘blue’ OTF obtained typically less intense blue FluoSphere beads.

All data underwent quality assessment via SIMcheck (Ball et al., 2015) to determine image quality via analysis of modulation contrast to noise ratio (MCNR), spherical aberration mismatch, reconstructed Fourier plot and reconstructed intensity histogram values. Reconstructed 32-bit 3D-SIM datasets were thresholded to the stack modal intensity value and converted to 16-bit composite z-stacks to discard negative intensity values using SIMcheck’s ‘threshold and 16-bit conversion’ utility and MCNR maps were generated using the ‘raw data modulation contrast’ tool of SIMcheck. To eliminate false positive signals from reconstructed noise, we applied SIMcheck’s ‘modulation contrast filter’ utility. Briefly, this filter sets masks out all pixels, where the underlying MCNR value in the raw data fall below an empirically chosen threshold MCNR value of 6.0, followed by a Gaussian filter with 0.8 pixel radius (xy) to smoothen hard edges (Rodermund et al., 2021).

Colour channels were registered in 3D with the open-source software Chromagnon 0.85 (Matsuda et al., 2018) determining alignment parameter (x,y,z-translation, x,y,z-magnification, and z-rotation) from a 3D-SIM dataset acquired on the date of image acquisition of multicolour-detected 5-ethenyl-2’-deoxyuridine (EdU) pulse replication labelled C127 mouse cells serving as biological 3D alignment calibration sample (Kraus et al., 2017).

FACS

Request a detailed protocol

Cells were incubated with EdU (10 μM) for 5 min, collected using trypsin, washed with PBS and fixed in 3.8 % Formaldehyde (Sigma-F8775) in PBS for 15 min. After three PBS washes, cells were permeabilised in 0.5 % Triton X-100 in PBS for 10 min and then washed three times in PBS. Cells were then incubated for 20 min in blocking buffer: PBS 3 % BSA (Sigma, A4503), incubated for 1 hr with H3PS10 antibody (1/1000), washed three times in PBS and then incubated with fluorescent secondary antibody (Alexa Fluor 488, 1/500, Life Technology) incubated with propidium iodide (Sigma, 30 μg/ml) and then analysed by FACS. 15,000 cells were analysed for each data point. EdU detection was done following the manufacturer’s instruction (Click-iT EdU Imaging kit, Invitrogen).

Protein purification

Request a detailed protocol

Human condensin II pentameric and tetrameric complexes were purified as previously described (Kong et al., 2020). Full-length MCPH1 was cloned into the pLIB vector and viral bacmids were generated using Tn7 transposition in DH10EMBacY cells (Geneva biotech), transfected into Sf9 cells using Cellfectin II (GIBCO) and resultant virus harvested after 3 days. Virus was further amplified in Sf9 cells before being used to infect High Five cells for protein expression. High Five cells were harvested by centrifugation 3 days after infection. Cell pellets were resuspended in purification buffer (20 mM HEPES pH 8, 300 mM KCl, 5 mM MgCl2, 1 mM DTT, 10 % glycerol) supplemented with 1 Pierce protease inhibitor EDTA-free tablet (Thermo Scientific) per 50 mL and 25 U/ml of Benzonase (Sigma) and lysed with a Dounce homogenizer followed by brief sonication. The lysate was cleared with centrifugation, loaded onto a StrepTrap HP (GE), washed with purification buffer and eluted with purification buffer supplemented with 5 mM desthiobiotin (Sigma). Size exclusion chromatography was performed using purification buffer on a Superdex 200 16/60 column (GE), and protein containing fractions separated from the void volume were pooled and concentrated.

MCPH1 residue 1–435, 1–195 and 196–435 were cloned into a pET vector with an N-terminal 6xHis-MBP fusion tag or with an N-terminal 6xHis and C-terminal MBP tag, and expressed in E. coli BL21 (DE3) pLysS cells (Novagen). Cells were grown at 37 °C, induced with 1 mM IPTG for 4 hr, before being harvested by centrifugation and flash frozen. The cell pellet was resuspended in MCPH1 purification buffer (20 mM Tris pH 7.5, 150 mM NaCl, 10 % glycerol, 1 mM DTT, Pierce protease inhibitor EDTA-free tablet), lysed with sonication on ice, treated with Benzonase (Sigma-Aldrich) (10 µL per 100 mL, with 1 mM MgCl2) and cleared via centrifugation. Cleared cell lysate was filtered with a 5 µm filter, imidazole was added to a final concentration of 10 mM and incubated with pre-equilibrated His-Pure NTA resin. The resin was washed with MCPH1 purification buffer, then washed with wash buffer 20 mM Tris pH 7.5, 500 mM NaCl, 20 mM imidazole, before elution with 20 mM Tris pH 8, 300 mM NaCl, 500 mM Immidazole, 10 % glycerol. Protein was diluted 2-fold with buffer TA (20 mM Tris pH 8, 5 % glycerol, 1 mM DTT), and loaded onto a HiTrap Q Fast Flow column or loaded on to HiTrap Heparin HP column (GE) and eluted with a gradient of buffer TB (20 mM Tris pH 8, 2 M NaCl, 5 % glycerol, 1 mM DTT). For protein used in ATPase assays, final size exclusion chromatography was performed using purification buffer and a Superdex 200 10/300 or 16/60 column (GE).

Pull-downs

Request a detailed protocol

Condensin complexes (0.1 µM) were mixed with at least a 10-fold molecular excess of MBP MCPH1 constructs or MBP protein in 200 µL and incubated with 40 µL of Strep-tactin sepharose resin (IBA) in MCPH1 purification buffer. The resin was washed five times, before being eluted by boiling in 1 x NuPAGE LDS sample buffer with 50 mM DTT. Samples of 10 % input and resin elution were run on 4–12% NuPAGE Bis-Tris gels against Color Prestained Protein Standard, Broad Range (NEB) and stained with Instant Blue (Expedeon) or silver stain (Life Technology).

The absence of the CAP-D3 subunit was confirmed by western blot analysis of the output protein samples. For this, the tetrameric condensin II pull-down was run on an SDS page gel and transferred to a nitrocellulose membrane (Amersham). The membrane was then blocked with 5 % milk-powder in TBS-T, before being probed with a mouse anti-CAP-D3 antibody (Santa Cruz, Sc-81597, used at 1/1000), then a goat DyLight 800 florescent anti-mouse secondary antibodies (Cell Signaling Technology, 5257, used at 1/5000). The membrane was imaged using a LI-COR imager.

Fluorescence polarisation assays

Request a detailed protocol

Peptides used in fluorescence polarisation assays were synthesised by Genscript and are shown in Table 1. The concentration of 5FAM wild-type MCPH1407-422 was determined using the 5-FAM extinction coefficient of 83,000 (cmM)–1 at 493 nm. Non-labelled peptides had TFA removed to less than 1 % and were accurately quantified using Genscript’s amino acid analysis service. All peptides were solubilised in DMSO and diluted to a working concentration in FP assay buffer (20 mM Tris pH 7.5, 200 mM NaCl, 1 mM DTT). Peptides in competition experiments were diluted in a two-fold series with FP assay buffer supplemented with DMSO, such that DMSO concentration was constant for all peptide concentrations.

Table 1
Peptides used in FP experiments.
NameSequence
5FAM-MCPH15FAM- CGESSYDDYFSPDNLKER
MCPH1CGESSYDDYFSPDNLKER
MCPH1pS417CGESSYDDYF{pSER}PDNLKER

FP binding assays were performed with 0.3 µM of 5-FAM-labelled wild-type MCPH1407-422 and 0.625, 1.25, 1.75, 2.5, 3.5 and 5 µM of pentameric condensin II or tetrameric condensin II lacking the CAPG2 subunit, in a total volume of 40 µl in half-area black plates (Constar). The plate was incubated at room temperature for 20 min, before being read with an Omega plate reader (BMG Labtech) at 5 min intervals and monitored to ensure binding had reached equilibrium. Each plate was read three times, and three replicates were performed at each protein concentration.

FP competition titrations were performed as above, but with 0.63 µM of condensin II, 0.3 µM of 5FAM-MCPH1407-422 and indicated amount of competing peptide. Data was normalised by subtracting the FP signal for 5FAM-MCPH1407-422 in the absence of condensin II at each peptide concentration and divided by the background-subtracted signal of sample with 0.63 µM of condensin II and 0.3 µM of 5FAM-MCPH1407-422 without any competing peptide. Each plate was read four times and each experiment was performed a total of three times.

Fluorescence polarisation data was fit using equations for direct binding and directly competitive binding, as presented by Roehrl et al., 2004.

ATPase assays

Request a detailed protocol

Complexes of wild type or ATPase hydrolysis deficient Q-loop mutants condensin II with MCPH11-435MBP were purified with gel filtration on a Superose 6 10/300 column, along with wild-type only control in ATPase assay buffer (20 mM Tris pH 7.5, 150 mM NaCl, 1 mM DTT). Prior to gel-filtration all samples were treated with TEV protease to remove N-terminal 6 x His-tag on MCPH11-435MBP. ATPase assays were performed using the EnzChek Phosphate Assay Kit (Invitrogen) modified for a 96 well plate format (Voulgaris and Gligoris, 2019). 50 bp double-stranded DNA sequence with the same as that used in the EMSA (without a fluorescent label). Reactions contained 50 nM protein with or without 800 nM DNA. Final conditions included 1 mM ATP and a total salt concentration of 50 mM. Protein/DNA was preincubated in reaction mix without ATP for 15 min at room temperature before the reaction was started by addition of ATP immediately before putting it in the plate reader to track phosphate release. A standard curve ATPase rate was determined from a linear fit of data from the first 60 min.

Electromobility shift assays

Request a detailed protocol

EMSAs were performed using 50 nM of 50 bp double-stranded DNA labelled with Cy5 at the 5’ with the sequence:

  • CTGTCACACCCTGTCACACCCTGTCACACCCTGTCACACCCTGTCACACC

For MCPH1 EMSAs, MCPH1-MBP constructs were diluted in 20 mM Tris pH 7.5, 150 mM NaCl, 10 % glycerol, 1 mM DTT and mixed 1 in two with DNA in 20 mM HEPES pH 8, 300 mM KCl, 5 mM MgCl2, 10 % glycerol and 1 mM DTT.

For condensin II/MCPH1 EMSAs, condensin II diluted in 20 mM HEPES pH 8, 300 mM KCl, 5 mM MgCl2, 10 % glycerol and 1 mM DTT and mixed with MCPH11-435-MBP, MBP or 5-FAM-MCPH1407-424 diluted in in 20 mM Tris pH 7.5, 150 mM NaCl, 10 % glycerol, 1 mM DTT. DNA was then added to a final concentration of 50 nM. Protein and DNA were incubated on ice for 15 min, before being loaded in a 2 % agarose gel and run in 0.5 x TBE buffer for 30 min. Gel was imaged using a Typhoon.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
strain, strain background (Escherichia coli)XL1-Blue Competent CellsThermo-competentPrepared in the labUsed to prepare plasmid DNA
Strain, strain background (S. frugiperda)Sf9 insect cellsThermo FisherCat# 11496015
Strain, strain background (Trichoplusia ni)High-Five insect cellsThermo FisherCat# B85502
strain, strain background (Escherichia coli)DH10EMBacYGeneva biotech
genetic reagent (Mouse)Ncaph2tm1a(EUCOMM)Wtsi, ZP3-CreHoulard et al., 2015
DOI:10.1038/ncb3167
Isolation of Mouse oocytes deleted for Ncaph2
cell line (Mouse)ES-E14 mouse embryonic stem cellshttps://web.expasy.org/cellosaurus/CVCL_C320RRID:CVCL_C320
cell line (Mouse)E14-Ncaph2Halo/HaloThis paperE14 cells homozygous Halo tag Cterminal NCAPH2
cell line (Mouse)E14-Ncaph2Halo/Halo, Mcph1Δ/ΔThis paperE14 cells homozygous Halo tag C-terminal NCAPH2, deleted for Mcph1
cell line (Mouse)E14-Ncaph2GFP/GFPThis paperE14 cells homozygous GFP tag C-terminal NCAPH2
cell line (Mouse)E14-Ncaph2GFP/GFP Mcph1ΔThis paperE14 cells homozygous GFP tag C-terminal NCAPH2, deleted for Mcph1
cell line (Mouse)E14- Ncaph2Halo/Halo Mcph1GFP/GFPThis paperE14 cells homozygous GFP tag C-terminal MCPH1 and Halo tag NCAPH2,
cell line (Mouse)E14- Ncaph2Halo/Halo Mcph1ΔCENGFP/ΔCENGFPThis paperE14 cells homozygous GFP tag C-terminal MCPH1 deleted of central domain,and Halo tag NCAPH2,
cell line (Mouse)E14-SCC1Halo/Halo, Ncaph2GFP/GFP,WaplLox/Lox, Rosa26CreERT2-LoxSTOPTEV/ CreERT2-LoxSTOPTEVThis paperSee Figure 10
cell line (Mouse)E14-SCC1Halo/Halo, Ncaph2GFP/GFP,WaplLox/Lox, Rosa26CreERT2-LoxSTOPTEV/ CreERT2-LoxSTOPTEVMcph1Δ/ΔThis paperSee Figure 10
transfected construct (mouse)pUC19-NCAPH2 Halo TVThis paperTargeting Halo tag C-terminal Ncaph2
transfected construct (mouse)pUC19-NCAPH2 GFP TVThis paperTargeting GFP tag C-terminal Ncaph2
transfected construct (mouse)pUC19-MCPH1 GFP TVThis paperTargeting GFP tag C-terminal MCPH1
transfected construct (mouse)pUC19-MCPH1 ΔCEN TVThis paperTargeting deletion of the central domain of MCPH1
transfected construct (mouse)pUC19-SCC1 Halo TVThis paperTargeting Halo tag C-terminal SCC1
transfected construct (mouse)pUC19-Rosa26 STOPLoxTEV TVThis paperTargeting the insertion of the STOP-Lox-TEV cassette at Rosa 26
transfected construct (mouse)pUC19-WAPL TEV LOX TVThis paperTargeting the TEV sites and the LoxP sites in Wapl
antibodyNCAPH2 (rabbit polyclonal)Produced on demand by EurogentecWB: (1/1000)
antibodySCC1 (mouse monoclonal)Millipore53 A303WB: (1/1000)
antibodySMC2 (rabbit monoclonal)Cell Signaling TechnologyD23C5WB: (1/500)
antibodyLamin B1 (rabbit monoclonal)AbcamAb133741WB: (1/1000)
antibodyMCPH1 (rabbit monoclonal)Cell Signaling TechnologyD38G5WB: (1/1000)
antibodyCREST (human autoantibody)ImmunovisionHCTO-100IF: (1/500)
antibodyH3PS10 (mouse monoclonal)Millipore3 H10WB: (1/1000) IF: (1/2000)
antibodyΔH2AX (mouse monoclonal)MilliporeJBW301WB: (1/1000) IF: (1/500)
antibodyCDK1 (rabbit polyclonal)Cell Signaling Technology77,055WB: (1/1000)
antibodyPhospho-CDK1 (rabbit polyclonal)Cell Signaling Technology9,111WB: (1/1000)
antibodyWAPL (rabbit polyclonal)J.M. Peters LabWB: (1/1000)
antibodyGFP (rabbit polyclonal)AbcamAb290WB: (1/1000) IF: (1/500)
antibodyPK-Tag (mouse monoclonal)BioradMCA 1360 GWB: (1/1000)
antibodyCyclin B1 (rabbit monoclonal)Cell Signaling Technology4138TIF: (1/200)
antibodyNCAPD3 (rabbit polyclonal)Bethyl LaboratoriesA300-604A-MWB: (1/1000)
antibodyAlexaFluor-488 secondary antibody anti mouseLife TechnologyA-11001Secondary antibody for IF
antibodyAlexaFluor-488 secondary antibody anti rabbitLife TechnologyA-11008Secondary antibody for IF
antibodyAlexaFluor-594 secondary antibody anti mouseLife TechnologyA-11005Secondary antibody for IF
antibodyAlexaFluor-594 secondary antibody anti rabbitLife TechnologyA-11012Secondary antibody for IF
antibodymouse anti-CAP-D3 antibodySanta CruzSc-81597WB (1:1000)
antibodygoat DyLight 800 florescent anti-mouse secondary antibodiesCell Signaling TechnologyCat #5,257WB (1:5000)
recombinant DNA reagentMouse Ncaph2 cDNAOrigeneMC200537Initial cDNA used for cloning in pRNA
recombinant DNA reagentMouse Mcph1 cDNADharmacon5697978Initial cDNA used for cloning in pRNA
recombinant DNA reagentMouse SMC2 cDNASource BioscienceIRAV p968E12162DInitial cDNA used for cloning in pRNA
recombinant DNA reagentpRNA-NCAPH2-GFPHoulard et al., 2015 DOI:10.1038/ncb3167In vitro transcription of NCAPH2 mRNA for mouse oocyte injection
recombinant DNA reagentpRNA-Mad2Houlard et al., 2015 DOI:10.1038/ncb3167In vitro transcription of Mad 2 mRNA for mouse oocyte injection
recombinant DNA reagentpRNA-H2b-mCherryHoulard et al., 2015 DOI: 10.1038/ncb3167In vitro transcription of H2b-mCherry mRNA for mouse oocyte injection
recombinant DNA reagentpRNA-MCPH1This paperIn vitro transcription of mouse MCPH1 mRNA for mouse oocyte injection
recombinant DNA reagentpRNA-MCPH1-Δ200This paperIn vitro transcription of mouse MCPH1 deleted of the N-terminal 200aa mRNA for mouse oocyte injection
recombinant DNA reagentpRNA-Fusion SMC2-NCAPH2This paperIn vitro transcription of the fusion SMC2-NCAPH2 mRNA for mouse oocyte injection
recombinant DNA reagentpRNA-TEVHoulard et al., 2015 DOI:10.1038/ncb3167In vitro transcription of TEV mRNA for mouse oocyte injection
recombinant DNA reagentpSptCas9(BB)–2A-PuroAddgene62,988Cloning of the SgRNA
recombinant DNA reagentpUC19NEBCloning of the targeting construct for CRISPR/Cas9 targeting
Recombinant DNA reagentpLIBJan-Michael Peters lab, IMPAddgene plasmid # 80,610
Recombinant DNA reagentpLIB MCPH1Genscript
Recombinant DNA reagentpET His6 MBP TEV LIC cloning vectorScott Gradia lab, UC BerkeleyAddgene plasmid # 29,656
Recombinant DNA reagentpET His6 MBP MCPH1 1–435This study
Recombinant DNA reagentpET His6 MBP MCPH1 1–195This study
Recombinant DNA reagentpET His6 MBP MCPH1 196–435This study
Recombinant DNA reagentpET His6 MCPH1 1–435 MBPThis study
sequence-based reagentGGTGGAAAGTAGTATATACCThis paperSg RNA used for: NCAPH2-GFP
sequence-based reagentGGTGGAAAGTAGTATATACCThis paperSg RNA used for: NCAPH2-Halo
sequence-based reagentGGTGTGCAATTCCTAGTGTGThis paperSg RNA used for: MCPH1 deletion Sg5'
sequence-based reagentAGCTGTTCCTTAGAACACGAThis paperSg RNA used for: MCPH1 deletion Sg3'
sequence-based reagentACAGTGAGACATCTACAATGThis paperSg RNA used for: MCPH1-GFP
sequence-based reagentCATGGATTTCTCCGGTGAATThis paperSg RNA used for: STOP-TEV
sequence-based reagentAATGGGTGCTTATAATTAGCThis paperSg RNA used for: WAPL-Lox-TEV Sg5'
sequence-based reagentACAATGTCACAATGGCTCATThis paperSg RNA used for: WAPL-Lox-TEV Sg3'
sequence-based reagentATAATATGGAACCGTGGTCCThis paperSg RNA used for: SCC1-Halo
sequence-based reagentcgttgaggcttcttcctatgThis paperSg RNA used for: DELCEN-MCPH1
sequence-based reagentAATGGGTGCTTATAATTAGC and ACAATGTCACAATGGCTCATThis paperSg RNA used for: TEV sites in Wapl
peptide, recombinant protein5FAM-MCPH1407-422Genscript
peptide, recombinant proteinMCPH1407-422Genscript
peptide, recombinant proteinMCPH1407-422pS417Genscript
commercial assay or kitClick-iT EdU Alexa Fluor 488 Imaging kitIn vitrogenC10337EdU fluorescent labeling
commercial assay or kitGibson assemblyNEBE5510SCloning kit
commercial assay or kitGFP-trap agarose beadsChromotekGTA-10GFP tagged protein purification
Commercial assay or kitHiTrap Q HPcytivaCat #17–0407
Commercial assay or kitHiTrap Heparin HPcytivaCat #17–0407
Commercial assay or kitStrepTrap HPcytivaCat #28–9075
Commercial assay or kitSuperose 6 Increase 10/300 GLcytivaCat #29-0915-96
Commercial assay or kitSuperdex 200 Increase 10/300 GLcytivaCat # 28990944
Commercial assay or kitHiLoad 16/60 Superdex 200GE HealthcareCat# GE28-9893-35
Commercial assay or kitEnzChek phosphate assay kitInvitrogenCat# E6
Commercial assay or kit4%–12% NuPAGE Bis-Tris gelsInvitrogenCat #NW04125
Commercial assay or kitColor Prestained Protein Standard, Broad Range 11–245 kDaNEBCat # P7719
Commercial assay or kitPierce Silver Stain KitThermo ScientificCat # 24,612
Commercial assay or kitInstantBlue Coomassie Protein StainAbcamCat #ab119211
Chemical compound, drugcellfectin IIGibco, Thermo FisherCat #10362100
Chemical compound, drugFBSGibco, Thermo fisherCat #10082139
Chemical compound, drugPierce Protease Inhibitor TabletsThermo ScientificCat #A32965
Chemical compound, drugBenzonasemilliporeCat #E1014
Chemical compound, drugHisPur Ni-NTA ResinThermo ScientificCat #88,221
Chemical compound, drugStrep-tactin Sepharose resinIba-lifesciencesCat # 2-1201-002
chemical compound, drugHALO-PROTACPromegaCS2072A01In vivo degradation of Halo-NCAPH2
chemical compound, drugHalo-TMRPromegaG8251Halo tagged protein detection
chemical compound, drugHalo-JFX554Grimm et al., 2021 DOI:10.1021/jacsau.1c00006Halo tag detection by fluorescence
chemical compound, drugRO-3306SigmaSML0569CDK1 inhibitor
chemical compound, drugLipofectamine 2000Thermofisher11668030E14 transfection reagent
chemical compound, drugQ5 DNA polymeraseNEBM0491LPCR amplification
software, algorithmCRISPORhttp://crispor.tefor.net/crispor.pyGuide RNA design
software, algorithmEasyFRAPhttp://easyfrap.vmnet.upatras.grFRAP data analysis
software, algorithmFiji 2.0.0-rc-49/1.52iNIH Imagehttp://fiji.sc/Image analysis and quantification
SoftwareImage studioLi-Cor

Data availability

HiC sequencing data has been deposited in GEO. (accession number: GSE188988).

The following data sets were generated
    1. Houlard M
    2. Cutts EE
    3. Shamim MS
    4. Godwin J
    5. Weisz D
    6. Schermelleh L
    7. Aiden AP
    8. Aiden EL
    9. Vannini A
    10. Nasmyth K
    (2021) NCBI Gene Expression Omnibus
    ID GSE188988. MCPH1 inhibits condensin II during interphase by regulating its SMC2-kleisin interface.

References

Decision letter

  1. Adèle L Marston
    Reviewing Editor; University of Edinburgh, United Kingdom
  2. Kevin Struhl
    Senior Editor; Harvard Medical School, United States
  3. Adèle L Marston
    Reviewer; University of Edinburgh, United Kingdom
  4. Andrew J Wood
    Reviewer; University of Edinburgh, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "MCPH1 inhibits condensin II during interphase by regulating its SMC2-kleisin interface" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Adèle L Marston as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Kevin Struhl as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Andrew J Wood (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. Please provide quantification of phenotypes throughout the manuscript. Specific examples are:

(a) Figure 1B/C, 1E, 3D: The fraction of cells with prophase like chromosomes should be quantified.

(b) Figure 1—figure supplement 1. Quantification of the centromere clustering phenotype should be provided.

(c) Figures 8B and 9C, the phenotype descriptions lack quantification. Proportion of oocytes showing chromosome missegregation should be quantified.

(d) It is an important observation that fusion condensin II could fully restore the chromosome segregation defects. The authors should also show the quantification data.

(e) It is stated in the discussion that in the absence of MCPH1, condensin II organises chromosomal DNAs into chromatid-like structures during G1 and G2 but not S phase. This is an important conclusion and should be documented with quantification.

2. Several figures/figure legends would benefit from more detail:

a) Figure 4 and Figure 4 —figure supplement 1. A better annotation of the HI-C contact matrices and explanation should be given. In particular, the general reader will need greater direction as to what features of the maps lead to the following observation: "enhances the frequency of inter-compartment (A to 275 B) contacts as compared to intra-compartment contacts (A to A and B to B) (Figure 4 276 —figure supplement 1A and B). In Figure 4A, please explain what is the yellow and black squares. In Figure 4D the arrow needs to be explained.

(b) In Figure 5 and supplemental figure 5, Coomassie and silver staining gels should be labeled to indicate which bands are which proteins.

(c) Figure 6D: The H2Ax foci are barely visible in the figure.

(d) Figure 8E -> what do the dots and crosses on the boxplots represent? There is only a single cross on the control box despite 11 measurements being reported in the legend.

(e) In the text describing Figure 10 it is stated that Wapl deletion does not alter condensin's distribution in interphase cells. However when the localisation of NCAPH2 is compared between the WT and WAPL delete in panel A, specifically between cells with low H3S10P staining, there appear to be thread like structures visible in the WAPL mutant but not wildtype. Assuming the authors' interpretation is correct, perhaps a more representative image could be used here.

(f) In line 537, please show Figure 11 —figure supplement 1.

3. In experiments of mouse oocytes, it is unclear how much endogenous Mcph1 is expressed and how abundant the exogenous Mcph1 is. These expression levels should be shown at least in western blotting.

4. In page 17 line 422-427, the authors mention that Mcph1 cannot dissociate condensin II in meiosis I, therefore claim that Mcph1 prevents the "initial loading" of condensin II on chromosomes but has little effect on complexes already stably associated with chromosomes. However, they injected Mcph1 in GV stage that is corresponding to G2 phase, when Mcph1 should be already loaded on chromatin. It is also conceivable that in mitosis, condensin II is located to the axis of condensed mitotic chromosomes and it could be hard to be accessed by Mcph1. Such difference in accessibility could also be the cause of different consequence between G2 and mitotic behavior of condensin II. To clarify this point, it would be better to perform Mcph1 over expression experiments in synchronizing culture cells and test if pre-loaded condensin II is resistant to Mcph1 in late G2 phase.

5. If fusion condensin II is resistant to Mcph1 while it is fully functional to restore NCAPH2 depletion, the fusion expression itself should cause precocious condensation like seen in Mcph1 depleted cells. Is this the case?Reviewer #1:

During prophase, condensin II drives the formation of chromosome loops to promote chromosome condensation, but this process is limited in interphase. In this manuscript the authors address how condensin II activity is limited by MCPH1. They show that MCPH1 limits condensin II-dependent loop formation, and provide evidence that it does so by opening of condensin II at its SMC2-NCAPH2 interface to remove it from the DNA. This is reminiscent of the mechanism by which WAPL removes cohesin during prophase. These conclusions are based on experiments using a diverse range of approaches in complementary systems, including ES cell engineering, in vitro biochemistry, Hi-C, live cell imaging of mouse oocytes. This range of approaches is a major strength of the manuscript. Overall, the manuscript presents a convincing case that MCPH1 counteracts condensin activity, in a similar way to restriction of cohesin activity by WAPL. This is an important advance in chromosome biology. Furthermore, since MCPH1 is frequently mutated in microcephaly patients, this work has direct medical relevance.

Reviewer #2:

The activity of the two mammalian condensin complexes is restricted to M phase. Condensin I activity is restricted at least partly via its sequestration in the cytoplasm during interphase. In contrast, a sizeable pool of condensin II remains in the nucleus throughout interphase and hence additional mechanisms are required to prevent inappropriate loop extrusion activity.

Prior work has implicated the MCPH1 protein as a negative regulator of condensin II activity, but how it exerts this function was unclear. Elucidating how MCPH1 regulates condensin II has potential clinical relevance: MCPH1 is the most frequently mutated gene in human congenital microcephaly, and condensin II mutations, although much rarer, cause a related phenotype.

This paper confirms prior findings and makes significant progress towards elucidating the mechanism through which MCPH1 regulates condensin II. The authors show that MCPH1 prevents condensin II from binding to, and condensing, chromosomes during G1 and G2 but (intriguingly) not during S phase. Interphase condensin II activity in MCPH1 mutant cells is shown to be independent of CDK1 activity, and therefore distinct from activation mechanisms that operate during mitotic prophase. The authors identify an evolutionarily conserved short linear motif on MCPH1 that interacts with NCAPG2, and provide evidence that it can be phosphorylated via CDK1, tentatively suggesting a mechanism via which MCPH1-mediated inhibition of condensin II loading might be alleviated to facilitate loading during mitosis.

An elegant series of rescue experiments performed in mouse oocytes showed that MCPH1 overexpression prevents NCAPH2 binding to chromosomes during meiosis I, which in turn prevents chromosome segregation during anaphase. In this system, inhibition of NCAPH2 binding requires the N-terminal BRCT domain of MCPH1. The most interesting finding of the paper, in my view, is that the effect of MCPH1 deletion on NCAPH2 loading is prevented by a genetic fusion between SMC2 and the NCAPH2 N-terminus, implying that MCPH1 might prevent condensin II loading by regulating the opening of this subunit interface. There are potential parallels here with Wapl-mediated cohesin removal, which involves regulated opening of the equivalent interface.

A technical strength of the paper is the diverse combination of experimental approaches, including live and fixed cell imaging, in vitro biochemistry and genomics, used to characterise how MCPH1 interacts with condensin, and how this interaction influences chromosome structure. Where possible, the perturbation experiments have been performed in gene edited and non-transformed mammalian cells, avoiding the potentially confounding effects of protein overexpression and background chromosomal instability.

The paper opens up several interesting questions for future studies, e.g. how is condensin II activity restricted during S phase in MCPH1-deficient cells? Is condensin II able to avoid the protein roadblocks present on interphase chromosomes that are thought to constrain cohesin-mediated loop extrusion? More insight into this latter question might be gleaned from cell cycle resolved Hi-C experiments. It seems possible that the high proportion of S phase cells in the unsynchronised mESC cultures used in Figure 4 would have made it more challenging to identify signal from G1 and G2 cells, in which condensin II activity is unleashed by MCPH1 deletion.

Overall, the conclusions are justified in my opinion, and it is commendable that the authors exercise caution in their interpretations and offer alternative explanations where appropriate.Reviewer #3:

Houlard et al., revisited the mechanisms of Mcph1 to inhibit condensin II in mouse cells and in biochemical approaches. Previous studies have shown that patient cells carrying Mcph1 mutations or Mcph1 knockdown cells undergo premature chromosome condensation that depends on condensin II. In this manuscript, by using biochemical and cell biological approaches, the authors found that NCAPG2 subunit in condensin II is required for the association with Mcph1 and the central short linear motif (SLiM) of Mcph1 is responsible for the association. The central SLiM inhibits neither ATPase activity of condensin nor condensin II binding to chromatin, suggesting that SLiM inhibits the activity of condensin II other than ATPase.

Hi-C data is one of the major advances of this study from previous works. The authors show that Mcph1 deletion enhances in the frequency of long-range, intra-chromosomal contacts and inter-compartment (A to B) contacts. This is consistent with the compaction of individual chromosomes after MCPH1 deletion.

The authors also tested the function of Mcph1 in mouse oocytes and showed that overexpression of Mcph1 caused chromosome missegregation that is similar phenotype of previously reported NCAPH2 depletion. In addition, the authors claim that Mcph1 and Wapl, a cohesin removal factor, function in a similar way because closure of Smc2-NCAPH2 interface, which corresponds to Smc3-Scc1 interface in cohesin and is known as an exit gate opened by the action of Wapl, could bypass the condensin removal activity of Mcph1. Finally, in mouse embryonic stem cells, they performed double knockdown of Wapl and Mcph1 and showed that these factors act independently to each other. Intriguingly, Mcph1 knockdown transforms interphase cohesin axis formed by Wapl knockdown into solenoidal axis.

Their conclusions are mostly well supported by biochemical data, but several aspects of in vivo data need to be quantified

https://doi.org/10.7554/eLife.73348.sa1

Author response

Essential revisions:

1. Please provide quantification of phenotypes throughout the manuscript. Specific examples are:

(a) Figure 1B/C, 1E, 3D: The fraction of cells with prophase like chromosomes should be quantified.

Figure 1B: the cell count was added in the main text: line 194:

“Immunofluorescence microscopy revealed that Mcph1 deletion leads to a substantial increase in the fraction of cells with prophase like chromosomes: WT: 6.4%, 12/188 cells compared to ΔMcph1: 39.1%, 70/179 cells”

Figure 1C and 3D: the cell count was added in the main text line 200:

“Crucially, all EdU negative cells, whether they were in G1 (H3PS10 negative, 200 cells counted) or G2 (H3PS10 positive, 200 cells counted), contained prophase-like chromosomes while no condensation was observed in EdU positive S phase cells (200 cells counted) (Figure 1C and 3D).”

Figure 1E: the cell count was added in the main text line 225:

“Because this completely reversed the re-organisation of chromosomal DNA caused by Mcph1 deletion (no condensation observed in 150 cells counted, Figure 1E), we conclude that altered regulation of condensin II is largely if not completely responsible.”

Figure 3D: the cell count was added in the main text line 262:

“The DNA organisation of wild type cells resembled that of normal G2 cells, namely no chromatid-like structures were formed and centromeres were clustered in chromocenters (200 cells counted, Figure 3D). In contrast, the chromosomal DNAs of all mutant cells were organized into prophase-like chromatids with individualised centromeres (150 cells counted, Figure 3D).”

(b) Figure 1—figure supplement 1. Quantification of the centromere clustering phenotype should be provided.

The quantification of the number of CREST foci per nucleus, their intensity and their size were added to Figure 1 —figure supplement 2. The counting was done over the entire population of cells irrespectively of their cell cycle stage as, even during replication, cells deleted for Mcph1 seem to have disorganised chromocenters. The figure legend was modified accordingly, line 752.

(c) Figures 8B and 9C, the phenotype descriptions lack quantification. Proportion of oocytes showing chromosome missegregation should be quantified.

The figure legend was modified accordingly to include:

Line 939, Figure 8B:

“number of oocytes analysed in three independent experiments and showing segregation defects: control :0/12; +MCPH1: 18/19”

Line 962, Figure 9C:

“total number of oocytes showing chromosome segregation defects in three experiments: NCAPH2-GFP+MCPH1: 17/19, Fusion-GFP+MCPH1: 0/18”

(d) It is an important observation that fusion condensin II could fully restore the chromosome segregation defects. The authors should also show the quantification data.

The main text was modified accordingly line 455:

“17 out of 18 oocytes deleted for Ncaph2 and injected with the fusion segregated their chromosome without any defect whereas all the Ncaph2 deleted oocytes showed chromosome stretching (n=10)”

(e) It is stated in the discussion that in the absence of MCPH1, condensin II organises chromosomal DNAs into chromatid-like structures during G1 and G2 but not S phase. This is an important conclusion and should be documented with quantification.

Figure 1C and 3D: the cell count was added in the main text, line 200:

“Crucially, all EdU negative cells, whether they were in G1 (H3PS10 negative, 200 cells counted) or G2 (H3PS10 positive, 200 cells counted), contained prophase-like chromosomes while no condensation was observed in EdU positive S phase cells (200 cells counted) (Figure 1C and 3D).”

2. Several figures/figure legends would benefit from more detail:

a) Figure 4 and Figure 4 —figure supplement 1. A better annotation of the HI-C contact matrices and explanation should be given. In particular, the general reader will need greater direction as to what features of the maps lead to the following observation: "enhances the frequency of inter-compartment (A to 275 B) contacts as compared to intra-compartment contacts (A to A and B to B) (Figure 4 276 —figure supplement 1A and B). In Figure 4A, please explain what is the yellow and black squares. In Figure 4D the arrow needs to be explained.

The legend of Figure 4 was modified to include description of the yellow and black squares and arrow: line 788.

The legend of Figure 4—figure supplement 1 was modified to include an explanation of the inter and intra- compartment contacts: line 826.

(b) In Figure 5 and supplemental figure 5, Coomassie and silver staining gels should be labeled to indicate which bands are which proteins.

Figure 5 was modified to indicate which bands are condensin complex subunits and different MBP/MCPH1 constructs are indicated with a *. The manuscript was modified accordingly: line 847.

(c) Figure 6D: The H2Ax foci are barely visible in the figure.

Figure 6D was modified to make the H2Ax more visible.

(d) Figure 8E -> what do the dots and crosses on the boxplots represent? There is only a single cross on the control box despite 11 measurements being reported in the legend.

The boxplots of both Figure 8 and 9 were corrected.

(e) In the text describing Figure 10 it is stated that Wapl deletion does not alter condensin's distribution in interphase cells. However when the localisation of NCAPH2 is compared between the WT and WAPL delete in panel A, specifically between cells with low H3S10P staining, there appear to be thread like structures visible in the WAPL mutant but not wildtype. Assuming the authors' interpretation is correct, perhaps a more representative image could be used here.

Due to the modification of the chromatin organization in Wapl deleted cells, it is true that it can be misleading when looking at NCAPH2-GFP staining that does not appear as even as in wild type cells. The choice of this particular field is motivated by the fact that it shows the different steps of chromosome formation from early G2 to metaphase. In order to address if NCAPH2-GFP was enriched on the chromosome axis of ΔWapl cells, the fluorescence of SCC1-Halo (red) and NCAPH2 GFP (green) was quantified across the axis of three different structure (a, b and c) in four representative cells in early G2 (1), late G2 (2), prophase (3) and metaphase (4) (distinguished using the H3PS10 staining). The quantifications show that NCAPH2 is enriched on the chromosome axis only in prophase and metaphase but not in G2. These results have been included in a new Figure 10—figure supplement 2 referred to in the manuscript line 518.

(f) In line 537, please show Figure 11 —figure supplement 1.

The manuscript was modified accordingly.

3. In experiments of mouse oocytes, it is unclear how much endogenous Mcph1 is expressed and how abundant the exogenous Mcph1 is. These expression levels should be shown at least in western blotting.

Analysis by western blotting of the protein expression levels is not feasible, as it would need a considerable amount of oocytes to detect the protein. This experiment would need an equal amount of oocytes injected with mRNA and would require sacrifice a lot of animals as an average of 10 mature oocytes can be isolated per female.

However, the overexpression levels of the different constructs (MCPH1 or MCPH1 deleted of the N-terminus) were done in the same condition. The fact that the version of MCPH1 with a deletion of the N-terminal domain does not impede on the association of condensin II with DNA suggests that the results observed are specific and not due to any side effect triggered by the injection process. Furthermore, this result is consistent with other studies using different systems (such as Wood et al., JBC 2008 and Yamashita et al., JCB, 2011) which observed that the N-terminal domain is essential for MCPH1 repression of condensin II activity.

4. In page 17 line 422-427, the authors mention that Mcph1 cannot dissociate condensin II in meiosis I, therefore claim that Mcph1 prevents the "initial loading" of condensin II on chromosomes but has little effect on complexes already stably associated with chromosomes. However, they injected Mcph1 in GV stage that is corresponding to G2 phase, when Mcph1 should be already loaded on chromatin. It is also conceivable that in mitosis, condensin II is located to the axis of condensed mitotic chromosomes and it could be hard to be accessed by Mcph1. Such difference in accessibility could also be the cause of different consequence between G2 and mitotic behavior of condensin II. To clarify this point, it would be better to perform Mcph1 over expression experiments in synchronizing culture cells and test if pre-loaded condensin II is resistant to Mcph1 in late G2 phase.

The point made in the manuscript relates to the comparison between the activity of WAPL on cohesin and the activity of MCPH1 on condensin II: can MCPH1 remove condensin II from pre-formed chromosomes like WAPL does with cohesin? We assume that the reviewers meant condensin and not MCPH1 when they say “when Mcph1 should be already loaded on chromatin”.

In the oocyte experiments, NCAPH2-GFP produced from mRNA injection at the GV stage is loaded onto chromosomes (Figure 8D).

When Mcph1 mRNA is co-injected at the GV stage with NCAPH2-GFP, MCPH1 is able to prevent the association of NCAPH2-GFP with chromosomes.

However, when oocytes are first injected at the GV stage with mRNA coding for NCAPH2-GFP and Mad2, the oocytes after release are arrested in metaphase I and condensin II is all along the chromosome arms. These oocytes are then injected a second time with Mcph1 mRNA and followed by microscopy. However, condensin II remains on the chromosomes of these oocytes (data not shown). Some reduction of condensin II can eventually be detected 5 hours after injection of MCPH1, twice the half-life of condensin II on chromosomes as reported previously in the same condition (Houlard et al., 2015). This lead to our suggestion that, unlike WAPL with cohesin, MCPH1 cannot actively remove the preloaded condensin II from the chromosomes.

In mES cells, condensin II is only visible at the centromere during G2, not along the chromosome arms. While an inducible over expression of MCPH1 in G2 might be able to reduce condensin II accumulation at the centromere, we do not see how it would distinguish between de novo loading or removal.

5. If fusion condensin II is resistant to Mcph1 while it is fully functional to restore NCAPH2 depletion, the fusion expression itself should cause precocious condensation like seen in Mcph1 depleted cells. Is this the case?

This is an experiment that we tried in E14 cells. To avoid overexpression of the fusion we used a Tetracyclin inducible promoter to drive the expression of the fusion after targeting at one specific locus (Tigre) in E14 genome. Unfortunately, while the fusion was expressed at high levels, it remained in the cytoplasm of the cell during interphase preventing any analysis.

However, the nuclear localization of the fusion is not a problem in oocytes as, during meiosis, the chromosome condensation begins after the nuclear envelope break down (GVBD). During live cell imaging of oocytes injected with the fusion, no apparent modification of the condensation kinetic were observed.

https://doi.org/10.7554/eLife.73348.sa2

Article and author information

Author details

  1. Martin Houlard

    Department of Biochemistry, University of Oxford, Oxford, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Writing – original draft
    Contributed equally with
    Erin E Cutts
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6780-6939
  2. Erin E Cutts

    Division of Structural Biology, The Institute of Cancer Research, London, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Funding acquisition, Validation, Writing – original draft
    Contributed equally with
    Martin Houlard
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3290-4293
  3. Muhammad S Shamim

    1. The Center for Genome Architecture, Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Medical Scientist Training Program, Baylor College of Medicine, Department of Bioengineering, Rice University, Houston, United States
    3. Center for Theoretical Biological Physics, Rice University, Houston, United States
    Contribution
    Data curation, Formal analysis, Validation, Supervision
    Competing interests
    No competing interests declared
  4. Jonathan Godwin

    Department of Biochemistry, University of Oxford, Oxford, United Kingdom
    Contribution
    Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  5. David Weisz

    1. The Center for Genome Architecture, Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Center for Theoretical Biological Physics, Rice University, Houston, United States
    Contribution
    Formal analysis, Funding acquisition
    Competing interests
    No competing interests declared
  6. Aviva Presser Aiden

    1. The Center for Genome Architecture, Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Center for Theoretical Biological Physics, Rice University, Houston, United States
    Contribution
    Formal analysis, Writing – review and editing, Validation
    Competing interests
    No competing interests declared
  7. Erez Lieberman Aiden

    1. The Center for Genome Architecture, Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Center for Theoretical Biological Physics, Rice University, Houston, United States
    Contribution
    Data curation, Formal analysis, Project administration, Methodology, Writing – review and editing, Funding acquisition, Resources, Validation
    Competing interests
    No competing interests declared
  8. Lothar Schermelleh

    Department of Biochemistry, University of Oxford, Oxford, United Kingdom
    Contribution
    Data curation, Formal analysis, Methodology, Funding acquisition, Supervision, Software
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1612-9699
  9. Alessandro Vannini

    1. Division of Structural Biology, The Institute of Cancer Research, London, United Kingdom
    2. Human Technopole, Milan, Italy
    Contribution
    Data curation, Project administration, Methodology, Resources, Validation, Writing – original draft, Software
    For correspondence
    alessandro.vannini@fht.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7212-5425
  10. Kim Nasmyth

    Department of Biochemistry, University of Oxford, Oxford, United Kingdom
    Contribution
    Conceptualization, Project administration, Visualization, Writing – review and editing, Resources, Writing – original draft, Software
    For correspondence
    ashley.nasmyth@bioch.ox.ac.uk
    Competing interests
    No competing interests declared

Funding

Wellcome Trust (107935/Z/15/Z)

  • Martin Houlard
  • Jonathan Godwin
  • Kim Nasmyth

European Research Council (294401)

  • Martin Houlard
  • Jonathan Godwin
  • Kim Nasmyth

Cancer Research UK (26747)

  • Martin Houlard
  • Jonathan Godwin
  • Kim Nasmyth

Wellcome Trust (107457/Z/15/Z)

  • Lothar Schermelleh

Wellcome Trust (091911)

  • Lothar Schermelleh

Paul and Daisy Soros Foundation

  • Muhammad S Shamim

Cancer Research UK (CR-UK C47547/A21536)

  • Erin E Cutts
  • Alessandro Vannini

Wellcome Trust (200818/Z/16/Z)

  • Erin E Cutts
  • Alessandro Vannini

Welch Foundation (Q-1866)

  • David Weisz
  • Aviva Presser Aiden
  • Erez Lieberman-Aiden

McNair Medical Institute Scholar Award

  • David Weisz
  • Aviva Presser Aiden
  • Erez Lieberman-Aiden

NIH Encyclopedia of DNA Elements Mapping Center Award (UM1HG009375)

  • Muhammad S Shamim
  • David Weisz
  • Aviva Presser Aiden
  • Erez Lieberman-Aiden

US-Israel Binational Science Foundation Award (2019276)

  • David Weisz
  • Aviva Presser Aiden
  • Erez Lieberman-Aiden

Behavioral Plasticity Research Institute (NSF DBI-2021795)

  • David Weisz
  • Aviva Presser Aiden
  • Erez Lieberman-Aiden

NSF Physics Frontiers Center Award (NSF PHY-2019745)

  • Muhammad S Shamim
  • Aviva Presser Aiden
  • Erez Lieberman-Aiden
  • Lothar Schermelleh

NIH CEGS Award (RM1HG011016-01A1)

  • David Weisz
  • Aviva Presser Aiden
  • Erez Lieberman-Aiden

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank N Halidi and C Monico for technical assistance, M Inês Baptista for her advice on cloning the STOP cassette, A Szczurek for his help in fluorescence quantification, S Mahara for FACS analysis, M Ranes and S Guettler for the MBP vector and N Davey for SLiM conversations.This work was supported by the Wellcome Trust (Grant Ref 107935/Z/15/Z), ERC grant (Proposal No 294401) and Cancer Research UK (26747) to KN. This work was also funded by the Cancer Research UK Programme Foundation (CR-UK C47547/A21536) and a Wellcome Trust Investigator Award (200818/Z/16/Z) to A.V. Imaging was performed at the Micron Oxford Advanced Bioimaging Unit funded by a Wellcome Trust Strategic Award (091911 and 107457/Z/15/Z). Funding for MSS was provided by the Paul and Daisy Soros Foundation. E.L.A. was supported by the Welch Foundation (Q-1866), a McNair Medical Institute Scholar Award, an NIH Encyclopedia of DNA Elements Mapping Center Award (UM1HG009375), a US-Israel Binational Science Foundation Award (2019276), the Behavioral Plasticity Research Institute (NSF DBI-2021795), NSF Physics Frontiers Center Award (NSF PHY-2019745), and an NIH CEGS Award (RM1HG011016-01A1).

Ethics

This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#08-133) of the University of Arizona. The protocol was approved by the Committee on the Ethics of Animal Experiments of the University of Minnesota (Permit Number: 27-2956). All surgery was performed under sodium pentobarbital anesthesia, and every effort was made to minimize suffering.

Senior Editor

  1. Kevin Struhl, Harvard Medical School, United States

Reviewing Editor

  1. Adèle L Marston, University of Edinburgh, United Kingdom

Reviewers

  1. Adèle L Marston, University of Edinburgh, United Kingdom
  2. Andrew J Wood, University of Edinburgh, United Kingdom

Publication history

  1. Preprint posted: July 20, 2021 (view preprint)
  2. Received: August 25, 2021
  3. Accepted: November 8, 2021
  4. Accepted Manuscript published: December 1, 2021 (version 1)
  5. Version of Record published: December 14, 2021 (version 2)

Copyright

© 2021, Houlard et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 843
    Page views
  • 177
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Thomas S McAlear, Susanne Bechstedt
    Research Article

    Cells increase microtubule dynamics to make large rearrangements to their microtubule cytoskeleton during cell division. Changes in microtubule dynamics are essential for the formation and function of the mitotic spindle, and misregulation can lead to aneuploidy and cancer. Using in vitro reconstitution assays we show that the mitotic spindle protein Cytoskeleton-Associated Protein 2 (CKAP2) has a strong effect on nucleation of microtubules by lowering the critical tubulin concentration 100-fold. CKAP2 increases the apparent rate constant ka of microtubule growth by 50-fold and increases microtubule growth rates. In addition, CKAP2 strongly suppresses catastrophes. Our results identify CKAP2 as the most potent microtubule growth factor to date. These finding help explain CKAP2's role as an important spindle protein, proliferation marker, and oncogene.

    1. Biochemistry and Chemical Biology
    2. Neuroscience
    Andrea Loreto et al.
    Research Article Updated

    Axon loss underlies symptom onset and progression in many neurodegenerative disorders. Axon degeneration in injury and disease is promoted by activation of the NAD-consuming enzyme SARM1. Here, we report a novel activator of SARM1, a metabolite of the pesticide and neurotoxin vacor. Removal of SARM1 completely rescues mouse neurons from vacor-induced neuron and axon death in vitro and in vivo. We present the crystal structure of the Drosophila SARM1 regulatory domain complexed with this activator, the vacor metabolite VMN, which as the most potent activator yet known is likely to support drug development for human SARM1 and NMNAT2 disorders. This study indicates the mechanism of neurotoxicity and pesticide action by vacor, raises important questions about other pyridines in wider use today, provides important new tools for drug discovery, and demonstrates that removing SARM1 can robustly block programmed axon death induced by toxicity as well as genetic mutation.
