Natural selection and repeated patterns of molecular evolution following allopatric divergence

  1. Yibo Dong
  2. Shichao Chen
  3. Shifeng Cheng
  4. Wenbin Zhou
  5. Qing Ma
  6. Zhiduan Chen
  7. Cheng-Xin Fu
  8. Xin Liu  Is a corresponding author
  9. Yun-peng Zhao  Is a corresponding author
  10. Pamela S Soltis  Is a corresponding author
  11. Gane Ka-Shu Wong  Is a corresponding author
  12. Douglas E Soltis  Is a corresponding author
  13. Qiu-Yun(Jenny) Xiang  Is a corresponding author
  1. North Carolina State University, United States
  2. Noble Research Institute, United States
  3. Florida Museum of Natural History, University of Florida, United States
  4. University of Florida, United States
  5. Tongji University, China
  6. Beijing Genomics Institute, China
  7. Institute of Botany, Chinese Academy of Sciences, China
  8. Zhejiang University, China
  9. University of Alberta, Canada
Research Article
  • Cited 2
  • Views 1,426
  • Annotations
Cite this article as: eLife 2019;8:e45199 doi: 10.7554/eLife.45199

Abstract

Although geographic isolation is a leading driver of speciation, the tempo and pattern of divergence at the genomic level remain unclear. We examine genome-wide divergence of putatively single-copy orthologous genes (POGs) in 20 allopatric species/variety pairs from diverse angiosperm clades, with 16 pairs reflecting the classic eastern Asia-eastern North America floristic disjunction. In each pair, >90% of POGs are under purifying selection, and <10% are under positive selection. A set of POGs are under strong positive selection, 14 of which are shared by 10–15 pairs, and one shared by all pairs; 15 POGs are annotated to biological processes responding to various stimuli. The relative abundance of POGs under different selective forces exhibits a repeated pattern among pairs despite an ~10 million-year difference in divergence time. Species divergence times are positively correlated with abundance of POGs under moderate purifying selection, but negatively correlated with abundance of POGs under strong purifying selection.

https://doi.org/10.7554/eLife.45199.001

Introduction

Identifying the factors driving divergence is a key research topic of speciation genomics (Wolf and Ellegren, 2017). Although there has been progress in identification of individual speciation genes and genomic islands of divergence in speciation (Nosil and Feder, 2013; Renaut et al., 2013), it remains an open question as to whether there are general genomic patterns and processes of molecular evolution accompanying the divergence of species. Natural selection and drift are recognized as the major processes promoting divergence. However, the relative roles of these processes, the proportion of the genome affected by natural selection, and the strength of selection in generating genomic divergence have remained poorly understood (Kimura, 1979; Noor and Bennett, 2009; Barrett and Hoekstra, 2011; Nosil and Feder, 2013). A few recent studies have uncovered repeated patterns of genomic divergence driven by selection in species formation (Gagnaire et al., 2013; Arnegard et al., 2014; Renaut et al., 2014; Soria-Carrasco et al., 2014) and suggested that divergence may often result from changes at a relatively small subset of genes (e.g., Conte et al., 2012).

Geographic speciation is a common driving force in generating biodiversity (Coyne and Allen Orr, 1998). Given sufficient time and/or selection pressures, genomic divergence between allopatric populations is expected (Coyne and Allen Orr, 1998; Nosil, 2008). However, how genes diverge over time at a genomic scale after major geographic isolation that completely interrupts gene flow has remained an unanswered question. Meta-analyses of closely related species that span a range of time scales of geographic isolation will be, therefore, particularly beneficial for gaining insights into this question (Nosil et al., 2009). Such studies might allow us to reconstruct how genomic divergence unfolds as speciation proceeds through time.

Putatively orthologous (single-copy) genes (POGs) identified in RNA-seq data sets of closely related species offer a valuable genome-wide window on molecular divergence of a unique subset of the genome following speciation (Feder et al., 2012; De Smet et al., 2013). Investigating how these genes diverge during speciation and subsequent evolution contributes an important perspective to speciation genomics. Such studies may illuminate the functional divergence of the allopatric genomes and the underlying ecological forces that shape them. The forests of eastern Asia (EA) and eastern North America (ENA) share 65 genera of seed plants with closely related species occurring in the two areas (Li, 1952; Boufford and Spongberg, 1983; Wu, 1983; Wen, 1999; Wen et al., 2010; Wen et al., 2016). This well-known floristic disjunction is a major phytogeographic pattern of the Northern Hemisphere and has been known since the time of Linnaeus (Wen, 1999). The origins of the disjunction and impact on plant evolution have been investigated over the past 30 years (Xiang et al., 1998; Wen, 1999; Xiang et al., 2000; Wen, 2001; Xiang and Soltis, 2001; Donoghue and Smith, 2004; Harris et al., 2013; Manos and Meireles, 2015; Qian et al., 2017). Many of these genera are small with one to a few species. Previous analyses using mainly plastid and internal transcribed spacer (ITS) DNA sequence markers revealed that the divergence times of disjunct sister species in EA and ENA varied greatly from the Miocene to the Pleistocene or even more recently (15 mya to <2.0 mya), although some disjunct clades in the two areas diverged earlier (Xiang et al., 2000; Wen, 2001; Milne and Abbott, 2002; Donoghue and Smith, 2004; Harris et al., 2013). These genera therefore represent different stages of allopatric divergence and are ideal for studying genomic divergence associated with geographic speciation.

In this paper, we compare the divergence patterns of genes identified as POGs in leaf transcriptomes of 20 allopatric species/variety pairs (or taxon pairs), all but four of which represent the EA-ENA floristic disjunction (Table 1). The 16 EA-ENA disjunct species or subspecies/variety pairs represent diverse clades of flowering genera with two to several species: Campsis (two spp.) – Lamiales, Convallaria (three vars. of 1 sp.) – Asparagales, Cornus (two subclades, Cornus-1 with eight spp., Cornus-2 with two spp.) – Cornales, Cotinus (two spp.) – Sapindales, Croomia (three spp.) – Pandanales, Gelsemium (three spp.) – Gentianales, Hamamelis (six spp.) – Saxifagales, Liquidambar (4–15 spp.) – Saxifragales, Liriodendron (two spp.) – Magnoliales, Meehania (seven spp.) – Lamiales, Menispermum (two spp.) – Ranunculales, Nelumbo (two spp.) – Proteales, Penthorum (two spp.)– Saxifragales, Phryma (two spp. or two vars. of 1 sp.) – Lamiales, Sassafras (three spp.) – Magnoliales, and Saururus (two spp.) – Piperales (Appendix 1—figure 1). These EA-ENA disjunct genera are among the classic examples of the EA-ENA floristic disjunction (Li, 1952Wu, 1983Wen, 1999) and have one to a few species isolated in the two areas, and in a few cases, a species also occurs in western North America (e.g., Cornus-1) and/or southwestern Asia and southeastern Europe (e.g., Convallaria, Liquidambar, Nelumbo). The species pairs we compared in these genera (Table 1) span a range of divergence times (Xiang et al., 2000Wen, 2001Milne and Abbott, 2002Wen et al., 2010).

Table 1
List of biogeographic pairs and number of examined putative single copy orthologs (POGs) (sum from two species), maximum length (MAL), minimum length (MIL), and average length (AL) of POGs, number of POGs mapped to single copy genes in seed plants (NSP) and number of POGs that were mapped to single copy genes in 20 angiosperm plants (NAP).
https://doi.org/10.7554/eLife.45199.002
GeneraSpeciesDistribution#of
POGs
MAL of POGs (bp)MIL of POGs (bp)AL of POGs (bp)NSP of POGsNAP of
POGs
AcorusA.calamus, A.gramineusEA-Asia/America17192/262131028747781
CalycanthusC.chinensis, C.occidentalisEA-WNA23116/2670510290896152
CampsisC.grandiflora, C.radicansEA-ENA20840/2569710273466112
ConvallariaC.majalis var. keiskei, C.majalisvar. MontanaEA-ENA30322/270411025025375
Cornus-1 C.ellipica, C.floridaEA-ENA24398/25682102800154259
Cornus-2C.alternifolia, C.controversaEA-ENA26490/27455102836210323
CotinusC.coggygria, C.obovatusEurasia-ENA26494/27374102889237361
CroomiaC.japonica,C.paueifloraEA-ENA23160/2648010281771112
DysosmaD.pleiantha, D.versipellisAsia*24270/211694102944132218
GelsemiumG.elegans, G.sempervirensEA-ENA22774/26801102980129194
HamamelisH.japonica, H.vernalisEA-ENA23052/27308102955221365
LiquidarnbarL.styraciflua, L.formosanaEA-ENA24844/27041102893196343
LiriodendronL.chinense, L.tulipiferaEA-ENA23060/2705310274877120
MeehaniaM.fargesii, M.cordataEA-ENA25622/2556210291997166
MenispermumM.canadense, M.dauricumEA-ENA27490/2734710244960121
NelumboN.lutea, N.nuciferaEA-ENA23988/27329102774138220
PenthorumP.chinense, P.sedoidesEA-ENA23288/215225102882161245
PhrymaP.aleptostachya, P.leptostachyaEA-ENA25096/211445102863106180
SassafrasS.albidum, S.tzumuEA-ENA25070/27524102809104153
SaururusS.cernuus, S.chinensisEA-ENA19386/263001028885384
  1. *Evergreen-deciduous forests pair.

As noted, four of the 20 pairs represent other allopatric pairs (i.e., Acorus, two spp. – Acorales, Calycanthus, three spp. – Laurales, Dysosma, seven spp. – Ranunculales). These additional pairs were included in the study to increase our sampling of geographically separated taxon pairs for comparison and to cover a wide window of times, from recent divergence of speciation to further divergence of the descendant species. The species pairs analyzed follow: one EA-Western North American (WNA) pair (Calycanthus chinensisC. occidentalis), one Asia/S. Europe-ENA pair (Cotinus coggygria – C. obovatus), one EA-EA/NA pair (Acorus gramineus – A. calamus), and one Asian pair (Dysosma versipellis – D. pleiantha; Ranunculales) (Table 1). Species of Acorus and Dysosma partially overlap in their geographic ranges, but have diverged in habitat and do not occur together. Acorus calamus naturally occurs throughout China and adjacent countries, and in North America in swamps, pond sides, and standing water below 2800 m. Acorus gramineus occurs in eastern, southern, and western China, and adjacent countries of EA in dense forests, moist rocky stream banks, and meadows below 2600 m. Dysosma versipellis and D. pleiantha both occur in eastern, central, and southern China, but D. versipellis is found in deciduous forests while D. pleiantha occurs in evergreen forests.

Additional information on the 20 taxon pairs and their distributions can be obtained from the Flora of China (http://www.efloras.org) and the Flora of North America (http://floranorthamerica.org/). The 20 taxon pairs we compared span a range of divergence times (Xiang et al., 1998; Xiang et al., 2000; Milne and Abbott, 2002; Donoghue and Smith, 2004Wen et al., 2010; Harris et al., 2013; Wen et al., 2016), mostly representing sister species or varieties; however, in a few cases, the selected species represent sister clades of one vs. two species (Calycanthus, Gelsemium, Sassafras), one vs. a few species (Hamamelis), or two or three vs. a few species (Cornus-1, Liquidambar).

We examined the pattern of variation of synonymous substitutions (Ks; the number of synonymous substitutions per synonymous site), nonsynonymous substitutions (Ka; the number of nonsynonymous substitutions per nonsynonymous site), and the ratio (Ka/Ks) for each POG within each taxon pair using a custom pipeline (Appendix 1—figure 2) and compared the patterns among taxon pairs representing these diverse angiosperm lineages. The ratio of nonsynonymous to synonymous nucleotide substitutions (Ka/Ks) is probably the most common measure of selection pressure and for identifying positive selection (Ka/Ks > 1) (Yang, 2003) in molecular evolutionary studies. The method is known to be a conservative approach to call positive selection on a gene as it uses an average Ka/Ks ratio across all nucleotide sites. We also examined the relative proportions of genes under different levels of selection forces and identify and annotate genes under strong positive selection based on the Ka/Ks values (>2). Finally, we tested if the level of molecular divergence at synonymous sites (as measured by Ks at the peak frequency) reflects the relative divergence time of the species pair. Results from such analyses will illuminate the genomic pattern of genetic divergence of these genes under geographic isolation, and may also shed light on a small window of genomic divergence that unfolds as speciation proceeds through time. Furthermore, this study will provide a ‘genome-wide’ view of evolutionary divergence of species exhibiting the EA-ENA phytogeographic pattern, in comparison to previous understanding based on a few gene regions. The POGs examined in this study represented 52–68% of the total orthologous gene families in the transcriptome data (Supplementary file 1).

We stress that the POGs in leaf transcriptomes analyzed here are putative orthologs between the two species of each biogeographic pair found in the transcriptomes by OrthoMCL followed by customized scripts (see Methods below). It is possible, therefore, that some of these genes may have more than one copy in the genome (as a small gene family), but only one of them was expressed to a detectable level in the leaf. In such cases, it is possible that the two single-copy transcripts from the taxon pair may represent paralogous copies of the low-copy gene family, making the gene comparison non-orthologous. However, we think the likelihood of non-orthology of these genes is probably very low because in each case the two taxa are either sister species or intraspecific taxa, or represent the products of recently diverged sister clades where conservation of expression of a gene copy may be expected. We therefore do not think that the low probability of non-homology will affect our conclusions derived from thousands of putatively orthologous comparisons. However, we do want to make it clear that the discussion and conclusions about ‘genome-wide’ pattern of evolutionary divergence and processes in this paper are restricted to these genes of the genome. Nonetheless these POGs represent a significant portion of the gene families expressed in the transcriptome of each species (52%–68%; Supplementary file 1).

Comparison of the rates of nonsynonymous and synonymous substitutions provides a useful tool for understanding the mechanisms of DNA sequence evolution. A ratio of nonsynonymous (Ka) to synonymous (Ks) nucleotide substitutions greater than one is a common method for identifying positive selection in molecular evolutionary studies (Yang, 2003). We are aware that uncertainty in Ka/Ks ratios is high when Ks is zero or close to zero. This uncertainty may lead to inflation of Ka/Ks ratios or false identification of genes under strong positive selection due to a high, infinite, or undefined Ka/Ks value. To minimize this problem, we removed genes with Ks = 0 and genes with Ka/Ks = 99 for all analyses and only focused on genes with Ka/Ks > 2 as candidates of strong positive selection for gene annotation analysis. Our detailed examination of the Ka and Ks data (see Discussion below) provided evidence supporting the candidate genes under positive selection detected in the study are unlikely artifacts of small Ks. Further, the Ka/Ks > 2 ratios in these genes are unlikely a result of saturation of synonymous substitutions. Saturation of synonymous substitutions is often expected at deeper phylogenetic levels. We further used alternative method (Wagner, 2007) to check for signals of positive selection in these genes with Ka/Ks > 2. This method detects variation clusters of aggregated nucleotide substitutions that are too closely spaced to be observed by chance alone (violating the prediction from neutral evolution). Both the Ka/Ks and variation cluster methods may underestimate the number of genes under positive selection because some genes with Ka/Ks < 1 may be under positive selection at only a few sites and these sites may not be necessarily clustered in the gene. However, our goal is not to determine exactly how many POGs are under positive selection, and this caveat does not affect our comparisons of average selection pressures among genes or comparisons of general patterns of gene divergence across species pairs. The genes identified as under positive selection by both methods are likely the true positive selection genes and will provide top candidates for future studies for their functions in driving allopatric divergence in these taxa.

Results

The number of POGs in the leaf transcriptomes of the 20 biogeographic taxon pairs varies from 8596 to 15161 (Table 1). Among these POGs, 2241 are shared by over 50% of the taxa, 333 are shared by over 80% of the taxa, 79 are shared by over 90% of the taxa, and seven are shared by all of the taxa. Most of these genes exhibit low divergence, with synonymous substitution (Ks) values less than 0.1 and nonsynonymous substitution values (Ka) less than 0.04. Less than 1% of the genes exhibit greater divergence with Ks values greater than 0.15 (Figure 1) and Ka values greater than 0.05 (Figure 2). The Ks values at peak frequency when plotted in intervals of 0.01 range among the taxon pairs from <0.01 to<0.06 (Figure 1). In Convallaria, Liriodendron, Cotinus, Menispermum, and Campsis, the Ks values at peak frequency are less than 0.01, while in Cornus-2, Dysosma, Nelumbo, Penthorum, and Sassafras, they are between 0.01 and 0.02. In Calycanthus, Liquidambar, Meehania, Menispermum, and Phryma, they are between 0.02 and 0.03, and in Cornus-1, Croomia, Hamamelis, and Saururus, they are between 0.03 and 0.04. The largest values are observed in Acorus and Gelsemium, between 0.05 and 0.06 (Supplementary file 2). A portion of the POGs, 53–237 among the genera, were aligned to putative single-copy or low-copy genes shared by seed plants (Li et al., 2017), and 75–365 were mapped to strict single-copy genes shared by 20 angiosperm genomes (De Smet et al., 2013) (for method of the mapping analysis, see Methods).

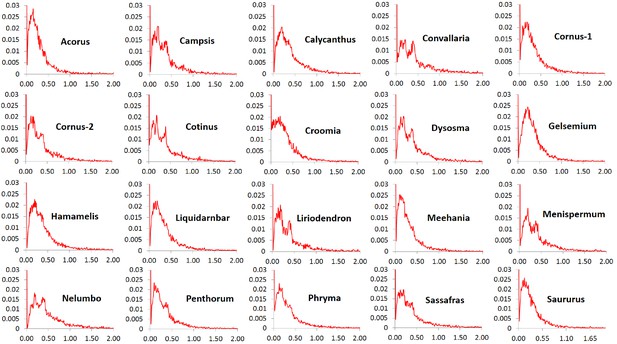

Frequency distribution of synonymous substitutions per synonymous site (Ks) of putative orthologs (POGs) from leaf transcriptomes of 20 species/variety pairs of angiosperms.
https://doi.org/10.7554/eLife.45199.003

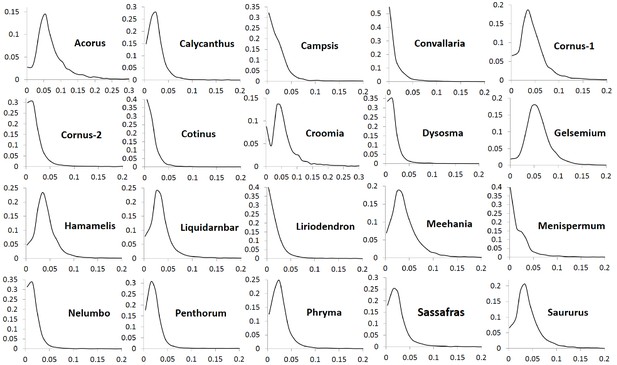

Frequency distribution of nonsynonymous substitutions per non-sysnonymous site (Ka) of putative orthologs (POGs) of leaf transcriptomes from 20 species/variety pairs of angiosperms.
https://doi.org/10.7554/eLife.45199.004

The Ka/Ks ratios of the POGs exhibit high similarity in patterns of variation among the 20 taxon pairs. In all pairs, the ratios at peak frequencies are highly similar and more than 90% of the genes are overall under purifying selection (referred to as purifying selection in short) based on their average Ka/Ks ratios < 0.9 across all sites within the genes. The exception was Nelumbo, which has 87.6% of the genes with Ka/Ks ratios < 0.9. The greatest proportion of genes under purifying selection was observed in Gelsemium, which had 94.9% of the genes with Ka/Ks ratios < 0.9. A very small proportion, from 1.6% (in Acorus) to 3.7% (in Nelumbo), is evolving nearly neutrally with Ka/Ks ratios in the range of 0.9–1.1, and another small proportion, from 3.1% (in Gelsemium) to 8.8% (in Nelumbo), is under putative positive selection based on values of Ka/Ks ratios greater than 1.1. A very small proportion, from 0.6% (in Gelsemium) to 2.0% (in Nelumbo), is under putative strong positive selection with Ka/Ks ratios ranging from 2 to 7 and rarely to 17 (Figure 3). The proportion of genes under truly positive selection may be smaller the numbers reported here due to uncertainty in estimation of Ka/Ks ratios when Ks is small.

Frequency distribution of Ka/Ks ratios of putative orthologs (POGs) from leaf transcriptomes of 20 species/variety pairs of angiosperms.
https://doi.org/10.7554/eLife.45199.005

We arbitrarily divided the genes under purifying selection into three categories, Ka/Ks < 0.1 as genes under strong purifying selection, 0.1 < Ka/Ks < 0.5 as genes under moderate purifying selection, and 0.5 < Ka/Ks < 0.9 as genes under relaxed purifying selection. Among the taxon pairs, we observed 41% (in Convallaria) to 68% (in Gelsemium) of the POGs fall into the category of moderate purifying selection, 11% (in Gelsemium) to 36% (in Convallaria) fall into the category of strong purifying selection, while 9.7% (in Acorus) to 19.5% (in Nelumbo) fall into the category of relaxed purifying selection. In all taxon pairs, the relative abundance of POGs under the different categories of selection pressures follows the same order, from high to low, as moderate purifying selection, strong purifying selection, relaxed purifying selection, weak/moderate positive selection, putatively neutral, and strong positive selection (Figure 4; Supplementary file 3).

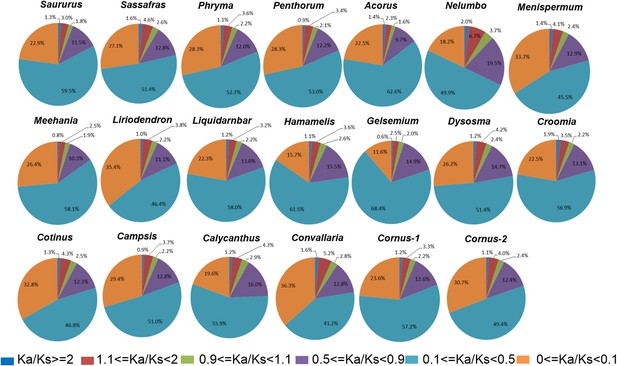

Relative abundance of putative orthologs (POGs) with different categories of Ka/Ks values.

Numbers of genes in each category are provided in Supplementary file 3.

https://doi.org/10.7554/eLife.45199.006

To investigate if variation in Ks values at peak frequency reflects variation in biogeographic isolation times of taxon pairs, phylogenetic analyses were conducted using the seven POGs shared by all taxa and the 79 POGs shared by >90% of the taxa, respectively. The results recovered the relationships of the 20 lineages congruent with the APG IV summary phylogeny and classification (The Angiosperm Phylogeny Group, 2016) (Figure 5; Figure 5—figure supplement 1). Divergence times of the biogeographic pairs estimated using total substitutions of these two sets of gene sequence data and BEAST (Drummond and Rambaut, 2007) were similar, with the results from 79 genes without the fossil constraint from Cornus slightly younger (Figure 5; Figure 5—figure supplement 1). The estimated divergence times suggested that isolation of the species pairs occurred in an interval between the late Miocene and Pleistocene (~10.67 –~1.69 mya; Figure 5). Species divergence time was positively correlated with the Ks value at peak frequency across taxon pairs (Figure 5; r = 0.8034; p<0.001; for values used for the correlation analysis, see Supplementary file 4). On the other hand, the Ks values at peak frequency of the taxon pairs are: (1) positively correlated with the abundance of genes under moderate purifying selection (0.1 < Ka/Ks <0.5; r = 0.9324; p<0.001), (2) negatively correlated with the abundance of genes under putative positive selection (Ka/Ks >=1.0, r = - 0.5344; p=0.015; 1.1 <= Ka/Ks <2, r = - 0.62; p=0.004), and (3) negatively correlated with the abundance of genes under putative strong purifying selection (Ka/Ks <0.1; r = - 0.7940; p<0.001) (Figure 6; Supplementary file 3, Supplementary file 10). The divergence times of taxon pairs are also positively correlated with the abundance of genes under moderate purifying selection (0.1 < Ka/Ks <0.5; r = 0.73; p<0.001) and negatively correlated with the abundance of genes under strong purifying selection (Ka/Ks <0.1; r = - 0.64; p<0.009; Figure 5; Supplementary file 4). The number of genes under strong positive selection (Ka/Ks >2) varies among the taxon pairs from 72 (in Campsis) to 184 (in Nelumbo) (Table 2). In each pair, approximately half of these genes have GO annotations (Table 2) that, in combination among all pairs, mapped to a total of 223 GO terms, varying from 21 (in Cornus-2) to 46 (in Convallaria) in each taxon pair (Supplementary file 5). Many of these GO terms are unique to a single lineage (100/223 = 44.8%).

Table 2
The number of POGs under strong positive selection (Ka/Ks > 2) in each taxon pair and results from Blast Search.
https://doi.org/10.7554/eLife.45199.007
GeneraTotalWith blast (without hits)With blast hitsWith mappingWith GO annotation
Acorus10118201746
Calycanthus11514202556
Campsis725151042
Convallaria12351121545
Cornus-112317162367
Cornus-21167122968
Cotinus12440111360
Croomia17032292089
Dysosma10836141840
Gelsemium67510844
Hamamelis11428152645
Liquidambar12223192159
Liriodendron781571937
Meehania851214752
Menispermum1061861963
Nelumbo18493239104
Penthorum93516963
Phryma1194241675
Sassafras15924273177
Saururus1027211658
Figure 5 with 1 supplement see all

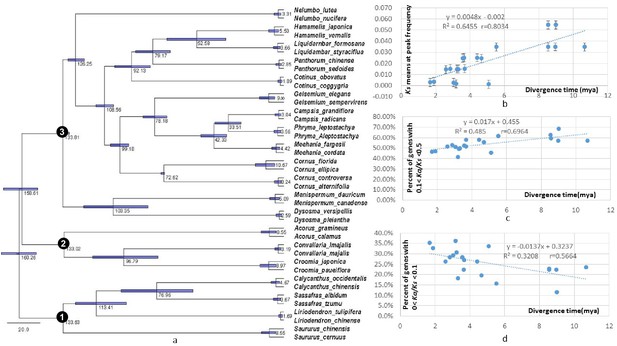

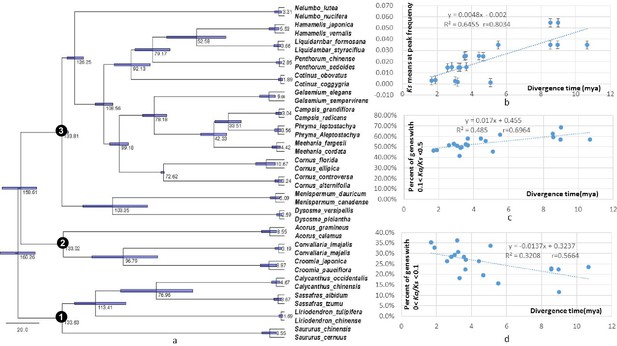

Dated global phylogeny of the 20 taxon pairs and correlations of divergence time with level of divergence at sysnonymous sites, withabundance of genes under moderate purifying selection (Ka/Ks = 0.1 - 0.5), and with abundance of genes under strong purifying selection (ka/Ks <0.1).

(a) Dated global phylogeny and divergence times of taxon pairs estimated using BEAST program and seven single-copy orthologs shared by all 40 taxa with no missing data. Number 1, 2, and 3 indicate the crown node of Magnoliidae, crown node of Monocotyledoneae, and crown node of Eudicotyledoneae, respectively. (b – d). Correlation between divergence time and (b) Ks value at peak frequency of each genus, (c) abundance of POGs with Ka/Ks values between 0.1–0.5, and (d) abundance of POGs with Ka/Ks values < 0.1. Data used for the analyses are available in Supplementary file 4.

https://doi.org/10.7554/eLife.45199.008

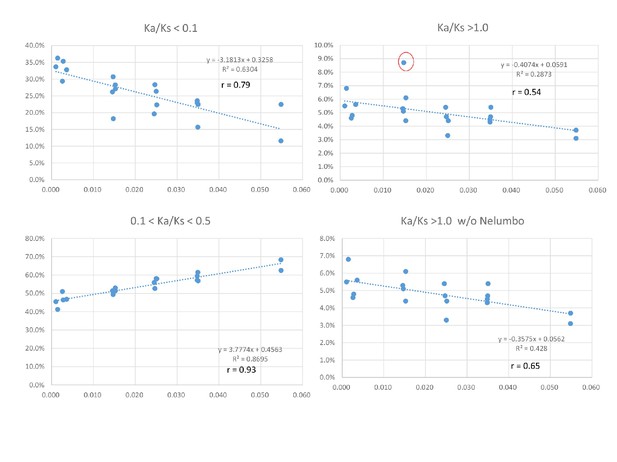

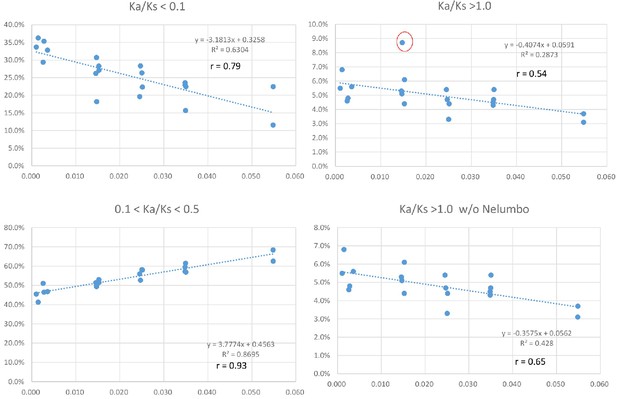

Positive and negative relationships between relative abundance (Y-axis) of genes with Ka/Ks values in the indicated ranges and Ks values of peak abundance (X-axis) in the 20 taxon pairs.

The pattern remains when the modified Ks (see Materials and methods) is used. Data used for the analyses are available in Supplementary file 4.

https://doi.org/10.7554/eLife.45199.010

A majority (59) of these lineage-specific GO terms belongs to the Biological Process (BP) categorization, while 23 belong to the Molecular Function (MF) ontology, and 16 belong to the Cell Components (CC) ontology (Supplementary file 5). Fourteen of the BP GO terms were annotated to responses to various stimuli (biotic or abiotic, external or internal stimuli), defense response, immune process, or signal transduction and were distributed among 11 taxon pairs, with each term was present in 1–3 pairs. In all, 124 of the 223 GO terms (55.2%) are shared by two or more of the 20 taxon pairs. Among these, 12 were shared by 10–15 taxon pairs. These 12 genes were annotated to the nucleus, protein complex, hydrolase activity, zinc ion binding, RNA binding, ATP binding, structural constituent of ribosome, oxidoreductase activity, cellular protein modification process, translation, single-organism biosynthetic process, and oxidation-reduction process (Supplementary file 5). A single GO term is shared by all 20 taxon pairs and is annotated to integral component of membrane (ICM) in the CC category (Supplementary file 5). The specific genes and the relative abundance of genes within each of the CC, BP, and MP categories vary among the taxon pairs (Figure 7; Figure 7—figure supplement 1; Figure 7—figure supplement 2). However, within the CC category, all pairs have the greatest proportion annotated to ICM (Figure 7), although they vary in the exact number (Table 3). The analysis of the Ka/Ks > 2 genes using the variation cluster method (Wagner, 2007) showed most of them (>57% in all taxon pairs, >70% in 15 pairs) were also under positive selection (indicated by significant p value for test of clustered nucleotide substitutions) (Supplementary file 6).

Table 3
Number of genes with Ka/Ks > 2 ratios annotated to Integral Component of Membrane.
https://doi.org/10.7554/eLife.45199.011
GeneraIntegral component of membrane
Acorus12
Calycanthus13
Campsis12
Convallaria8
Cornus-120
Cornus-212
Cotinus18
Croomia26
Dysosma7
Gelsemium7
Hamamelis16
Liquidarnbar15
Liriodendron7
Meehania10
Menispermum14
Nelumbo26
Penthorum15
Phryma13
Sassafras21
Saururus16
Figure 7 with 2 supplements see all

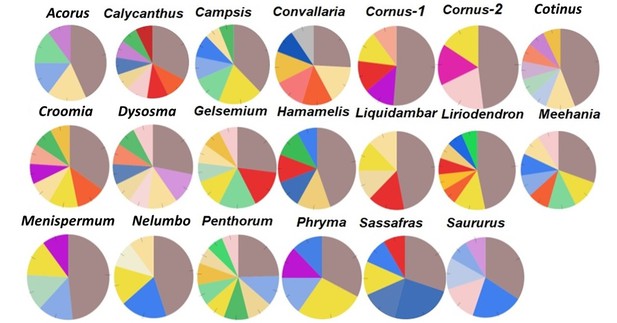

Relative abundance of genes with Ka/Ks > 2 annotated to Cell Component category, drawn from data in Supplementary file 5. Genes annotated to integral component of membrane (ICM) are shown in dark brown.
https://doi.org/10.7554/eLife.45199.012

Discussion

Conserved genomic pattern of evolutionary divergence following geographic speciation

Our results show a general trend of genome-wide molecular divergence in POGs among the phylogenetically divergent genera showing the EA-ENA floristic disjunction or other types of allopatric divergence. That is, similar frequency distributions of Ks, Ka, and Ka/Ks ratios were observed for the POGs expressed in leaves, with peaks clustered within a narrow range of small values (Ks: 0.001–0.05; Ka: 0.002–0.004; Ka/Ks: 0.15–0.25) and a long tail of larger values (Ks > 0.075, Ka >0.035, Ka/Ks > 0.5; Figure 1, Figure 2, Figure 3). The pattern we observed indicates that in each of the taxon pair, including the 16 EA-ENA pairs, most of the genes show shallow divergence or evolve slowly at a similar rate, while a small proportion of the genes evolve faster. This suggests that the molecular divergence in the POGs is generally low after geographic speciation. The peak frequency range of Ks, Ka, and Ka/Ks values revealed substantial differences in the magnitudes among genera, indicating that the taxon pairs have diverged to different extents, likely reflecting their relative timing of divergence and/or varying selection pressures among different genera. Evidence from divergence time estimation supported this prediction as discussed below.

Divergence time estimation using the global phylogeny with DNA sequences of the seven POGs shared by all of the studied species demonstrates variation in times of divergence among genera. Biogeographic pairs with similar Ks values of peak frequency diverged at similar geological times (Figure 5). The divergence times of taxon pairs fall into the window of the mid-Miocene to the Pleistocene, largely similar to previously reported times of divergence for these taxa (e.g., Xiang et al., 2000; see summary in Wen, 2001; Milne and Abbott, 2002; Ian Milne, 2006; Wen et al., 2010). Although the dates for some pairs were previously estimated to be older than obtained here (e.g., Cornus-1, Cornus-2, Liriodendron, Liquidambar, and Sassafras), those dates also fall in the Miocene (Wen et al., 2010). Divergence times similar to those estimated in this study have also been reported for Cornus and Liriodendron (Xiang et al., 2000). The major pattern of divergence revealed here by analyses of many nuclear genes for the 16 EA-ENA disjunct taxon pairs is consistent with the previous mega-synthesis of studies of individual lineages that were largely based on ITS and/or a few plastid gene sequences or non-coding markers (Donoghue and Smith, 2004; Wen et al., 2010; Harris et al., 2013). Both showed a major pattern of the Miocene or more recent disjunction of the EA and ENA sister species/varieties.

The divergence times estimated for the EA-NA (ENA, WNA, or NA) disjunct pairs in this study support the importance of a geographical connection through the Bering Land Bridge (BLB) and perhaps also long-distance dispersal (LDD) to explain a part of the EA-ENA floristic similarity. Geological evidence indicates that the BLB was available as a floristic connection throughout most of the Paleogene and Neogene and closed for the potential migration of terrestrial organisms between 7.4 and 4.8 mya (Marincovich and Gladenkov, 1999; Graham, 2018), while the North Atlantic Land Bridge (NALB) broke up in the early Eocene (Marincovich et al., 1990; Tiffney, 2000).

The disjunction of the EA-NA taxon pairs may have occurred through vicariance (the break-up of what was once a continuous distribution by different climatic cooling or geological events occurring during the Neogene) or founder event (which could have occurred across the BLB to generate a new distribution or could have been a rare LDD event). Gene flow could stop around the time of migration simply because of geographic distance. Even though the BLB might still have been available, pollen and/or seed flow might have been limited given the geographic distance and high latitude of BLB (long, cold winter with short days). Divergence then could have occurred due to either selection or drift if the founder populations were small. On the other hand, if local populations were large and generation times were long, populations would not diverge very quickly under even limited gene flow and a physical break in the distribution. In such cases, divergences might post-date the end of the BLB and other barriers, for example, if disjunctions were formed by vicariance. At present, our data do not permit distinguishing between the alternative hypotheses of vicariance and LDD in establishing the EA-NA disjunction in these taxa. However, the fact that 65 genera of seed plants exhibit this disjunction and the availability of NALB and BLB for migration argue for vicariant origins of these taxa and the similar flora; LDD for this number of taxa representing a range of life histories does not seem parsimonious, and may only play a minor role in formation of the similar flora in EA and ENA. Development of phylogeny-based methodology that models speciation under the different scenarios is needed for testing these hypotheses.

Our analyses also revealed a repeated pattern of divergence of POGs among the taxon pairs in allopatric speciation. That is, we observed the same order of relative abundance of POGs under various selection pressures (Figure 4), disregarding the relative timing of species isolation (i.e., differences in Ks value of peak abundance and divergence time), including those conspecific pairs. Specifically, we found a tiny portion of the POGs are under strong positive selection or putatively evolve neutrally, while most of the POGs are under purifying selection pressures. Although the Ka/Ks ratio and variation cluster both have low power for detecting positive selection (leading to underestimation of number of positive selection genes), this pattern is likely true due to functional constraint of protein coding genes. The observed pattern further suggests that most of the molecular evolution (or DNA substitution) in the POGs was neutral (or synonymous). The deciduous forests in eastern Asia and eastern North America are situated at similar latitudes, and both China and the United States have an eastern coast line; thus, they may have similar regional climatic and ecological conditions (E. Ricklefs et al., 2004). Therefore, there are presumably low divergence pressures for gene functional evolution in the two areas. One would therefore expect most genes to evolve slowly under purifying selection to conserve ancestral functions and the observed excess synonymous substitutions (in comparison to non-synonymou substitutions) in these genes were results of elimination of nonsynonymous substitutions by natural selection while the neutral synonymous substitutions were fixed by genetic drift. On the other hand, although eastern Asia and eastern North America share similarities in general climate, there must be differences in micro-abiotic and biotic environments between the two regions which could have driven diversifying evolution of some genes in the sister lineages for local adaptation, speciation, and subsequent divergence.

Our results are consistent with these predictions. A dominant majority of the POGs examined in this study were under strong purifying selection pressures and only a tiny portion of the genes (0.6%–2%) were potentially under ‘strong’ positive selection (Ka/Ks > 2) (Figure 4). Annotation of these genes evolving under strong positive selection in the EA-ENA taxon pairs pointed to potential abiotic and biotic agents of selection (Supplementary file 5; also see discussion below). The observation of this same pattern in non-EA-ENA taxon pairs suggests that this ‘conservatism’ pattern of gene evolution may be a rule for allopatric speciation of any organism, which allows conservation of the ancestral system as well as opportunities for modification of the ancestral system during speciation. The conserved order of gene abundance, as observed in all taxon pairs in this study, may be essential to maintaining a balance between the ability to preserve the ancestral biological system and the ability to evolve new features that are beneficial for new adaptation. Although genome-wide conservation of genes may have been predicted in the past, we present here empirical evidence from thousandths of putative orthologous genes supporting this evolutionary pattern of conservatism in geographic speciation across a wide array of angiosperm lineages. The repeated pattern of variation of relative abundance of POGs under different selection pressures among taxa may represent a genomic ‘rule’ that can be tested by examining all gene families in the transcriptomes or genomes of the studied taxa. It is allied with a hypothesis that molecular evolution in the allopatric taxa is mostly neutral involving mostly silent nucleotide substitutions in the genome. This hypothesis may be further tested by examining molecular evolution of genes in additional plant lineages to determine if it is supported and is a rule. Study of three pairs of sunflower species that diverged along latitudinal or longitudinal gradients similarly showed a repeated pattern of genomic divergence (Renaut et al., 2014), with evidence implying that both purifying and divergent selection contributed to repeatable patterns of divergence and that repeated genome evolution may have resulted from both similar selective pressures and shared local genomic landscapes.

Our observation of the length of time of species isolation is positively correlated with the abundance of genes under moderate pressure of purifying selection (0.1 < Ka/Ks < 0.5), but negatively correlated with the abundance of genes under strong pressure of purifying selection (Ka/Ks < 0.1) (Figure 5; Figure 6), suggests that as geographic isolation or divergence proceeded in time (within the time window of divergence of the species pairs studied), the purifying selection pressures of some genes may have shifted from high intensity during early geographic isolation to lower intensity at the later stage of isolation. The shift might be attributed to changes of evolutionary trajectories of the gene at some sites where replacement substitutions are favored for modification of the ancestral functions leading to relevant morphological/ecological divergence between the species pairs. Alternatively, a relaxed purifying selection intensity of some genes could be simply a result of accumulation of slightly deleterious nonsynonymous substitutions rather than adaptive evolution. The increase of Ka/Ks ratios with time observed in our study is unlikely an artifact of saturation at silent sites of these genes because saturation of silent sites may be expected in comparisons of deep phylogenetic lineages (e.g., family or higher ranks) and unlikely to occur in species/variety pairs. Time-dependent shift of purifying selection intensity have also been reported in study of yeast (Elyashiv et al., 2010). The model developed for evolution of purifying selection in this study revealed that most, but not all changes, could be explained by systematic shifts in the efficacy of selection. An observation of a weak negative relationship between Ks peak values and abundance of genes under positive selection pressure (Ka/Ks > 1; Figure 6) in our study also suggests that as time of isolation proceeded, pressure of positive selection for some genes might have also relaxed to a lower Ka/Ks values due to accumulation of mutations at synonymous sites in the genes. Study in mammal genomes also indicated that positive selection is often episodic (Kosiol et al., 2008).

 Unfortunately, our study cannot track the evolutionary fate of specific genes within a taxon pair through time to provide direct evidence for these explanations on the observed relationships. Nonetheless, we examined Ka/Ks values of the 79 POGs shared by 90% or more taxon pairs that diverged at different times to see if the same orthologous genes exhibit a relationship between variation of Ka/Ks values and time. A simple scattered plot in excel for the divergence times and the Ka/Ks values (with Ka/Ks values = 0, 99 removed) of the 79 POGs shared by 90% or more taxa revealed that eight of these genes had a correlation at r > 0.5, among which two correlations were positive and six were negative (Supplementary file 7). The Ka/Ks ratios of POGs that showed a correlation with times were all smaller than 1.0 (all <0.5 except for a couple of cases). These data provide another line of indirect evidence congruent with the hypothesis that some genes may have indeed shifted the pressure of purifying selection (intensified or relaxed) during the evolutionary divergence of the taxon pair. When only including Ka/Ks ratios smaller than 0.5 in the analysis of these 79 POGs, the number of genes showing correlation with time increased (9 positive and seven negative relationships with r > 0.5; Supplementary file 8). The relationships are strong in a few genes for either pattern. This observation suggests, perhaps, the presence and elimination of slightly deleterious nonsynonymous substitutions play a major role in the changes of Ka/Ks ratios. Lack of correlation between Ka/Ks ratios and time for most of the 79 POGs also suggests that the evolutionary fate of most of these POGs is more taxon-specific independent of time. Although most of them were under purifying selection, a handful cases were under putative positive selection with (Ka/Ks > 1; Supplementary file 7) which are more found in the aquatic Nelumbo and Saururus genera.

Genes under strong positive selection

The number and predicted functions of genes under strong positive selection (Ka/Ks > 2) varied among the disjunct pairs, and a large proportion of the GO terms are unique to a single genus, suggesting that the divergence and evolutionary adaptation of the species in each genus has been likely facilitated by different molecular mechanisms and biological processes. For example, among the 20 lineages we examined, the aquatic eudicot Nelumbo has the largest proportion of its POGs under positive selection and the smallest proportion of POGs under purifying selection, while the reverse is found in the terrestrial twining vine Gelsemium, a member of the asterid clade Gentianales. The two species of Nelumbo, N. nucifera (EA) and N. lutea (ENA), differ in four features of their reproductive structures, including tepal color and persistence, receptacle color, and fruit shape. Gene annotation identified 12 genes under strong positive selection for response to stimulus, nine for regulation of gene expression, seven for developmental process, eight for DNA-templated transcription, and eight for cellular lipid metabolic process. These genes may be interesting for future investigation into their roles in observed morphological divergence (Supplementary file 5). In Gelsemium, 12 morphological characters in reproductive structures (including inflorescence size, floral shape/size, fruit and seed morphology, etc.; see list in Wyatt et al., 1993) and two vegetative structures (petiole length and leaf shape) differ between the two disjunct species (Wyatt et al., 1993). Gene annotation for strong positive selection genes in this genus identified two for plastid organization, two for photosynthesis (light reaction), three for response to stress, two for establishment of localization in the cell, three for oxidation-reduction process, two for response to light stimulus, three for proteolysis, two for regulation of biological quality, two for negative regulation of metabolic process, three for signal transduction, and two for RNA processing, among others. The biological processes involving the positively selected genes all differ between the two genera except for DNA metabolic process, which was common to both, involving seven genes in Nelumbo and two genes in Gelsemium (Supplementary file 5).

It is difficult to decipher if there is any link between the positively selected genes and morphology without additional evidence, but these genes may serve as candidates for further detailed population genetics and evo-devo studies to test their roles. Many of the positively selected genes could also have been involved in divergence of cryptic characteristics that are unknown, and thus serve as a guide for future investigation. The GO terms of these genes (Supplementary file 5) support that possible ecological/environmental pressures or selection agents that differ between the growing habitats of the taxon pairs in EA and ENA or other areas may have driven the extent of divergence in these genera. For example, the positive selection genes (Ka/Ks > 2) with GO terms in our study are enriched for immunity/stimuli responses. Similar case is also found in positive selection genes in mammals which were enriched for a wide variety of functions related to immunity and defense (Kosiol et al., 2008). Identification of the specific sites under positive selection in these genes would be helpful to guide future studies on the potential functional consequences of selection. Unfortunately, our comparisons of two sequences for each gene in each taxon pair did not have the power for such analysis. Further analyses of these genes with increased taxon/population sampling will be needed to identify the particular sites of selection.

The single GO term common to all 20 taxon pairs was annotated to integral component of membrane (ICM) and was most abundant among the cell component terms (Figure 7; Supplementary file 5, row in bright red). This also suggests that a potential common regional force acting on these taxa resulted in the adaptive evolution of ICM genes, which may be involved in some of the common biological processes, such as signaling associated with host-microbe interactions and responses to various stimuli. When examining the names of these integral cell membrane component genes, they seem to vary among taxa, and it is difficult to determine if they are involved in similar biological processes in different taxa, without additional evidence (Supplementary file 9). These positively selected genes of integral cell membrane component provide candidates for future studies to understand the causes and consequences of their molecular evolution.

Recent studies have revealed repeated patterns of genomic divergence associated with species formation (Pereira et al., 2016). Such patterns was considered as evidence suggesting that natural selection tends to target a set of available genes (Pereira et al., 2016). Our study found a set of genes was targeted for strong positive selection in each taxon pair, suggesting that these genes may play a role for the allopatric divergence of the studied taxon pairs. Although the set of genes differed among taxon pairs, 12 were shared by 10–15 pairs and one of them was share by all pairs. Whether these common targets reflect shared biological processes unique to the allopatric divergence of the studied taxa or general to allopatric or even sympatric divergence of all taxa need to be tested by further studies.

Uncertainty in gene copy, orthology, Ka/Ks estimation, and divergence time estimation

We stress that the POGs in leaf transcriptomes analyzed here are putative orthologs between the two species of each biogeographic pair found in the transcriptomes by OrthoMCL followed by analyses using customized scripts (see Methods below). As discussed above, some of them may represent paralogous copies of the low-copy gene family, but such cases are expected to be uncommon due to the close relationship between the compared taxa of each pair. In these taxon pairs, conservation of expression of a gene copy in the same tissue of the same growth stage is likely. Rare cases of non-homology of POGs would not affect the conclusions derived from thousands of putatively orthologous comparisons. OrthoMCL is known to perform reasonably well in identifying orthologous genes (Chen et al., 2007; Altenhoff and Dessimoz, 2009). Unfortunately, we do not have genome sequences for any pairs of taxon to confirm the orthology via phylogenetic analyses of gene families. We conducted phylogenetic analyses of the seven POGs shared among the 20 taxon pairs and 79 POGs shared by >90% taxon pairs, respectively, using raxml. The results showed all taxon pairs were grouped as sister taxa in each of the gene trees, in accordance with the expectation that the sequence pairs are orthologous genes. Otherwise, we would have observed separation of sister taxa on the gene tree.

We are aware that uncertainty in Ka/Ks ratios is high when Ks is zero or close to zero. This uncertainty may mislead the identification of genes under strong positive selection as discussed above. In our data, most of the genes (except a few) with Ka/Ks > 2 had Ks > 0.005 (Supplementary file 12). Our plots of the Ks vs. Ka/Ks values in each taxon pair show that the genes with Ka/Ks > 2 have a range of Ks values from small to large in all taxon pairs (Appendix 1—figures 322), indicating the candidate genes under positive selection detected in the study are unlikely artifacts of small Ks.

We also recognize that the divergence times of each taxon pair calculated using BEAST (Drummond and Rambaut, 2007) and the global phylogeny including all 20 pairs may be somewhat underestimated due to sparse sampling of a deep phylogeny containing both very long and short branches and few calibrations only at deep nodes (see Methods and Xiang et al., 2011) that may fall beyond the smoothing capability of BEAST. However, the results are very similar to previous estimates based on rbcL sequences (Xiang et al., 2000). Despite the possible bias, the influence may be similar across the tree and does not renter their suitability for correlation analyses conducted in the study because the relative order of divergence of the species pairs estimated here is expected to be consistent. Although the divergence times may have been underestimated, we do not think it will not render the implication of a major pattern of BLB migration for the studied taxa because the divergence time need to be ~20–40 million years older for migration across the North Atlantic land bridge.

Conclusions

Our comparative analyses of putative single-copy or low-copy genes from transcriptome data of 20 angiosperm lineages in Eurasia and North America reveal a consistent pattern of molecular divergence following allopatry, supporting a potential universal conservatism rule of genomic architecture governing the evolution of these genes. Our data of temporal isolation in the Neogene (or more recent) of the 16 EA-ENA taxon pairs also support an important role of the Bering Land Bridge for intercontinental migration of these taxa. We also identified a total of over 200 genes with annotation under putative strong positive selection following allopatric speciation across these genera, with some annotated to biological processes responding to various stimuli, providing a pool of candidates for future studies to understand the link between speciation and molecular and morphological divergence.

Materials and methods

Sampling, RNA extraction, and transcriptome sequencing

Request a detailed protocol

Leaf materials were collected from wild or cultivated plants grown in botanical gardens or arboreta (Supplementary file 11) and flash frozen in liquid N2 and stored at −80°C until RNA extraction was conducted. Total RNA was then extracted from this tissue using the CTAB method of Jordon-Thaden et al. (Jordon-Thaden et al., 2015) (protocol number 2) with the addition of 20% sarkosyl. DNA was removed using a Turbo DNA-free kit (Invitrogen, Carlsbad, CA, USA). Extraction success was measured using Bioanalyzer metrics for the quality and quantity of RNA isolated (Agilent Technologies, Santa Clara, California, USA). The pure RNA was sent to BGI (Shenzhen, China) for library construction and sequencing after drying in specially coated tubes (i.e., GenVault, now renamed as GenTegra; IntegenX, Pleasanton, California, USA) that inhibit RNase activity and stabilize the RNA at room temperature. Ribosomal RNAs were removed from the total RNA by the Ribo-Zero rRNA removal kit for plant leaves (Epicentre, Madison, WI, USA) before cDNA library construction. Non-normalized mRNA libraries with insert sizes of ~200 bp were sequenced (paired-end, 100 bp) using the Illumina HiSeq 2000 platform to yield 4–8 Gb each.

Sequence assembly and identification of putative orthologous genes

Request a detailed protocol

The flowchart of transcriptome data analyses is illustrated in Appendix 1—figure 2. For each species, prior to contig assembly, reads with poor quality were deleted from the data set, following the standard protocol of Illumina sequencing. Specifically, raw reads were trimmed at the 3’ end when the Phred quality score of a read dropped below Q = 20 (or 0.01 probability of error) for two consecutive bases. All 5’ and 3’ stretches of ambiguous ‘N’ nucleotides and sequences of less than 20 bp were removed from sequence trimming using CLC Genomics Workbench 4.6.1 (CLC Bio, Aarhus, Denmark). Reads of each species were assembled into contigs by Trinity software (Grabherr et al., 2011). Then, for each taxon pair, POGs were identified using orthoMCL (Li et al., 2003) and custom Perl scripts as follows. Generally, default parameters were selected for each step of this gene-selection pipeline. “OrthoMCL starts with reciprocal best hits within each transcriptome/genome as potential in-paralog/recent paralog pairs and reciprocal best hits across any two genomes as potential ortholog pairs. Related proteins are interlinked in a similarity graph. Then MCL (Markov Clustering algorithm,Van Dongen 2000; www.micans.org/mcl) is invoked to split mega-clusters’. The key steps in OrthoMCL included (1) ‘orthomclFilterFasta’ step: the program removes low-quality sequences with sequence length <30 bp and percent stop codons > 20%; (2) ‘blastall’ step: the program runs all-v-all Blastn with filtered sequences in the above step with default parameters ‘-v 100000 -b 100000 m 8 -e 1e-5’; (3) ‘orthomclPairs step: the program finds pairs of proteins that are potential orthologs, in-paralogs, or co-orthologs; (4) the ‘mcl’ program split mega-clusters into the final OrthoMCL ortholog groups; and (5) the ortholog groups file is outputted by OrthoMCL. In the ortholog groups file for a taxon pair, if a gene group contains a single gene from each taxon, this group was then picked as a ‘single-copy ortholog group’ using a custom Perl script. We refer here to these genes as putative orthologs (i.e. POGs) and note that they are ‘single-copy’ in the context of the comparisons – i.e., transcriptomes of a single tissue in a single taxon pair – and thus may not truly be single-copy genes within either of the taxa in each comparison. Each ‘single-copy’ ortholog of a taxon pair was further analyzed by scanning the ortholog groups file using the protein sequence-based ESTScan software (Lottaz et al., 2003) for CDS. The CDS sequences of each single-copy ortholog were aligned and converted into PAML format by MAFFT software (Katoh and Standley, 2013) and custom Perl scripts. The Perl scripts and complete pipeline (GDMET – Genome Duplication and Molecular Evolution by Transcriptome Sequences) developed for these data analyses is available at https://github.com/ybdong919/GDMETS/releases. The NCBI Bioproject number and Biosample numbers for the raw transcriptome data are provided in Supplementary file 11.

To see how many of these POGs were represented in the ‘global’ single or low copy gene data sets of seed plants (Li et al., 2017); identified from a combination of genome and transcriptome data) and flowering plants (De Smet et al., 2013); identified from 20 angiosperm genomes), respectively, we performed the following mapping analyses. First, the single-copy or low-copy gene names of Arabidopsis thaliana shared by seed plants or flowering plants were downloaded from the respective publications. Second, the dataset including all cDNA sequences of Arabidopsis thaliana was downloaded from its genome database (TAIR10: https://www.arabidopsis.org/). Then the cDNA sequences of the single-copy or low-copy gene of A. thaliana shared by seed plants or flowering plants were selected out from the dataset of all cDNA using gene names by Perl script. Finally, the cDNA sequences from each of the 20 taxon-pairs were mapped against the selected gene cDNA sequences of Arabidopsis thaliana by Blast program, and those that were mapped by the cDNA from each of the 20 taxon pairs were selected and recorded by Perl script.

Molecular analyses of POGs – rate of substitution, selection, and gene annotation

Request a detailed protocol

To examine the level of molecular divergence and identify genes under positive selection following geographic isolation, synonymous substitutions per site (Ks), nonsynonymous substitutions per site (Ka), and the ratio (Ka/Ks) were calculated for each POGs with estimated standard error (SE) in each taxon pair. The ‘yn00’ model in the PAML package (Yang, 1997; Yang, 2007) was used to calculate Ks, Ka, and their ratio values. A complete pipeline (GDMET) was developed for these data analyses (available at https://github.com/ybdong919/GDMETS/releases). The yn2000 method (Yang and Nielsen, 2000) estimated synonymous and nonsynonymous substitution rates with corrections for multiple substitutions at the same site and takes into account of transition/transversion rate bias, base/codon frequency bias.

To test if the level of sequence divergence at synonymous sites observed in most genes is reflective of the relative divergence time of a taxon pair, the relationship between divergence time estimated using genes shared among taxon pairs and the global phylogeny including all taxon pairs (see below for details) and Ks values at the peak frequency in each taxon pair was evaluated using a CORREL function in Excel. The Ks values of POGs in each taxon pair were divided into groups of segments that span 0.01 units (e.g., 0–0.01, 0.01–0.02, 0.02–0.03…). The medium value of the Ks range with the highest frequency (referred to as ‘Ks value at peak frequency’) was used for the correlation analyses with medium value of the estimated divergence time. This comparison involved potential overlap of some data (i.e., the synonymous substitutions), because the gene pool with the Ks value that is most frequent in the transcriptome data may include the genes used for divergence time dating. Although the divergence time analysis used total substitutions (including both Ka and Ks) in the selected genes (seven shared by all 20 taxon pairs and 79 shared by 90% or more taxon pairs; see details below), we realize that overlapping of the Ks data can reduce the stringency of the analysis, if present. Nonetheless, the analysis can show if the phylogeny and total substitutions-based divergence time is correlated with the level of Ks divergence from pair-wise comparison. If they are correlated, it will suggest that the divergence time estimated with all characters in a small set of genes that are common among taxon pairs can be predicted by the most frequent Ks value from pair-wise comparisons of the genome-wide set of genes in the taxon pair, and both reflect the divergence level of the taxon pair.

To explore the variation pattern of selection pressures of POGs within the genome, we calculated the relative abundance of genes under different ranges of selection pressures. To gain insights into how the variation pattern has changed over time, we examined relationships of the Ks values at peak frequency and divergence time with the abundance of genes under different selection intensities (i.e., Ka/Ks values in different ranges) by correlation analysis using CORREL function in Excel to obtain correlation coefficients. In a few taxon pairs, two consecutive Ks ranges have very similar frequencies. We then re-ran the correlation analyses using a modified Ks value for comparison, as follows. The modified Ks is the middle value of the Ks range of the two frequencies if they differ by <10% of the combined frequency, e.g., if Ks 0.01–0.02 had a frequency of 21%, Ks 0.02–0.03 had a frequency of 19%, the Ks in "peak frequency" was determined as 0.02. The difference between 21% and 19% is 2%, less than 10% of 21%+19% (40%). The results using modified Ks show no changes in the trends of relationships reported using Ks at peak frequency.

The POGs with Ka/Ks values greater than two were annotated by Blast2Go v5 (Conesa et al., 2005). First, Blastx-fast was used to identify similar, potentially homologous sequences from the green plants (No. taxa: 33,090, Viridiplantae) subset of the non-redundant protein database. A value of 1.0E-5 was assigned to Blast expectation value (E-value), while the other arguments were default. All IDs of these similar sequences were matched against the Gene Ontology (GO) database. Based on the information from Blast and mapping, the most plausible Gene Ontology terms were assigned to the input sequences. We further executed the InterPro step in parallel to the Blast step to identify protein domains and families from the InterPro collection of databases. The functions based on domains and families were merged to the functions from the Blast hits of gene sequences and gene mapping (for details of gene mapping, see introduction of Blast2GO, as described above).

The POGs with Ka/Ks values greater than two in each taxon pair were also analyzed with variation cluster method (Wagner, 2007) to see how many of these genes also contain significant signal of clustered substitutions, a deviation from neutral molecular evolution and expectation of positive expectation. For each pair of these POG sequences considered, we inferred a codon-preserving local alignment (Smith and Waterman, 1981), removed alignment gaps and identified all positions that differed in that alignment using a custom perl script. The coordinates of these differences were used as input to the varclus package (Wagner, 2007).

Phylogeny estimation and divergence times of taxon pairs

Request a detailed protocol

The divergence time of each taxon pair was estimated from a phylogeny of all 20 taxon pairs inferred from (1) the seven POGs shared by all 40 samples and (2) those POGs shared by at least 90% of the 40 samples (79 genes) detected by GDMET. These gene sequences were aligned using MAFFT (https://mafft.cbrc.jp/alignment/software/ (Katoh and Standley, 2013), visualized and adjusted using Mesquite, and exported in Nexus format (Maddison and Maddison, 2017). The best model of molecular evolution (GTR model with a gamma rate parameter) was selected using jModeltest v2.1.6 (Posada, 2008), and BEAST v.1.8.2 (Drummond and Rambaut, 2007) was used to infer the phylogeny of the 20 genera and estimate the divergence times of each taxon pair (see more details below).

The ages for the crown node of Magnoliidae, crown node of Monocotyledoneae, and crown node of Eudicotyledoneae (see Figure 5 for these clades) were each constrained as noted below, following the results of previous studies (Magallón et al., 2015). Additionally, the crown node of Cornus (represented by two pairs from the clades of the earliest split of Cornus phylogeny (Xiang and Thomas, 2008; Xiang et al., 2011) was constrained based on the oldest fossil of the genus from the late Cretaceous (72.1–83.6 mya) for the analysis using seven genes (Xiang et al., 2011; Atkinson et al., 2016). These constraints were set using uniform priors as the lower and upper bounds. Specifically, the prior for the Magnoliidae crown node was set as 127.2–135.2 mya, the prior for the Monocotyledoneae crown node was set as 131.0–135.0 mya, the prior for Eudicotyledoneae crown node was set as 131.7–135.0 mya, and the prior for the crown node of Cornus was set as 72.1–83.6 mya. For the analysis with 79 genes, the Cornus node was not constrained to see if results are similar.

The prior parameter settings for the analysis were checked with empty runs without the sequence data first, which resulted in divergence time estimates for the constrained nodes similar to the constrained values with ESS over 200. The distribution models of the other parameters, such as those on molecular evolution, resulting from the empty analyses were then implemented in the real analysis with data. The analysis with real data was run under a GTR model with a gamma rate parameter based on the results of jModelTest, with an uncorrelated lognormal relaxed clock (Drummond et al., 2006) and the yule process model (Stadler, 2010). The yule.birth rate was set as 0.06, the average rate for plants (De Vos et al., 2015). The analysis was run for 10 million generations, with sampling of trees every 1000 generations. The quality of the runs and parameter convergence were assessed using Tracer v. 1.6.0 (Rambaut and Drummond, 2009). The maximum credibility tree of mean heights was then constructed using TreeAnnotator after discarding 1000 trees as burn-in. The tree result was visualized in Figtree v 1.3 (Rambaut, 2010).

Availability of data and materials

Request a detailed protocol

The POG sequence pairs and values of dN, dS, and dN/dS are available at Dryad (https://datadryad.org//). Raw transcriptome data are available at NCBI SRA database with Bioproject number PRJNA508825 and Biosample number from SAMN10534244 to SAMN10534283 (Supplementary file 11). Other data sets supporting the conclusions of this article are included in the additional files of the article. Custom analysis scripts are available from GitHub: https://github.com/ybdong919/GDMETS/releases (Dong, 2018).

Appendix 1

Appendix 1—figure 1

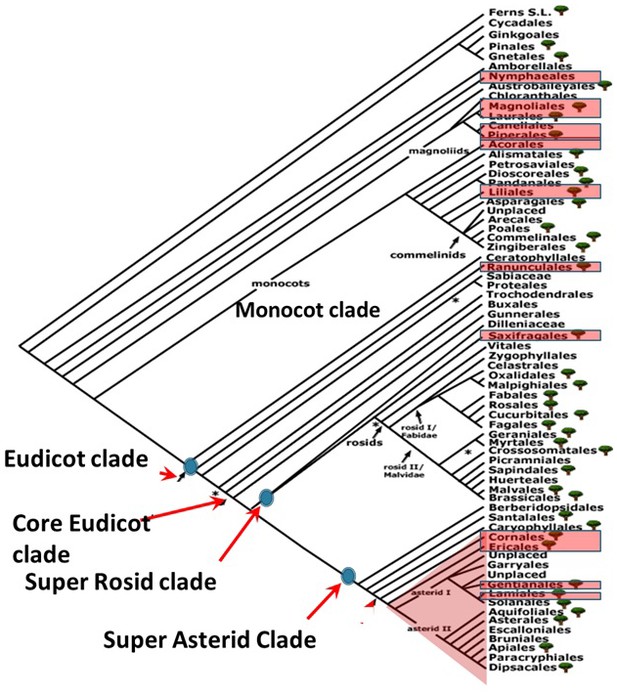

Phylogenetic positions of orders represented by species pairs sampled in the angiosperm phylogeny.

Phylogenetic tree was taken from Angiosperm phylogeny website.

https://doi.org/10.7554/eLife.45199.029
Appendix 1—figure 2

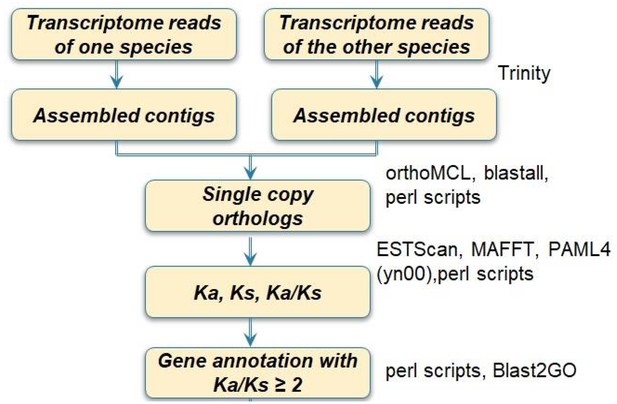

Flowchart of transcriptome sequence analyses for one species pair.

The process was repeated for 20 pairs. A customized pipeline of programs was developed for running these steps.

https://doi.org/10.7554/eLife.45199.030
Appendix 1—figure 3

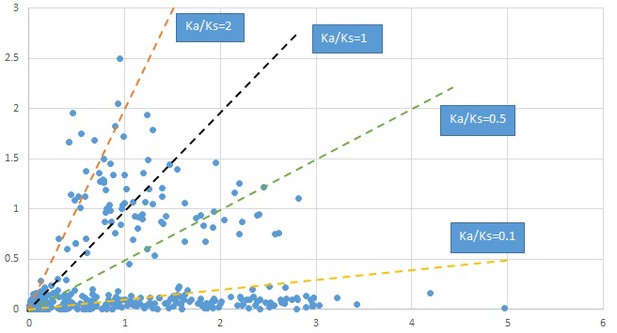

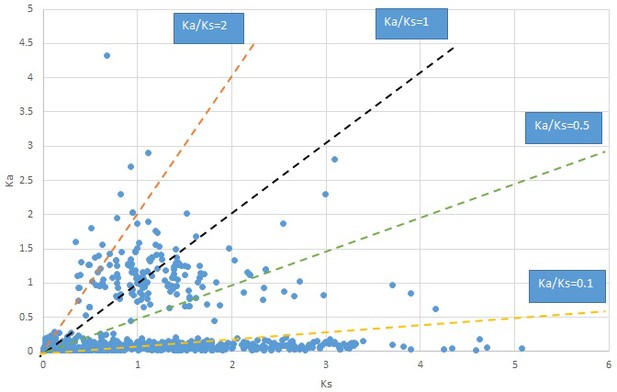

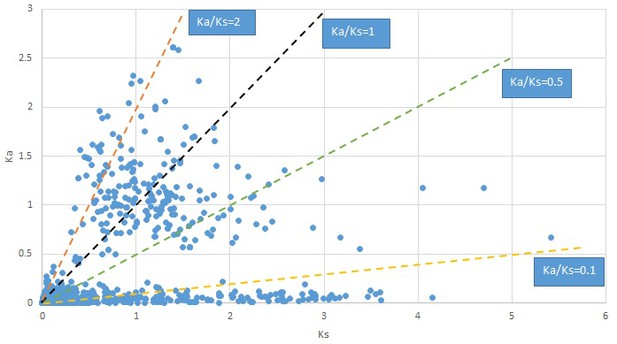

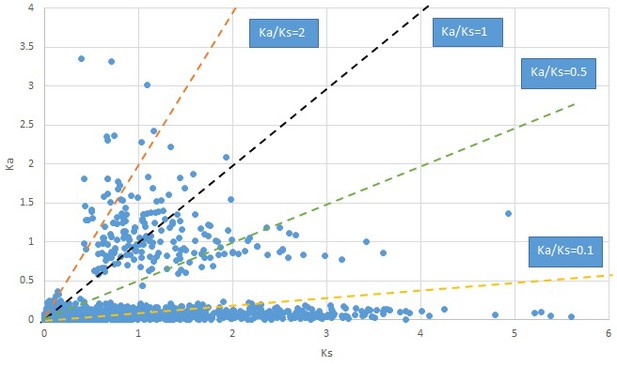

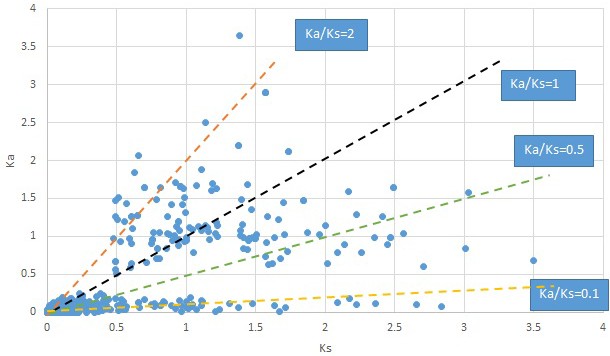

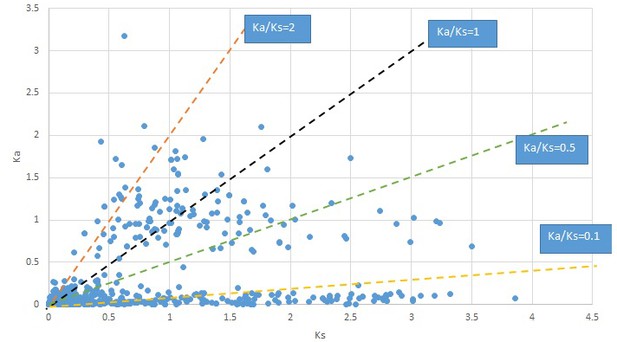

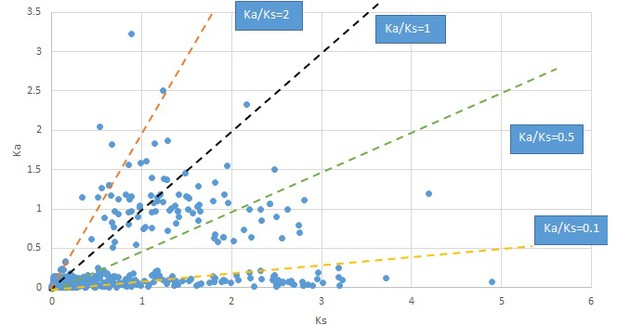

Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Acorus.

https://doi.org/10.7554/eLife.45199.031
Appendix 1—figure 4

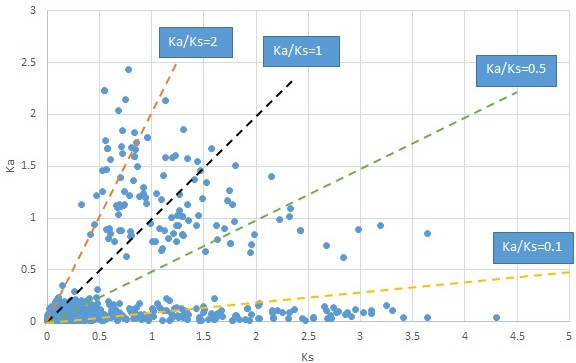

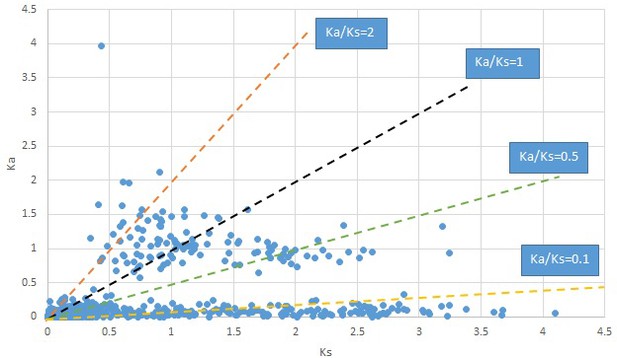

Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Calycanthus.

https://doi.org/10.7554/eLife.45199.032
Appendix 1—figure 5

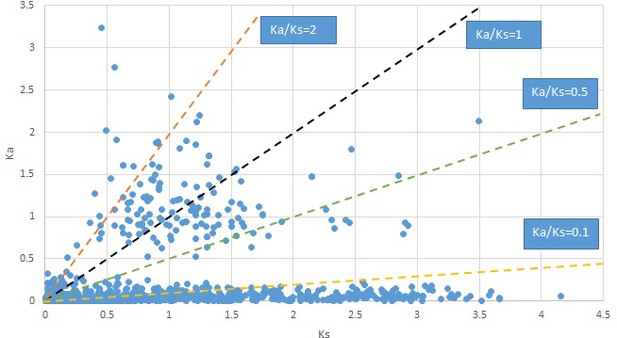

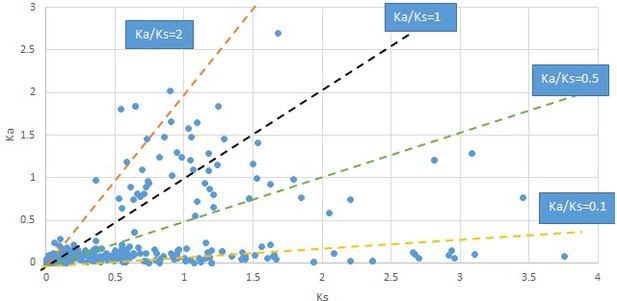

Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Campsis.

https://doi.org/10.7554/eLife.45199.033
Appendix 1—figure 6

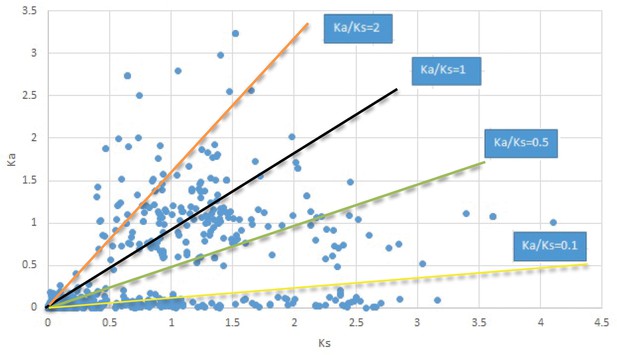

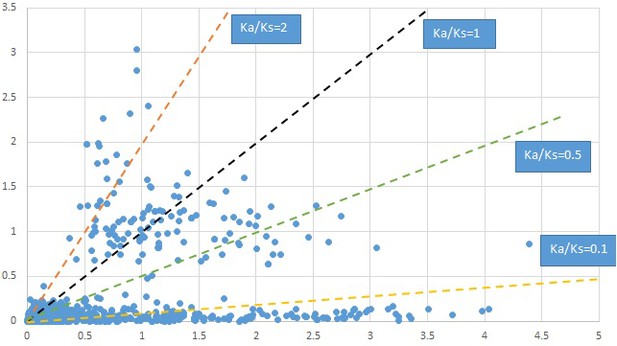

Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Convallaria.

https://doi.org/10.7554/eLife.45199.034
Appendix 1—figure 7

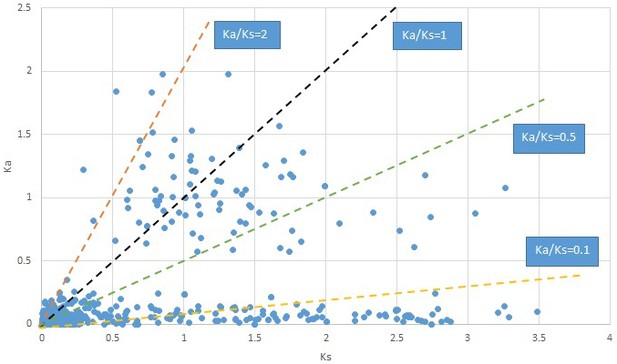

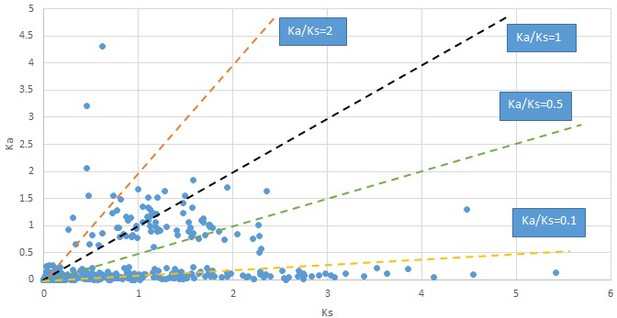

Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Cornus-1.

https://doi.org/10.7554/eLife.45199.035
Appendix 1—figure 8
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Cornus-2.

https://doi.org/10.7554/eLife.45199.036
Appendix 1—figure 9
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Cotinus.

https://doi.org/10.7554/eLife.45199.037
Appendix 1—figure 10
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Croomia.

https://doi.org/10.7554/eLife.45199.038
Appendix 1—figure 11
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Dysosma.

https://doi.org/10.7554/eLife.45199.039
Appendix 1—figure 12
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Gelsemium.

https://doi.org/10.7554/eLife.45199.040
Appendix 1—figure 13
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Hamamelis.

https://doi.org/10.7554/eLife.45199.041
Appendix 1—figure 14
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Liquidarnbar.

https://doi.org/10.7554/eLife.45199.042
Appendix 1—figure 15
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Liriodendron.

https://doi.org/10.7554/eLife.45199.043
Appendix 1—figure 16
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Meehania.

https://doi.org/10.7554/eLife.45199.044
Appendix 1—figure 17
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Menispermum.

https://doi.org/10.7554/eLife.45199.045
Appendix 1—figure 18
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Nelumbo.

https://doi.org/10.7554/eLife.45199.046
Appendix 1—figure 19
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Penthorum.

https://doi.org/10.7554/eLife.45199.047
Appendix 1—figure 20
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Phryma.

https://doi.org/10.7554/eLife.45199.048
Appendix 1—figure 21
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Sassafras.

https://doi.org/10.7554/eLife.45199.049
Appendix 1—figure 22
Plot of Ka and Ks values for each POG in 20 taxon pairs, in alphabetical order of genus names.

Saururus.

https://doi.org/10.7554/eLife.45199.050
https://doi.org/10.7554/eLife.45199.028

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
    The evolutionary genetics of speciation
    1. JA Coyne
    2. H Allen Orr
    (1998)
    Philosophical Transactions of the Royal Society of London. Series B: Biological Sciences 353:287–305.
    https://doi.org/10.1098/rstb.1998.0210
  10. 10
  11. 11
  12. 12
    GDMETS, version 1
    1. Y Dong
    (2018)
    GitHub.
  13. 13
    Patterns in the assembly of temperate forests around the northern hemisphere
    1. MJ Donoghue
    2. SA Smith
    (2004)
    Philosophical Transactions of the Royal Society of London. Series B: Biological Sciences 359:1633–1644.
    https://doi.org/10.1098/rstb.2004.1538
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Mesquite: a modular system for evolutionary analysis
    1. WP Maddison
    2. DR Maddison
    (2017)
    Mesquite: a modular system for evolutionary analysis, 3.31.
  33. 33
  34. 34
  35. 35
    The Geology of North America
    1. LJ Marincovich
    2. EM Brouwers
    3. DM Hopkins
    4. MC McKenna
    (1990)
    Late Mesozoic and Cenozoic paleogeographic and paleoclimatic history of the Arctic Ocean Basin, based on shallow marine faunas and terrestrial vertebrates. Pages 403–426 in A, The Geology of North America, Boulder, The Arctic Ocean region. Geological Society of America, 10.1130/DNAG-GNA-L.403.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
    FigTree, version 1. 3.1
    1. A Rambaut
    (2010)
    Institute of Evolutionary Biology, University of Edinburgh, Edinburgh.
  46. 46
    Tracer: MCMC Trace Analysis Tool
    1. A Rambaut
    2. AJ Drummond
    (2009)
    Oxford University Press, Oxford.
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
    Geographic and climatic influences on the Cretaceous and Tertiary history of Euramerican floristic similarity
    1. BH Tiffney
    (2000)
    Acta Universitatis Carolinae - Geologica  44:5–16.
  54. 54
  55. 55
  56. 56
  57. 57
    Timing and modes of evolution of eastern Asian-North American biogeographic disjunctions in seed plants
    1. JS Wen
    2. Z-L Ickert-Bond
    3. R Li
    (2010)
    In: M Long, H Gu, Z Zhou, editors. Darwin’s Heritage Today-Proceeding of the Darwin 200 Beijing International Conference. Beijing: Higher Education Press. pp. 252–269.
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
    Tracking character evolution and biogeographic history through time in Cornaceae - Does choice of methods matter?
    1. Q-Y Xiang
    2. DT Thomas
    (2008)
    Journal of Systematics and Evolution 46:349–374.
  67. 67
  68. 68
    Adaptive molecular evolution
    1. Z Yang
    (2003)
    In: D Balding, M Bishop, C Cannings, editors. Handbook of Statistical Genetics (2nd Edition). New York: Wiley. pp. 229–254.
  69. 69
  70. 70

Decision letter

  1. Daniel J Kliebenstein
    Reviewing Editor; University of California, Davis, United States
  2. Patricia J Wittkopp
    Senior Editor; University of Michigan, United States
  3. Vincent Savolainen
    Reviewer; Imperial College London, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Natural selection and repeated genome-wide patterns of molecular evolution following allopatric divergence" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Reviewing Editor and Patricia Wittkopp as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Vincent Savolainen (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this manuscript, the authors utilize comparative transcriptomics to estimate the role of evolution in singleton conserved genes following major geological events that lead to isolation by distance.

Essential revisions:

1) The utilization of Ka/Ks as a strict threshold to call positive selection across species with different evolutionary histories and separation times was considered potentially suspect and possibly creating some of the main conclusions. Some support for this claim and/or alternative approaches for these comparisons should be provided.

2) The observation by the authors that the relationship between Ka and Ks can invert at lower Ks is at some conflict with the published literature. The reviewers were wondering if this may be a bias in the data or if there are other avenues in the data that also support this. For example, does this trend hold up if individual POGs are followed across time?

3) A much tighter editing in the entire manuscript to reflect the potential bias that is incorporated via the use of POGs. The reviewers understood this choice to allow rate estimation, but it is still a biased set of genes that could be greatly influencing any and all evolutionary conclusions.

4) The figure presentation was not optimal and needs significant work to engage with the reader. I should note that all three reviewers commented on how the present figure presentations will undercut the potential impact of the manuscript.

Reviewer #1:

In this manuscript, the authors work to understand how geographic isolation has influenced genome wide evolution. To do this, they looked at the divergence of single-copy orthologues as these are the most directly comparable. This used transcriptome sequencing to identify the orthologues between species. I have some concerns about the methodology and how this may have influenced the claims and observations in this manuscript. These concerns are such that it is not clear how many of the claims and observations are linked to the use of POGs versus an approximation of the whole selective processes influencing these species.

I worry about the bias that using POGs introduces into the general conclusions derived from this work. POGs are by definition likely under a completely different selective schema than non-POGs. Previously work has shown that POGs are biased towards processes like developmental regulators and primary metabolism that are likely under purifying selection. In contrast, non-POGs are biased towards disease and biotic interaction loci that are potentially under different selective pressures. As such, it is not clear if using POGs provide any ability to discuss evolutionary processes at the species level. Instead, the discussion should be limited to what the POGs have experienced. At the start of the Discussion section, this limitation is implicit in that the discussion is always about the POGs. But then the discussion starts moving to whole genome and entire species level discussions without caveating that the POGs might provide a biased view. I don't think it is possible to use the POGs evolution to make any claims about whole genome events or whole species processes. The POGs are a list that is a priori biased towards genes that are under strong purifying selection and they exclude the majority of genes that may be under diversifying or other non-purifying selection processes. This caveat about what the use of POGs introduces as a selective bias should really be introduced throughout the Discussion section to better clarify what is or is not possible to state.

Additionally, this final sentence "Therefore, the divergence time values of the taxon pairs are still meaningful for the analysis of relationships between length of time of isolation and Ks value at peak frequency and between length of time of isolation and abundance of genes under different selection forces." illustrates that it is not clear if the authors consider the POGs as introducing a bias. The POGs are useful for estimating relative divergence time but absolute is fuzzier given the bias in selective events linked to POGs. Further, this bias in selective events means that it is only possible to compare selective forces on POGs and not selective forces on the whole genome.

The use of transcriptomics to sequence genes makes it hard to really ascertain if the identified positive selection is really positive or possibly an artifact of duplication, sub-functionalization and inaccurate POG identification. Some ascertainment of bias the transcriptome introduces above genome sequence identification of POGs would be needed to determine how much technical vs biological signal is present in the positive selection data. There is some effort to address these concerns in the Discussion section however this section is separate from the rest of the discussion so that a reader would have to make it to the end to realize that there are concerns. Are there no existing transcriptome datasets with matched genomes that the authors could use to estimate technical bias in calling POGs?

There are some weird call outs on Materials and methods that make some aspects hard or impossible to review. For example, in the Results section, the authors state "(for method of the mapping analysis, see caption of Table 1)" yet the caption of table 1 has no real information on the mapping analysis approaches.

The figures in excel are a bit hard to read. This is largely because the use of dots on the lines really eliminates the ability to compare traces (See Figure 3 for an example). The authors should consider using simply color for the lines and possibly moving to a higher resolution figure generator.

Reviewer #2:

The manuscript describes a study examining how 1-to-1 orthologous genes in 20 allopatric species pair diverge after species divergence. Specifically, the authors indicate that it remains an open question "how genome [have diverged] over time after geographic isolation has halted gene flow". The major findings include: (1) >90% of genes are under purifying selection, (2) divergence time estimates, which are based on synonymous substitution rates, correlates positively and negatively with proportions of genes under moderate and strong purification selection, respectively, (3) 200 genes under strong positive selection, few are shared across species.

The authors reasoned that findings (1, 3) may indicate maintenance of a balance between the ability to conserve ancestral functions and the ability to evolve new features beneficial for new adaptations. In some of the earliest cross-species comparative genomics studies in early 2000s, this has been noted. Thus, it is not clear what the significance of this finding is beyond the fact that the specific species have not been examined in this context. The connection between geographic isolation over time and the evolutionary rate of genes – initially genes are experiencing strong purifying selection, then this selection is relaxed – is intriguing. But there is one line of evidence supporting this claim, indirectly. I have suggested alternative approach that may be more informative. Below are details on the above points as well as other thoughts on the manuscript.

- Results section: It is too simplistic to use the Ka/Ks value over a threshold to call genes that are under positive selection. Particularly, as the authors pointed out, the species pairs have diverged quite recently where "most genes" (define what most means) have Ka < 0.04. The fewer the sites are used to infer substitution rates, the corresponding variances for the estimates will be larger and render the estimates unreliable. Thus, the criteria for calling genes with positive selection needs to be more stringent and the authors need to incorporate considerations of variance of estimates to provide statistical support for their calls. This is a point the authors concur in their discussion. But by just removing extreme values, the underlying issue on the reliability of estimates remain unaddressed.

- Related to the point above, in the Results section, the authors conducted gene set enrichment analysis of potentially positively selected genes. Given I am not convinced that the genes the authors focused on are truly under position selection, I cannot evaluate the results of enrichment analysis.

- Results section, Figure 5: The authors use BEAST to infer divergence time and then try to determine the relationships between inferred divergence time and Ks – it is not clear what the purpose is as these two estimates are confounding. My understanding is that BEAST uses prior probability based on sequence evolution rate estimates to infer posterior probability of a divergence time estimate. The underlying assumption and considerations for Ks estimation and the evolutionary rate considered as prior in BEAST are similar. So, these two sets of values are dependent. In the, the authors went on and suggest that this pattern "revealed a repeated genome-wide pattern of divergence of POGs among the taxon pairs in allopatric speciation…" Given the confounding nature of Ks and divergence time estimate, I am not sure if such conclusion is justified.

- Results section, Figure 6: here is the core finding for the authors' claim on the relationships between divergence time and selection pressure. It is clear that, using these species pairs, the earlier diverging (peak Ks, not sure why the more accurate divergence time estimate not used here) ones tend to have larger proportion of genes under stronger selection. The effect size of the correlation is rather remarkable. One unclear aspect of the analysis is whether the genes examined are the same across species pairs. It was noted that there are few orthologous genes that are 1-to-1 among most species pairs. Thus, it is likely the analysis is done using all available pairs. If that is the case, how should one compare one species pair to another?

- Related to the point above, the patterns based on proportions are difficult to interpret. A direct way to demonstrate the authors' point is by examining the evolution rate of EACH orthologous gene pair and show that a gene experienced stronger purifying selection initially than later on the selection was relaxed. Since this is central to the authors' major point, this should be demonstrated. In addition to potentially providing support for the authors' claim, it will provide some resolution to the study in which genes contribute to the patterns, particularly if the authors follow up with gene set enrichment analysis on those exhibit the expected patterns.

- Discussion section: The authors discussed a few of the caveats in the study which is helpful. Aside from the point on rate estimate raised earlier, I am not sure that I agree with the authors' assertion that "the likelihood of non-orthology of these genes is probably very low…" using transcriptome-based inference. The arguments are not supported by quantitative information and is hand-wavy. It will be useful to bring in comparative genomic studies as reference points. Otherwise, it remains a potential thorny issue in their methodology.

Reviewer #3:

The paper looks at the evolution of genes in pairs of species that have been isolated geographically. To do so, the authors selected 20 pairs that have a South East Asia versus North America disjunction and calculated the ratio of nonsynonymous versus synonymous substitutions across their transcriptomes. This is a clever approach. Strikingly, they found some sort of constancy in the results, with that >90% of the genes examined being under purifying selection and <10% being under positive selection. This is what we would expect, but it is a nice way to show it, using comparative analyses and large datasets. I would think people have looked at this in model organisms (mice, humans), but not throughout wild plant species. I think it would definitely make a great contribution to eLife, although I think the author could make more of a general point by adding other pairs of taxa, such as those from a North to South America disjunction, or South America versus Africa disjunction, or maybe even using species that have colonised island versus mainland sisters. I think the text could be made clearer to the readers, e.g. explaining, what is the expectation of Ka/Ks ratio under positive or purifying selection (I would also use Kn rather than Ka for nonsynonymous substitutions). I noted there are some custom scripts used here, have they been made available as supplementary information or in a public repository? For the dating exercise, did I understand correctly that the tree was built and dated with BEAST using 7 POGs shared by all taxa, and then the dates were plotted against Ks for the other genes to avoid circularity? Finally, I think the figures could be made much nicer (artwork); there are also many inconsistencies in the reference section; but I would recommend acceptance pending concerns above have been taken into account.

https://doi.org/10.7554/eLife.45199.056

Author response

Summary:

In this manuscript, the authors utilize comparative transcriptomics to estimate the role of evolution in singleton conserved genes following major geological events that lead to isolation by distance.

Essential revisions:

1) The utilization of Ka/Ks as a strict threshold to call positive selection across species with different evolutionary histories and separation times was considered potentially suspect and possibly creating some of the main conclusions. Some support for this claim and/or alternative approaches for these comparisons should be provided.

Thanks for these suggestions. We will further clarify the effectiveness of Ka/Ks in examining the pattern of variation of selection pressure on genes and comparing it among lineages in the revised manuscript. Previous studies have indicated that data from the various lineages provide parallel evidence on molecular evolution following allopatric divergence. A potential concern, though, may be the accuracy of Ka/Ks estimation (e.g., potential saturation of Ks in taxon pair separated by older times and very small Ks value in taxon pairs separated recently – leading to inflated Ka/Ks). We cleared this concern in the manuscript (please see methods and discussion in line 637-666). For the time scale of divergence across species pairs, we have explained that saturation of Ks is unlikely or rare (please see discussion section). We removed Ks = 0 data points in all of the analyses. Furthermore, we examined the distribution of Ks for genes with Ka/Ks >2 and found the Ks values varied in a range, not clustered near zero).

We provide support for the claim of Ka/Ks to identify positive selection and alternative approaches for comparisons as below:

1) The main finding is the pattern observed among lineages and identification of a small subset of genes under strong positive selection with Ka/Ks >2. Comparison of the rates of fixation of synonymous and nonsynonymous mutations provides a powerful tool for understanding the mechanisms of DNA sequence evolution. The ratio of nonsynonymous (Ka or dN) to synonymous (Ks or dS) nucleotide substitutions is considered probably the most common method for identifying positive selection (Ka/Ks>1) (Yang, 2003) in molecular evolutionary studies. The method is known to be a conservative approach to call positive selection on a gene as it uses an average Ka/Ks ratio across all nucleotide sites. It is possible that some genes have an overall Ka/Ks <1 but some sites might have positive selections with Ka/Ks >1. This limitation does not affect the comparison of the pattern of variation of molecular divergence across lineages. The ratio of Ka/Ks values were used to partition the genes into arbitrary categories different in selection pressures.

2) For identification genes under positive selection, we took caution to call only those with Ka/Ks>2 and annotated them to provide candidates under strong positive selection for future studies. We did revise to apply an alternative method (variation cluster) to confirm signals of positive selections in the candidate genes (Wagner, 2007; see more below).

3) The Yn2000 model in codeml of PAML applied in the study is a maximum likelihood method for estimation of dN and dS. As stated by the authors “the ML method, which accounts for both the transition bias and the codon usage bias, should be the preferred method for estimating dS and dN between two sequences.” (Yang and Nielson, 2000). This method has been widely used for detecting positive selection in genes. Another common method for detecting positive selection is examining the allele frequency spectrum of the gene in the population. – this is based on population data, not feasible to our study.

4) “Two broad classes of approaches exist to identify positive selection (Kreitman, 2000; Bamshad and Wooding, 2003). They both rely on predictions made by the neutral theory of molecular evolution (Kimura, 1983). The first approach compares the incidence of two different classes of genetic change within genes (Li, 1997; Kreitman, 2000), synonymous (silent) changes, which are likely to be neutral, and nonsynonymous or amino acid replacement changes, which are more likely subject to selection. Specifically, the ratio N/S of the number of nonsynonymous (N) to synonymous (S) changes per gene, or the ratio Ka/Ks of the fraction of nonsynonymous (Ka) to synonymous changes (Ks) per nonsynonymous and synonymous site, can give an indication of positive selection. A ratio Ka/Ks significantly greater than one, for example, indicates an excess of amino acid replacement substitutions over (neutral or weakly selected) silent substitutions. It indicates positive selection. Many variations of this class of test exist. They differ in the amount of sequence data and computational resources required (Suzuki and Gojobori, 1999; Suzuki, 2004; Massingham and Goldman, 2005; Pond and Frost, 2005; Zhang et al., 2005). The second class of tests relies on predictions made by the neutral theory for allele or haplotype frequencies (Kreitman, 2000; Bamshad and Wooding, 2003) within and among populations. For example, in a genomic region where positive selection has swept a mutation to high frequency, one would expect a low amount of sequence diversity, an excess of rare alleles, and a greater amount of linkage disequilibrium than predicted by the neutral theory (Bamshad and Wooding, 2003). Selection acting on one population but not others can lead to a greater than expected degree of population differentiation. Test statistics, such as Tajima's D, Fu's W, Wright's FST, and many others, exploit information in these patterns (Fu, 1996; Tajima, 1989; Kreitman, 2000). The distinction between such tests is not sharp, and some tests (McDonald and Kreitman, 1991) arguably fall into both categories.” (Wagner, 2007).

5) "Rapid Detection of Positive Selection in Genes and Genomes Through Variation clusters?” was developed for detecting positive selection for pairs of sequences by Wagner, (2007). It “…detects variation clusters of aggregated nucleotide substitutions that are too closely spaced to be observed by chance alone and that thus violate the predicted distribution of substitution spacing for neutral variation.”. We ran this method for genes with dN/dS > 2 for all species pairs to see if how many of them contain significant signals of substitution clustering.

2) The observation by the authors that the relationship between Ka and Ks can invert at lower Ks is at some conflict with the published literature. The reviewers were wondering if this may be a bias in the data or if there are other avenues in the data that also support this. For example, does this trend hold up if individual POGs are followed across time?

We observed a weak negative trend between Ks and the enrichment of Ka/Ks genes with Ka/Ks>1, suggesting as divergence time increased, enrichment of this category of genes may decrease due to the change of selection pressure on some genes. This may be a result of accumulation of synonymous substitution in the gene.

We did not observe revert relationship between Ka and Ks. We observed that at low Ks (recent divergence time within 10 million years) and at the range of Ka/Ks within 0.5 or below, the relationship between the gene enrichment and time is reversed (positive for 0.1 <Ka/Ks <0.5; negative for Ka/Ks<0.1). So we speculated an explanation for these observations: some genes relaxed the purifying selection force from strong force. We do not have direct evidence to support this within a species pair. We examined the POG shared by different taxa diverged at different times as suggested by the reviewer 3, and did find that some genes with Ka/Ks <0.5 (or regardless the Ka/Ks values) showed a positive relationship between the Ka/Ks values and the divergence time. But many did not show a correlation. The common genome-wide pattern of POG evolution is likely an outcome of both gene and taxon specific effects.

3) A much tighter editing in the entire manuscript to reflect the potential bias that is incorporated via the use of POGs. The reviewers understood this choice to allow rate estimation, but it is still a biased set of genes that could be greatly influencing any and all evolutionary conclusions.

We revised the text extensively and made clear that the study examined one set of genes and the pattern found was a “genome-wide” pattern of these genes. We reorganized the manuscript and moved the discussion of caveats of the study to the front. An inspection of our transcriptome data showed that a majority (~60%-80%) of the ortholog groups (gene families) identified in our study were the POGs examined, indicating the POGs represent a significant portion of the transcriptome. We added this information to the manuscript.

4) The figure presentation was not optimal and needs significant work to engage with the reader. I should note that all three reviewers commented on how the present figure presentations will undercut the potential impact of the manuscript.

Thanks for the comments. We have redrawn the first three figures to break down the composite figure of all lineages to 20 individual small figures. We think the new figures showed much clearer distribution of the Ka, Ks, and Ka/Ks values in each taxon pair.

Reviewer #1:

In this manuscript, the authors work to understand how geographic isolation has influenced genome wide evolution. To do this, they looked at the divergence of single-copy orthologues as these are the most directly comparable. This used transcriptome sequencing to identify the orthologues between species. I have some concerns about the methodology and how this may have influenced the claims and observations in this manuscript. These concerns are such that it is not clear how many of the claims and observations are linked to the use of POGs versus an approximation of the whole selective processes influencing these species.

I worry about the bias that using POGs introduces into the general conclusions derived from this work. POGs are by definition likely under a completely different selective schema than non-POGs. Previously work has shown that POGs are biased towards processes like developmental regulators and primary metabolism that are likely under purifying selection. In contrast, non-POGs are biased towards disease and biotic interaction loci that are potentially under different selective pressures. As such, it is not clear if using POGs provide any ability to discuss evolutionary processes at the species level. Instead, the discussion should be limited to what the POGs have experienced. At the start of the Discussion section, this limitation is implicit in that the discussion is always about the POGs. But then the discussion starts moving to whole genome and entire species level discussions without caveating that the POGs might provide a biased view.

Thanks for the reviewer referring to previous work reporting annotated gene functions of probably true single copy genes based on genome information. Some or many of the genes we studied may represent non-single copy genes (or low copy gene families). Our annotation of genes under positive selection revealed some of the genes were involved in biological processes responding to environmental stimuli.

Previous studies showed that the genome does not evolve in a homogeneous manner. Different type of genes and different portion of the genome may experience different evolutionary processes. Purifying selection, positive selection, and neutral evolution are all evolutionary processes. Evolutionary process is not restricted to positive selection. Our study examined molecular divergence and evolution of POGs to provide a view of divergence of the species in these genes. Thanks, the reviewer reminding that we take care to be clearer about the interpretation. Evolution of non-POGs can be examined in the future through analyses of each gene families across the genome to understand the evolution of those genes. Together, the data will provide a more complete view of molecular evolution of these species. We revised text to make clear about this point in the manuscript.

I don't think it is possible to use the POGs evolution to make any claims about whole genome events or whole species processes. The POGs are a list that is a priori biased towards genes that are under strong purifying selection and they exclude the majority of genes that may be under diversifying or other non-purifying selection processes. This caveat about what the use of POGs introduces as a selective bias should really be introduced throughout the Discussion section to better clarify what is or is not possible to state.

As mentioned above, the POGs represent a majority of the orthologous gene families in the transcriptome. We made clear that the inferred processes on the POGs represent a small window of the genome process.

Additionally, this final sentence "Therefore, the divergence time values of the taxon pairs are still meaningful for the analysis of relationships between length of time of isolation and Ks value at peak frequency and between length of time of isolation and abundance of genes under different selection forces." illustrates that it is not clear if the authors consider the POGs as introducing a bias.

We revised the text to more clearly express what we attempted to say.

The POGs are useful for estimating relative divergence time but absolute is fuzzier given the bias in selective events linked to POGs.

The Ks at peak value is predictive of the relative timing of taxon pair divergence. The absolute time of divergence was estimated using a subset of POGs shared among taxa on a global phylogeny of all taxa. In literature, most phylogenetic studies and dating analyses use genes with functions that are likely under various degrees of purifying selection. The potential bias in divergence time dating analysis in our study is expected to be across the board and does not affect the relative timing among taxa. We revised text to be clear about this.

We thought over the reviewer’s comment here. It might be that if selection makes the genes inappropriate for dating divergence due to selection, neither relative time nor absolute time can be estimated since selection can be dramatically different among the genes.

Further, this bias in selective events means that it is only possible to compare selective forces on POGs and not selective forces on the whole genome.

Thanks. It is correct. We now made this clearer in writing and clarify it in the Introduction.

The use of transcriptomics to sequence genes makes it hard to really ascertain if the identified positive selection is really positive or possibly an artifact of duplication, sub-functionalization and inaccurate POG identification.

For recently diverged sister species, we feel that the probability of orthologous copy being expressed in the same organ in both species is high. Most of the genes with Ka/Ks > 2 were also found to be under positive selection by the variation cluster analaysis (see above). The differences between the two methods may be a result of differences in the principle.

Some ascertainment of bias the transcriptome introduces above genome sequence identification of POGs would be needed to determine how much technical vs biological signal is present in the positive selection data. There is some effort to address these concerns in the Discussion section however this section is separate from the rest of the discussion so that a reader would have to make it to the end to realize that there are concerns. Are there no existing transcriptome datasets with matched genomes that the authors could use to estimate technical bias in calling POGs?

We have reorganized the information and moved the discussion on bias up front in the introduction. Bias introduced by transcriptome sequences is likely low given the relative recent time of divergence of sister species. The transcriptomes were deeply sequenced to recover both low and highly expressed transcripts. We made clear we were comparing putative SCs. Unfortunately, we do not have genome sequences of any taxon pairs to evaluate how many of the POGs are truly single copy.

There are some weird call outs on Materials and methods that make some aspects hard or impossible to review. For example, in the Results section, the authors state "(for method of the mapping analysis, see caption of Table 1)" yet the caption of table 1 has no real information on the mapping analysis approaches.

Sorry about this error. I have now added the methods to the Materials and methods section. It is also described below: To see how many of these POGs were represented in the “global” single or low copy gene data sets of seed plants (Li et al., 2017; identified from a combination of genome and transcriptome data) and flowering plants (De Smet, 2013; identified from 20 angiosperm genomes), respectively, we performed the following mapping analyses. First, the single-copy or low-copy gene names of Arabidopsis thaliana shared by seed plants or flowering plants were downloaded from the respective publications. Second, the dataset including all cDNA sequences of Arabidopsis thaliana was downloaded from its genome database (TAIR10: https://www.arabidopsis.org/). Then the cDNA sequences of the single-copy or low-copy gene of Arabidopsis thaliana shared by seed plants or flowering plants were selected out from the dataset of all cDNA using gene names by Perl script. Finally, the cDNA sequences from each of the 20 taxon-pairs were mapped against the selected gene cDNA sequences of Arabidopsis thaliana by Blast program, and those that were mapped by the cDNA from each of the 20 taxon pairs were selected and recorded by Perl script.

The figures in excel are a bit hard to read. This is largely because the use of dots on the lines really eliminates the ability to compare traces (See Figure 3 for an example). The authors should consider using simply color for the lines and possibly moving to a higher resolution figure generator.

We have made new Figure 1, Figure 2 and Figure 3 to make information clear. We think Figure 5 is fine to the purpose. So, we did not change Figure 5.

Reviewer #2:

The manuscript describes a study examining how 1-to-1 orthologous genes in 20 allopatric species pair diverge after species divergence. Specifically, the authors indicate that it remains an open question "how genome [have diverged] over time after geographic isolation has halted gene flow". The major findings include: (1) >90% of genes are under purifying selection, (2) divergence time estimates, which are based on synonymous substitution rates, correlates positively and negatively with proportions of genes under moderate and strong purification selection, respectively, (3) 200 genes under strong positive selection, few are shared across species.

The authors reasoned that findings (1, 3) may indicate maintenance of a balance between the ability to conserve ancestral functions and the ability to evolve new features beneficial for new adaptations. In some of the earliest cross-species comparative genomics studies in early 2000s, this has been noted. Thus, it is not clear what the significance of this finding is beyond the fact that the specific species have not been examined in this context.

We are not sure which papers the reviewer was referred to. We indicated in the manuscript that although the pattern might have been noted earlier in other organisms, here we provide a set of empirical data from multiple lineages of flowering plants supporting the idea. Significance of the study is now more clearly stated in our Abstract and Conclusion.

The connection between geographic isolation over time and the evolutionary rate of genes – initially genes are experiencing strong purifying selection, then this selection is relaxed – is intriguing. But there is one line of evidence supporting this claim, indirectly. I have suggested alternative approach that may be more informative. Below are details on the above points as well as other thoughts on the manuscript.

Thanks for the suggestions. We have revised accordingly. Please see below.

- Results section: It is too simplistic to use the Ka/Ks value over a threshold to call genes that are under positive selection. Particularly, as the authors pointed out, the species pairs have diverged quite recently where "most genes" (define what most means) have Ka < 0.04. The fewer the sites are used to infer substitution rates, the corresponding variances for the estimates will be larger and render the estimates unreliable. Thus, the criteria for calling genes with positive selection needs to be more stringent and the authors need to incorporate considerations of variance of estimates to provide statistical support for their calls. This is a point the authors concur in their discussion. But by just removing extreme values, the underlying issue on the reliability of estimates remain unaddressed.

- Related to the point above, in in the Results section, the authors conducted gene set enrichment analysis of potentially positively selected genes. Given I am not convinced that the genes the authors focused on are truly under position selection, I cannot evaluate the results of enrichment analysis.

We call the genes with Ka/Ks >? as putative positive selection genes in the discussion. We also make a note that some of these may be false due to small Ks values. Average Ka/Ks value over the entire gene sequences is considered an extreme conservative method in detecting gene positive selection. Species recently diverged do not have the problem of dS saturation. The concern is the nearly zero value of dS or there are very few sites with nucleotide substitutions. Therefore, removing extreme small dS values is appropriate to avoid inflation of dN/dS values from small dS. We examined the dS values of POGs with Ka/Ks >2 in each taxon pair and they varied in a wide range (only a tiny portion are <0.05; see Supplementary file 5, Supplementary file 6; newly added). Our data also show that all of the taxon pairs have Ks in peak frequency >=0.003, except one pair of varieties (Supplementary file 3) and a small portion of POGs with Ka/Ks >2 have Ks <0.005). We also manually checked the sequence alignment of genes with Ka/Ks >2 for two taxon pairs (Cornus-2 and Acorus) and in general observed multiple substitutions in each pair of sequences (results not shown; available upon request). We further used variation cluster to check on these positive selection genes (see above). Although variance of dN/dS ratios may be large in a gene with few substitutions, an average of Ka/Ks > 1 indicates excess nonsynonymous substitutions than expected from neutral evolution if Ks is not too small.

- Results section, Figure 5: The authors use BEAST to infer divergence time and then try to determine the relationships between inferred divergence time and Ks – it is not clear what the purpose is as these two estimates are confounding. My understanding is that BEAST uses prior probability based on sequence evolution rate estimates to infer posterior probability of a divergence time estimate. The underlying assumption and considerations for Ks estimation and the evolutionary rate considered as prior in BEAST are similar. So, these two sets of values are dependent. In the, the authors went on and suggest that this pattern "revealed a repeated genome-wide pattern of divergence of POGs among the taxon pairs in allopatric speciation…" Given the confounding nature of Ks and divergence time estimate, I am not sure if such conclusion is justified.

The reviewer may misunderstand the analyses and the points. The “repeated genome-wide pattern of divergence of POGs among the taxon pairs in allopatric speciation…" refers to the relative enrichment/abundance of genes under different selection pressures, not relative to the divergence time estimations.

BEAST uses both dN and dS in estimating the divergence time of a portion of the genes shared by all the taxa (7 and 79 respectively). The purpose of comparing the divergence time and dS in peak frequency (in considering all POGs in a species pair, not just those shared among all taxon pairs) was to see if dS values that are most abundant in a species pair reflect the relative level of species isolation. The two data sets are not confounding. The genes with dS in peak frequencies are not the same genes used for divergence time dating.

- Results section, Figure 6: here is the core finding for the authors' claim on the relationships between divergence time and selection pressure. It is clear that, using these species pairs, the earlier diverging (peak Ks, not sure why the more accurate divergence time estimate not used here) ones tend to have larger proportion of genes under stronger selection. The effect size of the correlation is rather remarkable. One unclear aspect of the analysis is whether the genes examined are the same across species pairs. It was noted that there are few orthologous genes that are 1-to-1 among most species pairs. Thus, it is likely the analysis is done using all available pairs. If that is the case, how should one compare one species pair to another?

The same genes may be under different selection pressures in different lineages. The group of genes under the same category of selection pressures may be different among taxon pairs. This does not prevent one to compare abundance of genes under different pressures and reported the observed pattern.

- Related to the point above, the patterns based on proportions are difficult to interpret. A direct way to demonstrate the authors' point is by examining the evolution rate of EACH orthologous gene pair and show that a gene experienced stronger purifying selection initially than later on the selection was relaxed. Since this is central to the authors' major point, this should be demonstrated. In addition to potentially providing support for the authors' claim, it will provide some resolution to the study in which genes contribute to the patterns, particularly if the authors follow up with gene set enrichment analysis on those exhibit the expected patterns.

The reviewer may have misunderstood the manuscript. We reported the pattern (the abundance of genes >0.1, <0.5 were positively related to the divergence time, and abundance of genes with dN/dS, 0.1 negatively related to divergence times) and attempted to speculate a plausible explanation for this pattern of early divergence of the gene. We thought it is indirect evidence suggesting a scenario about relaxing of selection pressure of genes as evolution proceed in time. However, this relaxing of selection pressure may occur in different genes independently in different taxon pairs. This scenario does not predict that each orthologous gene will relax the selection pressure. Nonetheless, it is interesting to examine some orthologous genes shared among taxon pairs since the Ka/Ks variation of a gene through time cannot be tracked within a species pair. We examined the Ka/Ks ratio for 79 orthologous genes shared in 90 or more taxon pairs. We did a scattered graph between the divergence times and the dN/dS values that are less than 0.5 for each of the 79 genes to see if there are genes showing a trend of positive relationship between the two variables. Among these genes, a majority of them do not show apparent trend of relationship (with R squares <0.05), while 21 of them show a trend of positive relationship and 16 showing a trend of negative relationship. The relationships are strong in a few genes in either pattern. The analyses were done by removing dN/dS values = 0 or 99, and those >0.5.

The observation of increase of the proportion of genes in the category of 0.1<ks/Ks<0.5 only suggests probably selection relaxation of some genes during this early diverging stage. Beyond this level of purifying divergence, we did not observe a strong relationship between time and gene enrichment.

We have revised the manuscript and added these analyses in. The observation of a negative relationship between Ks in peak abundance (reflecting time) and enrichment of genes with Ka/Ks >1 in our study was also reported in previous studies in mammals.

- Discussion section: The authors discussed a few of the caveats in the study which is helpful. Aside from the point on rate estimate raised earlier, I am not sure that I agree with the authors' assertion that "the likelihood of non-orthology of these genes is probably very low…" using transcriptome-based inference. The arguments are not supported by quantitative information and is hand-wavy. It will be useful to bring in comparative genomic studies as reference points. Otherwise, it remains a potential thorny issue in their methodology.

OrthoMCL performs well in identifying orthologous genes (Chen et al., 2007; Altenhoff and Dessimoz, 2009). We have reworded the text and cited references to support the argument. The transcript pairs were from the same tissue (leaf samples) collected in the same season. The assumption is that for recently diverged sister species, it is more likely that the same copy of genes are expressed in the same tissue during the same growing season as a result of gene functional conservation. We therefore cautiously call them putative orthologous single copy genes. Comparative genome sequences can confirm if the POGs are truly single copy. Only gene genealogy from phylogenetic analyses can confirm the orthology of genes from different taxa. Unfortunately, we do not have genome sequences for any pairs of taxon at the moment. Results of phylogenetic analyses of POGs shared among taxa showed all taxon pairs were grouped as sister taxa, suggesting that the sequence pairs are likely orthologous genes. Otherwise, we would have observed separation of sister taxa on the gene tree. We checked on the gene tree for each of the 7 genes shared by all 20 taxon pairs, and in all cases, the two sequences from the same taxon pair were grouped as sisters. These results provide evidence concordant with orthology of the sequence pairs. Most sequence pairs were highly similar (as evidenced by the low Ks values). We also did the same analyses for the 79 genes shared by 90% or more taxon pairs and found the same result. We believe the probability of non-homology of the sequence pairs is low. Comparative genome analyses of 20 angiosperms identified single copy orthologous genes.

Reviewer #3:

The paper looks at the evolution of genes in pairs of species that have been isolated geographically. To do so, the authors selected 20 pairs that have a South East Asia versus North America disjunction and calculated the ratio of nonsynonymous versus synonymous substitutions across their transcriptomes. This is a clever approach. Strikingly, they found some sort of constancy in the results, with that >90% of the genes examined being under purifying selection and <10% being under positive selection. This is what we would expect, but it is a nice way to show it, using comparative analyses and large datasets. I would think people have looked at this in model organisms (mice, humans), but not throughout wild plant species. I think it would definitely make a great contribution to eLife, although I think the author could make more of a general point by adding other pairs of taxa, such as those from a North to South America disjunction, or South America versus Africa disjunction, or maybe even using species that have colonised island versus mainland sisters.

That would be a future study. Unfortunately, we do not have data for those pairs at the moment.

I think the text could be made clearer to the readers, e.g. explaining, what is the expectation of Ka/Ks ratio under positive or purifying selection (I would also use Kn rather than Ka for nonsynonymous substitutions).

We inserted new text in the Introduction to explain this. Ka is a standard symbol for rate of nonsynonymous substitutions in textbook.

I noted there are some custom scripts used here, have they been made available as supplementary information or in a public repository?

Yes, they are deposited on a website and the URL is provided in the method (https://github.com/ybdong919/GDMETS.git.). We made it clear in the text now and the script is available here.

For the dating exercise, did I understand correctly that the tree was built and dated with BEAST using 7 POGs shared by all taxa, and then the dates were plotted against Ks for the other genes to avoid circularity?

We also estimated divergence time with 79 genes in 90% or more taxon pairs.

Finally, I think the figures could be made much nicer (artwork); there are also many inconsistencies in the reference section; but I would recommend acceptance pending concerns above have been taken into account.

We have revised the figures and checked the references. Thanks.

https://doi.org/10.7554/eLife.45199.057

Article and author information

Author details

  1. Yibo Dong

    1. Department of Plant and Microbial Biology, North Carolina State University, Raleigh, United States
    2. Plant Biology Division, Noble Research Institute, Ardmore, United States
    Contribution
    Software, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Shichao Chen
    Competing interests
    No competing interests declared
  2. Shichao Chen

    1. Florida Museum of Natural History, University of Florida, Gainesville, United States
    2. Department of Biology, University of Florida, Gainesville, United States
    3. School of Life Sciences and Technology, Tongji University, Shanghai, China
    Contribution
    Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Yibo Dong
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7160-4245
  3. Shifeng Cheng

    Beijing Genomics Institute, Shenzhen, China
    Contribution
    Data curation, Software, Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Wenbin Zhou

    Department of Plant and Microbial Biology, North Carolina State University, Raleigh, United States
    Contribution
    Software, Formal analysis, Investigation, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Qing Ma

    Department of Plant and Microbial Biology, North Carolina State University, Raleigh, United States
    Contribution
    Investigation, Writing—review and editing, Collection of experimental materials
    Competing interests
    No competing interests declared
  6. Zhiduan Chen

    State Key Laboratory of Systematic and Evolutionary Botany, Institute of Botany, Chinese Academy of Sciences, Beijing, China
    Contribution
    Resources, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  7. Cheng-Xin Fu

    Laboratory of Systematic & Evolutionary Botany and Biodiversity, College of Life Sciences, Zhejiang University, Hangzhou, China
    Contribution
    Resources, Investigation, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
  8. Xin Liu

    Beijing Genomics Institute, Shenzhen, China
    Contribution
    Conceptualization, Resources, Funding acquisition, Investigation, Writing—review and editing
    For correspondence
    liuxin@genomics.cn
    Competing interests
    No competing interests declared
  9. Yun-peng Zhao

    Laboratory of Systematic & Evolutionary Botany and Biodiversity, College of Life Sciences, Zhejiang University, Hangzhou, China
    Contribution
    Conceptualization, Resources, Funding acquisition, Investigation, Project administration, Writing—review and editing
    For correspondence
    ypzhao913@gmail.com
    Competing interests
    No competing interests declared
  10. Pamela S Soltis

    Florida Museum of Natural History, University of Florida, Gainesville, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Investigation, Methodology, Project administration, Writing—review and editing
    For correspondence
    psoltis@flmnh.ufl.edu
    Competing interests
    No competing interests declared
  11. Gane Ka-Shu Wong

    1. Beijing Genomics Institute, Shenzhen, China
    2. Department of Biological Sciences, University of Alberta, Edmonton, Canada
    3. Department of Medicine, University of Alberta, Edmonton, Canada
    Contribution
    Conceptualization, Funding acquisition, Investigation, Writing—review and editing
    For correspondence
    gane@ualberta.ca
    Competing interests
    No competing interests declared
  12. Douglas E Soltis

    1. Florida Museum of Natural History, University of Florida, Gainesville, United States
    2. Department of Biology, University of Florida, Gainesville, United States
    Contribution
    Conceptualization, Resources, Data curation, Supervision, Funding acquisition, Investigation, Methodology, Project administration, Writing—review and editing
    For correspondence
    dsoltis@ufl.edu
    Competing interests
    No competing interests declared
  13. Qiu-Yun(Jenny) Xiang

    Department of Plant and Microbial Biology, North Carolina State University, Raleigh, United States
    Contribution
    Conceptualization, Resources, Data curation, Supervision, Funding acquisition, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    jenny_xiang@ncsu.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9016-0678

Funding

National Science Foundation (DEB-442161)

  • Yibo Dong
  • Wenbin Zhou
  • Jenny Xiang

National Science Foundation (DEB-442280)

  • Shichao Chen
  • Pamela S Soltis
  • Douglas E Soltis

National Science Foundation of China (IOS-024629)

  • Shichao Chen
  • Yun-peng Zhao

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Jeffrey Thorne and Jianhua Li for discussion and critical comments on data analyses and manuscript, Gavin Conant for advice and scripts for running the variation cluster analyses, Andrea Wagner for providing the varclus package, Xiang Liu, Enxiang Li, Jeffery R Hubbard, and Christine Edwards for assistance in collecting leaf samples, Xiang Liu for shipping samples, and the JC Raulston Aboretum, Plant Delights Nursery, and the Sarah P Duke Gardens for providing source plants for sampling. We also thank the anonymous reviewers for their comments for improvement of the manuscript. This work is also supported by the USDA National Institute of Food & Agriculture Hatch Project.

Senior Editor

  1. Patricia J Wittkopp, University of Michigan, United States

Reviewing Editor

  1. Daniel J Kliebenstein, University of California, Davis, United States

Reviewer

  1. Vincent Savolainen, Imperial College London, United Kingdom

Publication history

  1. Received: January 15, 2019
  2. Accepted: August 1, 2019
  3. Accepted Manuscript published: August 2, 2019 (version 1)
  4. Version of Record published: September 13, 2019 (version 2)
  5. Version of Record updated: September 20, 2019 (version 3)

Copyright

© 2019, Dong et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,426
    Page views
  • 259
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Evolutionary Biology
    2. Genetics and Genomics
    Tim A Crombie et al.
    Research Article
    1. Evolutionary Biology
    2. Microbiology and Infectious Disease
    Camilo Barbosa et al.
    Research Article Updated
