PUMILIO, but not RBMX, binding is required for regulation of genomic stability by noncoding RNA NORAD

  1. Mahmoud M Elguindy
  2. Florian Kopp
  3. Mohammad Goodarzi
  4. Frederick Rehfeld
  5. Anu Thomas
  6. Tsung-Cheng Chang
  7. Joshua T Mendell  Is a corresponding author
  1. University of Texas Southwestern Medical Center, United States
  2. Howard Hughes Medical Institute, University of Texas Southwestern Medical Center, United States
https://doi.org/10.7554/eLife.48625
Share this article
Cite this article
  1. Mahmoud M Elguindy
  2. Florian Kopp
  3. Mohammad Goodarzi
  4. Frederick Rehfeld
  5. Anu Thomas
  6. Tsung-Cheng Chang
  7. Joshua T Mendell
(2019)
PUMILIO, but not RBMX, binding is required for regulation of genomic stability by noncoding RNA NORAD
eLife 8:e48625.
https://doi.org/10.7554/eLife.48625
  2. Download BibTeX
  3. Download .RIS

Abstract

NORAD is a conserved long noncoding RNA (lncRNA) that is required for genome stability in mammals. NORAD acts as a negative regulator of PUMILIO (PUM) proteins in the cytoplasm, and we previously showed that loss of NORAD or PUM hyperactivity results in genome instability and premature aging in mice (Kopp et al., 2019). Recently, however, it was reported that NORAD regulates genome stability through an interaction with the RNA binding protein RBMX in the nucleus. Here, we addressed the contributions of NORAD:PUM and NORAD:RBMX interactions to genome maintenance by this lncRNA in human cells. Extensive RNA FISH and fractionation experiments established that NORAD localizes predominantly to the cytoplasm with or without DNA damage. Moreover, genetic rescue experiments demonstrated that PUM binding is required for maintenance of genomic stability by NORAD whereas binding of RBMX is dispensable for this function. These data provide an important foundation for further mechanistic dissection of the NORAD-PUMILIO axis in genome maintenance.

https://doi.org/10.7554/eLife.48625.001

Introduction

Long noncoding RNAs (lncRNAs) have emerged as regulators of diverse biological processes. Among these transcripts, Noncoding RNA activated by DNA damage (NORAD) is particularly noteworthy, due to its unusually abundant expression in mammalian cells and tissues and strong evolutionary conservation across mammalian species. Initial studies of NORAD revealed that this lncRNA is required to maintain genomic stability in mammalian cells (Lee et al., 2016), and provided strong evidence that this function is mediated through the ability of NORAD to bind to and negatively regulate PUMILIO RNA binding proteins (PUM1 and PUM2) in the cytoplasm (Lee et al., 2016; Tichon et al., 2016). PUM proteins bind with high specificity to the eight nucleotide (nt) PUMILIO response element (PRE) (UGUANAUA or UGUANAUN) on target messenger RNAs (mRNAs), triggering their deadenylation, decapping, and eventual degradation (Miller and Olivas, 2011; Quenault et al., 2011). Notably, NORAD contains 18 conserved PREs and has the capacity to bind a large fraction of PUM1/2 within the cell, although it is not yet known whether NORAD limits PUM activity through a simple sequestration model or whether additional mechanisms contribute to PUM inhibition. Regardless, loss of NORAD results in PUM hyperactivity and increased repression of PUM targets that include important regulators of mitosis, DNA repair, and DNA replication, resulting in a dramatic genomic instability phenotype in NORAD-deficient cells and mouse tissues (Kopp et al., 2019; Lee et al., 2016). Accordingly, PUM1/2 overexpression is sufficient to phenocopy loss of NORAD in both human cells and mice (Kopp et al., 2019; Lee et al., 2016), while PUM1/2 loss-of-function suppresses the genomic instability phenotype in NORAD knockout cells (Lee et al., 2016).

Recently, an alternative mechanism for the regulation of genomic stability by NORAD was proposed (Munschauer et al., 2018). Proteomic analysis of the NORAD interactome revealed an interaction with RBMX, an RNA binding protein that contributes to the DNA damage response (Adamson et al., 2012). Subsequent experiments suggested that the NORAD:RBMX interaction facilitates the assembly of a ribonucleoprotein (RNP) complex in the nucleus that includes Topoisomerase I (TOP1) and other proteins that are critical for genome maintenance. Importantly, PUM and RBMX interact with different sites on NORAD and function in distinct subcellular compartments. Thus, while it remains to be determined whether the NORAD:RBMX interaction is necessary for regulation of genomic stability, both PUM and RBMX may play important, non-mutually exclusive roles in the genome maintenance functions of NORAD.

Here, we further examined the mechanism by which NORAD functions to maintain genome stability in human cells and directly tested the requirement for PUM and RBMX interactions in this activity. RNA fluorescent in situ hybridization (FISH) using a panel of probes spanning the entire length of NORAD, as well as cellular fractionation studies, definitively demonstrated that this lncRNA localizes predominantly to the cytoplasm and does not detectably redistribute to the nucleus upon induction of DNA damage. Genetic rescue experiments in NORAD knockdown cells established that PUM binding is essential for maintenance of genomic stability whereas interaction with RBMX is completely dispensable for this function. Further experiments demonstrated that RBMX is not required for induction of NORAD following DNA damage nor its cytoplasmic localization. Together, these studies establish the importance of the NORAD:PUM axis in regulating genomic stability in mammalian cells and provide a foundation for further dissection of the mechanism and physiologic role of this pathway.

Results and discussion

NORAD localizes predominantly to the cytoplasm with or without DNA damage

Initial studies of NORAD reported a predominantly cytoplasmic localization of this lncRNA in human cell lines, based on RNA FISH using pools of fluorescently-labeled oligonucleotide probes and subcellular fractionation experiments (Lee et al., 2016; Tichon et al., 2016). Recently, however, a distinct localization pattern was reported based upon RNA FISH performed using a commercially-available kit with a proprietary set of oligonucleotide probes that hybridize to an unknown segment of NORAD (Munschauer et al., 2018). In these more recent experiments, NORAD was reported to localize equally between the nucleus and cytoplasm and appeared to redistribute almost entirely to the nuclear compartment upon treatment of cells with the DNA damaging agents camptothecin and doxorubicin. Importantly, a single cell line (human colon cancer cell line HCT116) was used in both the previous (Lee et al., 2016) and more recent studies (Munschauer et al., 2018), arguing against a cell-type specific difference in NORAD trafficking as the cause of these discordant results.

We considered the possibility that the disparate observed localization patterns could be due to unrecognized processing of the NORAD transcript, such that different segments of the RNA that are recognized by the different FISH probes accumulate in distinct subcellular compartments. To investigate this possibility, and to reliably establish the localization of the entire NORAD transcript, we generated a panel of 11 in vitro transcribed RNA FISH probes spanning the complete NORAD sequence (Figure 1A) (Mito et al., 2016). One probe, that recognized a segment of NORAD containing an Alu repeat element (probe 7), gave rise to a nonspecific nuclear signal that was present in both NORAD+/+ and NORAD–/– HCT116 cells. The remaining 10 probes produced a highly consistent, predominantly cytoplasmic, punctate localization pattern in wild-type cells that was absent in NORAD–/– cells (Figure 1A–B). These results were confirmed using subcellular fractionation followed by quantitative reverse transcriptase-PCR (qRT-PCR) using primers located at the 3′ or 5′ ends of NORAD, which revealed that 80–90% of the transcript is localized to the cytoplasmic compartment (Figure 1C).

Figure 1
Download asset Open asset

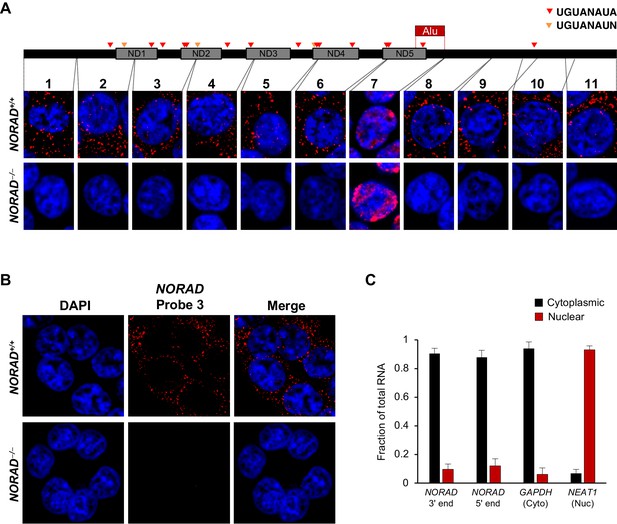

NORAD localizes predominantly to the cytoplasm.

(A) RNA FISH in HCT116 cells using a panel of 11 probes tiling the entire NORAD transcript reveals a predominantly cytoplasmic signal that is absent in NORAD–/– cells with all probes except probe 7, which produces a nonspecific signal likely due to the presence of an Alu repeat element. NORAD FISH signal in red, DAPI counterstain in blue. Locations of PREs indicated by arrowheads. ND1-ND5 represent repetitive NORAD domains, as previously described (Lee et al., 2016). (B) RNA FISH image using probe 3 showing a wider field of cells. (C) Subcellular fractionation followed by qRT-PCR in HCT116 cells using primers located at the 3′ or 5′ end of NORAD, in GAPDH (cytoplasmic control), or in NEAT1 (nuclear control). n = 3 biological replicates each with three technical replicates.

https://doi.org/10.7554/eLife.48625.002

Next, we examined NORAD localization following treatment of cells with agents that induce DNA damage (Figure 2—figure supplement 1A–B). RNA FISH using the panel of probes spanning NORAD revealed clear cytoplasmic localization after treatment with doxorubicin or camptothecin, without a significant increase in nuclear signal compared to untreated cells (Figure 2A–B). Consistent with the previously reported induction of NORAD after DNA damage (Lee et al., 2016), a clear increase in cytoplasmic NORAD signal was apparent in treated cells (Figure 2B). These findings were further corroborated by subcellular fractionation experiments following treatment with DNA damaging agents, which confirmed that NORAD remained predominantly in the cytoplasmic compartment at all time points (Figure 2C and Figure 2—figure supplement 1C). Interestingly, we observed a modest increase in nuclear NORAD levels that peaked after 12 hr of camptothecin or doxorubicin treatment. We speculated that this might represent a burst of NORAD transcription in response to accumulating DNA damage. To test this hypothesis, we co-treated cells with DNA damaging agents and the transcriptional inhibitor actinomycin D. As expected, this completely abrogated any detectable increase in nuclear NORAD abundance in treated cells (Figure 2D and Figure 2—figure supplement 1D).

Figure 2 with 1 supplement see all
Download asset Open asset

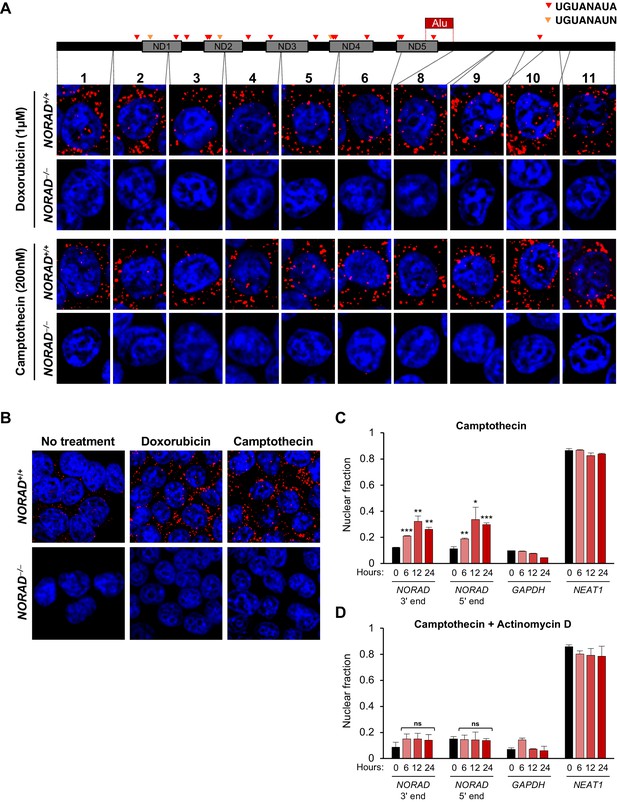

NORAD remains predominantly in the cytoplasm after treatment with DNA damaging agents.

(A) RNA FISH in HCT116 cells using the indicated NORAD probes following a 12 hr treatment with doxorubicin or camptothecin. (B) NORAD RNA FISH (probe 5) after the indicated drug treatments. Images captured with identical microscope settings. (C–D) Subcellular fractionation followed by qRT-PCR in HCT116 cells after treatment with camptothecin (C) or camptothecin plus actinomycin D (D) for the indicated number of hours. n = 3 biological replicates each with three technical replicates. ns, not significant; *p<0.05; **p<0.01; ***p<0.001; one-tailed t-test comparing each sample to the 0 hr time-point.

https://doi.org/10.7554/eLife.48625.003

These comprehensive RNA FISH and subcellular fractionation experiments provide definitive evidence that NORAD is a predominantly cytoplasmic RNA in HCT116 cells and does not detectably redistribute to the nucleus upon DNA damage. These findings are consistent with the reported localization of NORAD in other human and mouse cell lines (Kopp et al., 2019; Lee et al., 2016; Tichon et al., 2016). We speculate that the disparate localization pattern observed using a commercially-available RNA FISH probe set (Munschauer et al., 2018) most likely represented a non-specific signal.

PUM1, PUM2, and RBMX are components of the NORAD interactome

Previous crosslinking-immunoprecipitation coupled with high throughput sequencing (CLIP-seq) studies demonstrated that NORAD is the preferred binding partner of PUM2 in both human cells (Lee et al., 2016) and mouse brain (Kopp et al., 2019). In light of these findings, it was surprising that PUM1/2 were not reported among the most enriched NORAD-bound proteins in the recent RNA antisense purification with quantitative mass spectrometry (RAP-MS) experiments performed in HCT116 cells that identified the NORAD:RBMX interaction (Munschauer et al., 2018). Since these RAP-MS experiments utilized pulse labeling with 4-thiouridine to crosslink NORAD to protein interactors, a bias towards detection of proteins that bind to newly synthesized NORAD would be expected, potentially explaining the enrichment of nuclear interactors observed. Nevertheless, we reanalyzed the published RAP-MS dataset to determine whether PUM1 or PUM2 were enriched in NORAD pull-downs compared to control RMRP pull-downs. Peptides were identified and scored using a combined algorithm that employed three search engines (Sequest HT, Mascot, and MS Amanda). Isoforms of PUM1 and PUM2, along with RBMX, were indeed identified as significantly-enriched interacting partners of NORAD compared to RMRP (Figure 3—figure supplement 1). Notably, PUM1 was more enriched than PUM2 in our analysis, which may reflect its higher abundance in HCT116 cells (Lee et al., 2016). These results confirmed that both PUM proteins and RBMX are identified by RAP-MS as significant NORAD-interacting partners.

Binding of PUMILIO, but not RBMX, to NORAD is necessary for genome stability

Genetic epistasis experiments have strongly implicated a role for PUM1/2 in the regulation of genomic stability by NORAD, with PUM2 overexpression phenocopying, and PUM1/2 knockdown suppressing, the effects of NORAD deletion (Kopp et al., 2019; Lee et al., 2016). Nevertheless, it has not yet been directly tested whether binding of PUM1/2 is required for NORAD function. Similarly, a requirement for RBMX binding in genome maintenance by NORAD has not been established. Therefore, to directly interrogate the importance of PUM and RBMX binding for NORAD function, we generated a series of mutant NORAD constructs lacking either PUM or RBMX binding sites (Figure 3A). For each of the 18 PREs within NORAD, the UGU sequence, which is essential for PUM binding (Bohn et al., 2018; Van Etten et al., 2012), was mutated to ACA to abolish PUM interaction (PREmut construct). To remove the RBMX binding site, the first 898 nucleotides (nt) of NORAD were deleted (Munschauer et al., 2018) (5′ deletion construct). We also sought to determine whether PUM or RBMX binding regions of NORAD could represent minimal functional domains that are sufficient for maintaining genomic stability. To this end, we generated a fragment comprising NORAD domain 4 (ND4), which represents the most conserved of five repeated segments within this lncRNA termed NORAD domains (Lee et al., 2016) and contains 4 PREs (nt 2494–3156). An RBMX binding site fragment, representing the 5′ end of NORAD (nt 33–898), which also harbors one PRE, was also generated (5′ fragment).

Figure 3 with 1 supplement see all
Download asset Open asset

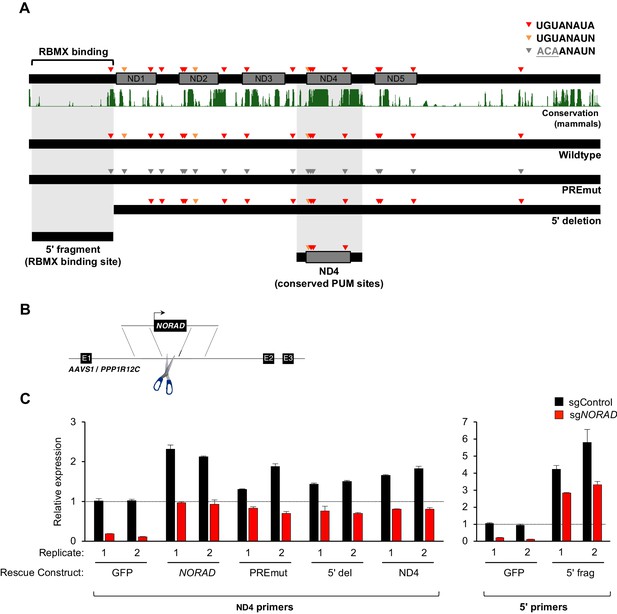

Generation and stable expression of NORAD constructs.

(A) Schematic depicting wild-type or mutant NORAD constructs. NORAD sequence conservation in mammals (UCSC Genome Browser Hg38 PhastCons track) highlights the strong conservation of the region of NORAD harboring PREs (arrowheads). PREmut contains 18 UGU to ACA mutations in PREs (gray arrowheads); 5′ deletion (5′ del) lacks the RBMX binding site (nt 1–898) (Munschauer et al., 2018); 5′ fragment (5′ frag) spans the RBMX binding site (nt 33–898); ND4 construct represents the most conserved segment of NORAD (nt 2494–3156). (B) Schematic depicting insertion of constructs into the AAVS1/PPP1R12C locus using TALENs. (C) qRT-PCR analysis of expression of each NORAD construct in HCT116 CRISPRi cells after infection with control or endogenous NORAD-targeting sgRNAs. Expression was normalized to endogenous NORAD level, represented by expression in AAVS1-GFP cells infected with sgControl (replicate 1 samples normalized to sgControl AAVS1-GFP replicate 1; replicate 2 samples normalized to sgControl AAVS1-GFP replicate 2). The data in the left graph were generated with a primer pair in ND4 that does not amplify the 5′ fragment, while the right graph used primers at the NORAD 5′ end. Replicates represent two independently-derived AAVS1 knock-in and sgRNA-infected cell lines. Values normalized to GAPDH expression. n = 3 technical replicates per sample.

https://doi.org/10.7554/eLife.48625.005

Wild-type or mutant NORAD constructs, as well as a control GFP sequence, under the control of a constitutive promoter were introduced into the AAVS1/PPP1R12C locus of HCT116 cells using a previously published TALEN pair (Sanjana et al., 2012) (Figure 3B). Endogenous NORAD was then depleted using CRISPR interference (CRISPRi) with a single-guide RNA (sgRNA) targeting the endogenous NORAD promoter. As expected, in cells infected with a non-targeting control sgRNA (sgControl), increased total levels of NORAD were observed upon expression of NORAD rescue constructs in trans (~1.5–6 fold overexpression, depending on the construct) (Figure 3C). Upon silencing of the endogenous NORAD locus, however, near physiologic expression levels for all constructs were achieved, with the exception of the 5′ fragment which exhibited ~3 fold overexpression, perhaps indicating increased stability of this transcript segment when expressed in isolation.

We next used UV crosslinking and RNA immunoprecipitation (RIP) to assess binding of wild-type and mutant NORAD transcripts to endogenous PUM1, PUM2, and RBMX. Pull-downs of each of these proteins resulted in the expected enrichment of wild-type NORAD, but not GAPDH, relative to immunoprecipitation with control IgG (Figure 4A and Figure 4—figure supplement 1). The PREmut transcript as well as the 5′ fragment did not bind to PUM1/2 but were recovered in RBMX RIP samples as efficiently as wild-type NORAD. In contrast, the 5′ deletion construct and ND4 fragment retained PUM1 and PUM2 binding activity, but interaction with RBMX was not detectable above background. Furthermore, RNA FISH documented a predominantly cytoplasmic localization pattern of each construct (Figure 4B).

Figure 4 with 1 supplement see all
Download asset Open asset

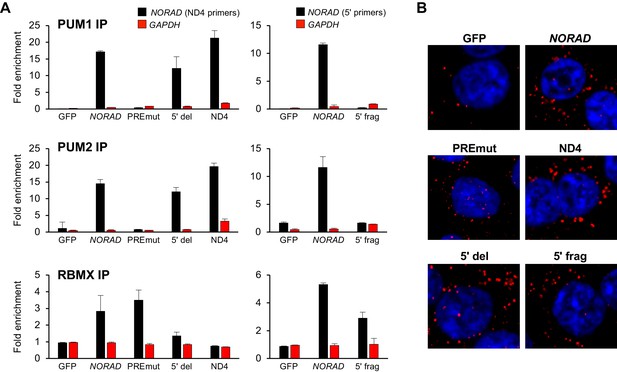

RNA immunoprecipitation and localization of NORAD constructs.

(A) UV crosslinking and RNA immunoprecipitation (RIP) was used to assess PUM1, PUM2, and RBMX interactions with GFP mRNA or the indicated NORAD constructs. After knock-in of the indicated constructs to the AAVS1 locus in HCT116 CRISPRi cells, endogenous NORAD was silenced with a lentivirally-expressed sgRNA. qRT-PCR was used to assess NORAD or GAPDH recovery in each RIP sample, expressed as fold-enrichment over pull-down with IgG. The data in the left graphs were generated with a primer pair in ND4 that does not amplify the 5′ fragment, while the right graphs used primers at the NORAD 5′ end. n = 2 biological replicates, each measured with three technical replicates. (B) Representative RNA FISH images of wild-type or mutant NORAD transcripts expressed from the AAVS1 locus in HCT116 CRISPRi cells after knockdown of endogenous NORAD. Probe 10 was used for full-length NORAD, PREmut, and 5′ del constructs; probe 1 was used for 5′ frag; and probe 6 was used for ND4.

https://doi.org/10.7554/eLife.48625.007

Genome stability was first assessed in cell populations expressing wild-type or mutant NORAD constructs by quantifying the number of aneuploid cells in each population using DNA FISH for marker chromosomes 7 and 20, as described previously (Lee et al., 2016) (Figure 5A–B). Importantly, no significant increase in aneuploidy was observed in any of the NORAD rescue populations after infection with non-target sgRNA (sgControl), indicating that overexpression of the NORAD constructs in trans did not trigger genomic instability. Furthermore, as expected, knockdown of endogenous NORAD in GFP-control cells resulted in a significant accumulation of aneuploid cells. The frequency of aneuploidy observed under these conditions was very similar to that observed previously in NORAD–/– HCT116 cells (Lee et al., 2016). Expression of wild-type NORAD in trans was sufficient to fully suppress the accumulation of aneuploid cells after silencing endogenous NORAD. Cells expressing the PREmut transcript, however, exhibited high levels of aneuploidy, demonstrating that loss of PUM binding abrogated the ability of NORAD to maintain genomic stability. Moreover, the 5′ deletion construct that lacks the RBMX binding site, but preserves the PUM interaction, was fully functional in this assay and completely prevented the accumulation of aneuploid cells. Thus, RBMX binding to NORAD is dispensable for genome maintenance. Remarkably, we observed a strong suppression of aneuploidy in cells expressing the minimal ND4 fragment, further supporting the centrality of the PUM interaction for NORAD function, while the 5′ fragment of NORAD had no activity in this assay.

Figure 5
Download asset Open asset

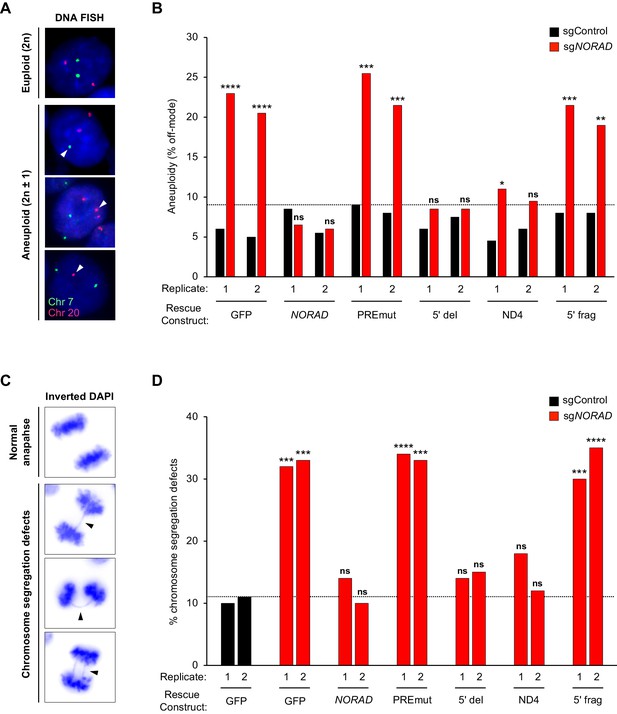

PUMILIO, but not RBMX, binding to NORAD is necessary for genome stability.

(A) Representative DNA FISH images for chromosome 7 (green) and 20 (red) showing examples of cells with modal (2 n) and non-modal (2n ± 1) chromosome numbers. Arrowheads indicate chromosome gain or loss. (B) HCT116 CRISPRi cells stably expressing the indicated AAVS1 knock-in construct were infected with lentivirus expressing control or endogenous NORAD-targeting sgRNA. Aneuploidy was assayed 18–21 days later using DNA FISH for chromosome 7 and 20, and the frequency of interphase cells exhibiting a non-modal (2 n) chromosome number was scored. Replicates represent two independently-derived AAVS1 knock-in and sgRNA-infected cell lines. 200 nuclei were scored per sample. The dotted line denotes the highest level of background aneuploidy observed in sgControl-infected cells. ns, not significant; *p<0.05; **p<0.01; ***p<0.001; ****p<0.0001, chi-square test comparing sgNORAD to sgControl for each replicate. (C) Representative images of anaphase cells with normal or abnormal (arrowheads) chromosome segregation in DAPI-stained HCT116 CRISPRi cells. (D) The frequency of mitotic cells exhibiting chromosome segregation defects was determined in both biological replicates of each cell population (100 anaphase cells assayed per sample). The dotted line denotes the highest percentage of chromosome segregation defects observed in sgControl-infected cells. ns, not significant; *p<0.05; **p<0.01; ***p<0.001; ****p<0.0001, chi-square test comparing all sgNORAD replicate 1 samples to sgControl GFP replicate 1 and all sgNORAD replicate 2 samples to sgControl GFP replicate 2.

https://doi.org/10.7554/eLife.48625.009

To further assess the role of RBMX and PUM binding in genome maintenance by NORAD, we quantified the frequency of chromosomal segregation defects in HCT116 cell populations expressing the various NORAD rescue constructs. We have previously demonstrated that NORAD knockout cells exhibit a significant increase in mitotic errors (Lee et al., 2016) and the same phenotypic assay was later used by Munschauer et al. to confirm genomic instability in NORAD and RBMX knockdown cells (Munschauer et al., 2018). Examination of DAPI-stained anaphase nuclei revealed the expected increase in chromosomal segregation defects in GFP-expressing control cells following NORAD knockdown (Figure 5C–D). Consistent with our analyses of aneuploidy using DNA FISH, expression of full-length NORAD, or the 5′ deletion construct lacking the RBMX binding site, reversed this phenotype and suppressed the increase in mitotic errors. We further documented that mutation of the PUM binding sites (PREmut) abolished NORAD function in this assay. Finally, we found that the ND4 segment containing several highly conserved PUM binding sites, but not the 5′ fragment encompassing the RBMX binding site, exhibited significant rescue activity in this assay. Overall, these data provide compelling evidence that PUM, but not RBMX, binding to NORAD is necessary for the maintenance of genomic stability by this lncRNA.

RBMX is not required for NORAD expression or localization

Although RBMX is not required for maintenance of genomic stability by NORAD, we were able to confirm binding of this protein to the 5′ end of NORAD, as reported (Munschauer et al., 2018) (Figure 3 and Figure 4A). Thus, we investigated whether RBMX functions as an upstream regulator of NORAD expression or localization. Depletion of RBMX using CRISPRi resulted in an increase in NORAD expression that was further augmented by doxorubicin treatment (Figure 6A). We speculate that this increase in NORAD levels may be an indirect effect of the previously reported accumulation of DNA damage caused by RBMX loss of function (Adamson et al., 2012). Additionally, RBMX knockdown did not alter the predominantly cytoplasmic localization of NORAD, as indicated by subcellular fractionation experiments (Figure 6B). We conclude that RBMX is not an essential co-factor for NORAD expression or localization.

Figure 6
Download asset Open asset

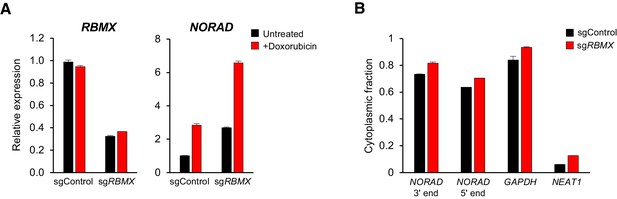

RBMX is not required for NORAD expression or localization.

(A) qRT-PCR analysis of RBMX and NORAD transcript levels in HCT116 CRISPRi cells after introduction of the indicated lentivirally-expressed sgRNA with or without doxorubicin treatment (1 μM for 24 hr). Quantification relative to GAPDH. n = 3 technical replicates. (B) Subcellular fractionation and qRT-PCR of NORAD, GAPDH (cytoplasmic control), or NEAT1 (nuclear control) following introduction of control or RBMX-targeting sgRNAs. n = 3 biological replicates each with three technical replicates.

https://doi.org/10.7554/eLife.48625.010

In sum, these results establish the essential role of PUM binding for the regulation of genomic stability by NORAD. A systematic examination of the subcellular localization of this lncRNA unequivocally established its predominantly cytoplasmic localization under baseline conditions as well as after treatment with DNA-damaging agents. Moreover, genetic complementation experiments demonstrated that PUM binding is essential, whereas RBMX interaction is dispensable, for the genome maintenance function of NORAD. These results further define and clarify the NORAD molecular mechanism of action and direct future investigation towards elucidation of the regulation and physiologic roles of the NORAD:PUM axis.

Materials and methods

Key resources table
Reagent type
(species) or resource		DesignationSource or referenceIdentifiersAdditional
information
Gene (Homo sapiens)NORAD (LINC00657)NAEnsembl:ENSG00000260032
Cell line (Homo sapiens)HCT116ATCCCCL-247, RRID:CVCL_0291
Cell line (Homo sapiens)NORAD-/- HCT116Lee et al., 2016
Cell line (Homo sapiens)HCT116 CRISPRithis paper; see Materials and methods section Cell culture and generation of HCT116 CRISPRi cell line
AntibodyAnti-PUM1 (polyclonal rabbit)Santa Cruzsc-135049, RRID:AB_10610604RIP
AntibodyAnti-PUM2 (polyclonal goat)Santa Cruzsc-31535, RRID:AB_654939RIP
AntibodyAnti-RBMX (monoclonal rabbit)Cell Signaling#14794, RRID:AB_2798614RIP,
WB (1:1000)
AntibodyAnti-PUM2 (monoclonal rabbit)Abcamab92390, RRID:AB_10563318WB (1:1000)
AntibodyAnti-PUM1 (monoclonal rabbit)Abcamab92545, RRID:AB_10563695WB (1:1000)
AntibodyAnti-GAPDH (monoclonal rabbit)Cell Signaling#2118, RRID:AB_561053WB (1:5000)
AntibodyAnti-phospho-histone H2A.X (Ser139)Cell Signaling#2577, RRID:AB_2118010IF (1:500),
WB (1:1000)
AntibodyIRDye 800CW anti-rabbit (donkey)Licor925–32213, RRID:AB_2715510WB (1:10000)
AntibodyAnti-Digoxigenin (monoclonal mouse)Roche11333062910, RRID:AB_514495RNA FISH
AntibodyAnti-Mouse IgG, Cy3 (polyclonal goat)EMD MilliporeAP124CRNA FISH
Recombinant DNA reagentAAVS1/PPP1R12C targeting vectorAddgene#22072, RRID:Addgene_22072
Recombinant DNA reagenthAAVS1 1L TALEN; hAAVS1 1R TALENAddgene#35431, RRID:Addgene_35431; #35432, RRID:Addgene_35432
Recombinant DNA reagentpU6-sgRNA EF1a-PuroR-T2A-BFPAddgene#60955, RRID:Addgene_60955CRISPRi-mediated knockdown
Sequence-based reagentChromosome enumeration Probe Chr. 7 (green)Empire GenomicsCHR07-10-GRDNA FISH
Sequence-based reagentChromosome enumeration Probe Chr. 20 (red)Empire GenomicsCHR20-10-REDNA FISH
Software, algorithmPrism 7GraphPad Software
Software, algorithmProteome DiscovererThermo Fisher
Software, algorithmLimma package for RSmyth, 2004

Cell culture and generation of HCT116 CRISPRi cell line

Request a detailed protocol

HCT116 cells (ATCC) were cultured in McCoy’s 5a media (Thermo Fisher Scientific) supplemented with 10% FBS (Gibco, Sigma-Aldrich) and 1X AA (Gibco). The cell line was authenticated by ATCC using short tandem repeat (STR) analysis in November 2017. All cell lines were confirmed to be free of mycoplasma contamination. HCT116 NORAD–/– cells were generated previously (Lee et al., 2016).

To generate the HCT116 CRISPRi cell line, lentivirus expressing dCas9/BFP/KRAB was produced by first seeding 6 × 105 HEK293T cells per well in a six-well plate. The following day, cells were transfected with 1.4 μg of pHR-SFFV-dCas9-BFP-KRAB (Addgene plasmid #46911), 0.84 μg of psPAX2 (Addgene plasmid #12260), 0.56 μg of pMD2.G (Addgene plasmid #12259), 8.4 μl of FuGENE HD (Promega), and 165 μl Opti-MEM (Thermo Fisher) according to the manufacturer’s instructions. Medium was changed the next day. Two days after transfection, medium was collected and passed through a 0.45 μm SFCA sterile filter. Recipient HCT116 cells were transduced overnight using medium supplemented with 8 μg/ml polybrene (EMD Millipore). Cells expressing BFP were enriched by FACS and single-cell clonal lines were derived.

RNA Fluorescent in situ hybridization (RNA FISH)

Request a detailed protocol

RNA FISH was performed as described previously (Mito et al., 2016) with the following modifications. DIG-labeled RNA probes for human NORAD were synthesized by in vitro transcription using a DIG-labeling mix (Roche). Primers used for amplification of the DNA template for each probe are provided in Supplementary file 1. 2 × 105 cells were grown on poly-L-lysine coated coverslips for 24 to 36 hr. For RNA FISH experiments with DNA damage treatment, cells were grown for 24 hr and treated with either 1 μM doxorubicin or 200 nM camptothecin for an additional 12 hr. Samples were rinsed twice in phosphate buffered saline (PBS), fixed in 4% paraformaldehyde for 10 min, washed again in PBS, and permeabilized in 0.5% Triton X-100 for 10 min. Samples were then washed twice with PBS and rinsed with DEPC-treated water prior to incubation in prehybridization buffer (50% formamide, 2X SSC, 1X Denhardt’s solution, 10 mM EDTA, 0.1 mg/ml yeast tRNA, 0.01% Tween-20) for 1 hr. 10 ng/μl DIG-labeled RNA probe was diluted in hybridization buffer (prehybridization buffer with 5% dextran sulfate) and used for hybridization at 55°C for 16 to 20 hr. Following hybridization, samples were washed, treated with RNase A, and blocked using Blocking Reagent (Roche). DIG-labeled probes were detected using mouse monoclonal anti-DIG primary antibody (Roche; 1:100 dilution) and a Cy3-labeled goat anti-mouse IgG secondary antibody (Roche; 1:100 dilution). Immunofluorescence and western blot analysis of the DNA damage marker γ-H2AX was performed using anti-γ-H2AX (Ser139) antibody (2577, Cell Signaling). Samples were mounted using SlowFade Diamond Antifade with DAPI mounting media (Invitrogen) and imaging was performed using a Zeiss LSM700 confocal microscope. ImageJ was used for further image analysis.

Subcellular fractionation

Request a detailed protocol

Cells were seeded in triplicate and 1 × 106 cells were collected for subcellular fractionation, which was performed as previously described (Kopp et al., 2019; Lee et al., 2016). Briefly, cell pellets were lysed in RLN1 buffer (50 mM Tris-HCl pH 8.0, 140 mM NaCl, 1.5 mM MgCl2, 0.5% NP-40, RNAse inhibitor) on ice for 5 min and centrifuged at 500g × 2 min. The supernatant containing the cytoplasmic fraction was separated from the pelleted nuclear fraction. RNA was then isolated from both fractions using the Qiagen RNeasy kit and equal cell equivalents of nuclear and cytoplasmic RNA were used in subsequent qRT-PCR reactions. All samples were tested for NORAD as well as NEAT1 (nuclear control) and GAPDH (cytoplasmic control). The sum of the nuclear and cytoplasmic expression level of each transcript was set to 100%, and the percentage of each transcript localized to each compartment was determined. NEAT1 and GAPDH, respectively, showed the expected nuclear and cytoplasmic localization in each experiment, confirming successful fractionation.

Reanalysis of NORAD RAP-MS data

Request a detailed protocol

The raw mass spectra files from iTRAQ-labeled NORAD and RMRP RAP-MS experiments (Munschauer et al., 2018) were downloaded from MassIVE (https://massive.ucsd.edu) using the identifier: MSV000082561. Peptide identification and quantification was performed using Proteome Discoverer (Thermo Fisher) with three search engines combined (Sequest HT, Mascot, and MS Amanda). MS/MS spectra were searched against the human Uniprot database. Search parameters included: trypsin enzyme specificity with a maximum of 2 missed cleavages tolerated, False Discovery Rate (FDR) set to 0.01 at both peptide and protein level, ±10 ppm for precursor mass tolerance with a shorter window for fragment mass tolerance for the first search, and carbamidomethylation of cysteine modification and iTRAQ labels on N-termini and lysine residues as fixed modifications and oxidation of methionine and N-termini acetylation as variable modifications. All peptide and protein identifications had scores surpassing the combined search engine significance threshold for identification. Protein abundance was calculated as the intensity given from precursor quantification and was then normalized to the total peptide amount. To correct for total abundance differences between samples, protein and peptide abundance values in each sample were corrected by a constant factor such that the end total abundance was equivalent across all samples. Fold change was calculated as the log2 difference of average scaled protein abundance in NORAD samples and RMRP sample. For statistical analysis, we used the limma package (Smyth, 2004) in R (https://www.r-project.org/) to calculate the adjusted p-value using a moderated t-test and Benjamini Hochberg method to control the FDR.

RNA isolation and quantitative reverse transcription PCR (qRT-PCR)

Request a detailed protocol

RNA was isolated from cells using the RNeasy Mini Kit (Qiagen), or, for RIP experiments, Trizol (Invitrogen), and treated with RNase-free DNase (Qiagen). RNA was reverse transcribed with PrimeScript RT-PCR mix (Clonetech), and Power SYBR Green PCR Master Mix (Applied Biosystems) was used for qPCR. Biological replicates represent independently grown and processed cells. Technical replicates represent multiple measurements of the same biological sample. Primer sequences are provided in Supplementary file 1.

Generation and AAVS1 knock-in of NORAD constructs

Request a detailed protocol

Full-length wild-type NORAD was amplified from a modified pcDNA3.1 vector containing the NORAD cDNA (Lee et al., 2016), along with an additional 115 base pairs downstream of the endogenous NORAD polyadenylation site. The PRE-mutant (PREmut) construct containing 18 PRE mutations (TGT to ACA) was synthesized by GENEWIZ. The 5′ deletion construct (∆1–898), 5′ fragment (nt 33–898), and ND4 were amplified from the full-length NORAD construct using primers provided in Supplementary file 1. Constructs were cloned into a AAVS1/PPP1R12C targeting vector (AAVS1 hPGK-PuroR-pA donor, Addgene plasmid #22072) modified by replacing the puromycin resistance gene with a hygromycin resistance gene and digested with KpnI and MfeI to remove the GFP cassette. These vectors, as well as a control GFP vector, were then inserted into the AAVS1 locus of HCT116 CRISPRi cells using a previously described TALEN pair targeting the AAVS1/PPP1R12C locus (Sanjana et al., 2012) (hAAVS1 1L TALEN, Addgene plasmid #35431; hAAVS1 1R TALEN, Addgene plasmid #35432). Transfection of these plasmids was performed using FugeneHD (Promega) at a 1:1:8 ratio of L-TALEN:R-TALEN:Donor as previously described (Lee et al., 2016). 48 hr after transfection, cells were selected with hygromycin (500 μg/ml) for at least 10 days prior to introducing sgRNAs for CRISPRi-mediated knockdown.

CRISPRi-mediated knockdown

Request a detailed protocol

Single guide RNAs (sgRNAs) targeting a sequence upstream of the endogenous NORAD transcription start site or targeting RBMX were cloned into a pU6-sgRNA EF1a-PuroR-T2A-BFP vector (Addgene plasmid #60955). sgRNA sequences are provided in Supplementary file 1. pU6-sgRNA vectors were then packaged into lentivirus by transfecting HEK293T cells using a 4:2:1 ratio of pU6-sgRNA:psPAX2:pMD2.G with FuGENE HD. Medium was changed the next day. Media containing the virus was collected and filtered at 48 hr and 72 hr after transfection. Virus was then diluted 1:3 with fresh media and used to transduce HCT116 CRISPRi cell lines overnight in a final polybrene concentration of 8 μg/ml. 48 hr after transduction, selection with 1 μg/ml puromycin was initiated. For HCT116 CRISPRi cells with AAVS1/NORAD construct insertion and sgRNA expression, cells were grown in 1 μg/ml puromycin and 500 μg/ml hygromycin.

UV crosslinking and RNA immunoprecipitation (RIP)

Request a detailed protocol

PUM1, PUM2, and RBMX RIP experiments were performed in HCT116 CRISPRi cells stably expressing AAVS1/NORAD constructs and depleted of endogenous NORAD with CRISPRi as described above. 20 × 106 cells were washed in cold PBS and UV crosslinked on ice in a Spectrolinker XL-1500 (Spectronics) at 254 nm (400 mJ/cm2). Cells were then scraped, centrifuged, snap-frozen in liquid nitrogen, and stored at −80°C. RIP was performed following a modified eCLIP protocol (Van Nostrand et al., 2016) as follows: Cells were lysed in 1 mL cold iCLIP lysis buffer (50 mM Tris-HCl, 100 mM NaCl, 1% NP-40, 0.1% SDS, 0.5% sodium deoxycholate, 1:200 Protease Inhibitor Cocktail III, RNAse inhibitor) for 25 min on ice. Lysed cells were then centrifuged at 14,000 g for 15 min at 4°C and the supernatant was added to pre-washed and antibody-coupled Protein G Dynabeads (Invitrogen). For each RIP, 5 μg of antibody (anti-PUM1, Santa Cruz sc-135049; anti-PUM2, Santa Cruz sc-31535; anti-RBMX, Cell Signaling #14794; Goat IgG control, Santa Cruz sc-2028; Rabbit IgG control Cell Signaling #2729) was coupled to 3.75 mg of beads at room temperature for 45 min, after which unbound antibody was removed. Sample and beads were incubated at 4°C overnight. The next day, beads were washed three times with 900 μL cold High Salt Wash Buffer #1 (50mM Tris-HCl, 1M NaCl, 1 mM EDTA, 1% NP-40, 0.1% SDS, 0.5% sodium deoxycholate) and three times with 500 μL Wash Buffer #2 (20mM Tris-HCl, 10 mM MgCl2, 0.2% Tween-20). Beads were then resuspended in 100 μL Wash Buffer #2, and 70 μL was used for RNA extraction and the remainder for western blotting. Proteins were extracted by incubation in Laemmli buffer for 10 min at 70°C. Antibodies used for western blotting were anti-PUM1 (ab92545, Abcam), anti-PUM2 (ab92390, Abcam), and anti-RBMX (14794, Cell Signaling).

DNA fluorescence in situ hybridization (DNA FISH)

Request a detailed protocol

Aneuploidy in NORAD construct rescue experiments was assessed 18 to 21 days after knockdown of endogenous NORAD. DNA FISH was performed as described previously (Kopp et al., 2019; Lee et al., 2016). Chromosome enumeration probes for chromosome 7 (CHR7-10-GR) and chromosome 20 (CHR20-10-RE) were purchased from Empire Genomics. Cells were trypsinized, washed in PBS, and incubated in hypotonic 0.4% KCl solution for 5 min at room temperature. Cells were then fixed in 3:1 methanol:glacial acetic acid and dropped onto slides. DNA FISH hybridizations were performed by the Veripath Cytogenetics laboratory at UT Southwestern. Slides were analyzed using an AxioObserver Z1 microscope (Zeiss). For each sample, 200 nuclei were counted and aneuploidy was defined as a chromosome count that differed from 2 n for at least one of the two tested chromosomes. Samples were prepared and counted in an experimenter-blinded manner. Two independent HCT116 CRISPRi cell lines stably expressing each AAVS1 knock-in construct were generated, and each was independently tested for aneuploidy using this method.

Quantification of chromosome segregation defects

Request a detailed protocol

For anaphase nuclei imaging, cells were plated on poly-L-lysine coated coverslips and grown for 24 hr. Samples were then fixed with 4% PFA in PBS for 10 min at room temperature, carefully washed with PBS, rinsed with DEPC-treated water, and mounted using SlowFade Diamond Antifade with DAPI mounting media (Invitrogen). Slides were analyzed using an AxioObserver Z1 microscope. For each sample, 100 anaphase nuclei were imaged and assessed for the presence of chromosome segregation defects. Samples were counted in an experimenter-blinded manner.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

The following previously published data sets were used

References

Decision letter

  1. Chris P Ponting
    Reviewing Editor; University of Edinburgh, United Kingdom
  2. James L Manley
    Senior Editor; Columbia University, United States
  3. Igor Ulitsky
    Reviewer; The Weizmann Institute of Science, Israel
  4. Philip Grote
    Reviewer; Goethe University Frankfurt, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "PUMILIO, but not RBMX, binding is required for regulation of genomic stability by noncoding RNA NORAD" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and James Manley as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Igor Ulitsky (Reviewer #1); Philip Grote (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

In the manuscript, Mendell and colleagues describe an advance in their study of NORAD, a mouse loss-of-function model of which was previously published in eLife. In the new manuscript, the authors focus on human cells, where they can reliably test the effects of loss-of-function of NORAD an genome stability by measuring fraction of HCT116 cells that become aneuploid, following loss of NORAD combined with expression of different rescue constructs. In this setting, the authors test different sequence variants and measure the fraction or aneuploid cells. This system allows the authors to compare the relative contribution of two groups of regions within NORAD – the ~20 PUMILIO binding sites, and the region that binds RBMX. RBMX was recently shown to bind NORAD by Munschauer et al., which showed that this binding is important for proper replication fork progression, and it was suggested in that paper that this binding is important overall for the roles of NORAD in genome stability. The new results convincingly show that PUMILIO binding is important for the aneuploid cell% phenotype (evaluated by measuring two chromosomes with DNA FISH). The authors also convincingly show that NORAD is mostly cytoplasmic in unstressed and in DNA-damaged cells, and that in contrast to the previous analysis by Muschauer et al., and consistently with all previous RIP and CLIP data, NORAD binds PUM1 and PUM2 PUMILIO proteins.

The topic of NORAD function and modes of action is of high interest, and the relative importance of the binding to PUMILIO in the cytoplasm and to RBMX in the nucleus for genome stability, as well as localization of NORAD, are a matter of controversy following the conflicting papers. The experiments are generally performed to a high standard and analyzed appropriately. The comments below mainly refer to the way the results are presented in context of prior work from the authors and from Munschauer et al., and are intended to provide a better distinction within the manuscript between the new results and discussion about the results of others.

Essential revisions:

The readout of genome integrity described by Munschauer et al. (% chromosome segregation defects) is not identical to the one described in this submission (and by Lee et al.: "% aneuploid cells") and so formally cannot invalidate Munschauer et al.'s conclusions. Please comment on the possibility that, even with all the new results, NORAD has a dual function: as a modulator of PUMILIO factors and as an "assembler" of the NARC1 complex. For a more definitive result, the same phenotypic assays as described in the Munschauer paper would be required. Ideally this should be done, but if the same assay and same readout are not possible then statements (in the Title and Abstract and elsewhere) regarding RBMX binding not being important for genome stability would need to be toned down.

Additional comments:

• The Abstract mentions that much of the prior work published in eLife was in mouse, but should also clarify that the new results are mostly in human cells.

• Abstract. What is meant by the data providing "a foundation for further investigation of this pathway"? If not specific then this statement should be removed.

• Introduction section: The first sentence on lncRNAs is too generic and is not true for the majority of lncRNAs – remove/edit.

• "NORAD … capacity to bind a large fraction of PUM1/2 within the cell". Is there evidence that more than a few percent of PUM1/2 molecules per cell are bound at any time? Justify. What value is this large fraction?

• "definitively demonstrated that this lncRNA localizes predominantly to the cytoplasm and does not traffic to the nucleus upon induction of DNA damage". The authors do not exclude that some nuclear relocalization does happen. So this sentence (and others, Results paragraph four e.g.) should be toned down.

• Results section paragraph three: The authors should show that these conditions indeed lead to DNA damage.

• Results section: "We conclude that the disparate localization pattern observed using a commercially available RNA FISH probe set (Munschauer et al., 2018) most likely represented a non-specific signal." Speculation, such as this, has a better fit to the Discussion section and here other possibilities should be discussed as well (e.g., differences in the HCT116 clones used in the different labs or differential accessibility of different probe sets to NORAD RNPs in the nucleus and in the cytoplasm).

• Results section: "Since these RAP-MS experiments utilized pulse labeling with 4-thiouridine to crosslink NORAD to protein interactors, a bias towards detection of proteins that bind to newly synthesized NORAD would be expected, likely explaining the enrichment of nuclear interactors observed." This is also speculation and should be moved to the Discussion.

• Subsection “Binding of PUMILIO, but not RBMX, to NORAD is necessary for genome stability”: It should be mentioned whether the 5' region the authors use contains any PUMILIO binding sites

• In the same section: What happens to NORAD levels in the edited cells (with the extra NORAD variants in the AAVS locus) before CRISPRi? Are NORAD levels roughly double? This should be mentioned, as these transiently increased levels may affect the phenotype in cells after CRISPRi.

• Subsection “RBMX is not required for NORAD expression or localization”: Speculation regarding how RBMX affects NORAD levels also should be placed in the Discussion.

• Can the authors please elaborate why the NORAD:RBMX study finds PUM only ranking 185th in the RAP-IP experiment and below the significant threshold? Why does applying the strategy with three search engines make this difference?

• There are no biological replicates in Figure 2D; why has Figure 2C biological replicates and not Figure 2D? Also, please provide statistics if the burst of NORAD in Figure 2C at 12h is significant.

• Please provide for the 2 independent clones in Figure 4C the analysis as in Figure 3B; does the degree of overexpression differ between the clones?

• Results paragraph one; perhaps "Importantly, a single cell line (human colon cancer cell line HCT116) was used in both of these studies"?

• Results paragraph four – insert "predominantly": "NORAD is a predominantly cytoplasmic RNA in HCT116 cells"

• Subsection “PUM1, PUM2, and RBMX are components of the NORAD interactome”: Please confirm whether the RAP-MS experiments used HCT116 cells also.

• Subsection “Binding of PUMILIO, but not RBMX, to NORAD is necessary for genome stability” paragraph three: NORAD "interaction with RBMX was abolished". Is this correct?

• Figure 4C Explain horizontal dotted line and add significance estimates for the different comparisons.

• Figure 4—figure supplement 1. Provide full legend that explains why there are 2 bands in the anti-PUM1 WB and try to improve on the anti-PUM2 WB.

• Subsection “Generation and AAVS1 knock-in of NORAD constructs”: typo "and ND4 and were amplified"

https://doi.org/10.7554/eLife.48625.017

Author response

Essential revisions:

The readout of genome integrity described by Munschauer et al. (% chromosome segregation defects) is not identical to the one described in this submission (and by Lee et al.: "% aneuploid cells") and so formally cannot invalidate Munschauer et al.'s conclusions. Please comment on the possibility that, even with all the new results, NORAD has a dual function: as a modulator of PUMILIO factors and as an "assembler" of the NARC1 complex. For a more definitive result, the same phenotypic assays as described in the Munschauer paper would be required. Ideally this should be done, but if the same assay and same readout are not possible then statements (in the Title and Abstract and elsewhere) regarding RBMX binding not being important for genome stability would need to be toned down.

We have now performed the identical assay to that performed by Munschauer et al. (quantification of the frequency of chromosome segregation defects), which further demonstrates that RBMX binding is not essential for maintenance of genomic stability by NORAD. These new data have been added to Figure 5 of the revised manuscript. Similar to what we reported previously (Lee et al., 2016), and later confirmed by Munschauer et al., NORAD knockdown resulted in an increase in the percentage of anaphase cells that display defective chromosome segregation. Expression of full-length NORAD, or NORAD lacking the RBMX binding site, rescued this phenotype whereas mutation of the PUMILIO binding sites fully abrogated NORAD function in this assay.

It is worth noting that we initially chose the DNA FISH assay for the present study because it is a more sensitive readout of genome instability. DNA FISH reports the cumulative effect of chromosome segregation defects over many cell divisions whereas the analysis of mitoses provides a more limited snapshot of the defects present at a single time-point. Nevertheless, we appreciate the reviewers’ suggestion to perform both assays, which have yielded essentially identical results, thereby providing an even more definitive demonstration that PUMILIO binding is essential, whereas RBMX binding is dispensable, for genome maintenance by NORAD.

The reviewers have also requested that we comment on the possibility that “NORAD has a dual function: as a modulator of PUMILIO factors and as an "assembler" of the NARC1 complex”. First, our data establish that assembly of the NARC1 complex is neither necessary nor sufficient for the genome maintenance function of NORAD. Since deletion of the RBMX binding site does not impair NORAD function, assembly of NARC1 is not necessary for genome stability. Moreover, the PUMILIO binding site mutant, which retains the ability to interact with RBMX, behaves as a null in genome stability assays, thus demonstrating that assembly of NARC1 is not sufficient for genome maintenance. In light of these observations, the proposed ability of NORAD to assemble the NARC1 complex is not relevant to NORAD’s genome maintenance function and therefore we chose not to investigate it deeply in this study. Nevertheless, we have performed a limited number of experiments to examine whether NORAD is indeed necessary for the assembly of NARC1, as determined by assessing the interaction of RBMX with TOP1 (the readout of NARC1 assembly described in Munschauer et al.). As shown below, in co-immunoprecipitation assays in NORAD wild-type and knockout cells performed using epitope-tagged RBMX (using the conditions described in Munschauer et al.), we detect no difference in RBMX:TOP1 interaction in the absence of NORAD. We would prefer not to add these data to our manuscript, however, because this experiment is tangential to our main conclusion, which is that NARC1, whether or not it forms, has no role in the genome maintenance function of NORAD. Clearly, substantial additional work would be necessary to establish the conditions, if any, under which NORAD stimulates assembly of this complex and its functional relevance.

Author response image 1
Download asset Open asset
Co-immunoprecipitation of RBMX and TOP1 in NORADwild-type and knockout cells.

FLAG-tagged RBMX was stably expressed in HCT116 cells and immunoprecipitated using identical conditions as that described in Munschauer et al., 2018.

Additional comments:

• The Abstract mentions that much of the prior work published in eLife was in mouse, but should also clarify that the new results are mostly in human cells.

We have edited the Abstract to indicate that the present study utilized human cells.

• Abstract. What is meant by the data providing "a foundation for further investigation of this pathway"? If not specific then this statement should be removed.

By clarifying the mechanism of action of NORAD, the data reported in this study provide an “important foundation for further mechanistic dissection of the NORAD-PUMILIO axis in genome maintenance”, as it is now phrased in the Abstract.

• Introduction section: The first sentence on lncRNAs is too generic and is not true for the majority of lncRNAs – remove/edit.

The first sentence of the Introduction has been edited to: “Long noncoding RNAs (lncRNAs) have emerged as regulators of diverse biological processes.” This no longer infers that this is true for the majority of lncRNAs, simply that some act as bona fide regulators.

• "NORAD … capacity to bind a large fraction of PUM1/2 within the cell". Is there evidence that more than a few percent of PUM1/2 molecules per cell are bound at any time? Justify. What value is this large fraction?

Given our previous measurements of NORAD copy number per cell, the number of PUM binding sites per NORAD molecule, and the number of PUM1/PUM2 proteins per cell (Lee et al., 2016), it is accurate to state that NORAD “has the capacity to bind a large fraction of PUM1/2 within the cell.” As described in that previous publication, there are sufficient PUM binding sites provided by NORAD to bind up to 100% of the cellular PUM1/PUM2 pool. However, we agree that it is not clear what fraction of PUM1/2 is actually bound to NORAD at any given time, so we have rephrased the sentence to acknowledge that “…it is not yet known whether NORAD limits PUM activity through a simple sequestration model or whether additional mechanisms contribute to PUM inhibition.”

• "definitively demonstrated that this lncRNA localizes predominantly to the cytoplasm and does not traffic to the nucleus upon induction of DNA damage". The authors do not exclude that some nuclear relocalization does happen. So this sentence (and others, Results paragraph four e.g.) should be toned down.

We have rephrased the sentence in the Introduction to: “…this lncRNA localizes predominantly to the cytoplasm and does not detectably redistribute to the nucleus upon induction of DNA damage.” Given that the localization pattern of NORAD is predominantly cytoplasmic with or without DNA damage, without an increase in nuclear signal under any tested conditions, we believe that this is an accurate description of the results.

Similarly, we revised the relevant sentence in the Results and Discussion section to read: “These comprehensive RNA FISH and subcellular fractionation experiments provide definitive evidence that NORAD is a predominantly cytoplasmic RNA in HCT116 cells and does not detectably redistribute to the nucleus upon DNA damage.

• Results section paragraph three: The authors should show that these conditions indeed lead to DNA damage.

We have added γ-H2AX immunofluorescence and western blot data to Figure 2—figure supplement 1 of the revised manuscript, which confirms that doxorubicin and camptothecin treatment lead to DNA damage.

• Results section: "We conclude that the disparate localization pattern observed using a commercially available RNA FISH probe set (Munschauer et al., 2018) most likely represented a non-specific signal." Speculation, such as this, has a better fit to the Discussion section and here other possibilities should be discussed as well (e.g., differences in the HCT116 clones used in the different labs or differential accessibility of different probe sets to NORAD RNPs in the nucleus and in the cytoplasm).

eLife allows a versatile format for Research Advance articles and we have chosen to write our manuscript with a combined Results and Discussion section. We believe that this is the most effective means to communicate the results and conclusions of this study. In light of our use of this format, reasonable speculation to provide plausible explanations for disparate results is appropriately located immediately following the presentation of each main experiment. We have edited the text as follows to make it clear that the specific sentence to which the reviewer refers is speculation:

“We speculate that the disparate localization pattern observed using a commercially-available RNA FISH probe set (Munschauer et al., 2018) most likely represented a non-specific signal.”

We do not believe that differences in HCT116 clones provides a likely explanation for the disparate localization patterns observed. The HCT116 cells used in our current and previous localization studies were purchased from ATCC and do not represent a laboratory-specific clone. We and others have reported an identical, cytoplasmic localization pattern in U2OS cells and MEFs (Tichon et al., 2016; Kopp et al., 2019). Moreover, fractionation studies in a large panel of cell lines, including the experiments reported here, have similarly demonstrated cytoplasmic localization of NORAD with or without DNA damage (Lee et al., 2016; Tichon et al., 2016; Kopp et al., 2019).

Similarly, we do not believe that differential accessibility of different probe sets to NORAD RNPs in the nucleus or cytoplasm provides a plausible explanation for the disparate localization patterns observed. We and others have previously reported predominantly cytoplasmic localization of NORAD using RNA FISH with tiled oligonucleotide probe sets (Lee et al.,2016; Tichon et al.,2016), which is the same type of probe used by Munschauer et al. Our new data generated using in vitro transcribed probes spanning the entire length of NORAD further support cytoplasmic localization. Equally importantly, the extensive subcellular fractionation studies reported here and elsewhere (Lee et al., 2016; Tichon et al., 2016; Kopp et al., 2019) further demonstrate cytoplasmic localization of NORAD with or without DNA damage, providing a completely independent experimental approach to support this conclusion.

• Results section: "Since these RAP-MS experiments utilized pulse labeling with 4-thiouridine to crosslink NORAD to protein interactors, a bias towards detection of proteins that bind to newly synthesized NORAD would be expected, likely explaining the enrichment of nuclear interactors observed." This is also speculation and should be moved to the Discussion.

As described above, this manuscript is formatted with a combined Results and Discussion section. As such, reasonable speculation and data interpretation follows the presentation of each main experiment. Regarding the specific sentence to which the reviewer refers, we have further edited the text to make it clear that we are speculating here:

“Since these RAP-MS experiments utilized pulse labeling with 4-thiouridine to crosslink NORAD to protein interactors, a bias towards detection of proteins that bind to newly synthesized NORAD would be expected, potentially explaining the enrichment of nuclear interactors observed.”

• Subsection “Binding of PUMILIO, but not RBMX, to NORAD is necessary for genome stability”: It should be mentioned whether the 5' region the authors use contains any PUMILIO binding sites

This fragment does contain one PRE and we have modified the text accordingly:

“An RBMX binding site fragment, representing the 5' end of NORAD (nt 33-898), which also harbors one PRE, was also generated (5' fragment).”

A PRE in this segment of NORAD is also apparent in Figure 3A.

• In the same section: What happens to NORAD levels in the edited cells (with the extra NORAD variants in the AAVS locus) before CRISPRi? Are NORAD levels roughly double? This should be mentioned, as these transiently increased levels may affect the phenotype in cells after CRISPRi.

These data are provided in Figure 3C and we now explicitly describe these results in the text as follows:

“As expected, in cells infected with a non-targeting control sgRNA (sgControl), increased total levels of NORAD were observed upon expression of NORAD rescue constructs in trans (~1.5-6 fold overexpression, depending on the construct) (Figure 3C). Upon silencing of the endogenous NORAD locus, however, near physiologic expression levels for all constructs were achieved, with the exception of the 5' fragment which exhibited ~3-fold overexpression, perhaps indicating increased stability of this transcript segment when expressed in isolation.”

Moreover, we showed that increased NORAD expression in control cells does not result in genomic instability. These data were included in our original manuscript and are now shown in Figure 5B of the current version. In the text, we describe these results as follows:

“Importantly, no significant increase in aneuploidy was observed in any of the NORAD rescue populations after infection with non-target sgRNA (sgControl), indicating that overexpression of the NORAD constructs in trans did not trigger genomic instability.”

• Subsection “RBMX is not required for NORAD expression or localization”: Speculation regarding how RBMX affects NORAD levels also should be placed in the Discussion.

As described above, this manuscript is formatted with a combined Results and Discussion section. As such, reasonable speculation and interpretation follows the presentation of each main experiment.

• Can the authors please elaborate why the NORAD:RBMX study finds PUM only ranking 185th in the RAP-IP experiment and below the significant threshold? Why does applying the strategy with three search engines make this difference?

Because the Munschauer et al. study analyzed the RAP-MS experiment using proprietary software that we do not have access to (Spectrum Mill v6.01 pre-release from Agilent Technologies), we are unable to reproduce their analysis and therefore we cannot state definitively why PUM proteins were not more highly ranked in their reported results. However, several aspects of their analysis are notable and may have contributed to their findings. First, we detect two isoforms for both PUM1 and PUM2. We do not know which isoform they refer to as PUM2 (ranked 185 in their analysis) and they do not comment on the PUM1 ranking (which is significantly higher than PUM2 in our analysis). Second, their ranking is based on fold increase in NORAD signal compared to signal observed in RMRP pull-down. We do not think RMRP pull-down is the ideal control since different proteins will exhibit different levels of binding to RMRP which may or may not represent background. Instead, we believe that NORAD knockout would have been a better control. Regardless, they chose to set a log2 fold-increase of 1.6 (NORAD/RMRP pull-down), with p < 0.05, as their arbitrary significance threshold. Notably, we observe PUM1 immediately below the enrichment cut-off of log2 1.6, with a more significant p-value than RBMX (see Figure 3—figure supplement 1). Nevertheless, we would prefer not to comment further on their analysis since the data are clear that i) PUM1 and PUM2 are detectable interactors by RAP-MS and ii) these interactions have been confirmed in multiple independent CLIP datasets from human and mouse cells.

• There are no biological replicates in Figure 2D; why has Figure 2C biological replicates and not Figure 2D? Also, please provide statistics if the burst of NORAD in Figure 2C at 12h is significant.

We now provide biological triplicates for the experiments in Figure 2D and Figure 2—figure supplement 1D (subcellular fractionation after treatment with doxorubicin/camptothecin plus actinomycin D). In addition, we provide statistics in Figure 2C and Figure 2—figure supplement 1C, showing that the burst of NORAD expression after doxorubicin/camptothecin treatment is indeed statistically significant.

• Please provide for the 2 independent clones in Figure 4C the analysis as in Figure 3B; does the degree of overexpression differ between the clones?

The expression levels of all NORAD constructs in both replicates is now provided in Figure 3C of the revised manuscript. Both clones exhibit very similar levels of expression of NORAD rescue constructs.

• Results paragraph one; perhaps "Importantly, a single cell line (human colon cancer cell line HCT116) was used in both of these studies"?

We have edited this sentence as follows:

“Importantly, a single cell line (human colon cancer cell line HCT116) was used in both the previous (Lee et al., 2016) and more recent studies (Munschauer et al., 2018), arguing against a cell-type specific difference in NORAD trafficking as the cause of these discordant results.”

• Results paragraph four – insert "predominantly": "NORAD is a predominantly cytoplasmic RNA in HCT116 cells"

Edited as suggested.

• Subsection “PUM1, PUM2, and RBMX are components of the NORAD interactome”: Please confirm whether the RAP-MS experiments used HCT116 cells also.

HCT116 cells were indeed used in the RAP-MS experiments and this is now indicated in the text.

• Subsection “Binding of PUMILIO, but not RBMX, to NORAD is necessary for genome stability” paragraph three: NORAD "interaction with RBMX was abolished". Is this correct?

As shown in Figure 4A of the revised manuscript, the 5' deletion and ND4 fragments of NORAD exhibit minimal enrichment after RBMX pull-down relative to IgG (~1.0-1.3 fold enrichment). This magnitude of enrichment is indistinguishable from experimental noise. To more accurately describe these results, we revised the text to state that “interaction with RBMX was not detectable above background.”

• Figure 4C Explain horizontal dotted line and add significance estimates for the different comparisons.

The horizontal line indicates the highest level of aneuploidy observed in the sgControl samples. Because this is a complex figure with many data points, we feel that inclusion of this line aids the reader in distinguishing samples with elevated aneuploidy from those without. We have added a similar line to the new Figure 5D (% chromosome segregation defects). Both lines are defined in the figure legend. In addition, significance estimates are provided for all genome stability assays (Figure 5B,D).

• Figure 4—figure supplement 1. Provide full legend that explains why there are 2 bands in the anti-PUM1 WB and try to improve on the anti-PUM2 WB.

We have added a legend to Figure 4—figure supplement 1 that explains that PUM1 migrates as a doublet in HCT116 cells, possibly indicating post-translational modification or alternative splicing. We have confirmed that both bands represent PUM1 protein using siRNA knockdown experiments (not shown). We have replaced the PUM2 and RBMX blots in this figure with higher quality western blots.

• Subsection “Generation and AAVS1 knock-in of NORAD constructs”: typo "and ND4 and were amplified"

Thank you for highlighting this typo, which we have now corrected.

https://doi.org/10.7554/eLife.48625.018

Article and author information

Author details

  1. Mahmoud M Elguindy

    1. Department of Molecular Biology, University of Texas Southwestern Medical Center, Dallas, United States
    2. Medical Scientist Training Program, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9151-1751

  2. Florian Kopp

    Department of Molecular Biology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9952-635X

  3. Mohammad Goodarzi

    Department of Biochemistry, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation, Software, Formal analysis, Methodology
    Competing interests
    No competing interests declared

  4. Frederick Rehfeld

    Department of Molecular Biology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2751-1025

  5. Anu Thomas

    Department of Molecular Biology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared

  6. Tsung-Cheng Chang

    Department of Molecular Biology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared

  7. Joshua T Mendell

    1. Department of Molecular Biology, University of Texas Southwestern Medical Center, Dallas, United States
    2. Harold C Simmons Comprehensive Cancer Center, University of Texas Southwestern Medical Center, Dallas, United States
    3. Hamon Center for Regenerative Science and Medicine, University of Texas Southwestern Medical Center, Dallas, United States
    4. Howard Hughes Medical Institute, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Visualization, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    joshua.mendell@utsouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8479-2284

Funding

Cancer Prevention and Research Institute of Texas (RP160249)

  • Joshua T Mendell

National Institutes of Health (R35CA197311)

  • Joshua T Mendell

National Institutes of Health (P30CA142543)

  • Joshua T Mendell

National Institutes of Health (P50CA196516)

  • Joshua T Mendell

Welch Foundation (I-1961-20180324)

  • Joshua T Mendell

Howard Hughes Medical Institute

  • Joshua T Mendell

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Rudolf Jaenisch, Didier Trono, Stanley Qi, Jonathan Weissman, and Feng Zhang for plasmids; Shinichi Nakagawa for technical assistance with RNA FISH; Sushama Sivakumar and Hongtao Yu for assistance with quantification of chromosome segregation defects; Sangeeta Patel in the Veripath Cytogenetics laboratory at UT Southwestern for DNA FISH; and Sungyul Lee, Kathryn O’Donnell, and members of the Mendell laboratory for helpful discussions and comments on the manuscript. This work was supported by grants from CPRIT (RP160249 to JTM), NIH (R35CA197311 to JTM; P30CA142543 to JTM; and P50CA196516 to JTM), and the Welch Foundation (I-1961–20180324 to JTM). JTM is an investigator of the Howard Hughes Medical Institute.

Senior Editor

  1. James L Manley, Columbia University, United States

Reviewing Editor

  1. Chris P Ponting, University of Edinburgh, United Kingdom

Reviewers

  1. Igor Ulitsky, The Weizmann Institute of Science, Israel
  2. Philip Grote, Goethe University Frankfurt, Germany

Version history

  1. Received: May 22, 2019
  2. Accepted: July 22, 2019
  3. Accepted Manuscript published: July 25, 2019 (version 1)
  4. Version of Record published: August 2, 2019 (version 2)

Copyright

© 2019, Elguindy et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,734
    Page views
  • 540
    Downloads
  • 41
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Mahmoud M Elguindy
  2. Florian Kopp
  3. Mohammad Goodarzi
  4. Frederick Rehfeld
  5. Anu Thomas
  6. Tsung-Cheng Chang
  7. Joshua T Mendell
(2019)
PUMILIO, but not RBMX, binding is required for regulation of genomic stability by noncoding RNA NORAD
eLife 8:e48625.
https://doi.org/10.7554/eLife.48625

Categories and tags

Research organism

Further reading

    1. Chromosomes and Gene Expression
    2. Genetics and Genomics

    PUMILIO hyperactivity drives premature aging of Norad-deficient mice

    Florian Kopp, Mahmoud M Elguindy ... Joshua T Mendell
    Research Article Updated

    Although numerous long noncoding RNAs (lncRNAs) have been identified, our understanding of their roles in mammalian physiology remains limited. Here, we investigated the physiologic function of the conserved lncRNA Norad in vivo. Deletion of Norad in mice results in genomic instability and mitochondrial dysfunction, leading to a dramatic multi-system degenerative phenotype resembling premature aging. Loss of tissue homeostasis in Norad-deficient animals is attributable to augmented activity of PUMILIO proteins, which act as post-transcriptional repressors of target mRNAs to which they bind. Norad is the preferred RNA target of PUMILIO2 (PUM2) in mouse tissues and, upon loss of Norad, PUM2 hyperactively represses key genes required for mitosis and mitochondrial function. Accordingly, enforced Pum2 expression fully phenocopies Norad deletion, resulting in rapid-onset aging-associated phenotypes. These findings provide new insights and open new lines of investigation into the roles of noncoding RNAs and RNA binding proteins in normal physiology and aging.

    1. Chromosomes and Gene Expression

    Single molecule analysis of CENP-A chromatin by high-speed atomic force microscopy

    Daniël P Melters, Keir C Neuman ... Yamini Dalal
    Research Article

    Chromatin accessibility is modulated in a variety of ways to create open and closed chromatin states, both of which are critical for eukaryotic gene regulation. At the single molecule level, how accessibility is regulated of the chromatin fiber composed of canonical or variant nucleosomes is a fundamental question in the field. Here, we developed a single-molecule tracking method where we could analyze thousands of canonical H3 and centromeric variant nucleosomes imaged by high-speed atomic force microscopy. This approach allowed us to investigate how changes in nucleosome dynamics in vitro inform us about transcriptional potential in vivo. By high-speed atomic force microscopy, we tracked chromatin dynamics in real time and determined the mean square displacement and diffusion constant for the variant centromeric CENP-A nucleosome. Furthermore, we found that an essential kinetochore protein CENP-C reduces the diffusion constant and mobility of centromeric nucleosomes along the chromatin fiber. We subsequently interrogated how CENP-C modulates CENP-A chromatin dynamics in vivo. Overexpressing CENP-C resulted in reduced centromeric transcription and impaired loading of new CENP-A molecules. From these data, we speculate that factors altering nucleosome mobility in vitro, also correspondingly alter transcription in vivo. Subsequently, we propose a model in which variant nucleosomes encode their own diffusion kinetics and mobility, and where binding partners can suppress or enhance nucleosome mobility.

    1. Cell Biology
    2. Chromosomes and Gene Expression

    The kleisin subunit controls the function of C. elegans meiotic cohesins by determining the mode of DNA binding and differential regulation by SCC-2 and WAPL-1

    Maikel Castellano-Pozo, Georgios Sioutas ... Enrique Martinez-Perez
    Short Report Updated

    The cohesin complex plays essential roles in chromosome segregation, 3D genome organisation, and DNA damage repair through its ability to modify DNA topology. In higher eukaryotes, meiotic chromosome function, and therefore fertility, requires cohesin complexes containing meiosis-specific kleisin subunits: REC8 and RAD21L in mammals and REC-8 and COH-3/4 in Caenorhabditis elegans. How these complexes perform the multiple functions of cohesin during meiosis and whether this involves different modes of DNA binding or dynamic association with chromosomes is poorly understood. Combining time-resolved methods of protein removal with live imaging and exploiting the temporospatial organisation of the C. elegans germline, we show that REC-8 complexes provide sister chromatid cohesion (SCC) and DNA repair, while COH-3/4 complexes control higher-order chromosome structure. High-abundance COH-3/4 complexes associate dynamically with individual chromatids in a manner dependent on cohesin loading (SCC-2) and removal (WAPL-1) factors. In contrast, low-abundance REC-8 complexes associate stably with chromosomes, tethering sister chromatids from S-phase until the meiotic divisions. Our results reveal that kleisin identity determines the function of meiotic cohesin by controlling the mode and regulation of cohesin–DNA association, and are consistent with a model in which SCC and DNA looping are performed by variant cohesin complexes that coexist on chromosomes.
