Tuberculosis-associated IFN-I induces Siglec-1 on tunneling nanotubes and favors HIV-1 spread in macrophages

  1. Maeva Dupont
  2. Shanti Souriant
  3. Luciana Balboa
  4. Thien-Phong Vu Manh
  5. Karine Pingris
  6. Stella Rousset
  7. Céline Cougoule
  8. Yoann Rombouts
  9. Renaud Poincloux
  10. Myriam Ben Neji
  11. Carolina Allers
  12. Deepak Kaushal
  13. Marcelo J Kuroda
  14. Susana Benet
  15. Javier Martinez-Picado
  16. Nuria Izquierdo-Useros
  17. Maria del Carmen Sasiain
  18. Isabelle Maridonneau-Parini
  19. Olivier Neyrolles
  20. Christel Vérollet  Is a corresponding author
  21. Geanncarlo Lugo-Villarino  Is a corresponding author
  1. Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, France
  2. International associated laboratory (LIA) CNRS 'IM-TB/HIV', France
  3. Institute of Experimental Medicine-CONICET, National Academy of Medicine, Argentina
  4. Aix Marseille Univ, CNRS, INSERM, CIML, France
  5. Tulane National Primate Research Center, Department of Microbiology and Immunology, School of Medicine, Tulane University, United States
  6. IrsiCaixa AIDS Research Institute, Department of Retrovirology, Spain
  7. Universitat Autònoma de Barcelona, Spain
  8. University of Vic-Central University of Catalonia (UVic-UCC), Spain
  9. Catalan Institution for Research and Advanced Studies (ICREA), Spain
  10. Institut d’Investigació en Ciències de la Salut Germans Trias i Pujol, Spain
Research Article
  • Cited 1
  • Views 1,318
  • Annotations
Cite this article as: eLife 2020;9:e52535 doi: 10.7554/eLife.52535

Abstract

While tuberculosis (TB) is a risk factor in HIV-1-infected individuals, the mechanisms by which Mycobacterium tuberculosis (Mtb) worsens HIV-1 pathogenesis remain scarce. We showed that HIV-1 infection is exacerbated in macrophages exposed to TB-associated microenvironments due to tunneling nanotube (TNT) formation. To identify molecular factors associated with TNT function, we performed a transcriptomic analysis in these macrophages, and revealed the up-regulation of Siglec-1 receptor. Siglec-1 expression depends on Mtb-induced production of type I interferon (IFN-I). In co-infected non-human primates, Siglec-1 is highly expressed by alveolar macrophages, whose abundance correlates with pathology and activation of IFN-I/STAT1 pathway. Siglec-1 localizes mainly on microtubule-containing TNT that are long and carry HIV-1 cargo. Siglec-1 depletion decreases TNT length, diminishes HIV-1 capture and cell-to-cell transfer, and abrogates the exacerbation of HIV-1 infection induced by Mtb. Altogether, we uncover a deleterious role for Siglec-1 in TB-HIV-1 co-infection and open new avenues to understand TNT biology.

Introduction

Co-infection with Mycobacterium tuberculosis (Mtb) and the human immunodeficiency virus (HIV-1), the agents of tuberculosis (TB) and acquired immunodeficiency syndrome (AIDS), respectively, is a major health issue. Indeed, TB is the most common illness in HIV-1-infected individuals, about 55% of TB notified patients are also infected with HIV-1, and about a fifth of the TB death toll occurs in HIV-1 co-infected individuals (WHO health report 2017). Clinical studies evidence a synergy between these two pathogens, which is associated with a spectrum of aberration in immune function (Esmail et al., 2018). Yet, while progress has been made towards understanding how HIV-1 enhances Mtb growth and spread, the mechanisms by which Mtb exacerbates HIV-1 infection require further investigation (Bell and Noursadeghi, 2018; Deffur et al., 2013; Diedrich and Flynn, 2011).

Besides CD4+ T cells, macrophages are infected by HIV-1 in humans and by the simian immunodeficiency virus (SIV), the most closely related lentivirus to HIV, in non-human primates (NHP) (Cribbs et al., 2015; Rodrigues et al., 2017). Recently, using a humanized mouse model, macrophages were shown to sustain HIV-1 infection and replication, even in the absence of T cells (Honeycutt et al., 2017; Honeycutt et al., 2016). This is in line with several studies characterizing tissue macrophages, such as alveolar, microglia and gut macrophages, as reservoirs in HIV-1 patients undergoing antiretroviral therapy (Ganor et al., 2019; Jambo et al., 2014; Mathews et al., 2019; Sattentau and Stevenson, 2016).

Macrophages are key host cells for Mtb (O'Garra et al., 2013; VanderVen et al., 2016). We recently reported the importance of macrophages in HIV-1 exacerbation within the TB co-infection context (Souriant et al., 2019). Using relevant in vitro and in vivo models, we showed that TB-associated microenvironments activate macrophages towards an M(IL-10) profile, distinguished by a CD16+CD163+MerTK+ phenotype. Acquisition of this phenotype is dependent on the IL-10/STAT3 signaling pathway (Lastrucci et al., 2015). M(IL-10) macrophages are highly susceptible not only to Mtb infection (Lastrucci et al., 2015), but also to HIV-1 infection and spread (Souriant et al., 2019). At the functional level, we demonstrated that TB-associated microenvironments stimulate the formation of tunneling nanotubes (TNT), membranous channels connecting two or more cells over short to long distances above substrate. TNT are subdivided in two classes based on their thickness and cytoskeleton composition: ‘thin’ TNT (<0.7 μm in diameter) containing F-actin, and ‘thick’ TNT (>0.7 μm in diameter) are enriched in F-actin and microtubules (MT) (Souriant et al., 2019). Thick TNT are functionally distinguished by the transfer of large organelles, such as lysosomes and mitochondria (Dupont et al., 2018; Eugenin et al., 2009; Hashimoto et al., 2016). While the contribution for each TNT class to HIV-1 pathogenesis has not been explored (Dupont et al., 2018; Eugenin et al., 2009; Hashimoto et al., 2016), we reported that total inhibition of TNT formation in M(IL-10) macrophages resulted in the abrogation of HIV-1 exacerbation induced by Mtb (Souriant et al., 2019). Factors influencing TNT function in M(IL-10) macrophages remain unknown at large.

In this study, global mapping of the M(IL-10) macrophage transcriptome revealed Siglec-1 (CD169, or sialoadhesin) as a potential factor responsible for HIV-1 dissemination in the co-infection context with TB. As a type-I transmembrane lectin receptor, Siglec-1 possesses a large extracellular domain composed of 17 immunoglobulin-like domains, including the N-terminal V-set domain, which allows the trans recognition of terminal α2,3-linked sialic acid residues in O- and N-linked glycans and glycolipids, such as those surface-exposed in HIV-1 and SIV particles (Izquierdo-Useros et al., 2012a; Puryear et al., 2012). While Siglec-1 has yet to be implicated in the TB context, it is clearly involved in the pathogenesis of HIV-1, SIV and other retroviruses (Martinez-Picado et al., 2017). Siglec-1 is mainly expressed in myeloid cells (e.g. macrophages and dendritic cells) and participates in HIV-1 transfer from myeloid cells to T cells, as well as in the initiation of virus-containing compartment (VCC) formation in macrophages (Izquierdo-Useros et al., 2012a; Izquierdo-Useros et al., 2012b; Puryear et al., 2013; Puryear et al., 2012), and in the viral dissemination in vivo (Akiyama et al., 2017; Izquierdo-Useros et al., 2012a; Sewald et al., 2015). Indeed, HIV-1 and other retroviruses have evolved the capacity to hijack the immune surveillance and housekeeping immunoregulatory functions of Siglec-1 (Izquierdo-Useros et al., 2014; O'Neill et al., 2013). Here, we investigate how Siglec-1 expression is induced by TB, and the role it has in the capture and transfer of HIV-1 by TB-induced M(IL-10) macrophages, in particular in the context of TNT.

Results

Tuberculosis-associated microenvironments induce Siglec-1 in macrophages

TB-induced M(IL-10) macrophages are highly susceptible to HIV-1 infection and spread (Souriant et al., 2019). To assess the global gene expression landscape in these cells, we performed a genome-wide transcriptome analysis (GEO submission GSE139511). To this end, we employed our published in vitro model (Lastrucci et al., 2015), which relies on the use of conditioned medium from either mock- (cmCTR) or Mtb-infected (cmMTB) human macrophages. As we described and observed before and herein, cmMTB-treated cells were positive for the M(IL-10) markers (CD16+CD163+MerTK+ and phosphorylated STAT3), and displayed a high rate of HIV-1 infection, as compared to those treated with cmCTR (Lastrucci et al., 2015). A distinct 60 gene-transcript signature was defined in cmMTB-treated cells, using a combination of the expression level, statistical filters and hierarchical clustering; 51 genes were up-regulated and nine genes were down-regulated in cmMTB- compared to cmCTR-treated cells (Figure 1A). We compared expression data of cmMTB- and cmCTR-treated cells to public genesets available from MSigDB (Broad Institute) using the gene set enrichment analysis (GSEA) algorithm (Subramanian et al., 2005). As shown in Figure 1—figure supplement 1A, a significant fraction of genes that were up-regulated in response to interferon (IFN) type I (e.g. IFNα) and II (i.e. IFNγ), were also found, as a group, significantly up-regulated in cmMTB-treated cells in comparison to control samples (FDR q-value:<10-3). IFN-stimulated genes (ISG) usually exert antiviral activities (McNab et al., 2015; Schneider et al., 2014) and cannot be inferred as obvious candidates to facilitate HIV-1 infection. However, among this ISG signature, the up-regulation of Siglec-1 (7.4-fold, adjusted p-value of 0.0162) in cmMTB-treated cells captured our attention due to its known role in HIV-1 pathogenesis (Izquierdo-Useros et al., 2014; O'Neill et al., 2013). We confirmed a high Siglec-1 expression in cmMTB-treated macrophages at the mRNA (Figure 1B), intracellular and cell-surface protein (Figure 1C and Figure 1—figure supplement 1B–D) levels. This effect was superior to the level obtained in HIV-1-infected cells (Figure 1—figure supplement 1E). Particularly, cmMTB-treated macrophages displayed high density of Siglec-1 surface expression applying a quantitative FACS assay that determines the absolute number of Siglec-1 antibody binding sites per cell (Figure 1D).

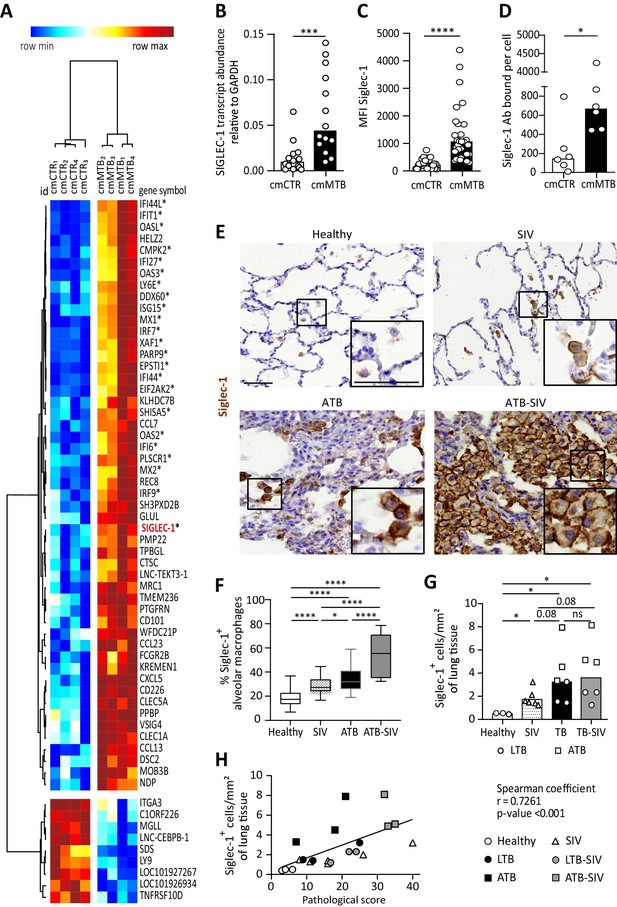

Figure 1 with 2 supplements see all
Tuberculosis-associated microenvironments induce Siglec-1 expression in macrophages.

(A–D) For 3 days, human monocytes were differentiated into macrophages with cmCTR (white) or cmMTB (black) supernatants. (A) Heatmap from a transcriptomic analysis (GEO submission GSE139511) illustrating the top 60 differentially expressed genes (DEGs) between cmCTR- or cmMTB-cells. Selection of the top DEGs was performed using an adjusted p-value ≤ 0.05, a fold change of at least 2, and a minimal expression of 6 in a log2 scale. Hierarchical clustering was performed using the complete linkage method and the Pearson correlation metric with Morpheus (Broad Institute). Interferon-stimulated genes (ISG) are labelled with an asterisk and Siglec-1 is indicated in red. (B–D) Validation of Siglec-1 expression in cmMTB-treated macrophages. Vertical scatter plots showing the relative abundance to mRNA (B), median fluorescent intensity (MFI) (C), and mean number of Siglec-1 antibody binding sites per cell (D). Each circle represents a single donor and histograms median values. (E) Representative immunohistochemical images of Siglec-1 staining (brown) in lung biopsies of healthy, SIV infected (SIV), active TB (ATB), and co-infected (ATB-SIV) non-human primates (NHP). Scale bar, 100 µm. Insets are 2x zoom. (F) Vertical Box and Whisker plot indicating the distribution of the percentage of Siglec-1+ alveolar macrophages in lung biopsies from the indicated NHP groups. Quantification analysis from n = 800 alveolar macrophages grouped from three independent animals per NHP group. (G) Vertical scatter plots displaying the number of cells that are positive for Siglec-1 per mm² of lung biopsies from the indicated NHP groups. Each symbol represents a single animal per NHP group. (H) Correlation between Siglec-1+ cells per mm² of lung tissue and the pathological score for healthy (white circle), SIV+ (white triangles), latent (black circle) or active (black square) TB, and SIV+ with latent (grey circle) or active (grey square) TB. Each symbol represents a single animal per NHP group. Mean value is represented as a black line. Statistical analyses: Two-tailed, Wilcoxon signed-rank test (B–D), Mann-Whitney unpaired test (F–G), Spearman correlation (H). *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001. ns: not significant. See Figure 1—source data 1.

These data indicate that Siglec-1 is highly expressed in human macrophages exposed to TB-associated microenvironments and potentially in the context of TB-HIV co-infection.

Siglec-1+ alveolar macrophage abundance correlates with pathology in co-infected primates

NHP has been an invaluable in vivo model to better understand the role of macrophages in SIV/HIV pathogenesis (Merino et al., 2017). Considering Siglec-1 binds sialylated lipids present in the envelop of HIV-1 and SIV (Izquierdo-Useros et al., 2012a; Puryear et al., 2012), we examined the presence of Siglec-1 positive alveolar macrophages in lung biopsies obtained from different NHP groups: (i) co-infected with Mtb (active or latent TB) and SIV, (ii) mono-infected with Mtb (active or latent TB), (iii) mono-infected with SIV, and (iv) healthy (Supplementary file 1-Table S1, Figure 1—figure supplement 2A; Cai et al., 2015; Kuroda et al., 2018; Souriant et al., 2019). Histological immuno-staining confirmed the presence of Siglec-1+ alveolar macrophages in the lungs of healthy NHP (Figure 1E–F and Figure 1—figure supplement 2A), and revealed its significant increase in NHP mono-infected with either Mtb or SIV (Figure 1E–F and Figure 1—figure supplement 2A). Strikingly, we noticed a massive abundance of these cells in co-infected NHP (Figure 1E–F and Figure 1—figure supplement 2A). Concerning the overall abundance of Siglec-1+ leukocytes in lungs, we observed a significant increase in all infected NHP in comparison to healthy, with a higher tendency in active TB or co-infected NHP (Figure 1G and Figure 1—figure supplement 2A). In fact, the number of Siglec-1+ leukocytes correlated positively with the severity of NHP pathology (Figure 1H, Supplementary file 1-Table S2). Based on their cell morphology, localization in alveoli, and co-expression with the macrophage marker CD163 (Figure 1—figure supplement 2A–C), Siglec-1+ cells were identified as alveolar macrophages.

Collectively, these data show that Siglec-1 is up-regulated in alveolar macrophages in the context of a retroviral co-infection with active TB.

Siglec-1 expression is dependent on Mtb-induced type I IFN signaling

Siglec-1 is an ISG whose expression is induced by IFN-I in myeloid cells (Hartnell et al., 2001). In addition to viral infection, IFN-I is also induced in TB and known to mainly play a detrimental role (McNab et al., 2015; Moreira-Teixeira et al., 2018). Siglec-1 expression has not been described in the TB context or in co-infection with retroviruses such as SIV or HIV-1, therefore we assessed whether IFN-I stimulates Siglec-1 expression in TB-associated microenvironments. First, we found that cmMTB contains high amounts of IFN-I compared to cmCTR (Figure 2A). Next, we showed that recombinant IFN-β significantly increased Siglec-1 cell-surface expression in macrophages, close to the level induced by cmMTB (Figure 2B). Interestingly, we observed a modest, albeit significant, induction of Siglec-1 expression in cells treated with interleukin 10 (IL-10), a cytokine we have previously shown to be abundant in cmMTB (Lastrucci et al., 2015) and that renders macrophages highly susceptible to HIV-1 infection (Souriant et al., 2019). However, IL-10 depletion had no effect on Siglec-1 expression by cmMTB-treated cells (Figure 2C). By contrast, blocking the IFN-I receptor (IFNAR-2) during cmMTB treatment fully abolished the expression of Siglec-1 (Figure 2D and Figure 1—figure supplement 1D), indicating that IFN-I is the responsible factor for Siglec-1 up-regulation in cmMTB-treated cells.

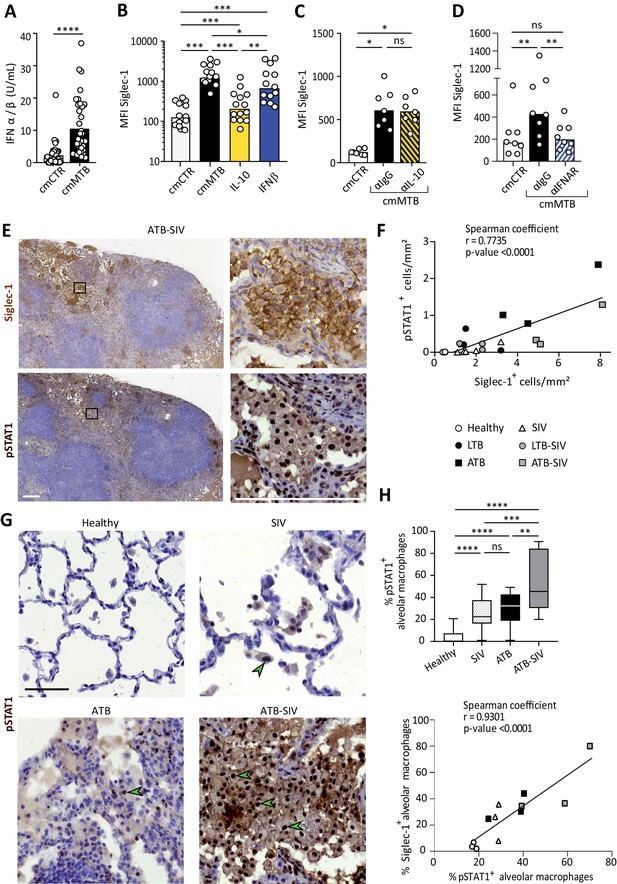

Siglec-1 expression is dependent on Mtb-induced type I IFN signaling.

(A) Vertical scatter plot showing the relative abundance of IFN-I in cmCTR (white) and cmMTB (black) media, as measured indirectly after 24 hr exposure to the HEK-Blue IFN-α/β reporter cell line yielding reporter activity in units (U) per mL. (B–D) Vertical scatter plots displaying the median fluorescent intensity (MFI) of Siglec-1 cell-surface expression after three days of monocyte differentiation into macrophages either with cmMTB (black) or cmCTR (white), the indicated recombinant cytokines (B), the presence of an IL-10 depletion (α-IL-10) or a control (α-IgG) antibodies (C), or the presence of an IFNAR-2 blocking (α-IFNAR) or control (α-IgG) antibodies (D). (E) Representative serial immunohistochemical images of lung biopsies of a co-infected (ATB-SIV) NHP stained for Siglec-1 (brown, top) and pSTAT1 (brown, bottom). Scale bar, 250 µm. Insets are 10x zooms. (F) Correlation of the percentage of cells positive for Siglec-1 and pSTAT1, as measured per mm2 of lung tissue from the indicated NHP groups. Mean value is represented as a black line. (G) Representative immunohistochemical images of lung biopsies from the indicated NHP group stained for pSTAT1 (brown). Arrowheads show pSTAT1-positive nuclei. Scale bar, 500 µm. (H) Upper panel: Vertical Box and Whisker plot illustrating the percentage of pSTAT1+ alveolar macrophages in lung biopsies from the indicated NHP groups. Quantification analysis from n = 600 alveolar macrophages grouped from three independent animals per NHP group. Lower panel: Correlation of the percentage of alveolar macrophages positive for Siglec-1 and pSTAT1, from the indicated NHP groups. Mean value is represented as a black line. (A–D) Each circle within vertical scatter plots represents a single donor and histograms median value. Statistical analyses: Two-tailed, Wilcoxon signed-rank test (A–D), Spearman correlation (F, H lower panel), and Mann-Whitney unpaired test (H, upper panel). *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001. ns: not significant. See Figure 2—source data 1.

IFN-I binding to IFNAR leads to the phosphorylation and nuclear translocation of the transcription factor STAT1, whose role is essential for transcription of ISG (Ivashkiv and Donlin, 2014). We thus examined the status of STAT1 activation in co-infected NHP lung tissue. Histological staining of serial sections of co-infected lungs revealed that zones rich in Siglec-1+ leukocytes also exhibited positivity for nuclear phosphorylated STAT1 (pSTAT1) (Figure 2E), and the abundance of these two markers strongly correlated with the active status of TB in the different NHP groups (Figure 2F). Moreover, we found that the majority of Siglec-1+ alveolar macrophages were also positive for nuclear pSTAT1 in the infected NHP groups compared to healthy (Figure 2E and G). In fact, there was a higher number of pSTAT1+ alveolar macrophages in TB-SIV co-infected lungs when compared to those from mono-infected NHP and this number directly correlates with the number of Siglec-1+ alveolar macrophages (Figure 2G–H).

Altogether, these data demonstrate that Siglec-1 expression in human macrophages is controlled by IFN-I in a TB-associated microenvironment, and suggest the involvement of the IFN-I/STAT1/Siglec-1 axis in the pathogenesis of TB and co-infection with retroviruses.

Siglec-1 localization on thick TNT is associated with their length and HIV-1 cargo

TNT formation is responsible for the increase in HIV-1 spread between human macrophages in TB-associated microenvironments (Souriant et al., 2019). To investigate whether Siglec-1 expression is involved in this process, we first examined its localization in the context of TNT formed by cmMTB-treated cells infected by HIV-1. We observed that Siglec-1 is localized mainly on microtubule (MT)-positive thick TNT, and not on thin TNT (Figure 3A and Figure 3—video 1). Semi-automatic quantification of hundreds of TNT showed that about 50% of thick TNT were positive for Siglec-1 (Figure 3B and Figure 3—figure supplement 1A). These TNT exhibited a greater length compared to those lacking Siglec-1 (Figure 3C). Importantly, unlike thin TNT, HIV-1 viral proteins are found mainly inside Siglec-1+ thick TNT (Figure 3D–E and Figure 3—video 2). In addition, these thick TNT also contained large organelles such as mitochondria (Figure 3F and Figure 3—figure supplement 1B), another characteristic distinguishing thick from thin TNT (Dupont et al., 2018; Onfelt et al., 2006). In general, we also noticed that the incidence of Siglec-1+ thick TNT between HIV-1 infected macrophages persisted for more than one week upon HIV-1 infection (Figure 3—figure supplement 1C), suggesting a high degree of stability for these TNT.

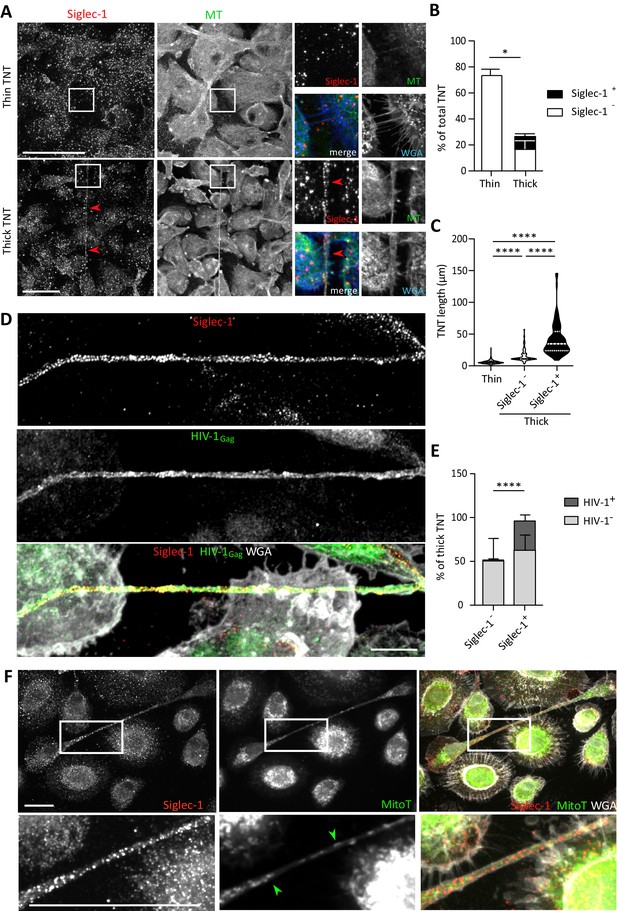

Figure 3 with 3 supplements see all
Siglec-1 localization on thick TNT is associated with their length and HIV-1/mitochondria cargo.

(A–F) Human monocytes were differentiated into macrophages with cmMTB for 3 days, and then infected with HIV-1-ADA strain (unless indicated otherwise) and fixed 3 days post-infection. (A) Representative immunofluorescence images of cmMTB-treated macrophages infected with HIV-1-ADA, and stained for extracellular Siglec-1 (red), intracellular tubulin (MT, green) and Wheat Germ Agglutinin (WGA, blue). Inserts are 3x zooms. Red arrowheads show Siglec-1 localization on TNT. Scale bar, 20 µm. (B) Vertical bar plot showing the semi-automatic quantification of Siglec-1+ TNT (black) and Siglec-1- TNT (white) in thick (WGA+, MT+) and thin (WGA+, MT-) TNT. 400 TNT were analyzed from two independent donors. (C) Siglec-1+ TNT exhibit a larger length index. Violin plots displaying the semi-automatic quantification of TNT length (in μm) for thin (WGA+, MT-), and thick TNT (WGA+, MT+) expressing Siglec-1 or not. 400 TNT were analyzed per condition from two independent donors. (D) Representative immunofluorescence images of cmMTB-treated macrophages 3 day post-infection with HIV-1-NLAD8-VSVG strain, and stained for extracellular Siglec-1 (red), intracellular HIV-1Gag (green) and WGA (grey). Scale bar, 10 µm. (E) Vertical bar plots indicating the quantification of presence (dark grey) or absence (light grey) of HIV-1Gag in thick TNT (WGA+, MT+) expressing Siglec-1 or not. 120 TNT in at least 1000 cells were analyzed from four independent donors. (F) Representative immunofluorescence images of cmMTB-treated macrophages infected with HIV-1-ADA loaded with MitoTracker (MitoT, green), and stained for extracellular Siglec-1 (red) and WGA (grey). Inserts are 3x zooms. Green arrowheads show mitochondria inside TNT. Scale bar, 10 µm. Statistical analyses: Two-way ANOVA comparing the presence of Siglec-1 in thin and thick TNT (B), and two-tailed Mann-Whitney unpaired test comparing TNT length (C) and the presence of HIV-1 in TNT (E). *p<0.05, ****p<0.0001. See Figure 3—source data 1.

These findings reveal a strong localization of Siglec-1 on MT-positive thick TNT that correlates positively with a greater length and high cargo of HIV-1 or mitochondria, arguing for a functional capacity of Siglec-1+ TNT to transfer material to recipient cells over long distances.

The Mtb-induced exacerbation of HIV-1 infection and spread in macrophages requires Siglec-1

To evaluate a functional role for Siglec-1 in the susceptibility of macrophages to HIV-1 infection and spread induced by TB, Siglec-1 was depleted in cmMTB-treated cells by siRNA-mediated gene silencing (Figure 4A and Figure 4—figure supplement 1A). While this depletion did not affect the total number of thick TNT (Figure 4B and Figure 4—figure supplement 1B), we observed a 2-fold shortening of thick TNT in cells lacking Siglec-1 when compared to control cells (Figure 4C). Then, we performed a viral uptake assay in these cells using HIV-1-Gag-eGFP virus-like particles (GFP VLP) lacking the viral envelope glycoprotein but bearing sialylated lipids that interact with Siglec-1 on myeloid cells (Izquierdo-Useros et al., 2012b; Puryear et al., 2013). We consistently observed binding of VLP along Siglec-1+ thick TNT (Figure 4—figure supplement 1C). Yet, in the absence of Siglec-1, we noticed a significant reduction of VLP binding in comparison to control cells (Figure 4—figure supplement 1D). We confirmed this functional observation using a blocking monoclonal antibody against Siglec-1, showing that this receptor is involved in HIV-1 binding in cmMTB-treated cells (Figure 4—figure supplement 1E).

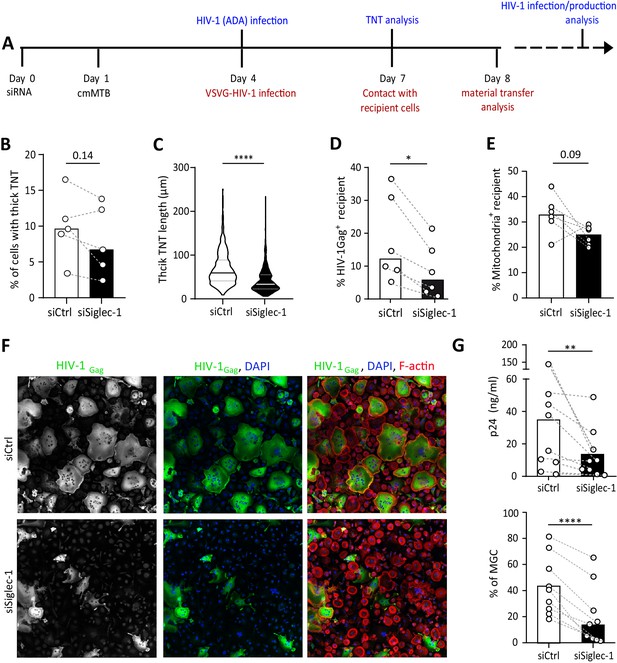

Figure 4 with 1 supplement see all
The exacerbation of HIV-1 infection and spread in macrophages treated with cmMTB requires Siglec-1.

(A) Experimental design. Monocytes from healthy subjects were transfected with siRNA targeting of Siglec-1 (siSiglec-1, black) or not (siCtrl, white). A day after, monocytes were differentiated into macrophages with cmMTB for 3 days. Cells were then infected with HIV-1-ADA (blue protocol) to measure the formation (B) and length (C) of TNT at day 7, or assess HIV-1 production and multinucleated giant cell (MGC) formation at day 14 (F–G). In parallel, cells were either infected with HIV-NLAD8-VSVG or labelled with mitoTracker to measure the transfer (red protocol) of HIV-1 (D) or mitochondria (E), respectively. (B) Before-and-after plots showing the percentage of cells forming thick TNT (F-actin+, WGA+, MT+). (C) Violin plots displaying the semi-automatic quantification of TNT length (in μm) for thick (WGA+, MT+) TNT; 300 TNT were analyzed per condition from two independent donors. (D–E) Before-and-after plots indicating the percentage of HIV-1Gag+ cells (D) or MitoTracker+ cells (E) among CellTracker+ cells after 24 hr co-culture. (F) Representative immunofluorescence images of siRNA transfected cells treated with cmMTB, 14 days post-HIV-1 infection. Cells were stained for intracellular HIV-1Gag (green), F-actin (red) and DAPI (blue). Scale bar, 500 µm. (G) Vertical scatter plots showing HIV-1-p24 concentration in cell supernatants (upper panel) and percentage of MGC (lower panel) at day 14 post-HIV-1 infection in cells represented in F (siSiglec-1, black; siCtrl, white). (B, D, E and G) Each circle represents a single donor and histograms median value. Statistical analyses: Paired t-test (B, G lower panel) or two-tailed, Wilcoxon signed-rank test (C-E, G upper panel). *p<0.05, **p<0.01, ****p<0.0001. See Figure 4—source data 1.

We then assessed the role of Siglec-1 in HIV-1 transfer between macrophages, as this receptor is also important for the transfer of the virus to CD4+ T cells (Akiyama et al., 2015; Izquierdo-Useros et al., 2012a; Puryear et al., 2013). We used an established co-culture system between cmMTB-treated macrophages that allows the transfer of the viral Gag protein from infected (donor, Gag+, red) to uninfected (recipient, CellTracker+, green) cells over 24 hr (Souriant et al., 2019; Figure 4—figure supplement 1F). Of note, since Siglec-1 facilitates the infection of macrophages (Zou et al., 2011), we used VSV-G pseudotyped viruses to avoid any effect on HIV-1 primo-infection. Like this, we ensured the viral content was equal in cells at the time of the co-culture despite the loss of Siglec-1 (Figure 4—figure supplement 1G). The siRNA-mediated depletion of Siglec-1 significantly diminished the capacity of cmMTB-treated macrophages to transfer HIV-1 to recipient cells (Figure 4D), indicating that this receptor is involved in the macrophage-to-macrophage viral spread (Souriant et al., 2019). Intriguingly, there was a decreasing tendency for the capacity of Siglec-1-depleted cmMTB-treated macrophages to transfer mitochondria to recipient cells compared to controls (Figure 4E and Figure 4—figure supplement 1F), alluding to a possible defect in mechanisms involved in intercellular material transfer including through thick TNT (Torralba et al., 2016). Remarkably, using replicative HIV-1 ADA strain (Figure 4A), we showed that silencing Siglec-1 expression in cmMTB-treated cells abolished the exacerbation of HIV-1 infection and production, as well as the enhanced formation of multinucleated giant cells (MGC) (Figure 4F–G), which are pathological hallmarks of HIV-1 infection of macrophages (Vérollet et al., 2015; Vérollet et al., 2010).

These results determine that TB-induced Siglec-1 expression plays a key part in HIV-1 uptake and efficient cell-to-cell transfer, resulting in the exacerbation of HIV-1 infection and production in M(IL-10) macrophages.

Discussion

In this study, we investigated potential mechanisms by which Mtb exacerbates HIV-1 infection in macrophages, and uncovered a deleterious role for Siglec-1 in this process. These findings have different contributions to our understanding of this receptor in the synergy between Mtb and distinct retroviral infections, and also for TNT biology in host-pathogen interactions.

Our global transcriptomic approach revealed the up-regulation of Siglec-1, as part of an ISG-signature enhanced in macrophages exposed to a TB-associated microenvironment. Although pulmonary active TB has been characterized as an IFN-I-driven disease (Berry et al., 2010; McNab et al., 2015; Moreira-Teixeira et al., 2018), there are no report in the literature about a role for Siglec-1 in TB or in Mtb co-infection with retroviruses. Expression of Siglec-1 is restricted to myeloid cells except circulating monocytes (Crocker et al., 2007), and is enhanced by IFN-I (Puryear et al., 2013; Rempel et al., 2008) and during HIV-1 infection (Pino et al., 2015). In addition, human alveolar macrophages are distinguished from lung interstitial macrophages by Siglec-1 expression (Yu et al., 2016). In this study, we determined that IFN-I present in TB-associated environment is responsible for Siglec-1 overexpression in human macrophages, which resembled that obtained in HIV-1-infected cells. While we saw a modest induction of Siglec-1 in macrophages upon IL-10 treatment, its depletion from the TB-associated microenvironment had no effect on Siglec-1 expression. This could be explained by the fact that IL-10 induces the autocrine production of IFN-I (Ziegler-Heitbrock et al., 2003) to indirectly modulate Siglec-1 expression in M(IL-10) macrophages, which then contributes to the exacerbation of HIV-1 infection as we previously reported (Souriant et al., 2019). In the context of the most closely related lentivirus to HIV, namely SIV, we not only confirmed the presence of Siglec-1+ alveolar macrophages in SIV-infected NHP, but also reported the high abundance of these cells in active TB and in co-infected NHP groups, when compared to healthy ones. Importantly, we associated the high abundance of Siglec-1+ leukocytes with the increase NHP pathological scores, and it correlated positively to the detection of pSTAT1+ macrophage nuclei in histological staining of serial sections of lung biopsies from co-infected NHP. This is in line with a recent report on the presence of IFN-I, IFNAR and different ISG in alveolar and lung interstitial tissue from NHP with active TB (Mattila, 2019), and with the fact that the in vivo expression of Siglec-1 is up-regulated early in myeloid cells after SIV infection and maintained thereafter in the pathogenic NHP model (Jaroenpool et al., 2007). In TB-SIV co-infection, we hypothesized that IFN-I is not exerting the expected antiviral effect, but instead is concomitant with chronic immune activation and attenuated by the high expression of Siglec-1 in myeloid cells, as recently proposed in the HIV-1 context (Akiyama et al., 2017). Altogether, these findings uncover the IFN-I/STAT1/Siglec-1 axis as a mechanism established by Mtb to exacerbate HIV-1 infection in myeloid cells, and call for the need to further investigate this signaling pathway in TB pathogenesis.

Another aspect worth highlighting is the impact that Siglec-1 expression has in the capture and transfer of HIV-1 by M(IL-10) macrophages, in particular in the context of TNT. First, we reported that Siglec-1 is located on MT-positive thick (and not on thin) TNT, correlating positively with increased length and HIV-1 cargo. To our knowledge, no receptor has been described so far to be present mainly on thick TNT, making Siglec-1 an unprecedented potential marker for this subtype of TNT (Dupont et al., 2018). Second, viral uptake assays demonstrated the functional capacity of Siglec-1, including on thick TNT, to interact with viral-like particles bearing sialylated lipids; loss-of-function approaches showed Siglec-1 is important in the capture of these viral particles. Third, Siglec-1 depletion correlated with a decrease in thick TNT length, but had no effect in the total number of thick TNT. This suggests that, while the IFN-I/STAT1 axis is responsible for Siglec-1 expression in M(IL-10) macrophages, it does not contribute to TNT formation. This is line with our previous report where TNT formation induced by TB-associated microenvironments depended on the IL-10/STAT3 axis (Souriant et al., 2019). Concerning the shortening of thick TNT length, we infer that it may reflect a fragile state due to an altered cell membrane composition in the absence of Siglec-1; TNT are known for their fragility towards light exposure, shearing force and chemical fixation (Rustom et al., 2004). We hypothesize that the longer the TNT is, the more rigidity it requires to be stabilized. Cholesterol and lipids are known to increase membrane rigidity (Redondo-Morata et al., 2012) and are thought to be critical for TNT stability (Lokar et al., 2012; Thayanithy et al., 2014). Thus, the presence of Siglec-1 in thick TNT may affect the cholesterol and lipid composition via the recruitment of GM1/GM3 glycosphingolipid-enriched microvesicles (Halász et al., 2018). In fact, TNT formation depends on GM1/GM3 ganglioside and cholesterol content (Kabaso et al., 2011; Lokar et al., 2012; Osteikoetxea-Molnár et al., 2016; Tóth et al., 2017). Since GM1 and GM3 glycosphingolipids are bona fide ligands for Siglec-1 (Puryear et al., 2013), it is likely that Siglec-1+ thick TNT exhibit a higher lipid and cholesterol content, and hence an increase of membrane rigidity that favors the stability of longer TNT. Fourth, Siglec-1-depleted donor macrophages were less capable to transfer HIV-1, and to some extend mitochondria, to recipient cells. While infectious synapse and exososome release are mechanisms attributed to Siglec-1 that contribute to cell-to-cell transfer of HIV-1 (Bracq et al., 2018; Gummuluru et al., 2014; Izquierdo-Useros et al., 2014), they accomplish so extracellularly. Here, we speculate that Siglec-1 participates indirectly in the intracellular HIV-1 transfer via TNT as a tunnel over long distance, suggesting that factors affecting TNT rigidity favor distal viral dissemination while ensuring protection against immune detection. Independent of HIV-1 infection, we also noticed that cmMTB-treated cells depleted for Siglec-1 displayed a decreasing tendency to transfer mitochondria among them. As TNT-transferred mitochondria are known to alter the metabolism and functional properties of recipient cells under steady state conditions or in the cancer context, it implies that Siglec-1 may also influence key metabolic pathways such as glycolysis, pentose phosphate and lipid metabolism, among others (Hekmatshoar et al., 2018). This is important because, for example, the gain of cancer drug resistance is directly associated to TNT-mediated mitochondria transfer, thus Siglec-1 may represent a novel therapeutic strategy to overcome cancer cell drug resistance. Finally, the depletion of Siglec-1 abrogated the exacerbation of HIV-1 infection and production induced by TB in M(IL-10) macrophages. This is likely to result from an accumulative effect of deficient capture and transfer of HIV-1 in the absence of Siglec-1. However, these results do not discern the specific contribution of Siglec-1 to the cell-to-cell transmission of HIV-1 via TNT from that obtained through other mechanisms (Bracq et al., 2018). Future studies will address whether the contribution of Siglec-1 to cell-to-cell transfer mechanisms has an impact in Mtb dissemination (Onfelt et al., 2006).

In conclusion, our study identifies Siglec-1 as a key factor involved in the exacerbation of HIV-1 infection in macrophages conditioned by cmMTB. It is worth noting that we have previously reported that a loss-of-function variant in Siglec-1 in the human population does not conclusively establish a role for this receptor in AIDS progression, even though ex vivo experiments demonstrated that cells from these individuals were functionally null or partially defective for Siglec-1 expression along with poor HIV-1 capture and transmission (Martinez-Picado et al., 2016). While this may be counterintuitive for proposing Siglec-1 as a therapeutic target to limit viral dissemination in the co-infection context, there are several challenges to the study of Siglec-1 variants, such as limited cohort size, the lack of complete clinical records, and the restriction to study only off-therapy periods, among others (Martinez-Picado et al., 2017). Therefore, there is a strong need for future work targeting Siglec-1 to unveil its in vivo contribution of the mononuclear phagocyte system to HIV-1 pathogenesis to fully exploit the therapeutic potential of this receptor. Beyond the infectious disease context, our study also sheds light on a new homeostatic function for Siglec-1 in human macrophages, such as intercellular communication facilitated by TNT. We argue that Siglec-1 localization on thick TNT has a physiological significance to macrophage biology in health and disease.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
M. tuberculosisH37RvDerived from E.R. Baldwin's human-lung isolate H37 by W. Steenken New York, United States, 1934(ATCC 25618)
HIV-1ADAGift from Dr. S Benichou
Institut Cochin, Paris, France
N/A
HIV-1NLAD8Gift from Dr. S Benichou
Institut Cochin, Paris, France
N/A
HIV-1ADA Gag-iGFP-VSVGThis paperThis paper
Buffy CoatLeukocytesEtablissement Français du Sang, Toulouse, FranceN/A
Lung biopsies from rhesus macaquesHistological slidesTulane National Primate Research CenterN/A
Cell line (human HeLa JC.53)TZM-blNIH AIDS Reagent ProgramCat# 8129Cultured in: DMEM, 90%; FBS, 10%; 100 units of Penicillin and 0.1 mg/mL of Streptomycin
Cell line (human)HEK-293TNIH AIDS Reagent ProgramCat# 3318Cultured in: DMEM, 10% FCS
Cell line (human)HEK-Blue IFN-α/β CellsInvivogenCat# hkb-ifnabCultured in: DMEM, 4.5 g/l glucose, 2 mM L-glutamine, 10% (v/v) heat-inactivated fetal bovine serum, 100 U/ml penicillin, 100 µg/mL streptomycin, 100 µg/mL Normocin
Transfected construct (human)siRNA to Siglec-1 (SMART-Pool)Horizon DiscoveryCat# L-017521-01-0020(200 nM)
Transfected construct (human)siRNA scramble (SMART Pool)Horizon DiscoveryCat# D-001810-10-50(200 nM)
AntibodyMouse monoclonal anti‑human Siglec-1 (clone 7-293)BiolegendCat# 346008
RRID:AB_11147948
FACS (1 µg/mL)
AntibodyMouse monoclonal anti‑human CD16 (clone 3G8)BiolegendCat# 302019 and 302018; RRID:AB_492974 andAB_314218FACS (1 µg/mL)
AntibodyMouse monoclonal anti‑human CD163 (clone GHI/61)BiolegendCat# 333608
RRID:AB_2228986
FACS (1 µg/mL)
AntibodyMouse monoclonal anti‑human MerTK (clone 590H11G1E3)BiolegendCat# 367607
RRID:AB_2566400
FACS (1 µg/mL)
AntibodyRabbit monoclonal anti‑human STAT1 (clone 42H3)Cell Signaling TechnologyCat# 9175
RRID:AB_2197984
WB (1:100)
AntibodyRabbit anti‑human actin (a.a. 20‑33)Sigma‑AldrichCat# A5060
RRID:AB_476738
WB (1:100)
AntibodyRabbit polyclonal anti-a-tubulinAbcamCat# ab18251
RRID:AB_2210057
IF (5 µg/mL)
AntibodyMouse monoclonal anti-Siglec-1 (clone hsn 7D2)Novus BiologicalsCat# NB 600-534
RRID:AB_526814
IF (10 µg/mL) IHC (1:200)
AntibodyMouse monoclonal anti-Gag RD1 (clone KC57)NIH AIDS Reagent programCat# 13449IF (1:200)
AntibodyMouse monoclonal anti-HIV-1 p24 (clone 183-H12-5C)NIH AIDS Reagent ProgramCat# 3537ELISA (2.5 µg/mL)
AntibodyHuman polyclonal anti-HIV Immune Globulin (HIVIG)NIH AIDS Reagent ProgramCat# 3957ELISA (6.25 µg/mL)
AntibodyPolyclonal goat anti-human IgGSigma-AldrichCat# A0170ELISA (1:10000)
AntibodyMouse monoclonal anti‑human CD163 (clone 10D6)Leica/NovocastraCat# NCL-L-CD163
RRID:AB_2756375
IHC (1:100)
AntibodyAnti-pSTAT1Cell Signaling TechnologyCat# 9167
RRID:AB_561284
WB (1:100)
AntibodyMouse monoclonal anti-IFNAR2 (clone MMHAR-2)Thermo Fisher ScientificCat# 213851
RRID:AB_223508
Blocking (20 µg/mL)
FACS (1 µg/mL)
AntibodyMouse IgG2a isotype controlThermo Fisher ScientificCat# 02-6200
RRID:AB_2532943
Blocking (20 µg/mL)
IF (0.6 µg/mL)
AntibodyPolyclonal F(ab)2 goat anti‑rabbit IgG, AlexaFluor 555Thermo Fisher ScientificCat# A-21430
RRID:AB_2535851
IF (2 µg/mL)
AntibodyPolyclonal F(ab)2 goat anti‑mouse IgG, AlexaFluor 488Thermo Fisher ScientificCat# A-10684
RRID:AB_2534064
IF (2 µg/mL)
AntibodyPlyclonal F(ab)2 goat anti‑mouse IgG, AlexaFluor 555Cell Signaling TechnologyCat# 4409
RRID:AB_1904022
IF (2 µg/mL)
AntibodyPolyclonal goat anti‑rabbit IgG, HRPThermo Fisher ScientificCat# 32460
RRID:AB_1185567
WB (1:10000)
AntibodyPolyclonal goat anti‑mouse IgG, HRPThermo Fisher ScientificCat# 31430
RRID:AB_228307
WB (1:10000)
Cytokine (recombinant, human)M-CSFPeprotechCat# 300‑25(20 ng/mL)
Cytokine (recombinant, human)IFNbPeprotechCat# 300-02BC10 and 100 U/mL
Cytokine (recombinant, human)IL-10PeprotechCat# 200-1010 ng/mL
Monocyte isolationMouse anti‑human CD14 microbeadsMiltenyi BiotecCat# 130‑050‑201
Monocyte isolationLS magnetic columnsMiltenyi BiotecCat# 130‑042‑401
Western blotAmersham ECL Prisme Western Blotting Detection ReagentGE HealthcareCat# RPN2232
Western blotSuperSignal WestPico Chemiluminescent SubstrateThermo ScientificCat# 34080
ELISAIL‑10 ELISA setBD BioscienceCat# 555157
Cell cultureTrypsin EDTA 0.05%Thermo Fisher ScientificCat# 25200072
Cell cultureAccutaseSigma-AldrichCat# A-6964
ProbePhalloidin AlexaFluor 488Thermo Fisher ScientificCat# A12379(33 mM)
ProbePhalloidin Alexa Fluor 647Thermo Fisher ScientificCat# A22287(33 mM)
ProbeDAPISigma AldrichCat# D9542(500 ng/mL)
ProbeCellTracker Green CMFDA DyeThermo Fisher ScientificCat# C7025(500 ng/mL)
ProbeMitoTracker Deep Red FMInvitrogenCat# M22426(500 ng/mL)
IFFluorescence Mounting MediumAgilent TechnologiesCat# S302380‑2
IFAntibody diluent, Background reducingDAKO, Agilent TechnologiesCat# S302283-2
SoftwareImageJImageJhttp://www.imagej.nih.gov/ij
SoftwarePrism (v8.0.0)GraphPadhttp://www.graphpad.com
SoftwarePhotoshop CS3Adobehttp://www.adobe.com
SoftwareAdobe Illustrator CS5Adobehttps://www.adobe.com/fr/products/illustrator.html
SoftwareHuygens Professional Version 16.10Scientific Volume Imaginghttps://svi.nl/HuygensProfessional
SoftwareFACS DIVABD Biosciencehttp://www.bdbiosciences.com/
SoftwareFlowJo_v10FlowJohttps://www.flowjo.com/
SoftwareFCS Express V3DeNovo Softwarehttp://www.denovosoftware.com
SoftwareImage LabBio‑Rad Laboratorieshttp://www.bio‑rad.com
SoftwarePannoramic Viewer3DHISTECHhttps://www.3dhistech.com/pannoramic_viewer

Human subjects

Request a detailed protocol

Monocytes from healthy subjects were provided by Etablissement Français du Sang (EFS), Toulouse, France, under contract 21/PLER/TOU/IPBS01/20130042. According to articles L12434 and R124361 of the French Public Health Code, the contract was approved by the French Ministry of Science and Technology (agreement number AC 2009921). Written informed consents were obtained from the donors before sample collection.

Non-Human primate (NHP) samples

Request a detailed protocol

All animal procedures were approved by the Institutional Animal Care and Use Committee of Tulane University, New Orleans, LA and were performed at the Tulane TNPRC, and under approval from IACUC (project numbers P3733, P3794, P3373 and P3628). They were performed in strict accordance with NIH guidelines. The twenty adult rhesus macaques used in this study (Supplementary file 1-Table S1 and S2) were bred and housed at the Tulane National Primate Research Center (TNPRC). All macaques were infected as previously described (Foreman et al., 2016; Mehra et al., 2011; Souriant et al., 2019). Briefly, aerosol infection was performed on macaques using a low dose (25 CFU implanted) of Mtb CDC1551. Nine weeks later, a subgroup of the animals was additionally intravenously injected with 300 TCID50 of SIVmac239 in 1 mL saline, while controls received an equal volume of saline solution. Euthanasia criteria were presentation of four or more of the following conditions: (i) body temperatures consistently greater than 2 °F above pre-infection values for three or more weeks in a row; (ii) 15% or more loss in body weight; (iii) serum CRP values higher than 10 mg/mL for three or more consecutive weeks, CRP being a marker for systemic inflammation that exhibits a high degree of correlation with active TB in macaques (Kaushal et al., 2012; Mehra et al., 2011); (iv) CXR values higher than two on a scale of 0–4; (v) respiratory discomfort leading to vocalization; (vi) significant or complete loss of appetite; and (vii) detectable bacilli in BAL samples.

Bacteria

Mtb H37Rv strain was grown in suspension in Middlebrook 7H9 medium (Difco) supplemented with 10% albumin-dextrose-catalase (ADC, Difco) and 0.05% Twen-80 (Sigma-Aldrich) (Lastrucci et al., 2015). For infection, growing Mtb was centrifuged (3000 rpm) at exponential phase stage and resuspended in PBS (MgCl2, CaCl2 free, Gibco). Twenty passages through a 26 G needle were done for dissociation of bacterial aggregates. Bacterial suspension concentration was then determined by measuring OD600, and then resuspended in RPMI-1640 containing 10% FBS for infection.

Viruses

Virus stocks were generated by transient transfection of 293 T cells with proviral plasmids coding for HIV-1 ADA and HIV-1 NLAD8-VSVG isolates, kindly provided by Serge Benichou (Institut Cochin, Paris, France), as previously described (Vérollet et al., 2015). Supernatant were harvested 2 days post-transfection and HIV-1 p24 antigen concentration was assessed by a homemade enzyme-linked immunosorbent assay (ELISA). HIV-1 infectious units were quantified, as reported (Souriant et al., 2019) using TZM-bl cells (NIH AIDS Reagent Program, Division of AIDS, NIAID, NIH from Dr. John C. Kappes, Dr. Xiaoyun Wu and Tranzyme Inc).

HIV-VLP stock (GFP VLP) was generated by transfecting the molecular clone pGag-eGFP obtained from the NIH AIDS Research and Reference Reagent Program. HEK-293 T cells were transfected with calcium phosphate (CalPhos, Clontech) in T75 flasks using 30 μg of plasmid DNA. Supernatants containing VLP were filtered (Millex HV, 0.45 μm; Millipore) and frozen at −80°C until use. The p24 Gag content of the VLP was determined by an ELISA (Perkin-Elmer).

Preparation of human monocytes and monocyte-derived macrophages

Request a detailed protocol

Human monocytes were isolated from healthy subject (HS) buffy coat (from EFS) and differentiated towards macrophages as described (Souriant et al., 2019). Briefly, peripheral blood mononuclear cells (PBMC) were recovered by gradient centrifugation on Ficoll-Paque Plus (GE Healthcare). CD14+ monocytes were then isolated by positive selection magnetic sorting, using human CD14 Microbeads and LS columns (Miltenyi Biotec). Cells were then plated at 1.6 × 106 cells per 6-well and allowed to differentiate for 5–7 days in RPMI-1640 medium (GIBCO), 10% Fetal Bovine Serum (FBS, Sigma-Aldrich) and human M-CSF (20 ng/mL) Peprotech) before infection with Mtb H37Rv for conditioned-media preparation. The cell medium was renewed every 3 or 4 days.

Preparation of conditioned media

Request a detailed protocol

Conditioned-media from Mtb-infected macrophages (cmMTB) has been reported previously (Lastrucci et al., 2015; Souriant et al., 2019). Succinctly, hMDM were infected with Mtb H37Rv at a MOI of 3. After 18 hr of infection at 37°C, culture supernatants were collected, sterilized by double filtration (0.2 µm pores) and aliquots were stored at −80°C. We then tested the capacity of individual cmMTB to differentiate freshly isolated CD14+ monocytes towards the M(IL-10) cell-surface marker phenotype, as assessed by FACS analyses. Those supernatants yielding a positive readout were then pooled together (5–10 donors) to minimize the inter-variability obtained between donors. Control media (cmCTR) was obtained from uninfected macrophage supernatant. When specified, IL-10 was eliminated from cmMTB by antibody depletion as described previously (Lastrucci et al., 2015; Souriant et al., 2019). The depletion was verified by ELISA (BD-Bioscience), according to manufacturer’s protocol.

Conditioning of monocytes with the secretome of Mtb-infected macrophages or cytokines

Request a detailed protocol

Human CD14+ sorted monocytes from HS buffy coat were allowed to adhere in the absence of serum (0.4 × 106 cells / 24-well in 500 µL) on glass coverslips, and then cultured for 3 days with 40% dilution (vol/vol) of cmCTR or cmMTB supplemented with 20% FBS and M-CSF (20 ng/mL, Peprotech). Blocking IFNAR receptor was performed by pre-incubation with mouse anti-IFNAR antibody (20 µg/mL, Thermo Fischer Scientific) in a 200 μL for 30 min prior to conditioning. After 3 days, cells were washed and collected for phenotyping.

When specified, monocytes were also conditioned in presence of 20 ng/mL M-CSF and 10 ng/mL recombinant human IL-10 (PeproTech) or 10 U/mL of IFNβ (Peprotech). Cell-surface expression of Siglec-1 was measured by flow cytometry using standard procedures detailed hereafter.

RNA extraction and transcriptomic analysis

Request a detailed protocol

Cells conditioned with cmCTR and cmMTB supernatants (approximately 1.5 million cells) were treated with TRIzol Reagent (Invitrogen) and stored at −80°C. Total RNA was extracted from the TRIzol samples using the RNeasy mini kit (Qiagen). RNA amount and purity (absorbance at 260/280 nm) was measured with the Nanodrop ND-1000 apparatus (Thermo Scientific). According to the manufacturer's protocol, complementary DNA was then reverse transcribed from 1 µg total RNA with Moloney murine leukemia virus reverse transcriptase (Invitrogen), using random hexamer oligonucleotides for priming. The microarray analysis was performed using the Agilent Human GE 4 × 44 v2 (single color), as previously described (Lugo-Villarino et al., 2018). Briefly, we performed hybridization with 2 μg Cy3-cDNA and the hybridization kit (Roche NimbleGen). The samples were then incubated for 5 min at 65°C, and 5 min at 42°C before loading for 17 hr at 42°C, according to manufacturer's protocol. After washing, the microarrays were scanned with MS200 microarray scanner (Roche NimbleGen), and using Feature Extraction software, the Agilent raw files were extracted and then processed through Bioconductor (version 3.1) in the R statistical environment (version 3.6.0). Using the limma package, raw expression values were background corrected in a ‘normexp’ fashion and then quantile normalized and log2 transformed (Ritchie et al., 2015). Density plots, boxplots, principal component analyses, and hierarchical clustering assessed the quality of the hybridizations. Differentially expressed genes between macrophages exposed to cmCTR or cmMTB supernatants were extracted based on the p-value corrected using the Benjamini-Hochberg procedure. The log2 normalized expression values were used to perform Gene Set Enrichment Analyses (GSEA). The GSEA method allows to statistically test whether a set of genes of interest (referred to as a geneset) is distributed randomly or not in the list of genes that were pre-ranked according to their differential expression ratio between macrophages exposed to cmCTR or cmMTB supernatants. The output of GSEA is a GeneSet enrichment plot. The vertical black lines represent the projection onto the ranked GeneList of the individual genes of the GeneSet. The top curve in green corresponds to the calculation of the enrichment score (ES). The more the ES curve is shifted to the upper left of the graph, the more the GeneSet is enriched in the red cell population. Conversely, the more the ES curve is shifted to the lower right of the graph, the more the GeneSet is enriched in the blue cell population.

siRNA silencing

Request a detailed protocol

Targeted gene silencing in monocytes was performed using reverse transfection protocol as previously described (Troegeler et al., 2014). Shortly, human primary monocytes were transfected with 200 nM of ON-TARGETplus SMARTpool siRNA targeting Siglec-1 (Horizon Discovery) or non-targeting siRNA (control) using HiPerfect transfection system (Qiagen). After a four-hr post-transfection, cells were allowed to rest for 24 hr in RPMI-1640 medium, 10% FBS, 20 ng/mL of M-CSF, before addition of cmMTB media (40% vol/vol). After three additional days of conditioning, cells were infected with HIV-1 ADA or HIV-1- NLAD8-VSV-G strain, and kept in culture for 10 more days or 48 hrs, respectively. Validation of gene silencing was done after three days post-transfection, and this protocol led to the efficient depletion of Siglec-1 ranging between 50 to95%, as measured by flow cytometry.

HIV-1 infection

Request a detailed protocol

For HIV-1 infection, at day 3 of differentiation, 0.4 × 106 human monocytes-derived macrophages (hMDM) were infected with HIV-1 ADA strain (or as indicated otherwise) at MOI 0.1. HIV-1 infection, and replication were assessed at 10-day post-infection by measuring p24-positive cells by immunostaining and the level of p24 released in culture media by ELISA. For the infection and TNT quantification at day six post-infection, the same protocol was used. For HIV-1 transfer, higher MOI of HIV-1 VSVG pseudotyped NLAD8 virus was used, as described below (see section HIV-1 and cell-to-cell transfer) and in Souriant et al. (2019).

Uptake of Virus-Like particles

Request a detailed protocol

Uptake experiment were performed as previously described (Izquierdo-Useros et al., 2012a; Izquierdo-Useros et al., 2014; Pino et al., 2015) using p24Gag HIV-1Gag−eGFP VLP (GFP VLP). Briefly, monocytes transfected (or not) with control siRNA, or with siRNA directed against Siglec-1, and differentiated for 3 days in cmCTR or cmMTB, were washed once with PBS prior to addition of 2 ng/mL of GFP VLP. Binding was performed during 3.5 hr at 37°C in a 5% CO2 incubator. Cells were then detached with cell dissociation buffer (Gibco) and prepared for flow cytometry analysis on a BD LSRFortessa (TRI-Genotoul platerform). Same experiment was also performed blocking monocyte-derived macrophages at RT for 15 min with 10 μg/mL of mAb α-Siglec-1 7–239 (Abcam), IgG1 isotype control (BD Biosciences) or leaving cells untreated before VLP addition.

Flow cytometry and Siglec-1 quantitation

Request a detailed protocol

Staining of conditioned macrophages was performed as previously described (Souriant et al., 2019). Adherent cells were harvested after 5 min incubation in trypsin 0.05% EDTA (Gibco) and washes with PBS (Gibco). After 10 min centrifugation at 320 g, pellets were resuspended in cold staining buffer (PBS, 2 mM EDTA, 0.5% FBS) with fluorophore-conjugated antibodies (See Key ressources Table) and, in parallel, with the corresponding isotype control antibody using a general concentration of 1 µg/mL. After staining, cells were washed with cold staining buffer, centrifuged for 2 min at 320 g at 4°C, and analyzed by flow cytometry using BD LSRFortessa flow cytometer (BD Biosciences, TRI Genotoul plateform) and the associated BD FACSDiva software. Data were then analyzed using the FlowJo_V10 software (FlowJo, LLC). Gating on macrophage population was set according to its Forward Scatter (FSC) and Size Scatter (SSC) properties before doublet exclusion and analysis of the median fluorescence intensity (MFI) for each staining.

To determine Siglec-1 expression, we applied a quantitative FACS assay. Briefly, cmCTR- and cmMTB-treated macrophages were detached using Accutase solution (Gibco) for 10 min at 37°C, washed, blocked with 1 mg/mL human IgG (Privigen, Behring CSL), and stained with mAb 7–239 α-Siglec-1-PE or matched isotype-PE control (Biolegend) at 4°C for 30 min. The mean number of Siglec-1 mAb binding sites per cell was obtained with a Quantibrite kit (Becton Dickinson) as previously described (Izquierdo-Useros et al., 2012b). Samples were analyzed with FACSCalibur using CellQuest software to evaluate collected data.

Immunofluorescence microscopy

Request a detailed protocol

Cells were fixed with PFA 3.7%, Sucrose 30 mM in PBS. After washing with PBS, cells were saturated with blocking buffer (PBS-BSA 1%). Depending on the experiments, cells were permeabilized as previously described (Souriant et al., 2019) with Triton X-100 0.3% for 10 min (or not), and then stained for 2 hrs with the primary antibody: anti-Siglec-1 (10 µg/mL, Novus Biologicals). Cells were then incubated with appropriate secondary antibodies for 1 hr: Alexa Fluor 488 or 555 or 647 Goat anti-Mouse IgG (2 µg/mL, Cell Signaling Technology). Cells were then permeabilized, washed in PBS before saturation with 0.6 µg/mL mouse IgG2 diluted in Dako Antibody Reducing Background buffer (Dako) for 30 min. Intracellular proteins were then stained with anti-Gag KC57 RD1 antibody (1/100, Beckman Coulter) and/or anti-α-tubulin (5 µg/mL, Abcam) for 2 hrs. Cells were washed and finally incubated with Alexa Fluor 488, 555 or 647 Goat anti-Mouse, or Goat anti-Rabbit IgG secondary antibodies (2 µg/mL, Cell Signaling Technology), Alexa Fluor 488 or 555 Phalloidin (33 mM, Thermo Fisher Scientific), Wheat Germ Agglutinin (CF350 WGA, Thermofischer) and DAPI (500 ng/mL, Sigma Aldrich) in blocking buffer for 1 hr. Coverslips were mounted on a glass slide using Fluorescence Mounting Medium (Dako) and visualized with a spinning disk (Olympus), a Zeiss confocal LSM880 with Airyscan or a FV1000 confocal microscope (Olympus).

TNT were identified by WGA or phalloidin and tubulin staining, and counted on at least 1000 cells per condition and per donor.

As HIV-1 infection induces macrophages fusion into MGC (Vérollet et al., 2010), the number of infected cells largely underestimates the rate of infection. Thus, to better reflect the rate of infection, we quantified the percentage of MGC. Using semi-automatic quantification with homemade Image J macros, allowing the study of more than 5,000 cells per condition in at least five independent donors, we assessed these parameters.

HIV-1 and cell-to-cell transfer

Request a detailed protocol

Freshly isolated CD14+ monocytes from HS transfected with siRNA against Siglec-1 (or siRNA control) were allowed to adhere in the absence of serum (2 × 106 cells/6-well in 1.5 mL). After 4 hr of culture, RPMI-1640 supplemented with 20 ng/mL M-CSF and 20% FBS were added to the cells (vol/vol). After 24 hr, cells were conditioned with cmMTB media. At day 4, 120 ng p24 of a HIV-1 NLAD8 strain pseudotyped with a VSVG envelope was used to infect half of the cells, kept in culture for two more days. At day 6, before co-culture, uninfected cells were stained with CellTracker Green CMFDA Dye (Thermo Fisher Scientific). For mitochondria transfer, half of the macrophages were pre-stained with Green CellTracker, and the other half, uninfected, was stained with mitoTracker Deep-Red prior to co-culture. Briefly, cells were washed with PBS Mg2+/Ca2+ and stained for 30 min with 500 ng/mL CellTracker or mitoTracker, before washing with RPMI-1640 10% FBS. HIV-1+(or mitoTracker+) and CellTracker+ cells were then detached using accutase (Sigma) and co-cultured at a 1:1 ratio on glass coverslips in 24-well.

Histological analyses

Request a detailed protocol

Paraffin embedded tissue samples were sectioned and stained with hematoxylin and eosin for histomorphological analysis. Different antigen unmasking methods where used on tissue slides for immunohistochemical staining, which was performed using anti-CD163 (Leica/Novocastra), anti-Siglec-1 (Novus Biologicals) and anti-pSTAT1 (Cell Signaling Technology). Sections were then incubated with biotin-conjugated polyclonal anti-mouse or anti-rabbit immunoglobulin antibodies, followed by the streptavidin-biotin-peroxidase complex (ABC) method (Vector Laboratories). Finally, sections were counter-stained with hematoxylin. Slides were scanned with the Panoramic 250 Flash II (3DHISTECH). Virtual slides were automatically quantified for macrophage distribution as previously described (Souriant et al., 2019). Immunofluorescence staining of the sections was performed as described above, and followed by anti-mouse IgG isotype specific or anti-rabbit IgG antibodies labelled with Alexa488 and Alexa555 (Molecular Probes). Samples were mounted with Prolong Antifade reagent (Molecular Probes) and examined using a 60x/1.40N.A. objective of an Olympus spinning disk microscope.

Quantification and statistical analysis

Request a detailed protocol

Information on the statistical tests used and the exact values of n (donors) can be found in the Figure Legends. All statistical analyses were performed using GraphPad Prism 8.0.0 (GraphPad Software Inc). Two-tailed paired or unpaired t-test was applied on data sets with a normal distribution (determined using Kolmogorov-Smirnov test), whereas two-tailed Mann-Whitney (unpaired test) or Wilcoxon matched-paired signed rank tests were used otherwise. p<0.05 was considered as the level of statistical significance (*p≤0.05; **p≤0.005; ***p≤0.0005; ****p≤0.0001).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69

Decision letter

  1. Bavesh D Kana
    Reviewing Editor; University of the Witwatersrand, South Africa
  2. Päivi M Ojala
    Senior Editor; University of Helsinki, Finland

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Tuberculosis and HIV infection occur in lethal synergy, especially in regions such as Southern Africa and the collision between these two epidemics poses numerous public health and clinical management challenges. Despite the notable prevalence of such co-infections, the molecular basis of how the two disease causing agents combine to drive pathogenesis and further spread remains largely elusive. Your demonstration that the induction of Siglec-1, which occurs upon Mycobacterium tuberculosis infection, is associated with the transfer of HIV-1 to macrophages, through the use of tunnelling nanotubes (TNT), represents a notable advance for the field. This work creates new avenues for further delineating how these two pathogens modulate immunity. Further insight on this process will allow for the development of synergistic therapeutic options, that reduce mortality and paradoxic side-effects that current prevail in individuals who are co-infected with TB and HIV.

Decision letter after peer review:

Thank you for submitting your article "Tuberculosis-associated type I interferon induces Siglec-1 on tunneling nanotubes and favors HIV-1 spread in macrophages" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Päivi Ojala as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The study by Dupont and colleagues describes a novel role for induction of Siglec-1, which occurs upon Mycobacterium tuberculosis infection, in the transfer of HIV-1 to macrophages through the use of tunnelling nanotubes (TNT). The authors have built upon an earlier article (Souriant et al., 2019) which demonstrated that the IL-10/STAT3 axis is involved in M. tuberculosis-mediated TNT formation and subsequent HIV-1 transfer in human macrophages.

Key findings:

1) Following identification of Siglec1 expression in transcriptomics experiments performed in macrophages treated with conditioned media, the authors demonstrated that this molecule is induced by type I IFNs and is associated with TNT formation as blocking via IFNAR2 abolishes the expression of Siglec-1.

2) They then find that Siglec-1 localizes on thick TNTs, associated with greater TNT length, HIV-1 and mitochondrial cargo. As a result, Siglec-1 appears to favour HIV-1 spread in macrophages.

3) The authors demonstrate that siRNA-mediated depletion of Siglec-1 significantly diminishes TNT transfer of HIV-1 from macrophages to recipient cells.

4) They then show that this has in vivo significance as the same phenomenon is detected in co-infected non-human primates.

Conclusion: Induction of Siglec-1 by tuberculosis infection is associated with the formation of TNTs that facilitate spread of HIV to macrophages, thus exacerbating disease.

Essential revisions:

1) Please confirm experimentally whether the effect seen with IFNAR inhibition is due to decreased levels of expression of Siglec-1 within macrophages or whether the percentage of Siglec-1+ cells is decreased.

2) Are Mtb-derived factors required for Siglec1-mediated HIV-1 transfer phenotype? An earlier study by some of the authors (Martinez-Picado et al., 2016) showed that lack of Siglec1 in HIV-1 infected patients does not have impact in HIV-1 acquisition or AIDS outcome. This original article has not been discussed in the present manuscript and could be important since the authors suggest Siglec1 as a new potential therapeutic target to limit viral dissemination. Please consider these findings and discuss them appropriately.

3) You demonstrated that Siglec-1 expression correlated positively with a greater length and high cargo of HIV-1 and mitochondria, arguing for a functional capacity of Siglec-1+ TNT to transfer material to recipient cells over long distances (subsection “Siglec-1 localization on thick TNT is associated with their length and HIV-1 cargo”). It is also stated that the "decreasing tendency for the capacity of Siglec-1-depleted cmMTB-treated macrophages to transfer mitochondria to recipient cells compared to controls (Figure 4E and Figure 4—figure supplement 1F), alludes to a possible defect in mechanisms involved in intercellular material transfer including through thick TNT". Given this function, one could envisage that Siglec-1 can alter cell-to-cell transfer of mitochondria by TNT, even irrespective of HIV-1 infection, altering the metabolism of the recipient cell. This point can be expanded in the Discussion.

4) Figure 2F and H; In panel H, it is clear that the percentages of Stat1+ cells in ATB-SIV are significantly higher than in either ATB or SIV macrophages. However, in panel F, it appears that the numbers of pSTAT1+ cells/mm2 is lower in ATB-SIV than in ATB. Please comment/address.

5) Figure 4—figure supplement 1. siRNA can have off target activity. If possible, controls to demonstrate specific siglec-1 depletion should be incorporated into the manuscript.

https://doi.org/10.7554/eLife.52535.sa1

Author response

Essential revisions:

1) Please confirm experimentally whether the effect seen with IFNAR inhibition is due to decreased levels of expression of Siglec-1 within macrophages or whether the percentage of Siglec-1+ cells is decreased.

We agree with the reviewers in pointing out the need to confirm this issue. First, it has been previously demonstrated that the IFNAR-2 blocking antibody reduces both the percentage of induction and level of expression of Siglec-1 triggered by the plasma of HIV-1-infected individuals in monocyte-derived dendritic cells (Pino et al., 2015). Second, as illustrated now in revised Figure 1—figure supplement 1D, the IFNAR-2 blocking antibody reduces the percentage of cmMTB-treated macrophages expressing Siglec-1, complementing the overall inhibition of the induction and level of expression of Siglec-1 in these cells (Figure 1C-D), as measured by flow cytometry analysis. Modifications to the revised manuscript have been annotated to incorporate Figure 1—figure supplement 1D. Last, we performed additional experiments to measure the intracellular levels of Siglec-1 expression in cmMTB-treated cells by an immunofluorescence approach. Results confirmed that, as opposed to cmCTR treatment, cmMTB increases the intracellular levels of Siglec-1 expression (revised Figure 1—figure supplement 1C). Upon blocking of the IFNAR-2, we observed a decreasing tendency in the percentage of cell expressing Siglec-1 intracellularly (Author response image 1). Collectively, these observations indicate that IFNAR inhibition leads to both decreased levels of expression (extra- and intracellularly) of Siglec-1 and a lower percentage of cells expressing this receptor as induced by cmMTB treatment.

Author response image 1
Immunofluorescence analysis of cmMTB-treated cells positive for Siglec-1.

For 3 days, monocytes were differentiated into macrophages either with cmCTR (white) or with cmMTB in the presence of an IFNAR-2 blocking (α-IFNAR, stripped) or control (α-IgG, black) antibodies. Immunofluorescence analyses were performed and the percentage of cells positive for intracellular Siglec-1 were quantified. n=4 donors.

2) Are Mtb-derived factors required for Siglec1-mediated HIV-1 transfer phenotype? An earlier study by some of the authors (Martinez-Picado et al., 2016) showed that lack of Siglec1 in HIV-1 infected patients does not have impact in HIV-1 acquisition or AIDS outcome. This original article has not been discussed in the present manuscript and could be important since the authors suggest Siglec1 as a new potential therapeutic target to limit viral dissemination. Please consider these findings and discuss them appropriately.

We thank the reviewers for raising this important issue. In the revised version of our manuscript, we now discuss the findings reported by Martinez-Picado et al.in 2016 in the context of our present study (Discussion, last paragraph). In fact, we previously discussed this issue in length, and we kindly invite the reviewers to read it (Martinez-Picado et al., 2017). Briefly, we previously described a loss-of-function variant in SIGLEC-1; a formal analysis of a large cohort of HIV-1-infected individuals identified homozygous and heterozygous subjects, whose cells were functionally null or partially defective for Siglec-1 activity in HIV-1 capture and transmission ex vivo. However, this analysis of the effect of Siglec-1 truncation on progression to AIDS was not conclusive based on the lack of statistical significance. Of note, this does not rule out a role of Siglec-1 in the progression of AIDS. As discussed in Martinez-Picado et al. 2017, there are multiple challenges that explain the lack of conclusive results in our approach to assess the impact of Siglec-1 genetic variants in AIDS progression in the human population. Briefly, the first challenge we encountered was the limited cohort size applied in our original study, which included 4’233 patients (Martinez-Picado et al., 2016). Indeed, power simulations determined that a proper analysis of a rare variant, like the Siglec-1 allele, would require more than 10,000 individuals to uncover a relative risk of 5 at P < 0.05 under a recessive model. Since the proposed effect demands long-term follow-up off therapy, it is very unlikely that a sufficient sample size could be obtained to determine the long-term consequences of the Siglec-1 stop variant on AIDS progression. Second, our original study lacked the seroconvertion date for the majority of the patients that were screened. This is an important issue because HIV-1 disease progression was only monitored from the diagnosis date, which may differ between individuals, especially if they are protected by the beneficial effect of the Siglec-1 stop variant. Third, there was a lack of complete clinical records from key individuals in our original study. For example, one of the homozygous individuals found for the loss-of-function variant in SIGLEC-1 had no clinical records for nine years; information for this individual only resumed after antiretroviral treatment initiation, when viral suppression could have masked any potential effect that the Siglec-1 variant might have had on disease progression. Last, but not least, the study of Siglec-1 genetic variants become more complex when considering potential infection by other pathogens that could abrogate any potential beneficial effects against AIDS progression. On this latter point, the reviewer is correct to infer direct influence from tuberculosis disease. For instance, one of the homozygous individuals for the rare Siglec-1 allele had a high CD4+ T cell count that dramatically dropped when tuberculosis was diagnosed, suggesting that the absence of a functional Siglec-1 receptor could have had a negative impact on the immune control of the mycobacterial infection. Indeed, in an independent study, we are currently addressing this issue where we suspect that Siglec-1 expression on myeloid APCs could compromise antigen capture via exosome or microvesicle transfer and affect the control of the M. tuberculosis infection (unpublished results). Therefore, these observations argue that the role of Siglec-1 in the progression of AIDS is still a pending issue, and that there is a strong need for future work targeting Siglec-1 to unveil the in vivo contribution of the mononuclear phagocyte system to HIV-1 pathogenesis to fully exploit the therapeutic potential of this receptor.

3) You demonstrated that Siglec-1 expression correlated positively with a greater length and high cargo of HIV-1 and mitochondria, arguing for a functional capacity of Siglec-1+ TNT to transfer material to recipient cells over long distances (subsection “Siglec-1 localization on thick TNT is associated with their length and HIV-1 cargo”). It is also stated that the "decreasing tendency for the capacity of Siglec-1-depleted cmMTB-treated macrophages to transfer mitochondria to recipient cells compared to controls (Figure 4E and Figure 4—figure supplement 1F), alludes to a possible defect in mechanisms involved in intercellular material transfer including through thick TNT". Given this function, one could envisage that Siglec-1 can alter cell-to-cell transfer of mitochondria by TNT, even irrespective of HIV-1 infection, altering the metabolism of the recipient cell. This point can be expanded in the Discussion.

We appreciate the reviewers’ suggestion. It is worth mentioning that decreasing tendency of mitochondrial transfer among cmMTB-treated cells depleted for Siglec-1 occurs in the absence of HIV-1 infection (Figure 4E). The fact that TNT-mediated mitochondria transfer is known to mediate metabolic changes in recipient cells, we intend to dissect whether Siglec-1 is responsible for modulating key energy-based metabolic pathways in recipient cells, such as aerobic glycolysis, pentose phosphate and lipid metabolism. This fascinating issue could have strong consequences to heath and disease beyond the infectious disease context. For this reason, as suggested by reviewers, we have now included a brief discussion in the revised text (Discussion, last paragraph).

4) Figure 2F and H; In panel H, it is clear that the percentages of Stat1+ cells in ATB-SIV are significantly higher than in either ATB or SIV macrophages. However, in panel F, it appears that the numbers of pSTAT1+ cells/mm2 is lower in ATB-SIV than in ATB. Please comment/address.

We agree with the reviewers in pointing out the need to confirm this issue. Originally, we decided to quantify specifically alveolar macrophages based on their location (within the alveolus), morphology (mononuclear cells with a large cytoplasm), and our previous characterization of these cells that are CD68+CD163+ (Lastrucci et al., 2015; Souriant et al., 2019). As the reviewers correctly point out, these quantifications were provided in the original Figure 1F (Siglec-1+ alveolar macrophages) and Figure 2H (pSTAT1+ alveolar macrophages) based on a single representative NHP. In addition, we also provided the quantification of both Siglec-1+ (original Figure 1G) and pSTAT-1 (original Figure 2F) found in the whole lung parenchyma tissue (per mm2) and based on a single representative NHP. On this latter point, although we previously determined most leukocytes are CD68+CD163+ (Lastrucci et al., 2015; Souriant et al., 2019), we did not expect all leukocytes to be only the macrophages in question, specifically for the pSTAT1 marker that is ubiquitously activated in most leukocytes during an infection context. Therefore, we were not surprised that pSTAT-1+ leukocytes (per mm2) were strongly present in the ATB group compared to ATB-SIV, as tuberculosis is well known to activate the IFN-I/STAT-1 signalling pathway (Moreira-Teixeira et al., 2018).

Nevertheless, we decided to now provide a more robust quantification analysis based on the cumulative number of alveolar macrophages that are positive for Siglec-1 (revised Figure 1F), pSTAT1 (revised Figure 2H, top), or both markers (revised Figure 2H, bottom), grouped from three independent animals for each NHP group. Moreover, we also provide the raw quantification for each image field containing the lung alveoli that was obtained from the three independent animals per NHP group to give the reviewer a general idea of the correlation found in alveolar macrophages that are positive for either Siglec-1 and pSTAT1 (Author response image 2). These analyses clearly confirmed that there is considerable increase of Siglec-1+pSTAT1+ alveolar macrophages in the co-infected NHP group compared to the others.

Likewise, we performed a similar quantification analysis of the cumulative number of lung parenchyma tissue cells that are positive for pSTAT1 (revised Figure 2F), and we still confirmed that lung parenchyma tissue Siglec-1+ leukocytes are highly abundant in the ATB group compared to the co-infected one. As the main message of our study is that a tuberculosis-associated environment leads to the upregulation of Siglec-1, and thus to susceptibility in the context of HIV-1 co-infection, we argue the results obtained in the lung parenchyma (in combination to those found in alveolar macrophages) are coherent and support our hypothesis.

Author response image 2
Correlation of alveolar macrophages that are positive for either Siglec-1 or phospho-STAT1 in NHP (Related to Figure 2H, bottom).

Each symbol represents an image field containing the lung alveoli that was obtained from the three independent animals per NHP group. Mean value is represented as a red line.

5) Figure 4—figure supplement 1. siRNA can have off target activity. If possible, controls to demonstrate specific siglec-1 depletion should be incorporated into the manuscript.

We appreciate the reviewers’ concern on this matter. First, we addressed this issue in our original research article where we optimized an siRNA-mediated gene silencing method in primary human macrophages, dendritic cells and monocytes (Troegeler et al., 2014). In this protocol, the used of ON-TARGETplus SMARTpool (according to Dharmarcon Inc instructions) for various genes were demonstrated to: i) specifically inactivate the desired gene of interest without affecting the expression of other related genes, ii) no effect on cell death, iii) no effect in the mononuclear phagocyte maturation and activation status, and iv) no effect on the mononuclear phagocyte capacity to phagocytose and migrate in different 3D environments. Second, the results obtained for Siglec-1 depletion by siRNA-mediated gene silencing were also validated using an alternate method based on blocking antibodies (see Figure 4—figure supplement 4D and E). Within this context, there is no cross-reaction of this monoclonal antibody with the closest molecules to Siglec-1, which are Siglec-5 and Siglec-7 (Perez-Zsolt et al., 2019, 10.1038/s41564-019-0453-2). Finally, we decided to measure other markers that are important to characterized the M(IL-10) phenotype induced by the cmMTB-treated in cells depleted for Siglec-1 by siRNA-mediated gene silencing. As illustrated in Author response image 3, while Siglec-1 expression is reduced cmMTB-treated cells from three independent donors, the expression of the CD16 and CD163 markers remained unchanged. Altogether, these results indicate that our siRNA-mediated gene silencing method applied to reduce the expression of Siglec-1 is unlikely to have off-target activity.

Author response image 3
Inactivation of Siglec-1 by siRNA-mediated gene silencing does not affect the expression of M(IL-10) markers in cmMTB-treated cells (Related to Figure 4—figure supplement 1A).

Monocytes from healthy subjects were transfected with siRNA targeting of Siglec-1 (siSiglec-1, black) or not (siCtrl, white). A day after, monocytes were differentiated into macrophages with cmMTB for 3 days. Vertical scatter plots showing the median fluorescent intensity (MFI, upper panels) of Siglec-1, CD16 and CD163, and the percentage of cells expressing Siglec-1, CD16 and CD163 (lower panels). Each circle represents a single donor and histograms median values. n=3 donors.

https://doi.org/10.7554/eLife.52535.sa2

Article and author information

Author details

  1. Maeva Dupont

    1. Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    2. International associated laboratory (LIA) CNRS 'IM-TB/HIV', Toulouse, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0514-4447
  2. Shanti Souriant

    1. Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    2. International associated laboratory (LIA) CNRS 'IM-TB/HIV', Toulouse, France
    Contribution
    Formal analysis, Investigation, Visualization, Methodology
    Contributed equally with
    Luciana Balboa
    Competing interests
    No competing interests declared
  3. Luciana Balboa

    1. International associated laboratory (LIA) CNRS 'IM-TB/HIV', Toulouse, France
    2. Institute of Experimental Medicine-CONICET, National Academy of Medicine, Buenos Aires, Argentina
    Contribution
    Formal analysis, Investigation, Methodology
    Contributed equally with
    Shanti Souriant
    Competing interests
    No competing interests declared
  4. Thien-Phong Vu Manh

    Aix Marseille Univ, CNRS, INSERM, CIML, Marseille, France
    Contribution
    Resources, Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Karine Pingris

    Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Stella Rousset

    Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    Present address
    Department of Infectious and Tropical Diseases, Toulouse University Hospital, Toulouse, France
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Céline Cougoule

    1. Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    2. International associated laboratory (LIA) CNRS 'IM-TB/HIV', Toulouse, France
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  8. Yoann Rombouts

    Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    Contribution
    Conceptualization, Investigation, Methodology
    Competing interests
    No competing interests declared
  9. Renaud Poincloux

    Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  10. Myriam Ben Neji

    Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
  11. Carolina Allers

    Tulane National Primate Research Center, Department of Microbiology and Immunology, School of Medicine, Tulane University, Covington, United States
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  12. Deepak Kaushal

    Tulane National Primate Research Center, Department of Microbiology and Immunology, School of Medicine, Tulane University, Covington, United States
    Present address
    Southwest National Primate Research Center, Texas Biomedical Research Institute, San Antonio, United States
    Contribution
    Resources, Investigation
    Competing interests
    No competing interests declared
  13. Marcelo J Kuroda

    Tulane National Primate Research Center, Department of Microbiology and Immunology, School of Medicine, Tulane University, Covington, United States
    Present address
    Center for Comparative Medicine and California National Primate Research Center, University of California, Davis, Davis, United States
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  14. Susana Benet

    1. IrsiCaixa AIDS Research Institute, Department of Retrovirology, Badalona, Spain
    2. Universitat Autònoma de Barcelona, Barcelona, Spain
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  15. Javier Martinez-Picado

    1. IrsiCaixa AIDS Research Institute, Department of Retrovirology, Badalona, Spain
    2. University of Vic-Central University of Catalonia (UVic-UCC), Vic, Spain
    3. Catalan Institution for Research and Advanced Studies (ICREA), Barcelona, Spain
    Contribution
    Conceptualization, Resources, Project administration
    Competing interests
    No competing interests declared
  16. Nuria Izquierdo-Useros

    1. IrsiCaixa AIDS Research Institute, Department of Retrovirology, Badalona, Spain
    2. Institut d’Investigació en Ciències de la Salut Germans Trias i Pujol, Badalona, Spain
    Contribution
    Resources, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  17. Maria del Carmen Sasiain

    1. International associated laboratory (LIA) CNRS 'IM-TB/HIV', Toulouse, France
    2. Institute of Experimental Medicine-CONICET, National Academy of Medicine, Buenos Aires, Argentina
    Contribution
    Conceptualization, Resources, Project administration
    Competing interests
    No competing interests declared
  18. Isabelle Maridonneau-Parini

    1. Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    2. International associated laboratory (LIA) CNRS 'IM-TB/HIV', Toulouse, France
    Contribution
    Funding acquisition, Investigation
    Contributed equally with
    Olivier Neyrolles, Christel Vérollet and Geanncarlo Lugo-Villarino
    Competing interests
    No competing interests declared
  19. Olivier Neyrolles

    1. Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    2. International associated laboratory (LIA) CNRS 'IM-TB/HIV', Toulouse, France
    Contribution
    Conceptualization, Funding acquisition, Investigation, Project administration
    Contributed equally with
    Isabelle Maridonneau-Parini, Christel Vérollet and Geanncarlo Lugo-Villarino
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0047-5885
  20. Christel Vérollet

    1. Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    2. International associated laboratory (LIA) CNRS 'IM-TB/HIV', Toulouse, France
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Project administration
    Contributed equally with
    Isabelle Maridonneau-Parini, Olivier Neyrolles and Geanncarlo Lugo-Villarino
    For correspondence
    verollet@ipbs.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1079-9085
  21. Geanncarlo Lugo-Villarino

    1. Institut de Pharmacologie et Biologie Structurale, IPBS, Université de Toulouse, CNRS, UPS, Toulouse, France
    2. International associated laboratory (LIA) CNRS 'IM-TB/HIV', Toulouse, France
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Project administration
    Contributed equally with
    Isabelle Maridonneau-Parini, Olivier Neyrolles and Christel Vérollet
    For correspondence
    lugo@ipbs.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4620-8491

Funding

Agence Nationale de Recherches sur le Sida et les Hépatites Virales (ANRS2014-049)

  • Isabelle Maridonneau-Parini
  • Olivier Neyrolles

Agence Nationale de Recherches sur le Sida et les Hépatites Virales (ANRS2020-01)

  • Christel Vérollet
  • Geanncarlo Lugo-Villarino

Agence Nationale de Recherches sur le Sida et les Hépatites Virales (ANRS2018-01)

  • Christel Vérollet

Agence Nationale de la Recherche (ANR-11-EQUIPEX-0003)

  • Olivier Neyrolles

Agence Nationale de la Recherche (ANR16-CE13-0005-01)

  • Christel Vérollet

Fondation pour la Recherche Médicale (DEQ20160334902)

  • Olivier Neyrolles

Fondation pour la Recherche Médicale (DEQ2016 0334894)

  • Isabelle Maridonneau-Parini

ECOS-Sud program (A14S01)

  • Maria del Carmen Sasiain
  • Olivier Neyrolles

Human Frontier Science Program (RGP0035/2016)

  • Isabelle Maridonneau-Parini

National Agency for Science and Technology, Argentina (PICT-2015–0055)

  • Maria del Carmen Sasiain

National Agency for Science and Technology, Argentina (PICT-2017–1317)

  • Luciana Balboa

National Institutes of Health (OD011104)

  • Deepak Kaushal
  • Marcelo J Kuroda

National Institutes of Health (AI111943)

  • Deepak Kaushal

National Institutes of Health (AI097059)

  • Marcelo J Kuroda

National Institutes of Health (AI110163)

  • Marcelo J Kuroda

National Institutes of Health (AI111914)

  • Deepak Kaushal

Université Toulouse III - Paul Sabatier (Axes Thématiques Prioritaires doctoral scholarship)

  • Maeva Dupont

Sidaction (4th year doctoral scholarship)

  • Shanti Souriant

Centre Hospitalier Universitaire de Toulouse (Master's scholarship)

  • Stella Rousset

Ministerio de Economía y Competitividad (Secretariat of State of Research, Development and Innovation SAF2016-80033-R)

  • Javier Martinez-Picado
  • Nuria Izquierdo-Useros

Red Temática Cooperativa de Investigación en SIDA

  • Javier Martinez-Picado

Institute of Health Carlos III (CM17/00242)

  • Susana Benet

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We greatly acknowledge F Capilla and T Al Saati, US006/CREFRE for histology analyses; P Constant, F Levillain, F Moreau and C Berrone, IPBS and Genotoul Anexplo-IPBS, for accessing the BSL3 facilities; E Näser, E Vega, A Peixoto, S Mazeres and the Genotoul TRI-IPBS facilities for imaging and flow cytometry. We thank F Quiroga and C del Carmen Melucci Ganzarain, Instituto de Investigaciones Biomédicas en Retrovirus y SIDA, INBIRS UBA - CONICET, Buenos Aires, Argentina, for the technical help and advice provided. We greatly thank Y-M Boudehen for technical expertise provided in molecular biology, M Dalod and B Raynaud-Messina for fruitful discussions, and S Benichou for providing HIV-1 strains. We are grateful to D Hudrisier, C Gutierrez, CA Spinner, L Bernard-Raichon, and B Raymond for critical reading of the manuscript and helpful comments. This work was supported by the Centre National de la Recherche Scientifique, Université Paul Sabatier, the Agence Nationale de la Recherche (ANR16-CE13-0005-01, ANR-11-EQUIPEX-0003), the Agence Nationale de Recherche sur le Sida et les Hépatites virales ( ANRS2014-049, ANRS2018-01, ANRS2020-01), the ECOS-Sud program (A14S01), the Fondation pour la Recherche Médicale (DEQ2016 0334894; DEQ2016 0334902), INSERM Plan Cancer, Human Frontier Science Program (HFSP: RGP0035/2016), the Argentinean National Agency of Promotion of Science and Technology (PICT-2015–0055 and PICT-2017–1317). We also thank the AIDS Research and Reference Reagent Program, Division of AIDS, NIAID. The NHP study was supported by NIH award OD011104, AI111943, AI111914, AI097059 and AI110163. The genetic analyses were realized within the framework of the Swiss HIV Cohort Study (SHCS Project number 717), which is supported by the Swiss National Science Foundation (Grant Number 148522) and by the SHCS research foundation. MD is supported by an ATP (Axes Thématiques Prioritaires) doctoral scholarship from Université Paul Sabatier, SS by a 4th-year doctoral scholarship from Sidaction, and S R by a scholarship from Toulouse University Hospital to perform a Master’s degree. JM-P and NI-U are supported by the Spanish Secretariat of State of Research, Development and Innovation through grant SAF2016-80033-R, JM-P by the Spanish AIDS network Red Temática Cooperativa de Investigación en SIDA, and SB by the Rio Hortega programme funded by the Spanish Health Institute Carlos III (No. CM17/00242).

Ethics

Human subjects: Human Subjects Monocytes from healthy subjects were provided by Etablissement Français du Sang (EFS), Toulouse, France, under contract 21/PLER/TOU/IPBS01/20130042. According to articles L12434 and R124361 of the French Public Health Code, the contract was approved by the French Ministry of Science and Technology (agreement number AC 2009921). Written informed consents were obtained from the donors before sample collection.

Animal experimentation: Non-Human Primate (NHP) samples All animal procedures were approved by the Institutional Animal Care and Use Committee of Tulane University, New Orleans, LA and were performed at the Tulane TNPRC, and under approval from IACUC (project numbers P3733, P3794, P3373 and P3628). They were performed in strict accordance with NIH guidelines.

Senior Editor

  1. Päivi M Ojala, University of Helsinki, Finland

Reviewing Editor

  1. Bavesh D Kana, University of the Witwatersrand, South Africa

Publication history

  1. Received: October 7, 2019
  2. Accepted: March 30, 2020
  3. Accepted Manuscript published: March 30, 2020 (version 1)
  4. Version of Record published: April 21, 2020 (version 2)

Copyright

© 2020, Dupont et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,318
    Page views
  • 275
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Chaitanya A Kulkarni et al.
    Research Article

    Alkb homolog 7 (ALKBH7) is a mitochondrial α-ketoglutarate dioxygenase required for DNA alkylation induced necrosis, but its function and substrates remain unclear. Herein we show ALKBH7 regulates dialdehyde metabolism, which impacts the cardiac response to ischemia-reperfusion (IR) injury. Using a multi-omics approach, we find no evidence ALKBH7 functions as a prolyl-hydroxylase, but we do find Alkbh7-/- mice have elevated glyoxalase I (GLO-1), a dialdehyde detoxifying enzyme. Metabolic pathways related to the glycolytic by-product methylglyoxal (MGO) are rewired in Alkbh7-/- mice, along with elevated levels of MGO protein adducts. Despite greater glycative stress, hearts from Alkbh7-/- mice are protected against IR injury, in a manner blocked by GLO-1 inhibition. Integrating these observations, we propose ALKBH7 regulates glyoxal metabolism, and that protection against necrosis and cardiac IR injury bought on by ALKBH7 deficiency originates from the signaling response to elevated MGO stress.

    1. Cell Biology
    Eben G Estell et al.
    Short Report

    The myokine irisin facilitates muscle-bone crosstalk and skeletal remodeling in part by its action on osteoblasts and osteocytes. In the current study we investigated whether irisin also directly regulates osteoclasts. In vitro, irisin (2-10 ng/mL) increased osteoclast differentiation in C57BL/6J mouse bone marrow progenitors; this increase was blocked by a neutralizing antibody to integrin αVβ5. Irisin also increased bone resorption on several substrates in situ. RNAseq revealed differential gene expression induced by irisin including upregulation of markers for osteoclast differentiation and resorption, as well as osteoblast-stimulating 'clastokines'. Forced expression of the irisin precursor Fndc5 in transgenic C57BL/6J mice resulted in low bone mass at three ages, and greater in vitro osteoclastogenesis from Fndc5-transgenic bone marrow progenitors. This work demonstrates that irisin acts directly on osteoclast progenitors to increase differentiation and promote bone resorption, supporting the tenet that irisin not only stimulates bone remodeling but may also be an important counter-regulatory hormone.
