Evolutionary expansion of apical extracellular matrix is required for the elongation of cells in a novel structure

  1. Sarah Jacquelyn Smith
  2. Lance A Davidson
  3. Mark Rebeiz  Is a corresponding author
  1. Department of Biological Sciences, University of Pittsburgh, United States
  2. Department of Bioengineering, University of Pittsburgh, United States
https://doi.org/10.7554/eLife.55965
Share this article
Cite this article
  1. Sarah Jacquelyn Smith
  2. Lance A Davidson
  3. Mark Rebeiz
(2020)
Evolutionary expansion of apical extracellular matrix is required for the elongation of cells in a novel structure
eLife 9:e55965.
https://doi.org/10.7554/eLife.55965
  2. Download BibTeX
  3. Download .RIS

Abstract

One of the fundamental gaps in our knowledge of how novel anatomical structures evolve is understanding the origins of the morphogenetic processes that form these features. Here, we traced the cellular development of a recently evolved morphological novelty, the posterior lobe of D. melanogaster. We found that this genital outgrowth forms through extreme increases in epithelial cell height. By examining the apical extracellular matrix (aECM), we also uncovered a vast matrix associated with the developing genitalia of lobed and non-lobed species. Expression of the aECM protein Dumpy is spatially expanded in lobe-forming species, connecting the posterior lobe to the ancestrally derived aECM network. Further analysis demonstrated that Dumpy attachments are necessary for cell height increases during posterior lobe development. We propose that the aECM presents a rich reservoir for generating morphological novelty and highlights a yet unseen role for aECM in regulating extreme cell height.

Introduction

Biologists have long been mesmerized by the appearance of morphological novelties, new structures that appear to lack homologs in other species groups (Moczek, 2008; Wagner and Lynch, 2010). To understand the origins of these novel structures, significant effort has focused on determining how the spatial and temporal patterning of genes were altered during evolution (Peter and Davidson, 2015; Rebeiz et al., 2015; Wagner, 2014). This research has demonstrated that morphological novelties are often associated with the redeployment of pre-existing developmental programs in new locations. However, limited attention has been directed to how novel structures form at the cellular level. Understanding how a structure physically forms is important, as it can help explain which morphogenetic processes might be targeted during evolution. In addition, because most morphological novelties arose in the distant past, it is likely that the causative genetic changes will be obscured by additional changes scattered throughout relevant gene regulatory networks (Liu et al., 2019). Hence, understanding the morphogenetic basis of a novelty is critical to identifying the most important aspects of the gene regulatory networks that contributed to its origin.

Most studies of morphogenetic evolution have focused on epithelial structures subject to diversification, illuminating processes that contributed to their modification, as opposed to origination. For example, studies of tooth morphogenesis have elucidated how both internal mechanisms, such as cell shape changes (Li et al., 2016), and external forces, such as the pressure from the surrounding jaw (Renvoisé et al., 2017) could be contributing factors in their diversification. Furthermore, an examination of the enlarged ovipositor of Drosophila suzukii revealed how a 60% increase in length was associated with increases in apical area and anisotropic cellular rearrangement, elucidating how increases in the size of a structure might evolve (Green et al., 2019). Dramatic differences in morphogenetic mechanisms have also been observed between distantly related species which contribute to the development of conserved structures, such as eggshell breathing tubes (Osterfield et al., 2015) and the migration of sex comb precursors (Atallah et al., 2009; Tanaka et al., 2009) in Drosophila. Overall, these studies have illustrated how evolutionary comparative approaches can reveal morphogenetic processes critical to the sculpting of anatomical structures.

Morphogenesis is the product of both cell intrinsic processes, such as those conferred by the cytoskeleton or cell-cell junctions, and cell extrinsic processes from the environment in which the cell resides. Extracellular mechanics are relatively understudied compared to intracellular mechanics (Paluch and Heisenberg, 2009). An important component of the microenvironment of a cell is the extracellular matrix (ECM) which can be subdivided into two populations of ECM, the basal ECM and the apical ECM (aECM) (Brown, 2011; Daley and Yamada, 2013; Linde-Medina and Marcucio, 2018; Loganathan et al., 2016). While comparatively understudied, recent work has defined vital roles for aECM in the morphogenesis of various structures in Drosophila, such as the wing (Diaz-de-la-Loza et al., 2018; Etournay et al., 2015; Ray et al., 2015), denticles (Fernandes et al., 2010), trachea (Dong et al., 2014; Rosa et al., 2018) and the posterior endoderm (Bailles et al., 2019). In addition, roles for the aECM have been found in neuron morphogenesis in C. elegans (Heiman and Shaham, 2009; Low et al., 2019) and during gastrulation in beetles (Münster et al., 2019). Despite recent interest in the aECM, its role in the evolution of morphogenetic processes is currently unknown.

Genital traits represent a particularly advantageous system in which to study the morphogenetic basis of novel structures. The study of morphological novelty is often difficult because most structures of interest evolved in the distant past, rendering it difficult to understand the ancestral ground state from which the novelty emerged. Genitalia are noted for their rapid evolution (Eberhard, 1985), and thus bear traits among closely-related species that have recently evolved in the context of a tissue that is otherwise minimally altered. For example, the posterior lobe, a recently evolved anatomical structure present on the genitalia of male flies of the melanogaster clade (Kopp and True, 2002; Figure 1A), is a three-dimensional outgrowth that is required for genital coupling (Frazee and Masly, 2015; Jagadeeshan and Singh, 2006; LeVasseur-Viens, 2015). Other than the posterior lobe, the genitalia of lobed and non-lobed species are quite similar in composition, providing an excellent comparative context in which to examine the morphogenesis of the ancestral structure from which the posterior lobe emerged.

Figure 1 with 2 supplements see all
Download asset Open asset
The posterior lobe protrudes from the lateral plate.

(A) Phylogenetic tree with bright-field images of adult lateral plate cuticles from which the posterior lobe projects (arrow). (B–E) Illustration, (B’–E’) maximum projection, and (B’’–E’’) three-dimensional projection labeled with E-cadherin (Ecad) of early (28 hr APF) and late (52 hr APF) developing genitalia showing the posterior lobe projecting form the lateral plate of D. melanogaster (D’’), but absent in D. biarmipes (E’’). Relevant structures are labeled: posterior lobe (PL), lateral plate (LP), clasper (C), sheath (S), phallus (P), anal plate (AP), and hypandrium (H). All max projections are oriented with ventral side towards to the top and dorsal sides towards the bottom. (F) Zoomed in illustration of posterior lobe and (G) a cross-sectional/lateral view of the posterior lobe. The highest point of the lobe is the distal tip and the invagination between the lobe and the clasper is termed the crevice (G). Scale bar, 20 μm.

Here, we find that the posterior lobe forms through dramatic increases in cell height along the apico-basal axis as it projects out of the plane of its surrounding epithelium. We investigated internal and external factors that might contribute to this cell height increase and discovered a correlation between the aECM protein Dumpy and the height reached by posterior lobe cells. Comparisons to non-lobed species uncovered the presence of a conserved aECM network on the genitalia that has expanded to cells that form the posterior lobe. Overall, our work demonstrates how the formation of a morphological novelty is associated with changes in the aECM, which integrates posterior lobe cells into a larger pre-existing aECM network necessary for its formation.

Results

The posterior lobe grows from the lateral plate epithelium

The male genitalia of Drosophila is a bilaterally symmetrical anatomical structure which forms from the genital disc during pupal development. A recent consortium detailed the adult anatomy of Drosophila melanogaster males, establishing naming conventions and boundaries for adult structures (Rice et al., 2019). The posterior lobe (also known as the epandrial posterior lobe) protrudes from a structure called the lateral plate (also known as the epandrial ventral lobe) (Figure 1A,D; Figure 1—video 1). In D. melanogaster, prior to posterior lobe formation, the lateral plate is fully fused to a neighboring structure called the clasper (also known as the surstylus) (Figure 1B; Glassford et al., 2015). The lateral plate begins to separate from the clasper around 32 hr after pupal formation (APF) in D. melanogaster (Figure 1—figure supplement 1). Approximately 4 hr later, the posterior lobe begins to project from the plane of the lateral plate and achieves its final shape by 52 hr APF (Figure 1D; Figure 1—figure supplement 1). During posterior lobe development, cleavage of the lateral plate from the clasper continues, separating both tissues (Figure 1D; Figure 1—figure supplement 1). Full separation of the lateral plate and clasper stops slightly ventral to the posterior lobe (Figure 1—figure supplement 1). By contrast, in the non-lobed species D. biarmipes, the apical surface of the lateral plate remains flat throughout development, not forming a posterior lobe (Figure 1C,E). However, all other morphogenetic events are very similar in D. biarmipes, forming on a schedule that is approximately 4 hr behind D. melanogaster (Figure 1—figure supplement 1).

The posterior lobe forms through increases in cell height

To investigate which cellular behaviors are unique to lobed species, we examined how the posterior lobe grows from the lateral plate. First, we monitored cell proliferation, which commonly contributes to morphogenesis through patterned and/or oriented cell division (Heisenberg and Bellaïche, 2013). Staining for phospho-histone H3, which marks actively dividing cells, revealed widespread cell proliferation throughout the entire genital epithelium during early developmental stages prior to posterior lobe morphogenesis (Figure 2—figure supplement 1). However, proliferation declines tissue-wide and all cell proliferation is essentially absent during posterior lobe development (Figure 2—figure supplement 1). Similar dynamics in proliferation are also observed in non-lobed species (Figure 2—figure supplement 1), suggesting that proliferation is not a major contributor to the morphogenesis of the posterior lobe.

Next we tested the possibility that oriented cell intercalation could contribute to posterior lobe morphogenesis. Such processes may play a role in tissue elongation (Guirao and Bellaïche, 2017; Tada and Heisenberg, 2012; Walck-Shannon and Hardin, 2014). To test this, we performed manual cell tracking of time-lapse movies of posterior lobe development in a GFP-tagged armadillo line (Huang et al., 2012) which labels apical cell junctions. Initial observations of the outer face of the posterior lobe revealed few cell rearrangement events. When cell rearrangements did occur, it was usually in response to a cell being removed from the apical surface (Figure 2—video 1). Due to the limited number of cell rearrangement events observed during posterior lobe morphogenesis, cell intercalation did not appear to be a major driver of posterior lobe morphogenesis, causing us to instead examine changes in cell shape.

Changes to cell shape are quite common during tissue morphogenesis, as classically illustrated by the process of apical constriction which deforms tissues during numerous developmental processes (Lecuit and Lenne, 2007; Martin and Goldstein, 2014). To examine cell shape, we utilized the Raeppli system to label individual cells with a fluorescent marker (mTFP1) (Kanca et al., 2014). We observed that cells within the posterior lobe are tall and thin, spanning from the basal to the apical surface of the epithelium (Figure 2A). Because cells span the full thickness of this tissue, we can approximate the height of the tallest cells in the posterior lobe by measuring tissue thickness in samples double-stained for E-cadherin and Fasciclin III, to label apical cell junctions and lateral membranes respectively. For these measurements, we used the lateral plate as an in-sample comparison, since it represents the tissue from which the posterior lobe protrudes and should differ from the lobe in morphogenetic processes. We observed a pronounced increase in thickness of the posterior lobe compared to the lateral plate (Figure 2B–C,F; Figure 2—figure supplement 2). The posterior lobe more than doubles in thickness with an average increase of 145.3% (+ 47.5 µm), while the lateral plate only increases by 22.6% (+ 7.9 µm) overall. Interestingly, this is a dynamic process during development. During the first 12 hr of posterior lobe development, the lateral plate thickness decreases by 5.1 µm, but the posterior lobe increases in thickness by 16.5 µm on average (Figure 2F). By contrast, during the last 4 hr of development, rapid increases in thickness occur in both the posterior lobe and lateral plate, which increase on average by 31.0 µm and 14.6 µm respectively (Figure 2F). These observations reveal a slow phase of cell height increase during the first 12 hr of posterior lobe development, and a fast phase during the last four hours of posterior lobe development. In contrast, when non-lobed species are examined, no thickness changes are observed in the location where a posterior lobe would form, indicating that this increase in tissue thickness is unique to the posterior lobe (Figure 2B–E,G; Figure 2—figure supplement 2). Together, these data suggest that the cells of the posterior lobe undergo an extreme shape change to increase in length along their apico-basal axes, driving the projection of this structure out of the plane of the lateral plate.

Figure 2 with 3 supplements see all
Download asset Open asset
Posterior lobe cells increase in height to project out from the lateral plate.

(A) A single cell in the posterior lobe labeled with Raeppli-mTFP1 (green) spans the height of the tissue labeled with lateral membrane marker Fasciclin III (Fas3; magenta). Apical side of posterior lobe identified with dotted line. Sample is 44 hr after pupal formation (APF), but was heat shocked for 1 hr at 24 hr APF causing it to develop faster and more closely resembles a 48 hr APF sample. Scale bar, 10 μm. n = 10 cells (B–E) Maximum projections of early (36 hr APF) and late (52 hr APF) genital samples labeled with Fas3 (lateral membranes, green) and E-Cadherin (Ecad; apical membranes; magenta). Location of respective cross sections indicated in yellow for lateral plate (B1–E1) and blue for posterior lobe (D. melanogaster) (B2–C2) or equivalent location in non-lobed species (D. biarmipes) (D2–E2). Scale bar, 20 μm. Relevant structures are labeled: posterior lobe (PL), lateral plate (LP), clasper (C). (F) Quantification of tissue thickness of the lateral plate (light blue) and posterior lobe (dark blue). Illustration represents approximate location of cross-section that was used for tissue height measurement. Individual data points are presented; n = 10 per each time point. (G) Quantification of tissue thickness of the posterior lobe in D. melanogaster (dark blue) and equivalent location in non-lobed species D. biarmipes (orange). Illustration represents approximate location of cross-section that was used for tissue thickness measurement. Individual data points are presented; n ≥ 9 per each time point. Statistical significance is indicated (unpaired t-test; ****p≤0.0001; n.s. = not significant p≥0.05). D. melanogaster tissue height measures in (G) are replotted from (F) to facilitate direct comparisons with D. biarmipes.

Figure 2—source data 1

Individual measurements of tissue thickness over time.

https://cdn.elifesciences.org/articles/55965/elife-55965-fig2-data1-v2.xlsx

Cytoskeletal components increase in concentration in posterior lobe cells

Apico-basal cell elongation appears to be a major contributor to posterior lobe formation. To understand potential internal forces contributing to this cell shape change, we examined the organization of cytoskeletal components. As expected for a polarized epithelium, phalloidin staining of F-actin strongly localized to the apical cortex overlapping with E-cadherin throughout the entire genitalia (Figure 3A). In addition, F-actin is also concentrated along the apico-basal axis of posterior lobe cells (Figure 3A). This lateral F-actin localization was unique to the posterior lobe, as it is less intense in neighboring structures, such as the lateral plate, clasper, and sheath (also known as the aedeagal sheath Rice et al., 2019), as well as in non-lobed species (Figure 3A; Figure 3—figure supplement 1). Next we evaluated microtubules by examining two post-translational modifications of α-tubulin: acetylation of lysine40, a stabilizing modification (Roll-Mecak, 2019; Xu et al., 2017b), and C-terminal tyrosination, which has been associated with rapid microtubule turnover (Roll-Mecak, 2019; Webster et al., 1987). In the posterior lobe, acetylated tubulin levels are highest at the distal tip of the posterior lobe and weaken towards the basal side of the lobe epithelium (Figure 3B–C). Compared to other structures in the genitalia, acetylated tubulin is greatly increased specifically in the posterior lobe (Figure 3B–C). By contrast, the levels of acetylated tubulin in non-lobed species are similar throughout the genitalia (Figure 3—figure supplement 1). We found tyrosinated tubulin has a more consistent signal along the entire apico-basal axis in the posterior lobe (Figure 3B&D). The amount of tyrosinated tubulin in posterior lobe cells is increased compared to neighboring structures but is weaker relative to the observed differences in acetylated tubulin. In non-lobed species, the levels of tyrosinated tubulin are consistent across the entire genitalia (Figure 3—figure supplement 1). Collectively, these results suggest that changes in assembly and/or dynamics of both F-actin and microtubule cytoskeletal networks could be contributing factors in changing the shape of posterior lobe cells to increase its height along the apico-basal axis.

Figure 3 with 1 supplement see all
Download asset Open asset

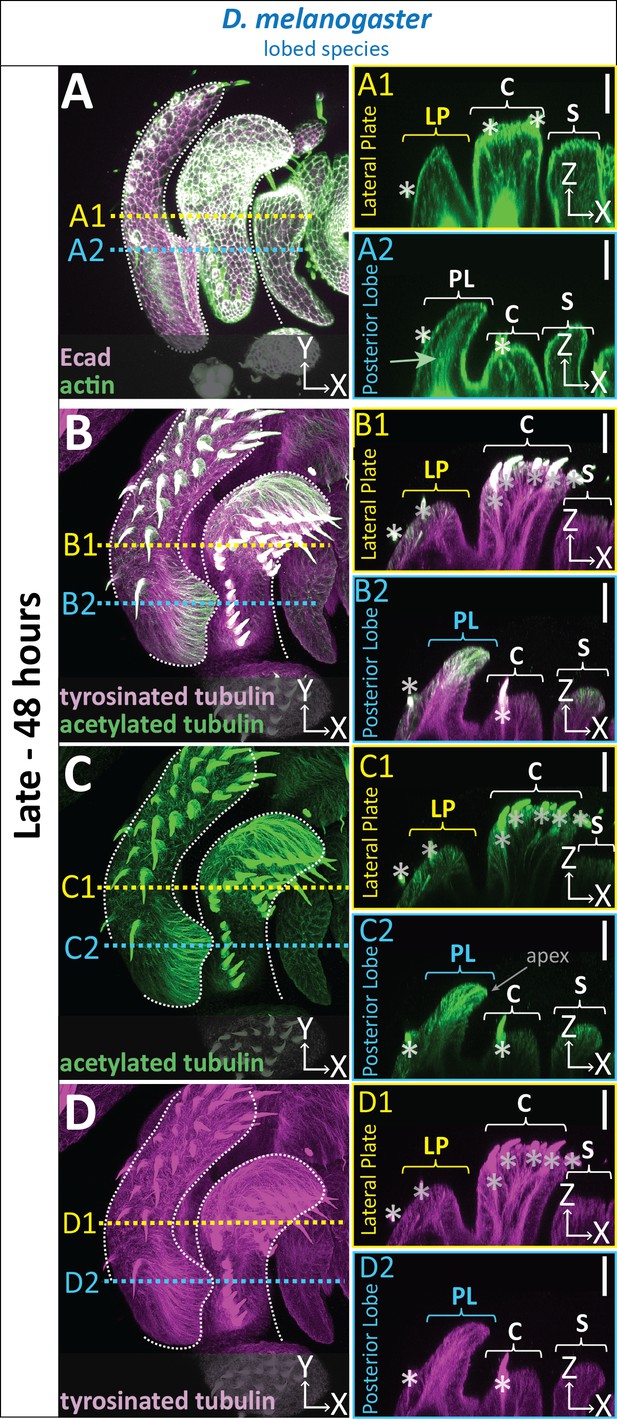

Cytoskeletal components are increased in posterior lobe cells.

(A–D) Maximum projection, and respective cross-sections of late (48 hr APF) genital samples of the lobed species D. melanogaster labeled with F-actin/phalloidin (actin; green) and E-cadherin (Ecad; magenta) (A), acetylated tubulin (green) (B,C), and tyrosinated tubulin (magenta) (B,D). Location of respective cross sections indicated in yellow for lateral plate (A1–D1) and blue for posterior lobe (A2–D2). Cross-sections are maximum projections of a restricted 5.434 μm thick section to provide a complete view of cytoskeletal components along the apico-basal axis. All cross-sections are oriented with apical side at the top and basal side at the bottom. Asterisk identifies bristles which have high levels of F-actin and tubulin. Bright basal signal in A1 and A2 are fat bodies. Bottom layers were removed in panel A to remove fat body signal which overwhelmed other details. (B–D2) Panels C and D show separate channels of panel B. Relevant structures labeled: Posterior lobe (PL), lateral plate (LP), clasper (C), and sheath (S). Scale bar, 20 μm. n ≥ 3 per experiment.

An apical extracellular matrix associates with posterior lobe cells

In addition to investigating potential cell autonomous mechanisms leading to increases in tissue thickness, we also sought to identify possible sources of external mechanical processes which could play a role in posterior lobe morphogenesis. Extrinsic roles for both the basal and apical extracellular matrix have been established in pupal wing morphogenesis of D. melanogaster (Diaz-de-la-Loza et al., 2018; Etournay et al., 2015; Ray et al., 2015). We first attempted to characterize the basal ECM by analyzing a GFP-tagged version of Collagen IV (Viking:GFP) (Morin et al., 2001). We observed that Viking:GFP, while present at very early stages of genital morphogenesis, is only weakly detected across the entire genitalia as the posterior lobe forms (Figure 4—figure supplement 1), suggesting that minimal basal ECM is present at this time point. To further test for the presence of basal ECM, we examined another basal ECM component, Perlecan (Perlecan:GFP) (Morin et al., 2001), and also observed weak signal (Figure 4—figure supplement 1). Together, these data suggest that the basal ECM is globally reduced in the genitalia during early pupal development, and it thus is unlikely to have specific effects on posterior lobe morphogenesis.

We next sought to determine if an apical ECM (aECM) is associated with the posterior lobe. Dumpy encodes a gigantic (2.5 MDa) zona pellucida domain-containing glycoprotein and is a major component of the aECM in Drosophila (Wilkin et al., 2000). We examined a line in which Dumpy is endogenously tagged with Yellow Fluorescent Protein (Dumpy:YFP) (Lowe et al., 2014; Lye et al., 2014) and found that Dumpy:YFP forms a complex three-dimensional network over the pupal genitalia and is closely associated with cells of the posterior lobe (Figure 4; Figure 4—video 1). The intricate complex morphology of this aECM network is hard to fully appreciate in flattened images due to its three-dimensional shape and spatially varying levels of Dumpy:YFP, making it difficult to see weaker populations of Dumpy without over-saturating more concentrated deposits, and is better viewed in three dimensions (Figure 4—video 1). Remarkably, at certain points in the genitalia, this aECM network of Dumpy can extend up to a mean maximal height of 39.4 μm above the cells, which is taller than the thickness of posterior lobe cells at the beginning of development (Figure 4—figure supplement 2), demonstrating how extensive the genital aECM network is.

Figure 4 with 6 supplements see all
Download asset Open asset

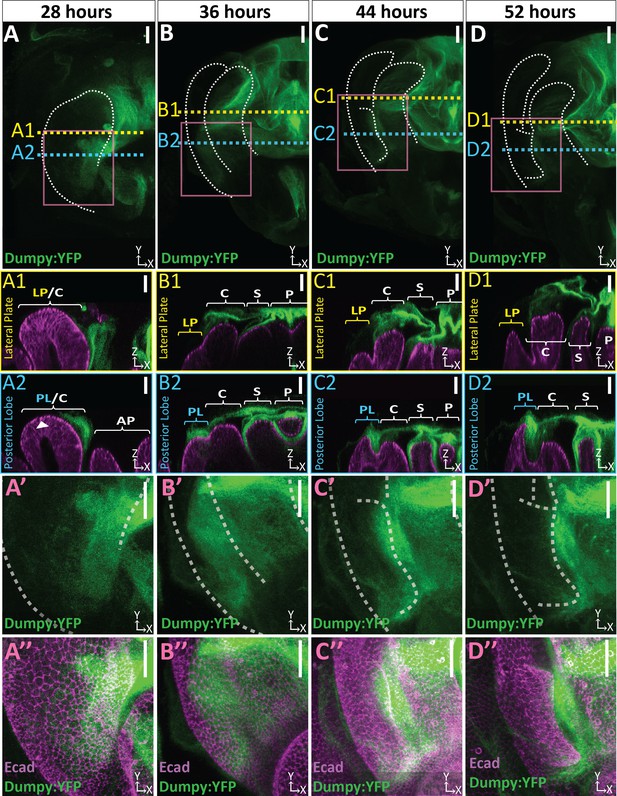

Dumpy deposition is correlated with posterior lobe development.

(A–D) Maximum projection and (A’–B’’) respective zoom, indicated with pink box, labeled with Dumpy:YFP (green) and E-cadherin (Ecad; magenta) for each time point. Location of respective cross sections indicated in yellow for lateral plate (A1–D1) and blue for posterior lobe (A2–D2). Arrowhead in (A2) indicates future posterior lobe cells. Cross-sections are oriented with apical side at the top and basal side at the bottom. Relevant structures labeled: Posterior lobe (PL), lateral plate (LP), clasper (C), sheath (S), and phallus (P). Scale bar, 20 μm. n ≥ 4 per experiment. Images were independently brightened to show relevant structures.

In late pupal wing development, Dumpy anchors the wing to the surrounding cuticle, holding this tissue in place, which is important to properly shape the wing (Etournay et al., 2015; Ray et al., 2015). This same mechanism has been hypothesized to also occur in the leg and antennae (Ray et al., 2015), however, in the posterior lobe we do not find discrete anchorage points to the cuticle. Instead, we observed a large bundle of Dumpy emanating from the anal plate (also known as the cercus Rice et al., 2019) and connecting with the pupal cuticle that encases the entire pupa (Figure 4—figure supplement 3, Figure 4—video 2; Bainbridge and Bownes, 1981). This bundle does not come in direct contact with posterior lobe associated Dumpy or other nearby structures such as the lateral plate, clasper, sheath, or phallus, suggesting that if Dumpy is contributing to posterior lobe evolution and morphogenesis, this likely occurs through a mechanism which does not depend on a direct mechanical linkage with the overlying pupal cuticle.

To investigate the role that Dumpy may play in posterior lobe morphogenesis, we examined its localization throughout development. Prior to posterior lobe development, future cells of the lobe lack apically localized Dumpy, and yet an intricate network associated with the presumptive clasper is observed (Figure 4A). However, from the early stages of posterior lobe development, as it first protrudes from the lateral plate, we observe large deposits of Dumpy associated with future lobe cells (Figure 4B). These deposits persist throughout its development (Figure 4), becoming more restricted to the distal tip of the posterior lobe towards the end of its formation (Figure 4 D2). Across all timepoints, the posterior lobe associated Dumpy population is connected to the complex network of Dumpy attached to more medial structures such as the sheath and phallus (Figure 4 A2–D2), indicating that the posterior lobe is interconnected via the aECM with nearby structures (Figure 4). In contrast to the posterior lobe, the lateral plate has minimal Dumpy associated with it (Figure 4 A1–D1). Only when we oversaturate the Dumpy:YFP signal can we observe a weak population of Dumpy associated with the lateral plate (Figure 4—figure supplement 4). Together, this indicates that the cells of the posterior lobe and the lateral plate substantially differ in the levels of associated Dumpy, suggesting a potential role in the morphogenesis of the posterior lobe.

Expansion of dumpy expression is correlated with the evolution of the posterior lobe

The association of the posterior lobe with Dumpy suggests that changes in its expression pattern may have occurred during evolution of the lobe. To test if posterior lobe-associated Dumpy is a unique feature of species which produce a posterior lobe, we compared the spatial distribution of its mRNA in D. melanogaster with D. biarmipes, a species which lacks this structure. Early in pupal genital development at 32 hr APF, we observe very similar expression patterns of dumpy between D. melanogaster and D. biarmipes with expression at the base of the presumptive lateral plate-clasper (Figure 5A–B, Figure 5—figure supplement 1). From 36 to 40 hr APF, when the posterior lobe begins to develop, this pattern becomes restricted to a small region at the base of the lateral plate and clasper, near the anal plate in D. biarmipes, but is expanded in D. melanogaster (Figure 5A–B, Figure 5—figure supplement 1). By 44 hr APF, expression of dumpy is reduced in the posterior lobe, as well as in non-lobed species, with strongest expression associated with the clasper in D. biarmipes (Figure 5A–B, Figure 5—figure supplement 1). Overall, these results indicate that expression of dumpy is expanded in a lobed species and correlates with the developmental timing of the posterior lobe’s formation.

Figure 5 with 3 supplements see all
Download asset Open asset

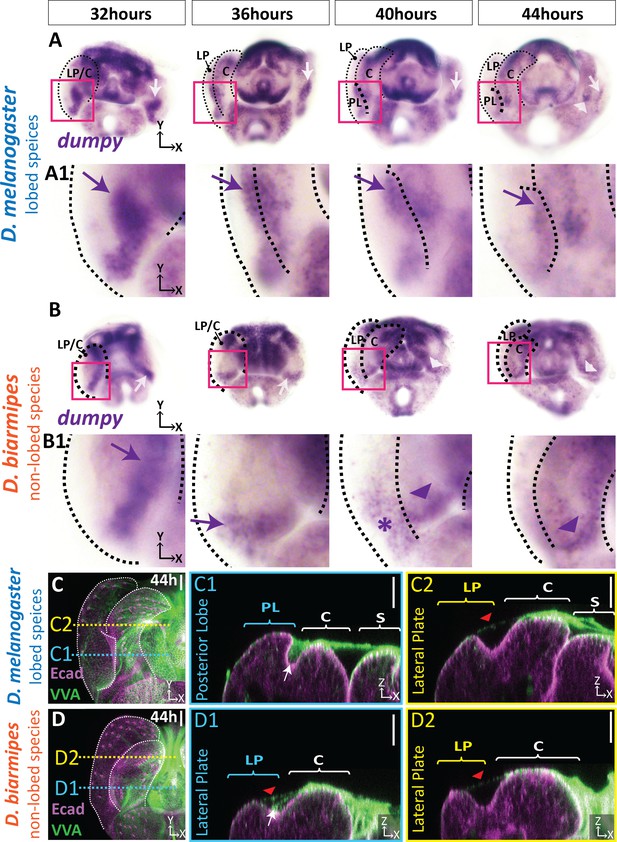

aECM is spatially expanded in lobed species compared to non-lobed species.

(A–B) in situ hybridization for dumpy mRNA in the lobed species D. melanogaster (A) and the non-lobed species D. biarmipes (B). Pink box outlines location of zoomed in images presented in A1 and B1. Relevant expression highlighted with arrow (purple/white) for strong expression, asterisk for weak expression, and arrowhead for clasper-specific expression. Expression observed in D. melanogaster at 44 hr APF is not present in all samples (see Figure 5—figure supplement 1). (C–D) aECM is labeled with Vicia villosa lectin (VVA; green) and apical membrane labeled with E-cadherin (Ecad; magenta) at 44 hr APF in D. melanogaster (C) and D. biarmipes (D). Location of respective cross sections indicated in yellow for lateral plate (C2–D2) and blue for posterior lobe in D. melanogaster (C1) and corresponding position in D. biarmipes (D1). All cross-sections are oriented with apical side at the top and basal side at the bottom. White arrows highlight the crevice localization between the lateral plate and clasper, which the aECM fills in D. melanogaster (C1), but only a weakly stained strand-like structure of aECM appears in D. biarmipes (D1). Tendrils of aECM can also be observed connecting to the lateral plate in both species (red arrowheads). Relevant structures labeled: Posterior lobe (PL), lateral plate (LP), clasper (C), sheath (S), and phallus (P). Scale bar, 20 μm. n = at least five per experiment.

Although, it appears that the expression of dumpy has expanded in D. melanogaster, Dumpy is an extracellular protein, and cells expressing its mRNA may not correlate with its ultimate protein abundance or localization. Since an antibody for Dumpy is not available, we adapted lectin staining protocols which can detect glycosylated proteins like Dumpy in order to compare the distribution of aECM in species which lack posterior lobes. We found that fluorescein conjugated Vicia villosa lectin (VVA), which labels N-acetylgalactosamine (Tian and Ten Hagen, 2007), roughly mirrors the complex three-dimensional shape of the Dumpy aECM network covering the center of the genitalia and strongly associates with the posterior lobe (Figure 5C, Figure 5—figure supplement 2). When we examined VVA in the non-lobed species D. biarmipes, we observed strong VVA signal over the center of the genitalia with weak connections to the tip of the lateral plate, similar to what we observe in D. melanogaster (Figure 5C–D). In contrast, where the presumptive posterior lobe would form, we only found a weak strand-like structure emanating from the clasper and connecting to the crevice between the lateral plate and clasper (Figure 5D1). These results correlate with our dumpy in situ hybridization results, where we observe high expression at the center of the genitalia and weak expression at the base between the clasper and lateral plate in D. biarmipes, which may be responsible for forming the weak aECM connection from the clasper to the clasper/lateral plate crevice. Further, we observed similar VVA patterns in non-lobed species D. ananassae (Figure 5—figure supplement 3). In addition, in the lobed species, D. sechellia, we note a similar accumulation of VVA associated with the developing lobe as seen in D. melanogaster (Figure 5—figure supplement 3), suggesting that this mechanism is common to other lobe-bearing species. Collectively, these data suggest that an ancestral aECM network exists on the developing genitalia, associated with the central genital structures, including the phallus, sheath, and clasper, and extends weak connections to the crevice between the lateral plate and clasper. During the course of evolution, expression of dumpy expanded to cells of the posterior lobe, creating prominent associations of the lobe cells with this ancestral aECM network.

Dumpy is required for proper posterior lobe formation

Thus far, we observed a strong association of the aECM with cells that form the posterior lobe, an attribute which is much less pronounced in non-lobed species. To determine if Dumpy plays a role in posterior lobe formation, we next employed transgenic RNAi to knock down its expression. Previous studies of dumpy characterized a VDRC RNAi line that is effective at reducing its activity (Ray et al., 2015). We used a driver from the Pox neuro gene (Boll and Noll, 2002) to target the RNAi to posterior lobe cells. This resulted in a drastic decrease in the size of the posterior lobe and also caused changes to its shape (Figure 6). In dumpy knockdown, we observe a variable phenotype between the left and right posterior lobes, even within a single individual (Figure 6A; Figure 6—figure supplement 1). Knockdown was completed at both 25°C and 29°C, as higher temperatures increase the efficacy of the Gal4/UAS system (Duffy, 2002). At these higher temperatures, the dumpy knockdown phenotype trended towards more severe defects (Figure 6B). Together, these results suggest that posterior lobe development is sensitive to levels of dumpy, and that dumpy plays a vital role in shaping the posterior lobe.

Figure 6 with 1 supplement see all
Download asset Open asset

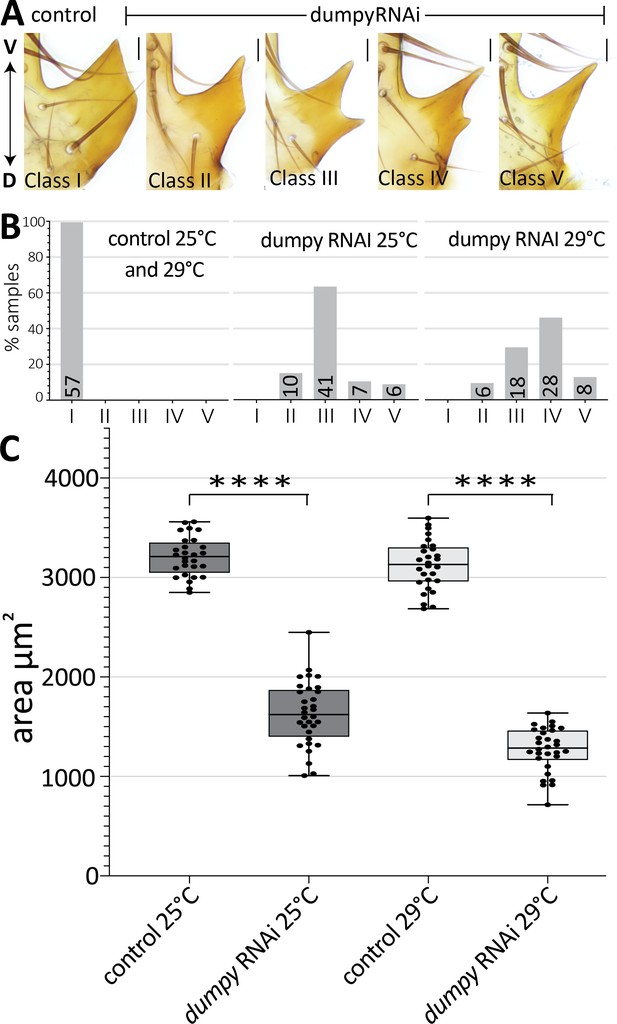

Dumpy is required for proper posterior lobe formation.

(A) Range of adult posterior lobe phenotypes produced by control (mCherry RNAi) and dumpy RNAi animals. Phenotypic classes defined from wild type (I) to most severe (V). Scale bar, 20 μm. (B) Percentage of posterior lobes in each class for control, dumpy RNAi at 25°C, and dumpy RNAi at 29°C. (C) Quantification of area of adult posterior lobes of mCherry RNAi (control) and dumpy RNAi at 25°C and 29°C. Statistical significance is indicated (unpaired t-test; ****p≤0.0001).

Figure 6—source data 1

Individual measurements of dumpy-RNAi adult cuticle phenotypes.

https://cdn.elifesciences.org/articles/55965/elife-55965-fig6-data1-v2.xlsx

Correlation of Dumpy deposition and cell height in the posterior lobe

We next sought to determine when during development dumpy knockdown influences the morphogenetic progression of the posterior lobe. This was important because the posterior lobe emerges over 16 hr of development (Figure 1F), after which cells of the genital epithelium secrete a rigid cuticle, and any of these phases could represent a critical Dumpy-dependent stage of development. We found that dumpy knockdown individuals manifest phenotypes by the midpoint of posterior lobe development (Figure 7A) and continue to show abnormal lobe development through the end of its formation (Figure 7B). Defects in posterior lobe development may occur earlier, but the exact ventral and dorsal boundaries of the posterior lobe are difficult to define for quantification purposes at early time points. Interestingly, while defects in cell height are observed on the dorsal side, we do not see differences in cell height in the ventral cells of the lobe (Figure 7A–B). This correlates with the phenotypes of adult dumpy knockdown individuals, which usually display a ventral tip of normal height with defects observed towards the dorsal side (Figure 6A).

Figure 7 with 3 supplements see all
Download asset Open asset

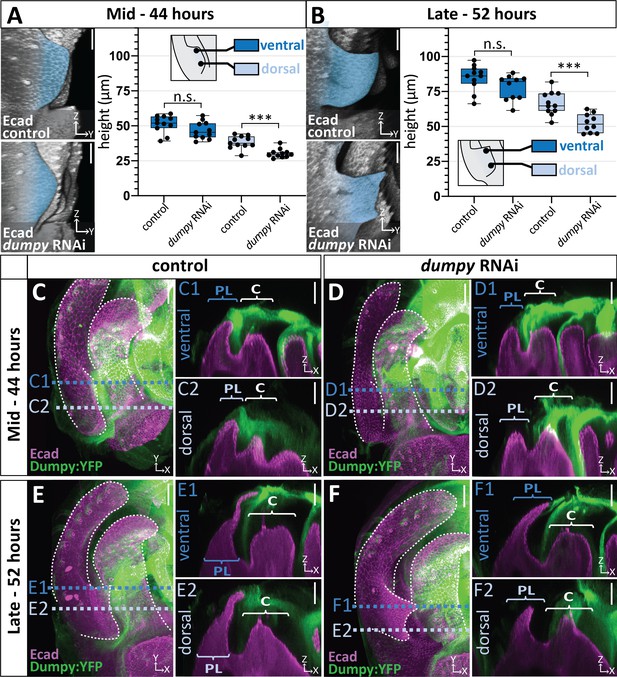

Correlation between the deposition of Dumpy and knockdown phenotype.

(A–B) Comparison of mCherry RNAi (control) and dumpy RNAi at 44 hr APF (A) and 52 hr APF (B). Images are rotated in 3D to visualize the full shape of the posterior lobe labeled with E-cadherin (Ecad). Quantification of tissue height at the ventral tip (dark blue) and dorsal base (light blue) of the posterior lobe. Cartoon represents relative locations of cross-sections used for tissue thickness measurements. Individual data points presented; n = at least 10 per time point. The ventral tip is defined as the location where the posterior lobe is at its maximum height. The base was determined by moving 19.76 μm dorsally from the ventral tip. Statistical significance for each time point is indicated (unpaired t-test; ***p≤0.001; n.s. = not significant p≥0.05). (C–F) Comparison of mCherry RNAi (control) (C and E) and dumpy RNAi (D and F) at 44 hr APF and 52 hr APF labeled with with Dumpy:YFP (Green) and E-cadherin(Ecad; Magenta). GFP antibody was used to increase YFP signal. All cross-sections are oriented with apical side at the top and basal side at the bottom. Relevant structures labeled: Lateral plate (LP) posterior lobe (PL), and clasper (C). Cross-sections are max projections of 5.434 μm sections to show full Dumpy connection. Images were independently brightened to show relevant structures. Scale bar, 20 μm. n = at least five per experiment.

Figure 7—source data 1

Individual measurements of dumpy-RNAi effects on the posterior lobe during its development.

https://cdn.elifesciences.org/articles/55965/elife-55965-fig7-data1-v2.xlsx

Why would dorsal cells of the posterior lobe be more affected in a dumpy knockdown? We hypothesized that our posterior lobe specific driver is not strong enough to remove all deposits of Dumpy associated with the posterior lobe. To better understand this, we examined Dumpy:YFP localization in the dumpy knockdown background, in which both dumpy and dumpy:yfp should be targeted by the RNAi treatment. In the dumpy RNAi background, we observed an association of Dumpy:YFP with the tallest cells on the ventral side of the posterior lobe in both mid (Figure 7D n = 5/5 samples) and late (Figure 7F n = 4/5 samples) stages of development compared to control animals. In contrast, no Dumpy was observed in contact with the shorter cells on the dorsal side (Figure 7D and F n = 5/5 samples). In addition, it should be noted that one of our late samples lacks a Dumpy connection to the ventral cells, correlating with our observation that not all adult samples are fully extended on the ventral side (Figure 7—figure supplement 1). Furthermore, we also observed highly variable strands of Dumpy:YFP in the middle of the lobe (between the ventral and dorsal sides) (Figure 7—figure supplement 2). These strands visually resembled the weak strands of VVA observed in D. biarmipes (Figure 5D), in that they emanate from the clasper and connect to the crevice between the posterior lobe and clasper, indicating that this ‘strand’ like connection in the crevice alone is not able to elongate cells.

To further confirm the effect of aECM in the dumpy knockdown background, we examined VVA during mid stages of development when defects in posterior lobe formation are evident. We observed a single thin strand of VVA at the ventral tip (Figure 7—figure supplement 3 n = 3/3) in dumpy knockdown individuals. In addition, no VVA was observed at the dorsal side of the posterior lobe (Figure 7—figure supplement 3 n = 2/3), with exception of one sample where a small strand of VVA was observed (Figure 7—figure supplement 3C n = 1/3). This small tether correlates with dorsal spikes observed in some adult individuals (Figure 6). Overall, these data demonstrate that the most pronounced phenotypic defects manifest in regions with the strongest reduction in Dumpy deposition, implying that Dumpy’s presence is required for posterior lobe cells to elongate and project from the lateral plate.

Discussion

Here, we investigated how a morphological novelty forms at the cellular level, and in doing so, revealed distinctive cell and aECM interactions underlying its development and evolution. We identified how an extreme change in the shape of cells in the developing posterior lobe accounts for its novel morphology. While intrinsic cytoskeletal components appear to contribute to this process, our results indicate a critical role played by a vast extrinsic network of ECM on the apical side of the epithelium. It was unexpected that such an elaborate supercellular matrix structure would participate in the evolution of a novel morphological structure. Below, we consider the potential roles played by the aECM in posterior lobe development and diversification, and discuss how studies of morphogenesis can illuminate the simple origins of structures that might otherwise seem impossibly complex to evolve.

Mechanisms for aECM-mediated control of cell height in the posterior lobe

Our work demonstrates an important role for the aECM protein Dumpy in the development of the posterior lobe, as exhibited by the dramatic phenotypes in the dumpy RNAi background and the strong association of Dumpy:YFP with only the tallest cells in these experiments. The presence of Dumpy:YFP at the ventral tip of the defective posterior lobe in dumpy RNAi individuals indicated that our driver does not supply sufficient RNAi in ventral tip cells to remove all of the Dumpy-YFP, though a strong reduction in florescence is observed at the ventral tip. We hypothesize that this ventral tip would not fully form if Dumpy is completely removed, however, we currently do not have a driver that can test this prediction.

Overall, our data are consistent with three possible mechanisms that could allow Dumpy to regulate cell height. First, Dumpy could serve as a structural support while autonomous cell mechanical processes drive apico-basal elongation, such as by altering the cytoskeleton, which is observed in posterior lobe cells. Second, the cells of the posterior lobe could be pulled mechanically through their connection to the Dumpy aECM. This process could operate passively, deforming cells of the lobe, but could also drive changes in the cytoskeleton in response to external tensions. Finally, the aECM could alter cell signaling dynamics, as has been exhibited by the basal ECM (Kirkpatrick et al., 2004; Kreuger et al., 2004; Wang et al., 2008). Previous research has shown that the JAK/STAT pathway is important for posterior lobe development (Glassford et al., 2015), and the ability for a signal to reach its target cells could be altered in the absence of Dumpy. Of course, these models are not mutually exclusive and some combination of these mechanisms may be integrated to shape the posterior lobe. Our observations of increased cytoskeletal components in posterior lobe cells and the reduced height of cells that lack Dumpy in our knockdown experiments are consistent with all three mechanisms, which are difficult to differentiate experimentally.

The role of aECM in the diversification of genital structures

Genitalia represents some of the most rapidly diversifying structures in the animal kingdom, and our results suggest the aECM may participate in the modification of Drosophila genital structures. The shape of the posterior lobe is extremely diverse among species of the melanogaster clade (Coyne, 1989). We confirmed that the extended posterior lobe of D. sechellia is associated with a similar aECM to D. melanogaster (Figure 5—figure supplement 3), confirming that this mechanism is likely common to other lobed species. Our results demonstrate that reducing the levels of Dumpy can affect the shape of the posterior lobe, with extreme knockdown phenotypes approximating the posterior lobe of D. mauritiana. Furthermore, the sheath and phallus show dense deposits of Dumpy, suggesting that the aECM could play important roles in diversifying these remarkably variable structures. During the course of evolution, one could imagine that by altering which cells are connected to the aECM, the physical nature of those connections, and the mechanical properties of those cells and/or their associated ECM could lead to changes in morphological shape. Hence, identifying genes that have evolved to differentiate these structures could uncover novel mechanisms for genetically controlling the behavior of this aECM and behaviors of cells bound to this dynamic scaffold.

Integrating cells into a pre-existing aECM network to generate morphological novelty

Evolution is thought to act through the path of least resistance. When confronted with the remarkable diversity of genital morphologies present in insects, one must wonder how the intricate projections, bumps, and divots form through the action of epithelial rudiments. Traditionally the field of evo-devo research has focused on cell intrinsic processes that contribute to tissue morphogenesis, but here we show that the extrinsic forces from the aECM may be important for the evolution of a novelty. The aECM, while understudied, has been implicated in the morphogenesis of many structures (Bailles et al., 2019; Diaz-de-la-Loza et al., 2018; Dong et al., 2014; Etournay et al., 2015; Fernandes et al., 2010; Heiman and Shaham, 2009; Low et al., 2019; Münster et al., 2019; Ray et al., 2015; Rosa et al., 2018), making it a promising target for evolution. We find a conserved aECM network associated with central genital structures (clasper, sheath, and phallus) in both lobed and non-lobed species. However, on the dorsal side of the lateral plate we observed differences, with lobed species having substantial deposits of aECM that fill this area between the lateral plate and clasper and non-lobed species forming only thin strand-like connections (Figure 8). Because a complex network of aECM already existed on the genitalia to potentially pattern other structures, such as the phallus and its multiple elaborations (Kamimura, 2010; Peluffo et al., 2015; Rice et al., 2019), we hypothesize that this spatial expansion of aECM to the posterior lobe cells allowed them to be integrated into the ancestral aECM network (Figure 8), a step which was likely significant to its evolution. Overall, this suggests that the aECM could be an unexpected target for generating novel anatomical structures. On the other hand, tissues which lack such an ancestral aECM network may be less likely to evolve projections through this mechanism. In addition, while Dumpy may be required for the development of the posterior lobe, additional components of the aECM, including factors that remodel the aECM or receptors that anchor the aECM to the cells, are likely also needed. Furthermore, we envision that additional processes may also be contributing to the full morphogenesis of the posterior lobe, including potential intrinsic processes that may contribute to the cell shape changes we observe, such as the elevated concentrations of cytoskeletal components (Figure 3).

Figure 8 with 1 supplement see all
Download asset Open asset

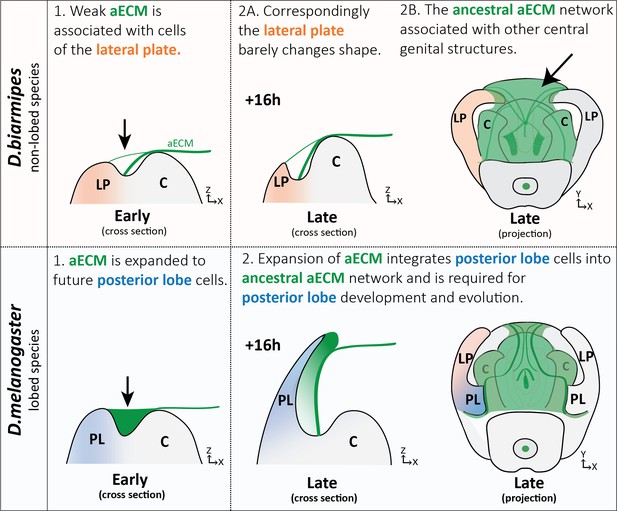

Expansion of aECM associated with the evolution of a morphological novelty.

(Top) Illustration of non-lobed species, D. biarmipes, with ancestral aECM network covering central genital structures (2B) including the clasper (C), sheath, and phallus. Weak connections of aECM span from the clasper to the lateral plate (LP) during early development (1 and 2A - top). (Bottom) Illustration of lobed species, D. melanogaster. The aECM network has expanded to fill the crevice between the lateral plate and clasper (1-bottom) integrating these cells into the ancestral aECM network (2-bottom). This aECM population is needed for cells to properly project from the lateral plate, forming the posterior lobe.

The expanded dumpy expression we discovered caused us to consider how the posterior lobe gained this aECM attachment. Models of gene network co-option have been appealing because they establish pre-existing mechanisms in place that can be rapidly ported to new locations to generate massive changes in a tissue. Interestingly, our previous work uncovered a gene regulatory network (GRN) that regulates development of an ancestral embryonic structure, the posterior spiracles, which was co-opted during the evolution of the posterior lobe and regulates its development (Glassford et al., 2015). Along these lines, dumpy is expressed in the developing posterior spiracles (Wilkin et al., 2000), and we have observed a thin strand of Dumpy:YFP connecting the posterior spiracles to the surrounding embryonic cuticle, known as the vitelline membrane (Figure 8—figure supplement 1; Margaritis et al., 1980). Identification of regulatory elements which activate dumpy in the posterior lobe will be necessary to determine whether its role in the posterior spiracle was relevant to the evolution of expanded genital expression.

Identifying the genetic changes that regulate cellular processes required for the evolution of new structures represents a major looming challenge in evo-devo research. Taken as a whole, the posterior lobe offers a promising model to begin to understand how gene regulatory networks and terminal effectors are connected, in addition to understanding how these networks become associated with novelties during evolution. As our understanding of the patterning of these tissues both at the level of transcriptional regulators (Vincent et al., 2019) and terminal effectors (such as Dumpy) becomes more complete, we can begin to connect the regulation of gene expression with the developmental behaviors of different cell types. The mapping of regulatory enhancers through reporter assays will allow us to trace the evolutionary history of these connections (Glassford et al., 2015). Furthermore, in systems where sophisticated genetic modifications are possible, CRISPR/Cas9 can be used to test the phenotypic consequences of genetic variation in these regulatory enhancers by exchanging regions between species (Xu et al., 2017a). Coupling such manipulations to quantitative measures of morphogenesis will illuminate the root causes of differences in tissue architecture (Smith et al., 2018).

Materials and methods

Key resources table
Reagent type
(species) or resource		DesignationSource or referenceIdentifiersAdditional information
AntibodyMonoclonal rat anti-alpha tubulin (tyrosinated)MilliporeSigmaMillipore Cat# MAB1864, RRID:AB_2210391IHC (1:500)
AntibodyMonoclonal mouse anti-alpha tubulin (acetylated)Sigma-AldrichSigma-Aldrich Cat# T6793, RRID:AB_477585IHC (1:500)
AntibodyMonoclonal rat anti-EcadherinDSHBDSHB Cat# DCAD2, RRID:AB_528120IHC (1:500)
AntibodyMonoclonal mouse anti-Fasciclin IIIDSHBDSHB Cat# 7G10 anti-Fasciclin III, RRID:AB_528238IHC (1:500)
AntibodyPolyclonal rabbit anti-histone H3 (phospho S10)AbcamAbcam Cat# ab5176, RRID:AB_304763IHC (1:50)
AntibodyPolyclonal goat anti-GFPAbcamAbcam Cat# ab6662, RRID:AB_305635IHC (1:300)
LectinfluoresceinVicia Villosa Lectin (VVA)Vector LaboratoriesVector Laboratories Cat# FL-1231, RRID:AB_2336856IHC (1:200)
Chemical compound, drugrhodamine phalloidinThermo Fisher ScientificThermo Fisher Scientific Cat# R415, RRID:AB_2572408IHC (1:200)
Strain, strain background (Drosophila melanogaster)y1w1Drosophila melanogasterBloomingtonDrosophilaStock CenterBDSC Cat# 1495, RRID:BDSC_1495
Strain, strain background (Drosophila biarmipes)wild typeNationalDrosophilaSpecies Stock Center (NDSSC)NDSSC Stock #:14023–0361.10
RRID:FlyBase_FBst0203870
Strain, strain background (Drosophila ananassae)wild typeNationalDrosophilaSpecies Stock Center (NDSSC)NDSSC Stock #:14024–0371.13
RRID:FlyBase_FBst0201380		No longer available
Strain, strain background (Drosophila pseudoobscura)wild typeNationalDrosophilaSpecies Stock Center (NDSSC)NDSSC Stock #:14011–0121.87
RRID:FlyBase_FBst0200074		No longer available
Strain, strain background (Drosophila sechellia)Wild typeNationalDrosophilaSpecies Stock Center (NDSSC)NDSSC Stock #: #14021–0248.03
RRID:FlyBase_FBst0201190		No longer available
Genetic reagent (Drosophila melanogaster)UAS-Raeppli-CAAXBloomington Drosophila
Stock Center (BDSC)		BDSC Cat# 55084, RRID:BDSC_55084
Genetic reagent (Drosophila melanogaster) Pox neuro-Gal4(Boll and Noll, 2002)Construct #13
Genetic reagent (Drosophila melanogaster)D. simulans Pox neuro-Gal4This paperCan be obtained from Mark Rebeiz,rebeiz@pitt.edu
Genetic reagent (Drosophila melanogaster)hs – flippase122Gift from Erika A. BachFlybase: FBtp0001101
Genetic reagent (Drosophila melanogaster)armadillo-GFP(Huang et al., 2012)
Genetic reagent (Drosophila melanogaster)Dumpy:YFPDrosophila Genomics and Genetic ResourcesDGGR Cat# 115238, RRID:DGGR_115238
Genetic reagent (Drosophila melanogaster)Viking:GFPDrosophila Genomics and Genetic ResourcesDGGR Cat# 110626, RRID:DGGR_110626
Genetic reagent (Drosophila melanogaster)Perlecan:GFPDrosophila Genomics and Genetic ResourcesDGGR Cat# 110807, RRID:DGGR_ 110807
Genetic reagent (Drosophila melanogaster)E-cadherin:mCherryBloomington Drosophila stock centerBDSC Cat# 59014, RRID:BDSC_59014
Genetic reagent (Drosophila melanogaster)UAS-dumpyRNAiViennaDrosophilaResource CenterVDRC Cat#44029, RRID:FlyBase_FBst0465370
Genetic reagent (Drosophila melanogaster)UAS-mCherryRNAiBloomington Drosophila stock centerBDSC Cat# 35785, RRID:BDSC_35785
Recombinant
DNA reagent		pS3aG4Gift from Benjamin Prud'hommeGal4 vector used to make D. simulans Pox neuro gal4 line
Sequence-based reagentGCCACTAACAATCCATGCGGTTThis paperdumpy probe forward primer. Obtained from Integrated DNA Technologies.
Sequence-based reagentTAATACGACTCACTATAGGGAGAAATAGCCCTGTCCTTGGAATCCThis paperdumpy probe reverse primer with T7 primer. Obtained from Integrated DNA Technologies.
Sequence-based reagentTTCCGGGCGCGCCTCGGTGGCTTAACACGCGCATTThis paperD. simulans Pox neuro forward primer for gal four line. Obtained from Integrated DNA Technologies.
Sequence-based reagentTTGCCCCTGCAGGATCGCTGATTCCATGGCCCAGTThis paperD. simulans Pox neuro reverse primer for gal four line. Obtained from Integrated DNA Technologies.
Software algorithmFiji (ImageJ v2.0)(Schindelin et al., 2012)RRID:SCR_002285
Software algorithmGenePalette(Rebeiz and Posakony, 2004; Smith et al., 2017)
Software algorithmLeica Application Suite XLeicaRRID:SCR_013673
Software algorithmMicrosoft ExcelMicrosoftRRID:SCR_016137
Software algorithmMorphoGraphX(Barbier de Reuille et al., 2015)
Software algorithmPrism 8GraphPadRRID:SCR_002798

Fly stocks and genetics

Request a detailed protocol

Fly stocks were reared using standard culture conditions. Wild type species used in this study were obtained from the University of California, San Diego Drosophila Stock Center (now known as The National Drosophila Species Stock Center at Cornell University) (Drosophila biarmipes #14024–0361.10, Drosophila ananassae #14024–0371.13, Drosophila pseudoobscura #14011–0121.87) and from the Bloomington Drosophila Stock Center (Drosophila melanogaster [y1w1] #1495). Pox neuro-Gal4 (construct #13) was obtained from Werner Boll (Boll and Noll, 2002). The following were obtained from the BloomingtonDrosophilastock center: UAS-Raeppli-CAAX (#55084), armadillo-GFP (#8556), Ecadherin:mCherry (#59014), and UAS-mCherryRNAi (control for RNAi experiments, as mCherry is not present in the Drosophila genome) (#35785). UAS-dumpy-RNAi was obtained from the Vienna Drosophila Resource Center (#44029) and Dumpy:YFP was obtained from the Drosophila Genomics and Genetic Resources (#115238).

For the Raeppli experiments, stable lines of hs-flippase;;UAS-Raeppli-CAAX/UAS-Raeppli-CAAX and D. simulans Pox neuro-gal4/D. simulans Pox neuro-Gal4;UAS-Raeppli-CAAX/UAS-Raeppli-CAAX were generated. D. simulans Pox neuro-Gal4 was used as opposed to Pox neuro-Gal4 because a Gal4 driver on the second chromosome was required. Virgin females from the first line were crossed to males from the second line to ensure hs-flippase was inherited by all offspring. Offspring were collected and grown as normal, heat shocked at 37°C for 1 hr around 24 to 28 hr APF, and allowed to finish development at 25°C. Although this system is designed to label cells with multiple colors (Kanca et al., 2014), we could only detect mTFP1 in heat-shocked tissues which we suspect is caused by insufficient activation of the other fluorescent reporters to detectible levels.

Sample preparation

Request a detailed protocol

Pupal samples were prepared following the protocol in Glassford et al. (2015). Briefly, samples were incubated at 25°C unless otherwise noted (Glassford et al., 2015). Dissections were performed in cold PBS, pupae were cut in half, removed from their pupal cases, and fat bodies removed by flushing, leaving the genitalia connected to the surrounding pupal cuticle. Larval samples were dissected in cold PBS by cutting the larva in half, and flipping the posterior end of the larva inside out. All samples were fixed for 30 min at room temperature in PBS with 0.1% Triton X-100% and 4% paraformaldehyde. Samples stained with phalloidin had Triton X-100 concentrations increased to 0.3%. Samples used for VVA staining were removed from pupal cuticle before being fixed in PBS with 0.1% Triton X-100, 4% paraformaldehyde, and 1% trichloroacetic acid on ice for 1 hr followed by 30 min at room temperature. The trichloroacetic acid method causes some slight tissue distortion, as the precipitation treatment utilized to refine the VVA signal causes the posterior lobe to become slightly deformed and curve in towards the clasper. However, similar defects were not observed in the other structures such as the lateral plate or in D. biarmipes. Samples were stored in PBT for immunostaining at 4°C for up to two days. For in situ hybridization, samples were rinsed twice in methanol and rinsed twice in ethanol. Samples were stored at −20°C in ethanol.

Immunostaining and in situ hybridization

Request a detailed protocol

For immunostaining, genital samples were removed from the surrounding pupal cuticle and incubated overnight at 4°C with primary antibodies diluted in PBS with 0.1% Triton-X (PBT). VVA and phalloidin samples were placed on a rocker. The following primary antibodies were used: rat anti-alpha tubulin (tyrosinated) 1:500 (MAB 1864-I, MilliporeSigma), mouse anti-alpha tubulin (acetylated) 1:500 (T6793, Sigma-Aldrich), rat anti-Ecadherin 1:500 (DCAD2, DSHB), mouse anti-Fasciclin III 1:500 (7G10, DSHB), rabbit anti-histone H3 (phospho S10) 1:50 (ab5176, Abcam), goat anti-GFP 1:300 (ab6662, Abcam), fluorescein Vicia Villosa Lectin (VVA) 1:200 (FL-1231, Vector Laboratories). The goat anti-GFP was used to increase signal of Dumpy:YFP in the knockdown experiments only. Primary antibody was removed by performing two quick rinses and two long washes (at least 5 min) in PBT. Samples were incubated overnight at 4°C in secondary antibodies diluted in PBT. The following secondary antibodies were used: donkey anti-rat Alexa 594 1:500 (A21209, Invitrogen), donkey anti-mouse Alexa 488 1:500 (A21202, Thermo Fisher Scientific), donkey anti-rat Alexa 488 1:500 (A21208, Thermo Fisher Scientific), goat anti-mouse Alexa 594 1:500 (A-11005, Thermo Fisher Scientific), goat anti-rabbit Alexa 594 1:500 (A-11012, Thermo Fisher Scientific), donkey anti-goat Cy2 1:500 (705-225-147, Jackson ImmunoResearch). Rhodamine phalloidin (R415, Thermo Fisher Scientific) stain was performed with secondary antibody. Samples were washed out of secondary antibody by performing two quick rinses and two long washes (at least 5 min) in PBT. Samples were then incubated in 50% PBT/50% glycerol solution for at least 5 min. Pupal samples were mounted on glass slides coated with Poly-L-Lysine Solution. Glass slides had 1 to 2 layers of double sided tape with a well cut out in which the sample was placed and covered with a cover slip. in situ hybridization was performed following the protocol in Rebeiz et al. (2009) with modifications to perform in situs in the InsituPro VSi robot (Intavis Bioanalytical Instruments) as done by Glassford et al., with the exception that the genital samples were removed from the surrounding pupal cuticle before placing in the InsituPro VSi robot (Glassford et al., 2015; Rebeiz et al., 2009).

Microscopy and live imaging

Request a detailed protocol

Cuticles of adult posterior lobes and in situ hybridization samples were imaged on a Leica DM2000 microscope with a 40x objective for cuticles and a 10x objective for in situ samples. Samples with fluorescent antibodies and fluorescently tagged proteins were imaged using a Leica TCS SP5 Confocal microscope with either a 40x or 63x oil immersion objective.

To live-image genital development, a 2% agar solution was poured into a small petri dish, filling the dish half way. A 0.1–10 µL pipette tip was used to make small wells in the agar for pupal samples. Timed pupal samples were inserted head first into the small well and a 20–200 µL pipette tip was used to push samples into agar by placing the tip around the posterior spiracles on the pupal case. To better image the developing genitalia, the pupal case at the posterior end was removed with forceps. Deionized water was used to cover the samples and imaged on a Leica TCS SP5 Confocal microscope using a 63x water objective.

To live-image embryos, Dumpy:YFP flies were grown in egg-laying chamber with grape agar plates (Genesee Scientific). Embryos were removed from plates using forceps and rolled on a piece of double sided tape to remove the chorion. Embryos then were positioned on a glass coverslip coated with embryo glue. A glass slide was covered with double sided tape and a well was made and filled with halocarbon 27 oil. The cover slip with the embryos was then placed on the glass slide, submerging the embryos in halocarbon oil. Embryos were imaged on a Leica TCS SP8 confocal with a 63x oil objective.

Image analysis

Request a detailed protocol

Images were processed with Fiji (Schindelin et al., 2012) and Photoshop. Three-dimensional views were rotated and captured in MorphoGraphX (Barbier de Reuille et al., 2015) or Leica Application Suite X. Movies were processed in Fiji and cell rearrangements were tracked using the manual tracking plugin. Tissue thickness/cell height during development was measured in cross-sections by drawing a line centered between the two sides (based on apical membrane) of the lobe until the basal side was reached. Area of adult posterior lobe cuticles and height of the adult lobe were measured by using the lateral plate as a guide for determining the bottom boundary of the posterior lobe. To prevent any possible bias for one lobe vs the other (i.e. left vs right) which lobe was used in statistical analysis was randomly decided, except for Figure 6—figure supplement 1 where both posterior lobes were considered.

Transgenic constructs

Request a detailed protocol

To make the D. simulans Pox neuro-Gal4 driver, the posterior lobe enhancer of Pox neuro in D. simulans, identified in Glassford et al. (2015), was cloned using primers listed in the key resources table from genomic DNA purified with the DNeasy Blood and Tissue Kit (QIAGEN). Primers were designed using sequence conservation with the GenePalette software tool (Rebeiz and Posakony, 2004; Smith et al., 2017). The cloned sequence was inserted into the pS3aG4 (Gal4) using AscI and SbfI restriction sites. The final construct was inserted into the 51D landing site on the second chromosome (Bischof et al., 2007).

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 2, 6, 7.

References

    1. Bainbridge SP
    2. Bownes M
    (1981)
    Staging the metamorphosis of Drosophila melanogaster
    Journal of Embryology and Experimental Morphology 66:57–80.
  13. Book
    1. Eberhard WG
    (1985)
    Sexual Selection and Animal Genitalia
    Cambridge: Harvard University Press.
    1. Margaritis LH
    2. Kafatos FC
    3. Petri WH
    (1980)
    The eggshell of Drosophila melanogaster fine structure of the layers and regions of the wild-type eggshell
    Journal of Cell Science 43:1–35.
    1. Moczek AP
    (2008) On the origins of novelty in development and evolution
    BioEssays : News and Reviews in Molecular, Cellular and Developmental Biology 30:432–447.
    https://doi.org/10.1002/bies.20754
  46. Book
    1. Peter IS
    2. Davidson EH
    (2015)
    Genomic Control Process: Development and Evolution
    Academic Press.

Decision letter

  1. Antonis Rokas
    Reviewing Editor; Vanderbilt University, United States
  2. Michael B Eisen
    Senior Editor; HHMI, University of California, Berkeley, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The manuscript by Smith and colleagues examines the developmental basis of a novel structure and how it may have evolved. The authors focus on the posterior lobe of Drosophila melanogaster, a structure that recently evolved in this species and that is absent from closely related Drosophilids. Through a series of experiments, the authors show that the posterior lobe is formed largely through increases in the height of cells, rather than through cell proliferation or cell intercalation. Furthermore, the authors are able to attribute this change in cell size to the presence of the apical extracellular matrix (aECM) and in particular to the aECM protein Dumpy. These results suggest an important role for aECM in the evolution of genital structures in Drosophilids.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Expansion of apical extracellular matrix underlies the morphogenesis of a recently evolved structure" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The reviewers have opted to remain anonymous.

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife in its present form. As you will see from the reviews, there was consensus that the topic addressed is of importance and that the work presented is an important first step toward elucidating the molecular basis of posterior lobe diversity. The key concern is that the data presented don't yet "prove" that the Dumpy aECM causes the posterior lobe diversity. For example, either reviewer #2's fourth point (how does the VVA-labeled aECM differ in other lobed species versus melanogaster?) or reviewer's #3 suggestion (doing the complementary gain-of-function experiment) would allow you to explore in more depth the connection between the aECM and posterior-lobe diversity. Recognizing that these experiments entail a lot more experimentaleLife, we have opted to reject the manuscript. But we would be open to considered a revised manuscript that addresses this key concern as well as the reviewers' other concerns.

Reviewer #1:

The manuscript by Smith and colleagues examines the developmental basis of a novel structure and how it may have evolved. The authors focus on the posterior lobe of Drosophila melanogaster, a structure that recently evolved in this species and that is absent from closely related Drosophilids. Through a series of experiments, the authors show that the posterior lobe is formed largely through increases in the height of cells, rather than through cell proliferation or cell intercalation. Furthermore, the authors are able to attribute this change in cell size to the presence of the apical extracellular matrix (aECM) and in particular to the aECM protein Dumpy. These results suggest an important role for aECM in the evolution of genital structures in Drosophilids.

The manuscript seems well written, the experiments appear to be well done, and the topic and question are of importance to evolutionary developmental biology.

Reviewer #2:

In this manuscript, Smith et al., investigate the morphological basis for a recently evolved and novel structure, the male posterior lobe in Drosophila melanogaster. The posterior lobe (PL), an outgrowth of the genitalia required for copulation, only appears in the melanogaster clade of Drosophila, and not in more distantly related species. The authors image the PL from the lateral plate at specific stages in D. melanogaster versus a non-lobed species, D. biarmipes. The growth of the PL during development and splitting from the lateral plate does not come from cell proliferation or cell intercalation. Instead, the authors propose that PL growth derives from cell lengthening; a membrane marker shows that cells span the length of the basal to apical surface of the PL. Thickness of the PL changes during development, suggesting that PL tissue development is dynamic. Next, the authors investigate the cellular and extracellular basis for PL morphogenesis. The PL is enriched for F-actin and microtubules, suggesting that the cytoskeleton may contribute to the shape and growth. However, the authors discover that a Dumpy-YFP-enriched apical extracellular matrix (aECM) is associated with the developing PL, particularly at the apex of the PL at late stages. Further, Dumpy RNA expression is expanded to the developing PL in lobed but not non-lobed species. The authors then show that VVA lectin resembles Dumpy-YFP aECM. This aECM network differs in non-lobed species compared to D. melanogaster, suggesting that the Dumpy-aEM helps shape PL morphogenesis. Lastly, the authors demonstrate that the PL is reduced and changes shape when Dumpy is knocked down by RNAi in D. melanogaster. PL changes correlate with altered Dumpy-YFP aECM organization. The authors conclude that the aECM is required for PL development in lobed species, but may have different functions in genital morphogenesis of non-lobed species.

Overall, this is a well-written manuscript, with very clear imaging data and videos. This is an important topic of general interest to developmental biologists, especially those interested in the evolutionary basis of tissue morphology. To strengthen the conclusions, however, clarification of several points would be helpful.

First, the authors use the Raeppli system to label cells with a membrane marker and show that the PL is one-cell thick, which continues to grow/lengthen. The authors could clarify why they used this technique specifically, rather than a regular FLP-out clone of a membrane-tethered GFP (e.g. UAS-PLCδPH-GFP or UAS-mCD8-GFP). I'm also concerned that the N's are low (n=4 clones). Did the authors label and image additional cells of the PL, and at different stages of development, to more convincingly show that the epithelium is only one cell layer thick throughout the breadth of the tissue?

Second, the authors use VVA-FITC to label the aECM in other Drosophila species. Can the authors confirm that VVA labels the same aECM structures as Dumpy-YFP in D. melanogaster? If so, this would go a long way to validate VVA as a great proxy for Dumpy. It looks like there is one commercial source of VVL/VVA-TRITC (Glycomatrix.com) that could be used.

Third, the authors look at Dumpy-YFP in a Dumpy RNAi background (Figure 7C-F). Shouldn't the RNAi target Dumpy-YFP and thus reduce its expression? This could change the interpretation of how the aECM associates with the ventral portion of the PL. Visualizing VVA here could strengthen this association.

Fourth, the PL appears quite different within the melanogaster clade (e.g. Glassford et al., 2015 shows the simulans has a very large PL and mauritiana a very small PL). How does the VVA-labeled aECM differ in these (or another) lobed species versus melanogaster? The similarities/differences could really strengthen the association of aECM organization and how the PL shape develops in lobed versus non-lobed species.

Fifth, the authors conclude that Dumpy is required for proper posterior lobe formation. The data seems to support a role for Dumpy in sculpting and shaping the lobe, as the PL still forms in the dumpy RNAi animals. Or do the authors think that there is residual Dumpy in the RNAi condition that may account for the PL still forming, albeit as a smaller tissue with altered shape? Alternatively, does the GAL4 driver used to knockdown Dumpy have variable expression that can account for the variability in the PL phenotypes?

Lastly, the authors could further discuss the possibility that intrinsic factors such as the cytoskeleton may contribute to PL morphogenesis. The phenotypes caused by Dumpy RNAi are not completely penetrant (e.g. the PL still forms, but has a cleft). Do the authors think that a combination of extrinsic aECM along with cytoskeletal changes contribute? Is there any role for apical cell constriction of the epithelia, for example, in forming the crevice between the PL and clasper, and that this could help the PL form in these species?

Reviewer #3:

Smith et al., present a thorough analysis of the morphogenesis of the posterior lobe of the Drosophila melanogaster male genitalia, and compare this morphogenetic process with non-lobed yet relatively closely related species. They find that the posterior lobe forms by a major increase in cell height; that the developing genitalia associate with an intricate apical extracellular matrix; and that a component of this matrix, Dumpy, has expanded in expression in lobed species and is required for lobe development in D. melanogaster. This work joins other recent work (reviewed in the Introduction) that is beginning to reveal the cellular-developmental basis of evolutionary change, and as the authors note their work is an important addition because of its focus on a novel structure rather than diversification of an ancestral structure.

The experiments appear to have been well conceived and rigorously executed, and the information they provide is an important starting point for understanding the evolution of this model novelty (both its origin and its subsequent diversification).

Although this is solid work, I do have reservations about its ultimate impact. It is not clear whether changes in Dumpy expression were at all causative in the evolution of the posterior lobe. It is not entirely surprising that disrupting Dumpy, which attaches to the developing lobe, disrupts its ultimate morphology. What is missing is the complementary gain-of-function experiment: does expanding Dumpy expression in a non-lobed species create anything akin to a new lobe? Granted, this kind of experiment might not be feasible in a non-model fly, and if it could be done it might yield a hard-to-interpret negative result. But then the question remains: how do we solve the "major looming challenge in evo-devo research" that the authors note in their final sentence Discussion section) – what are the genetic changes underlying the cellular changes? Moving in that direction would indeed be a major advance, and it seems to me that the ultimate impact of the present work lies in how possible it will be to uncover the relevant genetic changes underlying the novelty. I don't have any specific experiments to suggest (and I'd be reluctant to suggest major new experiments anyway), but the uncertainty about making progress does constrain my enthusiasm somewhat. And in the meantime, the title ("Expansion of aECM underlies the morphogenesis.…") is a bit misleading and should reflect more this uncertainty.

https://doi.org/10.7554/eLife.55965.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

The paper has been greatly improved in response to the reviewer feedback. We have performed additional experiments and added significant data to address nearly

every reviewer comment and concern. Although one requested experiment was not

addressable, we detail in our response how this suggested experiment is infeasible, and

describe the current practices and theoretical frameworks of the evo-devo field upon which our conclusions are soundly based.

Reviewer #1:

The manuscript by Smith and colleagues examines the developmental basis of a novel structure and how it may have evolved. The authors focus on the posterior lobe of Drosophila melanogaster, a structure that recently evolved in this species and that is absent from closely related Drosophilids. Through a series of experiments, the authors show that the posterior lobe is formed largely through increases in the height of cells, rather than through cell proliferation or cell intercalation. Furthermore, the authors are able to attribute this change in cell size to the presence of the apical extracellular matrix (aECM) and in particular to the aECM protein Dumpy. These results suggest an important role for aECM in the evolution of genital structures in Drosophilids.

The manuscript seems well written, the experiments appear to be well done, and the topic and question are of importance to evolutionary developmental biology.

We thank the reviewer for their comments and perspective on our work.

Reviewer #2:

In this manuscript, Smith et al., investigate the morphological basis for a recently evolved and novel structure, the male posterior lobe in Drosophila melanogaster. The posterior lobe (PL), an outgrowth of the genitalia required for copulation, only appears in the melanogaster clade of Drosophila, and not in more distantly related species. The authors image the PL from the lateral plate at specific stages in D. melanogaster versus a non-lobed species, D. biarmipes. The growth of the PL during development and splitting from the lateral plate does not come from cell proliferation or cell intercalation. Instead, the authors propose that PL growth derives from cell lengthening; a membrane marker shows that cells span the length of the basal to apical surface of the PL. Thickness of the PL changes during development, suggesting that PL tissue development is dynamic. Next, the authors investigate the cellular and extracellular basis for PL morphogenesis. The PL is enriched for F-actin and microtubules, suggesting that the cytoskeleton may contribute to the shape and growth. However, the authors discover that a Dumpy-YFP-enriched apical extracellular matrix (aECM) is associated with the developing PL, particularly at the apex of the PL at late stages. Further, Dumpy RNA expression is expanded to the developing PL in lobed but not non-lobed species. The authors then show that VVA lectin resembles Dumpy-YFP aECM. This aECM network differs in non-lobed species compared to D. melanogaster, suggesting that the Dumpy-aEM helps shape PL morphogenesis. Lastly, the authors demonstrate that the PL is reduced and changes shape when Dumpy is knocked down by RNAi in D. melanogaster. PL changes correlate with altered Dumpy-YFP aECM organization. The authors conclude that the aECM is required for PL development in lobed species, but may have different functions in genital morphogenesis of non-lobed species.

Overall, this is a well-written manuscript, with very clear imaging data and videos. This is an important topic of general interest to developmental biologists, especially those interested in the evolutionary basis of tissue morphology. To strengthen the conclusions, however, clarification of several points would be helpful.

Thank you for the very careful reading of our manuscript and appreciation of the topic and our conclusions. We have addressed all of the comments raised below with additional experiments and modifications.

First, the authors use the Raeppli system to label cells with a membrane marker and show that the PL is one-cell thick, which continues to grow/lengthen. The authors could clarify why they used this technique specifically, rather than a regular FLP-out clone of a membrane-tethered GFP (e.g. UAS-PLCδPH-GFP or UAS-mCD8-GFP). I'm also concerned that the N's are low (n=4 clones). Did the authors label and image additional cells of the PL, and at different stages of development, to more convincingly show that the epithelium is only one cell layer thick throughout the breadth of the tissue?

We have increased our N for this experiment to 10. We had initially sought to use the Raeppli system to label multiple cells in different colors. While this did not pan out in our hands (likely due to insufficient activation of the reporters such that only one color was detected), it did allow us to measure the height of single cells. We also note that our staining of microtubules across a variety of timepoints shows apicobasal polarity consistent with observations from the Raeppli experiment. We explain the rationale for our approach in the Methods section:

“Although this system is designed to label cells with multiple colors (Kanca et al., 2014), we could only detect mTFP1 in heat-shocked tissues which we suspect is caused by insufficient activation of the other fluorescent reporters to detectible levels.” (subsection “Immunostaining and in situ hybridization”).

Second, the authors use VVA-FITC to label the aECM in other Drosophila species. Can the authors confirm that VVA labels the same aECM structures as Dumpy-YFP in D. melanogaster? If so, this would go a long way to validate VVA as a great proxy for Dumpy. It looks like there is one commercial source of VVL/VVA-TRITC (Glycomatrix.com) that could be used.

We tried a variety of lectins, including VVA-Texas Red and carefully compared these to DumpyYFP. Of these, VVA-FITC showed the most sharp/reproducible pattern that matched the Dumpy-YFP experiment. We now document more completely how this was determined in Figure 5, supplement 2, where we show how diagnostic aspects of the Dumpy pattern are mirrored by VVA-FITC. We also show in Figure 7—figure supplement 3 how the VVA signal is altered during Dumpy knockdown, further confirming that these signals are related by more than just a simple correlation. We acknowledge that the aECM is likely complex, and VVA almost certainly labels more than just Dumpy protein. However, our experiments suggest that VVA is a useful proxy for aECM, a previously unseen feature of genital development that can now be compared between species using this method.

Third, the authors look at Dumpy-YFP in a Dumpy RNAi background (Figure 7C-F). Shouldn't the RNAi target Dumpy-YFP and thus reduce its expression? This could change the interpretation of how the aECM associates with the ventral portion of the PL. Visualizing VVA here could strengthen this association.

We agree that Dumpy RNAi will target both wildtype and YFP tagged Dumpy in this experiment, and we realize that the previous wording had not made this point completely clear. Indeed, we sought to image Dumpy-YFP in the RNAi background to more carefully assess how the phenotype of Dumpy-RNAi manifests. That we see remaining connections in the knockdown confirms that the knockdown is not absolute, and shows how the tallest cells of the defective lobe are nevertheless those which maintain a connection with Dumpy-positive aECM. We modified the text as such to make the setup of this experiment more clear:

“Why would dorsal cells of the posterior lobe be more affected in a dumpy knockdown? We hypothesized that our posterior lobe specific driver is not strong enough to remove all deposits of Dumpy associated with the posterior lobe. To better understand this, we examined Dumpy:YFP localization in the dumpy knockdown background, in which both dumpy and dumpy:yfp should be targeted by the RNAi treatment.” (Subsection “Correlation of Dumpy deposition and cell height in the posterior lobe”.)

To address the reviewer’s point, we now show the VVA stain of Dumpy-RNAi in Figure 7 supplement 3. This experiment confirms that these remaining connections between the tallest portion of the posterior lobe and the aECM are the only obvious connections in the Dumpy-RNAi experiment.

Fourth, the PL appears quite different within the melanogaster clade (e.g. Glassford et al., 2015 shows the simulans has a very large PL and mauritiana a very small PL). How does the VVA-labeled aECM differ in these (or another) lobed species versus melanogaster? The similarities/differences could really strengthen the association of aECM organization and how the PL shape develops in lobed versus non-lobed species.

This is a great point. We see such an experiment as a useful demonstration that this mechanism is likely common to all lobed species, representing a morphogenetic process that coincides with the origin of this structure. As per the reviewer’s request, we have added an experimental stain of VVA to show that it is associated with the posterior lobe of another species (D. sechellia) whose morphology differs from D. melanogaster (Figure 5—figure supplement 3). Although the association correlates with the unique shape of the lobe in this species, we do feel that it would be an over-interpretation to conclude that this demonstrates that the aECM causes differences in lobe morphology. Studying such a problem would require a very different type of study of the genetic variants between these species, which is ongoing. However, the data do demonstrate that this is not a mechanism that only evolved in D. melanogaster.

Fifth, the authors conclude that Dumpy is required for proper posterior lobe formation. The data seems to support a role for Dumpy in sculpting and shaping the lobe, as the PL still forms in the dumpy RNAi animals. Or do the authors think that there is residual Dumpy in the RNAi condition that may account for the PL still forming, albeit as a smaller tissue with altered shape? Alternatively, does the GAL4 driver used to knockdown Dumpy have variable expression that can account for the variability in the PL phenotypes?

This is exactly what we think – when we knock down Dumpy, there are still Dumpy-YFP connections between the remaining tallest cells of the lobe and the centrally localized deposits of aECM (Figure 7D). These deposits of Dumpy in the genitalia are highly concentrated, and we have been unable to fully eliminate them by RNAi using a variety of drivers. We thus interpret the variability in dumpy-RNAi phenotype to be most consistent with variable efficiency of knockdown. We have revised the text to clarify this view:

“Why would dorsal cells of the posterior lobe be more affected in a dumpy knockdown? We hypothesized that our posterior lobe specific driver is not strong enough to remove all deposits of Dumpy associated with the posterior lobe.” (subsection “Correlation of Dumpy deposition and cell height in the posterior lobe”)

Lastly, the authors could further discuss the possibility that intrinsic factors such as the cytoskeleton may contribute to PL morphogenesis. The phenotypes caused by Dumpy RNAi are not completely penetrant (e.g. the PL still forms, but has a cleft). Do the authors think that a combination of extrinsic aECM along with cytoskeletal changes contribute? Is there any role for apical cell constriction of the epithelia, for example, in forming the crevice between the PL and clasper, and that this could help the PL form in these species?

We agree with the reviewer that multiple mechanisms are likely acting. We recognize the possible roles for intrinsic factors at multiple places: Results section, Discussion section:

“Furthermore, we envision that additional processes may also be contributing to the full morphogenesis of the posterior lobe, including potential intrinsic processes that may contribute to the cell shape changes we observe, such as the concentrations of cytoskeletal components we observed (Figure 3).”(subsection “Integrating cells into a pre-existing aECM network to generate morphological novelty”)

However, we focused our discussion primarily on the aECM, as very few studies have investigated extrinsic factors in the morphogenesis of epithelial structures, and comparative evolutionary studies of extrinsic factors are particularly rare. Thus, we felt that the focus on the aECM best emphasized the significance of our work, while fully acknowledging the existence of intrinsic mechanisms.

Reviewer #3:

Smith et al., present a thorough analysis of the morphogenesis of the posterior lobe of the Drosophila melanogaster male genitalia, and compare this morphogenetic process with non-lobed yet relatively closely related species. They find that the posterior lobe forms by a major increase in cell height; that the developing genitalia associate with an intricate apical extracellular matrix; and that a component of this matrix, Dumpy, has expanded in expression in lobed species and is required for lobe development in D. melanogaster. This work joins other recent work (reviewed in the Introduction) that is beginning to reveal the cellular-developmental basis of evolutionary change, and as the authors note their work is an important addition because of its focus on a novel structure rather than diversification of an ancestral structure.

The experiments appear to have been well conceived and rigorously executed, and the information they provide is an important starting point for understanding the evolution of this model novelty (both its origin and its subsequent diversification).

We thank the reviewer for their comment on the rigor and importance of our studies, as well as the thoughtful reactions and suggestions below.

Although this is solid work, I do have reservations about its ultimate impact. It is not clear whether changes in Dumpy expression were at all causative in the evolution of the posterior lobe. It is not entirely surprising that disrupting Dumpy, which attaches to the developing lobe, disrupts its ultimate morphology. What is missing is the complementary gain-of-function experiment: does expanding Dumpy expression in a non-lobed species create anything akin to a new lobe? Granted, this kind of experiment might not be feasible in a non-model fly, and if it could be done it might yield a hard-to-interpret negative result. But then the question remains: how do we solve the "major looming challenge in evo-devo research" that the authors note in their final sentence Discussion section) – what are the genetic changes underlying the cellular changes? Moving in that direction would indeed be a major advance, and it seems to me that the ultimate impact of the present work lies in how possible it will be to uncover the relevant genetic changes underlying the novelty. I don't have any specific experiments to suggest (and I'd be reluctant to suggest major new experiments anyway), but the uncertainty about making progress does constrain my enthusiasm somewhat. And in the meantime, the title ("Expansion of aECM underlies the morphogenesis.…") is a bit misleading and should reflect more this uncertainty.

The comments above address several interconnected issues, which will be responded to in sequence below:

1) It is not clear whether changes in Dumpy expression were at all causative in the evolution of the posterior lobe.

We agree that it would be difficult to conclusively state that changes in Dumpy expression (either by cis or trans changes) were causative for generating the posterior lobe. However, that is not the main conclusion of this paper – our results show how the expansion of an apical ECM is associated with and required for the novel posterior lobe structure. It is important to recognize that the logic of our conclusions follow well-accepted practices in the study of novelty on macroevolutionary scales in the evo-devo field. Specifically, one describes a feature of an evolved trait (e.g. a gene expression pattern), shows how it is unique to the species bearing the trait, and then demonstrates (in the best case scenario) that the feature is required for trait formation. Similar inferences have been made to varying extents in the cases of beetle horns (Moczek and Rose, 2009), treehopper helmets (Fisher et al., 2019; Prud’homme et al., 2011), and butterfly pigment patterns (Kunte et al., 2014; Mazo-Vargas et al., 2017; Reed et al., 2011).

2) It is not entirely surprising that disrupting Dumpy, which attaches to the developing lobe, disrupts its ultimate morphology.

We agree that it is not surprising to see a phenotype once one knows about the vast aECM network associated with the posterior lobe that we uncovered. We would assert that what is surprising is the existence of this complex aECM network, which shows signs of evolving connections to cells of the posterior lobe.

3) What is missing is the complementary gain-of-function experiment: does expanding Dumpy expression in a non-lobed species create anything akin to a new lobe?

We would love to test the sufficiency of changes at Dumpy. However, there are three reasons that this would be nearly impossible to perform.

First, we strongly suspect the aECM is composed of multiple proteins in addition to Dumpy. This may include receptors, other ZP proteins, enzymes which modify these proteins and additional components that await discovery as the cell biology of the aECM is largely unexplored. Hence, we agree with the reviewer that the misexpression of just Dumpy is unlikely to drive a substantial response on its own. We discuss this possibility in more detail:

“In addition, while Dumpy may be required for the development of the posterior lobe, additional components of the aECM, including factors that remodel the aECM or receptors that anchor the aECM to the cells, are likely also needed.” (subsection “Integrating cells into a pre-existing aECM network to generate morphological novelty”)

Second, as the reviewer astutely notes, this experiment is technically difficult. We would need validated enhancer-Gal4 drivers to express Dumpy in a non-lobed species. Not just any driver would suffice, but one that has the correct spatiotemporal dynamics to connect lateral plate cells to other parts of the aECM network to mechanically couple these elements together.

Third, generating a UAS construct for dumpy itself is challenging. Dumpy encodes a 2.5 megadalton protein, and its CDNAs are 40-50 kilobases long. Thus generation of a UAS construct for this protein would likely require BAC-scale transgenic manipulations that have not been commonplace in Drosophila species outside of D. melanogaster, and in fact have not even been performed to our knowledge for dumpy in D. melanogaster. Given these limitations, we hope that the reviewers and editors can see how this is a massive project that would take several years for any group to accomplish, and may not lead to positive results for good reasons that do not invalidate our conclusions.

4) But then the question remains: how do we solve the "major looming challenge in evo-devo research" that the authors note in their final sentence (Discussion section) -- what are the genetic changes underlying the cellular changes? Moving in that direction would indeed be a major advance, and it seems to me that the ultimate impact of the present work lies in how possible it will be to uncover the relevant genetic changes underlying the novelty.

This is a comment on our final sentence of the discussion, which we wrote for the purpose of highlighting the future of this system. We are therefore excited about the reviewer’s enthusiasm for our stated vision. What we disagree with is the question of whether the work presented here represents a “major advance”. Clearly we think so (for several reasons):

- The posterior lobe is the only trait that can physically distinguish the most extensively studied multicellular species on the planet from its close relatives, and yet the cellular basis of its formation had not been studied.

- We find that the lobe is a single cell tall. This was unexpected to us and colleagues that we have discussed our findings with.

- The molecular basis of extreme apico-basal cell elongation is poorly understood.

- The apical ECM is also a poorly understood participant in epithelial morphogenesis, and has not been thus far implicated in morphological evolution.

- The genital aECM that we describe is unique among apical ECMs in its complexity (connecting to multiple structures), and for its previously undescribed role in extreme apico-basal elongation of epithelial cells.

5) And in the meantime, the title ("Expansion of aECM underlies the morphogenesis.…") is a bit misleading and should reflect more this uncertainty.

We have revised the title to better reflect our conclusions:

”Evolutionary expansion of apical extracellular matrix is required for the elongation of cells in a novel structure”
