Complementary α-arrestin-ubiquitin ligase complexes control nutrient transporter endocytosis in response to amino acids
Abstract
How cells adjust nutrient transport across their membranes is incompletely understood. Previously, we have shown that S. cerevisiae broadly re-configures the nutrient transporters at the plasma membrane in response to amino acid availability, through endocytosis of sugar- and amino acid transporters (AATs) (Müller et al., 2015). A genome-wide screen now revealed that the selective endocytosis of four AATs during starvation required the α-arrestin family protein Art2/Ecm21, an adaptor for the ubiquitin ligase Rsp5, and its induction through the general amino acid control pathway. Art2 uses a basic patch to recognize C-terminal acidic sorting motifs in AATs and thereby instructs Rsp5 to ubiquitinate proximal lysine residues. When amino acids are in excess, Rsp5 instead uses TORC1-activated Art1 to detect N-terminal acidic sorting motifs within the same AATs, which initiates exclusive substrate-induced endocytosis. Thus, amino acid excess or starvation activate complementary α-arrestin-Rsp5-complexes to control selective endocytosis and adapt nutrient acquisition.
Introduction
Cells regulate the import of amino acids, glucose, and other nutrients to fuel metabolism, sustain growth or maintain homeostasis. For the selective transport of amino acids across the plasma membrane (PM) and other cellular membranes, the human genome encodes more than 60 known amino acid transporters (AATs). Mutations in AATs cause severe defects of amino acid metabolism, and the deregulation of AATs is linked to a range of human pathologies, including neurodegenerative diseases, diabetes and cancer (Kandasamy et al., 2018; Smith, 1990; McCracken and Edinger, 2013; Zhang et al., 2017).
AATs belong to the family of solute carriers (SLCs) and form selective pores that change from an outward- to an inward-facing conformation and thereby transport their amino acid substrates across membranes. Hence, the addition of AATs to the PM or their selective removal by endocytosis determines quantity and quality of amino acid transport. In human cells, the molecular mechanisms leading to the selective endocytosis of AATs are largely unclear.
The mechanisms for the endocytic down-regulation of AATs are beginning to emerge in the budding yeast, S. cerevisiae. Yeast cells frequently experience acute fluctuations in amino acid availability (Broach, 2012) and can rapidly remodel their 21 PM-localized AATs to optimize the import of amino acids with regard to the quantity and quality of the nitrogen source available (Grenson et al., 1966; Grenson, 1966; André, 2018; Van Belle and André, 2001; Bianchi et al., 2019). The selective, ubiquitin-dependent endocytosis of AATs and other integral PM proteins frequently requires the HECT-type ubiquitin ligase Rsp5, the orthologue of human Nedd4 (Hein et al., 1995; Dupré et al., 2004; Belgareh-Touzé et al., 2008). To specifically recognize and ubiquitinate PM proteins, Rsp5 interacts with the α-arrestin proteins, a family of ubiquitin ligase adaptors (Nikko et al., 2008; Lin et al., 2008). The budding yeast genome encodes 14 α-arrestin proteins (arrestin-related trafficking adaptors, ARTs; Art1-10, Bul1-3 and Spo23), which function in a partially redundant manner (Becuwe et al., 2012a; MacGurn et al., 2012; Babst, 2020; O'Donnell and Schmidt, 2019; Nikko and Pelham, 2009). Six α-arrestins have been identified in humans (Alvarez, 2008). α-Arrestin proteins use PPxY (PY) motifs to interact directly with the three WW domains of Rsp5/Nedd4 (Becuwe et al., 2012a; Rauch and Martin-Serrano, 2011). How α-arrestins recognize their cargoes in general, and more specifically AATs, is only partially understood, but appears to involve their arrestin domains. These domains have large, disordered loop- and tail-like insertions that contribute to the function of ARTs (Baile et al., 2019).
The activity of α−arrestins is controlled by complex post-translational modifications (PTMs) involving (de-)ubiquitination and (de-)phosphorylation. In several cases, the binding of α−arrestins to Rsp5 results in their ubiquitination, which is required for function (Lin et al., 2008; Becuwe et al., 2012b; Hovsepian et al., 2017). In case of Art1, ubiquitination determines its localization (Lin et al., 2008). Additional ubiquitination of ARTs can target them for proteasomal degradation, which is counteracted by deubiquitinating enzymes (Ho et al., 2017). Several α−arrestins are activated by dephosphorylation events in response to nutrient availability or other cellular stresses (Becuwe et al., 2012a; O'Donnell et al., 2013; Alvaro et al., 2014; Becuwe et al., 2012b; Becuwe and Léon, 2014; Merhi and André, 2012). One example are high levels of amino acids, which activate the target of rapamycin complex 1 (TORC1). This leads to inhibition of the kinase Npr1 and thereby promotes the activity of Art1 (MacGurn et al., 2011). At the PM, Ppz phosphatases activate Art1 by dephosphorylation of its Npr1-dependent phosphorylation sites (Lee et al., 2019) and thereby stimulate ubiquitination and endocytosis of the Art1 cargoes Mup1 (methionine transporter), Can1 (arginine transporter), Tat2 (tyrosine and tryptophan transporter) and Lyp1 (lysine transporter) in response to substrate excess. Similarly, TORC1 signaling also promotes endocytosis of the general amino acid permease (Gap1) via the ARTs Bul1/2 (Merhi and André, 2012). It seems that nutrient-dependent TORC1 activation controls α−arrestin-mediated ubiquitin-dependent AAT endocytosis to adjust amino acid influx to metabolic needs.
Activated Art1 recognizes specific sorting signals in AATs. The flux of methionine through Mup1 or arginine through Can1 requires conformational changes into the inward-facing conformation, which probably dislodge a C-terminal plug that otherwise ‘seals’ the pore. At the same time, it exposes an N-terminal acidic patch that is recognized by activated Art1. Art1 interacts with this acidic patch and then orients Rsp5 to ubiquitinate nearby lysine residues (Guiney et al., 2016; Gournas et al., 2018; Busto et al., 2018; Ghaddar et al., 2014). Similar results have been obtained for the uracil transporter Fur4 (Keener and Babst, 2013). A further layer of complexity may be added by stimulus-induced phosphorylation of nutrient transporters (Marchal et al., 1998; Paiva et al., 2009), akin to the recognition of G-protein-coupled receptors (GPCRs) by β–arrestins in mammalian cells (Nikko et al., 2008; Nobles et al., 2011). Hence, a molecular basis of α−arrestin-dependent nutrient transporter endocytosis in response to excess nutrients is emerging. We refer to this process as substrate-induced endocytosis.
Yet, not only substrate transport can induce nutrient transporter endocytosis, but also nutrient limitation, acute starvation or rapamycin treatment (Crapeau et al., 2014; Hovsepian et al., 2017; Jones et al., 2012; Laidlaw et al., 2020; Lang et al., 2014; Müller et al., 2015; Schmidt et al., 1998; Yang et al., 2020). Starvation-induced endocytosis is part of a coordinated catabolic cascade. Together with proteasomal degradation and with macro- and micro-autophagy, it maintains amino acid homeostasis to allow entry into quiescence for cell survival during nutrient limitation. This catabolic cascade at the onset of starvation appears to be conserved in metazoans (Mejlvang et al., 2018; Edinger and Thompson, 2002a; Edinger and Thompson, 2002b; Vabulas and Hartl, 2005; Suraweera et al., 2012).
The molecular mechanisms of starvation-induced endocytosis are not clear. Hence, there is a significant knowledge gap in understanding how cells control nutrient transporter abundance upon amino acid and nitrogen scarcity. Here, we have characterized how amino acid abundance alters several nutrient transporters at the PM of the budding yeast S. cerevisiae. We find that TORC1 signaling and the general amino acid control (GAAC) pathway toggle Art1- or Art2-Rsp5 complex activities to induce endocytosis of the same set of four different AATs depending on amino acid availability. In these AATs, activated Art1- or Art2-Rsp5 complexes recognize distinct acidic sorting signals in the N-terminal (Art1 sorting signal) or C-terminal (Art2 sorting signal) regions to initiate Rsp5-dependent ubiquitination and subsequent endocytic down-regulation. Using such complementary α−arrestin switches in combination with distinct acidic sorting motifs in a single nutrient transporter could represent a more general mechanism to adjust transport across cellular membranes and thereby to meet metabolic demands.
Results
Amino acid availability induces selective endocytosis of nutrient transporters
We employed S. cerevisiae as a model system to address how eukaryotic cells adjust their nutrient transporters at the plasma membrane (PM) to nutrient availability. First, we used live cell fluorescence microscopy to analyze in yeast cells the localization of 149 putative PM proteins that were C-terminally GFP-tagged at their native chromosomal locus (Saier et al., 2016; Babu et al., 2012; Breker et al., 2014; Huh et al., 2003). This collection included 16 different amino acid transporters (AATs) out of the 21 AATs that localize to the PM (Bianchi et al., 2019). In cells growing exponentially under defined (rich) conditions, we detected 50 GFP-tagged proteins at the PM, including eight different AATs and six different carbohydrate transporters (Figure 1A, Figure 1—figure supplement 1A, Supplementary file 1). A fraction of these proteins was additionally detected inside the vacuole (Figure 1B, Figure 1—figure supplement 1A), suggesting continuous turnover.

Amino acid and nitrogen starvation triggers broad but specific endocytosis and lysosomal degradation of plasma membrane proteins.

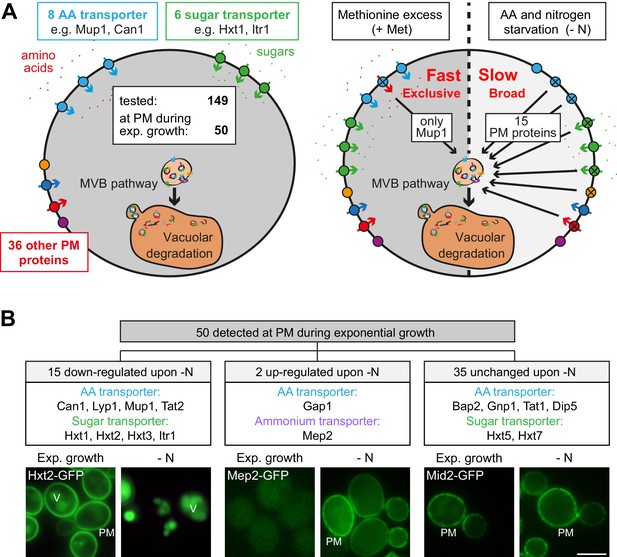

(A) Left: a library of 149 yeast strains expressing chromosomally GFP-tagged membrane proteins was tested for plasma membrane (PM) localization during nutrient replete exponential growth. Right: verified PM proteins were starved 6–8 hr for amino acids and nitrogen (- N) or treated with 20 µg/ml L-methionine (+Met) after 24 hr of exponential growth. The localization of GFP was assayed by fluorescence microscopy. (B) Summary of the phenotypes of GFP-tagged PM proteins during starvation. Indicated are numbers of PM proteins that are down-regulated, up-regulated or unchanged compared to the exponential growth phase, each exemplified by one representative strain. PM: plasma membrane; V: vacuole. Scale bars = 5 µm. See also Figure 1—figure supplements 1 and 2 and Supplementary file 1.
Others and we had shown earlier that amino acid and nitrogen starvation (hereafter starvation) induced the degradation of membrane proteins via the MVB pathway (Müller et al., 2015; Jones et al., 2012). Consistently, in response to starvation 15 (out of 50) different PM proteins were selectively removed and transported into the vacuole, including four AATs (Mup1, Can1, Lyp1, Tat2) and four carbohydrate transporters (Hxt1, Hxt2, Hxt3, Itr1) (Figure 1B, Supplementary file 1). The general amino acid permease Gap1 and the ammonium permease Mep2 were up-regulated and now localized to the PM. The localization of 35 GFP-tagged proteins to the PM remained largely unchanged, although in some instances the vacuolar GFP fluorescence was increased (Figure 1A,B, Figure 1—figure supplement 1A, Supplementary file 1). For five AATs, we did not detect signals under rich or starvation conditions (Supplementary file 1).
Next, we examined how amino acid availability could regulate AAT endocytosis. Therefore, we used the high-affinity methionine transporter Mup1 as a model cargo because its regulation in response to nutrient excess is well characterized (Busto et al., 2018; Lee et al., 2019; Gournas et al., 2018; Guiney et al., 2016; Baile et al., 2019). Moreover, Mup1 is one of the most abundant PM proteins and it is easy to follow its endocytosis and subsequent transport into the vacuole (Busto et al., 2018). In absence of methionine Mup1-GFP localized to the PM (Figure 1—figure supplement 2A). Low levels of methionine in the growth medium did not efficiently trigger its endocytosis (Figure 1—figure supplement 2A,B). Yet, above a critical methionine concentration the vast majority of Mup1-GFP was removed from the PM by endocytosis and was subsequently transported to the vacuole via the multivesicular body (MVB) pathway (Figure 1—figure supplement 2A,B). This was confirmed by western blot (WB) analysis from total cell lysates. Without methionine or with low levels of methionine in the growth medium only full-length Mup1-GFP was detected (Figure 1—figure supplement 2B, lanes 1+2). Once the critical methionine concentration was surpassed, Mup1-GFP was delivered into the vacuole. The proteolytic degradation of Mup1-GFP inside the vacuole then released free GFP, which remained stable and could be monitored by western blotting (Figure 1—figure supplement 2B, lane 4). Substrate-induced endocytosis was rapid and efficient: within 60–90 min after methionine addition Mup1 was almost quantitatively delivered to the vacuole. Excess methionine appeared to exclusively induce endocytosis of Mup1 since all other tested PM proteins remained at the cell surface (Figure 1A, Supplementary file 1). This exclusive substrate-induced endocytosis of Mup1 was also dependent on its methionine transport activity as shown by using the Mup1-G78N mutant, which cannot transition to the open-inward conformation (Busto et al., 2018; Figure 1—figure supplement 2C). These results are consistent with earlier reports showing that the high-affinity AATs Mup1, Can1, Tat2 and Lyp1 undergo exclusive endocytic down-regulation in response to excess of their respective substrates but remained stable at the PM when the substrate of another permease was present in excess (Gournas et al., 2017; Busto et al., 2018; Nikko and Pelham, 2009).
In contrast, the starvation-induced endocytosis of Mup1 was independent of its capability to transport its substrate (Figure 1—figure supplement 2C) and was also observed upon starvation for individual essential amino acids (Figure 1—figure supplement 2D). We re-evaluated the starvation-induced endocytosis of Mup1, Can1, Lyp1, Tat2, Ina1, Fur4, Hxt1, Hxt2 and Hxt3 in a different genetic background (SEY6210; Figure 1—figure supplement 2A, Figure 3C, Figure 3—figure supplement 1C,D, Figure 6—figure supplement 2A). The overall response was similar.
Hence, in response to starvation, a broad range of nutrient transporters, including four AATs (Mup1, Can1, Lyp1, Tat2) and four carbohydrate transporters (Hxt1, Hxt2, Hxt3, Itr1) as well as other membrane proteins, were selectively removed from the PM by endocytosis and transported into the vacuole within 3–6 hr. In contrast, substrate-induced endocytosis of AATs was quick and exclusive (Figure 1A). Earlier work showed that substrate-induced endocytosis of the AATs Mup1, Can1 and Lyp1 required TORC1 signaling to allow ubiquitination of the transporters by the HECT-type ubiquitin ligase Rsp5 in complex with the α-arrestin Art1 (Lin et al., 2008; Guiney et al., 2016; Busto et al., 2018; Gournas et al., 2018; MacGurn et al., 2011). Remarkably, the same set of AATs underwent simultaneous starvation-induced endocytosis. The molecular mechanism of their starvation-induced endocytosis was not clear.
A genome-wide screen identifies regulators of starvation-induced endocytosis of AATs
To identify the genes that are required for the starvation-induced endocytosis of Mup1, we conducted a fluorescence-based genome-wide screen. We measured Mup1 sorting into the lumen of vacuoles via the MVB pathway by fusing the pH-sensitive GFP variant pHluorin to the C-terminus of Mup1 (Mup1-pHluorin) (Henne et al., 2015; Prosser et al., 2010). Fluorescence microscopy and flow cytometry (Figure 2A,B) showed a strong signal of Mup1-pHluorin at the PM of cells growing under defined rich conditions. In response to starvation, the fluorescence of Mup1-pHluorin was efficiently quenched in the acidic vacuoles of wild type (WT) cells, but not when the MVB pathway was blocked (e.g. ESCRT-I mutant vps23Δ) (Figure 2A,B). Hence Mup1-pHluorin is a suitable reporter to identify mutants that block trafficking of Mup1 from the PM into the vacuole.

A genome wide screen revealed genes affecting Mup1-pHluorin endocytosis during starvation.

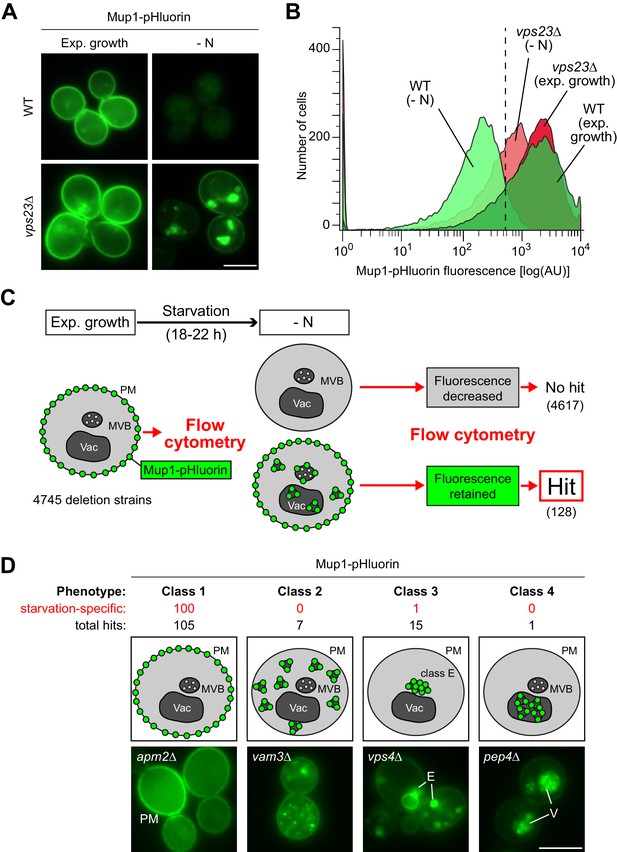

(A) Live-cell fluorescence microscopy analysis of WT (BY4742) and vps23∆ cells expressing MUP1-pHluorin from plasmid and starved (- N) for 18–22 hr. The images exemplify quenched pHluorin fluorescence in vacuoles of wild type (WT)-like cells and retained fluorescence in mutants with defects in the starvation-induced endocytosis of Mup1-pHluorin. (B) The strains from (A) were exponentially grown in 96-well plates for 5 hr and starved (- N) for 18–22 hr. At least 15,000 cells from each strain and condition were analyzed by flow cytometry. The exemplified histograms display decrease of fluorescence in wild type (WT)-like strains and fluorescence retention in mutants with defects in the starvation-induced endocytosis of Mup1-pHluorin (e.g. vps23∆). (C) Workflow of the flow-cytometry-based genome-wide screen for mutants defective in starvation-induced endocytosis of Mup1-pHluorin. (D) Summary of phenotypes of all mutants scored in the starvation-induced endocytosis screen (C) as determined by fluorescence microscopy. Class one mutants retain Mup1-pHluorin fluorescence at the plasma membrane (PM); class two mutants in small cytosolic objects; class three mutants in class E-like objects (E); class four mutants within vacuoles (V). Each phenotype is exemplified by one representative deletion mutant. Indicated are the numbers of strains that share a similar phenotype and the number of hits specific for starvation-induced endocytosis of Mup1-pHluorin (red). Scale bars = 5 µm. See also Figure 2—figure supplement 1 and Supplementary file 2.
Next, Mup1-pHluorin was introduced into the yeast non-essential knock-out collection. 4745 mutants expressing Mup1-pHluorin were grown in selection medium to exponential phase before they were subjected to starvation for 18–22 hr (Figure 2C). Automated flow cytometry was used to measure Mup1-pHluorin fluorescence intensity of at least 15,000 cells before and after starvation. The vast majority of mutants efficiently quenched the fluorescence of Mup1-pHluorin after starvation, but 128 mutants still exhibited Mup1-pHluorin fluorescence after starvation (Figure 2C, Supplementary file 2). To determine at which step Mup1-pHluorin transport into vacuoles was blocked in these mutants, we used live cell fluorescence microscopy. This allowed us to classify four phenotypes (Figure 2D, Supplementary file 2). Class one mutants retained Mup1-pHluorin at the PM after starvation (105 mutants, e.g. apm2Δ mutants). In class two mutants, Mup1-pHluorin was detected on small intracellular objects (seven mutants, e.g. vam3Δ mutants). Class three mutants accumulated Mup1-pHluorin in larger class E compartment-like objects (15 mutants, e.g. vps4Δ mutants). One Class four mutant (pep4Δ) did not efficiently quench Mup1-pHluorin fluorescence inside the vacuole, as it is deficient in the main lysosomal protease. Gene ontology (GO) analysis confirmed that our screen identified major general regulators of endosomal transport (e.g. the ESCRT complexes) and was enriched for proteins that are annotated as components of the PM, endosomes and vacuoles (Figure 2—figure supplement 1, Supplementary file 3) suggesting that it was successful. In addition, we identified many genes and components of protein complexes that would not be predicted to be involved in the regulation of endocytosis (Figure 2—figure supplement 1, Supplementary file 2, 3).
Next, we aimed to narrow down genes that function specifically during starvation-induced endocytosis and to distinguish them from general endocytic regulators (i.e. core components of endocytic trafficking machineries). Therefore, most mutants (124) were exposed to methionine excess for 90 min and then subjected to live cell fluorescence microscopy. Of the mutants falling into classes 2–4, the majority was required for Mup1 sorting into the vacuole in response to both starvation and methionine excess. Among them were many mutants in subunits of well-characterized protein complexes that constituted the core machinery of endo-lysosomal trafficking (Figure 2—figure supplement 1, Supplementary file 2, 3). However, the majority (100) of the class one mutants (Mup1-pHluorin retained at the PM) was specifically required for starvation-induced endocytosis but not for methionine-induced endocytosis (Figure 2D, Supplementary file 2).
The α−arrestin Art2 is specifically required for amino acid transporter endocytosis in response to starvation
A key step for the endocytic down-regulation of PM proteins is their selective ubiquitination. This selectivity is mediated by α−arrestin molecules that direct the HECT-type ubiquitin ligase Rsp5 to ubiquitinate specific PM proteins (Babst, 2020). Among the 14 α−arrestins encoded by the yeast genome, our screen identified only Ecm21/Art2 to be specifically required for starvation-induced endocytosis of Mup1.
We compared Art2-dependent starvation-induced endocytosis to Art1-dependent substrate-induced endocytosis of Mup1-GFP. Efficient methionine-induced endocytosis of Mup1 required Art1 but not Art2 (Figure 3A), consistent with earlier observations (Guiney et al., 2016; MacGurn et al., 2011; Busto et al., 2018). Starvation-induced endocytosis of Mup1 was slower than methionine-induced endocytosis. In WT cells, 240–360 min after onset of starvation the majority of Mup1-GFP was removed from the PM and sorted into vacuoles for degradation (Figure 3A,B, Figure 3—figure supplement 1A). In art2Δ mutants, but not in art1Δ mutants, the vast majority of Mup1-GFP remained at the PM and was no longer delivered to vacuoles (Figure 3A). This was confirmed by WB analysis. In WT cells, the levels of full length Mup1-GFP decreased, while free GFP accumulated over time (Figure 3B, lane 2–4; Figure 3—figure supplement 1A), whereas in art2Δ mutants the majority of Mup1-GFP remained stable and only little free GFP could be detected (Figure 3B lane 7–8; Figure 3—figure supplement 1A). Re-expression of Art1 or Art2 in the corresponding mutants restored methionine- or starvation-induced Mup1 endocytosis, respectively (Figure 3—figure supplement 1B). Importantly, Art2 was required for the efficient starvation-induced endocytosis of all four AATs, Mup1, Can1, Lyp1, and Tat2 (Figure 3A,C). Interestingly, the same four AATs (Mup1, Can1, Lyp1 and Tat2) also depend on Art1 for efficient substrate-induced endocytosis (Gournas et al., 2017; MacGurn et al., 2011; Lin et al., 2008; Nikko and Pelham, 2009). Starvation-induced endocytosis of Ina1 was also dependent on Art2 (Figure 3—figure supplement 1C), while other PM proteins (e.g. the uracil transporter Fur4 or the hexose transporters Hxt1 and Hxt2) were largely independent of Art2 (Figure 3—figure supplement 1D).

Art1 and Art2 are non-redundant in promoting substrate- and starvation-induced endocytosis of amino acid transporters.

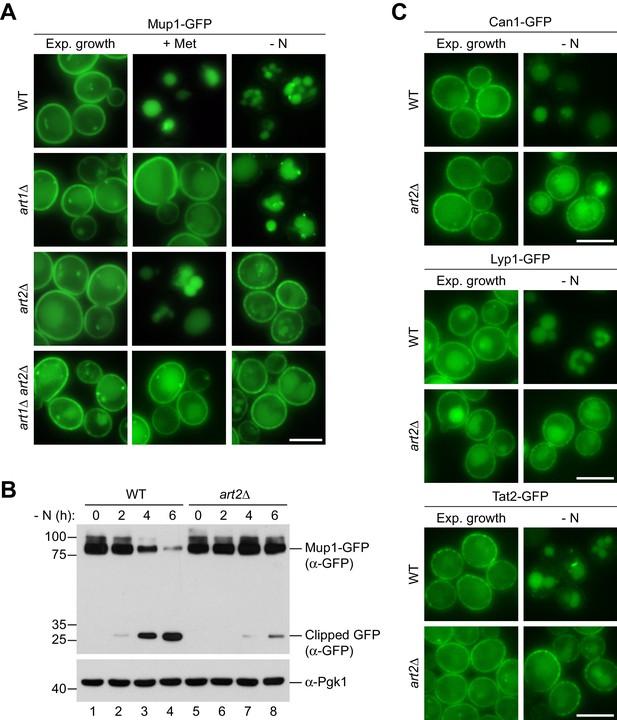

(A) Live-cell fluorescence microscopy analysis of Mup1-GFP endocytosis in wild type (WT), art1∆, art2∆ and art1∆ art2∆ cells expressing MUP1-GFP from plasmid. Cells were treated with 20 µg/ml L-methionine (+ Met) for 1.5 hr or starved (- N) for 6 hr after 24 hr exponential growth. (B) SDS PAGE and western blot analysis with the indicated antibodies of whole cell protein extracts from wild type (WT) and art2∆ cells expressing MUP1-GFP that were starved (- N) for the indicated times after 24 hr exponential growth. Quantification in Figure 3—figure supplement 1A. (C) Live-cell fluorescence microscopy analysis of wild type (WT) and art2∆ cells expressing CAN1-GFP, LYP1-GFP or TAT2-GFP. Cells were starved (- N) for 6 hr after 24 hr exponential growth. Scale bars = 5 µm. See also Figure 3—figure supplement 1.
These results suggested a swap between the α−arrestins Art1 and Art2 by amino acid availability as a rule for the regulation of four AATs. The starvation-induced endocytosis of Mup1, Can1, Lyp1 and Tat2 required Art2. Substrate-induced endocytosis of Mup1, Can1 and Lyp1 required Art1, whereas in case of Tat2 substrate-induced endocytosis was less stringent and could be mediated either by Art1 or Art2 (Nikko and Pelham, 2009).
Up-regulation of Art2 by the GAAC pathway drives starvation-induced endocytosis of Mup1
Our experiments so far demonstrated that Art1 and Art2 mediate the endocytic down-regulation of Mup1, Can1 and Lyp1 in response to changes in amino acid availability in a mutually exclusive manner. Hence, their activity must be strictly regulated. α−arrestin proteins are subject to complex multi-level regulation and their activation can require transcriptional regulation, (de-)phosphorylation and ubiquitination (Hovsepian et al., 2017; Lin et al., 2008; Becuwe et al., 2012b). WB analysis of total cell lysates indicated that 6xHis-TEV-3xFlag-tagged Art1 protein levels were unchanged in response to starvation (Figure 4A, lanes 2,3), whereas the protein levels of the functional 170kD protein Art2-HTF (Figure 4—figure supplement 1A) were up-regulated in response to starvation (Figure 4A, lanes 5,6; Figure 4—figure supplement 1B). Quantitative reverse transcription (RT) PCR analysis indicated that also the ART2 mRNA levels increased during starvation (Figure 4B).

The general amino acid control pathway promotes starvation-induced endocytosis Mup1 by up-regulating Art2.

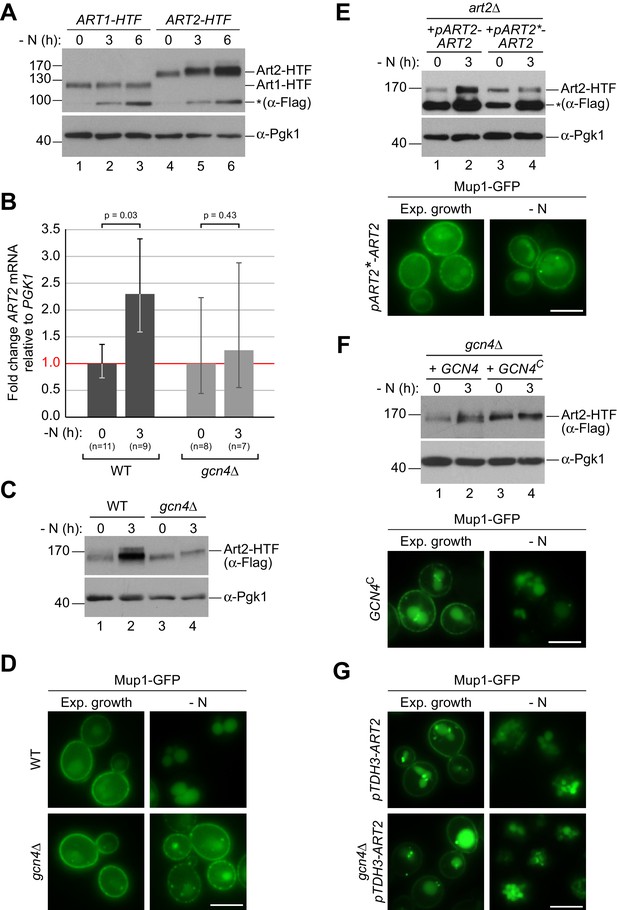

(A) SDS PAGE and western blot analysis with the indicated antibodies of whole cell protein extracts from WT cells expressing ART1-HTF or ART2-HTF. Cells were starved (- N) for the indicated times after 24 hr exponential growth. The asterisk indicates a non-specific background band of the FLAG antibody. Quantification in Figure 4—figure supplement 1B. (B) RT-qPCR analysis of ART2 transcript levels (normalized to the stable PGK1 transcript) in wild type (WT) and gcn4∆ cells. Cells were starved (- N) for 3 hr after 24 hr exponential growth. Values are presented as fold-change of the starting values (t = 0). Error bars represent the standard deviation. Statistical significance was assessed by Student’s t-test. (C) SDS PAGE and western blot analysis with the indicated antibodies of whole cell protein extracts from the indicated strains expressing ART2-HTF. Cells were starved (- N) for 3 hr after 24 hr exponential growth. Quantification in Figure 4—figure supplement 1C. (D) Live-cell fluorescence microscopy analysis of the indicated strains expressing MUP1-GFP from plasmid. Cells were starved (- N) for 6 hr after 24 hr exponential growth. (E), (F) The indicated strains were analyzed as in C) (upper panels) and D) (lower panels). Quantification of western blots in Figure 4—figure supplement 1F,G. (G) Live-cell fluorescence microscopy analysis of art2∆ or gcn4∆ cells expressing pRS415-MUP1-GFP and pRS416-pTDH3-ART2 starved (- N) for 6 hr after 24 hr exponential growth. Scale bars = 5 µm. See also Figure 4—figure supplements 1 and 2.
In search of the pathway responsible for induction of Art2, we queried the results of our screen and identified the eIF2 kinase Gcn2 and several more GCN genes encoding key components of the general amino acid control (GAAC) pathway (Supplementary file 2). Gcn2 is activated during amino acid starvation by unloaded tRNAs and subsequently phosphorylates eIF2α to reduce protein synthesis in general, but thereby stimulates specifically the translation of the transcription factor Gcn4. Gcn4 then activates the transcription of genes, many of which are involved in amino acid metabolism (Hinnebusch, 2005). gcn4∆ was not scored in our genome-wide screen because it failed the quality control due to its slow growth phenotype. Interestingly, the promoter of ART2 contained predicted Gcn4-binding sites (Venters et al., 2011; Schuldiner et al., 1998). Disrupting the GAAC pathway (gcn4∆) eliminated the induction of Art2 in response to starvation at mRNA and protein levels (Figure 4B,C, Figure 4—figure supplement 1C). Consistently, the starvation-induced endocytosis of Mup1-GFP was hampered in gcn4∆ cells and several other gcn mutants (Figure 4D, Figure 4—figure supplement 1D). Also, starvation-induced endocytosis of Can1 was dependent on the GAAC pathway (Figure 4—figure supplement 1E). When we introduced mutations in the predicted Gcn4-binding sites in the ART2 promoter, Art2 protein levels no longer increased in response to starvation, and starvation-induced endocytosis of Mup1-GFP was impaired (Figure 4E, Figure 4—figure supplement 1F). When the ART2 promoter region was used to replace the ART1 promoter, it also induced the expression of Art1 during starvation (Figure 4—figure supplement 2A). Yet, the upregulation of Art1 protein levels driven by the ART2 promoter failed to restore starvation-induced endocytosis of Mup1-GFP in art2∆ cells (Figure 4—figure supplement 2B). This construct was functional for substrate-induced endocytosis of Mup1-GFP in art1∆ cells (Figure 4—figure supplement 2B).
The expression of a constitutively translated Gcn4C construct (Mueller and Hinnebusch, 1986) increased Art2 protein levels already under rich conditions, as revealed by WB analysis (Figure 4F, compare Art2 protein levels in lanes 1 and 3, Figure 4—figure supplement 1G), and drove unscheduled Mup1-GFP endocytosis (Figure 4F, lower panel). Consistently, over-expression of Art2 in WT cells or in gcn4∆ mutants using the strong and constitutively active TDH3 promoter (Figure 4—figure supplement 2C) initiated Mup1-GFP endocytosis already under nutrient replete conditions (Figure 4G) and bypassed the requirement of Gcn4 during starvation.
These results indicated that during amino acid starvation, Art2 transcription was induced via the GAAC pathway, leading to the up-regulation of Art2 protein levels. Moreover, it seemed that the up-regulation of Art2 protein levels was sufficient to drive Mup1 endocytosis. Hence, under amino acid replete conditions Art2 must be tightly repressed to prevent AAT endocytosis.
Art2 directs Rsp5-dependent ubiquitination of C-terminal lysine residues in Mup1
To determine how Art2 contributed to Mup1 endocytosis, we examined its role in Mup1 ubiquitination. WT cells were harvested and Mup1-GFP was immunoprecipitated in denaturing conditions before and at different time points after starvation. Equal amounts of immunoprecipitated full-length Mup1-GFP were subjected to SDS-PAGE and WB analysis to compare the extent of its ubiquitination at different time points (Figure 5A). This analysis indicated that a pool of Mup1 was ubiquitinated prior to the onset of starvation (Figure 5A, lane 1). At the onset of starvation, ubiquitination of Mup1-GFP appeared to decrease for some time (Figure 5A lanes 2–4), until ubiquitination of Mup1-GFP began to increase again after 2–3 hr during starvation (Figure 5A lanes 4–6), temporally coinciding with Art2 induction and starvation-induced endocytosis. Mup1-GFP was still ubiquitinated in art2Δ cells growing under rich conditions (Figure 5B lane 4) and seemingly de-ubiquitinated at the onset of starvation, but the increase of ubiquitination during starvation was no longer observed (Figure 5B, lane 6). Hence, Art2 was essential for the starvation-induced ubiquitination of Mup1.

Art2-Rsp5 mediates the starvation-induced ubiquitination of Mup1-GFP at two specific C-terminal lysine residues.

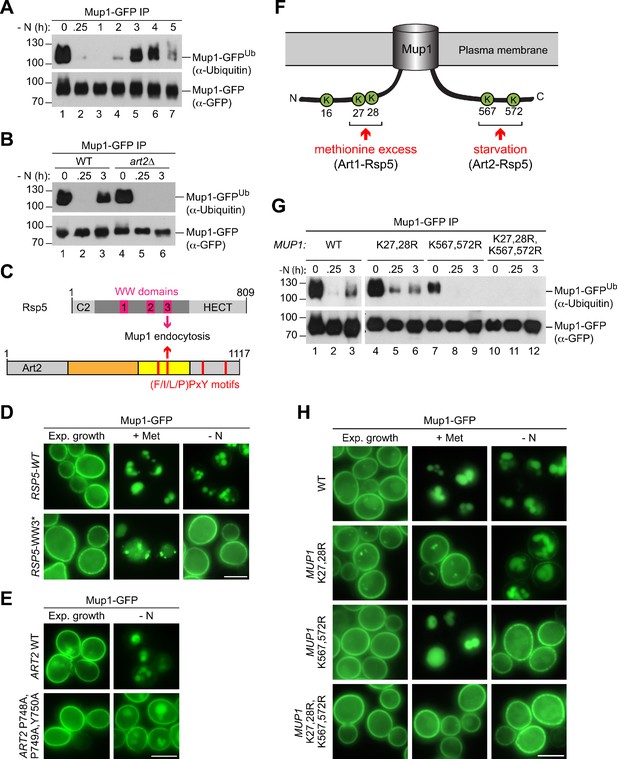

(A), (B) SDS PAGE and western blot analysis with the indicated antibodies of immunoprecipitated Mup1-GFP from WT cells or art2∆ cells starved for the indicated times after 24 hr of exponential growth. Equal amounts of immunoprecipitated Mup1-GFP were loaded to compare the extent of ubiquitination. (C) Scheme depicting the domain arrangement of Rsp5 and Art2, indicating the localization of the WW domains and PY motifs required for starvation-induced endocytosis of Mup1. (D) Live-cell fluorescence microscopy analysis of rsp5∆ cells expressing pRS416-MUP1-GFP and pRS415-HTF-RSP5-WT (wild type) or pRS415-HTF-RSP5-WW3*. Cells were treated with 20 µg/ml L-methionine (+ Met) for 1.5 hr or starved (- N) for 6 hr after 24 hr exponential growth. (E) Live-cell fluorescence microscopy analysis of art2∆ cells expressing MUP1-GFP and pRS416-ART2 (WT) or pRS416-ART2 P748A,P749A,Y750A. Cells were starved (- N) for 6 hr after 24 hr exponential growth. (F) Scheme of Mup1 topology with the N- and C-terminal ubiquitination sites targeted during substrate excess by Art1-Rsp5 and during starvation by Art2-Rsp5. Ubiquitinated lysines (K) shown in green with numbers corresponding to amino acid positions in the Mup1 sequence. (G) WT cells expressing MUP1-GFP WT or the indicated MUP1-GFP mutants starved for the indicated times after 24 hr of exponential growth analyzed as in B). (H) Live-cell fluorescence microscopy analysis of cells expressing MUP1-GFP (wild type (WT)), MUP1 K27,28R-GFP, MUP1 K567,572R-GFP or MUP1 K27,28,567,572R-GFP as in D). Scale bars = 5 µm. See also Figure 5—figure supplement 1.
α−Arrestins use PY motifs to bind to at least one of the three WW domains of Rsp5 (Lin et al., 2008). Starvation-induced endocytosis of Mup1 (but not methionine-induced endocytosis) was particularly dependent on the WW3 domain of Rsp5 (Figure 5C,D, Figure 5—figure supplement 1A). Art2 has four putative PY motifs (Figure 5C). Mutations in the PY motif that resides within the predicted arrestin fold of Art2 (P748,P749,Y750) reduced starvation-induced endocytosis of Mup1-GFP (Figure 5E). The Art2P748A,P749A,Y750A mutant was expressed at similar levels than the WT protein (Figure 5—figure supplement 1B). We suggest that interaction between WW3 in Rsp5 and the PY motif (748-750) of Art2 was required for the efficient starvation-induced endocytosis of Mup1.
To identify lysine residues in Mup1 that were ubiquitinated in response to starvation, Mup1-GFP was immunoprecipitated before and 3 hr after starvation, digested and subjected to liquid chromatography-mass-spectrometry (LC-MS) (Figure 5—figure supplement 1C). Two N-terminal lysine residues (K16 and K27) and two C-terminal lysine residues (K567 and K572) in Mup1 were found to be ubiquitinated (Figure 5F. Figure 5—figure supplement 1C), consistent with available high-throughput proteomic datasets (Swaney et al., 2013; Iesmantavicius et al., 2014). Earlier reports showed that two N-terminal lysine residues (K27, K28) in Mup1 were ubiquitinated by Art1-Rsp5 and required for methionine-induced endocytosis (Guiney et al., 2016; Busto et al., 2018; Ghaddar et al., 2014; Figure 5F). The role of ubiquitination at C-terminal lysine residues was not clear.
To determine how these N- and C-terminal lysine residues contributed to Mup1 ubiquitination under different growth conditions, we mutated the N-terminal (K27, K28) or C-terminal (K567, K572) lysine residues to arginine and additionally generated a quadruple mutant (K27,28,567,572R). Equal amounts of immunoprecipitated Mup1-GFP, Mup1K27,28R-GFP, Mup1K567,572R-GFP and Mup1K27,28,567,572R-GFP from exponentially growing cells or after starvation or methionine treatment were subjected to SDS-PAGE and WB analysis to compare their ubiquitination (Figure 5G, Figure 5—figure supplement 1D). Preventing the ubiquitination of the C-terminal lysine residues (K567,572R) abrogated starvation-induced ubiquitination of Mup1 (Figure 5G, lanes 7–9), whereas Mup1K27,28R-GFP was still ubiquitinated after starvation (Figure 5G, lanes 4–6). Upon methionine treatment, Mup1K567,572R-GFP ubiquitination was comparable to WT Mup1 (Figure 5—figure supplement 1D, lanes 1–4), while the ubiquitination of Mup1K27,28R was impaired as reported previously (Figure 5—figure supplement 1D, lanes 5,6) (Guiney et al., 2016; Busto et al., 2018; Ghaddar et al., 2014). The quadruple mutant Mup1K27,28,567,572R-GFP always appeared to be devoid of ubiquitination (Figure 5G, lanes 11,12; Figure 5—figure supplement 1D, lanes 7,8), suggesting that the two N-terminal and the two C-terminal lysine residues are the major sites for ubiquitination. Consistently, the quadruple lysine mutation rendered Mup1K27,28,567,572R-GFP refractory to methionine- and starvation-induced endocytosis (Figure 5H). Mutations in the N-terminal lysine residues (K27,28R) blocked methionine-induced endocytosis, but not starvation-induced endocytosis. In contrast, starvation-induced endocytosis of Mup1K567,572R-GFP was specifically blocked, but not its methionine-induced endocytosis (Figure 5H).
Collectively, these results suggested that Art2 directs Rsp5 to the ubiquitination of the C-terminal lysine residues K567 and K572 during starvation, whereas Art1-Rsp5 complexes ubiquitinated Mup1 on the two N-terminal lysine residues K27 and K28 in response to methionine excess (Figure 5F).
The C-terminus of Mup1 contains an acidic sorting signal for Art2
In addition to ubiquitination, our mass-spectrometry analysis of immunoprecipitated Mup1-GFP from starved cells identified potential phosphorylation sites at the N-terminus (S9,23,31,42 and T34) and at the C-terminus of Mup1 (T552 and S568,573) (Figure 6A, Figure 5—figure supplement 1C). Additional phosphorylation on T560 was reported in other studies (Swaney et al., 2013; Iesmantavicius et al., 2014). Of note, the C-terminal phosphorylation sites were proximal (T552, T560) or directly adjacent (S568, S573) to lysine residues K567 and K572 that were ubiquitinated in an Art2-dependent manner in response to starvation (Figure 6A, Figure 5—figure supplement 1C).

The C-terminus of Mup1 harbors a transplantable, starvation-responsive acidic degron.

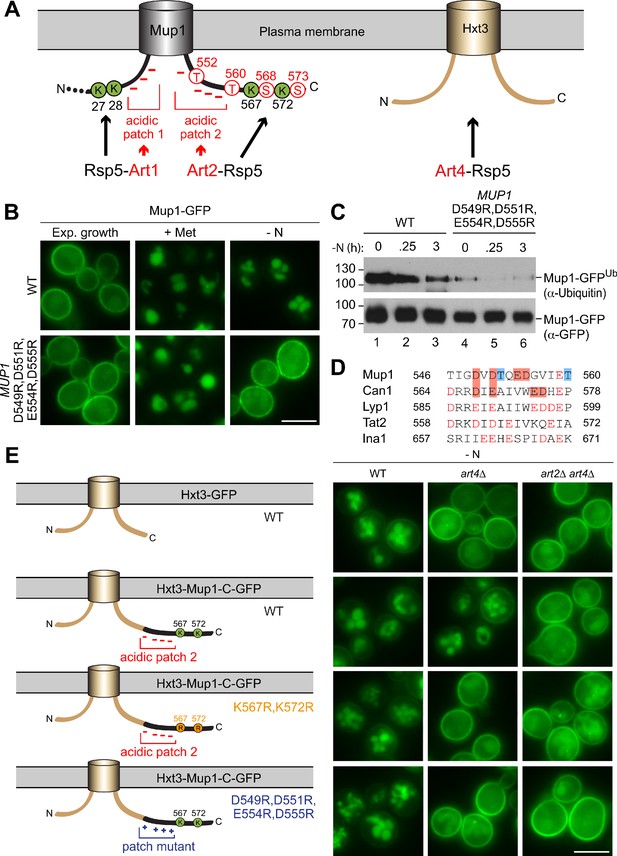

(A) Left: scheme of Mup1 topology with N- and C-terminal ubiquitination sites and acidic patches targeted by Art1-Rsp5 and Art2-Rsp5, respectively, and the C-terminal phosphorylation sites of Mup1 that promote its starvation-induced endocytosis. Ubiquitinated lysines (K) shown in green and phosphorylated serines (S) and threonines (T) in red with numbers corresponding to amino acid positions in the Mup1 sequence. Right: Hxt3 as an Art4-Rsp5 dependent cargo during nitrogen starvation. (B) Live-cell fluorescence microscopy analysis of Mup1-GFP endocytosis in cells expressing MUP1-GFP (wild type (WT)) or MUP1 D549R,D551R,E554R,D555R-GFP. Cells were treated with 20 µg/ml L-methionine (+ Met) for 1.5 hr or starved (- N) for 6 hr after 24 hr exponential growth. (C) SDS PAGE and western blot analysis with the indicated antibodies of immunoprecipitated Mup1-GFP from cells expressing MUP1-GFP (WT) or MUP1 D549R,D551R,E554R,D555R-GFP starved for the indicated times after 24 hr of exponential growth. Equal amounts of immunoprecipitated Mup1-GFP were loaded to compare the extent of ubiquitination. (D) Amino acid sequence alignment of the C-terminal acidic patches of Mup1, Can1, Lyp1, Tat2 and Ina1. The boxes indicate acidic residues (red) and phosphorylation sites (blue), which are required for Art2-dependent starvation-induced endocytosis. Red letters illustrate further acidic residues. (E) Live-cell fluorescence microscopy analysis of wild type (WT), art4∆ and art2∆ art4∆ cells expressing HXT3-GFP (top), HXT3-MUP1-C-GFP (second row), HXT3-MUP1-C K567,572R-GFP (third row) or HXT3-MUP1-C D549R,D551R,E554R,D555R-GFP (bottom). Cells were starved (- N) for 6 hr after 24 hr exponential growth. Scale bars = 5 µm. See also Figure 6—figure supplements 1 and 2.
Mutation of the C-terminal threonine residues to alanine (T552,560A) to prevent phosphorylation specifically blocked starvation-induced endocytosis of Mup1T552,560A-GFP, but not methionine-induced endocytosis (Figure 5—figure supplement 1E). Mutation of these phosphorylation sites also prevented ubiquitination of Mup1 during starvation (Figure 5—figure supplement 1F). Blocking the phosphorylation of S568 and S573 also impaired starvation-induced endocytosis of Mup1S568,573A-GFP (Figure 5—figure supplement 1E), yet starvation-induced ubiquitination could still be detected (Figure 5—figure supplement 1F). Mutation of most N-terminal serine and threonine residues, including all experimentally determined phosphorylation sites, to alanine (T6,25,26,34A,S9,22,23,24,31,33,42A) did not affect starvation-induced endocytosis of Mup1 (Figure 5—figure supplement 1G). It seemed that the phosphorylation of C-terminal threonine residues (T552, 560) contributed to the starvation-induced Art2-Rsp5 ubiquitination of Mup1 and thus might add an additional layer of regulation, similar to the recognition of GPCRs by β–arrestins in mammalian cells (Shukla et al., 2014; Nikko et al., 2008; Marchal et al., 2000; Hicke et al., 1998).
An extended acidic Art1 sorting motif at the N-terminus of Mup1 is required for ubiquitination of K27,28 and subsequent Mup1 endocytosis in response to methionine excess (Guiney et al., 2016; Busto et al., 2018). Consistent with our model involving two distinct mechanisms for Mup1 endocytosis, mutations in the acidic N-terminal Art1 sorting motif of Mup1 (D43A,G47A,Q49A,T52A,L54A) blocked Art1-Rsp5-dependent methionine-induced endocytosis, but not Art2-Rsp5-dependent starvation-induced endocytosis (Figure 6—figure supplement 1A).
The C-terminus of Mup1 also contains an acidic patch (D549-D555), close to the ubiquitination sites K567 and K572 and the C-terminal threonine phosphorylation sites (T552, 560) involved in starvation-induced endocytosis (Figure 6A,B). Mutation of the acidic residues in this region to basic amino acids (R) demonstrated that this C-terminal acidic region was specifically required for starvation-induced endocytosis. Live cell fluorescence microscopy revealed that Mup1D549R,D551R,E554R,D555R-GFP remained at the PM in response to starvation, whereas methionine-induced endocytosis was not impaired (Figure 6B). Even Art2 overexpression failed to induce endocytosis during exponential growth or starvation when the C-terminal acidic patch in Mup1 was mutated (Figure 6—figure supplement 1B). Moreover, immunoprecipitation of Mup1D549R,D551R,E554R,D555R-GFP and subsequent SDS-PAGE and WB analysis revealed that it was no longer efficiently ubiquitinated (Figure 6C, lanes 4–6), suggesting that the C-terminal acidic patch was essential for the Art2-Rsp5-dependent ubiquitination during starvation.
Comparing the amino acid sequences of the C-terminal tails of the four Art2-dependent AATs (Mup1, Can1, Tat2 and Lyp1) and of Ina1 indicated similar acidic patches (Figure 6D). To analyze if the acidic patch in Can1 also contributed to starvation-induced endocytosis, we mutated D567, E569, E574 and E575 to arginine. Mutant Can1D567R,E569R,E574R,D575R-GFP mostly localized to the PM under growing conditions. Importantly, the Art2-dependent starvation-induced down-regulation of Can1D567R,E569R,E574R,D575R-GFP was impaired (Figure 6—figure supplement 1C). These results imply that Mup1, Can1 and potentially also Lyp1, Tat2 and Ina1 have acidic amino acid sequences at their C-termini that could serve as sorting signal for Art2-mediated starvation-induced endocytosis.
The C-terminal acidic sorting signal of Mup1 is sufficient for Art2-dependent starvation-induced endocytosis
It seemed that the last 26 amino acid residues (aa 549–574) of Mup1 harbor three features that are collectively required specifically for starvation-induced endocytosis: putative phosphorylation sites, the acidic patch and the ubiquitination sites. Hence, we tested if the C-terminal region of Mup1 was sufficient to convert an Art2-independent cargo into an Art2 cargo. We selected the low-affinity glucose transporter Hxt3, which was efficiently removed from the PM in response to starvation (Figure 6—figure supplement 2A, Figure 1B, Supplementary file 1). Live cell fluorescence microscopy and WB analysis showed that starvation-induced endocytosis of Hxt3-GFP was independent of Art2, but instead required Art4 (Figure 6E, Figure 6—figure supplement 2A). In art4∆ mutants, but not in art2Δ mutants, Hxt3-GFP remained mostly at the PM (Figure 6—figure supplement 2A) in response to starvation, and its vacuolar degradation was impaired (Figure 6—figure supplement 2B, lane 4, Figure 6—figure supplement 2C). However, when the C-terminal 30 amino acids of Mup1 (aa 545–574) were fused onto the C-terminus of Hxt3 (Figure 6E), they restored starvation-induced endocytosis in art4∆ mutants. This Hxt3-Mup1-C-GFP chimera was now efficiently removed from the PM and transported to the vacuole in the vast majority of art4∆ cells (86%, n = 76 cells) (Figure 6E), most likely because it became an Art2 substrate. Indeed, the additional deletion of ART2 (art2∆ art4∆) blocked starvation-induced endocytosis and demonstrated that Art2 now mediated the degradation of Hxt3-Mup1-C-GFP in art4∆ mutants. The degradation of Hxt3-Mup1-C-GFP and the concomitant accumulation of free GFP were further examined by SDS-PAGE and WB analysis from total cell extracts (Figure 6—figure supplement 2D, E). This analysis showed that the majority of the full-length Hxt3-Mup1-C-GFP chimera was degraded in WT cells, art2∆ and art4∆ mutants during starvation (Figure 6—figure supplement 2D, lanes 2, 4, 8), but only poorly in art2∆ art4∆ double mutants (Figure 6—figure supplement 2D, lane 6, Figure 6—figure supplement 2E).
The Art2-dependent endocytosis of the Hxt3-Mup1-C-GFP chimera required two key features provided by the C-terminus of Mup1 (the acidic patch and the two C-terminal lysine residues), since in art4∆ cells starvation-induced endocytosis of Hxt3-Mup1-CK567,572R-GFP and Hxt3-Mup1-CD549R,D551R,E554R,D555R-GFP was blocked (Figure 6E).
Taken together, these results demonstrate that the C-terminus of Mup1 (aa 545–574) encodes a portable acidic sorting signal that can be recognized by Art2 and directs Rsp5 to ubiquitinate specifically two proximal lysine residues to promote starvation-induced endocytosis.
A basic patch of Art2 is required for starvation-induced degradation of Mup1
After having defined that the C-terminus of Mup1 (and possibly also the C-terminus of further Art2-targets) provides a degron sequence for Art2-Rsp5 complexes, we addressed how it could be recognized. Upon inspection of the predicted arrestin domain in Art2, we noted a stretch of positively charged residues within the arrestin-C domain (Figure 7A). Converting these basic residues into an acidic patch (Art2K664D,R665D,R666D,K667D) abolished starvation-induced endocytosis of Mup1 (Figure 7B). Western blot analysis of total cell lysates showed that the Art2 basic patch mutant protein was expressed at similar levels as WT Art2 and was also upregulated after 3 hr of starvation (Figure 7—figure supplement 1A, lane 6). In addition, the Art2 basic patch mutant also impaired, at least partially, starvation-induced endocytosis of Can1, Lyp1 and Ina1, while the endocytosis of Tat2 was independent of the basic patch (Figure 7B, Figure 7—figure supplement 1B,C).

A basic patch of Art2 promotes the starvation-induced endocytosis of Mup1, Can1 and Lyp1.

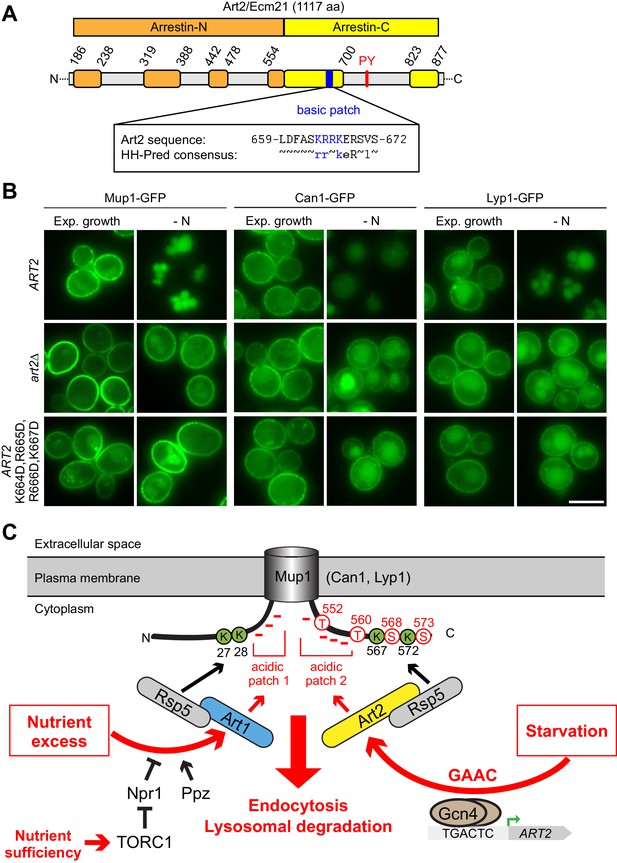

(A) Scheme of Art2 topology with arrestin-N domain in orange, arrestin-C domain in yellow and tails and interspersed extended loops (Baile et al., 2019) in light grey. The basic amino acid residues shown in blue mediate the starvation-induced endocytosis of Mup1, Can1 and Lyp1 (numbers correspond to amino acid positions in the Art2 sequence). Below is aligned the HHpred consensus sequence for Art2/Ecm21 derived from three HHblits iterations (Zimmermann et al., 2018), suggesting conservation of the basic patch in the Art2 protein family. (B) Live-cell fluorescence microscopy analysis of art2∆ cells expressing MUP1-GFP, CAN1-GFP or LYP1-GFP and pRS416-ART2-WT, empty vector or pRS416-ART2 K664D,R665D,R666D,K667D. Cells were starved (- N) for 6 hr after 24 hr exponential growth. (C) Scheme for the regulation of the substrate- and starvation-induced endocytosis of Mup1. During substrate excess TORC1 inhibits the Npr1 kinase which otherwise would phosphorylate and inhibit Art1. Art1-Rsp5 becomes dephosphorylated and subsequently binds the acidic patch 1 at the N-terminal tail of Mup1, leading to the ubiquitination of K27 and K28 and degradation of Mup1 (left). During amino acid and nitrogen starvation, the general amino acid control (GAAC) pathway upregulates the ubiquitin ligase adaptor Art2 via the transcriptional regulator Gcn4. The ensuing Art2-Rsp5 complex binds with its basic patch to the acidic patch 2 of Mup1 leading to the ubiquitination of K567 and K572 and degradation of Mup1 (right). At the same time, starvation causes TORC1 inhibition and activation of Npr1 and inhibits Art1-dependent ubiquitination. Ubiquitinated lysines (K) shown in green and phosphorylated serines (S) and threonines (T) in red with numbers corresponding to amino acid positions in the Mup1 sequence. Scale bars = 5 µm. See also Figure 7—figure supplement 1.
Overall, it seemed that Art2 employed a positively charged region in its arrestin fold to recognize C-terminal acidic patches in at least three different AATs (Mup1, Can1, Lyp1) and thus mediate their endocytosis in starvation conditions.
Discussion
We have made progress toward understanding how yeast cells selectively re-configure their repertoire of transporters at the PM in response to their nutritional status. The model in Figure 7C provides the conceptual framework for the mutually exclusive but complementary action of Art1-Rsp5 and Art2-Rsp5 ubiquitin ligase complexes for mediating the selective endocytosis of the methionine transporter Mup1 in response to changes in amino acid availability. Similar concepts may apply for the arginine transporter Can1, the lysine transporter Lyp1 and the tryptophan and tyrosine transporter Tat2. Based on our results and work from others, the endocytic down-regulation of these AATs can be described by the following set of rules: (1) Reciprocal (de-)activation of the α−arrestins Art1 and Art2. (2) Art1 or Art2 each recognize different acidic sorting signals on their client AATs that may require additional phosphorylation. (3) To do so, they employ basic patches in their extended arrestin C-domains and defined PY motifs to orient Rsp5 with high specificity toward proximal lysine residues. These rules satisfy the plasticity required for different α−arrestin and AAT interactions that drive exclusive or relatively broad substrate specificity depending on the metabolic context.
While both Art1 and Art2 lead to the degradation of AATs, they answer to distinct metabolic cues and are thus wired into distinct signaling pathways. Activation of Art1 by amino acid influx requires the coordinated interplay of TORC1 signaling to inactivate Npr1 (a kinase that negatively regulates Art1) and the action of phosphatases (Gournas et al., 2017; Lee et al., 2019; MacGurn et al., 2011; Tumolo et al., 2020). In response to amino acid limitation, TORC1 is no longer active. This will activate Npr1 to phosphorylate Art1, thereby inactivating it. At the same time, the lack of amino acids will activate the eIF2α kinase Gcn2. Gcn2 will phosphorylate eIF2α, which leads to the global down-regulation of translation, but enables specific translation of the transcription factor Gcn4 (Hinnebusch, 2005). Gcn4 then induces transcription of genes required for amino acid biosynthesis and of ART2, which causes an increase in Art2 protein levels and thus formation of Art2-Rsp5 complexes. This appears as primary means to activate Art2, since unscheduled increase in Art2 protein levels was sufficient to drive Art2-dependent nutrient transporter endocytosis already in cells growing under rich conditions. When amino acids become available again, the system can efficiently reset. TORC1 is reactivated resulting in Art1 reactivation. Conversely, Gcn4 will become instable and rapidly degraded by the ubiquitin proteasome system (Kornitzer et al., 1994; Meimoun et al., 2000; Irniger and Braus, 2003), and thus, the transcription of ART2 will cease. Interestingly, two de-ubiquitinating enzymes (Ubp2, Ubp15) de-ubiquitinate Art2 to influence its protein stability (Ho et al., 2017; Kee et al., 2006). Inhibiting their activity could provide additional control to repress Art2-dependent endocytosis in cells growing under rich conditions. Our screen identified also two de-ubiquinating enzymes, Doa4 and Ubp6 to be specifically required for starvation-induced endocytosis of Mup1. They could act directly on Art2 or Mup1 or help to maintain homeostasis of the ubiquitin pool during starvation.
Art2 is subject to extensive post-translational modification, including ubiquitination and phosphorylation. Database searches and our own proteomic experiments identified 68 phosphorylation sites and 20 ubiquitination sites in Art2 (data not shown) (Swaney et al., 2013; Albuquerque et al., 2008; Holt et al., 2009). How these modifications help to control the activity of Art2 remains a complex and open questions. Several arrestins were found to be phospho-inhibited in specific conditions (MacGurn et al., 2011; Becuwe et al., 2012b; O'Donnell et al., 2013; Hovsepian et al., 2017; Merhi and André, 2012; Llopis-Torregrosa et al., 2016), the common molecular basis of which is unknown. An exciting hypothesis would be that α-arrestin hyper-phosphorylation would add negative charges, and thereby prevent the recognition of acidic patches on transporters through electrostatic repulsion. Interestingly, our screen identified the pleitropic type 2A-related serine-threonine phosphatase Sit4 as a class one hit. Hence, Sit4 may be linked directly or indirectly to de-phosphorylation of Art2 and controlling its activity as reported recently for the Art2-dependent regulation of vitamin B1 transporters (Savocco et al., 2019).
Through the complementary activation of Art1 and Art2, cells can coordinate amino acid uptake through at least four high-affinity amino acid transporters with amino acid availability. The regulation of hexose transporters by glucose availability appears to be conceptually related, with distinct α−arrestin-Rsp5 complexes in charge of down-regulating the same transporters at various glucose concentrations with distinct mechanisms and kinetics (Hovsepian et al., 2017; Nikko and Pelham, 2009). In particular, the endocytosis of high-affinity hexose transporters during glucose starvation involves Art8, the closest paralogue of Art2, whose expression is also controlled by nutrient-regulated transcription (Hovsepian et al., 2017). Altogether, a picture emerges in which the transcriptional control of α−arrestin expression by nutrient-signaling pathways is critical to cope with nutrient depletion. This becomes part of the complex regulation of the ART-Rsp5 ubiquitin ligase network.
Our work also extends on previous findings regarding the determinants of α−arrestin/transporter interaction, indicating communalities between starvation- and substrate-induced endocytosis. Art1-Rsp5 and Art2-Rsp5 complexes both recognize specific acidic sequences on Mup1 (Figure 7C). Activated Art1-Rsp5 complexes recognize an acidic stretch in the N-terminus of Mup1 and Can1, close to the first transmembrane domain. The exposure of these N-terminal acidic patches is linked to substrate transport and conformational transitions in the transporters from the outward-open to the inward-open conformation, which in Mup1 also includes the so-called ‘C-plug’ (aa 520–543) (Busto et al., 2018; Guiney et al., 2016; Gournas et al., 2017). This conformational switch drives lateral re-localization of Mup1 and Can1 into a disperse PM compartment, where they are ubiquitinated by Art1-Rsp5 (Gournas et al., 2018; Busto et al., 2018). Art2 recognizes specifically an acidic patch in the C-terminal tail of Mup1, and thereby directs Rsp5 to ubiquitinate two juxtaposed C-terminal lysine residues. The C-plug is very close to the C-terminal acidic patch but is not part of the C-terminal Mup1 degron. We speculate that in the absence of nutrients AATs will spend more time in the outward open state with the C-Plug in place. In this state, activated Art2-Rsp5 complexes can still engage the C-terminal acidic patches. Hence, toggling Art1/Art2 activation in combination with accessibility of N- or C-terminal acidic sorting signals in AATs, in part regulated by their conformational state, must fall together to allow selective endocytosis.
An additional layer of regulation for endocytosis is provided by phosphorylation of AATs close to the acidic sorting signal. At the moment, we can only speculate about the kinase responsible for the phosphorylation of the C-terminal serine or threonine sites of Mup1. Perhaps, constitutive PM-associated kinases such as the yeast casein kinase one pair (Yck1/2) are involved, which are known to recognize rather acidic target sequences and to regulate endocytosis (Hicke et al., 1998; Paiva et al., 2009; Nikko et al., 2008; Marchal et al., 2002).
α-Arrestins lack the polar core in the arrestin domain that is used for cargo interactions in β-arrestins (Aubry et al., 2009; Polekhina et al., 2013). Instead Art1-Rsp5 and Art2-Rsp5 complexes each use a basic region in their arrestin C-domain to detect the acidic sorting signal in their client AATs. Studies on the interaction between GPCRs and β-arrestins revealed a multimodal network of flexible interactions: The N-domain of β-arrestin interacts with phosphorylated regions of the GPCR, their finger loop inserts into the transmembrane domain bundle of the GPCR and loops at the C-terminal edge of β-arrestin engage the membrane (Staus et al., 2020; Huang et al., 2020). Perhaps, a similar concept also holds true for α-arrestins. This is not unlikely given that their arrestin fold appears to be interspersed with disordered loops and very long, probably unstructured N- and/or C-terminal tails, some of which participate in cargo recognition or membrane interactions (Baile et al., 2019).
Despite the possible plasticity in substrate interactions, the selectivity of Art1-Rsp5 and Art2-Rsp5 complexes in ubiquitinating lysine residues proximal to the acidic patches of Mup1 is remarkable. Mup1 has 19 lysine residues at the cytoplasmic side: four at the N-terminal tail, six in the C-terminal tail and nine in the intracellular loops of the pore domain. Yet, Art1-Rsp5 complexes only ubiquitinate K27 and K28, whereas Art2-Rsp5 complexes only ubiquitinate K567 and K572. Even in the Hxt3-Mup1-C chimeric protein, Art2-Rsp5 complexes ubiquitinated only the lysine residues close to the acidic patch, despite six further lysine residues in the directly adjacent C-terminal tail of Hxt3. How is this possible? We speculate that these two α-arrestin-Rsp5 complexes orient the HECT domain of Rsp5 with high precision toward the lysine residues that are spatially close to the acidic patches. Once ubiquitinated, the AAT can engage the endocytic machinery to be removed from the PM.
In conclusion, Art1-Rsp5 complexes act rapidly to prevent the accumulation of excess amino acids, whereas the Art2-Rsp5 complexes help to degrade idle high-affinity amino acid transporters over longer periods of starvation to recycle their amino acid content. Starvation-induced endocytosis and the subsequent degradation of membrane proteins is required to maintain intracellular amino acid homeostasis (Müller et al., 2015; Jones et al., 2012). As such, it is well suited that Art2 activity and thus starvation-induced endocytosis of AATs is co-regulated and coordinated with de novo amino acid biosynthesis via the GAAC pathway. The down-regulation of AATs together with glucose transporters and further PM proteins could also free up domains at the PM that are populated by selective nutrient transporters (Spira et al., 2012; Grossmann et al., 2008) for transporters with broader substrate specificity such as the general amino acid permease Gap1 and the ammonium transporter Mep2, which are strongly up-regulated during starvation. Hence starvation-induced endocytosis could prepare cells – anticipatory – for non-selective nutrient acquisition, as soon as nutrients become available again. Consistent with this notion and a role of Art2 during starvation, yeast cells with mutations in ART2 show an altered adaptation to repetitive cycles of starvation (Wloch-Salamon et al., 2017). However, at the moment, it is not clear how these physiological defects are linked to the role of Art2 in starvation-induced endocytosis. Hence, despite the emergence of regulatory mechanisms, we are still far from understanding how each individual ART-Rsp5 complex controls nutrient acquisition and how this process translates into fine-tuning of metabolism, cell growth and survival. Even more unclear is how the activities of the entire ART-Rsp5 network are harmonized to achieve a coordinated cellular response to nutrient availability. Since a more global disruption of the ART-Rsp5 network causes proteotoxic stress with strong growth defects (Nikko and Pelham, 2009; Zhao et al., 2013; Hein et al., 1995), addressing these important questions will require new approaches.
Altogether, our results provide a better understanding of the molecular mechanisms that couple metabolic signaling and nutrient availability to nutrient transporter endocytosis in budding yeast. This might provide basic insights and principles for the vastly more complex regulation of the nutrient transporter repertoire in human cells under normal as well as pathophysiological conditions.
Materials and methods
Reagent type (species) or resource | Designation | Source or reference | Identifiers | Additional information |
---|---|---|---|---|
Strain, strainbackground Saccharomyces cerevisiae | SEY6210 | Robinson et al., 1988 | SEY6210 | Parental yeast strain (genotype: MATα leu2-3,112 ura3-52 his3-Δ200 trp1-Δ901 suc2-Δ9 lys2-801 GAL), obtained from the Emr lab |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 | Robinson et al., 1988 | SEY6210.1 | Parental yeast strain (genotype: MATa leu2-3,112 ura3-52 his3-Δ200 trp1-Δ901 suc2-Δ9 lys2-801 GAL), obtained from the Emr lab |
Strain, strain background Saccharomyces cerevisiae | SEY6210 rsp5Δ::HIS3 pRS415-6xHIS-TEV-3xFLAG-RSP5 | This paper | DTY557 | RSP5 wild type yeast strain, obtained from the Emr lab (previously unpublished) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 rsp5Δ::HIS3 pRS415-6xHIS-TEV-3xFLAG-RSP5-WW1* | This paper | DTY558 | RSP5 mutant yeast strain, obtained from the Emr lab (previously unpublished) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 rsp5Δ::HIS3 pRS415-6xHIS-TEV-3xFLAG-RSP5-WW2* | This paper | DTY559 | RSP5 mutant yeast strain, obtained from the Emr lab (previously unpublished) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 rsp5Δ::HIS3 pRS415-6xHIS-TEV-3xFLAG-RSP5-WW3* | This paper | DTY560 | RSP5 mutant yeast strain, obtained from the Emr lab (previously unpublished) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 art4Δ::HIS3 HXT3-GFP::TRP1 | This paper | ISY001 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 art2Δ::HIS3 HXT3-GFP::TRP1 | This paper | ISY013 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 D549,551,555R,E554R-GFP::HIS3 | This paper | ISY018 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 HXT3-MUP1-C AA545-574 D549,551,555R,E554R-GFP::TRP1 | This paper | ISY025 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art4Δ::HIS3 HXT3-MUP1-C AA545-574 D549,551,555R,E554R-GFP::TRP1 | This paper | ISY026 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 art2Δ::HIS3 art4Δ::HIS3 HXT3-MUP1-C AA545-574 D549,551,555R,E554R-GFP::TRP1 | This paper | ISY027 | Mutant yeast strain generated by homologous recombination and mating/tetrad dissection (for PCR primer seeSupplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 art2Δ::HIS3 HXT3-MUP1-C AA545-574 D549,551,555R,E554R-GFP::TRP1 | This paper | ISY028 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 HXT3-MUP1-C AA545-574-GFP::TRP1 | This paper | ISY029 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art4∆::HIS3 HXT3-MUP1-C AA545-574-GFP::TRP1 | This paper | ISY030 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 art2Δ::HIS3 art4Δ::HIS3 HXT3-MUP1-C AA545-574-GFP::TRP1 | This paper | ISY031 | Mutant yeast strain generated by homologous recombination and mating/tetrad dissection (for PCR primer seeSupplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 art2∆::HIS3 HXT3-MUP1-C AA545-574-GFP::TRP1 | This paper | ISY032 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 CAN1 D567,575R,E569,574R-GFP::HIS3 | This paper | ISY033 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 HXT3-MUP1-C AA545-574 K567,572R-GFP::TRP1 | This paper | ISY042 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art4Δ::HIS3 HXT3-MUP1-C AA545-574 K567,572R-GFP::TRP1 | This paper | ISY053 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 art2Δ::HIS3 art4Δ::HIS3 HXT3-MUP1-C AA545-574 K567,572R-GFP::TRP1 | This paper | ISY054 | Mutant yeast strain generated by homologous recombination and mating/tetrad dissection (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 art2Δ::HIS3 HXT3-MUP1-C AA545-574 K567,572R-GFP::TRP1 | This paper | ISY055 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 art2Δ::HIS3 art4::HIS3 HXT3-GFP::TRP1 | This paper | ISY061 | Mutant yeast strain generated by homologous recombination and mating/tetrad dissection (for PCR primer seeSupplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 gcn1Δ::HIS3 | This paper | JZY001 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 gcn3Δ::HIS3 | This paper | JZY002 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 gcn5Δ::HIS3 | This paper | JZY003 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 gcn4Δ::HIS3 | This paper | OSY250 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 gcn2Δ::HIS3 | This paper | OSY354 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art2Δ::HIS3 MUP1-GFP::TRP1 | This paper | TSY3 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 art2Δ::HIS3 | This paper | TSY4 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art1Δ::HIS3 | This paper | VIY011 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art2Δ::TRP1 | This paper | VIY012 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 ART2-6xHIS-TEV-3xFLAG::HIS3 | This paper | VIY030 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 ART1-6xHIS-TEV-3xFLAG::HIS3 | This paper | VIY031 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 CAN1-GFP::HIS3 | This paper | VIY036 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 HXT3-GFP::TRP1 | This paper | VIY042 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1-GFP::TRP1 | This paper | VIY054 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art2Δ::TRP1 INA1-eGFP::HIS3 | This paper | OSY924 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 S568,573A-GFP::TRP1 | This paper | VIY059 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art2Δ::TRP1 CAN1-GFP::HIS3 | This paper | VIY062 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art2Δ::TRP1 HXT2-GFP::HIS3 | This paper | VIY063 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art2Δ::TRP1 TAT2-GFP::HIS3 | This paper | VIY064 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art2Δ::TRP1 HXT1-GFP::HIS3 | This paper | VIY065 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art2Δ::TRP1 LYP1-GFP::HIS3 | This paper | VIY068 | Mutant yeast strain generated by homologous recombination (for PCR primer see supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 K567,572R-GFP::TRP1 | This paper | VIY073 | Mutant yeast strain generated by homologous recombination (for PCR primer seeSupplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 T552,560A-GFP::TRP1 | This paper | VIY076 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art1Δ::HIS3 MUP1-GFP::TRP1 | This paper | VIY079 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 K27,28R-GFP::TRP1 | This paper | VIY082 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art2Δ::TRP1 MUP1-GFP::HIS3 | This paper | VIY092 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 K27,28,567,572R-GFP::TRP1 | This paper | VIY093 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 art1Δ::HIS3 art2Δ::TRP1 | This paper | VIY107 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1-HA-TEV-GFP K1R::TRP1 | This paper | VIY200 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 S568,573A-HA-TEV-GFP K1R::TRP1 | This paper | VIY242 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 T552,560A-HA-TEV-GFP K1R::TRP1 | This paper | VIY255 | Mutant yeast strain generated by homologous recombination (for PCR primer see Supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 G78N-HA-TEV-GFP K1R::TRP1 | This paper | VIY263 | Mutant yeast strain generated by homologous recombination (for PCR primer see supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210.1 ART2-6xHIS-TEV-3xFLAG::HIS3 gcn4Δ::HIS3 | This paper | VIY291 | Mutant yeast strain generated by homologous recombination and mating/tetrad dissection (for PCR primer see supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 D43A,G47A,Q49A,T52A,L54A-HA-TEV-GFP K1R::TRP1 | This paper | VIY295 | Mutant yeast strain generated by homologous recombination (for PCR primer see supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1 T6,25,26,34A,S9,22,23,24,31,33,42A,K16,27,28R-HA-TEV-GFP K1R::TRP1 | This paper | VIY335 | Mutant yeast strain generated by homologous recombination (for PCR primer see supplementary file 4) |
Strain, strain background Saccharomyces cerevisiae | SEY6210 MUP1-GFP::HIS3 | This paper | YSM24 | Mutant yeast strain generated by homologous recombination (for PCR primer see supplementary file 4) |
Recombinant DNA reagent | pRS413 (Plasmid) | Sikorski and Hieter, 1989 | pRS413 | Empty centromer vector HIS3 |
Recombinant DNA reagent | pRS414 (Plasmid) | Sikorski and Hieter, 1989 | pRS414 | Empty centromer vector TRP1 |
Recombinant DNA reagent | pRS415 (Plasmid) | Sikorski and Hieter, 1989 | pRS415 | Empty centromer vector LEU2 |
Recombinant DNA reagent | pRS416 (Plasmid) | Sikorski and Hieter, 1989 | pRS416 | Empty centromer vector URA3 |
Recombinant DNA reagent | YCp5O-GCN4 (Plasmid) | Hinnebusch, 1985 | p180 | Wild type GCN4 (centromeric plasmid, URA3 selection) |
Recombinant DNA reagent | YCp5O-GCN4C (Plasmid) | Mueller et al., 1987 | p227 | Constitutively active GCN4 (centromeric plasmid, URA3 selection) |
Recombinant DNA reagent | pRS416-CAN1-GFP (Plasmid) | Lin et al., 2008 | pCHL571 | GFP-tagged version of CAN1 (centromeric plasmid, URA3 selection) |
Recombinant DNA reagent | pRS416-MUP1-GFP (Plasmid) | Lin et al., 2008 | pCHL642 | GFP-tagged version of MUP1 (centromeric plasmid, URA3 selection) |
Recombinant DNA reagent | pRS416-ART2-6xHIS-TEV-3xFLAG (Plasmid) | This paper | pIS001 | HTF-tagged version of ART2 (centromeric plasmid, URA3 selection; for cloning primer seesupplementary file 4) |
Recombinant DNA reagent | pRS416-ART2 P748,749A,Y750A-6xHIS-TEV-3xFLAG (Plasmid) | This paper | pIS003 | PxY mutant ofART2-HTF (centromeric plasmid, URA3 selection; for cloning primer see Supplementary file 4) |
Recombinant DNA reagent | pRS416-ART2 K664,667D,R665,666D-6xHIS-TEV-3xFLAG (Plasmid) | This paper | pIS004 | Basic patch mutant of ART2-HTF (centromeric plasmid, URA3 selection; for cloning primer see supplementary file 4) |
Recombinant DNA reagent | pRS415-ART2-6xHIS-TEV-3xFLAG (Plasmid) | This paper | pJZ001 | HTF-tagged version of ART2 (centromeric plasmid, LEU2 selection; for cloning primer seesupplementary file 4) |
Recombinant DNA reagent | pRS415-pART2*-ART2-6xHIS-TEV-3xFLAG (Plasmid) | This paper | pJZ002 | Promotor mutant of ART2-HTF (centromeric plasmid, LEU2 selection; for cloning primer seesupplementary file 4) |
Recombinant DNA reagent | pRS416-pART2-ART1-6xHIS-TEV-3xFLAG (Plasmid) | This paper | pOS258 | ART1-HTF expressed under ART2 promoter (centromeric plasmid, URA3 selection; for cloning primer see supplementary file 4) |
Recombinant DNA reagent | pRS416-MUP1-pHluorin (Plasmid) | This paper | pLZ78 | pHluorin-tagged version ofMUP1, obtained from the Emr lab (previously unpublished) (centromeric plasmid, URA3 selection) |
Recombinant DNA reagent | pRS415-MUP1-GFP (Plasmid) | Schmidt et al., 2017 | pMM02 | GFP-tagged version of MUP1 (centromeric plasmid, LEU2 selection) |
Recombinant DNA reagent | pRS416-FUR4-GFP (Plasmid) | MacGurn et al., 2011 | pSR21 | GFP-tagged version of FUR4 (centromeric plasmid, URA3 selection) |
Recombinant DNA reagent | pRS415-ART1 (Plasmid) | This paper | pVI009 | untagged version of ART1 (centromeric plasmid, LEU2 selection; for cloning primer see Supplementary file 4) |
Recombinant DNA reagent | pRS416-pTDH3-ART2-6xHIS-TEV-3xFLAG (Plasmid) | This paper | pVI013 | Overexpression of ART2-HTF (centromeric plasmid, URA3 selection; for cloning primer seeSupplementary file 4) |
Antibody | α-FLAG M2 (Mouse monoclonal) | Sigma, Austria | F1804 (RRID:AB_259529) | WB (1:10.000) |
Antibody | α-GFP IgG1K (Mouse monoclonal) | Sigma, Austria | 11814460001 (RRID:AB_390913) | WB (1:1000) |
Antibody | α-Pgk1 22C5D8 (Mouse monoclonal) | Invitrogen, USA | 459250 (RRID:AB_2532235) | WB (1:10.000) |
Antibody | α-ubiquitin P4D1 (Mouse monoclonal) | Santa Cruz Biotechnology, USA | 3936S (RRID:AB_628423) | WB (1:500) |
Antibody | goat a-mouse (polyclonal)-peroxidase | Sigma | A4416 (RRID:AB_258167) | WB (1:5000) |
Commercial assay or kit | RevertAid First Strand cDNA Synthesis Kit | Thermo Fisher, USA | K1622 | |
Commercial assay or kit | RNeasy Mini Kit | Qiagen, Germany | 74104 | |
Commercial assay or kit | TaqMan Assay ECM21/ART2 | Thermo Fisher, USA | Sc04099967_s1 | |
Commercial assay or kit | TaqMan Assay PGK1 | Thermo Fisher, USA | Sc04104844_s1 | |
Commercial assay or kit | TaqMan Gene Expression Master Mix | Thermo Fisher, USA | 4369016 | |
Commercial assay or kit | Non-essential gene deletion strain collection in BY4742 | Open Biosystems, USA | YSC1054 | |
Chemical compound, drug | GFP-Trap_MA Magnetic Agarose beads | ChromoTek, Germany | gtma-20 | |
Chemical compound, drug | Nonidet P 40 | Fluka, Germany | 74385 | |
Chemical compound, drug | Yeast Nitrogen Base without amino acids | Roth, Germany | HP26.1 | |
Chemical compound, drug | Yeast Nitrogen Base without amino acids and ammonium sulfate | VWR, USA | J630-100G | |
Software, algorithm | Fiji | Schindelin et al., 2012 | Version 1.0 | |
Software, algorithm | GuavaSoft | Luminex | Version 2.7 | |
Software, algorithm | Illustrator CS5.1 | Adobe | Version 15.1.0 (RRID:SCR_010279) | |
Software, algorithm | ImageJ2 | Rueden et al., 2017 | Version 2.0.0-rc49/1.51 hr (RRID:SCR_003070) | |
Software, algorithm | Photoshop CS5 | Adobe | Version 12.0.4 × 64 (RRID:SCR_014199) | |
Software, algorithm | PikoReal | Thermo Fisher | version 2.2 | |
Software, algorithm | VisiView | Visitron | version 2.1.4 |
Yeast strains, media and growth conditions
Request a detailed protocolYeast strains used for the microscopy screen for starvation-responsive endocytosis cargoes were mainly derived from the Yeast C-terminal GFP Collection (Huh et al., 2003) with addition of further C-terminally-tagged transporters in BY4741 (MATa his3Δ1 leu2Δ0 met15Δ0 ura3Δ0) and SEY6210 (MATα leu2-3,112 ura3-52 his3-200 trp1-901 lys2-801 suc2-9) strain background (Supplementary file 1). The flow cytometry screen for genes affecting the starvation-induced endocytosis of Mup1-pHluorin was performed using the non-essential gene deletion strain collection purchased from Open Biosystems (BY4742: MATα his3Δ1 leu2Δ0 lys2Δ0 ura3Δ0) transformed with pRS416 expressing Mup1-pHluorin. For all other experiments, the SEY6210 parental strain was used (see key resources table).
In all experiments, except the genome-wide flow cytometry screen, cells were cultivated in rich medium containing: 6,7 g/L Yeast Nitrogen Base without amino acids (#HP26.1, Roth, Germany), 20 mg/L adenine hemisulfate (#A3159-25G, Sigma, Austria), 20 mg/L arginine (#1655.1, Roth, Germany), 230 mg/L lysine monohydrate (#4207.1, Roth, Germany), 300 mg/L threonine (#T206.2, Roth, Germany), 30 mg/L tyrosine (#T207.1, Roth, Germany), 2% glucose (#X997.5, Roth, Germany). The rich medium was supplemented when required for the auxotrophic strains with: 20 mg/L histidine (#3852.1, Roth, Germany), 60 mg/L leucine (#3984.1, Roth, Germany), 20 mg/L tryptophan (#4858.2, Roth, Germany), 20 mg/L uracil (#7288.2, Roth, Germany), 20 mg/L methionine (#9359.1, Roth, Germany). Starvation medium contained 1,7 g/L Yeast Nitrogen Base without amino acids and ammonium sulfate (#J630-100G, VWR, USA) and 2% glucose (#X997.5, Roth, Germany).
Yeast cells were cultivated in rich medium and kept for at least 24 hr in exponential growth phase by dilution into fresh medium before onset of all experiments at mid-log phase. All cultivations were done at 26°C. Substrate-induced endocytosis of Mup1 was triggered by the addition of 20 mg/L methionine (#9359.1, Roth, Germany) and, unless otherwise stated, analyzed 1.5 hr after the treatment. For starvation experiments, exponentially growing cells (0.4–0.6 OD600/ml) were washed twice with and resuspended in starvation medium (1 OD600nm/ml) and incubated for the indicated times.
Genetic modifications and cloning
Request a detailed protocolGenetic modifications were performed by PCR and/or homologous recombination using standard techniques. All chromosomal tags were introduced at the C-terminus of the target ORFs to preserve the endogenous five prime regulatory sequences. Chromosomally modified yeast strains were analyzed by genotyping PCR and/or DNA-sequencing. Plasmid-expressed genes including their endogenous or heterologous promoters were amplified from yeast genomic DNA and cloned into centromeric vectors (pRS series). All plasmids were analyzed by DNA-sequencing. Standard techniques were used for yeast transformation, mating and tetrad analysis or haploid selection. Yeast stains and plasmids are listed in the key resources table and primer in Supplementary file 4.
Flow cytometry screen
Request a detailed protocolThe yeast non-essential knock out collection (YSC1054; Open Biosystems) was transformed in 96-well format using a standard lithium acetate/PEG-4000 yeast transformation protocol with a pRS416 plasmid encoding Mup1-pHluorin. Transformants were selected on agar plates, inoculated into 160 μl of rich medium (YNB medium lacking uracil as specified above containing 1.5x of all amino acids) and incubated for 14 hr shaking (180 rpm) at 26° in 96-well plates (#83.3924, Sarstedt, Germany). Each plate also contained the WT BY4742 parental strain and art2∆ as negative and positive controls. 60 μl of the overnight cultures were transferred to 96-deep-well plates (#951033405, 96/2000 µl, white border, Eppendorf, Germany) containing 600 μl rich medium and further incubated for 5 hr. At this point, 120 μl of culture referred to as ‘exponentially growing’ were transferred to standard 96-well plates and analyzed by flow cytometry. The remaining culture was harvested by centrifugation (1807 g; 3 min), the medium was aspirated, cells were washed twice with 600 µl starvation medium and recovered by centrifugation. Subsequently, cells were resuspended in 600 μl starvation medium and incubated shaking (180 rpm) for 18–22 hr. 200 μl nitrogen-starved culture were transferred to standard 96-well plates and analyzed by flow cytometry. All pipetting steps were performed using the MEA Robotic System (PhyNexus, USA). Flow cytometry was performed in 96-well format using the Guava easyCyte 8HT-System (Sr.No. 6735128143), EMD Millipore, Merck, Germany) with the following settings: Energy GRN: 72 plus (YEL = 8; RED = 8; NIR = 8; RED2 = 8; NIR2 = 8), green channel, forward scatter FSC = 14; sideward scatter SSC = 28; 15.000–20.000 counts/sample, acquire: 40 s, 3 s mix prior to acquisition. GuavaSoft 2.7 software was used for data analysis. The positive/negative cut-off was set for each plate empirically at the intercept of the log/starvation histograms of the WT and art2∆ controls (art2∆, which emerged as a well-reproducible hit early in the screen, was included as a negative control in all further plates). All potential hits were re-examined by fluorescence microscopy. To this end, at least 100 starved cells were analyzed by fluorescence microscopy after starvation and the percentage of cells showing a degradation-deficient phenotype (Mup1-pHluorin at the plasma membrane, in small cytosolic objects, class E-like objects or small objects within vacuoles) of the total number of cells counted was calculated (Supplementary file 2). Strains with more than 45% cells with retained fluorescence after at least 18 hr of starvation were considered as hits. For a stringent final selection, we compared those hits to the original flow cytometry screen and finally only considered those in which at least once more the 30% Mup1-pHluorin fluorescence was also retained after starvation in the flow cytometry screen. In addition, most hits were also scored for methionine-induced endocytosis of Mup1-pHluorin. Hits were considered starvation-specific if the fluorescence was quenched in more than 67% of cells after 90 min of methionine treatment (20 µg/ml).
Gene ontology analysis
Request a detailed protocolGene Ontology (GO) enrichment analysis (Harris et al., 2004) was performed using 128 genes listed in Supplementary file 2. They were mapped against the generic GO-Slim: process, generic GO-Slim: component and macromolecular complex terms: component GO sets using the GoSLIM mapper of the Saccharomyces genome database. We calculated the ratio of the observed (cluster frequency) vs. the expected number of genes (genome frequency) associated with the GO term, referred to as enrichment over genome (McClellan et al., 2007; Schmidt et al., 2019). Only GO terms with more than one associated gene were reported. The full analysis is presented in Supplementary file 3.
Fluorescence live cell wide-field microscopy
Request a detailed protocolFor microscopy, cells were concentrated by centrifugation and directly mounted onto glass slides. Live cell wide-field fluorescence microscopy was carried out using a Zeiss Axio Imager M1 equipped with a sola light engine LED light source (Lumencore), a 100x oil immersion objective (NA 1.45) standard GFP and mCherry fluorescent filters, a SPOT Xplorer CCD camera, and Visitron VisiView software (version 2.1.4). The brightness and contrast of the images in the figures were linearly adjusted using Photoshop CS5 (Adobe Version 12.0.4 × 64).
Preparation of yeast whole cell protein extracts
Request a detailed protocol10 OD600nm yeast cells were pelleted by centrifugation, resuspended in ice-cold water with 10% trichloroacetic acid (#T0699, Sigma, Austria), incubated on ice for at least 30 min and washed twice with ice cold acetone (#5025.5, Roth, Germany). The precipitate was resuspended in 200 µl extraction buffer (150 mM Tris-HCl, pH 6,8 (#443866G, VWR, USA); 6% SDS (#CN30.3, Roth, Germany), 6M urea (#51456–500G, Sigma, Austria), 6% glycerol (#3783.2, Roth, Germany), 3% β-mercaptoethanol (#M6250, Sigma, Austria), 0,01% bromophenol blue (#44305, BDH Laboratory Supplies, England)) and solubilized with 0.75–1 mm glass beads (#A554.1, Roth Germany) for 15 min at RT and subsequent heating at 42°C for 30 min and 60°C for 10 min.
Western blot and immunodetection
Request a detailed protocolProtein extracts from total cells and eluates from immuno-precipitations were separated by standard SDS-PAGE and transferred to PVDF membranes (#10600023, VWR, USA) for the detection of Mup1-GFP, Art2-HTF and Pgk1 or to nitrocellulose membranes (#10600004, VWR, USA) for the detection of ubiquitinated Mup1. PVDF membranes were stained with Coomassie Brilliant Blue R250 (#3862.2, Roth, Germany) for assessment of transfer and loading. Antibodies used in this study include: α-FLAG M2 (#F1804, Sigma, Austria), α-GFP IgG1K (#11814460001, Sigma, Austria), α-Pgk1 22C5D8 (#459250, Invitrogen, USA), α-ubiquitin P4D1 (#3936S, Santa Cruz Biotechnology, USA). Secondary antibody was goat α-mouse IgG peroxidase (#A4416, Sigma, Austria). Western blots were developed with Advansta Western bright ECL substrate (#541005 (K-12045-D50), Biozyme, Austria).
Western blot quantification
Request a detailed protocolWB signals were quantified by densitometry using ImageJ2 (Version 2.0.0-rc49/1.51 hr; RRID:SCR_003070) (Rueden et al., 2017), quantifications were exported to Microsoft Excel (Version 16.16.2; RRID:SCR_016137), normalized to the respective Pgk1 loading controls, and presented as mean ± standard deviation from at least three independent experiments. WT in exponential growth phase was set to 1. For the quantification of GFP-tag processing, full-length and clipped GFP WB signals were quantified from the same exposure and added to calculate the total GFP signal for each lane. The signals for full-length and clipped GFP were then reported as the percentage from the total GFP signal.
Immunoprecipitation
Request a detailed protocolMup1-GFP immunoprecipitation protocol was adapted from Hovsepian et al., 2017. 50 OD600nm yeast cells were harvested by centrifugation and mechanically disrupted by glass bead lysis (0.75–1 mm) at 4°C in 500 µl ice-cold RIPA lysis buffer (50 mM Tris-HCl, pH 7.5, 150 mM NaCl (#3957.5, Roth, Germany), 0.1% SDS, 2 mM EDTA (#ED-1KG, Sigma, Austria), 50 mM NaF (#SO0323, Scharlau, Spain), 1% Nonidet P 40 (#74385, Fluka, Germany), 0.5% Na-deoxycholate (#D6750-25G, Sigma, Austria), 1% glycerol) containing protease inhibitors (cOmplete Protease Inhibitor Cocktail (#11697498001, Sigma, Austria), yeast protease inhibitor cocktail (yPIC, #P8215-5ML, Sigma, Austria), 2 mM phenylmethylsulfonyl fluoride (PMSF, #P7626-5G, Sigma, Austria)) and 20 mM N-ethylmaleimide (NEM, #E3876-5G, Sigma, Austria) using four cycles of lysis (2 min), each separated by 2 min chilling on ice. The lysate was then rotated for 30 min at 4°C for solubilization. 500 µl wash buffer (50 mM Tris-HCl, pH 7.5, 150 mM NaCl, 1% Nonidet P 40, 5% glycerol) containing 20 mM NEM were added and the sample was mixed and further rotated for 1 hr at 4°C. After vortexing for 3 min, the lysate was centrifuged at 10000 g for 10 min at 4°C. The cleared lysate was then added to 25 µl of GFP-Trap_MA magnetic agarose beads (#gtma-20, ChromoTek, Germany) prewashed twice in 1 ml wash buffer. The sample was rotated for 5 hr at 4°C. The beads were collected using a magnetic rack and washed twice by rotating for 15 min at 4°C with 1.5 ml ice-cold wash buffer. The beads were further washed for 30 min at RT with 1.5 ml saline buffer (50 mM Tris-HCl, pH 7.5, 150 mM NaCl), containing 0.1% Tween-20 (#9127.1, Roth, Germany), resuspended in 50 µl 2x urea sample buffer (150 mM Tris-HCl, pH 6.8, 6M urea, 6% SDS, 0.01% bromophenol blue) and incubated for 30 min at 1400 rpm and 37°C in a thermomixer. Then, 50 µl boiling buffer (50 mM Tris-HCl, pH 7.5, 1 mM EDTA, 1%, 20% glycerol) was added and the sample was further incubated for 30 min at 1400 rpm and 42°C in a thermomixer. The resulting eluates were subjected to WB analysis. For mass spectrometry analysis of Mup1-GFP 300 OD600 equivalents were used with the following modifications: Cells were lysed by with glass beads (3 × 1 min) at 4°C in 3 ml RIPA buffer (50 mM Tris/HCl, pH 7,5, 200 mM NaCl, 10% glycerol, 1% NP-40, 1% Na-Deoxycholate, 0,1% SDS, 2 mM EDTA, 0,1% Tween-20, 25 mM NaF, 1x PhosStop (#PHOSS-RO, Sigma, Germany), 1x Complete EDTA-free protease inhibitors, 0.67 mM DTT, 1x yPIC, 2 mM PMSF, 20 mM NEM. Subsequently another 3 ml of RIPA buffer were added and the lysate was sonicated 5 × 1 min at 4°C in a water bath sonicator. Lysates were incubated 30 min on ice and then centrifuged at 10,000 g for 10 min to remove debris. 80 ul of equilibrated GFP-trap beads were added to the supernatant and incubated rolling for 16 hr at 4°C. Beads were washed at 4°C 3 × 15 min with RIPA buffer supplemented with 500 mM NaCl and then 3 × 15 min with urea wash buffer (50 mM Tris/HCl pH 7.5, 100 mM NaCl, 4M Urea). Mup1-GFP was eluated from beads using urea sample buffer as described above. Eluates were separated via SDS-PAGE and Mup1-GFP was visualized by Coomassie staining. Slices were cut from the gel (including the visible Mup1-GFP protein bands and the region above containing ubiquitinated Mup1-GFP) and subjected for further mass spectrometry sample preparation.
Mass spectrometry sample preparation and analysis
Request a detailed protocolCoomassie-stained gel bands were excised from SDS-PAGE gels, reduced with dithiothreitol, alkylated with iodoacetamide and digested with trypsin (Promega) as previously described (Faserl et al., 2019). Tryptic digest were analyzed using an UltiMate 3000 RSCLnano-HPLC system coupled to a Q Exactive HF mass spectrometer (both Thermo Scientific, Bremen, Germany) equipped with a Nanospray Flex ionization source. The peptides were separated on a homemade fritless fused-silica micro-capillary column (75 µm i.d. x 280 µm o.d. x 10 cm length) packed with 3.0 µm reversed-phase C18 material. Solvents for HPLC were 0.1% formic acid (solvent A) and 0.1% formic acid in 85% acetonitrile (solvent B). The gradient profile was as follows: 0–4 min, 4% B; 4–57 min, 4–35% B; 57–62 min, 35–100% B, and 62–67 min, 100% B. The flow rate was 250 nL/min.
The Q Exactive HF mass spectrometer was operating in the data dependent mode selecting the top 20 most abundant isotope patterns with charge >1 from the survey scan with an isolation window of 1.6 mass-to-charge ratio (m/z). Survey full scan MS spectra were acquired from 300 to 1750 m/z at a resolution of 60,000 with a maximum injection time (IT) of 120 ms, and automatic gain control (AGC) target 1e6. The selected isotope patterns were fragmented by higher-energy collisional dissociation with normalized collision energy of 28 at a resolution of 30,000 with a maximum IT of 120 ms, and AGC target 5e5.
Data analysis was performed using Proteome Discoverer 4.1 (Thermo Scientific) with search engine Sequest. The raw files were searched against yeast database (orf_trans_all) with sequence of Mup1-GFP added. Precursor and fragment mass tolerance was set to 10 ppm and 0.02 Da, respectively, and up to two missed cleavages were allowed. Carbamidomethylation of cysteine was set as static modification. Oxidation of methionine, ubiquitination of lysine, and phosphorylation of serine threonine, and tyrosine were set as variable modifications. Peptide identifications were filtered at 1% false discovery rate.
RNA isolation and quantitative PCR (RT-qPCR)
Request a detailed protocolExponentially growing or starved cells (40 OD600nm) were harvested by centrifugation and immediately frozen in lq. N2. Cell pellets were lysed with 1 mm glass beads in a FastPrep-24 homogenizer (MP biosciences) in Qiagen RLT buffer, and RNA was extracted using the RNeasy Mini Kit (#74104, Qiagen, Germany). Yield and purity were determined photometrically. cDNA was prepared from 5 µg DNAse I-treated RNA using the RevertAid First Strand cDNA Synthesis Kit (#K1622, Thermo Fisher, USA) with oligo-dT primer according to the standard protocol. qPCR was performed in 10 µl scale with 4 µl of cDNA, 5 µl TaqMan Gene Expression Master Mix (#4369016, Thermo Fisher, USA) and 0.5 µl TaqMan probe on a PikoReal 96 Real-Time PCR System (Thermo Fisher, USA) with 7 min initial denaturation (95°C) and 40 cycles of 5 s 95°C and 30 s 60°C. TaqMan gene expression assays were from Thermo Fisher (PGK1: Sc04104844_s1; ECM21/ART2: Sc04099967_s1). All probes and primer anneal within coding sequences. Each RT-qPCR analysis was done from two to three independent biological samples in 3–4 technical replicates. Data were analyzed with the PikoReal software (version 2.2; Thermo Fisher) with manual threshold adjustment, and relative mRNA abundance was calculated in Microsoft Excel using the ∆∆CT method. Statistical comparisons were calculated using the Student t-test.
Data availability
All data generated or analysed during this study are included in the manuscript and supporting files.
References
-
A multidimensional chromatography technology for in-depth phosphoproteome analysisMolecular & Cellular Proteomics 7:1389–1396.https://doi.org/10.1074/mcp.M700468-MCP200
-
On the origins of arrestin and rhodopsinBMC Evolutionary Biology 8:222.https://doi.org/10.1186/1471-2148-8-222
-
Tribute to Marcelle Grenson (1925–1996), A Pioneer in the Study of Amino Acid Transport in YeastInternational Journal of Molecular Sciences 19:1207.https://doi.org/10.3390/ijms19041207
-
The arrestin fold: variations on a themeCurrent Genomics 10:133–142.https://doi.org/10.2174/138920209787847014
-
Regulation of nutrient transporters by metabolic and environmental stressesCurrent Opinion in Cell Biology 65:35–41.https://doi.org/10.1016/j.ceb.2020.02.009
-
Activity of a ubiquitin ligase adaptor is regulated by disordered insertions in its arrestin domainMolecular Biology of the Cell 30:3057–3072.https://doi.org/10.1091/mbc.E19-08-0451
-
Ubiquitin-Mediated regulation of endocytosis by proteins of the arrestin familyBiochemistry Research International 2012:1–12.https://doi.org/10.1155/2012/242764
-
A molecular switch on an arrestin-like protein relays glucose signaling to transporter endocytosisThe Journal of Cell Biology 196:247–259.https://doi.org/10.1083/jcb.201109113
-
Versatile role of the yeast ubiquitin ligase Rsp5p in intracellular traffickingBiochemical Society Transactions 36:791–796.https://doi.org/10.1042/BST0360791
-
Regulation of amino acid transport in Saccharomyces cerevisiaeMicrobiology and Molecular Biology Reviews : MMBR 83:00024-19.
-
Stress conditions promote yeast Gap1 permease ubiquitylation and down-regulation via the arrestin-like bul and aly proteinsJournal of Biological Chemistry 289:22103–22116.https://doi.org/10.1074/jbc.M114.582320
-
Ubiquitin and endocytic internalization in yeast and animal cellsBiochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1695:89–111.https://doi.org/10.1016/j.bbamcr.2004.09.024
-
Akt maintains cell size and survival by increasing mTOR-dependent nutrient uptakeMolecular Biology of the Cell 13:2276–2288.https://doi.org/10.1091/mbc.01-12-0584
-
Substrate-induced ubiquitylation and endocytosis of yeast amino acid permeasesMolecular and Cellular Biology 34:4447–4463.https://doi.org/10.1128/MCB.00699-14
-
Plasma membrane microdomains regulate turnover of transport proteins in yeastJournal of Cell Biology 183:1075–1088.https://doi.org/10.1083/jcb.200806035
-
Identification of the endocytic sorting signal recognized by the Art1-Rsp5 ubiquitin ligase complexMolecular Biology of the Cell 27:4043–4054.https://doi.org/10.1091/mbc.E16-08-0570
-
The gene ontology (GO) database and informatics resourceNucleic Acids Research 32:D258–D261.https://doi.org/10.1093/nar/gkh036
-
Mdm1/Snx13 is a novel ER-endolysosomal interorganelle tethering proteinJournal of Cell Biology 210:541–551.https://doi.org/10.1083/jcb.201503088
-
Translational regulation of GCN4 and the general amino acid control of yeastAnnual Review of Microbiology 59:407–450.https://doi.org/10.1146/annurev.micro.59.031805.133833
-
Deubiquitinating enzymes Ubp2 and Ubp15 regulate endocytosis by limiting ubiquitination and degradation of ARTsMolecular Biology of the Cell 28:1271–1283.https://doi.org/10.1091/mbc.E17-01-0008
-
Multilevel regulation of an α-arrestin by glucose depletion controls hexose transporter endocytosisJournal of Cell Biology 216:1811–1831.https://doi.org/10.1083/jcb.201610094
-
Convergence of ubiquitylation and phosphorylation signaling in rapamycin-treated yeast cellsMolecular & Cellular Proteomics 13:1979–1992.https://doi.org/10.1074/mcp.O113.035683
-
Amino acid transporters revisited: new views in health and diseaseTrends in Biochemical Sciences 43:752–789.https://doi.org/10.1016/j.tibs.2018.05.003
-
The deubiquitinating enzyme Ubp2 modulates Rsp5-dependent Lys63-linked polyubiquitin conjugates in Saccharomyces cerevisiaeThe Journal of Biological Chemistry 281:36724–36731.https://doi.org/10.1074/jbc.M608756200
-
Regulated degradation of the transcription factor Gcn4The EMBO Journal 13:6021–6030.https://doi.org/10.1002/j.1460-2075.1994.tb06948.x
-
Glucose starvation inhibits autophagy via vacuolar hydrolysis and induces plasma membrane internalization by Down-regulating recyclingJournal of Biological Chemistry 289:16736–16747.https://doi.org/10.1074/jbc.M113.525782
-
Methionine triggers Ppz-mediated dephosphorylation of Art1 to promote cargo-specific endocytosisJournal of Cell Biology 218:977–992.https://doi.org/10.1083/jcb.201712144
-
Regulation of the yeast Hxt6 hexose transporter by the Rod1 α-Arrestin, the Snf1 protein kinase, and the Bmh2 14-3-3 proteinJournal of Biological Chemistry 291:14973–14985.https://doi.org/10.1074/jbc.M116.733923
-
Ubiquitin and membrane protein turnover: from cradle to graveAnnual Review of Biochemistry 81:231–259.https://doi.org/10.1146/annurev-biochem-060210-093619
-
A PEST-Like sequence mediates phosphorylation and efficient ubiquitination of yeast uracil permeaseMolecular and Cellular Biology 18:314–321.https://doi.org/10.1128/MCB.18.1.314
-
Casein kinase I-dependent phosphorylation within a PEST sequence and ubiquitination at nearby lysines signal endocytosis of yeast uracil permeaseJournal of Biological Chemistry 275:23608–23614.https://doi.org/10.1074/jbc.M001735200
-
Casein kinase I controls a late step in the endocytic trafficking of yeast uracil permeaseJournal of Cell Science 115:217–226.
-
Nutrient transporters: the achilles' heel of anabolismTrends in Endocrinology & Metabolism 24:200–208.https://doi.org/10.1016/j.tem.2013.01.002
-
Degradation of the transcription factor Gcn4 requires the kinase Pho85 and the SCF(CDC4) ubiquitin-ligase complexMolecular Biology of the Cell 11:915–927.https://doi.org/10.1091/mbc.11.3.915
-
Starvation induces rapid degradation of selective autophagy receptors by endosomal microautophagyJournal of Cell Biology 217:3640–3655.https://doi.org/10.1083/jcb.201711002
-
Internal amino acids promote Gap1 permease ubiquitylation via TORC1/Npr1/14-3-3-dependent control of the bul arrestin-like adaptorsMolecular and Cellular Biology 32:4510–4522.https://doi.org/10.1128/MCB.00463-12
-
A calcineurin-dependent switch controls the trafficking function of α-arrestin Aly1/Art6Journal of Biological Chemistry 288:24063–24080.https://doi.org/10.1074/jbc.M113.478511
-
AMPK-Mediated regulation of Alpha-Arrestins and protein traffickingInternational Journal of Molecular Sciences 20:515.https://doi.org/10.3390/ijms20030515
-
Glucose-induced ubiquitylation and endocytosis of the yeast Jen1 transporter: role of lysine 63-linked ubiquitin chainsThe Journal of Biological Chemistry 284:19228–19236.https://doi.org/10.1074/jbc.M109.008318
-
Structure of the N-terminal domain of human thioredoxin-interacting proteinActa Crystallographica Section D Biological Crystallography 69:333–344.https://doi.org/10.1107/S0907444912047099
-
The transporter classification database (TCDB): recent advancesNucleic Acids Research 44:D372–D379.https://doi.org/10.1093/nar/gkv1103
-
Fiji: an open-source platform for biological-image analysisNature Methods 9:676–682.https://doi.org/10.1038/nmeth.2019
-
A system of shuttle vectors and yeast host strains designed for efficient manipulation of DNA in Saccharomyces cerevisiaeGenetics 122:19–27.
-
Glutamine metabolism and its physiologic importanceJournal of Parenteral and Enteral Nutrition 14:40S–44.https://doi.org/10.1177/014860719001400402
-
Patchwork organization of the yeast plasma membrane into numerous coexisting domainsNature Cell Biology 14:640–648.https://doi.org/10.1038/ncb2487
-
A genomic view of yeast membrane transportersCurrent Opinion in Cell Biology 13:389–398.https://doi.org/10.1016/S0955-0674(00)00226-X
-
TORC1 regulates vacuole membrane composition through ubiquitin- and ESCRT-dependent microautophagyJournal of Cell Biology 219:e201902127.https://doi.org/10.1083/jcb.201902127
-
A completely reimplemented MPI bioinformatics toolkit with a new HHpred server at its coreJournal of Molecular Biology 430:2237–2243.https://doi.org/10.1016/j.jmb.2017.12.007
Decision letter
-
Maya SchuldinerReviewing Editor; Weizmann Institute, Israel
-
Suzanne R PfefferSenior Editor; Stanford University School of Medicine, United States
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Acceptance summary:
The manuscript provides a deep and mechanistic understanding of a new response strategy to starvation in yeast. Specifically, it demonstrates that Art2 has a role in selective endocytosis of several plasma membrane proteins, including amino acid transporters, during amino acid starvation. Importantly it uncovers the signals on the substrate and adaptor that are both necessary and sufficient for this process. We are excited to have it be published in eLife.
Decision letter after peer review:
Thank you for submitting your article "Complementary α-arrestin-ubiquitin ligase complexes control nutrient transporter endocytosis in response to amino acids" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Suzanne Pfeffer as the Senior Editor. The reviewers have opted to remain anonymous.
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.
Editorial summary and revision requests:
The manuscript by Ivashov et al. explores the molecular mechanisms leading to the selective endocytosis of amino acid transporters (AATs) in the baker's yeast Saccharomyces cerevisiae during starvation. It was known that AATs on the membrane need to be ubiquitinated by Rsp5 through adaptors called ARTs. While some insights into the substrate induced endocytosis (activated by enhanced substrate flux) have already emerged, it is unclear how endocytosis of AATs occurs during acute starvation. This manuscript is the first to characterize the signaling and regulatory pathway guiding endocytosis of an AAT during starvation and discovers a specific role for Art2 as well as the signals on the substrate and adaptor that are both necessary and sufficient for this process. This paper is deep and mechanistic and uncovers a new regulatory cycle in a novel path of AAT starvation-dependent endocytosis and as such would be valuable to the cell biology community. Please answer the below requests prior to acceptance:
Experimental requests:
1) Is the transcriptional regulation enough to explain the differential requirement on ARTs for substrate induced vs. starvation induced endocytosis? I.e., if Art1 is expressed under the ART2 promoter in a ∆art2 during starvation – could it rescue the endocytosis of Mup1? This is not essential for publication, but would be a nice and easy experiment to do.
2) Figures 3B, 4A – how many times were they repeated? Please quantify the changes with SDs. This is true for all western blots whose claim is for a quantitative phenotype (increase or decrease in expression or in free GFP). Specifically, in Figure 4F quantification relative to the PGK control may show a similar increase in GCN4C…In addition, "WB analysis of total cell lysates indicated quantitative band shifts of Art1…". However, no quantification is provided. Please add quantification.
3) The authors use Mup1 (as one model substrate) and its downregulation as a criterion for adaptation to starvation. Does Art2 deletion or the mutation in Art2 (Figure 7B) cause any growth defect or problems with adaptation to starvation? This would be expected if downregulation via Art2 is a long-term adaptation response.
4) The authors suggest that Art1 and Art2 act on different patches and provide convincing data along this line. Is it possible to generate chimeric constructs of Art1 and Art2 to swap their specificity? Since this may not work given that Art2 has so many modification sites, this is not essential for resubmission.
Textual/Figure suggestions:
1) In the first Results section (subsection “Amino acid availability induces selective endocytosis of nutrient transporters”, first paragraph) when discussing the C' GFP tagging library of yeast please cite the manuscript that generated that library (PMID: 14562095) and not only in the Materials and methods.
2) The first part of the paper where C' GFP proteins were screened for expression is seems unrelated to the rest of the paper and not necessary for the future experiments. If the authors were interested specifically in AATs why did they not track all yeast AATs? It seems that some of them can be nicely visualized when tagged at their N' (such as Vba5, Thi72) or might need retagging and not to be taken from the library. Having only 7AATs to work with reduces the systematic nature of this study. Moreover, in the end they really only skim through the 4 well studied AATs (Mup1, Can, Lyp1 and Tat2) and really only focus on Mup1. Hence the Introduction is a bit misleading discussing not Mup1 but all AATs and making the first part of the paper quite unnecessary. Please reconsider writing the paper in a way that is more focused on Mup1 as a model and removing the above section.
3) Subsection “A genome-wide screen identifies regulators of starvation-induced endocytosis of AATs”, first paragraph: please change FACS to Flow Cytometry there and all places thereafter including Figure 2.
4) Subsection “A genome-wide screen identifies regulators of starvation-induced endocytosis of AATs”, second paragraph: typo.
5) Discussion, second paragraph: define UPS upon first use.
6) Figure 1A typo – should be methionine.
7) Figure 1B – "Ammonium Transporter" should be in color.
8) Figure 4B – what is n>x means – please write how many times exactly was it repeated.
9) Figure 6E has a very important piece of information, in that the authors show that the C-terminal segment of Mup1 can be transplanted to Hxt3. Please add the response of the un-modified Hxt3 in the same panel (and not in Figure 6—figure supplement 2A) to have the direct comparison.
10) The FACS-based screen of Mup1 traffic presented here is really quite nice, and provides a lot of information on proteins that regulate its endocytosis and vacuolar delivery. However, the finding that Art2 regulates stress-dependent endocytosis of a variety of transporters at the PM is neither surprising nor novel: Nikko and Pelham, 2009, published a key paper that positioned Art2 as a regulator of stress-dependent internalization of a wide variety of cargos. The stressor in was cycloheximide rather than starvation, suggesting a more general regulation of substrate-independent endocytosis. The Nikko and Pelham paper needs to be cited more prominently through this study. Its findings may not have the level of mechanistic detail presented here, but they do strongly parallel a number of key points.
11) The authors state that "low levels of methionine in the growth medium did not efficiently trigger its endocytosis." Supplementary Figure 1B complicates this interpretation, as there is clearly less Mup1 overall in 0.02 ug/ml Met compared to the no Met control. This decrease suggests that the protein indeed is being internalized, albeit at a slower rate. Flux from PM to vacuole could be slow enough that GFP fluorescence does not accumulate in the vacuole. Such a phenomenon was observed for Ptr2-GFP in Apel et al. (Mol Biol Cell 28: 2434-48). Please discuss this further in the manuscript.
12) Subsection “A genome-wide screen identifies regulators of starvation-induced endocytosis of AATs”, second paragraph: identify pep4∆ as the sole "class 4" mutant, where Mup1-pHluorin accumulates in the vacuole, but remains fluorescent. This is unexpected, since Prosser et al., 2010, showed that Ste3-pHluorin is efficiently transported to the vacuole in pep4∆prb1∆ prc1∆ cells, where fluorescence is still fully quenched. How might this discrepancy be explained?
13) The first paragraph of the subsection “Up-regulation of Art2 by the GAAC pathway drives starvation-induced endocytosis of Mup1” suggests that the observed bandshift is due to Npr1-dependent phosphorylation. This is an over-interpretation, since no direct evidence of Npr1 involvement is shown. Moreover, since Art1 is both phosphorylated and ubiquitinated, the band shift may not be due to phosphorylation at all. This should be more carefully interpreted, or more thoroughly investigated.
14) The first paragraph of the subsection “Up-regulation of Art2 by the GAAC pathway drives starvation-induced endocytosis of Mup1” states that levels of Art2-HTF were "comparably" low under rich conditions. What is this compared to? The blot in Figure 4A shows an increase in Art2 levels upon starvation, but levels of Art1 appear to decrease. Please clarify.
15) Subsection “Art2 directs Rsp5-dependent ubiquitination of C-terminal lysine residues in Mup1”, second paragraph: regarding the arrestin fold-localized PY motif, the authors state that it is required for starvation-induced endocytosis. This is an overstatement, since Figure 5E clearly shows Mup1 internalization when this PY motif is mutated, even though the amount of protein internalized is reduced. Please rephrase.
16) The first paragraph of the subsection “Up-regulation of Art2 by the GAAC pathway drives starvation-induced endocytosis of Mup1” states that Art1/2 regulate AAT endocytosis in a mutually exclusive manner, but this is not true for Tat2 based on Nikko and Pelham, 2008, where either is sufficient for Trp-induced internalization. Please discuss this.
17) Subsection “The C-terminal acidic sorting signal of Mup1 is sufficient for Art2-dependent starvation-induced endocytosis”, end of first paragraph: the callout for Supplementary Figure 6B should be for Figure 6—figure supplement 2D.
https://doi.org/10.7554/eLife.58246.sa1Author response
Experimental requests:
1) Is the transcriptional regulation enough to explain the differential requirement on ARTs for substrate induced vs. starvation induced endocytosis? I.e., if Art1 is expressed under the ART2 promoter in a ∆art2 during starvation – could it rescue the endocytosis of Mup1? This is not essential for publication, but would be a nice and easy experiment to do.
Thank you for this suggestion. We have replaced the ART1 promoter region with the ART2 promoter region. The ART2 promoter region also induced the expression of Art1 during starvation (Figure 4—figure supplement 2A). Yet, the upregulation of Art1 protein levels driven by the ART2 promoter failed to restore starvation-induced endocytosis of Mup1-GFP in art2∆ cells (Figure 4—figure supplement 2B), whereas the same construct was sufficient for substrate-induced endocytosis of Mup1-GFP in art1∆ cells (Figure 4—figure supplement 2B).
These results are in agreement with our model of the switch from Art1-dependent to Art2-dependent amino acid transporter endocytosis during starvation. The results further show that the simple upregulation of Art1 with the ART2 promoter is not sufficient to initiate Mup1 endocytosis in response to starvation. Rather, the combination of Art1 and Art2 protein levels, the specific properties of Art1 and Art2 (e.g. their post-translational regulation, basic patches, etc…) as well as the exposure of the N- and C-terminal acidic patches on Mup1 define the substrate selectivity of endocytosis in response to nutrient availability.
2) Figures 3B, 4A – how many times were they repeated? Please quantify the changes with SDs. This is true for all western blots whose claim is for a quantitative phenotype (increase or decrease in expression or in free GFP). Specifically, in Figure 4F quantification relative to the PGK control may show a similar increase in GCN4C…In addition, "WB analysis of total cell lysates indicated quantitative band shifts of Art1…". However, no quantification is provided. Please add quantification.
We now provide quantification for the blots in Figure 3B (in Figure 3—figure supplement 1A), Figure 4 (in Figure 4—figure supplement 1B, C, F, G) and in Figure 6—figure supplement 2 (in Figure 6—figure supplement 2C, E). The results of the WB quantifications (including SD) confirm our original results. For the quantification, all blots have been repeated at least 3 times.
We agree with reviewers that the WB in Figure 4F was not ideally loaded to allow quantification. Therefore, we have repeated the experiment. The new result (Figure 4F), quantified in Figure 4—figure supplement 1G, confirms that constitutive Gcn4 translation (in GCN4C mutants) upregulates Art2 already under rich growth conditions and that there is no further upregulation of Art2 in GCN4C mutants during starvation.
3) The authors use Mup1 (as one model substrate) and its downregulation as a criterion for adaptation to starvation. Does Art2 deletion or the mutation in Art2 (Figure 7B) cause any growth defect or problems with adaptation to starvation? This would be expected if downregulation via Art2 is a long-term adaptation response.
Unicellular organisms must efficiently and robustly adjust cell growth and survival to nutrient availability. We have shown earlier that starvation-induced endocytosis and the selective lysosomal membrane protein degradation through the MVB pathway co-operates with autophagy to ensure cell survival during starvation (Müller et al., 2015).
In our current paper, we have built on this observation and have identified how selectivity of endocytosis is achieved to degrade a defined subset of plasma membrane (PM) proteins during starvation. The genome of S. cerevisiae encodes 14 different ART proteins that collectively function in the selective degradation of membrane proteins in response to different growth and stress conditions. We demonstrate that Art2 is required to selectively target 5 different substrates (four amino acid transporters and Ina1) for starvation-induced endocytosis and degradation, out of at least 15 different membrane proteins. Other membrane proteins most likely will depend on other ARTs and will still be degraded in art2∆ mutants, e.g. we demonstrate that starvation-induced endocytosis of Hxt3 requires Art4.
Hence, strong effects on starvation survival (similar to ESCRT mutants that block the lysosomal degradation of all membrane proteins – see Müller et al., 2015) could be expected by simultaneous deletion of multiple ART proteins or of the ubiquitin ligase Rsp5. However, RSP5 is an essential gene, and mutants in which multiple ART genes are deleted display severe growth defects with loss of plasma membrane integrity due to proteotoxic stress (Nikko and Pelham, 2009; Zhao et al., 2013). The contribution of individual α-arrestins to survival might be relatively minor.
With this in mind, we have very carefully examined the growth and survival properties of art2∆ mutants and compared them to isogenic WT cells, as well as to autophagy mutants (atg8∆) and atg8∆ art2∆ double mutants. Indeed, the effects of art2∆ mutants on cell growth are moderate. Under rich growth conditions and in logarithmic growth phase, Art2 mutants grew slightly faster when compared to WT cells (Author response image 1A), whereas the cell diameter was similar (Author response image 1B).

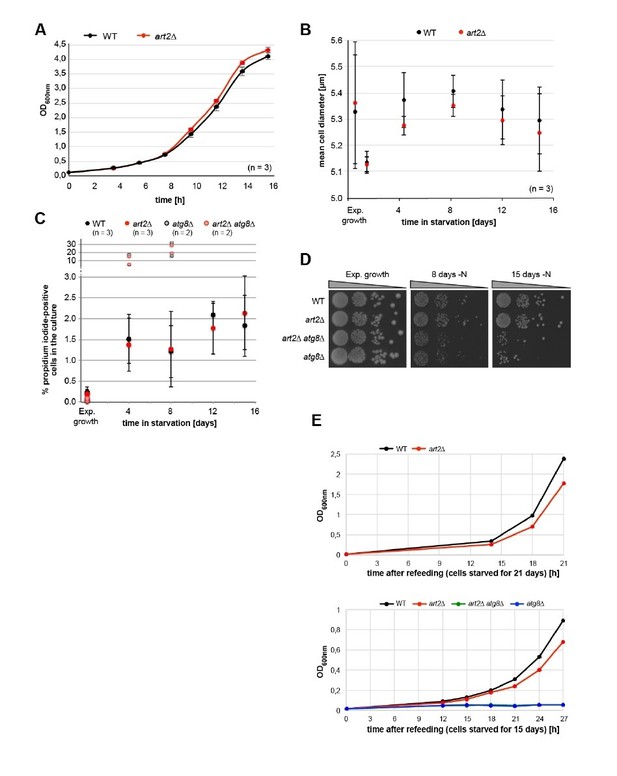

Physiological effects of ART2 deletion.
(A) Growth of isogenic WT (art2Δ + pART2) and art2Δ cells in synthetic auxotrophy medium (YNB) at 26°C. Cultures were grown exponentially for 24 hours and then inoculated to OD600nm = 0.1 at t=0h. Culture density was followed by OD600nm. Mean ± standard deviation from n = 3 independent experiments. (B) Mean cell diameter (± standard deviation) measured with CASY TTT cell counter (Omni Life Sciences, Bremen, Germany) of isogenic WT (art2Δ + pART2) and art2Δ cells grown exponentially for >24 hours and then starved for amino acids and nitrogen for the indicated time. (C) Isogenic WT (art2Δ + pART2), art2Δ, atg8Δ (art2Δ, atg8Δ + pART2) and art2Δatg8Δ cells grown exponentially for >24 hours and then starved for amino acids and nitrogen for the indicated time. Cells were stained with propidium iodide (PI, 3 μg/ml) for ten minutes, washed, and PI-positive cells were counted on an Attune TM NxT Cytometer (Life Technologies). 50000 cells were counted for each genotype and replicate. WT and art2Δ: mean ± standard deviation from n = 3 independent experiments. For the atg8Δ and art2Δatg8Δ cells two independent experiments are shown. (D) Isogenic WT (art2Δ + pART2), art2Δ, atg8Δ (art2Δatg8Δ + pART2) and art2Δatg8Δ cells were grown exponentially for >24 hours and then starved for amino acids and nitrogen (-N) for the indicated time. Survival was assessed by colony forming ability. Serial dilutions of the cultures were spotted on YPD rich medium. (E) Isogenic WT (art2Δ + pART2), art2Δ, atg8Δ (art2Δatg8Δ + pART2) and art2Δatg8Δ cells were grown exponentially for >24 hours and then starved for amino acids and nitrogen (-N) for 21 (upper panel) and 15 days (lower panel). Starved cells were re-inoculated into fresh auxotrophic selection medium (YNB) to OD600nm = 0.1 at t = 0h. Culture density was followed by OD600nm.
When these cells were exposed to amino acid and nitrogen starvation for up to 21 days, art2∆ mutants entered cell cycle arrest similar to WT cells (we scored the budding index after 24 hours and it was similar, data not shown) and displayed no significant differences in terms of cell diameter, survival (spot assays) or PM integrity / viability (measured by propidium iodide permeability) (Author response image 1B-D). Yet, when art2∆ cells were refed with fresh medium, after starving for 15 days or 21 days, they resumed growth slightly slower compared to WT cells (Author response image 1E). As control we used autophagy mutants (atg8∆) that displayed defects in cell survival during starvation (Author response image 1C, D) and failed to resume growth after starvation. We did not observe synthetic survival deficits of art2∆ cells with autophagy mutants (atg8∆) during prolonged starvation (Author response image 1C, D).
In conclusion, ART2-deficient cells appear to display mild deficits in adjusting cell growth both under rich conditions and while resuming growth after starvation. A precise mechanistic understanding of how Art2 in concert with all other branches of the ART-Rsp5 ubiquitin ligase network contributes specifically to cell physiology under different growth conditions would require additional experiments (e.g. strain / nutrient competition experiments, metabolomics). We believe that these complex physiological experiments would go beyond the scope of the current study, which focuses on the mechanism for selective starvation-induced endocytosis. Therefore, at the moment we think it would be premature to include these new experiments in the paper.
Consistent with the results presented here, another recent study (Wloch-Salamon DM et al., G3 (Genes, Genomes, Genetics), 2017, PMID: 28450371) found that over many repeated growth-starvation cycles (equivalent to 300 generations) mutations in Art2 (Ecm21) and Rsp5 affected survival in limiting nutrients. These findings also point to a physiological function of Art2 during starvation. However, it is not clear how these physiological defects are linked to the role of Art2 in starvation induced endocytosis and we now discuss this and cite the study by Wloch-Salamon et al., 2017.
4) The authors suggest that Art1 and Art2 act on different patches and provide convincing data along this line. Is it possible to generate chimeric constructs of Art1 and Art2 to swap their specificity? Since this may not work given that Art2 has so many modification sites, this is not essential for resubmission.
This would be indeed a great experiment. At the moment, however, this experiment has little chance of success, due to the above mentioned massive post-translational modifications of both proteins and the seemingly inverse activation / inactivation of Art1 and Art2.
Moreover, recent work from the Emr lab suggests that the activity of the α-arrestins is regulated by disordered loops in their arrestin domains (Baile et al., 2019). The disordered loop insertion in Art2 appears to be more extensive compared to Art1 (see schematic in Author response image 2). In Art2, a clear signature for an arrestin-N domain cannot be detected and the arrestin-C domain is extended to more than twice the length of the arrestin-C pfam model (Baile et al., 2019). In addition, these disordered loops are in the different positions in the arrestin N- and C- domains of Art1 and Art2, respectively, and therefore render precise domain swap experiments almost impossible without additional structural information.

Schematic depicting the primary structure of Art1 and Art2 with predicted arrestin-N (orange) and arrestin-C (yellow) domains and the position of interspersed, disordered loops (dark grey), basic patches (blue) and PY motifs (red) drawn according to Baile et al., 2019).
Textual/Figure suggestions:
1) In the first Results section (subsection “Amino acid availability induces selective endocytosis of nutrient transporters”, first paragraph) when discussing the C' GFP tagging library of yeast please cite the manuscript that generated that library (PMID: 14562095) and not only in the Materials and methods.
Thank you for pointing this out. We have now included the corresponding reference in the Results section of the manuscript.
2) The first part of the paper where C' GFP proteins were screened for expression is seems unrelated to the rest of the paper and not necessary for the future experiments. If the authors were interested specifically in AATs why did they not track all yeast AATs? It seems that some of them can be nicely visualized when tagged at their N' (such as Vba5, Thi72) or might need retagging and not to be taken from the library. Having only 7AATs to work with reduces the systematic nature of this study. Moreover, in the end they really only skim through the 4 well studied AATs (Mup1, Can, Lyp1 and Tat2) and really only focus on Mup1. Hence the Introduction is a bit misleading discussing not Mup1 but all AATs and making the first part of the paper quite unnecessary. Please reconsider writing the paper in a way that is more focused on Mup1 as a model and removing the above section.
We agree with the reviewers that the analysis presented in Figure 1 is neither systematic nor comprehensive and we have toned down the results and adapted the text of Figure 1 accordingly.
Yet, we think that the results of Figure 1 are important (i) because they demonstrate in an unprecedented way the scale and the selectivity of starvation-induced endocytosis towards certain cargoes and (ii) they are important to delineate the specificity of Art2 for a subset of cargoes including Ina1 (new result Figure 3—figure supplement 1C), and four different amino acid transporters (AAT), but not for all membrane proteins that undergo starvation-induced endocytosis (e.g. the glucose transporters) (Figure 3—figure supplement 1D). Therefore, we prefer to keep the data of Figure 1 in the paper.
We have now also identified a further membrane protein (Ina1), which undergoes Art2-dependent starvation-induced endocytosis (Supplementary file 1; Figure 3—figure supplement 1C). Ina1 is a protein of unknown function with three predicted transmembrane domains and a cytoplasmic C-terminus and not related to AATs, suggesting that the action of Art2 during starvation is not limited to AATs. The Ina1 sequence also features a putative acidic patch (included in Figure 6D) in its C-terminus, and its starvation-induced endocytosis is impaired in the basic patch mutant Art2 K664D,R665D,R666D,K667D (Figure 7—figure supplement 1B).
In Figure 1, we have screened a library containing 149 putative PM proteins that were C-terminally GFP-tagged at their native chromosomal locus. According to a recent and comprehensive review by Bert Poolman and colleagues (Bianchi et al., 2019), the S. cerevisiae S288C genome encodes 21 AATs that have been reported to localize to the plasma membrane (we have corrected the number accordingly in the Introduction). Our library contained 16 of these 21 AATs, and thus covers 76% of all AATs that are reported to localize to the PM and lacks five (Agp3, Alp1, Hip1, Put4, and Vba5) (see modified Supplementary file 1).
Of the 16 AATs represented in our library, we detect under rich growth conditions (YNB medium, genetic background BY4741) eight different AATs (Mup1, Can1, Tat2, Lyp1, Dip5, Gnp1, Bap2 and Tat1; see modified Supplementary file 1) at the PM. In the original version of the manuscript we have miscounted seven AATs. We apologize for this mistake and have corrected the numbers accordingly. A ninth AAT, Gap1-GFP, was upregulated during starvation. We did not detect GFP signals for Agp1, Agp2, Yct1, Bap3, Mup3 or Mmp1 in our rich and starvation media. The signal for Sam3-GFP was detected but mislocalized to the ER.
Perhaps it should not come as a surprise that we do not detect all AATs under rich growth conditions. This is exemplified by Gap1 which is only expressed during starvation, or by Put4, which is repressed by ammonium as nitrogen source (Jauniaux, et al.,1987, Eur. J. Biochem.). Earlier studies addressed systematically the localization of N- and C-terminally GFP-tagged proteins expressed from their native promoters to generate the localization and quantitation atlas of the yeast proteome (in the Loqate database) (Breker et al., 2013, J. Cell Biol.; Breker et al., 2013, NAR). Even these studies could not report the localization of all putative AATs at the PM. Agp1, Agp2, Agp3, Alp1, Bap3, Mmp1, Put4, Sam3, Mup3, Ydt1, Vba5 (i.e. 11 AATs out of 21) were either not detected or were localized to punctate structures or the nuclear ER.
To the best of our knowledge N- or C-terminally tagged versions of Vba5 were over-expressed to detect PM localization (Shimazu et al., 2012, Biosci. Biotechnol. Biochem.). The thiamine (vitamin B1) transporters Thi7, Nrt1 (Thi71) and Thi72 have been proposed to be Art2-dependent cargoes during substrate excess (Savocco et al., 2019). In this publication, Nrt1 and Thi72 were only detected at the PM when they were expressed under the THI7 promoter, and remained functional for thiamine transport upon N- or C-terminal tagging.
Therefore, we tested the role of Art2 in Thi7-eGFP, Nrt1-eGFP and Thi72-eGFP endocytosis during starvation. In agreement with our initial screen, Thi7-eGFP was not detected at the PM in the majority of cells, presumably because its expression is repressed by thiamine included in our growth medium (Hohmann and Meacock, 1998, BBA).
Nrt1-eGFP and Thi72-eGFP (both expressed from the THI7 promoter) localized to the plasma membrane (and vacuole) in growing cells. Both proteins underwent efficient, Art2-dependent starvation-induced endocytosis, suggesting that the extent of Art2-dependent membrane protein turnover during starvation may also vary with the growth conditions. Yet, since these proteins were not expressed from their native promoters, we prefer not to include these data into the paper and only present them here for the reviewers’ convenience (Author response image 3).

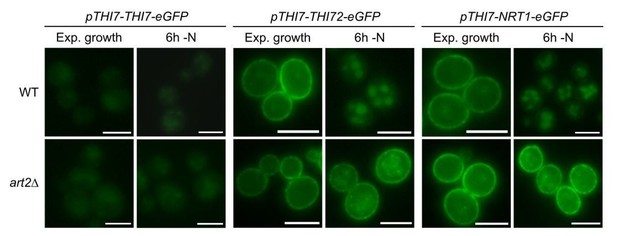

Life cell fluorescence microscopy of the indicated strains chromosomally expressing.
Thi7-eGFP, or expressing Thi-eGFP or Nrt1-eGFP from centromeric plasmids under control of the THI7 promoter (Savocco et al., 2019) during exponential growth and after 6 hours of amino acid and nitrogen starvation (-N).
3) Subsection “A genome-wide screen identifies regulators of starvation-induced endocytosis of AATs”, first paragraph: please change FACS to Flow Cytometry there and all places thereafter including Figure 2.
Done – thank you.
4) Subsection “A genome-wide screen identifies regulators of starvation-induced endocytosis of AATs”, second paragraph: typo.
Unfortunately, we could not spot a typo in the subsection “A genome-wide screen identifies regulators of starvation-induced endocytosis of AATs”. In general, we have tried our best to avoid and correct typos.
5) Discussion, second paragraph: define UPS upon first use.
Done – thank you.
6) Figure 1A typo – should be methionine.
Done – thank you.
7) Figure 1B – "Ammonium Transporter" should be in color.
We now colored it purple.
8) Figure 4B – what is n>x means – please write how many times exactly was it repeated.
Thank you for pointing this out. In Figure 4B we have now indicated the exact numbers of repetitions.
9) Figure 6E has a very important piece of information, in that the authors show that the C-terminal segment of Mup1 can be transplanted to Hxt3. Please add the response of the un-modified Hxt3 in the same panel (and not in as Figure 6—figure supplement 2A) to have the direct comparison.
Thank you for this suggestion. We have modified Figure 6 accordingly for direct comparison.
10) The FACS-based screen of Mup1 traffic presented here is really quite nice, and provides a lot of information on proteins that regulate its endocytosis and vacuolar delivery. However, the finding that Art2 regulates stress-dependent endocytosis of a variety of transporters at the PM is neither surprising nor novel: Nikko and Pelham, 2009, published a key paper that positioned Art2 as a regulator of stress-dependent internalization of a wide variety of cargos. The stressor in was cycloheximide rather than starvation, suggesting a more general regulation of substrate-independent endocytosis. The Nikko and Pelham paper needs to be cited more prominently through this study. Its findings may not have the level of mechanistic detail presented here, but they do strongly parallel a number of key points.
Thank you, for finding the results of our screen interesting. We hope that it will represent a new and valuable resource to study how cells changes during nutrient limitation.
We also agree that the Nikko and Pelham, 2009 paper, was important and we are now citing the paper prominently on six different occasions throughout the paper. Yet, we are equally convinced that our findings on the non-redundant role and the regulation of Art2 for starvation-induced endocytosis of Mup1, Can1, Lyp1 and Tat2 could not have been predicted based on the Nikko and Pelham paper. This is based on the following arguments:
1) It is difficult (if not impossible) to compare on a mechanistic and physiological level cellular stress that is induced by cycloheximide (CHX) treatment to amino acid starvation. CHX is a translation inhibitor and therefore indirectly boosts the levels of intracellular amino acids (Beugnet, A., Biochem. J. 2003, Urban J., Mol. Cell 2007). This results in TORC1 hyperactivation (Binda M., et al. Mol. Cell 2009) and in acute growth arrest. In contrast amino acid starvation results in a depletion of free intracellular amino acid pools and in TORC1 inactivation. However, cells starving for amino acid still complete their cell cycle and slowly and ‘orderly’ enter in a G1/G0 cell cycle arrest to survive for several weeks.
2) In the Nikko paper Art2 typically has a redundant function with other α-arrestins. Expression of Art1, Art2, Art8 and Bsd2 in the 9-arrestin deletion strain partially restored CHX-induced endocytosis of the uracil transporter Fur4 (Figure 4B; Nikko and Pelham, 2009). Expression of Art2, Art8 and Bsd2 partially restored CHX-induced endocytosis of Tat2 in the 9-arrestin deletion strain (Figure 6C Nikko and Pelham, 2009).
3) The Nikko paper did not address the role of Art2 for Mup1, Lyp1 and Can1 endocytosis, which is the main focus of our work. In our hands, endocytosis of these AATs in response to CHX treatment was not (Mup1, Can1) or only partially (Lyp1) dependent on Art2. Endocytosis of Mup1 in response to CHX was limited (after 6 h + CHX, a large pool of Mup1-GFP still localized to the PM with a fraction detected inside the vacuole) and this was dependent on the presence of Art1 (see Author response image 4). Based on these results, it seems that Art2 has a minor (and potentially redundant) role for the CHX-induced endocytosis of Mup1, Can1 and Lyp1. This is in stark contrast to our results which show a rather stringent Art1 / Art2 – switch for AAT endocytosis in response to amino acid excess (Art1) or amino acid starvation (Art2).
We prefer not to include these results using CHX as a stressor, since they do not add significant new information on the regulation of nutrient transporter endocytosis in response to nutrient availability.

Life cell fluorescence microscopy of WT, art2Δ or art1Δ cells chromosomally expressing Mup1-GFP (A), Can1-GFP (B) or Lyp1-GFP (C) during exponential growth and 6 hour after treatment with 50 μg/ml cycloheximide (+CHX) or vehicle (water; -CHX).
11) The authors state that "low levels of methionine in the growth medium did not efficiently trigger its endocytosis." Supplementary Figure 1B complicates this interpretation, as there is clearly less Mup1 overall in 0.02 ug/ml Met compared to the no Met control. This decrease suggests that the protein indeed is being internalized, albeit at a slower rate. Flux from PM to vacuole could be slow enough that GFP fluorescence does not accumulate in the vacuole. Such a phenomenon was observed for Ptr2-GFP in Apel et al. (Mol Biol Cell 28: 2434-48). Please discuss this further in the manuscript.
Thank you for pointing this out. In our original microscopy picture the overall Mup1-GFP fluorescence appeared rather low, with the Mup1-GFP signal mainly detected at the PM. This may have caused the impression that Mup1-GFP may be slowly turned over.
Therefore, we have carefully re-analyzed the data and performed new experiments. We found that in medium containing 0.02 µg/ml methionine Mup1 endocytosis was not yet triggered, at least on a detectable level. The protein levels of Mup1-GFP were analyzed by Western blot analysis from cells grown in medium without methionine or with different methionine concentrations. Without methionine or with low levels of methionine (0.02 µg/ml) the protein levels of full length Mup1-GFP were similar (new Figure 1—figure supplement 2B), whereas only clipped GFP was detected in response 2 µg/ml methionine or starvation (new Figure 1—figure supplement 2B). Our original microscopy picture did not very well represent the data. The overall Mup1-GFP appeared to be low, but localized almost exclusively to the PM. Hence it is likely that its fluorescence intensity of was not well adjusted. We apologize for the mistake and we have exchanged the image in Supplementary Figure 1B (now called Figure 1—figure supplement 2A) for a representative image that also reflects the results of the new western-blot analysis (new Figure 1—figure supplement 2B).
12) Subsection “A genome-wide screen identifies regulators of starvation-induced endocytosis of AATs”, second paragraph: identify pep4∆ as the sole "class 4" mutant, where Mup1-pHluorin accumulates in the vacuole, but remains fluorescent. This is unexpected, since Prosser et al., 2010, showed that Ste3-pHluorin is efficiently transported to the vacuole in pep4∆ prb1∆ prc1∆ cells, where fluorescence is still fully quenched. How might this discrepancy be explained?
The fluorescence of Mup1-pHlorin is partially quenched inside the vacuoles of pep4∆ single or pep4∆ prb1∆ prc1∆ triple mutants in response to starvation (see Author response image 5, this is not a major focus of our work).
One simple explanation for the difference of Mup1 to Ste3 might be the difference in their abundance. Mup1 is among the most highly expressed PM proteins in medium lacking methionine (Busto et al., 2018, PNAS, Figure 1), and it is probably vastly more abundant compared to Ste3. Hence, ‘unquenched’ Mup1-pHluorin fluorescence could be easily detected. Moreover, during starvation vacuolar enzymes are additionally engaged in the degradation of autophagic cargoes. Therefore, the breakdown of intraluminal vesicles that are delivered via the MVB pathway may become more challenging in pep4∆ mutants during starvation. Similarly, we also observed earlier that the autophagy protein pHluorin-Atg8 was not efficiently quenched inside the vacuole in the majority of pep4∆ prb1∆ prc1∆ cells during nitrogen starvation (Müller et al., 2015, Figure 3E, F).

Impaired pHluorin quenching in pep4Δ cells.
(A) Flow cytometry analysis of BY4742 WT (green histogram), art2Δ (yellow) and pep4Δ cells (red) after 20h of amino acid and nitrogen starvation. (B) Live cell fluorescence microscopy of BY4742 WT and pep4Δ cells during exponential growth, after 24h of amino acid and nitrogen starvation (-N), and after 90 minutes of methionine treatment (20 μg/ml; +Met). Fluorescence images of WT and pep4Δ cells were equally adjusted to allow for comparison of GFP fluorescence intensity. (C) Live cell fluorescence microscopy of SEY6210 WT and pep4Δprb1Δprc1Δ cells analyzed as in B).
13) The first paragraph of the subsection “Up-regulation of Art2 by the GAAC pathway drives starvation-induced endocytosis of Mup1” suggests that the observed bandshift is due to Npr1-dependent phosphorylation. This is an over-interpretation, since no direct evidence of Npr1 involvement is shown. Moreover, since Art1 is both phosphorylated and ubiquitinated, the band shift may not be due to phosphorylation at all. This should be more carefully interpreted, or more thoroughly investigated.
We thank the reviewers for pointing this out. This comment actually prevented us from making a mistake. For quantification we have now repeated this experiment three times. When repeating the experiment, we could no longer detect the band-shifts for Art1 and therefore we have replaced Figure 4A with the new experiments including quantification in Figure 4—figure supplement 1B. We now rephrased this section, as recommended, and omitted all statements regarding band-shift of Art1 from the Results section.
‘WB analysis of total cell lysates indicated that 6xHis-TEV-3xFlag-tagged Art1 protein levels were unchanged in response to starvation (Figure 4A, lanes 2,3), whereas the protein levels of the functional 170kD protein Art2-HTF (Figure 4—figure supplement 1A) were up-regulated in response to starvation (Figure 4A, lanes 5,6; Figure 4—figure supplement 1B).’
14) The first paragraph of the subsection “Up-regulation of Art2 by the GAAC pathway drives starvation-induced endocytosis of Mup1” states that levels of Art2-HTF were "comparably" low under rich conditions. What is this compared to? The blot in Figure 4A shows an increase in Art2 levels upon starvation, but levels of Art1 appear to decrease. Please clarify.
We have re-phrased the corresponding sentence as follows:
‘WB analysis of total cell lysates indicated that 6xHis-TEV-3xFlag-tagged Art1 protein levels were unchanged in response to starvation (Figure 4A, lanes 2,3), whereas the protein levels of the functional 170kD protein Art2-HTF (Figure 4—figure supplement 1A) were up-regulated in response to starvation (Figure 4A, lanes 5,6; Figure 4—figure supplement 1B).’
15) Subsection “Art2 directs Rsp5-dependent ubiquitination of C-terminal lysine residues in Mup1”, second paragraph: regarding the arrestin fold-localized PY motif, the authors state that it is required for starvation-induced endocytosis. This is an overstatement, since Figure 5E clearly shows Mup1 internalization when this PY motif is mutated, even though the amount of protein internalized is reduced. Please rephrase.
We have rephrased this section as follows:
‘Art2 has four putative PY motifs (Figure 5C). Mutations in the PY motif that resides within the predicted arrestin fold of Art2 (P748,P749,Y750) reduced starvation induced endocytosis of Mup1-GFP (Figure 5E). The Art2P748A,P749A,Y750A mutant was expressed at similar levels than the WT protein (Figure 5—figure supplement 1B). We suggest that interaction between WW3 in Rsp5 and the PY motif (748-750) of Art2 was required for the efficient starvation-induced endocytosis' of Mup1.’
16) The first paragraph of the subsection “Up-regulation of Art2 by the GAAC pathway drives starvation-induced endocytosis of Mup1” states that Art1/2 regulate AAT endocytosis in a mutually exclusive manner, but this is not true for Tat2 based on Nikko and Pelham, 2008, where either is sufficient for Trp-induced internalization. Please discuss this.
We mention this in the text:
‘Substrate-induced endocytosis of Mup1, Can1 and Lyp1 required Art1, whereas in case of Tat2 substrate-induced endocytosis was less stringent and could be mediated either by Art1 or Art2 (Nikko and Pelham, 2009).’
We additionally specify:
‘Our experiments so far demonstrated that Art1 and Art2 mediate the endocytic down-regulation of Mup1, Can1 and Lyp1 in response to changes in amino acid availability in a mutually exclusive manner.’
In addition, we indicate that Tat2 differs from Mup1, Can1 and Lyp1:
‘In addition, the Art2 basic patch mutant also impaired, at least partially, starvation-induced endocytosis of Can1, Lyp1 and Ina1, while the endocytosis of Tat2 was independent of the basic patch (Figure 7B, Figure 7—figure supplement 1B, C).
Overall, it seemed that Art2 employed a positively charged region in its arrestin fold to recognize C-terminal acidic patches in at least three different AATs (Mup1, Can1, Lyp1) and thus mediate their endocytosis in starvation conditions.’
17) Subsection “The C-terminal acidic sorting signal of Mup1 is sufficient for Art2-dependent starvation-induced endocytosis”, end of first paragraph: the callout for Supplementary Figure 6B should be for Figure 6—Figure supplement 2D .
Thank you. We have corrected this mistake.
Additional note: We would like to point the reviewers’ attention to the fact that we have replaced two images of exponentially growing cells expressing Mup1-GFP (Figure 4E, left panel; Figure 1—figure supplement 2A, left panel). We noted that we had mixed them up accidentally with similar images during the figure composition. Both panels were now exchanged for the correct pictures that correspond to these experiments. Of course, these changes do not affect any of our conclusions. We apologize for this mistake.
https://doi.org/10.7554/eLife.58246.sa2Article and author information
Author details
Funding
European Molecular Biology Organization (ALTF 642-2012)
- Oliver Schmidt
European Molecular Biology Organization (EMBOCOFUND2010)
- Oliver Schmidt
European Molecular Biology Organization (GA-2010-267146)
- Oliver Schmidt
Tiroler Wissenschaftsfonds (2015)
- Oliver Schmidt
Austrian Science Fund (FWF-Y444-B12)
- David Teis
Austrian Science Fund (P30263)
- David Teis
Austrian Science Fund (P29583)
- David Teis
Agence Nationale de la Recherche (ANR-16-CE13-0002-01)
- Sebastien Leon
MCBO (W1101-B18)
- David Teis
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
We are grateful to Roland Wedlich-Söldner, Claudine Kraft, Pierre Morsomme and Scott Emr for reagents. This work was supported by EMBO/Marie Curie (ALTF 642–2012; EMBOCOFUND2010, GA-2010–267146) and ‘Tiroler Wissenschaftsfond’ to OS, Austrian Science Fund (FWF-Y444-B12, P30263, P29583) and MCBO (W1101-B18) to DT and Agence Nationale pour la Recherche (‘P-Nut’, ANR-16-CE13-0002-01) to SL.
Senior Editor
- Suzanne R Pfeffer, Stanford University School of Medicine, United States
Reviewing Editor
- Maya Schuldiner, Weizmann Institute, Israel
Version history
- Received: April 24, 2020
- Accepted: August 1, 2020
- Accepted Manuscript published: August 3, 2020 (version 1)
- Accepted Manuscript updated: August 4, 2020 (version 2)
- Version of Record published: August 26, 2020 (version 3)
Copyright
© 2020, Ivashov et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 2,122
- Page views
-
- 340
- Downloads
-
- 17
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Cell Biology
- Developmental Biology
Cylicins are testis-specific proteins, which are exclusively expressed during spermiogenesis. In mice and humans, two Cylicins, the gonosomal X-linked Cylicin 1 (Cylc1/CYLC1) and the autosomal Cylicin 2 (Cylc2/CYLC2) genes, have been identified. Cylicins are cytoskeletal proteins with an overall positive charge due to lysine-rich repeats. While Cylicins have been localized in the acrosomal region of round spermatids, they resemble a major component of the calyx within the perinuclear theca at the posterior part of mature sperm nuclei. However, the role of Cylicins during spermiogenesis has not yet been investigated. Here, we applied CRISPR/Cas9-mediated gene editing in zygotes to establish Cylc1- and Cylc2-deficient mouse lines as a model to study the function of these proteins. Cylc1 deficiency resulted in male subfertility, whereas Cylc2-/-, Cylc1-/yCylc2+/-, and Cylc1-/yCylc2-/- males were infertile. Phenotypical characterization revealed that loss of Cylicins prevents proper calyx assembly during spermiogenesis. This results in decreased epididymal sperm counts, impaired shedding of excess cytoplasm, and severe structural malformations, ultimately resulting in impaired sperm motility. Furthermore, exome sequencing identified an infertile man with a hemizygous variant in CYLC1 and a heterozygous variant in CYLC2, displaying morphological abnormalities of the sperm including the absence of the acrosome. Thus, our study highlights the relevance and importance of Cylicins for spermiogenic remodeling and male fertility in human and mouse, and provides the basis for further studies on unraveling the complex molecular interactions between perinuclear theca proteins required during spermiogenesis.
-
- Cell Biology
- Structural Biology and Molecular Biophysics
Previously we showed that 2D template matching (2DTM) can be used to localize macromolecular complexes in images recorded by cryogenic electron microscopy (cryo-EM) with high precision, even in the presence of noise and cellular background (Lucas et al., 2021; Lucas et al., 2022). Here, we show that once localized, these particles may be averaged together to generate high-resolution 3D reconstructions. However, regions included in the template may suffer from template bias, leading to inflated resolution estimates and making the interpretation of high-resolution features unreliable. We evaluate conditions that minimize template bias while retaining the benefits of high-precision localization, and we show that molecular features not present in the template can be reconstructed at high resolution from targets found by 2DTM, extending prior work at low-resolution. Moreover, we present a quantitative metric for template bias to aid the interpretation of 3D reconstructions calculated with particles localized using high-resolution templates and fine angular sampling.
