Kinetic sculpting of the seven stripes of the Drosophila even-skipped gene

  1. Augusto Berrocal
  2. Nicholas C Lammers
  3. Hernan G Garcia  Is a corresponding author
  4. Michael B Eisen  Is a corresponding author
  1. Department of Molecular & Cell Biology, University of California at Berkeley, United States
  2. Biophysics Graduate Group, University of California at Berkeley, United States
  3. Department of Physics, University of California at Berkeley, United States
  4. Institute for Quantitative Biosciences-QB3, University of California at Berkeley, United States
  5. Department of Integrative Biology, University of California at Berkeley, United States
  6. Howard Hughes Medical Institute, University of California at Berkeley, United States
Research Article
  • Cited 1
  • Views 954
  • Annotations
Cite this article as: eLife 2020;9:e61635 doi: 10.7554/eLife.61635

Abstract

We used live imaging to visualize the transcriptional dynamics of the Drosophila melanogaster even-skipped gene at single-cell and high-temporal resolution as its seven stripe expression pattern forms, and developed tools to characterize and visualize how transcriptional bursting varies over time and space. We find that despite being created by the independent activity of five enhancers, even-skipped stripes are sculpted by the same kinetic phenomena: a coupled increase of burst frequency and amplitude. By tracking the position and activity of individual nuclei, we show that stripe movement is driven by the exchange of bursting nuclei from the posterior to anterior stripe flanks. Our work provides a conceptual, theoretical and computational framework for dissecting pattern formation in space and time, and reveals how the coordinated transcriptional activity of individual nuclei shapes complex developmental patterns.

Introduction

The patterns of gene expression that choreograph animal development are formed dynamically by an interplay between processes – transcription, mRNA decay and degradation, diffusion, directional transport and the migration of cells and tissues – that vary in both space and time. However the spatial aspects of transcription have dominated the study of developmental gene expression, with the role of temporal processes in shaping patterns receiving comparably little attention (Bothma and Levine, 2013; Garcia et al., 2020).

Gene expression patterns are dynamic on many levels. They form, change and disappear over time, often as cells, tissues, and organs are forming and moving in the developing embryo (Lawrence, 1992). Furthermore the transcriptional process that creates these patterns is itself highly dynamic. The classical view of transcription as a switch or a tunable rheostat has been replaced in recent years by the recognition that mRNA synthesis occurs in bursts, with promoters switching stochastically between an ON state where polymerases are loaded and begin elongating, and an OFF state where few or no new transcripts are initiated (Figure 1AZenklusen et al., 2008; Golding et al., 2005; Blake et al., 2006; Janicki et al., 2004; Chubb et al., 2006; Yunger et al., 2010; Raj et al., 2006; Lionnet et al., 2011; Muramoto et al., 2012; Little et al., 2013; Xu et al., 2015; Lenstra et al., 2015; Fukaya et al., 2016; Desponds et al., 2016; Hendy et al., 2017; Lammers et al., 2020).

Visualizing live transcription from the seven stripes of D. melanogaster even-skipped.

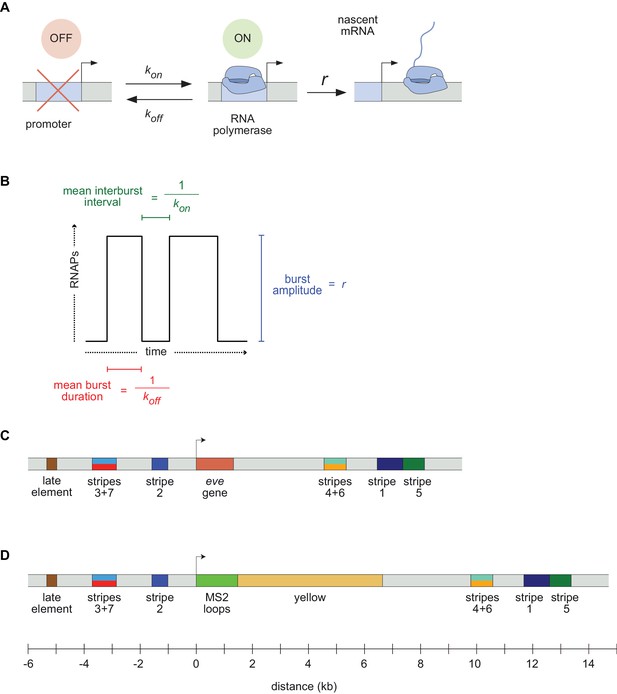

(A) Simple model of transcriptional bursting by promoter switching between ON and OFF states. (B) The promoter switching parameters define the burst duration, the duration between bursts, and amplitude. (C) Wild-type eve locus showing the five stripe enhancers (1, 2, 3+7, 4+6, 5) and the late enhancer element. Colors for individual stripes are used throughout figures. (D) Layout of the engineered eve BAC showing the locations of the MS2 stem loop array and yellow gene.

A slew of studies, from theoretical models (Ko, 1991; Peccoud and Ycart, 1995; Sánchez and Kondev, 2008; Sanchez et al., 2011; Xu et al., 2016; Choubey et al., 2015, Choubey et al., 2018; Shahrezaei and Swain, 2008; Kepler and Elston, 2001; Sasai and Wolynes, 2003) to imaging-based analyses (Xu et al., 2015; Fukaya et al., 2016; Senecal et al., 2014; Jones et al., 2014; Golding et al., 2005; Molina et al., 2013; Suter et al., 2011; So et al., 2011; Padovan-Merhar et al., 2015; Bartman et al., 2016; Hendy et al., 2017; Zoller et al., 2018), have shown that overall rates of mRNA synthesis can be adjusted by controlling the bursting process. Changing the duration or bursts, the separation between bursts, or the rate at which polymerases are loaded during a burst (Figure 1B) will affect mRNA production, and modulating any or all of these parameters over space and time could, in principle, produce arbitrarily complex output patterns. However, it remains unclear how diverse the kinetic strategies employed by different regulatory sequences actually are, and what, if anything, constrains how these different kinetic parameters are used by evolution to shape patterns of expression.

In this paper, we set out to compare the ways in which different enhancers that drive similar types of spatiotemporal patterns during animal development deploy transcriptional bursting to produce their outputs by examining transcription at the single-cell level in living embryos. We use as our model the Drosophila melanogaster even-skipped (eve) gene whose seven stripes ring the embryo in the cellularizing blastoderm (nuclear cycle 14; nc14) in the hour preceding gastrulation (Surkova et al., 2008; Fowlkes et al., 2008; Jiang et al., 2015; Ludwig et al., 2011; Macdonald et al., 1986; Frasch and Levine, 1987).

The eve stripes are produced through the largely independent activity of five discrete enhancers (Figure 1C) that drive individual stripes (the stripes 1, 2, and 5 enhancers) or pairs of stripes (the stripe 3/7 and stripe 4/6 enhancers) (Harding et al., 1989; Goto et al., 1989; Small et al., 1991). These enhancers respond in different ways to canonical maternal factors Bicoid (Bcd) and Caudal (Cad), and gap genes Hunchback (Hb), Giant (Gt), Krüppel (Kr), Knirps (Kni) and Sloppy Paired 1 (Slp1), among others, balancing activating and repressive inputs to generate novel output patterns (Mannervik, 2014). For example, the eve stripe 2 enhancer is activated in the anterior by Bcd and Hb, and repressed by Gt and Kr, ultimately expressing in a stripe of nuclei that fall between the domains occupied by these two repressors (Frasch and Levine, 1987; Small et al., 1992).

Transcriptional bursting is widespread during D. melanogaster development (Little et al., 2013; Xu et al., 2015; Bothma et al., 2014; Fukaya et al., 2016; Boettiger and Levine, 2013; Holloway and Spirov, 2017; Zoller et al., 2018; Paré et al., 2009; Lammers et al., 2020). For example, Bothma et al., 2014 utilized the MS2 system, which exploits the interaction between the phage MS2 coat protein (MCP) and a short RNA stem loop to fluorescently label nascent transcripts as they are being synthesized (Bertrand et al., 1998; Garcia et al., 2013; Forrest and Gavis, 2003), to directly visualize and quantify transcription from an eve stripe 2 transgene at single-nucleus resolution. They showed that the stripe is generated by bursts of transcriptional activity in the nuclei that form it, and that the aggregate pattern is highly dynamic, forming and dissipating rapidly during nc14.

Our objective in carrying out this work was twofold: first, to characterize the detailed dynamics of this classical and well-studied pattern as a means to reveal how multiple enhancers dictate potentially distinct bursting dynamics to shape a gene expression in the embryo, and second, to establish a rigorous systematic framework for analyzing such data, and conceptual paradigms for characterizing what we observe from this new type of experiment. Indeed, the advent of live imaging in the context of development calls for the establishment of a new language and new metrics for characterizing the formation of gene expression patterns in space and time.

We use a variety of new analyses to generate a kinetic fingerprint of eve transcription during stripe formation - a record of temporal and spatial variation in the bursting state of the promoters of ~3000 nuclei covering all seven stripes throughout nc14 - and to visualize different aspects of eve regulation. We find that all seven eve stripes are sculpted by the same regulatory strategies: the elimination of new bursts between stripes; the enhancement of bursting across stripes through a coupled increase in kon and r; and the refinement and movement of stripe positions by the addition of bursting nuclei along the anterior edge of the stripes and the loss of bursting along their posterior edge.

Thus, in this experiment and with our new set of analytical tools, we capture not only how single cell transcriptional activity encodes the formation of the stripes, but also how this activity is modulated in space and time in order to create and displace a complex pattern of gene activity across the embryo.

Results

Live imaging of eve expression

We used recombineering (Warming et al., 2005) to modify a bacterial artificial chromosome (BAC) (Venken et al., 2006) containing the D. melanogaster eve gene and all of its enhancers and regulatory elements (Venken et al., 2009), replacing the coding region with an array of MS2 stem loops followed by the D. melanogaster yellow (y) gene (Figure 1D; Bothma et al., 2014). The 4329 base pair y gene, which is longer than the endogenous eve transcript, is phenotypically neutral and provides a means to increase the number of RNA Polymerase II (Pol II) molecules loaded onto the gene in order to amplify the signal (see Materials and methods for a discussion of how the structure of the reporter genes affects the fluorescence signal, analyses and inferences performed throughout this work). We inserted the engineered BAC into a targeted site on chromosome 3L using ΦC31 integrase-mediated recombination (Fish et al., 2007), and homozygosed the line, which showed no signs of adverse effects of the transgene.

We crossed males from this line with females carrying transgenes that express in embryos an RFP-labeled histone to visualize nuclei, and an MCP-GFP fusion that binds the MS2 RNA stem loops. The result is the direct visualization and quantification of nascent transcripts at the transgene locus as fluorescent puncta (Garcia et al., 2013). The temporal and spatial pattern of eve transgene transcription recapitulates the well-characterized dynamics of eve expression, most notably formation of the characteristic seven stripes in the late blastoderm (Figure 2; Video 1; Surkova et al., 2008; Fowlkes et al., 2008; Jiang et al., 2015; Ludwig et al., 2011). Further, as recently demonstrated in Lammers et al., 2020 this BAC reporter construct quantitatively recapitulates the cytoplasmic eve mRNA pattern as measured by FISH (Lammers et al., 2020; Luengo Hendriks et al., 2006Lim et al., 2018).

Live expression of even-skipped.

Stills from maximum projection renderings of image stacks of an embryo spanning all seven stripes. This movie was collected with a 40x objective for illustration purposes only. Movies used for data analysis were collected at higher resolution as described in the text.

Video 1
Full expression pattern of eve-MS2 BAC.

Maximum value projection of Z-stacks of an entire embryo carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 40x objective.

We used laser-scanning confocal microscopy to record, with high temporal resolution and high magnification, two color (MCP-GFP and histone-RFP) movies of embryos from before nc14 through gastrulation. We optimized our data collection strategy to sample multiple stripes (3 to 5) in each movie, to obtain high temporal resolution (one Z-stack, corresponding to each time point of our movies, every 16.8 s) and to have optimal signal-to-noise with minimal bleaching. In total, we collected 11 movies (Videos 212), with every stripe imaged at least five times (see Table 1).

Table 1
Summary of movies collected.
Embryo IDDurationStripesData moviesPromoter state movies
EVE_D1255 frames
71.2 min
1–4Video 2Video 13
EVE_D2254 frames
70.9 min
3–7Video 3Video 14
EVE_D3235 frames
65.6 min
3–6Video 4Video 15
EVE_D4246 frames
68.7 min
3–7Video 5Video 16
EVE_D5210 frames
58.6 min
4–7Video 6Video 17
EVE_D6196 frames
54.7 min
4–7Video 7Video 18
EVE_D7208 frames
58.1 min
3–7Video 8Video 19
EVE_D8232 frames
64.8 min
1–3Video 9Video 20
EVE_D9322 frames
89.9 min
1–4Video 10Video 21
EVE_D10267 frames
74.5 min
1–3Video 11Video 22
EVE_D11307 frames
85.7 min
1–4Video 12Video 23
Video 2
Individual dataset EVE_D1.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 3
Individual dataset EVE_D2.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 4
Individual dataset EVE_D3.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 5
Individual dataset EVE_D3.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 6
Individual dataset EVE_D5.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 7
Individual dataset EVE_D6.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 8
Individual dataset EVE_D7.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 9
Individual dataset EVE_D8.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 10
Individual dataset EVE_D9.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 11
Individual dataset EVE_D10.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 12
Individual dataset EVE_D11.

Maximum value projection of Z-stacks of sections of embryos carrying eve-MS2 BAC, MCP-GFP, and histone-RFP imaged with a 63x objective, each capturing 3–5 stripes as described in Table 1.

Video 13
Promoter state movie for dataset EVE_D1.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

Video 14
Promoter state movie for dataset EVE_D2.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

Video 15
Promoter state movie for dataset EVE_D3.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

Video 16
Promoter state movie for dataset EVE_D4.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

Video 17
Promoter state movie for dataset EVE_D5.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

Video 18
Promoter state movie for dataset EVE_D6.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

Video 19
Promoter state movie for dataset EVE_D7.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

Video 20
Promoter state movie for dataset EVE_D8.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

Video 21
Promoter state movie for dataset EVE_D9.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

Video 22
Promoter state movie for dataset EVE_D10.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

Video 23
Promoter state movie for dataset EVE_D11.

Animation of pseudo-cells (resulting from a Voronoi tessellation based on the position of nuclei) where cells are colored based on their stripe, with intensity proportional to the measured eve MS2 fluorescence of the nucleus at the given time, and promoters in the ON and OFF states represented with light and dark gray pseudo-cell outlines, respectively.

We used a custom image processing pipeline (Garcia et al., 2013; Lammers et al., 2020) to identify nuclei, track fluorescent puncta and extract fluorescence intensities in each nucleus over time. The resulting data (Supplementary file 1) contains fluorescence traces from 2961 nuclei at an interpolated time interval of 20 s, representative examples of which are shown in Figure 3A.

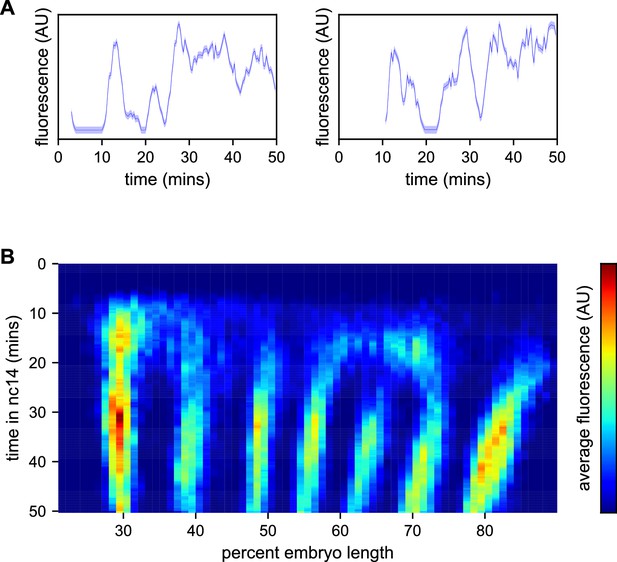

Spatiotemporal dynamics of even-skipped expression.

(A) Fluorescence traces from two representative nuclei (particle ID = 1.0163 and 11.0448). (B) Average fluorescence over space and time showing stripe formation, modulation and movement. The time resolution along the y-axis is 20 s. The positions of nuclei along the x-axis were registered across movies based on the inferred position of stripe centers, and placed into bins of 1% embryo length, with the average fluorescence of all nuclei in each bin plotted. (A, shading corresponds to the error estimated based on the background fluorescence fluctuations as described in Garcia et al., 2013).

We first sought to reexamine the previously characterized temporal dynamics of stripe formation (Surkova et al., 2008; Fowlkes et al., 2008; Jiang et al., 2015; Ludwig et al., 2011) using the increased temporal resolution (relative to earlier analyses of fixed embryos and of slowly maturing fluorescent protein reporters) of these data (Figure 3B). Early imaging studies described eve as being expressed broadly in nc13 and early nc14 embryos before refining sequentially into four, then seven stripes (Macdonald et al., 1986; Frasch and Levine, 1987). Subsequent work with improved labeling and imaging techniques (Surkova et al., 2008; Fowlkes et al., 2008) revealed an initial phase with broad domains in the anterior and posterior, followed by the formation of stripes from within these broad domains and, eventually, amplification of the stripe pattern.

During nc14, we first observe eve transcription beginning approximately five minutes after the onset of anaphase. The initial transcription covers a broad swath of the embryo, from around 25 to 75% egg-length, with the highest activity in two domains roughly centered in the anterior and posterior halves of the embryo, respectively. The greatest fluorescence signal during the first 25 min of nc14, when stripes are not yet fully formed, is in the most anterior region of eve transcription, in an area in which stripe one will eventually form.

Although the full seven stripe pattern is not fully formed until around 25 min, the three anterior-most stripes are already apparent as locally high areas of fluorescence intensity as early as 10 min. By 20 min stripes 1, 2, and 3 have clearly separated from background, stripes 4 and 6 appear to split off from a large posterior domain, and stripe 7 forms de novo in the posterior. Stripe 5 appears as a distinct stripe last, emerging in an area of low transcriptional activity left behind following the splitting of stripes 4 and 6. The stripes persist for the remainder of nc14, gradually increasing in fluorescence intensity until they reach a peak at around 35 min into nc14.

The positions of stripes 1–3 along the anterior-posterior (AP) axis are largely stable after they form, while stripes 4–6 show small anterior shifts. Stripe 7 makes a more dramatic movement towards the anterior, moving approximately 8% of egg-length, or around 40 μm from its initial location. The quantitative characterization of this stripe movement, the decoupling between stripes and nuclei, and the quantification of transcriptional bursting dynamics in each nucleus necessitated the development of a method, described below, to dynamically define the position of stripes throughout each movie.

Modeling and inference of promoter state

As expected, the fluorescence traces from individual nuclei show clear hallmarks of transcriptional bursting, with apparent stochastic fluctuations between states with low and high fluorescence output (Figure 3A). Following previous work in the field (Golding et al., 2005; Chubb et al., 2006; Zenklusen et al., 2008; Lionnet et al., 2011; Muramoto et al., 2012; Little et al., 2013; Xu et al., 2015; Lenstra et al., 2015; Fukaya et al., 2016; Desponds et al., 2016; Hendy et al., 2017; Zoller et al., 2018; Bothma et al., 2014; Paré et al., 2009; Lim et al., 2018), we model bursting as a simple Markovian process in which a promoter switches stochastically between an OFF and an ON state with rates kon and koff. When the promoter is in the ON state, we assume it loads polymerases continuously with a constant rate r (Figure 1A).

In our implementation of the MS2 system, once a polymerase molecule transcribes the stem loops located at the 5’ end of the gene, the MCP-GFP molecules bound to the stem loops produce a constant fluorescent signal at the locus that persists until this polymerase completes its traversal of the gene. Building off of the method presented in Lammers et al., 2020, we estimated this polymerase transit time as the displacement that gives the minimum value in the autocorrelation of the single frame differences in the fluorescent signal (see Materials and methods). The rationale for this approach was that every increase in signal due to polymerase loading at time t should be accompanied by a corresponding decrease in signal at time t+telong due to the completion of a transcriptional elongation cycle with a delay equal to the elongation time (Coulon and Larson, 2016; Desponds et al., 2016). We arrived at an estimate of 140 s (Figure 4A), consistent with a direct measurement of the rate of polymerase elongation of ~2700 bp/min from Fukaya et al., 2017 and the length of the construct (6,563 bp).

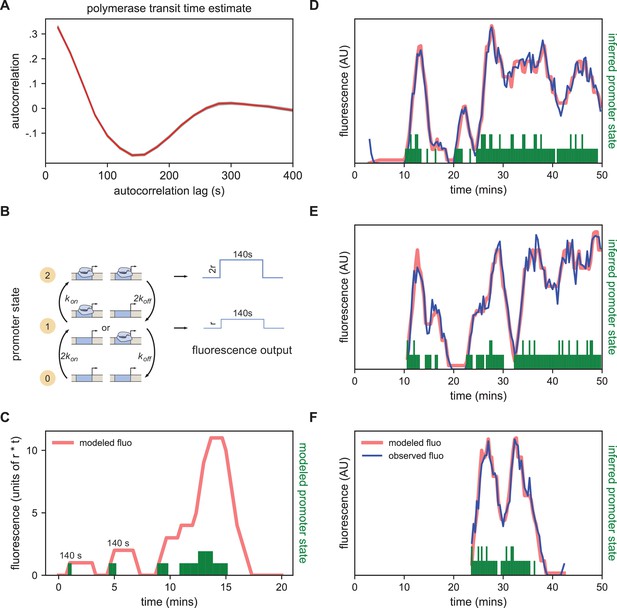

Modeling bursting in individual nuclei.

(A) A key parameter in relating fluorescence output to the bursting state of a promoter is the time it takes for a polymerase to transit the gene, which we determined as approximately 140 s by examining the autocorrelation (red line) of the change in fluorescence. Gray lines show 100 bootstraps over randomly selected sets of 80% of nuclei; note they almost perfectly overlap the red line. (B) Three state model accounting for post-replication presence of sister chromatids. When either promoter is ON for a short time period ∆t, it loads polymerases at a constant rate contributing a pulse of polymerase that persists for 140 s. For the inference results presented in subsequent sections, states 1 and 2 are subsumed into a single effective ON state to give rise to an effective two-state model. The hypothetical rates depicted here assume that each promoter bursts independently, an assumption that we relax for the burst parameter inference. (C) Simplified example of the expected observed fluorescence (red line) produced from a hypothetical promoter state sequence. The fluorescence is the sum of the fluorescence pulses produced when one or both promoters are ON (given by the height of the green bars). (D–F) Representative fluorescence traces from individual nuclei (blue lines), inferred bursting pattern (green bars) and fluorescence imputed by cpHMM (red line) for particles 1.0163 (D), 11.0448 (E) and 5.0231 (F).

We model the bursting process at each promoter in discrete time steps of Δt = 20 s, set by the time resolution of our imaging. Under our model, in each time window a promoter is either OFF and not loading polymerases, or ON and loading polymerases at a fixed rate. A promoter that is in the ON state loads Δt x r polymerases, producing a single pulse of fluorescence proportional to Δt x r (with the proportionality factor determined by the fluorescence of GFP and the fraction of MS2 loops bound by MCP-GFP). This pulse lasts at the locus for 140 s, at which point all polymerase molecules loaded during the original time window have terminated transcribing (Figure 4B). Since we do not calibrate the fluorescence signal to the number of polymerase molecules for this construct, in practice we fold the proportionality factor into r altering its units from polymerases loaded per unit time to fluorescence signal produced per unit time. Since many transcriptional bursts last for longer than 20 s, the fluorescence output of a single burst is a sum of the pulses generated during each time window.

In the embryos we imaged here, the MS2 BAC is heterozygous, contributed only by the father, while the mother contributes the MCP-GFP. However, DNA replication occurs within an average of 10 min for loci in nc14 (McKnight and Miller, 1977; Rabinowitz, 1941; Shermoen et al., 2010), meaning that there are actually two sister chromatids with the MS2-containing transgene in every nucleus. Because of sister chromatid cohesion, we cannot, in general, discriminate both copies (Fung et al., 1998; Wilkie et al., 1999; Little et al., 2013). Thus we model the locus as having two promoters, which implies that the system can be in one of three distinct states: OFF, one promoter ON, and two promoters ON. For ease of exposition, however, we will frame our discussion in terms of an effective 2-state model in which the locus is ON so long as at least one promoter is in the ON state. As it is still unclear how the sister chromatids influence each other’s transcription (McKnight and Miller, 1977; Lammers et al., 2020; Zoller et al., 2018), we make no prior assumptions about the nature or degree of correlations between sister chromatids (though, for illustration purposes, in Figure 4B we entertain the case where sister chromatids transcribe independently).

As Illustrated in Figure 4C for the case of independent sister chromatids, if we know the state of the promoter over time, we can reconstruct its expected fluorescence output by summing 140 s pulses beginning at each point where the promoter is ON and having height r if one promoter is ON or height 2 x r if two promoters are ON. Traces modeled from hypothetical promoter state sequences (Figure 4C) have the features of the observed fluorescence signal: linear increases in intensity (corresponding to periods when the promoter is ON); plateaus (corresponding to periods when transcriptional initiation is matched with previously initiated polymerases completing their transit of the gene); and linear signal decays (corresponding to periods when the promoter is OFF but previously initiated polymerases are still transiting the gene) (Bothma et al., 2014; Garcia et al., 2013).

However, when given a fluorescence trace, it is not trivial to infer the promoter state sequence that generated it, owing to the time convolution between promoter state and fluorescence output. To solve this problem, we developed a compound-state hidden Markov Model (cpHMM, described in Lammers et al., 2020) that estimates global parameters kon, koff, and r for a set of traces, and allows us to identify the maximum-likelihood promoter state sequence under these parameters for every trace via the Viterbi algorithm.

The cpHMM thus accomplishes two aims central to treating these data in a more rigorous and biologically meaningful manner. First, it allows us to describe the bursting behavior of any set of nuclei in quantitative terms. Across all seven stripes, the model infers approximate kon koff values of 0.60 events per minute and an r of 67 AU per minute. And second, by providing a means to fit a sequence of ON and OFF states to the data from each nucleus, the cpHMM allows us to shift the focus in the analysis of individual traces from fluorescence, which only indirectly reflects the temporal behavior of a promoter, to the instantaneous promoter state (Figure 4D–F; see also Supplementary file 1 which the inferred promoter state for each nucleus at every time point and the corresponding modeled fluorescence intensity, and Videos 1323).

Dynamic determination of stripe positions

Before analyzing the data further we had to solve two practical problems. To compare the kinetic behavior of individual stripes, we had to determine which nuclei were in each stripe at every time point, a process complicated by the movement of stripes relative to both the embryo and nuclei. Further, to analyze the data in toto, we also had to register the 11 movies relative to each other and to the embryo.

To address these challenges, we used a Gaussian mixture model to cluster bursting nuclei in each movie in a series of overlapping six-minute time windows based on their x and y positions in the image (Figure 5A). This clustering reliably separates nuclei into individual stripes. We next determined the orientation of each stripe to the AP and imaging axes by fitting a line to coordinates of all nuclei assigned to that stripe in each movie (Figure 5B). We fit a line with this slope to bursting nuclei from each time window (Figure 5C and D), and use these fits to generate a linear model of the position of each stripe in each image over time, which we use to reorient the stripe so that it is perpendicular to the image x-axis (Figure 5E).

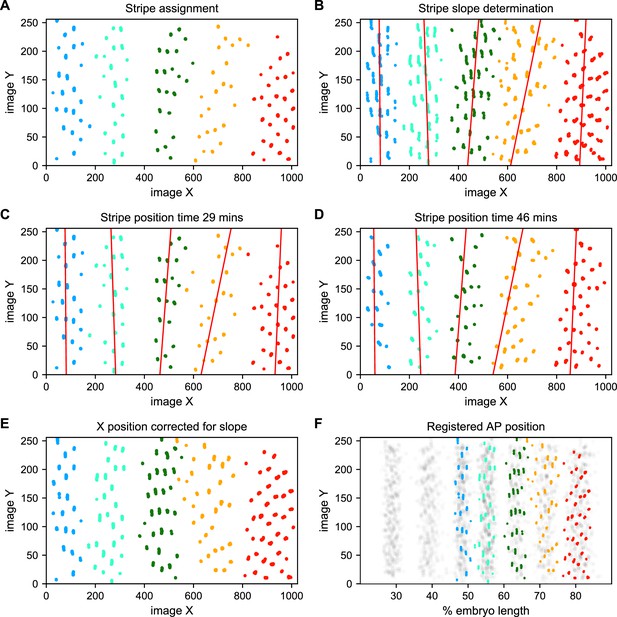

Stripe assignment and alignment.

(A) We preliminarily assign bursting nuclei to stripes by applying a Gaussian mixture model to each movie independently in overlapping six-minute time windows with the number of Gaussians equal to the number of stripes captured in that movie. An example is shown here from Video 2. (B,C,D) We next determine the orientation of each stripe to the imaging axes by fitting a line to coordinates of all nuclei from t > 25 min assigned to that stripe in each movie and time window. (E) We use these fits to generate a linear model of the position of each stripe in each image over time, which makes it possible to reorient the stripe so that it is perpendicular to the image x-axis. (F) The known coordinates of the anterior and posterior poles of the embryo are used to convert the image x-axis to AP position and register the stripes from different movies to each other, as shown here for nuclei from Video 2 colored by stripe and nuclei corresponding to all other movies drawn in gray.

We next use the known coordinates of the anterior and posterior poles of the embryo to convert the image x-axis to AP position, and register the examples of each stripe from different movies by setting the AP position of the center of each stripe at 35 min in nc14 to the mean AP position of all examples of that stripe at 35 min, adjusting the position of the stripe at other time points by the same correction (Figure 5F). As the stripes are not all present until after 25 min in nc14, we assign and register nuclei before that point based on the stripe position at 25 min. The stripe assignment is invariant over bootstrapping of movies, and the standard deviation of the AP displacement over bootstrapping of movies is 0.16% of embryo length.

Collectively these data represent an easy way to visualize and interpret kinetic fingerprint of stripe formation: a record of every transcriptional burst that occurred during the formation of eve stripes in these embryos (Figure 6; Video 24).

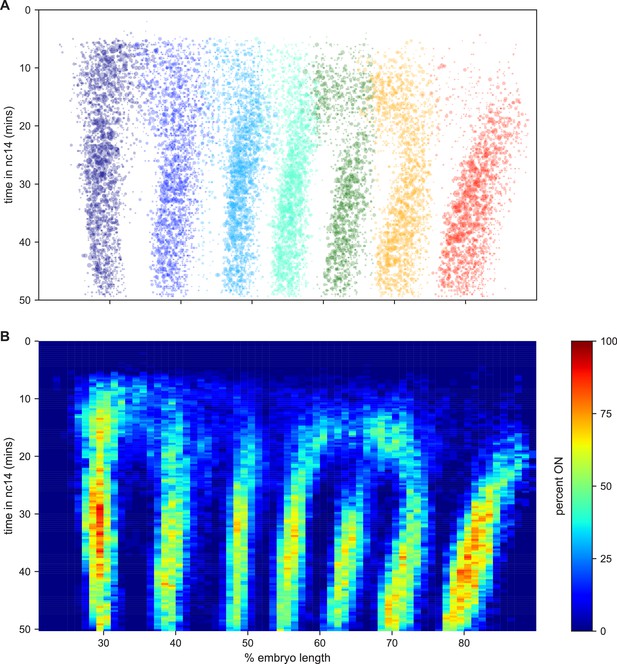

The kinetic fingerprint of even-skipped stripe formation.

(A) Inferred location of every transcriptional burst in all 11 movies as a function of time and where along the anterior-posterior axis (plotted as fraction of embryo length) each burst occurred. The size of the dot represents the duration of the burst. Collectively the data create a kinetic fingerprint of eve stripe formation. (B) Instantaneous fraction of nuclei in the transcriptionally active ON state as a function of time and position along the embryo.

Video 24
Kinetic fingerprint of eve stripe formation.

Nuclei are graphed at every time point at its registered AP (x-axis) and image y (y-axis) position when the cpHMM inferred that one copy (small circles) or two copies (large circles) of the promoter was in the ON state (see Figure 4B).

Bursting dynamics of individual nuclei

We used the output of the cpHMM and registration process to examine the locations of transcriptional bursts along the AP axis and over time (Figure 6). The most striking feature is the almost complete lack of observable transcriptional bursts in the regions between stripes from 25 min into nc14, with the exception of the 5–6 interstripe which is discussed below (note that this is not an artifact of the movie alignment and orientation process, as this effect is seen clearly in individual movies). We took advantage of the fact that we were tracking bursts in individual nuclei in order to analyze the relationship between this absence of bursting in interstripe regions and the single-nucleus bursting behavior within stripes.

Stripes are defined by sharp spatial boundaries, with the transition between the low-bursting (quiescent) state and the frequently bursting (active) state occurring from one column of nuclei to the next (Figure 6), consistent with the classical descriptions of eve stripe patterns (Small et al., 1991; Frasch and Levine, 1987; Fujioka et al., 1999; Small et al., 1992; Warrior and Levine, 1990; Clyde et al., 2003). They also have sharp temporal boundaries: all of the interstripe regions, save that between stripes 6 and 7, form in regions where there was appreciable bursting early in nc14 that disappears at around 25 min into the nuclear cycle (Figure 6).

To better understand how the low-bursting state in interstripes is established, we looked at the bursting history of the nuclei in these regions (Figure 7). The first feature we noticed was that most of the nuclei that ultimately form the interstripe were never detected to burst at any point in nc14 (Figure 7A,B). With the exception of the 5–6 interstripe, these never-ON nuclei effectively form the boundaries between stripes, as essentially every nucleus within each stripe bursts at some point during nc14 (Figure 7A,B).

Figure 7 with 1 supplement see all

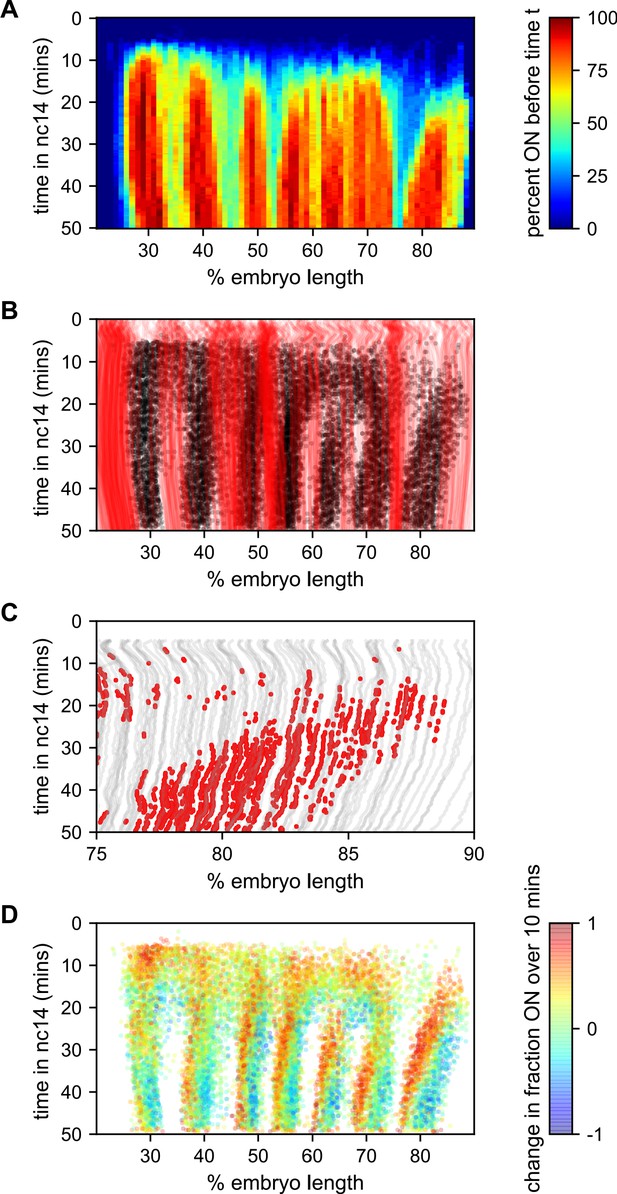

Stripe formation and movement.

(A) Fraction of nuclei bursting before time t as a function of position along the embryo. (B) Locations of new bursts (black dots) in space and time along with spatiotemporal traces of nuclei that are in the OFF state throughout nc14 (red lines). (C) Traces of nuclei positions over time (gray lines) from stripe 7 region of movie EVE_D6 with timepoints where new bursts initiated colored red to illustrate stripe movement relative to nuclei. (D) Difference in transcriptional activity as defined as the difference between the fraction of the time each nucleus is in the ON state in the subsequent 10 min minus the fraction of time the nucleus is in the ON state in the preceding 10 min. Positive values represent a nucleus turning on or increasing activity, while blue values indicate a nucleus turning off or decreasing activity.

The contrast in bursting history between stripes and interstripes is less pronounced in the posterior, where there are fewer such never-ON nuclei in the interstripe region (Figure 7B, notice the lower density of red single-nuclei tracks corresponding to never-ON nuclei). In order to reveal the source of this reduced number of never-ON nuclei in posterior interstripes, we analyzed their bursting history. Figure 7C shows the AP positions of the nuclei in one movie covering stripe seven as a function of time, with the period in which they are part of the stripe highlighted. Although the stripe is clearly present throughout this period, no nuclei remain a part of the stripe for the entirety of this 25 min period. As time progresses, nuclei at the posterior edge of stripe seven shift from an active state, in which the promoter stochastically alternates between the ON and OFF transcriptional states, to a quiescent state in which we observe no appreciable bursting. In contrast, nuclei just off the anterior edge of the stripe switch from a quiescent to an active state at roughly the same rate. This leads to a net overall anterior movement of the stripe, akin to treadmilling, at a velocity of approximately one percent of embryo length every three minutes.

Consistent with Lim et al., 2018, the other stripes exhibit smaller and varied anterior shifts (Figure 7—figure supplement 1), but in every case the shift is associated with a similar coupled gain of active nuclei along the anterior edge and loss along the posterior edge. This effect is most clearly seen in Figure 7D, which shows, for each time point where a nucleus initiates a new burst, the difference in activity (defined as the difference between the fraction of the time the nucleus is in the ON state in the subsequent 10 min minus the fraction of the time the nucleus is in the ON state in the preceding 10 min). For all seven stripes there is a clear spatial pattern, with nuclei along the anterior edge of the stripe entering a bursting state and nuclei along the posterior edge becoming quiescent, indicating a movement of stripes relative to nuclei. Hence, stripe movement is associated with the dynamic switching of nuclei between active and quiescent states, and not just with the movement of nuclei themselves.

All seven eve stripes are created by the same regulation of bursting kinetics

We next turned to the questions of how the spatial pattern of nuclear transcriptional activity described above is produced by regulating bursting kinetics, and whether this regulation differs among the seven eve stripes. In principle, any pattern of transcriptional activity could be achieved by modulating the duration, separation and/or amplitude of bursts across space and time. For example, a stripe could be created by varying burst separation along the anterior-posterior axis, with nuclei in the stripe center having lower burst separation, and those outside the stripe having long periods without bursts, or no bursts at all. Alternatively, the same stripe could be created with uniform burst separation across nuclei, but elevated burst duration or amplitude within the stripe, or by modulating multiple parameters simultaneously.

Ideally, we would like to have a measure of the bursting parameters governing the behavior of every nucleus. However, individual MS2 traces have too few time points to allow for accurate cpHMM inference of burst parameters at the single trace level. We therefore used the cpHMM to infer kon, koff, and r for groups of nuclei binned on their mean fluorescence output and stripe. The logic of the fluorescence binning was that, given that fluorescence rkonkon+koff (Lammers et al., 2020), nuclei that have similar kon, koff, and r will have similar fluorescence outputs. Our inference shows that kon is very strongly regulated as a function of average fluorescence in a consistent manner across stripes (Figure 8A). In contrast, only a weak drop in koff is observed (Figure 8B). Finally, r also featured a strong upregulation as a function of average fluorescence across stripes (Figure 8C).

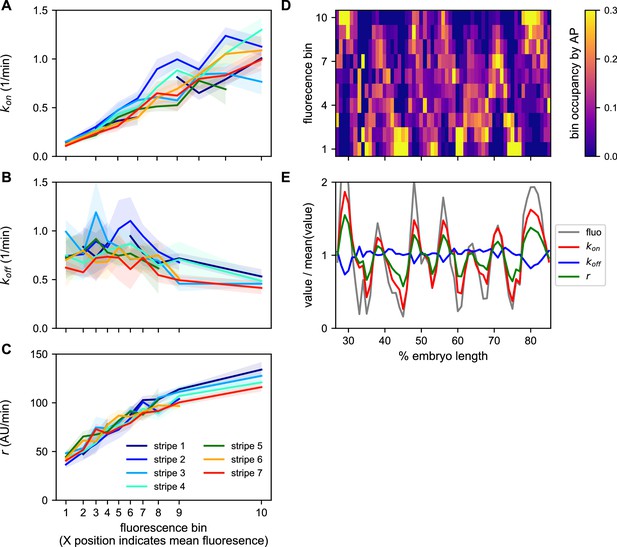

A common bursting control mechanism across all even-skipped stripes.

(A–C) cpHMM inference was carried over nuclei binned according to their average fluorescence value indicating that while (A) kon and (C) r are subject to the same regulation along all stripes, (B) koff remains unchanged. Error bars are calculated by taking the standard deviation across cpHMM inference results for multiple bootstrapped samples of experimental data. (D) Distribution of average nuclear fluorescence values along the AP axis. (E) Mean nuclear fluorescence values for each AP position together with the corresponding averaged and weighted bursting parameters.

As shown in Figure 8D, each stripe contains nuclei with a relatively wide range of average fluorescence values. In order to reveal the bursting parameters across the AP axis for each stripe, we averaged the single-cell bursting parameters determined in each stripe (Figure 8A–C) weighted by the relative number of nuclei in each fluorescence bin present at each position along the AP axis (Figure 8D). We find that the variation in bursting parameters observed as a function of average fluorescence largely echoes the modulation of fluorescence in space (Figure 8E). Specifically, while there is a subtle downregulation of koff within stripes, kon and r are significantly upregulated in the center of each stripe.

Thus, not only do the five eve enhancers employ a common regulatory strategy for modulating the fluorescence output of nuclei to create a stripe, decreasing burst separation and increasing burst amplitude with a constant burst duration, the precise quantitative relationship among these bursting parameters is maintained across a wide range of molecular inputs and fluorescence outputs.

Discussion

The most remarkable aspect of eve regulation is that what appears to be a regular, repeating pattern of nearly identical stripes is created by the largely independent activity of five separate enhancers responding to different combinations of activators and repressors (Fujioka et al., 1999; Fujioka et al., 1995; Small et al., 1991; Arnosti et al., 1996; Small et al., 1992). We have now shown that the connection between the stripe enhancers is more than just that they produce the same kind of pattern: they realize these patterns through the same control of transcriptional bursting.

Although, in principle, complex patterns of transcription could be generated by the independent regulation of kon, koff or r, many of the key features of eve stripe regulation we observe here involve the modulation of kon and r in concert. The most straightforward explanation for this shared mode of bursting control is that there is a single molecular pathway via which eve transcriptional bursting is regulated, with enhancers essentially having access to only a single tunable parameter. Whether this parameter is determined by the gene through, for example, the promoter sequence, or whether this single molecular pathway reflects some broad common property of gene regulation, such as constraints on the general transcriptional machinery, remains an open question. The limited data on bursting control available for other genes in the fly (Falo-Sanjuan et al., 2019; Fukaya et al., 2016; Zoller et al., 2018) suggests that control mechanisms are not ubiquitously the same and that they might be unique to different classes of genes.

An alternative explanation for the observed commonalities in the control of bursting is that there is a functional reason to use this strategy. Namely, that this is not the result of a common molecular mechanism, but rather of common selective pressures acting on the five enhancers independently. The particular bursting control strategy uncovered here might, for example, be more robust to fluctuations in transcription factor concentrations or temperature, or provide more precise spatiotemporal gene expression control (Shelansky and Boeger, 2020; Grah et al., 2020). New experiments and theoretical work will be necessary in order to uncover the specific molecular pathways by which bursting is controlled and to understand the functional consequences of different bursting strategies that create the same mRNA levels.

In addition to this modulation of bursting, the fraction of nuclei that engage in transcription at any point in the nuclear cycle is higher in stripe centers than in interstripes. This regulation of the fraction of active nuclei, also seen in other genes (Garcia et al., 2013), seems to reside outside of the bursting framework. Such regulation, as well as the spatial modulation of the window of time over which bursting ensues, suggests the presence of multiple and overlapping modes of regulation that go beyond the control of bursting parameters and that can be as relevant for pattern formation (Lammers et al., 2020).

Stripe movement is driven primarily by expression flow

Just as gene expression patterns are dynamic in time (Bothma et al., 2014), they are dynamic in space, resulting in the movement of expression domains throughout the embryo during development (Jaeger et al., 2004b; Keränen et al., 2006). The anterior movement of eve stripes during nc14 has been previously described (Keränen et al., 2006; Lim et al., 2018), and proposed to arise from a combination of nuclear movement (nuclear flow) and movement in the pattern of regulators (expression flow), especially repressors, which are known to shift anteriorly during nc14 as well (Jaeger et al., 2004b; Jaeger et al., 2004a). While Keränen et al., 2006 concluded that the relative contributions of these two forces were roughly equal, our data suggest that, especially in the posterior, expression flow dominates the anterior shift of the eve stripes.

A typical nucleus in stripe seven moves around one percent of embryo length in the final 25 min of nc14. The stripe, however, moves around five percent of embryo length during that time (see Figure 7C). Because we are tracking both the position and activity of individual nuclei, we can visualize expression flow in action. We see nuclei transition from low activity in the anterior interstripe to high activity in the stripe, from high activity in the stripe to low activity off the posterior flank of eve expression, and in some cases both.

This effect is most pronounced for the posterior stripes, but is observed for the more anterior stripes as well, although the magnitude of the shift decreases for more anterior stripes (Figure 7—figure supplement 1). The difference in the amount of the effect we and Keränen et al. attribute to expression flow is likely an effect of differences in the data used. Because we are looking at instantaneous transcription rates while they looked at accumulated mRNA, there is a considerable temporal lag and integration of the transcriptional activity over the life time of eve mRNA in their data, which has the effect of underestimating the extent to which the stripes actually move.

We also note that the extent to which nuclear flow by itself would be expected to shift output patterns measured as a function of position in the embryo is unclear, as it would depend on the extent to which the repositioning of regulators drives movement of nuclei (which it is believed to do [Blankenship and Wieschaus, 2001]), and the corresponding effect that nuclear movement has on the positioning of regulators, which remains largely unknown.

One open question relates to the temporal relationship between changes in the position of the repressor array that drives stripe position and the transcriptional output of the stripes. For example, the anterior shift of the stripes of eve as well as fushi tarazu has been proposed to originate, in part, from cross-repression between these two genes (Lim et al., 2018). Recent advances in the simultaneous monitoring of protein concentration and transcriptional output in living embryos should help answer this question in the near future (Bothma et al., 2018; Lammers et al., 2020).

Characterizing dynamic patterns demands dynamic measurements

That gene expression is a fundamentally dynamic process is not new information. However, the tools we have had at our disposal to study gene expression so far have tended to emphasize its static features, down to the language we use to describe the transcriptional output of a gene. In textbooks and the scientific literature, eve has a gene expression pattern consisting of seven stripes. But, as some earlier work emphasized (Janssens et al., 2006), and we have directly visualized here, the transcriptional output of eve, rather than a single ‘pattern’ is a rapidly changing function of time and space: it is dynamic at many time scales and across space and nuclear positions. Indeed, at no point does eve approach anything even remotely like a steady state.

We are at the dawn of a new period in the study of transcription, as new experimental techniques and advanced microscopy allow us to monitor transcriptional regulators, observe their behavior at the single-molecule level, and track the transcriptional output of a gene in living, developing animals. We have only barely begun to understand this new data and what it can tell us about biology. While the focus in this paper was on a single gene in a single species, we hope that this and our accompanying work (Lammers et al., 2020) will have a broader impact by beginning to establish rigorous frameworks for quantifying, characterizing and visualizing the dynamics of transcription at the single-cell level during development that will be required in the era of live imaging of transcription in development.

Materials and methods

Generation of MS2 tagged eve BAC

Request a detailed protocol

We used bacterial recombineering (Warming et al., 2005) to modify a bacterial artificial chromosome (BAC) (Venken et al., 2006) containing the D. melanogaster eve gene and all of its enhancers and regulatory elements (BAC CH322-103K22) (Venken et al., 2009). We replaced the coding region with an array of 24 MS2 stem loops fused to the D. melanogaster yellow gene (Figure 1B; Bothma et al., 2014) as described below. We inserted our eve::MS2::yellow BAC-based construct in the D. melanogaster genome at chromosome 3L through ΦC31 integrase-mediated recombination (see Generation of fly lines), and generated a viable homozygous fly line (w-; +; eve::MS2::yellow) as detailed below.

Reporter design

Request a detailed protocol

In principle the length of the reporter should not limit our ability to estimate burst parameters. However, in practice a reporter construct that is too short will have insufficient signal. Further, one that is too long will increase the dwell time of each RNA polymerase molecule on the gene and, as a result, our cpHMM inference will require too many computational resources. Our choice of reporter construct structure strikes a balance between these two limitations and is ideally suited for inferring bursting parameters in the time range where eve resides, as well as for boosting the signal-to-noise ratio. See Lammers et al., 2020 for a more detailed discussion of reporter length-related tradeoffs.

Specifics of recombineering

Request a detailed protocol

We modified a CHORI BAC CH322-103K22 derived from Venken et al., 2009, which contained the entire eve locus and a GFP reporter instead of the eve coding sequence (CH322-103K22-GFP). We replaced the GFP reporter with MS2::yellow (total insert size, 6665 bp) through a two step, scarless, galK cassette-mediated bacterial recombineering (Warming et al., 2005). Briefly, we transformed our starting CH322-103K22-GFP BAC into E. coli recombineering strain SW102. We then electroporated the strain with a galK cassette flanked by 50bp-long DNA homology arms homologous to the MS2::yellow (6665 bp) reporter. Upon electroporation, we selected transformants on M63 minimal media plates with galactose as a single carbon source. We achieved a correct replacement of GFP sequence by galK cassette in the BAC context (CH322-103K22-galK), validated by observing the digestion patterns produced by ApaLI restriction enzyme.

We next purified the CH322-103K22-galK BAC and transformed it into fresh E. coli SW102 cells. We electroporated these cells with the purified MS2::yellow insert and used M63 minimal media plates with 2-deoxy-galactose to select against bacteria with a functional galK gene. We used colony PCR to screen for colonies with a correct MS2::yellow insertion (CH322-103K22-MS2) replacing the galK cassette. We validated this insertion by observing ApaLI, XhoI, SmaI, and EcoRI restriction digestion patterns and through PCR and Sanger sequencing of the insertion junctions. We transformed our CH322-103K22-MS2 BAC in E.coli EPI300 cells to induce high copy numbers and purified it with a Qiagen plasmid Midiprep kit.

Generation of fly lines

Request a detailed protocol

We sent a sample of our purified CH322-103K22-MS2 BAC to Rainbow Transgenic Flies, Inc for injection in D. melanogaster embryos bearing a ΦC31 AttP insertion site in chromosome 3L (Bloomington stock #24871; landing site VK00033; cytological location 65B2). We received the flies that resulted from that injection and used a balancer fly line (w-; +; +/TM3sb) to obtain a viable MS2 homozygous line (w-; +; MS2::yellow). We used line (yw; His::RFP; MCP::GFP) as the maternal source of Histone-RFP and MCP-GFP (Garcia et al., 2013).

Embryo collection and mounting

Request a detailed protocol

Embryo collection and mounting was done as specified in Garcia and Gregor, 2018. In short, we set fly crosses between ~30 males (w-; +; eve::MS2::yellow) and ~80 females (yw; His::RFP; MCP::GFP) in a plastic cage capped with a grape juice agar plate. We collected embryos from cages two to ten days old by adding a fresh plate for 30 min and aging for 60 min to target embryos 90 min or younger.

Embryos were mounted on a gas-permeable Lumox Film (Sarstedt - Catalog # 94.6077.317) embedded on a microscope slide hollowed on the center. Then, we coated the hydrophobic side of the Lumox film with heptane glue and let it dry. The film allows for the oxygenation of embryos during the 2–3 hr long imaging sessions while heptane immobilizes them.

We soaked an agar plate with Halocarbon 27 oil, picked embryos with forceps, and laid them down on a 3 × 3 cm piece of paper tissue. We dechorionated embryos by adding 2 drops of bleach diluted in water (5.25%) on the paper tissue and incubating for 1.5 min. We removed bleach with a clean tissue and rinsed with ~4 drops of distilled water. We then placed the tissue paper with dechorionated embryos in water, and picked buoyant embryos with a brush.

We lined ~ 30 apparently healthy embryos on the Lumox film slide and added 2–3 drops of Halocarbon 27 oil to avoid desiccation, and covered the embryos with a cover slip (Corning Cover Glass, No. 1, 18 × 18 mm) for live imaging.

Imaging and optimization of data collection

Request a detailed protocol

Movies of embryonic development were recorded on a Zeiss-800 confocal laser-scanning microscope in two channels, (EGFP: 488 nm; TagRFP: 561 nm). We imaged embryos on a wide field of view, along their anterior-posterior axis, of 1024 × 256 pixels (202.8 x 50.7 µm), encompassing 3–5 stripes per movie. We tuned laser power, scanning parameters, master gain, pinhole size and laser power to optimize signal-to-noise ratio without significant photobleaching and phototoxicity.

For imaging, the following microscope settings were used: 63x oil-objective, scan mode ‘frame’, pixel size of 0.2 µm, 16 bits per pixel, bidirectional scanning at a speed of 7, line step of 1, laser scanner dwelling per pixel of 1.03 µs, laser scanner averaging of 2, averaging method Mean, averaging mode Line, 488 nm laser power of 30 µW (EGFP), 561 nm laser power of 7.5µW (TagRFP) (both powers were measured with a 10x air-objective), Master Gain in EGFP detector of 550V, Master Gain in TagRFP detector of 650V, Digital Offset in both detectors of 0, Digital Gain in both detectors of 1.0, and a pinhole size of 1 airy unit under the imaging conditions mentioned above (44, 0.7 µm/section), laser filters EGFP:SP545 and TagRFP:LBF640. This resulted in an imaging time of 633 ms per frame and a full Z-stack of 21 frames in intervals of 0.5 µm every 16.8 s. Following (Bothma et al., 2014; Bothma et al., 2015; Bothma et al., 2018; Lammers et al., 2020), the imaging conditions were determined not to affect normal development as reported by the timing of the nuclear cycles in early development. We stopped imaging after 50 min into nuclear cycle 14, and took mid-sagittal and surface pictures of the whole embryo for localization of the recorded field of view along the embryo’s AP axis.

Image processing

Request a detailed protocol

We used a Matlab computational pipeline based on Garcia et al., 2013; Lammers et al., 2020 to segment and extract numeric data from our raw movies. Briefly, this software segments and processes the images from the two channels (channel 1: MCP::GFP, channel 2: Histone::RFP) on which we collected our data. For segmentation of channel 1, we used Fiji-Weka Segmentation 3D software; this machine-learning-based method relies on the manual segmentation of a variety of MCP::GFP labeled transcriptional foci in a given 21 frame Z-stack from a single dataset (EVE_D11) to produce a model for the segmentation of all datasets recorded under the same imaging conditions. Next, we segmented and tracked the Histone::RFP-labeled nuclei on channel 2. Subsequently, we assigned MCP::GFP labeled transcriptional foci to their corresponding Histone::RFP-labeled nuclei. Since we collected whole embryo pictures of each of our datasets, we were able to match and locate the recorded fields of view to their right position along the body of their corresponding embryos. Finally, we extracted position and fluorescence values over time of all transcriptional foci to generate data structures ready to use in further analyses.

Estimation of polymerase transit time

Request a detailed protocol

To estimate the transit time of the polymerase along the construct (which is used to determine the persistence of the fluorescence signal from a single transcript at the locus) we first calculated, for each nucleus, the difference in fluorescence signal between adjacent timepoints Dn,t = Fn,t+1 - Fn,t where Fn,t is the fluorescence signal for nucleus n at time point t and then calculated the Pearson correlation coefficient of the vectors [..., Dn,t, Dn,t+1, Dn,t+2,. ..] and [..., Dn,t+d, Dn,t+d+1, Dn,t+d+2,. ..] over values of d from 1 to 20 representing time displacements of 20 to 400 s. The minimum correlation occurred at 140 s.

Compound-state hidden Markov Model

Request a detailed protocol

For this work we employed a statistical method that utilizes a compound-state hidden Markov Model to infer bursting parameters from experimental fluorescence traces. The theory and implementation of this method are described in detail in Lammers et al., 2020. Briefly, parameters were inferred using a standard version of the Expectation Maximization Algorithm implemented using custom-written scripts in Matlab. Our inference is carried over the full duration of activity of each active nucleus during nuclear cycle 14. Bootstrap sampling was used to estimate the standard error in our parameter estimates. Subsets of 3000 data points were used to generate time-averaged parameter estimates. Inference was not conducted for groups for which fewer than 1000 time points were available.

Data analysis and figures

Request a detailed protocol

All data were analyzed in Python using a Jupyter notebook with custom code to process raw data and generate figures. The Jupyter notebook and all data required to run it is available in Supplementary file 1 and at (https://github.com/mbeisen/Berrocal_2020; Berrocal, 2020; copy archived at swh:1:rev:d983098bd5183f9907d633c425f80b2cb5282a8b).

Data filtering

Request a detailed protocol

We first filtered the raw data to remove data with observations spanning less than 2,000 s, as well as nuclei that were poorly tracked over time defined as nuclei that moved across the movies at an average rate of over 4.5 pixels per minute. This left 430,073 observations from 2959 nuclei.

Stripe assignment and registration

Request a detailed protocol

We used the Gaussian mixture model module of the Python library scikit-learn (Pedregosa et al., 2011) to cluster all nuclei time points in each movie in each of a series of overlapping 428 s time windows beginning at 25 min in nc14, specifying the number of components equal to the number of stripes captured in the movie and using the setting covariance_type='tied'. We preliminarily assigned nuclei time points to a stripe if they were consistently clustered in that stripe in the relevant time windows. We then pooled all nuclei time points assigned to the same stripe and fit a line to the median x and y positions in the bottom (y < 128) and top (y > 128) halves of the image. We considered the slope of this line to represent the orientation of the stripe to the image x-axis. We then went back to each time window and fit the nuclei assigned to the stripe with a line with the previously computed slope fixed. This produced an association of time with stripe position, from which we derived a linear model that describes the position of each stripe in each movie at every time point.

We assigned all nuclei time points (not just bursting ones) to stripes by identifying the stripe whose predicted position at the relevant time was closest (along the x-axis) to the nucleus being analyzed, and assigned a nucleus to the most common stripe assignment for its individual time points. We then corrected the reorientation of the stripe at each time point to be perpendicular to the image x-axis (to enable projection along the AP axis) by setting its new image x-axis position to be the x position of the stripe in the middle of the y-axis (y = 128) plus the offset of the nucleus to the unoriented stripe along the x-axis. Finally, we used the positions of the anterior and posterior poles of the embryo to map image x coordinates to AP position. We then adjusted the AP position of each stripe in each movie such that the center of the stripe at 35 min in nc14 had the same AP position.

References

    1. Arnosti DN
    2. Barolo S
    3. Levine M
    4. Small S
    (1996)
    The eve stripe 2 enhancer employs multiple modes of transcriptional synergy
    Development 122:205–214.
    1. Blankenship JT
    2. Wieschaus E
    (2001)
    “Two New Roles for the Drosophila AP Patterning System in Early Morphogenesis.”
    Development 128:5129–5138.
    1. Fujioka M
    2. Jaynes JB
    3. Goto T
    (1995)
    Early Even-Skipped Stripes Act as Morphogenetic Gradients at the Single Cell Level to Establish Engrailed Expression
    Development 121:4371–4382.
    1. Fujioka M
    2. Emi-Sarker Y
    3. Yusibova GL
    4. Goto T
    5. Jaynes JB
    (1999)
    Analysis of an Even-Skipped rescue transgene reveals both composite and discrete neuronal and early blastoderm enhancers, and Multi-Stripe positioning by gap gene repressor gradients
    Development 126:2527–2538.
    1. Lawrence PA
    (1992)
    The making of a fly: the genetics of animal design
    Wiley-Blackwell.
    1. Pedregosa F
    2. Varoquaux G
    3. Gramfort A
    4. Michel V
    5. Thirion B
    6. Grisel O
    7. Blondel M
    (2011)
    Scikit-Learn: machine learning in Python
    Journal of Machine Learning Research : JMLR 12:2825–2830.
    1. Warrior R
    2. Levine M
    (1990)
    Dose-Dependent regulation of Pair-Rule stripes by gap proteins and the initiation of segment polarity
    Development 110:759–767.

Decision letter

  1. Robert H Singer
    Reviewing Editor; Albert Einstein College of Medicine, United States
  2. Naama Barkai
    Senior Editor; Weizmann Institute of Science, Israel

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The authors used live imaging to visualize the transcriptional dynamics of the Drosophila even-skipped gene at single-cell resolution during stripe formation, and developed tools to characterize and visualize how the role of transcriptional bursting influences stripe formation. By tracking the position and activity of individual nuclei they find stripe movement is driven by the exchange of bursting nuclei from the posterior to anterior stripe flanks.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your article "Kinetic sculpting of the seven stripes of the Drosophila even-skipped gene" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Naama Barkai as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

All reviewers felt the work has merit but have some concerns that are expressed below.

Essential revisions:

You will need to address the question about whether the reporter genes disrupt or recapitulate the endogenous genes. It seems some experimentation might be done here to resolve this-perhaps a FISH experiment. Ideally the endogenous gene could be tagged. Data may exist for this point that is not in the manuscript.

The second reviewer has issues with the analysis at several points. These need to be addressed.

The third reviewer has points that need to be addressed that mainly involve further clarifications in the text and focusing the Discussion.

Reviewer #1:

This is a companion manuscript to Lammers, et al. It increases the number of stripes analysed for the even skipped gene, assessed using the method of modeling using a modified HMM analysis to provide a memory of the transcriptional bursting, and to include the duration of this bursting in defining the sharp boundaries of the stripes. The technical advance in this work is to insert the entire even skipped set of enhancers and regulatory elements on a BAC so that the ontogeny of all seven stripes can be observed at high time resolution (20 second intervals).

This is an elegant piece of work, although with some of the same caveats that are relevant for the Lammers manuscript. One concern is whether the embryos would develop past gastrulation, given the light dosage (Sedat has made a big point about this). It would be useful to know this, although it may not influence conclusions about the early events. As with the Lammers manuscript, the observations are by their nature descriptive, but provide a basis for evaluations of various mechanisms; these are spelled out well in the Discussion, with appropriate cautionary caveats. One of the more interesting observations is that the stripes seem to be similarly regulated in kinetics and duration of the transcription despite the variety of factors regulating them. This commonality of mechanism requires some new thinking about the role of these various elements.

Some quibbles about the writing style: the concept of a "transcriptional desert" seems a bit melodramatic (as does the repetitive "stripe is a stripe..." line) and obscures the mechanistic implications. Presumably the "desert" is just the closing of the transcriptional window, as described more precisely in the accompanying manuscript. To further impinge on the author's expository flair here, the concept of "sculpting" is too anthropomorphic, as one needs a sculptor to sculpt and this is conceptually confusing since these events are stochastically driven. Is the sculptor a facilitator of "intelligent design"? Do you want to go there?

Some of my concerns about the Lammers manuscript can be reiterated briefly. The inserted eve reporter system is now sucking up factors and presumably competing with the endogenous gene possibly causing a "transcriptional haploinsufficiency" (my own terminological flair in this case) wherein the effective local concentrations are now half what they should be, and this may have the effect of changing the bursting and duration kinetics. Furthermore, the local environment of the endogenous gene may contain more regulatory chromatin not dreamt of in your philosophy, that would rule the expression of eve with a firmer hand (using the anthropomorphizing theme). Hence the assertion that the inserted gene "is phenotypically neutral" seems glib and may not be technically correct, at least until tested. Assuming that the function of eve is not compromised by some of the modifications used for the reporter gene, why not tag the endogenous gene? (I may be unaware of literature that relates to this experiment, but I don't think that complementation in a mutant strain reproduces the robustness of the endogenous gene).

All told, I feel that these considerations could be dealt with in the Discussion.

Reviewer #2:

In this work by Berrocal et al., the authors provide a quantitative treatment of the enduring developmental problem of how the combinatorial inputs into an enhancer drive spatial patterns in the blastoderm. Work in recent years indicates these developmental genes are also stochastic and exhibit bursting transcription, making the emergence of these ordered patterns even more difficult to explain. This manuscript is decidedly observational yet also highly quantitative. No molecular mechanisms are elucidated, but the underlying spatiotemporal transcription phenomena are characterized with experimental rigor. The authors seem to believe they have uncovered some universal behaviors but they stop short of making any strong claims, making it hard for this reviewer to come away with a digestible conclusion. Overall, I found the paper to be scholarly and well-written. I think it could be appropriate for eLife with some revisions.

1) I found the paper to be somewhat off balance in the presentation. Some of the concepts and data analyses are covered in a cursory manner, even for specialists, but the Discussion goes on at length. For example, I am confused by Figure 4A. Why does the autocorrelation go negative? What does the autocorrelation of the first derivative even mean? Is this experimental data?

2) There is a tremendous amount of live-cell data, and I appreciate the scale of that analysis effort. The two major inference problems in this data analysis are the following: 1) promoter activity must be inferred through direct analysis of the transcription time traces, and 2) burst kinetics have to be assigned to a particular stripe. I would like to see some straightforward analysis or metric of how good these inferences are. Error bars or confidence analysis is noticeably absent throughout the manuscript.

3) Related to this second inference, I found the exceptional behavior of the 5 – 6 interstripe to be important. Is this looser regulation also observed by smFISH? Such an analysis would also indicate how well the stripe assignment works in live blastoderms. Is there any biological functionality to the 5-6 interstripe bursting?

4) In Figure 8, is there some sort of reduced parameterization which captures the essential behavior, rather than an empirical tabulation of on and off rates? The results in Figure 10 argue for such a reduced parameterization, and the comparison is made to the Zoller paper in the Discussion, but I don't see where they actually test a reduced model for fitting the data.

5) Related to this last point, when I look at Figure 8 , I see a lot of variability at the low ON rates. This variability could result in an apparent trend which is artefactual. At some point, there is a noise floor where the mHMM might be picking up single infrequent bursts that could therefore be spurious. I find the treatment of this key point unsatisfactory, both because there is not an in depth statistical analysis, and also because the authors use sentences such as "To investigate whether this result is an artifact of the mHMM, we implemented an orthogonal method that uses integer programming to infer promoter states from traces based on a direct fit of 140s fluorescence pulses." This one-sentence description is obtuse, even for specialists. I think there needs to be greater effort here.

Reviewer #3:

In this work, Berrocal and Lammers et al. propose a conceptual, theoretical and computational framework for dissecting gap genes pattern formation in space and time in early Drosophila embryos. The framework is showcased in the analysis of the dynamics of the even-skipped gene, monitored at the single-cell and high temporal resolution.

This is an ambitious and much-needed work targeting the transcription dynamics in mid and late nuclear cycle 14. Here, the MS2-GFP system is employed to simultaneously monitor the transcription dynamics of the even-skipped gene in seven stripes, each controlled by the independent activity of a specific enhancer: whereas stripe 1, 2 and 5 are each controlled by a different enhancer, stripes 3 and 7 and stripes 4 and 6 are controlled by a common enhancer. This provides the basis for the analysis of the transcription kinetics, as demonstrated here with the memory-adjusted Hidden Markov Model. In this last long nuclear cycle before gastrulation, the transcription factor gradients are transient. Thus, traditional analyses are hindered due to the movement of both the nuclei and transcription factors distributions. From the videos, the paper presents a protocol to classify and track the stripes position over time, and attributing nuclei to the corresponding stripes.

The main conclusion is that despite being created by the activity of independent enhancers, even-skipped stripes emerged from globally similar kinetic phenomena over time which combine an increase of transcription burst frequency and duration within the stripes and a progressive reduction of bursting between stripes. Interestingly, the dynamics and the timing of stripe formation appears quite different among stripes but does not correlate with the enhancer regulating the stripe formation (for example, the kinetics features of stripes 4 and 6 and of stripe 3 and 7 are not more similar to each other than they are to the five other stripes). Thus, despite being created by the independent activity of different enhancers, even-skipped stripes exhibit similar kinetic phenomena over time. This is a very interesting observation, suggesting the co-evolution of enhancers to ensure the robustness of the downstream processes.

1) The five even-skipped enhancers have been identified using transgenic reporters and mostly experiments on fixed embryos (ISH or FISH) that did not capture the fast dynamics uncovered with the MS2 system and live imaging. It is thus not clear how these five enhancers might recapitulate the different dynamics observed here for the seven stripes with the MS2 system. Although it is beyond the scope of this manuscript, it is important to mention in the manuscript potential discrepancies between the two experimental approaches.

2) It has been shown recently that the MS2 cassette itself might influence the regulation of the target promoter (Lucas et al., 2018, bioRxiv). It is thus important to mention in the manuscript the possibility that the common regulatory properties observed for the seven stripes could be driven by the MS2 cassette. Could the authors confront the dynamics of expression of the seven stripes that they uncover with the MS2 system from FISH data on precisely staged cycle 14 embryos?

3) As mentioned by the authors, the length of the construct is very long (6, 5 kb) and carry the MS2 cassette in 5' of the transcribed sequence. This was done on purpose to increase the fluorescent signal but also impairs the sensitivity in detection fluctuations. A good example of this is shown in Figure 4C where a small activity of the promoter provides a very strong fluorescent signal. Can the authors comment on this and indicate the range of kinetics parameters that this construct allows to capture?

4) Most of the works' results and conclusions are based on the temporal kon and koff, which can be extracted directly for each nucleus. This is very likely to be confused with kon and koff inferred from the mHMM approach. Please discuss how the temporal kon and koff are calculated when they are first mentioned (we only find out about this until the very end of the manuscript) and use a different annotation (or markers) to avoid confusion with mHMM's.

5) Given the ON and OFF rate changing over time as pointed out above, one should question the validity of the mHMM here. Can the authors clarify on this point?

6) In the Materials and methods section, how is the time window for each nucleus selected for mHMM inference? Is it the time window when the nucleus is in the temporal stripe region?

7) Given the movement of the transcription stripes over time, protein stripes which are translated over a range of AP position should be wider as mRNAs stripes. Can the authors show how the integrated transcription stripes look like over time, or at the end of the cycles?

8) The Discussion of the manuscript is too long and would benefit of being more focused.

https://doi.org/10.7554/eLife.61635.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Reviewer #1:

[…] This is an elegant piece of work, although with some of the same caveats that are relevant for the Lammers manuscript. One concern is whether the embryos would develop past gastrulation, given the light dosage (Sedat has made a big point about this). It would be useful to know this, although it may not influence conclusions about the early events.

Author response: The imaging conditions are identical to those used repeatedly in various previous experiments (e.g., Bothma et al.​​, 2014, Bothma et al.​​, 2015; Bothma et​ al.​, 2018; Lammers et al.​, 2020). Here, the light dose was determined to be appropriate so as not to affect development as reported by the timing of the nuclear cycles in early development. We have now made this point explicitly in the Materials and methods section under “Imaging and Optimization of Data Collection”.

As with the Lammers manuscript, the observations are by their nature descriptive, but provide a basis for evaluations of various mechanisms; these are spelled out well in the Discussion, with appropriate cautionary caveats. One of the more interesting observations is that the stripes seem to be similarly regulated in kinetics and duration of the transcription despite the variety of factors regulating them. This commonality of mechanism requires some new thinking about the role of these various elements.

Some quibbles about the writing style: the concept of a "transcriptional desert" seems a bit melodramatic (as does the repetitive "stripe is a stripe..." line) and obscures the mechanistic implications. Presumably the "desert" is just the closing of the transcriptional window, as described more precisely in the accompanying manuscript. To further impinge on the author's expository flair here, the concept of "sculpting" is too anthropomorphic, as one needs a sculptor to sculpt and this is conceptually confusing since these events are stochastically driven. Is the sculptor a facilitator of "intelligent design"? Do you want to go there?

While we were simply trying to add a little rhetorical color to the manuscript, we accept the reviewer’s admonition that they are distracting and perhaps misleading and have adjusted our language accordingly. For example, in the new version of the manuscript, we have eliminated all reference to transcriptional deserts. The one area where we disagree is with the term “sculpting”. While we recognize that it has some anthropomorphic character, here it was meant as a metaphor to emphasize that, by adjusting the kinetics of bursting in individual nuclei, a complex pattern emerges from an initially unfinished and unfeatured mass. It is not a hill on which we would die, but we hope the reviewers will allow us this flourish.

Some of my concerns about the Lammers manuscript can be reiterated briefly. The inserted eve reporter system is now sucking up factors and presumably competing with the endogenous gene possibly causing a "transcriptional haploinsufficiency" (my own terminological flair in this case) wherein the effective local concentrations are now half what they should be, and this may have the effect of changing the bursting and duration kinetics. Furthermore, the local environment of the endogenous gene may contain more regulatory chromatin not dreamt of in your philosophy, that would rule the expression of eve with a firmer hand (using the anthropomorphizing theme). Hence the assertion that the inserted gene "is phenotypically neutral" seems glib and may not be technically correct, at least until tested. Assuming that the function of eve is not compromised by some of the modifications used for the reporter gene, why not tag the endogenous gene? (I may be unaware of literature that relates to this experiment, but I don't think that complementation in a mutant strain reproduces the robustness of the endogenous gene).

There are two separate concerns being addressed here. First, that the regulation of a BAC may not be the same as the endogenous locus, and second that the BAC itself might be disrupting its own regulation by adding an extra locus to the system.

In our accompanying paper (Supplementary Figure 9 in Lammers et al.​, 2020) we have actually shown that, given reasonable values for the eve​​ mRNA degradation rate, the profile resulting from our BAC is quantitatively comparable to that of the endogenous eve ​​locus as measured by mRNA FISH. We now mention this control in the section “Live imaging of eve expression”. Further, while CRISPR insertions of MS2 (or PP7) to the eve ​​locus exist, these either don’t rescue (Chen et al.​ ​, Nat Genet​​, 2018) or are located on the 3’ end of the gene (Lim et al.​, 2018) such that the fluorescence signal is significantly reduced (as described in Garcia et al.​, 2013 and Ferraro et al.​​, ​WIREs Dev Biol,​ 2016).

The second concern, that the addition of an extra copy of a locus might affect gene regulation by diluting the concentration of regulators is interesting, but we think this phenomenon is highly unlikely to have a measurable effect here. First, all of the well-characterized regulators of eve​ (Bcd, Hb, Gt, Kr, Kni, Slp1) have many targets throughout the genome, and bind to thousands of sites in the blastoderm (see Li et al., PLoS Biology​, 2008). Thus the addition or removal of a single locus to the system would change the effective concentration of the factors by one percent at most – far less than the natural nucleus to nucleus noise in transcription factor levels (see Gregor et al.​​, Cell​, 2007) or variation in the size of nuclei within an embryo. Indeed it would be truly remarkable to have a regulatory system that could respond to such a small change in factor concentration. Furthermore, we expect selection to strongly disfavor such sensitivity, as it runs counter to the need to maintain robustness in gene expression outputs during development. We hope the reviewer will agree with us that this “transcriptional haploinsufficiency” is probably a small effect and that it is not worth mentioning explicitly in the manuscript so as not to dilute its message.

All told, I feel that these considerations could be dealt with in the Discussion.

We have addressed the reviewer’s concerns throughout the text. In addition, the Discussion section has been significantly modified to better focus on the insights about the molecular control of transcriptional bursting resulting from our work.

Reviewer #2:

In this work by Berrocal et al., the authors provide a quantitative treatment of the enduring developmental problem of how the combinatorial inputs into an enhancer drive spatial patterns in the blastoderm. Work in recent years indicates these developmental genes are also stochastic and exhibit bursting transcription, making the emergence of these ordered patterns even more difficult to explain. This manuscript is decidedly observational yet also highly quantitative. No molecular mechanisms are elucidated, but the underlying spatiotemporal transcription phenomena are characterized with experimental rigor. The authors seem to believe they have uncovered some universal behaviors but they stop short of making any strong claims, making it hard for this reviewer to come away with a digestible conclusion. Overall, I found the paper to be scholarly and well-written. I think it could be appropriate for eLife with some revisions.

We thank the reviewer for carefully assessing our manuscript. We appreciate the feedback, both specific and general, and have tried to address it in the revised manuscript. Specifically to the reviewer's point, we have revised the Discussion section to more focus on the potential underpinnings of the control mechanisms for bursting uncovered by our work. Having said that, we have also added a call for new experiments that utilize the methods developed here to further probe into how transcription factors actually realize the control of bursting.

1) I found the paper to be somewhat off balance in the presentation. Some of the concepts and data analyses are covered in a cursory manner, even for specialists, but the Discussion goes on at length.

As mentioned above we have significantly edited the Discussion section to make it more focused. In addition, we have expanded the description of how our analyses are done, and removed superfluous analyses that might have added more confusion than clarification.

For example, I am confused by Figure 4A. Why does the autocorrelation go negative? What does the autocorrelation of the first derivative even mean? Is this experimental data?

We apologize for our lack of clarity. We have now revised the description of the autocorrelation approach in section “Modeling and inference of promoter state” and in the Materials and methods section under “Estimation of polymerase transit time”. The idea is that every loaded polymerase induces a fluorescence signal for essentially the entire time it is transiting the locus: a pulse of fluorescence of width equal to the transit time. Thus the increase in signal associated with a polymerase loaded at time t should be coupled to a decrease in signal at t + transit time. We reveal this lag by looking at the autocorrelation of the vector of the timepoint by timepoint change in fluorescence signal, which has a minimum at 140s (we did 100 bootstraps over randomly chosen sets of 80% of all nuclei, which give almost identical results that are now shown in Figure 4A).

2) There is a tremendous amount of live-cell data, and I appreciate the scale of that analysis effort. The two major inference problems in this data analysis are the following: 1) promoter activity must be inferred through direct analysis of the transcription time traces, and 2) burst kinetics have to be assigned to a particular stripe. I would like to see some straightforward analysis or metric of how good these inferences are. Error bars or confidence analysis is noticeably absent throughout the manuscript.

The challenge here is that we lack the means of knowing the actual state of the promoter (this is something we are working on but it is a long-term challenge that is beyond the scope of this work). In Lammers et al., 2020, we describe the effectiveness of our inference to recover model parameters from simulated data. However, this is under the still unproven assumption that the base model implicit in the cpHMM is correct. All of these points are made explicitly in the Lammers et al​​. work, but we are happy to repeat them in this manuscript if the reviewer deems it necessary.

We do apologize for the lack of error bars throughout the paper. Where possible, we have now added error bars generated by, for example, bootstrapping over the nuclei in our data set. Specifically, we have added error bars to the single-cell fluorescence traces shown in Figure 3A, to the inference of the RNAP dwell time stemming from the autocorrelation analysis (Figure 4A), and to our inferred bursting parameters (Figures 8A-C).

3) Related to this second inference, I found the exceptional behavior of the 5 – 6 interstripe to be important. Is this looser regulation also observed by smFISH? Such an analysis would also indicate how well the stripe assignment works in live blastoderms. Is there any biological functionality to the 5-6 interstripe bursting?

This is indeed a very interesting question (though outside of the scope of the current work). Given the fast pace of the pattern as reported by our data and the low temporal resolution attainable by smFISH, however, we doubt that the latter technique can shed light on the detailed behavior of the 5-6 interstripe.

4) In Figure 8, is there some sort of reduced parameterization which captures the essential behavior, rather than an empirical tabulation of on and off rates? The results in Figure 10 argue for such a reduced parameterization, and the comparison is made to the Zoller paper in the Discussion, but I don't see where they actually test a reduced model for fitting the data.

Note that, in Figure 8, we have now performed inference by binning our nuclei according to their average fluorescence values (which reports on the average transcriptional activity of each nucleus) rather than grouping them by their position along the embryo. In doing so, the correlations between kon ​and k​​off vanished (Figure 8A and B). We believe that this is due, in part, to the large nucleus-to-nucleus variation in average fluorescence values at a given AP position (Figure 8D). Instead, when binning by fluorescence, we find that k​​on increases with fluorescence while koff remains constant. Further, we find that r​​ also increases with fluorescence (Figure 8C).

Based on these results, we could have performed an inference with a model where k​​on and r​​ are coupled. We hope the reviewer will agree with us that such exploration of a model that goes beyond the widespread two-state model of bursting calls for a solid theoretical footing that goes beyond the scope of the current work, but that we are very excited to pursue in the future.

5) Related to this last point, when I look at Figure 8 , I see a lot of variability at the low ON rates. This variability could result in an apparent trend which is artefactual. At some point, there is a noise floor where the mHMM might be picking up single infrequent bursts that could therefore be spurious. I find the treatment of this key point unsatisfactory, both because there is not an in depth statistical analysis, and also because the authors use sentences such as "To investigate whether this result is an artifact of the mHMM, we implemented an orthogonal method that uses integer programming to infer promoter states from traces based on a direct fit of 140s fluorescence pulses." This one-sentence description is obtuse, even for specialists. I think there needs to be greater effort here.

We agree that there are many potential artifacts clouding out inference. As a result, we have removed any analyses that rely on inferences in regimes such as the low ON-rate one described by the reviewer. Further, we have performed a systematic analysis of the limitations of the cpHMM method using synthetic data in Lammers et al.​ ​ which we would be happy to reproduce here if the reviewer deems it necessary.

Reviewer #3:

[…] 1) The five even-skipped enhancers have been identified using transgenic reporters and mostly experiments on fixed embryos (ISH or FISH) that did not capture the fast dynamics uncovered with the MS2 system and live imaging. It is thus not clear how these five enhancers might recapitulate the different dynamics observed here for the seven stripes with the MS2 system. Although it is beyond the scope of this manuscript, it is important to mention in the manuscript potential discrepancies between the two experimental approaches.

In our accompanying paper (Supplementary Figure 9 in Lammers et al.​​, 2020) we have actually shown that, given reasonable values for the eve​​ mRNA degradation rate, the profile resulting from our BAC is quantitatively comparable to that of the endogenous eve locus as measured by mRNA FISH. We now mention this control in the section “Live imaging of eve expression”.

2) It has been shown recently that the MS2 cassette itself might influence the regulation of the target promoter (Lucas et al., 2018, bioRxiv). It is thus important to mention in the manuscript the possibility that the common regulatory properties observed for the seven stripes could be driven by the MS2 cassette. Could the authors confront the dynamics of expression of the seven stripes that they uncover with the MS2 system from FISH data on precisely staged cycle 14 embryos?

This is a very important point indeed as Lucas et al​​. have shown that the presence of Zelda sites in the MS2 loops alters the expression dynamics of the hunchback​​ P2 enhancer and promoter. However, given the direct comparison between the BAC and the endogenous eve ​​patterns (Supplementary Figure 9 in Lammers et al.​​, 2020) mentioned in the previous point, we believe that, unlike in the case reported by Lucas et al.​​, the MS2 stem loops do not significantly affect eve​​ regulation. The reasons for this remain unclear, but could be related to different amounts of Zelda present at both loci. For example, if Zelda binding is already saturated at eve​​, we would not expect the presence of more Zelda sites in the MS2 loops to have a significant effect. Further, the distance between the loops and the enhancers might also make a difference. While the hunchback ​​P2 promoter and enhancer are essentially one contiguous unit on the DNA, the eve ​​enhancers are separated from the promoter and distributed throughout the locus.

3) As mentioned by the authors, the length of the construct is very long (6, 5 kb) and carry the MS2 cassette in 5' of the transcribed sequence. This was done on purpose to increase the fluorescent signal but also impairs the sensitivity in detection fluctuations. A good example of this is shown in Figure 4C where a small activity of the promoter provides a very strong fluorescent signal. Can the authors comment on this and indicate the range of kinetics parameters that this construct allows to capture?

This is a very important point and one that we explore in detail in Lammers et​ al.​, 2020. We have now referred the reader to this work when we introduce the reporter construct in the section titled “Reporter Design” within the Materials and methods. In principle the length of the reporter should not limit our ability to estimate burst parameters; however, in practice a construct that is too short will have insufficient signal and one that is too long will require too many computational resources. Our choice of reporter construct structure strikes a balance between these two limitations and is ideally suited for inferring bursting parameters in the time range where eve​ resides, as well as for boosting the signal-to-noise ratio.

4) Most of the works' results and conclusions are based on the temporal kon and koff, which can be extracted directly for each nucleus. This is very likely to be confused with kon and koff inferred from the mHMM approach. Please discuss how the temporal kon and koff are calculated when they are first mentioned (we only find out about this until the very end of the manuscript) and use a different annotation (or markers) to avoid confusion with mHMM's.

We agree with the reviewer that the treatment of this different set of kinetic

parameters could result in potential confusion. As a result, we have decided to focus on the kon, koff and r ​parameters inferred by the HMM model and have removed our analyses based on inferring these parameters from single-nucleus traces.

5) Given the ON and OFF rate changing over time as pointed out above, one should question the validity of the mHMM here. Can the authors clarify on this point?

The temporal variation in bursting parameters is indeed an issue. In light of this, we have decided not to focus on the temporal variation in the rates, except with respect to stripe movements, and focus our inference on a period of time when expression seems to be stable.

6) In the Materials and methods section, how is the time window for each nucleus selected for mHMM inference? Is it the time window when the nucleus is in the temporal stripe region?

Our inference is carried over the full duration of activity of each active nucleus during nuclear cycle 14. We have clarified this point in the Materials and methods, section “Compound-state Hidden Markov Model”.

Further, to simplify our paper, we have decided to exclude the inference of the temporal dependence of bursting parameters in favor of focusing on the commonalities of bursting parameters between different stripes (Figure 8).

7) Given the movement of the transcription stripes over time, protein stripes which are translated over a range of AP position should be wider as mRNAs stripes. Can the authors show how the integrated transcription stripes look like over time, or at the end of the cycles?

Such analysis is possible, but relies on assuming a value for the mRNA and protein degradation rates. While we have engaged in such exercise in the past (Bothma et al.​​, 2014), we worry that the analysis proposed by the reviewer would dilute the message of the work.

8) The Discussion of the manuscript is too long and would benefit of being more focused.

We agree with the reviewer and have significantly shortened and focussed the Discussion section.

https://doi.org/10.7554/eLife.61635.sa2

Article and author information

Author details

  1. Augusto Berrocal

    Department of Molecular & Cell Biology, University of California at Berkeley, Berkeley, United States
    Contribution
    Data curation, Methodology
    Contributed equally with
    Nicholas C Lammers
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6506-9071
  2. Nicholas C Lammers

    Biophysics Graduate Group, University of California at Berkeley, Berkeley, United States
    Contribution
    Software, Formal analysis, Visualization, Methodology
    Contributed equally with
    Augusto Berrocal
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6832-6152
  3. Hernan G Garcia

    1. Department of Molecular & Cell Biology, University of California at Berkeley, Berkeley, United States
    2. Biophysics Graduate Group, University of California at Berkeley, Berkeley, United States
    3. Department of Physics, University of California at Berkeley, Berkeley, United States
    4. Institute for Quantitative Biosciences-QB3, University of California at Berkeley, Berkeley, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    hggarcia@berkeley.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5212-3649
  4. Michael B Eisen

    1. Department of Molecular & Cell Biology, University of California at Berkeley, Berkeley, United States
    2. Biophysics Graduate Group, University of California at Berkeley, Berkeley, United States
    3. Institute for Quantitative Biosciences-QB3, University of California at Berkeley, Berkeley, United States
    4. Department of Integrative Biology, University of California at Berkeley, Berkeley, United States
    5. Howard Hughes Medical Institute, University of California at Berkeley, Berkeley, United States
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    mbeisen@gmail.com
    Competing interests
    Editor-in-Chief, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7528-738X

Funding

Howard Hughes Medical Institute (Investigator Award)

  • Michael B Eisen

National Science Foundation (1652236)

  • Hernan G Garcia

National Institutes of Health (DP2-OD024541-01)

  • Hernan G Garcia

National Institutes of Health (5T32HG000047-18)

  • Nicholas C Lammers

University of California Institute for Mexico and the United States

  • Augusto Berrocal

Burroughs Wellcome Fund

  • Hernan G Garcia

Alfred P. Sloan Foundation

  • Hernan G Garcia

Human Frontier Science Program

  • Hernan G Garcia

Searle Scholars Program

  • Hernan G Garcia

Shurl and Kay Curci Foundation

  • Hernan G Garcia

Hellman Foundation

  • Hernan G Garcia

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by an HHMI Investigator award to MBE. HGG was supported by the Burroughs Wellcome Fund Career Award at the Scientific Interface, the Sloan Research Foundation, the Human Frontiers Science Program, the Searle Scholars Program, the Shurl and Kay Curci Foundation, the Hellman Foundation, the NIH Director’s New Innovator Award (DP2 OD024541-01), and an NSF CAREER Award (1652236). NL was supported by NIH Genomics and Computational Biology training grant 5T32HG000047-18. AB was supported by a Doctoral Fellowship from The University of California Institute for Mexico and the United States (UC MEXUS) and CONACyT.

Senior Editor

  1. Naama Barkai, Weizmann Institute of Science, Israel

Reviewing Editor

  1. Robert H Singer, Albert Einstein College of Medicine, United States

Publication history

  1. Received: July 31, 2020
  2. Accepted: October 9, 2020
  3. Accepted Manuscript published: December 10, 2020 (version 1)
  4. Version of Record published: February 5, 2021 (version 2)

Copyright

© 2020, Berrocal et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 954
    Page views
  • 134
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    Siheng Xiang, Douglas Koshland
    Research Article Updated

    Cohesin helps mediate sister chromatid cohesion, chromosome condensation, DNA repair, and transcription regulation. We exploited proximity-dependent labeling to define the in vivo interactions of cohesin domains with DNA or with other cohesin domains that lie within the same or in different cohesin complexes. Our results suggest that both cohesin's head and hinge domains are proximal to DNA, and cohesin structure is dynamic with differential folding of its coiled coil regions to generate butterfly confirmations. This method also reveals that cohesins form ordered clusters on and off DNA. The levels of cohesin clusters and their distribution on chromosomes are cell cycle-regulated. Cohesin clustering is likely necessary for cohesion maintenance because clustering and maintenance uniquely require the same subset of cohesin domains and the auxiliary cohesin factor Pds5p. These conclusions provide important new mechanistic and biological insights into the architecture of the cohesin complex, cohesin–cohesin interactions, and cohesin's tethering and loop-extruding activities.

    1. Chromosomes and Gene Expression
    2. Medicine
    Karthik Amudhala Hemanthakumar et al.
    Research Article

    Aging, obesity, hypertension and physical inactivity are major risk factors for endothelial dysfunction and cardiovascular disease (CVD). We applied fluorescence-activated cell sorting (FACS), RNA sequencing and bioinformatic methods to investigate the common effects of CVD risk factors in mouse cardiac endothelial cells (ECs). Aging, obesity and pressure overload all upregulated pathways related to TGF-b signaling and mesenchymal gene expression, inflammation, vascular permeability, oxidative stress, collagen synthesis and cellular senescence, whereas exercise training attenuated most of the same pathways. We identified collagen chaperone Serpinh1 (also called as Hsp47) to be significantly increased by aging and obesity and repressed by exercise training. Mechanistic studies demonstrated that increased SERPINH1 in human ECs induced mesenchymal properties, while its silencing inhibited collagen deposition. Our data demonstrate that CVD risk factors significantly remodel the transcriptomic landscape of cardiac ECs inducing inflammatory, senescence and mesenchymal features. SERPINH1 was identified as a potential therapeutic target in ECs.
