Serine ADP-ribosylation marks nucleosomes for ALC1-dependent chromatin remodeling

  1. Jugal Mohapatra
  2. Kyuto Tashiro
  3. Ryan L Beckner
  4. Jorge Sierra
  5. Jessica A Kilgore
  6. Noelle S Williams
  7. Glen Liszczak  Is a corresponding author
  1. Department of Biochemistry, The University of Texas Southwestern Medical Center, United States
  2. Preclinical Pharmacology Core, Department of Biochemistry, University of Texas Southwestern Medical Center, United States

Abstract

Serine ADP-ribosylation (ADPr) is a DNA damage-induced post-translational modification catalyzed by the PARP1/2:HPF1 complex. As the list of PARP1/2:HPF1 substrates continues to expand, there is a need for technologies to prepare mono- and poly-ADP-ribosylated proteins for biochemical interrogation. Here, we investigate the unique peptide ADPr activities catalyzed by PARP1 in the absence and presence of HPF1. We then exploit these activities to develop a method that facilitates installation of ADP-ribose polymers onto peptides with precise control over chain length and modification site. Importantly, the enzymatically mono- and poly-ADP-ribosylated peptides are fully compatible with protein ligation technologies. This chemoenzymatic protein synthesis strategy was employed to assemble a series of full-length, ADP-ribosylated histones and show that ADPr at histone H2B serine 6 or histone H3 serine 10 converts nucleosomes into robust substrates for the chromatin remodeler ALC1. We found ALC1 preferentially remodels ‘activated’ substrates within heterogeneous mononucleosome populations and asymmetrically ADP-ribosylated dinucleosome substrates, and that nucleosome serine ADPr is sufficient to stimulate ALC1 activity in nuclear extracts. Our study identifies a biochemical function for nucleosome serine ADPr and describes a new, highly modular approach to explore the impact that site-specific serine mono- and poly-ADPr have on protein function.

Editor's evaluation

Poly-ADP-ribosylation (poly-ADPr) is a major histone modification that plays critical roles in DNA damage. However careful mechanistic dissection of the role of poly-ADPr has been challenging as the modification is found on multiple proteins and there is heterogeneity in terms of poly-ADP-ribosylation chain length and amino acid location of attachment. The PARP1-dependent semi-synthetic strategy developed by the authors allows generation of nucleosomes with mono ADP ribose and defined lengths of poly-ADPr chains at specific histone serine residues. The utility of this method is clearly demonstrated by the authors' findings that ALC1, a chromatin remodeler that recognizes poly-ADPr is stimulated substantially by the presence of poly-ADPr on H2A and H3.

https://doi.org/10.7554/eLife.71502.sa0

Introduction

Protein ADP-ribosylation (ADPr) has been implicated in diverse mammalian cellular signaling pathways (Gupte et al., 2017). In this process, the ADP-ribose moiety from an NAD+ co-factor is deposited onto one of several chemically distinct amino acid side chain functionalities (Daniels et al., 2015). In cells, proteins can be modified with a mono-ADP-ribose adduct or variable length ADP-ribose polymers that emanate from specific protein sites, a process henceforth referred to as poly-ADPr. Among the 17-member poly(ADP-ribose) polymerase (PARP) enzyme family, PARP1/2 have emerged as the most extensively studied owing to the success of PARP1/2 inhibitors to treat DNA repair-deficient cancers (Lord and Ashworth, 2017). As the clinical utility of PARP1/2 inhibitors continues to expand, it is critical to understand how PARP1/2-dependent ADPr impacts cellular physiology and disease. In light of intense PARP1/2 substrate identification efforts (Bonfiglio et al., 2017; Larsen et al., 2018; Leidecker et al., 2016), several creative methods have been developed to install serine mono-ADPr onto synthetic peptides for biochemical interrogation (Bonfiglio et al., 2020; Voorneveld et al., 2018; Zhu et al., 2020). However, these technologies have been limited to relatively short peptide constructs. Additionally, no methods exist to reconstitute well-defined ADP-ribose chains at specific sites on isolated proteins for functional analysis. Hence, there is a dearth of mechanistic insight into how specific PARP1/2:HPF1-dependent mono- and poly-ADPr events regulate protein function.

Upon binding to single or double-stranded DNA breaks, PARP1/2 undergo conformational changes that induce the formation of a catalytically competent complex with NAD+ and the PARP1/2-interacting protein HPF1 (Benjamin and Gill, 1980; Dawicki-McKenna et al., 2015; Gibbs-Seymour et al., 2016; Langelier et al., 2012; Suskiewicz et al., 2020). It has long been appreciated that DNA damage-induced ADPr has a profound effect on chromatin architecture through a variety of proposed mechanisms (Poirier et al., 1982; Ray Chaudhuri and Nussenzweig, 2017; Tulin and Spradling, 2003). Indeed, there are several ATP-dependent chromatin remodeling enzymes that localize to damage sites in an ADPr-dependent manner and contribute to decompaction of higher order chromatin structure, ultimately increasing repair factor accessibility (Ahel et al., 2009; Chou et al., 2010; Luijsterburg et al., 2016; Smeenk et al., 2013). One such chromatin remodeler, ALC1, harbors a macrodomain module that has been shown to specifically interact with tri-ADP-ribose (Singh et al., 2017). This binding event relieves an autoinhibited ALC1 conformation and activates the ATPase domain that powers nucleosome remodeling (Lehmann et al., 2017; Singh et al., 2017). ALC1 activation via ternary complex formation with auto-ADP-ribosylated PARP1 and nucleosomes has been extensively studied (Gottschalk et al., 2009; Gottschalk et al., 2012; Lehmann et al., 2017; Singh et al., 2017), and it has been suggested that other DNA-bound, ADP-ribosylated proteins may contribute to this process. However, it remains unclear which PARP1/2:HPF1 substrates and corresponding modification sites can lead to ALC1 activation, and if any are sufficient to do so in the absence of automodified PARP1. Such questions surrounding ALC1 regulation are increasingly important as recent studies show that abrogating ALC1 activity vastly increases the efficacy of PARP inhibitors (Blessing et al., 2020; Verma et al., 2021) and may even be useful for treatment of PARP inhibitor-resistant cancers (Juhász et al., 2020).

The core histones H2B and H3 are consistently identified as some of the most abundantly modified PARP1/2:HPF1 substrates (Bonfiglio et al., 2017; Huletsky et al., 1989; Larsen et al., 2018). While much effort has been directed toward deciphering the regulatory mechanisms that govern serine ADPr (Bilokapic et al., 2020; Bonfiglio et al., 2017; Bonfiglio et al., 2020; Gibbs-Seymour et al., 2016; Palazzo et al., 2018; Suskiewicz et al., 2020), the functional consequences of specific nucleosome serine ADPr sites remain unclear. We and others have demonstrated that histone H2B serine 6 (H2BS6) and histone H3 serine 10 (H3S10) are the primary PARP1/2:HPF1 target sites in biochemical and cellular systems (Liszczak et al., 2018; Palazzo et al., 2018). Building upon these studies, we sought to determine how mono- and poly-ADPr on H2BS6 and H3S10 contribute to PARP1/2-dependent DNA repair activities such as ATP-dependent chromatin remodeling.

Here we employ an HPLC/MS-based analysis to investigate PARP1-dependent peptide ADPr activity in the absence and presence of HPF1. Reaction analyses guided the development of an approach that combines peptide chemistry, enzymatic catalysis, and protein ligation technologies to generate full-length proteins that bear mono- or poly-ADPr at user-defined serine sites. Key to this method is the separation of two enzyme-based peptide modification steps: 1. mono-ADPr of unmodified peptides by the PARP1:HPF1 complex, and 2. ADP-ribose chain elongation from mono-ADP-ribosylated peptides by the uncomplexed PARP1 enzyme. We prepare eight unique, semi-synthetic ADP-ribosylated nucleosomes and demonstrate that histone serine poly-ADPr marks nucleosomes for ALC1-dependent chromatin remodeling, with ALC1 remodeling rate constants increasing up to ~370 fold relative to unmodified nucleosome substrates. Additional data support a model wherein nucleosome serine ADPr is sufficient to initiate ALC1-dependent chromatin structure alterations with a high degree of spatial precision.

Results

An HPLC/MS-based approach to analyze peptide ADPr by PARP1:HPF1

While synthetic and enzyme-based methodologies exist to prepare mono-ADP-ribosylated peptides and proteins (Bonfiglio et al., 2020; Hananya et al., 2021; Voorneveld et al., 2018; Zhu et al., 2020), installation of poly-ADP-ribose is synthetically more complex and has not been reported. Therefore, we envisioned an enzyme-based approach that employs the PARP1:HPF1 complex to modify specific serine sites on synthetic peptides with homogenous ADP-ribose polymers. A similar elegant approach was recently reported by the Matic group to prepare mono-ADP-ribosylated peptides, which included H2B and H3 tail constructs (Bonfiglio et al., 2020). However, in that study, a post-reaction poly-ADP-ribose glycohydrolase (PARG) treatment was carried out to reduce any poly-ADP-ribosylated species to the mono-ADP-ribose adduct. Our method is unique in that we developed an RP-HPLC-MS-based assay to simultaneously monitor recombinant PARP1:HPF1 complex activity on a peptide substrate and separate distinct mono- and poly-ADP-ribosylated peptide products (Figure 1A).

Figure 1 with 1 supplement see all

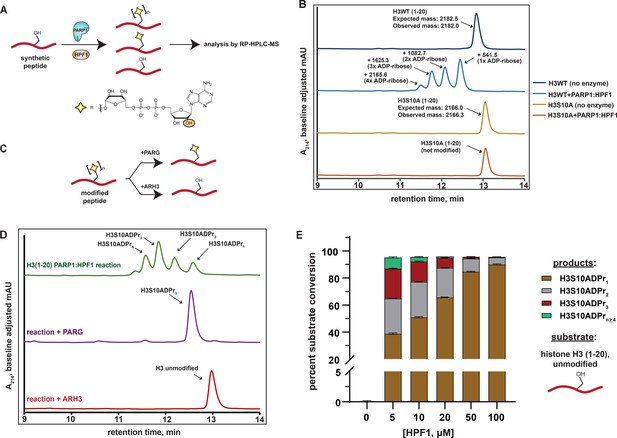

Analysis of serine mono- and poly-ADPr by the PARP1:HPF1 complex on synthetic peptide substrates.

(A) A schematic showing the workflow employed to analyze peptide poly-APDr by the recombinant PARP1:HPF1 complex. Peptide products are separated by polymer length via RP-HPLC. The yellow star represents a serine-linked ADP-ribose modification, ‘n’ represents variable polymer length, and the orange circle indicates the site of linear ADP-ribose polymerization. (B) RP-HPLC and MS analysis of substrate peptides (histone H3 wild-type or S10A mutant, amino acids 1–20) and corresponding PARP1:HPF1 reaction products (for raw MS data, see Supplementary file 1). RP-HPLC gradients are from 0 to 35% Solvent B (2–22 min). (C) A schematic describing the ADP-ribosylhydrolase-based characterization strategy. Enzymes and their respective reaction products are depicted. (D) RP-HPLC traces from PARG- or ARH3-treated H3 peptide ADPr reactions that were optimized for ADP-ribose chain elongation. The number of ADP-ribose units was verified by MS analysis. (E) Product analysis of a PARP1 ADPr reaction in the presence of increasing HPF1 concentrations. Histone H3 substrate peptide starting material and each unique ADP-ribosylated product were quantified via HPLC chromatogram peak integration (see Methods and Figure 1—figure supplement 1D). The columns represent the percent substrate conversion to each ADP-ribosylated product. Data are represented as mean ± s.d. (n = 3).

We began our study by incubating a synthetic histone H3 peptide (amino acids 1–20) that contains a single known serine target site (H3S10) with the PARP1:HPF1 complex, NAD+, and stimulating DNA. Multiple H3 peptide product peaks were observed via chromatography-based reaction analysis. ESI-MS characterization revealed a single, unique mass in each HPLC product peak, which corresponded to an H3 peptide modified with mono-, di-, tri-, or tetra-ADP-ribose (henceforth H3S10ADPrn) (Figure 1B and Supplementary file 1). Notably, all products are sensitive to the H3S10A mutation, indicating the presence of an ADP-ribose chain that elongates from the S10 site (Figure 1B). Thus, each individual peptide product corresponding to mono-, di-, tri-, or tetra-ADP-ribosylated H3S10 can be separated via RP-HPLC.

We next treated ADPr reactions with recombinant ADP-ribosylhydrolase enzymes to validate the modification site and chemical identity of modified peptide products (Figure 1C). Analysis via HPLC-MS demonstrates that PARG (Slade et al., 2011) treatment quantitatively converts all observed ADP-ribosylated H3 peptide products to the mono-ADP-ribosylated species, which is consistent with a single modification site (Figure 1D). When the serine-specific ADP-ribosylhydrolase 3 (ARH3) (Fontana et al., 2017) enzyme is substituted for PARG, all ADP-ribosylated species are converted to the unmodified H3 peptide, thus confirming a serine-linked modification (Figure 1D). An established LC-MS/MS analysis protocol (Chen et al., 2018) was used to determine that the peptide-linked ADP-ribose chains were principally linear, with negligible branching ( < 0.03%) (Figure 1—figure supplement 1A and Supplementary file 2).

The workflow and characterization strategies described here were next implemented to install ADP-ribose chains at the known PARP1:HPF1 target site on a synthetic H2B peptide (amino acids 1–16). Despite the presence of two serine residues in the H2B peptide, our mutagenesis and ADP-ribosylhydrolase-based characterizations confirmed H2BS6 as the sole acceptor residue (Figure 1—figure supplement 1B and C). Notably, while conversion of up to 1 mM (~20 mg) of unmodified H2B or H3 peptides to the H2BS6ADPr1 or H3S10ADPr1 products could be routinely achieved, a more scalable approach for peptide poly-ADPr would be required to deploy these molecules in protein ligation reactions and biochemical assays.

Analysis of the PARP2:HPF1 structure suggests that HPF1 binding, while required for serine ADPr, would interfere with the PARP1/2 ADP-ribose chain elongation mechanism (Suskiewicz et al., 2020). This observation is consistent with several recent reports that show HPF1-dependent shortening of PARP1/2-catalyzed ADP-ribose chains in cellular and biochemical assays (Bonfiglio et al., 2020; Gibbs-Seymour et al., 2016; Rudolph et al., 2021). We therefore hypothesized that the concentration of HPF1 in the peptide modification reaction may affect the final distribution of our mono- and poly-ADP-ribosylated peptide products. To explore this, an HPF1 titration from 5 μM to 100 μM was performed in an ADPr reaction containing the H3 peptide. Notably, unmodified peptide starting material and ADP-ribosylated peptide products could be separated via RP-HPLC and quantified by chromatogram peak integration at A214 and A280, respectively (see Materials and methods for details). Near quantitative conversion ( > 95%) of the unmodified H3 substrate to ADP-ribosylated products was achieved at HPF1 concentrations as low as 5 μM (Figure 1E). Interestingly, we observed a gradual increase in mono-ADPr activity and decrease in poly-ADPr activity as HPF1 is titrated into the reaction (Figure 1E and Figure 1—figure supplement 1D). In the 5 μM HPF1 reaction, the mono-ADP-ribosylated peptide represents ~41% of the total product, with the remaining ~59% comprising a distribution of di- to penta-ADP-ribosylated peptide. In the 100 μM HPF1 reaction, mono-ADP-ribosylated peptide increases to ~94% of the total product, with di-ADP-ribose representing the remaining ~6%. This is consistent with a mechanism wherein PARP1:HPF1 complex formation switches PARP1 activity from an ADP-ribose chain elongator to a mono-ADP-ribosyltransferase. Indeed, these experimental data are congruent with the structure-based hypothesis put forth by Suskiewicz, et al. that HPF1 limits PARP1/2 activity to mono-ADPr.

Synthesis of poly-ADP-ribosylated peptides via two enzymatic steps

Based on the mechanistic interpretation described above, we surmised that PARP1 would display efficient ADP-ribose chain elongation activity on mono-ADP-ribosylated peptides in the absence of HPF1 in our reconstituted system. To investigate this, we employed our purified H3S10ADPr1 peptide as a substrate in PARP1 activity assays that lack HPF1 (Figure 2A). Importantly, we maintained all reaction conditions, substrate concentrations, and stimulating DNA concentrations described for the PARP1:HPF1 activity assays. Strikingly, incubation of the H3S10ADPr1 peptide with PARP1 resulted in robust ADP-ribose chain elongation at all enzyme concentrations tested (0.2, 1, and 5 μM). Nearly 70% conversion of the H3S10ADPr1 substrate to poly-ADP-ribosylated products was achieved at 1 μM PARP1 (Figure 2B and Figure 2—figure supplement 1A). The di-, tri-, and tetra-ADP-ribosylated species were the most abundant products with yield decreasing precipitously for chains greater than four units in length (Figure 2—figure supplement 1A). Notably, PARP2 also catalyzes ADP-ribose chain elongation from the H3S10ADPr1 substrate and similar polymerization activity was observed with both PARP1 and PARP2 on the H2BS6ADPr1 substrate (Figure 2B and Figure 2—figure supplement 1B and C).

Figure 2 with 2 supplements see all

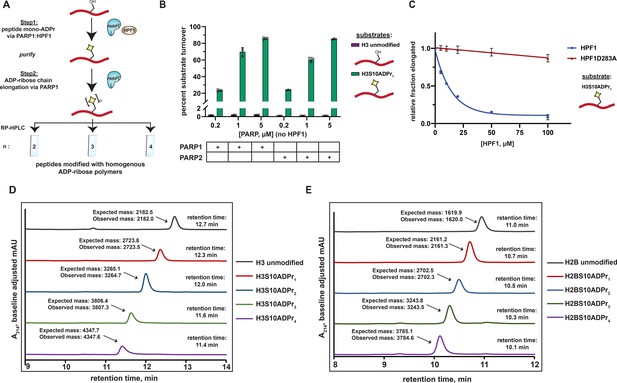

A two-step enzymatic process to prepare poly-ADP-ribosylated peptides with defined ADP-ribose chain lengths.

(A) A schematic showing the two-step enzymatic procedure implemented to synthesize and purify poly-ADP-ribosylated peptides. The mono-ADP-ribosylated peptide product from Step 1 was purified using preparative RP-HPLC prior to use in Step 2. (B) Substrate turnover analysis of PARP1 and PARP2 ADPr reactions in the absence of HPF1. Purple bars represent total percent turnover of an unmodified H3 peptide to mono- or poly-ADP-ribosylated products. Green bars represent total percent turnover of the H3S10ADPr1 peptide to poly-ADP-ribosylated products (for poly-ADP-ribosylated product distribution, see Figure 2—figure supplement 1A and B). Data are represented as mean ± s.d. (n = 3). (C) Analysis of PARP1 elongation activity on the H3S10ADPr1 peptide substrate in the presence of increasing amounts of HPF1 or HPF1D283A. Fraction elongated represents the fraction of H3S10ADPr1 peptide converted to poly-ADP-ribosylated products. Data are normalized to fraction of substrate elongated in the absence of HPF1. Data are represented as mean ± s.d. (n = 3). The curves represent the fit of the data into a non-linear regression model for one-phase exponential decay. ( D) RP-HPLC and MS analysis of mono- and poly-ADP-ribosylated H3 peptides that have been purified to homogeneity via semi-preparative HPLC. (E) As in (D), but for H2B (amino acids 1–16) peptides.

To further characterize the inhibitory effect that HPF1 has on PARP1-dependent ADP-ribose chain elongation, we incubated PARP1 with the H3S10ADPr1 substrate peptide in the presence of increasing concentrations of HPF1. As expected, HPF1 exhibits dose-dependent inhibition of PARP1-catalyzed ADP-ribose polymerization from the mono-ADP-ribosylated substrate, with 50% inhibition occurring at ~14 μM HPF1 for 1 μM PARP1. A binding-deficient HPF1 mutant (D283A) (Rudolph et al., 2021; Suskiewicz et al., 2020) is unable to appreciably inhibit ADP-ribose polymerization (Figure 2C and Figure 2—figure supplement 1D and E). These data complement our unmodified peptide substrate:HPF1 titration analysis and provide additional evidence that the PARP1:HPF1 complex is a dedicated mono-ADP-ribosyltransferase.

Importantly, by first isolating mono-ADP-ribosylated peptides from a PARP1:HPF1 reaction for use in a PARP1 elongation reaction, each poly-ADP-ribosylated H2BS6 and H3S10 product (up to four ADP-ribose units in length) could now be purified to homogeneity in milligram quantities for downstream applications (Figure 2D and E). The broad applicability our peptide poly-ADPr strategy was further validated with additional known PARP1:HPF1 target sequences (Bonfiglio et al., 2020) including TMA16 (amino acids 2–19, target residue S9), a fragment of the PARP1 automodification domain (amino acids 501–515, target residue S507), and a secondary histone H3 site (amino acids 21–34; target residue S28). The mono-, di-, tri-, and tetra- ADP-ribosylated species were isolated for each of these peptides (Figure 2—figure supplement 2A and B). Thus, PARP1 can dependably elongate ADP-ribose chains from peptides that have been ‘primed’ with serine mono-ADP-ribose by PARP1:HPF1. We do note that overall poly-ADP-ribosylated product yields vary depending upon target peptide identity, but all reactions could be optimized to obtain milligram quantities of each unique product (see ‘Materials and methods’ for details).

ADP-ribosylated H2B and H3 peptides engage the ALC1 macrodomain with equal affinity

Extensive precedent exists demonstrating that chromatin remodeling enzymes are regulated by modifications on the nucleosome substrate (Clapier and Cairns, 2012; Hauk et al., 2010). The Ladurner lab recently reported that the ALC1 macrodomain exhibits high affinity (Kd ~10 nM) for free tri-ADP-ribose with little to no binding detectable for free mono- and di-ADP-ribose molecules (Singh et al., 2017). We therefore chose to pursue ALC1 for our initial ADP-ribosylated histone peptide interaction studies. Nine fluorescently-labeled, ADP-ribosylated histone peptides (H2BS6ADPr1-4 and H3S10ADPr1-5) were prepared for fluorescence polarization-based interaction assays (Supplementary file 3). We note that the ADP-ribose polymerization reaction is more efficient with the H3 peptide and hence longer peptide-conjugated ADP-ribose chains could be isolated relative to H2B. Initial assay development was carried out by titrating a commercially available pan-ADP-ribose detection reagent (an Af1521 macrodomain-Fc region fusion) (Gibson et al., 2017) into each peptide. This reagent exhibits ADPr-dependent binding for all H2B and H3 peptides, with affinity decreasing precipitously for chains less than three ADP-ribose units in length (Figure 3A and B, and Supplementary file 4).

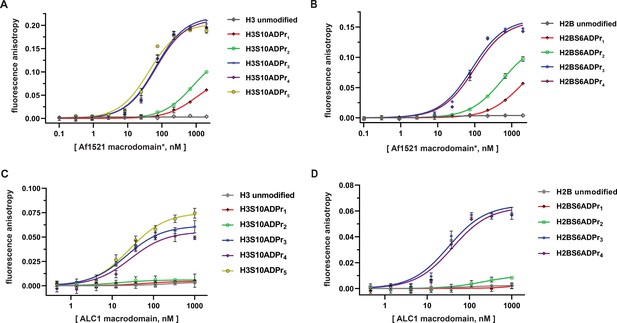

The ALC1 macrodomain engages ADP-ribosylated H2B and H3 peptides with equal affinity.

(A) Fluorescence polarization (FP) assays to evaluate binding affinities of different ADP-ribosylated, fluorescein-labeled H3 (1–20) peptides to the Af1521 macrodomain. Data are represented as mean ± s.d. (n = 3). All curves represent fit of the data into a non-linear regression equation for one-site, specific binding (for Kd, app values, see Supplementary file 4). *The Af1521 macrodomain is from the commercially available pan-ADP-ribose detection reagent. (B) As in (A), but with fluorescein-labeled H2B (1-16) peptides. (C) FP assays as described in (A) to evaluate binding affinities of ADP-ribosylated, fluorescein-labeled H3 (1–20) peptides to the ALC1 macrodomain. (D) As in (C), but with fluorescein-labeled H2B (1-16) peptides.

Similar experiments were performed by titrating the ALC1 macrodomain into each fluorescently-labeled histone peptide for apparent dissociation constant (Kd, app) calculations. Consistent with free ADP-ribose binding preferences (Singh et al., 2017), the mono- and di-ADP-ribosylated H2B and H3 peptides failed to appreciably interact with the ALC1 macrodomain. Contrastingly, all tri-, tetra-, and penta-ADP-ribosylated peptides are high-affinity ligands with Kd, app ranging from ~21 to 37 nM (Figure 3C and D, and Supplementary file 4). Considering the H2BS6ADPr3-4 and H3S10ADPr3-5 peptides exhibit similar affinities, we concluded that the tri-ADP-ribose modification is likely sufficient for optimal ALC1 macrodomain:peptide engagement. These data also indicate that while the ALC1 macrodomain engages the H2BS6 and H3S10-modified peptides, it does not exhibit sequence-based preference for either site.

Preparation of full-length, homogenously ADP-ribosylated histone proteins and assembly into nucleosomes

Chromatin remodelers comprise multiple domains that function synergistically to recognize nucleosome substrates and mobilize histone proteins (Bowman and Poirier, 2015). This phenomenon implies that macrodomain-ligand specificity may not represent the sole determinant of ALC1 substrate preference. To address this, we sought to analyze full-length ALC1 remodeling activity in the context of ADP-ribosylated nucleosome substrates. The first step towards reconstituting modified nucleosomes requires preparation of full-length, ADP-ribosylated histones. We generated a series of ADP-ribosylated H2B and H3 peptides with C-terminal thioesters to enable an eventual native chemical ligation reaction to the remainder of the corresponding histone fragment (Figure 4A). The following six semi-synthetic, full-length histones were prepared: H2BS6ADPr1, H2BS6ADPr3, H2BS6ADPr4, H3S10ADPr1, H3S10ADPr3, and H3S10ADPr4 (Supplementary file 5). The tri- and tetra-ADP-ribosylated H2B and H3 proteins were essential to probe the effect of chain length and nucleosome modification site on ALC1 activation. Mono-ADP-ribosylated histones were prepared to serve as negative controls and to further corroborate ALC1 macrodomain interaction results. All final protein products were characterized via HPLC/MS analysis and determined to be >95% pure, hence validating our workflow to reconstitute homogenously ADP-ribosylated proteins (Figure 4B and Supplementary file 5).

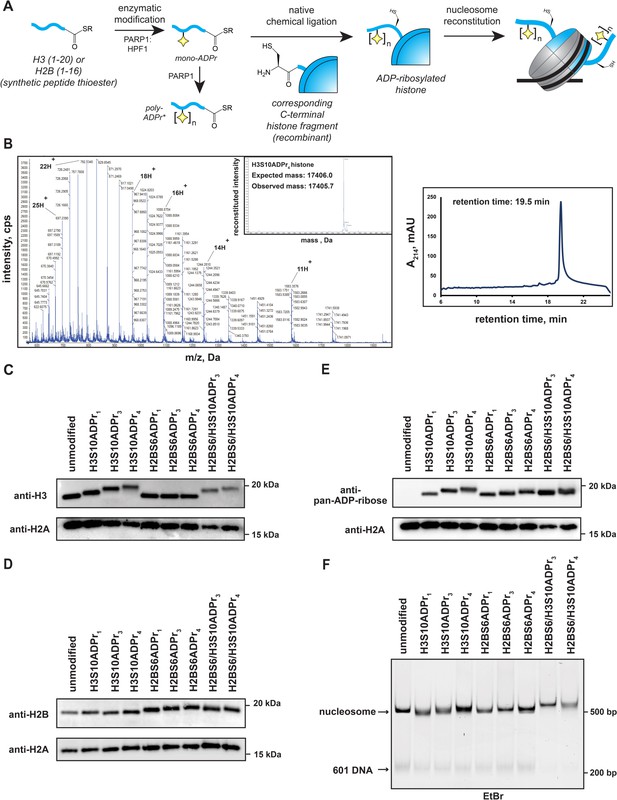

Installation of homogenous ADP-ribose polymers onto reconstituted nucleosomes via a chemoenzymatic strategy.

(A) A schematic depicting the protein semi-synthesis-based strategy to install homogenous ADP-ribose polymers at specific sites on histone proteins. The nucleosome cartoon includes DNA (black line), as well as the histone protein octamer core (gray = recombinant histones, blue = semi-synthetic histone). *The poly-ADP-ribosylated peptides are separated via HPLC to yield homogenous species prior to the ligation reaction. (B) Representative HPLC/MS characterization of the full-length H3S10ADP4 protein. Raw ESI-MS spectra, MS deconvolution, and RP-HPLC chromatogram are shown. RP-HPLC gradient is from 0 to 80% Solvent B (2–22 min). For additional histone HPLC and MS characterizations, see Supplementary file 5. (C) Western blot analysis of histone H3 following nucleosome assembly. ADP-ribose-dependent gel migration shifts (12% bis-tris SDS-PAGE gel in MES running buffer) demonstrate sample homogeneity. (D) Histone H2B analysis as described in (C). (E) Pan-ADP-ribose western blot analysis of all assembled nucleosomes. (F) Native gel analysis of assembled nucleosomes. Single nucleosome bands and trace levels of free 601 DNA demonstrate sample homogeneity and assembly efficiency. EtBr = ethidium bromide stain.

Each of the six semi-synthetic ADP-ribosylated histones were combined with the necessary recombinant histones to form stable histone octamer complexes (henceforth labeled as H2BS6ADPrn or H3S10ADPrn, depending on the modified histone they possess) via established protocols (Luger et al., 1999). We also prepared an octamer that contains both H2BS6ADPr3 and H3S10ADPr3 (H2BS6/H3S10ADPr3), and another that contains both H2BS6ADPr4 and H3S10ADPr4 (H2BS6/H3S10ADPr4). Following purification via gel filtration chromatography, octamer quality and ADPr stability was determined via SDS-PAGE/western blot analysis. Histone detection via western blotting with H2B and H3 antibodies revealed single, distinct species for each ADP-ribosylated H2B and H3 histone (Figure 4C and D). We found that ADP-ribose chain length is inversely proportional to histone gel migration distance, suggesting that single migration bands for H2B and H3 are a reliable indicator of modification stability and sample homogeneity. Additionally, all gel species that correspond to ADP-ribosylated histones exhibited strong signal in a pan-ADP-ribose detection blot (Figure 4E). Next, the eight ADP-ribosylated octamers were assembled into unique nucleosomes using a DNA template that contains the ‘601’ nucleosome positioning sequence and is compatible with a previously reported restriction enzyme accessibility (REA)-based chromatin remodeling assay (see Materials and methods for details) (He et al., 2006). Nucleosome quality was analyzed on a native polyacrylamide TBE gel, which shows a single, distinct nucleosome species for each assembly and only trace levels of free 601 DNA (Figure 4F). Notably, ADP-ribose has a polymer length-dependent effect on nucleosome gel migration patterns, again indicating sample homogeneity and modification stability. We also note that all H2B and H3 histones have an alanine-to-cysteine mutation at the respective ligation junction (H2BA17C and H3A21C). To ensure that no disulfide bonds were present, native TBE gel analyses were conducted after incubating the nucleosomes in the chromatin remodeling buffer and conditions. Additionally, a recent publication has shown that mono-ADPr is stable under desulfurization conditions, and conversion to the native alanine residue can be employed if desired (Hananya et al., 2021). We thus concluded that all of our site-specifically ADP-ribosylated histones could be efficiently incorporated into nucleosomes for downstream chromatin remodeling experiments.

Serine ADPr converts nucleosomes into robust ALC1 substrates

Recombinant, full-length ALC1 was isolated to determine chromatin remodeling rate constants with each ADP-ribosylated nucleosome substrate. The DNA from each remodeling reaction was isolated at various time points and remodeling-dependent restriction enzyme cleavage was visualized on a polyacrylamide TBE gel and quantified via densitometry (Figure 5A and Figure 5—figure supplement 1A). Consistent with the macrodomain interaction results, ALC1 exhibits relatively low remodeling rate constants ( < 3 × 10–4 min–1) with unmodified and mono-ADP-ribosylated nucleosome substrates (Figure 5B and Supplementary file 6). Contrastingly, robust chromatin remodeling activity is observed with all nucleosomes that contain tri- or tetra-ADP-ribose at the H2B or H3 sites. The H2BS6/H3S10ADPr4 nucleosome has the most striking effect on the ALC1 remodeling rate constant, which increases ~370 fold relative to the unmodified nucleosome. Further rate constant analyses show that ALC1 exhibits modest preference for the H2BS6 modification site and tetra-ADP-ribose polymers (Figure 5B). Importantly, a macrodomain deletion construct of ALC1 (1–673) showed no preference towards H2BS6ADPr4 nucleosomes over unmodified nucleosomes (Figure 5—figure supplement 1B). Therefore, the modified histone tail:macrodomain interaction is important for ALC1 substrate selectivity. We also found that freely diffusing macrodomain ligands are unable to appreciably stimulate ALC1-dependent nucleosome remodeling activity, as observed in a reaction comprising H2BS6ADPr4 or H3S10ADPr4 peptide, ALC1 and unmodified nucleosomes (Figure 5C and Figure 5—figure supplement 1A and C). Furthermore, freely diffusing macrodomain ligands do not inhibit nucleosome ADPr-dependent stimulation of ALC1 (Figure 5—figure supplement 1D), suggesting that substrate engagement is also influenced by additional ALC1:nucleosome interfaces, of which several have been identified (Bacic et al., 2021; Lehmann et al., 2020).

Figure 5 with 2 supplements see all

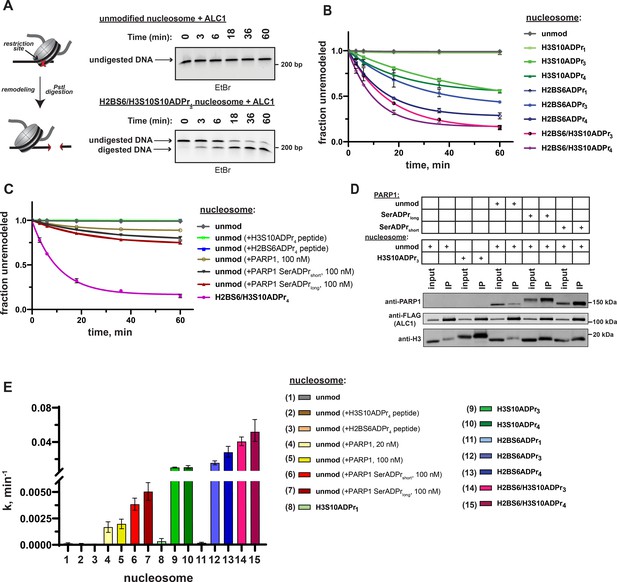

ADPr at H2BS6 and H3S10 convert nucleosomes into robust ALC1 substrates.

(A) Schematic depicting the REA assay for chromatin remodeling and representative TBE gel analyses of recombinant ALC1 activity on unmodified or H2BS6/H3S10ADPr4 nucleosomes. (B) ALC1 nucleosome remodeling assay time-course wherein each reaction comprises ALC1 and the indicated nucleosome (‘unmod’ = unmodified). (C) As in (B), but each reaction comprises ALC1, unmodified nucleosome (20 nM), and the indicated modified histone peptide or PARP1. Modified histone peptide concentration is equal to the corresponding full-length histone concentration (40 nM). The H2BS6/H3S10ADPr4 nucleosome remodeling data is included for direct comparison. (D) Western blot analysis of a FLAG immunoprecipitation (IP) wherein ALC1 is FLAG-tagged and its association with nucleosomes is analyzed in the presence and absence of unmodified or automodified PARP1. The corresponding input (5%) was loaded alongside the IP (elution) lanes for comparison. (E) ALC1 remodeling rate constants calculated from data in (B, C) and Figure 5—figure supplement 2A. Rate constants were determined by fitting data to a non-linear regression model for one phase exponential decay. Data in (B) and (C) are represented as mean ± s.d. (n = 3), while the error bars in (E) represent 95% CI. Curves in (B) and (C) represent data fitting to a non-linear regression model for one-phase exponential decay.

We next asked how ALC1 activation by nucleosome serine ADPr compares to activation by auto-ADP-ribosylated PARP1 (Gottschalk et al., 2009; Gottschalk et al., 2012; Lehmann et al., 2017; Singh et al., 2017). As previously described, chromatin remodeling reactions were performed on unmodified nucleosome substrates in the presence of NAD+ and PARP1 (Gottschalk et al., 2009; Gottschalk et al., 2012). In this experimental setup, PARP1 maintains auto-ADPr activity but is unable to modify histones due to absence of HPF1. Quantitative PARP1 auto-ADPr was observed within 5 min of initiating the reaction as judged by altered PARP1 gel migration in SDS-PAGE/western blot analyses (Figure 5—figure supplement 1E). PARP1 was added to the reaction at equimolar concentrations relative to nucleosome substrates 20 nM to closely mimic ADP-ribose concentrations in our modified nucleosome experiments or 100 nM to ensure optimal ALC1 activation. We found that auto-ADP-ribosylated PARP1 leads to an ~12 fold increase in ALC1 remodeling rate constant on unmodified nucleosomes (Figure 5C, Figure 5—figure supplement 2A and Supplementary file 6). Notably, higher PARP1 concentrations were unable to further stimulate ALC1 remodeling activity (Figure 5—figure supplement 2B).

In the PARP1 automodification reaction described above, aspartate and glutamate side chains are the primary targets for ADPr as no HPF1 is present. However, in the cellular DNA damage response, it is now well-established that automodification occurs primarily on serine residues (Bonfiglio et al., 2017; Palazzo et al., 2018). We also observed partial ADPr of ALC1 during this assay (Figure 5—figure supplement 2C), which may impact remodeling activity. We therefore performed a PARP1 automodification reaction in the presence of low (5 µM) or high (25 µM) amounts of HPF1 as a separate step prior to the remodeling assay. By employing different HPF1 concentrations, a full-length PARP1 construct with relatively short (PARP1 SerADPrshort) and long (PARP1 SerADPrlong) serine-linked ADP-ribose chains could be generated. These constructs were purified over a heparin column to separate automodified PARP1 from DNA, NAD+ and HPF1, which could otherwise abrogate the nucleosome interaction or induce spurious ADPr of reaction components such as ALC1. The auto-ADPr linkage identity was then validated via hydroxylamine treatment, which specifically cleaves ADPr from aspartate and glutamate side chains. As expected, the ADP-ribose chains conjugated to PARP1 SerADPrshort and PARP1 SerADPrlong are largely resistant to hydroxylamine cleavage (Figure 5—figure supplement 2D). We note that a small amount of hydroxylamine-dependent ADP-ribose chain cleavage was observed in the PARP1 SerADPrlong sample. Thus, a small population of aspartate- and/or glutamate-linked ADPr is present in this sample, likely due to the relatively low HPF1:PARP1 ratio that was required to produce long ADP-ribose chains. Immunoprecipitations with FLAG-tagged ALC1 revealed that PARP1 SerADPrshort and PARP1 SerADPrlong are able to induce formation of an ALC1:nucleosome:PARP1 complex (Figure 5D). We then titrated each construct into an ALC1 remodeling reaction with unmodified nucleosomes and observed optimal remodeling stimulation at 100 nM of automodified PARP1 (Figure 5—figure supplement 2E). Remodeling rate constant calculations show that PARP1 SerADPrshort and PARP1 SerADPrlong stimulate ALC1 activity ~28 fold and ~36 fold, respectively, when compared to activity in the absence of automodified PARP1 (Figure 5C and Supplementary file 6). We also found automodified PARP1 is unable to further stimulate ALC1 remodeling activity when an ADPr nucleosome substrate is employed (Figure 5—figure supplement 2F), which clearly demonstrates that nucleosome ADPr significantly influences ALC1 remodeling even in the presence of automodified PARP1. We stress that while nucleosome serine ADPr is superior to PARP1 auto-ADPr for ALC1 activation in biochemical assays (Figure 5E), these data do not allow us to conclude that this is the case in the cellular DNA damage response. However, our work does raise interesting new questions about regulatory mechanisms underlying ALC1 activity (see Discussion).

ALC1 specificity persists within mixed nucleosome pools

To further probe ALC1 nucleosome substrate selectivity, we designed a method to pool unmodified, mono-, tri-, and tetra-ADP-ribosylated nucleosomes into a single reaction and analyze nucleosome remodeling activity for each unique substrate simultaneously (Figure 6A). Similar next-generation sequencing-based approaches have been implemented for rate constant analysis of the ISWI chromatin remodeler family (Dann et al., 2017). If ALC1 activity is dependent upon the ADPr status of target nucleosomes, only the tri- and tetra-ADP-ribosylated species should be efficiently remodeled in this substrate competition-based platform. We again turned to the REA assay but appended a unique 5′ 15-base pair primer binding site to each 601 DNA template. Importantly, we designed priming sequences with similar primer binding efficiencies and found that DNA sequence alterations in this region of the template do not affect remodeling rates (Figure 6—figure supplement 1A). In this assay, restriction enzyme-dependent destruction of a given 601 template amplicon is quantified by qPCR to monitor remodeling activity. Thus, unique primer pairs corresponding to each nucleosome can be employed to determine substrate-specific chromatin remodeling rate constants in heterogenous substrate reactions.

Figure 6 with 1 supplement see all

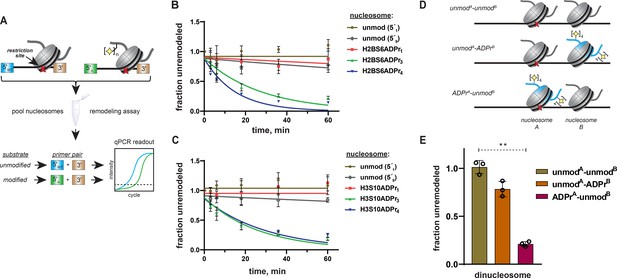

Specificity of ALC1 is preserved in heterogenous nucleosome populations and on asymmetrically ADP-ribosylated dinucleosome substrates.

(A) Schematic depicting the strategy to prepare heterogenous nucleosome substrate pools and determine ALC1 remodeling activity on specific nucleosomes. (B) ALC1 nucleosome remodeling assay time-course for each nucleosome in the histone H2B mixed substrate pool. Two unmodified nucleosomes with different 5′ primer sequences (5′1 and 5′9) were included as internal controls. (C) As in (B), but with the histone H3 substrate pool. (D) A diagram depicting the various dinucleosome constructs assembled in this study. Blue shade represents the modified histone H2B, the red cross represents the PstI restriction site and the yellow star represents the ADP-ribose modification. (E), Chromatin remodeling assays with ALC1 on the indicated dinucleosome substrates. ** indicates p-value < 0.001, obtained using an unpaired Student’s t-test with Welch’s correction. Data in (B), (C), and (E) are represented as mean ± s.d. (n = 3). Curves in (B) and (C) represent data fitting to a non-linear regression model for one-phase exponential decay.

We assembled a nucleosome pool comprising equimolar concentrations of H2BS6ADPr1, H2BS6ADPr3, H2BS6ADPr4, and two unmodified nucleosome controls. An additional unmodified nucleosome without the PstI restriction site and a free DNA template with the PstI site were also included as negative and positive digestion controls, respectively. The heterogeneous nucleosome substrate pool was employed in ALC1 remodeling reactions as described above, and DNA from various time points was isolated and analyzed via qPCR. We found that relative remodeling rate constants were consistent with those observed in our single substrate, densitometry-based assays (Figure 6B and Supplementary file 7). ALC1 again exhibits modest preference for the H2BS6ADPr4 nucleosome relative to the H2BS6ADPr3 nucleosome. Remodeling was very slow for the unmodified and H2BS6ADPr1 nucleosomes and corresponding rate constants could not be determined in this assay platform. Substrate preferences were also maintained within a similar H3S10-modified substrate pool (Figure 6C and Supplementary file 7). Notably, H3 nucleosomes were analyzed as a separate population because they require a higher ALC1 concentration to achieve optimal dynamic range in the qPCR-based assay.

As a complementary approach, three asymmetrically ADP-ribosylated dinucleosome constructs were prepared wherein: (i) both nucleosome A and B are unmodified (unmodA-unmodB), (ii) nucleosome A is unmodified and nucleosome B comprises H2BS6ADPr4 histones (unmodA-ADPrB), or (iii) nucleosome A comprises H2BS6ADPr4 histones and nucleosome B is unmodified (ADPrA-unmodB) (Figure 6D, Figure 6—figure supplement 1B). In all dinucleosome constructs, nucleosome A bears a 45 base pair DNA overhang and is separated from nucleosome B by a 15 base pair DNA linker to allow for remodeling to occur. By removing the PstI site from nucleosome B, we were able to specifically monitor ALC1 remodeling activity on nucleosome A using our REA assay. Following incubation with ALC1, robust nucleosome A remodeling activity was observed (~79% remodeled in 60 min) with the ADPrA-unmodB construct as expected (Figure 6E, Figure 6—figure supplement 1C). In contrast, relatively modest nucleosome A remodeling activity was observed (~21% remodeled in 60 min) with the unmodA-ADPrB construct. While these single time-point analyses cannot be directly compared to the mononucleosome remodeling rate constant analyses, the dinucleosome remodeling activity results are consistent with the automodified PARP1 experiments; PARP1 auto-ADPr and adjacent nucleosome ADPr both tether poly-ADP-ribose in close proximity to unmodified nucleosomes but neither is able to fully stimulate ALC1. These experiments demonstrate that ALC1 preferentially remodels binding-competent nucleosome substrates and target disengagement triggers rapid transition back to an inactive conformation. This mechanism likely minimizes the potential for freely diffusing, activated ALC1 to be present in the nuclear milieu.

Nucleosome serine ADPr triggers ALC1-dependent chromatin remodeling in nuclear extracts

It is possible that a poly-anionic chain fused to H2BS6 or H3S10 destabilizes the histone octamer:DNA complex and thereby non-specifically sensitizes nucleosomes to ATP-dependent chromatin remodelers. To examine this concept, we isolated the ATP-dependent chromatin remodeler CHD4 for activity analysis. CHD4 lacks a macrodomain while its ATPase domain shares a high degree of sequence similarity (63%) with ALC1 (Figure 7—figure supplement 1A), suggesting that the two enzymes may catalyze DNA translocation through similar mechanistic principles. The REA assay revealed that CHD4 remodels unmodified nucleosomes with a rate constant of ~0.01 min–1 and this activity is not appreciably affected by the nucleosome ADPr status (Figure 7A and B, Figure 7—figure supplement 1B, and Supplementary file 6). These data suggest that nucleosome serine ADPr does not simply decrease the energy barrier to DNA translocation but rather serves to specifically stimulate ALC1-dependent chromatin remodeling.

Figure 7 with 1 supplement see all

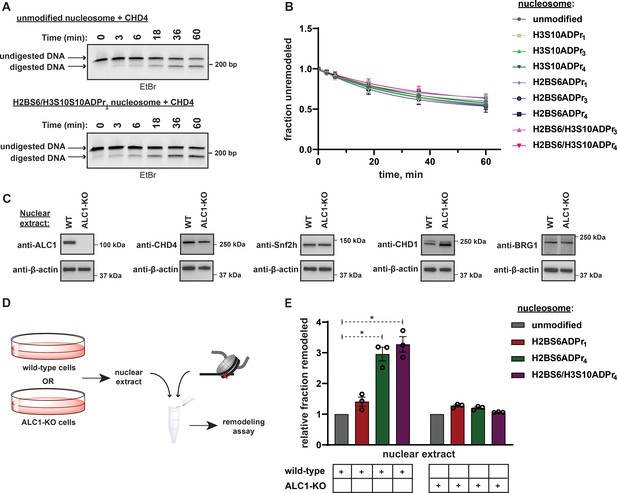

Nucleosome serine ADPr stimulates ALC1-dependent chromatin remodeling activity in nuclear extracts.

(A) Representative TBE gel analysis from a REA assay corresponding to recombinant CHD4 chromatin remodeling activity on unmodified or H2BS6/H3S10ADPr4 nucleosomes. (B) CHD4 nucleosome remodeling assay time-course wherein each reaction comprises CHD4 and the indicated nucleosome substrate. Data are represented as mean ± s.d. (n = 3). Curves represent fit of data into a non-linear regression model for one-phase exponential decay. (C) Western blot analysis demonstrating the presence of various chromatin remodelers in the wild-type or ALC1 knock-out (KO) HEK293T nuclear extracts. (D) Schematic depicting the strategy to analyze chromatin remodeling activity in wild-type or ALC1-KO HEK293T nuclear extracts. (E) Nuclear extract nucleosome remodeling activity assay wherein each reaction comprises the indicated nucleosome substrate and wild-type or ALC1-KO HEK293T cell nuclear extracts. Total remodeling for each ADP-ribosylated nucleosome substrate relative to the unmodified nucleosome substrate in the respective nuclear extract is shown. Data are represented as mean ± s.e.m. (n = 3). * indicates p-value < 0.02, obtained using an unpaired Student’s t-test with Welch’s correction.

Figure 7—source data 1

Uncropped TBE gels and western blots from Figure 7.

https://cdn.elifesciences.org/articles/71502/elife-71502-fig7-data1-v3.zip

To investigate the ability of nucleosome serine ADPr to stimulate ALC1 activity in a more physiological context, mammalian cell nuclear extracts were employed as a source of remodeling activity with the ADP-ribosylated nucleosome substrates. Nuclear extracts were prepared from wild-type or ALC1 knock-out (KO) HEK293T cells and the presence of various endogenous chromatin remodelers was confirmed (Figure 7C). Each extract was then incubated with unmodified, H2BS6ADPr1, H2BS6ADPr4, or H2BS6/H3S10ADPr4 nucleosomes for 60 min and total remodeling activity was determined via the REA assay (Figure 7D). The wild-type extract exhibited a ~ 3 fold increase in total remodeling activity towards the H2BS6ADPr4 and H2BS6/H3S10ADPr4 nucleosomes when compared to their unmodified counterpart (Figure 7E). Contrastingly, there was no appreciable increase in activity towards the H2BS6ADPr1 nucleosome. Strikingly, the ALC1-KO nuclear extract exhibited no remodeling substrate preference regardless of nucleosomes ADPr status (Figure 7E, and Figure 7—figure supplement 1C). We note that no accumulation of additional ADPr events was detected in these extracts throughout the duration of the assay (Figure 7—figure supplement 1D). Importantly, partial hydrolysis of nucleosome poly-ADPr was detected following the assay, likely due to the presence of ARH3, PARG, and/or other glycohydrolases. Therefore, the remodeler substrate preference in wild-type extracts may actually be even greater than what we observed in this assay. We also observed an increase in overall remodeling activity towards all substrates in the ALC1-KO extract (for raw data, see Figure 7—figure supplement 1E and Supplementary Dataset), which may be a consequence of subtle lysate preparation variables or represent a cellular mechanism to compensate for loss of ALC1.

Discussion

Chemical and topological complexities have stymied previous efforts to synthesize poly-ADP-ribosylated proteins. Our investigation of HPF1-dependent and -independent PARP1 activities in peptide serine ADPr reactions guided the development of a multistep chemoenzymatic approach that is broadly applicable for the preparation of poly-ADP-ribosylated peptides and fully compatible with protein ligation technologies. Through the use of chemically homogenous, ADP-ribosylated histones we were able to define a biochemical role for nucleosome serine ADPr and explore long-standing questions related to DNA damage-induced chromatin remodeling.

Multiple recent reports show that the PARP1/2:HPF1 complex catalyzes the formation of relatively short poly-ADP-ribose chains (Bilokapic et al., 2020; Bonfiglio et al., 2020; Gibbs-Seymour et al., 2016). Our study is unique in that we prepare unmodified and mono-ADP-ribosylated peptide substrates and use HPLC-MS to analyze PARP1 reaction products in the absence and presence of HPF1. This approach demonstrated that HPF1 simultaneously stimulates mono-ADPr activity and blocks ADP-ribose chain elongation on trans-peptide substrates. The biological two-step ADPr process explains why mono- and poly-ADPr reactions must be separated for scalable preparation of poly-ADP-ribosylated peptides – the high concentrations of HPF1 required for maximal conversion of unmodified peptides to the mono-ADP-ribosylated species simultaneously inhibits formation of the poly-ADP-ribosylated species (Supplementary file 8).

Our data support PARP2:HPF1 structural implications that mono- and poly-ADPr are mutually exclusive activities (Suskiewicz et al., 2020) and demonstrate that structural dynamics are insufficient to accommodate both catalytic mechanisms. More contemporaneous studies show that HPF1 rapidly associates and dissociates from PARP1 to regulate serine-specific mono- and poly-ADPr (Langelier et al., 2021; Prokhorova et al., 2021). This mechanism, together with ARH3- and PARG-dependent ADP-ribosylhydrolase activity (Bonfiglio et al., 2020), are believed to be critical regulators of ADPr at DNA damage sites. Notably, HPF1 and PARP1/2 undergo DNA damage-induced ADPr, which may serve to disrupt the complex and regulate ADP-ribose polymerization. This would explain why we and others observe elongation activity in recombinant assays that include relatively high molar ratios of HPF1 to PARP1; ADPr on one or both complex components decreases the effective PARP1:HPF1 concentration as the reaction progresses. It is also likely that high HPF1 concentration is necessary to ensure rapid re-association with the PARP1:DNA complex based on the ‘rapid association/dissociation’ model described above. Alternatively, we note that the cellular molar ratio of PARP1 to HPF1 (20:1) (Hein et al., 2015) is favorable for a mechanism wherein free PARP1 displaces the PARP1/2:HPF1 complex once mono-ADP-ribose seeding has occurred.

In chromatin remodeling experiments, ALC1 exhibits modest preference for the H2BS6 site and tetra-ADPr despite the observation that all H2BS6ADPr3,4 and H3S10ADPr3,4 peptides engage the ALC1 macrodomain with equal affinity. It is therefore likely that each histone modification site requires an ideal ADP-ribose chain length that allows the ATPase domain to progress through the DNA translocation cycle while the macrodomain:histone tail interaction is maintained. There are several factors that may explain why nucleosome serine ADPr more efficient than auto-ADP-ribosylated PARP1 for ALC1 activation in our assays: (i) robust ALC1 activation by auto-ADP-ribosylated PARP1 may require a specific modification site and ADP-ribose chain length that is only partially represented on our automodified PARP1 constructs, (ii) the PARP1:nucleosome interaction, while necessary for ALC1 recruitment and activation, may also sterically abrogate DNA translocation activity, and (iii) a direct interaction between ALC1 and ADP-ribosylated nucleosomes may be stronger than the ternary complex that is mediated by automodified PARP1, as evidenced from nucleosome pull-down efficiency in Figure 5D.

Critical distinctions unique to nucleosome ADPr over other ADP-ribosylated proteins are: (i) the nucleosome-incorporated histones cannot diffuse away from the DNA damage site, and (ii) the stimulatory ADP-ribose chain is not tethered to a DNA-bound protein that may sterically hinder remodeling by ALC1. Therefore, nucleosome ADPr offers a fail-safe mechanism to ensure that robust ALC1-dependent remodeling can persist in the event that automodified PARP1 dissociates from the damage site prior to ALC1 activation. It is also interesting that ALC1 exhibits prolonged retention at DNA damage sites in HPF1-null cells where serine ADPr does not occur (Gibbs-Seymour et al., 2016). This is consistent with our observation that aspartate/glutamate-automodified PARP1 is the least potent activator in biochemical assays. It is plausible that serine ADPr, be it tethered to the nucleosome or PARP1, is critical for ALC1 remodeling activity at DNA damage sites in cells. While our technology has allowed us to separate and characterize ALC1 activation by ADPr on nucleosomes or PARP1 in a reconstituted environment, new approaches will be required to specifically control these parameters and analyze their contributions to ALC1-dependent remodeling at damage sites in cells.

Analyses of remodeling activity in biochemical assays and mammalian cell nuclear extracts show that nucleosome serine ADPr is sufficient to specifically activate ALC1 in the absence of auto-ADP-ribosylated PARP1. We surmise that other PARP1/2-dependent chromatin remodelers are recruited to damage sites via alternative ADPr modification sites or chain lengths, as has been reported for SMARCA5 (Smeenk et al., 2013). Additionally, these remodelers may not directly interact with ADP-ribose but are rather recruited by alternative PARP1/2-dependent activities, a phenomenon that has been demonstrated for CHD4 (Smith et al., 2018). Thus, our study supports the ‘PAR code’ hypothesis (Aberle et al., 2020) as it pertains to chromatin structure at DNA lesions wherein different ADPr sites and chain lengths may orchestrate spaciotemporal control over unique remodeler activities. Notably, dozens of proteins reportedly exhibit PARP1/2-dependent recruitment to DNA damage sites and have been annotated as ADP-ribose ‘readers’ (Ray Chaudhuri and Nussenzweig, 2017; Teloni and Altmeyer, 2016). With full-length ADP-ribosylated proteins, ADPr-mediated activities can now be reconstituted for rigorous biochemical, biophysical, and structural analysis.

Beyond protein recruitment, it will now be possible to explore the direct biophysical effects that H2B and H3 ADPr have on poly-nucleosome array structure and compaction. Our modular chemoenzymatic approach can also be expanded to other PARP1/2:HPF1 substrate proteins, wherein one would expect to find ADPr exerts its effects via unique regulatory mechanisms that are tailored to the target protein. As demonstrated here, critical aspects of PARP biological function can be unveiled by reconstituting ADP-ribosylated proteins and related signaling pathway components. A greater understanding of PARP-regulated biological processes, including ALC1 activation, may lead to identification of new biomarkers and therapeutic strategies for PARP inhibitor-sensitive diseases.

Technological limitations

The method described here is currently limited to installation of ADP-ribose units ~ 4–5 linear units in length. Exceedingly large-scale reactions would be required to prepare peptides modified with longer ADP-ribose chains. Therefore, this method is ideal to study signal transduction events that are mediated by relatively short ADP-ribose chains. Our strategy also requires that a peptide of interest be a substrate for the PARP1:HPF1 complex. Alternative ADP-ribosyltransferases will be required to install ADPr on proteins that are not endogenous targets of this complex using the chemoenzymatic approach presented here. While all histones reported here were prepared via an N-terminal ligation (i.e. ADPr on the amino-terminal protein fragment), C-terminal and sequential ligations are also compatible with our method. As proof of feasibility, an H3S28ADPr4 peptide construct (amino acids 21–34) was prepared with an N-terminal cysteine and an oxidized C-terminal bis(2-sulfanylethyl)amido (SEA) group. This peptide was then ligated to the H3S10ADPr4 thioester peptide construct (amino acids 1–20) and the SEA group reduced to generate an H3S10/S28ADPr4 product (amino acids 1–34) that can be employed in downstream ligations if desired (Supplementary file 9). Lastly, our method is still susceptible to restraints that exist throughout the field of protein chemistry. This means that alternative protein ligation technologies will be required to install modification onto full-length proteins that are not amenable to protein folding.

Quantification and statistical analysis

Details related to replicates, error, and curve fitting are described in respective figure legends. In Figure 6E, the difference of means of fraction unremodeled between the unmodA-unmodB and ADPrA-unmodB dinucleosomes was statistically significant with a p-value of 0.0008 (95% CI ranging from –0.9521 to –0.6545), obtained using an unpaired Student’s t-test with Welch’s correction. In the remodeling experiment with wild-type nuclear extracts (Figure 7E), p-value for the difference of mean between the unmodified and H2BS6/H3S10ADPr4 nucleosome data was 0.0120 (95% CI ranging from 1.195 to 3.355) and that for the difference of mean between the unmodified and H2BS6ADPr4 nucleosome data was 0.0127 (95% CI ranging from 1.000 to 2.918).

Contact for reagent and resource sharing

Further information and requests for reagents may be directed to and will be fulfilled by the Lead Contact, Dr. Glen Liszczak (glen.liszczak@utsouthwestern.edu).

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Recombinant DNA reagentPARP1 (pACEBac1) (plasmid)This studySee Materials and methods
Recombinant DNA reagentPARP2 (pACEBac1) (plasmid)Addgene111,574
Recombinant DNA reagentHPF1 (pET30) (plasmid)This studySee Materials and methods
Recombinant DNA reagentHPF1D283A (pET30) (plasmid)This studySee Materials and methods
Recombinant DNA reagentARH3 (pET30) (plasmid)Addgene111,578
Recombinant DNA reagentPARG (pET30) (plasmid)This studySee Materials and methods
Recombinant DNA reagentALC1 macrodomain (pET30) (plasmid)This studySee Materials and methods
Recombinant DNA reagentALC1 ATPase domain (pET30) (plasmid)This studySee Materials and methods
Recombinant DNA reagentALC1 (pACEBac1) (plasmid)This studySee Materials and methods
Recombinant DNA reagentCHD4 (pACEBac1) (plasmid)This studySee Materials and methods
Recombinant DNA reagentHistone H2A (pET30) (plasmid)This studySee Materials and methods
Recombinant DNA reagentHistone H2B (pET30) (plasmid)This studySee Materials and methods
Recombinant DNA reagentHistone H2B truncated (pET30) (plasmid)This studySee Materials and methods
Recombinant DNA reagentHistone H3 (pET30) (plasmid)This studySee Materials and methods
Recombinant DNA reagentHistone H3 truncated (pET30) (plasmid)This studySee Materials and methods
Recombinant DNA reagentHistone H4 (pET30) (plasmid)This studySee Materials and methods
Sequence-based reagentDNA oligonucleotidesThis studySee Supplementary file 10
AntibodyAntibodies used for western blotSee Supplementary file 11
Strain, strain background (Escherichia coli)Mach1 (Escherichia coli)ThermoFisherC862003
Strain, strain background (Escherichia coli)DH10BacThermoFisher10361012
Strain, strain background (Escherichia coli)Rosetta 2Sigma Aldrich714,023
Cell line (Spodoptera frugiperda)Sf9ThermoFisher11496015
Cell line (Homo sapiens)HEK293TATCCCRL-3216
Peptide, recombinant proteinFLAG peptideGenScriptRP10586-1Sequence:DYKDDDDK
Commercial assay or kitGibson Assembly Master MixNew England Biolabs (NEB)E2611S
Commercial assay or kitiTaq Universal SYBR Green SupermixBioRad1725121
Commercial assay or kitPierce BCA Protein Assay KitThermoFisher23,227
Chemical compound, drugβ-Nicotinamide adenine dinucleotide hydrateSigma AldrichN0632
Chemical compound, drugAdenosine triphosphateSigma AldrichA26209-1G
Chemical compound, drugHisPur Ni-NTA ResinThermoFisher88,223
Chemical compound, drugAnti-FLAG M2 Magnetic beadsMillipore SigmaM8823-5ML
Chemical compound, drugPhusion High-Fidelity DNA PolymeraseNEBM0530L
Chemical compound, drugPstI enzymeNEBR0140M
Chemical compound, drugDraIII enzymeNEBR3510S
Chemical compound, drugT4 Polynucleotide KinaseNEBM0201S
Chemical compound, drugT4 DNA LigaseNEBM0202L
Chemical compound, drugCellfectin II ReagentThermoFisher10362100
Chemical compound, drugSf-900 II SFM MediaThermoFisher10902096
Chemical compound, drugFetal Bovine SerumThermoFisher10438026
Chemical compound, drugDMEM, high glucose, pyruvateThermoFisher11995065
Chemical compound, drugPenicillin-StreptomycinThermoFisher15140122
Chemical compound, drugLipofectamine 2000ThermoFisher11-668-019
Chemical compound, drugPuromycin dihydrochlorideThermoFisherA1113803
Chemical compound, drugHydroxylamine hydrochlorideSigma Aldrich379,921
Chemical compound, drugN,N-dimethylformamideOakwood Chemical046776
Chemical compound, drugDichloromethaneOakwood Chemical035912
Chemical compound, drugTrifluoroacetic acidOakwood Chemical102,164
Chemical compound, drugAcetonitrileOakwood Chemical099891
Chemical compound, drugFormic Acid, LC/MS GradeThermo FisherA117-50
Chemical compound, drugN,N'-DiisopropylcarbodiimideOakwood ChemicalM02889
Chemical compound, drugEthyl cyanohydroxyiminoacetateOakwood Chemical043278
Chemical compound, drugN,N-DiisopropylethylamineSigma Aldrich496,219
Chemical compound, drugThionyl chlorideSigma Aldrich230,464
Chemical compound, drugTriisopropylsilaneSigma Aldrich233,781
Chemical compound, drugPiperidineSigma Aldrich104,094
Chemical compound, drugPyAOPOakwood Chemical024898
Chemical compound, drugEcono-Pac Chromatography ColumnsBio-Rad7321011
Chemical compound, drugSodium nitriteSigma Aldrich237,213
Chemical compound, drugTCEPGoldBioTCEP50
Chemical compound, drugSodium 2-mercaptoethanesulfonateSigma Aldrich63,705
Chemical compound, drug2,2,2-TrifluoroethanethiolSigma Aldrich374008–1 G
Chemical compound, drugTrityl-OH ChemMatrixBiotage7-420-1310
Chemical compound, drugRink-Amide-ChemMatrixBiotage7-600-1310
Chemical compound, drugFmoc-Ala-OHOakwood ChemicalM03347
Chemical compound, drugFmoc-Arg(pbf)-OHOakwood ChemicalM03398
Chemical compound, drugFmoc-Thr(tBu)-OHOakwood ChemicalM03389
Chemical compound, drugFmoc-Lys(Boc)-OHOakwood ChemicalM03419
Chemical compound, drugFmoc-Gln(trt)-OHCombi-BlocksQB-0626
Chemical compound, drugFmoc-Ser(tBu)-OHCombi-BlocksSS-0149
Chemical compound, drugFmoc-Gly-OHOakwood ChemicalM03361
Chemical compound, drugFmoc-Leu-OHOakwood ChemicalM03365
Chemical compound, drugFmoc-Pro-OHOakwood ChemicalM03372
Chemical compound, drugFmoc-Cys(Trt)-OHOakwood ChemicalM03395
Chemical compound, drugBoc-L-thiazolidine-4-carboxylic acidCombi-BlocksSS-9673
Chemical compound, drug5 (6)-CarboxyfluoresceinSigma Aldrich21877–1 G-F
Chemical compound, drugSEA-PS ResinIris Biotech8551520001
Software, algorithmPrismGraphPad
Software, algorithmFiji Image JOpen source
Software, algorithmMicrosoft OfficeMicrosoft
Software, algorithmAdobe Creative CloudAdobe
Software, algorithmSnapGeneGSL Biotech LLC
Software, algorithmChemDrawPerkinElmer
Software, algorithmBLASTNCBI
OtherLiberty Blue Automated Peptide SynthesizerCEM925,600
OtherAgilent 1,260 Infinity II with quaternary pump and variable wavelength detectorAgilentG7111B/G7114A
OtherAgilent 1,260 Infinity II with preparatory pump and variable wavelength detectorAgilentG7161A/G7114A
OtherAgilent LC/MSDAgilentG6125BA
OtherX500B QTOFSciexX500B QTOF
Other300 SB-C18, 4.6 × 100 mm, 3.5 umAgilent861973–902
OtherXBridge Peptide C18 column, 5 um, 4.6 mm x 150 mmWaters186003624
OtherXBridge Peptide C18 column, 5 um, 10 mm x 250 mmWaters186008193
OtherXBridge Peptide C18 column, 10 um, 19 mm x 250 mmWaters186003673
OtherAKTA pure 25 LGE Healthcare29018224
OtherAKTA startGE Healthcare29237234
OtherHiLoad 16/60 Superdex 200 pgGE Healthcare28989335
OtherSuperdex 200 Increase 10/300 GLGE Healthcare28990944
OtherHiTrap Heparin HPGE Healthcare17040701
Other5% Criterion TBE Polyacrylamide GelBio-Rad3450048
Other4%–12% Criterion XT Bis-Tris Protein Gel,Bio-Rad3450124
OtherCytation 5 Imaging readerBiotek17103120
OtherGreen FP filter set: EX 485/20 | EM 528/20 | DM 510, polarizersBiotek8040561
OtherChemidoc MP Imaging SystemBio-Rad734BR2154
OtherCFX384 Real Time System C1000 Touch Thermal cyclerBio-Rad786BR02877

Molecular cloning, protein expression, and protein purification

General protocols

Request a detailed protocol

All PCR amplification steps described here were performed using the Phusion High-Fidelity DNA Polymerase (NEB) according to the manufacturer’s protocols. All DNA oligonucleotides were synthesized by Sigma-Aldrich (Milwaukee, WI) or Integrated DNA Technologies (Coralville, IA). All plasmids used in this study were sequence verified by GENEWIZ (South Plainfield, NJ) or EurofinsGenomics (Louisville, KY). All cloning was carried out using Mach1 E. coli cells (ThermoFisher) and protein expression in E. coli was carried out in Rosetta2 cells (Sigma-Aldrich).

PARP1/PARP2 expression and purification

Request a detailed protocol

The full-length PARP1 gene was purchased from GE Healthcare and subcloned into a pACEBac1 plasmid bearing an N-terminal 6xHis-tag via a Gibson Assembly (NEB). The PARP2 expression plasmid (C-terminal FLAG-6xHis-tag) is available on Addgene (plasmid #: 111574). PARP1 and PARP2 proteins were produced in Sf9 cells (ThermoFisher) using a baculovirus expression system. Corresponding plasmids were transformed into DH10Bac cells (ThermoFisher) and bacmids were isolated via manufacturer’s protocols (ThermoFisher). All subsequent Sf9 cell and baculovirus manipulations were performed in a sterile biosafety cabinet. Cellfectin II (ThermoFisher) was employed to transfect 10 μg of bacmid into 1 × 106 attached Sf9 cells following manufacturer’s protocols (ThermoFisher). P1 virus was harvested 3 days post-transfection. 1 mL of P1 virus was then used to infect 20 mL of Sf9 cells grown in suspension at 1.5 × 106 cells per mL, which were maintained in a dark orbital shaker at 27 °C. Cells were centrifuged and supernatant (P2 virus) was collected once cell viability dropped to 50%, as measured by trypan blue staining. P3 virus was generated by infecting 50 mL of Sf9 cells at 1.5 × 106 cells per mL with 0.5 mL of P2 virus. P3 virus was harvested once cells reached 50% viability. Protein production was achieved by treating 2 L of Sf9 cells at 2.0 × 106 cells per mL with 20 mL of P3 virus for 48 h.

For PARP1, cells were harvested by centrifugation and disrupted via sonication in a lysis buffer containing 50 mM Tris, pH 7.5, 1 M NaCl, 1 mM MgCl2, 5 mM beta-mercaptoethanol (β-ME), and protease inhibitor cocktail (Roche). Soluble lysate was isolated via centrifugation at 100,000 RCF for 60 minutes at 4 °C. The target protein was captured on Ni-NTA resin that was pre-equilibrated in lysis buffer. Following 1 h batch binding, resin was washed with 50 column volumes (CV) of lysis buffer supplemented with 25 mM imidazole and eluted in a buffer containing 50 mM Tris, pH 7.0, 100 mM NaCl, 1.5 mM MgCl2, and 5 mM β-ME. Target protein was then loaded onto a HiTrap Heparin (GE Healthcare) column pre-equilibrated in a low salt buffer (50 mM Tris, pH 7.0, 150 mM NaCl, 1 mM EDTA, 1 mM TCEP) and elution was achieved via an isocratic salt gradient to a high salt buffer (50 mM Tris, pH 7.0, 1 M NaCl, 1 mM EDTA, 1 mM TCEP). Fractions containing the target protein were concentrated to 2  mL using an Amicon Ultra Centrifugal filter (Millipore; 30 kDa molecular weight cut-off [MWCO]) and injected into a gel filtration column (HiLoad 16/60 Superdex 200; GE Healthcare) that had been pre-equilibrated with a buffer containing 50  mM Tris, pH 7.5, 150  mM NaCl, 10% glycerol, and 1  mM TCEP. Pure fractions (as judged by SDS-PAGE) were pooled and concentrated to 100 μM, flash frozen in single-use aliquots, and stored at –80 °C.

For PARP2, cells were harvested by centrifugation and disrupted via sonication in a lysis buffer containing 20 mM Tris, pH 7.9, 500 mM NaCl, 4 mM MgCl2, 0.4 mM EDTA, 20% glycerol, 2 mM DTT, 0.4 mM PMSF, and protease inhibitor cocktail (Roche). Soluble lysate was isolated via centrifugation at 100,000 RCF for 60 min at 4 °C. The supernatant was carefully removed without disturbing the top layer and an equal volume of dilution buffer containing 20 mM Tris, pH 7.9, 10% glycerol, 0.02% NP-40 and protease inhibitor cocktail (Roche) was added to it. The target protein was captured on anti-FLAG M2 magnetic resin that was pre-equilibrated with dilution buffer. Following a 60 min batch binding, resin was washed with 50 CV of wash buffer containing 20 mM Tris, pH 7.9, 150 mM NaCl, 2 mM MgCl2, 0.2 mM EDTA, 15% glycerol, 0.01% NP-40, 0.2 mM PMSF, 1 mM DTT and protease inhibitor cocktail (Roche), and eluted in the wash buffer supplemented with FLAG peptide at a concentration of 0.25 mg/mL. Pure protein was concentrated using an Amicon Ultra Centrifugal filter (Millipore; 30 kDa MWCO) to around 55 μM, as determined by BSA standards in SDS-PAGE, flash frozen in single-use aliquots, and stored at –80 °C.

HPF1 (and HPF1D283A mutant)

Request a detailed protocol

A pET30 plasmid harboring the 6xHis-SUMO-FLAG-HPF1 protein (addgene plasmid #: 111577), encoding amino acids 27–346, was transformed into Rosetta2 (DE3) cells and inoculated into 6 L of Luria Broth (Miller). Cells were grown in a shaker at 37 °C up to an OD600 of 0.6 and protein expression was induced with 0.5 mM IPTG at 18 °C for 16 h. Cells were harvested by centrifugation and disrupted via sonication in a lysis buffer containing 50 mM Tris, pH 7.5, 500 mM NaCl, 5 mM β-ME and 1 mM PMSF. Soluble lysate was isolated via centrifugation at 40,000 RCF for 40 min at 4 °C. Target protein was captured on Ni-NTA resin that was pre-equilibrated in lysis buffer. Following 1 h batch binding at 4 °C, resin was washed with 50 CV of lysis buffer supplemented with 25 mM imidazole and protein was eluted in lysis buffer supplemented with 300 mM imidazole. The elution was dialyzed into a buffer containing 50 mM Tris, pH 7.5, 200 mM NaCl, and 5 mM TCEP for 16 h at 4 °C in the presence of the Ulp1 protease to cleave the SUMO tag. The dialysate was then incubated with Ni-NTA resin pre-washed with the dialysis buffer for 1 h at 4 °C to capture the cleaved SUMO tag and the Ulp1, and the flow-through containing the target protein was collected. The flow-through was concentrated to 2  mL using an Amicon Ultra Centrifugal filter (Millipore; 30 kDa MWCO) and injected into a gel filtration column (HiLoad 16/60 Superdex 200) that had been pre-equilibrated with a buffer containing 50  mM Tris, pH 7.5, 200  mM NaCl, 10% glycerol, and 2  mM TCEP. Pure fractions (as judged by SDS-PAGE) were concentrated to around 600 μM, flash frozen in single-use aliquots, and stored at –80 °C. The HPF1D283A bacterial expression plasmid was generated via inverse PCR from the parent pET30 plasmid containing the HPF1 construct and transformed into Rosetta2 (DE3) cells. It was purified in the same way as described for HPF1.

ARH3

Request a detailed protocol

A pET30 plasmid harboring the 6xHis-SUMO-ARH3 protein (addgene plasmid #: 111578) was transformed into Rosetta2 (DE3) cells and inoculated into 6 L of Luria Broth (Miller). Protein expression was induced with 0.5 mM IPTG at a cell OD600 of 0.6. Expression was carried out at 18 °C for 16 h. Cells were harvested by centrifugation and protein was purified using Ni-NTA resin followed by reverse nickel and size-exclusion chromatography (SEC) in a manner similar to that described for HPF1. Pure fractions from the SEC (as judged by SDS-PAGE) were concentrated to around 600 μM, flash frozen in single-use aliquots, and stored at –80 °C.

PARG

Request a detailed protocol

A PARG gene fragment encoding amino acids 448–976 was synthesized by Integrated DNA Technologies and cloned into a modified pET30 vector via Gibson Assembly to produce an E. coli expression plasmid for the 6xHis-SUMO-PARG construct. The plasmid was transformed into Rosetta2 (DE3) cells and inoculated into 2 L of Luria Broth (Miller). Protein expression was induced with 0.5 mM IPTG at a cell OD600 of 0.6, and carried out at 18 °C for 16 h. Cells were harvested by centrifugation and protein was purified using Ni-NTA resin followed by reverse nickel and size-exclusion chromatography (SEC) in a manner similar to that described for HPF1. Pure fractions from the SEC (as judged by SDS-PAGE) were concentrated to around 300 μM, flash frozen in single-use aliquots, and stored at –80 °C.

ALC1 macrodomain

Request a detailed protocol

The full-length ALC1 gene was synthesized by Twist Biosciences. A fragment encoding amino acids 636–878, corresponding to the macrodomain (Singh et al., 2017), was cloned into a modified pET30 vector via Gibson Assembly to produce an E. coli expression plasmid for the 6xHis-SUMO-ALC1macrodomain construct. The plasmid was transformed into Rosetta2 (DE3) cells and inoculated into 6 L of Luria Broth (Miller). Protein expression was induced with 0.5 mM IPTG at a cell OD600 of 0.6. Expression was carried out at 18 °C for 16 h. Cells were harvested by centrifugation and disrupted via sonication in a lysis buffer containing 50 mM Tris, pH 7.5, 500 mM NaCl, 5 mM β-ME and 1 mM PMSF. Soluble lysate was isolated via centrifugation at 40,000 RCF for 30 min at 4 °C. Target protein was captured on Ni-NTA resin that was pre-equilibrated in lysis buffer. Following 1 h batch binding, resin was washed with 50 CV of lysis buffer supplemented with 25 mM imidazole, and then 2 CV of lysis buffer supplemented with 80 mM imidazole, and target protein was eluted in lysis buffer supplemented with 300 mM imidazole. The elution was dialyzed into a buffer containing 50 mM Tris, pH 7.5, 200 mM NaCl, and 5 mM TCEP for 16 h at 4 °C in the presence of Ulp1 to cleave the SUMO tag. The dialysate was then incubated with Ni-NTA resin pre-washed with the dialysis buffer for 1 h at 4 °C to capture the cleaved SUMO tag and the Ulp1, and the flow-through containing the target protein was collected. The flow-through was concentrated to 2  mL using an Amicon Ultra Centrifugal filter (Millipore; 30 kDa MWCO) and injected into a gel filtration column (HiLoad 16/60 Superdex 200) that had been pre-equilibrated with a buffer containing 40 mM Tris, pH 7.5, 200 mM NaCl, 10% glycerol, and 2 mM TCEP. Pure fractions (as judged by SDS-PAGE) were concentrated to around 400 μM, flash frozen in single-use aliquots, and stored at –80 °C.

ALC1 ATPase domain

Request a detailed protocol

A fragment of the ALC1 gene encoding amino acids 1–673, corresponding to the ATPase domain (Singh et al., 2017), was cloned into a modified pET30 vector via Gibson Assembly to produce an E. coli expression plasmid for the 6xHis-SUMO-ALC1-ATPasedomain construct. The plasmid was transformed into Rosetta2 (DE3) cells and inoculated into 6 L of Luria Broth (Miller). Protein expression was induced with 0.5 mM IPTG at a cell OD600 of 0.6. Expression was carried out at 18 °C for 16 h. Cells were harvested by centrifugation and disrupted via sonication in a lysis buffer containing 50 mM Tris, pH 7.5, 500 mM NaCl, 5 mM β-ME and 1 mM PMSF. Soluble lysate was isolated via centrifugation at 40,000 RCF for 30 minutes at 4 °C. Target protein was captured on Ni-NTA resin that was pre-equilibrated in lysis buffer. Following 1 h batch binding, resin was washed with 50 CV of lysis buffer supplemented with 25 mM imidazole, and then 2 CV of lysis buffer supplemented with 50 mM imidazole, and target protein was eluted in lysis buffer supplemented with 300 mM imidazole. The elution was dialyzed into a buffer containing 50 mM Tris, pH 7.5, 500 mM NaCl, and 5 mM β-ME for 16 h at 4 °C in the presence of Ulp1 to cleave the SUMO tag. The dialysate was then incubated with Ni-NTA resin pre-washed with the dialysis buffer for 1 h at 4 °C to capture the cleaved SUMO tag and the Ulp1, and the flow-through containing the target protein was collected. The flow-through was concentrated to around 40 μM using an Amicon Ultra Centrifugal filter (Millipore; 30 kDa MWCO) and centrifuged at 20,000 RCF for 10 min. The supernatant was supplemented with 10% glycerol, flash frozen in single-use aliquots, and stored at –80 °C.

ALC1

Request a detailed protocol

The full-length ALC1 gene was cloned into a modified pACEBac1 vector via Gibson Assembly to produce the 6xHis-1xFLAG-ALC1 DNA construct. Bacmid and baculovirus preparation was performed as described for PARP1/2. Protein expression was achieved by treating 2 L of Sf9 cells at 2.0 × 106 cells per mL with 20 mL of P3 virus for 48 h. Cells were harvested by centrifugation and target protein was purified using anti-FLAG M2 magnetic resin in a procedure similar to that described for PARP2. Pure protein was concentrated using an Amicon Ultra Centrifugal filter (Millipore; 30 kDa MWCO) to around 20 μM, as determined by BSA standards in SDS-PAGE, flash frozen in single-use aliquots, and stored at –80 °C.

CHD4

Request a detailed protocol

The full-length CHD4 gene was purchased from Horizon Discovery and cloned into a modified pACEBac1 vector via Gibson Assembly to produce the CHD4-1xFLAG DNA construct. Bacmid and baculovirus preparation was performed as described for PARP1/2. Protein production was achieved by treating 2 L of Sf9 cells at 2.0 × 106 cells per mL with 20 mL of P3 virus for 48 h. Cells were harvested by centrifugation and target protein was purified using anti-FLAG M2 magnetic resin in a procedure similar to that described for PARP2. Pure protein was concentrated using an Amicon Ultra Centrifugal filter (Millipore; 30 kDa MWCO) to around 20 μM, as determined by BSA standards in SDS-PAGE, flash frozen in single-use aliquots, and stored at –80 °C.

Auto-ADP-ribosylated PARP1 (serine-linked)

Request a detailed protocol

The PARP1 purified by the above method was incubated in auto-ADP-ribosylation reactions with NAD+ and activating DNA. An HPF1 was titration experiment was employed to identify two concentrations at which relatively short or long serine-linked ADP-ribose chains could be installed on PARP1. Reactions (5 mL) included 2 μM of purified recombinant PARP1, 5 μM of activating DNA, and 250 μM of NAD+ and were incubated in a buffer containing 50 mM Tris (pH 7.5), 20 mM NaCl, 2 mM MgCl2, 1 mM TCEP with either 5 μM or 25 μM HPF1 for 30 min at 30 °C. The reaction with 5 μM HPF1 yielded PARP1 automodified with long serine-linked ADP-ribose chains and that with 25 μM HPF1 yielded PARP1 automodified with short serine-linked ADP-ribose chains. After completion of the automodification reaction, the sample was injected onto a 5 mL Cytiva HiTrap Heparin column (GE) that was pre-equilibrated with low salt buffer (150 mM NaCl, 50 mM Tris pH 7.5, 2 mM βMe, 1 mM MgCl2). The column was washed with 5 CV of low salt buffer and the protein was eluted using a gradient from the low salt buffer to a high salt buffer (1 M NaCl, 50 mM Tris pH 7.5, 2 mM βMe, 1 mM MgCl2) over 20 CV at a flow rate of 3 mL/min. Fractions were analysed on SDS-PAGE and those containing pure protein were pooled, concentrated to around 20 μM, supplemented with 10% glycerol, flash-frozen into single-use aliquots and stored in –80 °C.

Core histones (H2A, H2B, H3, H4)

Request a detailed protocol

Identical purification protocols were employed for each full-length histone. Expression plasmids were transformed into Rosetta2 (DE3) cells and inoculated into 1 L of Luria Broth (Miller). Protein expression was induced with 0.5 mM IPTG at a cell OD600 of 0.6. Expression was carried out at 37 °C for 3 h. Cells were harvested by centrifugation and disrupted via sonication in a lysis buffer containing 40  mM Tris, pH 7.5, 0.3  M NaCl, 1  mM EDTA, 5  mM β-ME, and 1  mM PMSF. Following centrifugation at 20,000 RCF for 30 min at 4 °C, the inclusion body pellet was then washed with lysis buffer supplemented with 1% Triton X-100 and centrifuged at 20,000 RCF for 15  min. This wash was repeated two more times with the final wash being performed in the absence of Triton X-100. Next, recombinant histone protein was extracted from the insoluble pellet in a buffer containing 50  mM Tris, 7.5, 300  mM NaCl, 6  M guanidine hydrochloride, and 5  mM β-ME for 1 hour at 25 °C and centrifuged at 20,000 RCF for 30  min. The soluble extract was then centrifuged at 100,000 RCF, injected onto a preparative C18 RP-HPLC column equilibrated in Solvent A (0.1% TFA in water) and eluted via an isocratic gradient 20–80% Solvent B (90% acetonitrile, 0.1% TFA in water) over a period of 30  min. Pure fractions (as determined by LC–MS) were lyophilized and stored at −80  °C until use in histone octamer assembly.

H2B (amino acids 17-125) and H3 (amino acids 21-135)

Request a detailed protocol

Identical protocols were employed for each truncated 6xHis-ketosteroid isomerase-SUMO-tagged histone. The ketosteroid isomerase tag (synthesized by IDT and incorporated into histone expression plasmids via Gibson Assembly) rapidly shuttles truncated histones to E. coli inclusion bodies to protect them from degradation and increase yield. Truncated histones were expressed and extracted as described for full-length histone constructs. Following extraction, the histones were immobilized on Ni-affinity resin in extraction buffer, washed with 50  mM Tris, pH 7.5, 300  mM NaCl, 6  M guanidine hydrochloride, 20  mM imidazole, and 5  mM β-ME, and eluted in wash buffer supplemented with 300  mM imidazole. The eluted protein was dialyzed for 16h at 4  °C into dialysis buffer (50  mM Tris, pH 7.5, 300  mM NaCl, 6  M urea, and 5  mM β-ME). Following dialysis, the sample was diluted three-fold with dilution buffer (50  mM Tris, pH 7.5, 300  mM NaCl, and 5  mM β-ME) in the presence of Ulp1 to cleave the ketosteroid isomerase-SUMO tag. This target proteins were then purified via preparative RP-HPLC and stored as described for full-length histone constructs.

601 DNA preparation

Request a detailed protocol

The 200bp template used to assemble all nucleosomes is shown below with the 601 sequence in bold, the PstI site in purple, and the overhangs underlined:

5′−GGCCGCTCTAGAACTAGTGGATCCGATATCGCTGTTCACCGCGTGACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCTGCAGCACCGGGATTCTCCAGCATCAGAG-3′.

The 601 sequence was purchased from IDT and incorporated into a pET30a plasmid via Gibson Assembly. DNA was amplified from the parent plasmid using Phusion polymerase and the primers shown in the Supplementary file 10. The PCR product was purified using QIAquick Spin Columns (Qiagen) following manufacturer’s protocols. Following elution, an ethanol precipitation step was performed and DNA was resuspended to 1 μg/μL in water for use in nucleosome assembly.

To insert unique 5 primer-binding sites for the nucleosome competition remodeling assays, primers bearing unique 5 15bp overhangs were employed in the protocol described above. Primer sequences are shown in the Supplementary file 10. The final template design is outlined below with the 601 sequence in bold, the PstI site in purple, the unique 5 primer-binding site in blue, and the universal 3 primer-binding site in red:

5′−nnnnnnnnnnnnnnnAGTGGATCCGATATCGCTGTTCACCGCGTGACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCTGCAGCACCGGGATTCTCCAGCATCAGAG-3′.

For dinucleosomes, the 601 DNA was designed such that nucleosome A had asymmetric overhangs (45 bp on one side and 15 bp on the other) and nucleosome B had symmetric overhangs (15 bp on either side). The DraIII restriction site was mutated out of the parental 601 DNA plasmid, and the resultant plasmid was used as template to amplify the 601 DNA construct for nucleosome A:

5′−GGCCGCTCTAGAACTAGTGGATCCGATATCGCTGTTCATCGCGTGACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCTGCAGCACCGGGATTCTCCAGCATCACAGAGTGAGGG-3′.

For nucleosome B, the template plasmid (without the DraIII site) was mutated once again to replace the PstI restriction site with a BamHI site. The resultant plasmid was then used as template for amplifying the 601 DNA construct for nucleosome B:

5′−CGCTCACAGAGTGGTGACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGGGATCCCACCGGGATTCTCCAGCATCAGAGACCTAGG-3′.

For the dinucleosome constructs, the purple underlined sequence represents the PstI or BamHI sites and the plain underlined sequence represents the DraIII site. The italic sequence is the 601 sequence.

Peptide synthesis

General protocols

Request a detailed protocol

All fluorenylmethyloxycarbonyl (Fmoc)-protected amino acids were purchased from Oakwood Chemical or Combi-Blocks. Peptide synthesis resins (Trityl-OH ChemMatrix and Rink Amide ChemMatrix) were purchased from Biotage. All analytical reversed-phase HPLC (RP-HPLC) was performed on an Agilent 1,260 series instrument equipped with a quaternary pump and an XBridge Peptide C18 column (5  μm, 4  ×  150  mm; Waters) at a flow rate of 1  mL/min. Similarly, semi-preparative scale purifications were performed employing a XBridge Peptide C18 semi-preparative column (5  μm, 10 mm × 250 mm, Waters) at a flow rate of 4  mL/min. Preparative RP-HPLC was performed on an Agilent 1,260 series instrument equipped with a preparatory pump and a XBridge Peptide C18 preparatory column (10  µM; 19  ×  250  mm, Waters) at a flow rate of 20  mL/min. All instruments were equipped with a variable wavelength UV-detector. All RP–HPLC steps were performed using 0.1% (trifluoroacetic acid, TFA, Oakwood Chemical) in H2O (Solvent A) and 90% acetonitrile (Sigma-Aldrich), 0.1% TFA in H2O (Solvent B) as mobile phases. For LC/MS analysis, 0.1% formic acid (Sigma-Aldrich) was substituted for TFA in mobile phases. Gradients and run times are described in the characterization section for each molecule. Mass analysis was carried out for each product on an LC/MSD (Agilent Technologies) equipped with a 300 SB-C18 column (3.5  µM; 4.6  ×  100  mm, Agilent Technologies) or a X500B QTOF (Sciex).

Preparation of amidated peptides

Request a detailed protocol
  • Sequence of H3 (1–20)-CONH2: ARTKQTARKSTGGKAPRKQL-CONH2.

  • Sequence of H3S10A (1-20)-CONH2: ARTKQTARKATGGKAPRKQL-CONH2.

  • Sequence of H2B (1-16)-CONH2: PEPAKSAPAPKKGSKK-CONH2.

  • Sequence of H2BS6A (1-16)-CONH2: PEPAKAAPAPKKGSKK-CONH2

  • Sequence of PARP1 (501–515)- CONH2: AALSKKSKGQVKEEG-CONH2.

  • Sequence of PARP1S507A (501-515)- CONH2: AALSKKAKGQVKEEG-CONH2.

  • Sequence of TMA16 (2-19)- CONH2: PKAPKGKSAGREKKVIHP-CONH2.

  • Sequence of TMA16S9A (2-19)- CONH2: PKAPKGKAAGREKKVIHP-CONH2.

The above amidated peptides were synthesized via solid-phase peptide synthesis on a CEM Discover Microwave Peptide Synthesizer (Matthews, NC) using the Fmoc-protection strategy on Rink Amide-ChemMatrix resin (0.5 mmol/g). For coupling reactions, amino acids (5 eq) were activated with N,N′-diisopropylcarbodiimide (DIC, 5 eq, Oakwood Chemical)/Oxyma (5 eq, Oakwood Chemical) and heated to 90 °C for 2 min while bubbling with nitrogen gas in N,N-dimethylformamide (DMF, Oakwood Chemical). Fmoc deprotection was carried out with 20% piperidine (Sigma-Aldrich) in DMF supplemented with 0.1 M 1-hydroxybenzotriazole hydrate (HOBt, Oakwood Chemical) at 90 °C for 1 min while bubbling with nitrogen gas. The H3 Cleavage from the resin was performed with 92.5% TFA, 2.5% triisopropylsilane (TIS, Sigma-Aldrich), 2.5% 1,2-ethanedithiol (EDT, Sigma-Aldrich), and 2.5% H2O for 2 h at 25 °C. The crude peptide was then precipitated by the addition of a 10-fold volume of cold ether and centrifuged at 4000 RCF for 10 min at 4 °C. The pellet was resuspended in Solvent A and purified via preparative RP-HPLC using a linear gradient from 0 to 30% Solvent B over 30 min. Fractions were analyzed on analytical RP-HPLC and ESI-MS and those containing pure product ( > 95%) were pooled, lyophilized, and stored at –80 °C.

Fluorescein-labeled H3.1 (1-20)-CONH2, H2B (1-16)-CONH2

Request a detailed protocol

Peptides were synthesized as described for the amidated species. Prior to cleavage, 5 (6)-carboxyfluorescein (3 eq, Sigma-Aldrich) was activated with PyAOP (3 eq, Oakwood Chemical) and N,N-diisopropylethylamine (DIPEA, 6 eq, Sigma-Aldrich) and coupled to the deprotected α-amine on resin for 30 min at 25 °C in DMF while bubbling with nitrogen gas. Resin was washed with DMF and treated with 20% piperidine in DMF prior to cleavage with 92.5% TFA, 2.5% TIS, 2.5% EDT, and 2.5% H2O for 2 h at 25 °C. The crude peptide was then precipitated by the addition of a 10-fold volume of cold ether and centrifuged at 4,000 RCF for 10 min at 4 °C. The pellet was resuspended in Solvent A and purified via preparative RP-HPLC using a linear gradient from 0 to 50% Solvent B over 40 min. Fractions were analyzed on analytical RP-HPLC and ESI-MS and those containing pure product ( > 95%) were pooled, lyophilized, and stored at –80 °C.

  • Sequence of H3.1 (1–20) -NHNH2: ARTKQTARKSTGGKAPRKQL-NHNH2.

  • Sequence of H2B (1-16) -NHNH2: PEPAKSAPAPKKGSKK-NHNH2.

Synthesis of H3.1 (1-20) -NHNH2, H2B (1-16) - NHNH2

Request a detailed protocol

H3 (1–20) and H2B (1-16) containing C-terminal hydrazide were synthesized similarly to the amidated peptides described above with the following modifications. ChemMatrix Trityl-OH PEG resin (0.49  mmol/g) was washed with dichloromethane (DCM, Oakwood Chemical) and reacted with 5% (v/v) thionyl chloride (Sigma-Aldrich) in DCM for 90 minutes at 25 °C. Resin was washed with DCM and this step was repeated to ensure efficient resin chlorination. Next, the resin was washed with DCM, DMF, and 5% (v/v) DIPEA in DMF. The resin was reacted with 9-fluorenylmethyl carbazate (Combi-Blocks) in the presence of DIPEA (20 eq) in DMF for 2 h at RT. The resin was washed with DMF and the 9-fluorenylmethyl carbazate coupling step was repeated to ensure complete loading. The resin was washed with DMF and 5% (v/v) anhydrous methanol (Sigma-Aldrich) in DMF. For coupling reactions, amino acids (5 eq) were activated with DIC (5 eq) and Oxyma (5 eq) and heated to 50 °C for 10 min while bubbling with nitrogen gas in DMF. Fmoc deprotection was carried out with 20% piperidine in DMF supplemented with 0.1 M HOBt at 60 °C for 4 min while bubbling with nitrogen gas. Cleavage and purification were performed as described for amidated peptides.

For peptide thioesterification, purified peptides containing C-terminal hydrazide were dissolved in a de-gassed buffer of 6 M guanidine hydrochloride and 0.1 M sodium phosphate, pH 3.0. The reaction was initiated by adding sodium nitrite (15 eq, Sigma-Aldrich) at –15 °C 10 min. The pH was monitored and maintained at 3.0 throughout the reaction. Immediately following this reaction, MESNa (75 eq, Sigma-Aldrich) and TCEP (final concentration of 20 mM, GoldBio) were added and the pH was adjusted to 7.0. The mixture was incubated at 25 °C for additional 30 min and monitored by RP-HPLC and ESI-MS analyses. Once quantitative conversion was complete, the peptide was purified via preparative RP-HPLC with a linear gradient of 0–30% Solvent B over 30 min. Pure fractions were characterized as described for amidated peptides, pooled, lyophilized, and stored at –80 °C.

Synthesis of H3 (21-34)-SEA, H3 (21-34, S28A)-SEA

Request a detailed protocol
  • Sequence of H3 (21–34)- SEA: Thz-TKAARKSAPATGG-SEA.

  • Sequence of H3S28A (21-34)- SEA: Thz-TKAARKAAPATGG-SEA where,

  • Thz = thiazolidine, and SEA = bis(2-sulfanylethyl)amido group.

H3 (amino acids 21–34) and the corresponding S28A mutant peptides containing N-terminal thiazolidine and C-terminal SEA were synthesized similarly to the amidated peptides described above with the following modifications. SEA resin (0.16  mmol/g; Iris Biotech) was weighed out, washed with DMF and bubbled in nitrogen for 15 min to swell the resin. Fmoc-glycine (5 eq) and HATU (1-Bis(dimethylamino)methylene-1H-1,2,3-triazolo [4,5-b]pyridinium 3-oxide hexafluorophosphate; 5 eq), and DIPEA (15 eq) were mixed in DMF and the resin was bubbled in this mixture for 1 h. This step was repeated with fresh reagents to ensure complete loading. The resin was then washed with DMF and bubbled in acetic anhydride:DIPEA (20 eq:40 eq) in DMF for 20 min for acetyl capping. For coupling reactions, amino acids (5 eq) were activated with DIC (5 eq) and Oxyma (5 eq) and heated to 50 °C for 10 min while bubbling with nitrogen gas in DMF. Fmoc deprotection was carried out with 20% piperidine in DMF supplemented with 0.1 M HOBt at 60 °C for 4 min while bubbling with nitrogen gas. Cleavage and purification were performed as described for amidated peptides. The use of thiazolidine offers a way to keep the thiol of the N-terminal cysteine protected while performing native chemical ligation on the C-terminus of the peptide.

Recombinant PARP1:HPF1 complex ADPr activity assays and analysis

General protocols

Request a detailed protocol

To analyze PARP1:HPF1 ADPr activity on synthetic peptide substrates, 1 μM PARP1 (or 2 μM for H2B peptides), 10 μM HPF1, 2 mM NAD+ (Sigma-Aldrich), and 1 μM stimulating DNA (or 2 μM for H2B peptides; see Supplementary file 10 for stimulating DNA sequence information) were combined into the ADPr reaction buffer (50 mM Tris, pH 7.5, 20 mM NaCl, 2 mM MgCl2, 5 mM TCEP) at a final volume of 25 μL (or 50 μL for H2B peptides). All substrate peptides were initially analyzed at a concentration of 180 μM (40 μM for H2B peptides). The reaction was then incubated at 30 °C for 25 min and quenched via addition of Solvent A to a final volume of 120 μL. Reactions were then centrifuged at 20,000 RCF for 5 min and 100 μL of the supernatant was injected onto an analytical C18 column for product analysis via RP-HPLC. An elution gradient of 0–35% Solvent B over 20 min was employed to separate the poly-ADP-ribosylated peptide products. Individual peaks corresponding to products with mono-, di-, tri-, tetra-, or penta-ADP-ribose were collected and analyzed by ESI-MS.

Fluorescent peptide ADPr

Request a detailed protocol

Reaction volumes were scaled to 1 mL to obtain sufficient amounts of each purified product for fluorescence polarization assays. For purification via semi-preparative RP-HPLC, an elution gradient of 5–20% Solvent B over 40 min was employed to optimize separation of the poly-ADP-ribosylated peptide products. Peaks corresponding to products with mono-, di-, tri-, tetra-, or penta-ADP-ribose were collected separately, analyzed by ESI-MS, and the pure fractions were pooled, lyophilized, and stored at –80 °C. The reaction and purified peptides were kept wrapped in aluminum foil whenever possible. We note that 5 (6)-carboxyfluorescein causes peak splitting in HPLC characterization corresponding to individual fluorescein isomers. This phenomenon was unique to fluorescein-labeled peptides and peak resolution varied based on ADP-ribose chain length.

HPF1 titration analysis on unmodified peptide substrates

Request a detailed protocol

For the HPF1 titration experiments described in Figure 1E, reactions were performed as described above in the presence of 0, 5, 10, 20, 50, or 100 μM HPF1. Histone peptide starting material was quantified via integration of the corresponding HPLC peak at A214. Peak area was converted to peptide concentration via a standardization curve that was generated using known quantities of substrate peptide. ADP-ribosylated peptide products were quantified via integration of corresponding HPLC peaks at A280. Peak areas were then converted to peptide concentrations via a standardization curve that was generated using known quantities of ADP-ribosylated peptides. Standardization curves were generated for the mono- and di- ADP-ribosylated products. We note that the peptide HPLC A280 signal is dependent upon the ADP-ribose moiety and no A280 signal is present for any unmodified peptides used in this study. Therefore, there is a linear relationship between product extinction coefficient at 280 nm and the number of ADP-ribose units that are attached to the peptide. This linear increase in extinction coefficient was extrapolated to quantify all products with chain lengths greater than or equal to di-ADP-ribose. All reactions and standardization curve samples were run on the same C18 column and HPLC instrument using identical mobile phase gradients. All reactions were performed in triplicate and error bars represent standard deviations.

The following formula was used to calculate percent conversion to each product in a given reaction:

% conversion=ADPrnunmodified+ADPrn × 100

In the above formula:

[ADPrn] represents the concentration of an individual product modified with mono-, di-, tri-, tetra-, or penta-ADP-ribose [unmodified] represents the concentration of the unmodified peptide starting material Σ[ADPrn] represents the sum total concentration of all detectable ADP-ribosylated products.

Optimized peptide mono-ADPr preparation

Request a detailed protocol

Optimal yield of mono-ADP-ribosylated peptides was achieved via a reaction of 1 μM PARP1 (or 2 μM PARP1 for H2B peptides), 20 μM HPF1, 5 μM of PARG, 10 mM NAD+, 0.5 mM unmodified substrate peptide, and 3 μM stimulating DNA (or 6 μM for H2B peptides) in ADPr reaction buffer. Reactions were incubated at 30 °C for 30 min and quenched via addition of 6 M guanidine hydrochloride and 0.1 M sodium phosphate. Purification was carried out on a preparative RP-HPLC C18 column and characterization by ESI-MS and glycohydrolase treatment was performed. We have scaled to as high as 15 mL reaction volume and 2 mM substrate peptide. Percent conversion of peptide starting material drop precipitously at higher substrate peptide concentrations. Importantly, 5 μM of PARG is included throughout this reaction to cleave all poly-ADP-ribosylated products back to mono-ADP-ribose. We also noticed that PARG enhances percent conversion at higher peptide concentrations and is necessary for quantitative conversion under the conditions described here. We suspect this is because PARG reverses PARP1 auto-poly-ADPr that accumulates throughout the reaction. Notably, auto-ADPr abrogates the PARP1:DNA interaction and inactivates the enzyme (Kim et al., 2004). For mono-ADPr of 0.5 mM of PARP1 (501–515) or TMA16 (2-19) peptide, 2 μM PARP1, 20 μM HPF1, 8 μM activating DNA, 2 μM PARG, and 10 mM NAD+ was used. For mono-ADPr of 0.5 mM of H3 (21–34) SEA peptide, 2.5 μM PARP1, 25 μM HPF1, 10 μM activating DNA, 2 μM PARG, and 10 mM NAD+ was used.

Recombinant PARP1/2 ADPr polymerization activity assays and analysis

General protocols

Request a detailed protocol

To analyze PARP1 and PARP2 ADPr activity on peptide substrates, 2 mM NAD+ and 1 μM stimulating DNA were combined into the ADPr reaction buffer in the presence of 0.2, 1, or 5 μM PARP1 or PARP2, in a 25 μL reaction (2 μM PARP1/2, 2 μM DNA and 50 μL reaction volume for H2B peptides). All unmodified and mono-ADP-ribosylated substrate peptides were analyzed at a concentration of 180 μM (40 μM for H2B peptides). The reaction was incubated at 30 °C for 25 min, quenched via addition of 95 μL (70 μL in case of H2B peptide reactions) of Solvent A. It was then centrifuged at 20,000 RCF for 5 min and 100 μL of the supernatant was injected into an analytical C18 column for product analysis via RP-HPLC. An elution gradient of 0–35% Solvent B over 20 min was employed to optimize separation of the poly-ADP-ribosylated peptide products. Percent substrate turnover was calculated by integrating the peaks for the starting material and each product on the RP-HPLC A280 trace, normalizing them depending on their number of ADP-ribose moieties, and calculating ratio of total product to total peptide amounts for each reaction. All reactions were performed in triplicate and error bars represent standard deviations. Individual peaks corresponding to products with unique ADP-ribose chain lengths were collected and analyzed by ESI-MS. For comparison of the HPLC traces, they were plotted on the same graph by using a common x-axis.

HPF1 titration analysis on mono-ADP-ribosylated peptide substrates

Request a detailed protocol

To analyze HPF1-dependent inhibition of PARP1/2 elongation activity, elongation reactions were performed as described above in the presence of 0, 5, 10, 20, 50, or 100 μM of HPF1 or HPF1D283A, 1 μM of PARP1 or PARP2, and 180 μM of mono-ADP-ribosylated H3 peptide. Percent conversion of the mono-ADP-ribosylated peptide substrates to poly-ADP-ribosylated peptide products was calculated by integrating the peaks for the starting material and each product on the RP-HPLC A280 trace. Peak areas were again converted to molar concentrations (as described in HPF1 titration analysis on unmodified peptide substrates).

The following formula was used to calculate fraction elongated in a given reaction:

fraction elongated=[ADPrpoly][ADPr1]+[ADPrpoly]

In the above formula:

[ADPr1] represents the concentration of the mono-ADP-ribosylated peptide starting material Σ[ADPrpoly] represents the sum total concentration of all detectable poly-ADP-ribosylated peptide products (products modified with di-, tri-, tetra-, or penta-ADP-ribose*) *in Figure 2B and C, the data is represented as the sum total of all poly-ADP-ribosylated peptide products. For distribution of product species, see Figure 2—figure supplement 1A, B and E. The relative fraction elongated at any concentration of HPF1 was calculated as:

relative fraction elongated=fraction elongatedfraction elongated when [HPF1]=0

Optimized peptide poly-ADPr preparation

Request a detailed protocol

When optimal yield of poly-ADP-ribosylated peptides is desired, a reaction of 1 μM PARP1 (2 μM PARP1 for H2B peptides), 10 mM NAD+, 500 μM mono-ADP-ribosylated substrate peptide, and 3 μM stimulating DNA (6 μM for H2B peptides) in ADPr reaction buffer is employed. Reactions are incubated at 30 °C for 30 min and quenched via addition of 6 M guanidine hydrochloride and 0.1 M sodium phosphate. Purification is carried out on a preparative RP-HPLC C18 column and characterization by ESI-MS and glycohydrolase treatment is performed. We have scaled to as high as 14 mL reaction volume and 1 mM mono-ADP-ribosylated substrate peptide. For poly-ADPr of 0.5 mM of mono-ADP-ribosylated PARP1 (501–515) peptide, 5 μM PARP1, 25 μM activating DNA, and 10 mM NAD+ was used. For poly-ADPr of TMA16 (2-19) peptide, 2 μM PARP1, 8 μM activating DNA, and 10 mM NAD+ was used. For poly-ADPr of 0.5 mM of H3 (21–34) SEA peptide, 5 μM PARP1, 40 μM activating DNA, and 10 mM NAD+ was used.

Glycohydrolase activity assays

Request a detailed protocol

For histone H3 peptide analysis, ADPr reactions containing 1 μM PARP1, 10 μM HPF1, 2 mM NAD+, and 1 μM stimulating DNA, and 180 μM H3S10ADPr1 peptide were combined into the ADPr reaction buffer at a final volume of 75 μL. Following a 25 min incubation at 30 °C, the reaction was quenched with 10 μM Olaparib (Selleckchem) and 25 μL was removed for pre-glycohydrolase treatment analysis. ARH3 or PARG was then added to a final concentration of 3 μM or 1 μM, respectively, and incubated at 37 °C for 2 h. Pre- and post-glycohydrolase-treated samples were then analyzed via analytical RP-HPLC on a C18 column using an elution gradient of 0–35% Solvent B over 20 min. Product identities were verified by ESI-MS.

We note that for H3 and H2B, glycohydrolase analysis was performed after the PARP1 elongation reaction from the mono-ADP-ribosylated peptide. This is because only low levels of poly-ADP-ribosylated products could be generated in the PARP1:HPF1 reaction. Elongation was much more efficient from mono-ADP-ribosylated peptides in reactions that lacked HPF1. For H2B product glycohydrolase analysis, peptide ADPr reactions containing 2 μM PARP1, 2 mM NAD+, 40 μM mono ADP-ribosylated substrate peptide, and 2 μM stimulating DNA were combined into the ADPr reaction buffer at a final volume of 150 μL. Following a 25 min incubation at 30 °C, the reaction was quenched with 10 μM Olaparib and 50 μL was removed for pre-glycohydrolase treatment analysis. ARH3 or PARG was then added to a final concentration of 3 μM or 1 μM, respectively, to 50 μL of the elongated reaction and incubated at 37 °C for 2 hr. Pre- and post-glycohydrolase-treated samples were then analyzed via analytical RP-HPLC on a C18 column using an elution gradient of 0–35% Solvent B over 20 min. Product identities were verified by ESI-MS.

LC-MS/MS analysis of PAR chains on a peptide substrate

Request a detailed protocol

To analyze branching of PAR chains installed on peptide substrates using our technology, we utilized the LC-MS/MS-based approach outlined by Chen, et al (Chen et al., 2018). PAR chains from a purified tetra-ADP-ribosylated H2B (1-16) peptide were subjected to treatment with Alkaline Phosphatase (Sigma-Aldrich) and Phosphodiesterase I (Sigma-Aldrich). ADP-ribosylated peptide (80 μM) was incubated with ~8 units of Phosphodiesterase I and ~300 units of alkaline phosphatase at 30 °C overnight in a 0.5 mL reaction in a buffer containing 50 mM Tris (pH 7.5), 20 mM NaCl, 2 mM MgCl2, and 5 mM TCEP. The reaction products were then desalted and deproteinized via RP-HPLC (C18 column) and lyophilized. The lyophilized powder containing a mixture of the digestion products was then resuspended in water to a final concentration of 20 μg/mL and 12 μL was injected onto Phenomenex Synergi Polar-RP column (150 × 2 mm, 4 μm packing) and analyzed by LC-MS/MS using a Sciex QTRAP 6500+ mass spectrometer coupled to a Shimadzu Nexera X2 UPLC. The chromatographic conditions were as follows: Solvent A: dH20 +0.2% acetic acid, Solvent B: acetonitrile +0.2% acetic acid; flow rate: 0.46 mL/min; 0–2 min 1% B, 2–2.5 min gradient to 78% B, 2.5–3 min 78% B, 3–3.1 min gradient to 80% B, 3.1–3.5 min 80% B, 3.5–3.6 min gradient to 95% B, 3.6–6 min 95% B, 6.5 min gradient to 1% B, 6.5–7.5 min 1% B. Analytes were detected with the mass spectrometer in MRM (multiple reaction monitoring) mode by following the precursor to fragment ion transitions as follows: Adenosine 268 → 136 (2.27 min retention time), ribosyl-adenosine 400 → 268 and 136 (3.08 min retention time), diribosyl-adenosine 532.18 → 400, 268 and 136 (3.5 min retention time). Peaks were integrated and peak areas were determined by AB Sciex Analyst 1.71 with HotFix one software.

PARP1 pull-down assays

Immunoprecipitations with PARP1 and HPF1

Request a detailed protocol

A 100 μL solution of 5 μM FLAG-HPF1 (or HPF1D283A), 1 μM PARP1, 10 μM Olaparib, and 10 μM stimulating DNA in Pull-Down Buffer (50 mM Tris, pH 7.5, 50 mM NaCl, 2 mM MgCl2, 0.1% Triton X-100, 1 mM DTT) was incubated for 25 min at 25 °C. This solution was then centrifuged at 20,000 RCF for 10 min and the supernatant was added to 10 μL of Anti-FLAG M2 magnetic resin (MilliporeSigma; pre-equilibrated in Pull-Down Buffer), after keeping aside 30 μL from the reaction as an input control for SDS-PAGE gel analysis. Resin was incubated on an end-over-end rotator at 4 °C for 30 min, washed for 3 times for 1 min each with 0.5 mL of Pull-Down Buffer, and eluted via incubation in 2 X SDS loading dye at 95 °C for 5 min. Samples were analyzed on 10% SDS PAGE Bis-Tris gel and imaged via Coomassie Brilliant blue staining on a BioRad ChemiDoc.

Immunoprecipitations with PARP1, nucleosomes, and ALC1

Request a detailed protocol

A 50 μL solution of 100 nM FLAG-ALC1, 50 nM unmodified or H3S10ADPr3 nucleosomes, and 100 nM PARP1 (unmodified, PARP1 SerADPrlong, or PARP1 SerADPrshort) in IP buffer (100 mM KCl, 25 mM HEPES pH 7.9, 2 mM MgCl2, 5% glycerol, 0.1% NP-40, 1 mM DTT) was incubated at 30 °C for 15 min. Binding reactions were then added to anti-FLAG M2 magnetic resin (MilliporeSigma; pre-equilibrated in IP Buffer) after keeping aside 5 μL as an input control for western blot analysis. Resin was incubated on an end-over-end rotator at 4 °C for 1 h, washed for three times for 1 min each with 0.5 mL of IP Buffer (with very gentle vortexing), and eluted via incubation in 2 X SDS loading dye at 95 °C for 5 min. Samples were run on 10% SDS PAGE Bis-Tris gels, analyzed via western blot and imaged on a BioRad ChemiDoc.

Fluorescence polarization-based peptide interaction assays

Request a detailed protocol

Each fluorescently-labeled H2B (unmodified, mono-, di-, tri-, and tetra-ADP-ribose at H2BS6) and H3 peptide (unmodified, mono-, di-, tri-, tetra-, or penta-ADP-ribose at H3S10) was diluted to 2 nM in a buffer containing 25 mM Tris, pH 7.5, 100 mM NaCl, 2 mM MgCl2, 0.001% Triton X100, and 1 mM DTT. Note, H3 elongates more efficiently than H2B and so the penta-ADP-ribosylated species could be isolated for this peptide. Peptide concentration was calculated via fluorescein extinction coefficient (A480 = 70,000). To analyze peptide:pan-ADP-ribose detection reagent (Af1521 macrodomain fused to rabbit Fc tag, MilliporeSigma) interaction, the pan-ADP-ribose detection reagent was titrated into each peptide to final concentrations ranging from 0 to 2000 nM (points represent 3 x dilutions starting from 2000 nM; a higher concentration of 4000 nM was also included for mono- and di-ADP-ribosylated peptides). To analyze peptide:ALC1-macrodomain interaction, the ALC1-macrodomain was titrated into each peptide to final concentrations ranging from 0 to 3000 nM (points represent 3 x dilutions starting from 3000 nM). Reactions were added to a black, flat-bottom 96-well plate (Corning Costar) and analyzed on a BioTek Cytation five imager equipped with a Green FP filter set (excitation: 485 nm, emission: 528 nm). Polarization values were converted to anisotropy using the following formula: r=(2 P/(3 - P)) (Lakowicz, 2006). Following background subtraction and normalization, data was then processed in GraphPad Prism using a non-linear regression analysis to obtain Kd, app values for each peptide:protein interaction. Error bars represent standard deviation value from three biological replicates.

Assembly of full-length, ADP-ribosylated histones

Request a detailed protocol

Native chemical ligation reactions were performed by combining modified histone peptides bearing C-terminal MESNa moieties (H2BS6ADPr1, H2BS6ADPr3, H2BS6ADPr4, H3S10ADPr1, H3S10ADPr3, or H3S10ADPr4) with their corresponding recombinant C-terminal histone fragments (H2BA17C 17–125 or H3A21C 21–135). A typical reaction included 1 mM histone thioester peptide, 0.5 mM recombinant histone fragment, 20 mM TCEP, and 150 mM 2,2,2-trifluoroethanethiol (Sigma-Aldrich) in a degassed buffer of 6 M guanidine hydrochloride and 0.1 M sodium phosphate at pH 7.0. Reactions were incubated at 37 °C for 16 h and progress was monitored via RP-HPLC and ESI-MS analysis. Full-length histone products were purified on a semi-preparative C18 RP-HPLC column using a gradient from 10 to 80% Solvent B over 40 min. Fractions were analyzed via analytical C18 RP-HPLC and ESI-MS and those greater than 95% pure were pooled, lyophilized, and stored at –80 °C until use. All histones were characterized on 12% bis-tris SDS-PAGE gels (prepared in house) in MES running buffer.

Preparation of histone octamers

Request a detailed protocol

Octamers and nucleosomes were prepared as previously described (Luger et al., 1999) with several modifications. Lyophilized recombinant and semi-synthetic histones were dissolved in a buffer containing 6 M guanidine hydrochloride, 20 mM Tris, pH 7.6, and 5 mM DTT at 4 °C. H2A, H2B, H3, and H4 were combined at a ratio of 1.2:1.2:1.0:1.0, respectively, and diluted to a final concentration of 1 mg/mL of total histone. The histone mixture was then injected into a Slide-A-Lyzer MINI dialysis cassette (3.5 kDa MWCO, ThermoFisher) and dialyzed at 4 °C into Octamer Refolding Buffer (10 mM Tris, pH 7.6, 2 M NaCl, 1 mM EDTA, and 1 mM DTT) for 20 h. The cassette was placed into fresh Octamer Refolding Buffer at the 4 h and 16 h time-points during the dialysis. Next, the histone octamer solution was purified via gel filtration (Superdex 200 Increase 10/300 GL; GE Healthcare) that had been pre-equilibrated with Octamer Refolding Buffer. Injection volume did not exceed 0.5 mL to ensure efficient separation of histone octamers from sub-octamer species. Fractions containing the octamer complex (as judged by FPLC elution chromatogram and SDS–PAGE gel electrophoresis) were concentrated to 50 μM as quantified by A280 for unmodified nucleosomes (extinction coefficient  =  44,700) or A260 for ADP-ribosylated nucleosomes (extinction coefficient  =  13,500 x total ADP-ribose units), diluted two-fold with glycerol, and stored at a final concentration of 25 μM at −20  °C prior to nucleosome assembly. The following unique octamers were assembled for nucleosome preparation: unmodified, H2BS6ADPr1, H2BS6ADPr3, H2BS6ADPr4, H3S10ADPr1, H3S10ADPr3, H3S10ADPr4, H2BS6/H3S10ADPr3, H2BS6/H3S10ADPr4.

Nucleosome assembly and characterization

Request a detailed protocol

Nucleosomes were assembled by combining 150 pmol histone octamer with 180 pmol 601 DNA in 75 μL of a buffer containing 2 M KCl, 10 mM Tris, pH 7.5, 0.1 mM EDTA, 1 mM DTT at 4  °C. The mixture was then injected into a Slide-A-Lyzer MINI dialysis button (3.5 kDa MWCO, ThermoFisher) and dialyzed against a buffer of 10 mM Tris, pH 7.0, 1.4 M KCl, 0.1 mM EDTA, 1 mM DTT at 4  °C for 1 h. Next, 350 mL of Nucleosome End Buffer (10 mM Tris, pH 7.5, 10 mM KCl, 0.1 mM EDTA, 1 mM DTT) was added at a rate of 1 mL/min. After 12 h, the cassette was dialyzed against Nucleosome End Buffer for 4 h with a fresh buffer exchange at the 2 h time-point. Following dialysis, precipitation was removed via centrifugation at 20,000 RCF for 10 min at 4  °C and A260 of the supernatant was measured to calculate nucleosome concentration. Note that for individual remodeling experiments, all nucleosomes were assembled on an identical 601-containing 200 bp DNA template. For competition remodeling experiments, each nucleosome was assembled on the same 601-containing 200 bp DNA template except the 15 bp at the 5′-end were replaced with a unique priming sequence.

Nucleosome quality was analyzed by running the nucleosome on native PAGE on a 5% TBE gel in 0.5 X TBE buffer (BioRad) that was run for 60 min at 150 volts. Around 10 pmol of each nucleosome was incubated in 20 mL REA buffer for 1 h at 30 °C, and then supplemented with 12% sucrose prior to loading. Gels were stained with ethidium bromide and imaged on a BioRad ChemiDoc and the nucleosome band migrates around 500 bp. We noted that nucleosome migration is affected by ADP-ribose chain length. If any free 601 DNA was observed on the TBE gel, then a PstI (NEB) restriction digestion was performed to check if the free DNA was present in the nucleosome dialysate or was an artifact of the gel run. To further verify stability of ADPr throughout the histone octamer and nucleosome assembly, 2.5 pmol of nucleosome were run on a 12% SDS-PAGE gel and immuno-blot analysis was performed to detect ADP-ribose, H2B, and H3. ADP-ribosylated H2B and H3 proteins exhibit distinct migration profiles relative to the unmodified species, confirming that they are homogenously modified.

Western blot protocol

Request a detailed protocol

SDS-PAGE gels were transferred to PVDF membranes at 100 volts for 1 h at 4  °C using a wet transfer protocol in Towbin Buffer (25 mM Tris, 192 mM glycine, 20% methanol, pH 8.3). Blots were then blocked for 1 h at 25 °C with 5% non-fat dry milk (BioRad) in TBST (50 mM Tris, pH 7.5, 150 mM NaCl, 0.1% Tween20) prior to incubation with primary antibodies for 12 h at 4 °C. Following primary antibody binding, blots were washed three times for 5 min each with TBST and then incubated with the appropriate fluorescent or HRP-conjugated secondary antibody for 1 h at 25 °C. Blots were then washed three times for a total of 15 min with TBST and imaged on a BioRad ChemiDoc. All antibodies used in this study and corresponding dilutions can be found in Supplementary file 11.

Restriction enzyme accessibility-based nucleosome remodeling assay

Request a detailed protocol

REA assays and analysis were performed as previously described (Dann et al., 2017) with several modifications. Nucleosome remodeling reactions (25 μL) were carried out in REA Buffer (12 mM HEPES, pH 7.9, 4 mM Tris, pH 7.5, 60 mM KCl, 10 mM MgCl2, 10% glycerol, and 0.02% NP-40) including 1 μL of PstI (NEB, at 100,000 U/mL), 2 mM ATP (Sigma-Aldrich), and final concentrations of 4 nM ALC1 or 10 nM CHD4 and 20 nM of the desired nucleosome substrate. The reaction was incubated for 5 min prior to addition of chromatin remodeler to ensure that any trace amount of free DNA from the nucleosome assembly was digested prior to initiating the reaction. This is required to ensure that free DNA digestion can be assigned as background activity and is not interpreted as enzyme-dependent nucleosome remodeling in data processing. To each reaction, 37.5 μL of Quench Buffer (20 mM Tris, pH 7.5, 70 mM EDTA, pH 8, 2% SDS, 10% glycerol) was added at time points of 0, 3, 6, 18, 36, and 60 min. Samples were then deproteinized with 30 U/mL proteinase K (NEB) for 1 h at 37 °C. DNA purification was performed using the Qiagen PCR purification kit following manufacturer’s protocols. Purple Gel Loading Dye (6 X, NEB) was added to a final concentration of 1 X to the quenched reaction and samples were loaded onto a 5% TBE gel and run for 60 min at 150 volts in 0.5 X TBE Buffer (BioRad). Gels were stained with ethidium bromide and imaged on a BioRad ChemiDoc. Gel densitometry measurements were performed using ImageJ. For each lane, the total densitometry signal was calculated by adding the densitometry values corresponding to the PstI-digested species (lower band) and undigested species (upper band). The fraction unremodeled value for each lane was then calculated using the following formula:

fraction unremodeled= signalundigestedsignalundigested+ signaldigested

For each chromatin remodeling reaction, activity at the zero time point was considered background activity (described above) and that value of fraction unremodeled was denoted as the reference for normalizing values from other time points in the corresponding reaction. Data was performed in biological triplicate and fit into one-phase exponential decay equation in GraphPad Prism to obtain the remodeling plots and corresponding k values (Supplementary file 6), where k denotes the rate constant for the exponential decay. For calculation of k values, plateau was constrained to zero and k > 0.

To probe ALC1 activation by freely diffusing ADP-ribosylated peptides, the H3S10ADPr4 or H2BS6ADPr4 (amino acids 1–20 or 1–16, respectively) peptides were added to the REA Buffer at 10, 40, or 200 nM. Remodeling reactions were then carried out as described for 1 h on unmodified nucleosomes (Figure 5—figure supplement 1C). Control reactions were also set up with the same concentrations of unmodified versions of the corresponding peptides. A full time-course (0, 3, 6, 18, 36, 60 min) was performed at the 40 nM peptide concentration. This concentration was selected for complete analysis (Figure 5C) because the final ADP-ribose concentration is equivalent to that of the modified nucleosome assays (20 nM nucleosome x 2 ADP-ribosylated histone tails per nucleosome). All reactions and controls were performed in triplicate. Similar experiments were carried out in which the H2BS6ADPr4 peptide was titrated into ALC1 reactions containing the H2BS6ADPr4 nucleosome. The enzyme concentration was lowered such that around 50% remodeling was observed at the end of 1 h. This was done to provide sufficient assay range for observing a stimulatory or inhibitory effect on the remodeling.

To investigate the role of the macrodomain in conferring substrate preference on ALC1, chromatin remodeling reactions with the ALC1 ATPase domain construct (amino acids 1–673) were conducted on unmodified and H2BS6ADPr4 nucleosomes. A full time-course (0, 3, 6, 18, 36, 60 min) was performed using 20 nM nucleosome and 500 nM ALC1(1–673) in triplicate, and the reactions were analyzed as described.

To probe ALC1 activation by Asp-/Glu- auto-ADP-ribosylated PARP1, we added 5, 20, 50, 100, or 200 nM PARP1 and 2 mM NAD+ to the remodeling assays. Remodeling reactions were then carried out as described for 1 h on unmodified nucleosomes (Figure 5—figure supplement 2B). A full time-course (0, 3, 6, 18, 36, 60 min) was performed at 20 and 100 nM PARP1 concentration in triplicate. These concentrations were selected for complete analysis because the stimulatory effect of ADP-ribosylated PARP1 on nucleosome remodeling by ALC1 plateaued at around 50 nM. Western blots were performed using the PARP1 antibody and the pan-ADPr-detection reagent at time-points 0, 3, 6, 18, 36, and 60 min to quantify conversion of PARP1 in the reaction to the auto-ADP-ribosylated species. Similar titrations were carried out for serine-linked auto-ADP-ribosylated PARP1 species and the stimulatory effect seemed to plateau around 100 nM, thus the full time-course (0, 3, 6, 18, 36, 60 min) remodeling experiments were performed at 100 nM serine automodified PARP1 concentration. Remodeling reactions for H2BS6ADPr4 nucleosomes in the presence of 100 nM PARP1 SerADPrlong were also carried out in a similar way. Again, as this was designed to test for an effect on an already activated remodeling reaction, the enzyme concentration was lowered such that around 50% remodeling was observed at the end of 1 h.

Hydroxylamine treatment

Request a detailed protocol

A fresh stock solution of 3.3 M hydroxylamine was prepared in 10 mM Tris in water and adjusted to pH ~6 using filtered 5 M KOH. Automodified PARP1 constructs (1 μM) were added to a buffer containing 50 mM Tris (pH 7.5), 20 mM NaCl and 2 mM MgCl2. Hydroxylamine was added to this solution to a final concentration of 0.8 M and the solution was incubated at room temperature for 1 h. The reaction was quenched using 0.3% HCl. SDS-PAGE loading dye was added to the samples at a final concentration of 1 X and boiled before being run on an SDS-PAGE gel. The bands on the gels were visualized via silver-stain.

Nucleosome remodeling competition assay

Request a detailed protocol

Two nucleosome substrate pools were prepared for the competition assays, with each substrate pool containing seven unique species. The first pool (H2B Pool) included H2BS6ADPr1, H2BS6ADPr3, and H2BS6ADPr4 nucleosomes, each of which contained a unique 5 priming site as outlined in the ‘601 DNA preparation’ section above. The second pool (H3 Pool) included H3S10ADPr1, H3S10ADPr3, and H3S10ADPr4 nucleosomes, each of which contained a unique 5 priming site. Each pool also included two unmodified nucleosomes assembled on unique templates to serve as internal reproducibility controls. Free DNA templates with the PstI site and an unmodified nucleosome without the PstI site were also included as internal controls for PstI activity and data normalization, respectively. To ensure that PCR amplification artifacts do not influence cycle threshold determination, we selected primer:template pairs with similar primer efficiencies.

Each nucleosome substrate pool was prepared by combining equal volumes of each nucleosome (stock solutions = 250 nM) or free DNA species (stock solutions = 250 nM). Therefore, the total species concentration in each assembled substrate pool is 250 nM (~36 nM per species). The final total nucleosome species concentration used in remodeling assays was 20 nM. ALC1 was used at a concentration of 4 nM for the H2B substrate pool and 8 nM for the H3 substrate pool. Remodeling assays were carried out, quenched at six different time points (0, 3, 6, 18, 36, 60 min) and DNA was isolated as described in the ‘Restriction enzyme accessibility-based nucleosome remodeling assay’ section. Real-time PCR was then performed with each unique primer pair according to manufacturer’s protocols (iTaq Universal SYBR Green Supermix, BioRad) to quantify undigested (that is, unremodeled) template for each unique species at every time point. Fold-decrease in template quantity from t = 0 to t = x was calculated by determining the ΔΔCt for a species of interest relative to the unmodified nucleosome lacking the PstI site. Note: the template lacking PstI site cannot be digested and thus serves as an internal control for ΔΔCt calculation. Fold-decrease in template quantity was then converted to fraction unremodeled. Each competition assay was performed in triplicate and data points take into account an average of three independent amplifications for each primer pair (see Supplementary Dataset for primer pair:substrate combinations). The data was processed in GraphPad Prism and fit into a one-phase exponential decay equation with plateau constrained to zero and k > 0 to obtain the remodeling plots and corresponding k values.

Preparation of DNA for dinucleosome

Request a detailed protocol

The overall methodology of preparation of dinucleosomes was adapted with minor changes from a previously described protocol (McGinty et al., 2008). After PCR amplification of the 601 DNA constructs designed for nucleosome A and nucleosome B, DNA was purified using a Qiagen PCR purification kit and resuspended in water. Approximately 100 μg of 601 DNA was digested with 750 U of DraIII-HF (NEB, at 20,000 U/mL) in a total volume of 1 mL of 1 X CutSmart buffer (NEB) for 8 h at 37 °C. The 601 DNA was then purified again using a Qiagen PCR purification kit and resuspended in water to a concentration of 1 μg/μL.

Dinucleosome formation and remodeling assays

Request a detailed protocol

The purified and DraIII-digested 601 DNA constructs (see ‘601 DNA preparation’ for sequence information) were used to assemble mononucleosomes according to the protocol described in the section ‘Nucleosome assembly and characterization’. Around 6.25 pmol of each nucleosome was used in a ligation reaction that contained 4000 U of T4 DNA ligase (NEB, at 400,000 U/mL) in a total volume of 200 μL. The resultant mixture was then concentrated to around 20 μL using Vivaspin 500 centrifugal concentrators (Sartorius, 10,000 MWCO) and analyzed on a 5% TBE gel, as described for mononucleosomes. The approximate concentration of the dinucleosome was derived from the mononucleosome input concentration and estimated ligation efficiency from the gel analysis. The dinucleosome remodeling experiments were carried out with 5 nM of dinucleosome in each reaction, under conditions as described for the mononucleosome remodeling assays. Two time points (0 min and 60 min) were collected from the reaction and the fraction unremodeled was calculated by using the following formula:

fraction unremodeled= signalundigested at 60 minsignalundigested at 0 min

The restriction digestion of the dinucleosome DNA gives rise to two smaller products, which are close in size to the DNA fragments generated from the residual mononucleosomes present in the dinucleosome stock. In order to avoid interference from such DNA, only the band corresponding to the undigested dinucleosome DNA species was used for densitometry analyses for this experiment.

Mammalian cell culture

HEK293T cells (Source: ATCC; authentication by STR profiling provided by ATCC; confirmed negative for mycoplasma by ATCC) were cultured in high-glucose DMEM (MilliporeSigma) supplemented with 10% Fetal Bovine Serum (Gibco), 100 units/mL of penicillin (Sigma), and 100 μg/mL of streptomycin (Sigma). Cells were maintained at 37 °C and 5% CO2 and passaged/frozen down according to manufacturer’s protocols (ATCC). Plasmid transfection was accomplished with Lipofectamine 2000 according to manufacturer’s protocols (Invitrogen).

Generation of ALC1 knockout cell lines

Request a detailed protocol

CRISPR-Cas9 plasmids (pSpCas9(BB)–2A-Puro (PX459) v2.0; Addgene plasmid #: 62988) targeting the ALC1 gene (for gRNA targeting sequences, see Supplementary file 10) were transfected into HEK293T cells. Targeting sequences were obtained using the Genetic Perturbation Platform (Broad Institute). After 24 h, 2 μg/mL of puromycin (Sigma) was added to growth medium and cells were selected for 48 hr. Puromycin was then removed, dead cells were washed away, and the adhering live cells were left to recover for 24 h prior to dilution for single colony selection. Clones were screened via western blot for ALC1 and those with no detectable ALC1 were frozen down and stored in liquid nitrogen.

Nuclear extract preparation

Request a detailed protocol

Nuclear extract was prepared as previously described (Carey et al., 2009) with some modifications. The cells were dounced with a B-type pestle (Kontle Glass Co) until they were lysed. Lysis was confirmed by staining with Trypan Blue dye and visualizing under a microscope. The cell number was estimated using a hemocytometer and the volumes of the different buffers were added depending on that. The nuclear lysate was homogenized using pestle B until it was properly resuspended in Buffer C. The crude nuclear lysate was dialyzed into Buffer D in a dialysis tubing (FisherScientific, 6–8 kDa MWCO) at 4 °C, and dialysis was stopped before first signs of precipitation (around 3–4 h).

Nuclear extract nucleosome remodeling assay

Request a detailed protocol

Nucleosome remodeling reactions (25 μL) were carried out in REA Buffer with 1 μL of PstI (NEB, at 100,000 U/mL), 2 mM ATP, and 8 μL of nuclear extract derived from either wild-type or ALC1 knockout HEK293T cells and 20 nM of the desired nucleosome substrate. The reactions were carried out at 30 °C and quenched with Quench Buffer at 0 min and 60 min time points. We note that reactions contain 0.5 mM DTT (carried over from the lysate storage buffer). The 601 DNA was isolated as described in ‘Restriction enzyme accessibility-based nucleosome remodeling assay’ section and analyzed on a 5% TBE gel. Western blot analyses of the ADPr profile of each nucleosome employed in this assay were carried out after incubation with or without either nuclear extract under identical reaction conditions.

Preparation of H3S10/H3S28ADPr4-modified C-terminal SEA peptide

Request a detailed protocol

The tetra-ADP-ribosylated species of H3 (1–20) thioester and H3 (21–34, N-terminal thiazolidine, C-terminal SEA) peptides were purified to homogeneity using RP-HPLC and lyophilized. The tetra-ADP-ribosylated H3 (21–34) SEA peptide was resuspended in a degassed buffer containing 6 M guanidine hydrochloride, 0.1 M sodium phosphate pH 8.0% and 5% DMSO to a concentration of 1 mM. This reaction was rotated at room temperature for 16 h and SEA ring oxidation was confirmed by a –2 Da mass change via LC-MS. A stock of 1 M O-Methylhydroxylamine HCl (Combi-Blocks) was prepared in a degassed buffer containing 6 M guanidine hydrochloride and 0.1 M sodium phosphate pH 4.0, and added to the reaction to a final concentration of 200 mM. The pH of the reaction was adjusted to 4.0 and the reaction incubated at 37 °C for 2 h. Deprotection of the thiazolidine ring was confirmed by a –12 Da mass shift via LC-MS. The tetra-ADP-ribosylated H3 (1–20) thioester peptide was resuspended in a degassed buffer containing 6 M guanidine hydrochloride and 0.1 M sodium phosphate pH 7.0 to a concentration of 1 mM and a volume equal to that of the above reaction. The two peptide solutions were combined and 2,2,2-trifluoroethanethiol (Sigma-Aldrich) was added to a final concentration of 150 mM. The pH of this reaction was then adjusted to 7.0 and it was incubated at 37 °C for 16 h. The ligation product was purified over semi-preparative RP-HPLC and lyophilized. This product was resuspended in a buffer containing 6 M guanidine hydrochloride and 0.1 M sodium phosphate pH 7.0, and TCEP was added to it to a final concentration of 20 mM. The ligated product with a reduced, C-terminal SEA ring was confirmed by a single peak on RP-HPLC and a single mass on LC-MS. For synthetic scheme and characterization, see Supplementary file 9.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Supplementary Dataset is available online on dryad- https://doi.org/10.5061/dryad.z612jm6cc.

The following data sets were generated
    1. Mohapatra J
    2. Liszczak G
    (2021) Dryad Digital Repository
    Data from: Serine ADP-ribosylation marks nucleosomes for ALC1-dependent chromatin remodeling.
    https://doi.org/10.5061/dryad.z612jm6cc

References

Decision letter

  1. Geeta J Narlikar
    Reviewing Editor; University of California, San Francisco, United States
  2. Jessica K Tyler
    Senior Editor; Weill Cornell Medicine, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Serine ADP-ribosylation marks nucleosomes for ALC1-dependent chromatin remodeling" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Jessica Tyler as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

As you will see all reviewers found the work to be significant and enabling. Two of them also had some concerns and suggestions that need to be addressed before we can consider publication in eLife. When you submit your revision, please describe the changes you have made through your point-by-point responses to the individual comments by each reviewer.

Please let us know if you have any questions.

Essential revisions:

Please address the individual suggestions and comments made by reviewers 2 and 3.

Reviewer #1 (Recommendations for the authors):

Histone modifications play diverse roles in regulating DNA based transactions. Understanding the biochemical mechanisms underlying such roles has been greatly enabled by the ability to reconstitute chromatin templates with defined modifications. Poly-ADP-ribosylation (poly-ADPr) is a major modification that plays critical roles in DNA damage. However a few features have slowed careful mechanistic dissection of the role of poly-ADP-ribosylation. These features include that (i) the modification is found on multiple proteins such as histones and the PARP enzymes that deposit the modification and (ii) there is heterogeneity in terms of the poly-ADP-ribosylation chain length and the amino-acid location of the modification. Additionally, unlike with other histone modifications such as acetylation, methylation and ubiquitylation, generating homogenously modified poly-ADPr chromatin in vitro has been technically challenging. Here the authors generate nucleosomes with homogenously and site-specifically modified poly-ADPr marks through a series of readily separable steps. Using these modified nucleosomes the authors test the impact of the poly-ADPr modifications on the activity of the chromatin remodeler ALC1. Previous work has shown that ALC1 is activated by binding poly-ADPr chains that have 3+ units. However, it has not been clear which modified substrates are being recognized by ALC1. Using their site-specifically modified reagents the authors show clearly that poly-ADP-ribosylation of H2A (and H3) has a much larger effect on stimulating nucleosome remodeling than auto-ADP-ribosylated PARP.

Overall, the work in this resource article is carefully carried out with several thoughtful controls and provides a highly enabling new method for the chromatin field. What further raises the impact of this work is the use of this new method to make a significant new mechanistic finding about ALC1regulation. I think the work in this resource article will be of much interest to the chromatin community and those studying DNA damage.

Reviewer #2 (Recommendations for the authors):

This interesting manuscript from Liszczak and coworkers highlights the strength of a semisynthetic chemical approach to obtain both monomeric and well-defined polymeric ADP-ribosylated histones H2B and H3. The authors have applied these reagents toward dissecting the role of ADP-ribose in facilitating nucleosome remodeling by the macrodomain-containing remodeler ALC1. Unfortunately, the synthetic novelty is somewhat diminished by a very recent manuscript from Muir and coworkers in JACS reporting the semisynthesis of identical mono-ADP-ribosylated H2B and H3. However, the current manuscript focuses on biochemical roles of ADP-ribosylation that were not addressed by Muir, and also presents the elegant enzymatic extension of semisynthetic mono-ADP ribosylated histones to obtain well-defined polymers of ADP-ribose by using varying ratios of PARP1:HPF1. The rigorous series of experiments and interesting results, that begin to clarify prior hypotheses generated from cellular data, will be of broad interest to the readers of eLife. I recommend a few figure/text revisions and the inclusion of two additional experiments, with the reagents on hand, to help increase the clarity of techniques and conclusions presented.

One key limitation of the work – which the authors clearly state in the methods for assembly of full-length ADP-ribosylated histones – is the requirement for a Cys-containing mutant H2B and H3 in biochemical assays. While there is no doubt, given Muir's recent work and the authors' claims, that the Cys may be effectively desulfurized in future experiments, the current substrates tested did not include this step. Therefore, I would suggest the authors move their statement on desulfurization to the Results in the main text and cite the Muir JACS paper. Accordingly, Figure 4A should clearly show the thiol is present in the histone tail. Finally, given the risk of disulfide-tethering cysteine-containing proteins to this accessible thiol in the H2B/H3 tail, the authors should mention in the discussion if reducing agents were included for all enzymatic assays and whether assay products were analyzed to ensure Cys-containing H2B/H3 remained as monomeric species at the end of the assay period. Particularly when mononucleosomes were subjected to nuclear lysates in remodeling assays.

In Figure 4. It is surprising that H3 and H2B appear to migrate at the same size prior to ADP-ribosylation despite previous reports of their differing migration (see https://www.epicypher.com/products/nucleosomes/histone-octamer-recombinant-human for one example). The authors should indicate the percentage of polyacrylamide or any changes in gel running conditions from standard SDS-PAGE conditions that led to this result.

Supplementary Figure 5F. The PARP1-SerADPlong size clearly changes with hydroxylamine treatment (comparing lanes 3 and 4) indicating that a minority of ADP-ribose linkages are not to Ser in PARP1. I would suggest noting this in the main text as potential heterogeneity in the ADP-ribosylated protein being employed in assays. Particularly if the ADP-ribosylated PARP1 tested in biochemical assays was not first treated with hydroxylamine.

Two important biochemical assays are missing in the manuscript that would help readers understand the specific contributions of nucleosome ADP-ribosylation and PARP1 ADP-ribosylation toward remodeling by ALC1.

(A) The first assay is to investigate competition of ADP-ribosylated nucleosomes by ADP-ribosylated peptides. This would validate the authors' statement that, "in addition to disrupting an autoinhibited conformation, the modified histone tail:macrodomain interaction is crucial for presenting the ATPase domain to the nucleosome." If this statement were indeed true and no additional nucleosomal contacts were needed for ALC1 function, then ADP-ribosylated H2B/H3 peptides would be expected to effectively inhibit nucleosome remodeling of the corresponding ADP-ribosylated nucleosome.

(B) The second assay involves an ALC1-mediated remodeling experiment with ADP-ribosylated nucleosomes in the presence of ADP-ribosylated PARP1. The authors, surprisingly, only test ADP-ribosylated PARP1 with unmodified nucleosomes and the rationale for this is unclear if DNA-damage is indeed accompanied by histone ADP-ribosylation, which is also the focus of this manuscript. Results from an assay with ADP-ribosylated H2B containing nucleosomes would clearly indicate if nucleosome ADP-ribosylation remains relevant when PARP1 is also ADP-ribosylated, and if any additive effects are observed from both species being ADP-ribosylated.

Finally, the pooled mononucleosome remodeling experiment provides no additional information beyond the initial information gained from individual mononucleosome assays and the fact that a ADP-ribosylated histone peptide does not activate ALC1 on non-ribosylated nucleosomes. The peptide in trans assay result already indicated that ALC1 does not stay active after disengaging the ADP-ribosylated peptide. If the authors' goal was to demonstrate that ribosylated nucleosomes do not stimulate activity of ALC1 on non-ribsoylated nucleosomes, or that ALC1 "immediately turns off" after disengagement from a ADP-ribosylated nucleosome, then this needs to be tested in an asymmetric dinucleosome model wherein the two nucleosomes are tethered in close proximity and not diffusing independently of each other. A mixture of varying ADP-ribosylated mononucleosomes at nM concentrations is unlikely to be an approximation of the chromatin context of ALC1, where varying degrees of ribosylation may exist in close apposition. Hence, I suggest the authors reword the conclusion from the pooled experiment to suggest that ALC1 only acts on polyADP-ribosylated mononucleosomes within a mixture of varying ADP-ribosylation states and avoid speculation of its diffusivity.

Reviewer #3 (Recommendations for the authors):

– While authors show that multiple modified histones can be made by this method (including S28 modified H3), claiming broad applicability to preparation of ADPr proteins is a misnomer for the exact reasons listed in the last paragraph of the discussion. The claims of broad applicability should be revised accordingly.

– Protein modification community would benefit from better understanding of pros and cons of the polyADP ribosylation method presented here. Given a need for extensive HPLC purification of the mixtures formed in both cases, a side-by-side comparison to experimentally simpler one pot reactions with PARP1:HPF1 would help.

– It would be important to assess whether ALC1 itself is ADP ribosylated in the remodeling assays where PARP is supplemented together with NAD+. The supplemental figure 5D, while showing PARP1 is autoribosylated based on the band shift, suggests broad ADP ribosylation signal as well. ALC1 autoribosylation might contribute to relief of its autoinhibition, contributing to the slight enhancement in remodeling observed, rather than a direct interaction with autoribosylated PARP1.

– Remodeling in nuclear extracts: The representative gel results in Figure 6 supplement 1C of remodeling in the presence of nuclear extracts does not support the claim that, with poly ADP ribosylated substrates, remodeling is enhanced compared to that observed with ALC1 knockout extracts. The relative remodeled and unremodeled bands appear similar regardless of the presence of ALC1 in the extract. It appears the specificity of remodeling gained for the ADPr4 substrate in the presence of ALC1 might result from slightly less remodeling of the unmodified substrate in the presence of ALC1 compared to ALC1 knockout extract unmodified substrate remodeling. This point would be apparent if the data was plotted as raw fraction remodeled values or relative remodeled values calculated to the unmodified substrate with WT extract for all experiments in Figure 6E.

– More rigorous characterization is needed for the poly ADP ribosylated substrates used with nuclear extracts in Figure 6E to support the claim that no hydrolysis is present of the poly ADP ribose chains. The band shifts due to poly ADP ribosylation are less pronounced as shown in Figure 4C-4E and the band shift is decreased upon addition of extract to H2BS6/H3S10ADPr4 substrate, suggesting chain hydrolysis. Authors should test if the polyADP ribose chains are retained after incubation with nuclear extracts. Alternatively, authors could test nuclear extract activity with and without ALC1 in the presence of PARG to assess if the enhancement is abolished.

– If it still holds, any speculation on attenuation of ALC1 stimulation in nuclear extracts, as opposed to that observed with recombinant components?

https://doi.org/10.7554/eLife.71502.sa1

Author response

Essential revisions:

Please address the individual suggestions and comments made by reviewers 2 and 3.

Reviewer #1 (Recommendations for the authors):

Histone modifications play diverse roles in regulating DNA based transactions. Understanding the biochemical mechanisms underlying such roles has been greatly enabled by the ability to reconstitute chromatin templates with defined modifications. Poly-ADP-ribosylation (poly-ADPr) is a major modification that plays critical roles in DNA damage. However a few features have slowed careful mechanistic dissection of the role of poly-ADP-ribosylation. These features include that (i) the modification is found on multiple proteins such as histones and the PARP enzymes that deposit the modification and (ii) there is heterogeneity in terms of the poly-ADP-ribosylation chain length and the amino-acid location of the modification. Additionally, unlike with other histone modifications such as acetylation, methylation and ubiquitylation, generating homogenously modified poly-ADPr chromatin in vitro has been technically challenging. Here the authors generate nucleosomes with homogenously and site-specifically modified poly-ADPr marks through a series of readily separable steps. Using these modified nucleosomes the authors test the impact of the poly-ADPr modifications on the activity of the chromatin remodeler ALC1. Previous work has shown that ALC1 is activated by binding poly-ADPr chains that have 3+ units. However, it has not been clear which modified substrates are being recognized by ALC1. Using their site-specifically modified reagents the authors show clearly that poly-ADP-ribosylation of H2A (and H3) has a much larger effect on stimulating nucleosome remodeling than auto-ADP-ribosylated PARP.

Overall, the work in this resource article is carefully carried out with several thoughtful controls and provides a highly enabling new method for the chromatin field. What further raises the impact of this work is the use of this new method to make a significant new mechanistic finding about ALC1regulation. I think the work in this resource article will be of much interest to the chromatin community and those studying DNA damage.

We thank reviewer one for the positive feedback and are excited to see that experts in the field appreciate the value of our work.

Reviewer #2 (Recommendations for the authors):

This interesting manuscript from Liszczak and coworkers highlights the strength of a semisynthetic chemical approach to obtain both monomeric and well-defined polymeric ADP-ribosylated histones H2B and H3. The authors have applied these reagents toward dissecting the role of ADP-ribose in facilitating nucleosome remodeling by the macrodomain-containing remodeler ALC1.

Reviewer 2 brings up an excellent point and one that we have been very keen to explore. This comment, along with a related comment from Reviewer 2 (discussed further below), inspired us to generate asymmetrically ADP-ribosylated dinucleosome substrates for ALC1 remodeling experiments. Our results are presented in a new main text figure (Figure 6) and described in the Results section as follows:

Lines 489-508:

“three asymmetrically ADP-ribosylated dinucleosome constructs were prepared wherein: (i) both nucleosome A and B are unmodified (unmodA-unmodB), (ii) nucleosome A is unmodified and nucleosome B comprises H2BS6ADPr4 histones (unmodA-ADPrB), or (iii) nucleosome A comprises H2BS6ADPr4 histones and nucleosome B is unmodified (ADPrA-unmodB) (Figure 6D, Figure 6—figure supplement 1B). In all dinucleosome constructs, nucleosome A bears a 45 base pair DNA overhang and is separated from nucleosome B by a 15 base pair DNA linker to allow for remodeling to occur. By removing the PstI site from nucleosome B, we were able to specifically monitor ALC1 remodeling activity on nucleosome A using our REA assay. Following incubation with ALC1, robust nucleosome A remodeling activity was observed (~79% remodeled in 60 min) with the ADPrA-unmodB construct as expected (Figure 6E, Figure 6—figure supplement 1C). In contrast, relatively modest nucleosome A remodeling activity was observed (~21% remodeled in 60 min) with the unmodA-ADPrB construct. While these single time-point analyses cannot be directly compared to the mononucleosome remodeling rate constant analyses, the dinucleosome remodeling activity results are consistent with the automodified PARP1 experiments; PARP1 auto-ADPr and adjacent nucleosome ADPr both tether poly-ADP-ribose in close proximity to unmodified nucleosomes but neither is able to fully stimulate ALC1. These experiments demonstrate that ALC1 preferentially remodels binding-competent nucleosome substrates and target disengagement triggers rapid transition back to an inactive conformation. This mechanism likely minimizes the potential for freely diffusing, activated ALC1 to be present in the nuclear milieu.”

While we have not yet progressed to 12mer nucleosome array substrates, these results strongly indicate that ALC1 preferentially targets ADP-ribosylated nucleosomes even in the context of chromatin arrays. As our technologies mature, it will be interesting to explore if significantly longer histone ADP-ribose chains increase the ALC1 ‘radius of activity’ and stimulate greater activity towards adjacent unmodified substrates. However, the relatively poor ALC1 stimulation by automodified PARP1 constructs (which tether relatively long chains to the nucleosome substrate) suggest this may not be the case.

Unfortunately, the synthetic novelty is somewhat diminished by a very recent manuscript from Muir and coworkers in JACS reporting the semisynthesis of identical mono-ADP-ribosylated H2B and H3.

We note that we were unaware of this work until its publication, which occurred after submission of our manuscript to eLife. We hope the reader will appreciate that, despite many years of work in this area, there remain no methods to install homogenous poly-ADP-ribose chains onto synthetic peptides. Here we have developed strategies to prepare, purify, and characterize a wide array of poly-ADP-ribosylated peptides, and optimized downstream N- and C-terminal protein ligation protocols. Considering the overwhelming number of reported poly-ADP-ribose reader domains that do not engage mono-ADP-ribose(Teloni and Altmeyer, 2016), and the breadth of poly-ADPr-regulated cellular processes(Gibson and Kraus, 2012; Leung, 2014), we anticipate that our technology will be liberally deployed to better understand ADPr-mediated signaling pathways and mechanisms. Until new synthetic routes are developed to control ADP-ribose polymerization on synthetic peptides, the strategy reported herein is the sole gateway to studying poly-ADPr via protein chemistry. Thus, we believe our work represents a significant and impactful advance.

However, the current manuscript focuses on biochemical roles of ADP-ribosylation that were not addressed by Muir, and also presents the elegant enzymatic extension of semisynthetic mono-ADP ribosylated histones to obtain well-defined polymers of ADP-ribose by using varying ratios of PARP1:HPF1. The rigorous series of experiments and interesting results, that begin to clarify prior hypotheses generated from cellular data, will be of broad interest to the readers of eLife. I recommend a few figure/text revisions and the inclusion of two additional experiments, with the reagents on hand, to help increase the clarity of techniques and conclusions presented.

One key limitation of the work – which the authors clearly state in the methods for assembly of full-length ADP-ribosylated histones – is the requirement for a Cys-containing mutant H2B and H3 in biochemical assays. While there is no doubt, given Muir's recent work and the authors' claims, that the Cys may be effectively desulfurized in future experiments, the current substrates tested did not include this step. Therefore, I would suggest the authors move their statement on desulfurization to the Results in the main text and cite the Muir JACS paper. Accordingly, Figure 4A should clearly show the thiol is present in the histone tail.

We agree that these suggestions are appropriate to ensure that desulfurization details are clear to all readers. We have modified Figure 4A as requested, moved our statement about desulfurization to the main text, and included the citation (Lines 344-349).

Finally, given the risk of disulfide-tethering cysteine-containing proteins to this accessible thiol in the H2B/H3 tail, the authors should mention in the discussion if reducing agents were included for all enzymatic assays and whether assay products were analyzed to ensure Cys-containing H2B/H3 remained as monomeric species at the end of the assay period. Particularly when mononucleosomes were subjected to nuclear lysates in remodeling assays.

We have now added a line to the main text stating that our ADP-ribosylated mononucleosome TBE gel analysis in Figure 4F was performed after incubation in remodeling assay conditions to ensure that no nucleosome disulfide tethering has occurred (Lines 345-347). We have used standard remodeling assay conditions that are typically used in the field to carry out ATP-dependent remodeling reactions (Dann et al., 2017; He et al., 2006). We also note that lysate assays contain 0.5 mM DTT (which is carried over from our nuclear lysate storage buffer).

In Figure 4. It is surprising that H3 and H2B appear to migrate at the same size prior to ADP-ribosylation despite previous reports of their differing migration (see https://www.epicypher.com/products/nucleosomes/histone-octamer-recombinant-human for one example). The authors should indicate the percentage of polyacrylamide or any changes in gel running conditions from standard SDS-PAGE conditions that led to this result.

This observation is correct. We have aligned our protein ladder with the protein ladder on the Epicypher image (both ladders have the same molecular weight markers) and it is clear that we use different gel percentage and/or running conditions. For histone characterization, we use 12% Bis-Tris SDS-PAGE gels (prepared in house) in 1X MES running buffer. We have now included this detail in both the Figure 4 legend (Lines 317-319) and the Methods section (Lines 1360-1362).

Supplementary Figure 5F. The PARP1-SerADPlong size clearly changes with hydroxylamine treatment (comparing lanes 3 and 4) indicating that a minority of ADP-ribose linkages are not to Ser in PARP1. I would suggest noting this in the main text as potential heterogeneity in the ADP-ribosylated protein being employed in assays. Particularly if the ADP-ribosylated PARP1 tested in biochemical assays was not first treated with hydroxylamine.

It is true that our PARP1 SerADPrlong contains a minor fraction of hydroxylamine-sensitive ADPr. This is likely due to the relatively low HPF1:PARP1 ratio that was required to produce long ADP-ribose chains. This was also one of the reasons we elected to prepare two samples (one with relatively short chains but negligible hydroxylamine sensitivity). Additionally, while hydroxylamine treatment is an option to ‘clear off’ Asp/Glu ADPr after the automodification reaction, the ADP-ribosylated Asp/Glu residues become covalently modified with a hydroxamic acid moiety(Zhang et al., 2013). Thus, hydroxylamine treatment introduces a different type of sample heterogeneity and so we elected to forgo this step.

For clarification, we have now included this note in the main text:

Lines 424-428:

“We note that a small amount of hydroxylamine-dependent ADP-ribose chain cleavage was observed in the PARP1 SerADPrlong sample. Thus, a small population of aspartate- and/or glutamate-linked ADPr is present in this sample, likely due to the relatively low HPF1:PARP1 ratio that was required to produce long ADP-ribose chains.”

Two important biochemical assays are missing in the manuscript that would help readers understand the specific contributions of nucleosome ADP-ribosylation and PARP1 ADP-ribosylation toward remodeling by ALC1.

(A) The first assay is to investigate competition of ADP-ribosylated nucleosomes by ADP-ribosylated peptides. This would validate the authors' statement that, "in addition to disrupting an autoinhibited conformation, the modified histone tail:macrodomain interaction is crucial for presenting the ATPase domain to the nucleosome." If this statement were indeed true and no additional nucleosomal contacts were needed for ALC1 function, then ADP-ribosylated H2B/H3 peptides would be expected to effectively inhibit nucleosome remodeling of the corresponding ADP-ribosylated nucleosome.

We apologize for the confusion regarding the statement: "in addition to disrupting an autoinhibited conformation, the modified histone tail:macrodomain interaction is crucial for presenting the ATPase domain to the nucleosome." We did not mean to imply that the histone tail:macrodomain is the only crucial interaction for presenting the ATPase domain to the nucleosome. In fact, there are several studies, one of which was published while our work was under review, that identify additional ALC1:nucleosome interaction interfaces(Bacic et al., 2021; Lehmann et al., 2020) (now cited in our manuscript). We have performed the control experiment requested and found that the freely diffusing peptides are unable to inhibit ALC1. This is not surprising considering the high density of ADP-ribosylated molecules near the DNA damage site; if non-nucleosome ADPr were to inhibit ALC1 then this pathway would be incredibly inefficient.

We have replaced this line in the text with several statements that more clearly describe our findings:

Lines 372-375: “Furthermore, freely diffusing macrodomain ligands do not inhibit nucleosome ADPr-dependent stimulation of ALC1 (Figure 5—figure supplement 1D), suggesting that substrate engagement is also influenced by additional ALC1:nucleosome interfaces, of which several have been identified(Bacic et al., 2021; Lehmann et al., 2020).”

Lines 367-368: “Therefore, the modified histone tail:macrodomain interaction is important for ALC1 substrate selectivity.”

The latter statement is also supported by new experiments showing that an ALC1 construct lacking the macrodomain exhibits similar activity towards unmodified and ADP-ribosylated nucleosomes (discussed further below).

(B) The second assay involves an ALC1-mediated remodeling experiment with ADP-ribosylated nucleosomes in the presence of ADP-ribosylated PARP1. The authors, surprisingly, only test ADP-ribosylated PARP1 with unmodified nucleosomes and the rationale for this is unclear if DNA-damage is indeed accompanied by histone ADP-ribosylation, which is also the focus of this manuscript. Results from an assay with ADP-ribosylated H2B containing nucleosomes would clearly indicate if nucleosome ADP-ribosylation remains relevant when PARP1 is also ADP-ribosylated, and if any additive effects are observed from both species being ADP-ribosylated.

We agree that this is an interesting idea and have now performed the requested experiment (Figure5—figure supplement 1K). We found that addition of our most potent ALC1 activating automodified PARP1 construct (PARP1 SerADPrlong) is unable to further stimulate ALC1 remodeling when an ADP-ribosylated nucleosome substrate is employed. Thus, as Reviewer 2 states, nucleosome ADPr clearly remains relevant in the presence of automodified PARP1. We have pointed this out in text additions as well:

Lines 435-438: “We also found that automodified PARP1 is unable to further stimulate ALC1 remodeling activity when an ADPr nucleosome substrate is employed (Figure 5—figure supplement 1K), which clearly demonstrates that nucleosome ADPr significantly influences ALC1 remodeling even in the presence of automodified PARP1.”

Finally, the pooled mononucleosome remodeling experiment provides no additional information beyond the initial information gained from individual mononucleosome assays and the fact that a ADP-ribosylated histone peptide does not activate ALC1 on non-ribosylated nucleosomes. The peptide in trans assay result already indicated that ALC1 does not stay active after disengaging the ADP-ribosylated peptide. If the authors' goal was to demonstrate that ribosylated nucleosomes do not stimulate activity of ALC1 on non-ribsoylated nucleosomes, or that ALC1 "immediately turns off" after disengagement from a ADP-ribosylated nucleosome, then this needs to be tested in an asymmetric dinucleosome model wherein the two nucleosomes are tethered in close proximity and not diffusing independently of each other. A mixture of varying ADP-ribosylated mononucleosomes at nM concentrations is unlikely to be an approximation of the chromatin context of ALC1, where varying degrees of ribosylation may exist in close apposition. Hence, I suggest the authors reword the conclusion from the pooled experiment to suggest that ALC1 only acts on polyADP-ribosylated mononucleosomes within a mixture of varying ADP-ribosylation states and avoid speculation of its diffusivity.

We agree with this comment and have now performed ALC1 remodeling experiments on asymmetrically ADP-ribosylated dinucleosomes (as described in detail above). Importantly, our new results support our initial claims. As described above, the dinucleosome remodeling activity results are consistent with the automodified PARP1 experiments; PARP1 auto-ADPr and adjacent nucleosome ADPr both tether poly-ADP-ribose in close proximity to unmodified nucleosomes but neither is able to fully stimulate ALC1. We also believe our pooled nucleosome approach is not without value here. While we do show that ADP-ribosylated peptides do not activate ALC1 towards unmodified nucleosomes, there is no evidence that ALC1 assumes a remodeling-competent conformation at any point during these reactions. Use of pooled nucleosomes allowed us to definitively demonstrate that even in a solution wherein robust ALC1 remodeling activity is observed, substrate selectivity is maintained. Together, these experiments are all consistent with our hypothesis that ALC1 preferentially remodels binding-competent nucleosome substrates and target disengagement triggers rapid transition back to an inactive conformation.

Reviewer #3 (Recommendations for the authors):

– While authors show that multiple modified histones can be made by this method (including S28 modified H3), claiming broad applicability to preparation of ADPr proteins is a misnomer for the exact reasons listed in the last paragraph of the discussion. The claims of broad applicability should be revised accordingly.

We do not disagree with this assessment and are happy to revise accordingly. As pointed out by Reviewer 3, we initially described the fact that our technology is “…still susceptible to restraints that exist throughout the field of protein chemistry” in the ‘Technical Limitations’ section of our manuscript. We have now modified our abstract, introduction, and discussion to state that our technology is broadly applicable for the preparation of poly-ADP-ribosylated peptides and fully compatible with protein ligation technologies. As discussed above, we have also included new C-terminal ligation chemistry to further support this claim. We are grateful for this suggestion from Reviewer 3, as corresponding edits will ensure that the capabilities of our method are more clearly articulated throughout the manuscript.

– Protein modification community would benefit from better understanding of pros and cons of the polyADP ribosylation method presented here. Given a need for extensive HPLC purification of the mixtures formed in both cases, a side-by-side comparison to experimentally simpler one pot reactions with PARP1:HPF1 would help.

We agree it would be helpful to the reader to have a direct comparison of poly-ADP-ribosylated product yields from the one-step and two-step processes. We have added a sentence to our discussion (Lines 574-578) to point out why the two-step process is required to prepare poly-ADP-ribosylated peptides, and have included an additional Supplementary file that directly compares poly-ADP-ribosylated product from a PARP1:HPF1 reaction (from an unmodified H2B substrate) to a PARP1 elongation reaction (from a mono-ADP-ribosylated H2B peptide). This direct comparison employs the lowest HPF1 concentration required for maximum conversion of unmodified peptide. Thus, the products represent the optimal poly-ADP-ribosylated product yields from a single step reaction. The reader will find that, while it may be possible to isolate milligram quantities of the di-ADP-ribosylated product, it is not feasible to prepare appreciable quantities of the tri- and tetra-ADP-ribosylated species.

Lines 574-578: “The biological two-step ADPr process explains why mono- and poly-ADPr reactions must be separated for scalable preparation of poly-ADP-ribosylated peptides – the high concentrations of HPF1 required for full conversion of unmodified peptides to the mono-ADP-ribosylated species simultaneously inhibits formation of the poly-ADP-ribosylated species (Supplementary file 5).”

– It would be important to assess whether ALC1 itself is ADP ribosylated in the remodeling assays where PARP is supplemented together with NAD+. The supplemental figure 5D, while showing PARP1 is autoribosylated based on the band shift, suggests broad ADP ribosylation signal as well. ALC1 autoribosylation might contribute to relief of its autoinhibition, contributing to the slight enhancement in remodeling observed, rather than a direct interaction with autoribosylated PARP1.

We have performed an ADP-ribose western blot-based analysis of these remodeling assays and observed partial ADPr of ALC1 (Figure 5—figure supplement 1H, discussed in lines 413-414). We initially cautioned the reader against analyzing the unmodified nucleosomes, ALC1, PARP1, and NAD+ remodeling reaction (henceforth the in situ reaction) because no serine ADPr is present. Therefore, the in situ reaction does not appropriately mimic DNA damage-induced ADPr, which predominantly targets serine residues. We performed the in situ reaction as described because this precise workflow has been implemented by several previous ALC1 activation studies(Gottschalk et al., 2009; Ooi et al., 2021). Our goal was to provide a direct comparison between the previously employed in situ approach and our new analyses. The observation that ALC1 is ADP-ribosylated during this reaction is additional motivation to use extreme caution when evaluating ALC1 activation using the in situ workflow.

Importantly, ALC1 ADPr is not a concern when analyzing ALC1 activation by the PARP1 SerADPrshort and PARP1 SerADPrlong constructs, which were separated from NAD+, DNA, and HPF1 prior to the remodeling reaction. Using this approach, we were able to specifically compare ALC1 activation by automodified PARP1 and poly-ADP-ribosylated nucleosomes. We would also like to point out that this control further emphasizes the value of a method to install poly-ADPr at specific sites on proteins for mechanistic interrogation. Moving forward, it may be interesting to explore ALC1 ADPr.

– Remodeling in nuclear extracts: The representative gel results in Figure 6 supplement 1C of remodeling in the presence of nuclear extracts does not support the claim that, with poly ADP ribosylated substrates, remodeling is enhanced compared to that observed with ALC1 knockout extracts. The relative remodeled and unremodeled bands appear similar regardless of the presence of ALC1 in the extract. It appears the specificity of remodeling gained for the ADPr4 substrate in the presence of ALC1 might result from slightly less remodeling of the unmodified substrate in the presence of ALC1 compared to ALC1 knockout extract unmodified substrate remodeling. This point would be apparent if the data was plotted as raw fraction remodeled values or relative remodeled values calculated to the unmodified substrate with WT extract for all experiments in Figure 6E.

We thank the reviewer for this comment and have amended the text to more clearly explain our interpretation of the nuclear extract experiment. Indeed, we observe a change in overall remodeling activity (or basal remodeling activity towards the unmodified nucleosome substrate) when comparing wild-type lysate with ALC1-null lysate. This could be a consequence of subtle lysate preparation variables or represent a cellular mechanism to compensate for the loss of ALC1. Therefore, it is not possible to draw any conclusions based on total remodeling activity. However, this assay does allow us to analyze changes in substrate selectivity between the two lysates. Using our unmodified nucleosomes as an internal normalization factor, we observed increased remodeling activity with the poly-ADP-ribosylated nucleosome substrates (relative to unmodified nucleosome substrates) in wild-type lysates. In contrast, substrate preference was abolished in the ALC1-null lysates, and equal remodeling activity was observed with all substrates regardless of ADPr status. In the updated manuscript, we have carefully edited the text to discuss our results in terms of substrate selectivity and not overall activity. Considering that normalization to unmodified nucleosome remodeling activity within each individual lysate is a key component of data analysis and substrate selectivity, we think this data is most clearly presented to the reader in Figure 6E as is. However, we have included the raw data as a figure supplement as suggested (Figure 7—figure supplement 1E). We have also added text to point out that increased overall activity was observed in the ALC1-null lysate:

Lines 555-558: “We also observed an increase in overall remodeling activity towards all substrates in the ALC1-KO lysate, which may be a consequence of subtle lysate preparation variables or represent a cellular mechanism to compensate for loss of ALC1.”

– More rigorous characterization is needed for the poly ADP ribosylated substrates used with nuclear extracts in Figure 6E to support the claim that no hydrolysis is present of the poly ADP ribose chains. The band shifts due to poly ADP ribosylation are less pronounced as shown in Figure 4C-4E and the band shift is decreased upon addition of extract to H2BS6/H3S10ADPr4 substrate, suggesting chain hydrolysis. Authors should test if the polyADP ribose chains are retained after incubation with nuclear extracts. Alternatively, authors could test nuclear extract activity with and without ALC1 in the presence of PARG to assess if the enhancement is abolished.

We agree it is important to edit the text to include the alternative explanation put forth by Reviewer 3 as follows:

Lines 552-555: “Importantly, partial hydrolysis of nucleosome poly-ADPr was detected following the assay, likely due to the presence of ARH3, PARG, and/or other glycohydrolases. Therefore, the remodeler substrate preference in wild-types lysates may actually be even greater than we observed in this assay.”

In lieu of adding PARG to our assays, we initially designed the lysate experiments to include the H2BS6ADPr1 nucleosomes (the PARG reaction product), as well as two nucleosomes that we found to be potent ALC1 stimulators (H2BS6ADPr4, and H2BS6/H3S10ADPr4) in biochemical assays. Our lysate results are highly consistent with our reconstitution data showing that ALC1, but not similar remodelers such as CHD4, preferentially target the poly-ADP-ribosylated nucleosomes. Therefore, we hope all reviewers agree that the lysate data are an appropriate complement to our reconstitution assays and that all possible interpretations have now been discussed.

– If it still holds, any speculation on attenuation of ALC1 stimulation in nuclear extracts, as opposed to that observed with recombinant components?

References

Bacic, L., Gaullier, G., Sabantsev, A., Lehmann, L.C., Brackmann, K., Dimakou, D., Halic, M., Hewitt, G., Boulton, S., and Deindl, S. (2021). Structure and dynamics of the chromatin remodeler ALC1 bound to a PARylated nucleosome. eLife 10.

Bonfiglio, J.J., Leidecker, O., Dauben, H., Longarini, E.J., Colby, T., San Segundo-Acosta, P., Perez, K.A., and Matic, I. (2020). An HPF1/PARP1-Based Chemical Biology Strategy for Exploring ADP-Ribosylation. Cell 183, 1086-1102 e1023.

Dann, G.P., Liszczak, G.P., Bagert, J.D., Muller, M.M., Nguyen, U.T.T., Wojcik, F., Brown, Z.Z., Bos, J., Panchenko, T., Pihl, R., et al. (2017). ISWI chromatin remodellers sense nucleosome modifications to determine substrate preference. Nature 548, 607-611.

Gibbs-Seymour, I., Fontana, P., Rack, J.G.M., and Ahel, I. (2016). HPF1/C4orf27 Is a PARP-1-Interacting Protein that Regulates PARP-1 ADP-Ribosylation Activity. Mol Cell 62, 432-442.

Gibson, B.A., and Kraus, W.L. (2012). New insights into the molecular and cellular functions of poly(ADP-ribose) and PARPs. Nat Rev Mol Cell Biol 13, 411-424.

Gottschalk, A.J., Timinszky, G., Kong, S.E., Jin, J., Cai, Y., Swanson, S.K., Washburn, M.P., Florens, L., Ladurner, A.G., Conaway, J.W., et al. (2009). Poly(ADP-ribosyl)ation directs recruitment and activation of an ATP-dependent chromatin remodeler. Proc Natl Acad Sci U S A 106, 13770-13774.

He, X., Fan, H.Y., Narlikar, G.J., and Kingston, R.E. (2006). Human ACF1 alters the remodeling strategy of SNF2h. J Biol Chem 281, 28636-28647.

Langelier, M.F., Billur, R., Sverzhinsky, A., Black, B.E., and Pascal, J. (2021). HPF1 dynamically controls the PARP1/2 balance between initiating and elongating ADP-ribose modifications. bioRxiv doi: https://doi.org/10.1101/2021.05.19.444852.

Lehmann, L.C., Bacic, L., Hewitt, G., Brackmann, K., Sabantsev, A., Gaullier, G., Pytharopoulou, S., Degliesposti, G., Okkenhaug, H., Tan, S., et al. (2020). Mechanistic Insights into Regulation of the ALC1 Remodeler by the Nucleosome Acidic Patch. Cell Rep 33, 108529.

Leung, A.K. (2014). Poly(ADP-ribose): an organizer of cellular architecture. J Cell Biol 205, 613-619.

Ooi, S.K., Sato, S., Tomomori-Sato, C., Zhang, Y., Wen, Z., Banks, C.A.S., Washburn, M.P., Unruh, J.R., Florens, L., Conaway, R.C., et al. (2021). Multiple roles for PARP1 in ALC1-dependent nucleosome remodeling. Proc Natl Acad Sci U S A 118.

Prokhorova, E., Agnew, T., Wondisford, A.R., Tellier, M., Kaminski, N., Beijer, D., Holder, J., Groslambert, J., Suskiewicz, M.J., Zhu, K., et al. (2021). Unrestrained poly-ADP-ribosylation provides insights into chromatin regulation and human disease. Mol Cell 81, 2640-2655 e2648.

Teloni, F., and Altmeyer, M. (2016). Readers of poly(ADP-ribose): designed to be fit for purpose. Nucleic Acids Res 44, 993-1006.

Zhang, Y., Wang, J., Ding, M., and Yu, Y. (2013). Site-specific characterization of the Asp- and Glu-ADP-ribosylated proteome. Nat Methods 10, 981-984.

https://doi.org/10.7554/eLife.71502.sa2

Article and author information

Author details

  1. Jugal Mohapatra

    Department of Biochemistry, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6604-3749
  2. Kyuto Tashiro

    Department of Biochemistry, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0174-1789
  3. Ryan L Beckner

    Department of Biochemistry, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Jorge Sierra

    Department of Biochemistry, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  5. Jessica A Kilgore

    1. Department of Biochemistry, The University of Texas Southwestern Medical Center, Dallas, United States
    2. Preclinical Pharmacology Core, Department of Biochemistry, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  6. Noelle S Williams

    1. Department of Biochemistry, The University of Texas Southwestern Medical Center, Dallas, United States
    2. Preclinical Pharmacology Core, Department of Biochemistry, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  7. Glen Liszczak

    Department of Biochemistry, The University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Supervision, Validation, Visualization, Writing - original draft, Writing - review and editing
    For correspondence
    glen.liszczak@utsouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8194-5281

Funding

Cancer Prevention and Research Institute of Texas (RR180051)

  • Glen Liszczak

Welch Foundation (I-2039-20200401)

  • Glen Liszczak

American Cancer Society (UTSW-IRG-17-174-13)

  • Glen Liszczak

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. W Lee Kraus, Dr. Deepak Nijhawan, Dr. Steven McKnight, Dr. Benjamin Tu and members of the Liszczak laboratory for insightful discussions. We thank Dr. Andrew Lemoff and the UT Southwestern Proteomics Core for technical assistance. We also thank members of the laboratories of Dr. Ping Mu and Dr. Michael Roth for help with reagents. This work was supported by grants from the Welch Foundation (I-2039-20200401 to G L), the Cancer Prevention Research Institute of Texas (RR180051 to G L), and the American Cancer Society (UTSW-IRG-17-174-13). G L is the Virginia Murchison Linthicum Scholar in Medical Research.

Senior Editor

  1. Jessica K Tyler, Weill Cornell Medicine, United States

Reviewing Editor

  1. Geeta J Narlikar, University of California, San Francisco, United States

Publication history

  1. Received: June 21, 2021
  2. Preprint posted: July 7, 2021 (view preprint)
  3. Accepted: November 20, 2021
  4. Accepted Manuscript published: December 7, 2021 (version 1)
  5. Version of Record published: December 17, 2021 (version 2)
  6. Version of Record updated: January 24, 2022 (version 3)

Copyright

© 2021, Mohapatra et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,192
    Page views
  • 285
    Downloads
  • 5
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Jugal Mohapatra
  2. Kyuto Tashiro
  3. Ryan L Beckner
  4. Jorge Sierra
  5. Jessica A Kilgore
  6. Noelle S Williams
  7. Glen Liszczak
(2021)
Serine ADP-ribosylation marks nucleosomes for ALC1-dependent chromatin remodeling
eLife 10:e71502.
https://doi.org/10.7554/eLife.71502
  1. Further reading

Further reading

    1. Biochemistry and Chemical Biology
    2. Chromosomes and Gene Expression
    Radhika A Varier, Theodora Sideri ... Folkert Jacobus van Werven
    Research Article

    N6-methyladenosine (m6A) RNA modification impacts mRNA fate primarily via reader proteins, which dictate processes in development, stress, and disease. Yet little is known about m6A function in Saccharomyces cerevisiae, which occurs solely during early meiosis. Here we perform a multifaceted analysis of the m6A reader protein Pho92/Mrb1. Cross-linking immunoprecipitation analysis reveals that Pho92 associates with the 3’end of meiotic mRNAs in both an m6A-dependent and independent manner. Within cells, Pho92 transitions from the nucleus to the cytoplasm, and associates with translating ribosomes. In the nucleus Pho92 associates with target loci through its interaction with transcriptional elongator Paf1C. Functionally, we show that Pho92 promotes and links protein synthesis to mRNA decay. As such, the Pho92-mediated m6A-mRNA decay is contingent on active translation and the CCR4-NOT complex. We propose that the m6A reader Pho92 is loaded co-transcriptionally to facilitate protein synthesis and subsequent decay of m6A modified transcripts, and thereby promotes meiosis.

    1. Biochemistry and Chemical Biology
    2. Cancer Biology
    Jacob M Winter, Heidi L Fresenius ... Jared Rutter
    Research Article

    The tumor suppressor gene PTEN is the second most commonly deleted gene in cancer. Such deletions often include portions of the chromosome 10q23 locus beyond the bounds of PTEN itself, which frequently disrupts adjacent genes. Coincidental loss of PTEN-adjacent genes might impose vulnerabilities that could either affect patient outcome basally or be exploited therapeutically. Here we describe how the loss of ATAD1, which is adjacent to and frequently co-deleted with PTEN, predisposes cancer cells to apoptosis triggered by proteasome dysfunction and correlates with improved survival in cancer patients. ATAD1 directly and specifically extracts the pro-apoptotic protein BIM from mitochondria to inactivate it. Cultured cells and mouse xenografts lacking ATAD1 are hypersensitive to clinically used proteasome inhibitors, which activate BIM and trigger apoptosis. This work furthers our understanding of mitochondrial protein homeostasis and could lead to new therapeutic options for the hundreds of thousands of cancer patients who have tumors with chromosome 10q23 deletion.
