Inhibiting host-protein deposition on urinary catheters reduces associated urinary tract infections

  1. Marissa Jeme Andersen
  2. ChunKi Fong
  3. Alyssa Ann La Bella
  4. Jonathan Jesus Molina
  5. Alex Molesan
  6. Matthew M Champion
  7. Caitlin Howell  Is a corresponding author
  8. Ana L Flores-Mireles  Is a corresponding author
  1. Department of Biological Sciences, College of Science, University of Notre Dame, United States
  2. Department of Chemical and Biomedical Engineering, College of Engineering, University of Maine, United States
  3. Graduate School of Biomedical Science and Engineering, University of Maine, United States
  4. Department of Chemistry and Biochemistry, College of Science, University of Notre Dame, United States

Abstract

Microbial adhesion to medical devices is common for hospital-acquired infections, particularly for urinary catheters. If not properly treated these infections cause complications and exacerbate antimicrobial resistance. Catheter use elicits bladder inflammation, releasing host serum proteins, including fibrinogen (Fg), into the bladder, which deposit on the urinary catheter. Enterococcus faecalis uses Fg as a scaffold to bind and persist in the bladder despite antibiotic treatments. Inhibition of Fg–pathogen interaction significantly reduces infection. Here, we show deposited Fg is advantageous for uropathogens E. faecalis, Escherichia coli, Pseudomonas aeruginosa, K. pneumoniae, A. baumannii, and C. albicans, suggesting that targeting catheter protein deposition may reduce colonization creating an effective intervention for catheter-associated urinary tract infections (CAUTIs). In a mouse model of CAUTI, host-protein deposition was reduced, using liquid-infused silicone catheters, resulting in decreased colonization on catheters, in bladders, and dissemination in vivo. Furthermore, proteomics revealed a significant decrease in deposition of host-secreted proteins on liquid-infused catheter surfaces. Our findings suggest targeting microbial-binding scaffolds may be an effective antibiotic-sparing intervention for use against CAUTIs and other medical device infections.

Editor's evaluation

We assessed your work and were impressed by the number of different experiments and the coherence between them, clearly demonstrating the potential of your work for future prevention of catheter-associated urinary tract infections.

https://doi.org/10.7554/eLife.75798.sa0

Introduction

Urinary catheters drain patient’s bladders during surgical sedation and recovery in addition to being used in treatment for a variety of chronic conditions, making it an exceedingly common procedure in healthcare facilities. Despite the benefits urinary catheters provide for patients, catheterization causes adverse effects including infections and bladder stones (Andersen and Flores-Mireles, 2019; Feneley et al., 2015). The most common complication is catheter-associated urinary tract infection (CAUTI), which accounts for 40% of all hospital-acquired infections (Andersen and Flores-Mireles, 2019; Feneley et al., 2015). Unfortunately, CAUTIs often lead to bloodstream infections and systemic dissemination with a 30% mortality rate, causing significant financial burdens for hospitals and patients (Andersen and Flores-Mireles, 2019; Feneley et al., 2015).

New and current management guidelines for CAUTIs have resulted in moderate reductions in incidences (Assadi, 2018; Meddings et al., 2014). The standard treatment for patients with symptomatic CAUTI is catheter removal and replacement and an antibiotic regiment (Assadi, 2018; Flores-Mireles et al., 2019). However, this approach is not effective because biofilms on the catheter surface and bladder wall protect microbes against antibiotics and the immune system and creates the potential development of antimicrobial resistance (Flores-Mireles et al., 2019; Trautner and Darouiche, 2004). Many ongoing efforts to prevent biofilms on catheters are focused on developing surface modifications (Andersen and Flores-Mireles, 2019; Faustino et al., 2020; Singha et al., 2017). Catheters impregnated with antimicrobials, such as metal ions and antibiotics, have become popular and are now commercialized due to promising in vitro work but, in clinical trials these catheters have shown, at best, mixed results (Andersen and Flores-Mireles, 2019; Singha et al., 2017). Importantly, there is concern that this approach may not be a long-term solution given that the presence of antimicrobial compounds may drive development of resistance (Singha et al., 2017; Westfall et al., 2019). Especially when considering the host factors that coat urinary catheters, which could potentially inhibit or decrease pathogen interaction with antimicrobials.

Recent findings in mouse and human urinary catheterization have unveiled the importance of the host clotting factor 1, fibrinogen (Fg), for surface adhesion and subsequent establishment of biofilms and persistence of CAUTIs in Enterococcus faecalis and Staphylococcus aureus infections (Flores-Mireles et al., 2019; Flores-Mireles et al., 2014; Flores-Mireles et al., 2016a; Flores-Mireles et al., 2016b; Gaston et al., 2020; Klein and Hultgren, 2020). Fg is continuously released into the bladder lumen in response to mechanical damage to the urothelial lining caused by catheterization (Flores-Mireles et al., 2019; Flores-Mireles et al., 2014; Flores-Mireles et al., 2016a; Klein and Hultgren, 2020). Once in the lumen, Fg is deposited on the catheter, providing a scaffold for these incoming uropathogens to bind and establish infection in human and mouse CAUTI. When blocking the interaction between Fg and E. faecalis using antibodies, the pathogen is not able to effectively colonize the bladder (Di Venanzio et al., 2019; Flores-Mireles et al., 2014; Flores-Mireles et al., 2016a; Gaston et al., 2020; Walker et al., 2017).

Thus, we hypothesized that reducing availability of binding scaffolds, in this case Fg, would decrease microbial colonization in a catheterized bladder. To test our hypothesis, we used a mouse model of CAUTI and a diverse panel of uropathogens, including E. faecalis, C. albicans, uropathogenic Escherichia coli, Pseudomonas aeruginosa, A. baumannii, and Klebsiella pneumonia, which we found all bind more extensively to catheters with Fg present. To resolve the deposition of Fg, we focus on antifouling modifications, specifically, liquid-infused silicone (LIS). LIS is more simple to make, more stable, and more cost effective than other antifouling polymer modifications (Andersen and Flores-Mireles, 2019; Campoccia et al., 2013; Homeyer et al., 2019; Howell et al., 2018; Chamy, 2013; Singha et al., 2017; Sotiri et al., 2018; Villegas et al., 2019). Additionally, LIS has shown to reduce clotting in central lines and infection in skin implants (Chen et al., 2017; Leslie et al., 2014). We show that our LIS-catheters reduced Fg deposition and microbial binding not only in vitro but also in vivo. Furthermore, LIS-catheters significantly decrease host-protein deposition when compared to unmodified (UM)-catheters as well as reducing catheter-induced inflammation. These findings suggest that targeting host-protein deposition on catheter surfaces and the use of LIS-catheters are plausible strategies for reducing instances of CAUTI.

Results

Uropathogens interact with Fg during CAUTI

Due to the understood interaction between Fg and some uropathogens and Fg accumulation on catheters over time in human and mice, we assessed potential interaction of E. faecalis OG1RF (positive control) uropathogenic E. coli UTI89, P. aeruginosa PAO1, K. pneumoniae TOP52, A. baumannii UPAB1, and C. albicans SC5314 with Fg in vivo, using a CAUTI mouse model, which recapitulates human CAUTI pathophysiology (Flores-Mireles et al., 2019; Flores-Mireles et al., 2014; Flores-Mireles et al., 2016a; Flores-Mireles et al., 2016b). Mice catheterized and infected with the respective uropathogen were sacrificed at 24 hours post infection (hpi). Catheters and bladders were harvested, stained, and imaged. Visual and quantitative analysis of the catheters showed all uropathogens colocalizing strongly with Fg deposits exhibiting preference for Fg (Figure 1A, B) and robust Fg deposition on catheters, validating previous studies on human catheters (Flores-Mireles et al., 2019; Flores-Mireles et al., 2014; Flores-Mireles et al., 2016a; Flores-Mireles et al., 2016b). Importantly, immunofluorescence (IF) analysis of bladder sections showed that all uropathogens interact with Fg on the bladder urothelium or in the lumen during CAUTI (Figure 1C and montages in Figure 1—figure supplement 1). Although we show interaction between the pathogens and Fg, further studies are needed to characterize each pathogen–Fg interaction mechanism, as previously done with E. faecalis and S. aureus (Flores-Mireles et al., 2014; Flores-Mireles et al., 2016b; Walker et al., 2017).

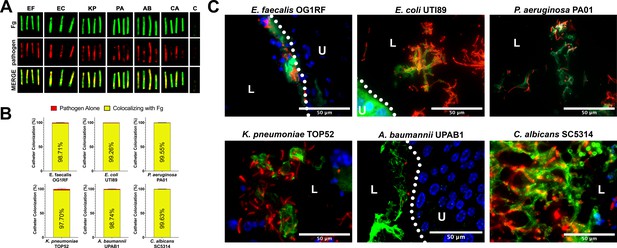

Figure 1 with 1 supplement see all
Uropathogens interact with fibrinogen (Fg) in vivo.

(A) Urinary catheters stained with immunofluorescence (IF) for Fg deposition (Fg; green) and microbe binding (respective pathogen; red). Unimplanted catheters were used as controls for autofluorescence, n = 3–4. (B) Quantification of uropathogen–Fg colocalization on catheters from panel A. (C) Representative images from a single bladder illustrating the interaction of uropathogens (red), Fg (green), and nuclei (blue) on the bladder urothelium (U) and in the lumen (L). Scale bar, 50 nm. Montages can be found in Figure 1—figure supplement 1. For all graphs error bars show the standard error of the mean (SEM). Between 3 and 5 replicates of n = 4–12 each were performed for each pathogen and condition.

Fg on urinary catheter material enhances microbial binding

Based on our in vivo findings, we assessed whether Fg could promote initial binding of the uropathogens to silicone catheters as previously seen for E. faecalis (Flores-Mireles et al., 2014). In addition to Fg, bovine serum albumin (BSA) was tested since serum albumin is one of the most abundant proteins on human and mouse urinary catheters (Molina et al., in preparation; Supplementary file 2). We compared uropathogen binding to Fg-, BSA-, and uncoated silicone, finding that Fg significantly enhanced the binding to the catheter for all uropathogens when compared with uncoated and BSA-coated silicone catheters (Figure 2). Interestingly, P. aeruginosa and A. baumannii binding to BSA-coated silicone was ~14% and ~10% higher than uncoated controls, respectively (Figure 2C, E), alluding to a role for other host-secreted proteins during infection. However, these values were still significantly lower than the increase in binding observed on Fg-coated silicone (Figure 2C, E). Taken together, these data suggest that uropathogen interaction with host proteins deposited on silicone surfaces, particularly Fg, increases the ability of uropathogens to colonize urinary catheters.

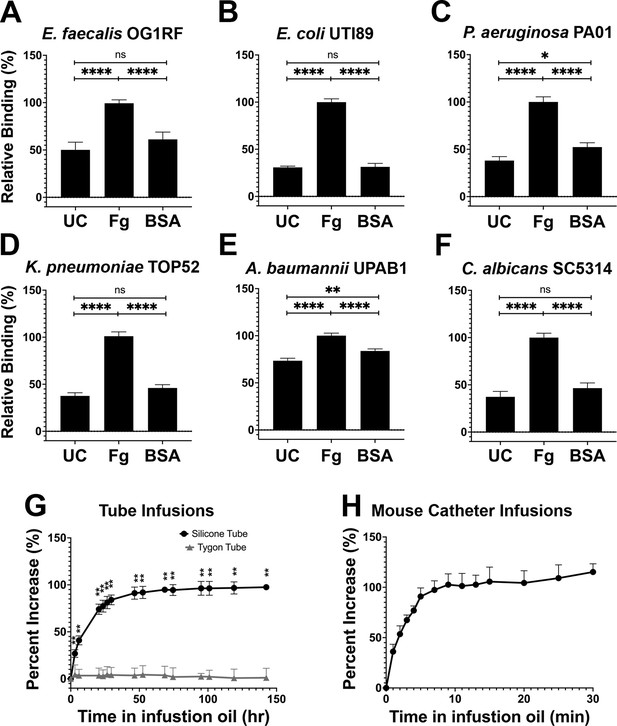

Figure 2 with 1 supplement see all
Silicone infusion and fibrinogen (Fg) enhancement of microbial surface binding.

(A–F) Uropathogens were tested for their ability to bind to protein coated and uncoated (UC) silicone catheters. For all graphs, error bars show the standard error of the mean (SEM). Between 3 and 5 replicates of n = 4–12 each were performed for each pathogen and condition. (G) Kinetics of silicone oil infusion on silicone and Tygon tubes, as well as (H) mouse silicone catheters. Differences between groups were tested for significance using the Mann-Whitney U test. *, P < 0.05; **, P < 0.005; and ****, P < 0.0001.

Characterization of liquid-infused catheters to prevent host-protein deposition

Based on the exploitative interaction of uropathogens with deposited Fg, we hypothesized that development of a material to prevent protein deposition would also reduce microbial colonization. Recent work with liquid-infused surfaces have demonstrated resistance to protein and bacterial fouling (Goudie et al., 2017; Howell et al., 2018; Leslie et al., 2014; Sotiri et al., 2018). This prompted us to develop a LIS material by modifying medical-grade silicone using inert trimethyl-terminated polydimethylsiloxane fluid (silicone oil) (Goudie et al., 2017). Infusion was completed by submerging silicone into medical-grade silicone oil, the oil was then naturally taken up by the silicone tube creating a fully infused silicone tube with a slippery surface. Analysis of the oil’s infusion rate showed a significant increase in silicone weight during the first 3 days of infusion then a gradual decrease in infusion until a plateau was reached after ~50 hr (raw weight in Figure 2G and Figure 2—figure supplement 1A). Plastic Tygon tubes (nonsilicone) were used as negative controls (Figure 2—figure supplement 1B). Full infusion of mouse silicone catheters was achieved by 10 min of infusion (Figure 2H and Figure 2—figure supplement 1C). Investigation of silicone tube dimensions showed an increase in length, outer diameter, and inner diameter of ~41.3%, ~ 103.1%, and ~27.6%, respectively (Figure 2—figure supplement 1D) and mouse catheters showed an increase of ~30.7%, ~28.7%, and ~39.8%, respectively (Figure 2—figure supplement 1E). Based on these results, to ensure full infusion for further assays, silicone tubing was submerged in silicone oil for a minimum of 5 days and for mouse catheters for a minimum of 30 min.

LIS modification reduces Fg deposition and microbial-binding in vitro

The ability of the LIS-catheters to reduce Fg deposition in vitro was tested for infused medical-grade silicone material and two commercially available urinary catheters, Dover and Bardex with UM versions of each used as controls. The UM- and LIS-catheters were incubated with Fg overnight and assessment of Fg deposition by IF. We found that Fg deposition was reduced in all LIS-catheters, showing ~90% decrease on Dover and ~100% on the Bardex and medical-grade silicone tubing when compared with the corresponding UM controls (Figure 3A, B).

Liquid-infused silicone (LIS) modification reduces fibrinogen (Fg) deposition and microbial-binding in vitro.

(A) Visualization and (B) quantification of Fg (green) deposition on unmodified (UM)-catheter material (black bars) and LIS-catheter materials (white bars) by immunofluorescence (IF) staining. Three replicates with n = 2–3 each. (C) Microbial binding on UM and LIS. For all graphs, error bars show the standard error of the mean (SEM) and each condition had 3 replicates with n = 3 each. Differences between groups were tested for significance using the Mann-Whitney U test. ***, P < 0.0005; and ****, P < 0.0001*.

Based on previous reports of the biofouling ability of liquid-infused surfaces and our LIS’s success in reducing Fg deposition, we tested its ability to prevent microbial surface binding (Howell et al., 2018). Our six uropathogens were grown in urine supplemented with BSA at 37°C (Supplementary file 1), cultures were normalized in urine, added to UM control and LIS-catheters, incubated under static conditions and quantified via IF. Binding analysis by each of the uropathogens showed that all were able to bind in significantly higher densities to the UM-catheters than to the LIS-catheters (Figure 3C). These results further demonstrate the capability of silicone LIS-catheters to reduce not only protein deposition but to also impede microbial colonization.

Fg deposition and microbial biofilms on catheters was reduced by LIS

Mice were catheterized with either an UM- or LIS-catheter and infected with one of six uropathogens for 24 hr. Bladders and catheters were harvested and assessed for microbial burden by CFU enumeration or fixed for staining. Kidneys, spleens, and hearts were collected to determine microbial burden. We found that mice with LIS-catheters significantly reduced microbial colonization in the bladder and on catheters when compared with UM-catheterized mice regardless of the infecting uropathogen (Figure 4). Additionally, colonization was significantly lower in LIS-catheterized mouse kidneys for P. aeruginosa, A. baumannii, and E. coli infections (Figure 4C, E, G) and LIS-catheterized mice infected with E. coli or C. albicans showed significantly less colonization of the spleen (Figure 4G, K). K. pneumoniae kidney and spleen colonization difference was not statistically significant, however they showed a trend of less colonization and there was significantly less colonization of the heart (Figure 4I).

Figure 4 with 1 supplement see all
In vivo reduction of fibrinogen (Fg) deposition to restrict microbial burden.

Mice were catheterized and infected with one of six uropathogens. (A, C, E, G, I, K) Organ and catheter CFUs from mice with either an unmodified (UM)-catheter (closed circles) or liquid-infused silicone (LIS)-catheter (open circles) show the dissemination profile of the pathogen. (B, D, F, H,J,L) Imaging of catheters for Fg (green), respective uropathogen (red), and a merged image compare deposition on UM-catheters (left) with LIS-catheters (right); nonimplanted catheters as controls. Quantification of microbial colonization and colocalization on the catheters can be found in Figure 4—figure supplement 1. All animal studies for CFUs, catheter and bladder imaging had at least 10 animals per strain and catheter type. Differences between groups were tested for significance using the Mann-Whitney U test. *, P < 0.05; **, P < 0.005; ***, P < 0.0005; and ****, P < 0.0001.

Furthermore, IF imaging and quantification of catheters confirmed decreased Fg deposition and microbial biofilms on LIS-catheters compared to UM (Figure 4B, D, F, H, J, I and Figure 4—figure supplement 1). These data demonstrate pathogens preferentially bind to Fg, and that the LIS modification successfully reduced Fg deposition (the microbes’ binding platform), disrupts uropathogen biofilm formation on catheters, and colonization of the bladder in vivo. Importantly, hematoxylin and eosin (H&E) analysis shows the LI-catheter does not exacerbate bladder inflammation regardless of the presence of infection or not (Figure 5A–G), an important factor to account for when developing a new medical device. In fact, for some pathogens, the LI-catheter results in less inflammation than bladders catheterized with an UM-catheter (Figure 5B, C, G). Furthermore, we examine Fg presence, uropathogen colonization, and neutrophil recruitment in UM- and LIS-catheterized and infected bladders by IF microscopy. This analysis revealed a reduction of microbial colonization as well as decreased neutrophil recruitment (Figure 5H–M).

Figure 5 with 1 supplement see all
Liquid-infused silicone (LIS)-catheters reduce bladder colonization and inflammation.

Mice were catheterized and inoculated one of six strains. (A) Naive or bladders catheterized with an unmodified (UM)- or LIS-catheter were uninfected controls. (B–G) Bladder sections were stained with hematoxylin and eosin (H&E) to compare inflammation from UM-catheters (left) and LIS-catheters (right). (C–M) ×20 images of immunofluorescence (IF) stained bladders catheterized with an UM-catheter (left panels) or a LIS-catheter (right panels). Bladders stained for nuclei (blue), fibrinogen (Fg; green), respective uropathogens (red), and neutrophils (white). The urothelial/lumen boundaries are outlined in white dotted lines and labeled U (urothelium) and L (lumen) and all scale bars are 500 µm. Montages can be found in Figure 5—figure supplement 1.

LIS modification reduces protein deposition on catheters in CAUTI mouse model of E. faecalis

A quantitative-proteomics comparison was performed to identify proteins deposited on UM- and LIS-catheters retrieved 24 hpi with E. faecalis. Harvested catheters were prepared and protease digested with trypsin as in Zougman et al., 2014. nLC–MS/MS was performed in technical duplicate and label-free-proteomics (LFQ) processed as in Cox and Mann, 865 proteins were identified at a 1% False Discovery Rate (FDR) (Cox and Mann, 2008). Total abundance of protein was significantly reduced in LIS- vs UM-catheters (Figure 6A and Supplementary file 2). Additionally, abundance of Fg and over 130 other proteins significantly decreased while only three proteins showed a significant increase (UDP-glucose 6-dehydrogenase, filamin-B, and proteasome subunit beta type-5) (Figure 6B and Supplementary file 2). These data further demonstrate that the LIS modification not only reduced Fg deposition but also a wide variety of host proteins, which could play a role in microbial colonization and biofilm formation as demonstrated earlier with BSA (Figure 2C, E).

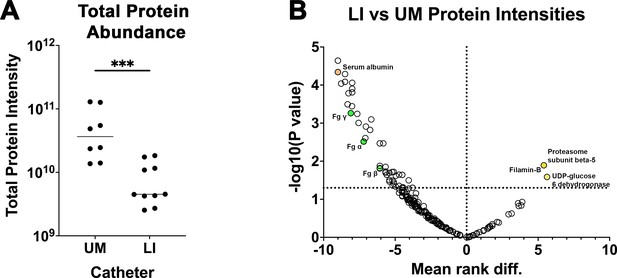

Liquid-infused silicone (LIS)-catheter reduces host-protein deposition in vivo.

A subset of unmodified (UM)- and LIS-catheters taken from mice 24 hpi with E. faecalis were assessed for protein deposition via mass spectrometry four UM-catheters and five LIS-catheters were used. (A) Intensities of the 95% most abundant proteins were summed in a total proteome approach and compared between the UM- and LIS-catheter groups. (B) A volcano plot for a subset of proteins. Negative mean rank difference indicates less protein on the LIS-catheter then on the UM-catheter and a significant difference is a −log10(p value) over 1.3. The fibrinogen (Fg) chains (α, β, and γ) are highlighted in green, serum albumin in orange, UDP-glucose 6-dehydrogenase, filamin-B, and proteasome subunit beta type-5 in yellow. Differences between groups were tested for significance using the Mann-Whitney U test. ***, P < 0.0005.

Figure 6—source data 1

Source data for small datasets.

Individual data from all figures involving small datasets displayed in individual tabs of this source file. This includes Figures 1B and 2A-F, Figure 3B, Figure 4, Figure 1—figure supplement 1 and Figure 2—figure supplement 1.

https://cdn.elifesciences.org/articles/75798/elife-75798-fig6-data1-v2.zip

Discussion

This is the first study to show a diverse set of uropathogens including gram-negative, gram-positive, and fungal species interact with Fg to more effectively bind to silicone urinary catheter surfaces. Furthermore, we found that by disrupting Fg deposition with LIS-catheters we reduced the ability of uropathogens to bind and colonize the catheter surface and bladder in an in vivo CAUTI mouse model. Moreover, LIS also reduced dissemination of E. coli, P. aeruginosa, and A. baumannii into the kidneys and other organs. Furthermore, LIS-catheters did not increase inflammation and for half of the pathogens inflammation was reduced. Finally, the deposition of other host-secreted proteins on LIS-catheters was around 6.5-fold less then UM-catheters. Together, these findings indicate that catheters made using LIS are a promising new antibiotic sparring approach for reducing or even preventing CAUTIs by interfering with protein deposition (Figure 7).

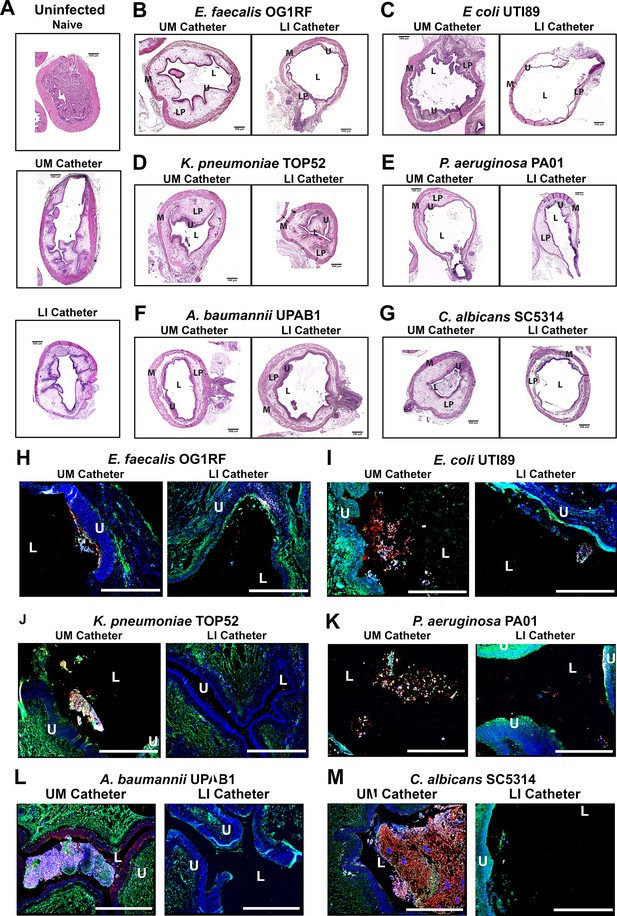

Liquid-infused silicone (LIS)-catheter reduces bladder inflammation, incidence of catheter-associated urinary tract infection (CAUTI), and dissemination.

Urinary catheter-induced inflammation promotes the release of fibrinogen (Fg) into the bladder to heal physical damage. Consequently, this Fg is deposited onto the catheter creating a scaffold for incoming pathogens to bind, establish infection, and promote systemic dissemination. However, catheterization with a LIS-catheter reduces Fg deposition onto its surface; thus, reducing the availability of a binding scaffolds for incoming pathogens. Consequently, overall bladder colonization and systemic dissemination are reduced making LIS-catheters a strong candidate for CAUTI prevention.

Pathogen–Fg interaction has been shown to be important for both E. faecalis and S. aureus during human and mouse CAUTI (Flores-Mireles et al., 2016b; Walker et al., 2017). Binding to Fg is critical for efficient bladder colonization and biofilm formation on the catheter via protein–protein interaction using EbpA and ClfB adhesins, respectively, and their disruption hinders colonization (Flores-Mireles et al., 2014; Walker et al., 2017). Gram-negative pathogens, A. baumannii and P. mirabilis, have shown colocalization with Fg during urinary catheterization (Gaston et al., 2020); however, the bacterial factors and any mode of interaction have not been described. While interaction of E. coli and K. pneumoniae with Fg during CAUTI has not been described previously, pathogenesis during urinary tract infection (UTI) (no catheterization) has been extensively studied. These studies show that type 1 pili, a chaperone–usher pathway (CUP) pili, allows them to colonize the bladder urothelium by binding to mannosylated receptors on the urothelial surface through the tip adhesin FimH (Klein and Hultgren, 2020). Furthermore, other CUP pili including the P pili, important for pyelonephritis, and the Fml pilus, important for colonizing inflamed bladder urothelium, bind specifically to sugar residues Galα1–4Gal in glycolipids and Gal(β1–3)GalNAc in glycoproteins, respectively (Campoccia et al., 2013). Interestingly, Fg is highly glycosylated, containing a wide variety of sugar residues including mannose, N-acetyl glucosamine, fucose, galactose, and N‐acetylneuraminic acid (Adamczyk et al., 2013). Therefore, the glycosylation in Fg may be recognized by CUP pili, allowing pathogens expressing CPU adhesins to become established and colonize the bladder. Furthermore, A. baumannii CUP1 and CUP2 pili are essential for CAUTI, this together with A. baumannii interactions with Fg in vivo, suggests that these pili may play a role in Fg interaction (Di Venanzio et al., 2019). Similarly, P. aeruginosa also encodes CUP pili, CupA, CupB, CupC, and CupD, which have shown to be important for biofilm formation (Mikkelsen et al., 2013); however, their contribution during CAUTI has yet to be investigated. Furthermore, C. albicans has several adhesins, ALS1, ALS3, and ALS9, which have a conserved peptide-binding cavity shown to bind to Fg γ-chain (Hoyer and Cota, 2016).

Inhibition of initial uropathogen binding is crucial to reduce colonization and biofilm formation on urinary catheter surfaces and prevent subsequent CAUTI (Flores-Mireles et al., 2014; Flores-Mireles et al., 2016b). To prevent surface binding, a variety of modified surfaces impregnated with antimicrobial or bacteriostatic compounds have been generated, and have proven to reduce microbial-binding in vitro but not in vivo (Andersen and Flores-Mireles, 2019; Singha et al., 2017). It is possible that in vitro studies do not efficiently mimic the complexities of the in vivo environment, for example; (1) Growth media: the majority of in vitro studies use laboratory rich or defined culture media, and it has been shown that laboratory media do not recapitulate the catheterized bladder environment that pathogens encounter (Colomer-Winter et al., 2019; Xu et al., 2017). Specifically, urine culture conditions have shown to activate different bacterial transcriptional profiles than when cultures are grown in defined media (Conover et al., 2016; Xu et al., 2017), which may affect microbial persistence and survival. (2) Host factors: host-secreted proteins are released into the bladder due to catheter-induced physical damage and subsequent inflammation. These proteins are deposited on the catheter surface and may hinder the release of antimicrobials or block interaction of antimicrobials with the pathogen if the antimicrobials are tethered to the surface. As has been observed with Fg deposition on human and mouse catheters, that host-protein deposition is not uniform, which may lead to antimicrobial release or pathogen–antimicrobial agent interaction at a subinhibitory concentrations (Di Venanzio et al., 2019; Flores-Mireles et al., 2014; Flores-Mireles et al., 2016a; Walker et al., 2017). Consequently, these interactions can contribute to the development of multidrug resistance among uropathogens (‘Antibiotic resistance threats in the Antibiotic resistance threats in the United States, 2019', 2019).

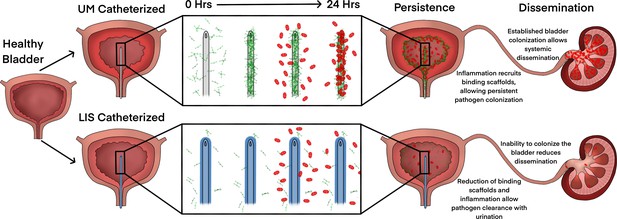

Based on the role of deposited host proteins in promoting microbial colonization and presence in human CAUTI (Flores-Mireles et al., 2016a; Flores-Mireles et al., 2016b; Walker et al., 2017), antifouling catheter coatings present a better approach to decreasing CAUTI prevalence rather than using biocidal or biostatic compounds, such as antibiotics, that promote resistance (Campoccia et al., 2013; Singha et al., 2017). Antifouling coatings made from polymers have shown resistance to protein deposition He et al., 2016; however, these coatings can become unstable over time and be difficult to produce requiring extensive wet chemistry (Singha et al., 2017). Most reports on the use of purely antifouling coatings to combat CAUTI have shown a successful reduction in bacterial colonization in vitro yet have not been successfully tested in vivo (Andersen and Flores-Mireles, 2019). This may be partly explained by the fact that many of the antifouling coatings are optimized to target bacterial adhesion, as it is understood that the first stage of biofilm development is bacterial attachment to a surface (Faustino et al., 2020). However, in a complex environment such as the in vivo bladder, the first change to the catheter surface is the adhesion of a complex set of host-generated proteins and biological molecules, generally referred to as a conditioning film, which can mask the surface (Faustino et al., 2020; Gaston et al., 2020; Scotland et al., 2020). Yet studies on catheter coatings to-date have rarely focused on the role of the host in infection establishment; namely, the host-secreted proteins. The data we present here suggest that this missing element may at least partly explain the differing results seen for most antifouling catheter treatments in vitro vs in vivo.

This study used clinically relevant silicone oil to create a simple to make LIS that was not only microbial resistant but also protein resistant, filling in the missing link between in vitro and in vivo work, the conditioning film. Interestingly, despite the increased weight, length, inner diameter, and outer diameterof the LIS mouse catheter by full silicone infusion, the LIS-catheters did not exacerbated the inflammation response. This findings are consistent with previous a in vivo work showing reduced fibrous capsule formation in implants coated with a liquid layer, suggesting that the use of a liquid surface may convey additional anti-inflammatory benefits (Chen et al., 2017).

Our mouse model of CAUTI has shown to faithfully recapitulate the pathophysiology of human CAUTI, showing urinary catheterization induces inflammation and contribution of Fg to biofilm formation on catheters recovered from humans suffering of CAUTI (Delnay et al., 1999; Flores-Mireles et al., 2014; Flores-Mireles et al., 2016a; Flores-Mireles et al., 2016b; Glahn et al., 1988; Peychl and Zalud, 2008; Walker et al., 2017). This suggests that our findings have the potential to be translated for prevention and management of human CAUTI. However, for successful translation of this technology into humans, we need to further understand the effects of silicone oil on the immune response to infection as well as bladder tissue and better understand the impact the swelling of the material will have on manufacturing these catheters.

A deeper understanding of the pathogenesis of CAUTI is critical to moving beyond current developmental roadblocks and create more efficient intervention strategies. Here, we have shown that that infusion of silicone with an immiscible liquid coating significantly decreases Fg deposition and microbial binding by using in vitro conditions that more thoroughly recapitulate the catheterized bladder environment. Importantly, our in vitro results were confirmed in vivo using our established mouse model of CAUTI. Our data showed that LIS-catheters are refractory to bacterial colonization without targeting microbial survival, which often leads to antimicrobial resistance. This study has found that protein deposition on urinary catheters is the Achilles heel of CAUTI pathogens, disrupting pathogen–Fg interaction represent a vulnerability that could be exploited. Thus, LIS-catheters hold tremendous potential for the development of lasting and effective CAUTI treatments. These types of technologies are desperately needed to achieve better public health by decreasing healthcare-associated infections and promoting long-term wellness.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Enterococcus faecalis)OG1RFATCC47,077
Strain, strain background (Escherichia coli)UTI89Obtained from Dr, Scott Hultgren lab
Strain, strain background (Pseudomonas aeruginosa)PA01ATCCBAA-47
Strain, strain background (Klebsiella pneumoniae)TOP52 1721Obtained from Dr. Scott Hultgren lab
Strain, strain background (Acetobacter baumannii)UPAB1 + CUP1,2Obtained from Dr Mario Feldman lab Di Venanzio et al., 2019
Strain, strain background (Candida albicans)SC5314ATCCMYA-2876
Biological sample (Homosapian female)UrineThis studyIRB #19-04-5273
Antibody(Goat polyclonal) antifibrinogenSigma-AldrichCat# F8512, RRID:AB_2597651:1000
Antibody(Rabbit polyclonal) anti-strep group dFrom Dr. Scott Hultgren lab Flores-Mireles et al., 20141:1000 (in vitro)1:500 (IHC)
Antibody(Rabbit polyclonal) anti-E. coli serotype O/KInvitrogenCat# PA1-25636 RRID:AB_7804881:1000 (in vitro)1:500 (IHC)
Antibody(Rabbit polyclonal) anti P. aeruginosaInvitrogenCat# PA173117 RRID:AB_10182791:1000 (in vitro)1:500 (IHC)
Antibody(Rabbit polyclonal) anti-K. pneumoniae polyclonalThermo ScientificCat# PA17226 RRID:AB_5598161:1000 (in vitro)1:500 (IHC)
Antibody(Rabbit polyclonal) anti A. baumanniiDi Venanzio et al., 20191:1000 (in vitro)1:500 (IHC)
Antibody(Rabbit polyclonal) anti C. albicansThermo Fisher ScientificCat# PA1-27158 RRID:AB_7795001:1000 (in vitro)1:500 (IHC)
Antibody(Rat polyclonal) anti-Ly6GBioLegendCat# 127602 RRID:AB_10891801:500
Antibody(Donkey polyclonal) anti-goat 800CWLI-COR BiosciencesCat# 926-32214, RRID:AB_6218461:5000
Antibody(Donkey polyclonal) anti-rabbit 680RDLI-COR BiosciencesCat# 926-68073, RRID:AB_109544421:5000
Antibody(Donkey polyclonal) anti-rat 680Thermo FisherCat# A-21472, RRID:AB_25358751:500
Antibody(Donkey polyclonal) anti-goat 488Thermo FisherCat# A11055 RRID:AB_25341021:500
Antibody(Donkey polyclonal) anti-rabbit 550Thermo FisherCat# A31572 RRID:AB_1625431:500
Peptide, recombinant proteinFibrinogenEnzyme Research LaboratoriesCat# FIB 3Adjusted to 150 µg/ml in PBS
Software, algorithmZeiss pro SoftwareCarl Zeiss Microscopy
Software, algorithmImage studio softwareLicor Biosciences
OtherSilicone oilGelest63148-62-920 cst

Mouse infection models

Request a detailed protocol

Mice used in this study were ~6-week-old female wild-type C57BL/6 mice purchased from Jackson Laboratory and The National Institute of Cancer Research. Mice were subjected to transurethral implantation and inoculated as previously described (Conover et al., 2015). Briefly, mice were anesthetized by inhalation of isoflurane and implanted with a 6-mm-long UM-silicone or LIS-catheter. Mice were infected immediately following catheter implantation with 50 μl of ~2 × 107 CFU/ml in phosphate-buffered saline (PBS) introduced into the bladder lumen by transurethral inoculation (unless otherwise noted [Supplementary file 1]). For all mouse experiments microbes were grown in their corresponding media (Supplementary file 1). To harvest the catheters and organs, mice were sacrificed at 24 hpi by cervical dislocation after anesthesia inhalation; the silicone catheter, bladder, kidneys, heart, and spleen were aseptically harvested. Catheters were either subjected to sonication (Branson, Ultrasonic Bath) for CFU enumeration analysis, fixed for imaging via standard IF described below, or sent for proteomic analysis as described below using nonimplanted catheters as controls for all assays. Bladders for IF and histology were fixed and processed as described below. Kidneys, spleens, and hearts were all used for CFU analysis. The University of Notre Dame Institutional Animal Care and Use Committee approved all mouse infections and procedures as part of protocol number 18-08-4792MD. All animal care was consistent with the Guide for the Care and Use of Laboratory Animals from the National Research Council.

Bladder Immunohistochemistry (IHC) and H&E staining of mouse bladders

Request a detailed protocol

Mouse bladders were fixed in 10% neutralized formalin (Leica) overnight, before being processed and sectioned by ND CORE. Staining was done as previously described (Walker et al., 2017). Briefly, bladder sections were deparaffinized, rehydrated, and rinsed with water. Antigen retrieval was accomplished by boiling the samples in Na-citrate, washing in water, and then incubating in PBS three times. Sections were then blocked (1× PBS, 1.5% BSA, 0.1% sodium azide), washed in PBS, and incubated with appropriate primary antibodies overnight at 4°C. Next, sections were washed with PBS, incubated with secondary antibodies for 2 hr at RT, and washed once more in PBS prior to Hoechst dye staining. H&E stain for light microscopy was done by the CORE facilities at the University of Notre Dame (ND CORE). All imaging was done using a Zeiss inverted light microscope (Carl Zeiss, Axio Observer). Zen Pro (Carl Zeiss, Thornwood, NY) and ImageJ software were used to analyze the images.

Quantifying catheter colonization and Fg deposition

Request a detailed protocol

As previously described (Colomer-Winter et al., 2019). Briefly, catheters were fixed with 10% neutralized formalin, blocked, and stained using Goat anti-Fg primary antibody (Sigma) (1:1000) and Rabbit anti-pathogen (Supplementary file 1) followed by Donkey anti-Goat IRD800 antibody (Invitrogen) (1:5000) and Donkey anti-Rabbit IRD680 antibody (Invitrogen) (1:5000) secondary. Catheters were then dried over night at 4°C and imaged on an Odyssey Imaging System (LI-COR Biosciences) to examine the infrared signal. Images of the signals (Fg in green and pathogens in red) were analyzed in ImageJ using Pixel color counter (Gaston et al., 2020).

Human urine collection

Request a detailed protocol

Human urine was collected and pooled from at least two healthy female donors between 20 and 40 years of age. Donors had no history of kidney disease, diabetes, or recent antibiotic treatment. Urine was sterilized using a 0.22 μm filter (Sigma-Aldrich) and pH adjusted to 6.0–6.5. When supplemented with BSA (VWR Lifesciences), urine was filter sterilized again following BSA addition. All participants signed an informed consent form and protocols were approved by the local Internal Review Board at the University of Notre Dame under study #19-04-5273.

Microbial growth conditions in supplemented urine

Request a detailed protocol

E. faecalis and C. albicans were grown static for ~5 hr in 5 ml of respective media (Supplementary file 1) followed by static overnight culture in human urine supplemented with 20 mg/ml BSA (urine BSA20). E. coli, K. pneumoniae, P. mirabilis, A. baumanii, and P. aeruginosa were grown 5 hr shaking at 37°C in LB then static in fresh urine BSA for 24 hr then, supplemented into fresh urine BSA for an additional 24 hr static (2 × 24 hr) in urine BSA20. All cultures were washed in PBS (Sigma) three times and resuspended in assay appropriate media.

Silicone disk preparation

Request a detailed protocol

Disks of UM-silicone (Nalgene 50 silicone tubing, Brand Products) or LIS were cut using an 8 mm leather hole punch. UM disks were washed three times in PBS and air dried. LIS disks were stored in filter sterilized silicone oil at RT. Disks were skewered onto needles (BD) to hold them in place and put in 5 ml glass tubes (Thermo Scientific) or placed on the bottom of 96-well plate wells (Fisher Scientific) (UM-silicone only). Plates and glass tubes were UV sterilized for >30 min prior to use.

Protein-binding assays

Request a detailed protocol

Human Fg free from plasminogen and von Willebrand factor (Enzyme Research Laboratory #FB3) was diluted to 150 µg/ml in PBS. 500 µL of 150 µg/ml Fg was added to each disk in glass tubes, sealed, and left over night at 4°C. Disks were then processed according to standard IF procedure as described above (Colomer-Winter et al., 2019). Briefly, disks were washed three times in PBS, fixed with 10% neutralized formalin (Leica), blocked, and stained using Goat anti-Fg primary antibody (Sigma) (1:1000) and Donkey anti-Goat IRD800 secondary antibody (Invitrogen) (1:5000). Disks were then dried over night at 4°C and imaged on an Odyssey Imaging System (LI-COR Biosciences) to examine the infrared signal. Intensities for each catheter piece were normalized against a negative control and then made relative to the pieces coated with Fg which was assigned to 100%. Images were processed using Image Studio Software (LI-COR, Lincoln, NE) Microsoft Excel and graphed on GraphPad Prism (GraphPad Software, San Diego, CA).

Microbial-binding assays

Request a detailed protocol

For assessing the effect of protein deposition on microbial binding, 100 µl of 150 µg/ml Human Fg, 100 µl of 150 µg/ml BSA, or 100 µl of PBS were incubated on UM-silicone disks in 96-well plates overnight at 4°C. The following day disks were washed three times with PBS followed by a 2-hr RT incubation in 100 µl of urine containing microbes at a concentration of ~108 CFU/ml.

For assessing microbial binding to UM-silicone vs LIS, 500 µl of microbe containing media was added to prepared disks in glass tubes. Standard IF procedure was then followed as described above using goat anti-Fg and rabbit anti-microbe primary antibodies (1:1000) (see Supplementary file 1 for details). Secondary antibodies used were Donkey anti-Goat IRD800 and Donkey anti-Rabbit IRD680 (1:5000). Quantification of binding was done using ImageStudio Software (LI-COR). Intensities for each catheter piece were normalized against a negative control and then made relative to the pieces coated with Fg which was assigned to 100%.

Silicone and Tygon tube infusion

Request a detailed protocol

Five samples of 20-cm Tygon tube (14-171-219, Saint-Gobain Tygon S3 TM 3603 Flexible Tubings, Fisher Scientific, USA) or silicone tube (8060-0030, NalgeneTM 50 Platinum-cured Silicone Tubing, Thermo Scientific, USA) was utilized in weight measurement. Weight of the tubes prior to infusion were measured with an analytical balance (AL204, Analytical Balance, Mettler Toledo, Germany). After the measurement of the initial weights, the tubes were submerged in silicone oil (DMS-T15, polydimethylsiloxane, trimethylsiloxy, 50 cSt, GelestSInc, USA) and weighed at designated time points. For each time point, tubes were removed from the oil with forceps and held vertically for 30 s for the excess silicone oil to flow out of the tube. The bottoms of the tubes were then gently dabbed with Kimwipes (Kimwipe, Kimberly-Clark Corp., USA). After measurement, the tubes were again submerged in silicone oil until the next time point. Tubes were measured every 3 hr for the first 2 days; every 6 hr from days 3 to 6; and every 24 hr from day 6 and onwards. Measurements were taken until data showed no significant increase, and that the plateau trendline consist of at least three data points. Based on these data, for all the protein- and microbial-binding assays, silicone catheters were submerged in silicone oil for 5 days prior to use to ensure full infusion.

Mouse catheter infusion

Request a detailed protocol

Five samples of 20-cm mouse catheter (SIL 025, RenaSil Silicone Rubber Tubing, Braintree Scientific, Inc, USA) were utilized in weight measurement. Weight of the tubes prior to infusion were measured with an analytical balance. After the measurement of the initial weights, the tubes were submerged in silicone oil for different time points. For each time point, catheters were removed from the oil with forceps and a Kimwipes was immediately pressed against the bottom of the catheters to remove the excess silicone oil via capillary action. After the excess oil was drained, catheters were weighed and placed back into silicone oil to continue with the infusion until the next time point. Catheters were measured every 1 min for the first 5 min of the experiment; every 2 min from 5 to 15 min; and every 5 min from 15 min and onwards. Measurements were taken until weight showed no significant increase, and that the plateau trendline consist of at least three data points. Silicone catheters modified and used in mouse infections were submerged in silicone oil for at least 30 min prior to use.

Parameter measurement of silicone tube before and after infusion

Request a detailed protocol

The length, inner diameter, and outer diameter of silicone tubes were measured before silicone oil infusion and following complete infusion (after incubating with silicone oil for >5 days). All parameters were measured using a digital caliper (06-664-16, Fisherbrand Traceable Digital Calipers, Fisher Scientific, USA). For mouse catheters, length was measured using a digital caliper. For inner and outer diameter measurement, photos of the tube openings of the catheters and a scale of known length were taken and estimated using ImageJ. Percentage weight change of Tygon tube, silicone tube, and mouse catheters were calculated based on the formula below:

Weight of the tubeInitial weight of the tubeInitial weight of the tube100%

Proteomic analysis of mouse catheters

Request a detailed protocol

Five mice catheterized with a LIS-catheter and four mice were catheterized with an UM-catheter were sacrificed after 24 hr of infection with E. faecalis OG1RF. Catheters were harvested and put into 100 µl of sodium dodecyl sulfate (SDS buffer (100 mM Tris–HCl, pH 8.8, 10 mM Dithiothreitol (DTT), and 2% SDS)), then vortexed for 30 s, heated for 5 min at 90°C, sonicated for 30 min and the process repeated once more. Samples were sent to the Mass Spectrometry and Proteomics Facility at Notre Dame (MSPF) for proteomic analysis. Proteins were further reduced in DTT, alkylated and digested with trypsin using Suspension Trap and protocols (Zougman et al., 2014). nLC–MS–MS/MS was performed essentially as described in Sanchez et al., 2020 on a Q-Exactive instrument (Thermo). Proteins were identified and quantified using MaxLFQ (Label Free Quantification) within MaxQuant and cutoff at a 1% FDR (Cox and Mann, 2008). This generated a total of eight data records from UM-catheters and 10 from LIS-catheters. Data reduction was performed by removing contaminants proteins. Protein abundance for each catheter type was then calculated by summing the LFQ intensity of proteins which comprised 95% of the total abundance on the catheters. Strict filtering criteria of at least two replicates with technical duplication from the UM-catheters and three replicates with technical duplication from the LIS-catheters were required to keep an identification. Abundance of the reduced proteins was plotted using GraphPad Prism. Statistical significance was tested using Mann–Whitney U. A volcano plot was created using the ranked mean difference for each protein and −log of calculated p values with alpha = 0.05.

Statistical analysis

Request a detailed protocol

Unless otherwise stated, data from at least three experiments were pooled for each assay. Significance of experimental results was assessed by Mann–Whitney U test using GraphPad Prism, version 7.03 (GraphPad Software, San Diego, CA). Significance values on graphs are *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.0001, and ****p ≤ .00001.

Data availability

The data that support the findings of this study are available in the source data. RAW and processed MS–MS/MS data are available in the MassIVE public repository, accession MSV000088527. This study did not generate new unique reagents.

The following data sets were generated
    1. Champion MM
    2. Andersen MJ
    3. Flores-Mireles AL
    (2020) MassIVE
    ID MSV000088527. Inhibiting Host Protein Deposition on Urinary catheters Reduces Urinary Tract Infections.

References

    1. Delnay KM
    2. Stonehill WH
    3. Goldman H
    4. Jukkola AF
    5. Dmochowski RR
    (1999)
    Bladder histological changes associated with chronic indwelling urinary catheter
    The Journal of Urology 161:1106–1108.
    1. Peychl L
    2. Zalud R
    (2008)
    Changes in the urinary bladder caused by short-term permanent catheter insertion
    Casopis Lekaru Ceskych 147:325–329.

Decision letter

  1. Marc J Bonten
    Reviewing Editor; University Medical Center Utrecht, Netherlands
  2. Wendy S Garrett
    Senior Editor; Harvard T.H. Chan School of Public Health, United States
  3. Marc J Bonten
    Reviewer; University Medical Center Utrecht, Netherlands

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Inhibiting Host Protein Deposition on Urinary Catheters Reduces Urinary Tract Infections" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, including Marc J Bonten as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by a Reviewing Editor and Wendy Garrett as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential Revisions (for the authors):

Please address the comments made by both reviewers.

Reviewer #1 (Recommendations for the authors):

Further fine tuning of the discussion would improve the manuscript.

Reviewer #2 (Recommendations for the authors):

First, may I congratulate you on this excellent article. I learned a lot from it and I am very curious to where this will lead. I have some general issues and some textual issues.

General issues:

I think the readability and comprehension can be improved by adding something of a graphical abstract illustrating the steps of your research. Especially for the fast reader, this offers the possibility to understand the study results and implications in a short time.

Regarding the third step: it is insufficiently clear how the LIS catheter that was used for the mice experiments is manufactured exactly. Is this catheter drained in silicone oil before insertion and for how long? And why is the gain in weight over time so important to register? What can you deduce from this? And speaking of the change of dimensions; what could be the impact of this on the development of CA-UTIs? I think it is important to discuss the implications of these findings.

I think the discussion should focus on what the next steps are in research/development of the LIS catheter, towards its use in clinical practice

Textual issues:

Results:

Do you mean 24 hours?

" Mice catheterized and infected with the respective uropathogen were sacrificed at 24 post infection (hpi)."

Maybe rephrase?

"Analysis found the LIS-catheters showed significantly reduced binding of all uropathogens when compared to μm controls"

Discussion:

You indicate that these pili in vivo interact with Fg and therefore they play a role with Fg interaction? "Furthermore, A. baumannii CUP1 and CUP2 pili are essential for CAUTI, this together with its interactions with Fg in vivo, suggests that these pili may play a role in Fg interaction (Di Venanzio et al., 2019)."

https://doi.org/10.7554/eLife.75798.sa1

Author response

Reviewer #1 (Recommendations for the authors):

Further fine tuning of the discussion would improve the manuscript.

We thank the reviewer for their insightful suggestions to help us to improve the manuscript. We have reviewed and edited the Discussion section.

Reviewer #2 (Recommendations for the authors):

First, may I congratulate you on this excellent article. I learned a lot from it and I am very curious to where this will lead. I have some general issues and some textual issues.

General issues:

I think the readability and comprehension can be improved by adding something of a graphical abstract illustrating the steps of your research. Especially for the fast reader, this offers the possibility to understand the study results and implications in a short time.

We thank the Reviewer for this suggestion. We agree with the Reviewer that a graphical abstract will help to convey our findings. We have added it as Figure 7 (lines 539-546), we will leave to the discretion of the editor to keep it in the manuscript.

Regarding the third step: it is insufficiently clear how the LIS catheter that was used for the mice experiments is manufactured exactly. Is this catheter drained in silicone oil before insertion and for how long? And why is the gain in weight over time so important to register? What can you deduce from this?

We thank the Reviewer for pointing out the lack of details on our part. We have added this information in the results (Lines 134-145) and material and methods (Lines 437-449) sections to explain our use of this data further on in later assays. Silicone infusion was done by submerging the catheter in the silicone oil to achieve full saturation as seen by a plateau in the weight of the tube over time (Figure S2 and Figure S2).

And speaking of the change of dimensions; what could be the impact of this on the development of CA-UTIs? I think it is important to discuss the implications of these findings.

The impact of the swelling of the silicone material during infusion should be taken into account during the manufacturing process. Understanding how much swelling is happening will allow us to predict what dimensions we would need from the beginning of the process to understand the dimensions desired after infusion. The data we have provided in this paper is the beginning of understanding the dimension changes. Furthermore, material flexibility and rigidity compared to current urinary catheter requirements should be assessed. A more in-depth analysis will be done in later publications (Lines 292-293). Importantly, full infusion and thus increased size of the mouse catheters did not exacerbated inflammation and did not promote microbial colonization (Lines 278-285).

I think the discussion should focus on what the next steps are in research/development of the LIS catheter, towards its use in clinical practice

We truly appreciate the reviewer’s feedback to improve our manuscript. We have edited the Discussion section (changes marked in red) and we have now emphasized this point in the Discussion section (Lines 286-295).

Textual issues:

Results:

Do you mean 24 hours?

" Mice catheterized and infected with the respective uropathogen were sacrificed at 24 post infection (hpi)."

Yes, thank you for catching this, it has been changed (Line 101).

Maybe rephrase?

"Analysis found the LIS-catheters showed significantly reduced binding of all uropathogens when compared to μm controls".

We have rephrased this to “Binding analysis by each of the uropathogens showed that all were able to bind in significantly higher densities to the UM-catheters than to the LIS-catheters “ (Lines 157-158).

Discussion:

You indicate that these pili in vivo interact with Fg and therefore they play a role with Fg interaction? "Furthermore, A. baumannii CUP1 and CUP2 pili are essential for CAUTI, this together with its interactions with Fg in vivo, suggests that these pili may play a role in Fg interaction (Di Venanzio et al., 2019)."

We thank the Reviewer to bring this to our attention. Yes, rereading this we understand the confusion “it” refers to A. baumannii not the pili, this has been updated in the manuscript to “…this together with A. baumannii’s interaction with Fg in vivo…” (Lines 228-230)n and microbial biofilms on LIS-catheters

https://doi.org/10.7554/eLife.75798.sa2

Article and author information

Author details

  1. Marissa Jeme Andersen

    Department of Biological Sciences, College of Science, University of Notre Dame, Notre Dame, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
  2. ChunKi Fong

    1. Department of Chemical and Biomedical Engineering, College of Engineering, University of Maine, Orono, United States
    2. Graduate School of Biomedical Science and Engineering, University of Maine, Orono, United States
    Contribution
    Data curation, Investigation, Writing – original draft
    Competing interests
    No competing interests declared
  3. Alyssa Ann La Bella

    Department of Biological Sciences, College of Science, University of Notre Dame, Notre Dame, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  4. Jonathan Jesus Molina

    Department of Biological Sciences, College of Science, University of Notre Dame, Notre Dame, United States
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  5. Alex Molesan

    Department of Biological Sciences, College of Science, University of Notre Dame, Notre Dame, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  6. Matthew M Champion

    Department of Chemistry and Biochemistry, College of Science, University of Notre Dame, Notre Dame, United States
    Contribution
    Formal analysis, Resources
    Competing interests
    No competing interests declared
  7. Caitlin Howell

    1. Department of Chemical and Biomedical Engineering, College of Engineering, University of Maine, Orono, United States
    2. Graduate School of Biomedical Science and Engineering, University of Maine, Orono, United States
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision
    For correspondence
    caitlin.howell@maine.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9345-6642
  8. Ana L Flores-Mireles

    Department of Biological Sciences, College of Science, University of Notre Dame, Notre Dame, United States
    Contribution
    Conceptualization, Funding acquisition, Methodology, Project administration, Resources, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    afloresm@nd.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4610-4246

Funding

National Institute of Diabetes and Digestive and Kidney Diseases (R01-DK128805)

  • Ana L Flores-Mireles
  • Alex Molesan
  • Marissa Jeme Andersen
  • ChunKi Fong
  • Caitlin Howell

Division of Chemical, Bioengineering, Environmental, and Transport Systems (CBET-2029378)

  • ChunKi Fong
  • Caitlin Howell

University of Notre Dame (FY19SEED6)

  • Marissa Jeme Andersen
  • Ana L Flores-Mireles

National Science Foundation (CBET-2029378)

  • Caitlin Howell
  • ChunKi Fong

The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of the Flores-Mireles and Howell laboratories for their helpful suggestions and for making this project possible. Special thank you to Dr. Matthew Champion and the mass spectroscopy and proteomics facility at the University of Notre Dame for their insight into proteomic analysis and the ND CORE Facilities for their work on tissue processing. Thank you to Mario Feldman and Gisela Di Venanzio for providing the A. baumannii strain and antibodies. This work was funded by the University of Notre Dame Institutional Funds and seed grant FY19SEED6 (to ALFM, AALB, and AM), National Institute of Health grant R01-DK128805 (to ALFM, MJA, CH, and CKF), and National Science Foundation grant no. CBET-2029378 (to CH and CKF).

Ethics

All participants signed an informed consent form and protocols were approved by the local Internal Review Board at the University of Notre Dame under study #19-04-5273.

The University of Notre Dame Institutional Animal Care and Use Committee approved all mouse infections and procedures as part of protocol number 18-08-4792MD. All animal care was consistent with the Guide for the Care and Use of Laboratory Animals from the National Research Council. All catheterization and infection were done under isoflurane anesthesia, sacrifices were done by isoflurane overdose followed by cervical dislocation and every effort was made to minimize suffering.

Senior Editor

  1. Wendy S Garrett, Harvard T.H. Chan School of Public Health, United States

Reviewing Editor

  1. Marc J Bonten, University Medical Center Utrecht, Netherlands

Reviewer

  1. Marc J Bonten, University Medical Center Utrecht, Netherlands

Publication history

  1. Received: November 23, 2021
  2. Preprint posted: December 7, 2021 (view preprint)
  3. Accepted: March 17, 2022
  4. Accepted Manuscript published: March 29, 2022 (version 1)
  5. Version of Record published: April 6, 2022 (version 2)

Copyright

© 2022, Andersen et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 866
    Page views
  • 109
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Marissa Jeme Andersen
  2. ChunKi Fong
  3. Alyssa Ann La Bella
  4. Jonathan Jesus Molina
  5. Alex Molesan
  6. Matthew M Champion
  7. Caitlin Howell
  8. Ana L Flores-Mireles
(2022)
Inhibiting host-protein deposition on urinary catheters reduces associated urinary tract infections
eLife 11:e75798.
https://doi.org/10.7554/eLife.75798

Further reading

    1. Microbiology and Infectious Disease
    Shu-Jung Chang et al.
    Research Article

    Typhoid toxin is an essential virulence factor for Salmonella Typhi, the cause of typhoid fever in humans. This toxin has an unusual biology in that it is produced by Salmonella Typhi only when located within host cells. Once synthesized, the toxin is secreted to the lumen of the Salmonella-containing vacuole from where it is transported to the extracellular space by vesicle carrier intermediates. Here we report the identification of the typhoid toxin sorting receptor and components of the cellular machinery that packages the toxin into vesicle carriers, and exports it to the extracellular space. We found that the cation-independent mannose-6-phosphate receptor serves as typhoid toxin sorting receptor and that the coat protein COPII and the GTPase Sar1 mediate its packaging into vesicle carriers. Formation of the typhoid toxin carriers requires the specific environment of the Salmonella Typhi-containing vacuole, which is determined by the activities of specific effectors of its type III protein secretion systems. We also found that Rab11B and its interacting protein Rip11 control the intracellular transport of the typhoid toxin carriers, and the SNARE proteins VAMP7, SNAP23, and Syntaxin 4 their fusion to the plasma membrane. Typhoid toxin's cooption of specific cellular machinery for its transport to the extracellular space illustrates the remarkable adaptation of an exotoxin to exert its function in the context of an intracellular pathogen.

    1. Genetics and Genomics
    2. Microbiology and Infectious Disease
    Gabriel Machado Matos et al.
    Research Article Updated

    Protozoa and fungi are known to have extraordinarily diverse mechanisms of genetic exchange. However, the presence and epidemiological relevance of genetic exchange in Trypanosoma cruzi, the agent of Chagas disease, has been controversial and debated for many years. Field studies have identified both predominantly clonal and sexually recombining natural populations. Two of six natural T. cruzi lineages (TcV and TcVI) show hybrid mosaicism, using analysis of single-gene locus markers. The formation of hybrid strains in vitro has been achieved and this provides a framework to study the mechanisms and adaptive significance of genetic exchange. Using whole genome sequencing of a set of experimental hybrids strains, we have confirmed that hybrid formation initially results in tetraploid parasites. The hybrid progeny showed novel mutations that were not attributable to either (diploid) parent showing an increase in amino acid changes. In long-term culture, up to 800 generations, there was a variable but gradual erosion of progeny genomes towards triploidy, yet retention of elevated copy number was observed at several core housekeeping loci. Our findings indicate hybrid formation by fusion of diploid T. cruzi, followed by sporadic genome erosion, but with substantial potential for adaptive evolution, as has been described as a genetic feature of other organisms, such as some fungi.
